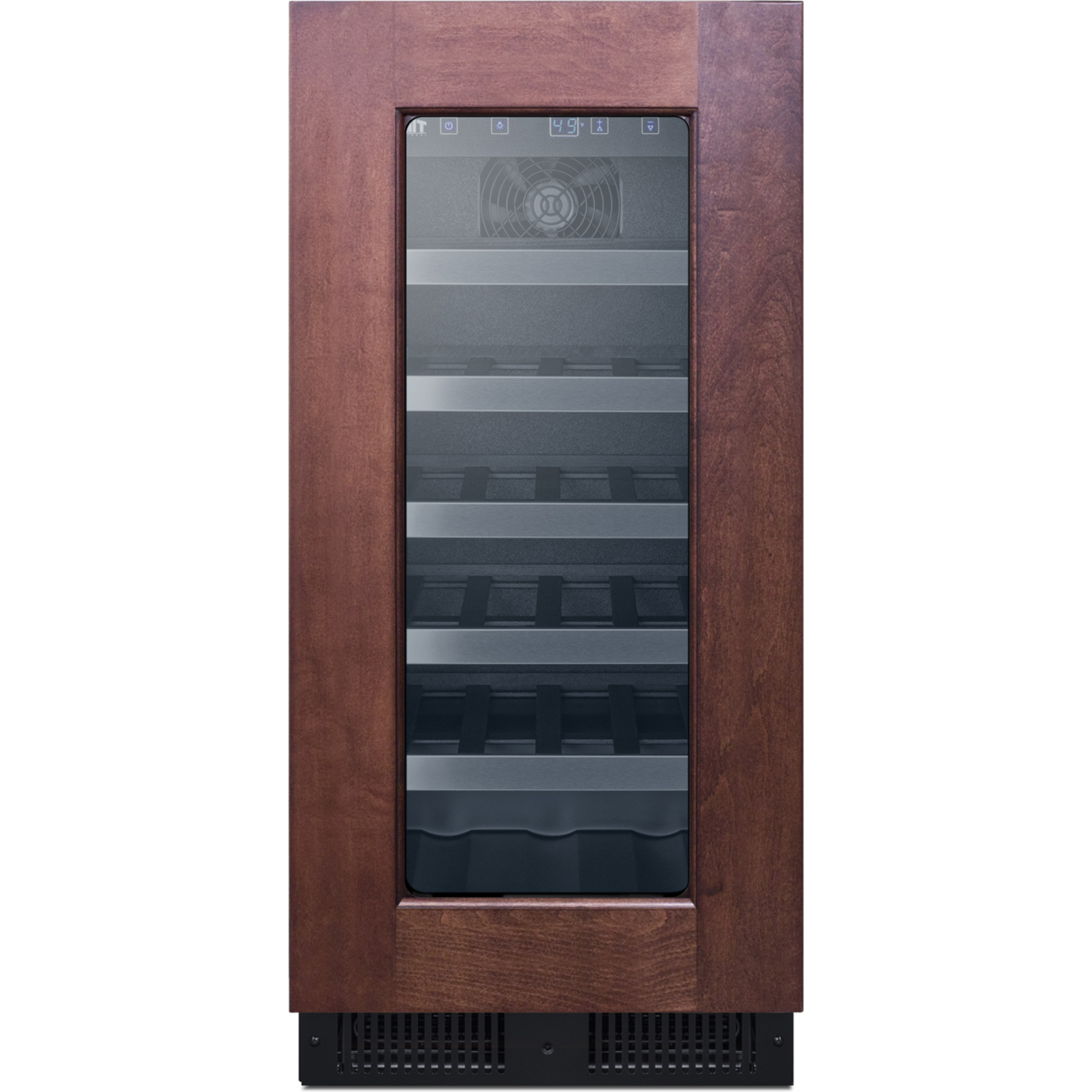

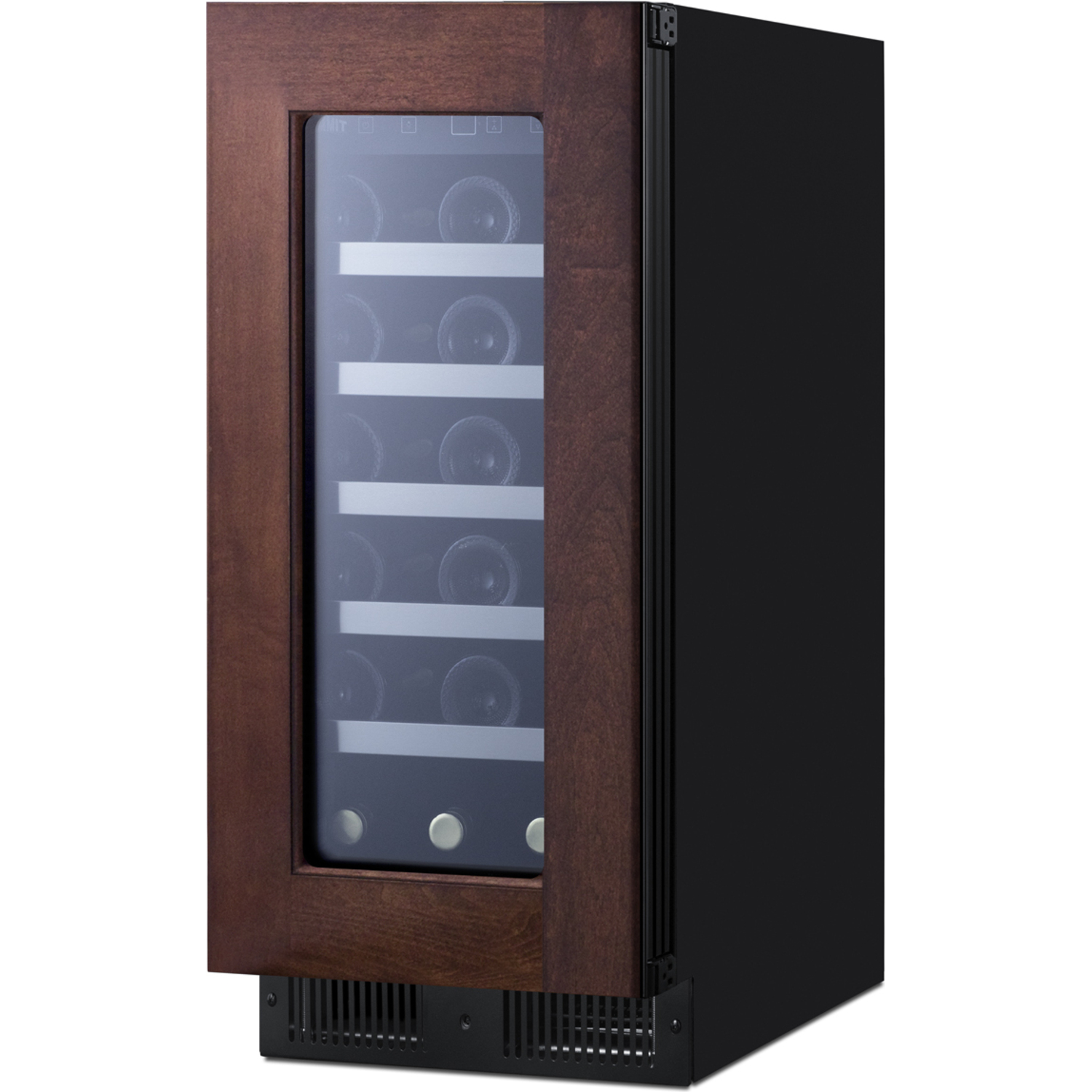

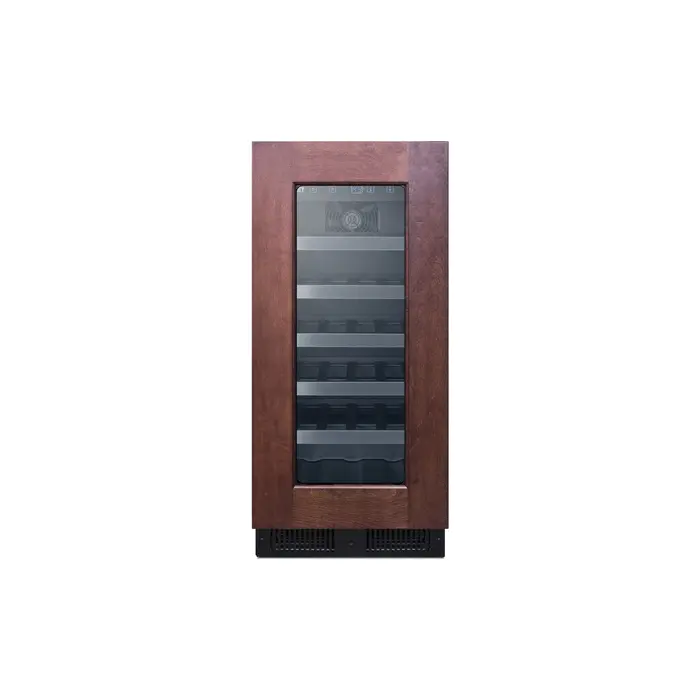

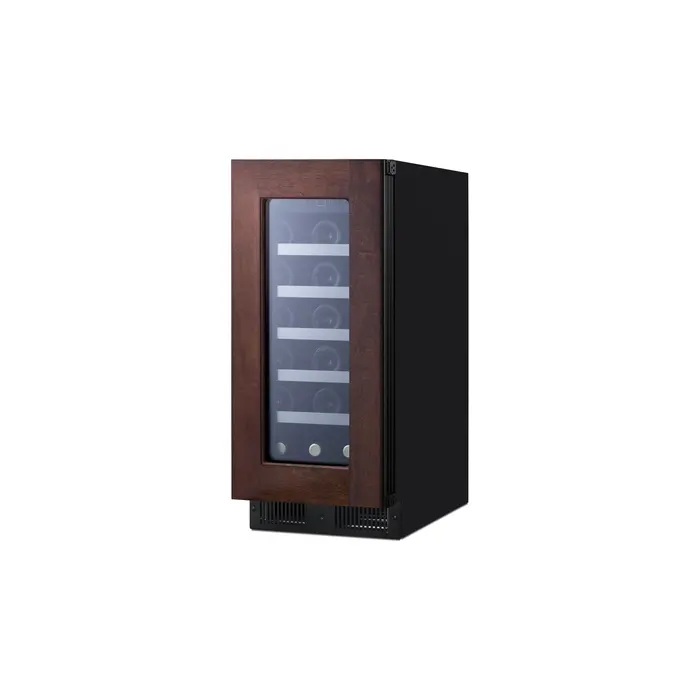

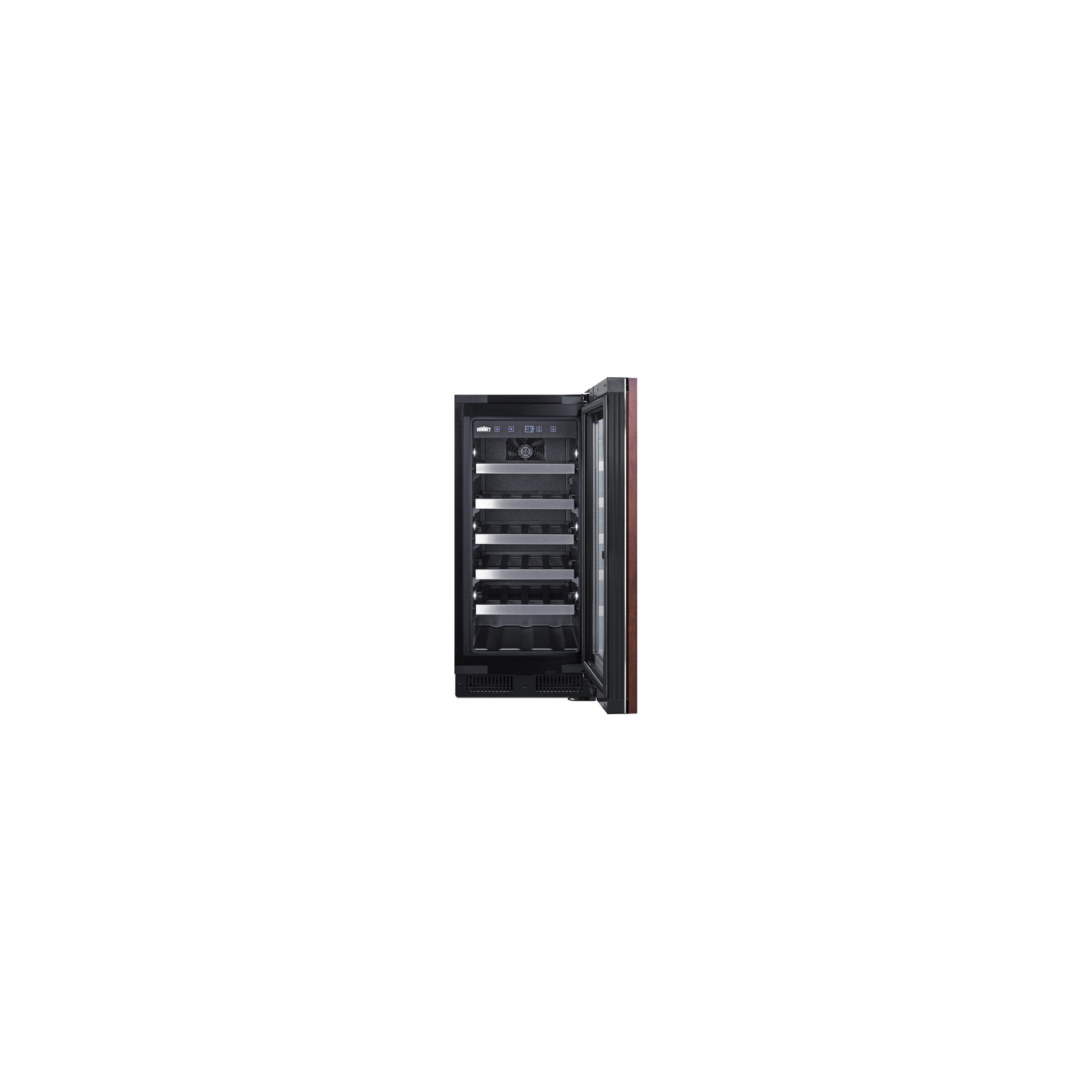

Summit 15 inch wide ADA compliant wine cellar for built-in or freestanding use, with digital controls, front lock, and LED lighting, 7.61101e+011, ALWC15PNR
$1,269.86
Retail Price: $1,885.00
Free shipping
$ 1,269.86
Description
Summit offers the industry's largest selection of 32" high ADA compliant appliances, with quality choices for built-in or freestanding use in 15" wide spaces.
The ALWC15PNR is a wine cellar sized just under 15" wide and 32" high to fit under lower ADA compliant counters. The front-breathing system allows built-in installation, while the fully finished black cabinet also makes it safe for freestanding use. This unit includes a fully articulating European-style hinge and 2-piece bracket kit that lets you easily install overlay panels over the door trim to create a custom look. The double pane tempered glass door provides a full view of stored contents and a front lock offers convenient security. For added space savings, the ALWC15PNR is designed with a sealed back and right angle cord.

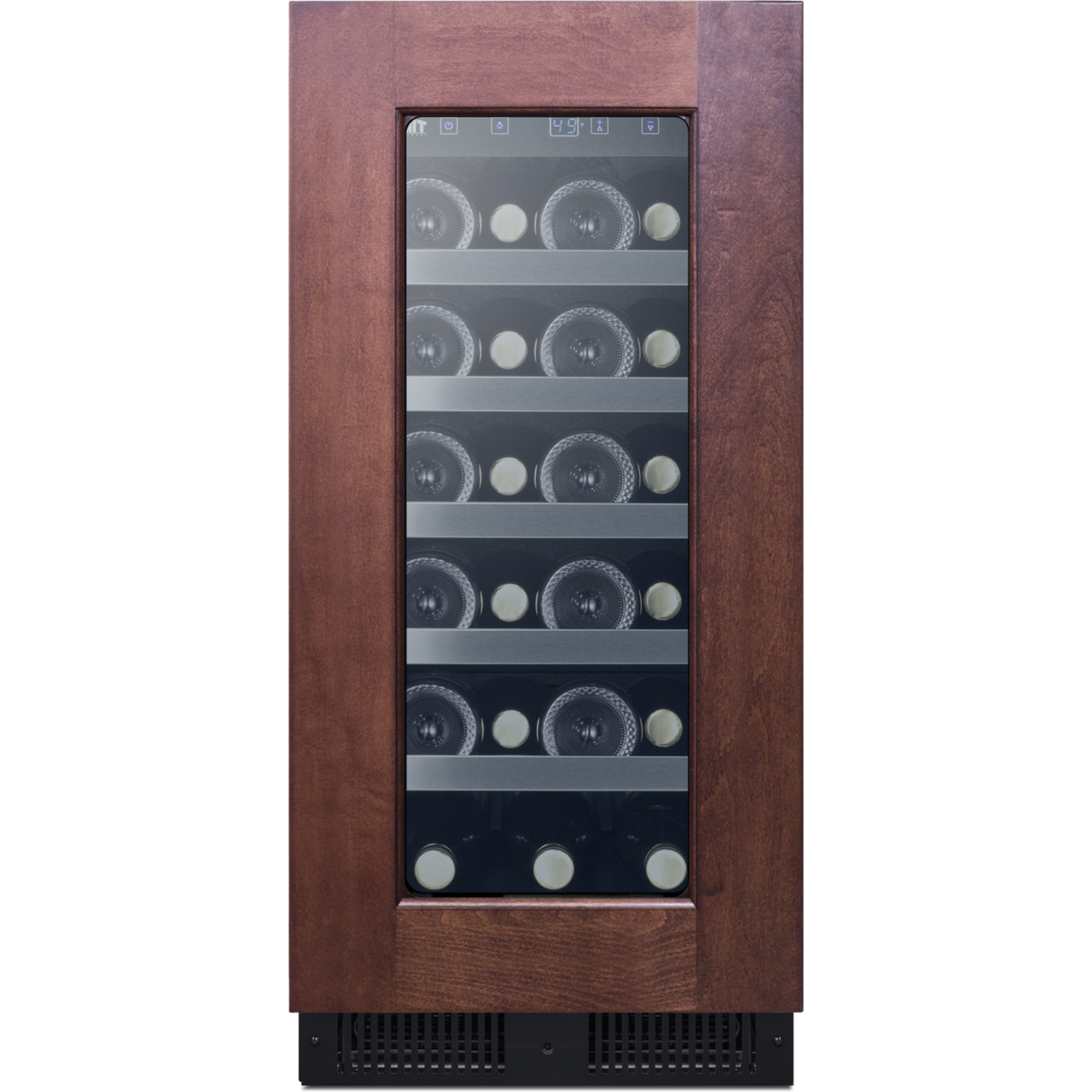

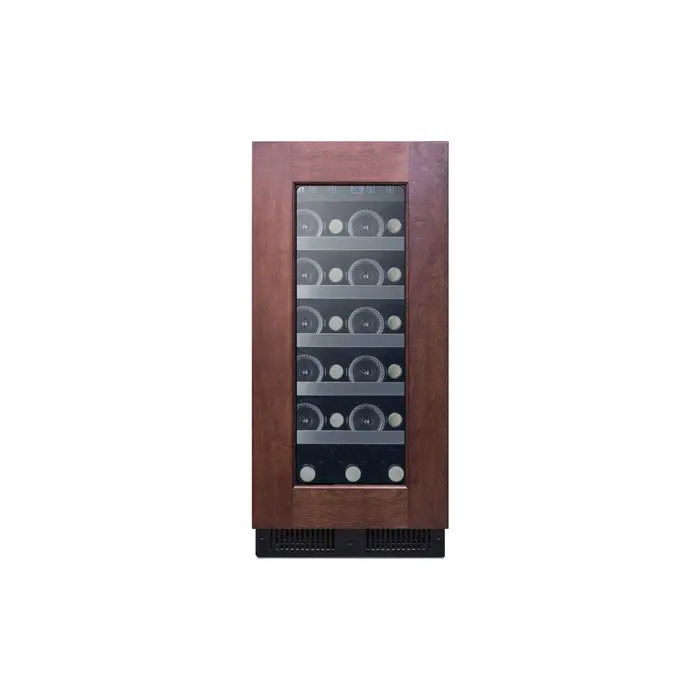

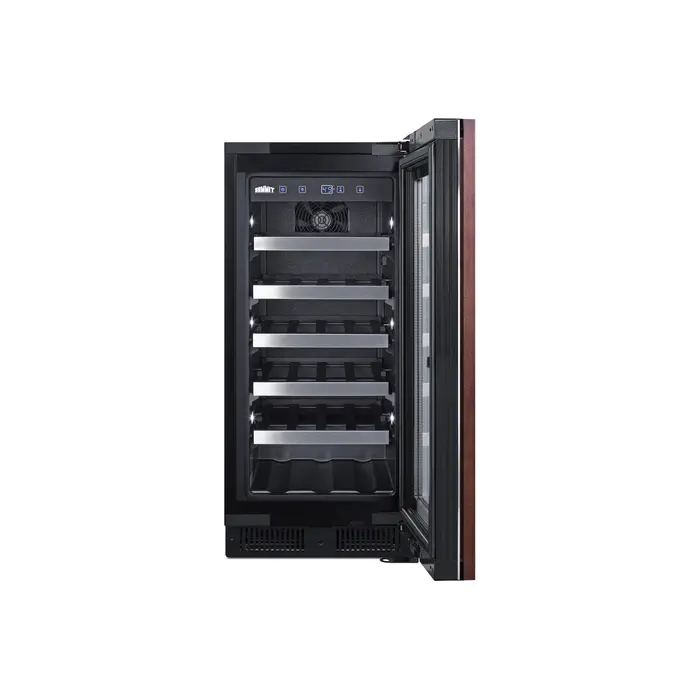

Five wooden shelves let you store up to 23 bottles of your favorite wine. The shelves are specially designed to store either standard Bordeaux style or wider Burgundy style bottles. Recessed LED lighting offers an attractive and energy efficient presentation for your collection. This model utilizes automatic defrost for easy maintenance and includes an internal fan to ensure more even temperature distribution. An audible alarm sounds if the door has been left open for over one minute, or if the temperature has risen out of the recommended storage range. This unit is also equipped with Sabbath mode to allow users the option of disabling certain electrical functions during periods of religious observance.
With its unique size and user-friendly features, the ALWC15PNR is the perfect choice for bringing quality wine storage to ADA compliant settings. Additional ADA compliant choices are available in 6", 18", 24", and 36" wide sizes.
SPECIFICATIONS
Overview
Nominal Height 32.0" (81 cm)
Height of Cabinet 32.0" (81 cm)
Nominal Width 15.0" (38 cm)
Width 14.75" (37 cm)
Nominal Depth 24.0" (61 cm)
Depth 23.63" (60 cm)
Depth with door at 90° 38.25" (97 cm)
Capacity 2.2 cu.ft. (62 L)
Bottles 23 bottles
Defrost Type Automatic
Door Glass/Panel-Ready Frame
Cabinet Black
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Amps 1.0
Voltage/Frequency 115 V AC/60 Hz
Weight 65.0 lbs. (29 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
UPC 761101082882
Wine Cellar
Number of Zones 1
Door Swing RHD
Reversible Yes
Adjustable Shelves Yes
Shelf Type Wood
Shelf Qty 5
Thermostat Type Digital
Interior Light Yes
Refrigerant Type R600a
Refrigerant Amount 0.78 oz.
High Side PSI 270.0
Low Side PSI 105.0
Interior Height 1 21.25" (54 cm)
Interior Width 1 10.5" (27 cm)
Interior Depth 1 17.25" (44 cm)
Compressor Step Height 3.5" (9 cm)
Compressor Step Width 10.5" (27 cm)
Compressor Step Depth 5.0" (13 cm)
Level Legs 4
Temperature Range 41º to 64ºF
Sabbath Mode Yes
Sound Level 32.9 dB
FEATURES
15" Wide Undercounter Wine Cellar 32" high single zone glass door wine cellar with panel-ready door trim
ADA Compliant Sized at 32" high for use under lower ADA compliant counters

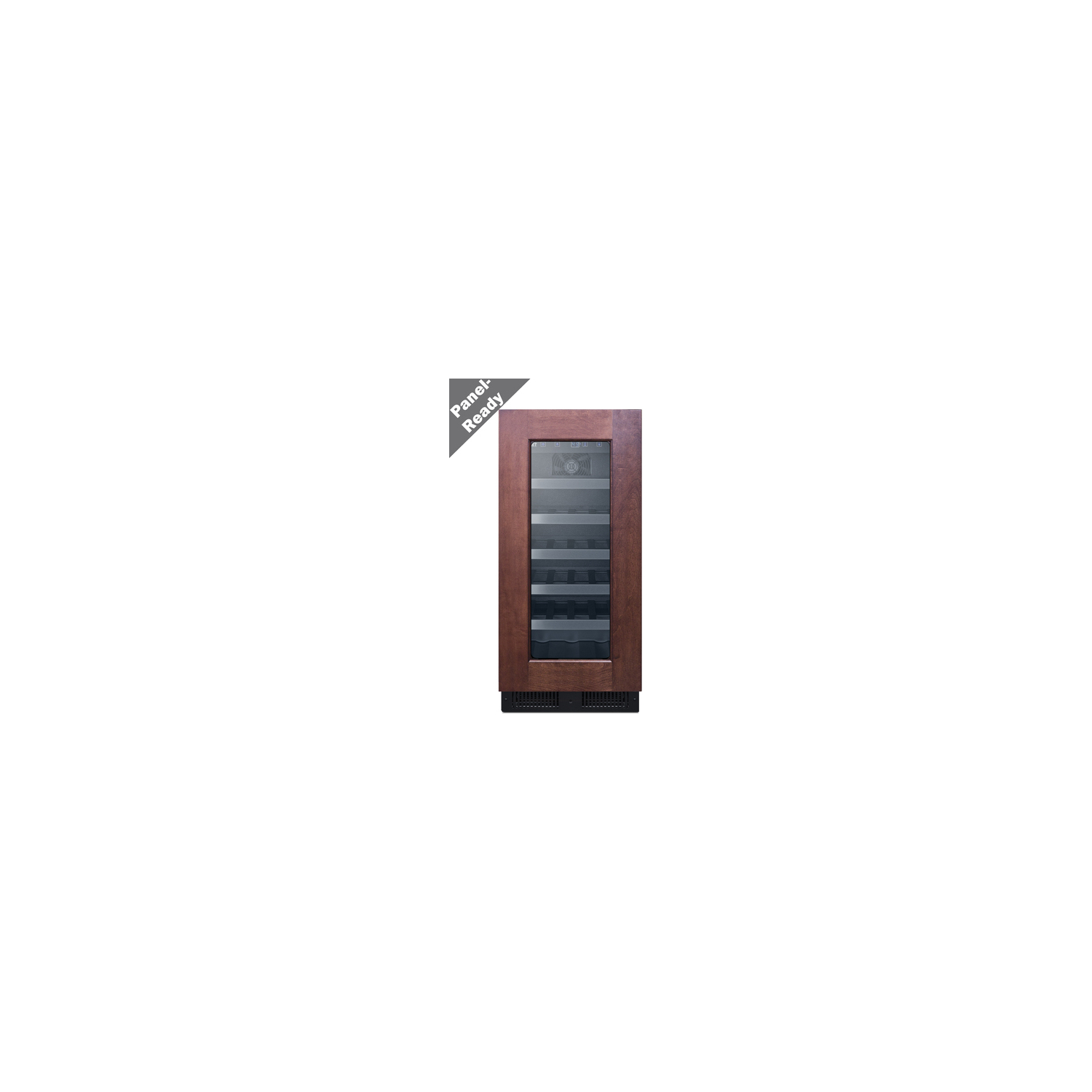

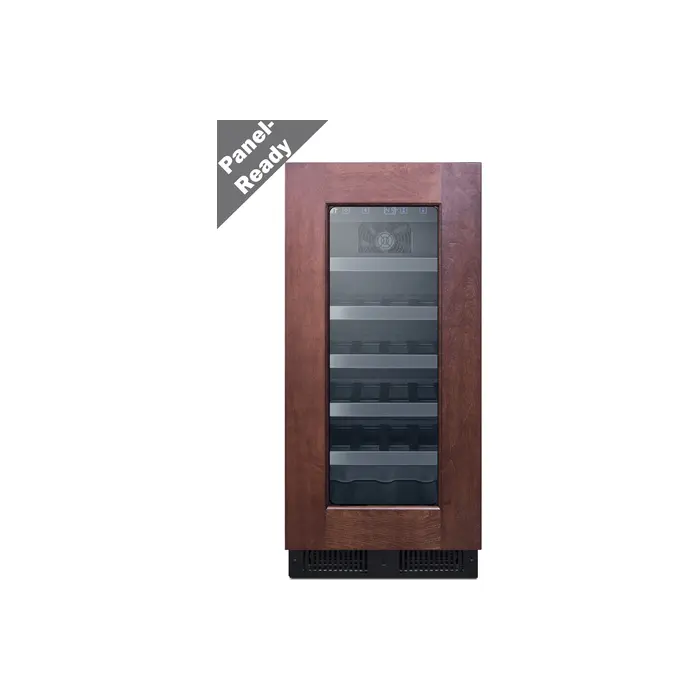

Panel-ready door trim European style articulating door hinge and bracket kit allow easy installation of custom door trim panels to match adjacent cabinetry; Panel dimensions: 3/4" thickness at 28 3/8" H x 14 5/8" W with a 3 1/4" inner frame
Built-in capable Make the best use of space by installing your appliance under the counter
Seamless stainless steel trimmed glass door Provides a full display of your stored collection with a heat-safe double tempered design
Factory installed lock Keyed lock for a secure interior, with two keys included
Digital thermostat Electronic controls for precise temperature management, with indicator lights for red, white, and sparkling wines
Digital display Temperature readout can be shown in Celsius or Fahrenheit
Recessed LED lighting Gentle illumination with an on/off switch
Wooden shelves Classic look holds up to 23 Bordeaux or Burgundy style bottles
Slotted floor Floor includes slots to hold bottles in place, and can store up to three champagne bottles
Automatic defrost Reduced maintenance and steady temperature performance
Professional handle Stainless steel handle completes the professional look
Reversible door User-reversible door swing on the refrigerator for added flexibility
Sabbath mode setting Optional setting lets you disable the lighting and alarm for up to 48 hours
Open door alarm Alarm sounds if the door is left open for more than 60 seconds
High temperature alarm Audible alarm sounds if the interior temperature rises out of set range
Temperature memory function In the event of power loss, unit will return to its last settings when power is restored
Right angle cord Design allows you to plug the unit in flush against the wall socket with no need to add extra depth

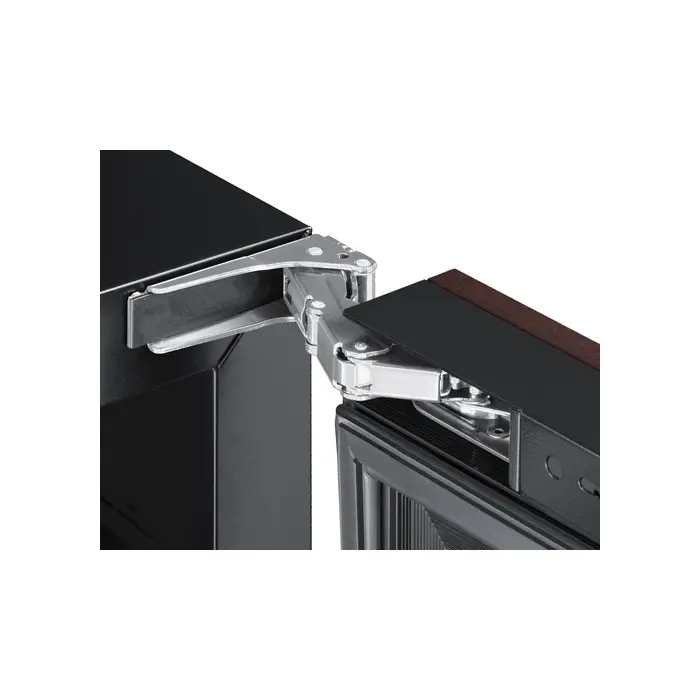

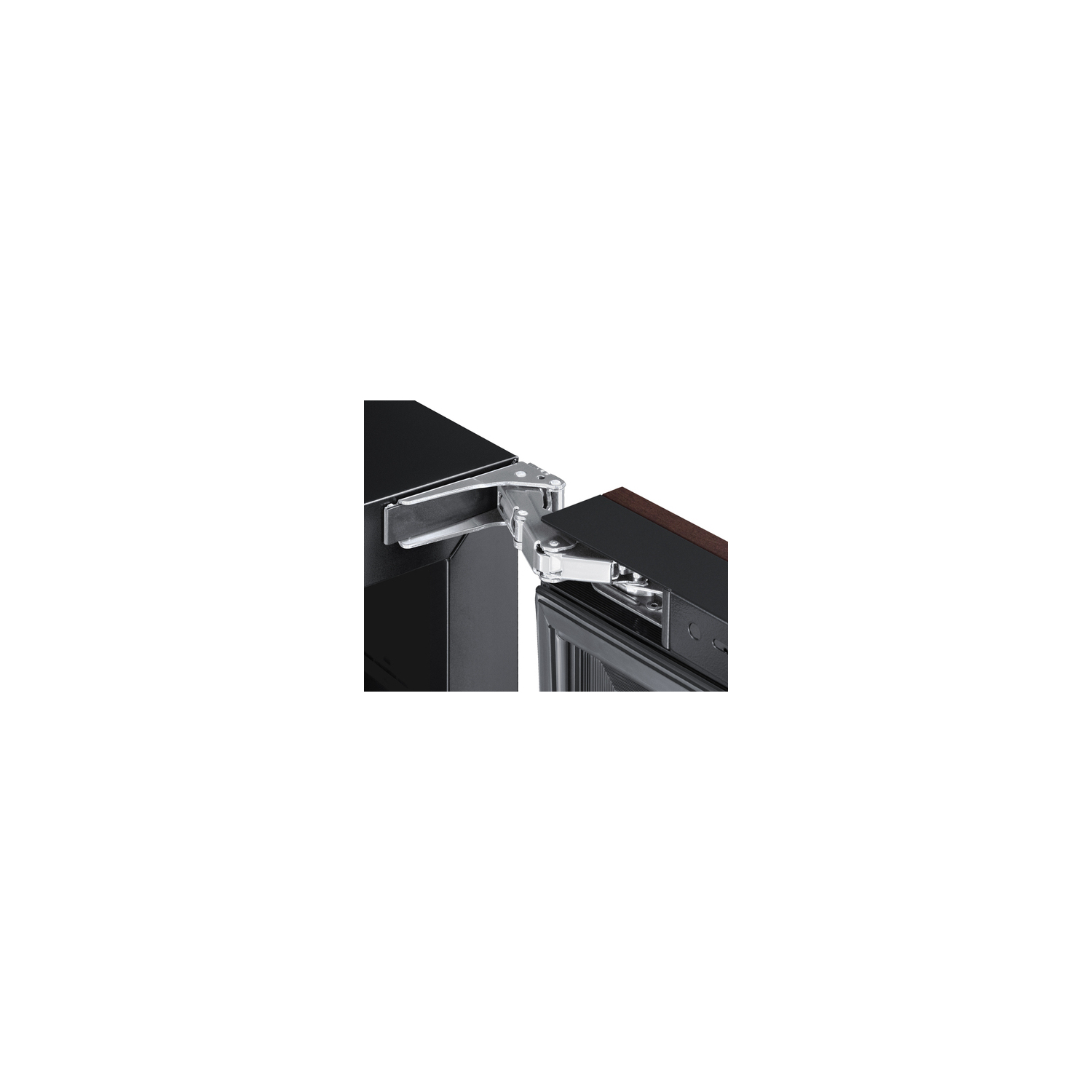

Fully articulating European style hinge Smoother opening and a better fit with an integrated European hinge
Flush back Space saving design makes it easier to install flush against the wall
Matching beverage center available Pair with the ALBV15PNR for a perfectly matched ADA compliant set
Fully finished black cabinet Allows the unit to be used freestanding
100% CFC Free Environmentally friendly design with no ozone-damaging chemicals
CARB Compliant Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
DOWNLOADS
BROCHURE w/ DRAWINGS (ALWC15PNR.pdf)
TECHNICAL DRAWING (.dwg) (ALWC15PNR.dwg)
ASSEMBLY DRAWING (ALWC15PNR-Assembly.pdf)
USE & CARE (ALWC15PNR-User-Manual.pdf)
