Summit 15 inch wide ADA compliant wine cellar for built-in or freestanding use, with digital controls, front lock, LED lighting, and stainless steel wrapped cabinet, 7.61101e+011, ALWC15CSS

Summit offers the industry's largest selection of 32" high ADA compliant appliances, with quality choices for built-in or freestanding use in 15" wide spaces.

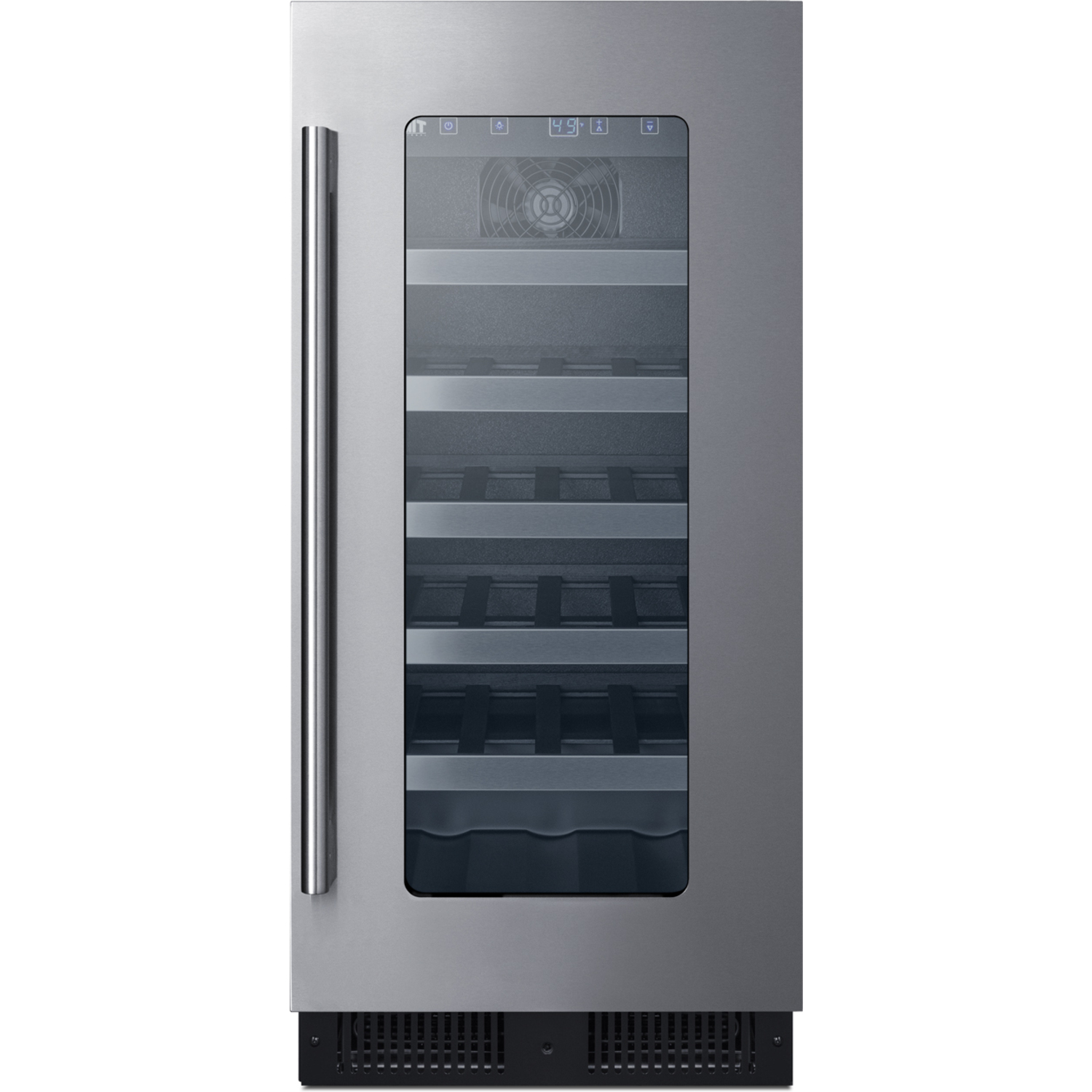

The ALWC15CSS is a wine cellar sized just under 15" wide and 32" high to fit under lower ADA compliant counters. The front-breathing system allows built-in installation, while the stainless steel wrapped cabinet also makes it safe for freestanding use. This unit features a user-reversible double pane tempered glass door complete with stainless steel trim, a fully articulating European style hinge, and a pro style handle. The front lock offers added security. For added space savings, the ALWC15 is designed with a sealed back and right angle cord.

Five wooden shelves let you store up to 23 bottles of your favorite wine. The shelves are specially designed to store either standard Bordeaux style or wider Burgundy style bottles. Recessed LED lighting offers an attractive and energy efficient presentation for your collection. This model utilizes automatic defrost for easy maintenance and includes an internal fan to ensure more even temperature distribution. An audible alarm sounds if the door has been left open for over one minute, or if the temperature has risen out of the recommended storage range. This unit is also equipped with Sabbath mode to allow users the option of disabling certain electrical functions during periods of religious observance.

With its unique size and user-friendly features, the ALWC15CSS is the perfect choice for bringing quality wine storage to ADA compliant settings. Additional ADA compliant choices are available in 6", 18", 24", and 36" wide sizes.

SPECIFICATIONS

Overview

Nominal Height 32.0" (81 cm)

Height of Cabinet 32.0" (81 cm)

Nominal Width 15.0" (38 cm)

Width 14.75" (37 cm)

Nominal Depth 24.0" (61 cm)

Depth 23.63" (60 cm)

Depth with Handle 25.38" (64 cm)

Depth with door at 90° 38.25" (97 cm)

Capacity 2.2 cu.ft. (62 L)

Bottles 23 bottles

Defrost Type Automatic

Door Glass

Cabinet Stainless Steel

US Electrical Safety ETL

Canadian Electrical Safety ETL-C

Amps 1.0

Voltage/Frequency 115 V AC/60 Hz

Weight 70.0 lbs. (32 kg)

Parts & Labor Warranty 1 Year

Compressor Warranty 5 Years

UPC 761101061481

Wine Cellar

Number of Zones 1

Door Swing RHD

Reversible Yes

Adjustable Shelves Yes

Shelf Type Wood

Shelf Qty 5

Thermostat Type Digital

Interior Light Yes

Refrigerant Type R600a

Refrigerant Amount 0.78 oz.

High Side PSI 270.0

Low Side PSI 105.0

Interior Height 1 21.25" (54 cm)

Interior Width 1 10.5" (27 cm)

Interior Depth 1 17.25" (44 cm)

Compressor Step Height 3.5" (9 cm)

Compressor Step Width 10.5" (27 cm)

Compressor Step Depth 5.0" (13 cm)

Level Legs 4

Temperature Range 41º to 64ºF

Sabbath Mode Yes

Sound Level 32.9 dB

FEATURES

15" Wide Wine Cellar Designed for built-in or freestanding installation in slim-fitting ADA compliant spaces

ADA Compliant Sized at 32" high for use under lower ADA compliant counters

Built-in capable Make the best use of space by installing your appliance under the counter

Stainless steel trimmed glass door Provides a full display of your stored collection with a heat-safe double tempered design

Stainless steel wrapped cabinet Exterior cabinet is finished in stainless steel for added luxury and lasting durability

Factory installed lock Keyed lock for a secure interior, with two keys included

Digital thermostat Electronic controls for precise temperature management, with indicator lights for red, white, and sparkling wines

Digital display Temperature readout can be shown in Celsius or Fahrenheit

Recessed LED lighting Gentle illumination with an on/off switch

Wooden shelves Classic look holds up to 23 Bordeaux or Burgundy style bottles

Slotted floor Floor includes slots to hold bottles in place, and can store up to three champagne bottles

Automatic defrost Reduced maintenance and steady temperature performance

Professional handle Stainless steel handle completes the professional look

Reversible door User-reversible door swing on the refrigerator for added flexibility

Sabbath mode setting Optional setting lets you disable the lighting and alarm for up to 48 hours

Open door alarm Alarm sounds if the door is left open for more than 60 seconds

High temperature alarm Audible alarm sounds if the interior temperature rises out of set range

Temperature memory function In the event of power loss, unit will return to its last settings when power is restored

Right angle cord Design allows you to plug the unit in flush against the wall socket with no need to add extra depth

Fully articulating European style hinge Smoother opening and a better fit with an integrated European hinge

Flush back Space saving design makes it easier to install flush against the wall

Matching wine cellar available Pair with the ALWC15CSS for a perfectly matched set

Fully finished cabinet Allows the unit to be used freestanding

100% CFC Free Environmentally friendly design with no ozone-damaging chemicals

CARB Compliant Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
