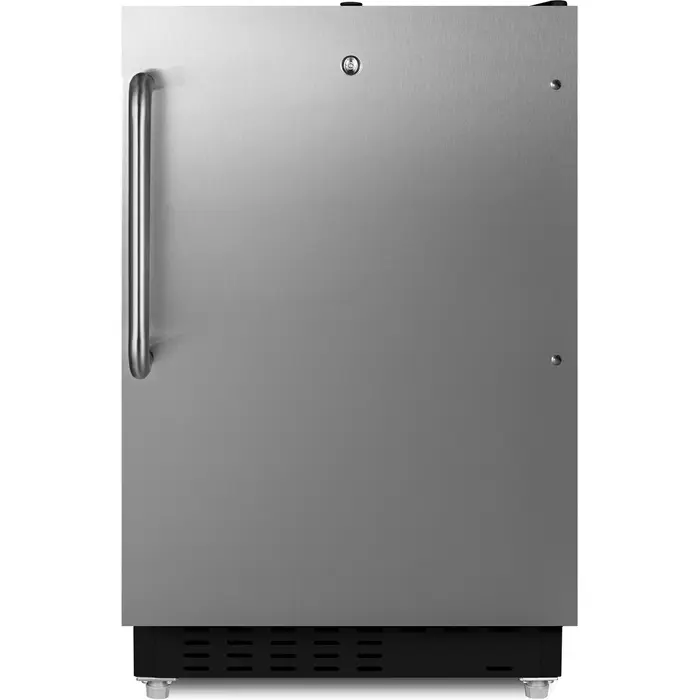

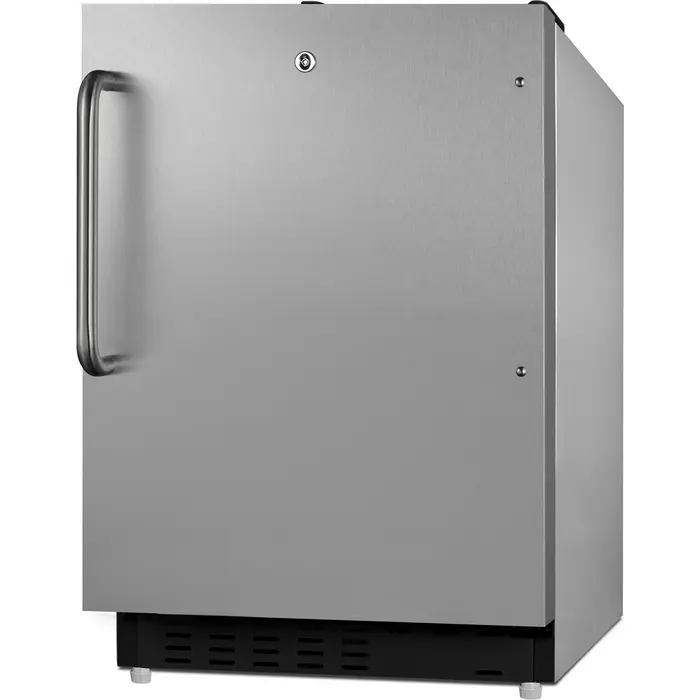

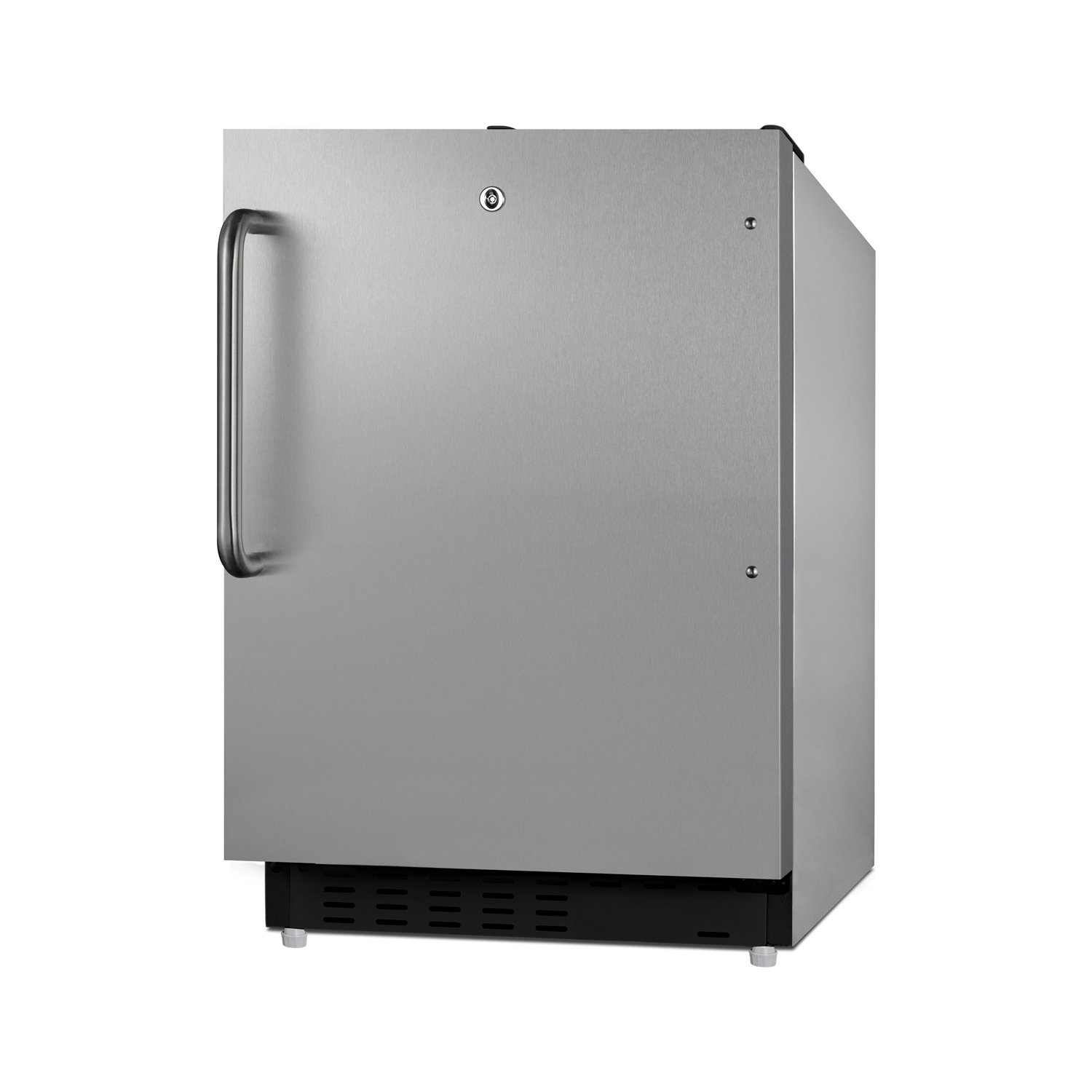

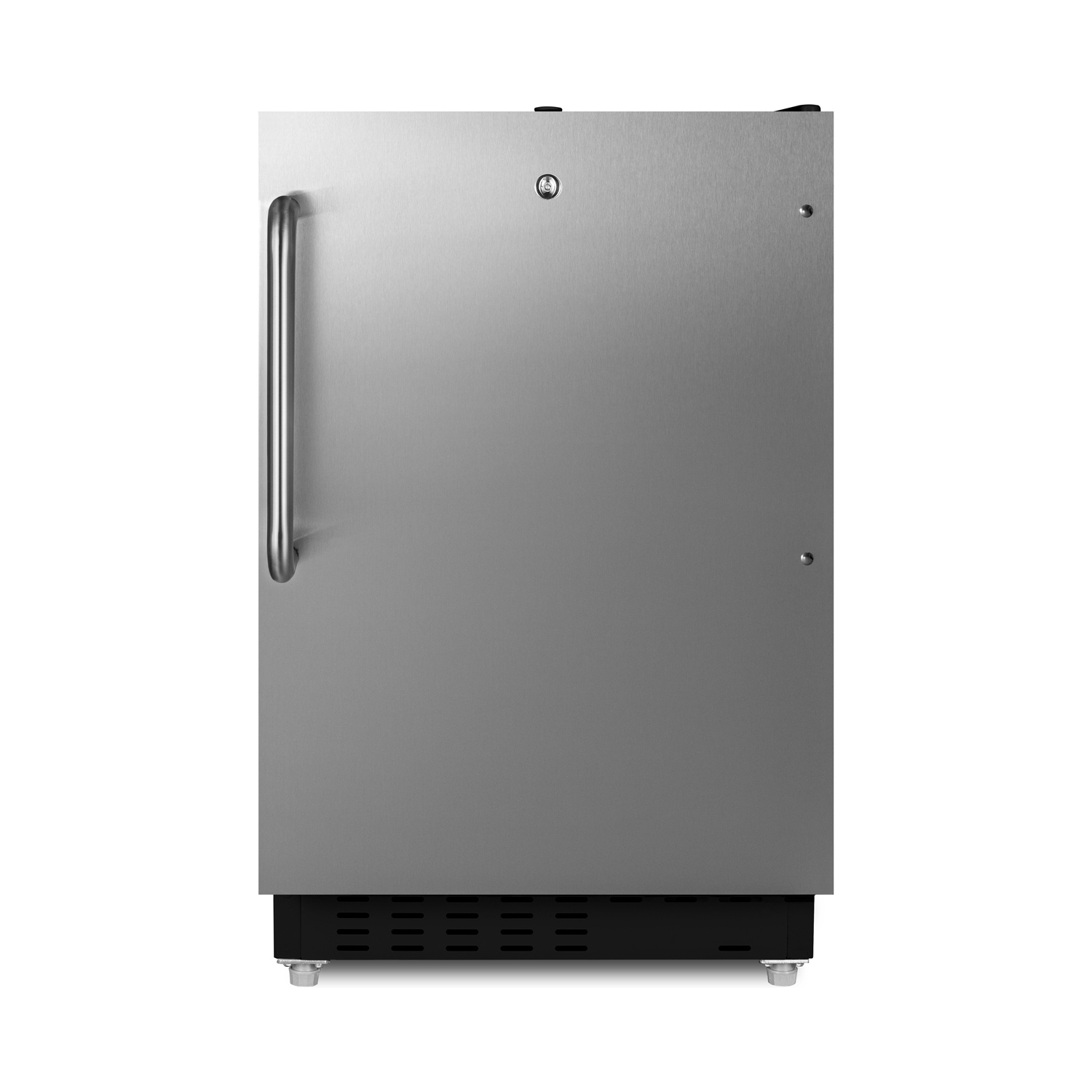

Summit ADA compliant built-in or freestanding 20 inch wide refrigerator-freezer for residential use with lock, 7.61101e+011, ALRF49BCSS

Summit Appliance offers a wide range of built-in undercounter refrigerator-freezers designed for installation under lower ADA compliant counters, with advanced features for user convenience.

The ALRF49BCSS is sized at 32" high to fit under lower counters complying with ADA guidelines for accessibility. The fully finished stainless steel cabinet allows freestanding use, while the front-breathing system means this unit can be built-in with minimum clearance. The stainless steel, user-reversible door is 3" thick for efficient insulation, with a curved towel bar handle included for added convenience. This unit comes with a right angle cord to allow for easier placement without added depth. A factory-installed lock is conveniently located towards the top of the door to provide security as needed.

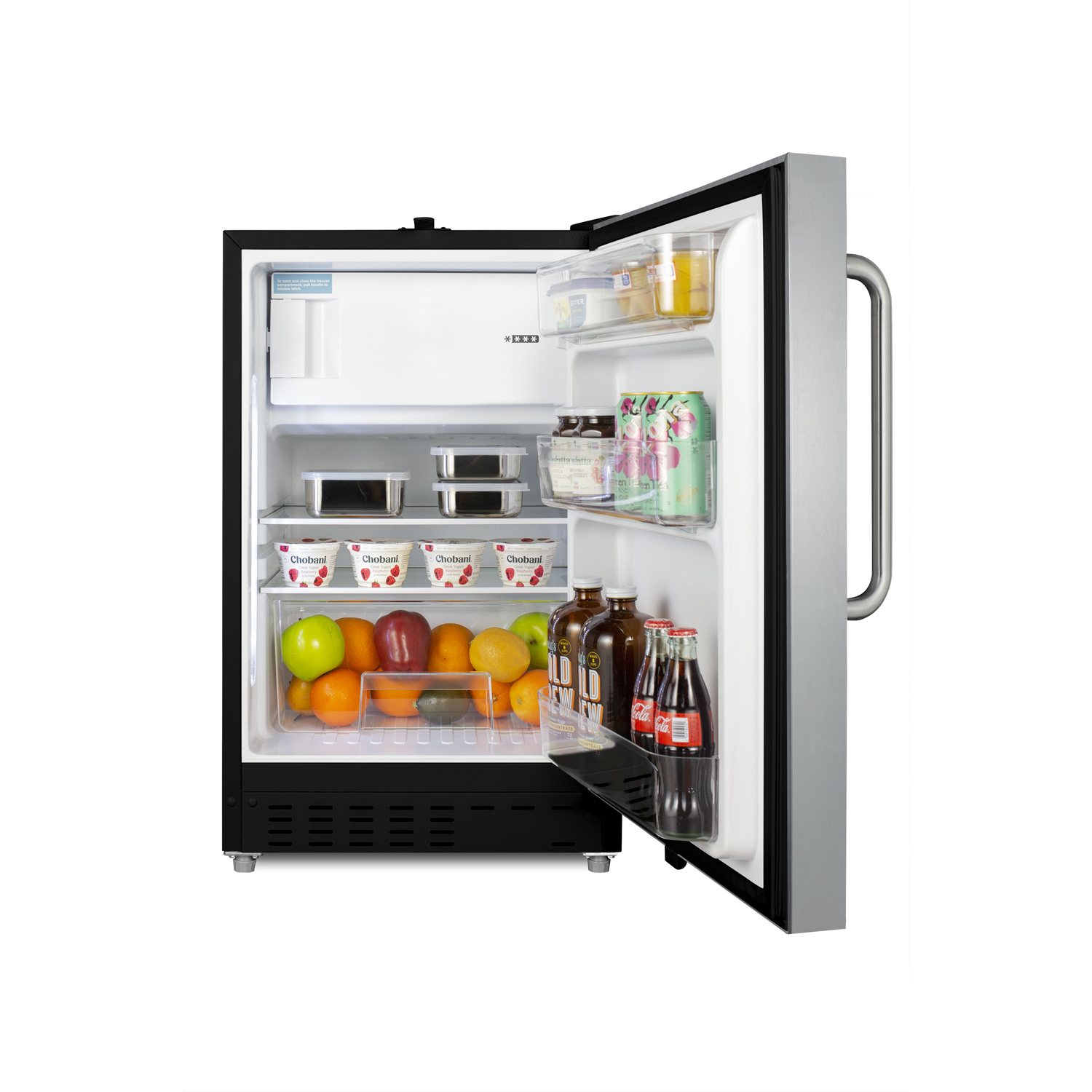

Inside, the ALRF49BCSS features an all-white interior for easy cleaning and viewing of contents. Static manual defrost operation provides efficient cooling inside the 2.68 cu.ft. interior, while the dial thermostat makes temperature management simple. An automatic LED light located toward the front of the unit attractively illuminates the interior when the door opens. Three spill-proof adjustable glass shelves offer flexible storage options for large and small items, while a pull-out crisper drawer provides storage for fruits and vegetables. Three removable door racks accommodate additional storage as needed. This unit includes a compact freezer compartment with a cover.

With its compact size and convenient features, the ALRF49BCSS is the perfect unit for offices, dormitories, and other residential settings in need of an easy-fitting refrigerator-freezer.

SPECIFICATIONS

Overview

Nominal Height 32.0" (81 cm)

Height of Cabinet 31.75" (81 cm)

Height to Hinge Cap 32.0" (81 cm)

Nominal Width 21.0" (53 cm)

Width 20.88" (53 cm)

Nominal Depth 23.0" (58 cm)

Depth 22.5" (57 cm)

Depth with Handle 25.0" (64 cm)

Depth with door at 90° 40.25" (102 cm)

Capacity 2.68 cu.ft. (76 L)

Defrost Type Manual

Door Stainless Steel

Cabinet Stainless Steel

US Electrical Safety ETL

Canadian Electrical Safety ETL-C

Energy Usage/Year 259.0kWh/year

Amps 1.1

Voltage/Frequency 115 V AC/60 Hz

Weight 105.0 lbs. (48 kg)

Parts & Labor Warranty 1 Year

Compressor Warranty 5 Years

UPC 761101076553

Refrigerator-Freezer

Door Swing RHD

Reversible Yes

Adjustable Shelves Yes

Crisper Qty 1

Crisper Finish Transparent

Crisper Cover Glass

Interior Light Yes

Refrigerator - Interior Height 17.5" (44 cm)

Refrigerator - Interior Width 16.25" (41 cm)

Refrigerator - Interior Depth 17.0" (43 cm)

Refrigerator - Shelf Type Glass

Refrigerator - Shelf Qty 3

Refrigerator - Full Door Shelves 3

Refrigerator - Temperature Range 35-46º F

Refrigerator - Refrigerant Type R600a

Refrigerator - Refrigerant Amount 0.92 oz.

Freezer - Interior Height 5.75" (15 cm)

Freezer - Interior Width 16.25" (41 cm)

Freezer - Interior Depth 11.25" (29 cm)

Thermostat Type Dial

Refrigerant Type R600a

Refrigerant Amount 0.92 oz.

High Side PSI 180.0

Low Side PSI 80.0

Level Legs 2

Compressor Step Height 6.25" (16 cm)

Compressor Step Width 16.25" (41 cm)

Compressor Step Depth 6.0" (15 cm)

Sound Level 32.9 dB

FEATURES

ADA compliant design 32" height allows easy installation under lower ADA compliant counters

Built-in capable Front-breathing design lets you make the best use of space by installing your appliance under the counter

Freezer compartment Interior freezer compartment offers convenient storage for frozen items

Door shelves Three removable door racks for additional storage of larger items

Adjustable shelves Three adjustable, spill-proof glass shelves for optimal storage in the 2.68 cu. ft. interior

Fruit and vegetable crisper Get the longest life and best taste out of produce by storing greens in a convenient slide drawer

Adjustable thermostat Dial thermostat located inside for easy temperature management

Reversible stainless steel door Stainless steel, user-reversible door for added flexibility to best accommodate your setting

3" thick door Improved insulation for an efficient performance

Professional towel bar handle Curved handle in brushed stainless steel offers a sturdy grip with professional elegance

Factory installed lock Lock provides added security of unit (2 keys included)

Sealed back Space-saving design that offers easier cleanability

Right-angle plug Design allows you to plug the unit in flush against the wall socket with no need to add extra depth

Manual defrost Efficient performance with reliable temperature stability

Interior light Front-located LED light ensures entire interior is lit when door opens

Fully finished stainless steel cabinet Allows the unit to be used freestanding

100% CFC Free Environmentally friendly design with no ozone-damaging chemicals

CARB Compliant Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

DOWNLOADS

BROCHURE (ALRF49BCSS.pdf)

REVIT MODEL (QF_Summit_ALRF49B_Built_In_All_Refrigerator_Freezer_ADA_Compliant_2.rfa)

USE & CARE (ALRF49BCSS-User-Manual.pdf)

Energy Guide
