Summit ADA compliant built-in or freestanding 20 inch wide all-refrigerator for residential use, 7.61101e+011, ALR46W

Summit Appliance offers a quality selection of 20" wide built-in undercounter all-refrigerators designed for installation under lower ADA compliant counters, with advanced features for user convenience.

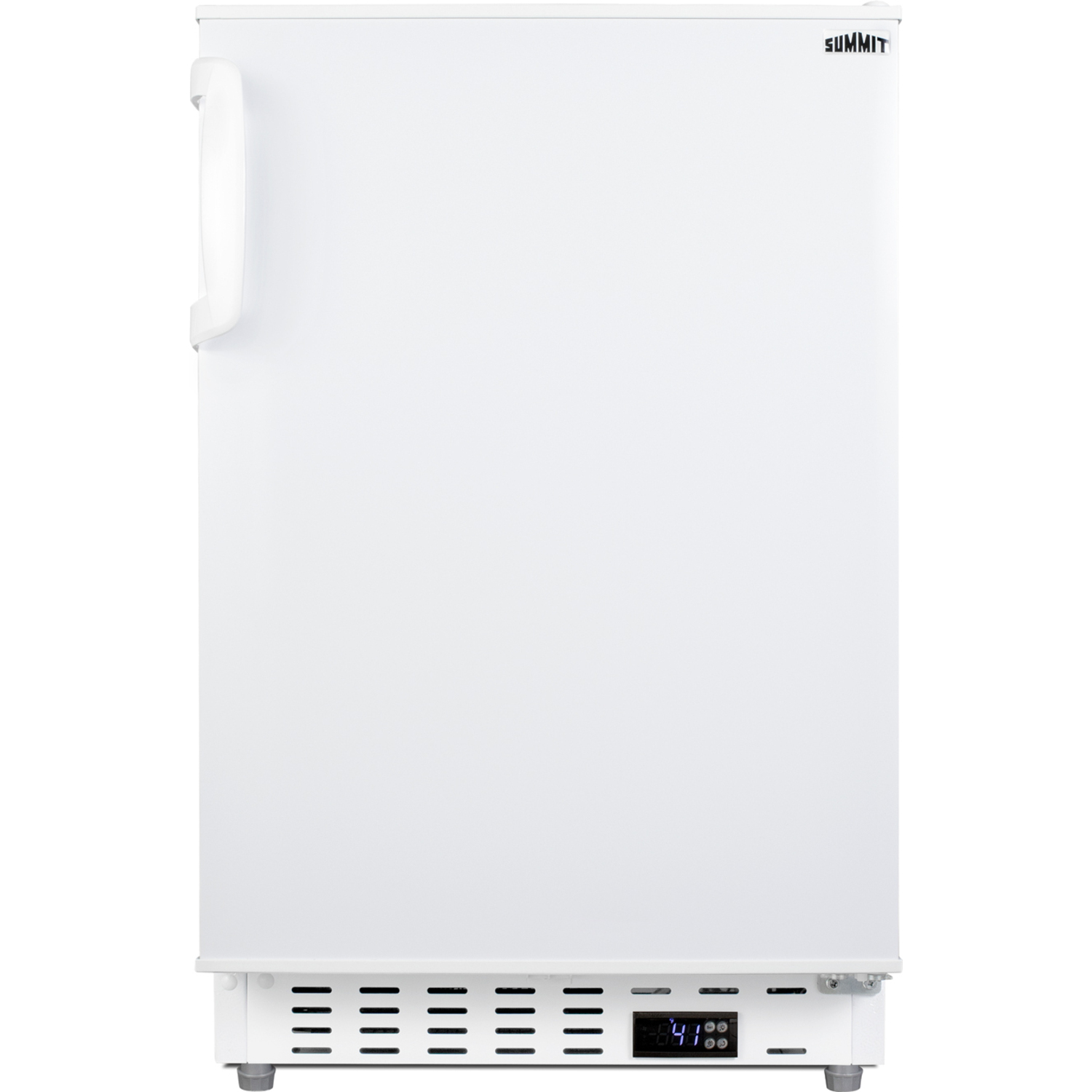

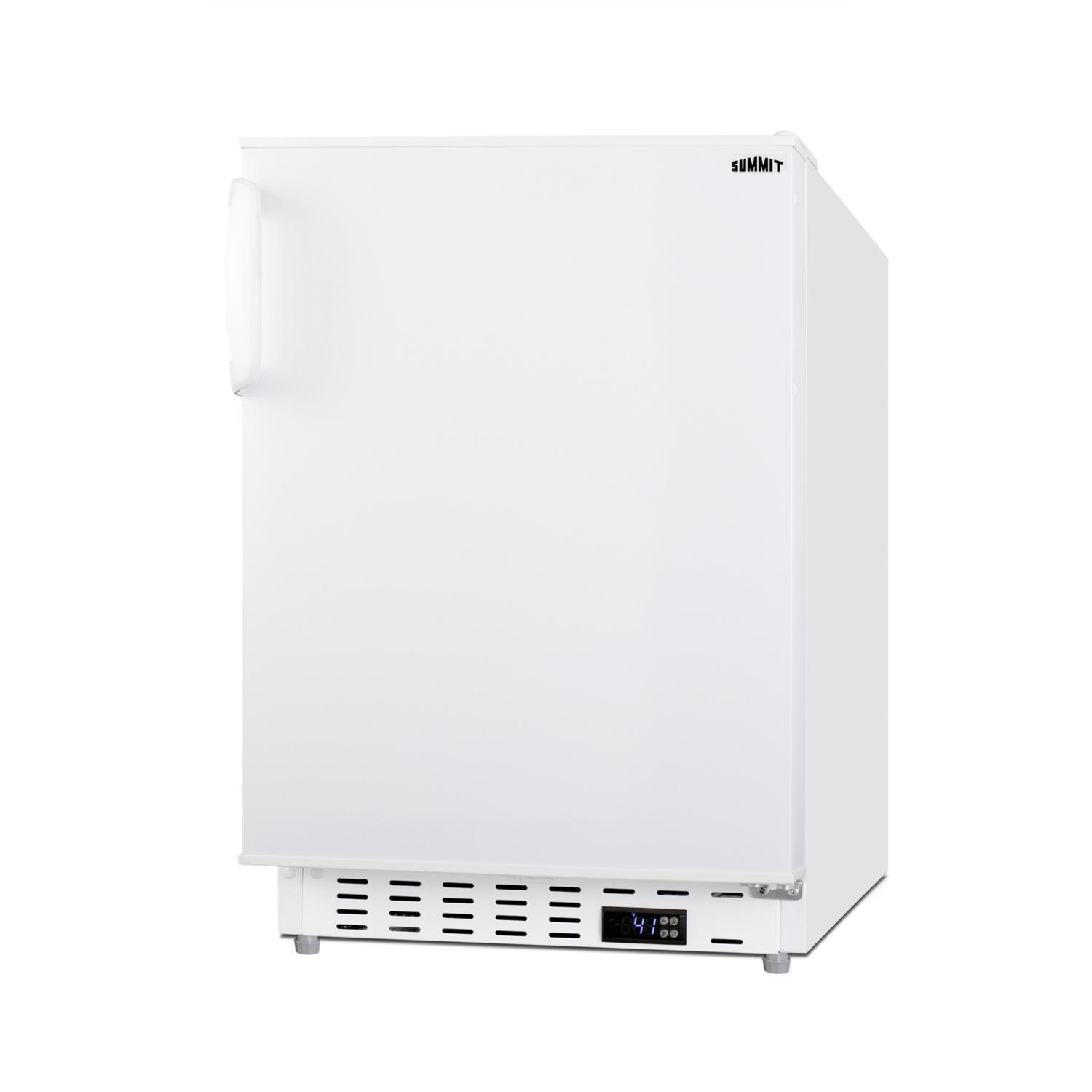

The ALR46W is sized at 32" high to fit under lower counters complying with ADA guidelines for accessibility. The fully finished textured white cabinet allows freestanding use, while the front-breathing system means this unit can be built-in with minimum clearance. The user-reversible door is 3" thick for efficient insulation, with a handle included for added convenience. This unit comes with a right angle cord to allow for easier placement without added depth. A digital thermostat, located in the kickplate, makes for easy temperature management with a readout in Fahrenheit or Celsius.

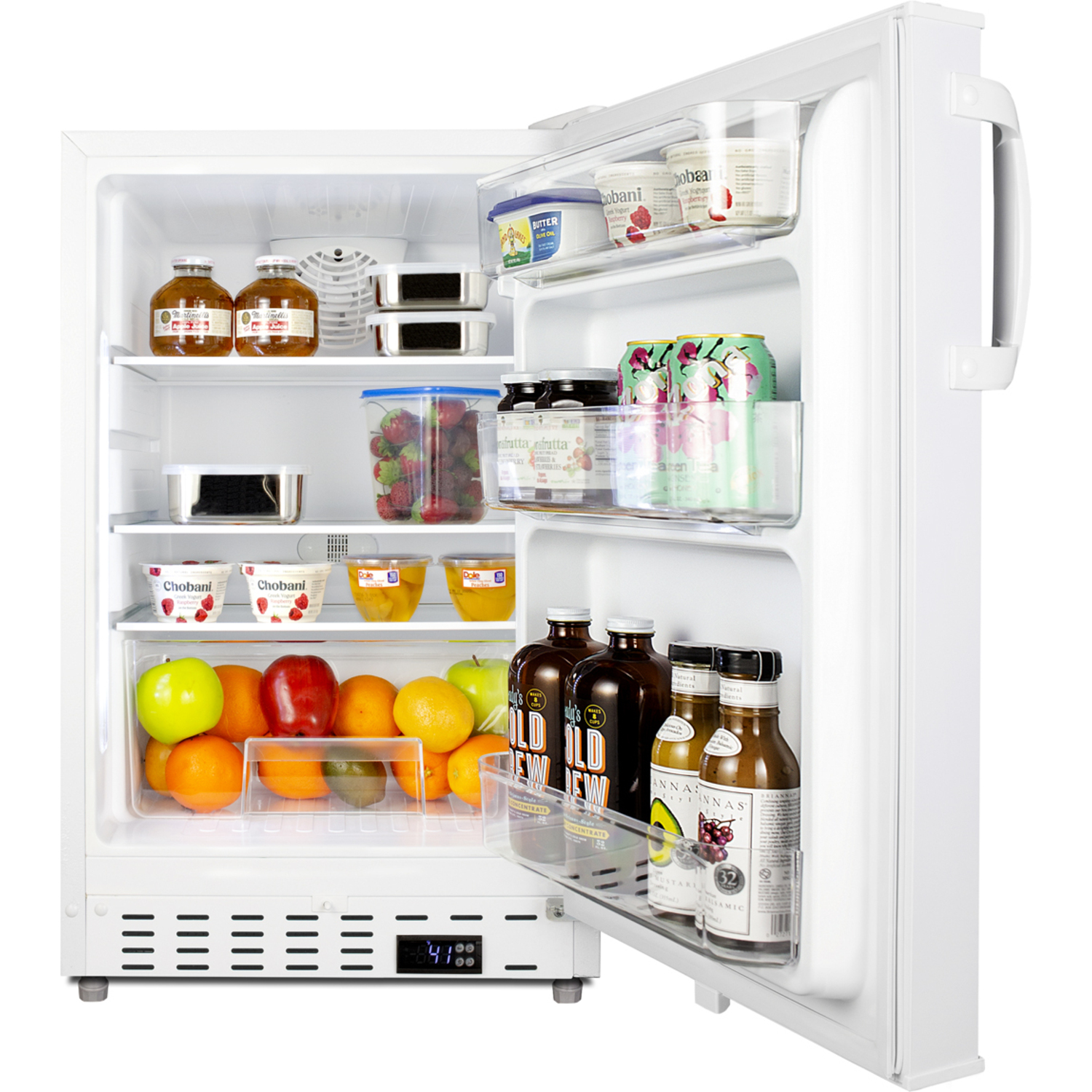

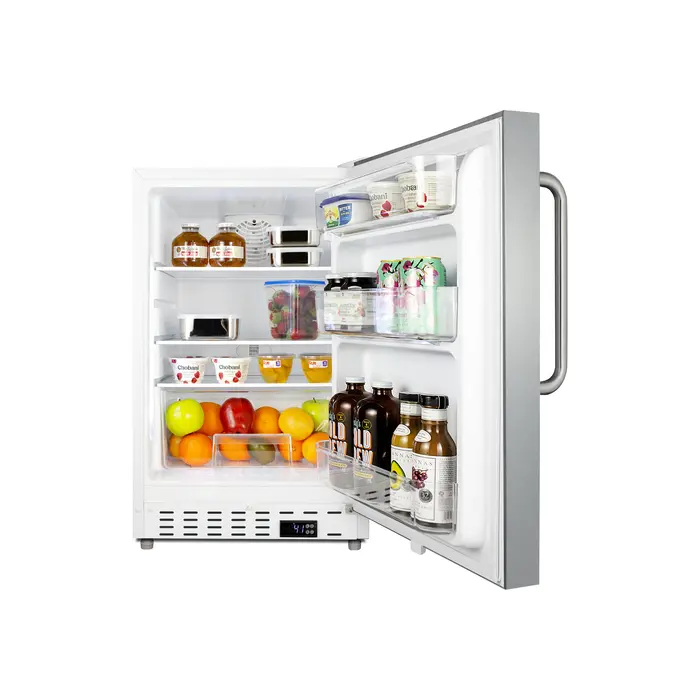

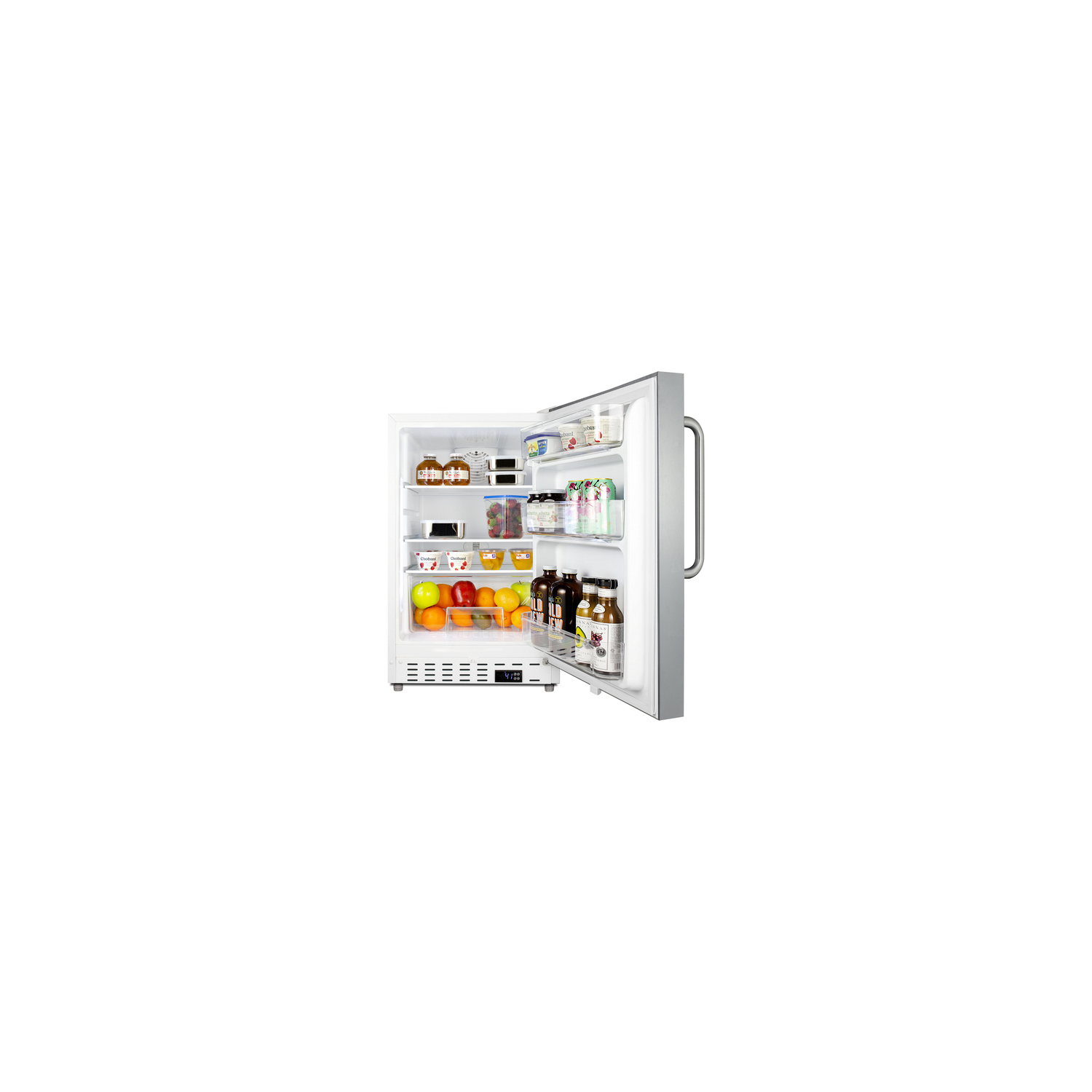

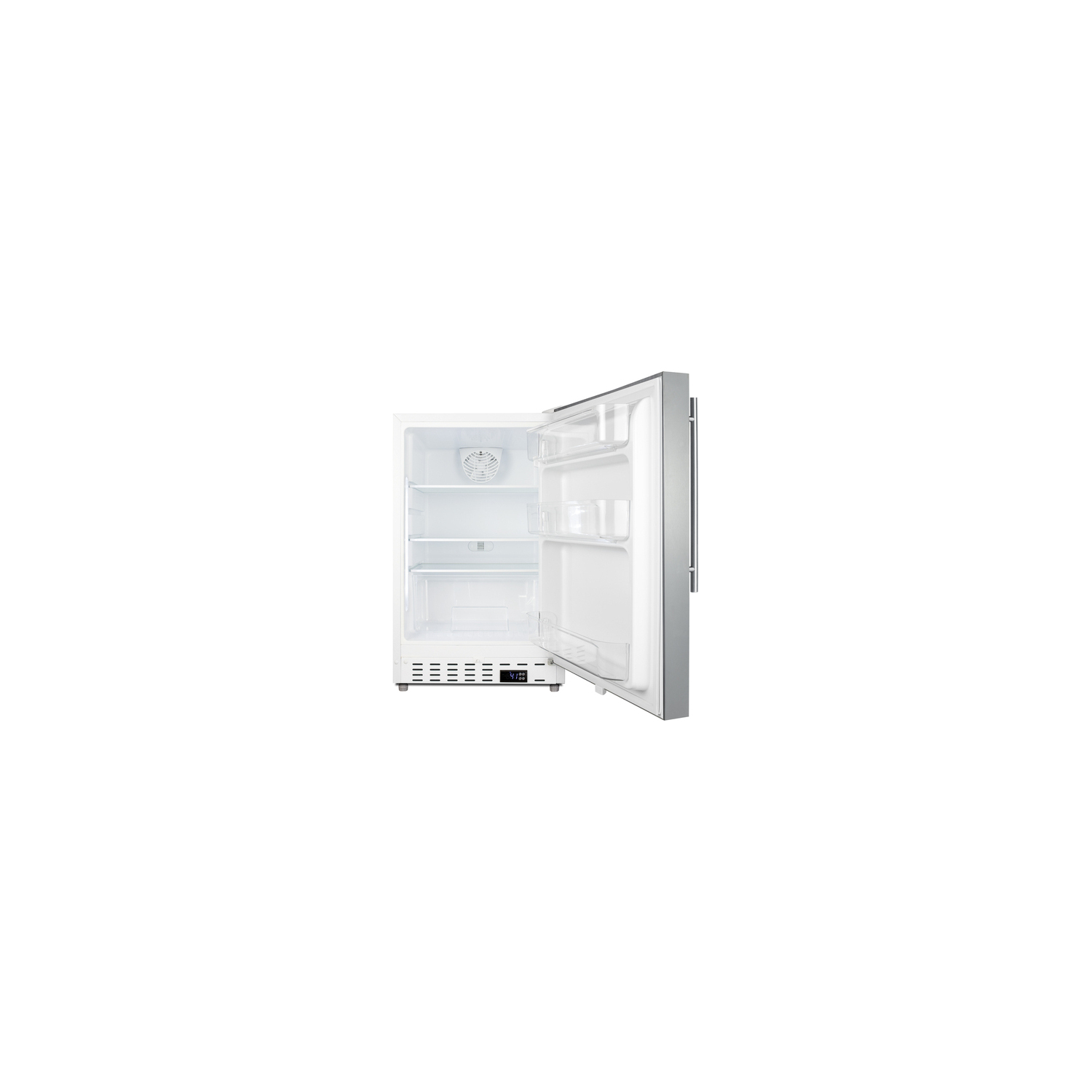

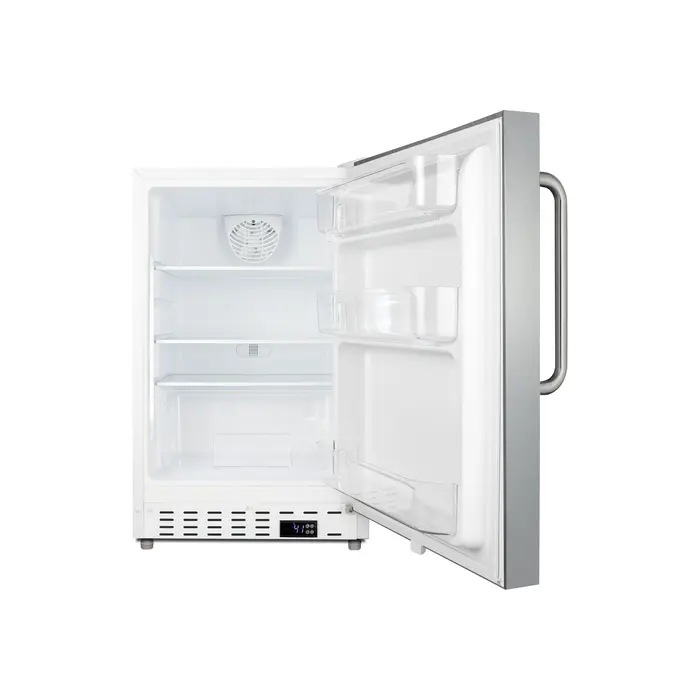

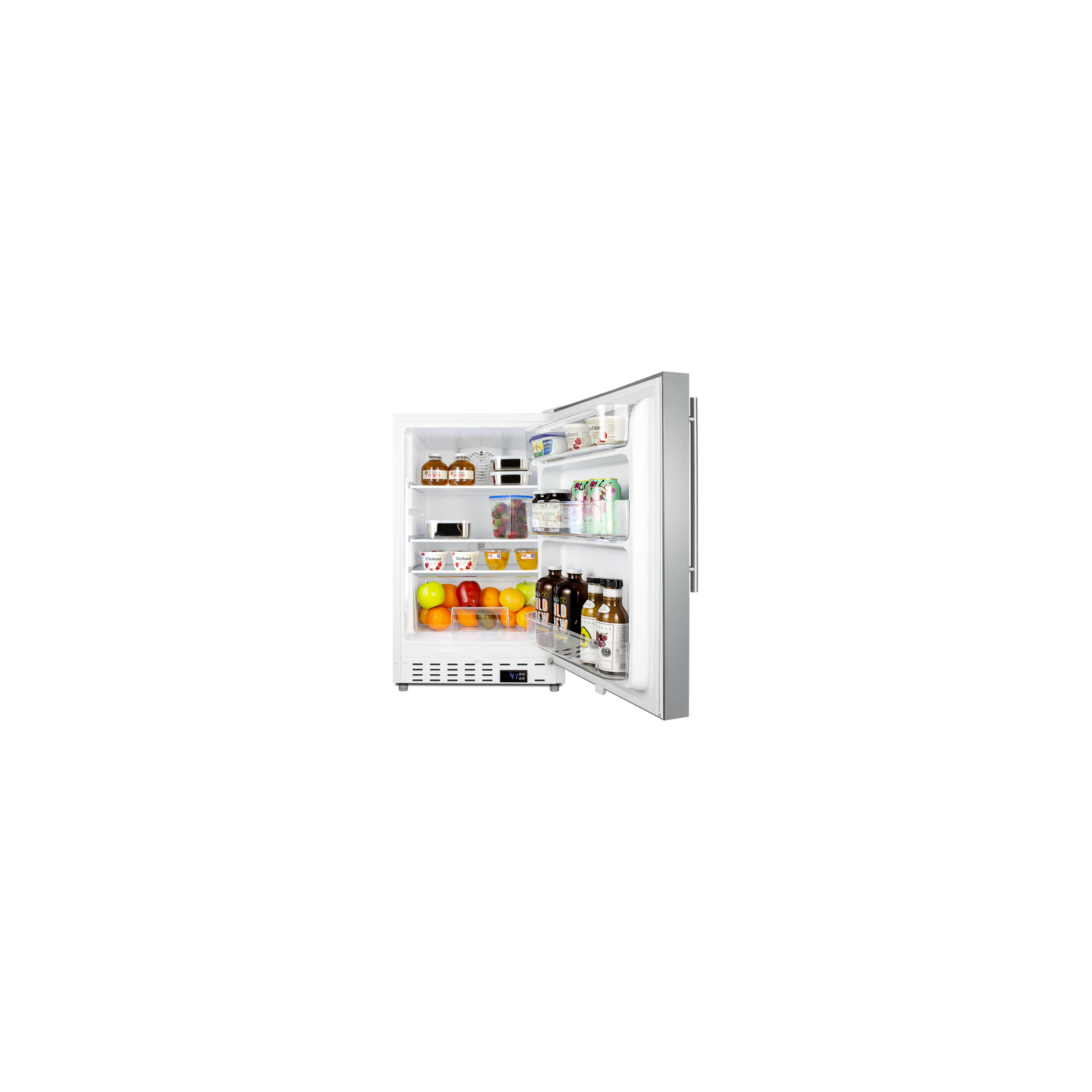

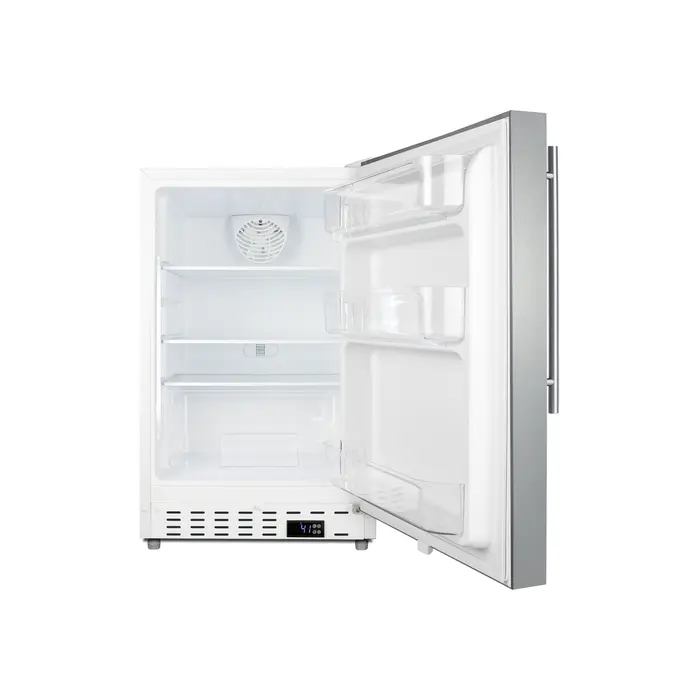

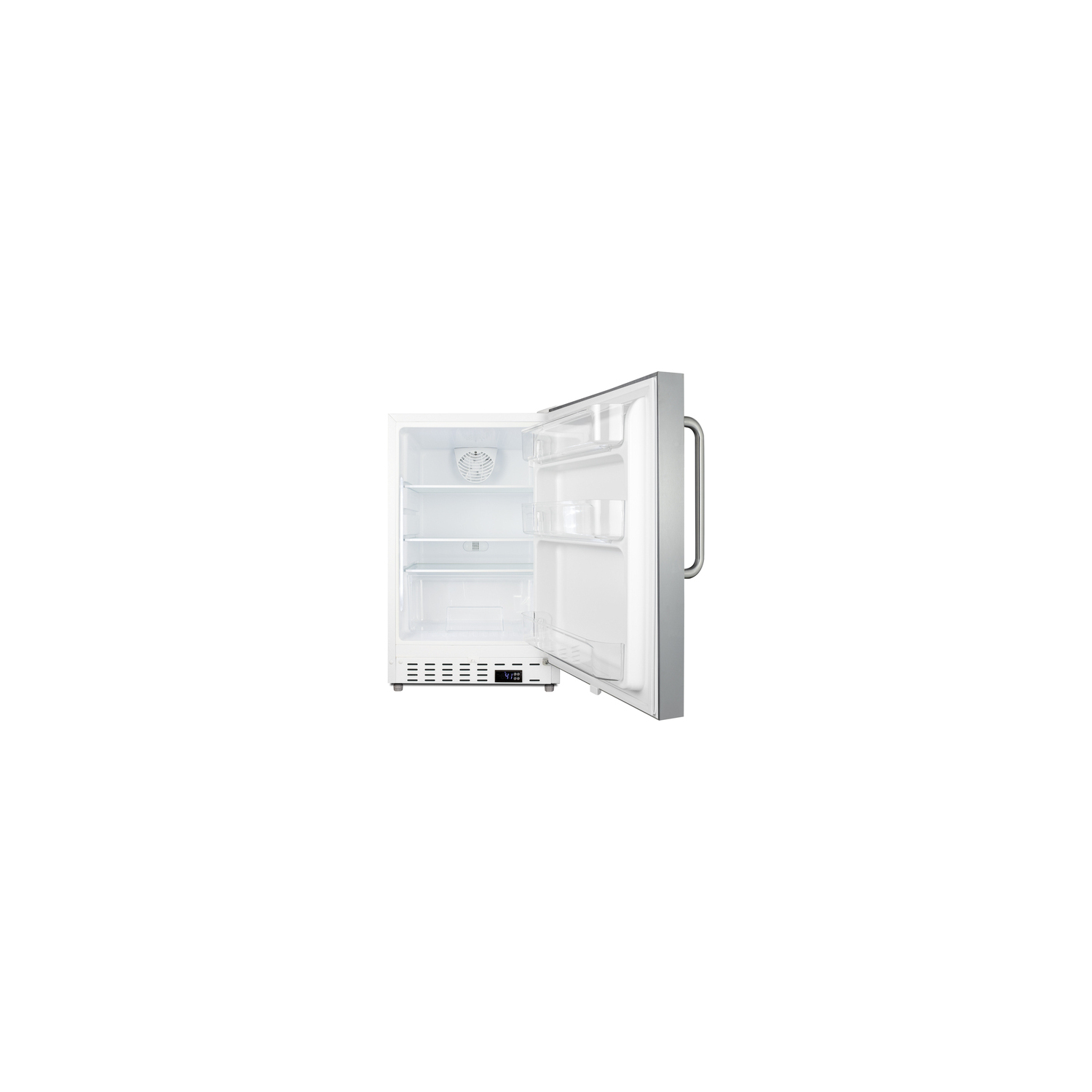

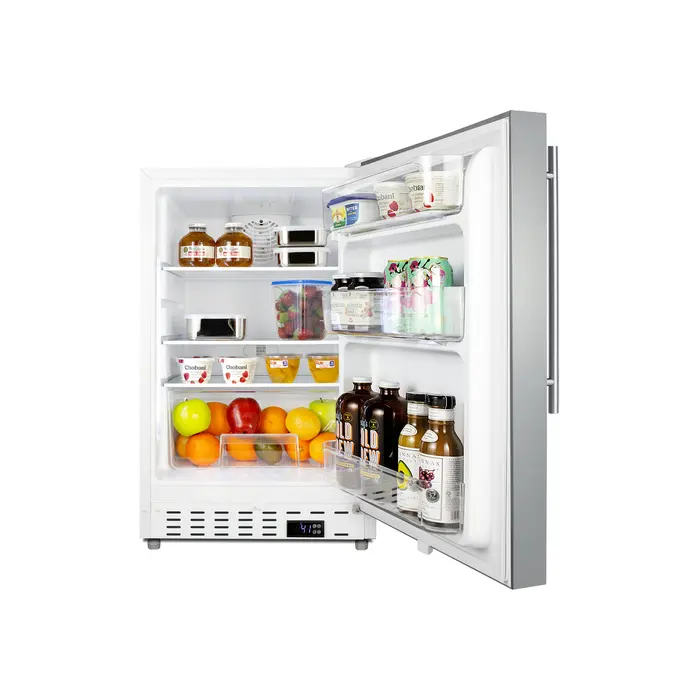

Inside, the ALR46W features an all-white interior for easy cleaning and viewing of contents. An LED light located toward the front of the unit attractively illuminates the interior when the door opens. Automatic defrost operation ensures minimal user maintenance, with an internal fan to help ensure even cooling throughout the 3.53 cu.ft. interior. Three adjustable glass shelves offer optimal storage options for large and small items, while a pull-out crisper drawer provides storage for fruits and vegetables. Three removable door racks accommodate additional storage as needed. The user-set high and low-temperature alarms provide added security should the temperature go beyond the setpoint, while the open door alarm sounds if the door is ajar over one minute for added peace-of-mind. These alarms can be disabled depending on your needs.

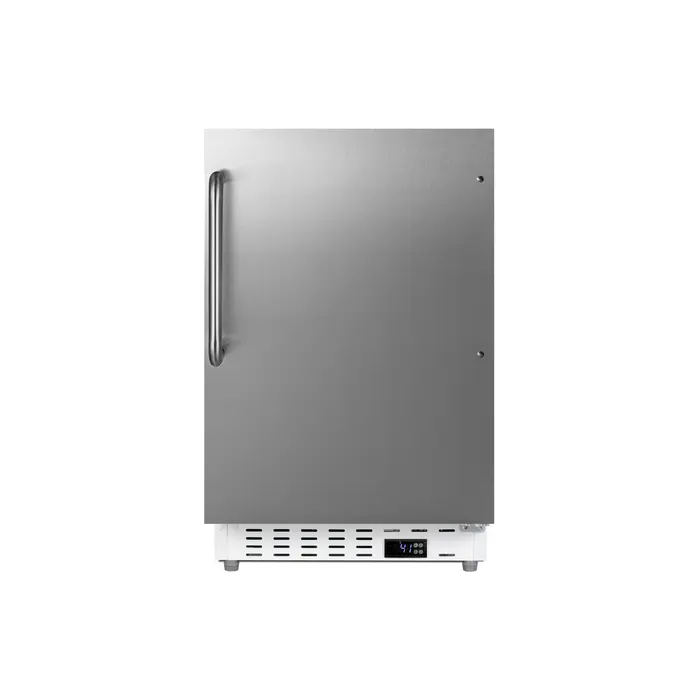

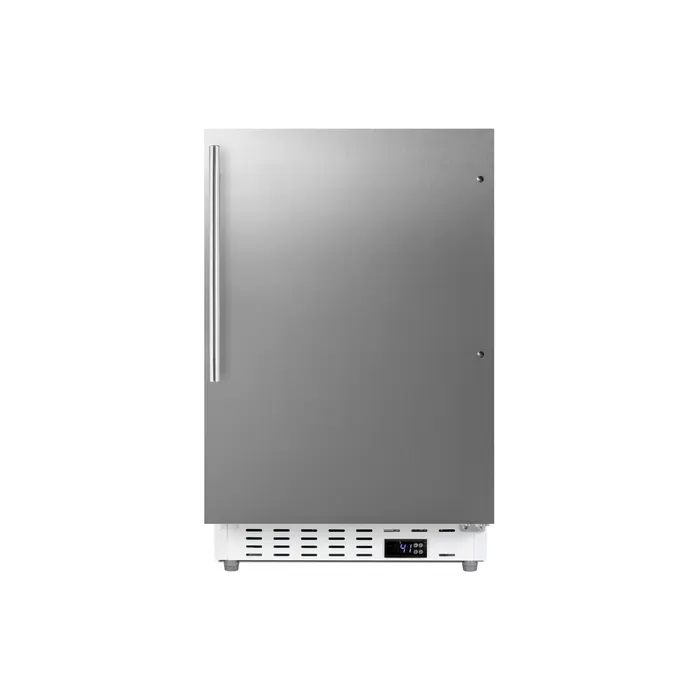

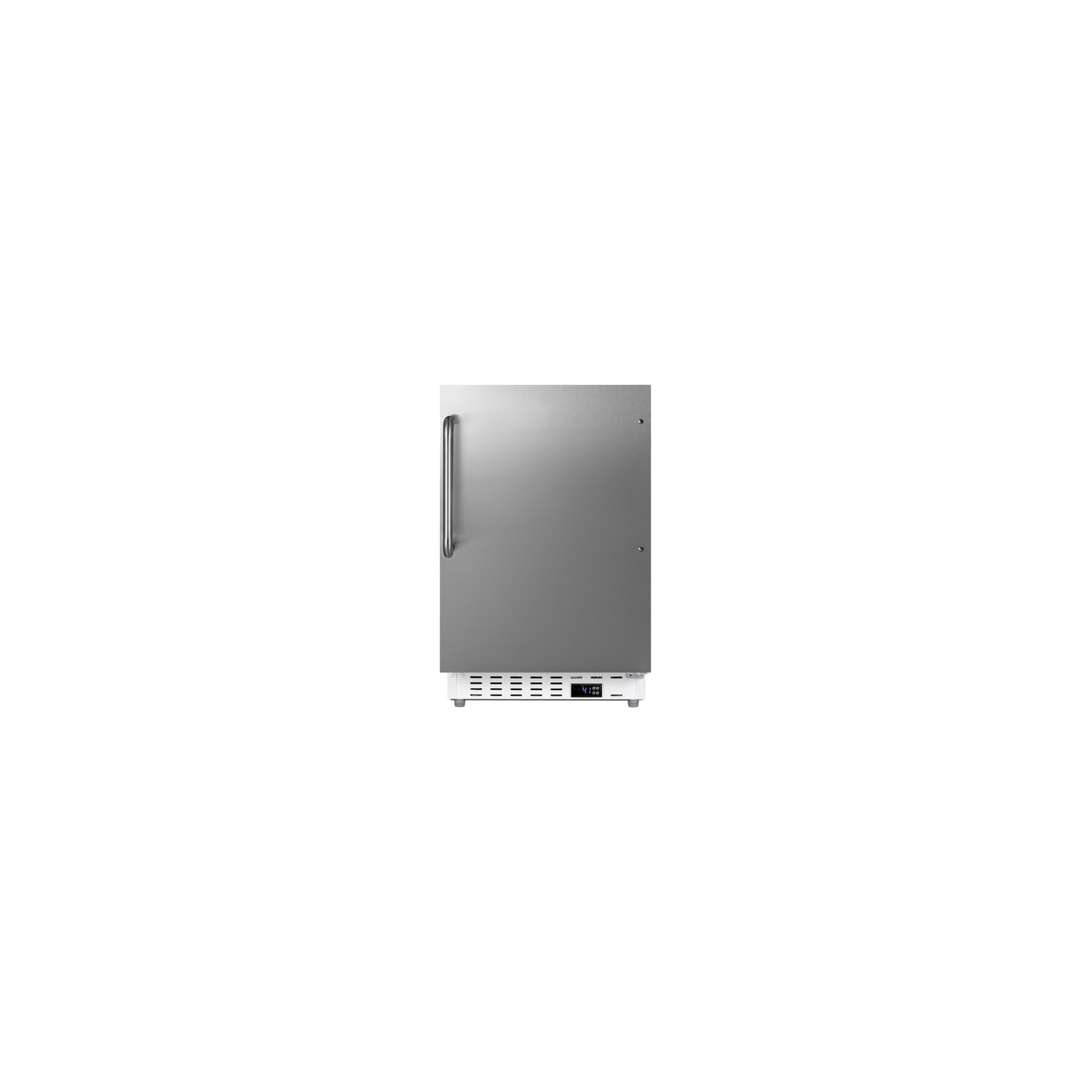

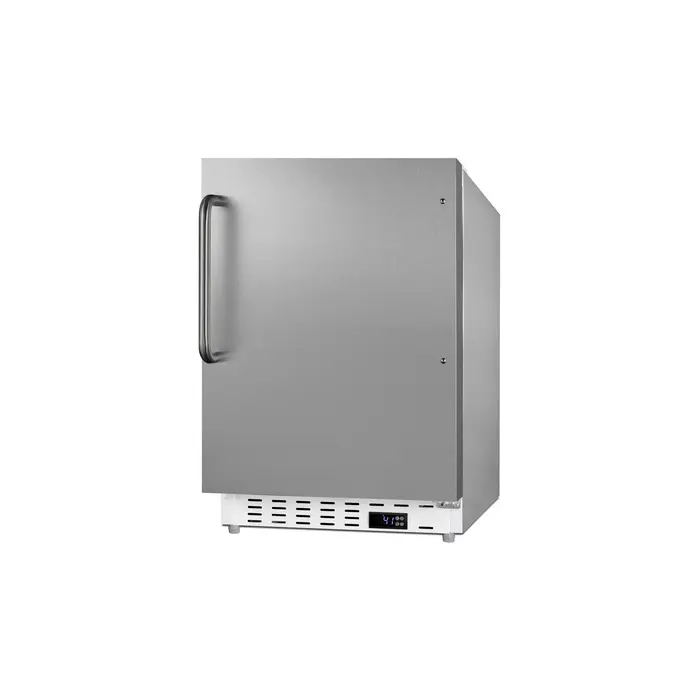

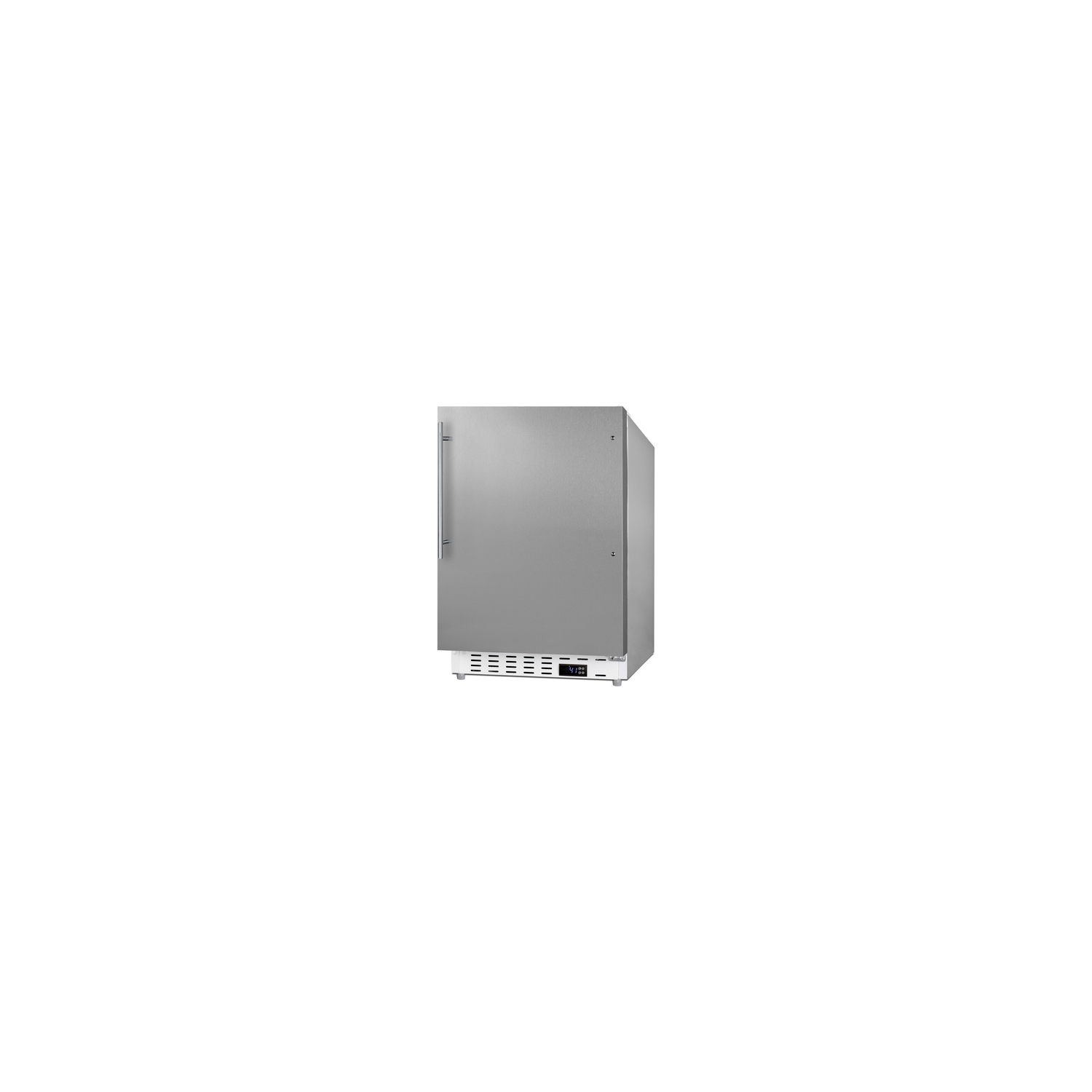

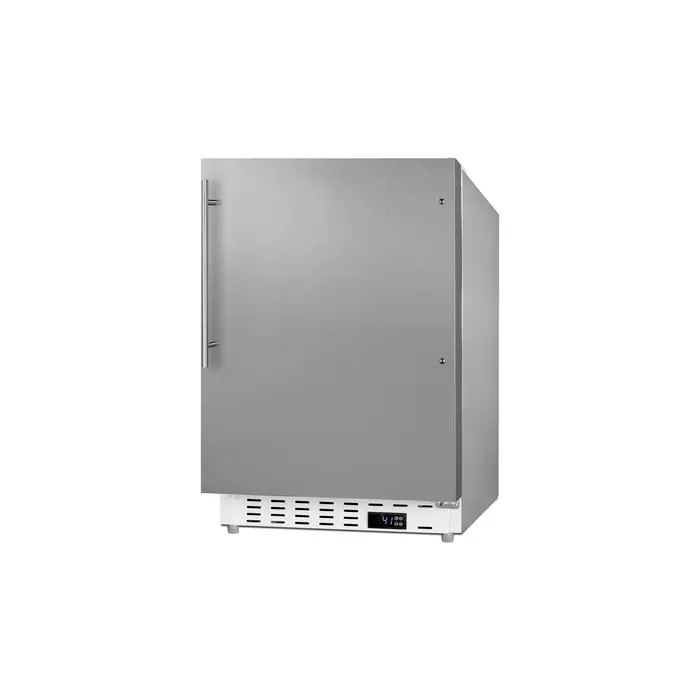

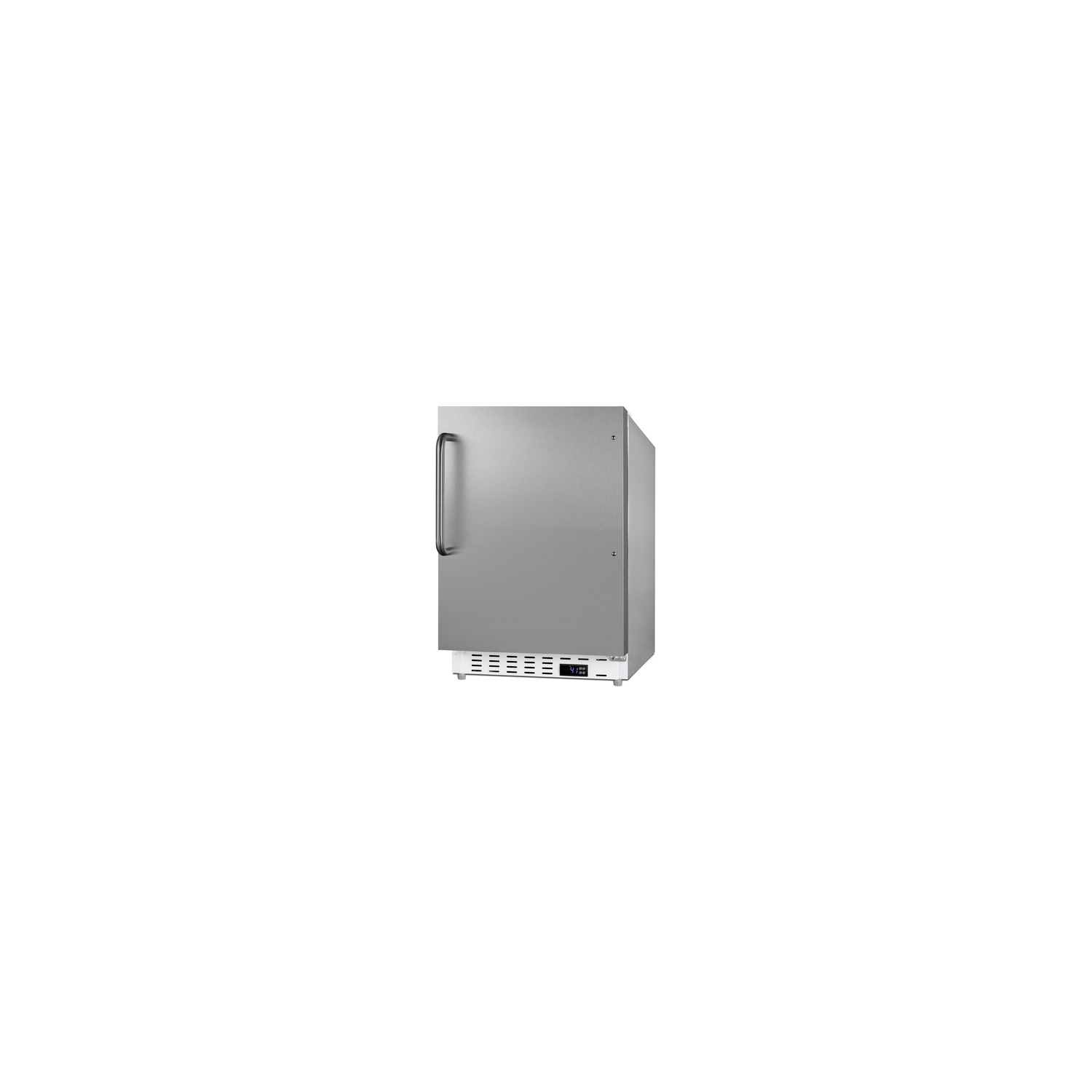

Sized at just 20" wide, the ALR46W is the perfect addition for space-challenged environments seeking dependable freezer options in a durable design. For a complete set, pair this unit with the matching ALFZ36 all-freezer. Additional choices are available in stainless steel and panel-ready exterior finishes.

SPECIFICATIONS

Overview

Nominal Height 32.0" (81 cm)

Height of Cabinet 31.75" (81 cm)

Height to Hinge Cap 32.0" (81 cm)

Nominal Width 20.0" (51 cm)

Width 19.75" (50 cm)

Width with Door Open 20.25" (51 cm)

Nominal Depth 23.0" (58 cm)

Depth 22.5" (57 cm)

Depth with Handle 24.38" (62 cm)

Depth with door at 90° 40.25" (102 cm)

Capacity 3.53 cu.ft. (100 L)

Defrost Type Automatic

Door White

Cabinet White

US Electrical Safety ETL

Canadian Electrical Safety ETL-C

Energy Usage/Year 251.0kWh/year

Amps 1.1

Voltage/Frequency 115 V AC/60 Hz

Weight 65.0 lbs. (29 kg)

Parts & Labor Warranty 1 Year

Compressor Warranty 5 Years

UPC 761101063027

Refrigerator Features

Door Swing RHD

Reversible Yes

Crisper Qty 1

Crisper Finish Transparent

Crisper Cover Glass

Shelf Type Glass

Shelf Qty 3

Full Door Shelf Qty 3

Adjustable Shelves Yes

Thermostat Type Digital

Fan Type Interior

Refrigerant Type R600a

Refrigerant Amount 0.99oz.

High Side PSI 180.0

Low Side PSI 80.0

Level Legs Qty 2

Wheel Qty 2

Interior Light Yes

Temperature Range 35 to 46°F

Sound Level 33.2 dB

Dimensions

Interior Height 23.5" (60 cm)

Interior Width 16.25" (41 cm)

Interior Depth 17.0" (43 cm)

Compressor Step Height 6.25" (16 cm)

Compressor Step Width 16.25" (41 cm)

Compressor Step Depth 6.0" (15 cm)

FEATURES

ADA compliant design 32" height allows easy installation under lower ADA compliant counters

Built-in capable Front-breathing design lets you make the best use of space by installing your appliance under the counter

Adjustable thermostat Digital thermostat offers easy temperature management with a readout in Fahrenheit or Celsius

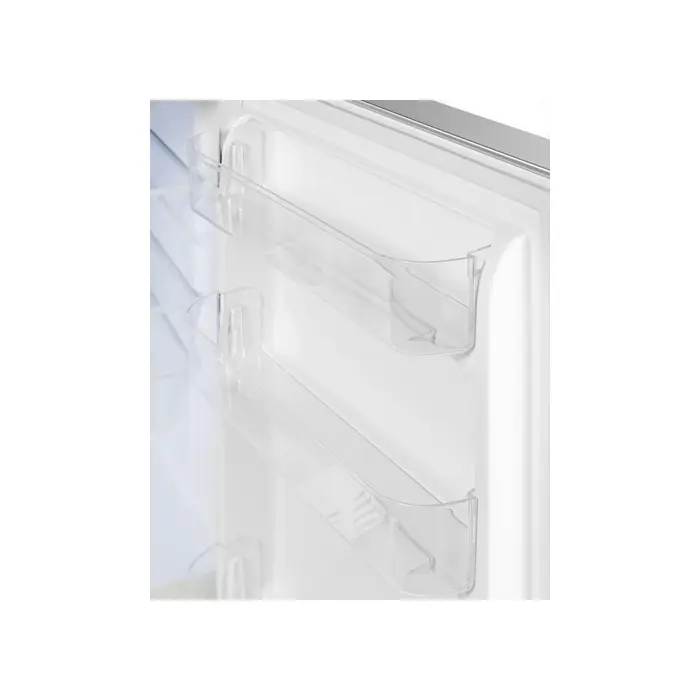

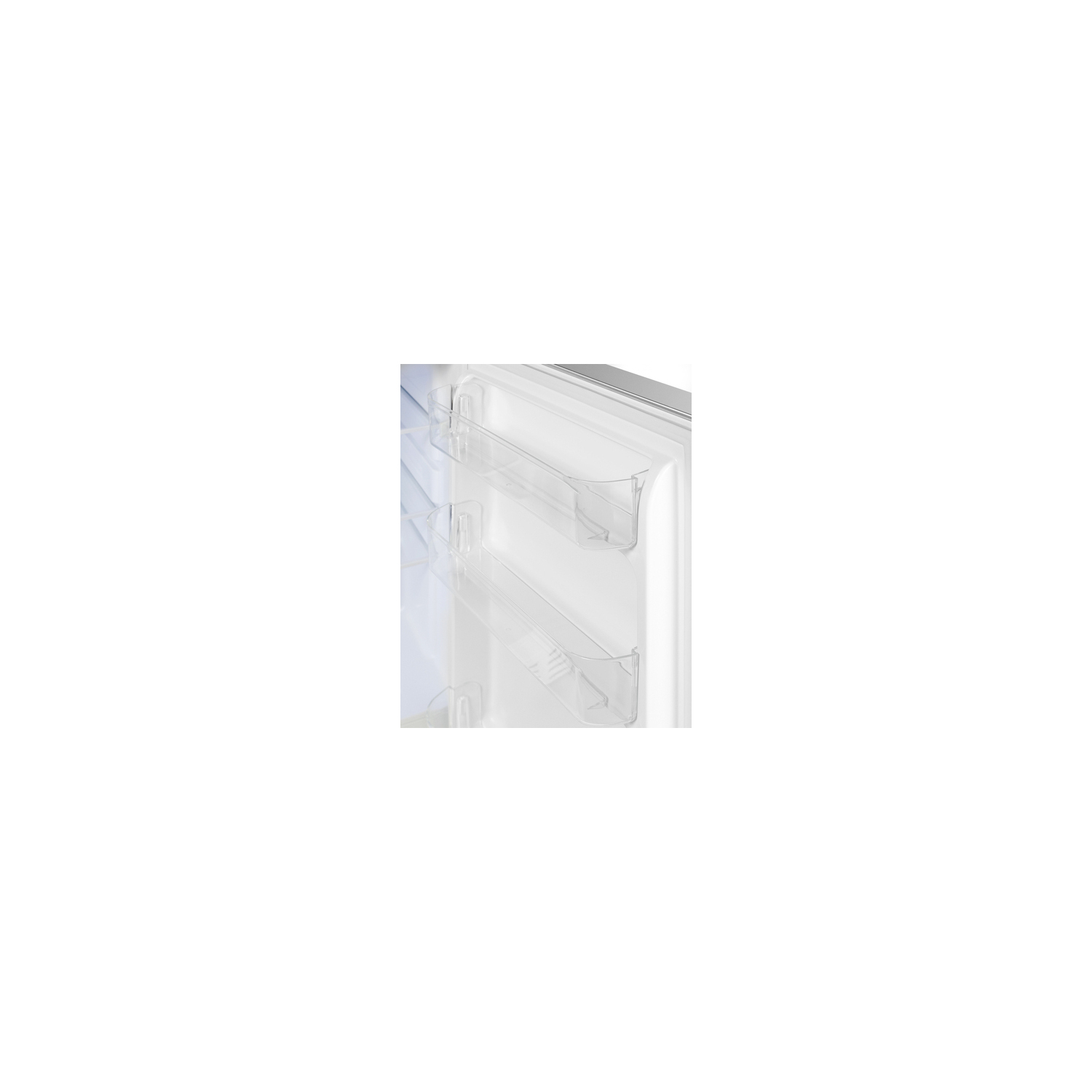

Door shelves Three removable door racks for additional storage of larger items

Adjustable glass shelves Three adjustable spill-proof shelves for optimal storage in 3.53 cu. ft. interior

Fruit and vegetable crisper Get the longest life and best taste out of produce by storing greens in a convenient slide drawer

Reversible door User-reversible door swing for added flexibility to best accommodate your setting

3" thick door Improved insulation for an efficient performance; NOTE: due to the oversized design, the door does not open in its own radius. If installing this refrigerator against a wall, please see our drawings to ensure adequate space

Temperature alarms User-set high/low temperature alarms provide added security if temperature goes beyond setpoint

Open door alarm Audible alarm will sound if the door is left ajar for over a minute

Sealed back Space-saving design that offers easier cleanability

Right-angle plug Design allows you to plug the unit in flush against the wall socket with no need to add extra depth

Automatic defrost Reduced user maintenance with an auto defrost system

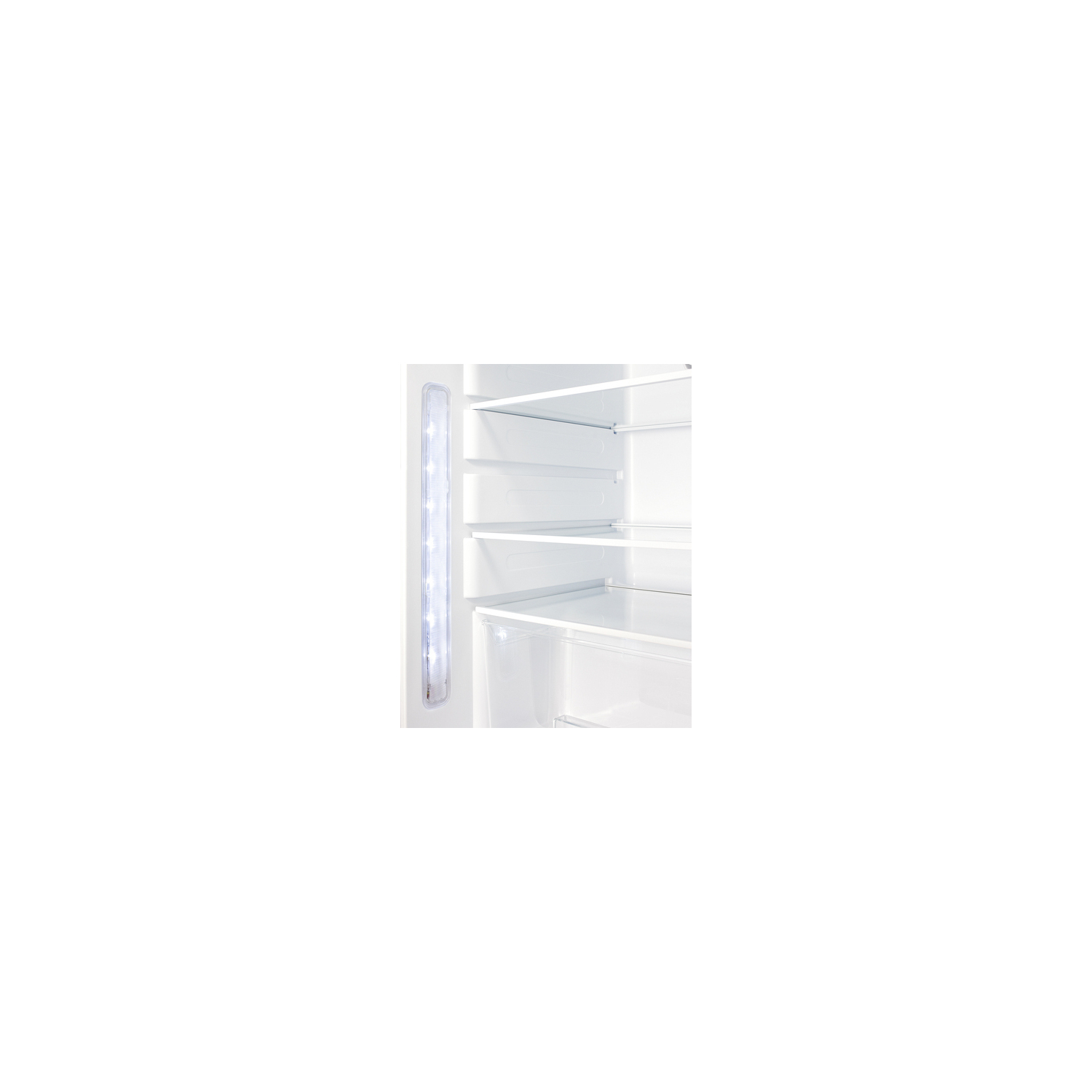

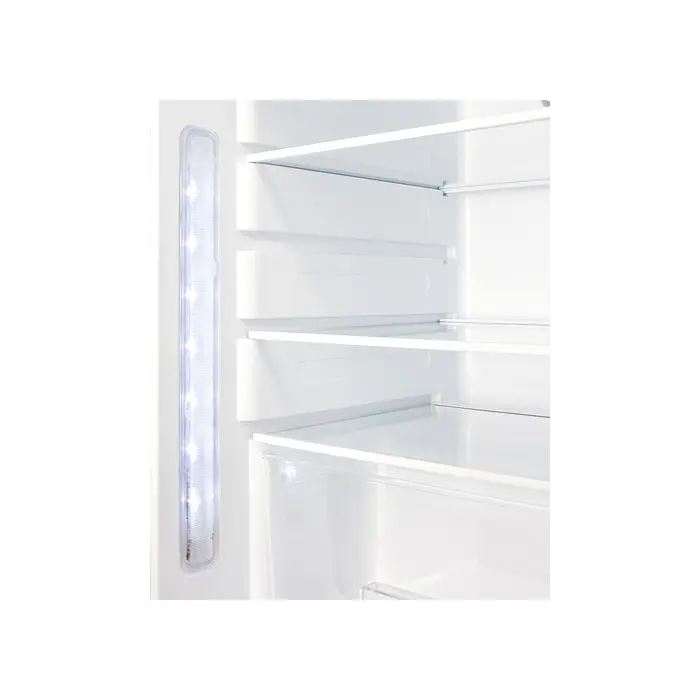

Interior light Front-located LED light ensures entire interior is lit when door opens

Matching all-freezer This unit can be paired with the ALFZ36 all-freezer for a complete set

Fully finished white cabinet Allows the unit to be used freestanding

100% CFC free Environmentally friendly design without ozone-damaging chemicals

CARB Compliant Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

DOWNLOADS

BROCHURE w/ DRAWINGS (ALR46W.pdf)

TECHNICAL DRAWING (.dwg) (ALR46W_REF__A-C_2018_.dwg)

REVIT MODEL (QF_Summit_ALR46W_Built_In_Undercounter.rfa)

USE & CARE (ALR46W-User-Manual.pdf)

Energy Guide
