Summit 15 inch wide ADA compliant all-refrigerator for built-in or freestanding use with panel-ready door, ALR15BSSPNR

Summit offers the industry's largest selection of 32" high ADA compliant appliances, with quality choices for built-in or freestanding use in 15" wide spaces.

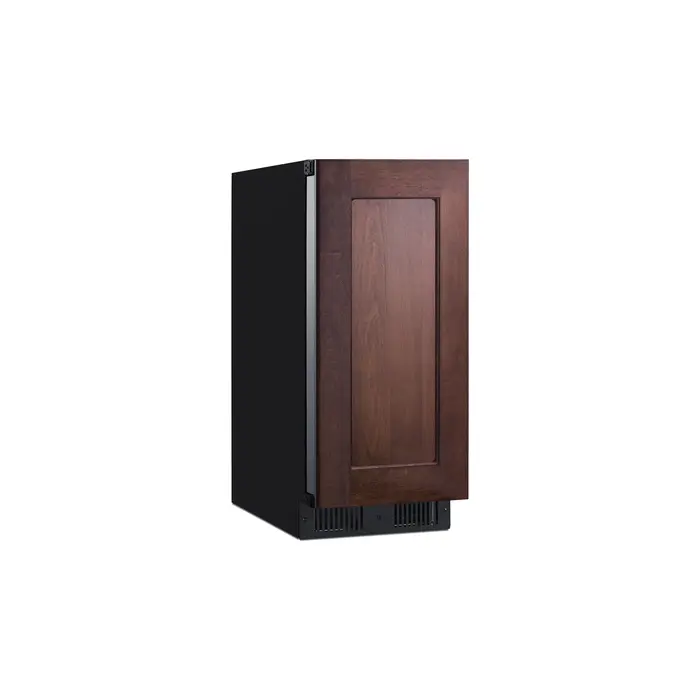

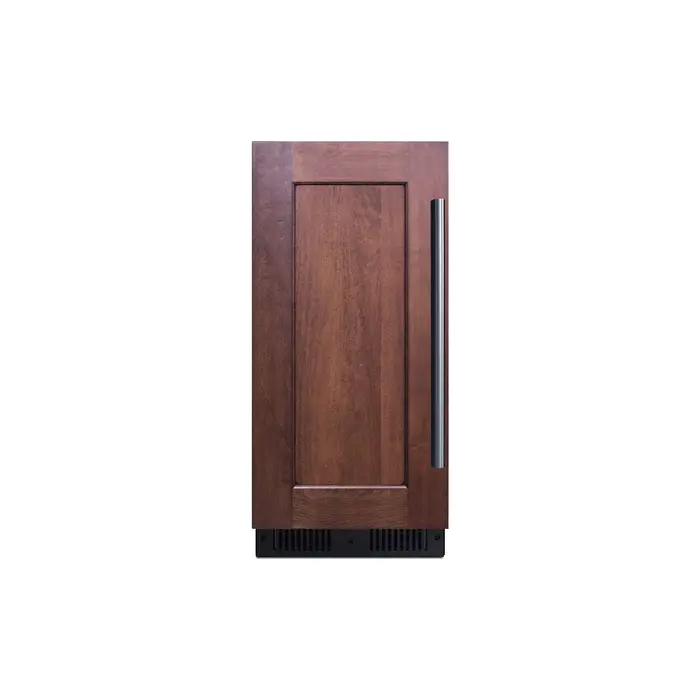

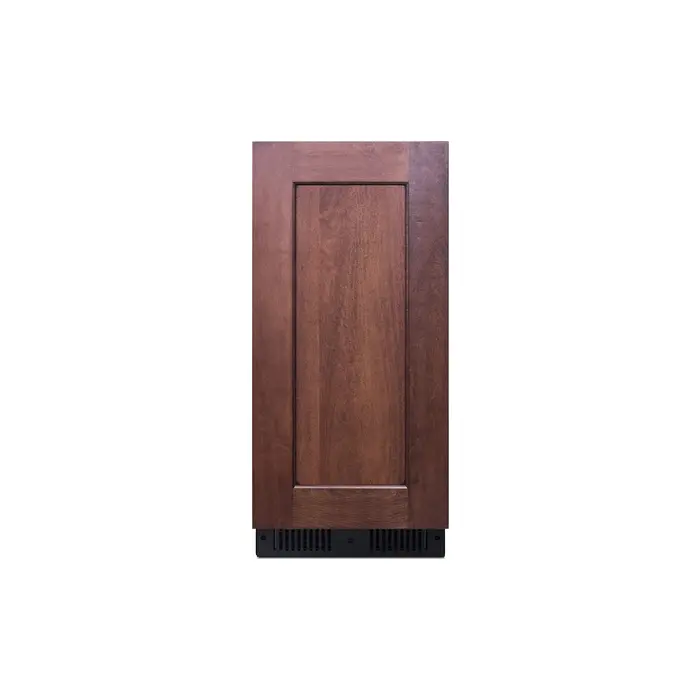

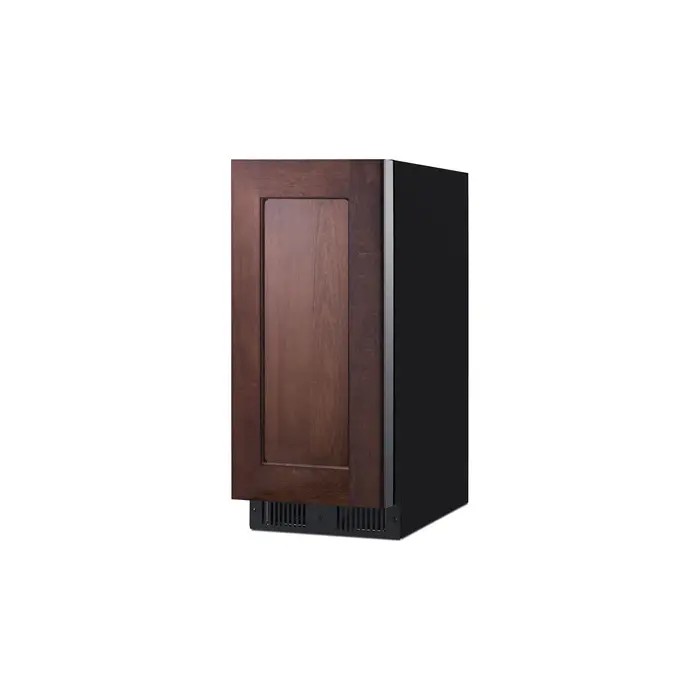

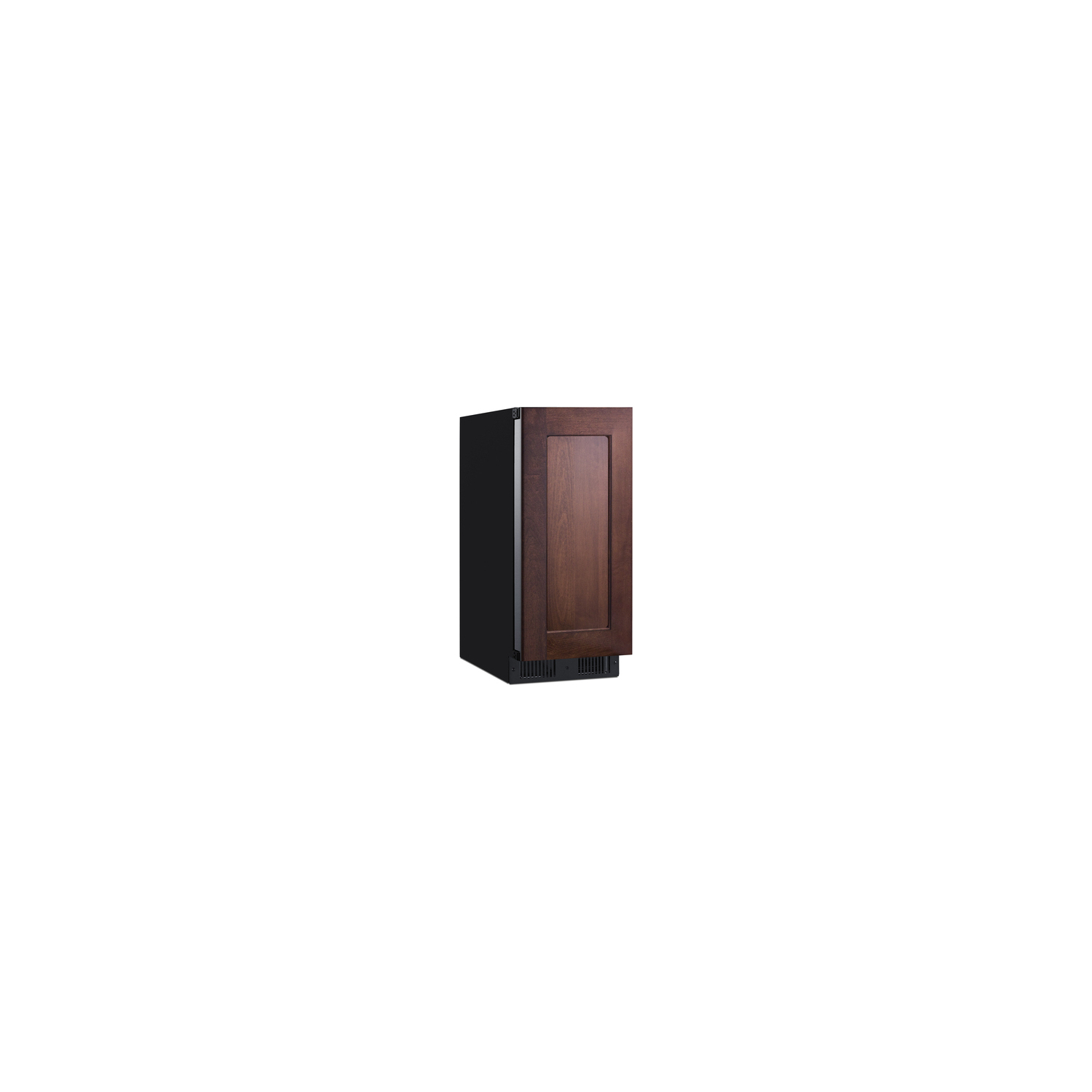

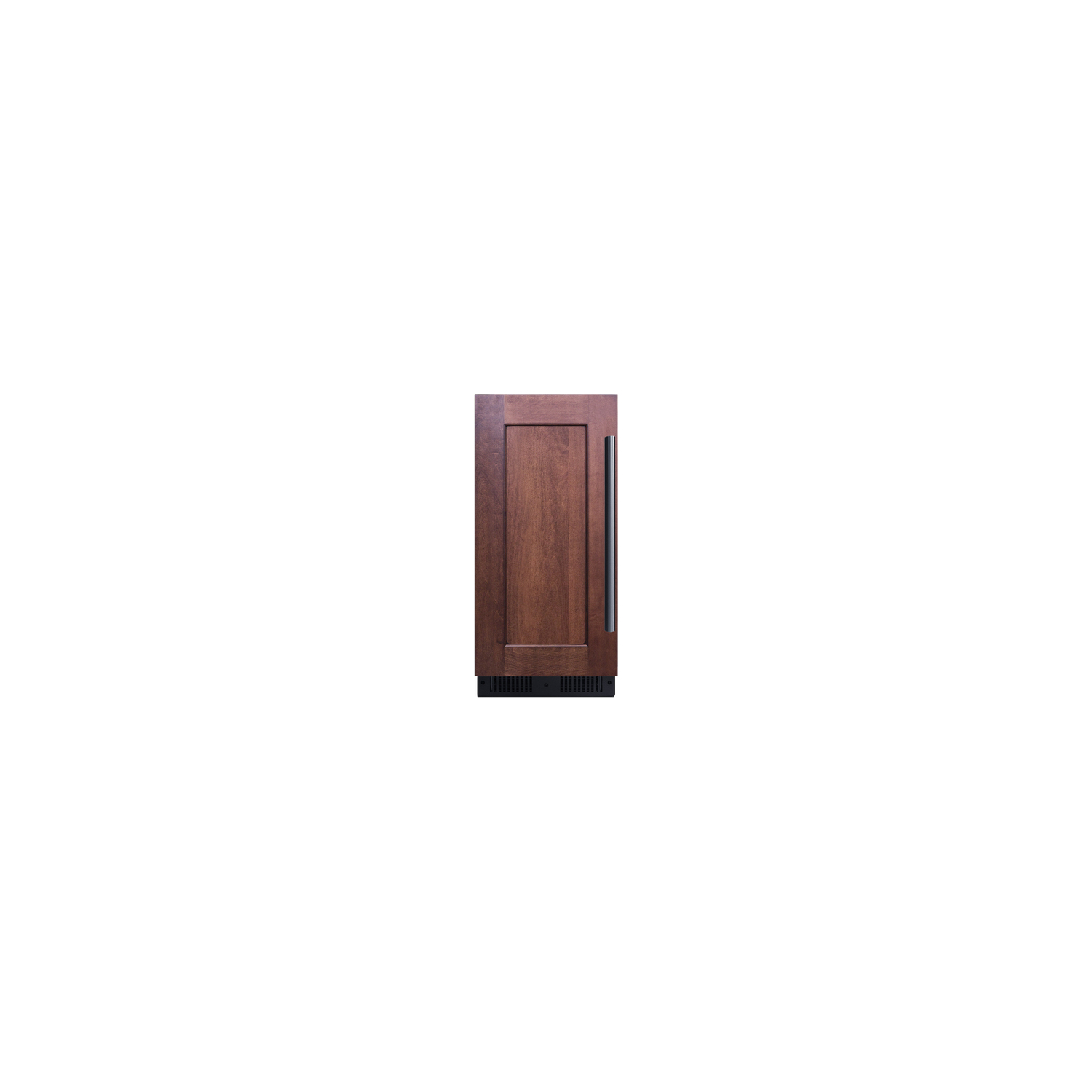

The ALR15BSSPNR is a 2.2 cu.ft. all-refrigerator with a front-breathing system for built-in use. The stainless steel wrapped door features our fully articulating European hinge. We include a 2-piece bracket kit that allows easy installation of overlay panels to create a custom look that can blend into your existing cabinetry design (panel size: 28 3/8" H x 14 5/8" W). The user-reversible door swing allows easy adjustment as needed. This unit has a sealed rear and right angle cord for a better fit. At just 32" high, it's perfect for fitting under lower counters following ADA guidelines. There is a lock located in the keyplate for optional security as needed.

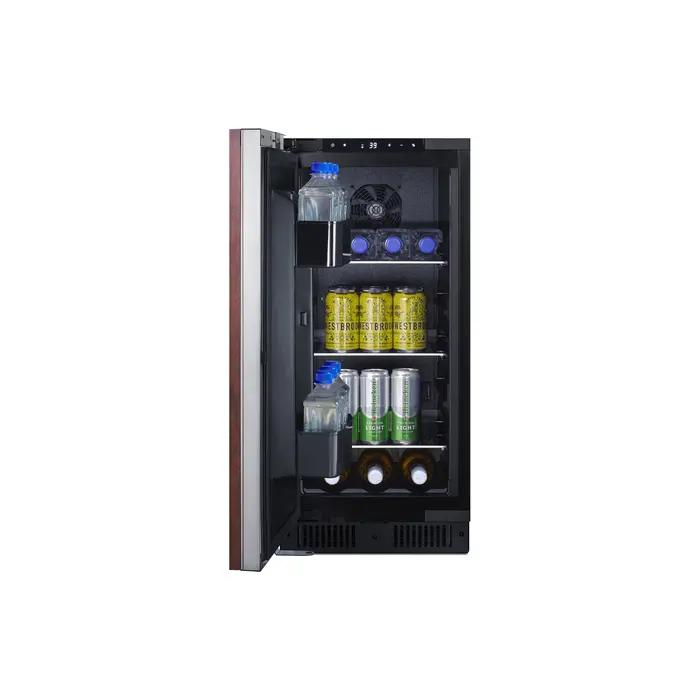

Inside, the ALR15BSSPNR features a jet black finish and convenient frost-free operation for minimum maintenance. Fan-forced cooling helps to stabilize the temperature inside. Adjustable glass shelves offer spill-proof storage and two door racks are ideal for keeping condiments and bottles within reach. This unit comes with a digital control panel for easy temperature management, with a temperature readout viewable in Celsius and Fahrenheit. Additional features include an open door and high temperature alarm, temperature memory function, and Sabbath mode to allow users to disable certain electrical functions during periods of observance. Recessed LED lighting offers an attractive, energy efficient view.

With its premium customizable design and ADA compliant height, this refrigerator is perfect for a variety of spaces. Additional choices for 15" wide spaces, as well as ADA compliant applications, can be found in Summit's extensive product catalog. Browse our website for more options.

SPECIFICATIONS

Overview

Height of Cabinet 32.0" (81 cm)

Width 14.75" (37 cm)

Depth 22.75" (58 cm)

Depth with Panel 23.5" (60 cm)

Depth with door at 90° 38.0" (97 cm)

Capacity 2.2 cu.ft. (62 L)

Defrost Type Frost-Free

Door Panel-Ready

Cabinet Black

US Electrical Safety ETL

Canadian Electrical Safety ETL-C

Energy Usage/Year 240.0kWh/year

Amps 1.0

Plug Type NEMA 5-15P (Right Angle)

Voltage/Frequency 115 V AC/60 Hz

Weight 60.0 lbs. (27 kg)

Parts & Labor Warranty 1 Year

Compressor Warranty 5 Years

UPC 761101161464

Refrigerator Features

Sabbath Mode Yes

Door Swing RHD

Reversible Yes

Shelf Type Glass

Shelf Qty 3

Full Door Shelf Qty 2

Adjustable Shelves Yes

Thermostat Type Digital

Fan Type Interior and Exterior

Refrigerant Type R600a

Refrigerant Amount 0.78oz.

High Side PSI 270.0

Low Side PSI 105.0

Level Legs Qty 4

Interior Light Yes

Temperature Range 36°F to 43°F

Sound Level 32.6 dB

Dimensions

Interior Height 25.0" (64 cm)

Interior Width 10.5" (27 cm)

Interior Depth 16.75" (43 cm)

Compressor Step Height 3.5" (9 cm)

Compressor Step Width 10.5" (27 cm)

Compressor Step Depth 5.0" (13 cm)

FEATURES

15" Wide ADA Compliant All-Refrigerator 32" high all-refrigerator designed for built-in installation under ADA counters

ADA Compliant Sized just under 32" high to fit under lower ADA compliant counters

Built-in capable Make the best use of space by installing your appliance under the counter

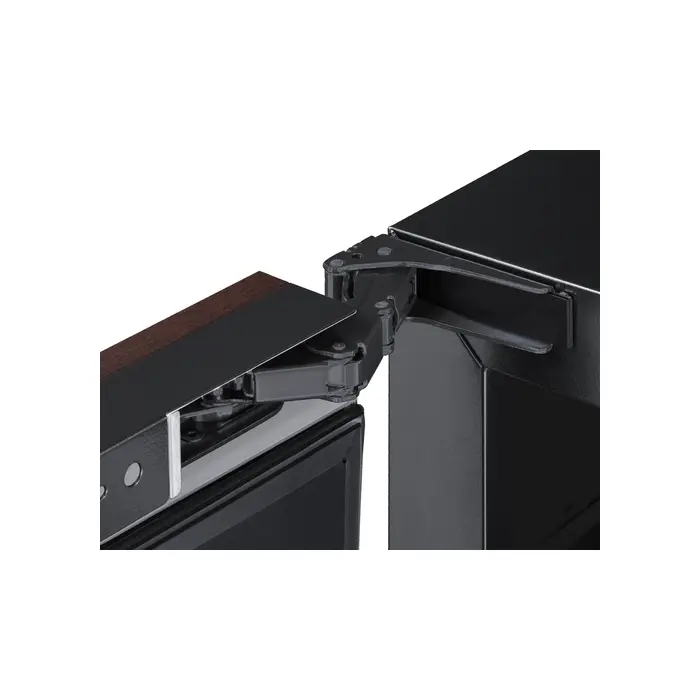

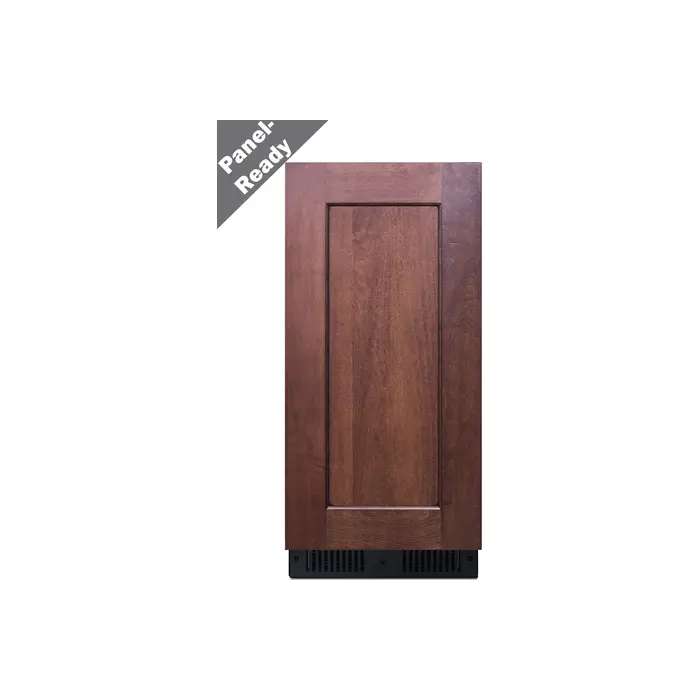

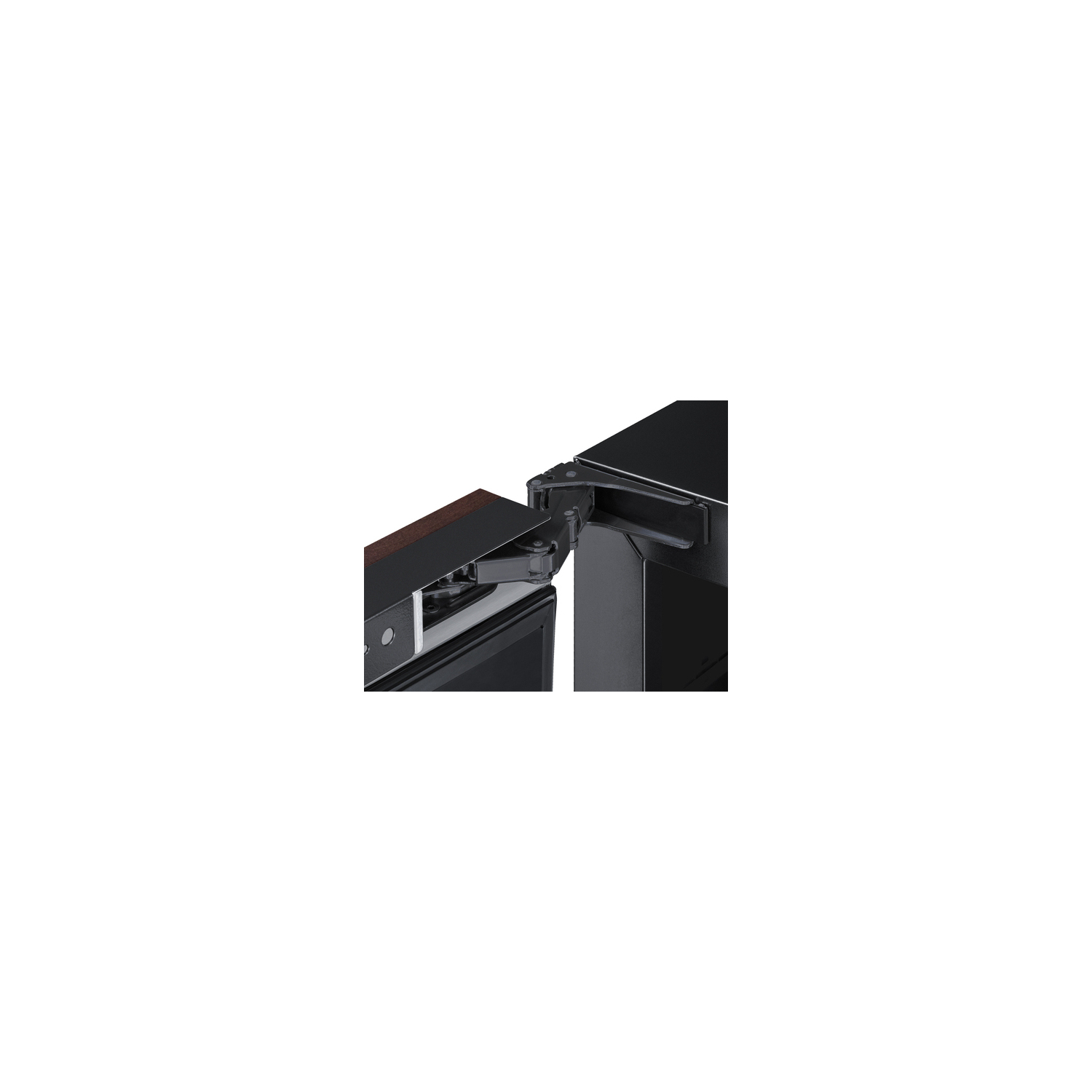

Panel-ready door European style articulating door hinge allows the installation of overlay panels, allowing you to customize the refrigerator door or blend it into your cabinetry design; panel size: 14 5/8" W x 28 3/8" H and at least 3/4" thick; 10 lbs. maximum; customers provide their own handles

Digital thermostat Electronic controls for precise temperature management.

Digital display Temperature readout can be shown in Celsius or Fahrenheit

LED lighting Gentle illumination in an energy efficient design

Frost-free operation No-frost operation ensures reduced maintenance

Adjustable glass shelves Rearrange refrigerator space to accommodate all sizes or remove shelves for simple cleanup

Door storage Two racks offer the perfect storage solution for tall bottles and condiments

Sabbath mode setting Optional setting lets you disable the lighting and alarm for up to 96 hours

Open door alarm Alarm sounds if the door is left open for more than 60 seconds

High temperature alarm Audible alarm sounds if the interior temperature rises out of set range

Reversible door User-reversible door swing for added flexibility to best accommodate your setting

Right angle cord Design allows you to plug the unit in flush against the wall socket with no need to add extra depth

Flush back Space saving design that is easy to clean

Temperature memory function In the event of power loss, unit will return to its last settings when power is restored

Fully finished black cabinet Allows the unit to be used freestanding

100% CFC Free Environmentally friendly design with no ozone-damaging chemicals

CARB Compliant Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
