Summit 15 inch wide ADA compliant all-refrigerator for built-in or freestanding use, with digital controls, LED light, lock, and stainless steel wrapped exterior, 7.61101e+011, ALR15BCSS

Summit offers the industry's largest selection of 32" high ADA compliant appliances, with quality choices for built-in or freestanding use in 15" wide spaces.

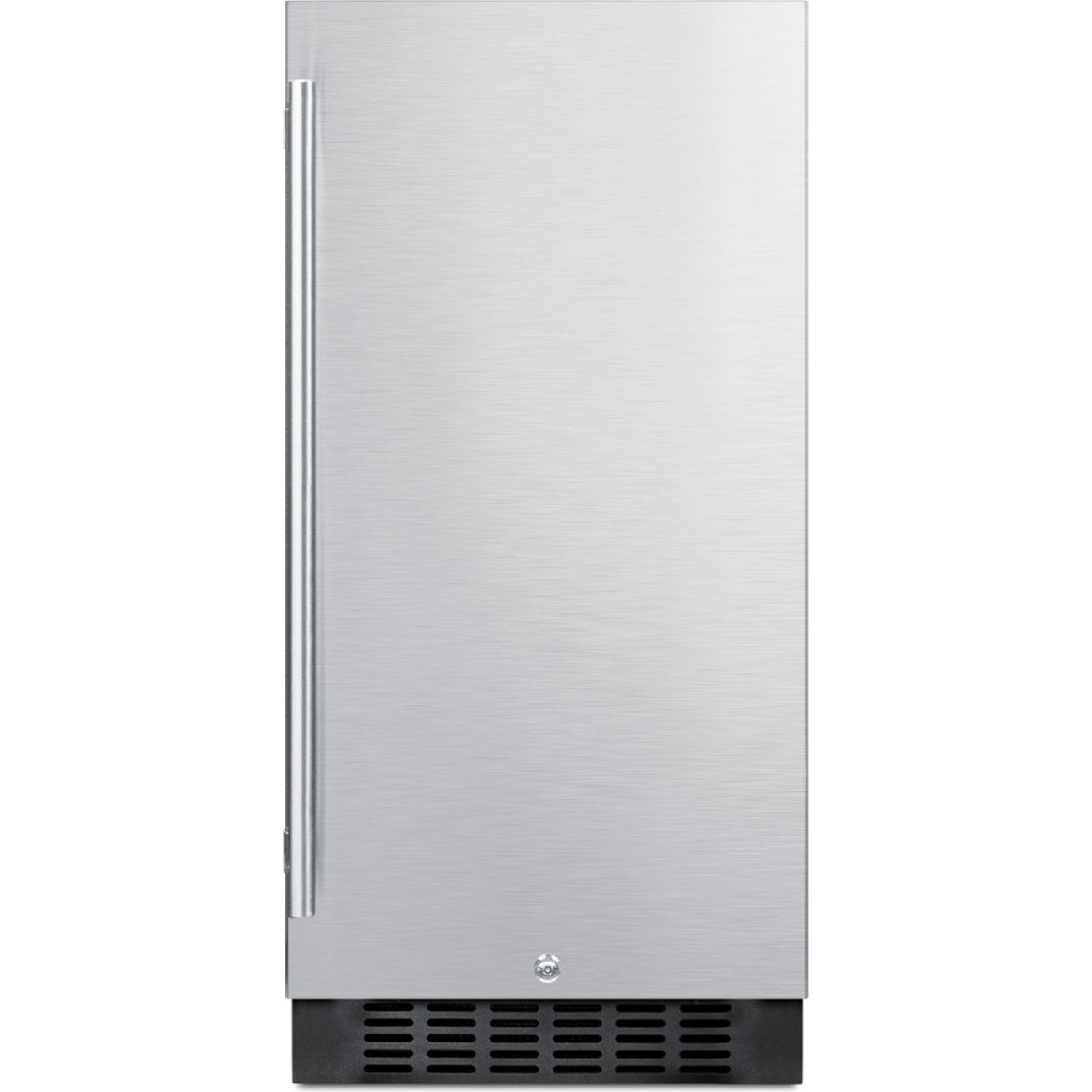

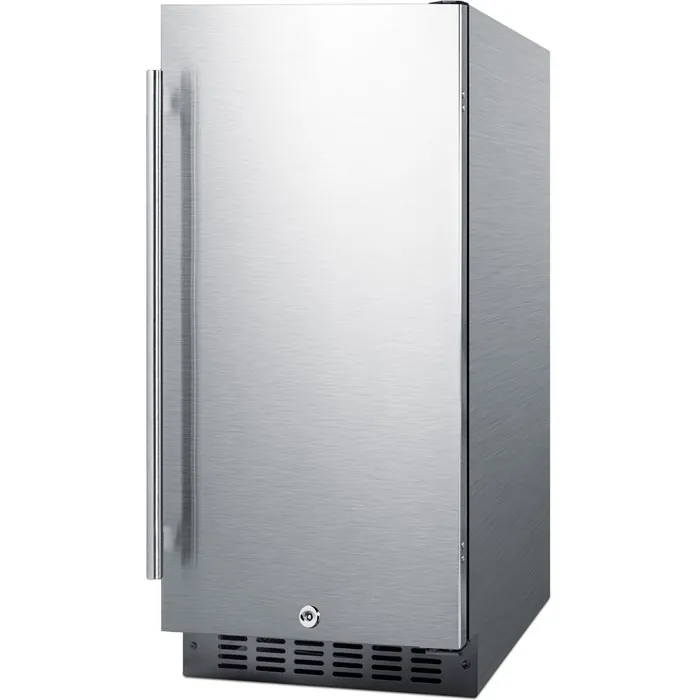

The ALR15BCSS is a 2.2 cu.ft. all-refrigerator with a front-breathing system for built-in use. It comes in a stainless steel wrapped exterior, with a user-reversible stainless steel wrapped door and pro style handle to match. The front lock offers added safety. This unit has a sealed back for easier cleanup. The fully articulating European style hinge design ensures smoother opening. At just under 32" high, it's perfect for fitting under lower counters following ADA guidelines.

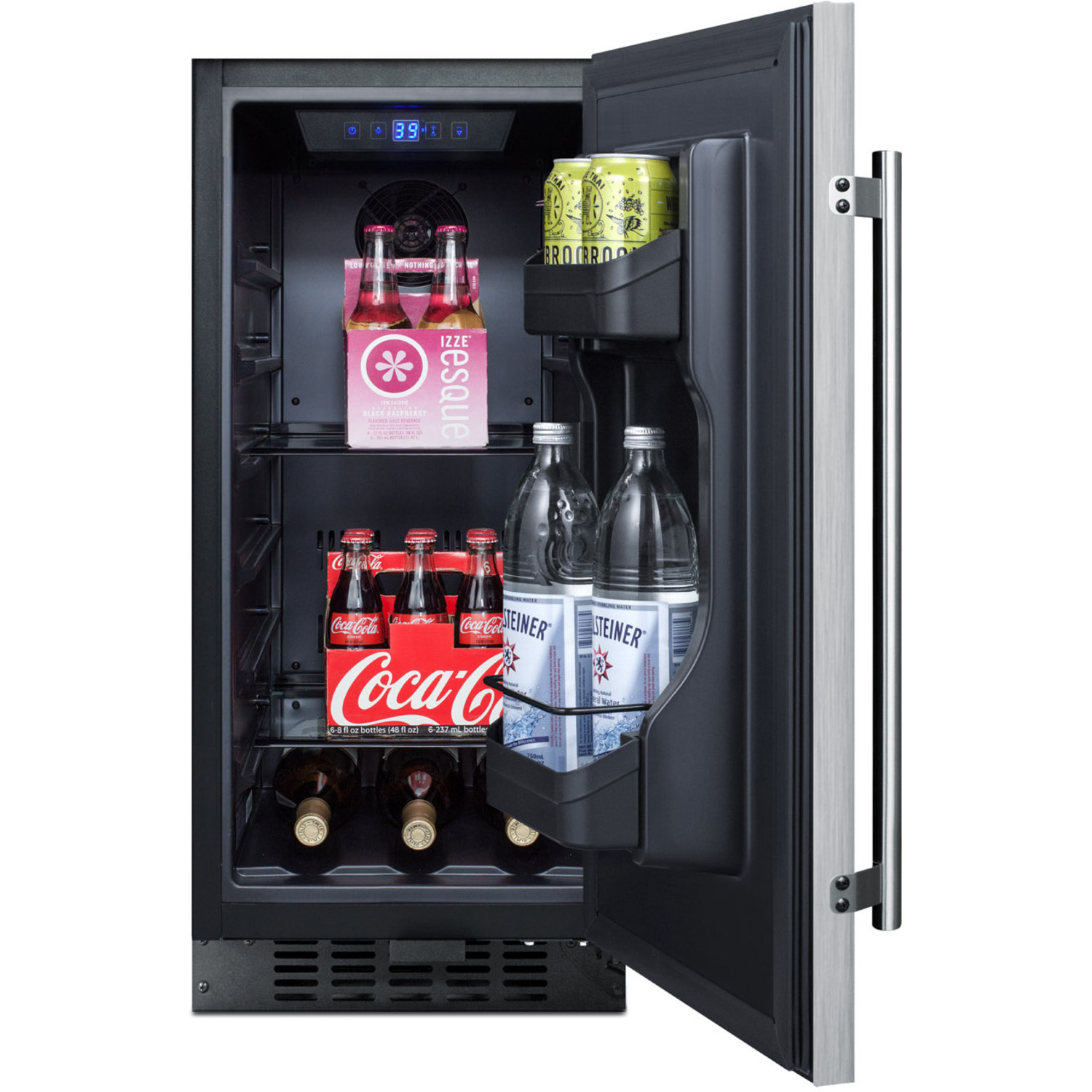

Inside, the ALR15BCSS features a jet black finish and convenient frost-free operation for minimum maintenance. Fan-forced cooling helps to stabilize the temperature inside. Adjustable glass shelves offer spill-proof storage and two door racks are ideal for keeping condiments and bottles within reach. This unit comes with a digital control panel for easy temperature management, with a temperature readout viewable in Celsius and Fahrenheit. Additional features include an open door and high temperature alarm, temperature memory function, and Sabbath mode to allow users to disable certain electrical functions during periods of observance. Recessed LED lighting offers an attractive, energy efficient view.

With its premium design and ADA compliant height, this refrigerator is perfect for a variety of spaces. Additional choices for 15" wide spaces, as well as ADA compliant applications, can be found in Summit's extensive product catalog. Browse our website for more options.

SPECIFICATIONS

Overview

Height of Cabinet 32.0" (81 cm)

Width 14.75" (37 cm)

Depth 22.75" (58 cm)

Depth with Handle 24.5" (62 cm)

Depth with door at 90° 38.0" (97 cm)

Capacity 2.2 cu.ft. (62 L)

Defrost Type Frost-Free

Door Stainless Steel

Cabinet Stainless Steel

US Electrical Safety ETL

Canadian Electrical Safety ETL-C

Energy Usage/Year 240.0kWh/year

Amps 1.0

Plug Type NEMA 5-15P (Right Angle)

Voltage/Frequency 115 V AC/60 Hz

Weight 65.0 lbs. (29 kg)

Parts & Labor Warranty 1 Year

Compressor Warranty 5 Years

UPC 761101061504

Refrigerator Features

Sabbath Mode Yes

Door Swing RHD

Reversible Yes

Shelf Type Glass

Shelf Qty 3

Full Door Shelf Qty 2

Adjustable Shelves Yes

Thermostat Type Digital

Fan Type Interior and Exterior

Refrigerant Type R600a

Refrigerant Amount 0.78oz.

High Side PSI 270.0

Low Side PSI 105.0

Level Legs Qty 4

Interior Light Yes

Temperature Range 36°F to 43°F

Dimensions

Interior Height 25.0" (64 cm)

Interior Width 10.5" (27 cm)

Interior Depth 16.75" (43 cm)

Compressor Step Height 3.5" (9 cm)

Compressor Step Width 10.5" (27 cm)

Compressor Step Depth 5.0" (13 cm)

FEATURES

15" Wide ADA Compliant All-Refrigerator 32" high all-refrigerator designed for built-in installation under ADA counters

ADA Compliant 32" height allows an easy fit in ADA compliant spaces

Built-in capable Make the best use of space by installing your appliance under the counter

Complete stainless steel exterior Door and cabinet feature a wrapped stainless steel exterior for added luxury

Fully articulating European style hinge Smoother opening and a better fit with an integrated European hinge

Factory installed lock Keyed lock for a secure interior, with two keys included

Digital thermostat Electronic controls for precise temperature management.

Digital display Temperature readout can be shown in Celsius or Fahrenheit

LED lighting Gentle illumination with an on/off switch

Frost-free operation No-frost operation ensures reduced maintenance

Adjustable glass shelves Rearrange refrigerator space to accommodate all sizes or remove shelves for simple cleanup

Door storage Two racks offer the perfect storage solution for tall bottles and condiments

Reversible door User-reversible door swing on the refrigerator for added flexibility

Professional handle Stainless steel handle completes the professional look

Flush back Space saving design that is easy to clean

Sabbath mode setting Optional setting lets you disable the lighting and alarm for up to 48 hours

Open door alarm Alarm sounds if the door is left open for more than 60 seconds

High temperature alarm Audible alarm sounds if the interior temperature rises out of set range

Right angle cord Design allows you to plug the unit in flush against the wall socket with no need to add extra depth

Multiple door finishes available Can be ordered with a stainless steel wrapped door or with an integrated frame that accepts custom panels

Temperature memory function In the event of power loss, unit will return to its last settings when power is restored

Fully finished cabinet Allows the unit to be used freestanding

100% CFC Free Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

CARB Compliant Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

DOWNLOADS

BROCHURE (ALR15BCSS.pdf)

TECHNICAL DRAWING (.dwg) (ALR15BSS_2.dwg)

ASSEMBLY DRAWING (ALR15BSS-Assembly_2.pdf)

USE & CARE (ALR15BCSS-User-Manual.pdf)

Energy Guide
