Summit Frost-free built-in freezer, ALFZ53LHD

Summit manufactures the industry's largest selection of built-in appliances sized for use under lower ADA compliant counters, including frost-free freezers specially designed to match our popular ADA compliant refrigerators.

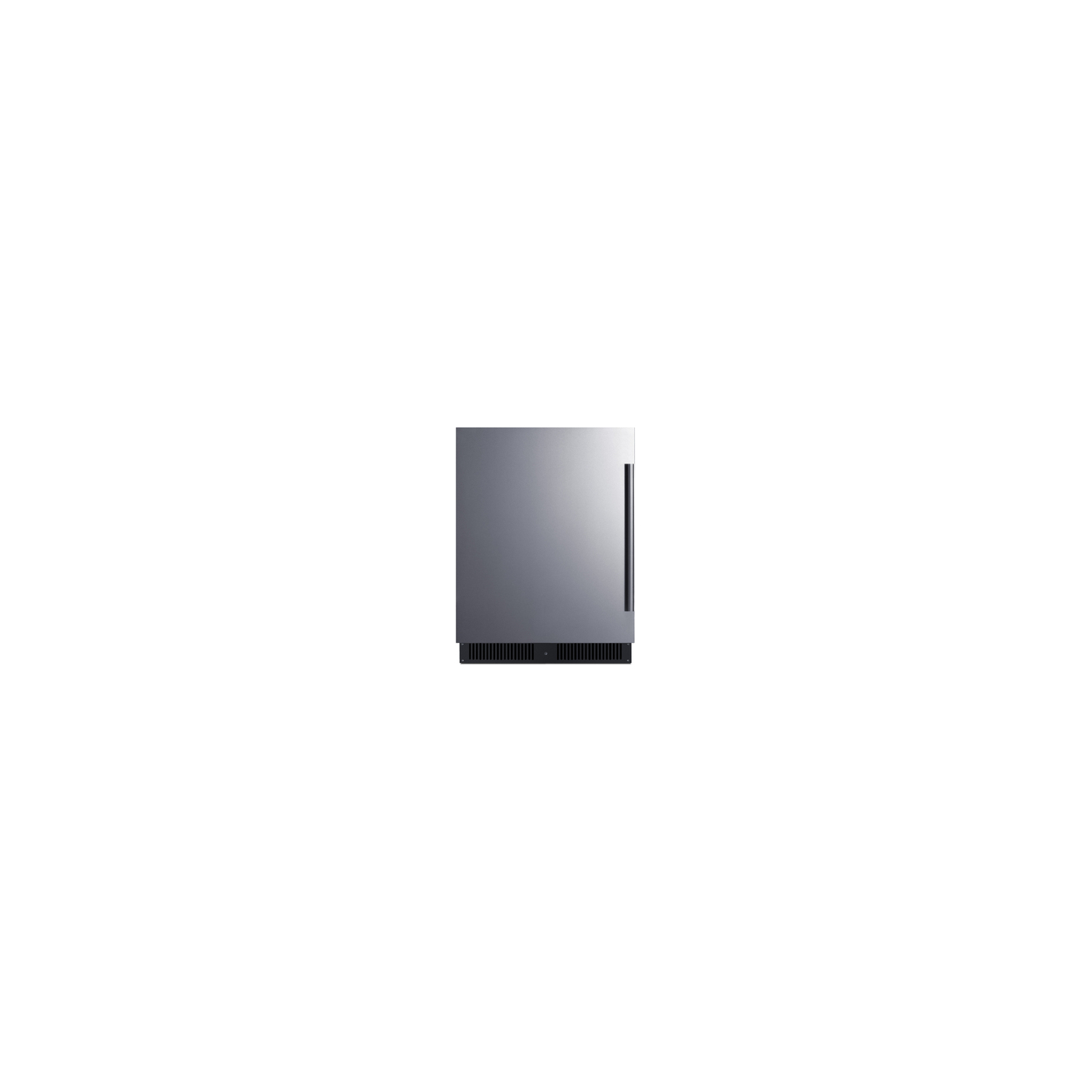

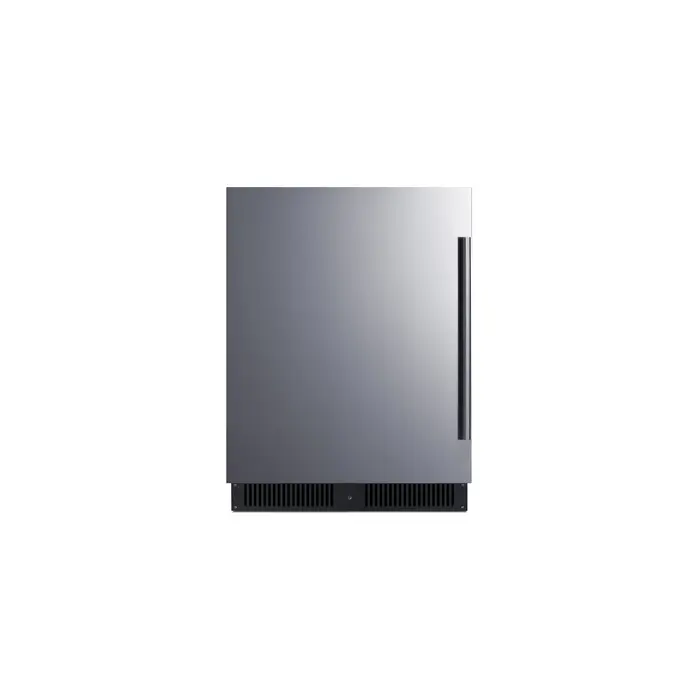

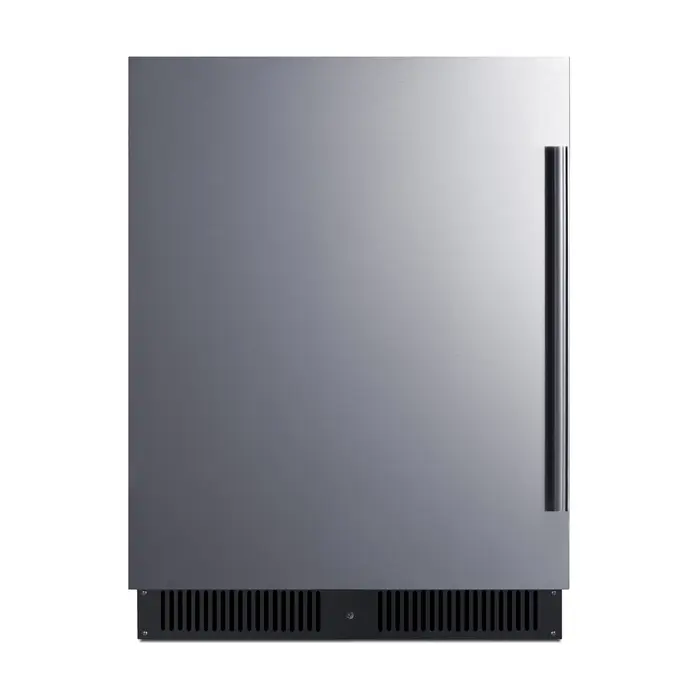

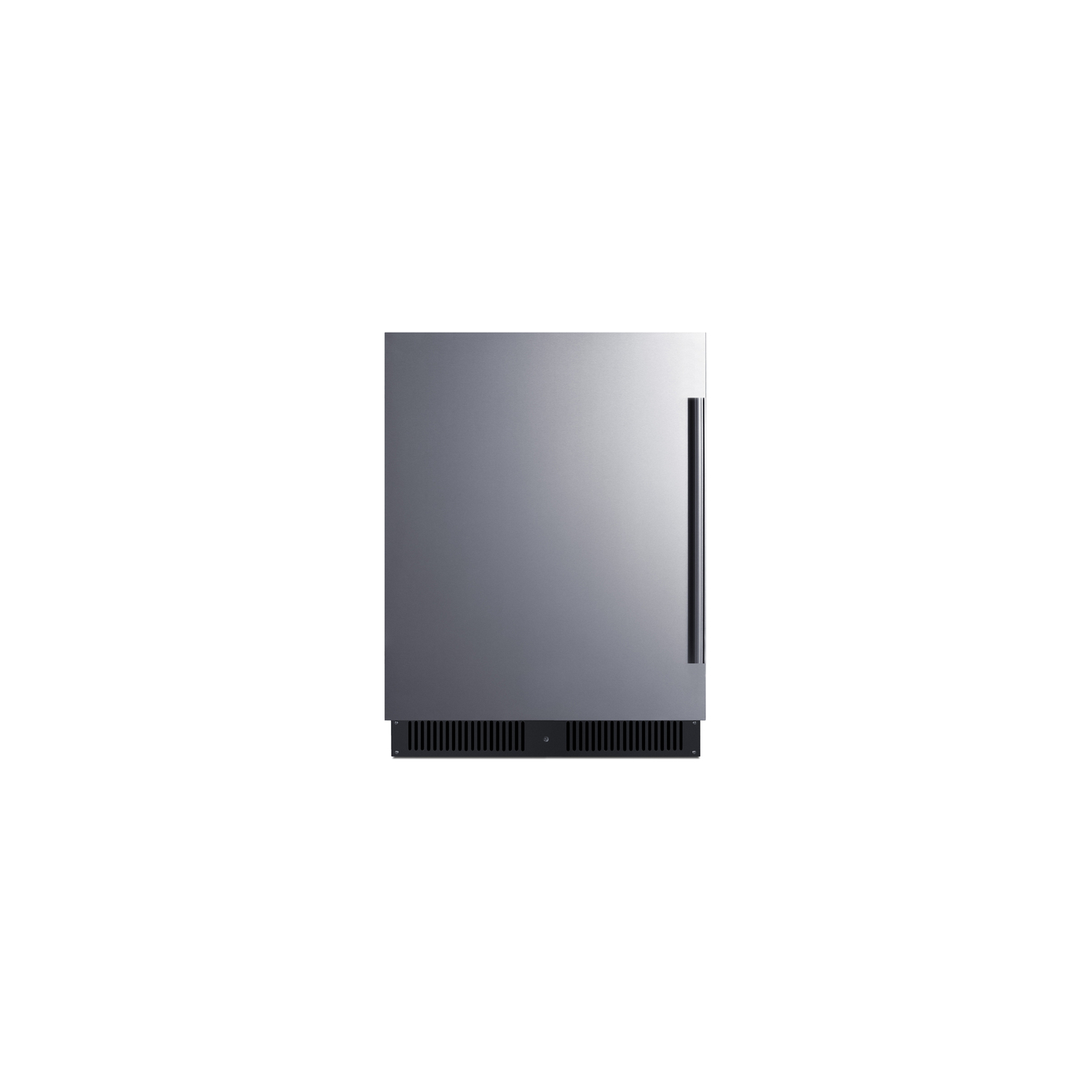

Model ALFZ53LHD is a 24" wide all-freezer that can be paired with our AL54 all-refrigerator. Sized at just 32" high, it can easily be installed under an ADA compliant counter. This freezer features a jet black cabinet and stainless steel door with a pro style handle. A factory-installed lock offers added security with two keys included. This unit comes with a front-breathing system that enables recessed built-in installation, while the fully finished exterior also allows freestanding use as needed. A right angle plug and sealed back design offers added space savings.

Inside, the ALFZ53LHD utilizes frost-free operation with fan-forced cooling to ensure low maintenance and even temperature distribution. Recessed LED lighting offers an attractive yet efficient look inside the black interior. Three adjustable chrome shelves can be set at five different positions to best accommodate your storage needs. Additional user-friendly features include an open door alarm, high temperature alarm, and Sabbath mode setting that lets you disable some of the electrical elements during periods of observance. This unit features intuitive digital controls for easy temperature management.

With its deluxe style and user-friendly features, this unit is the perfect choice for ADA compliant kitchens. Additional door finishes are available, including panel-ready, black stainless steel, and our new vibrant colors. Browse the full selection to explore your options.

SPECIFICATIONS

Overview

Nominal Height 32.0" (81 cm)

Height of Cabinet 32.0" (81 cm)

Nominal Width 24.0" (61 cm)

Width 23.63" (60 cm)

Nominal Depth 23.0" (58 cm)

Depth 22.63" (57 cm)

Depth with Handle 24.63" (63 cm)

Depth with door at 90° 45.0" (114 cm)

Capacity 3.67 cu.ft. (104 L)

Defrost Type Frost-Free

Door Stainless Steel

Cabinet Black

US Electrical Safety ETL

Canadian Electrical Safety ETL-C

Energy Usage/Year 345.0kWh/year

Amps 1.5

Voltage/Frequency 115 V AC/60 Hz

Weight 82.0 lbs. (37 kg)

Parts & Labor Warranty 1 Year

Compressor Warranty 5 Years

UPC 761101091709

Freezer

Door Swing LHD

Reversible No

Interior Height 23.5" (60 cm)

Interior Width 18.75" (48 cm)

Interior Depth 15.5" (39 cm)

Shelf Type Chrome

Shelf Qty 3

Adjustable Shelves Yes

Thermostat Type Digital

Interior Light Yes

Fan Type Interior and Exterior

Refrigerant Type R600a

Refrigerant Amount 1.31 oz.

High Side PSI 270.0

Low Side PSI 105.0

Level Legs 4

Compressor Step Height 3.75" (10 cm)

Compressor Step Width 18.75" (48 cm)

Compressor Step Depth 4.5" (11 cm)

Temperature Range -11°F to 11°F

Sabbath Mode Yes

Sound Level 33.7 dB

FEATURES

Undercounter All-Freezer 24" wide frost-free freezer sized to fit under lower ADA compliant counters

ADA compliant design 32" height allows easy installation under lower ADA compliant counters

Built-in capable Make the best use of space by installing your freezer under the counter and flush with other cabinets

Frost-free operation No-frost convenience eliminates the need to manually defrost the unit

Stainless steel door Durable construction with a professional look

Digital thermostat Electronic controls offer easy and intuitive temperature management

Recessed LED light Elegant lighting with an on/off switch located on the control panel

Left-hand door swing For this unit with the door opening from the other side, see model ALFZ53

Adjustable shelves Rearrange your freezer space to accommodate all shapes and sizes or remove shelves for a simple clean-up

Factory installed lock Keyed lock for a secure interior

Professional handle Attractive chrome handle adds a touch of modern style

Open door alarm Audible alarm will sound if the door is left open longer than one minute

Sabbath mode setting Optional setting lets you disable the lighting and alarm for up to 48 hours

High temperature alarm High temperature alarm sounds if the unit's interior goes out of the recommended range

Temperature Memory Function Unit will retain its last settings when power is restored in the event of power loss

Right angle plug Design allows you to plug the unit in flush against the wall socket with no need to add extra depth

Sealed back Space-saving design with no exposed coils for easier cleanability

Fully finished cabinet Allows the freezer to be used as a freestanding model

100% CFC free Environmentally friendly design without ozone-damaging chemicals

CARB Compliant Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

DOWNLOADS

BROCHURE w/ DRAWINGS (ALFZ53LHD.pdf)

TECHNICAL DRAWING (.dwg) (AL5Z53_2.dwg)

ASSEMBLY DRAWING (AL5Z53-Assembly_2.pdf)

REVIT MODEL (QF_Summit_ALFZ53_Frost_Free_Built_In_Undercounter_2.rfa)

USE & CARE (ALFZ53LHD-User-Manual.pdf)

Energy Guide
