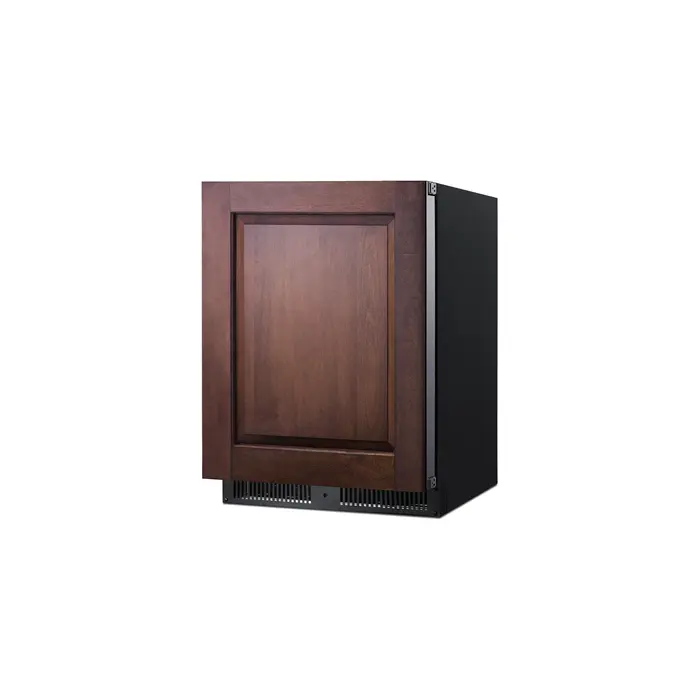

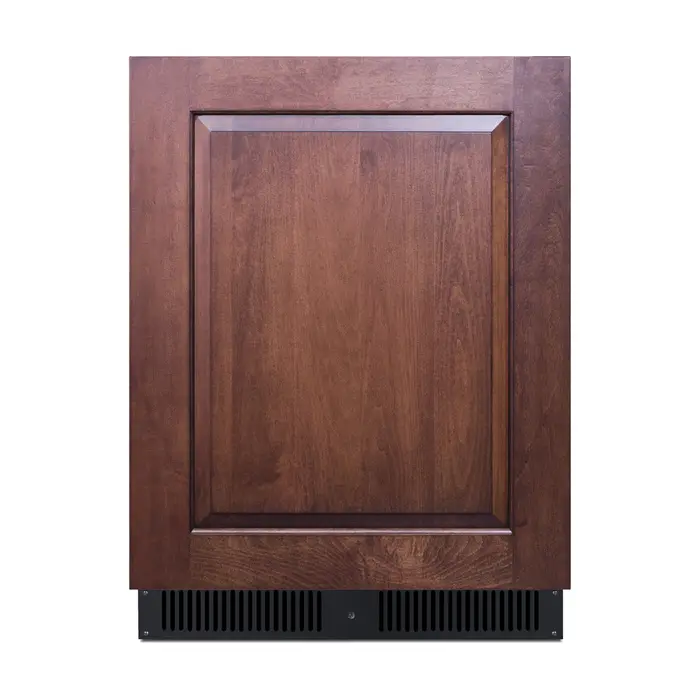

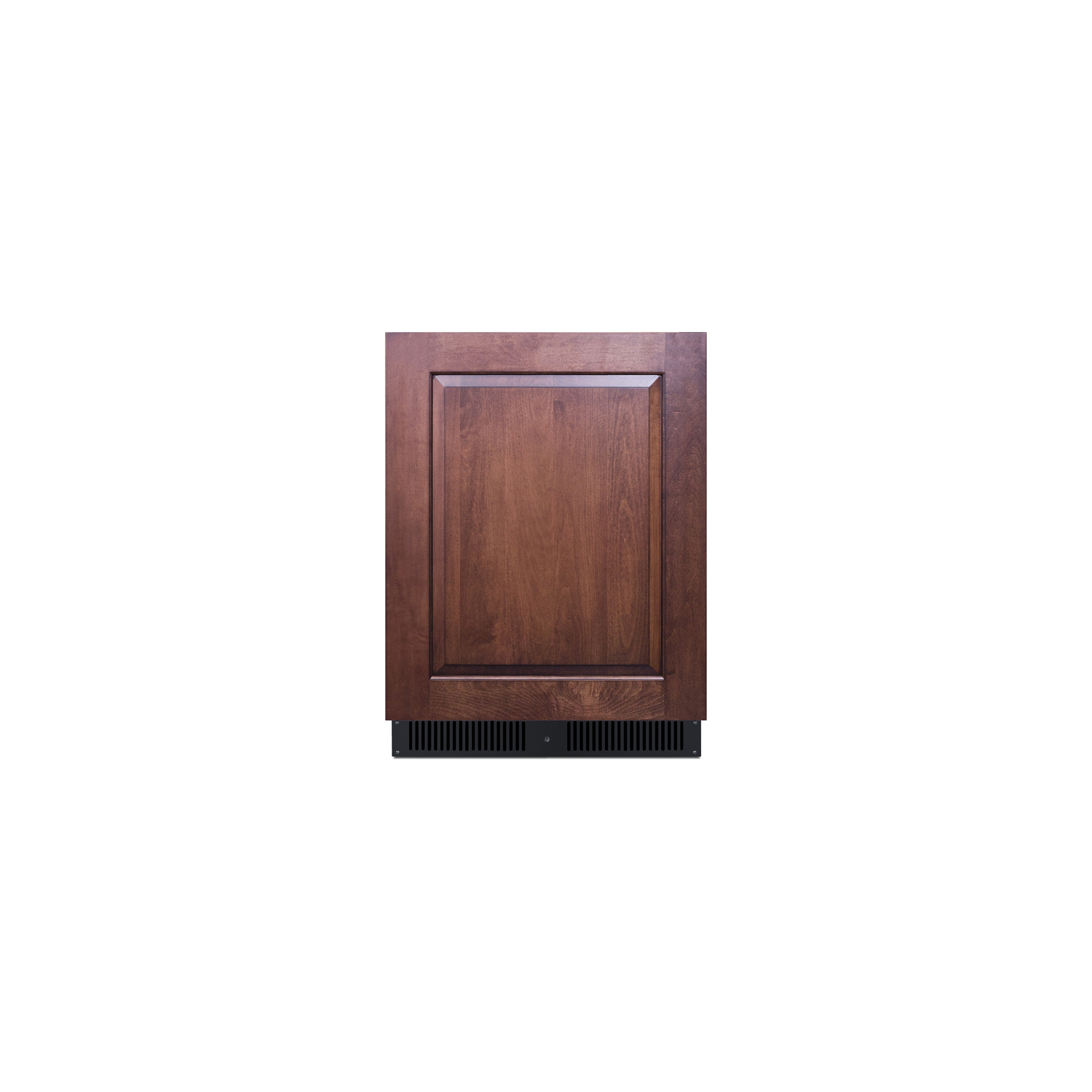

Summit Frost-free built-in freezer, ALFZ53IFLHD

Summit manufactures the industry's largest selection of built-in appliances sized for use under lower ADA compliant counters, including frost-free freezers specially designed to match our popular ADA compliant refrigerators.

Model ALFZ53IFLHD is a 24" wide all-freezer that can be paired with our AL54PNR all-refrigerator. Sized at just 32" high, it can easily be installed under an ADA compliant counter. The fully finished black cabinet allows freestanding use, while the front-breathing system also allows this unit to be built-in with minimum clearance. The stainless steel door features a European-style fully articulating hinge for zero clearance opening. We include a 2-piece bracket kit that allows easy installation of overlay panels to create a custom look that can seamlessly blend into your existing cabinetry design (panel size: 28.38" H x 23.4" W; maximum weight: 10 lbs.). This unit has a flush back for easy cleaning and a right angle plug for a better fit. A factory-installed lock is located in the kickplate.

Inside, the ALFZ53IFLHD utilizes frost-free operation with fan-forced cooling to ensure low maintenance and even temperature distribution. Recessed LED lighting offers an attractive yet efficient look inside the black interior. Three adjustable chrome shelves can be set at five different positions to best accommodate your storage needs. Additional user-friendly features include an open door alarm, high temperature alarm, and Sabbath mode setting that lets you disable some of the electrical elements during periods of observance. This unit features intuitive digital controls for easy temperature management.

With its deluxe style and user-friendly features, this unit is the perfect choice for ADA compliant kitchens. It's a perfect match for our AL54PNR all-refrigerator, both panel-ready to create a truly custom refrigerator/freezer set under ADA compliant counters. Additional door finishes are available, including stainless and black stainless steel, and our new vibrant colors. Browse the full selection to explore your options.

SPECIFICATIONS

Overview

Nominal Height 32.0" (81 cm)

Height of Cabinet 32.0" (81 cm)

Nominal Width 24.0" (61 cm)

Width 23.63" (60 cm)

Nominal Depth 23.0" (58 cm)

Depth 22.63" (57 cm)

Depth with Handle 24.63" (63 cm)

Depth with door at 90° 45.0" (114 cm)

Capacity 3.7 cu.ft. (105 L)

Defrost Type Frost-Free

Door Panel-Ready

Cabinet Black

US Electrical Safety ETL

Canadian Electrical Safety ETL-C

Energy Usage/Year 345.0kWh/year

Amps 1.5

Voltage/Frequency 115 V AC/60 Hz

Weight 90.0 lbs. (41 kg)

Parts & Labor Warranty 1 Year

Compressor Warranty 5 Years

UPC 761101091747

Freezer

Door Swing LHD

Reversible No

Interior Height 23.5" (60 cm)

Interior Width 18.75" (48 cm)

Interior Depth 15.5" (39 cm)

Shelf Type Chrome

Shelf Qty 3

Adjustable Shelves Yes

Thermostat Type Digital

Interior Light Yes

Fan Type Interior and Exterior

Refrigerant Type R600a

Refrigerant Amount 1.31 oz.

High Side PSI 270.0

Low Side PSI 105.0

Level Legs 4

Compressor Step Height 3.75" (10 cm)

Compressor Step Width 18.75" (48 cm)

Compressor Step Depth 4.5" (11 cm)

Temperature Range -11°F to 11°F

Sabbath Mode Yes

Sound Level 33.7 dB

FEATURES

24" Wide ADA Height Freezer 24" wide frost-free freezer sized to fit under lower ADA compliant counters

ADA compliant design 32" height allows easy installation under lower ADA compliant counters

Custom style Door accepts overlay panel, allowing you to seamlessly blend the refrigerator into your space

Built-in capable Make the best use of space by installing your freezer under the counter and flush with other cabinets

Panel-ready door Customize this unit using the included 2-piece bracket system (panel size: 23.4" W x 28.38" H at 3/4" thick and 10 lbs. maximum)

Easy panel installation with included 2-piece bracket kit Enhanced panel execution allows the unit to be flush with cabinets

Stainless steel door Fully finished door also allows you to choose a traditional stainless steel front if not installing an overlay panel

Fully articulating hinge European style hinge design ensures a flush fit and allows for a smoother opening

Frost-free operation No-frost convenience eliminates the need to manually defrost the unit

Digital thermostat Electronic controls offer easy and intuitive temperature management

Recessed LED light Elegant lighting with an on/off switch located on the control panel

Left-hand door swing For this unit with the door opening from the other side, see model ALFZ53IF

Adjustable shelves Rearrange your freezer space to accommodate all shapes and sizes or remove shelves for a simple clean-up

Open door alarm Audible alarm will sound if the door is left open longer than one minute

Sabbath mode setting Optional setting lets you disable the lighting and alarm for up to 96 hours

High temperature alarm High temperature alarm sounds if the unit's interior goes out of the recommended range

Temperature Memory Function Unit will retain its last settings when power is restored in the event of power loss

Factory-installed lock Keyed lock located in the kickplate for optional security

Right angle plug Design allows you to plug the unit in flush against the wall socket with no need to add extra depth

Sealed back Space-saving design with no exposed coils for easier cleanability

Matching refrigerator available Pair with the AL54PNR for a matching side-by-side set under lower ADA compliant counters

Fully finished cabinet Allows the freezer to be used as a freestanding model

100% CFC free Environmentally friendly design without ozone-damaging chemicals

CARB Compliant Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

DOWNLOADS

BROCHURE (ALFZ53IFLHD.pdf)

USE & CARE (ALFZ53IFLHD-User-Manual.pdf)

USE & CARE (ALFZ53IFLHD-User-Manual_2.pdf)

Energy Guide
