Summit Frost-free built-in freezer, 7.61101e+011, ALFZ51IF

Summit manufactures the industry's largest selection of built-in appliances sized for use under lower ADA compliant counters, including frost-free freezers specially designed to match our popular ADA compliant refrigerators.

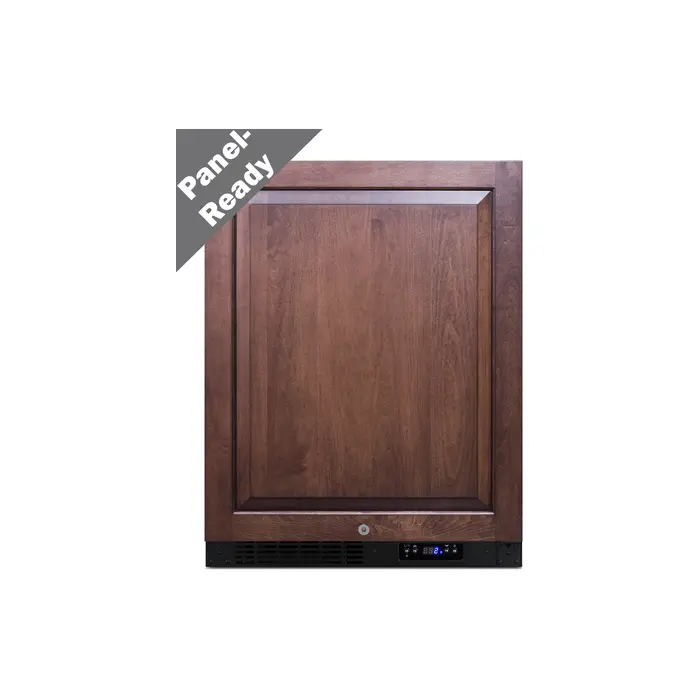

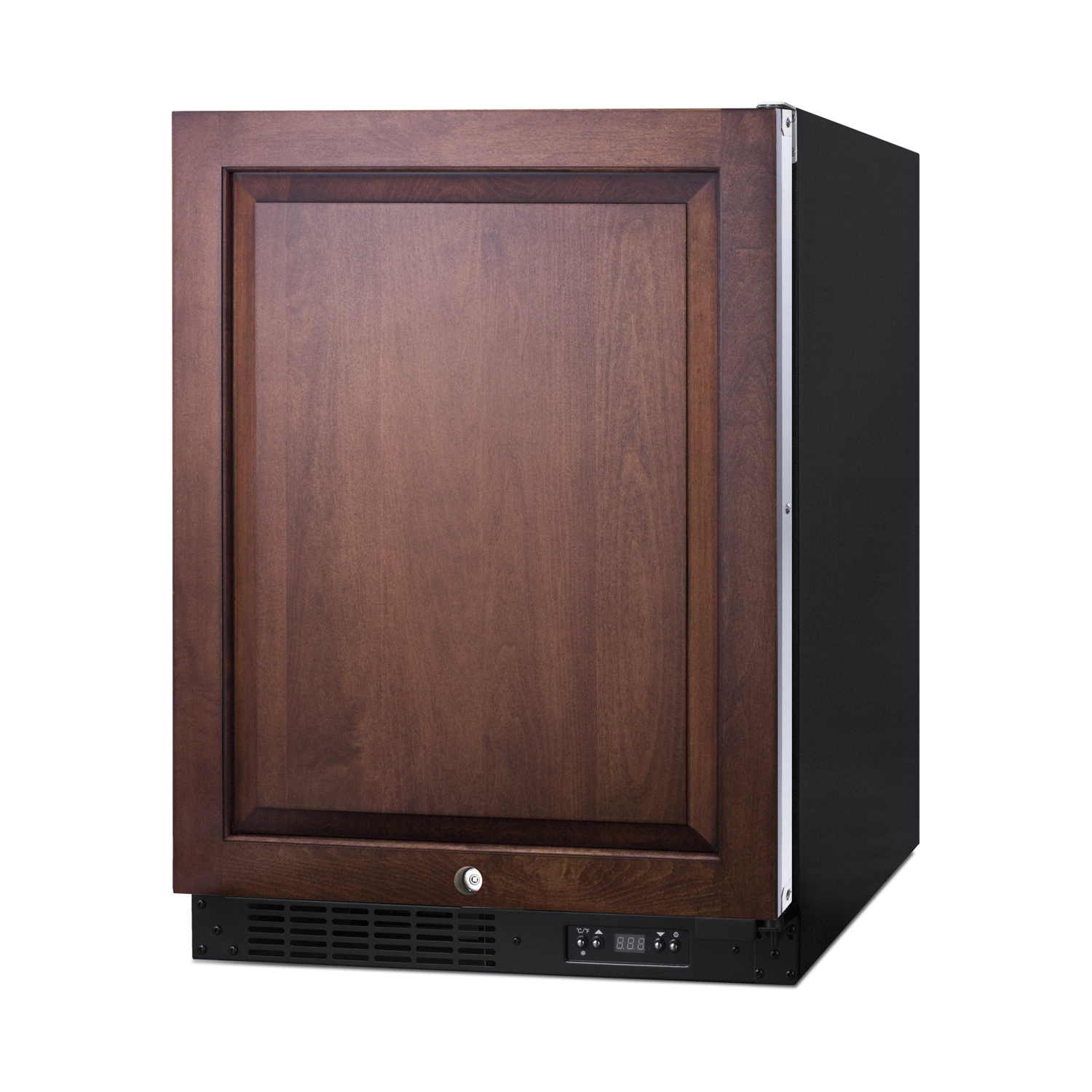

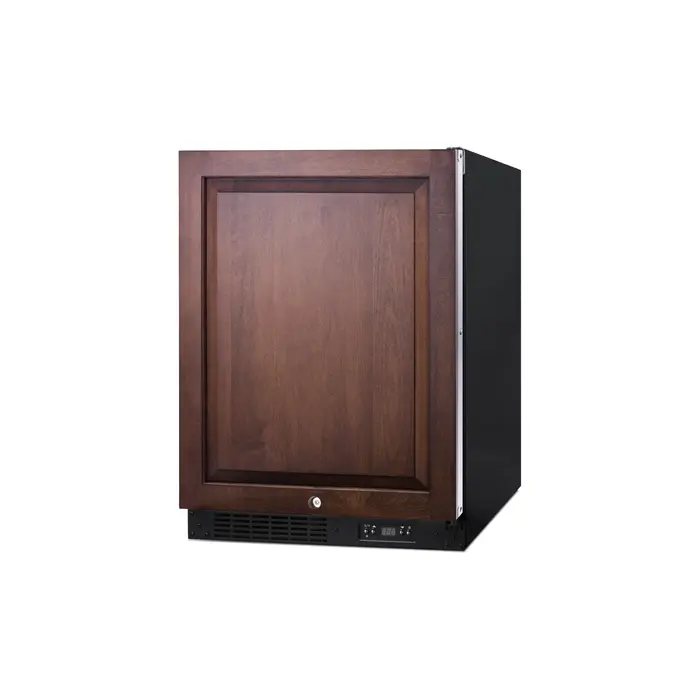

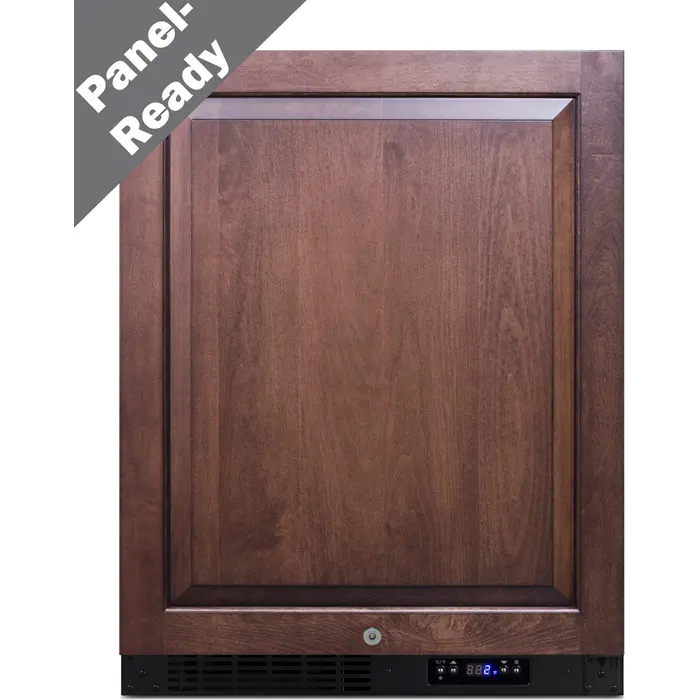

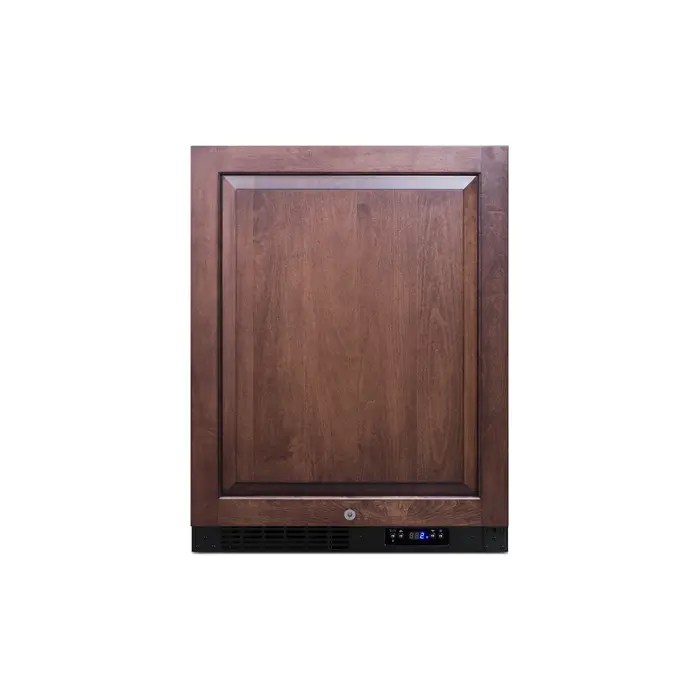

The ALFZ51IF is a 24 inch wide all-freezer designed and approved for residential or commercial use. The front-breathing design allows built-in installation, while the fully finished black cabinet also enables freestanding use. Sized just under 32 inches high and 24 inches wide, this unit makes an ideal fit under lower ADA compliant counters. The door features an integrated stainless steel frame designed to accept full panel overlays, allowing users to seamlessly blend the unit into their own cabinetry design (panel size: 27 3/4" H x 23 3/16" W; 3/4" thick with a maximum weight of 10 lbs.). The door is factory reversible, and users must supply their own door handle. This unit has a flush back for easy cleaning and a right angle plug for a better fit. A temperature alarm offers added security should the temperature go beyond the setpoint, and the optional Sabbath Mode can be used to disable certain electrical features during periods of religious observance for up to 96 hours. The frost-free cooling system keeps the unit running efficiently with little user maintenance, and the internal fan ensures the unit is evenly cooled.

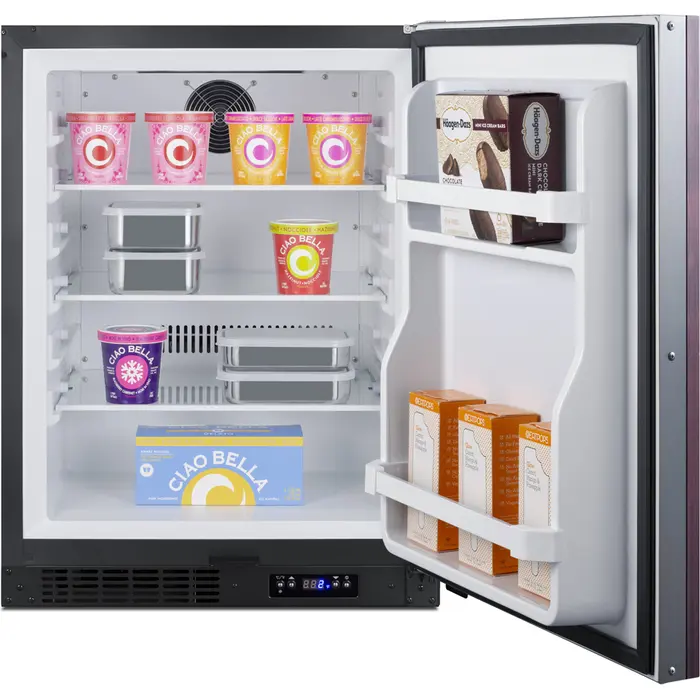

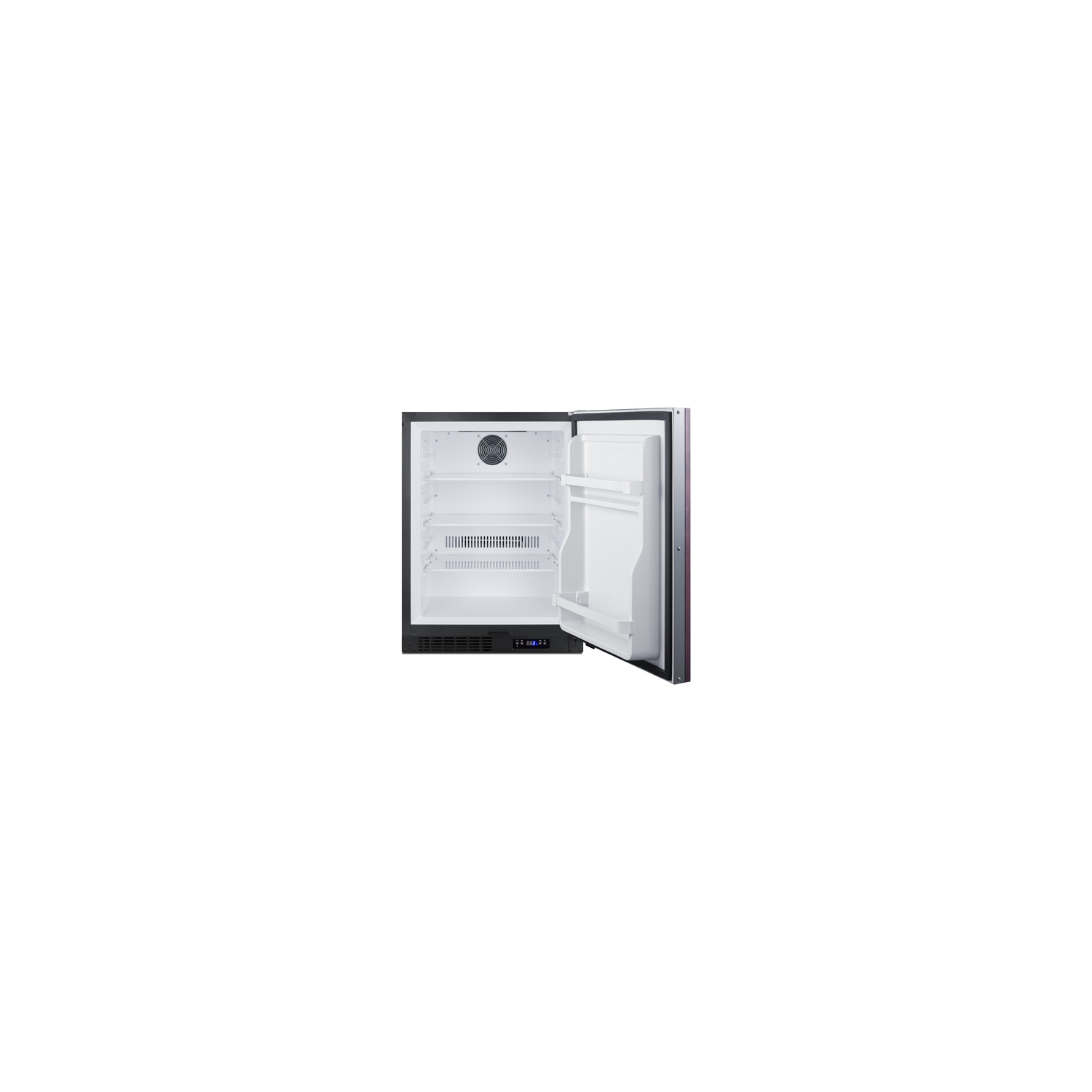

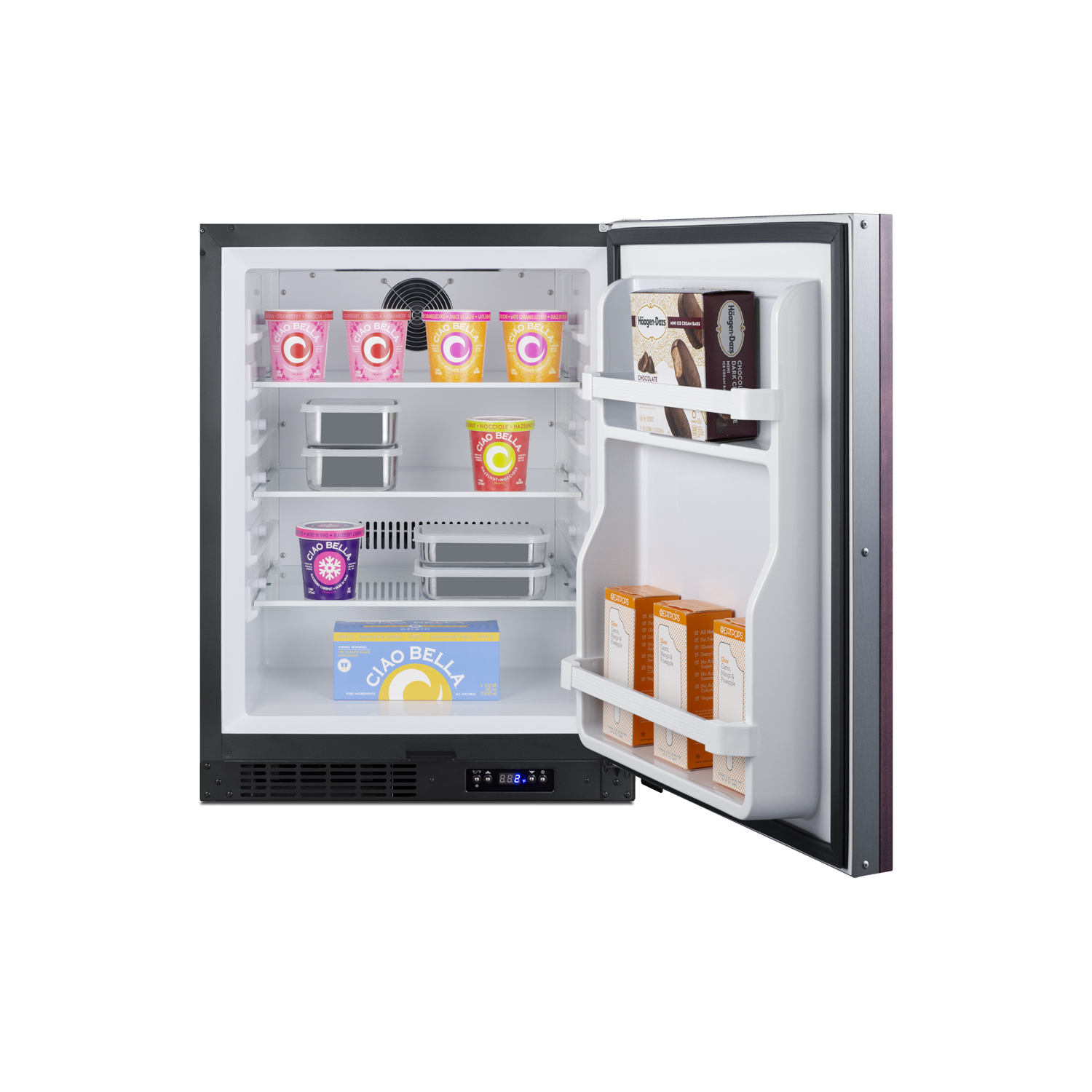

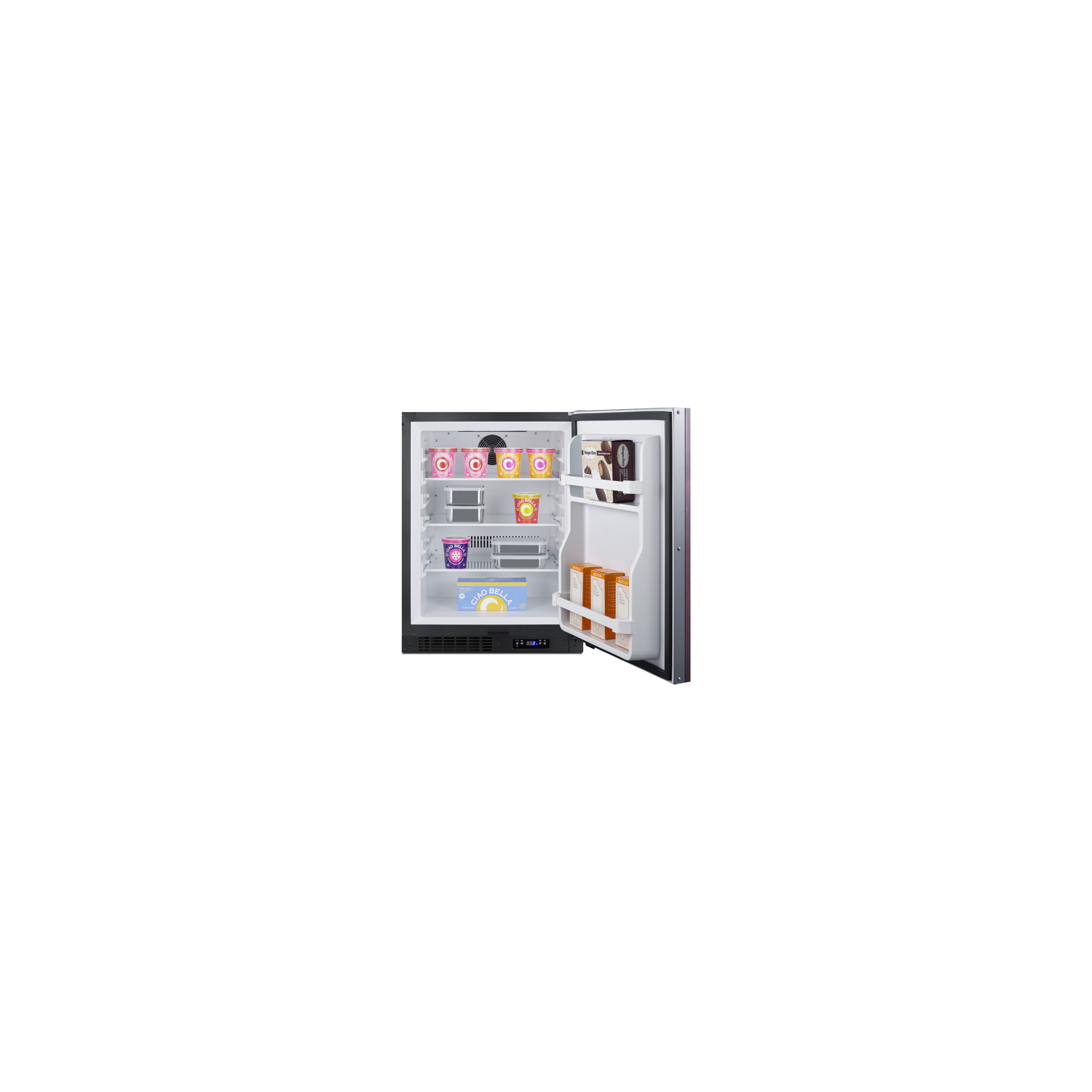

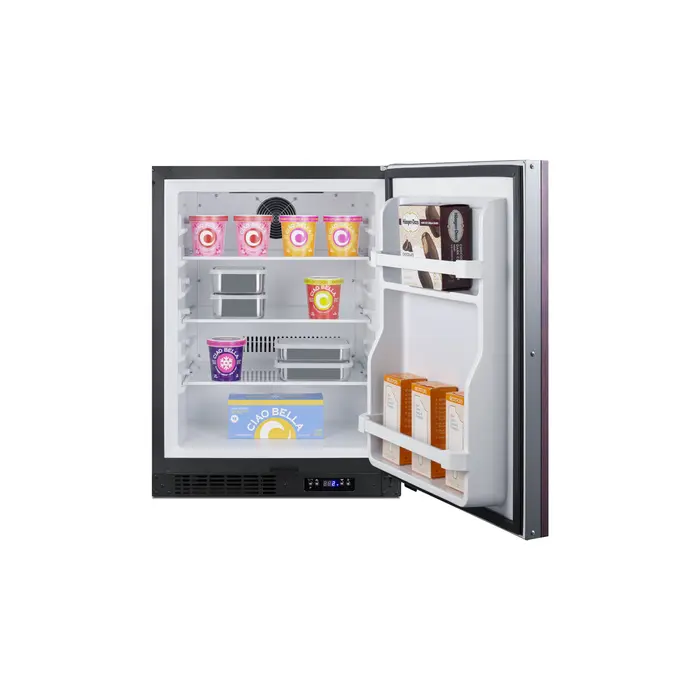

Digital controls ensure easy temperature management. Inside, three easy-glide glass shelves that extend 50% provide flexible storage, and the shelving brake system keeps unit contents safe when loading and unloading. Two door racks are ideal for keeping commonly accessed items in easy reach.

With its advanced user features and versatile design, the ALFZ51IF is an excellent addition to any ADA compliant setting looking for a frost-free freezer with a modern, elegant look. To create a matching set, pair with the AL55IF refrigerator.

SPECIFICATIONS

Overview

Nominal Height 32.0" (81 cm)

Height of Cabinet 31.63" (80 cm)

Nominal Width 24.0" (61 cm)

Width 23.38" (59 cm)

Nominal Depth 24.0" (61 cm)

Depth 23.38" (59 cm)

Depth with door at 90° 45.75" (116 cm)

Capacity 4.0 cu.ft. (113 L)

Defrost Type Frost-Free

Door Panel-Ready

Cabinet Black

US Electrical Safety ETL

Canadian Electrical Safety ETL-C

Sanitation ETL-S

Energy Usage/Year 380.0kWh/year

Amps 1.3

Voltage/Frequency 115 V AC/60 Hz

Weight 95.0 lbs. (43 kg)

Parts & Labor Warranty 1 Year

Compressor Warranty 5 Years

UPC 761101089010

Freezer

Door Swing RHD

Reversible Factory Reversible

Interior Height 23.75" (60 cm)

Interior Width 18.5" (47 cm)

Interior Depth 16.75" (43 cm)

Shelf Type Glass

Shelf Qty 3

Adjustable Shelves Yes

Thermostat Type Digital

Fan Type Interior and Exterior

Refrigerant Type R600a

Refrigerant Amount 1.06 oz.

High Side PSI 150.0

Low Side PSI 50.0

Level Legs 4

Compressor Step Height 5.0" (13 cm)

Compressor Step Width 18.5" (47 cm)

Compressor Step Depth 5.0" (13 cm)

Temperature Range -11°F to 11°F

Sabbath Mode Yes

Sound Level 40.1 dB

FEATURES

ADA compliant 32” height allows for installation within ADA compliant spaces

Commercially approved ETL-S listed to NSF-7 commercial standards

Built-in capable Front-breathing design allows the unit to be built-in under counters

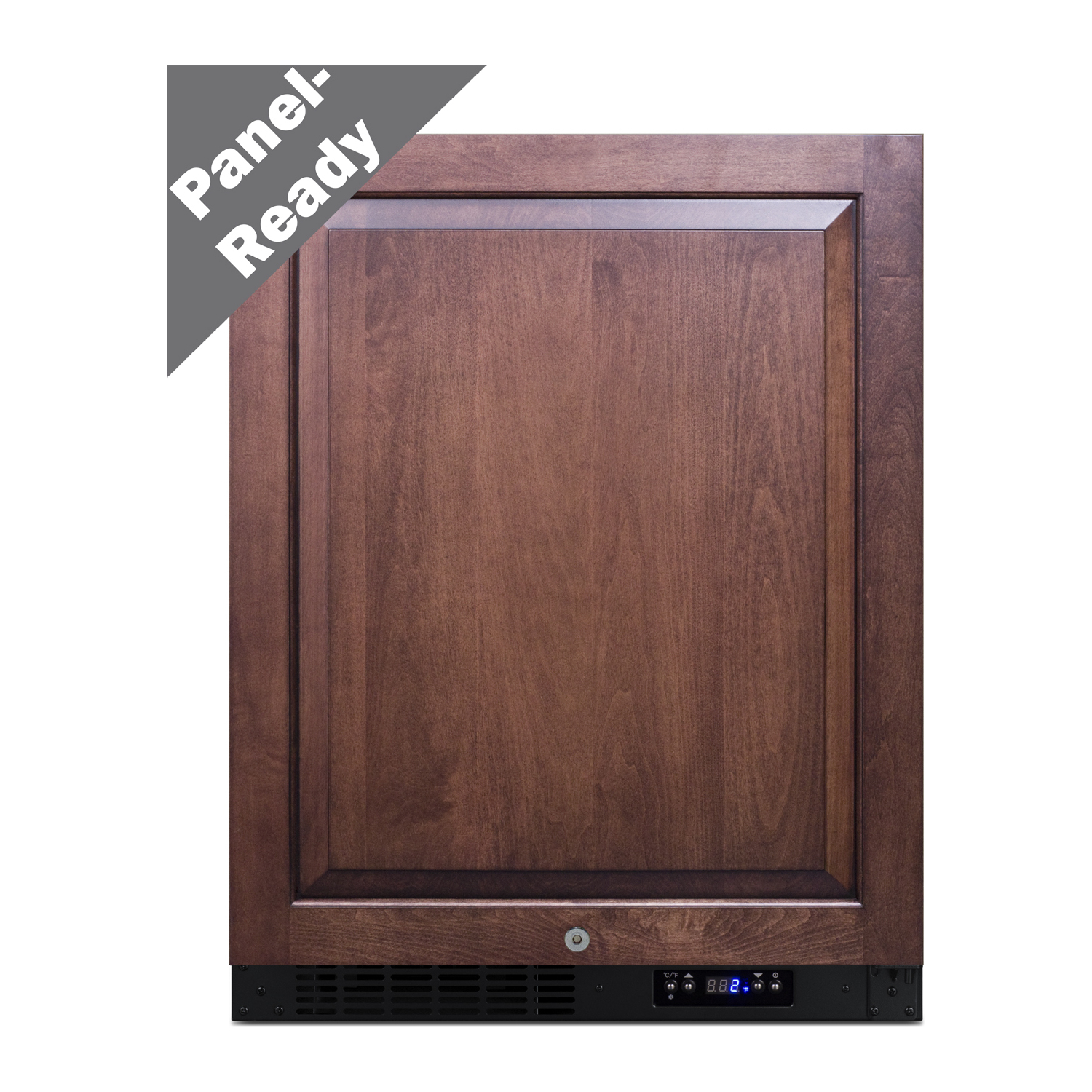

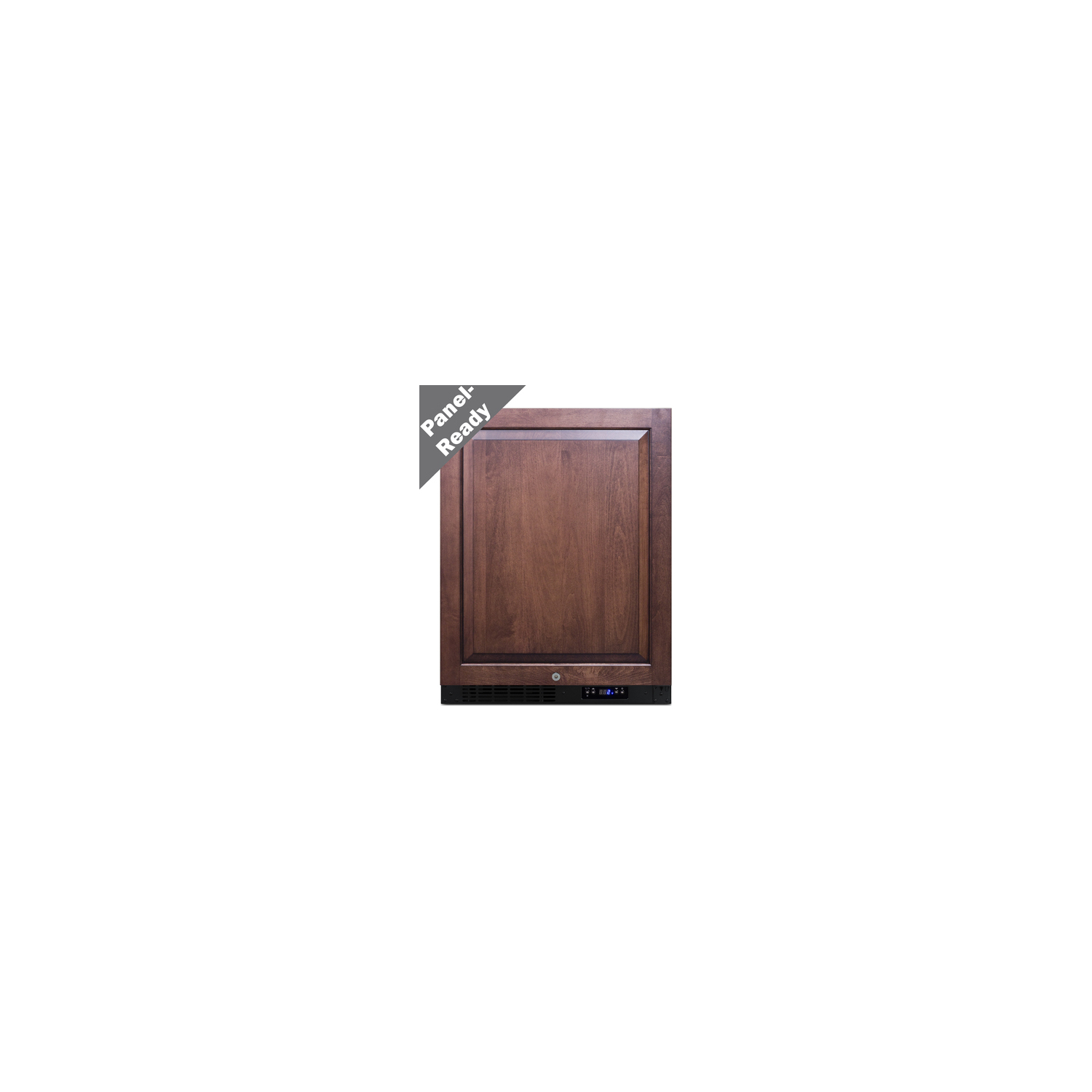

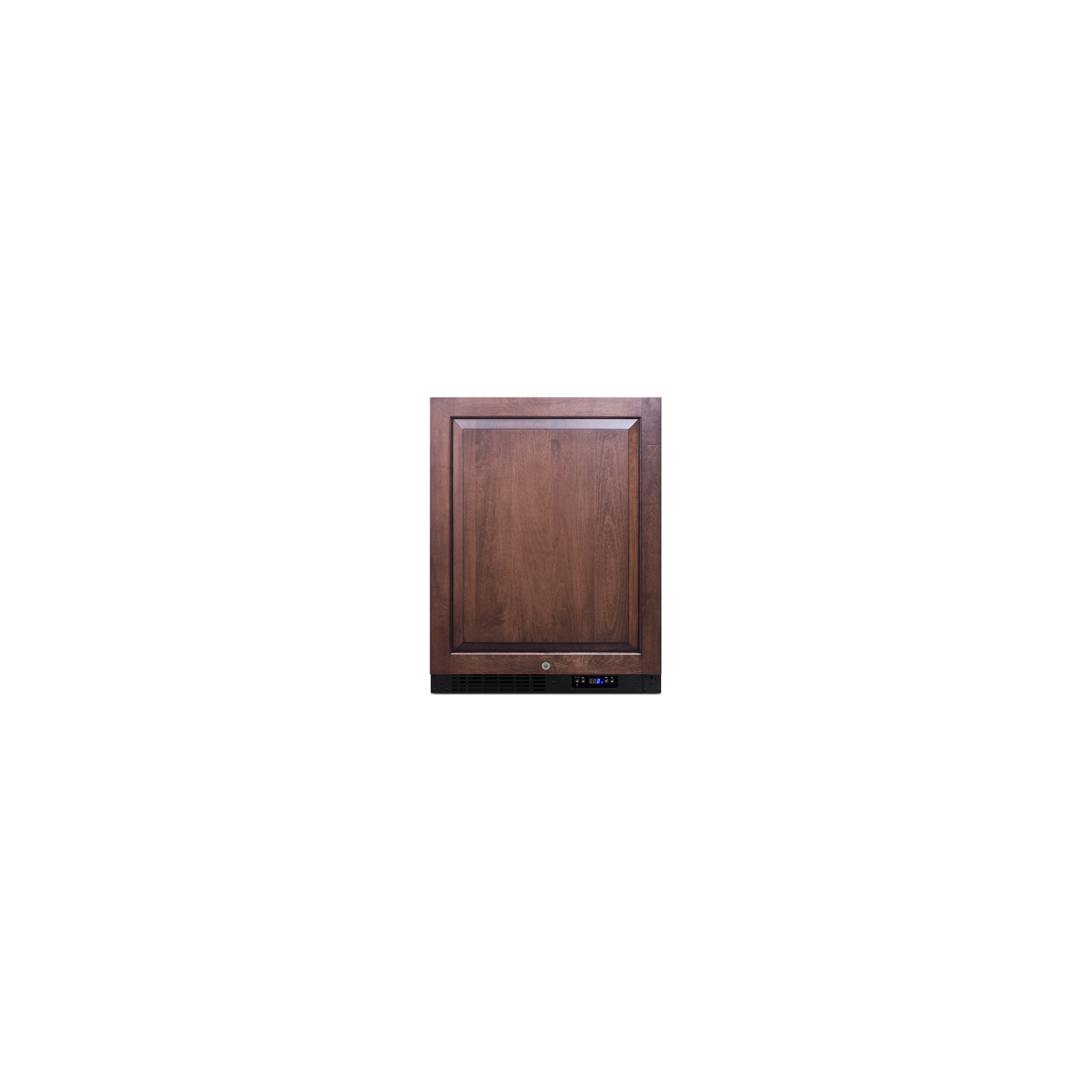

Panel-ready door Integrated stainless steel door frame accepts full overlay panels, allowing you to customize the refrigerator door or blend it into your cabinetry design; panel size: 23 3/16" W x 27 3/4" H and at least 3/4" thick; 10 lbs. maximum; customers provide their own handles

Digital control panel Makes for easy temperature reading/management with electronic controls inside

Factory installed lock Keyed lock for secure interior, with two keys included

White interior Classic interior allows for easy cleaning and viewing of products

Adjustable shelving Three easy-glide shelves that extend 50% give space and flexibility when organizing the interior’s contents

Brake shelving system Provides added safety when loading and unloading the unit's 3 shelves

Automatic defrost Reduced maintenance with auto defrost system

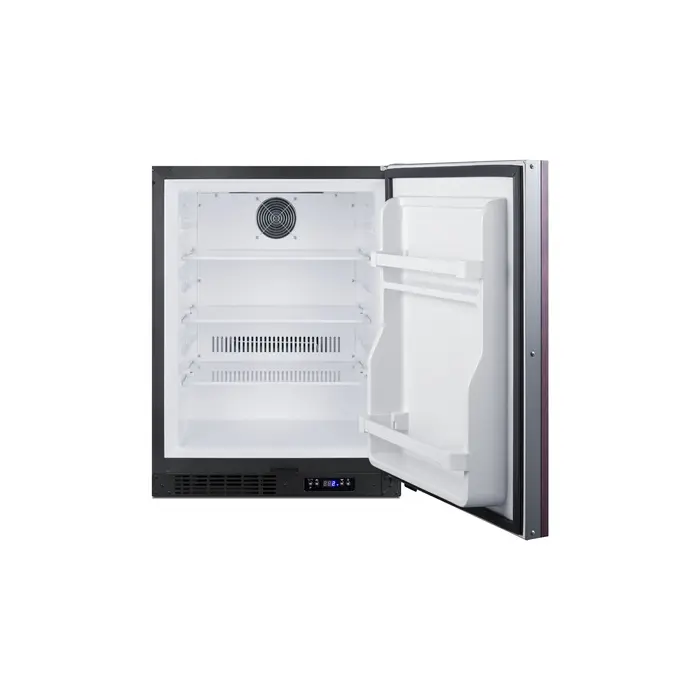

Internal fan Fan-forced cooling ensures the unit is evenly cooled from top to bottom

Temperature alarm Alarm sounds if temperature goes out of recommended range after 2 hours

Sabbath mode Optional feature disables alarms, interior light, and displays for up to 96 hours

Reversible door User-reversible door swing makes it easy to best accommodate your setting

Integrated hinge Flat stainless steel hinge ensures no added height is needed when installing under a counter

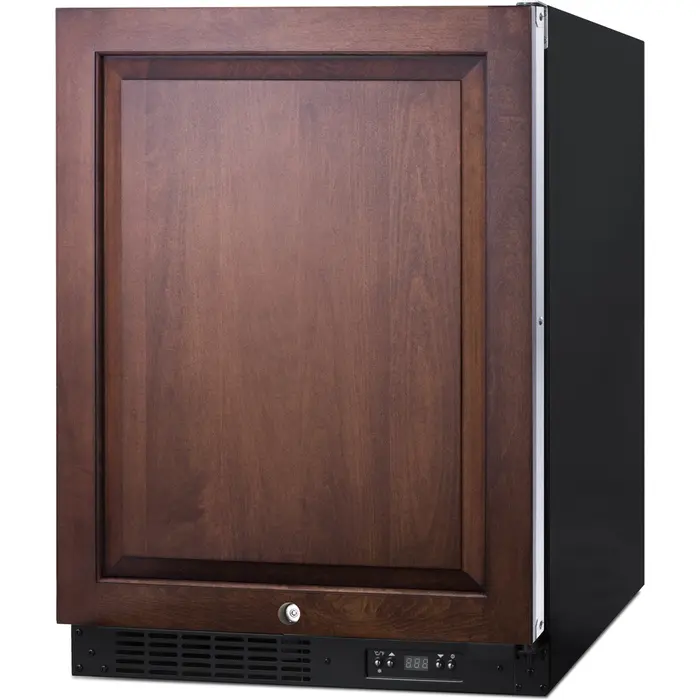

Fully finished black cabinet Allows unit to be used freestanding

Matching refrigerator Pair with Summit AL55IF to create a matching ADA height set

100% CFC free Environmentally friendly design with no ozone-damaging chemicals

CARB Compliant Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
