Summit ADA compliant built-in undercounter MOMCUBE all-freezer for breast milk storage, 7.61101e+011, ALFZ36MC

Summit Appliance offers a quality selection of MOMCUBE® all-freezers designed for reliable long-term storage of breast milk in residential settings, with advanced features for user convenience.

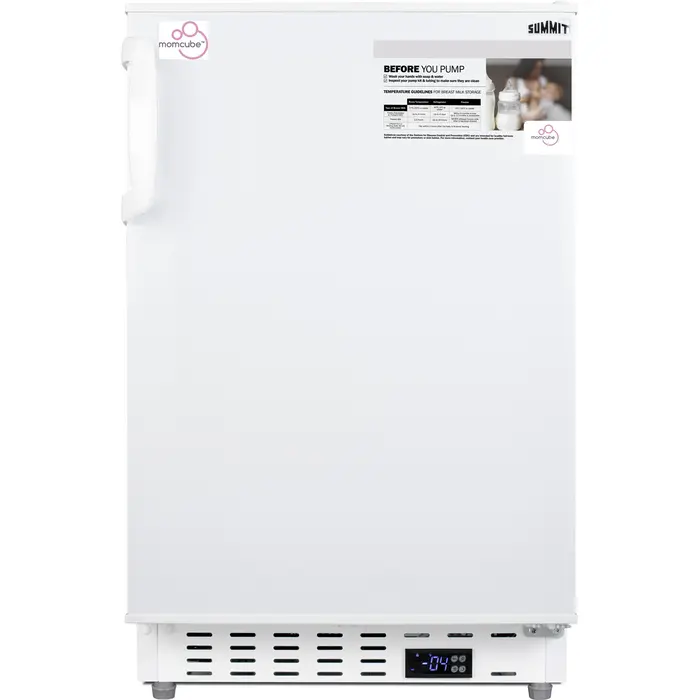

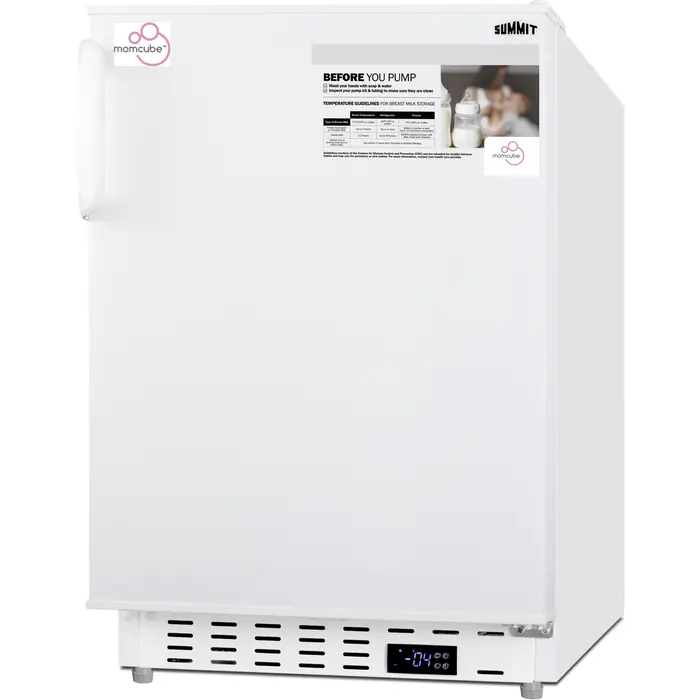

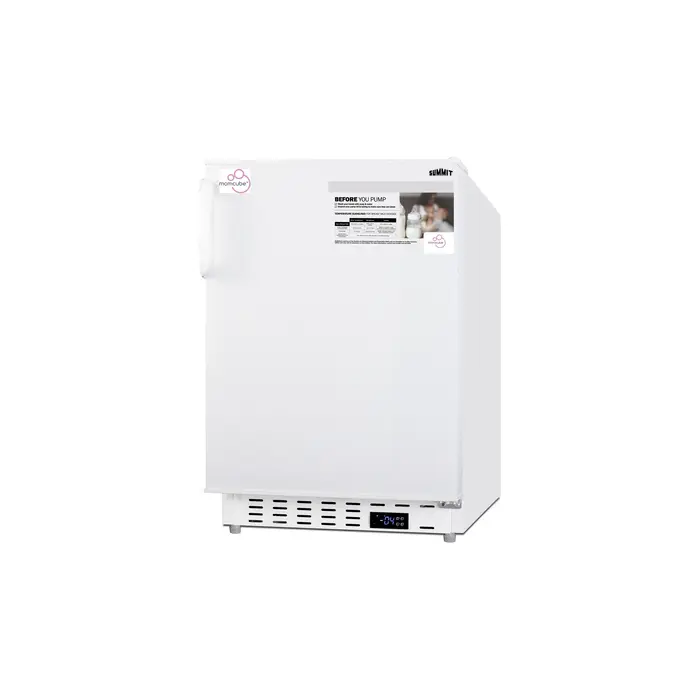

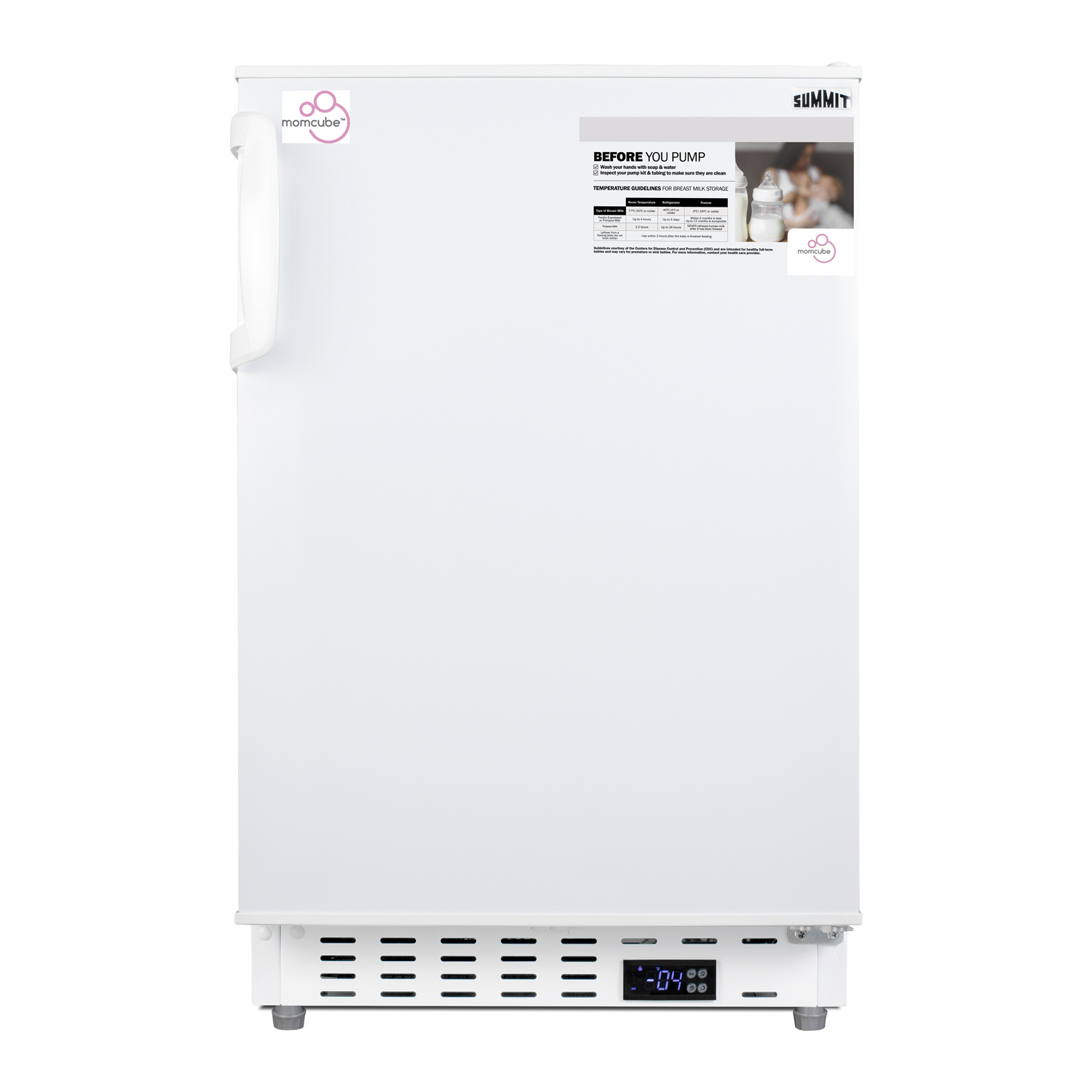

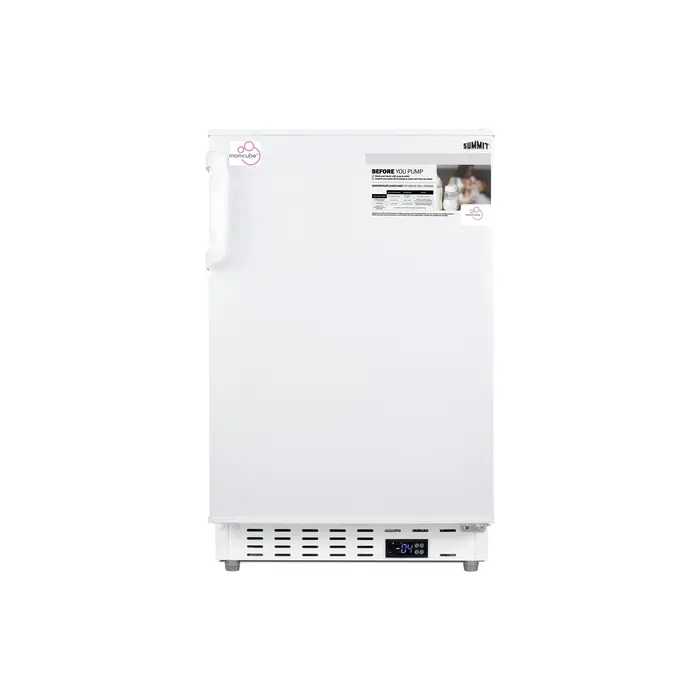

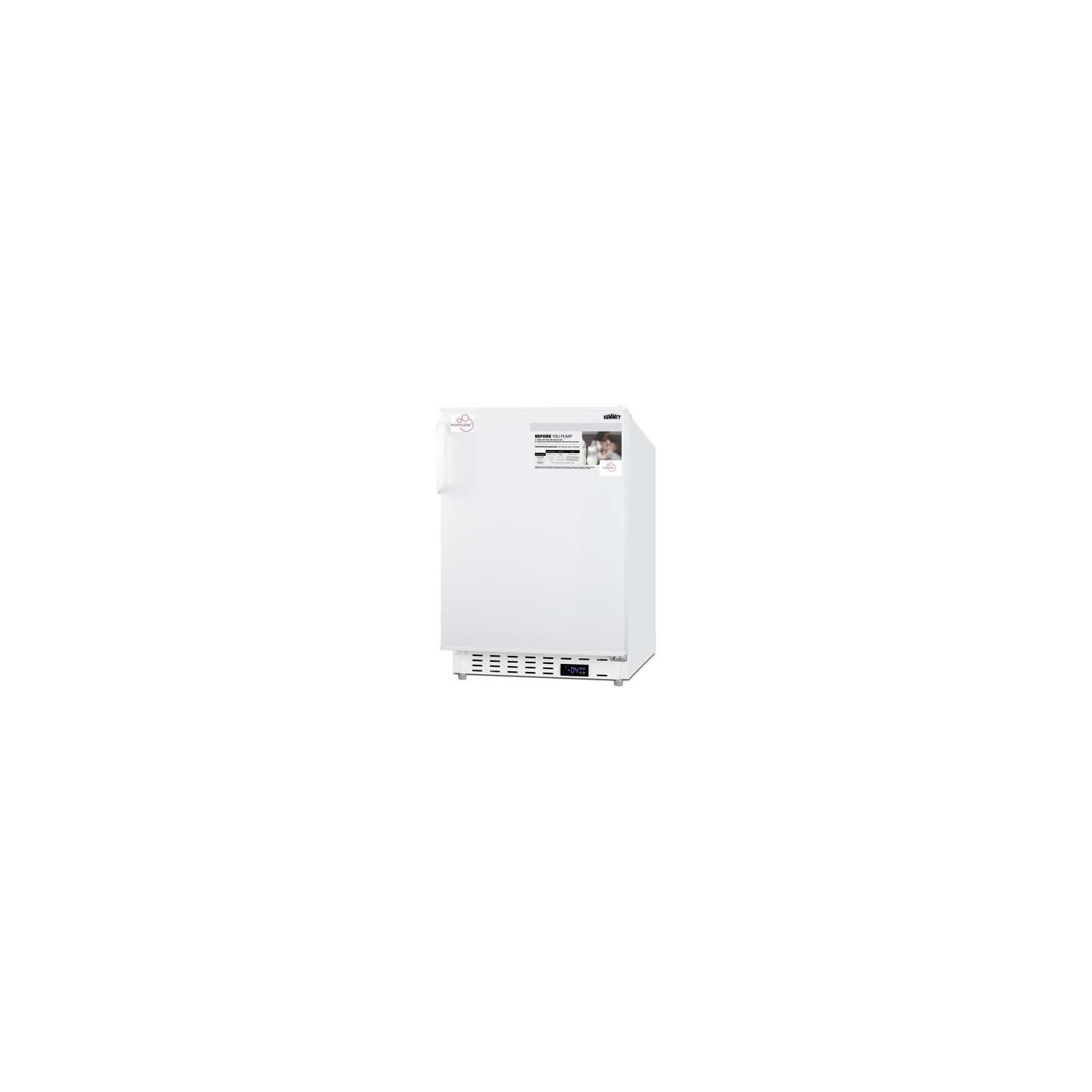

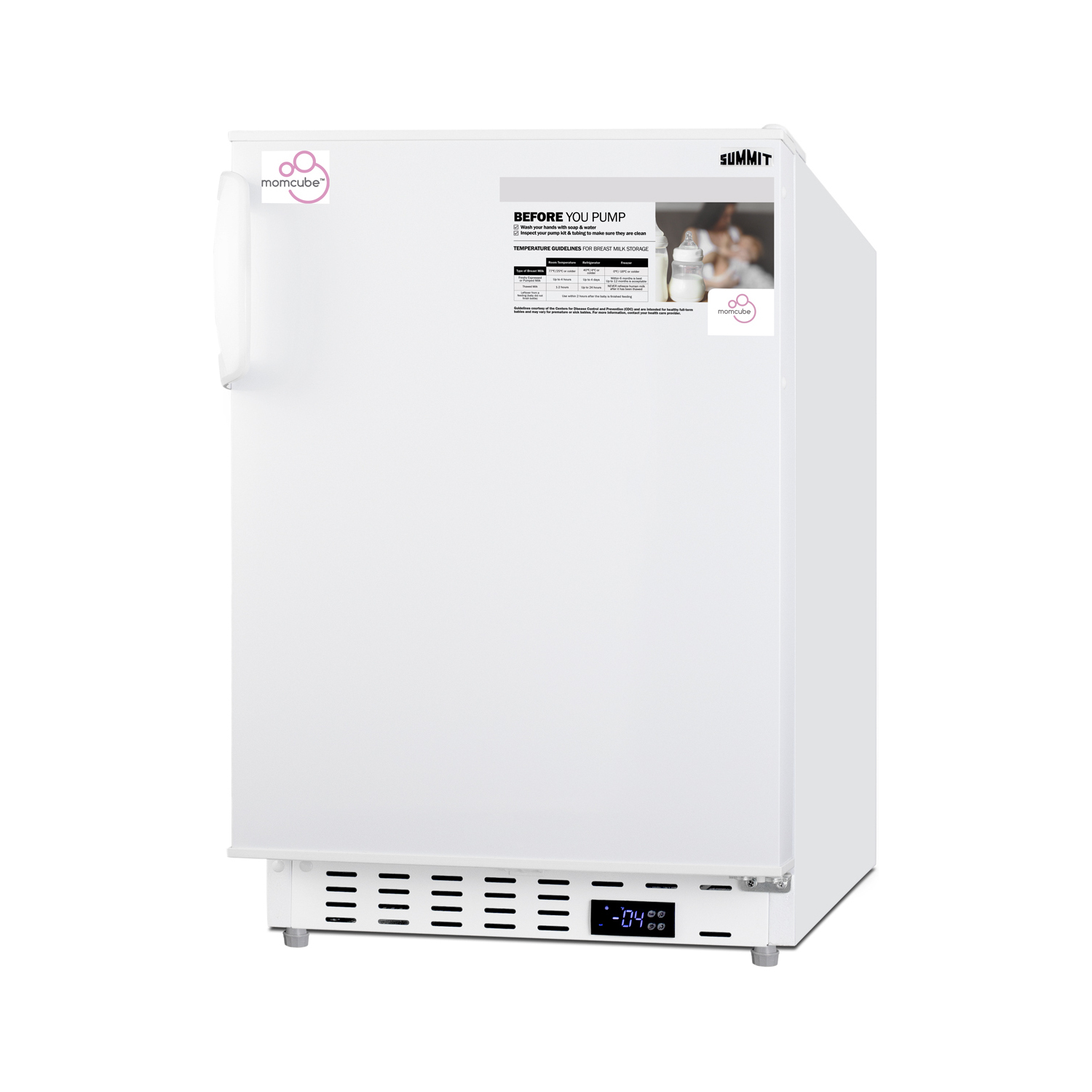

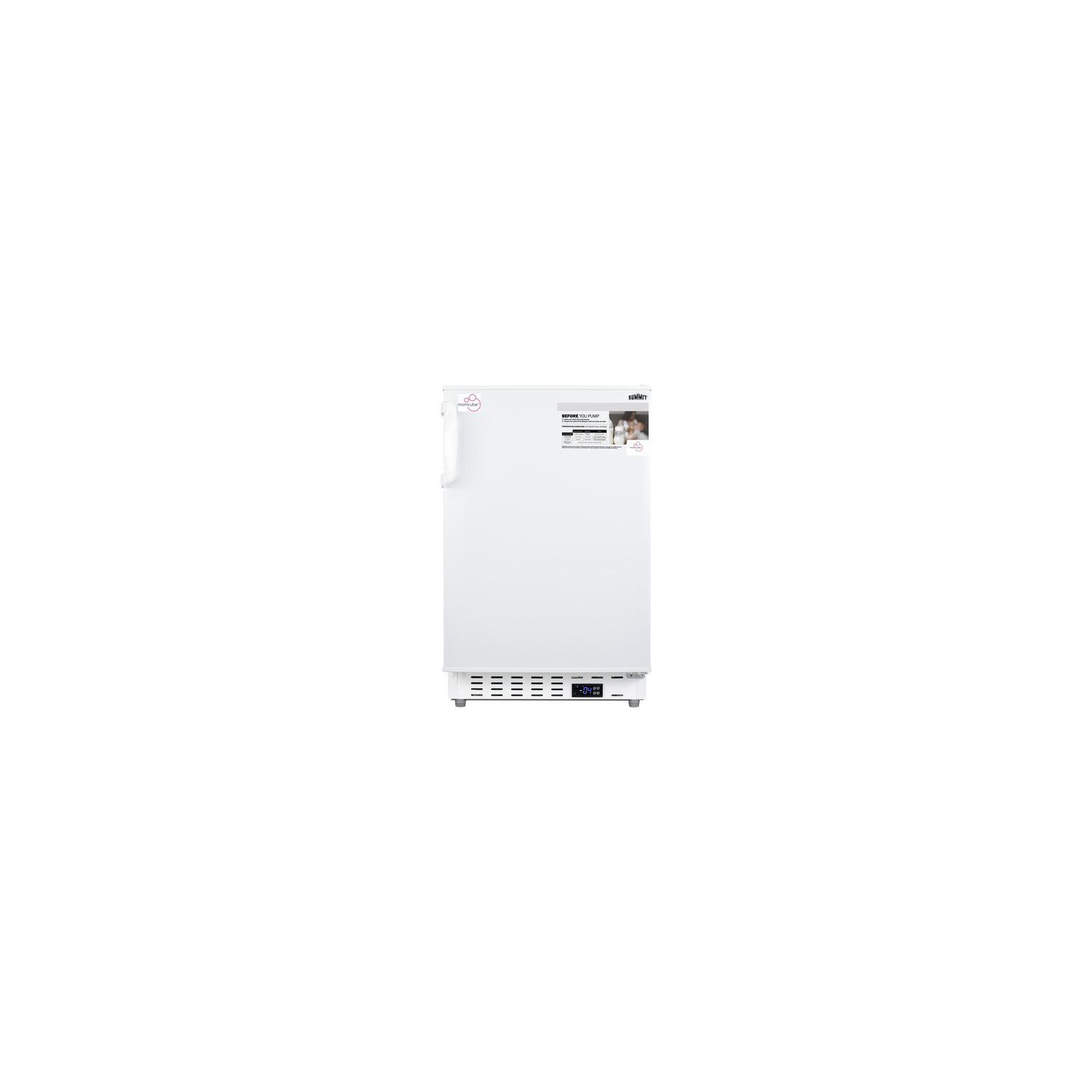

The ALFZ36MC is a MOMCUBE® all-freezer with a flexible design that can be built-in under lower ADA compliant counters or used freestanding. Sized at 32" high and just under 20" wide, it's perfect for homes, offices, and other settings in need of extra storage space for nursing mothers. The user-reversible door is 3" thick for efficient insulation, with a handle included for added convenience. This unit comes with a right angle cord to allow for easier placement without added depth. A digital thermostat, located in the kickplate, makes for easy temperature management with a readout in Fahrenheit or Celsius.

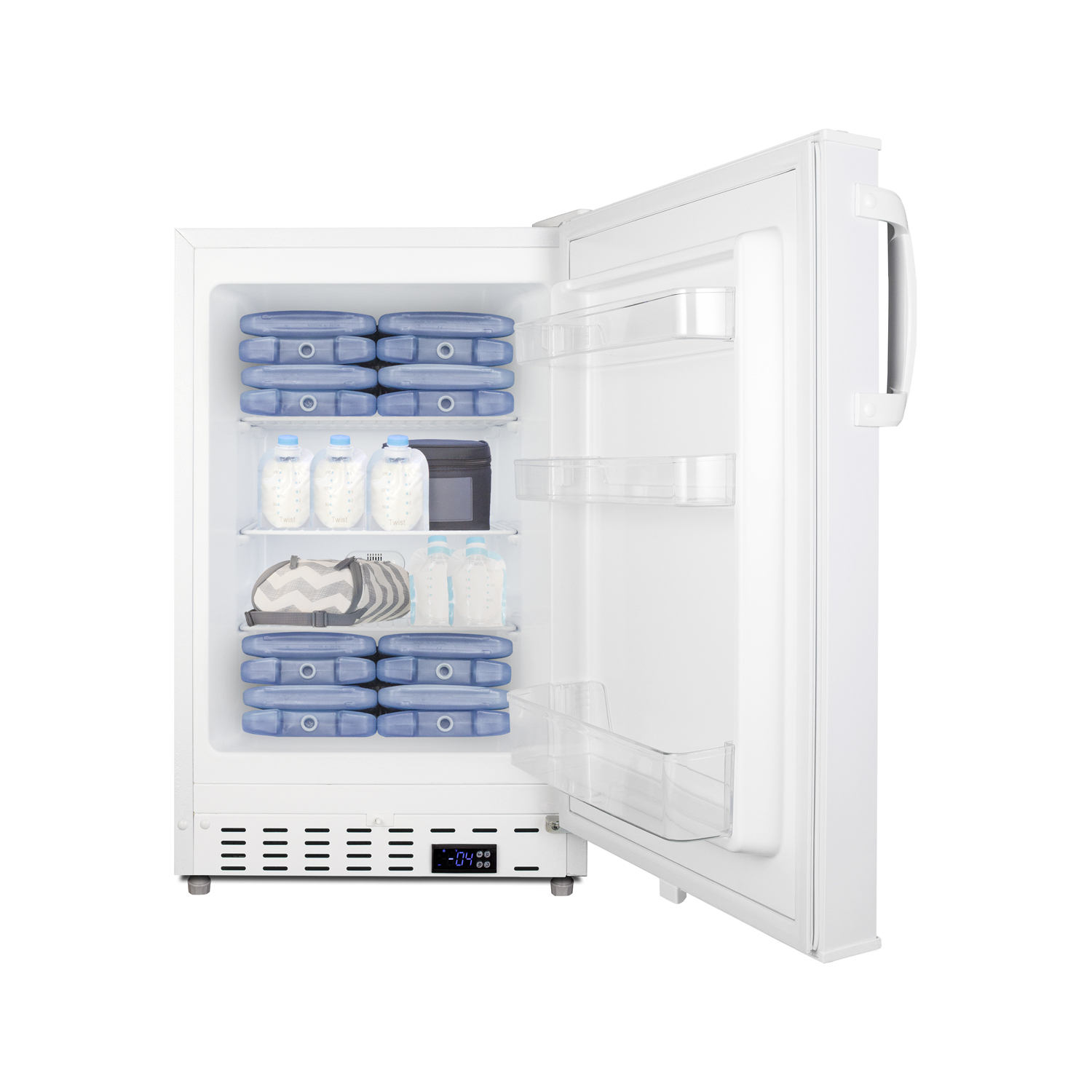

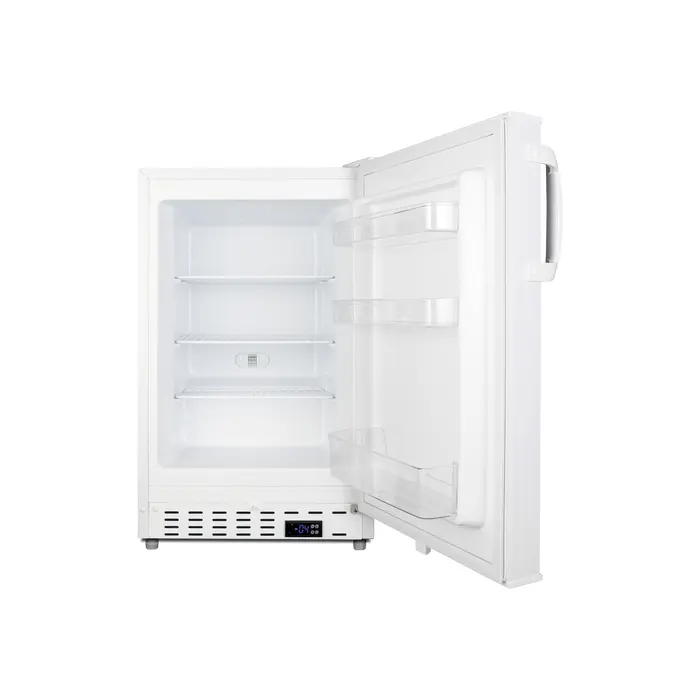

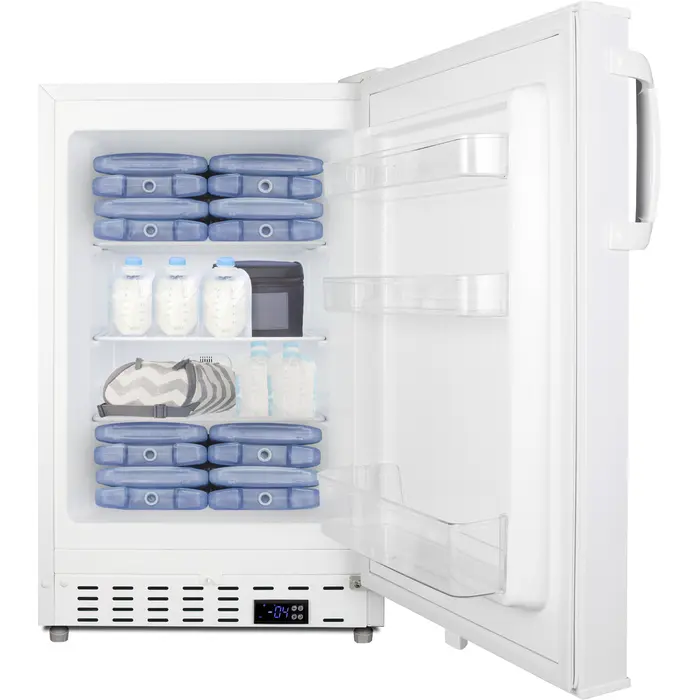

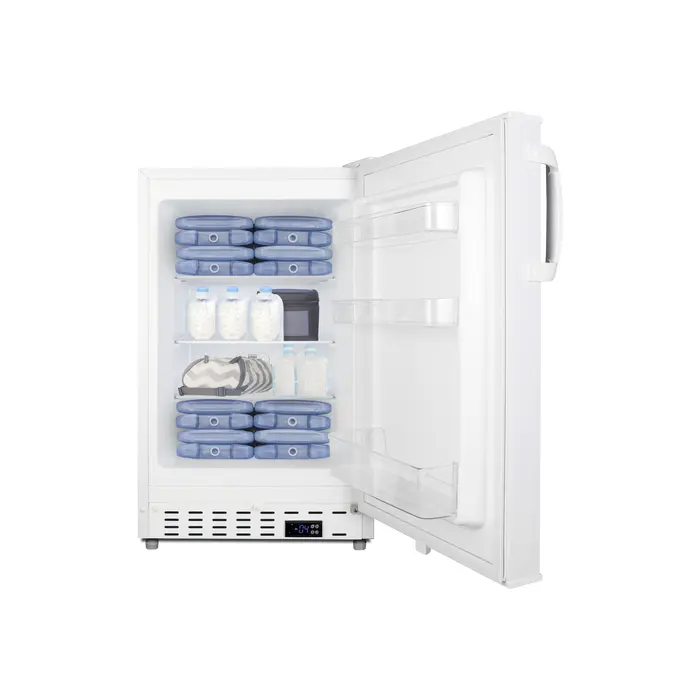

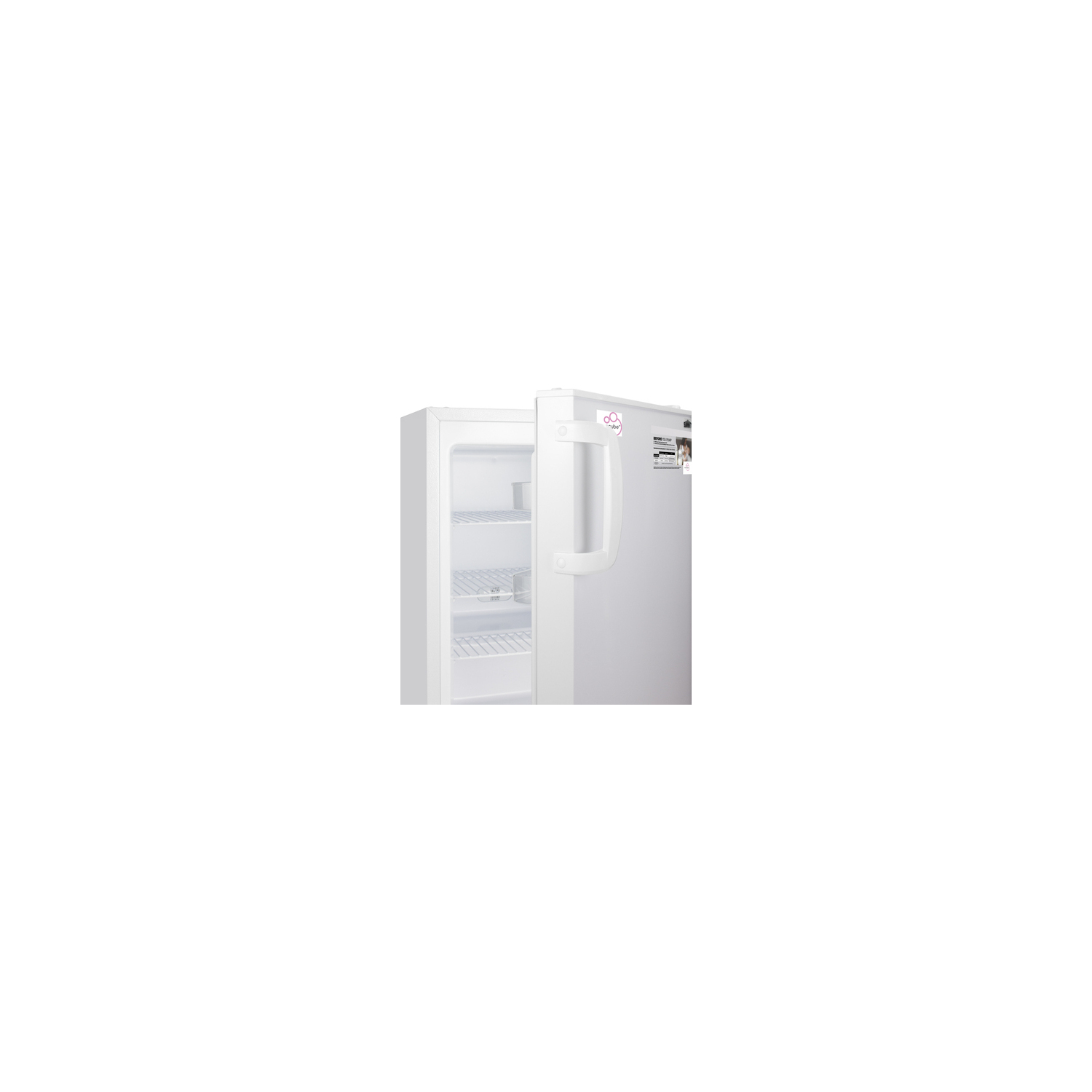

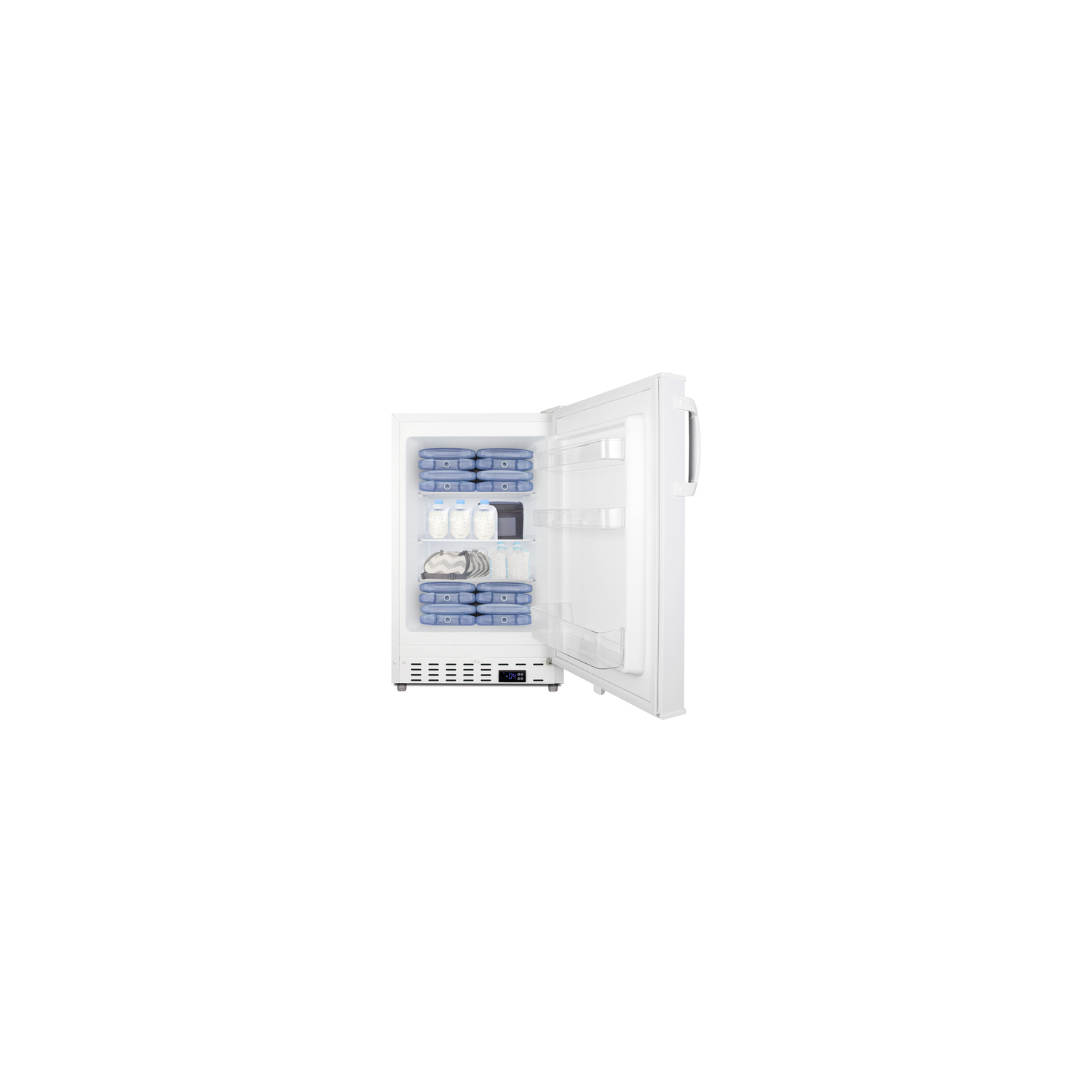

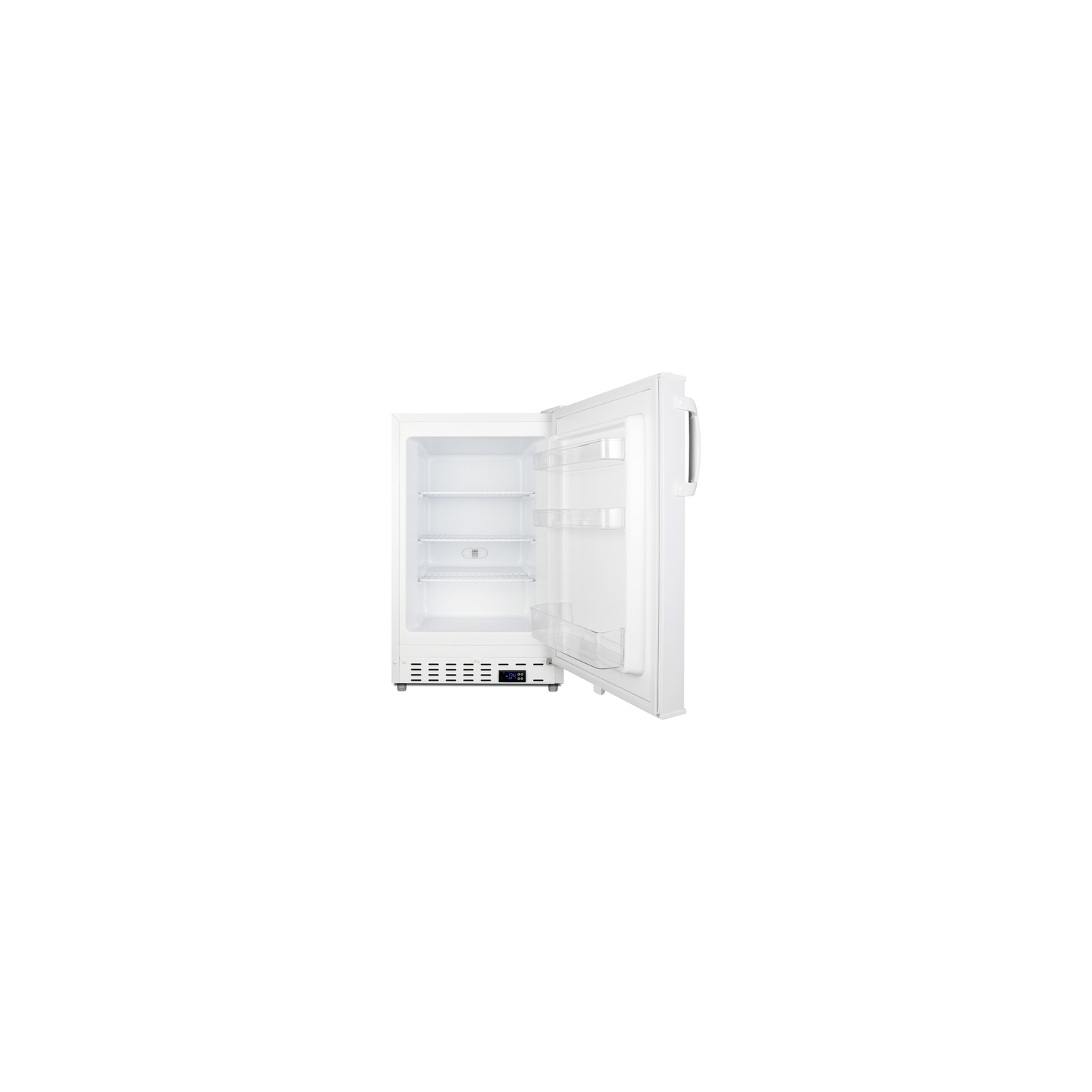

Inside, the ALFZ36MC features an all-white interior for easy cleaning and viewing of contents. Static manual defrost operation provides efficient cooling inside the 2.68 cu.ft. interior. Three adjustable wire shelves afford optimal storage options for mothers storing ice packs, milk, or similar nursing-related items. Three removable door racks accommodate additional storage as needed. The user-set high and low temperature alarms provide added security should the temperature go beyond the setpoint, while the open door alarm sounds if the door is ajar over one minute for added peace-of-mind. These alarms can be disabled depending on your needs.

With its convenient size and user-friendly features, the ALFZ36MC is the perfect solution for nursing mothers seeking dependable long-term breast milk storage in the home. For a locking version, see the ALFZ36LMCTBC.

SPECIFICATIONS

Overview

Nominal Height 32.0" (81 cm)

Height of Cabinet 31.75" (81 cm)

Height to Hinge Cap 32.0" (81 cm)

Nominal Width 20.0" (51 cm)

Width 19.75" (50 cm)

Width with Door Open 20.25" (51 cm)

Nominal Depth 23.0" (58 cm)

Depth 22.5" (57 cm)

Depth with Handle 24.38" (62 cm)

Depth with door at 90° 40.25" (102 cm)

Capacity 2.68 cu.ft. (76 L)

Defrost Type Manual

Door White

Cabinet White

US Electrical Safety ETL

Canadian Electrical Safety ETL-C

Energy Usage/Year 266.0kWh/year

Amps 0.6

Voltage/Frequency 115 V AC/60 Hz

Weight 65.0 lbs. (29 kg)

Parts & Labor Warranty 2 Years

Compressor Warranty 5 Years

UPC 761101076904

Freezer

Door Swing RHD

Reversible Yes

Interior Height 23.75" (60 cm)

Interior Width 14.5" (37 cm)

Interior Depth 17.0" (43 cm)

Shelf Type Wire

Shelf Qty 3

Full Door Shelves 3

Adjustable Shelves Yes

Thermostat Type Digital

Fan Type Exterior

Refrigerant Type R600a

Refrigerant Amount 1.83 oz.

High Side PSI 180.0

Low Side PSI 80.0

Level Legs 2

Wheels 2

Compressor Step Height 5.75" (15 cm)

Compressor Step Width 14.5" (37 cm)

Compressor Step Depth 6.0" (15 cm)

Temperature Range -13 to 5ºF

Sound Level 33.1 dBa

FEATURES

Designed for breast milk storage MOMCUBE™ series is designed for the safe storage of frozen breast milk as recommended by the CDC guidelines

ADA compliant design 32" height allows easy installation under lower ADA compliant counters

Built-in capable Front-breathing design lets you make the best use of space by installing your appliance under the counter

Adjustable thermostat Digital thermostat offers easy temperature management with a readout in Fahrenheit or Celsius

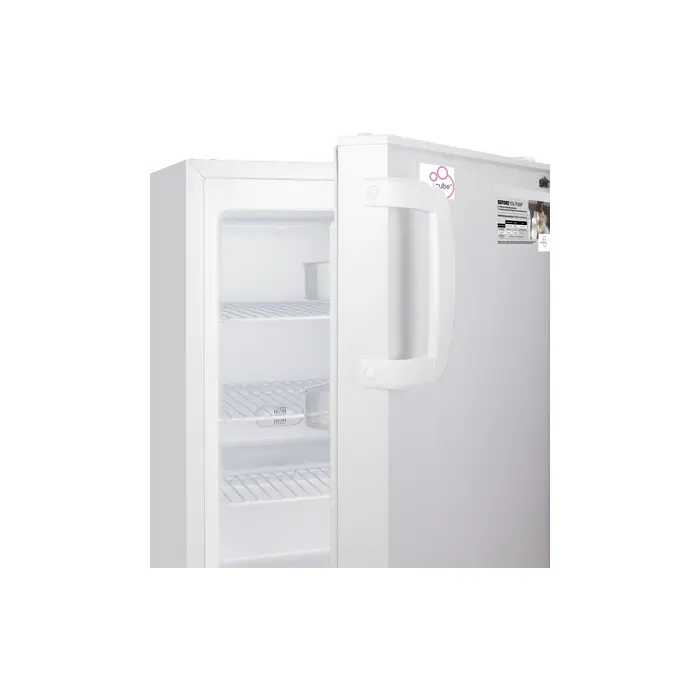

Adjustable shelves Three adjustable wire shelves for optimal storage of breast milk, ice packs, or similar nursing-related items in the 2.68 cu.ft. interior

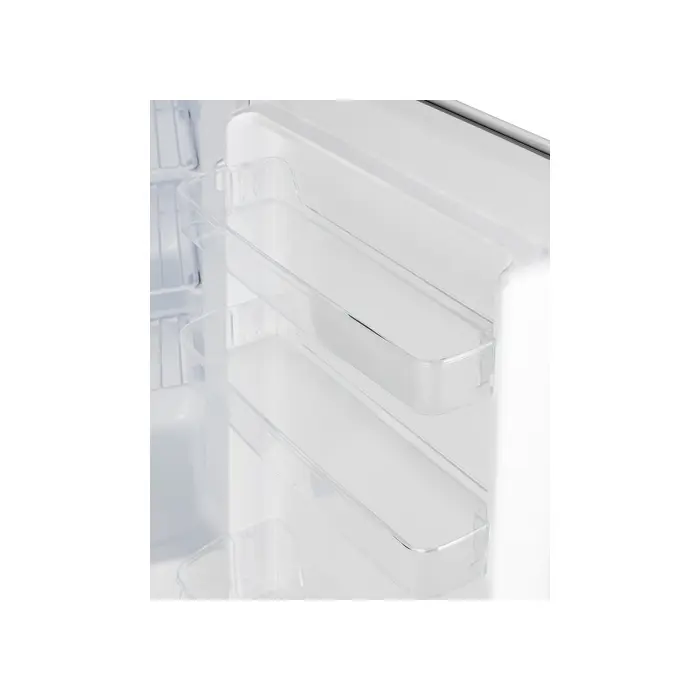

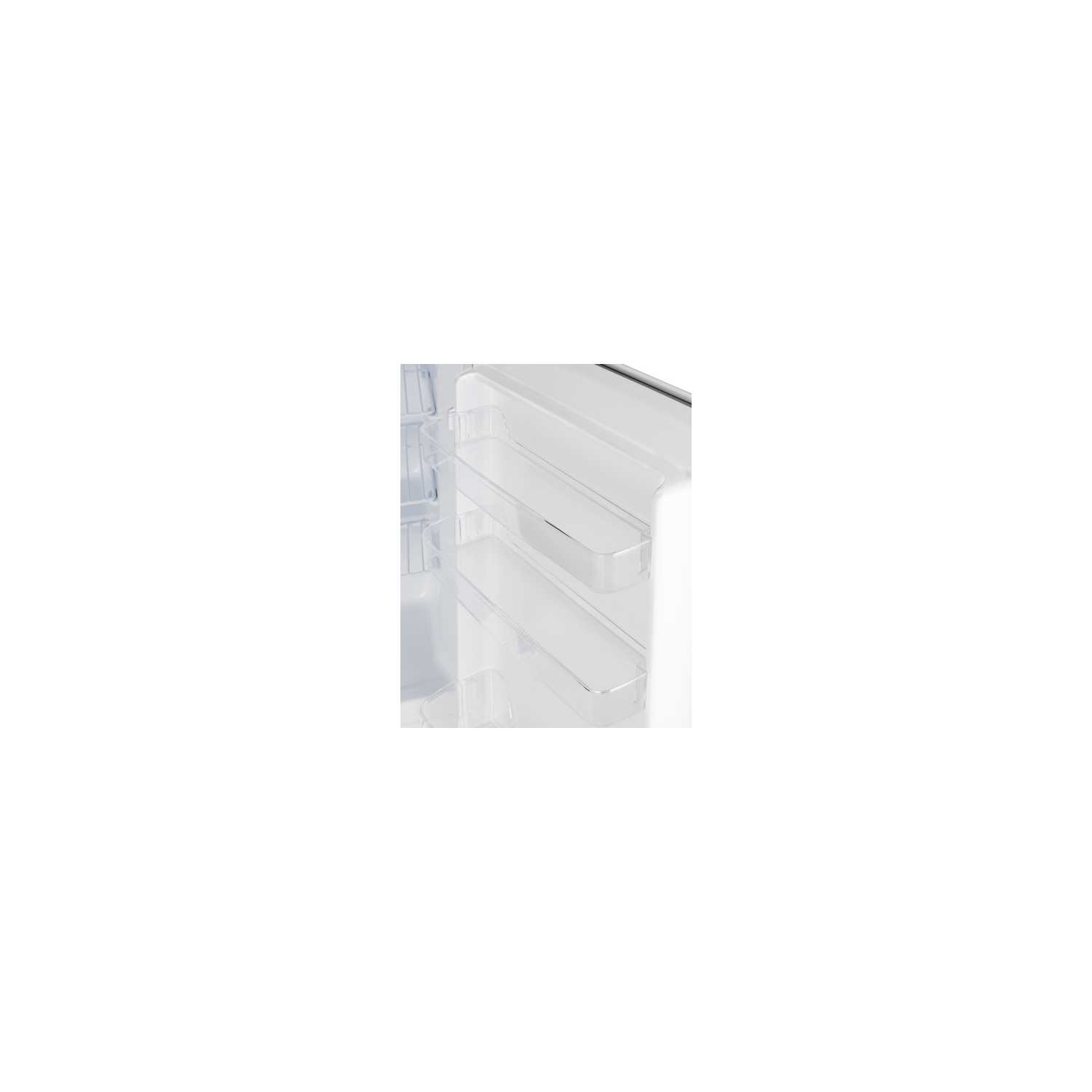

Door shelves Three removable door racks for additional storage of larger items

Reversible door User-reversible door swing for added flexibility to best accommodate your setting

3" thick door Improved insulation for an efficient performance; NOTE: due to the oversized design, the door does not open in its own radius. If installing this refrigerator against a wall, please see our drawings to ensure adequate space

Temperature alarms User-set high/low temperature alarms provide added security if temperature goes beyond setpoint

Open door alarm Audible alarm will sound if the door is left ajar for over a minute

Sealed back Space-saving design that offers easier cleanability

Right-angle plug Design allows you to plug the unit in flush against the wall socket with no need to add extra depth

Manual defrost More temperature stability with an energy efficient manual defrost system

Fully finished white cabinet Allows the unit to be used freestanding

Extended warranty 2-year parts and labor / 5-year compressor

100% CFC free Environmentally friendly design without ozone-damaging chemicals

CARB Compliant Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
