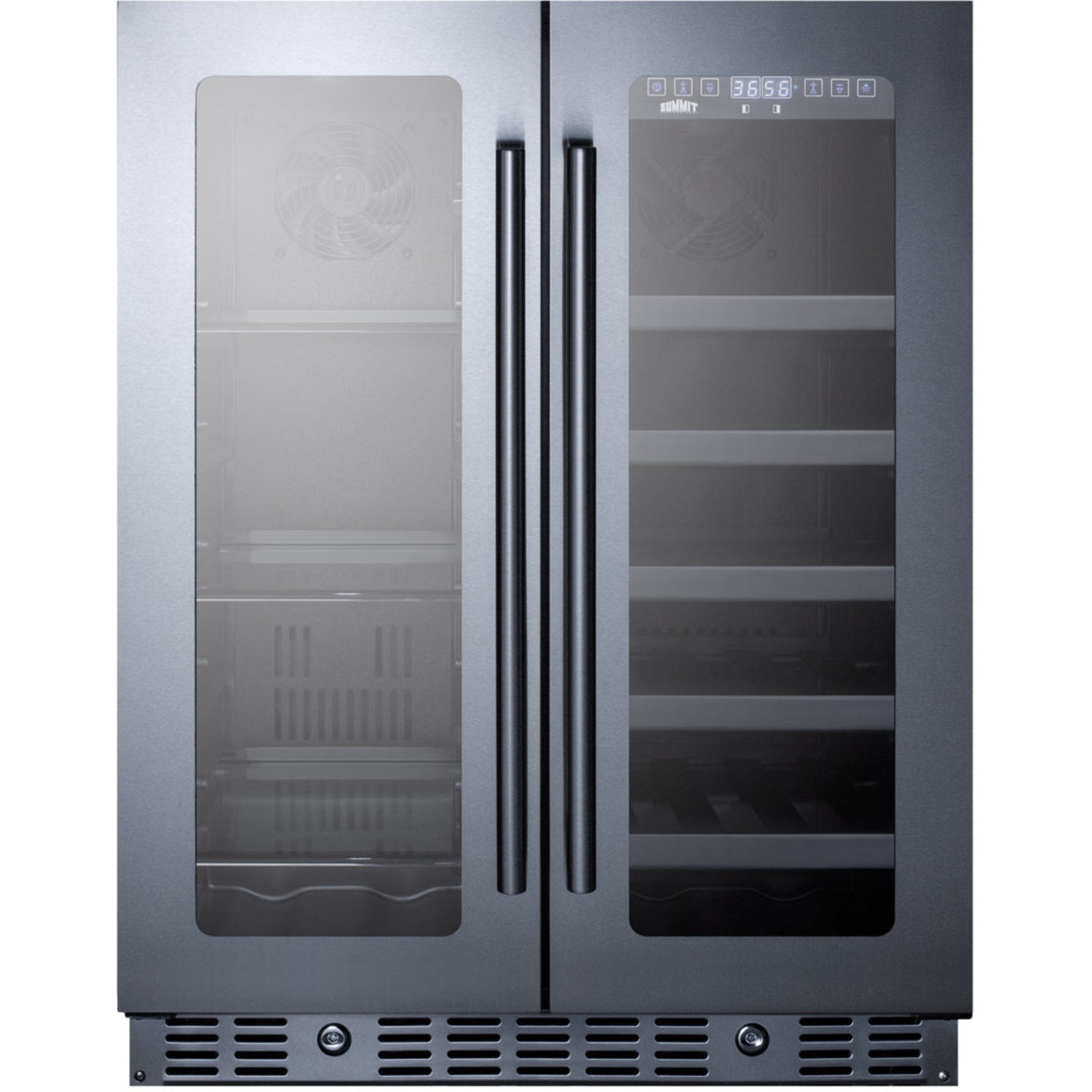

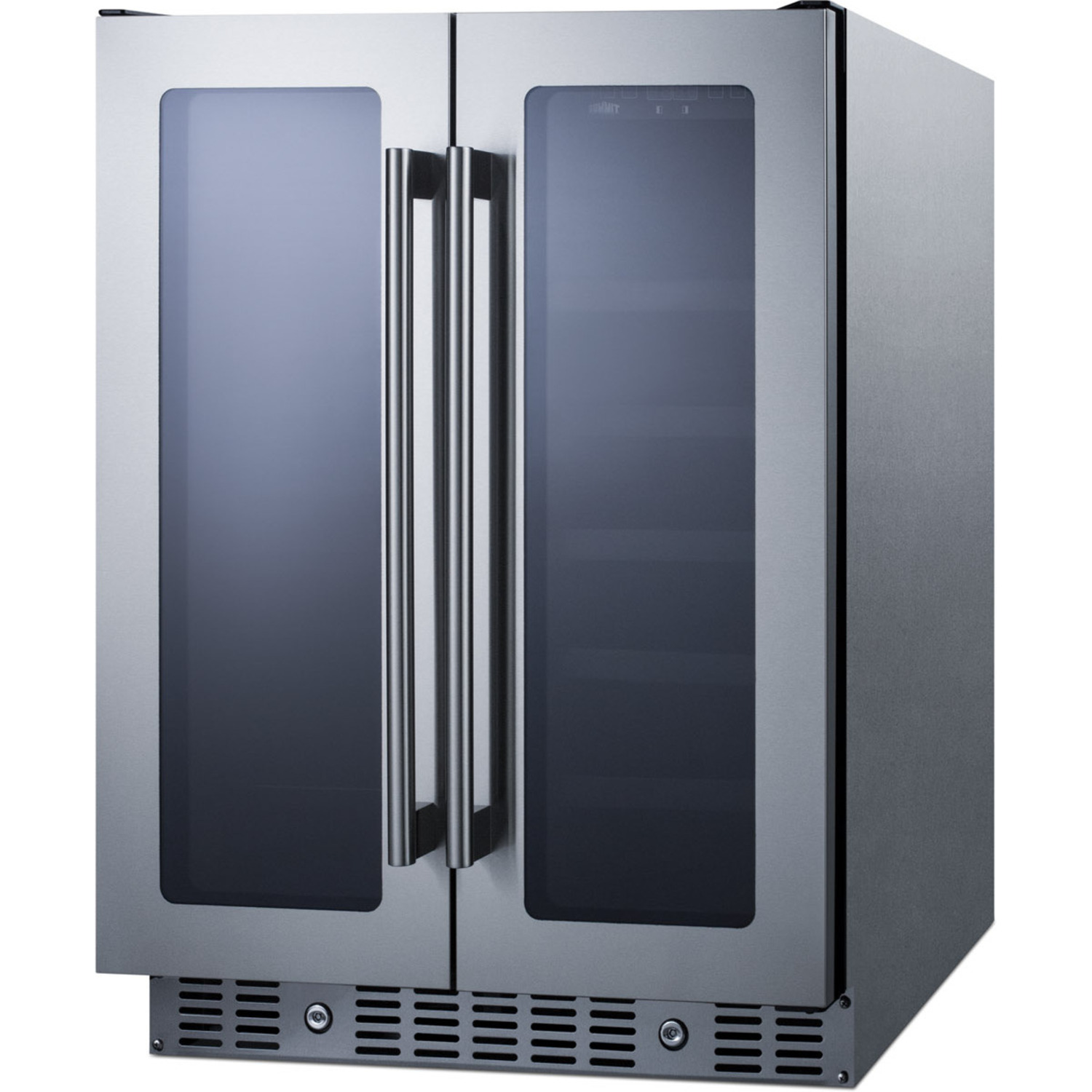

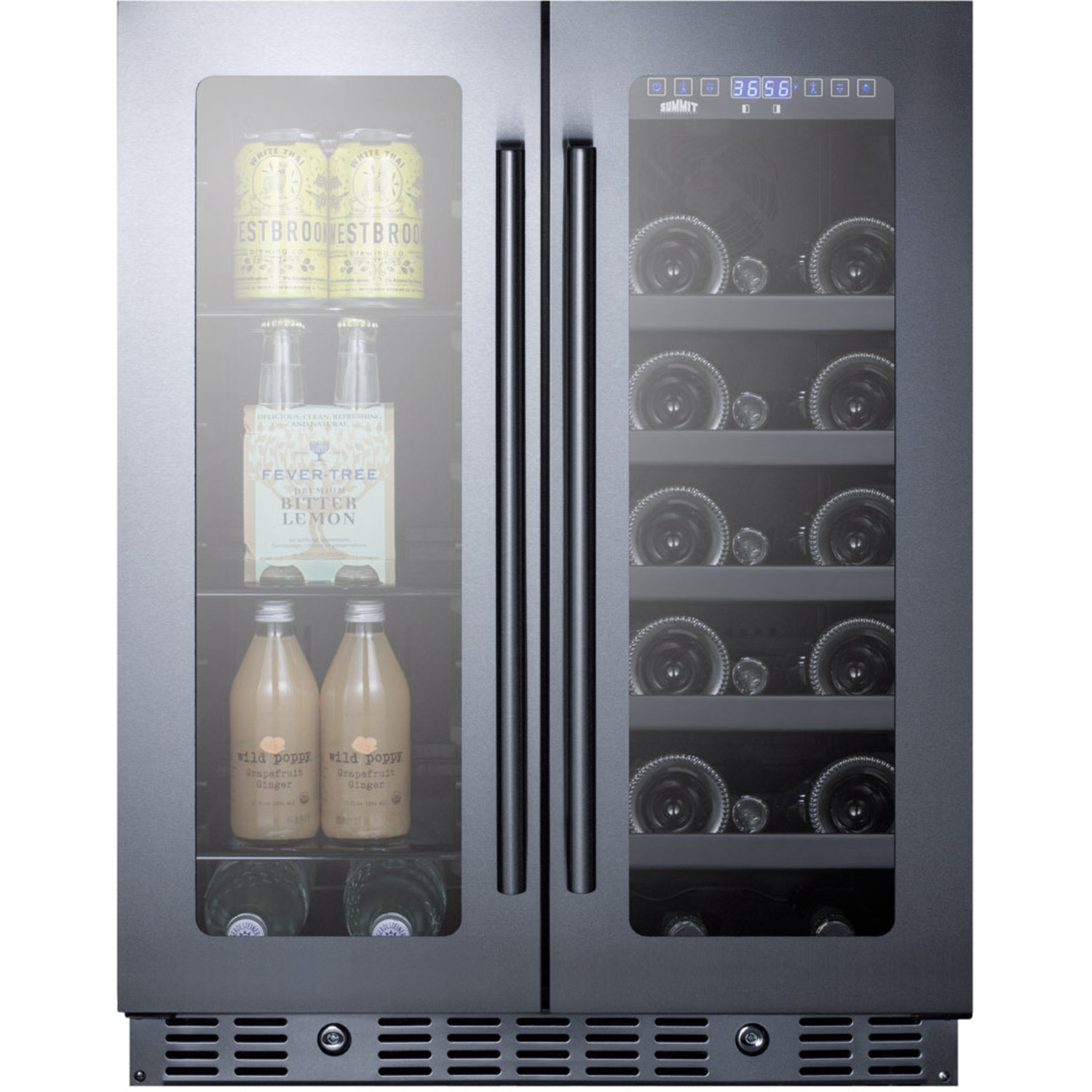

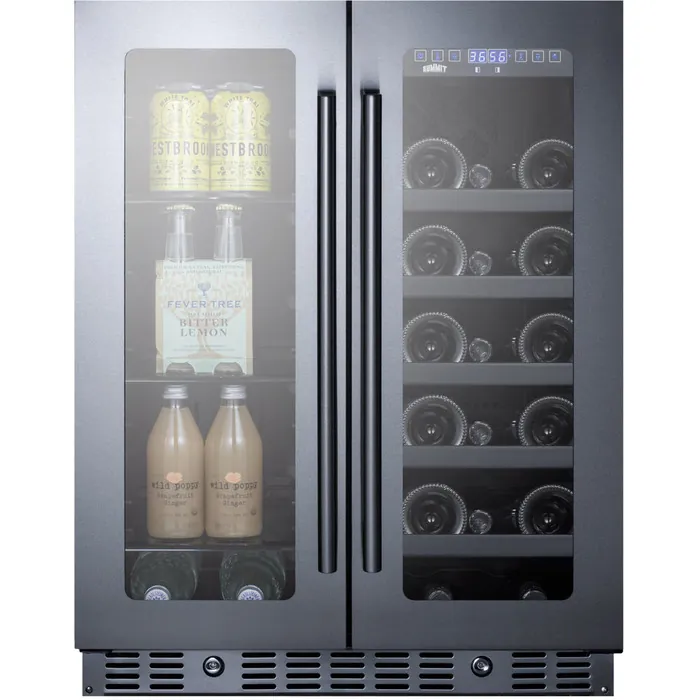

Summit ADA compliant built-in or freestanding dual zone wine/beverage center with French door swing, seamless stainless steel trimmed glass doors, and stainless steel cabinet, 7.61101e+011, ALFD24WBVCSS
$2,208.32
Retail Price: $3,050.00
Free shipping
$ 2,208.32
Description
NOTE: product image may vary slightly from actual product.
Summit offers a unique selection of built-in wine and beverage coolers for use in ADA compliant settings, with user-friendly features and luxury design.
Sized with a convenient 24" footprint, the ALFD24WBVCSS is 32" high, allowing it to fit under lower ADA compliant counters. Adjustable leveling legs let you raise the height up to 33.5" for added versatility. The front-breathing system allows built-in installation, while the fully finished cabinet also allows freestanding use. This model has a French door swing, with two double pane tempered glass doors in a seamless stainless steel trim. Each door includes a front lock and pro style handle in brushed stainless steel. For added luxury, the ALFD24WBVCSS features a fully wrapped cabinet in 304 grade stainless steel.
The ALFD24WBVCSS features two distinct temperature zones to best store beverages and wine at their proper temperatures. The digital temperature controls make it easy to manage the temperature of each compartment, with a readout switchable from Fahrenheit to Celsius at the touch of a button. The left side includes adjustable glass shelves for spill-proof beverage storage and features a 36 to 43ºF temperature range. The right compartment includes adjustable wooden shelves in a jet black finish to store red or white wine between 41 and 72ºF. LED lighting offers an attractive and energy efficient presentation. This unit is equipped with audible alarms that warn if the doors are opened for over one minute and if the temperature exceeds the recommended range. Sabbath mode allows you to disable certain electrical features during periods of observance.
With its unique design and advanced features, the ALFD24WBVCSS offers versatile storage for any undercounter space. Additional ADA compliant choices are available in Summit's line. Browse our website for more information.
SPECIFICATIONS
Overview
Nominal Height 32.0" (81 cm)
Height of Cabinet 32.0" (81 cm)
Nominal Width 24.0" (61 cm)
Width 23.38" (59 cm)
Nominal Depth 23.0" (58 cm)
Depth 22.75" (58 cm)
Depth with Handle 24.63" (63 cm)
Depth with door at 90° 33.0" (84 cm)
Capacity 4.6 cu.ft. (130 L)
Bottles 21 bottles
Defrost Type Automatic
Door Glass
Cabinet Stainless Steel
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Amps 1.0
Voltage/Frequency 115 V AC/60 Hz
Weight 105.0 lbs. (48 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
UPC 761101061467
Wine Cellar
Number of Zones 2
Door Swing French
Reversible No
Height Adjustable Yes
Adjustable Shelves Yes
Shelf Type Glass and Wood
Shelf Qty 7
Thermostat Type Digital
Interior Light Yes
Fan Type Interior and Exterior
Refrigerant Type R600a
Refrigerant Amount 1.06 oz.
High Side PSI 270.0
Low Side PSI 105.0
Interior Height 1 25.38" (64 cm)
Interior Width 1 8.38" (21 cm)
Interior Depth 1 17.5" (44 cm)
Compressor Step Height 3.5" (9 cm)
Compressor Step Width 8.38" (21 cm)
Compressor Step Depth 5.0" (13 cm)
Level Legs 4
Temperature Range Beverage zone: 36 to 43°F; Wine zone: 41 to 72ºF
Interior Height 2 25.38" (64 cm)
Interior Width 2 8.38" (21 cm)
Interior Depth 2 17.5" (44 cm)
Sound Level 33.3 dB
FEATURES
ADA compliant Sized at just 32" high for installation under lower ADA compliant counters
Built-in capable Make the best use of space by installing your appliance under the counter
Height adjustable Leveling legs can raise the unit to up to 33.5" for more standardized counters
Seamless stainless steel trim Glass is framed by seamless 304 grade stainless steel
Stainless steel wrapped cabinet Exterior cabinet features a 304 grade stainless steel wrapped surface
Digital thermostats Set and adjust two temperature zones separately with easy-to-use digital controls that display the temperature in Celsius or Fahrenheit
Two temperature zones Independent zones let you store beverages in the left compartment and wine in the right
Factory installed locks Each door includes a keyed lock for optional security
Adjustable wooden shelves Wine zone includes size adjustable wooden shelves in a modern jet black finish
Adjustable glass shelves Spill-proof glass shelves make it easy to store and display bottles and cans in the beverage zone
LED lighting Attractive and energy efficient LED lighting offers an elegant presentation
Automatic defrost Reduced user maintenance with automatic defrost operation
Fan-forced cooling Internal fans ensure both interiors are evenly cooled from top to bottom
French door swing Two side-by-side doors with French door opening
Stainless steel kickplate Completes the professional look down to the toe kick
High temperature alarm Audibly alerts if the interior temperature rises out of the recommended wine storage range
Open door alarm Audible alarm will sound if the doors are left ajar for over 60 seconds
Sabbath mode Allows you to disable certain electrical functions for up to 48 hours for periods of observance
Temperature Memory Function Unit will retain its last settings when power is restored in the event of power loss
Right angle cord Design allows you to plug the unit in flush against the wall socket with no need to add extra depth
Sealed back Space saving design with easier cleanability
Integrated hinge Door hinge adds no additional height, making it easier to install under a counter
Kickplate extender included Includes an extra stainless steel kickplate piece to cover the legs if the unit's height is raised
Fully finished cabinet Allows the unit to be used freestanding
100% CFC free Environmentally friendly design does not contain ozone-damaging chemicals
CARB Compliant Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
DOWNLOADS
BROCHURE w/ DRAWINGS (ALFD24WBVCSS.pdf)
TECHNICAL DRAWING (.dwg) (ALFD24WBV_WINE_BEV._CENTER__A-C_2010__2.dwg)
