Summit 24 inch wide ADA compliant residential/commercial beverage center with panel-ready door trim, 7.61101e+011, ALBV2466PNR
$1,537.79
Retail Price: $2,155.00
Free shipping
$ 1,537.79
Description
With a dual-purpose design, the ALBV2466PNR can serve as a beverage cooler or refrigerator offering unmatched versatility for residential or commercial use.

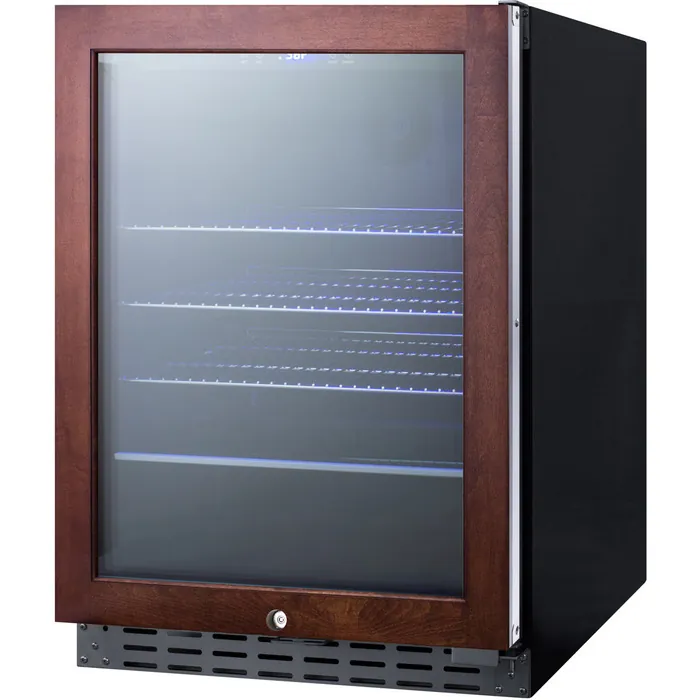

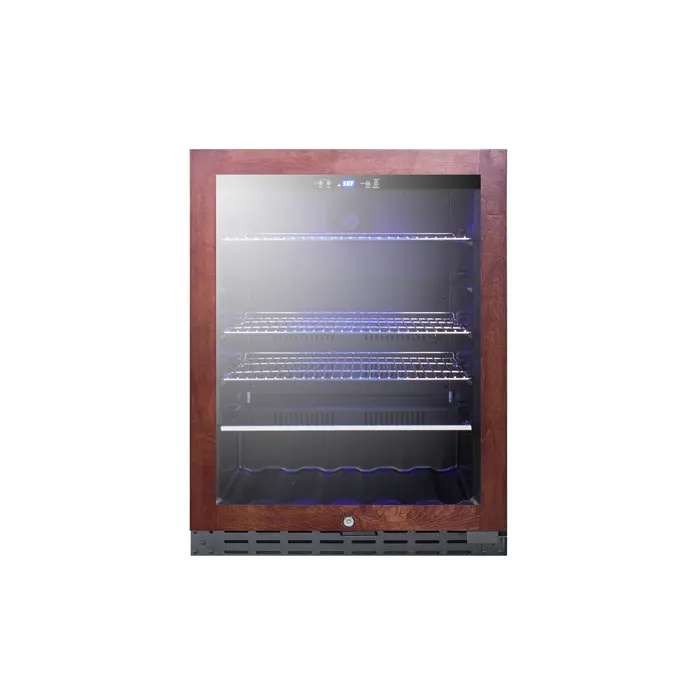

The ALBV2466PNR is ETL-S listed to NSF-7 commercial standards and also meets residential standards. The front-breathing design allows built-in installation, while the fully finished black cabinet also enables freestanding use. Sized just under 32 inches high and 24 inches wide, this unit makes an ideal fit under lower ADA compliant counters.The double pane tempered glass door features a seamless stainless steel trim designed to accept overlay panels, allowing you to match the refrigerator to your own cabinetry. Users provide their own handle to complete the custom look. A temperature alarm provides added security should the temperature go beyond the setpoint. The optional Sabbath Mode can be used to disable certain electrical features during periods of religious observance. The automatic defrost system keeps the unit running efficiently with little user maintenance.

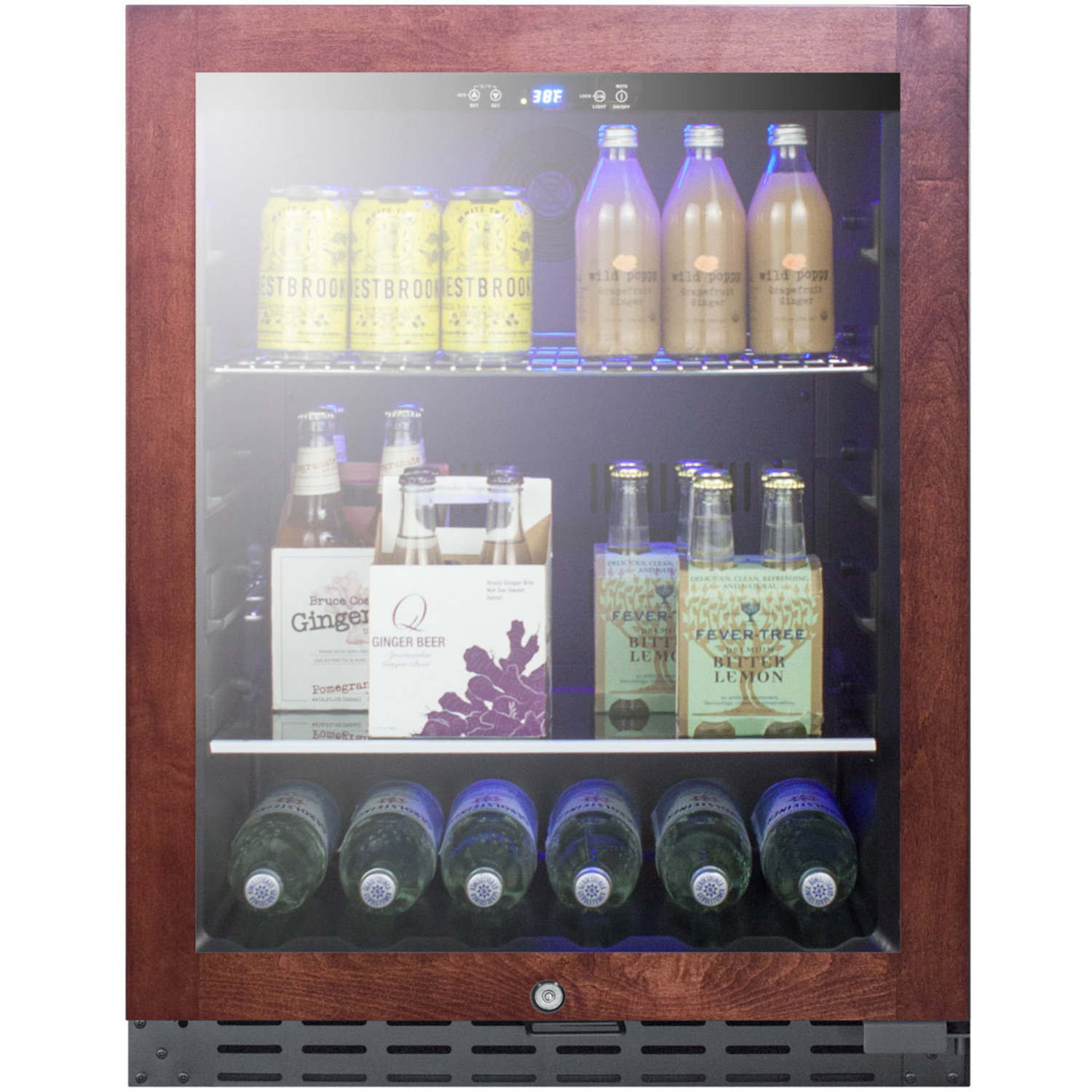

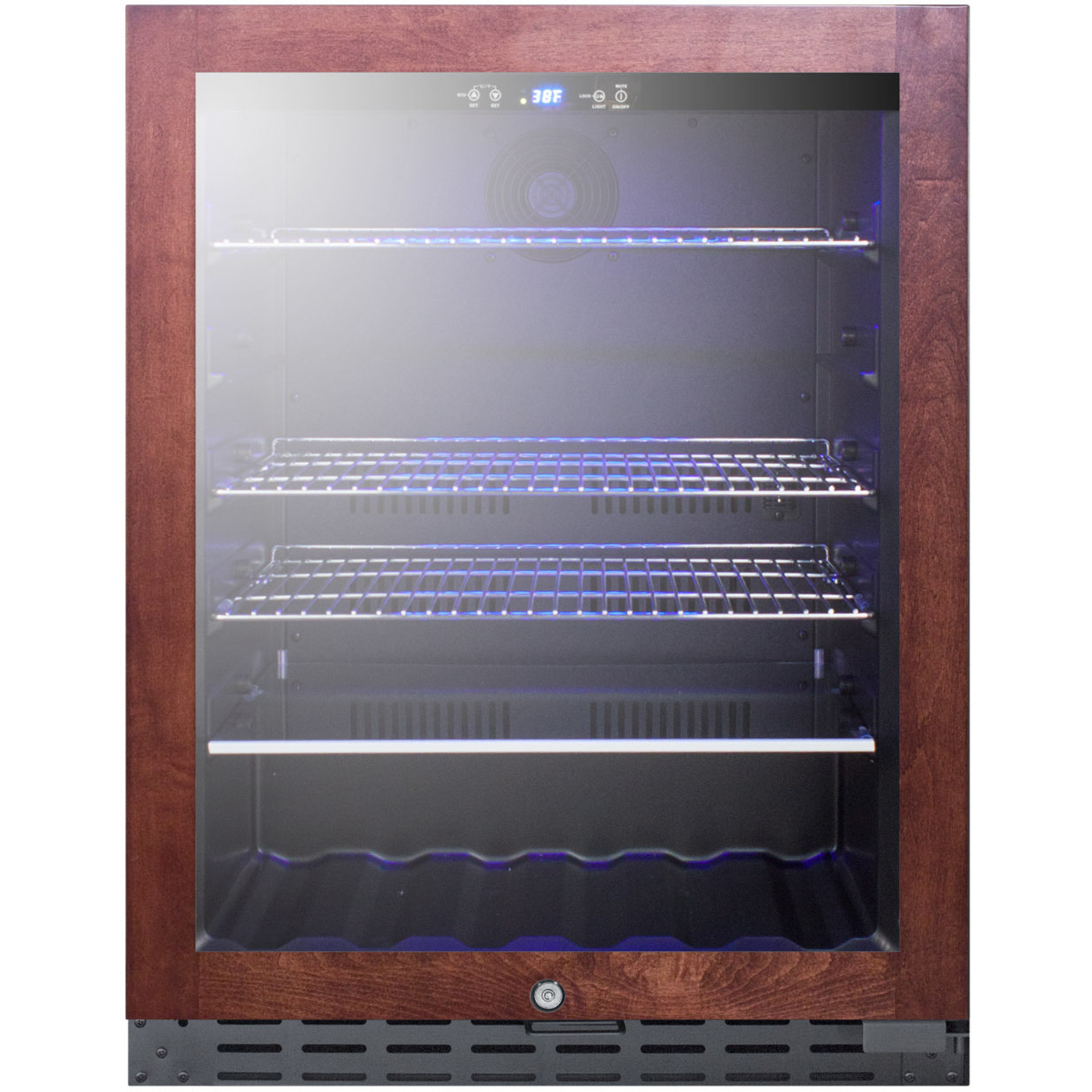

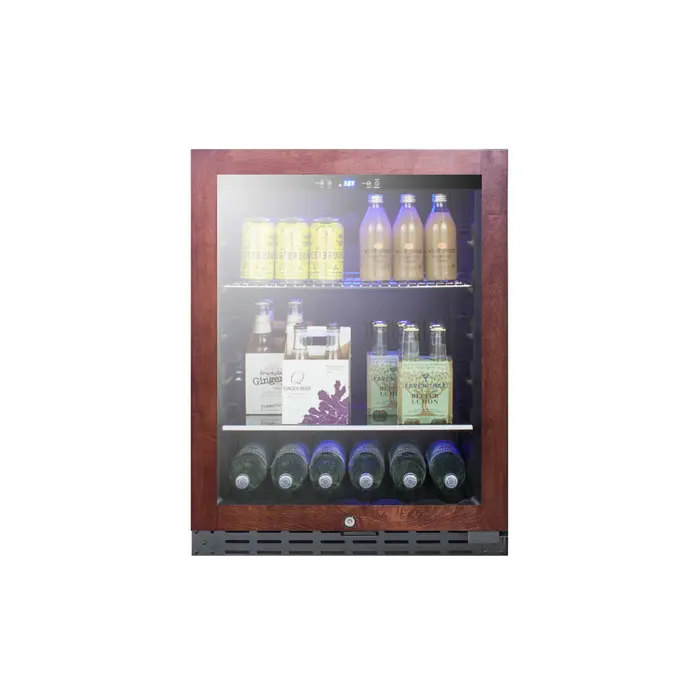

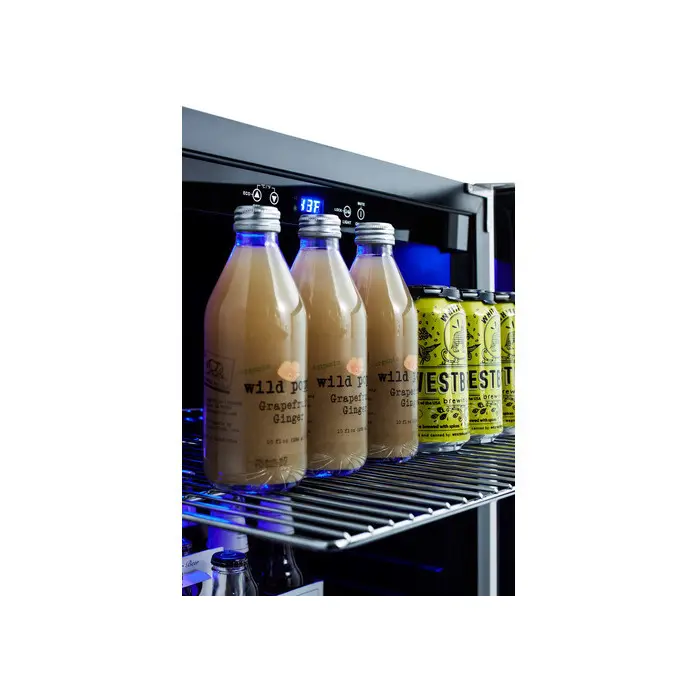

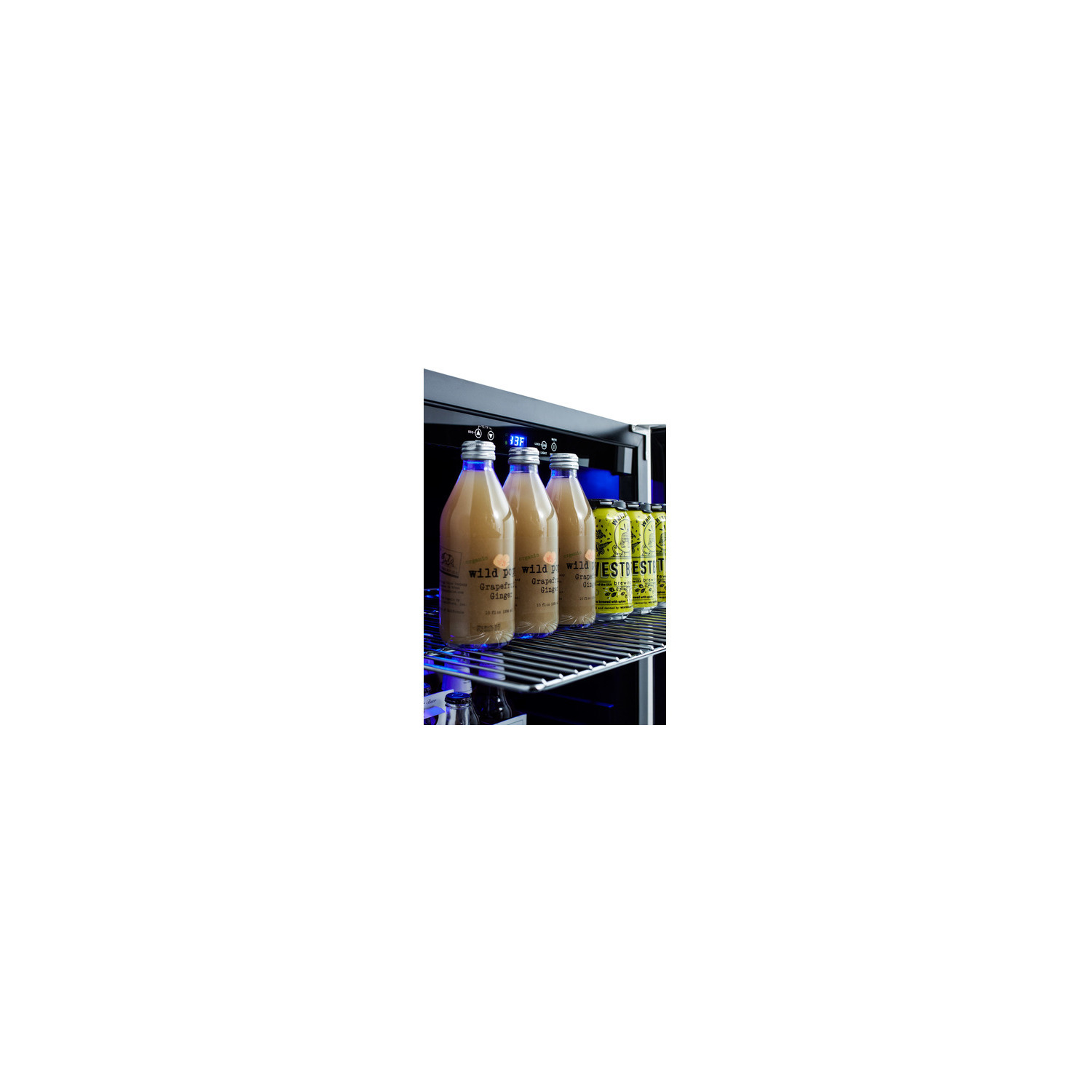

Inside, the ALBV2466PNR has a digital control panel which allows you to manage the unit’s temperature with ease. An adjustable temperature range between 34 and 65ºF allows for a variety of beverage storage options. Three pull-out wire shelves provide maximum storage capacity, while the fourth glass shelf allows for contents to be stood upright for added storage flexibility. The shelving brake system keeps the unit contents safe during loading and unloading, and the slotted floor ensures easy and safe storage of wine bottles. The soft LED lighting in a gentle blue hue offers an attractive and efficient presentation.
With its advanced user features and versatile design, the ALBV2466PNR is an excellent addition to any ADA compliant setting looking for a beverage cooler with a modern, elegant look.
SPECIFICATIONS
Overview
Nominal Height 32.0" (81 cm)
Height of Cabinet 31.63" (80 cm)
Nominal Width 24.0" (61 cm)
Width 23.5" (60 cm)
Nominal Depth 24.0" (61 cm)
Depth 23.38" (59 cm)
Depth with door at 90° 45.75" (116 cm)
Capacity 4.2 cu.ft. (119 L)
Bottles 6 bottles
Defrost Type Automatic
Door Glass/Panel-Ready Frame
Cabinet Black
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Sanitation ETL-S
Energy Usage/Year 295.0kWh/year
Amps 1.25
Voltage/Frequency 115 V AC/60 Hz
Weight 112.0 lbs. (51 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
UPC 761101067056
Refrigerator Features
Sabbath Mode Yes
Door Swing RHD
Reversible Factory Reversible
Height Adjustable No
Shelf Type Glass and Chrome
Shelf Qty 4
Adjustable Shelves Yes
Thermostat Type Digital
Fan Type Interior and Exterior
Refrigerant Type R600a
Refrigerant Amount 1.23oz.
High Side PSI 150.0
Low Side PSI 50.0
Level Legs Qty 2
Interior Light Yes
Temperature Range 34 to 65ºF
Sound Level 34.7 dB
Dimensions
Interior Height 23.5" (60 cm)
Interior Width 19.0" (48 cm)
Interior Depth 17.0" (43 cm)
Compressor Step Height 5.5" (14 cm)
Compressor Step Width 19.0" (48 cm)
Compressor Step Depth 5.0" (13 cm)
FEATURES
ADA compliant 32” height allows for installation within ADA-compliant spaces
Commercially approved ETL-S listed to NSF-7 commercial standards

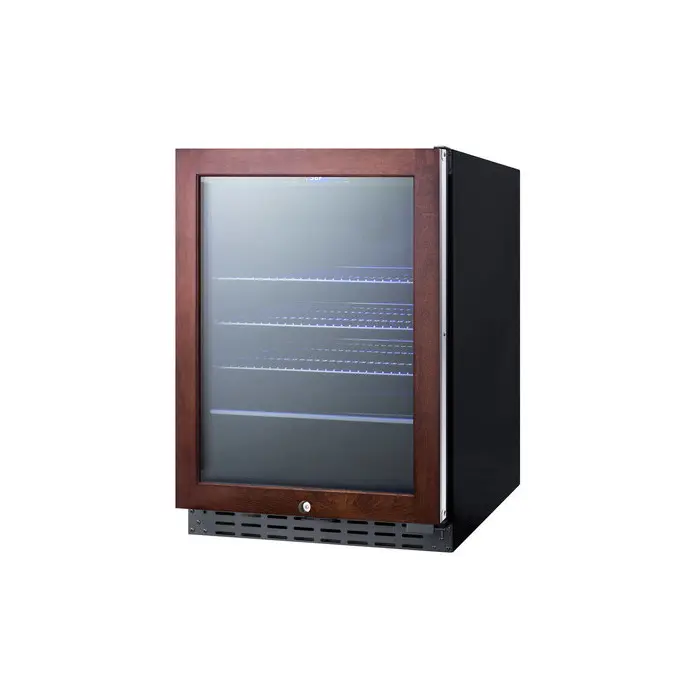

Panel-ready door trim Door frame can be customized with an overlay panel to best match your own cabinetry style (panel size: 27 5/8" H x 23" W at 3/4" thick)

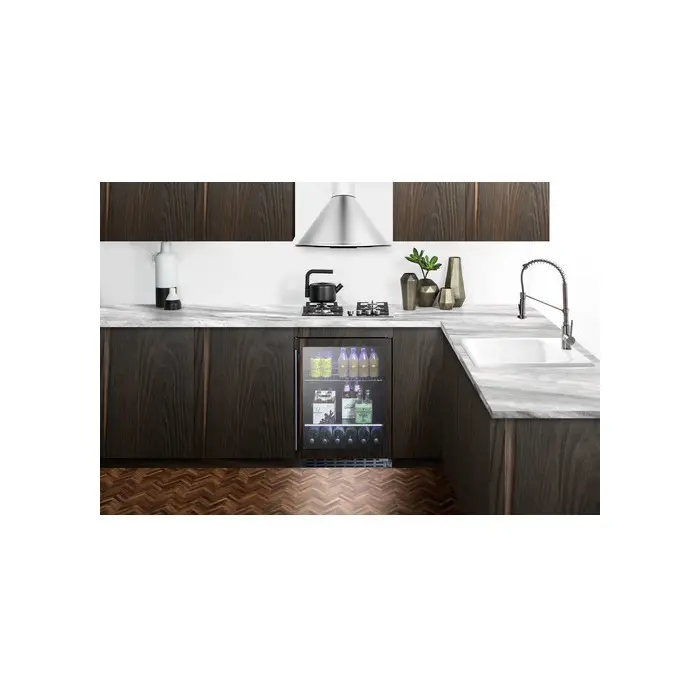

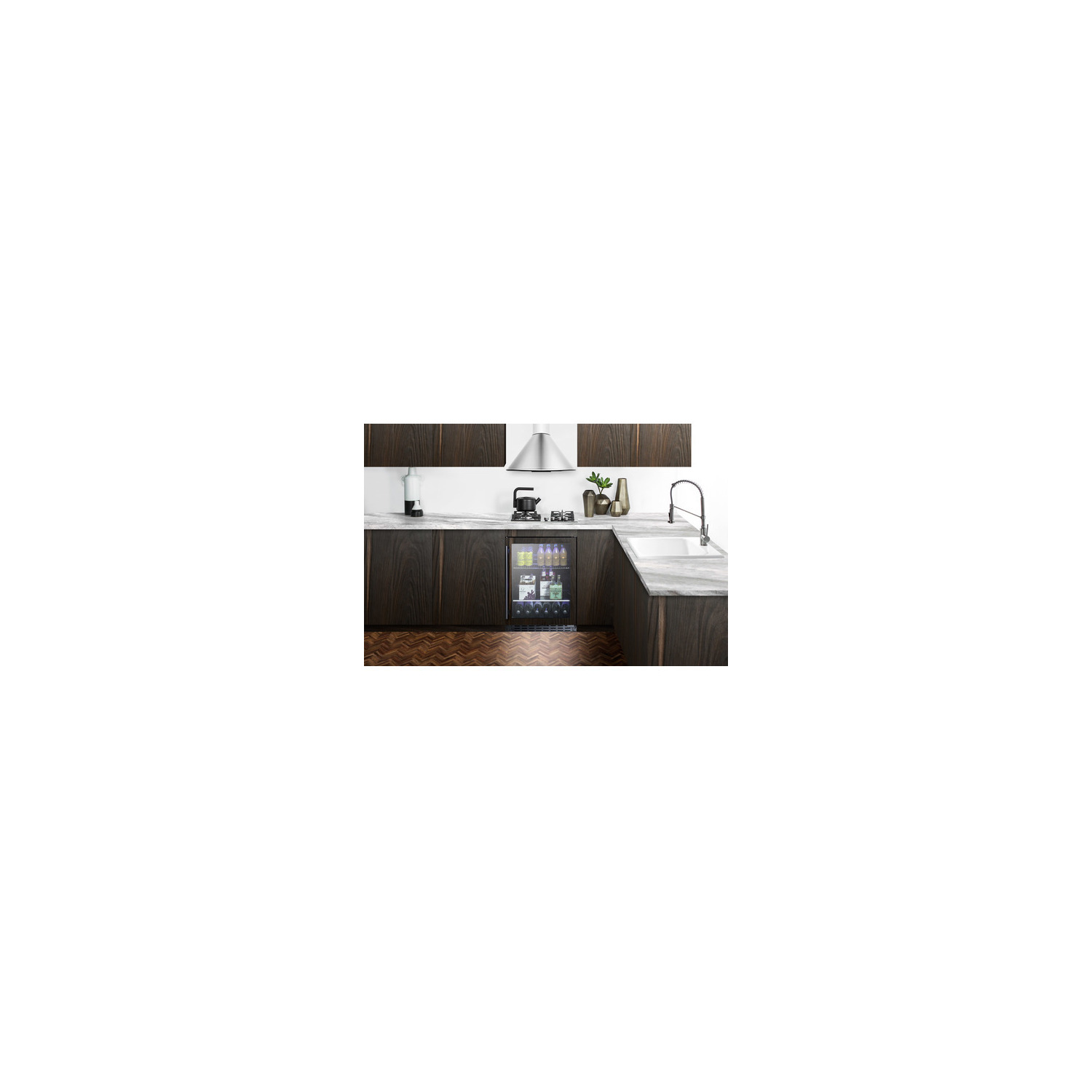

Built-in capable Front-breathing design allows the unit to be built-in under counters

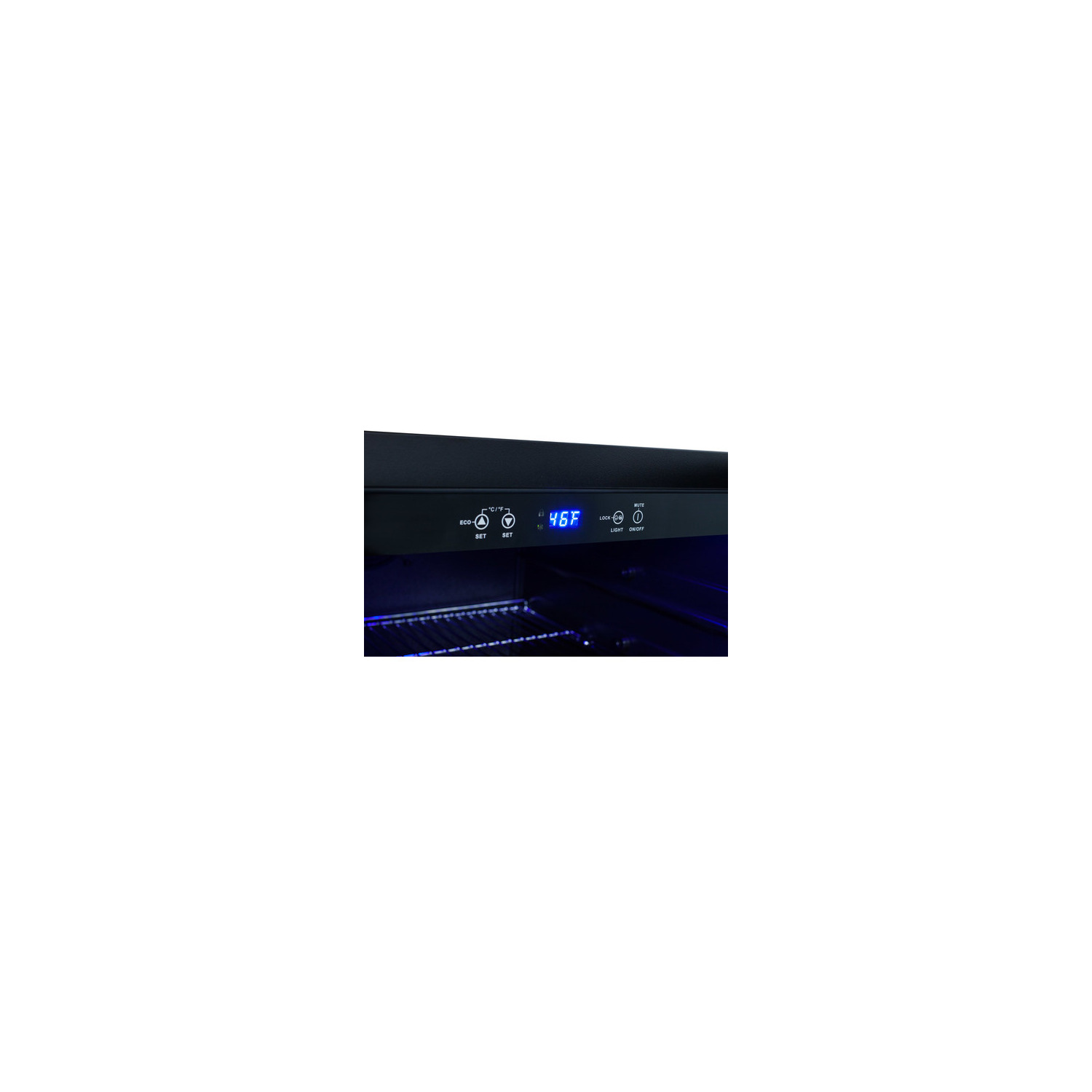

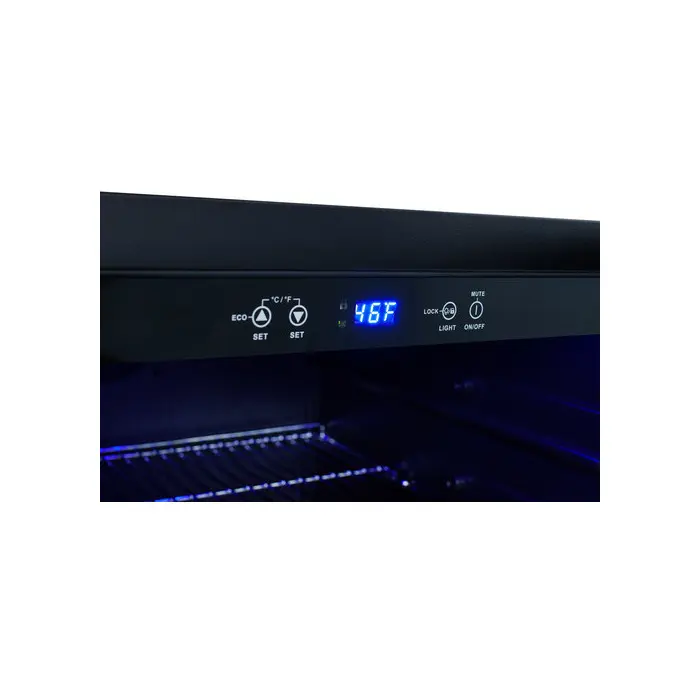

Digital control panel Makes for easy temperature reading/management with electronic controls inside
Double pane tempered glass door Provides a full display of the interior, with two levels of glass for added protection
Factory installed lock Keyed lock for secure interior, with two keys included
Adjustable shelving Four shelves (3 wire, 1 glass) provide space and flexibility when organizing the interior’s contents
Brake system shelving Provides added safety when loading and unloading the unit's 4 shelves
Slotted floor Allows for easy storage of wine bottles
Dual-purpose functionality Versatile design allows unit to serve as a cooler or refrigerator
Automatic defrost Reduced maintenance with auto defrost system
Interior lighting Soft LED lighting allows for easy viewing of interior contents while maintaining an elegant feel
Temperature alarm Alarm sounds if temperature goes out of recommended range after 2 hours
Sabbath mode Optional feature disables alarms, interior light, and displays for up to 96 hours
Factory-reversible door swing Unit ships with a right hand door swing. For a left hand door swing, order with option "LHD"
Fully finished black cabinet Allows unit to be used freestanding
100% CFC free Environmentally friendly design with no ozone-damaging chemicals
CARB Compliant Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
