Summit 15 inch wide ADA compliant built-in undercounter beverage center with panel-ready door, 7.61101e+011, ALBV15PNR

Summit offers the industry's largest selection of 32" high ADA compliant appliances, with quality choices for built-in or freestanding use in 15" wide spaces.

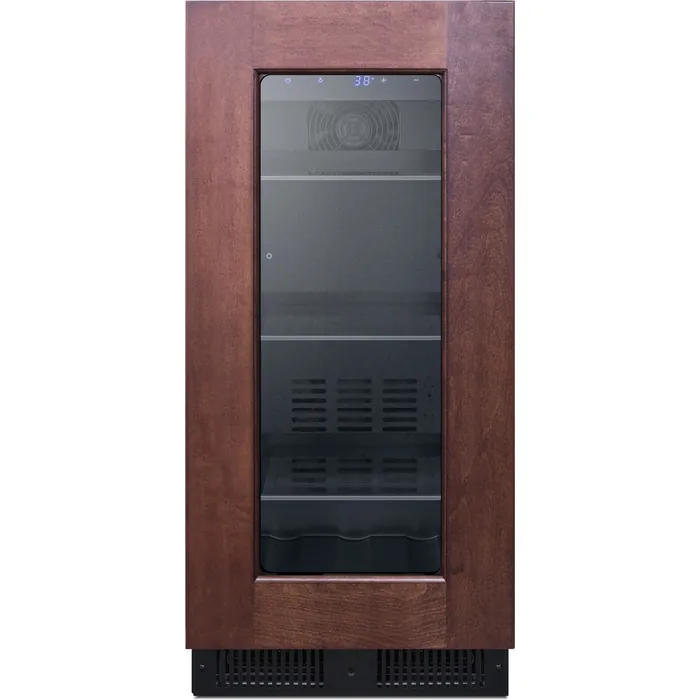

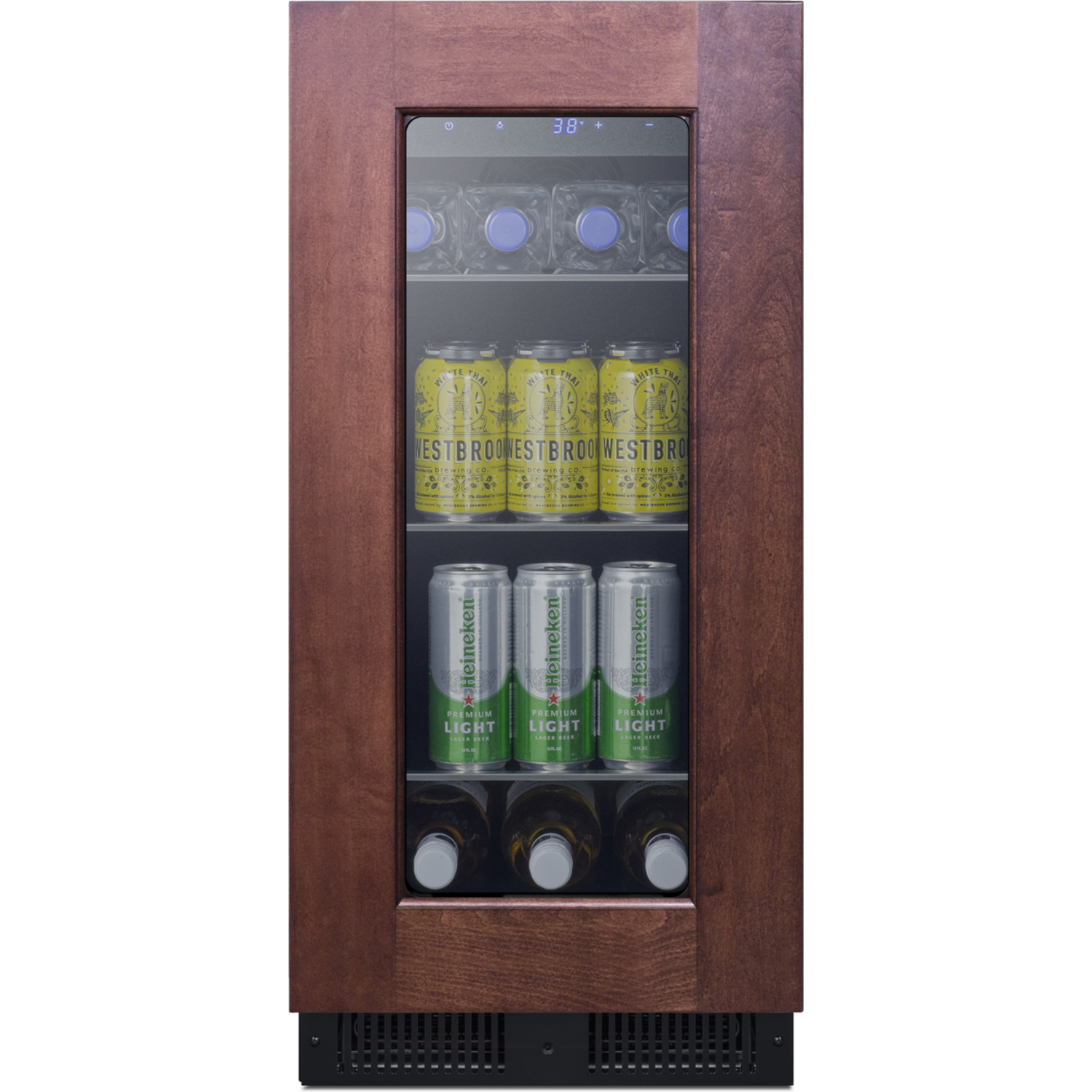

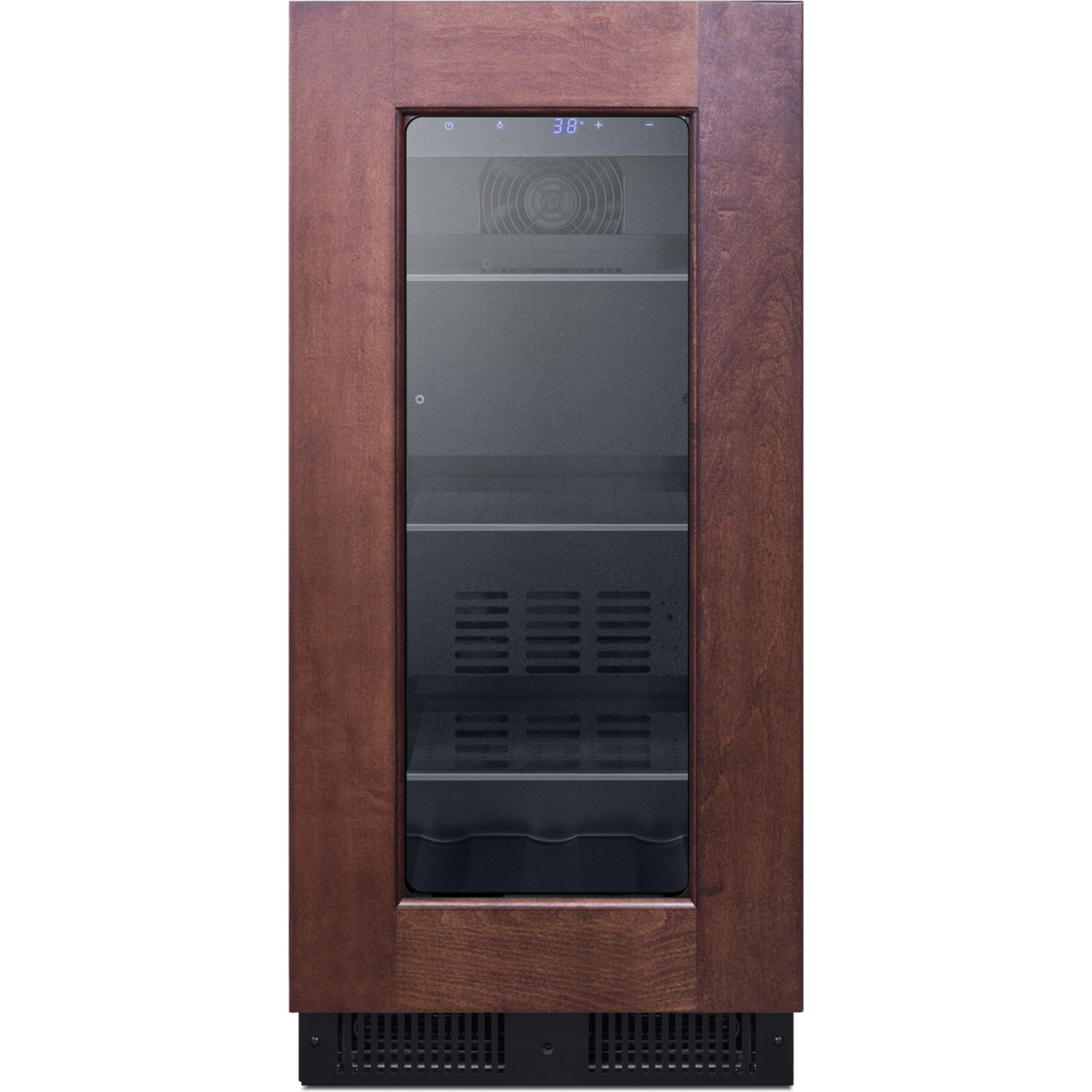

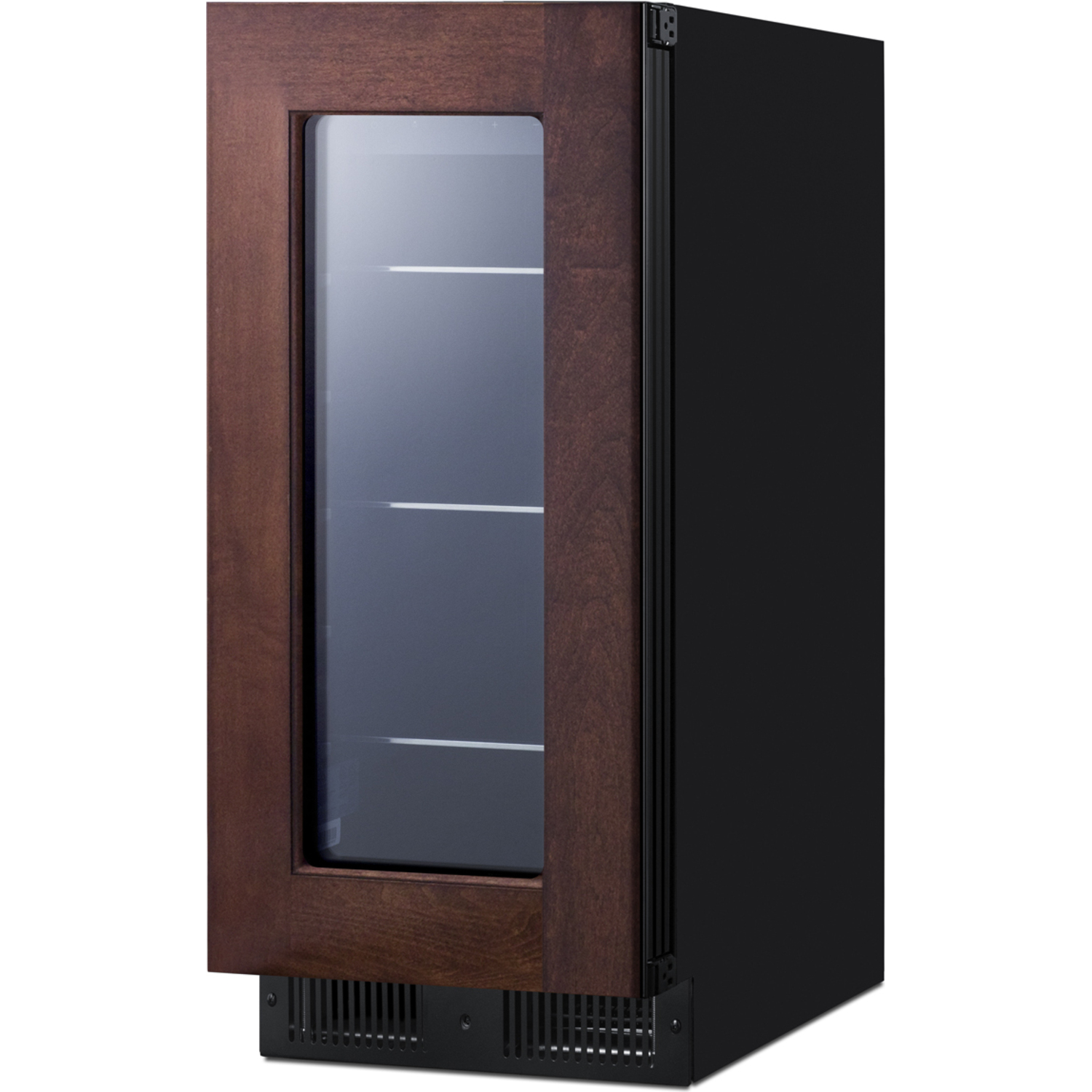

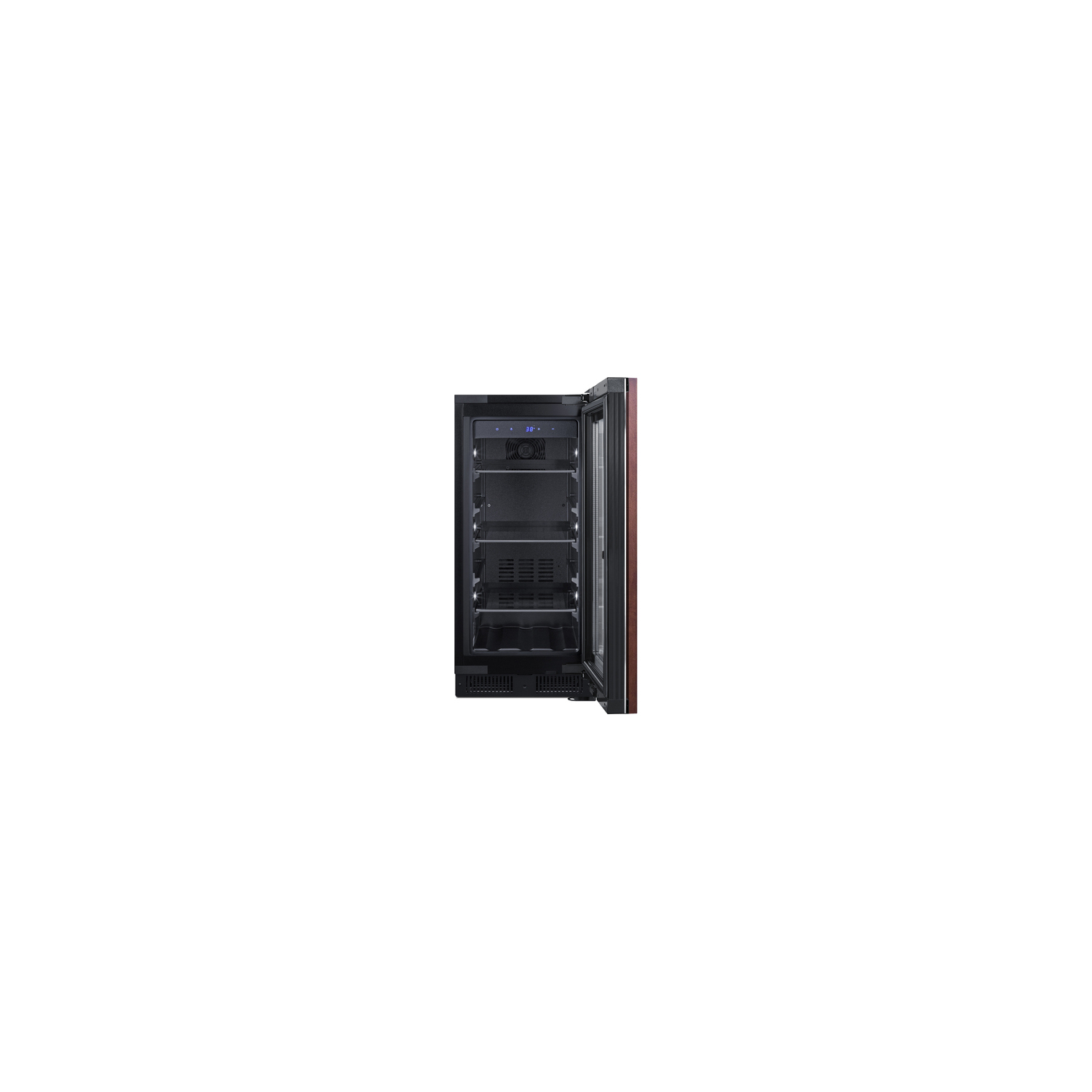

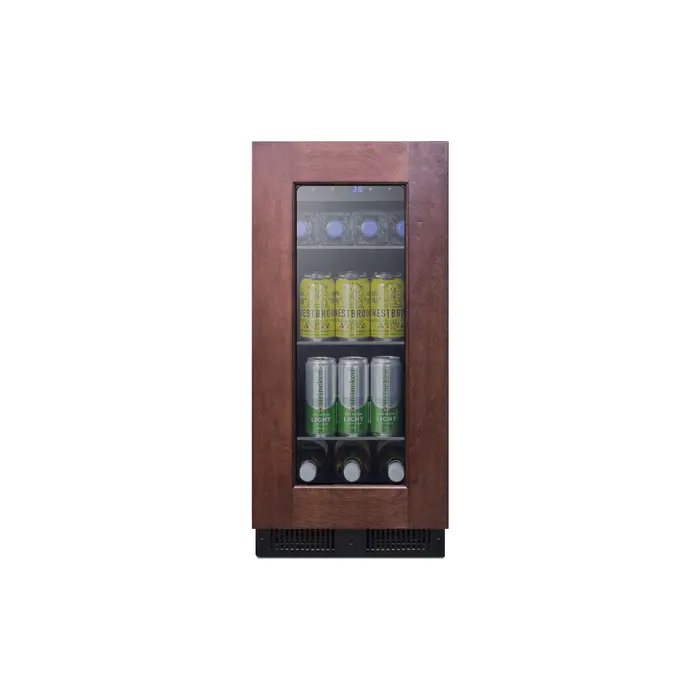

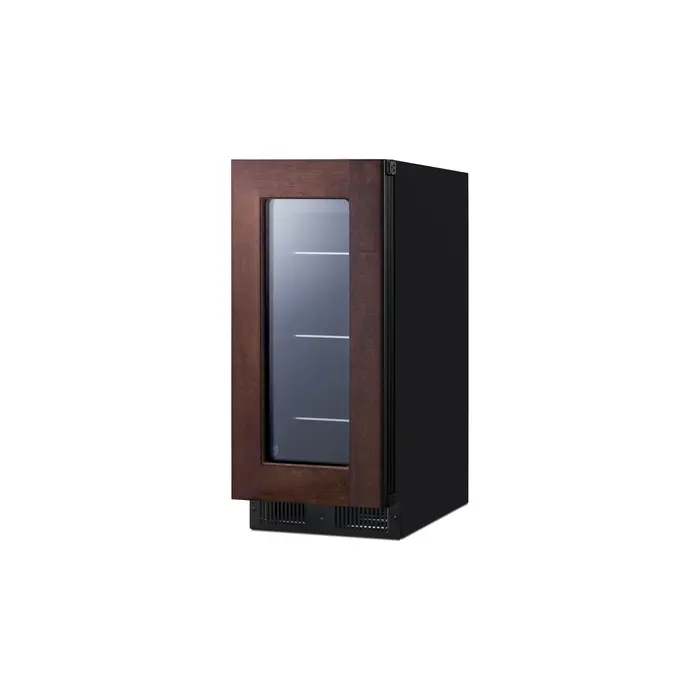

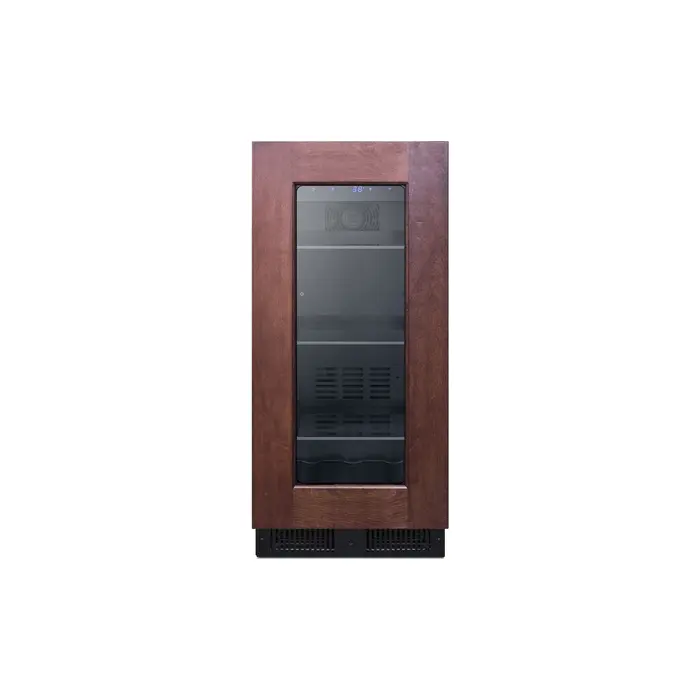

The ALBV15PNR is a beverage center sized just under 15" wide and 32" high to fit under lower ADA compliant counters. The front-breathing system allows built-in installation, while the fully finished black cabinet also makes it safe for freestanding use. This unit includes a fully articulating European-style hinge and 2-piece bracket kit that lets you easily install overlay panels over the door trim to create a custom look. The double pane tempered glass door provides a full view of stored contents and a front lock offers convenient security. For added space savings, the ALBV15PNR is designed with a sealed back and right angle cord. This unit is also height adjustable with adjustable leveling legs and an extra kickplate that allows you to raise the unit up to an additional 3".

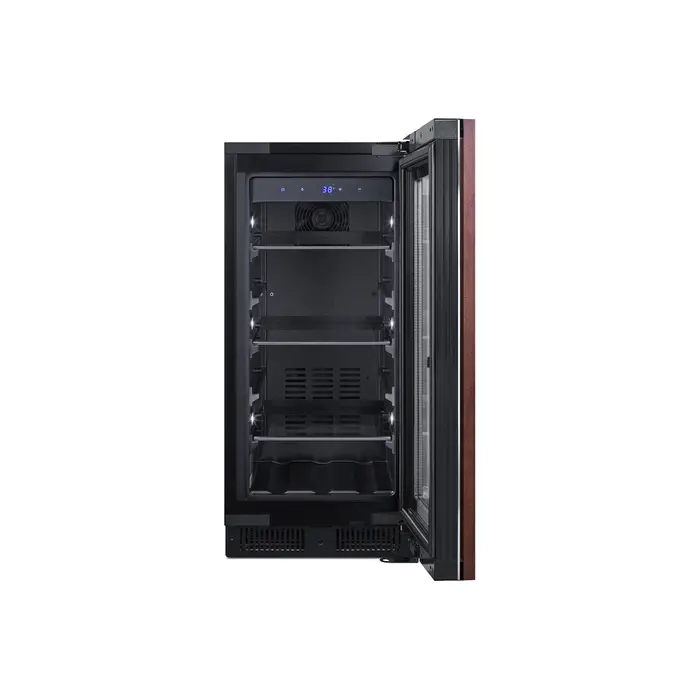

Three adjustable glass shelves offer flexible, spill-proof storage, with black trim for added color matched style. This model utilizes automatic defrost for easy maintenance and includes an internal fan to ensure more even temperature distribution. An audible alarm sounds if the door has been left open for over one minute, or if the temperature has risen out of the recommended storage range. This unit is also equipped with Sabbath mode to allow users the option of disabling certain electrical functions during periods of religious observance.

With its unique size and user-friendly features, the ALBV15PNR is the perfect choice for space-constrained ADA compliant settings. For a matching wine cellar, see the ALWC15PNR.

SPECIFICATIONS

Overview

Nominal Height 32.0" (81 cm)

Height of Cabinet 32.0" (81 cm)

Nominal Width 15.0" (38 cm)

Width 14.75" (37 cm)

Nominal Depth 24.0" (61 cm)

Depth 23.63" (60 cm)

Depth with door at 90° 39.0" (99 cm)

Capacity 2.3 cu.ft. (65 L)

Defrost Type Automatic

Door Glass/Panel-Ready Frame

Cabinet Black

US Electrical Safety ETL

Canadian Electrical Safety ETL-C

Energy Usage/Year 270.0kWh/year

Amps 1.0

Voltage/Frequency 115 V AC/60 Hz

Weight 68.0 lbs. (31 kg)

Parts & Labor Warranty 1 Year

Compressor Warranty 5 Years

UPC 761101082899

Refrigerator Features

Door Swing RHD

Reversible Yes

Shelf Type Glass

Shelf Qty 3

Adjustable Shelves Yes

Thermostat Type Digital

Fan Type Interior and Exterior

Refrigerant Type R600a

Refrigerant Amount 0.78oz.

High Side PSI 270.0

Low Side PSI 105.0

Level Legs Qty 4

Interior Light Yes

Temperature Range 36 - 43ºF

Sound Level 33 dB

Dimensions

Interior Height 21.25" (54 cm)

Interior Width 10.5" (27 cm)

Interior Depth 17.25" (44 cm)

Compressor Step Height 3.5" (9 cm)

Compressor Step Width 10.5" (27 cm)

Compressor Step Depth 5.0" (13 cm)

FEATURES

15" Wide Undercounter Beverage Center Built-in or freestanding glass door refrigerator sized to fit in ADA compliant spaces

ADA compliant Sized at 32" high for use under lower ADA compliant counters

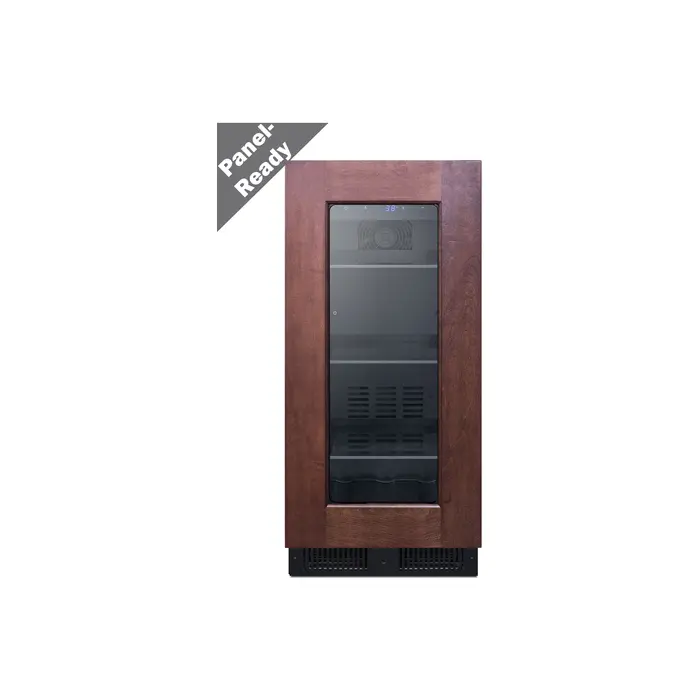

Panel-ready door trim European style articulating door hinge and bracket kit allow easy installation of custom door trim panels to match adjacent cabinetry; recommended panel dimensions: 3/4" thickness at 28 1/4" H x 14 5/8" W with a 3 1/4" H x 3 1/4" W inner frame

Built-in capable Make the best use of space by installing your appliance under the counter

Glass door with stainless steel trim Provides a full display of stored contents with a heat-safe double tempered design

Factory installed lock Keyed lock for a secure interior, with two keys included

Digital thermostat Electronic controls for precise temperature management.

Digital display Temperature readout can be shown in Celsius or Fahrenheit

LED lighting Gentle illumination with an on/off switch

Automatic defrost Reduced maintenance with the convenience of auto defrost

Adjustable glass shelves Flexible storage with spill-proof convenience

Slotted floor Floor includes slots to hold bottles in place

Reversible door User-reversible door swing on the refrigerator for added flexibility

Height adjustable Leveling legs can raise the unit to up to 34.5" for more standardized counters. An extra kickplate cover is included to cover the added space

Professional handle Stainless steel look for added elegance

Sabbath mode setting Optional setting lets you disable the lighting and alarm for up to 48 hours during periods of observance

High temperature alarm Audible alarm sounds if the interior temperature rises out of set range

Open door alarm Alarm sounds if the door is left open for more than 60 seconds

Right angle plug Design allows you to plug the unit in flush against the wall socket with no need to add extra depth

Flush back Space saving design makes it easier to install flush against the wall

Fully articulating European style hinge Smoother opening and a better fit with an integrated European hinge

Matching wine cellar available Pair with the ALWC15PNR for a perfectly matched set

Fully finished black cabinet Allows the unit to be used freestanding

100% CFC Free Environmentally friendly design with no ozone-damaging chemicals

CARB Compliant Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

HTS CODE: 8418.50.0080 Upright coolers incorporating refrigerating equipment, each measuring not more than 77 cm/30.315" in width, not more than 78 cm/30.7" in depth and not more than 200 cm/78.75" in height, weighing not more than 127 kg/280 lb, with one swing-type transparent glass door

DOWNLOADS

BROCHURE w/ DRAWINGS (ALBV15PNR.pdf)

TECHNICAL DRAWING (.dwg) (ALBV15PNR.dwg)

ASSEMBLY DRAWING (ALBV15PNR-Assembly.pdf)

USE & CARE (ALBV15PNR-User-Manual.pdf)

MSDS INFORMATION (R600a_K.pdf)

Energy Guide
