Summit ADA compliant built-in undercounter all-refrigerator for general purpose use, auto defrost w/SS wrapped door, thin handle, and black cabinet, AL752BKBISSHV

Accucold by Summit Appliance offers a wide range of all-refrigerators for general purpose storage. The AL750BI Series features 24" wide all-refrigerators designed for built-in installation under lower ADA compliant counters.

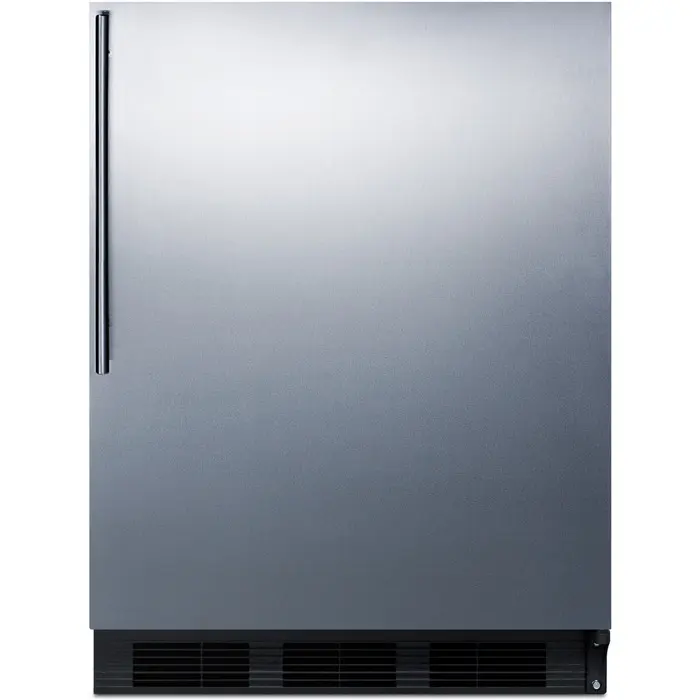

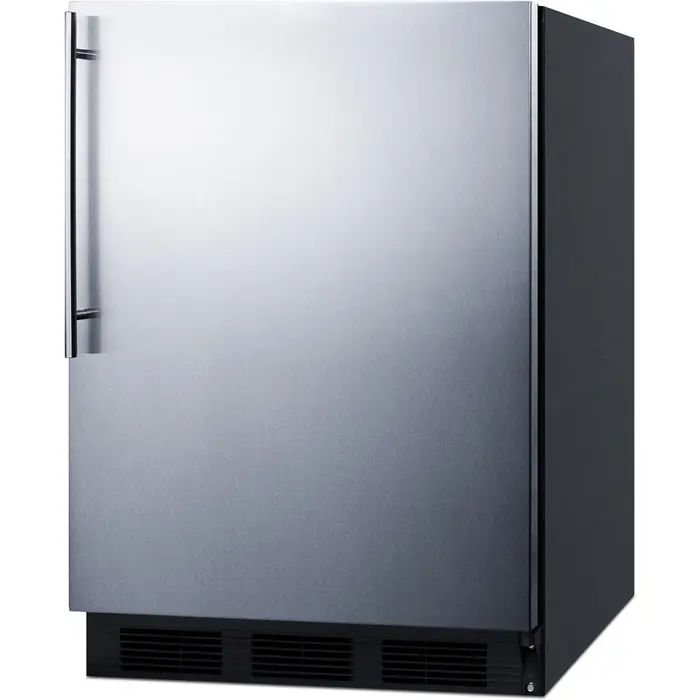

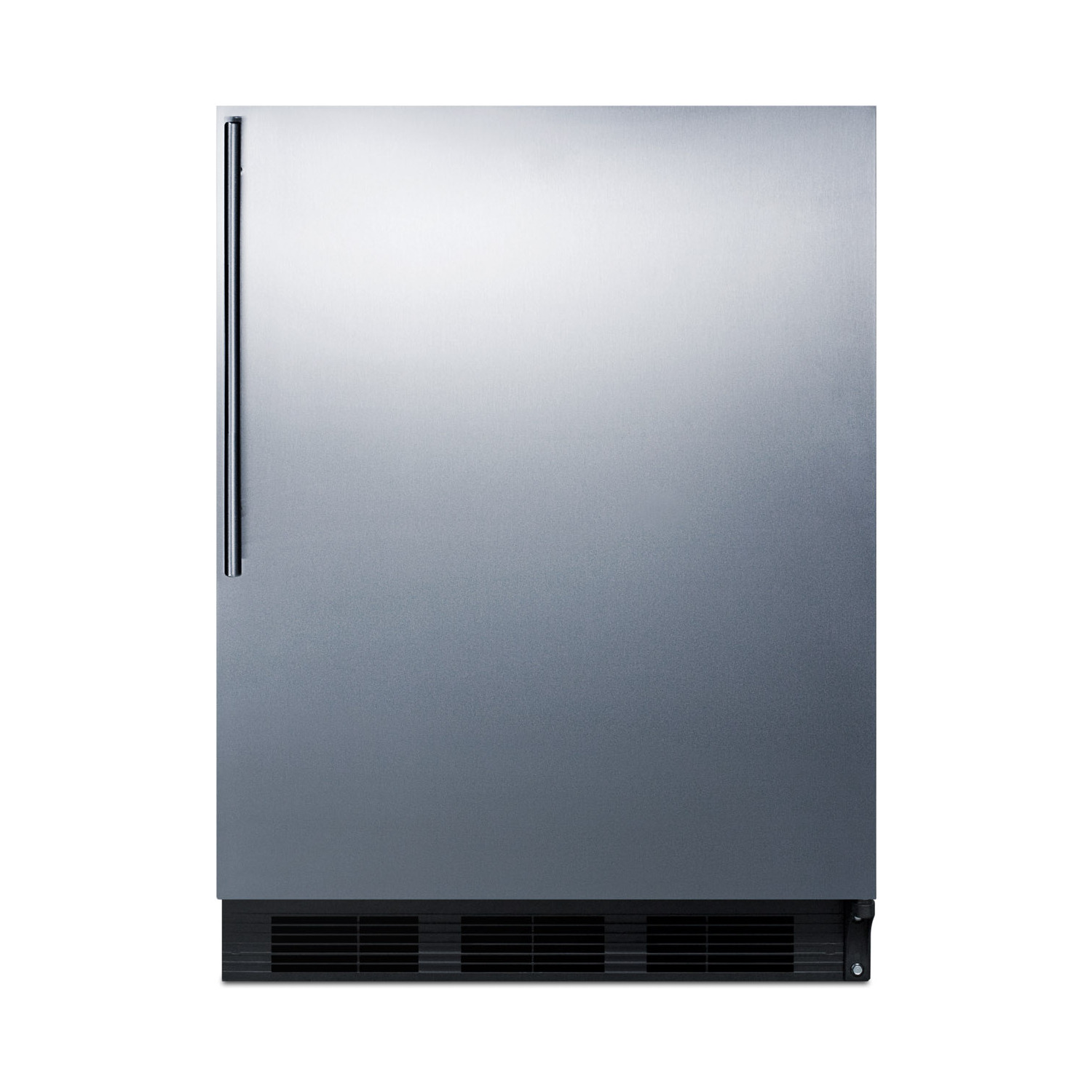

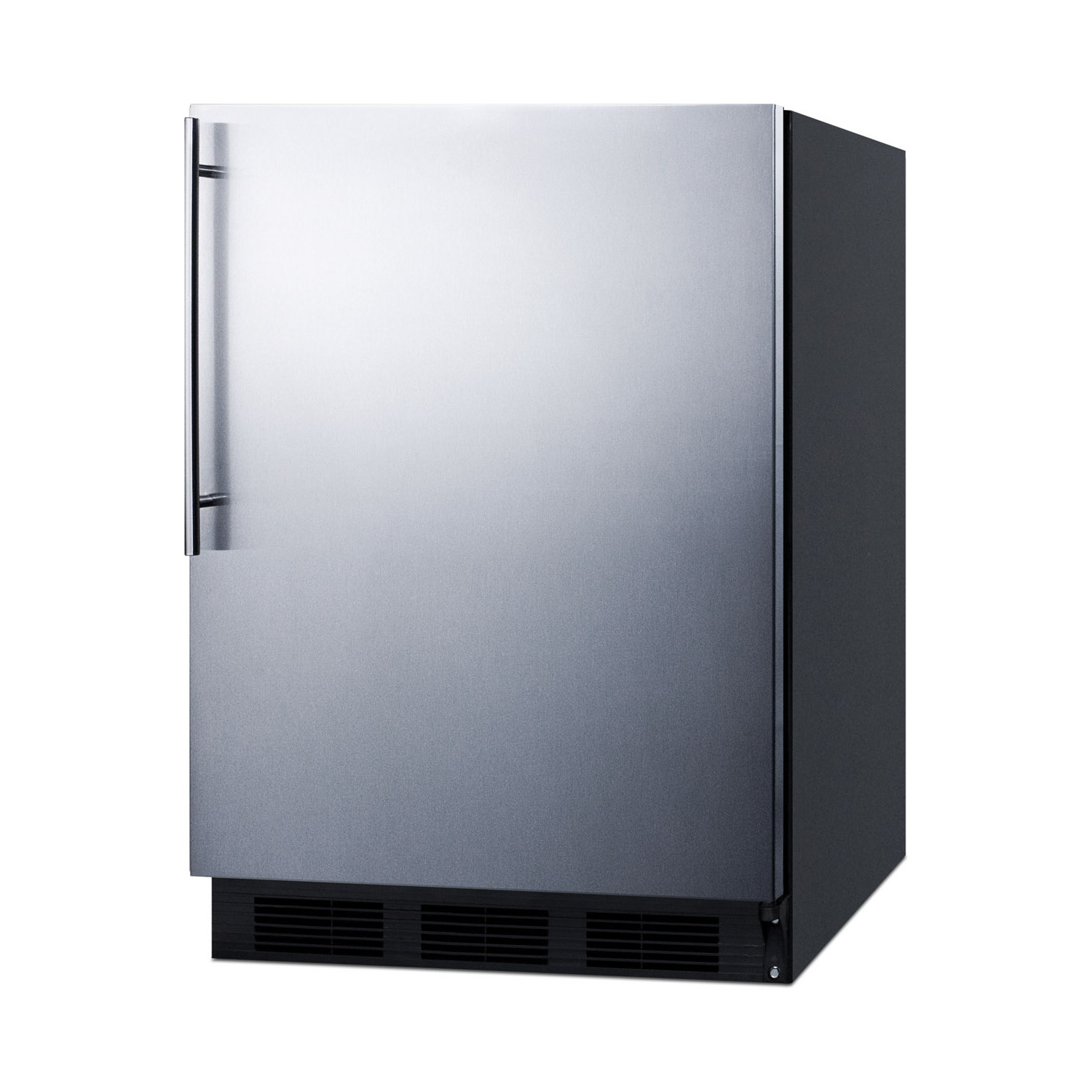

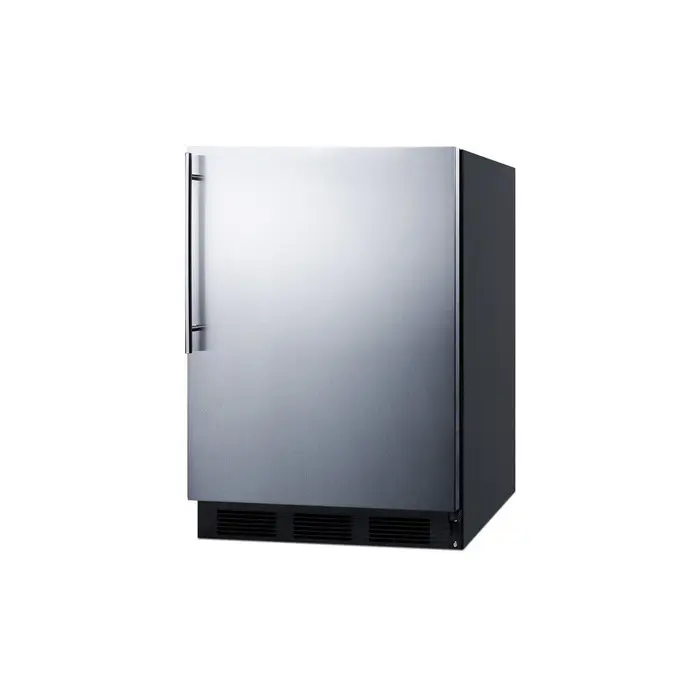

The AL752BKBISSHV is a 32" high all-refrigerator with a full 5.5 cu.ft. capacity inside a slim 24" footprint. The front-breathing design allows built-in use under counters, while the fully finished cabinet also lets this unit be used freestanding. This model has a black cabinet and stainless steel wrapped door. A thin handle with a 14mm diameter completes the sleek, modern look.

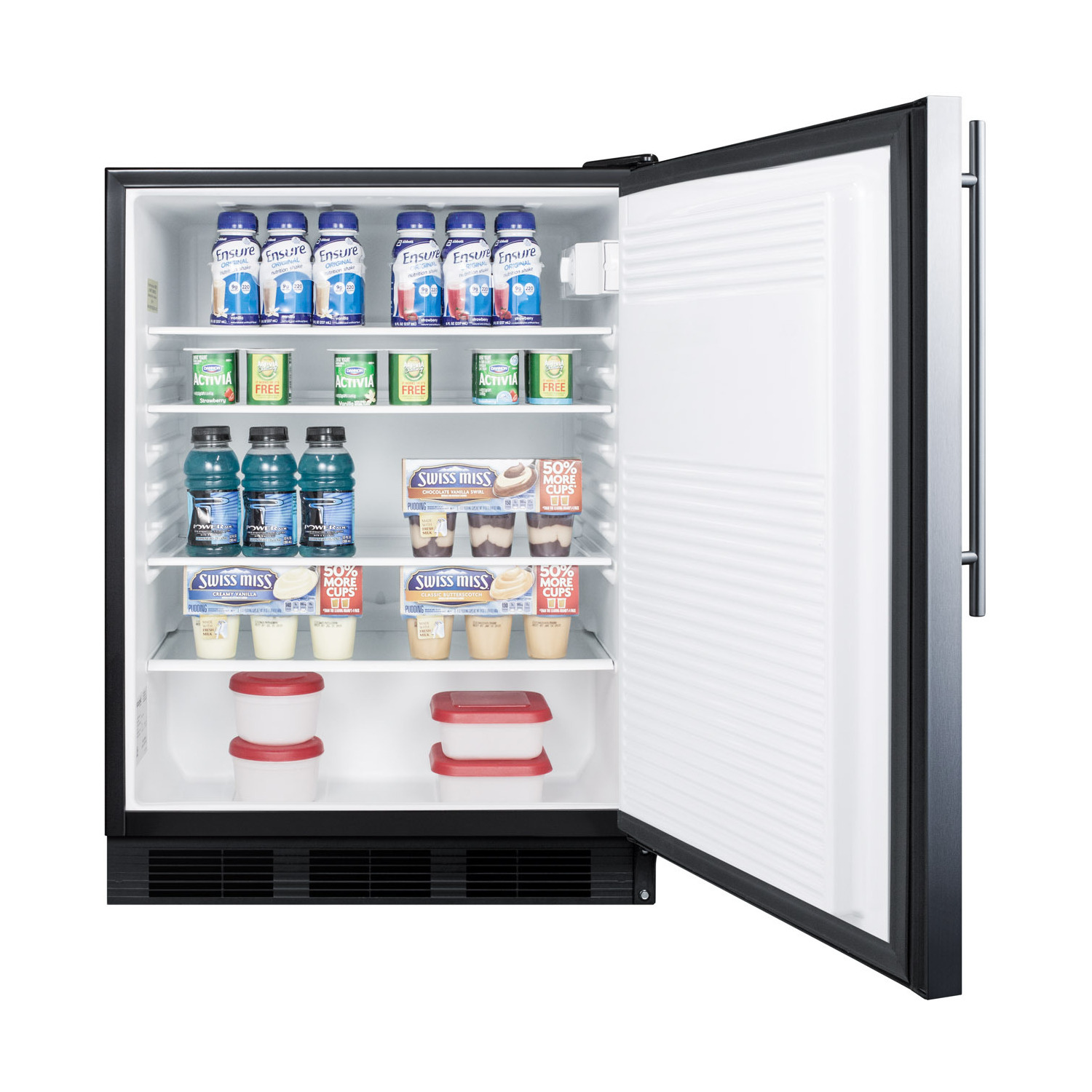

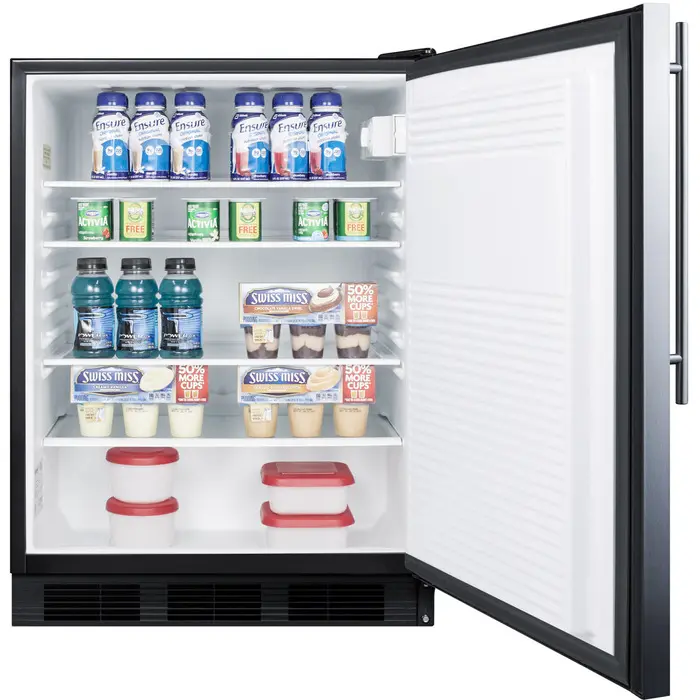

Inside, the AL752BKBISSHV utilizes low maintenance automatic defrost operation. Our unique "hidden" evaporator is set behind the rear wall to create a seamless, easy-to-clean interior that also maximizes shelf space. This unit has a flat door liner that allows it to accept larger trays (up to 19 1/2" x 16"). Adjustable glass shelves allow users to reconfigure the interior to accommodate a variety of sizes. The interior light is controlled by an on/off rocker switch located behind the thermostat dial.

For more finish options, browse the entire AL750BI Series.

NOTE: This unit is designed for general purpose, medical, or commercial applications and does not meet DOE energy standards for residential use.

SPECIFICATIONS

Overview

Nominal Height 32.0" (81 cm)

Height of Cabinet 32.0" (81 cm)

Height to Hinge Cap 32.25" (82 cm)

Nominal Width 24.0" (61 cm)

Width 23.63" (60 cm)

Nominal Depth 24.0" (61 cm)

Depth 23.5" (60 cm)

Depth with Handle 24.75" (63 cm)

Depth with door at 90° 45.5" (116 cm)

Capacity 5.5 cu.ft. (156 L)

Defrost Type Automatic

Door Stainless Steel

Cabinet Black

US Electrical Safety ETL

Canadian Electrical Safety ETL-C

Amps 1.4

Voltage/Frequency 115 V AC/60 Hz

Weight 100.0 lbs. (45 kg)

Parts & Labor Warranty 1 Year

Compressor Warranty 5 Years

UPC 761101069326

Refrigerator Features

Door Swing RHD

Reversible Factory Reversible

Shelf Type Glass

Shelf Qty 3

Adjustable Shelves Yes

Thermostat Type Dial

Refrigerant Type R600a

Refrigerant Amount 0.64oz.

High Side PSI 180.0

Low Side PSI 80.0

Level Legs Qty 4

Interior Light Yes

Dimensions

Interior Height 26.25" (67 cm)

Interior Width 21.0" (53 cm)

Interior Depth 17.75" (45 cm)

Compressor Step Height 5.5" (14 cm)

Compressor Step Width 21.0" (53 cm)

Compressor Step Depth 5.5" (14 cm)

FEATURES

ADA compliant 32 inch height fits under standard ADA counters

Slim undercounter dimensions Less than 24 inches wide with a full 5.5 c.f. capacity

Built-in capable Make the best use of space by installing your appliance under the counter and flush with other cabinets

Fully finished black cabinet Allows the unit to be used freestanding

Stainless steel door Durable design with lasting elegance

Professional stainless steel handle Thin 14mm diameter on vertical stainless steel handle

Automatic defrost Reduced user maintenance with automatic defrost operation

One piece interior liner Easy clean-up with a seamless liner that won't hold a mess in hidden crevices

Hidden evaporator Cold wall design with hidden evaporator and seamless interior

Adjustable glass shelves Rearrange the refrigerator space to accommodate all shapes and sizes or remove shelves for a simple clean-up

Flat door liner An easy-to-clean flat liner accepts large trays

Deep shelf space Interior accommodates large trays up to 19 1/2" x 15 1/2"

Interior light on rocker switch Turn the light on when you need it and off when you're done with a convenient rocker switch

Adjustable thermostat Dial thermostat located inside for easy temperature management

100% CFC free Environmentally friendly design without ozone-damaging chemicals
