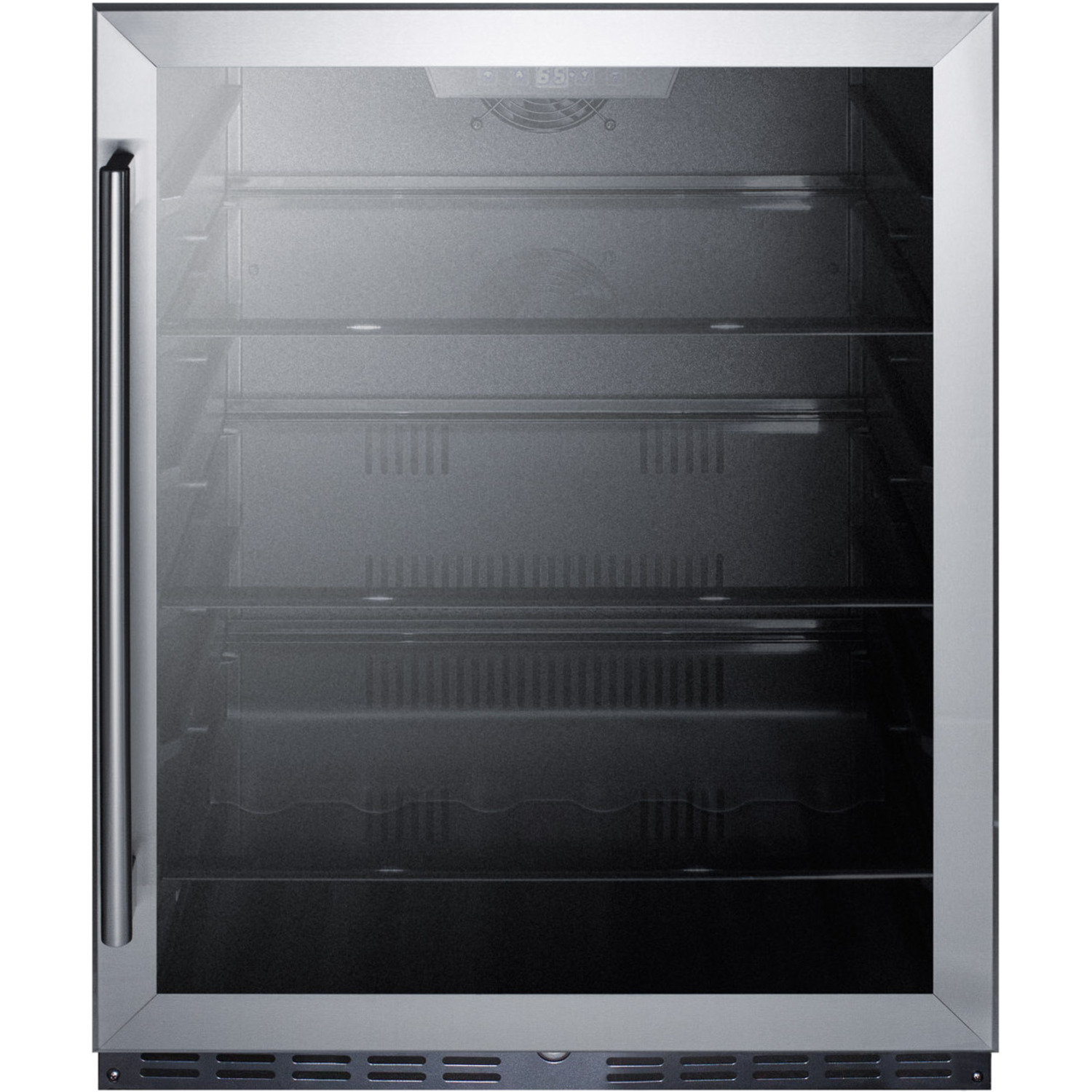

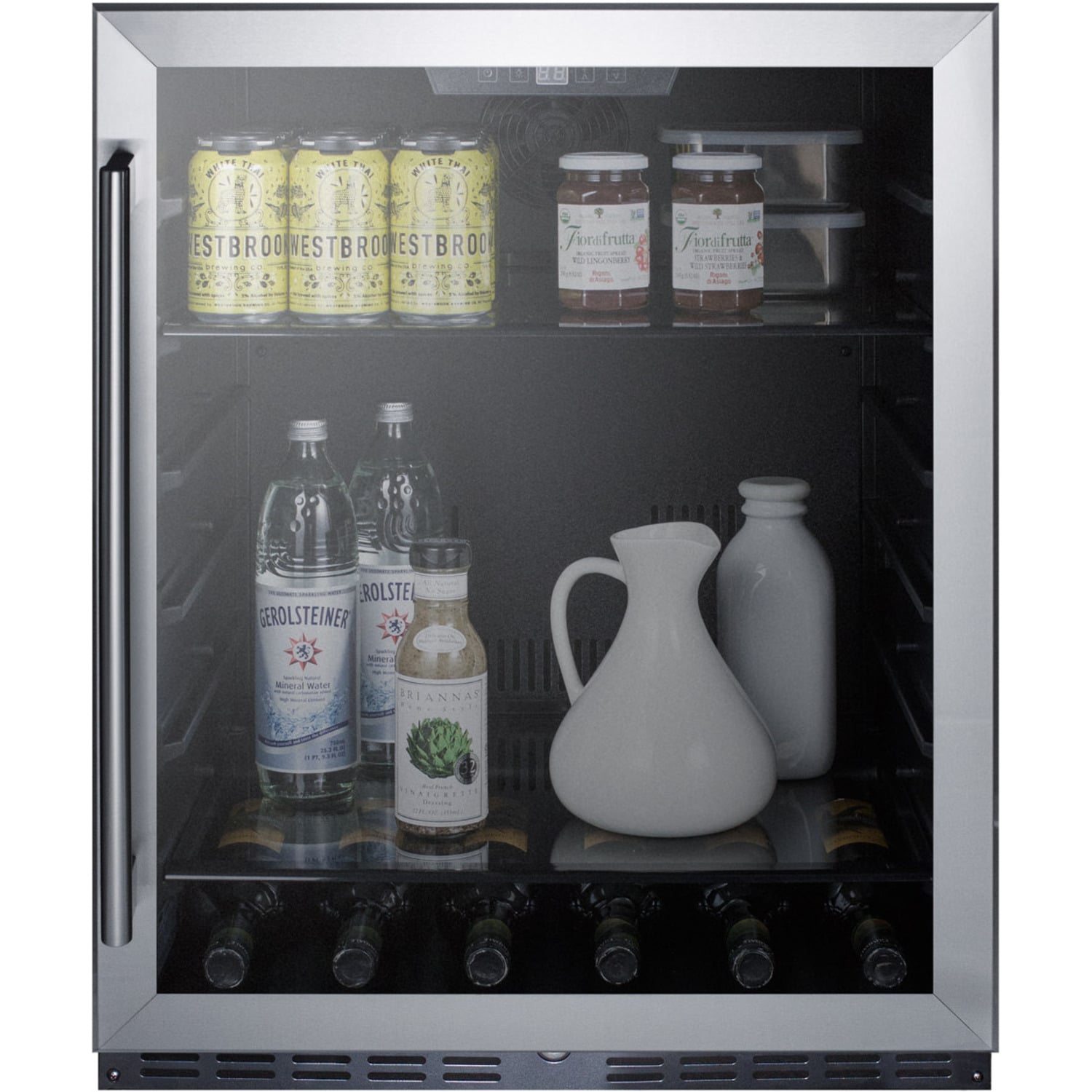

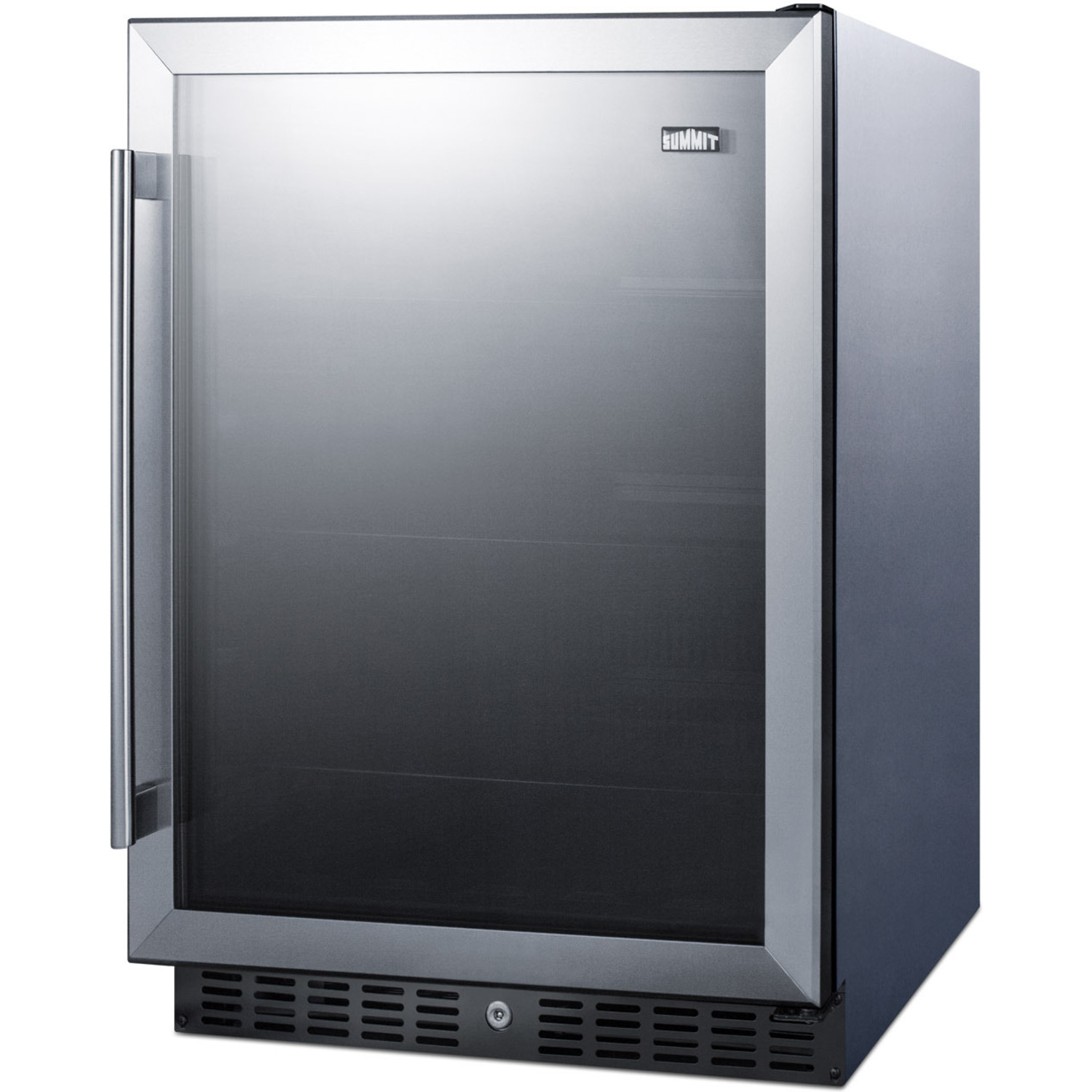

Summit Built-in undercounter ADA compliant all-refrigerator with glass door, stainless steel cabinet, lock, and digital controls, 7.61101e+011, AL57GCSS

SUMMIT's ADA compliant line of built-in refrigerators brings quality and style to residential and commercial settings with space restraints.

Sized with a convenient 24" footprint, the AL57GCSS is just 32" high to fit under lower counters complying with ADA guidelines for accessibility. The wrapped stainless steel cabinet allows freestanding use, while the front-breathing system also allows this unit to be built-in with minimum clearance. This unit has a user-reversible double pane tempered glass door with attractive stainless steel trim. A stainless steel handle completes the look and a factory installed lock in the kickplate offers additional security. The flush back design helps to make cleaning easier, while the right angle cord offers added space savings.

Inside, the AL57GCSS utilizes frost-free operation with fan-forced cooling to ensure low maintenance and even temperature distribution. Recessed LED lighting offers an attractive yet efficient look. The digital thermostat makes it easy to manage the interior temperature. This unit includes adjustable glass shelves for flexible, spill-proof storage. The floor is specially slotted to hold bottles in place. Additional features include an open door alarm, high temperature alarm, and Sabbath mode setting that lets you disable some of the electrical elements during periods of observance.

The AL57GCSS refrigerator is ETL-S listed to NSF-7 commercial standards but can also be used in the home. With its deluxe style and user-friendly features, this unit is the perfect choice for home or commercial kitchens.

SPECIFICATIONS

Overview

Nominal Height 32.0" (81 cm)

Height of Cabinet 32.0" (81 cm)

Nominal Width 24.0" (61 cm)

Width 23.63" (60 cm)

Nominal Depth 23.0" (58 cm)

Depth 22.63" (57 cm)

Depth with Handle 24.63" (63 cm)

Depth with door at 90° 45.0" (114 cm)

Capacity 5.0 cu.ft. (142 L)

Defrost Type Frost-Free

Door Glass

Cabinet Stainless Steel

US Electrical Safety ETL

Canadian Electrical Safety ETL-C

Sanitation ETL-S

Energy Usage/Year 290.0kWh/year

Amps 1.0

Voltage/Frequency 115 V AC/60 Hz

Weight 110.0 lbs. (50 kg)

Parts & Labor Warranty 1 Year

Compressor Warranty 5 Years

UPC 761101053912

Refrigerator Features

Sabbath Mode Yes

Door Swing RHD

Reversible Yes

Shelf Type Glass

Shelf Qty 3

Adjustable Shelves Yes

Thermostat Type Digital

Fan Type Interior and Exterior

Refrigerant Type R600a

Refrigerant Amount 0.99oz.

High Side PSI 270.0

Low Side PSI 105.0

Level Legs Qty 4

Interior Light Yes

Temperature Range 36 to 43ºF

Sound Level 33.6 dB

Dimensions

Interior Height 25.0" (64 cm)

Interior Width 20.0" (51 cm)

Interior Depth 17.5" (44 cm)

Compressor Step Height 3.25" (8 cm)

Compressor Step Width 20.0" (51 cm)

Compressor Step Depth 5.25" (13 cm)

FEATURES

ADA compliant design 32" height allows easy installation under lower ADA compliant counters

Built-in capable Front-breathing design lets you make the best use of space by installing your appliance under the counter

Commercially approved ETL-S listed to NSF-7 Standards and meets UL-471 for use in commercial establishments

Factory installed lock Keyed lock for a secure interior

Double pane tempered glass door Stainless steel trimmed glass door offers a heat-safe view of the interior

Stainless steel wrapped cabinet Stainless steel exterior for a professional look with lasting durability

Professional handle Stainless steel handle completes the look

Frost-free operation No-frost operation for minimum user maintenance

Digital thermostat Electronic controls located inside the unit for precise temperature management

Recessed LED light Efficient and attractive presentation with LED lighting

Adjustable glass shelves Rearrange refrigerator space to accommodate all sizes or remove shelves for simple cleanup

Bottle slots Floor is specially slotted to store wine and other bottles safely in place

Internal fan Fan-forced cooling ensures the unit is evenly cooled from top to bottom

Reversible door User-reversible door swing for added flexibility

Open door alarm Audible alarm will sound if the door is left open longer than one minute

High temperature alarm High temperature alarm sounds if the unit's interior goes out of the recommended range

Sabbath mode setting Optional setting lets you disable the lighting and alarm for up to 48 hours

Temperature Memory Function Unit will retain its last settings when power is restored in the event of power loss

Sealed back Space-saving design that offers easier cleanability

Right angle plug Design allows you to plug the unit in flush against the wall socket with no need to add extra depth

Fully finished cabinet Allows the unit to be used freestanding

100% CFC Free Environmentally friendly design with no ozone-damaging chemicals

CARB Compliant Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

DOWNLOADS

BROCHURE w/ DRAWINGS (AL57GCSS.pdf)

TECHNICAL DRAWING (.dwg) (AL57G_REFRIGERATOR__A-C2000__2.dwg)

USE & CARE (AL57GCSS-User-Manual.pdf)

MSDS INFORMATION (R600a_K.pdf)

Energy Guide
