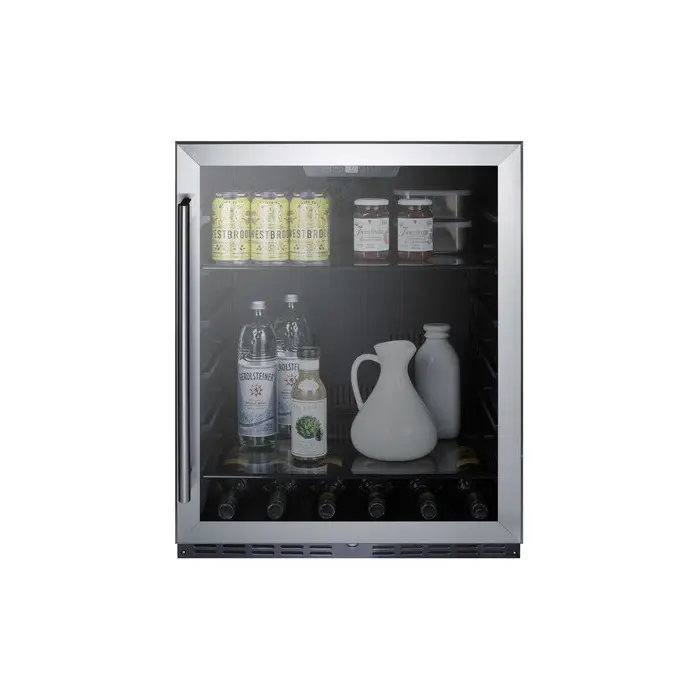

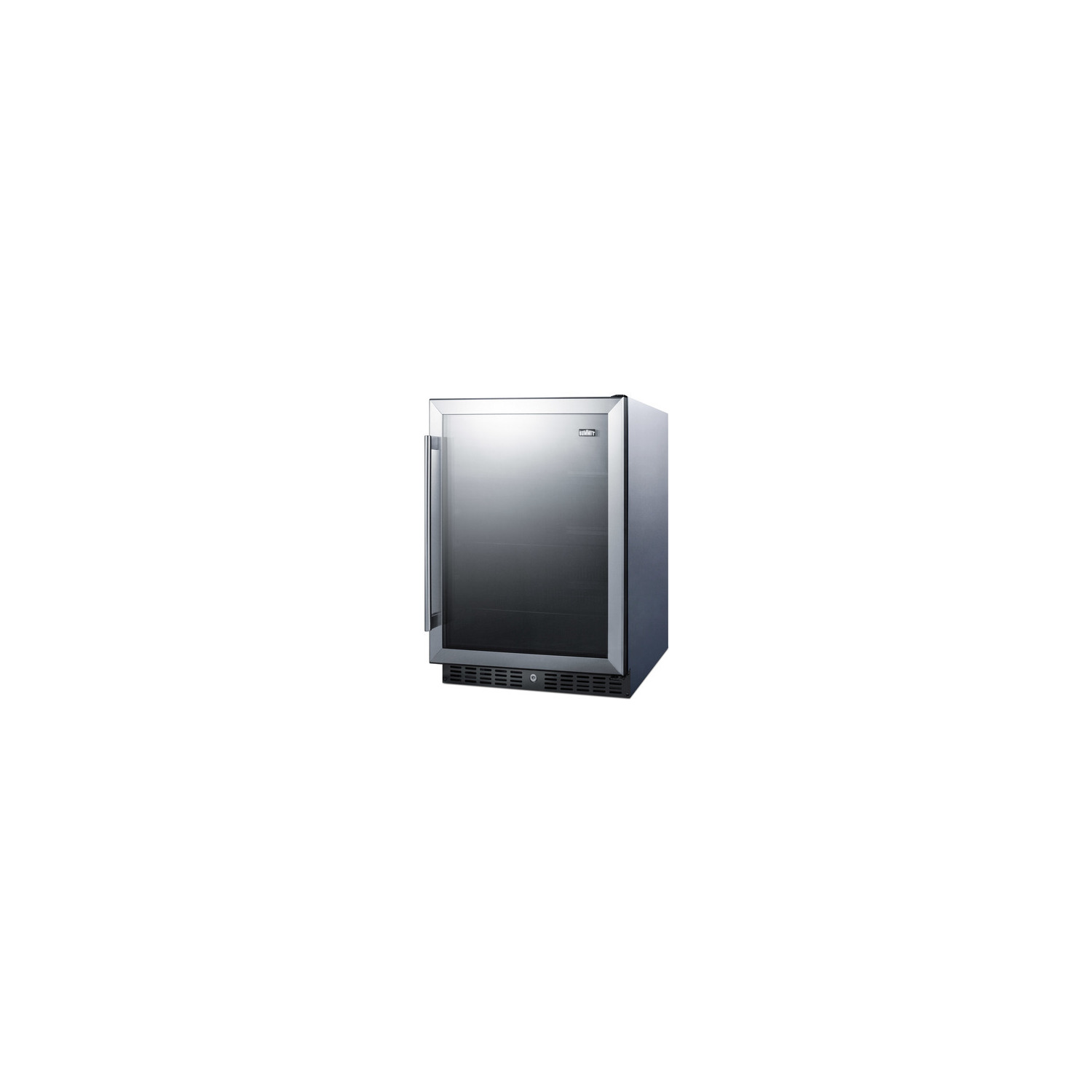

Summit Built-in undercounter ADA compliant all-refrigerator with glass door, black cabinet, lock, and digital controls, 7.61101e+011, AL57G

SUMMIT's extensive selection of built-in refrigerators brings quality and style to commercial settings designed to incorporate lower ADA compliant counter height.

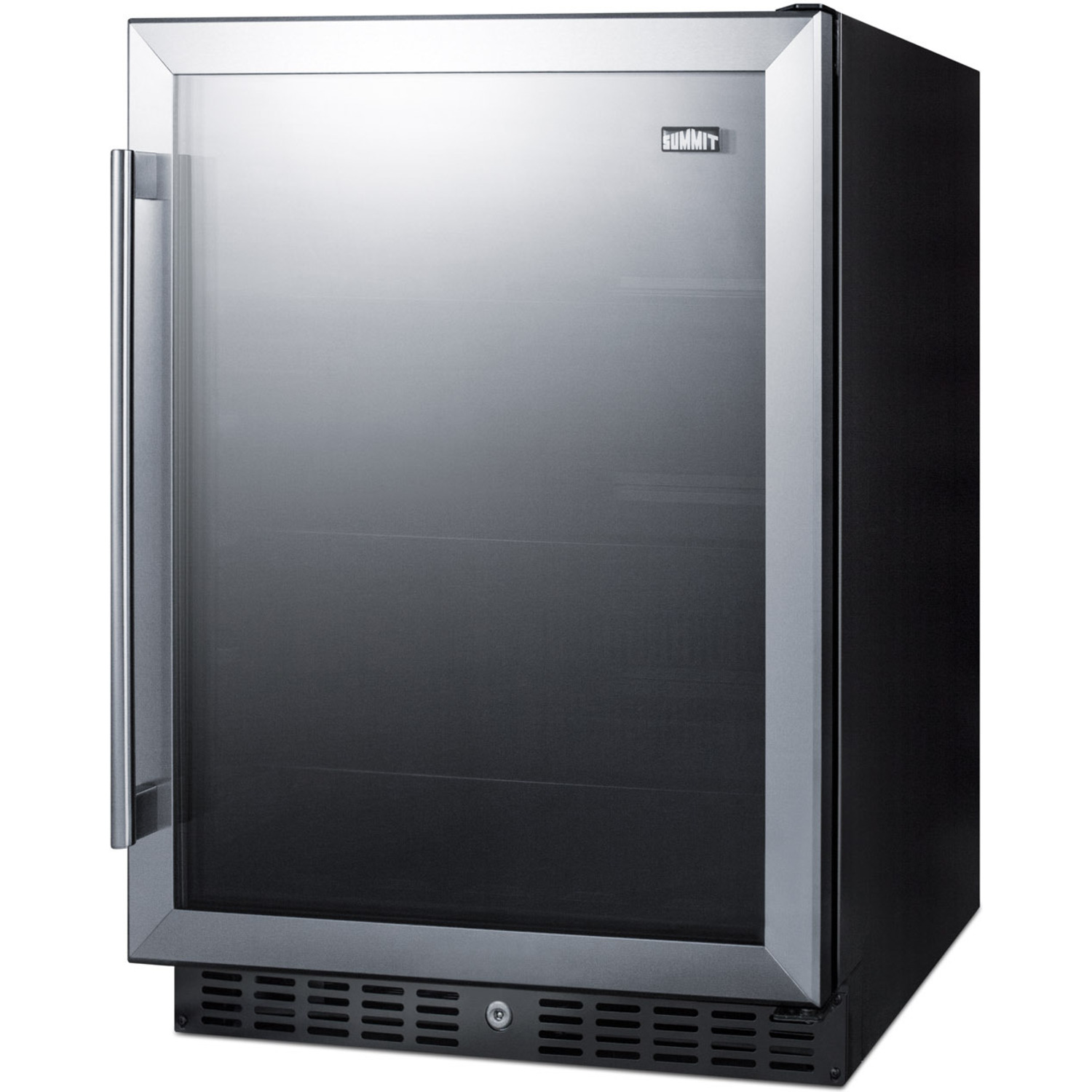

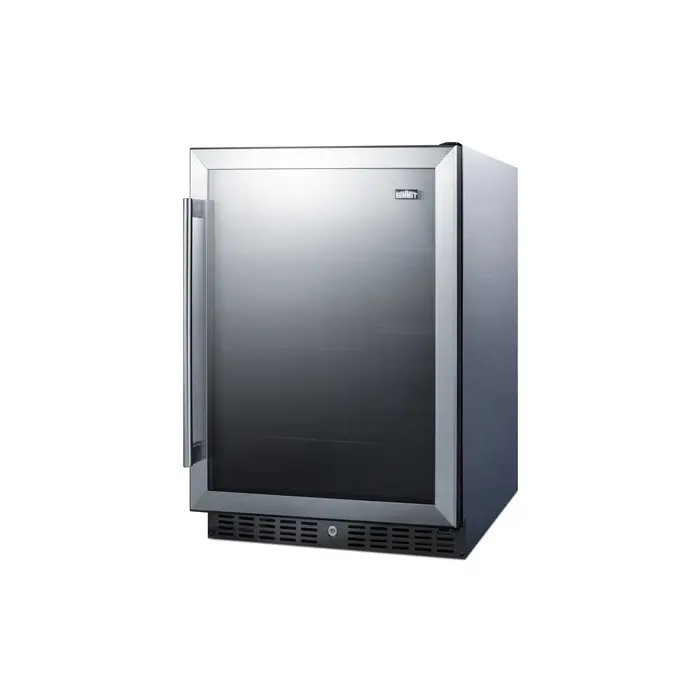

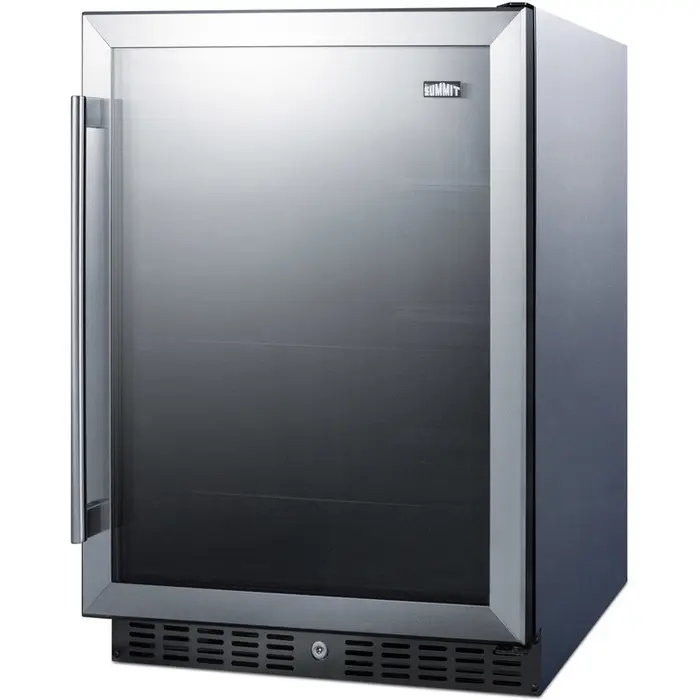

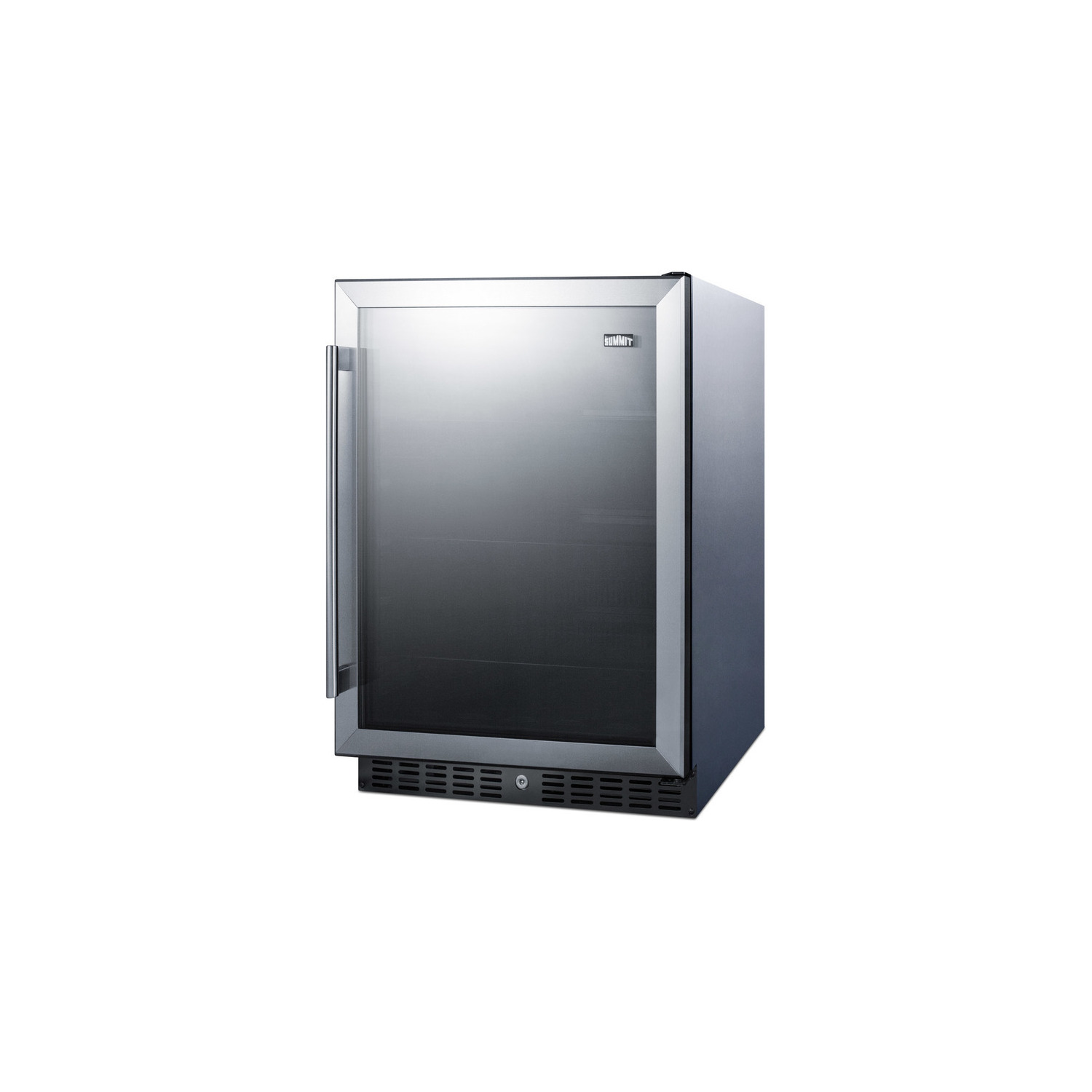

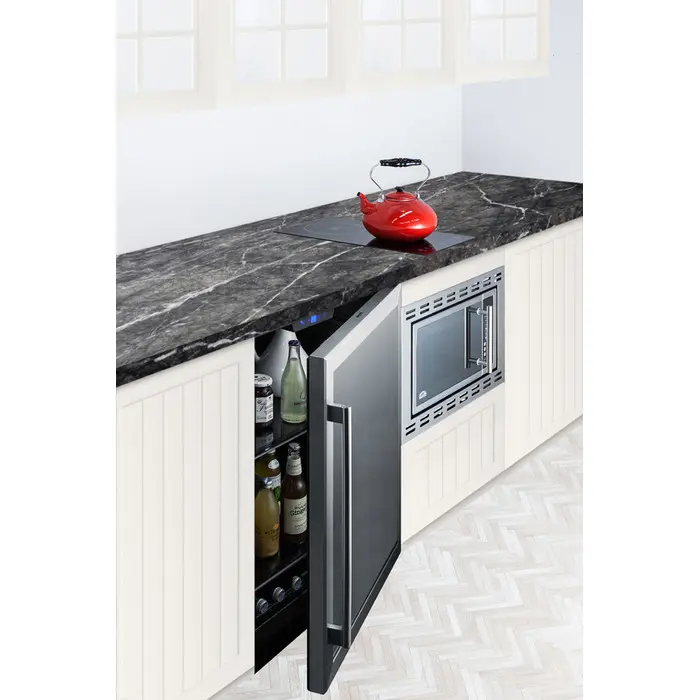

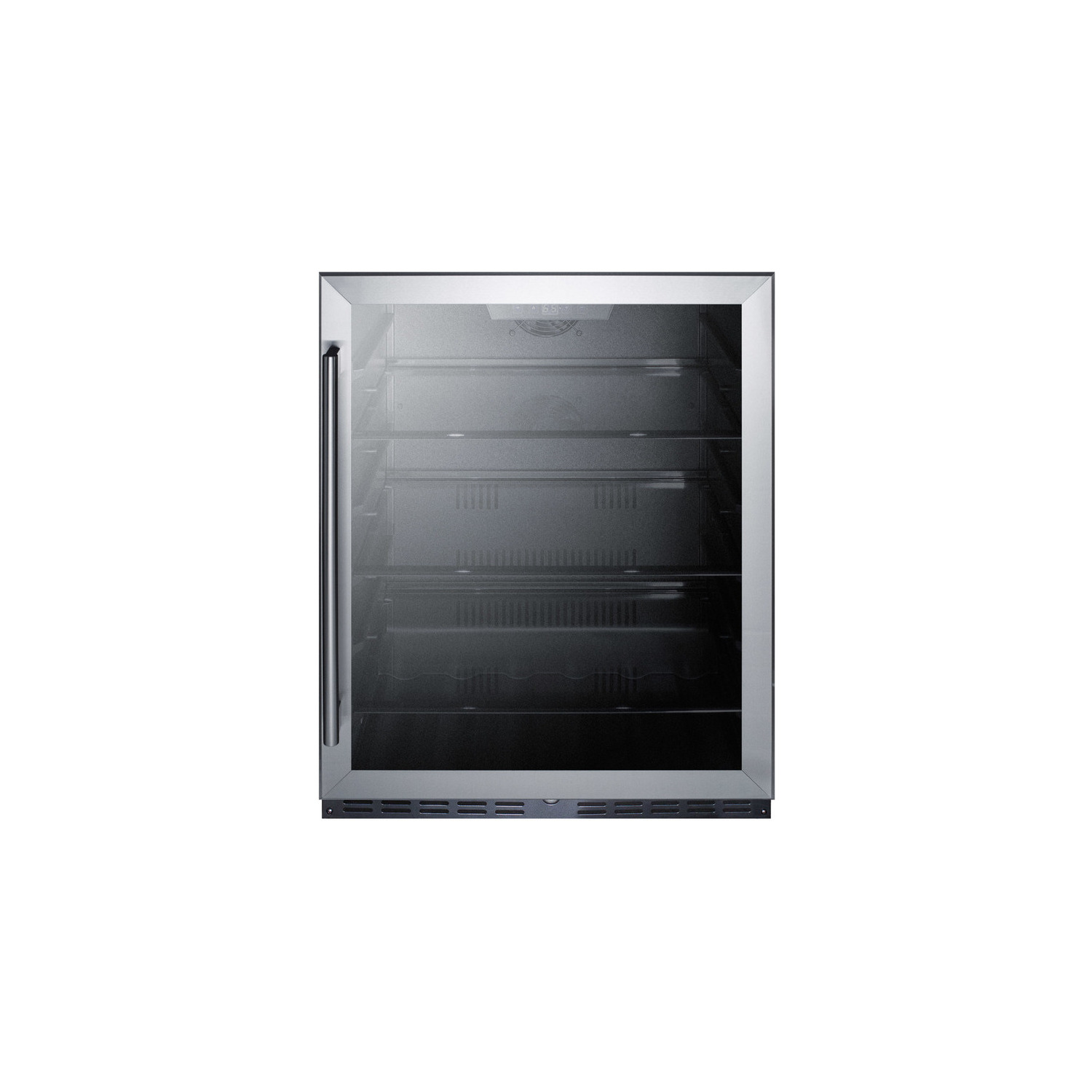

Sized with a convenient 24" footprint, the AL57G is just 32" high to fit under lower counters complying with ADA guidelines for accessibility in commercial settings. The fully finished black cabinet allows freestanding use, while the front-breathing system also allows this unit to be built-in with minimum clearance. This unit has a user-reversible double pane tempered glass door with attractive stainless steel trim. A stainless steel handle completes the look and a factory installed lock in the kickplate offers additional security. The flush back design helps to make cleaning easier, while the right angle cord offers added space savings.

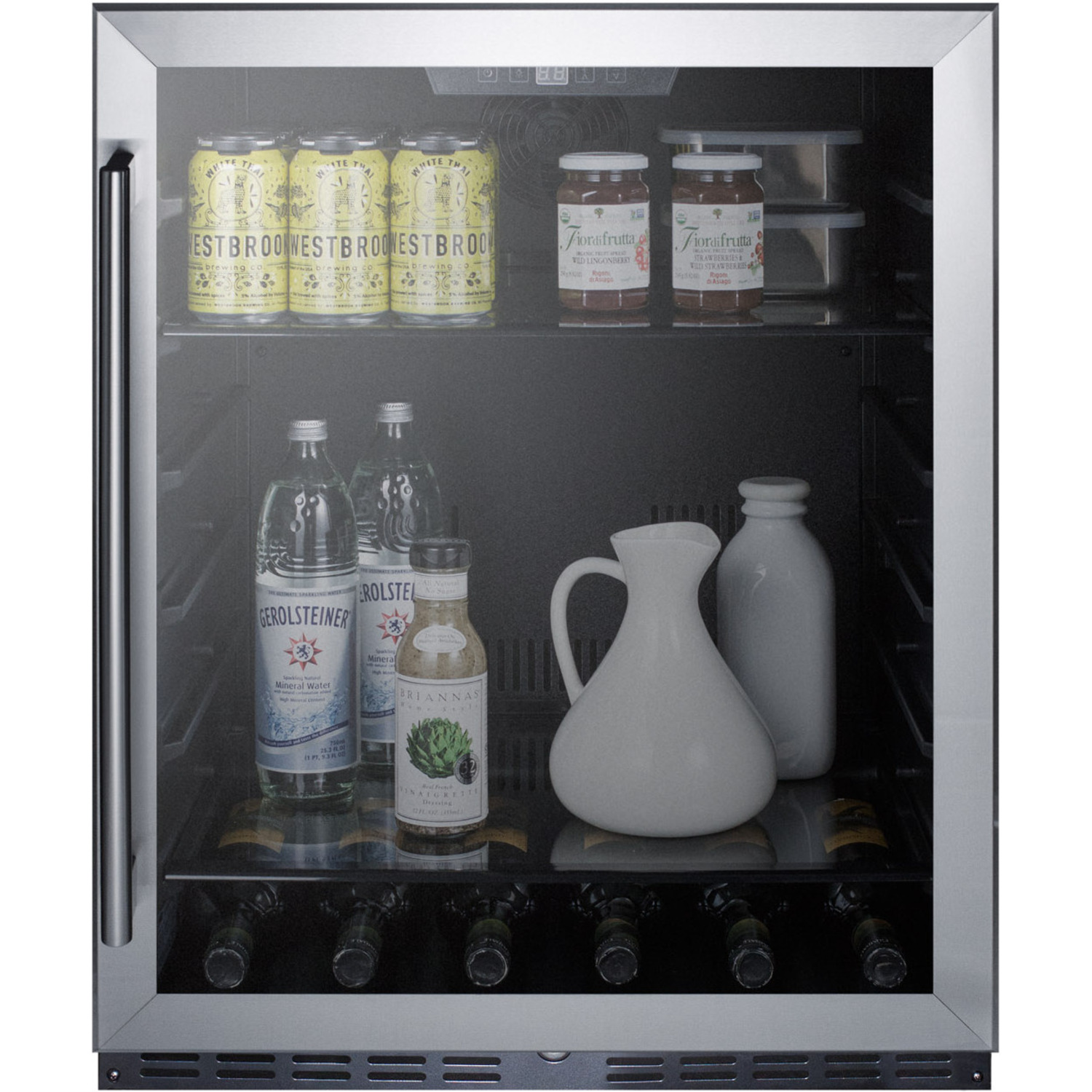

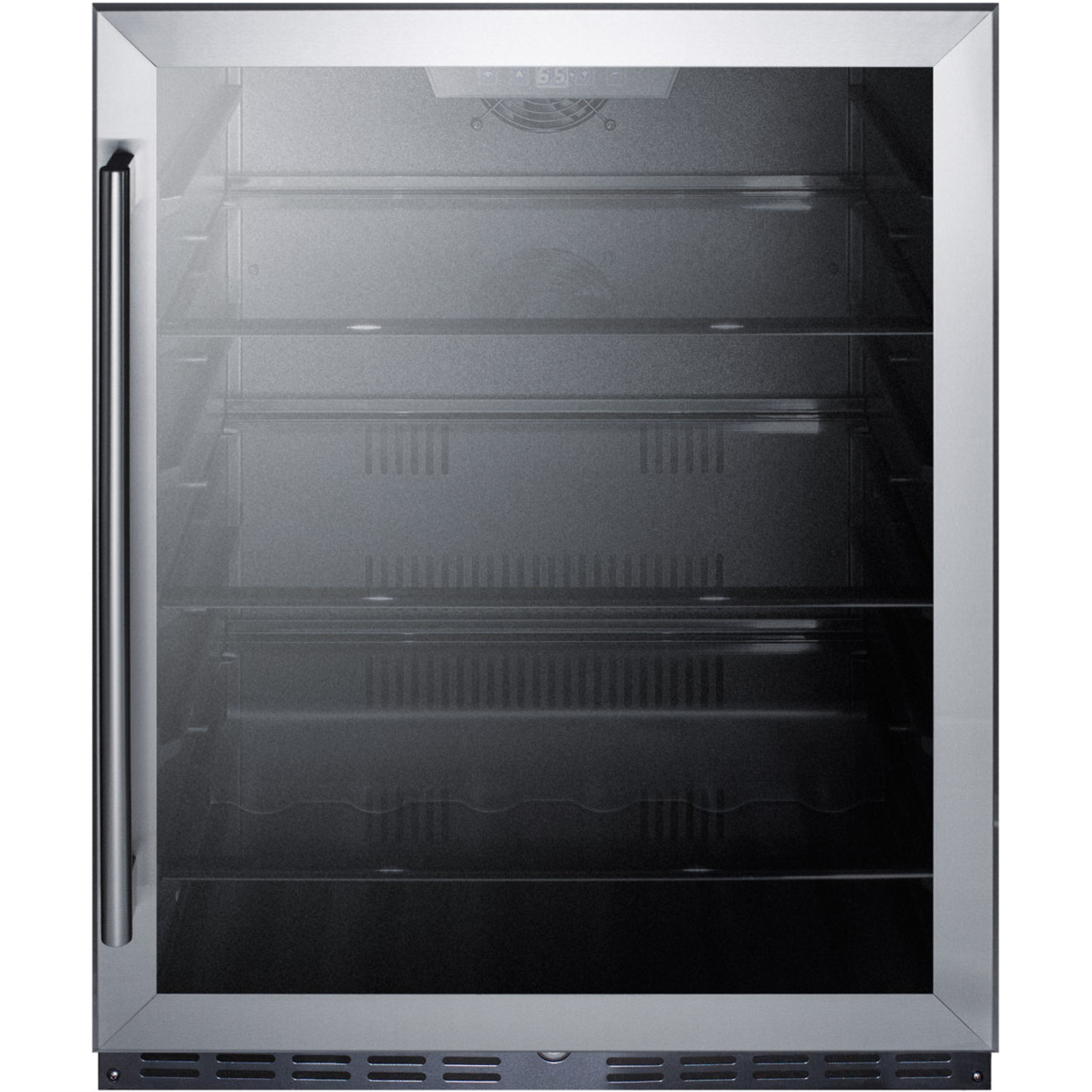

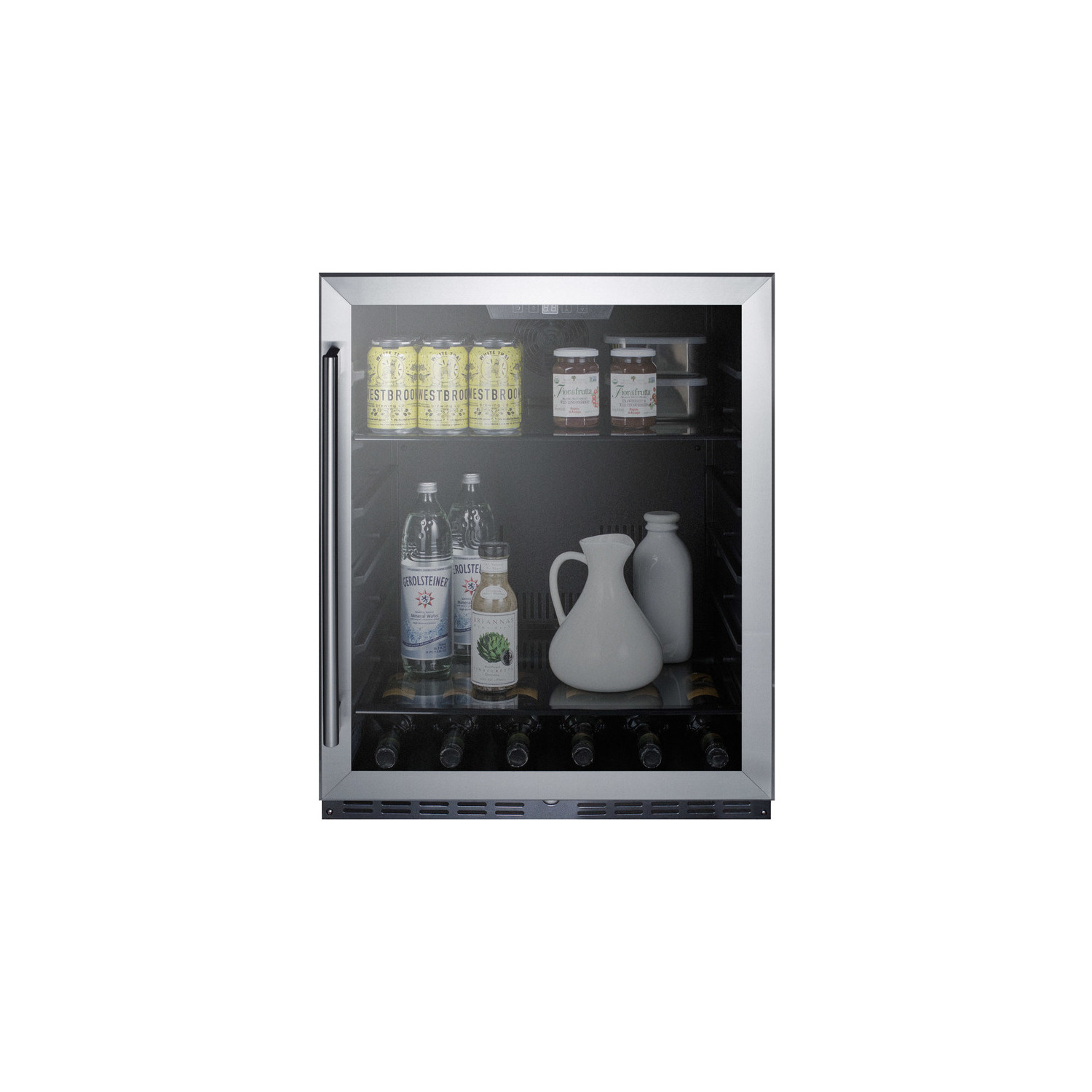

Inside, the AL57G utilizes frost-free operation with fan-forced cooling to ensure low maintenance and even temperature distribution. Recessed LED lighting offers an attractive yet efficient look. The digital thermostat makes it easy to manage the interior temperature. This unit includes adjustable glass shelves for flexible, spill-proof storage. The floor is specially slotted to hold bottles in place. Additional features include an open door alarm, high temperature alarm, and Sabbath mode setting that lets you disable some of the electrical elements during periods of observance.

The AL57G refrigerator is ETL-S listed to NSF-7 commercial standards. With its deluxe style and user-friendly features, this unit is the perfect choice for bars, restaurants, hotel lobbies, waiting areas, and other settings looking to store beverages under the proper conditions.

SPECIFICATIONS

Overview

Nominal Height 32.0" (81 cm)

Height of Cabinet 32.0" (81 cm)

Nominal Width 24.0" (61 cm)

Width 23.63" (60 cm)

Nominal Depth 23.0" (58 cm)

Depth 22.63" (57 cm)

Depth with Handle 24.63" (63 cm)

Depth with door at 90° 45.0" (114 cm)

Capacity 5.0 cu.ft. (142 L)

Defrost Type Frost-Free

Door Glass

Cabinet Black

US Electrical Safety ETL

Canadian Electrical Safety ETL-C

Sanitation ETL-S

Energy Usage/Year 290.0kWh/year

Amps 1.0

Voltage/Frequency 115 V AC/60 Hz

Weight 95.0 lbs. (43 kg)

Parts & Labor Warranty 1 Year

Compressor Warranty 5 Years

UPC 761101052274

Refrigerator Features

Sabbath Mode Yes

Door Swing RHD

Reversible Yes

Shelf Type Glass

Shelf Qty 3

Adjustable Shelves Yes

Thermostat Type Digital

Fan Type Interior and Exterior

Refrigerant Type R600a

Refrigerant Amount 0.99oz.

High Side PSI 270.0

Low Side PSI 105.0

Level Legs Qty 4

Interior Light Yes

Temperature Range 36 to 43ºF

Sound Level 33.6 dB

Dimensions

Interior Height 25.0" (64 cm)

Interior Width 20.0" (51 cm)

Interior Depth 17.5" (44 cm)

Compressor Step Height 3.25" (8 cm)

Compressor Step Width 20.0" (51 cm)

Compressor Step Depth 5.25" (13 cm)

FEATURES

24" wide commercial beverage center Glass door all-refrigerator designed for use in commercial settings

Commercially approved ETL-S listed to NSF-7 Standards and meets UL-471 for use in commercial establishments

ADA compliant design 32" height allows easy installation under lower ADA compliant counters

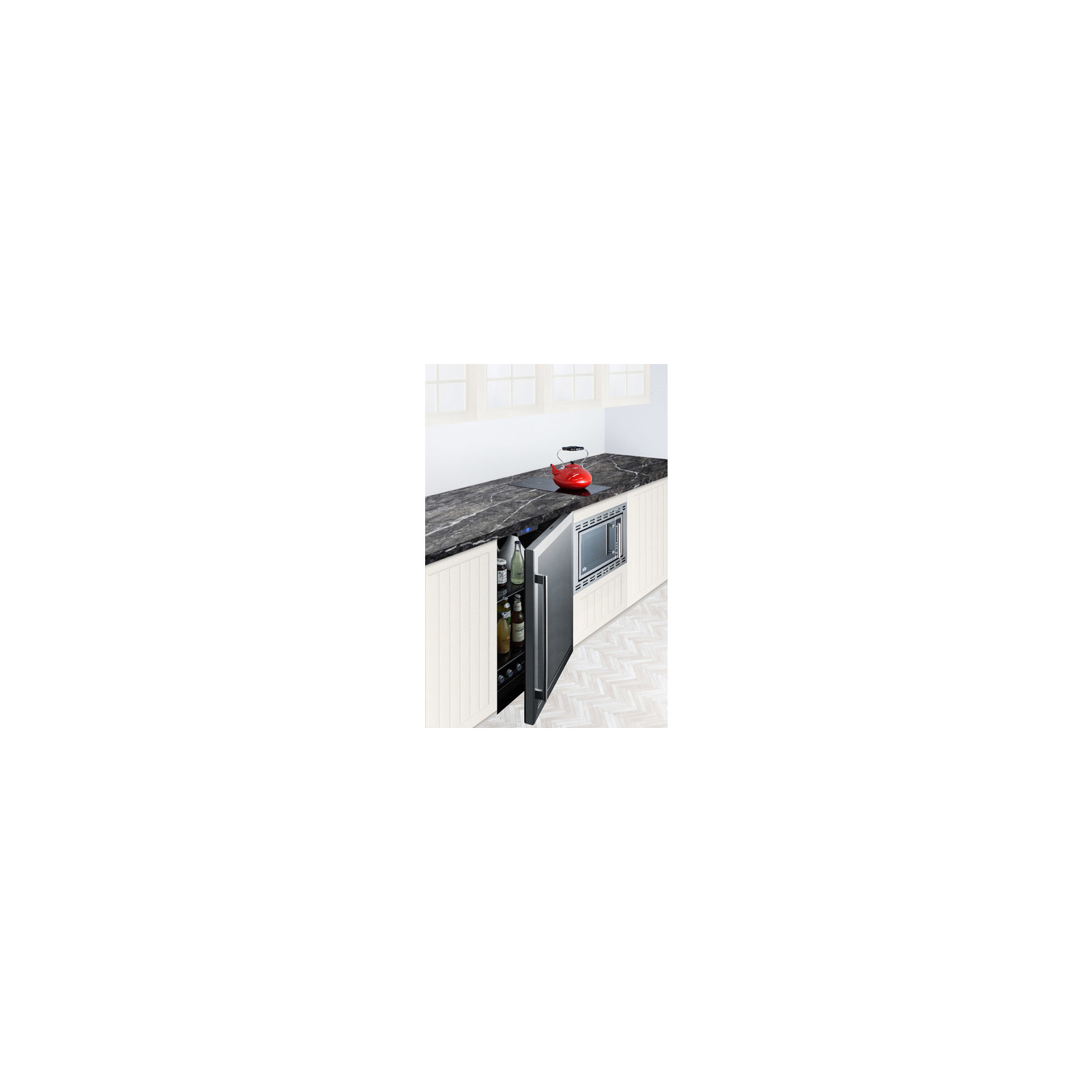

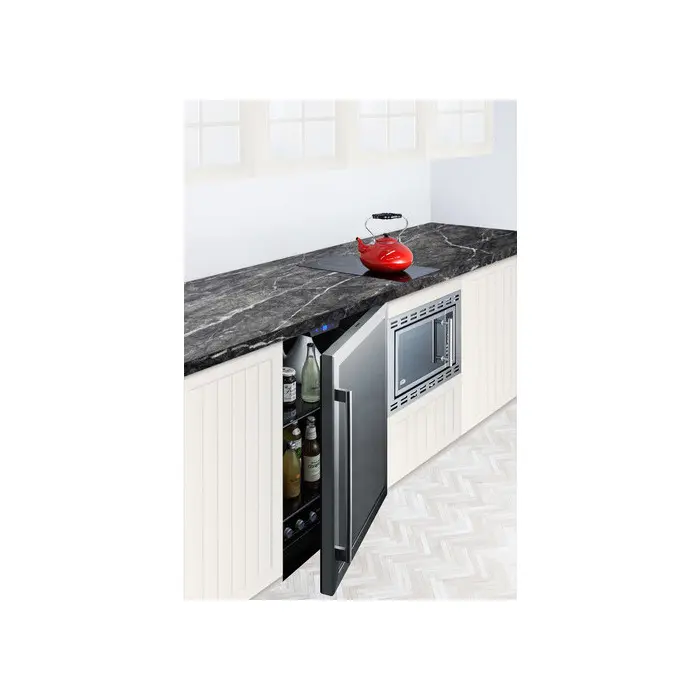

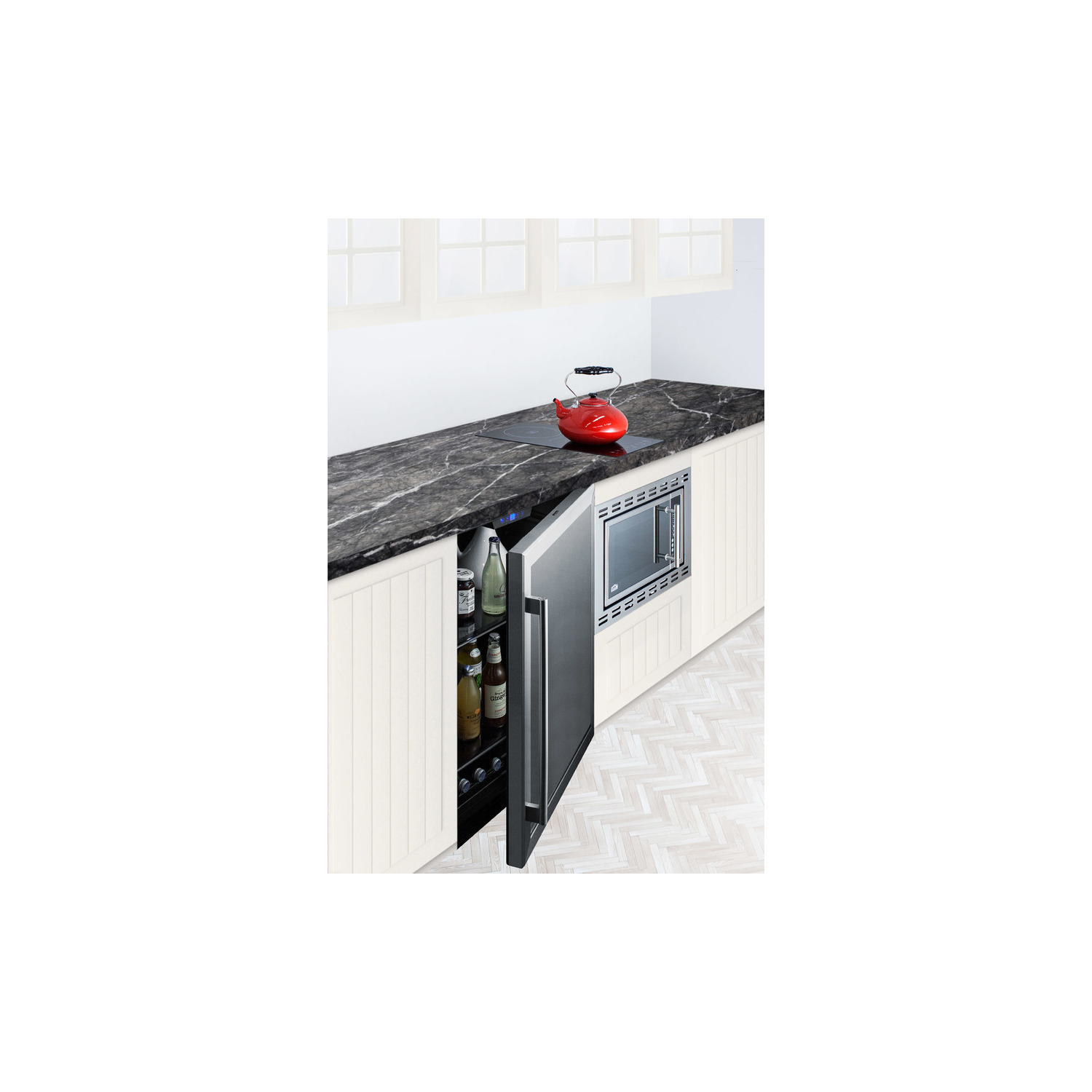

Built-in capable Front-breathing design lets you make the best use of space by installing your appliance under the counter

Factory installed lock Keyed lock for a secure interior

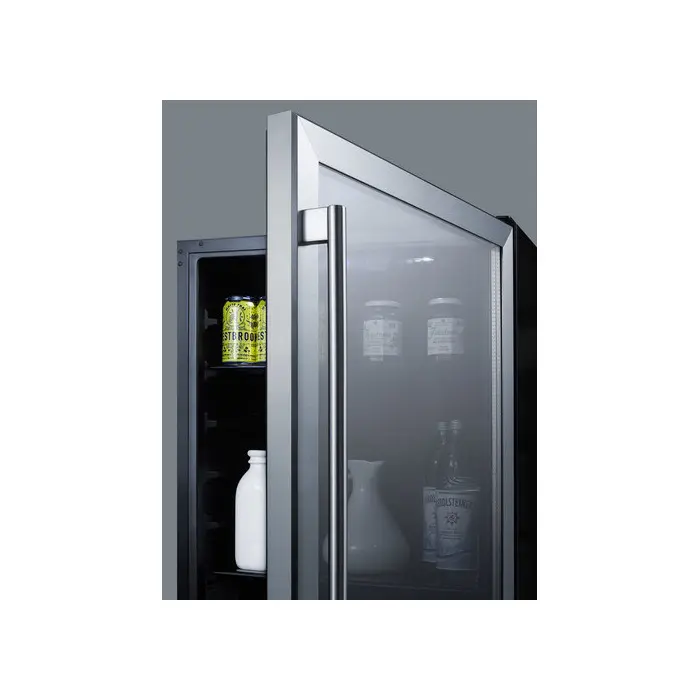

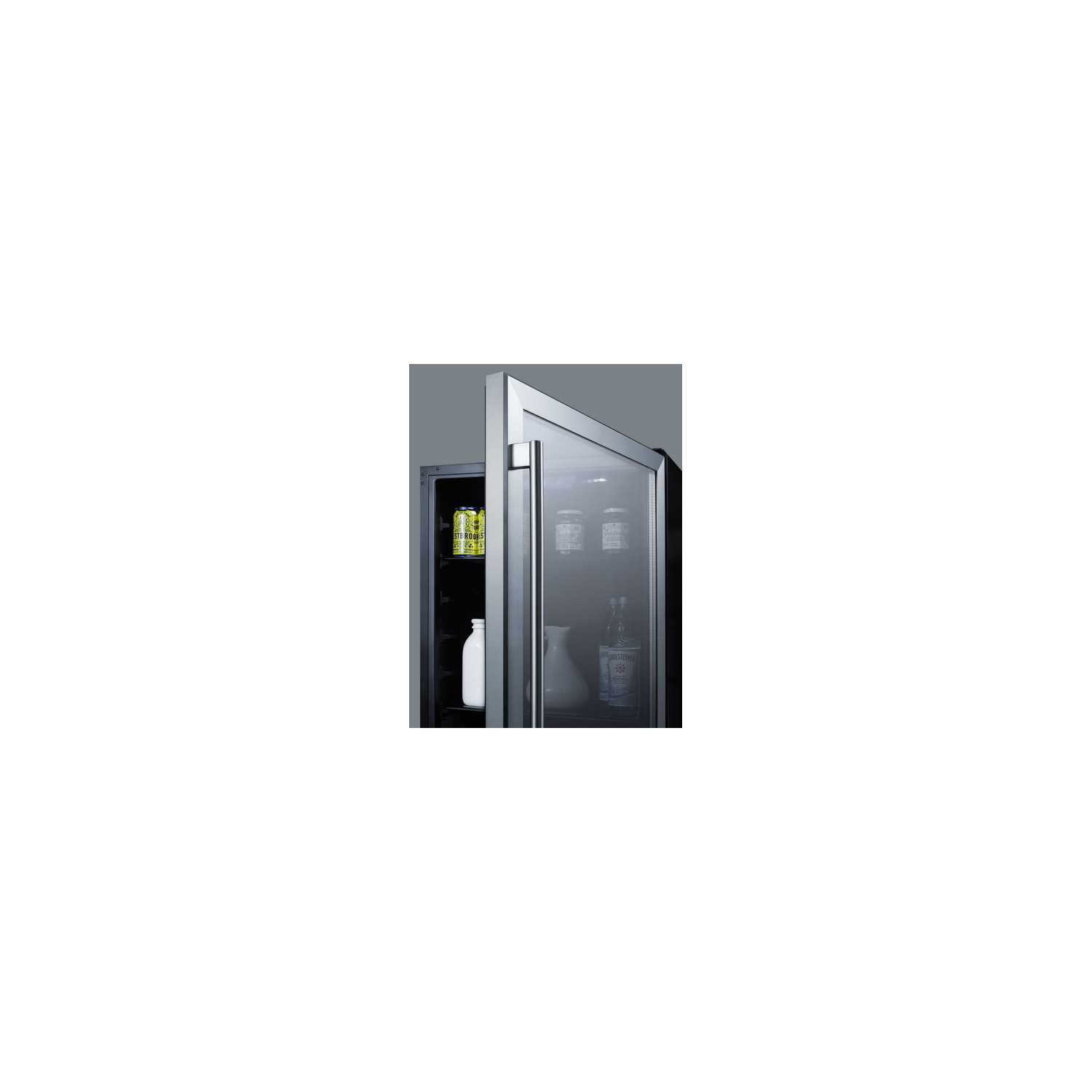

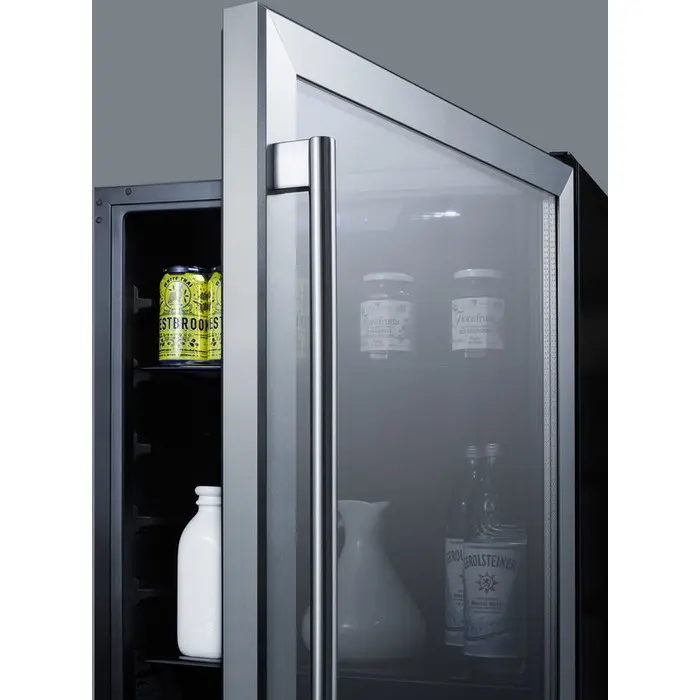

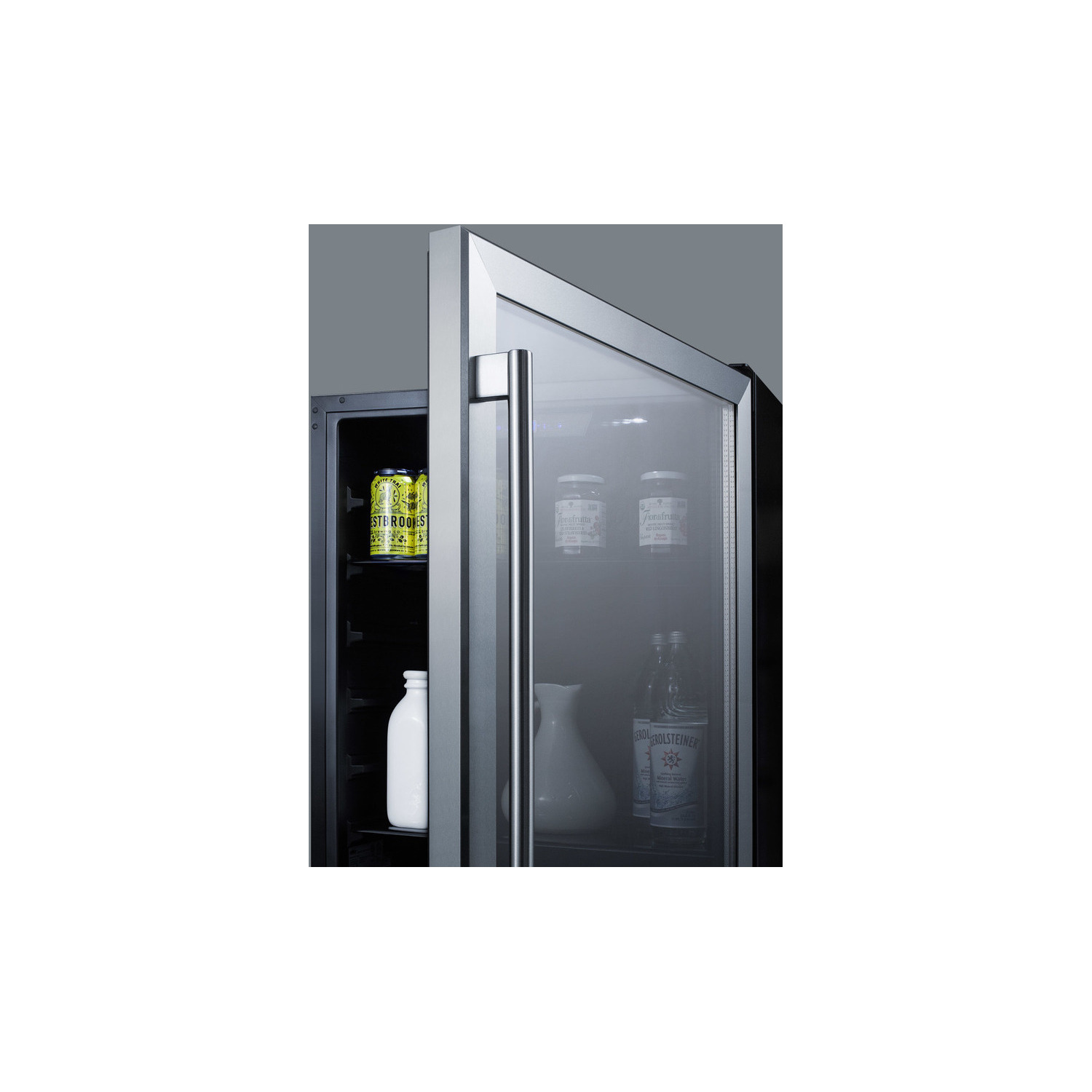

Double pane tempered glass door Stainless steel trimmed glass door offers a heat-safe view of the interior

Popular commercial applications Perfectly designed to store and display beverages in a variety of commercial settings, including energy drinks and water bottles in gyms, refreshments in lobbies, sparkling water and juices in restaurants, and much more

Professional handle Stainless steel handle completes the look

Frost-free operation No-frost operation for minimum user maintenance

Digital thermostat Electronic controls located inside the unit for precise temperature management

Recessed LED light Efficient and attractive presentation with LED lighting

Adjustable glass shelves Rearrange refrigerator space to accommodate all sizes or remove shelves for simple cleanup

Bottle slots Floor is specially slotted to store wine and other bottles safely in place

Internal fan Fan-forced cooling ensures the unit is evenly cooled from top to bottom

Reversible door User-reversible door swing for added flexibility

Open door alarm Audible alarm will sound if the door is left open longer than one minute

High temperature alarm High temperature alarm sounds if the unit's interior goes out of the recommended range

Sabbath mode setting Optional setting lets you disable the lighting and alarm for up to 48 hours

Temperature Memory Function Unit will retain its last settings when power is restored in the event of power loss

Sealed back Space-saving design that offers easier cleanability

Right angle plug Design allows you to plug the unit in flush against the wall socket with no need to add extra depth

Fully finished black cabinet Allows the unit to be used freestanding

100% CFC Free Environmentally friendly design with no ozone-damaging chemicals

CARB Compliant Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

DOWNLOADS

BROCHURE w/ DRAWINGS (AL57G.pdf)

TECHNICAL DRAWING (.dwg) (AL57G_REFRIGERATOR__A-C2000_.dwg)

REVIT MODEL (QF_Summit_AL57G_ADA_Compliant_Commercial_Beverage_Center.rfa)

USE & CARE (AL57G-User-Manual.pdf)

MSDS INFORMATION (R600a_K.pdf)

Energy Guide
