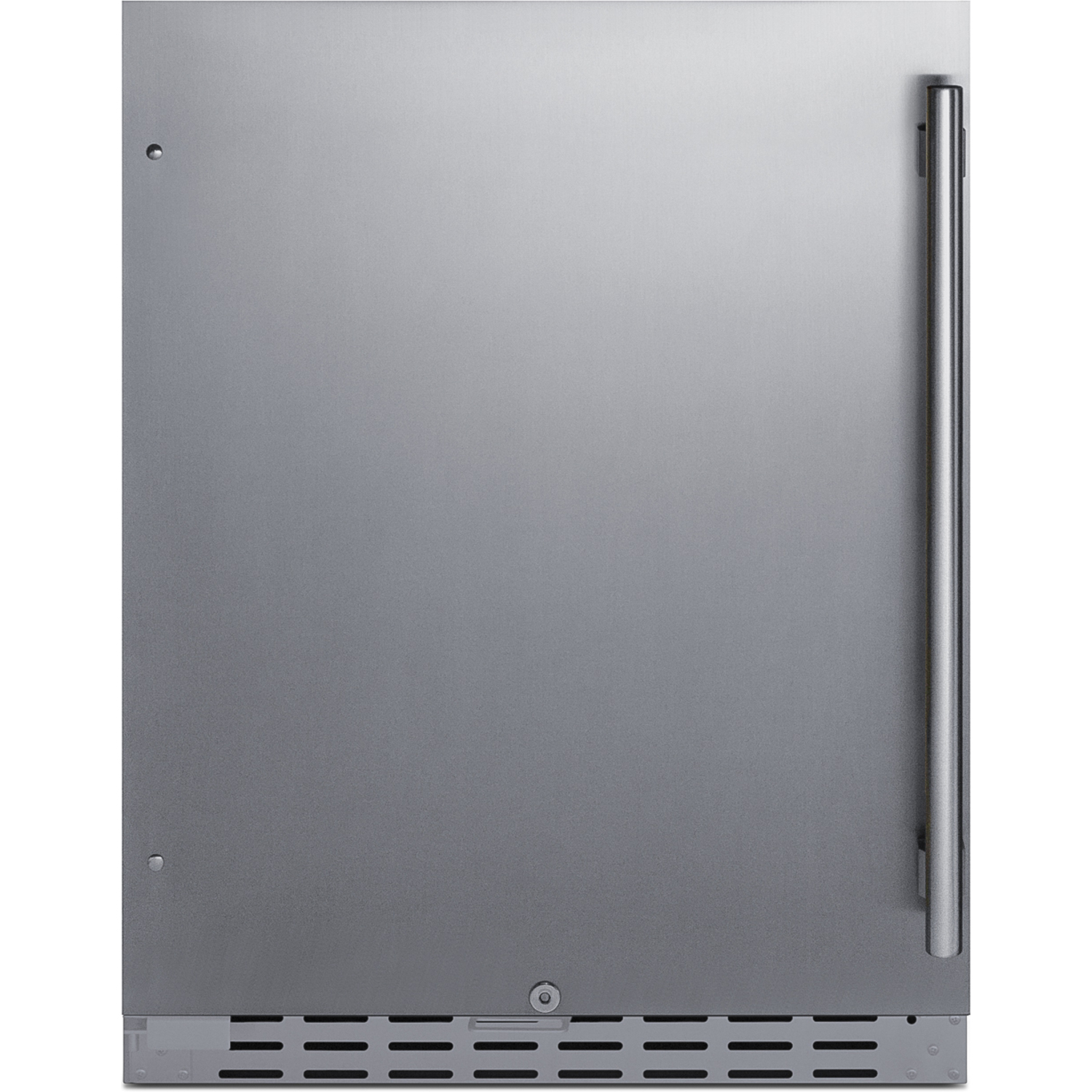

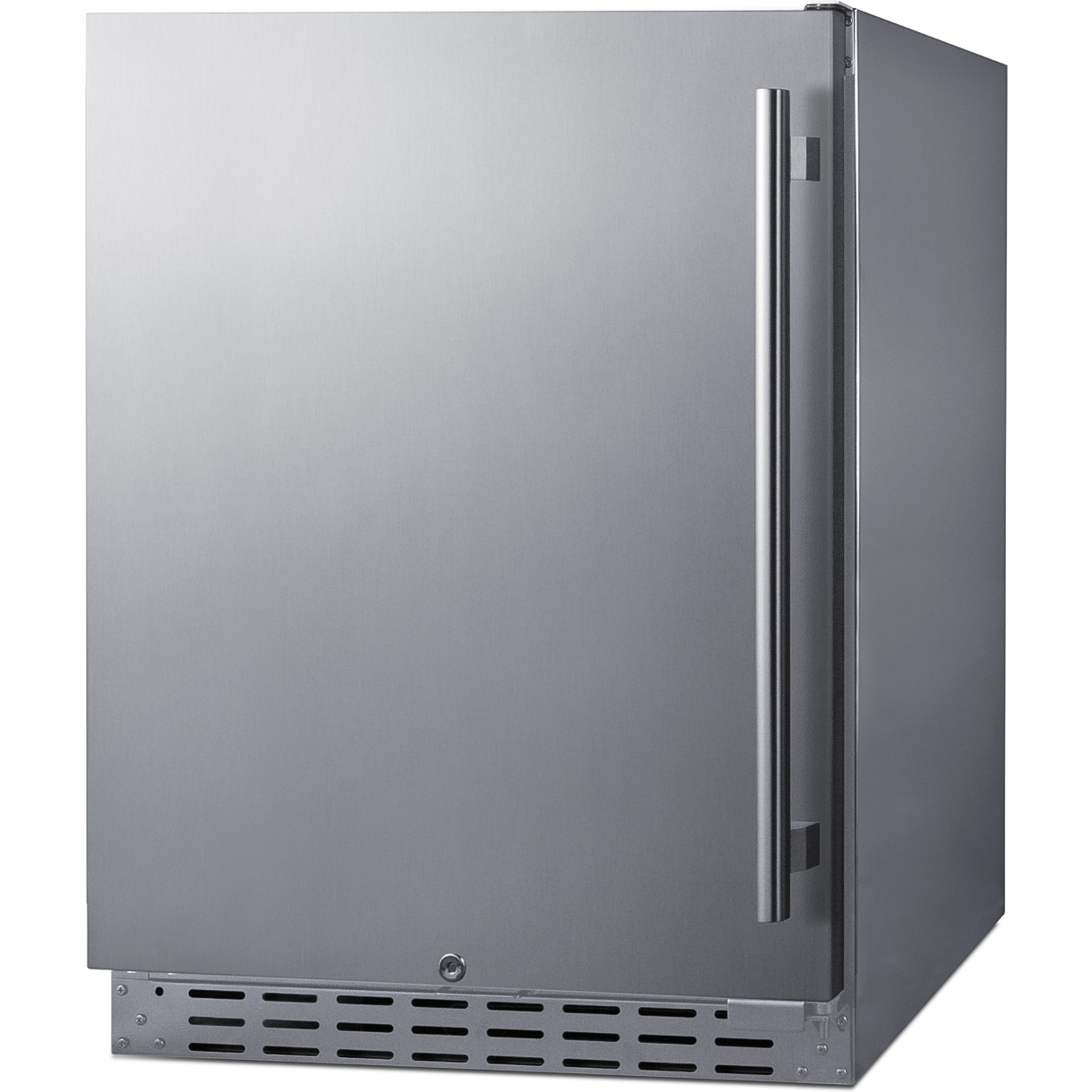

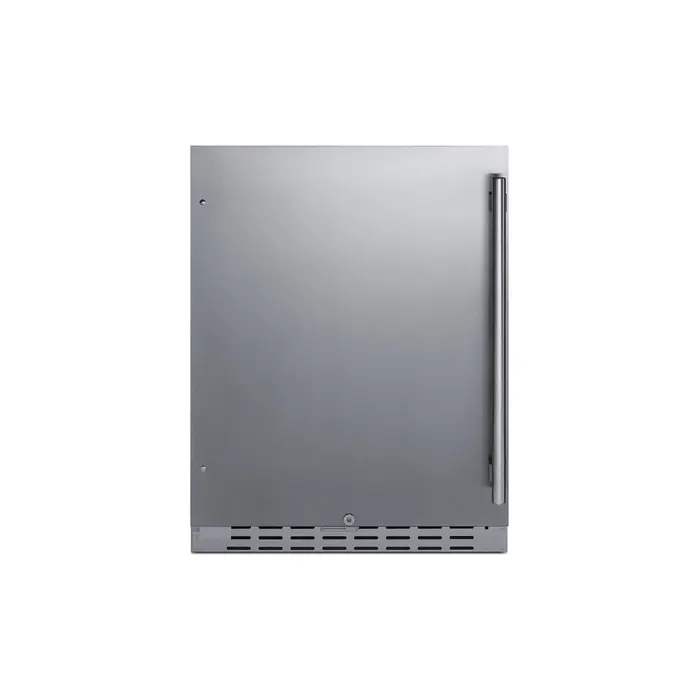

Summit Built-in undercounter ADA compliant outdoor all-refrigerator in stainless steel, 7.61101e+011, AL55OSCSSLHD

Summit's innovative lineup features built-in undercounter all-refrigerators designed for installation under lower ADA-compliant counters, with advanced weatherproof construction for convenient use in any outdoor kitchen.

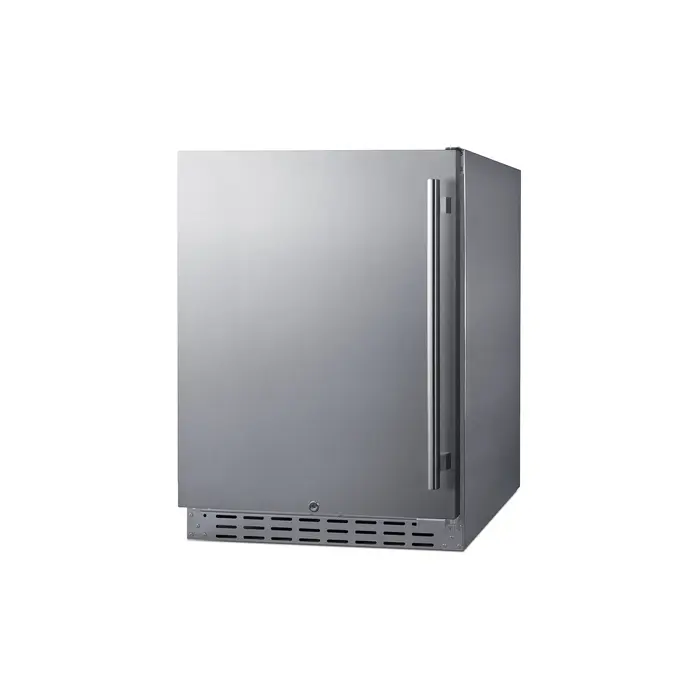

The AL55OSCSSLHD is a 24" wide outdoor refrigerator that meets residential and commercial standards and is ETL-S listed to NSF-7. Its sealed rear and complete stainless steel exterior offer true luxury designed to last outdoors. The front-breathing system allows built-in installation, while the fully finished cabinet allows freestanding use. The door is user-reversible and includes a front lock and pro-style handle. This unit comes with a left-hand door swing (for a right-hand version, see model AL55OSCSS).

A temperature alarm offers added security should the temperature exceed the setpoint, and the optional Sabbath Mode can disable certain electrical features during periods of religious observance. The automatic defrost system keeps the unit running efficiently with little user maintenance, and the internal fan ensures it is evenly cooled.

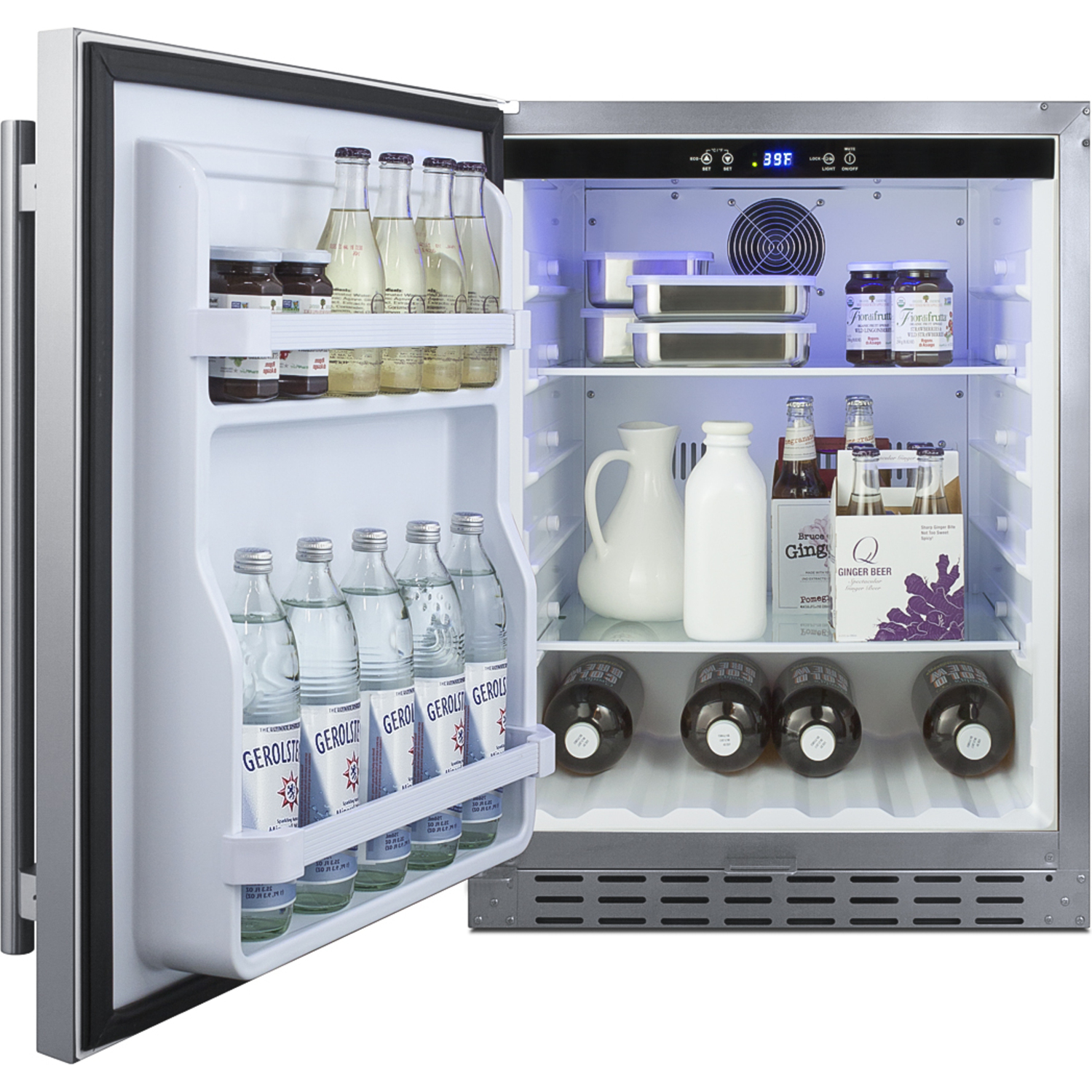

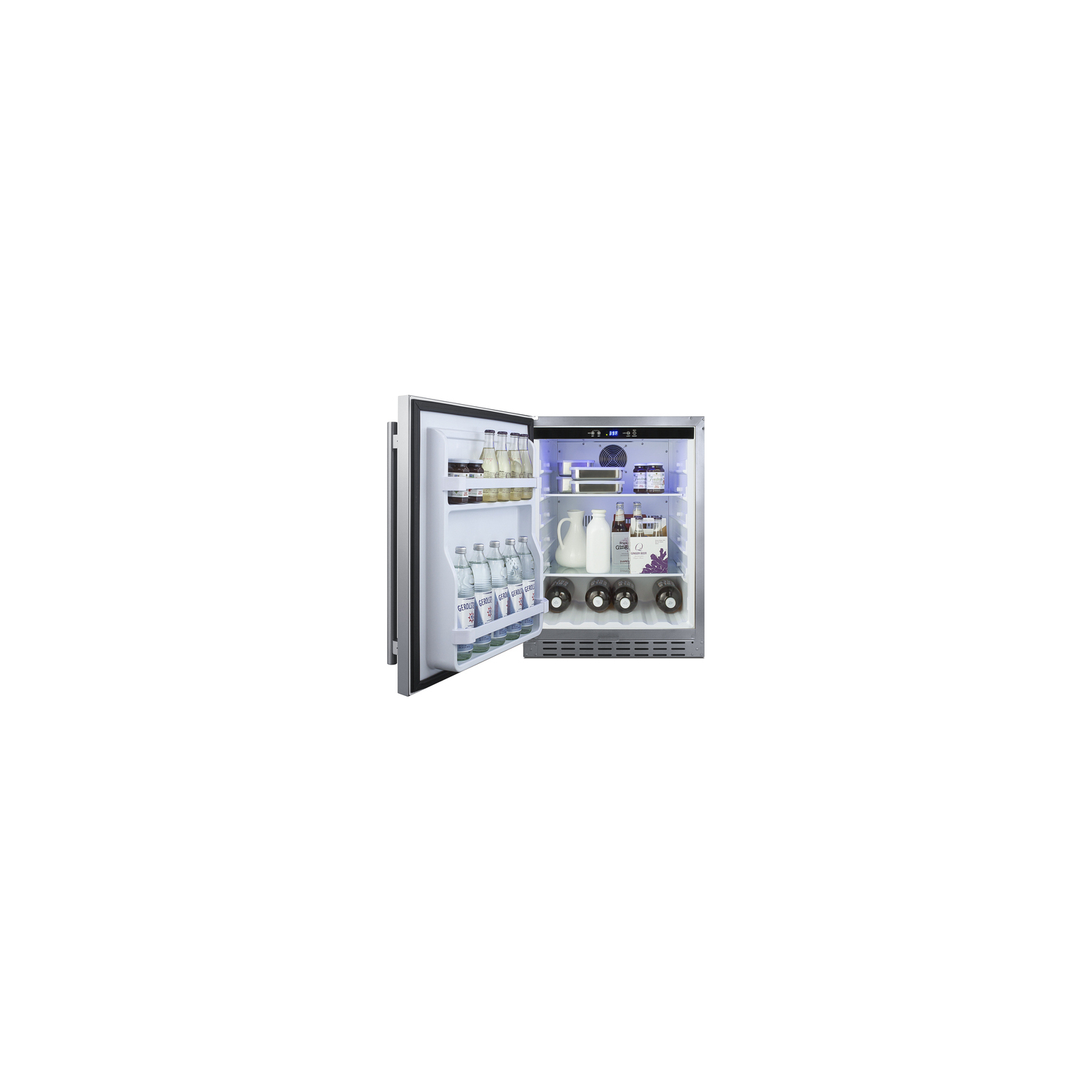

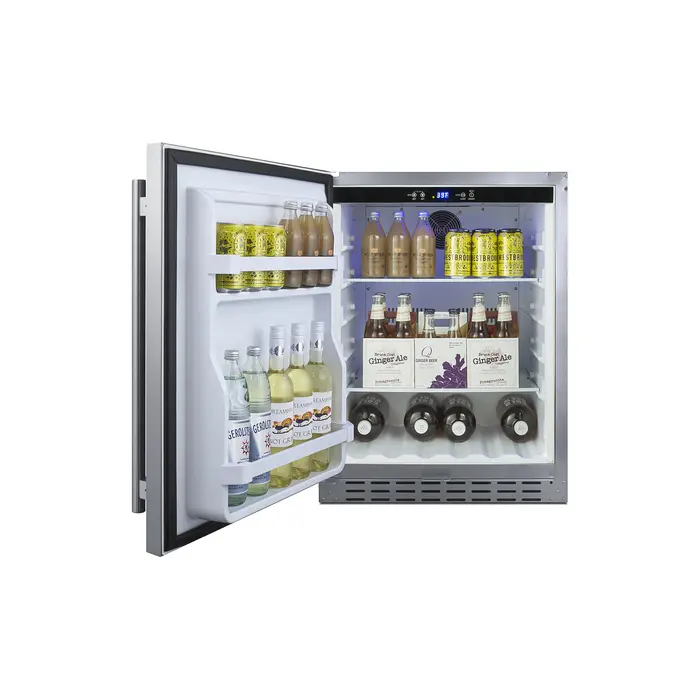

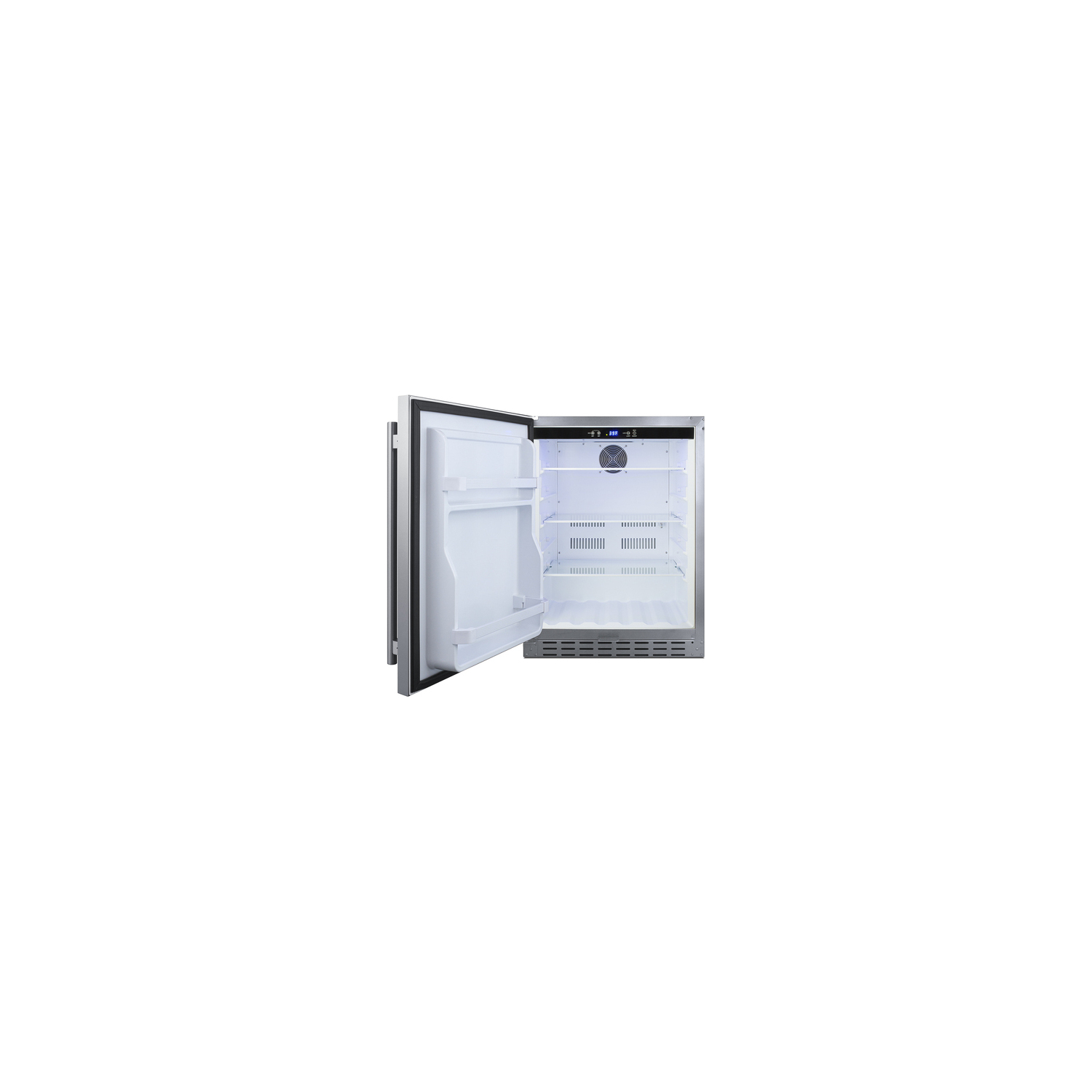

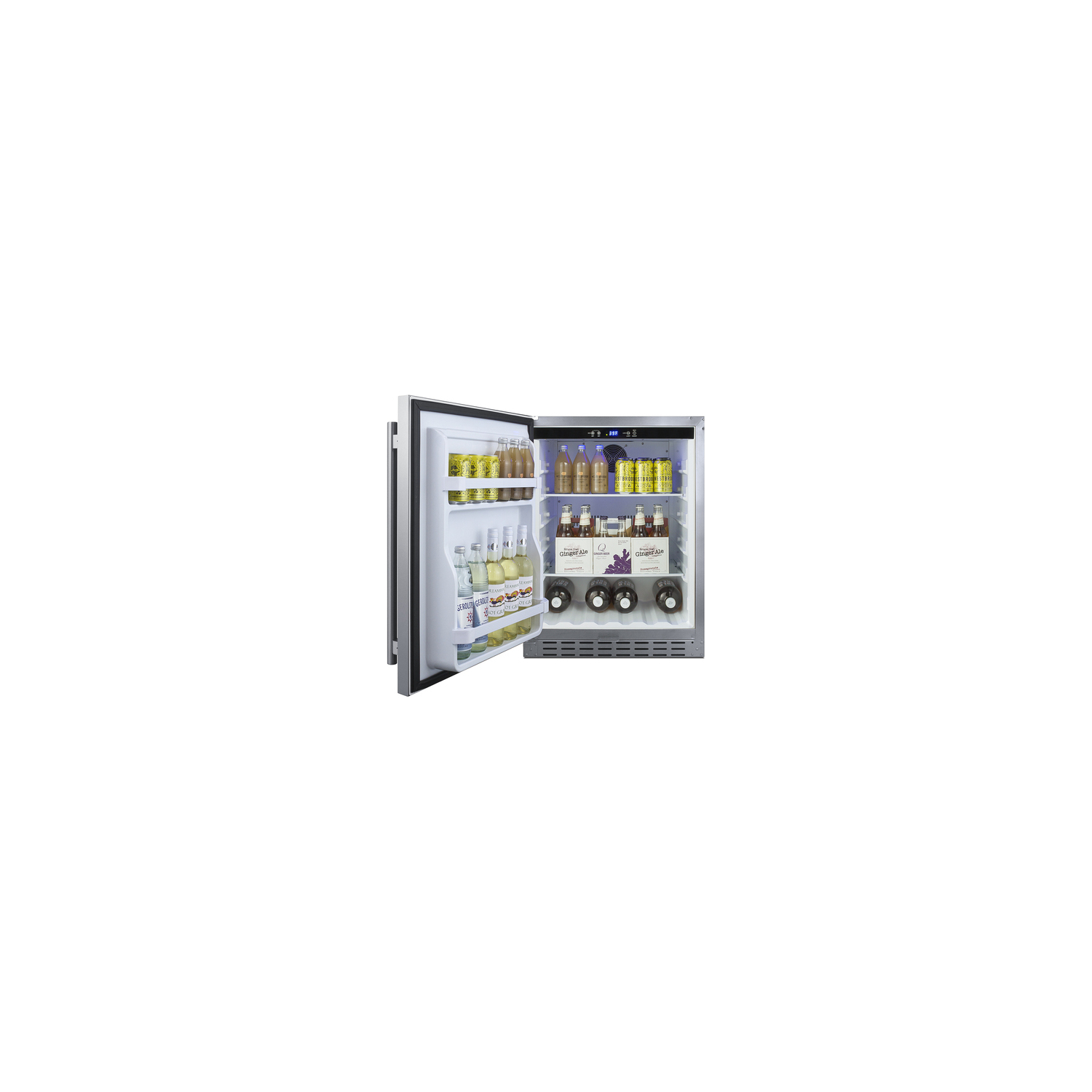

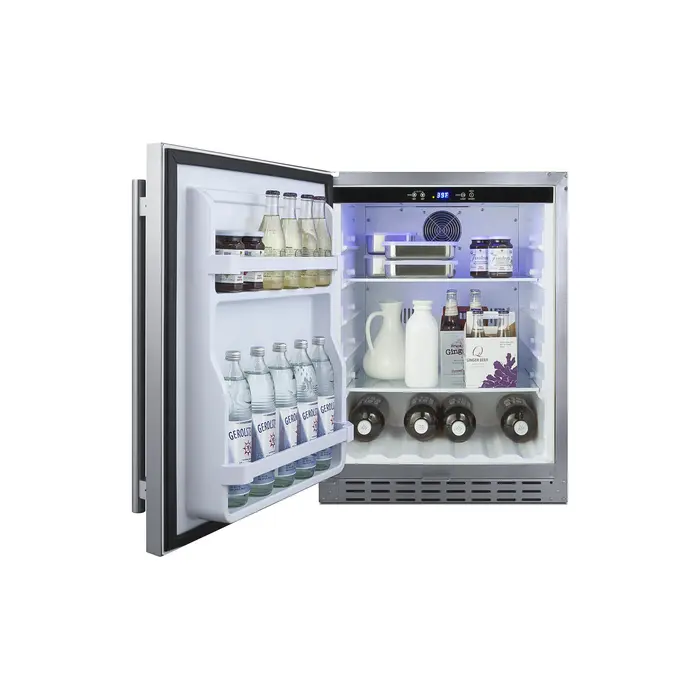

Inside, the AL55OSCSSLHD has a digital control panel that allows you to manage the unit's temperature with ease. An adjustable temperature range between 36 and 46ºF ensures contents are kept cold. Three easy-glide glass shelves that extend 50% provide flexible storage, and the shelving brake system keeps unit contents safe when loading and unloading. Two-door racks are ideal for keeping condiments within easy reach, while the slotted floor ensures easy storage of bottles. The dimmable soft LED lighting in a gentle blue hue with three brightness settings offers an attractive and efficient presentation inside the white interior.

With its advanced user features and versatile design, the AL55OSCSSLHD is an excellent addition to any ADA-compliant outdoor setting looking for a refrigerator with a modern, elegant look.

SPECIFICATIONS

Overview

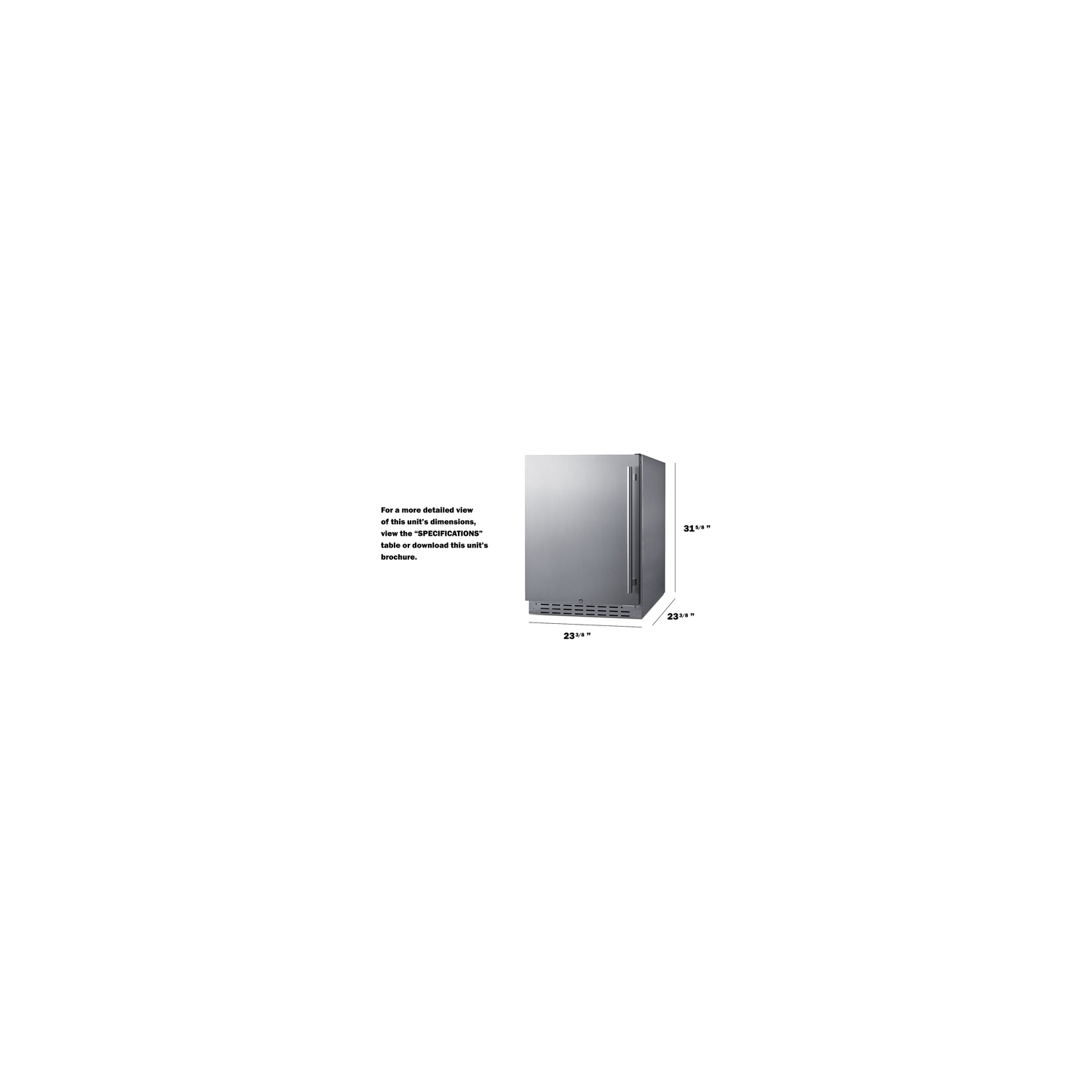

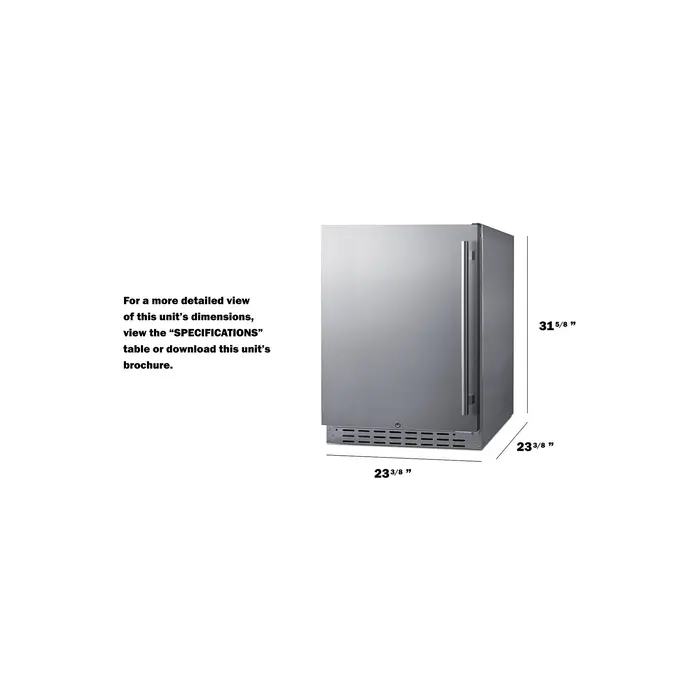

Nominal Height 32.0" (81 cm)

Height of Cabinet 31.63" (80 cm)

Nominal Width 24.0" (61 cm)

Width 23.5" (60 cm)

Nominal Depth 24.0" (61 cm)

Depth 23.38" (59 cm)

Depth with Handle 25.38" (64 cm)

Depth with door at 90° 45.0" (114 cm)

Capacity 4.2 cu.ft. (119 L)

Defrost Type Automatic

Door Stainless Steel

Cabinet Stainless Steel

US Electrical Safety ETL

Canadian Electrical Safety ETL-C

Sanitation ETL-S

Energy Usage/Year 250.0kWh/year

Amps 1.0

Voltage/Frequency 115 V AC/60 Hz

Weight 95.0 lbs. (43 kg)

Parts & Labor Warranty 1 Year

Compressor Warranty 5 Years

UPC 761101145075

Refrigerator Features

Sabbath Mode Yes

Door Swing LHD

Reversible No

Shelf Type Glass

Shelf Qty 3

Full Door Shelf Qty 2

Adjustable Shelves Yes

Thermostat Type Digital

Fan Type Interior and Exterior

Refrigerant Type R600a

Refrigerant Amount 1.23oz.

High Side PSI 150.0

Low Side PSI 50.0

Interior Light Yes

Temperature Range 36 to 46ºF

Sound Level 33.2 dB

Dimensions

Interior Height 23.5" (60 cm)

Interior Width 19.0" (48 cm)

Interior Depth 16.0" (41 cm)

Compressor Step Height 5.5" (14 cm)

Compressor Step Width 19.0" (48 cm)

Compressor Step Depth 5.0" (13 cm)

FEATURES

24" Wide Outdoor All-Refrigerator Made with a 24" footprint that offers full storage capacity in a uniquely slim fit and an ADA-compliant height

ADA-compliant 32” height allows for installation within ADA-compliant spaces

Commercially approved ETL-S listed to NSF-7 commercial standards

Weatherproof design Durable construction for safe installation in outdoor kitchens

Built-In capable Front-breathing design allows the unit to be built-in under counters

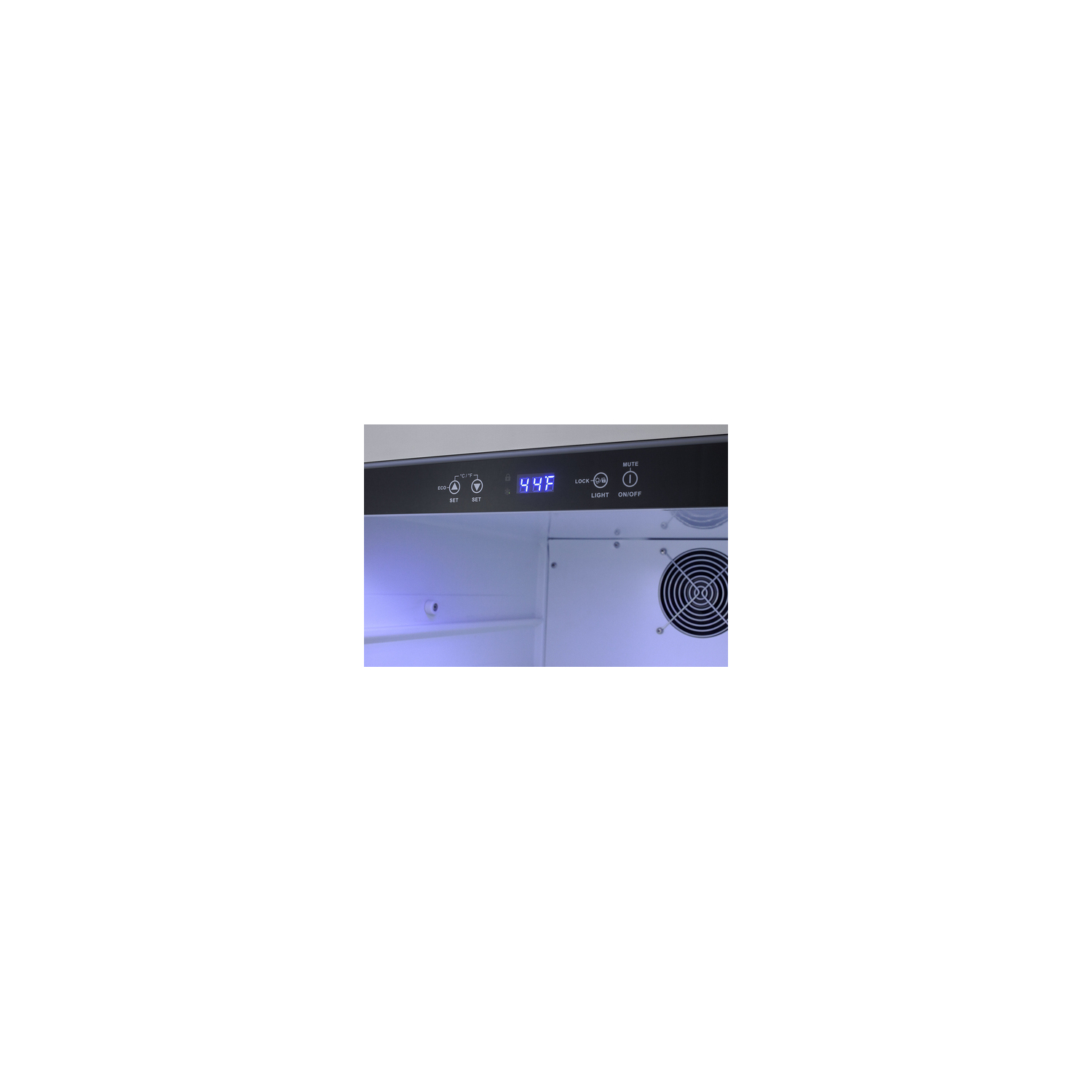

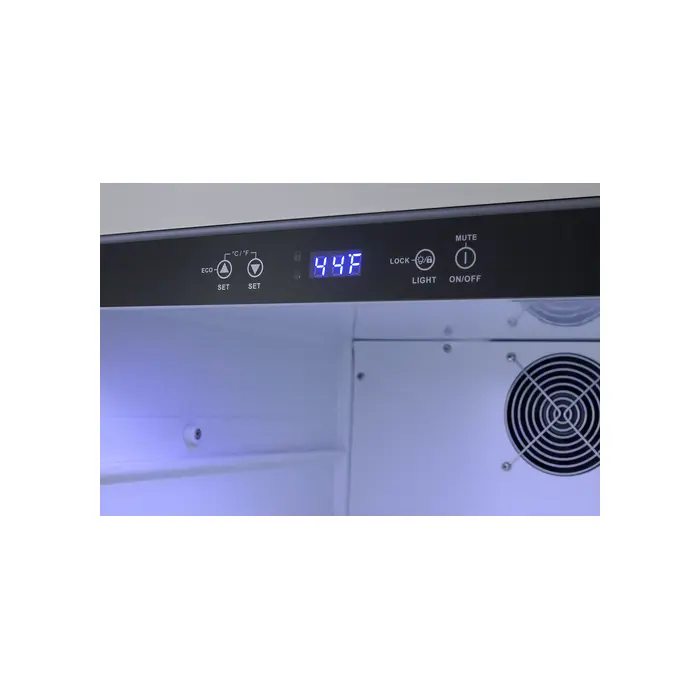

Digital control panel Makes for easy temperature reading/management with electronic controls inside

Factory installed lock Keyed lock for secure interior, with two keys included

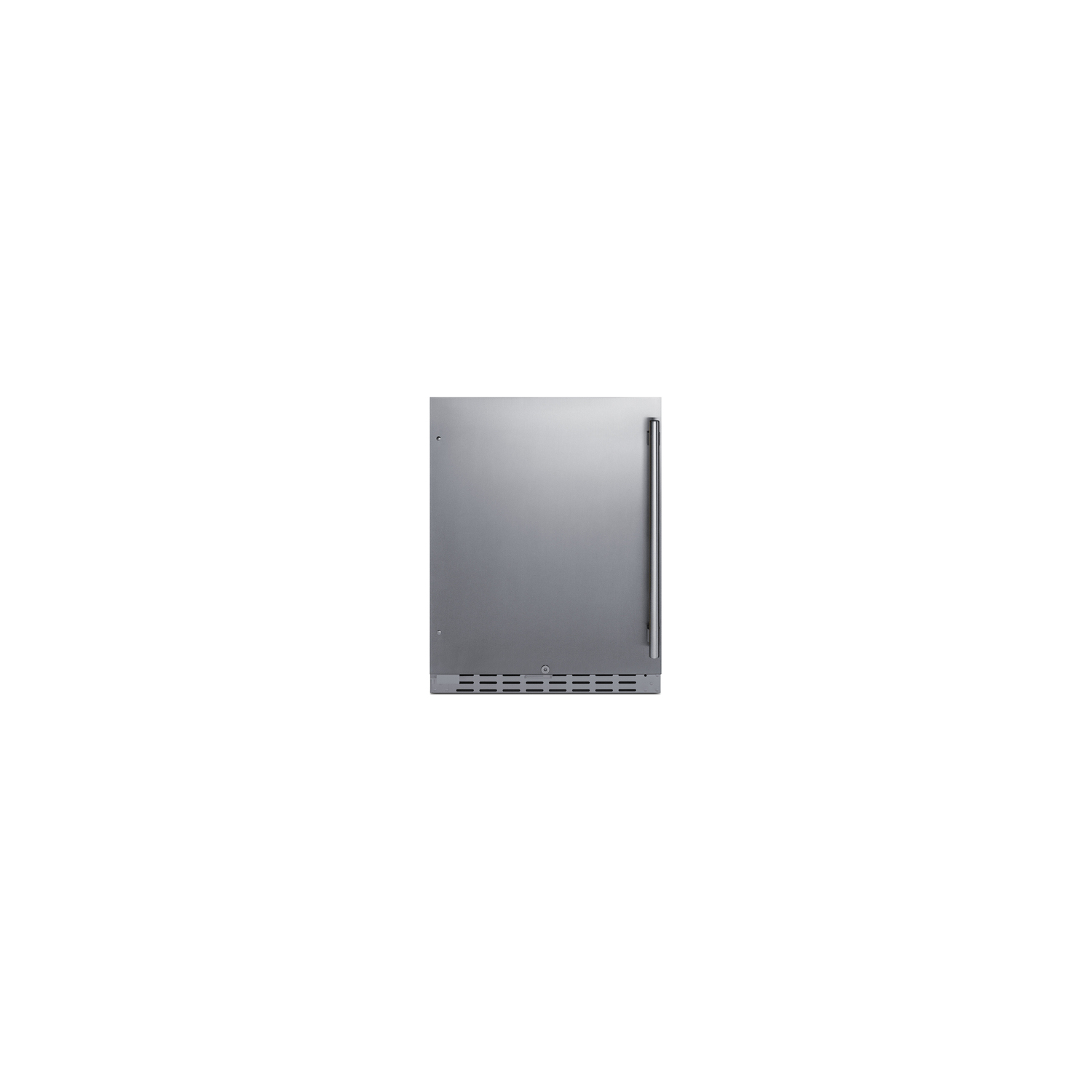

Stainless steel exterior Durable construction with a stylish look

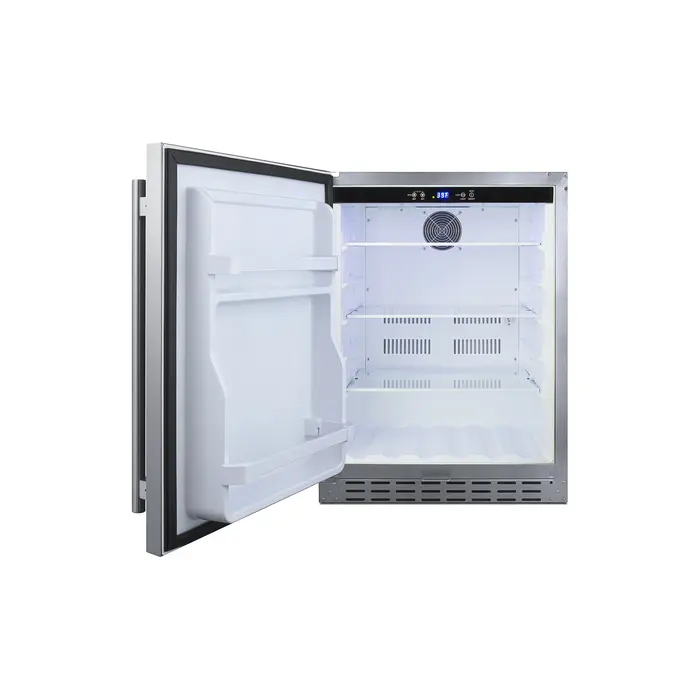

White interior Classic interior allows for easy cleaning and viewing of products

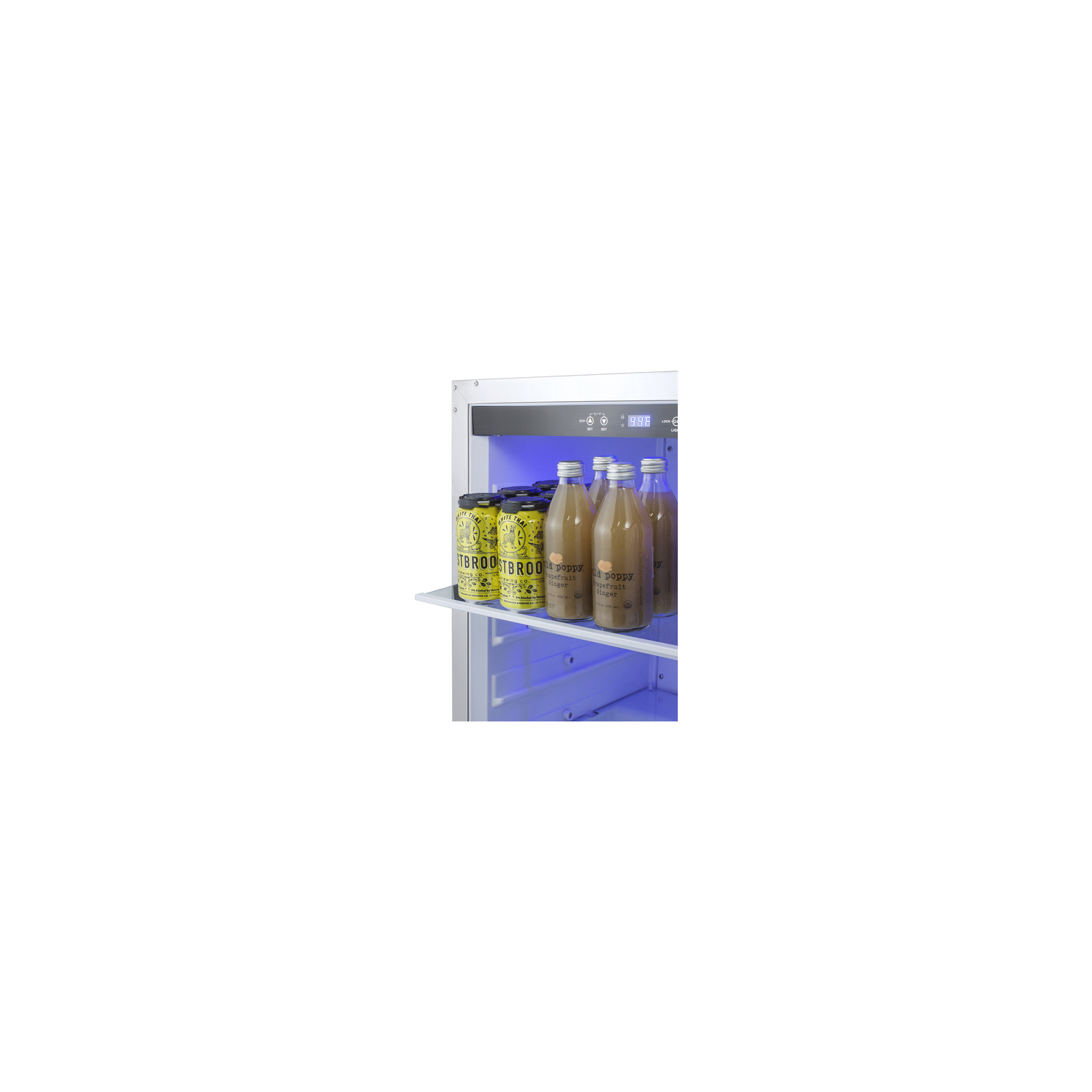

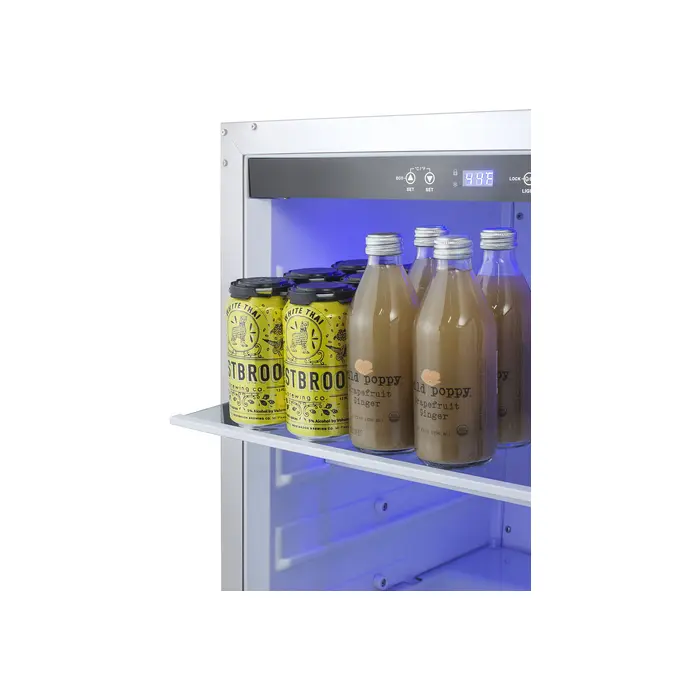

Adjustable glass shelving Three easy-glide shelves that extend 50% give space and flexibility when organizing the interior’s contents

Brake shelving system Provides added safety when loading and unloading the unit's 3 shelves

Slotted floor Allows for easy storage of bottles

Automatic defrost Reduced maintenance with auto defrost system

Internal fan Fan-forced cooling ensures the unit is evenly cooled from top to bottom

Interior light Dimmable LED lighting (with 3 brightness settings) in a blue hue allows for easy viewing of contents while maintaining an elegant feel

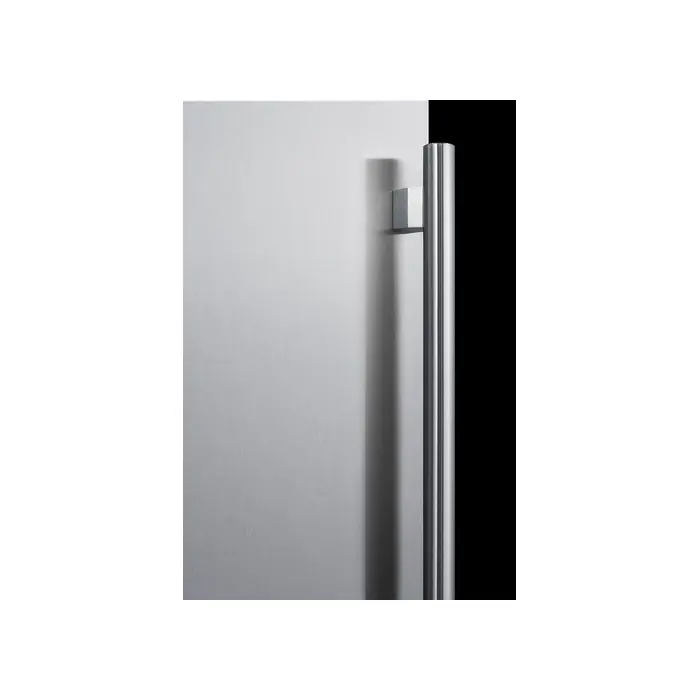

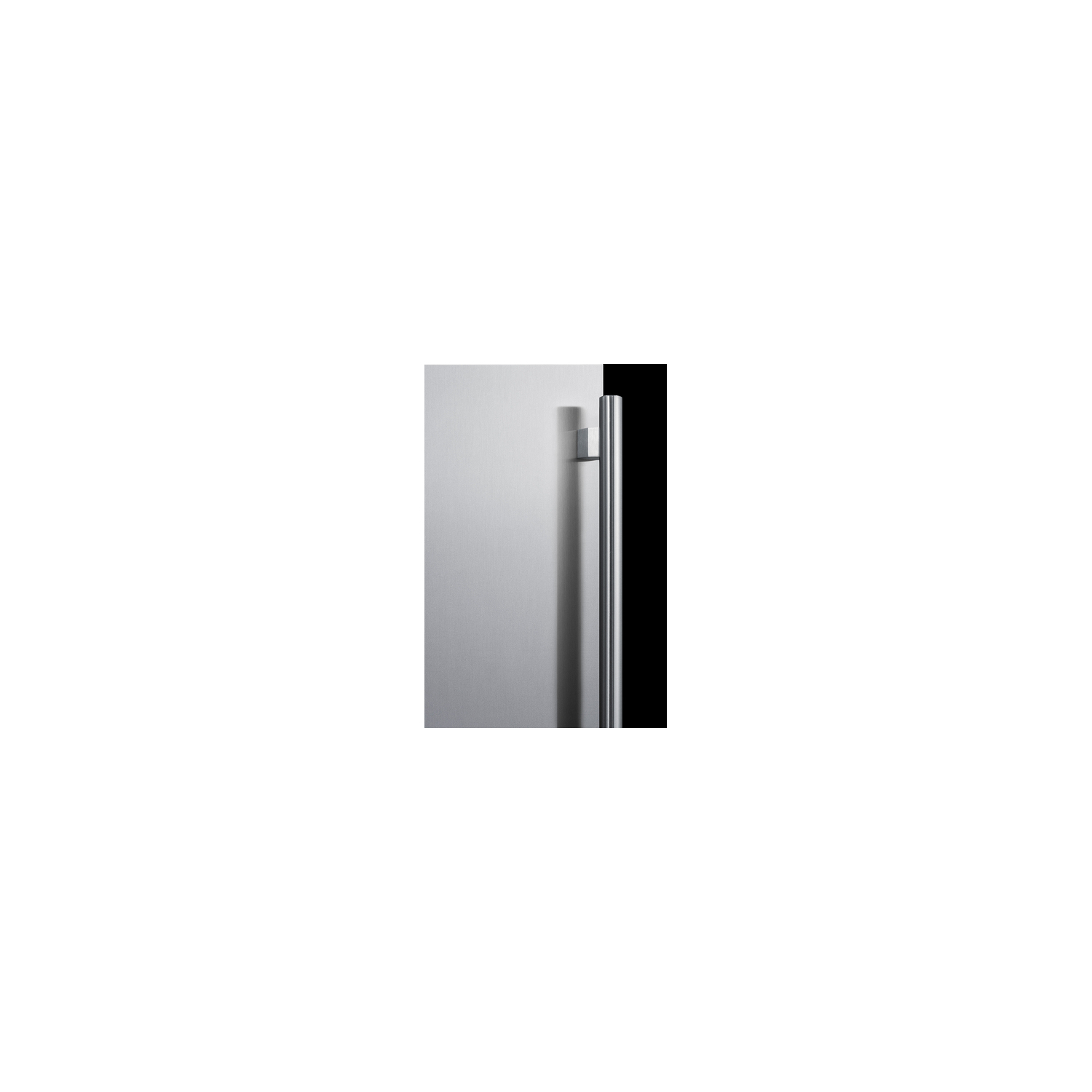

Professional handle Stainless steel handle adds style to any setting

Temperature alarm Alarm sounds if temperature goes out of recommended range after 2 hours

Sabbath mode Optional feature disables alarms, interior light, and displays for up to 96 hours

Integrated hinge Flat stainless steel hinge ensures no added height is needed when installing under a counter

Left-hand door swing This unit comes with a left-hand door swing. For a right-hand door swing, see the AL55OSCSS

Quiet operation Runs under 34 dB for a quiet performance that won't interrupt your conversation

100% CFC free Environmentally friendly design with no ozone-damaging chemicals

CARB compliant Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
