Summit Built-in undercounter ADA compliant all-refrigerator with panel-ready door, black cabinet, door storage, digital controls, and white interior, 7.61101e+011, AL55IF

SUMMIT features built-in undercounter all-refrigerators designed for installation under lower ADA compliant counters, with advanced features for user convenience.

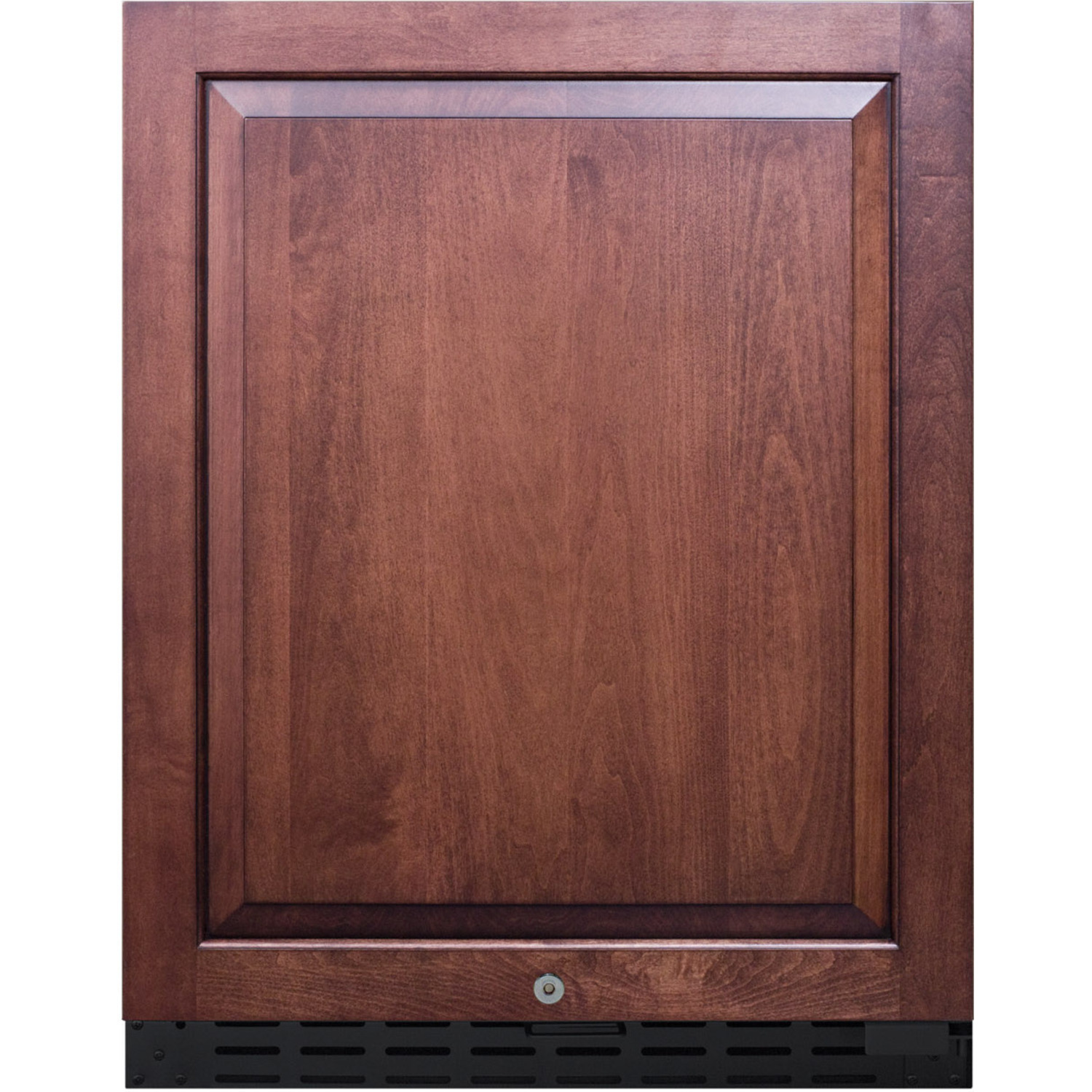

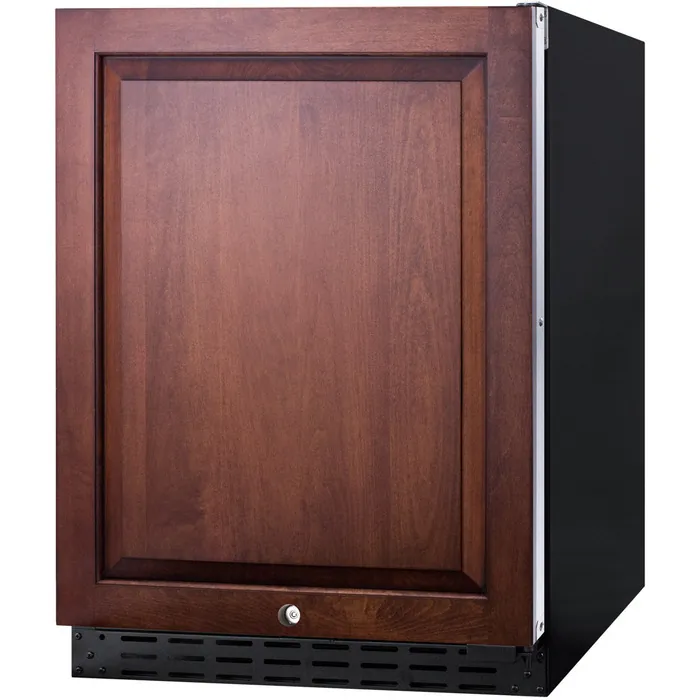

The AL55IF refrigerator meets both residential and commercial standards for versatile use. The front-breathing design allows built-in installation, while the fully finished black cabinet also enables freestanding use. Sized just under 32 inches high and 24 inches wide, this unit makes an ideal fit under lower ADA compliant counters. The door features an integrated stainless steel frame designed to accept full panel overlays, allowing users to seamlessly blend the unit into their own cabinetry design (panel size: 27 3/4" H x 23 3/16" W; 3/4" thick with a maximum weight of 10 lbs.). The door is factory reversible, and users must supply their own door handle. A temperature alarm offers added security should the temperature go beyond the setpoint, and the optional Sabbath Mode can be used to disable certain electrical features during periods of religious observance. The automatic defrost system keeps the unit running efficiently with little user maintenance, and the internal fan ensures the unit is evenly cooled.

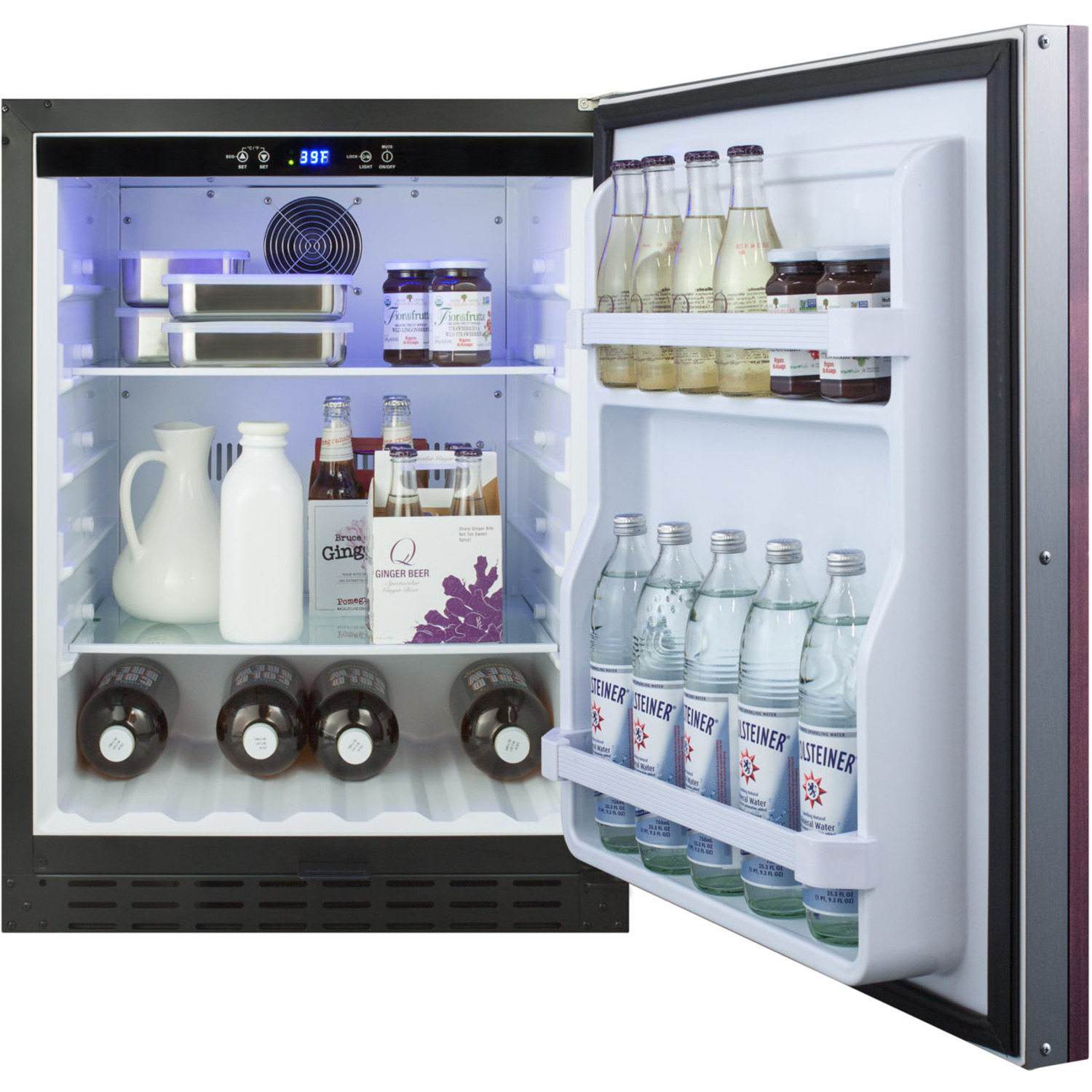

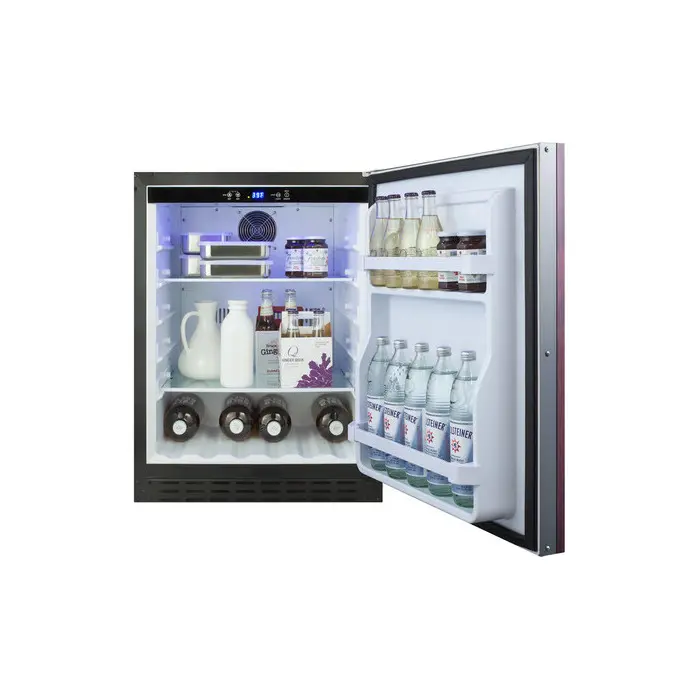

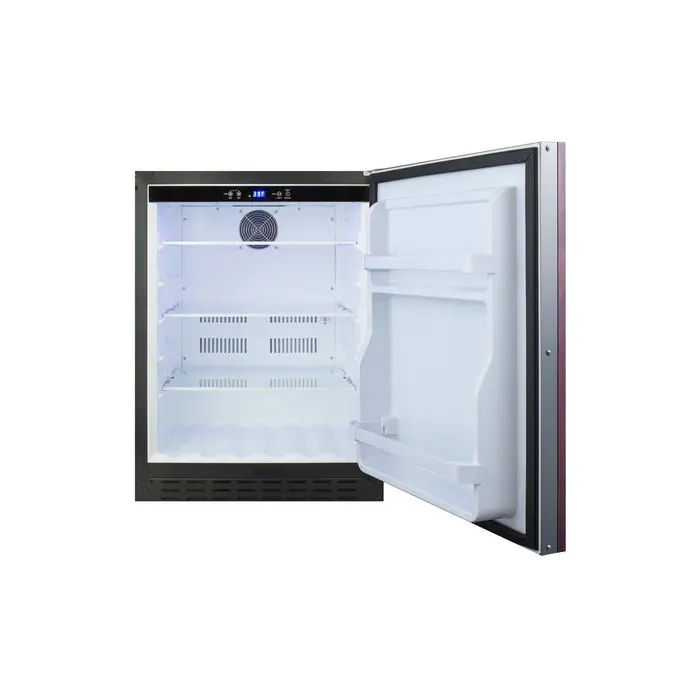

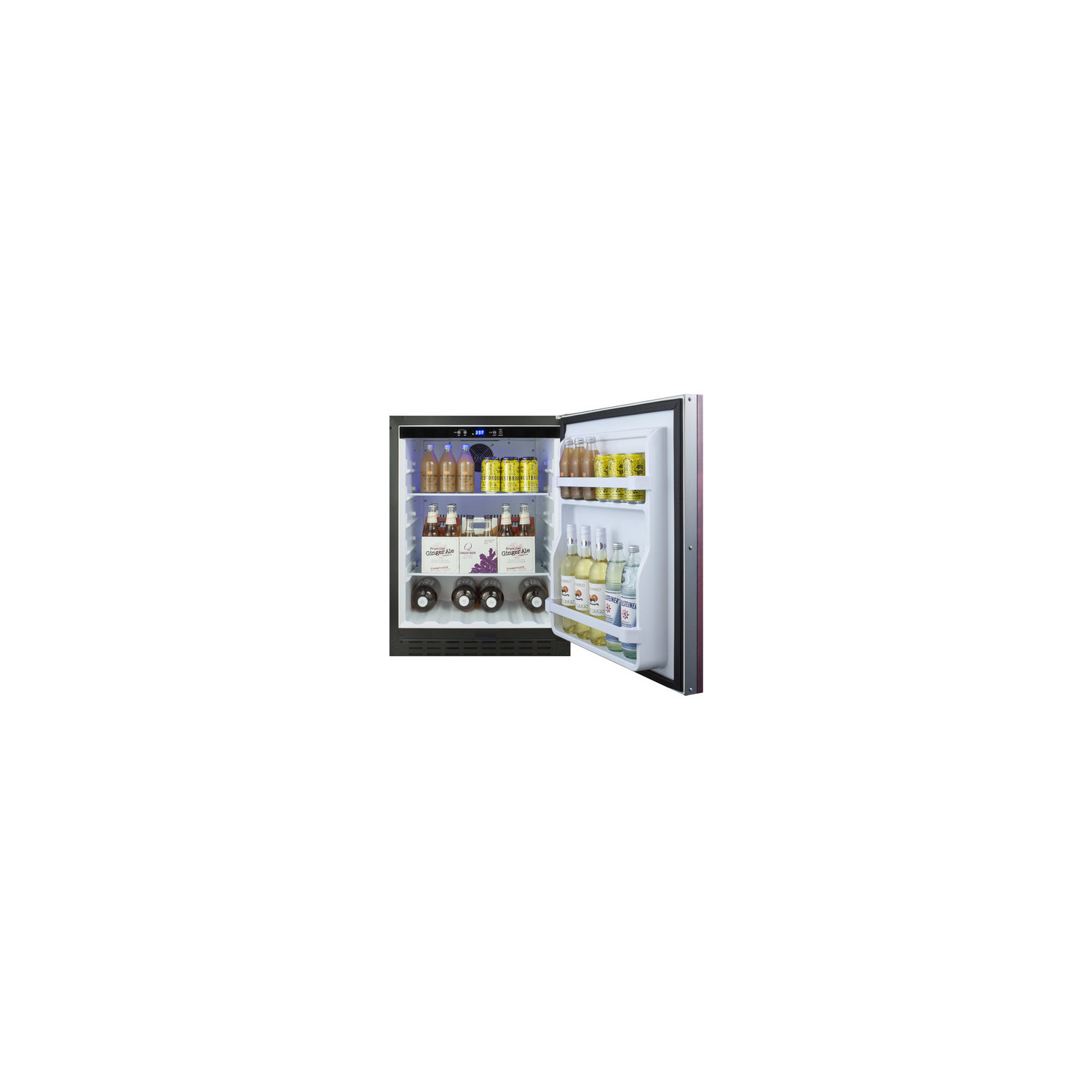

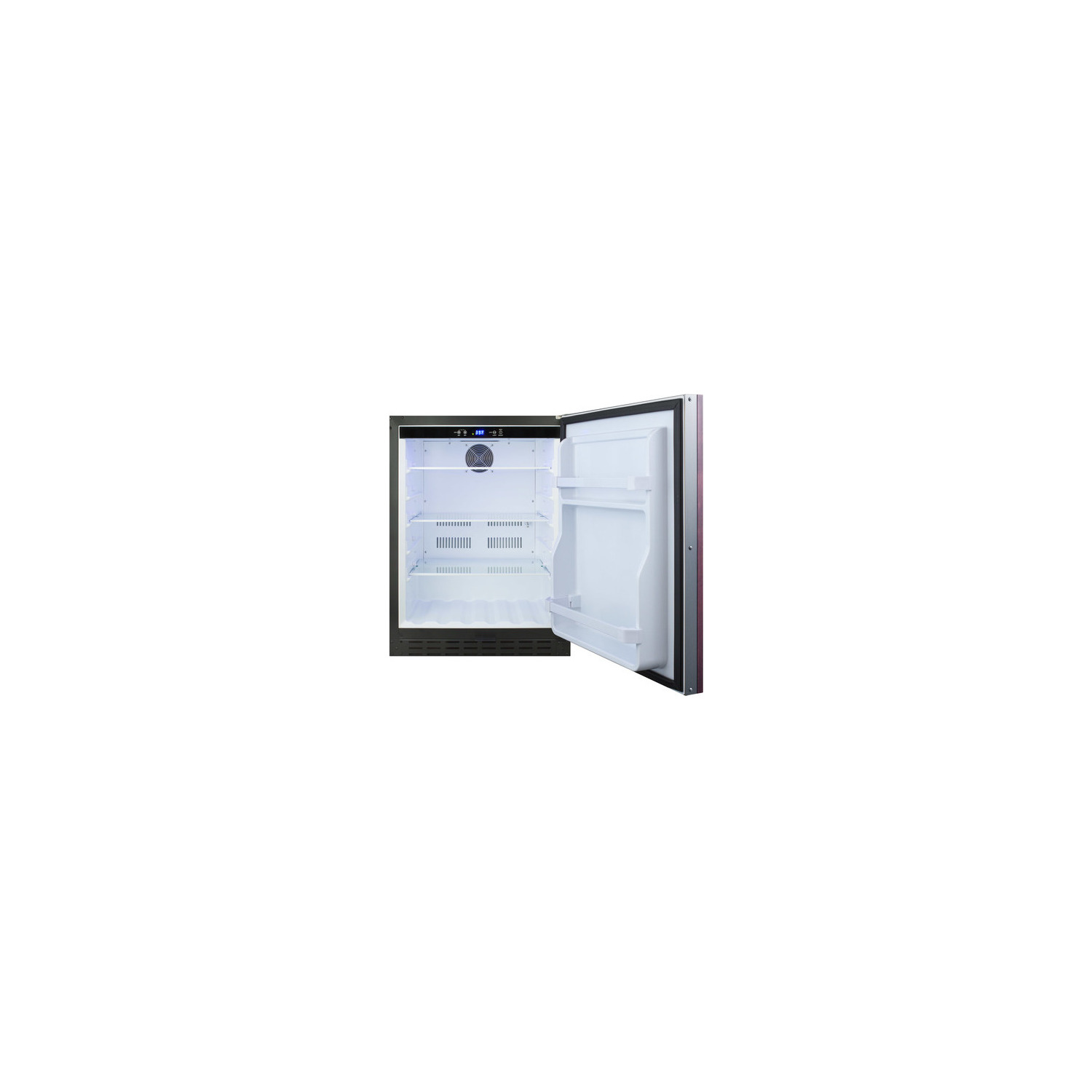

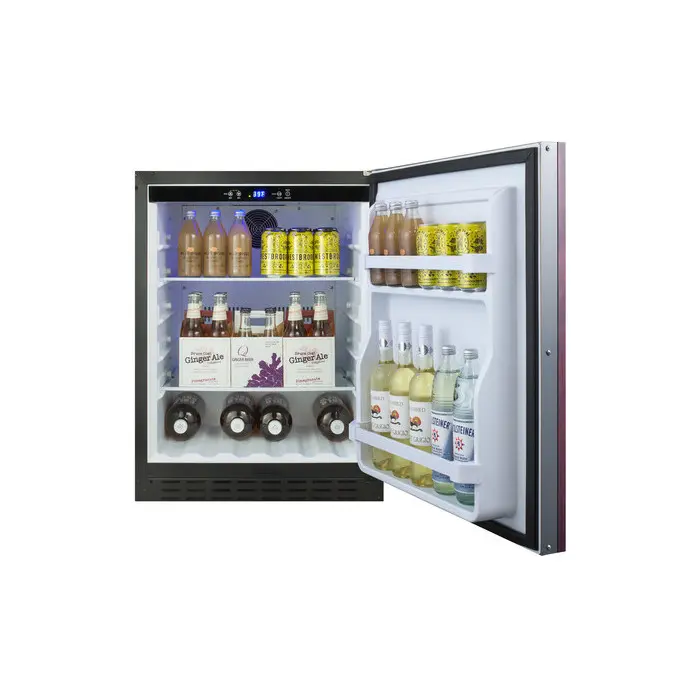

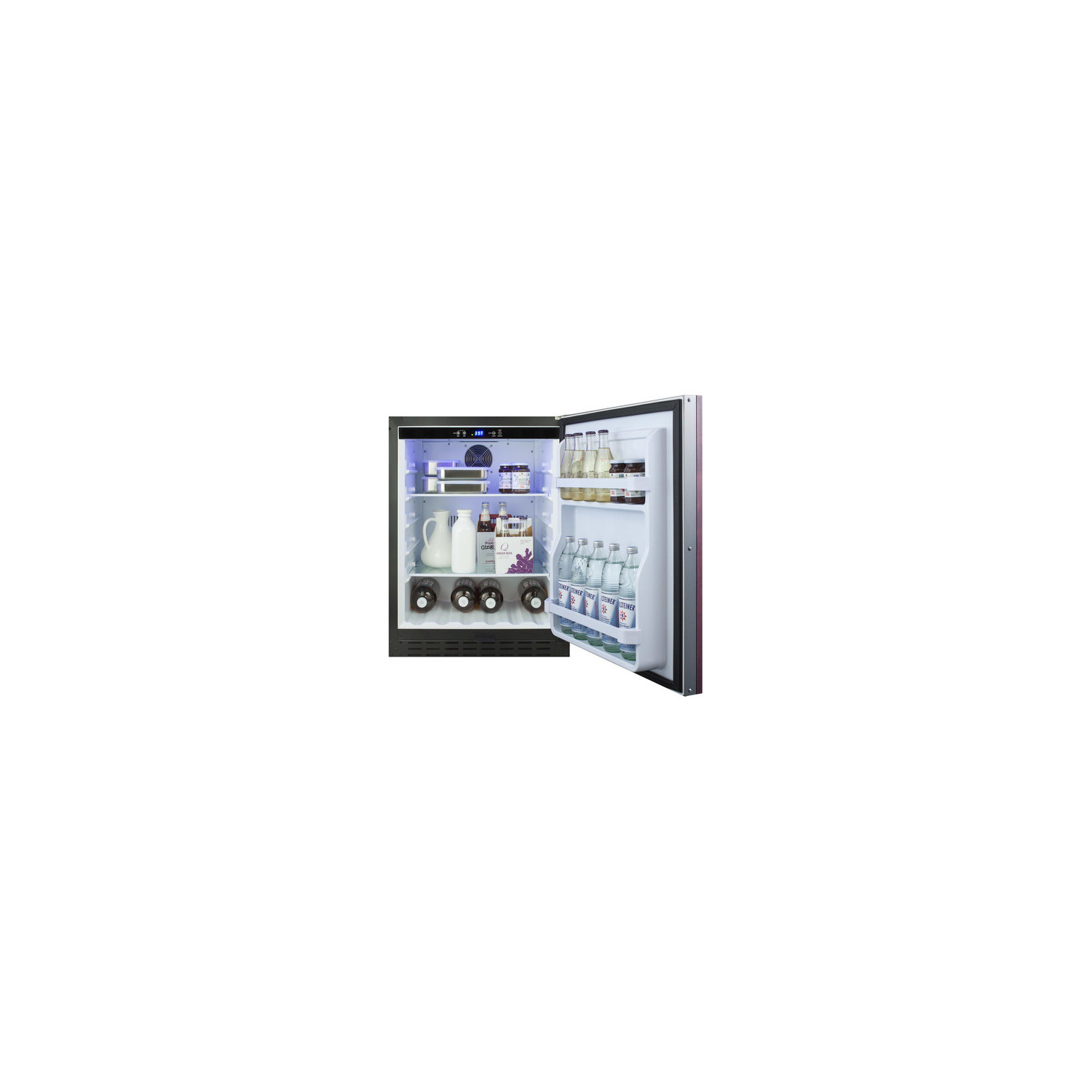

Inside, the AL55IF has a digital control panel which allows you to manage the unit’s temperature with ease. An adjustable temperature range between 36 and 46ºF ensures contents are kept cold. Three easy-glide glass shelves that extend 50% provide flexible storage, and the shelving brake system keeps unit contents safe when loading and unloading. Two door racks are ideal for keeping condiments within easy reach, while the slotted floor ensures easy storage of bottles. The dimmable soft LED lighting in a gentle blue hue with three brightness settings offers an attractive and efficient presentation inside the white interior.

With its advanced user features and versatile design, the AL55IF is an excellent addition to any ADA compliant setting looking for a refrigerator with a modern, elegant look. For a matching frost-free freezer, see the ALFZ51IF.

SPECIFICATIONS

Overview

Nominal Height 32.0" (81 cm)

Height of Cabinet 31.63" (80 cm)

Nominal Width 24.0" (61 cm)

Width 23.5" (60 cm)

Nominal Depth 24.0" (61 cm)

Depth 23.38" (59 cm)

Depth with Handle 25.38" (64 cm)

Depth with door at 90° 45.0" (114 cm)

Capacity 4.2 cu.ft. (119 L)

Defrost Type Automatic

Door Panel-Ready

Cabinet Black

US Electrical Safety ETL

Canadian Electrical Safety ETL-C

Sanitation ETL-S

Energy Usage/Year 250.0kWh/year

Amps 1.0

Voltage/Frequency 115 V AC/60 Hz

Weight 95.0 lbs. (43 kg)

Parts & Labor Warranty 1 Year

Compressor Warranty 5 Years

UPC 761101067049

Refrigerator Features

Sabbath Mode Yes

Door Swing RHD

Reversible Factory Reversible

Shelf Type Glass

Shelf Qty 3

Full Door Shelf Qty 2

Adjustable Shelves Yes

Thermostat Type Digital

Fan Type Interior and Exterior

Refrigerant Type R600a

Refrigerant Amount 1.23oz.

High Side PSI 150.0

Low Side PSI 50.0

Level Legs Qty 4

Interior Light Yes

Temperature Range 36 to 46ºF

Sound Level 33.7 dB

Dimensions

Interior Height 23.5" (60 cm)

Interior Width 19.0" (48 cm)

Interior Depth 17.25" (44 cm)

Compressor Step Height 5.5" (14 cm)

Compressor Step Width 19.0" (48 cm)

Compressor Step Depth 5.0" (13 cm)

FEATURES

ADA compliant 32” height allows for installation within ADA-compliant spaces

Commercially approved ETL-S listed to NSF-7 commercial standards

Built-in capable Front-breathing design allows the unit to be built-in under counters

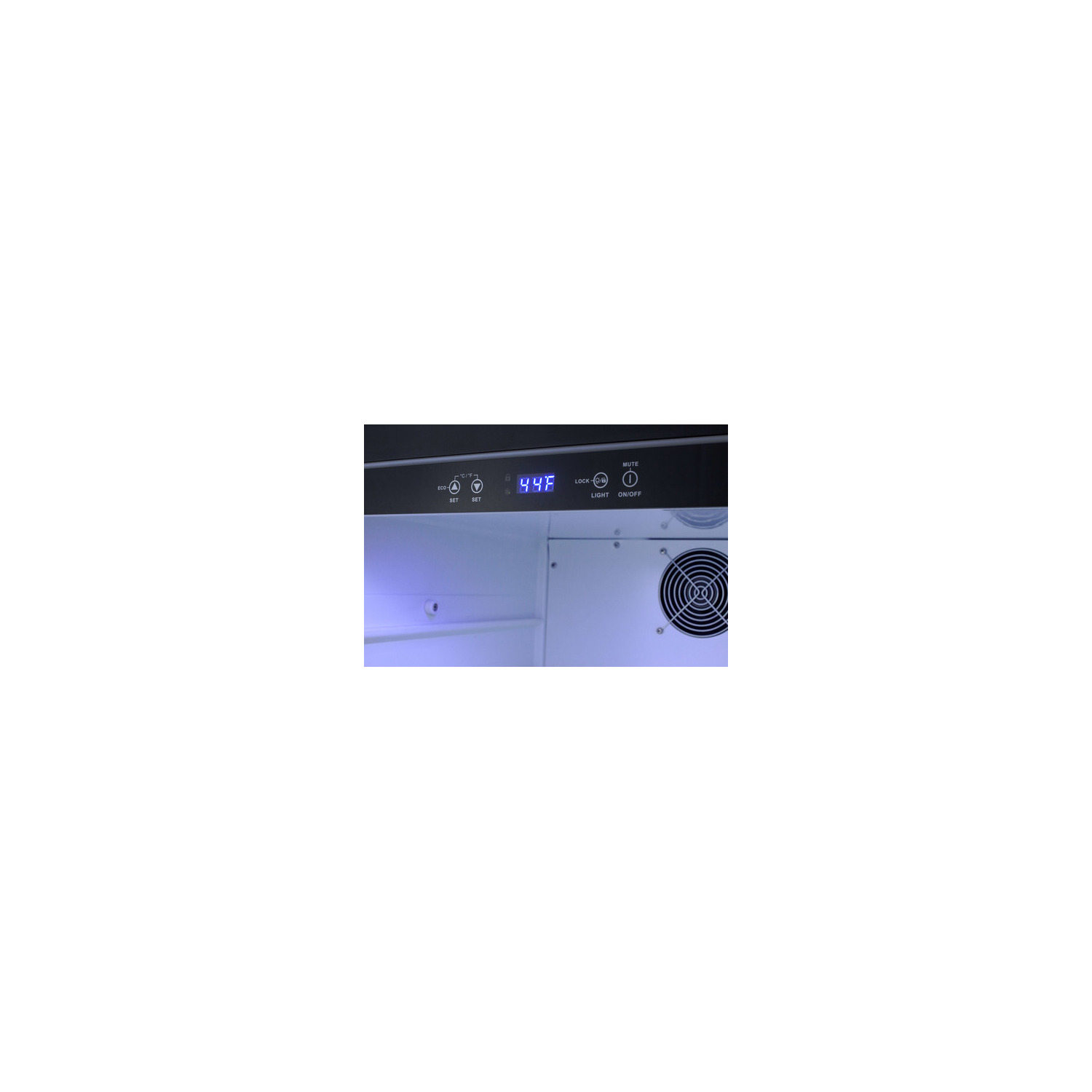

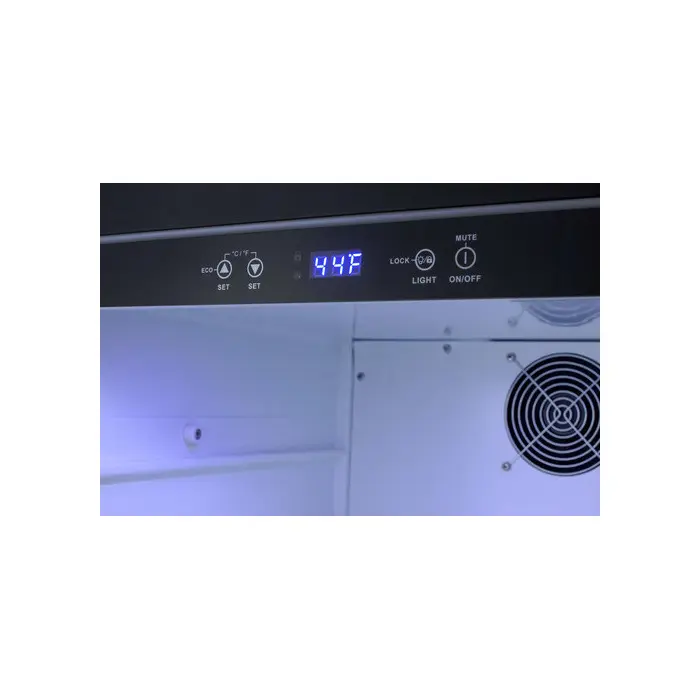

Digital control panel Makes for easy temperature reading/management with electronic controls inside

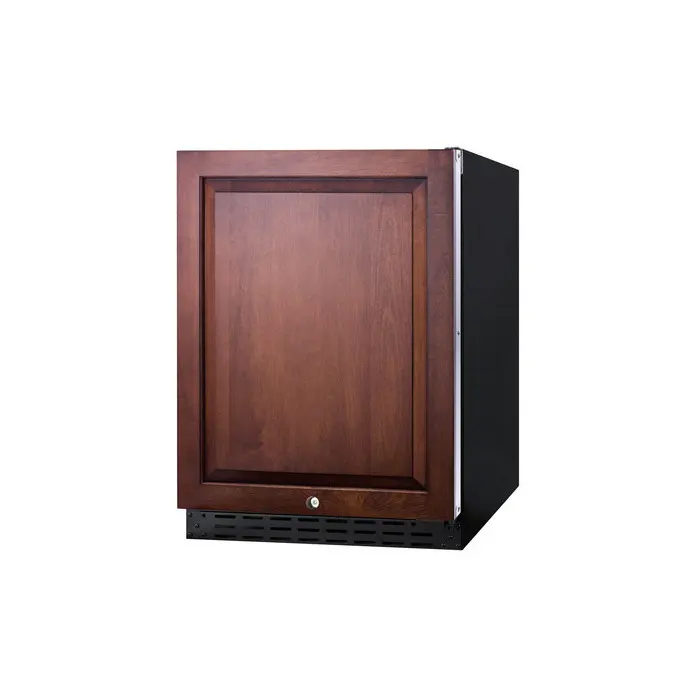

Panel-ready door Integrated stainless steel door frame accepts full overlay panels, allowing you to customize the refrigerator door or blend it into your cabinetry design; panel size: 23 3/16" W x 27 3/4" H and at least 3/4" thick; 10 lbs. maximum; customers provide their own handles

White interior Classic interior allows for easy cleaning and viewing of products

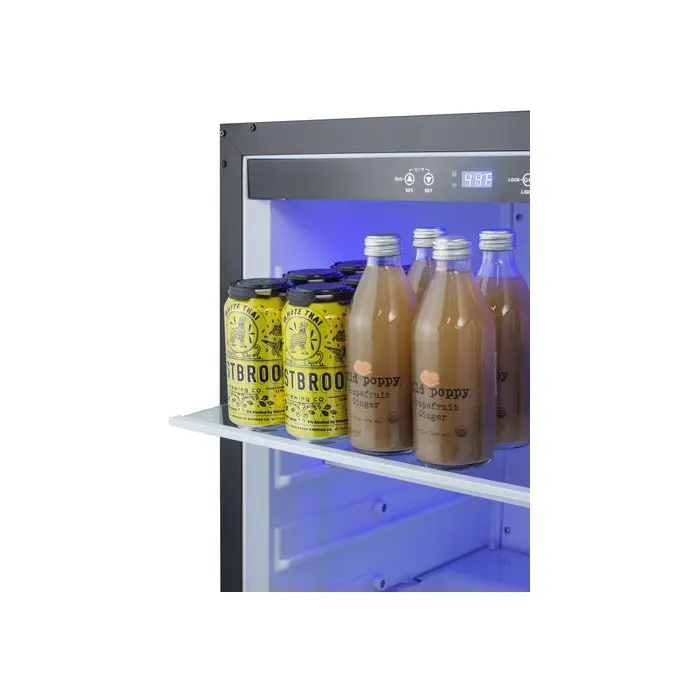

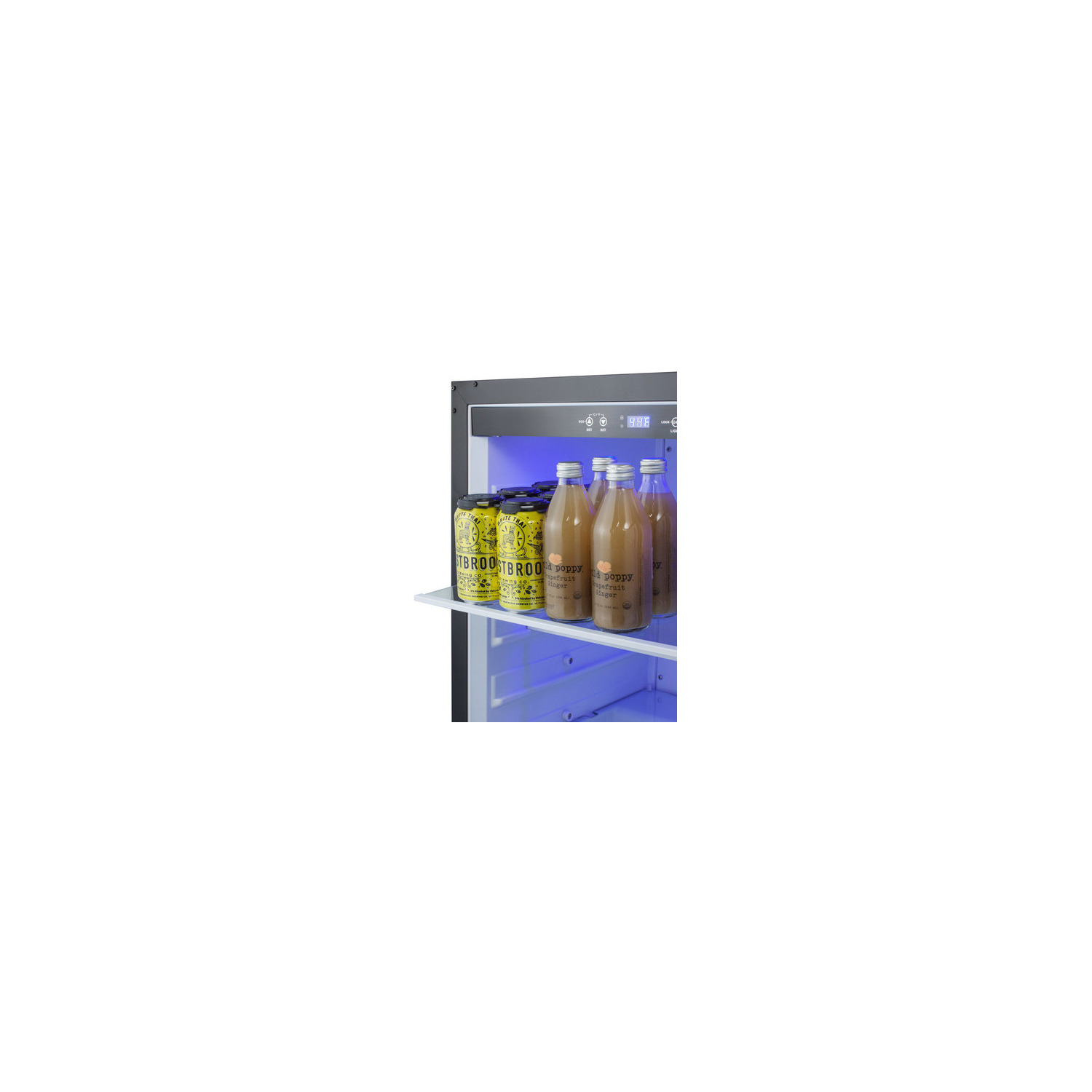

Adjustable shelving Three easy-glide shelves that extend 50% give space and flexibility when organizing the interior’s contents

Brake shelving system Provides added safety when loading and unloading the unit's 3 shelves

Slotted floor Allows for easy storage of bottles

Automatic defrost Reduced maintenance with auto defrost system

Internal fan Fan-forced cooling ensures the unit is evenly cooled from top to bottom

Interior lighting Dimmable LED lighting (with 3 brightness settings) in a blue hue allows for easy viewing of contents while maintaining an elegant feel

Temperature alarm Alarm sounds if temperature goes out of recommended range after 2 hours

Sabbath mode Optional feature disables alarms, interior light, and displays for up to 96 hours

Factory-reversible door swing Factory-reversible door swing makes it easy to best accommodate your setting (unit comes with RHD but can be converted to LHD upon request at the time of purchase)

Integrated hinge Flat stainless steel hinge ensures no added height is needed when installing under a counter

Fully finished black cabinet Allows unit to be used freestanding

Matching freezer Pair with Summit ALFZ51IF to create a matching set

100% CFC free Environmentally friendly design with no ozone-damaging chemicals

CARB Compliant Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

DOWNLOADS

BROCHURE w/ DRAWINGS (AL55IF.pdf)

TECHNICAL DRAWING (.dwg) (AL55IF_REFRIGERATOR__A-C_2018_.dwg)

USE & CARE (AL55IF-User-Manual.pdf)

USE & CARE (AL55IF-User-Manual_2.pdf)

MSDS INFORMATION (R600a_K.pdf)

Energy Guide
