Summit Built-in undercounter ADA compliant all-refrigerator with lavender purple door, stainless steel handle, black cabinet, door storage, and digital controls, 7.61101e+011, AL54PLHD

Make a statement under the counter with Summit's exclusive collection of boldly colored refrigerators and matching freezers.

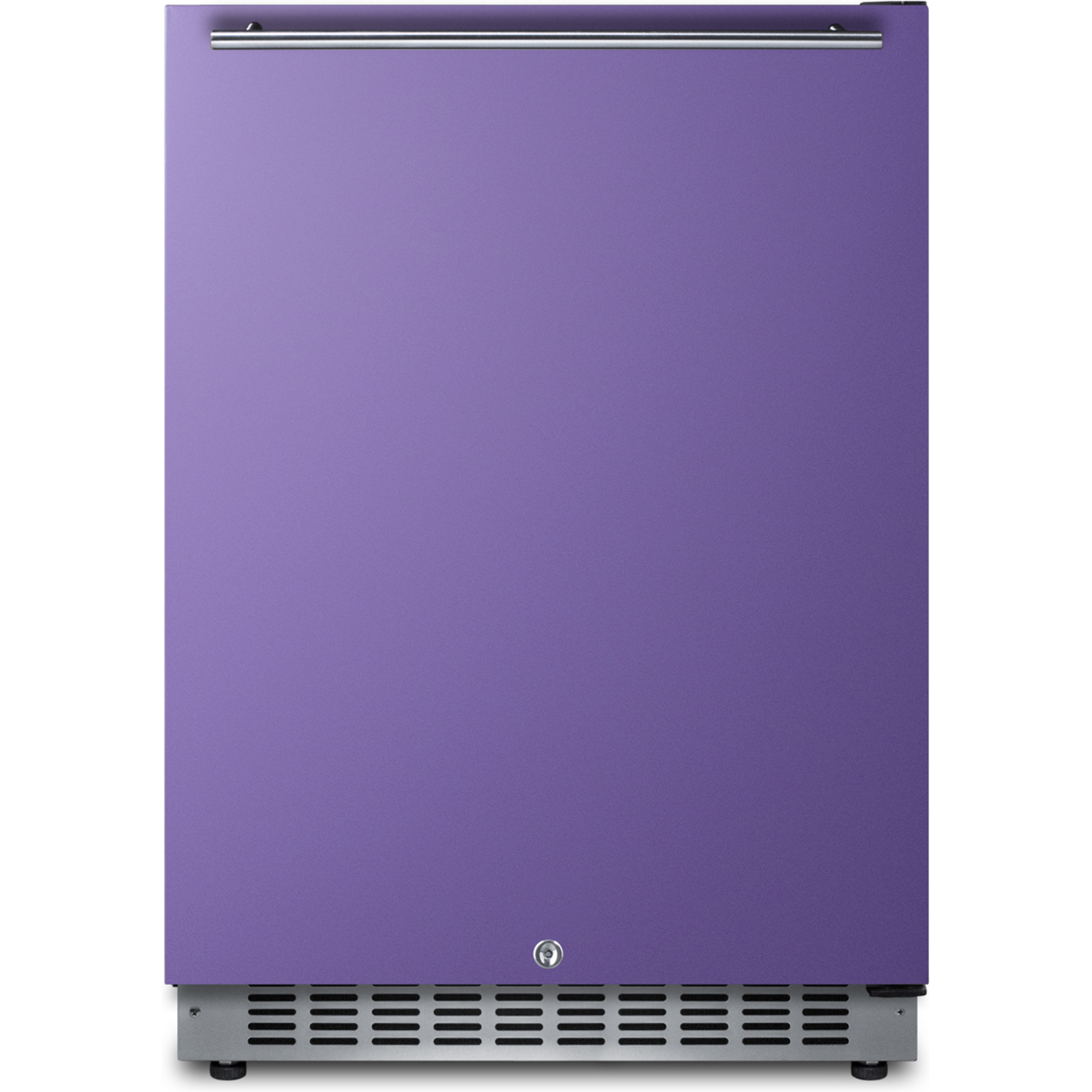

Model AL54P is a 24" wide refrigerator sized at just 32" high for easy installation under lower ADA compliant counters. The front-breathing cooling system allows built-in use, while the fully finished black cabinet also enables freestanding applications. The door finish comes in an attractive lavender purple hue, with a sleek horizontally mounted stainless steel handle and matching stainless steel kickplate to complete the unique look.

Inside, the AL54P utilizes frost-free operation with fan-forced cooling to ensure low maintenance and even temperature distribution. Recessed LED lighting offers an attractive yet efficient look. The digital thermostat makes it easy to manage the interior temperature. This unit includes adjustable glass shelves for flexible, spill-proof storage and two large door racks ideal for keeping condiments in easy reach. The floor is specially slotted to hold bottles in place. An open door alarm and high temperature alarm audibly warn if stored items are being exposed. An optional Sabbath mode setting lets you disable some of the electrical elements during periods of observance.

Additional features include a factory-installed lock for optional security, right angle plug to save on depth, and sealed rear to ensure easier cleaning. The AL54P can be paired with the ALFZ53P frost-free freezer to create a matching undercounter ADA compliant set. Additional colors are available, including saffron gold, emerald green, and cobalt blue. Browse the full Summit selection to find the perfect addition to your kitchen.

SPECIFICATIONS

Overview

Nominal Height 32.0" (81 cm)

Height of Cabinet 32.0" (81 cm)

Nominal Width 24.0" (61 cm)

Width 23.63" (60 cm)

Nominal Depth 23.0" (58 cm)

Depth 22.63" (57 cm)

Depth with door at 90° 45.0" (114 cm)

Capacity 4.8 cu.ft. (136 L)

Defrost Type Frost-Free

Door Purple

Cabinet Black

US Electrical Safety ETL

Canadian Electrical Safety ETL-C

Energy Usage/Year 270.0kWh/year

Amps 1.0

Voltage/Frequency 115 V AC/60 Hz

Weight 110.0 lbs. (50 kg)

Parts & Labor Warranty 1 Year

Compressor Warranty 5 Years

UPC 761101091167

Refrigerator Features

Sabbath Mode Yes

Door Swing LHD

Reversible No

Shelf Type Glass

Shelf Qty 3

Full Door Shelf Qty 2

Adjustable Shelves Yes

Thermostat Type Digital

Fan Type Interior and Exterior

Refrigerant Type R600a

Refrigerant Amount 0.99oz.

High Side PSI 270.0

Low Side PSI 105.0

Level Legs Qty 4

Interior Light Yes

Temperature Range 36 to 43ºF

Sound Level 33.3 dB

Dimensions

Interior Height 25.0" (64 cm)

Interior Width 20.0" (51 cm)

Interior Depth 17.5" (44 cm)

Compressor Step Height 3.25" (8 cm)

Compressor Step Width 20.0" (51 cm)

Compressor Step Depth 5.25" (13 cm)

FEATURES

ADA compliant design 32" height allows easy installation under lower ADA compliant counters

Built-in capable Front-breathing design lets you make the best use of space by installing your appliance under the counter

Lavender purple door Elegant purple finish with a slight gloss to elevate your undercounter space

Professional handle Brushed stainless steel handle with a thin 14mm diameter is mounted horizontally across the door for a sleek look

Factory installed lock Keyed lock offers added security

Frost-free operation No-frost operation for minimum user maintenance

Digital thermostat Electronic controls located inside the unit for precise temperature management

Recessed LED light Efficient and attractive presentation with LED lighting

Adjustable glass shelves Rearrange refrigerator space to accommodate all sizes or remove shelves for simple cleanup

Door storage Two door racks offer convenient storage for condiments and bottles

Bottle slots Floor is specially slotted to store wine and other bottles safely in place

Internal fan Fan-forced cooling ensures the unit is evenly cooled from top to bottom

Open door alarm Audible alarm will sound if the door is left open longer than one minute

High temperature alarm High temperature alarm sounds if the unit's interior goes out of the recommended range

Sabbath mode setting Optional setting lets you disable the lighting and alarm for up to 48 hours

Temperature Memory Function Unit will retain its last settings when power is restored in the event of power loss

Sealed back Space-saving design with no exposed coils for easier cleanability

Right angle plug Design allows you to plug the unit in flush against the wall socket with no need to add extra depth

Stainless steel kickplate Added touch of style to complement the handle and complete the look

Fully finished black cabinet Allows the unit to be used freestanding

Matching freezer available Pair with the ALFZ53P frost-free freezer to create the perfect set

100% CFC Free Environmentally friendly design with no ozone-damaging chemicals

CARB Compliant Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

DOWNLOADS

BROCHURE (AL54PLHD.pdf)

MSDS INFORMATION (R600a_K.pdf)

USE & CARE (AL54PLHD-User-Manual.pdf)

Energy Guide
