Summit Built-in undercounter ADA compliant all-refrigerator with stainless steel door, black cabinet, door storage, lock, and digital controls, 7.61101e+011, AL54LHD
$1,110.74
Retail Price: $1,665.00
Free shipping
$ 1,110.74
Description
SUMMIT's AL54 series features built-in undercounter all-refrigerators designed for installation under lower ADA compliant counters, with advanced features for user convenience.

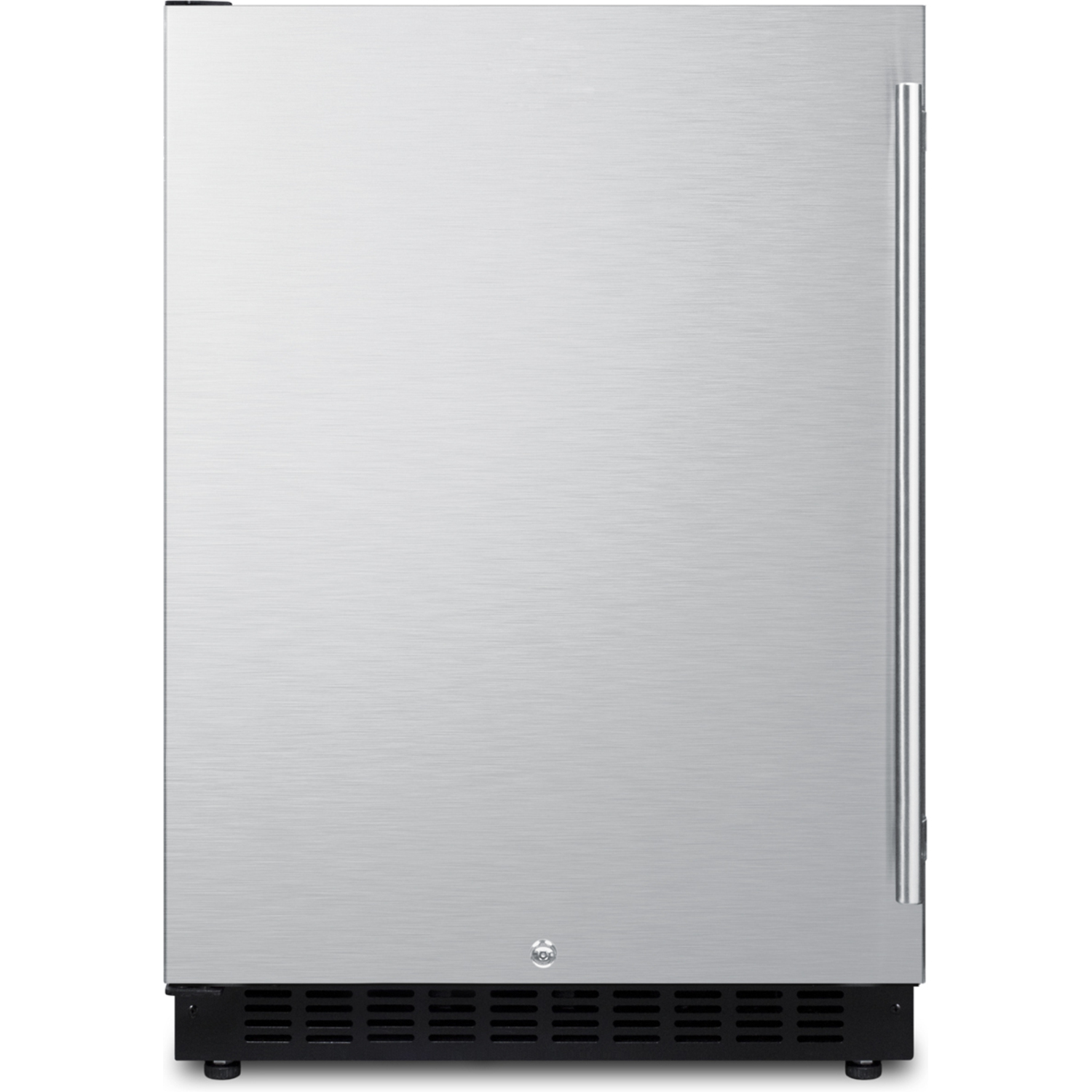

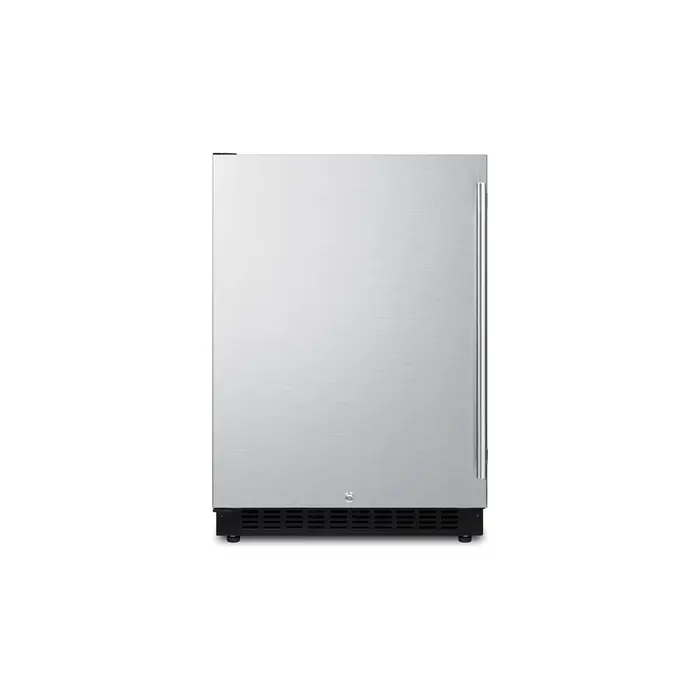

Sized with a convenient 24" footprint, the AL54 is just 32" high to fit under lower counters complying with ADA guidelines for accessibility. The fully finished black cabinet allows freestanding use, while the front-breathing system also allows this unit to be built-in with minimum clearance. The stainless steel door includes a pro style handle and a factory installed lock for added safety. This unit has a flush back for easy cleaning and a right angle cord.

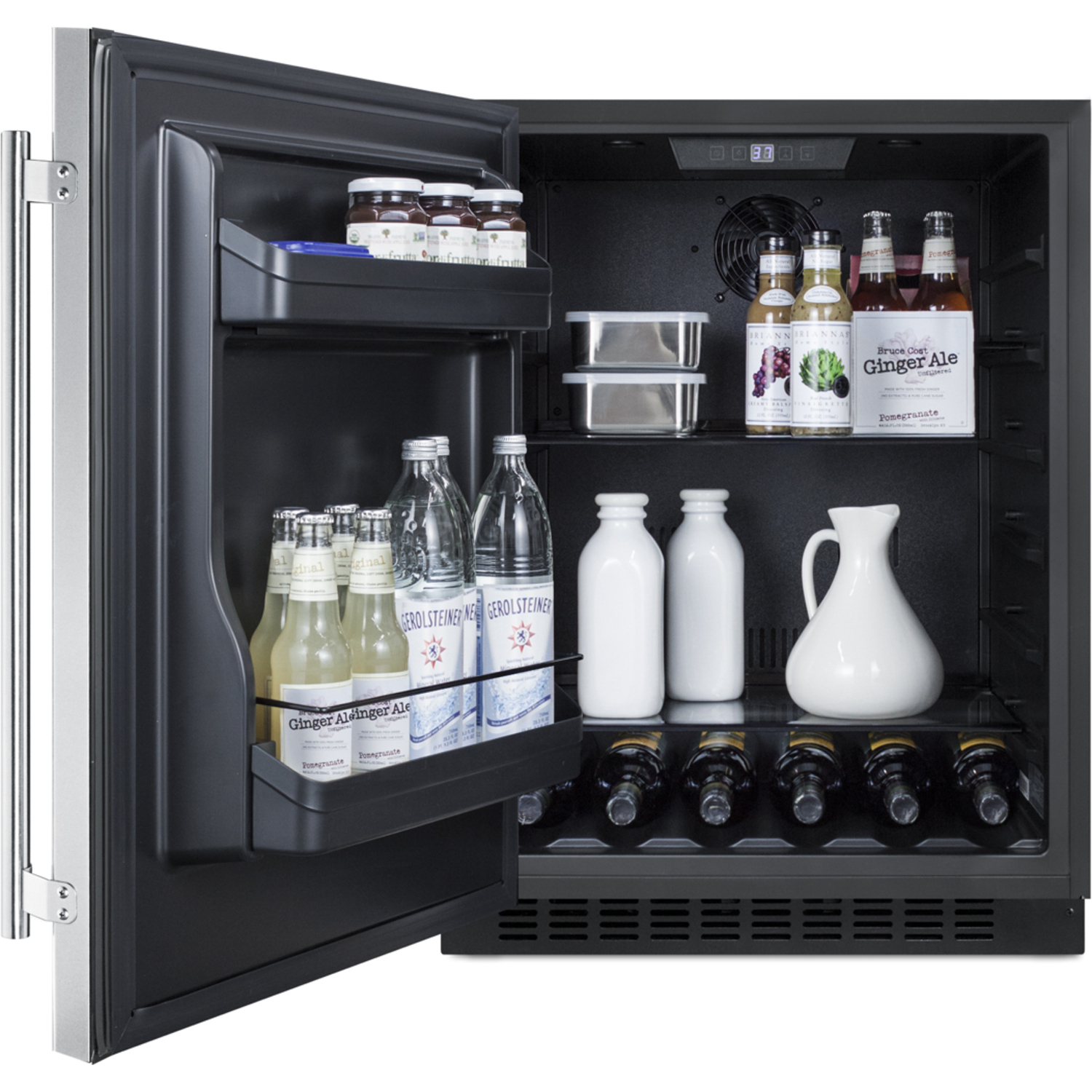

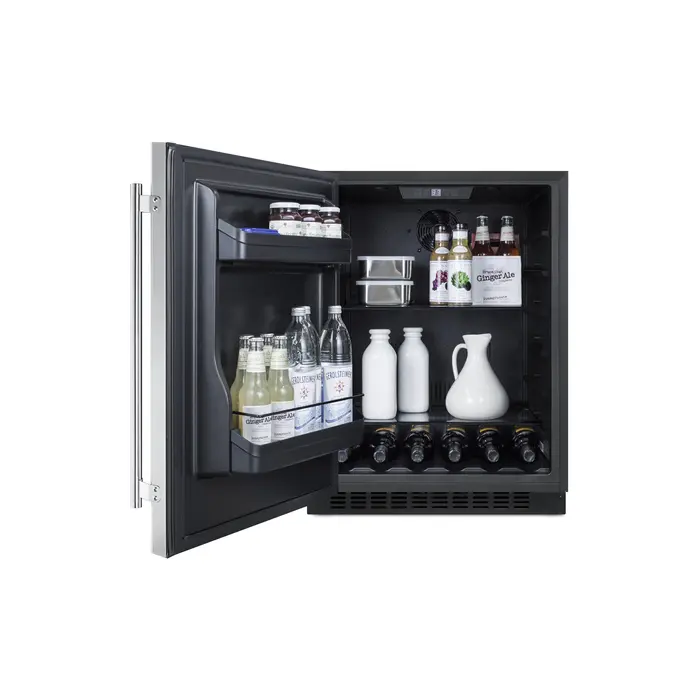

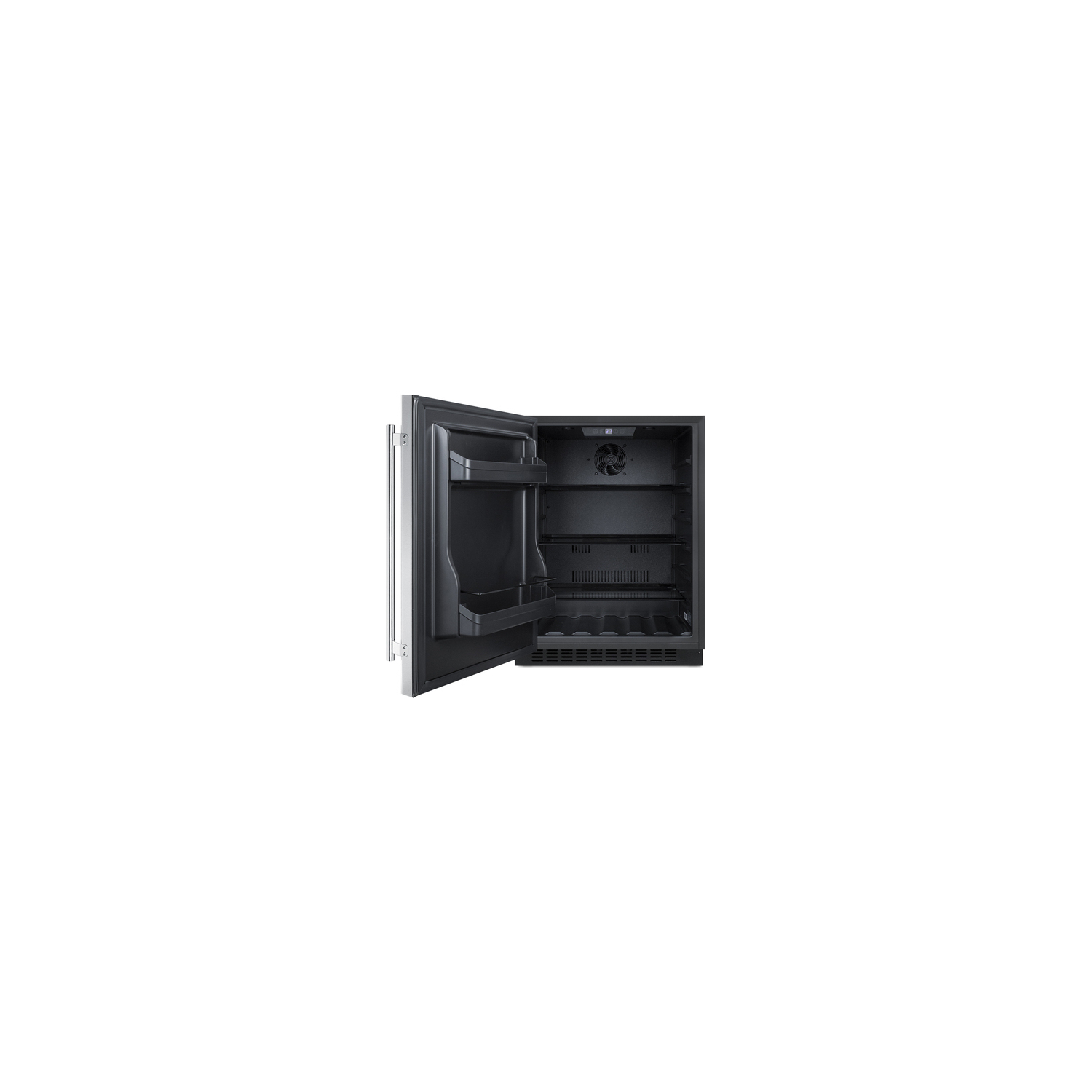

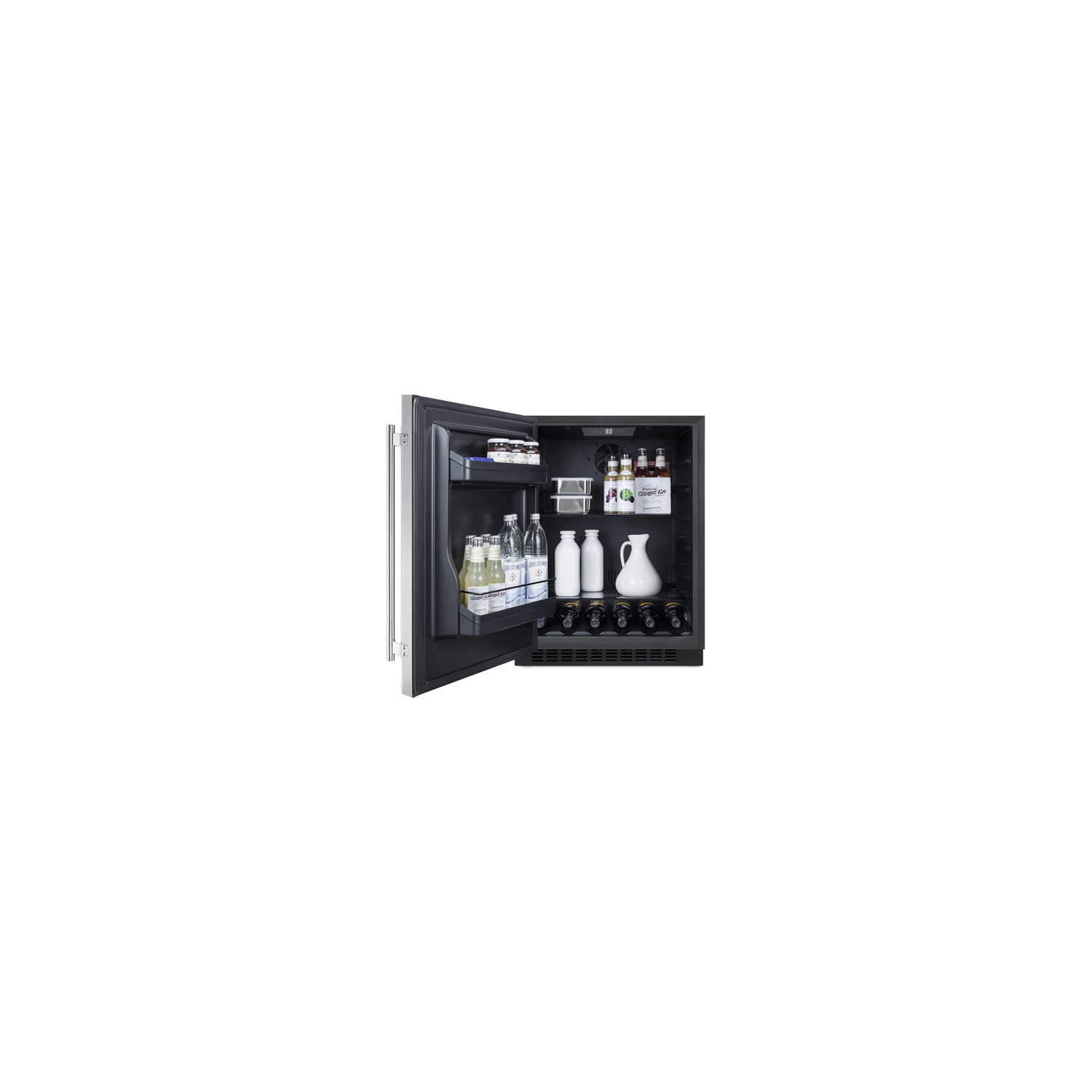

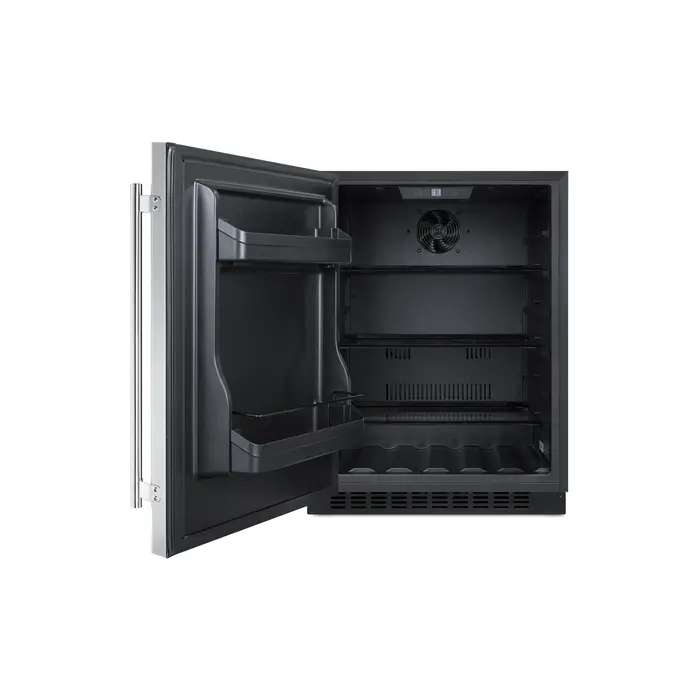

Inside, the AL54 utilizes frost-free operation with fan-forced cooling to ensure low maintenance and even temperature distribution. Recessed LED lighting offers an attractive yet efficient look. The digital thermostat makes it easy to manage the interior temperature. This unit includes adjustable glass shelves for flexible, spill-proof storage and two large door racks ideal for keeping condiments in easy reach. The floor is specially slotted to hold bottles in place. Additional features include an open door alarm, high temperature alarm, and Sabbath mode setting that lets you disable some of the electrical elements during periods of observance.
The AL54 refrigerator is ETL-S listed to NSF-7 commercial standards but can also be used in the home. With its deluxe style and user-friendly features, this unit is the perfect choice for home or commercial kitchens. Additional styles are available.
SPECIFICATIONS
Overview
Nominal Height 32.0" (81 cm)
Height of Cabinet 32.0" (81 cm)
Nominal Width 24.0" (61 cm)
Width 23.63" (60 cm)
Nominal Depth 23.0" (58 cm)
Depth 22.63" (57 cm)
Depth with Handle 24.63" (63 cm)
Depth with door at 90° 45.0" (114 cm)
Capacity 4.8 cu.ft. (136 L)
Defrost Type Frost-Free
Door Stainless Steel
Cabinet Black
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Sanitation ETL-S
Energy Usage/Year 270.0kWh/year
Amps 1.0
Voltage/Frequency 115 V AC/60 Hz
Weight 95.0 lbs. (43 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
UPC 761101091075
Refrigerator Features
Sabbath Mode Yes
Door Swing LHD
Reversible No
Shelf Type Glass
Shelf Qty 3
Full Door Shelf Qty 2
Adjustable Shelves Yes
Thermostat Type Digital
Fan Type Interior and Exterior
Refrigerant Type R600a
Refrigerant Amount 0.99oz.
High Side PSI 270.0
Low Side PSI 105.0
Level Legs Qty 4
Interior Light Yes
Temperature Range 36 to 43ºF
Sound Level 33.3 dB
Dimensions
Interior Height 25.0" (64 cm)
Interior Width 20.0" (51 cm)
Interior Depth 17.5" (44 cm)
Compressor Step Height 3.25" (8 cm)
Compressor Step Width 20.0" (51 cm)
Compressor Step Depth 5.25" (13 cm)
FEATURES
ADA compliant design 32" height allows easy installation under lower ADA compliant counters
Built-in capable Front-breathing design lets you make the best use of space by installing your appliance under the counter
Stainless steel door Durable construction with a professional look
Factory installed lock Keyed lock for a secure interior
Professional handle Includes a full-length pro handle in chrome
Frost-free operation No-frost operation for minimum user maintenance
Digital thermostat Electronic controls located inside the unit for precise temperature management
Recessed LED light Efficient and attractive presentation with LED lighting
Adjustable glass shelves Rearrange refrigerator space to accommodate all sizes or remove shelves for simple cleanup
Door storage Two door racks offer convenient storage for condiments and bottles
Bottle slots Floor is specially slotted to store wine and other bottles safely in place
Internal fan Fan-forced cooling ensures the unit is evenly cooled from top to bottom
Left hand door swing For this unit with the door opening from the other side, see model AL54
Open door alarm Audible alarm will sound if the door is left open longer than one minute
High temperature alarm High temperature alarm sounds if the unit's interior goes out of the recommended range
Sabbath mode setting Optional setting lets you disable the lighting and alarm for up to 48 hours
Temperature Memory Function Unit will retain its last settings when power is restored in the event of power loss
Sealed back Space-saving design that offers easier cleanability
Right angle plug Design allows you to plug the unit in flush against the wall socket with no need to add extra depth
Commercially approved ETL-S listed to NSF-7 Standards for use in commercial establishments
Fully finished black cabinet Allows the unit to be used freestanding
100% CFC Free Environmentally friendly design with no ozone-damaging chemicals
CARB Compliant Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
DOWNLOADS
REVIT MODEL (QF_Summit_AL54_ADA_Compliant_All_Refrigerator_2.rfa)
MSDS INFORMATION (R600a_K.pdf)
USE & CARE (AL54LHD-User-Manual.pdf)
Energy Guide
