Summit Built-in undercounter ADA compliant all-refrigerator with panel-ready door, black cabinet, door storage, and digital controls, 7.61101e+011, AL54IFLHD

SUMMIT's AL54 series features built-in undercounter all-refrigerators designed for installation under lower ADA compliant counters, with advanced features for user convenience.

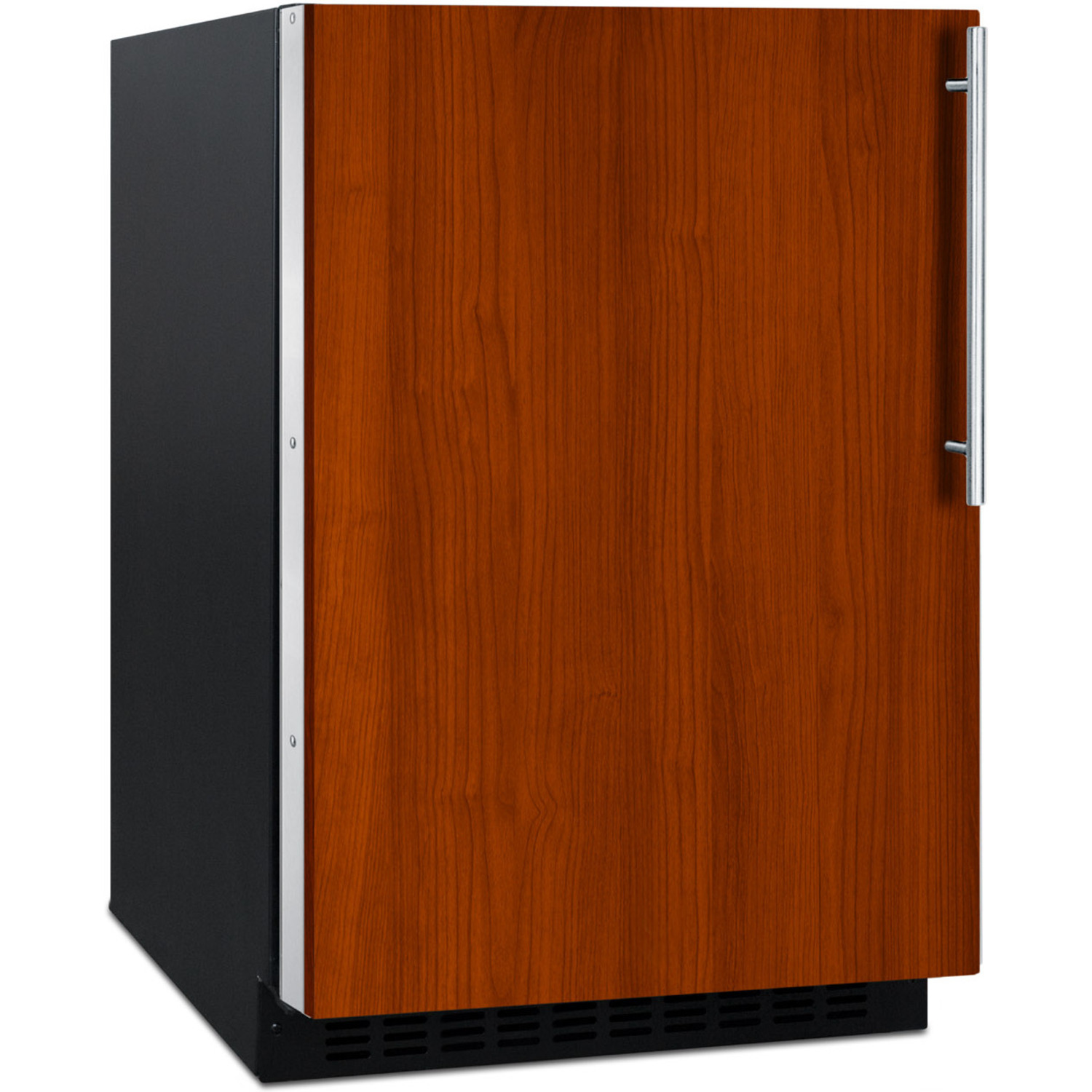

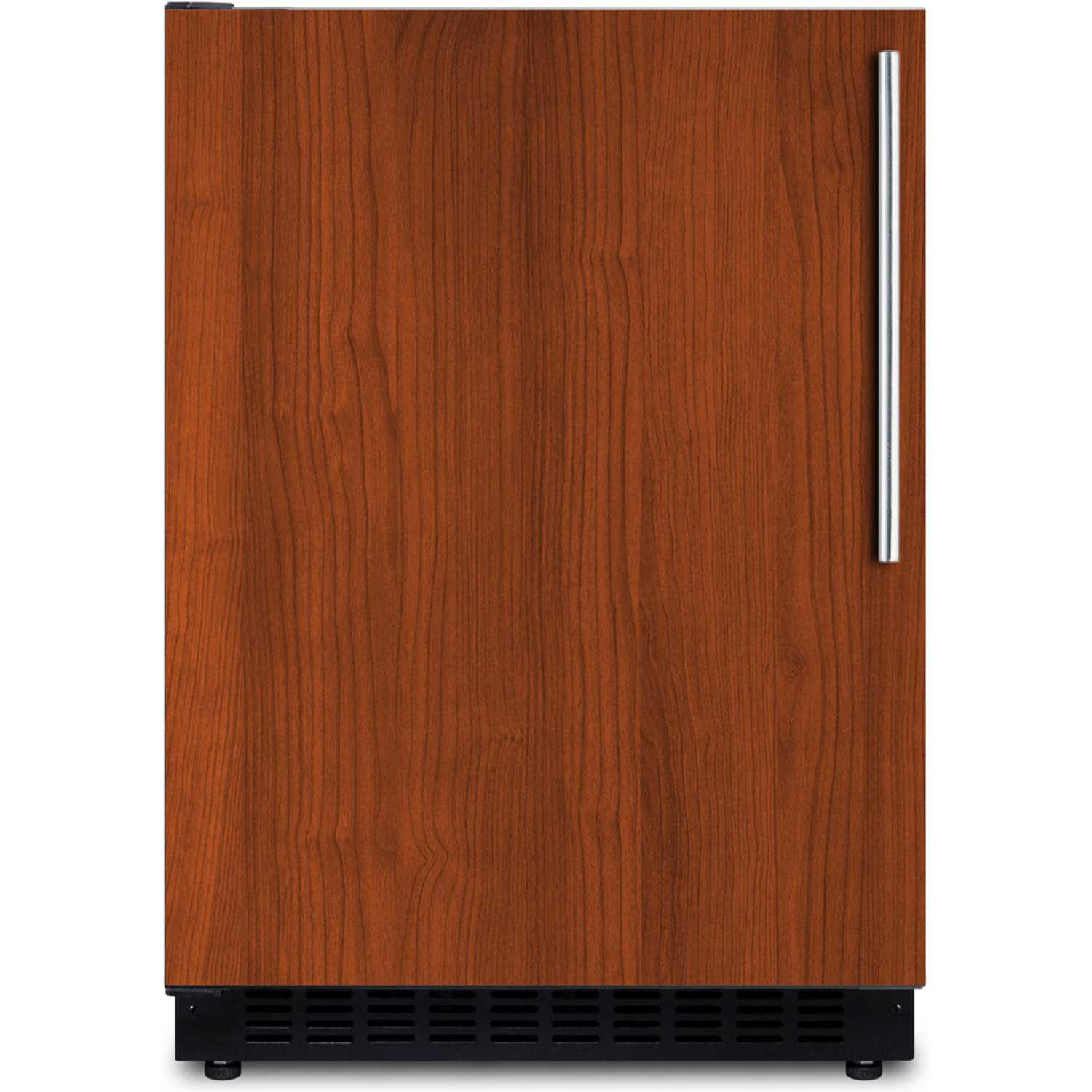

Sized with a convenient 24" footprint, the AL54IFLHD is just 32" high to fit under lower counters complying with ADA guidelines for accessibility. The fully finished black cabinet allows freestanding use, while the front-breathing system also allows this unit to be built-in with minimum clearance. The stainless steel door features a European-style fully articulating hinge for zero clearance opening. We include a 2-piece bracket kit that allows easy installation of overlay panels to create a custom look that can seamlessly blend into your existing cabinetry design (panel size: 28.38" H x 23.4" W; maximum weight: 10 lbs.). This unit has a flush back for easy cleaning and a right angle plug for a better fit. A factory-installed lock is located in the kickplate.

Inside, the AL54IFLHD utilizes frost-free operation with fan-forced cooling to ensure low maintenance and even temperature distribution. Recessed LED lighting offers an attractive yet efficient look. The digital thermostat makes it easy to manage the interior temperature. This unit includes adjustable glass shelves for flexible, spill-proof storage and two large door racks ideal for keeping condiments and bottles in easy reach. The floor is specially slotted to hold bottles in place. Additional features include an open door alarm, high temperature alarm, and Sabbath mode setting that lets you disable some of the electrical elements during periods of observance.

With its deluxe style and user-friendly features, this unit is the perfect choice for ADA compliant kitchens. Additional styles are available, as well a matching frost-free freezer (model ALFZ53IF). Browse the full Summit line to explore your endless options.

SPECIFICATIONS

Overview

Nominal Height 32.0" (81 cm)

Height of Cabinet 32.0" (81 cm)

Nominal Width 24.0" (61 cm)

Width 23.38" (59 cm)

Nominal Depth 23.0" (58 cm)

Depth 22.63" (57 cm)

Capacity 4.8 cu.ft. (136 L)

Defrost Type Frost-Free

Door Panel-Ready

Cabinet Black

US Electrical Safety ETL

Canadian Electrical Safety ETL-C

Energy Usage/Year 270.0kWh/year

Amps 1.0

Voltage/Frequency 115 V AC/60 Hz

Weight 100.0 lbs. (45 kg)

Parts & Labor Warranty 1 Year

Compressor Warranty 5 Years

UPC 761101091143

Refrigerator Features

Sabbath Mode Yes

Door Swing LHD

Reversible No

Shelf Type Glass

Shelf Qty 3

Full Door Shelf Qty 2

Adjustable Shelves Yes

Thermostat Type Digital

Fan Type Interior and Exterior

Refrigerant Type R600a

Refrigerant Amount 0.99oz.

High Side PSI 270.0

Low Side PSI 105.0

Level Legs Qty 4

Interior Light Yes

Temperature Range 36 to 43ºF

Sound Level 33.3dB

Dimensions

Interior Height 25.0" (64 cm)

Interior Width 20.0" (51 cm)

Interior Depth 17.5" (44 cm)

Compressor Step Height 3.25" (8 cm)

Compressor Step Width 20.0" (51 cm)

Compressor Step Depth 5.25" (13 cm)

FEATURES

ADA compliant design 32" height allows easy installation under lower ADA compliant counters

Built-in capable Front-breathing design lets you make the best use of space by installing your appliance under the counter

Panel-ready door European style articulating door hinge allows the installation of overlay panels, allowing you to customize the refrigerator door or blend it into your cabinetry design; (panel size: 23.4" W x 28.38" H at 3/4" thick and 10 lbs. maximum)

Stainless steel door Fully finished door also allows you to choose a traditional stainless steel front if not installing an overlay panel

Frost-free operation No-frost operation for minimum user maintenance

Digital thermostat Electronic controls located inside the unit for precise temperature management

Recessed LED light Efficient and attractive presentation with LED lighting

Adjustable glass shelves Rearrange refrigerator space to accommodate all sizes or remove shelves for simple cleanup

Door storage Two door racks offer convenient storage for condiments and bottles

Bottle slots Floor is specially slotted to store wine and other bottles safely in place

Internal fan Fan-forced cooling ensures the unit is evenly cooled from top to bottom

Open door alarm Audible alarm will sound if the door is left open longer than one minute

High temperature alarm High temperature alarm sounds if the unit's interior goes out of the recommended range

Sabbath mode setting Optional setting lets you disable the lighting and alarm for up to 48 hours

Temperature Memory Function Unit will retain its last settings when power is restored in the event of power loss

Sealed back Space-saving design that offers easier cleanability

Right angle plug Design allows you to plug the unit in flush against the wall socket with no need to add extra depth

Matching freezer Pair with the ALFZ53IF frost-free freezer to create a complete refrigerator/freezer set under the counter

Fully finished black cabinet Allows the unit to be used freestanding

100% CFC Free Environmentally friendly design with no ozone-damaging chemicals

CARB Compliant Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

DOWNLOADS

BROCHURE (AL54IFLHD.pdf)

REVIT MODEL (QF_Summit_AL54IF_ADA_Compliant_All_Refrigerator_2.rfa)

USE & CARE (AL54IFLHD-User-Manual.pdf)

MSDS INFORMATION (R600a_K.pdf)

Energy Guide
