Summit Performance Series Pharma-Vac all-freezer, 7.61101e+011, AFZ5PVBIADALHD

Accucold's Pharma-Vac Performance Series are upright freezers are designed and purpose-built for pharmacy, medication, and vaccine applications to support meeting CDC/VFC/VFA guidelines.

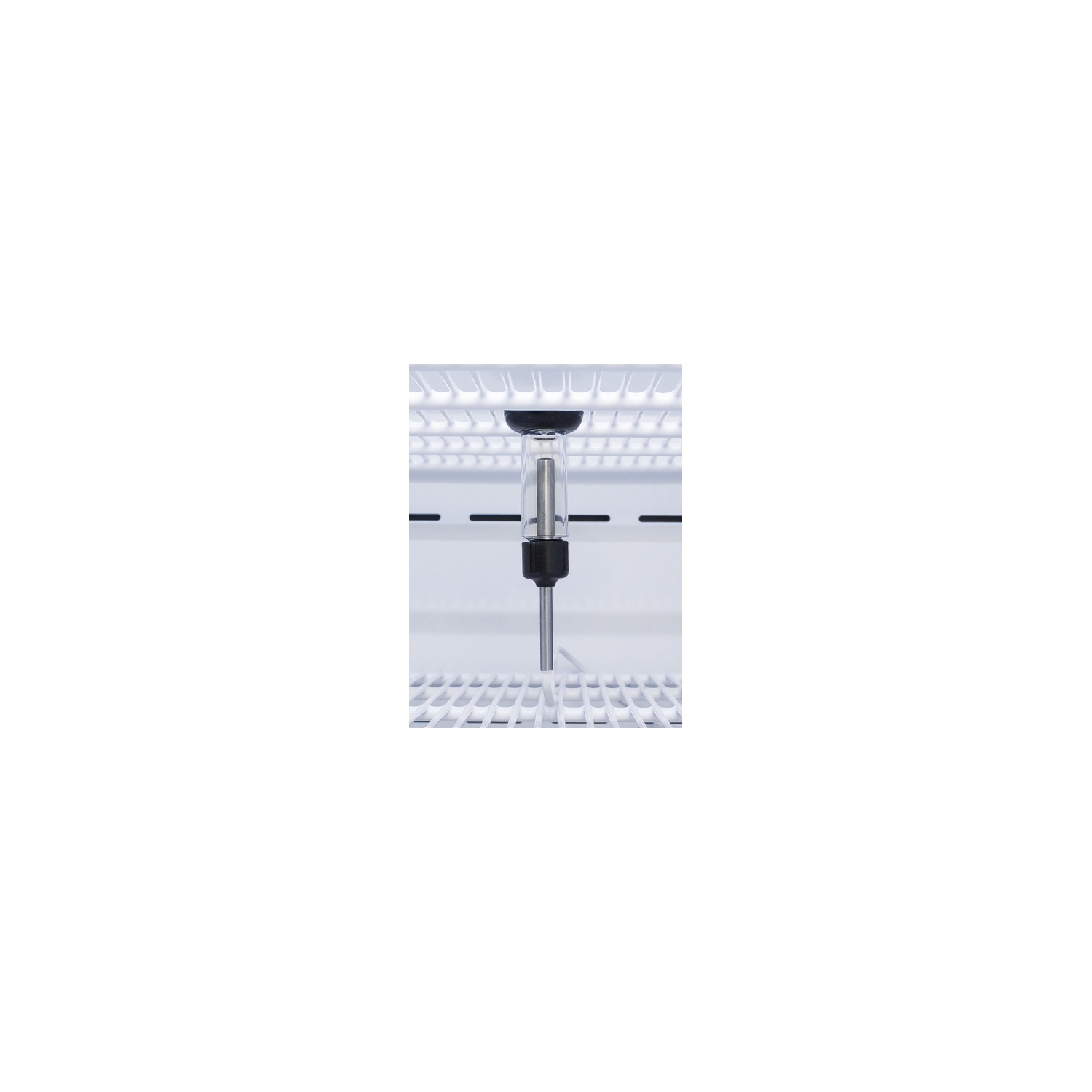

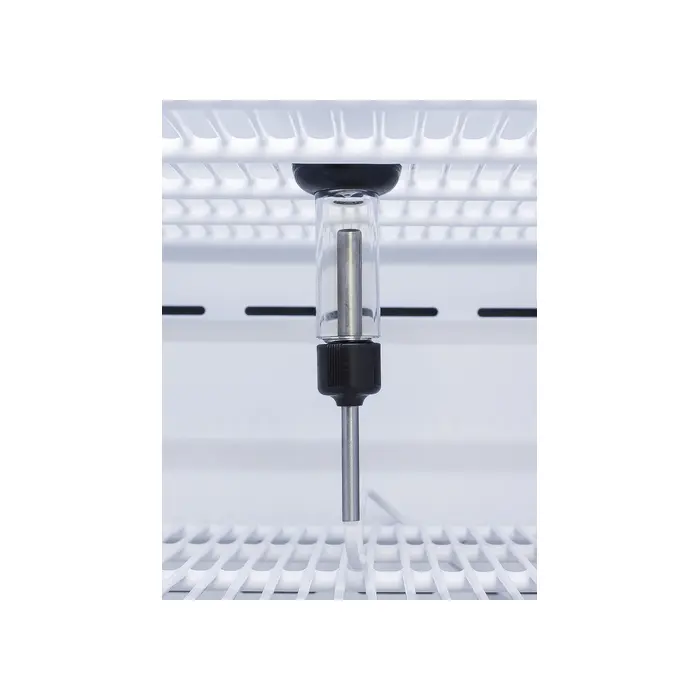

The AFZ5PVBIADALHD is a 3.88 cu.ft. all-freezer with a temperature range of -30°C to -10°C as recommended for a variety of vaccines and pharmaceuticals. It is designed for freestanding or recessed installation and sized just under 32" high to fit under lower counters complying with ADA guidelines for accessibility. The microprocessor temperature controller is externally located to minimize door openings, helping to protect stored contents from ambient temperature. The buffered temperature probe is encased in a glycol-filled bottle to better simulate temperature of the stored product, with an additional sensor that reads air temperature to ensure superior temperature control. The current and min/max temperature display is viewable in Celsius or Fahrenheit to the nearest tenth of a degree. The audible and visual temperature alarm sounds if the unit's interior goes out of range. Additional alarms include a power failure alert, door open alarm, and sensor failure alarm. This model is equipped with remote alarm contacts in the rear and a 1/2" probe port on the right side to accept additional monitoring devices. A hospital grade cord with 'green dot' plug is also included for added safety in high traffic areas.

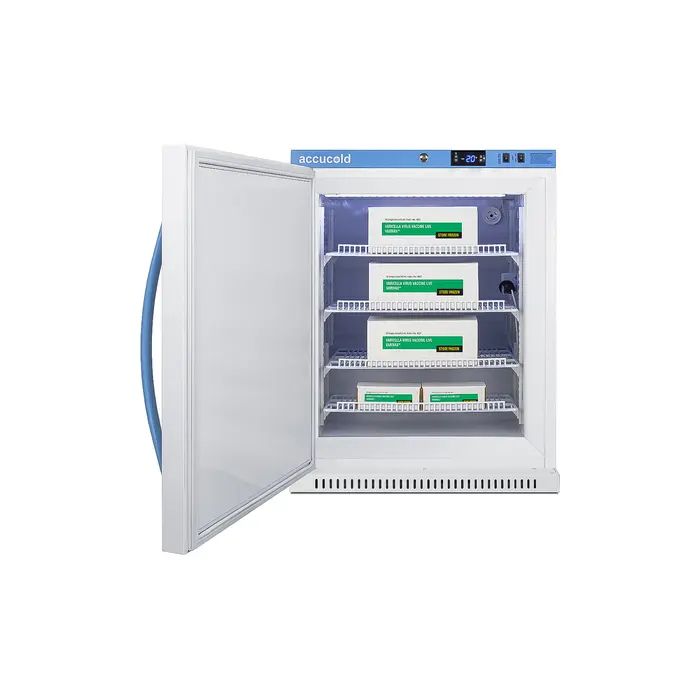

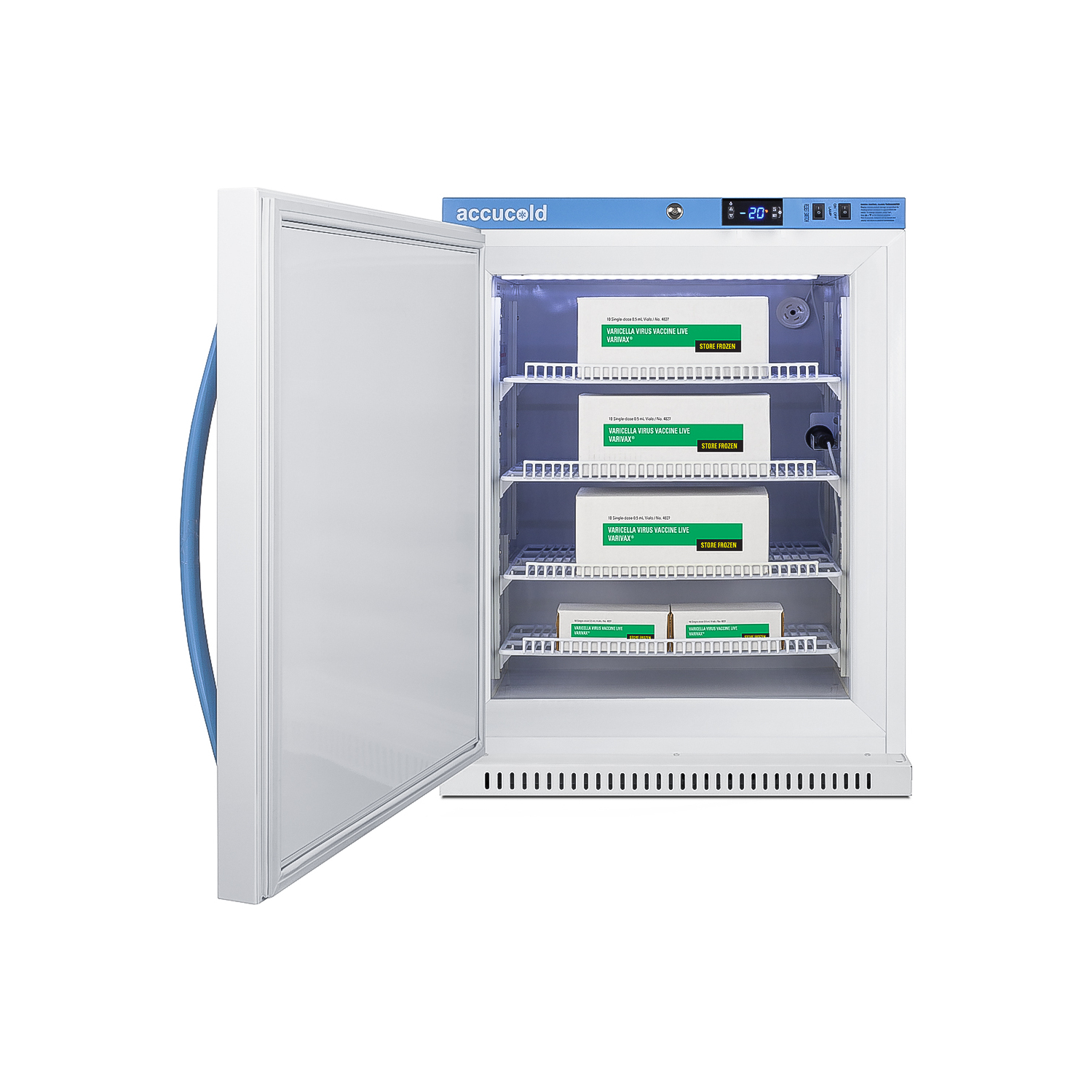

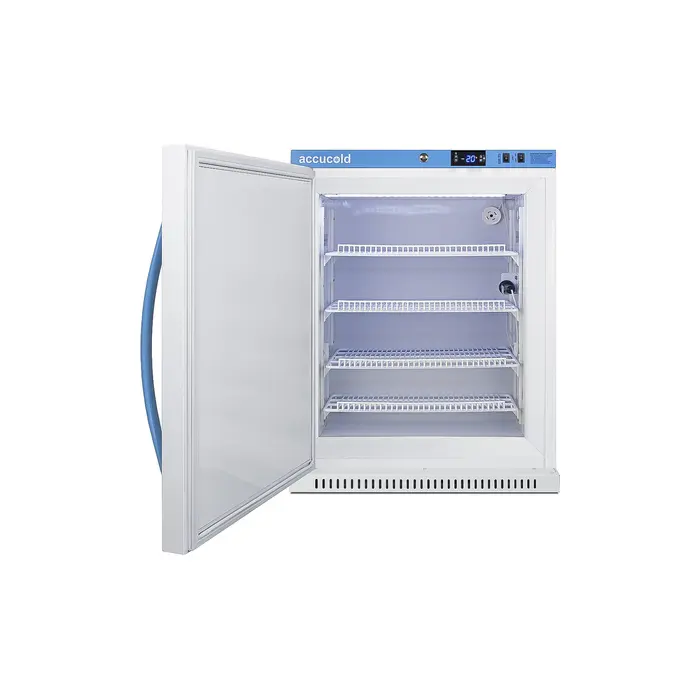

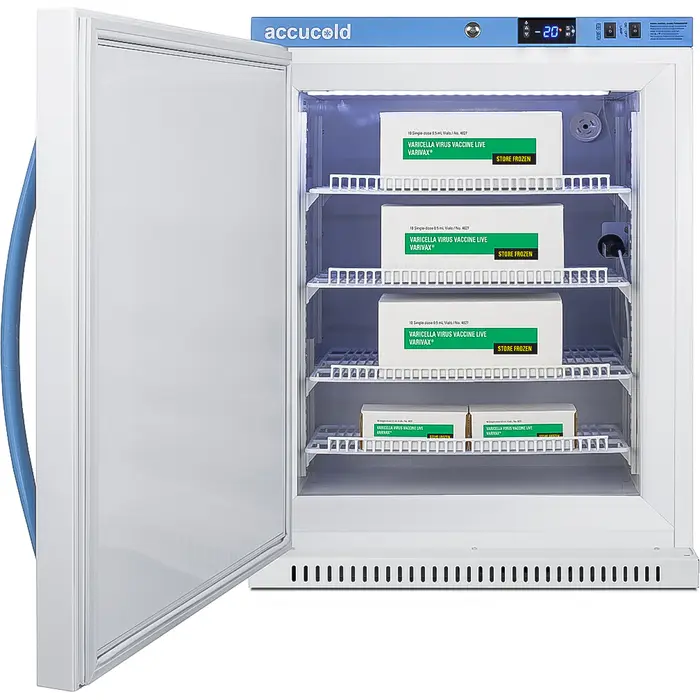

Inside, this freezer features adjustable plastic-coated wire shelves that can be positioned at 1/2" increments to accommodate virtually any sized item. This unit includes LED internal lighting with an on/off rocker switch. The interior is constructed from white powder coated metal to ensure added durability and better temperature retention. Static manual defrost cooling helps to ensure stable temperature conditions.

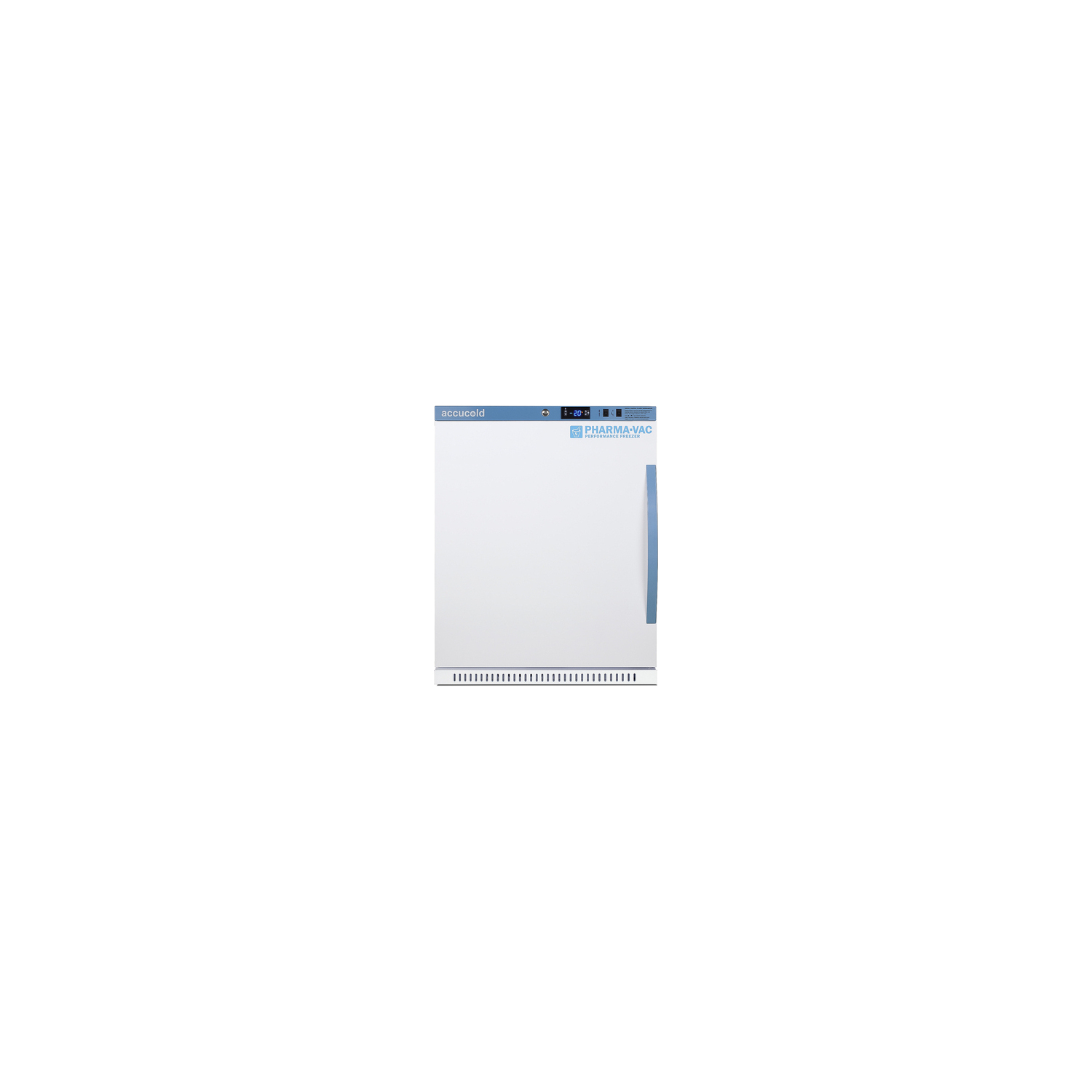

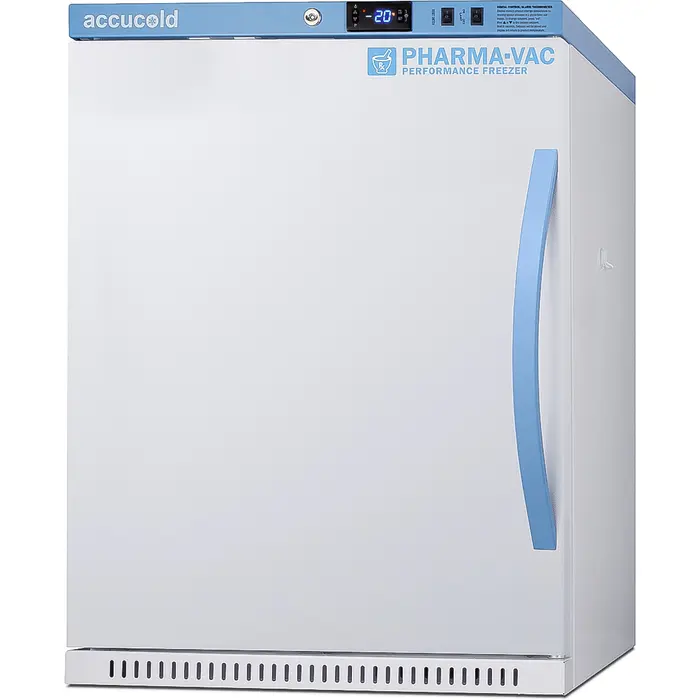

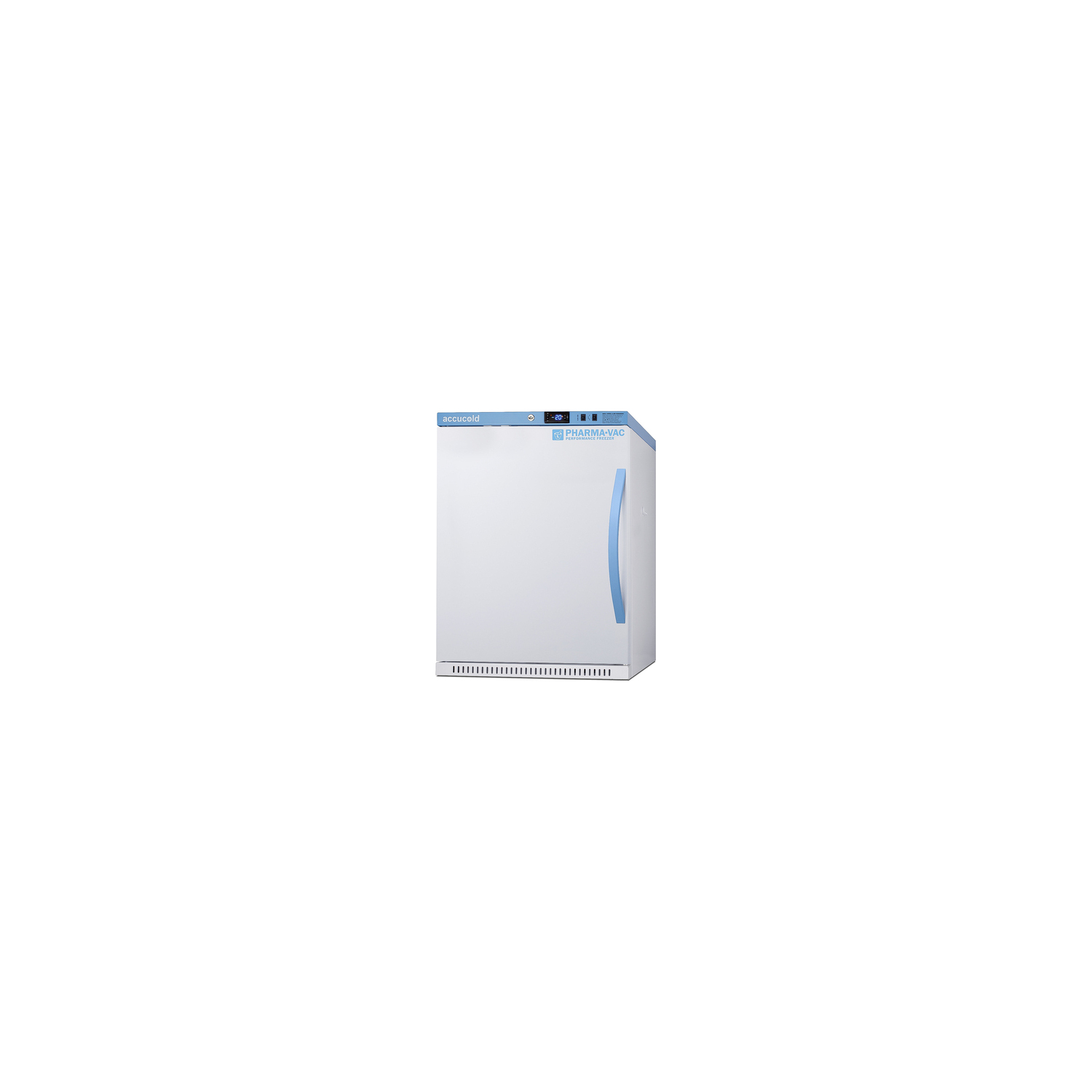

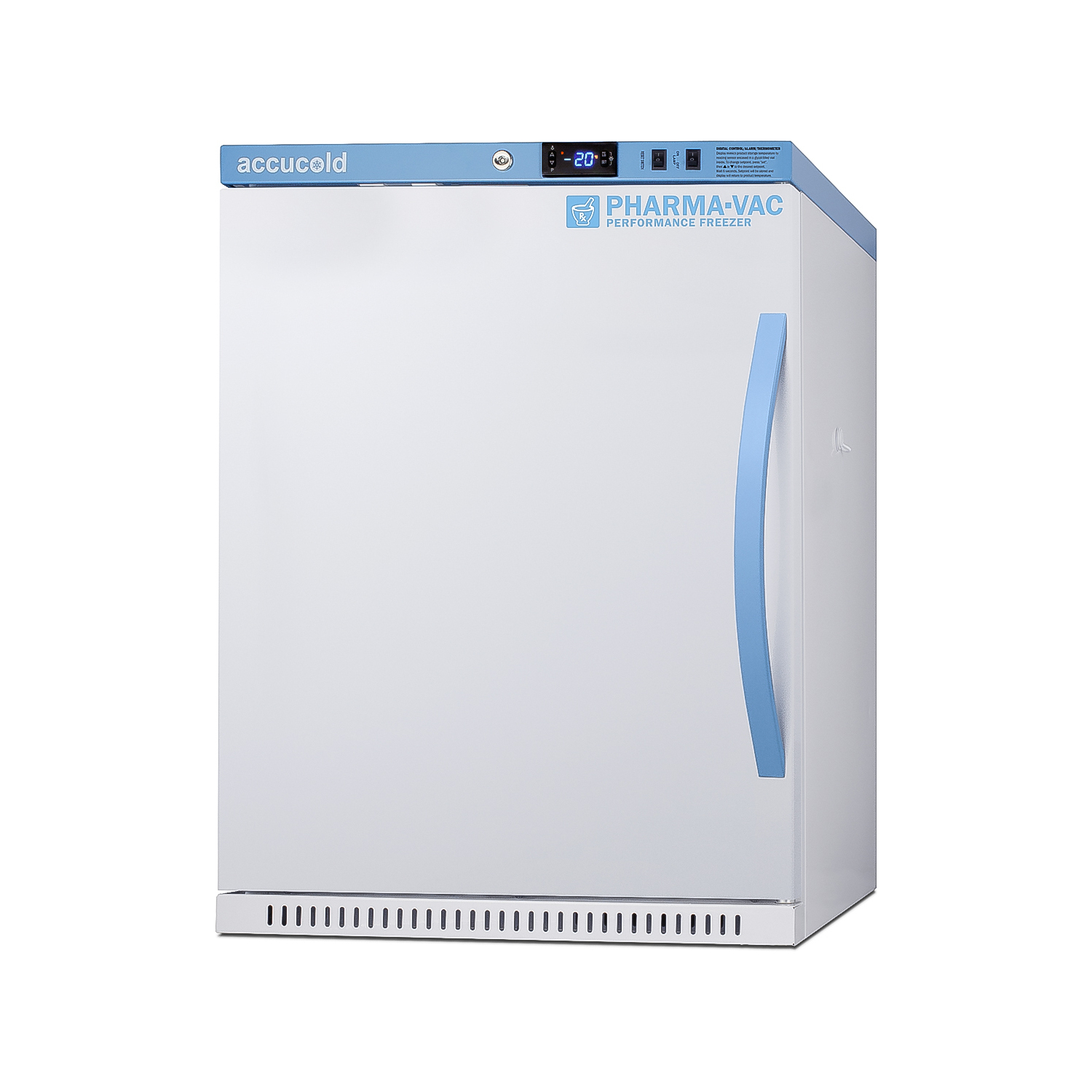

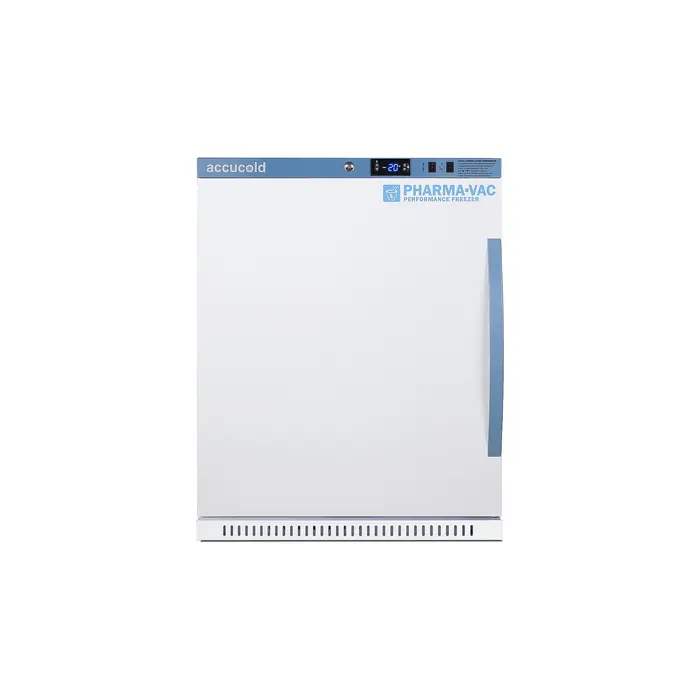

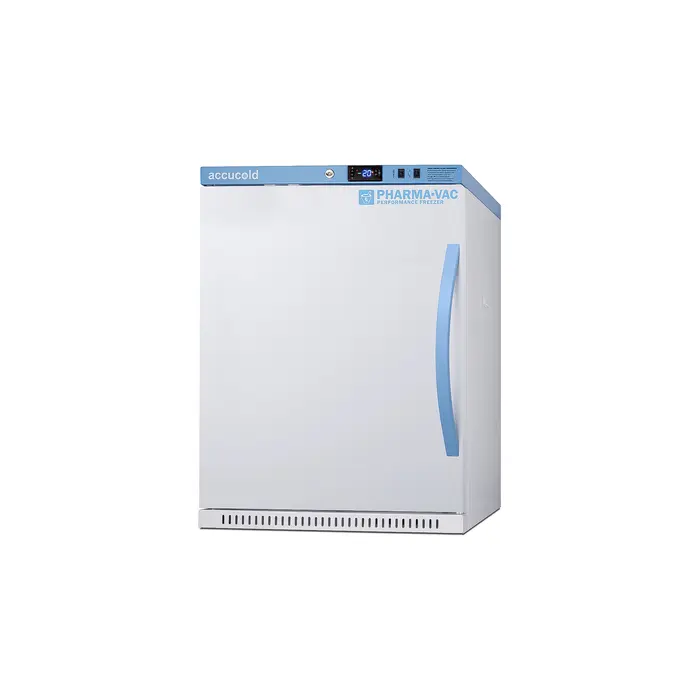

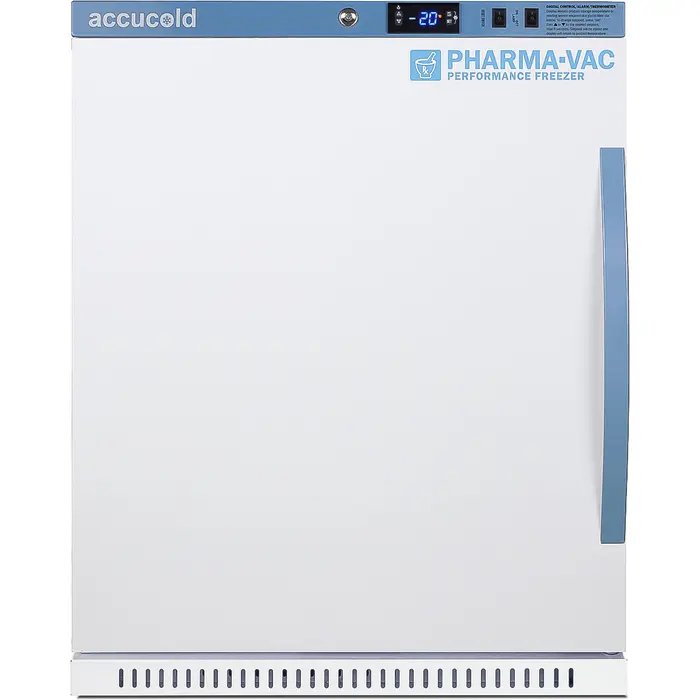

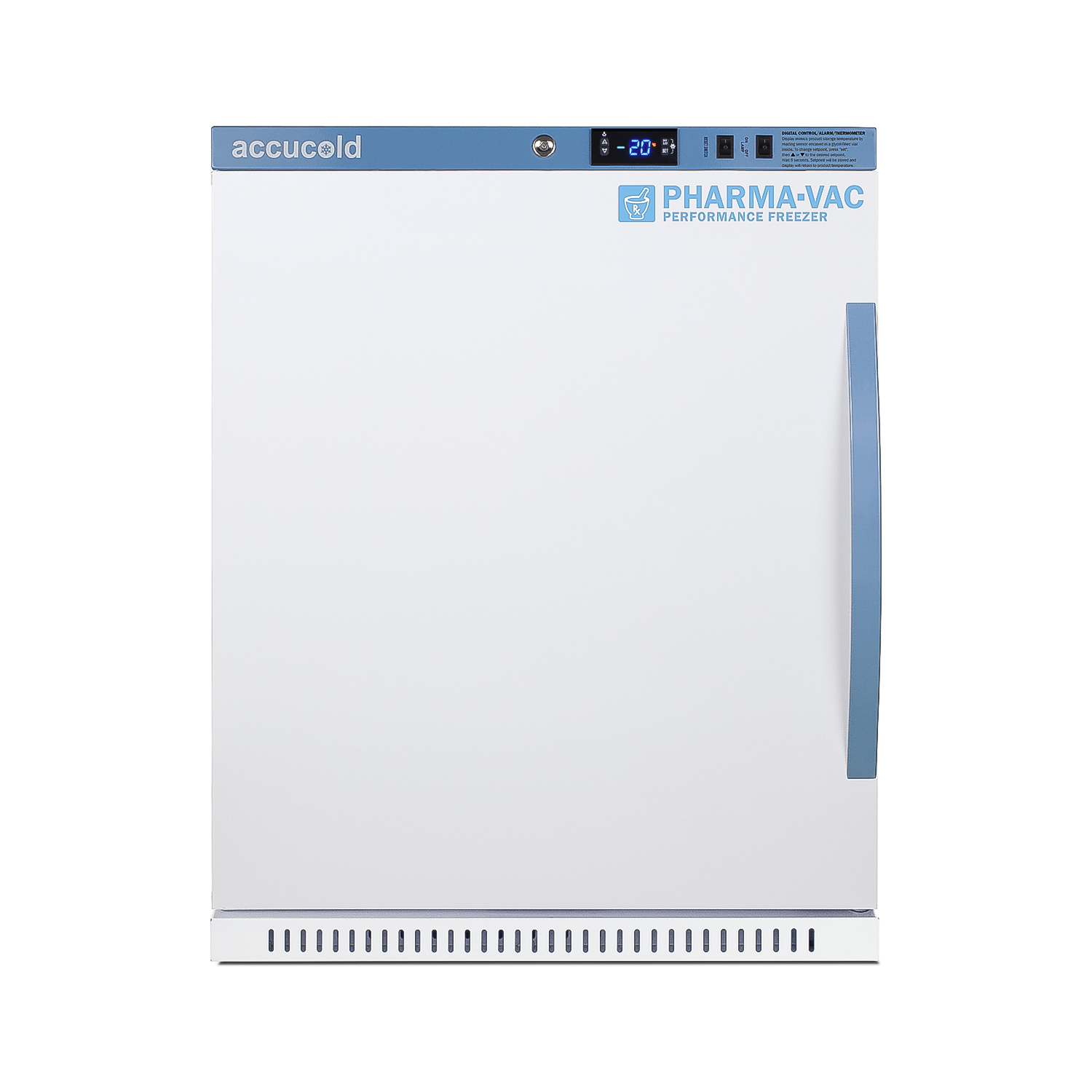

The AFZ5PVBIADALHD comes in a white cabinet finish with a blue accented control panel. The factory-installed antimicrobial handle is powder-coated with naturally occurring silver ions, which help to reduce the spread of germs, allowing for a safer, cleaner user experience. The door ships with a left hand swing and self-closing function, while a factory-installed lock provides security as needed, with two keys for staff use. Powerful magnetic gaskets ensure a positive seal.

Designed with hydrocarbon refrigerant, Accucold Performance series freezers provide an energy efficient solution to vaccine storage. This unit is Pyxis, Omnicell, and AcuDose RX compatible. Additional sizes, as well as matching refrigerators, are also available. Explore the full Pharma-Vac series at accucold.com/pharmavac.

NOTE: Accucold freezers are purpose-built to the support meeting the current CDC (Centers for Disease Control) guidelines for the storage of vaccines. For additional temperature assurance, the CDC recommends a calibrated digital data logger (DDL), which can be added with the factory-installed option DL2B or addition of the DL2BKit accessory.

SPECIFICATIONS

Overview

Nominal Height 32.0" (81 cm)

Height of Cabinet 31.75" (81 cm)

Nominal Width 24.0" (61 cm)

Width 23.38" (59 cm)

Width with Door Open 23.88" (61 cm)

Nominal Depth 25.0" (64 cm)

Depth 25.0" (64 cm)

Depth with Handle 26.75" (68 cm)

Depth with door at 90° 47.0" (119 cm)

Capacity 3.88 cu.ft. (110 L)

Defrost Type Manual

Door White

Cabinet White

US Electrical Safety ETL

Canadian Electrical Safety ETL-C

Amps 1.3

Voltage/Frequency 115 V AC/60 Hz

Weight 125.0 lbs. (57 kg)

Parts & Labor Warranty 2 Years

Compressor Warranty 5 Years

UPC 761101104072

Freezer

Door Swing LHD

Reversible No

Interior Height 22.5" (57 cm)

Interior Width 18.0" (46 cm)

Interior Depth 18.0" (46 cm)

Shelf Type Wire

Shelf Qty 4

Adjustable Shelves Yes

Thermostat Type Digital

Interior Light Yes

Refrigerant Type R290

Refrigerant Amount 1.73 oz.

High Side PSI 280.0

Low Side PSI 130.0

Compressor Step Height 6.5" (17 cm)

Compressor Step Width 18.0" (46 cm)

Compressor Step Depth 7.13" (18 cm)

Temperature Range -30 to -10ºC

FEATURES

Performance Series freezer Purpose-built all-freezer for vaccine storage in medical, pharmaceutical, and life science applications

Purpose-built design Designed and purpose-built for pharmacy, medication, and vaccine applications to support meeting CDC/VFC/VFA guidelines

ADA Compliant Just under 32" tall designed to fit under ADA compliant counters

Recessed or freestanding use Versatile design allows recessed installation under counters or freestanding use

+/-1ºC Variation The published temperature variation is derived from the maximum deviation of an NTC sensor in a 1 oz. vial located nearest the chamber geometric center during a 24 hour test period

Commercial design Meets UL-471 commercial standards

Adjustable temperature Intuitive controls let you adjust the interior temperature between -30°C to -10ºC

Temperature alarm Visual and audible alarms alert if the interior temperature rises or falls out of set range

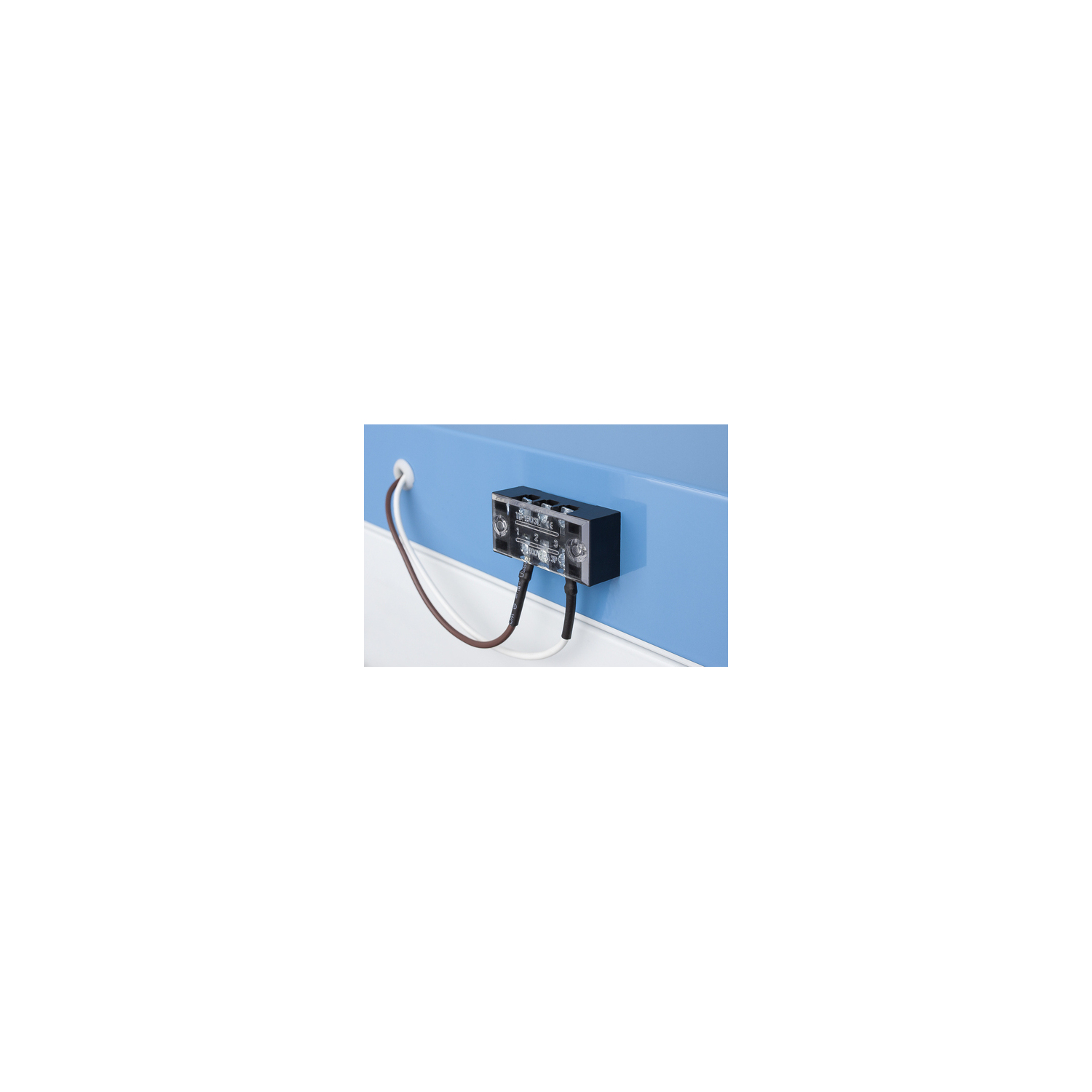

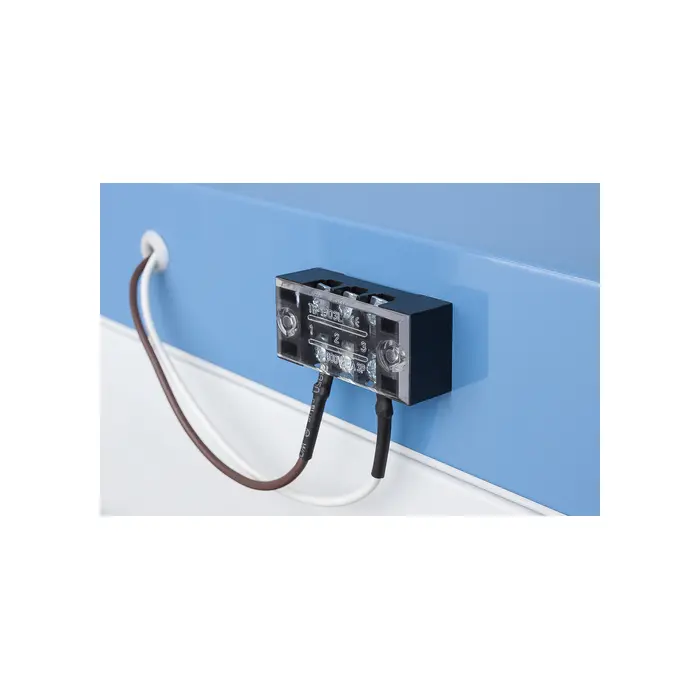

Remote alarm contacts Electronic controller is equipped with a volt-free contact for alarm forwarding to an external remote system (contacts located in the external rear of the unit)

Manual defrost operation Static cooling system for an efficient and stable interior

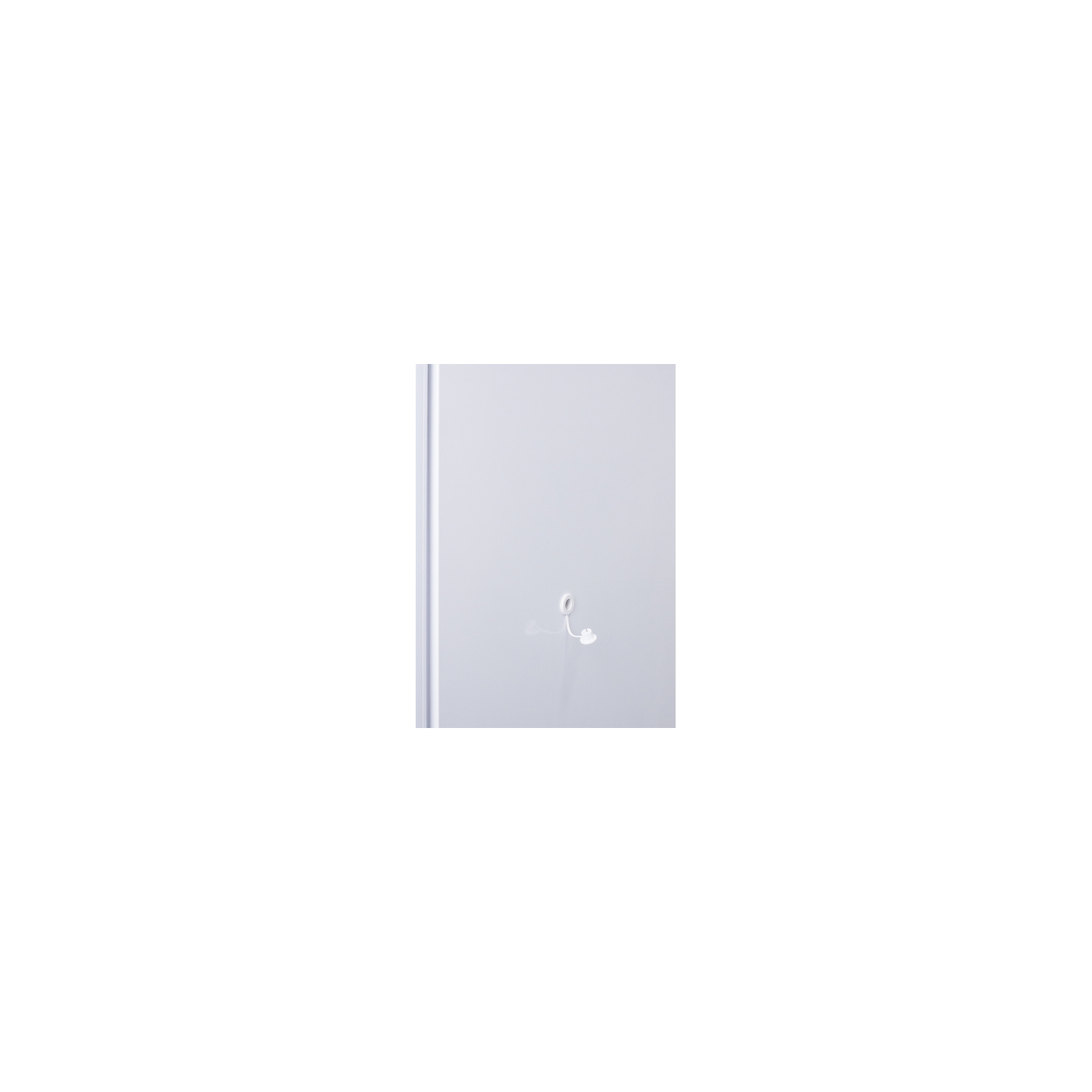

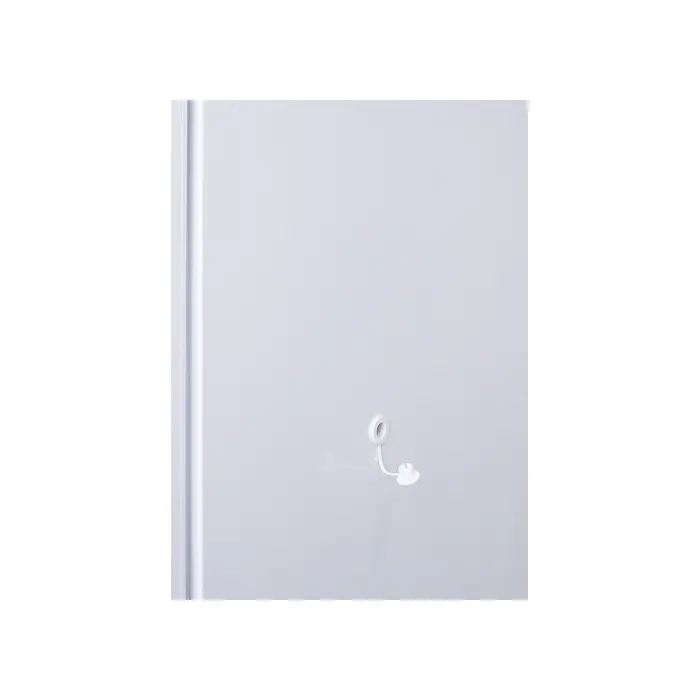

Access port Includes a pre-installed 1/2" probe hole in the right interior wall to allow easier connection to user-provided monitoring equipment

Open door alarm Alarm will sound if the door is left ajar for over 4 minutes (adjustable from 1-99 minutes)

Audible power failure alarm Battery-powered alarm sounds if the power connection is interrupted

Sensor failure alarm Audible and visual alarm warns if the sensor is disrupted

Password protection Control panel requires password entry to adjust the parameters beyond the set point

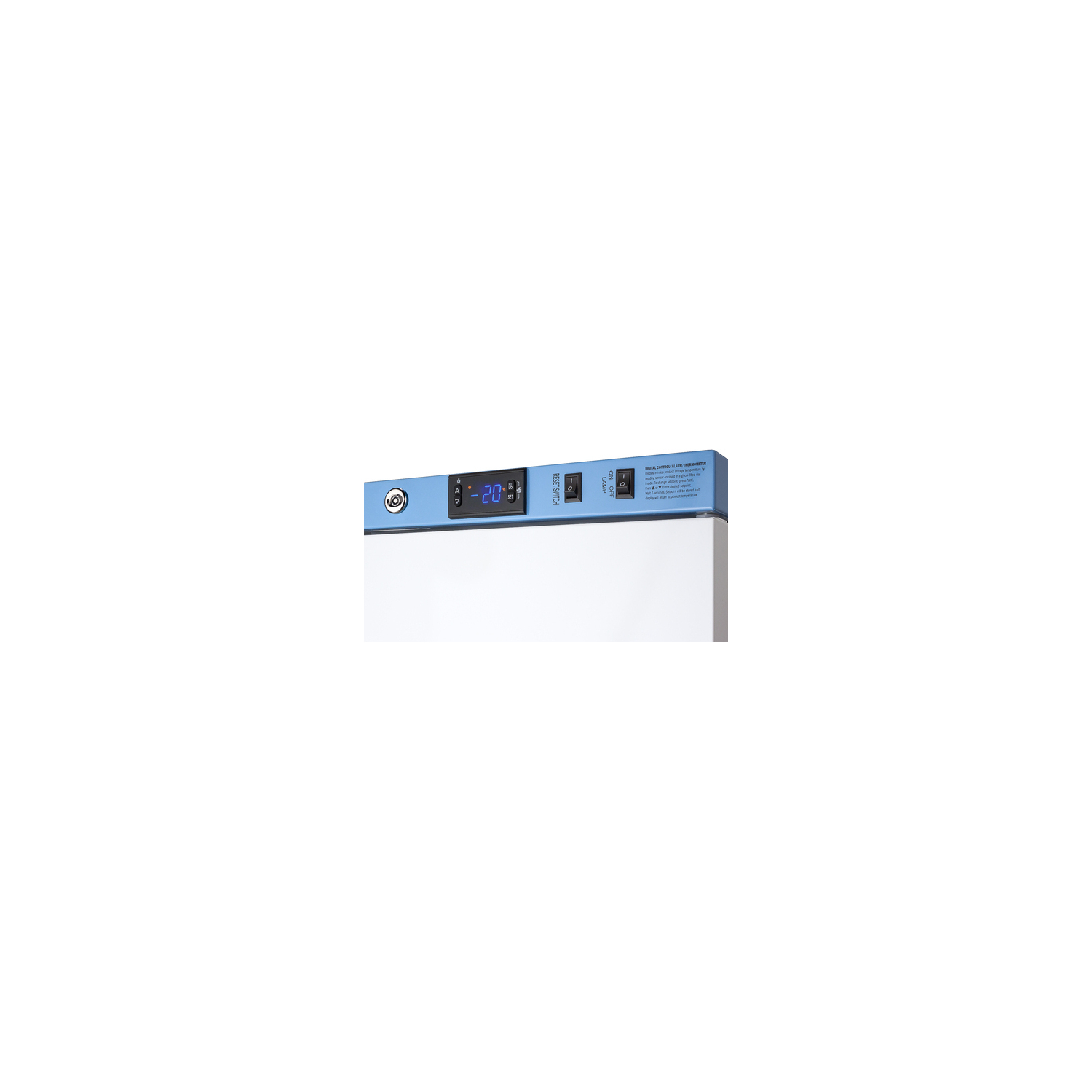

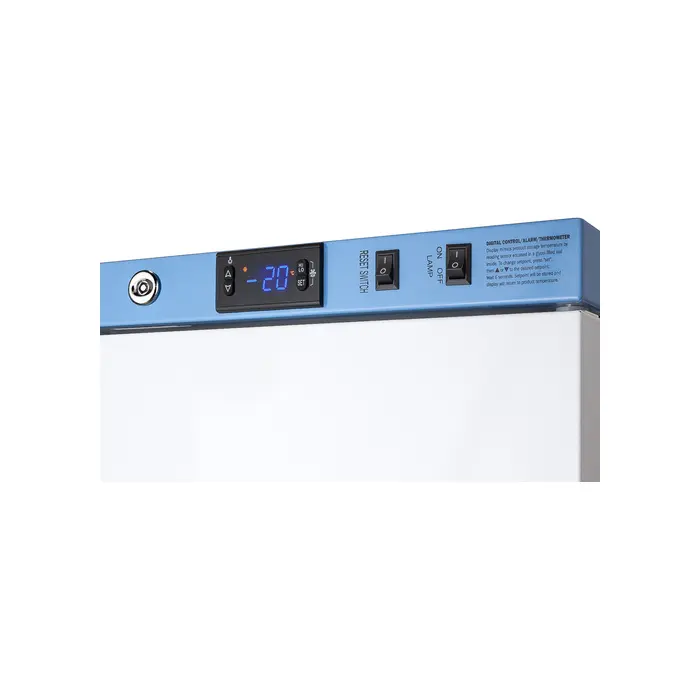

Microprocessor control panel Digital controls with a large LED readout in Celsius or Fahrenheit for intuitive temperature management

Resettable min/max display Control panel provides a readout of the low and high temperatures in 15 minute increments

Factory-installed lock Keyed lock conveniently located towards the top of the door for added security (2 keys included)

Antimicrobial silver ion-coated handle Powder-coated handle with naturally occurring silver ions to help reduce the spread of germs

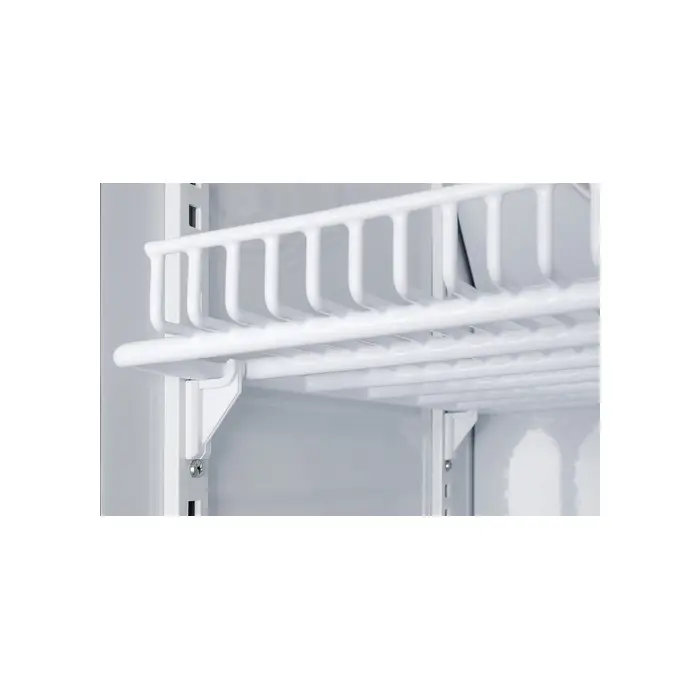

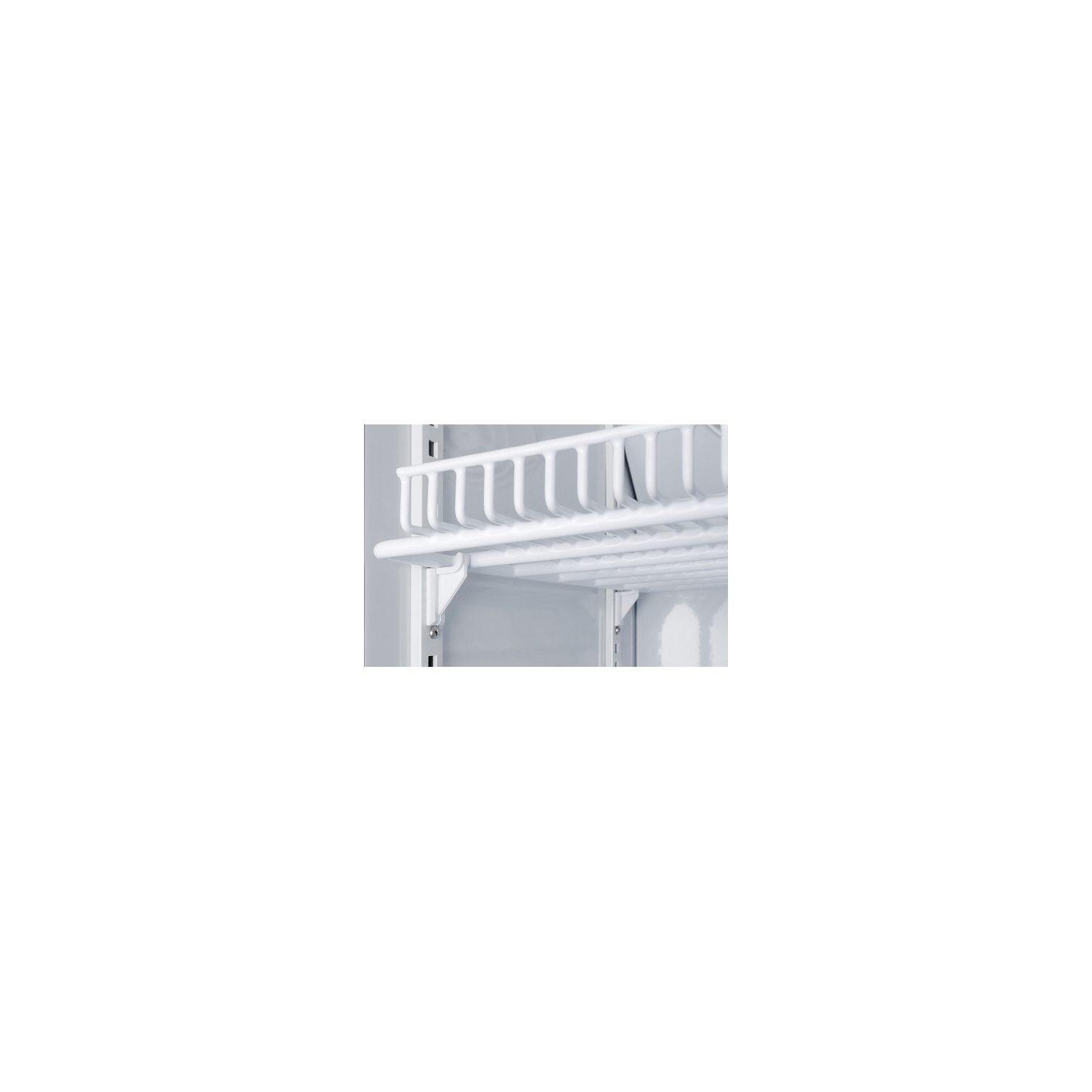

Adjustable plastic-coated wire shelves for improved circulation Shelves can be positioned with a front lip for small storage items or reversed to a flat position to better hold larger items, with multiple shelf positions spaced at 1/2" to accommodate virtually any size

Hospital grade cord with 'green dot' plug Secure three-pronged cord for added unit safety

Durable interior Walls are constructed from white powder coated metal for added strength and improved temperature retention

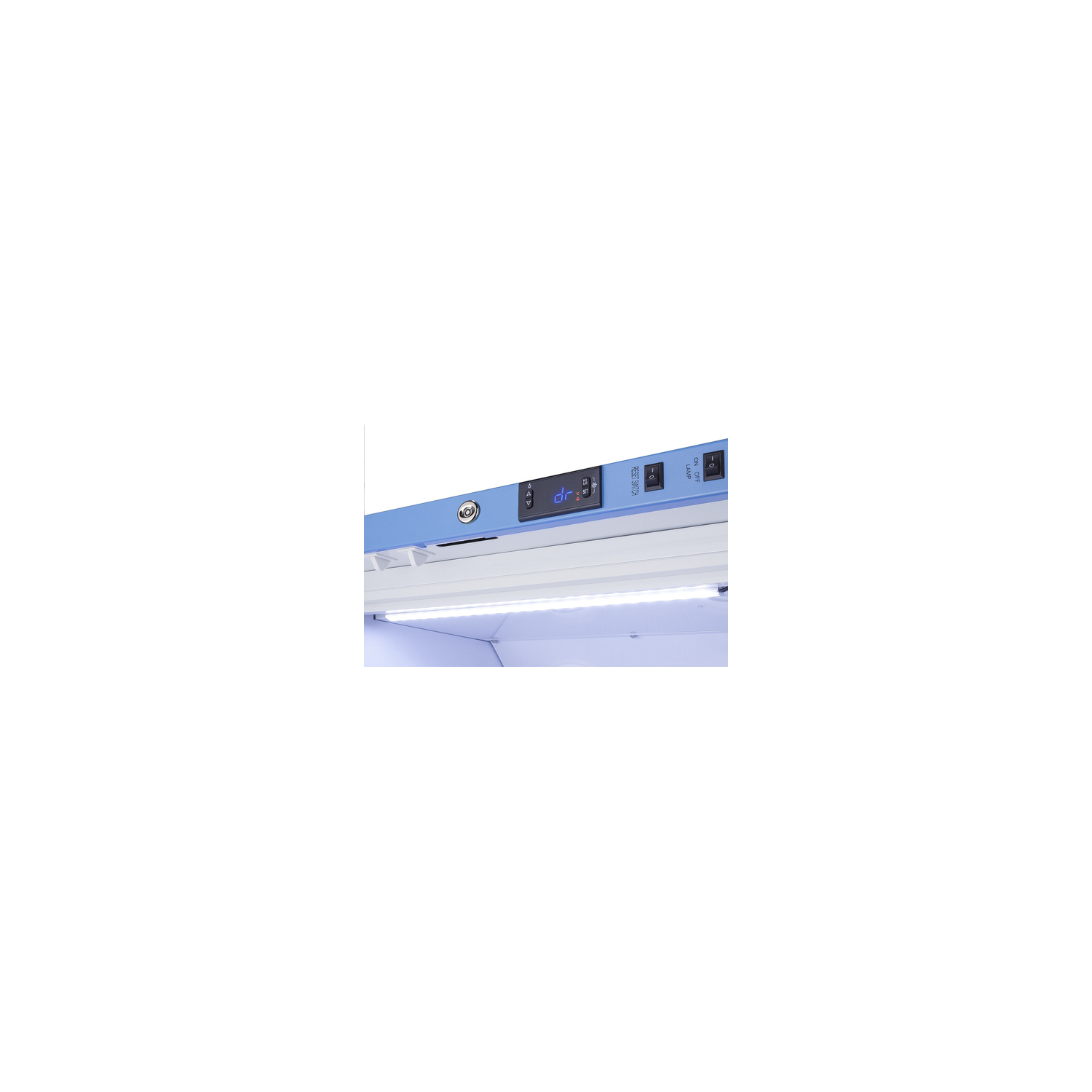

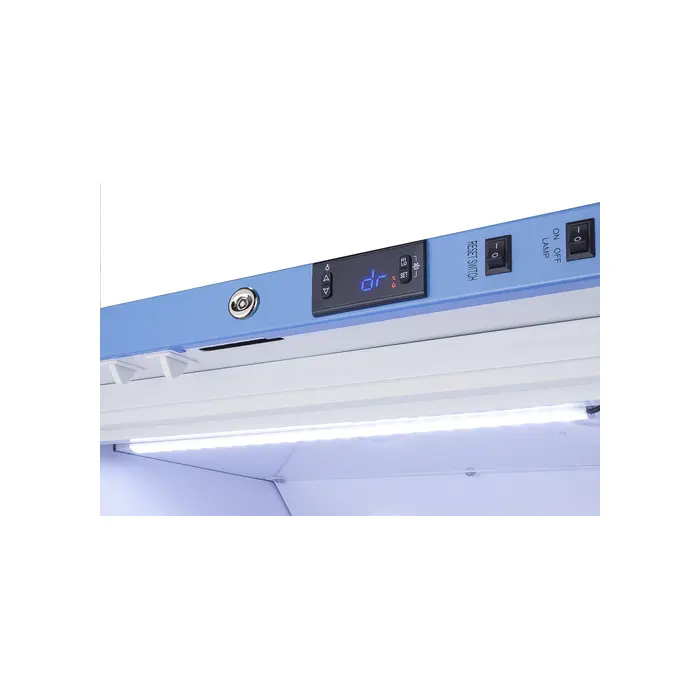

Interior light Energy efficient LED lighting with internal on/off switch

Self-closing door Added protection in busy settings

Left For this unit with the door opening from the other side, see model AFZ5PVBIADA

Magnetic door gasket Quality door gaskets ensure a tight seal for energy savings and improved performance

Fully finished white cabinet Allows the unit to be used freestanding

Extended warranty 2 years parts and labor/5 years compressor

Eco-Friendly Using environmentally friendly hydrocarbons refrigerants for a greener footprint

Usage stickers Ships with removable warning stickers for "DO NOT UNPLUG," "DO NOT ADJUST TEMPERATURE," and "DO NOT STORE PERSONAL ITEMS"

Matching refrigerator Pair with Accucold ARS62PVBIADA (solid door) or ARG61PVBIADA (glass door) as a stackable or side-by-side set

Versatile design Compatible with Pyxis®, Omnicell®, and AcuDose RX®

100% CFC free Environmentally friendly design without ozone-damaging chemicals

CARB Compliant Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
