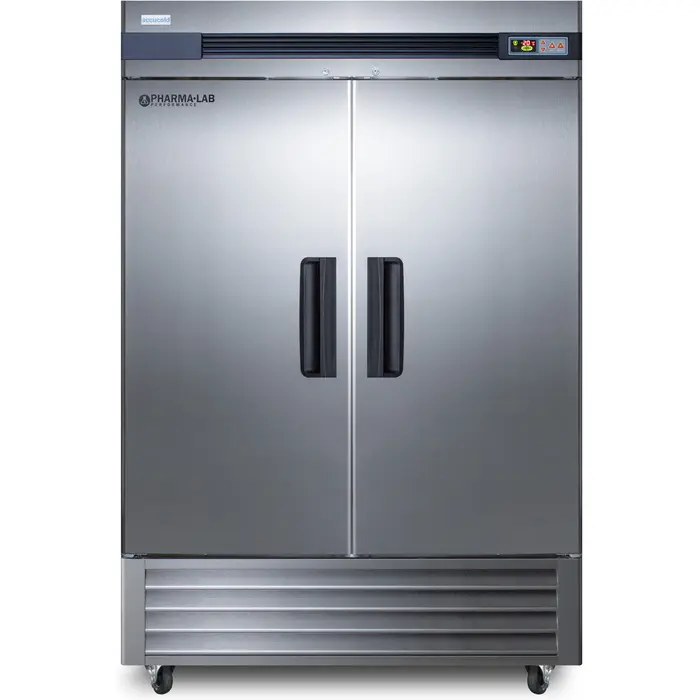

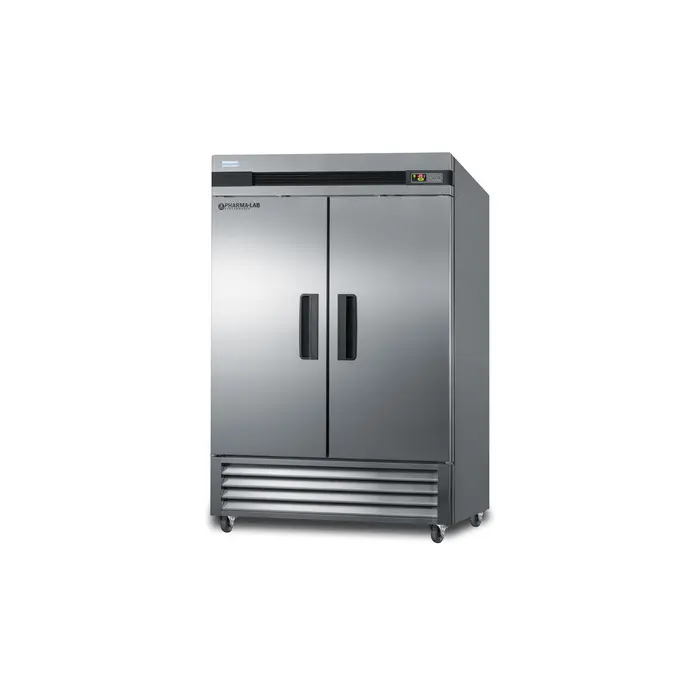

Summit Pharma-Lab frost-free 49 cu.ft.2-door all-freezer in stainless steel, 7.61101e+011, AFS49ML

Accucold's Pharma-Lab Performance Series features reach-in refrigerators and matching freezers designed and purpose-built to meet the demanding needs for pharmacy, medication, vaccine, laboratory, and life science applications.

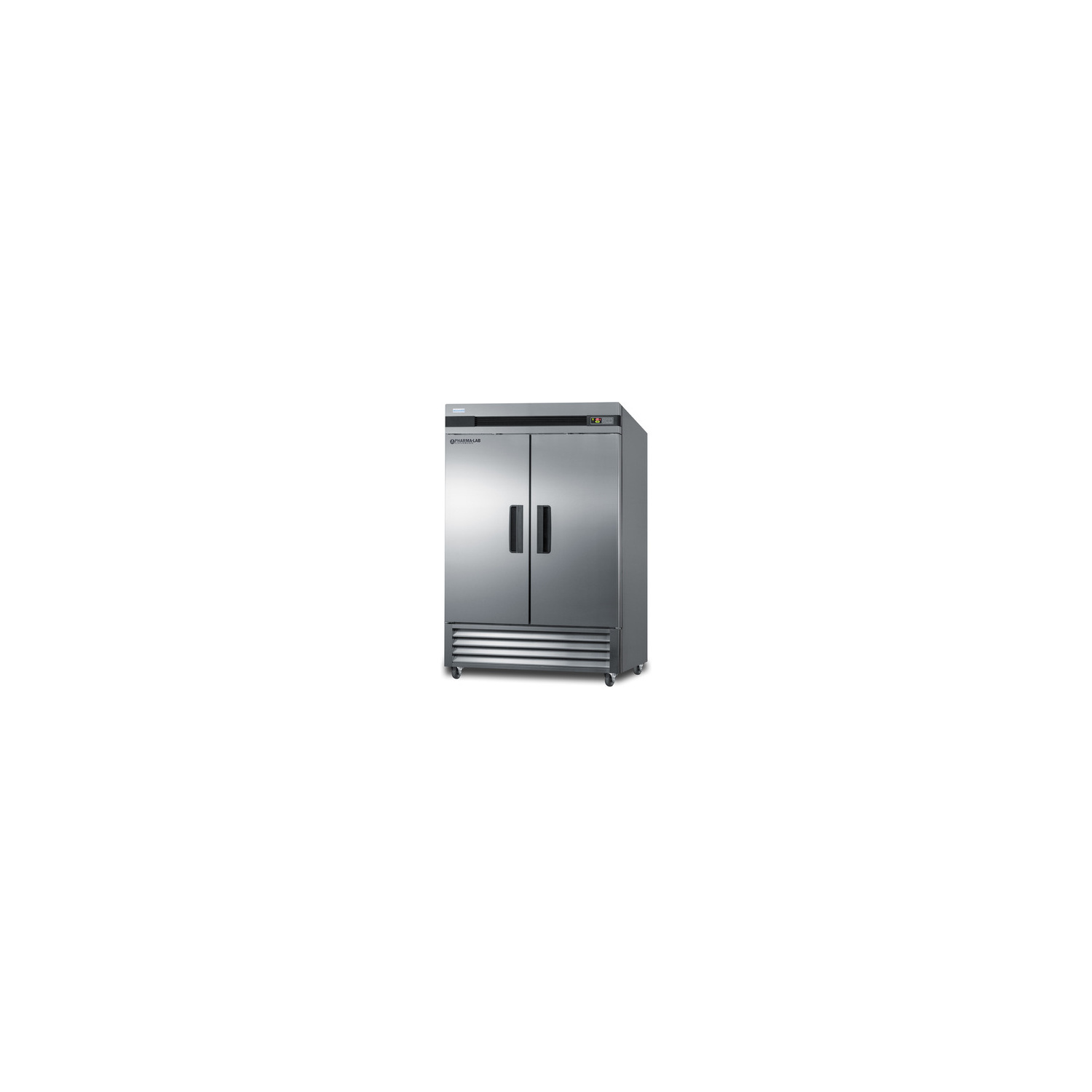

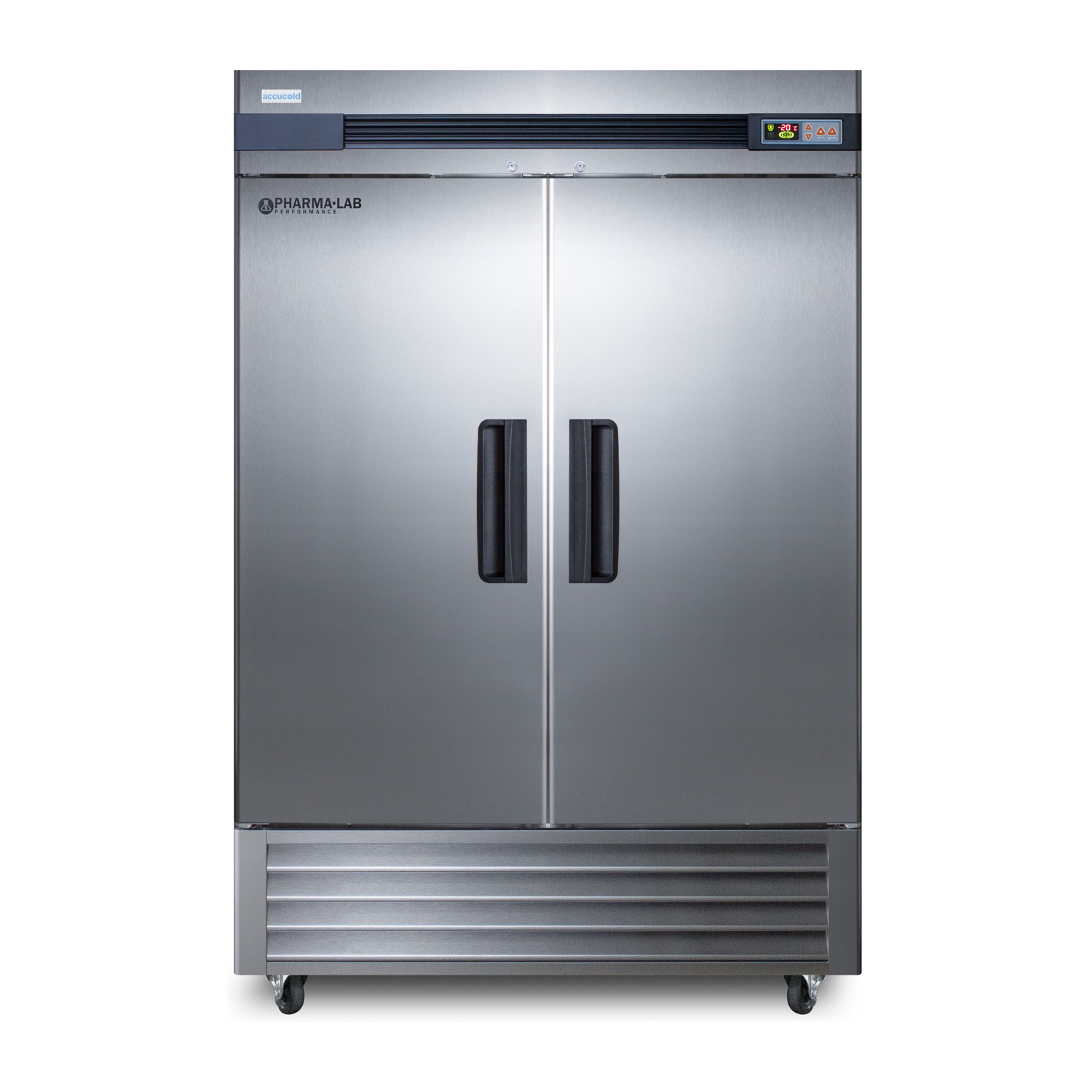

The AFS49ML is a 49 cu.ft. two-door single section all-freezer with an adjustable control range from -30 to -15ºC. The microprocessor temperature controller features a large digital LED display viewable in Celsius or Fahrenheit, making it easy for staff to manage and monitor the temperature. The unit is equipped with an air sensor for rapid control response and a product sensor for a more accurate reading of the interior, including a display of the min/max temperature in 15 minute increments The audible and visual temperature alarm sounds if the unit rises or falls above a user-set range. Additional alarms include a power failure alert, door open alarm, and a condenser cleaning reminder.

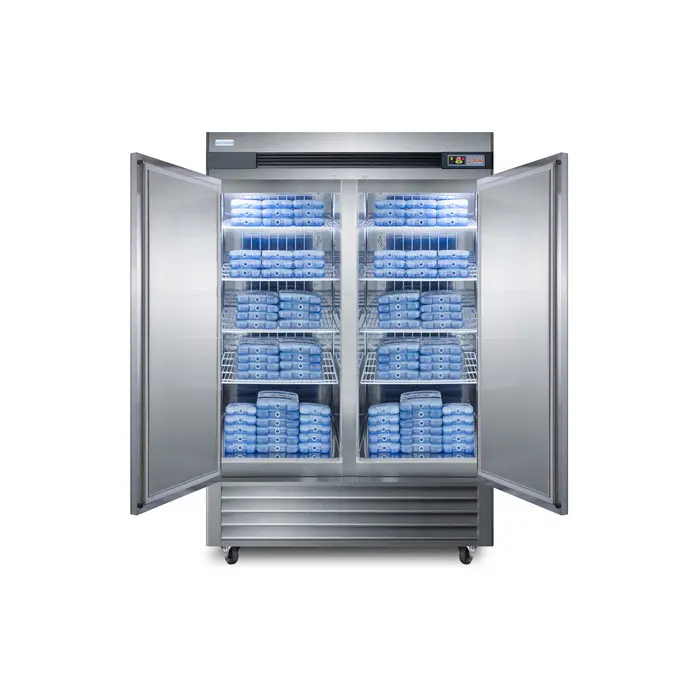

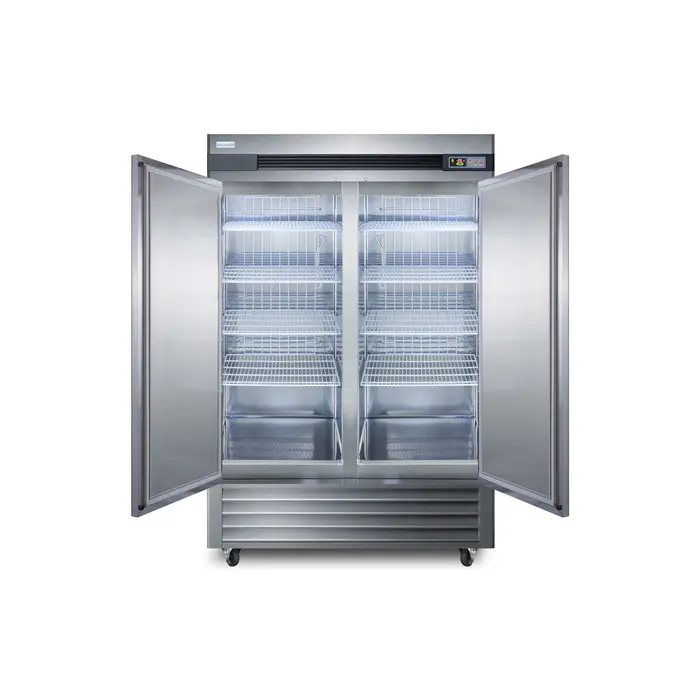

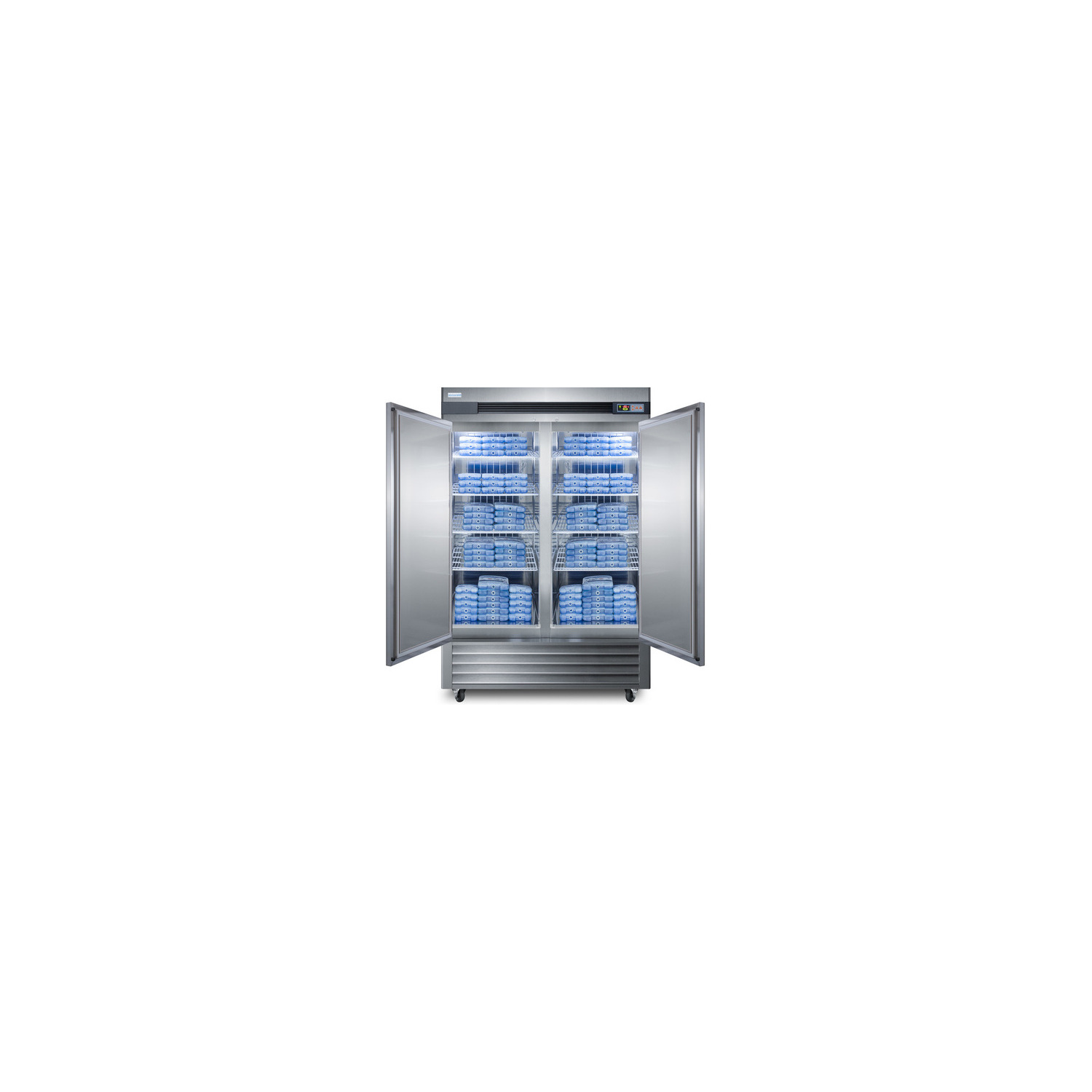

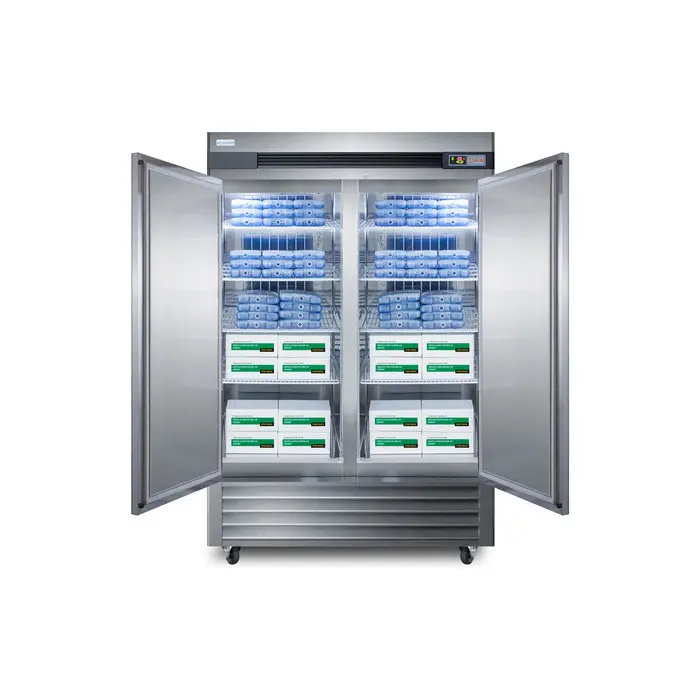

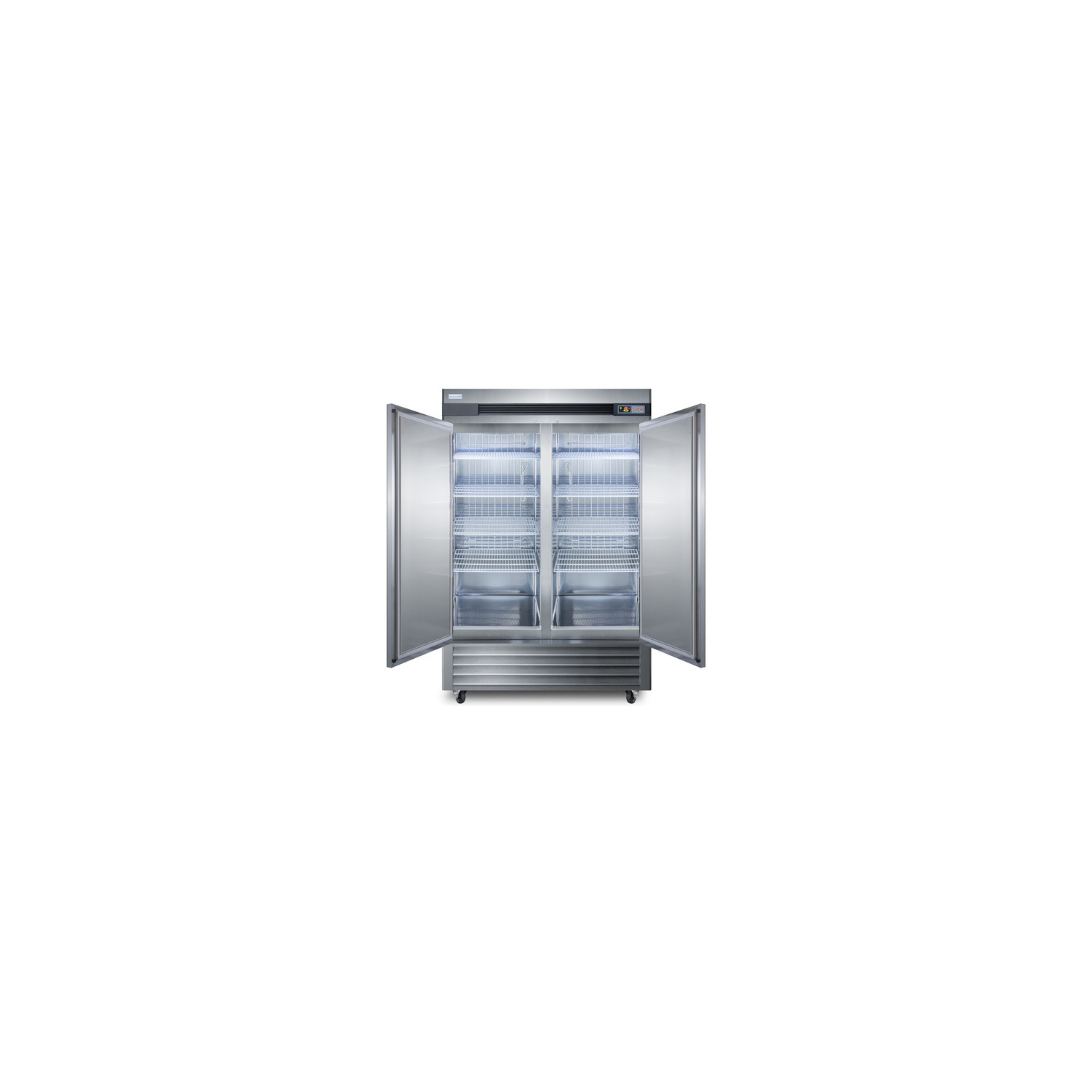

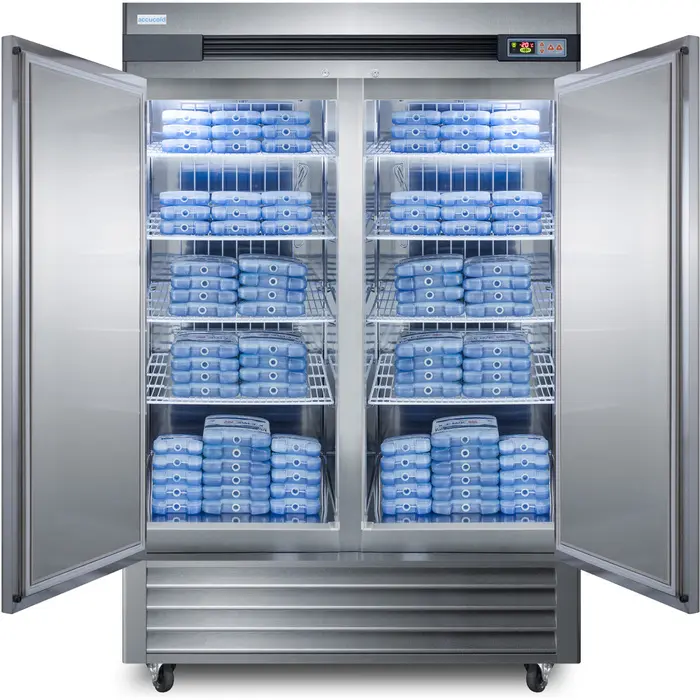

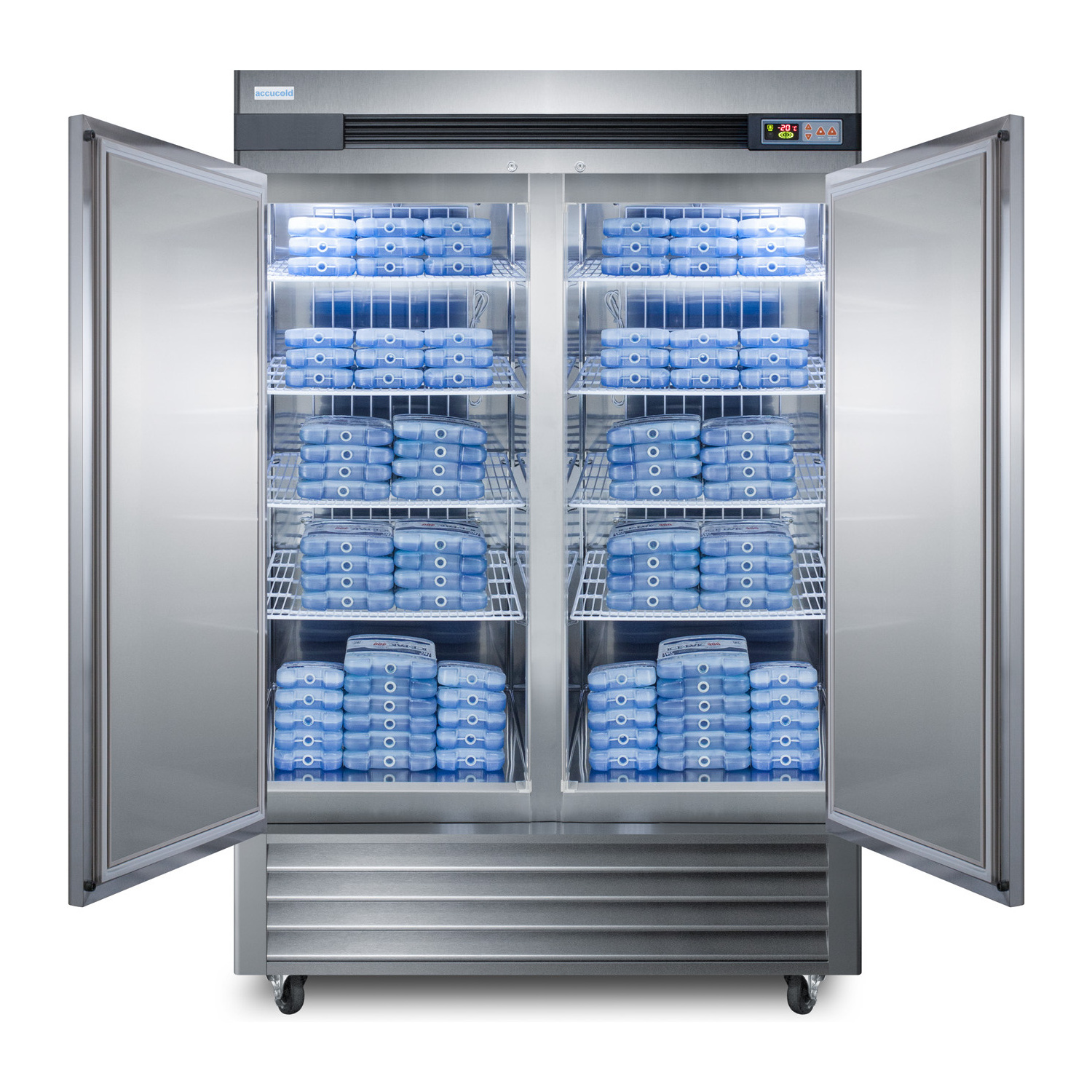

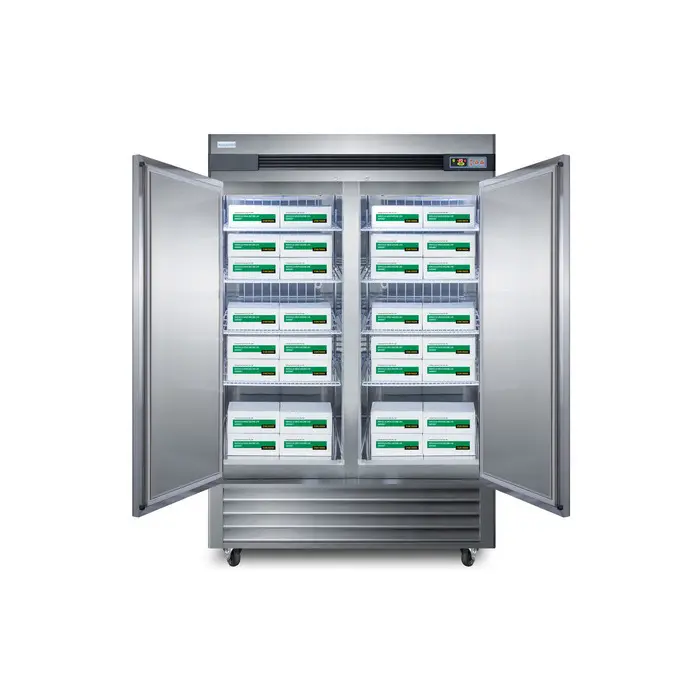

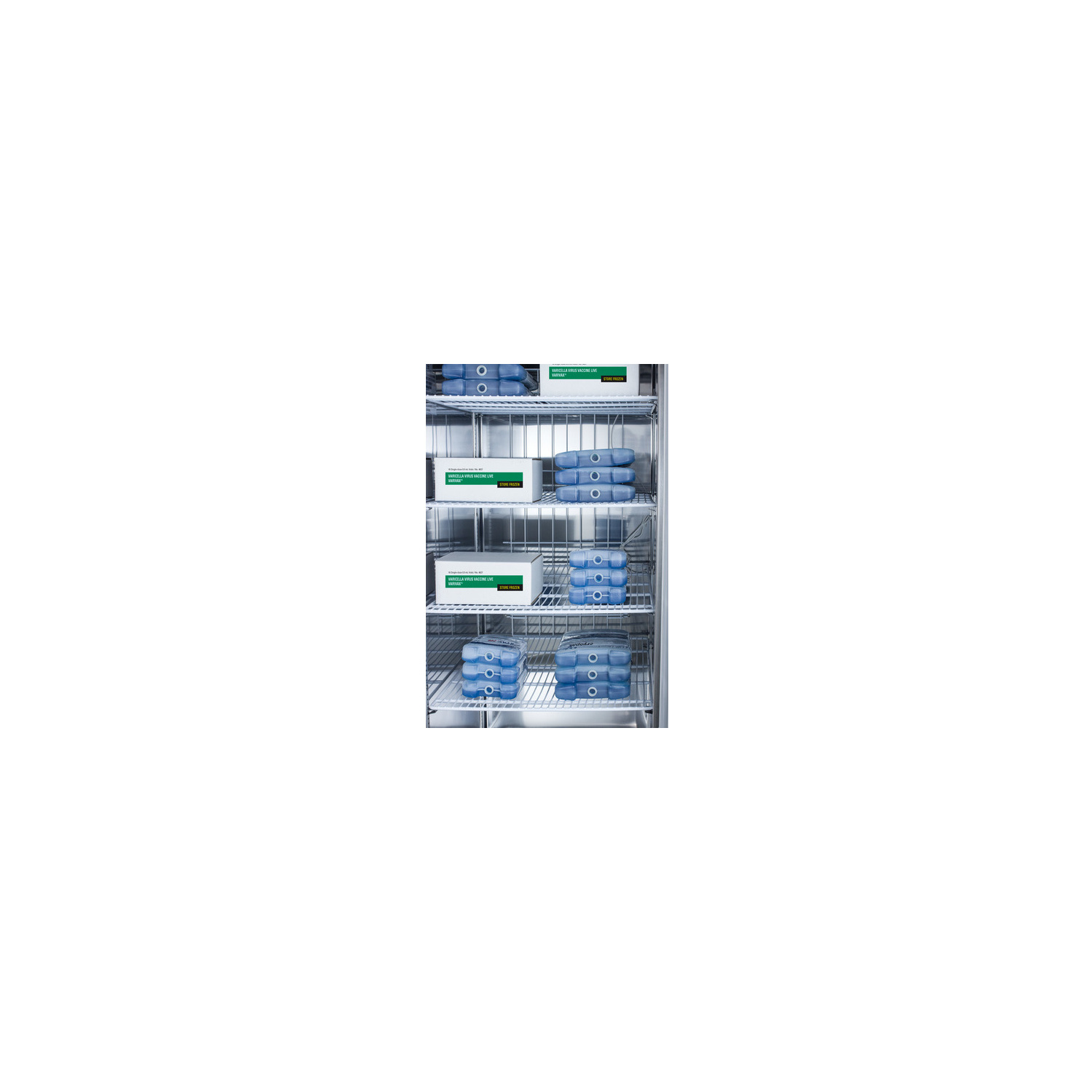

Inside, the AFS49ML utilizes adjustable cycle defrost operation to avoid temperature spikes, with a top-mounted forced air cooling system to ensure rapid temperature recovery. Eight vinyl-coated wire shelves on cantilevered clips allow you to accommodate virtually any sized item. The LED lighting displays automatically when the door is open, providing a full and energy efficient display.

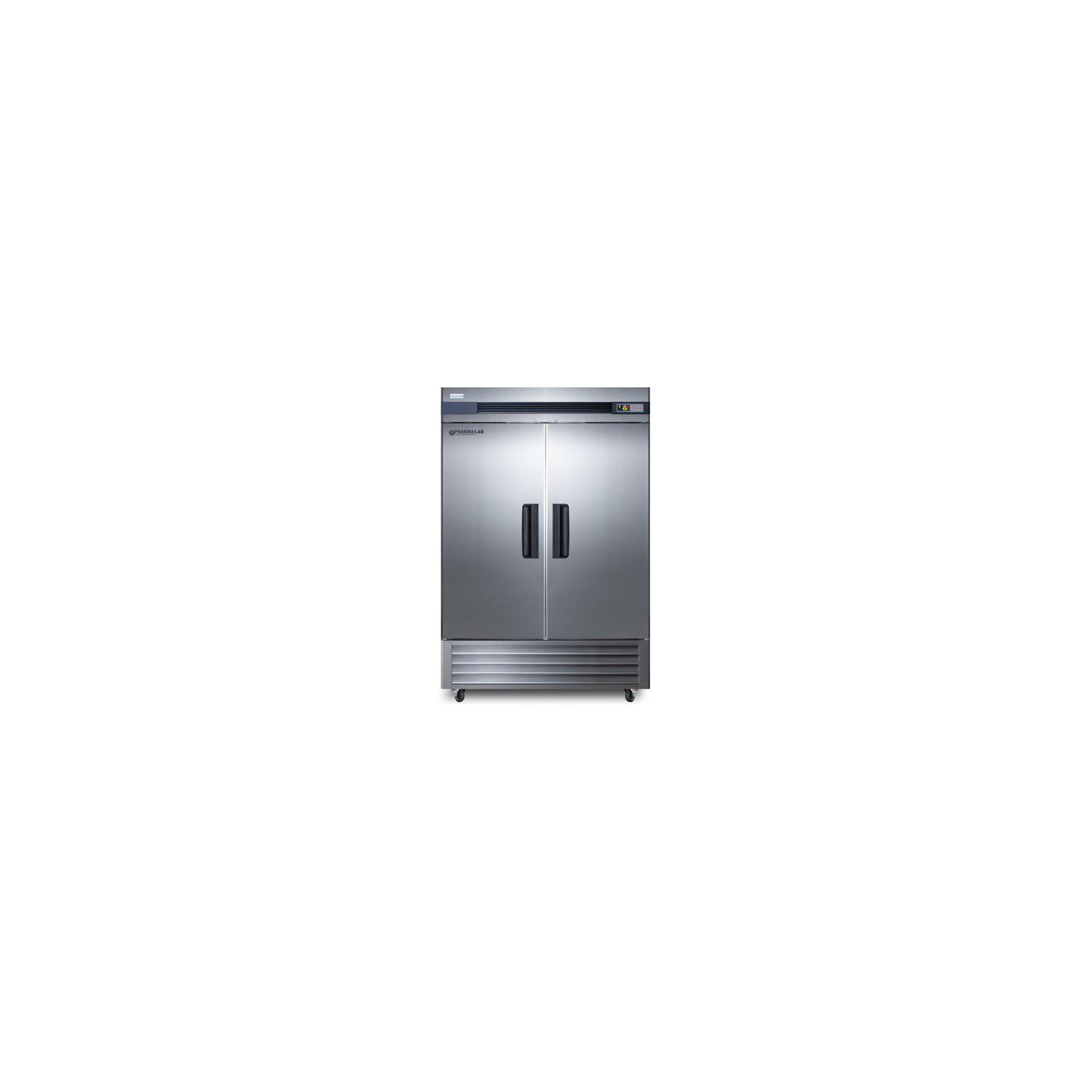

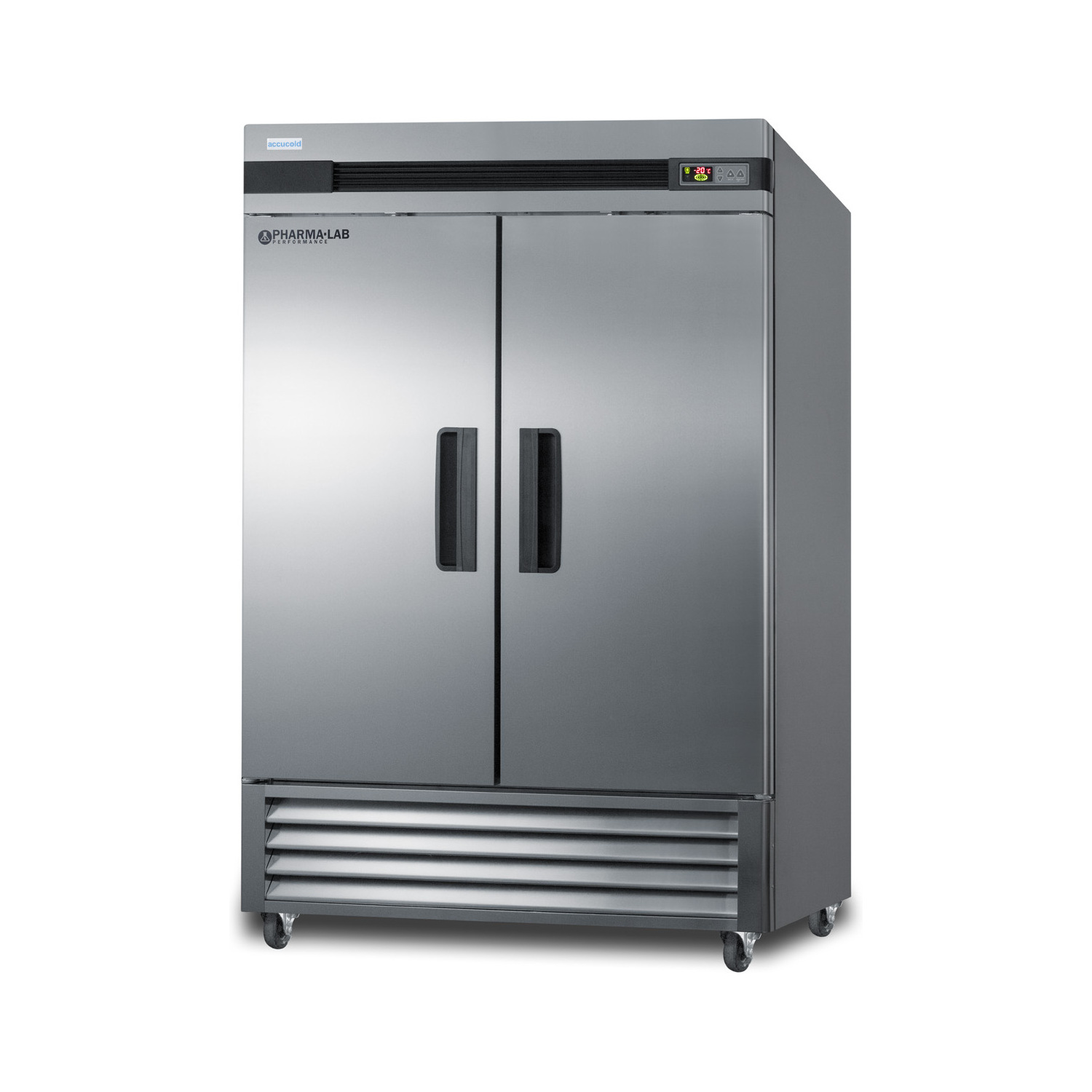

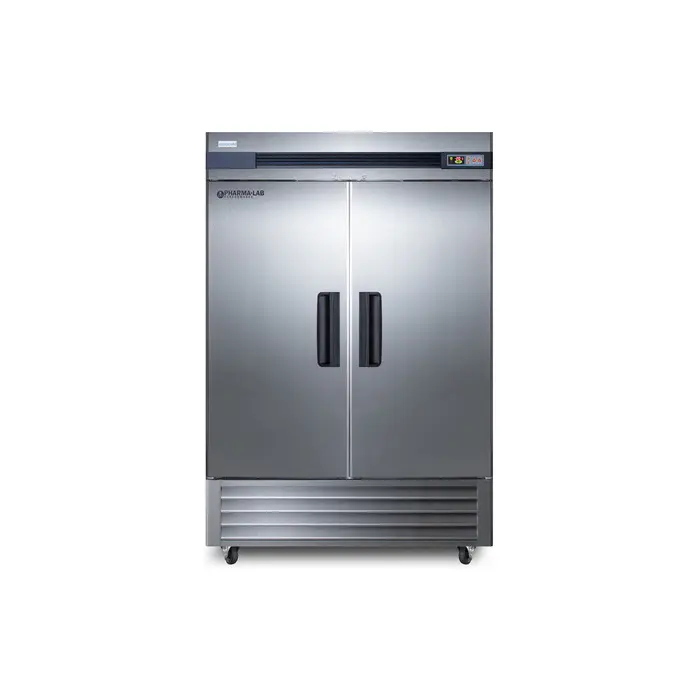

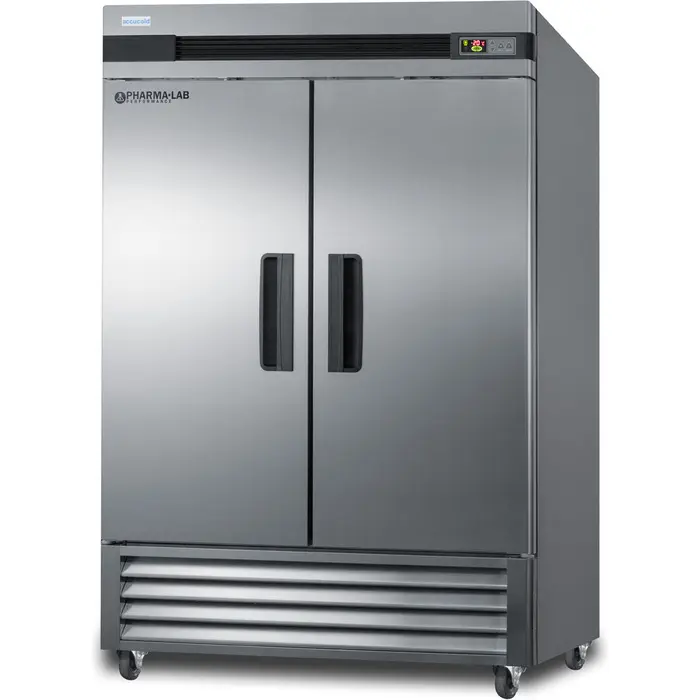

The AFS49ML features a durable stainless steel cabinet and interior, with a sealed back for easier cleanup. We include a set of casters (2 locking) for optional installation. A factory-installed lock offers added security, with two keys included for your facility. Magnetic door gaskets ensure a strong seal. The doors are self-closing to help protect contents, but will remain open at 90º for easier loading.

Designed with hydrocarbon refrigerant, the AFS49ML provides an energy efficient solution to large capacity storage. This unit is Pyxis, Omnicell, and AcuDose RX compatible and meets NSF-7 commercial standards. For a matching refrigerator, see the ARS49ML.

NOTE: Accucold freezers are purpose-built to the support meeting the current CDC (Centers for Disease Control) guidelines for the storage of vaccines. As referenced in the current Vaccine Storage and Handling Toolkit, these units incorporate several key features for stable operation. For additional temperature assurance, the CDC recommends a calibrated digital data logger (DDL), which can be added with the factory-installed option DL2B or addition of the DL2BKit accessory. Select Accucold products have been tested and certified to the new NSF 456 standard, and are now available for purchase. For additional information, contact our products specialists.

SPECIFICATIONS

Overview

Nominal Height 84.0" (213 cm)

Height of Cabinet 83.75" (213 cm)

Nominal Width 56.0" (142 cm)

Width 55.25" (140 cm)

Nominal Depth 31.0" (79 cm)

Depth 31.0" (79 cm)

Depth with Handle 32.75" (83 cm)

Depth with door at 90° 56.5" (144 cm)

Capacity 49.0 cu.ft. (1388 L)

Defrost Type Frost-Free

Door Stainless Steel

Cabinet Stainless Steel

US Electrical Safety UL

Canadian Electrical Safety ULC

Sanitation ETL-S

Amps 10.5

Voltage/Frequency 115 V AC/60 Hz

Weight 428.0 lbs. (194 kg)

Parts & Labor Warranty 2 Years

Compressor Warranty 5 Years

UPC 761101062327

Freezer

Door Swing French

Interior Height 51.5" (131 cm)

Interior Width 50.5" (128 cm)

Interior Depth 27.0" (69 cm)

Shelf Type Wire

Shelf Qty 8

Adjustable Shelves Yes

Thermostat Type Digital

Interior Light Yes

Fan Type Interior

Refrigerant Type R290

Refrigerant Amount 4.6 oz.

Wheels 4

Temperature Range -30 to -15ºC

FEATURES

Purpose-built design Designed and engineered to store vaccines and other sensitive materials under stable temperature conditions

Adjustable temperature Interior is pre-set to -25ºC, with an adjustable control range from -30 to -15ºC

Temperature alarm Visual and audible alarms alert if the interior temperature rises or falls out of set range

Complete stainless steel construction Interior and exterior are entirely constructed from stainless steel for lasting durability and easy cleanup

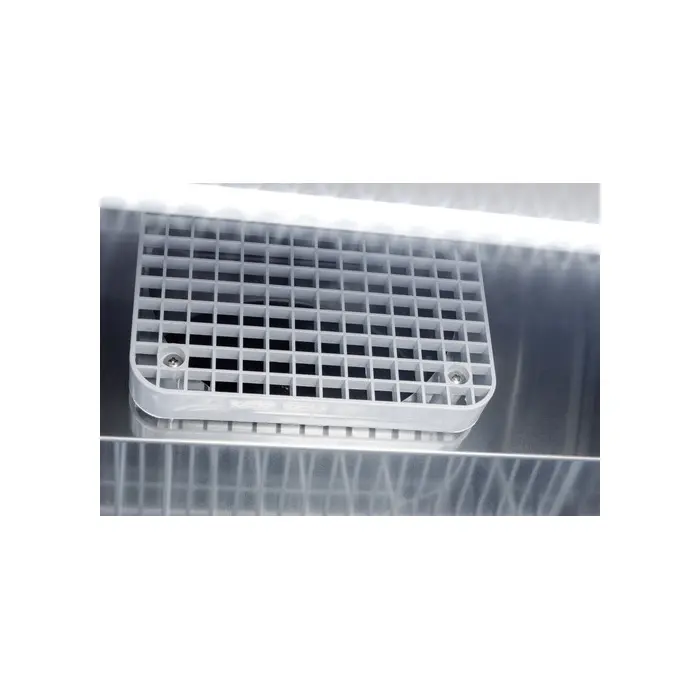

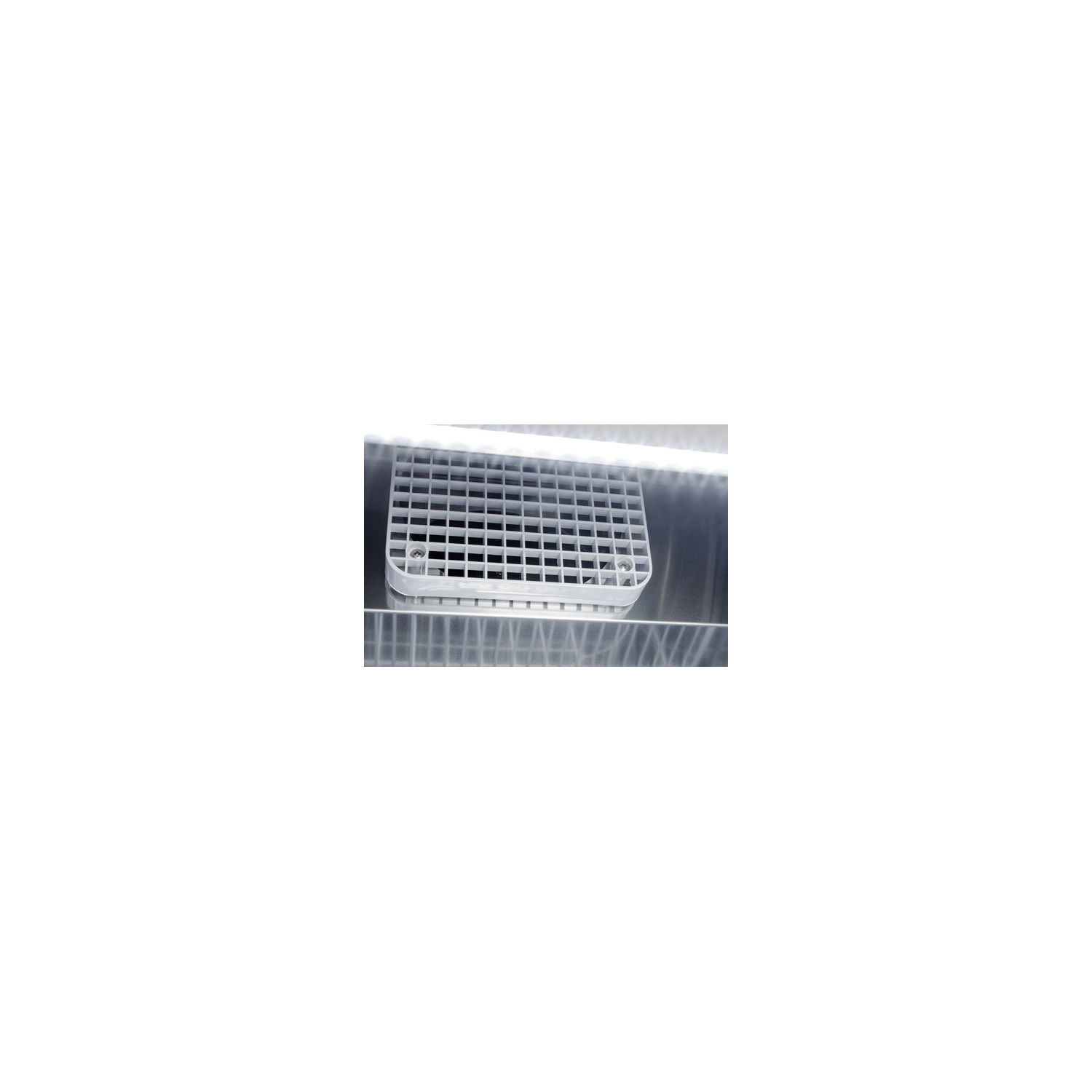

Forced air cooling Top-mounted commercial fan ensures rapid temperature recovery

Automatic defrost with adjustable cycle defrost Adjustable cycle defrost operation ensures the unit avoid temperature spikes and ice buildup

Self-closing doors Closes to save energy but will remain open when the door is opened at a 90º angle for easier loading

Open door alarm Alarm will beep 3 times if the door is left open for 30 seconds, 5 times at 60 seconds, and will sound continuously if the door is open for more than 5 minutes

Commercial grade casters Ships with a set of casters (2 locking) for easy mobility as needed

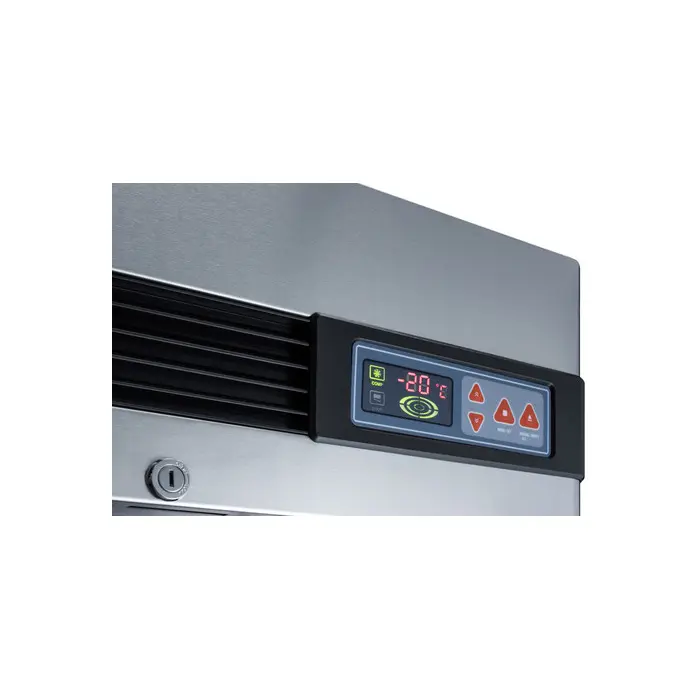

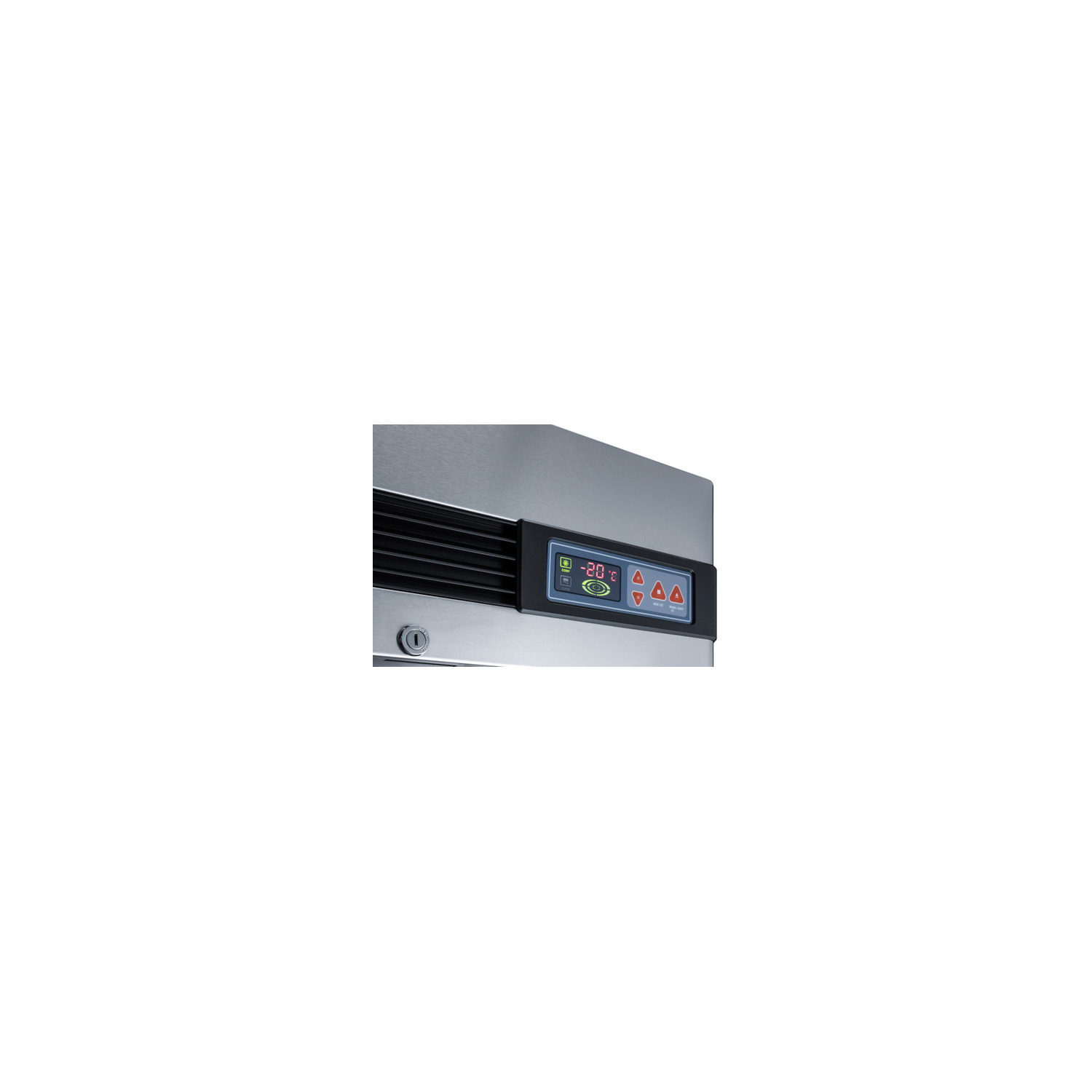

Microprocessor control panel Digital controls with a large LED readout in Celsius or Fahrenheit for intuitive temperature management

Min/max display Control panel provides a readout of the low and high temperatures in 15 minute increments

Factory-installed lock Keyed lock conveniently located towards the top of the door for added security (2 keys included)

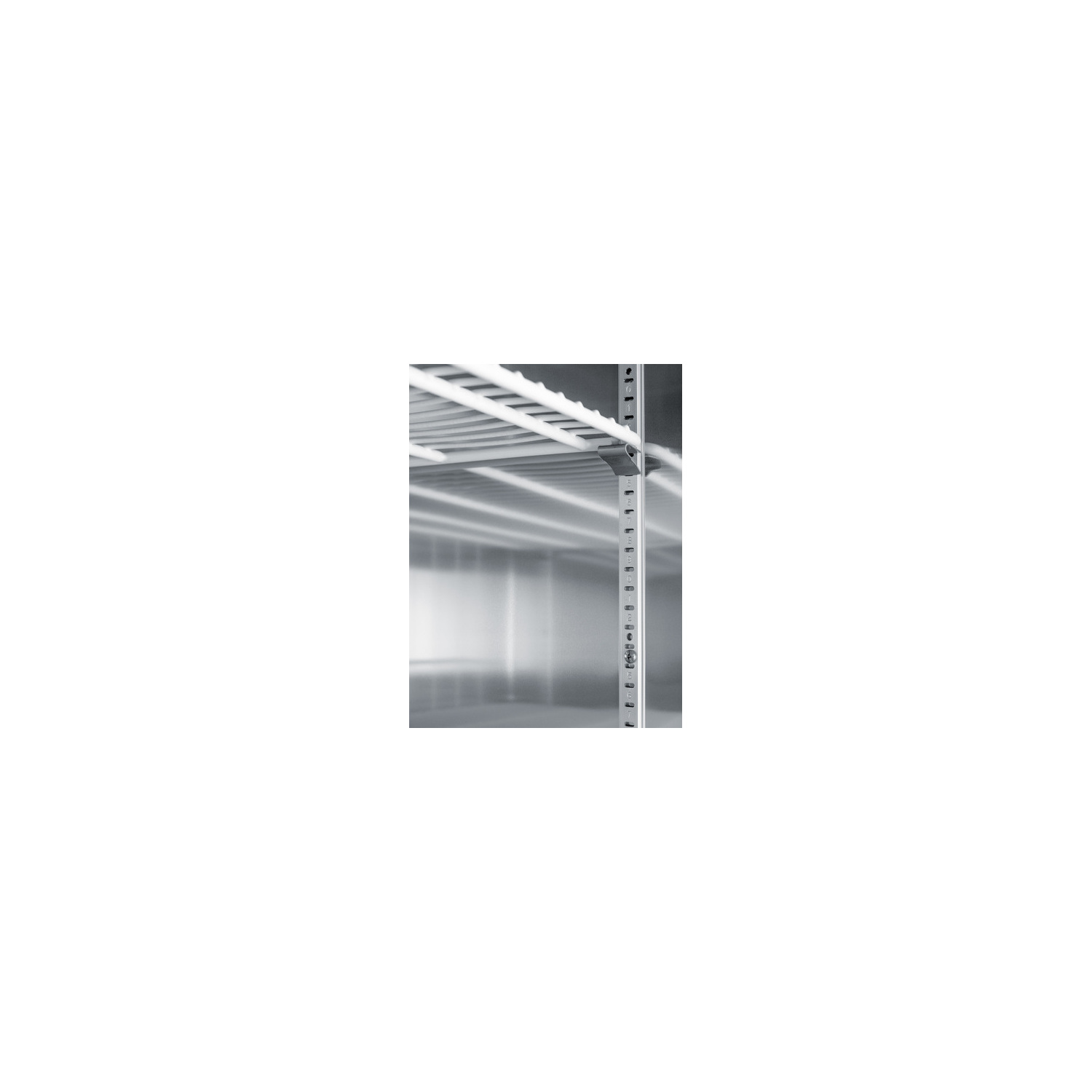

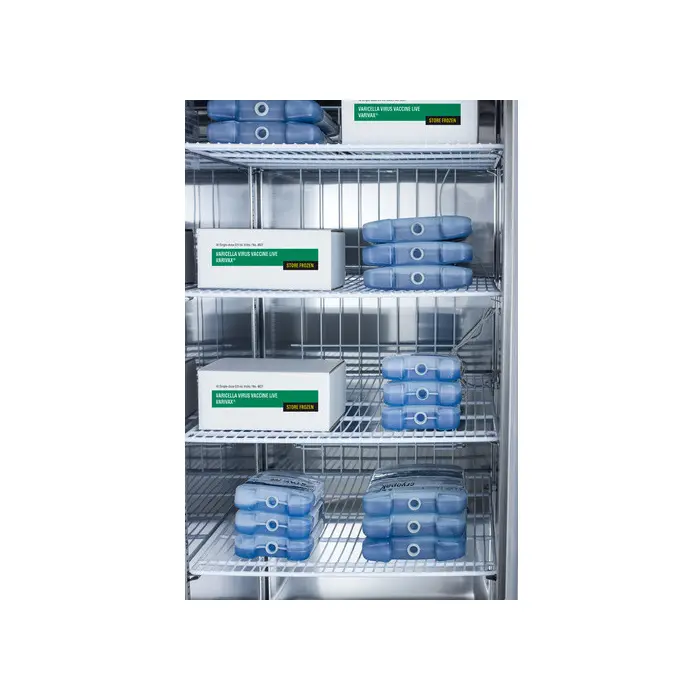

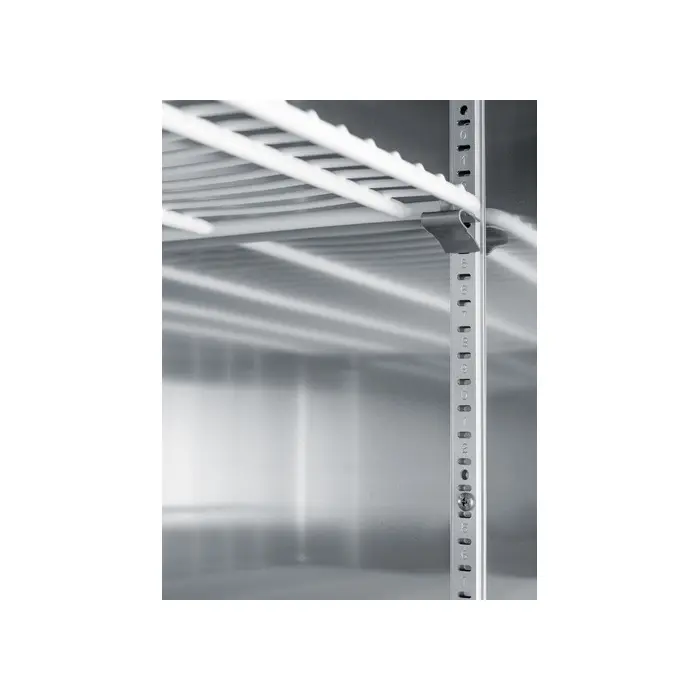

Adjustable plastic-coated wire shelves for improved circulation Multiple shelf positions spaced at 1/2" to allow flexible adjusting to support smaller items

Interior light Energy efficient LED lighting with internal on/off switch

Large capacity 49 cubic feet of storage space inside

Condenser cleaning alarm In order to prevent dust from impeding performance, this unit is equipped with audible and visual alarm that reminds you to clean the condenser every 6 months

Magnetic door gasket Quality door gaskets ensure a tight seal for energy savings and improved performance

Sealed back Space-saving design that ensures easier cleanup

Extended warranty 2 years parts and labor/5 years compressor

Commercially approved Commercial construction meeting UL commercial listing standards

Matching refrigerator Pair with ARS49ML for a matching set in stainless steel

Eco-Friendly Using environmentally friendly hydrocarbons refrigerants for a greener footprint

100% CFC free Environmentally friendly design without ozone-damaging chemicals

CARB Compliant Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
