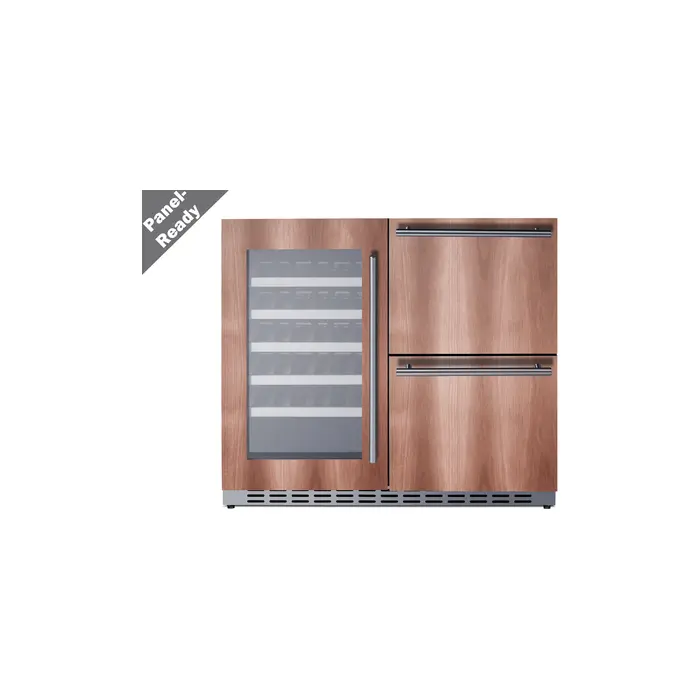

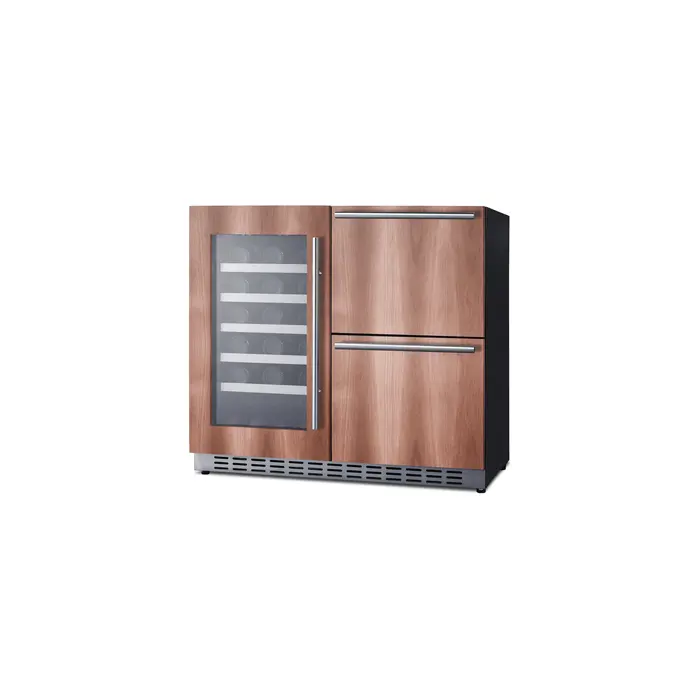

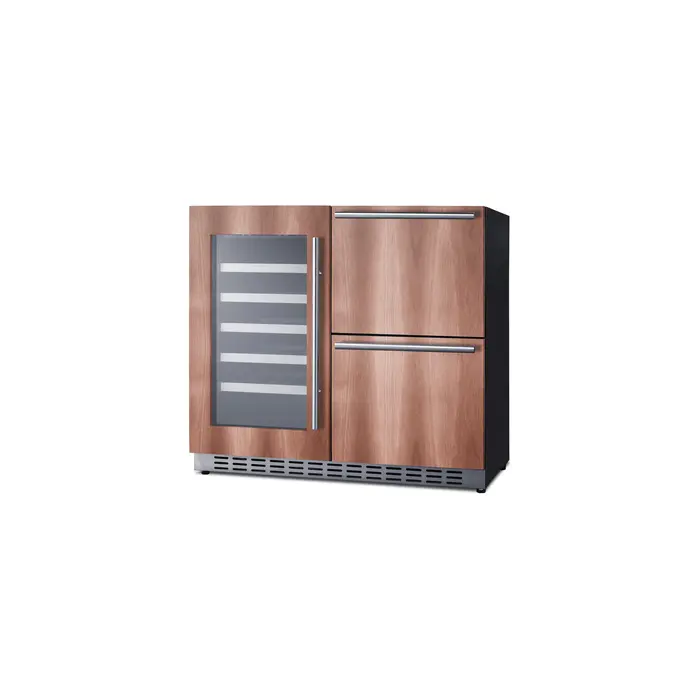

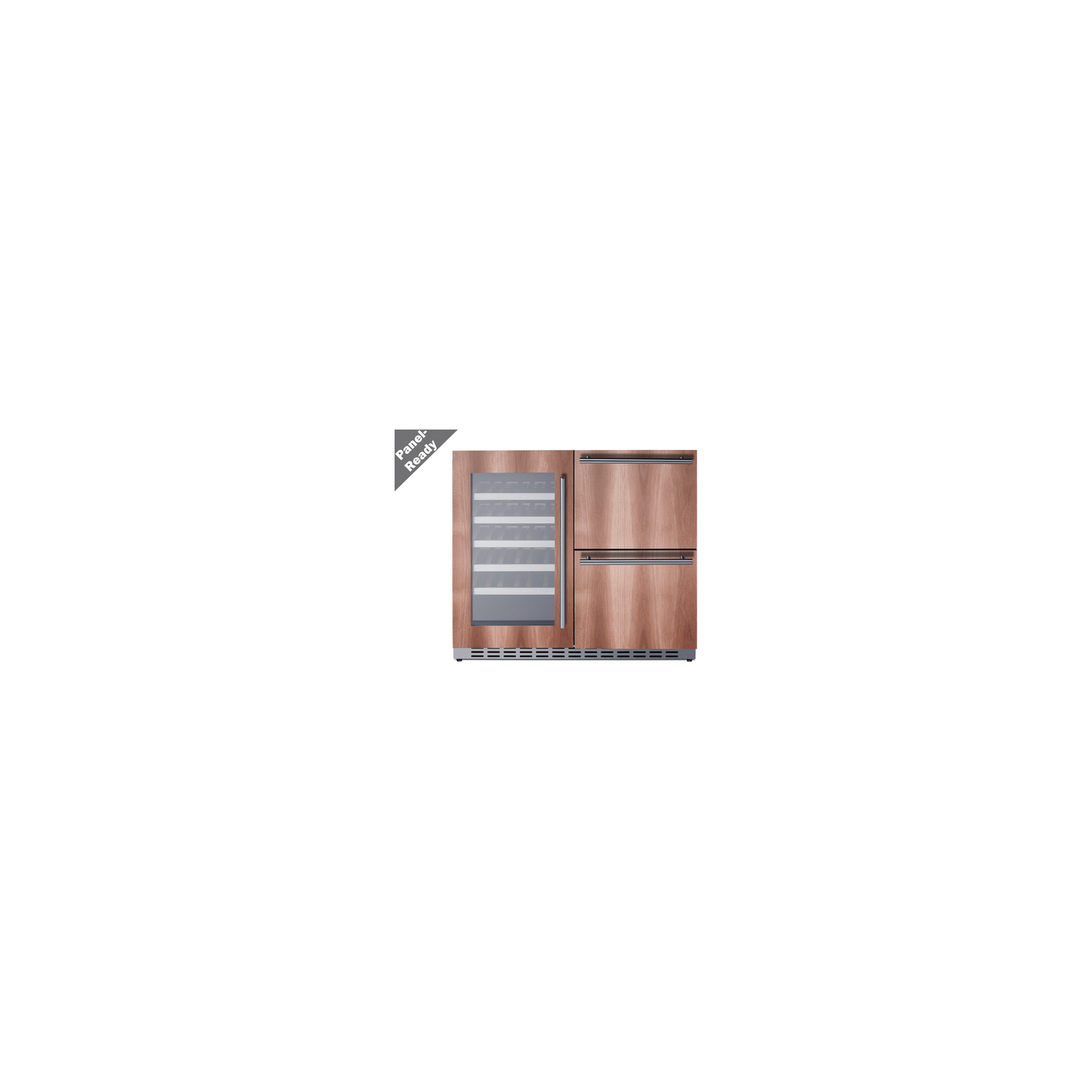

Summit 36 inch wide ADA height dual zone wine cellar and drawer refrigerator, ADRWC36

Summit's unique lineup of wine and drawer refrigeration creates perfect all-in-one solutions for elevated entertainment, with versatile built-in choices that can be used in any kitchen or bar complying with ADA guidelines.

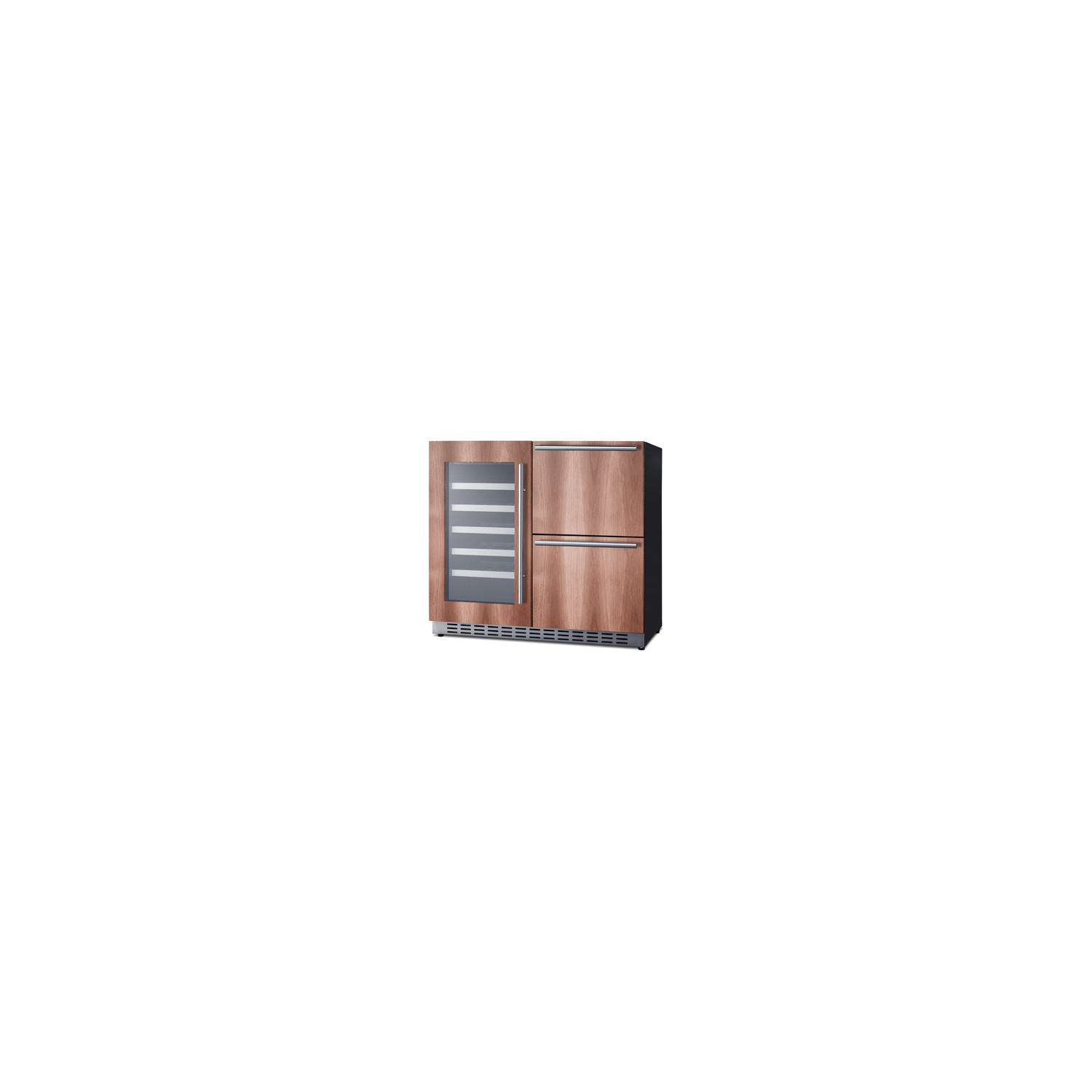

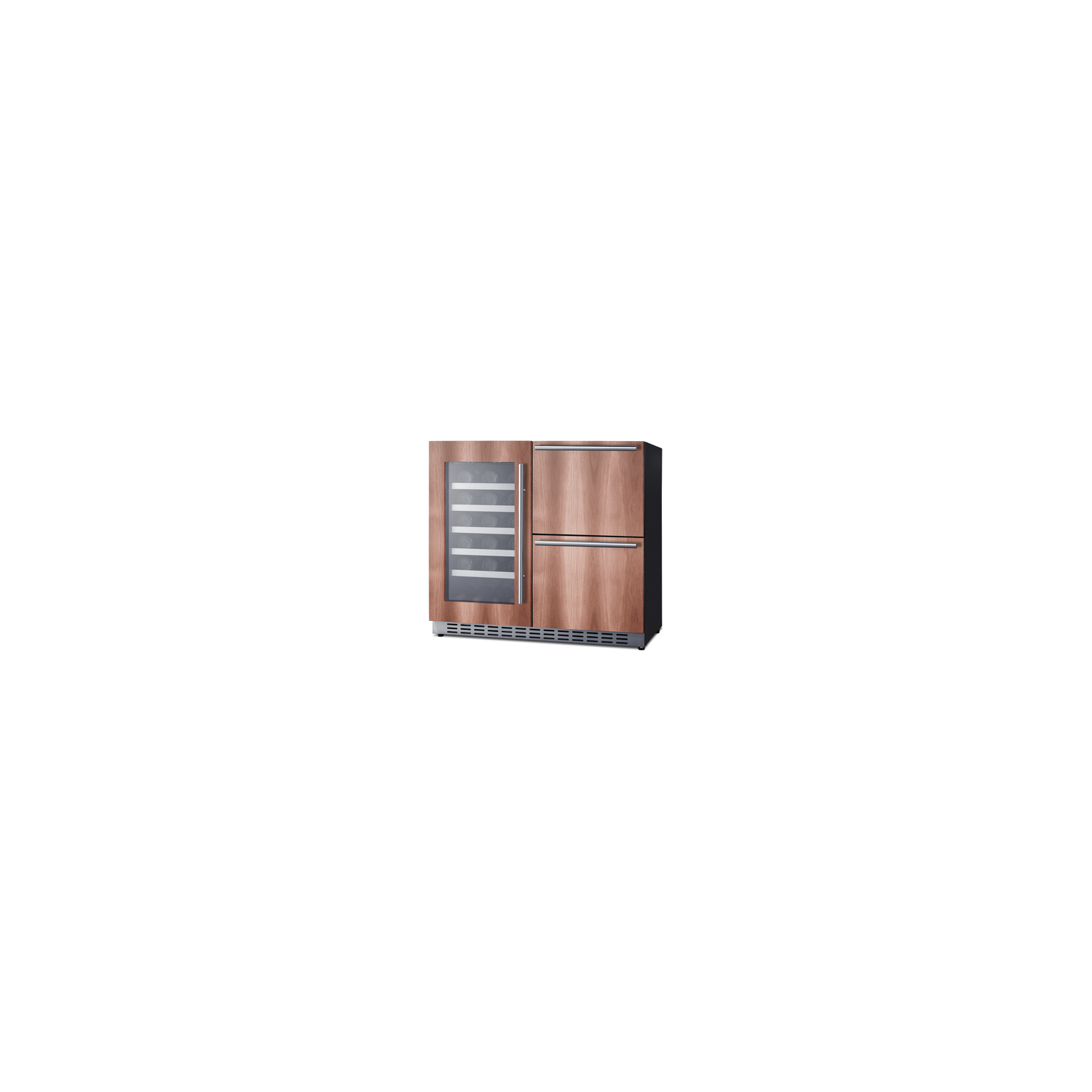

Sized at 32.38" high and just under 36" wide, the ADRWC36 is combination wine cellar and drawer refrigerator. The front-breathing design allows built-in installation under counters, with a fully finished exterior cabinet in black that also allows freestanding use. This unit is ETL-S listed to NSF-7 commercial standards for use in foodservice or residential settings.

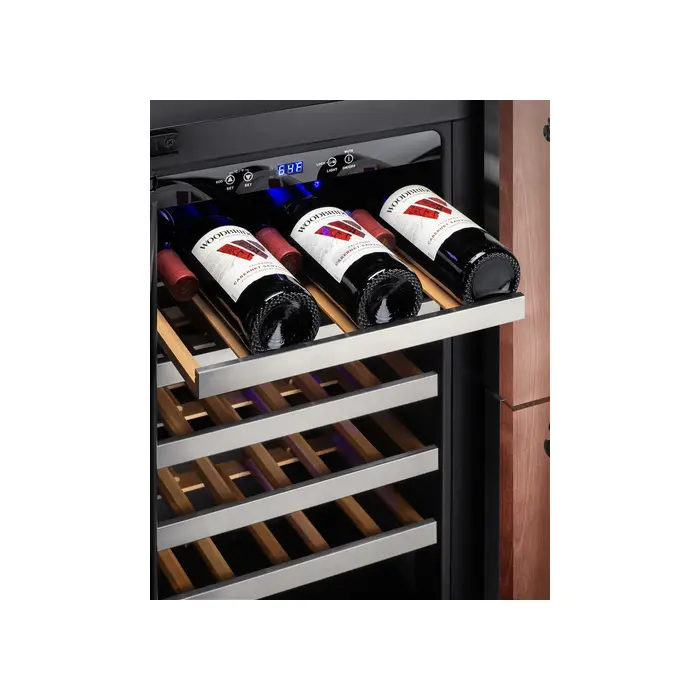

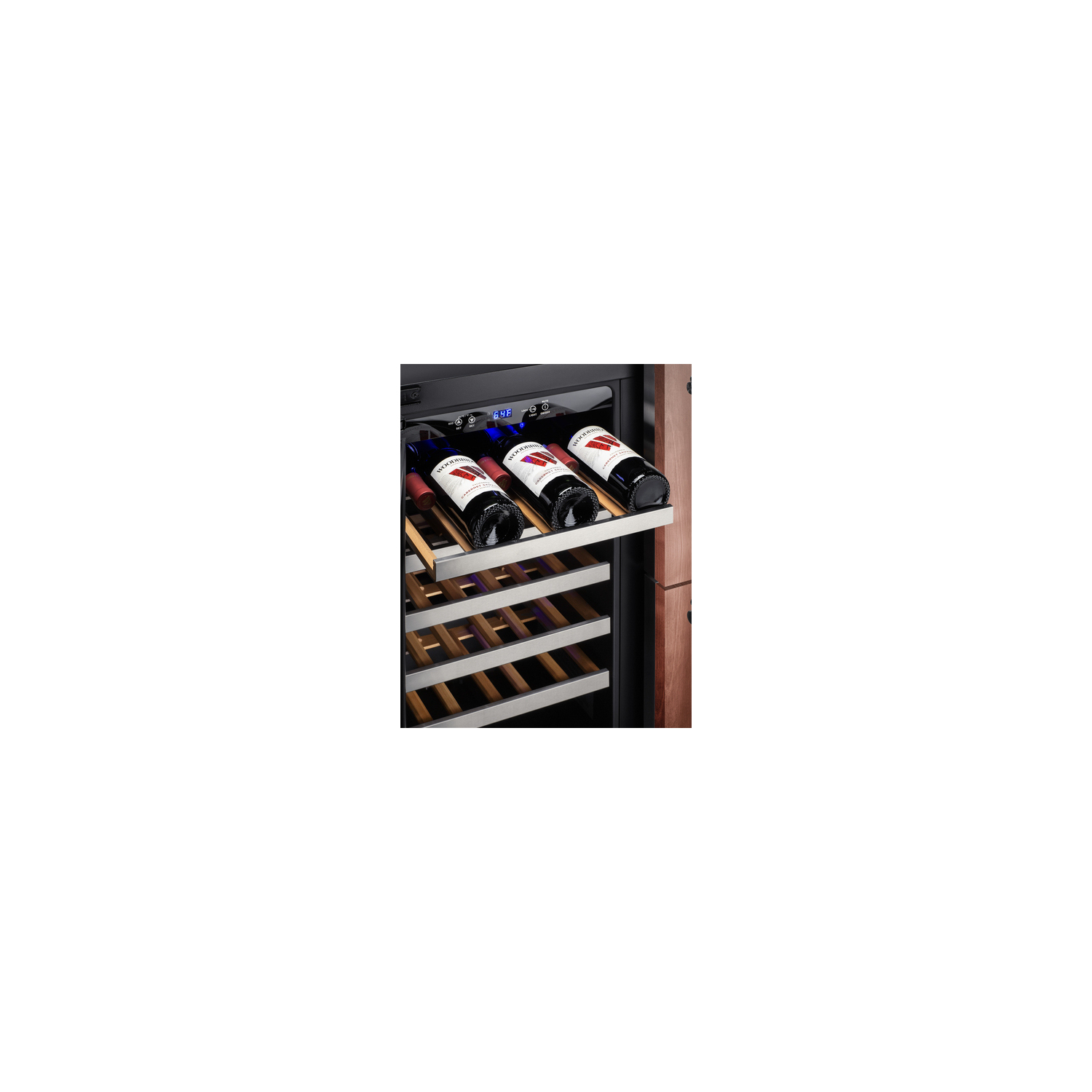

On the left side of the ADRWC36 is the wine cellar zone, featuring a reversible glass door with elegant stainless steel trim and a professional handle. Inside, this model can store up to 34 standard sized wine bottles, and the unit’s slotted floor can also accommodate champagne if needed. The slide-out wooden shelves have steel fronts for a modern look. The digital control panel lets you adjust the temperature between 40º and 72ºF to accommodate red, white, or sparkling wine.

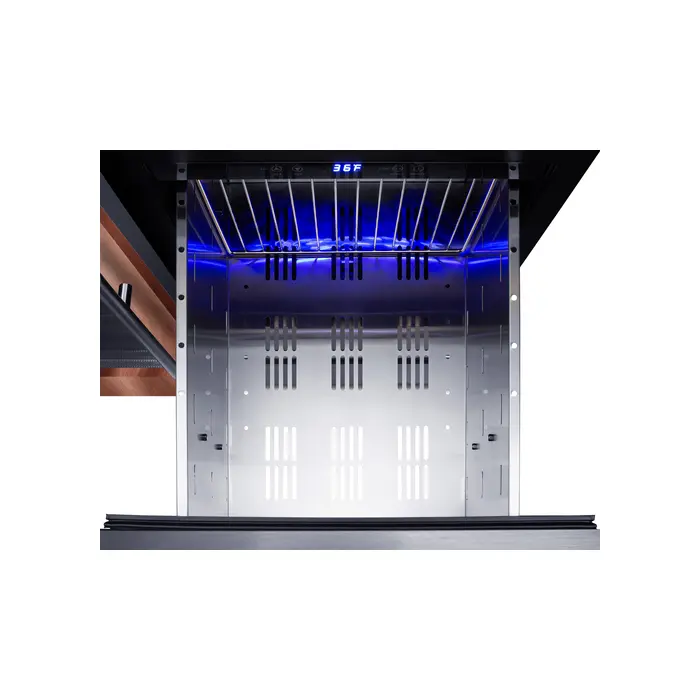

On the right is a frost-free two-drawer all-refrigerator in an attractive stainless steel finish with a vertical grain. Stainless steel construction inside and out offers durability in a professional look. Two adjustable dividers allow you to separate the drawer compartments into two or four zones to accommodate a variety of sizes, perfect for storing beverages or meats and cheeses to pair with your favorite wine. The digital control panel lets you adjust the temperature between 35º and 47ºF.

Additional features include a high-temperature alarm and an open drawer alarm for added peace of mind. Sabbath Mode disables certain electrical features during periods of religious observance, while a temperature memory function helps to recover all settings in the event of power loss.

Note: This unit comes with an anti-tip bracket, which should be installed to prevent tipping forward.

Offering complete refrigeration and wine convenience in an attractive design, the ADRWC36 is approved for commercial and residential use, making it ideal for any space seeking to store wine, beverages, and food in a modern style. For this model in a standard counter height, see SWCDAR36UC. Browse the full Summit line for more options.

SPECIFICATIONS

Overview

Height of Cabinet 32.38" (82 cm)

Width 35.5" (90 cm)

Depth 23.63" (60 cm)

Depth with Panel 24.13" (61 cm)

Depth with door at 90° 44.25" (112 cm)

Defrost Type Frost-Free

Door Glass/SS

Cabinet Black

US Electrical Safety ETL

Canadian Electrical Safety ETL-C

Sanitation ETL-S

Amps 1.3

Voltage/Frequency 115 V AC/60 Hz

Weight 159.0 lbs. (72 kg)

Parts & Labor Warranty 1 Year

Compressor Warranty 5 Years

UPC 761101159508

Wine Cellar

Number of Zones 2

Adjustable Shelves Yes

Shelf Type Wood

Shelf Qty 5

Thermostat Type Digital

Interior Light Yes

Fan Type Interior and Exterior

Refrigerant Type R600a

Refrigerant Amount 1.23 oz.

Interior Height 1 23.75" (60 cm)

Interior Width 1 14.25" (36 cm)

Interior Depth 1 17.75" (45 cm)

Interior Height - Drawer 1 8.75" (22 cm)

Interior Width - Drawer 1 12.75" (32 cm)

Interior Depth - Drawer 1 17.25" (44 cm)

Interior Height - Drawer 2 10.5" (27 cm)

Interior Width - Drawer 2 12.75" (32 cm)

Interior Depth - Drawer 2 10.5" (27 cm)

Compressor Step Height 6.0" (15 cm)

Compressor Step Width 12.75" (32 cm)

Compressor Step Depth 4.75" (12 cm)

Temperature Range 40° to 72°F

Sabbath Mode Yes

Sound Level 34.3 dB

FEATURES

36" Wide Combination Wine Cellar & 2-Drawer Refrigerator Complete refrigeration storage solution with the 34-bottle capacity wine cellar and two-drawer all-refrigerator, perfect for home bars, kitchens, and similar entertainment spaces

ADA Height 32 3/8" height allows installation under lower counters complying with ADA guidelines

Built-in undercounter design Front-breathing design allows the unit to be built-in under counters

Commercially approved ETL-S listed to ANSI-NSF Standard 7 for use in commercial establishments

Stainless steel front Drawers, wine cellar door trim, and kickplate are constructed from stainless steel for a modern and luxurious look ideal for any setting

Fully articulating style hinge (wine cellar) European style door hinge design ensures a flush fit and allows for a smoother opening

Two independent temperature zones Two separate zones, wine cellar and all-refrigerator, allows you to chill wine and refrigerate perishables

Generous bottle capacity Wine cellar can store up to 34 standard 750ml Bordeaux style or wider Burgundy style bottles

Digital thermostat Electronic controls for seamless temperature management, with readout in either Celsius or Fahrenheit

Temperature ranges Wine cellar: 40º to 72ºF. All-refrigerator: 35º to 47ºF

High/low temperature alarm Audible alarm sounds if the interior temperature rises or drops out of set range

Open door alarm Audible alarm sounds if the drawers or door is left open for over 5 minutes

Wine shelving 5 shelves offer the perfect storage for wine bottles in a classic wooden finish with a stainless steel trim

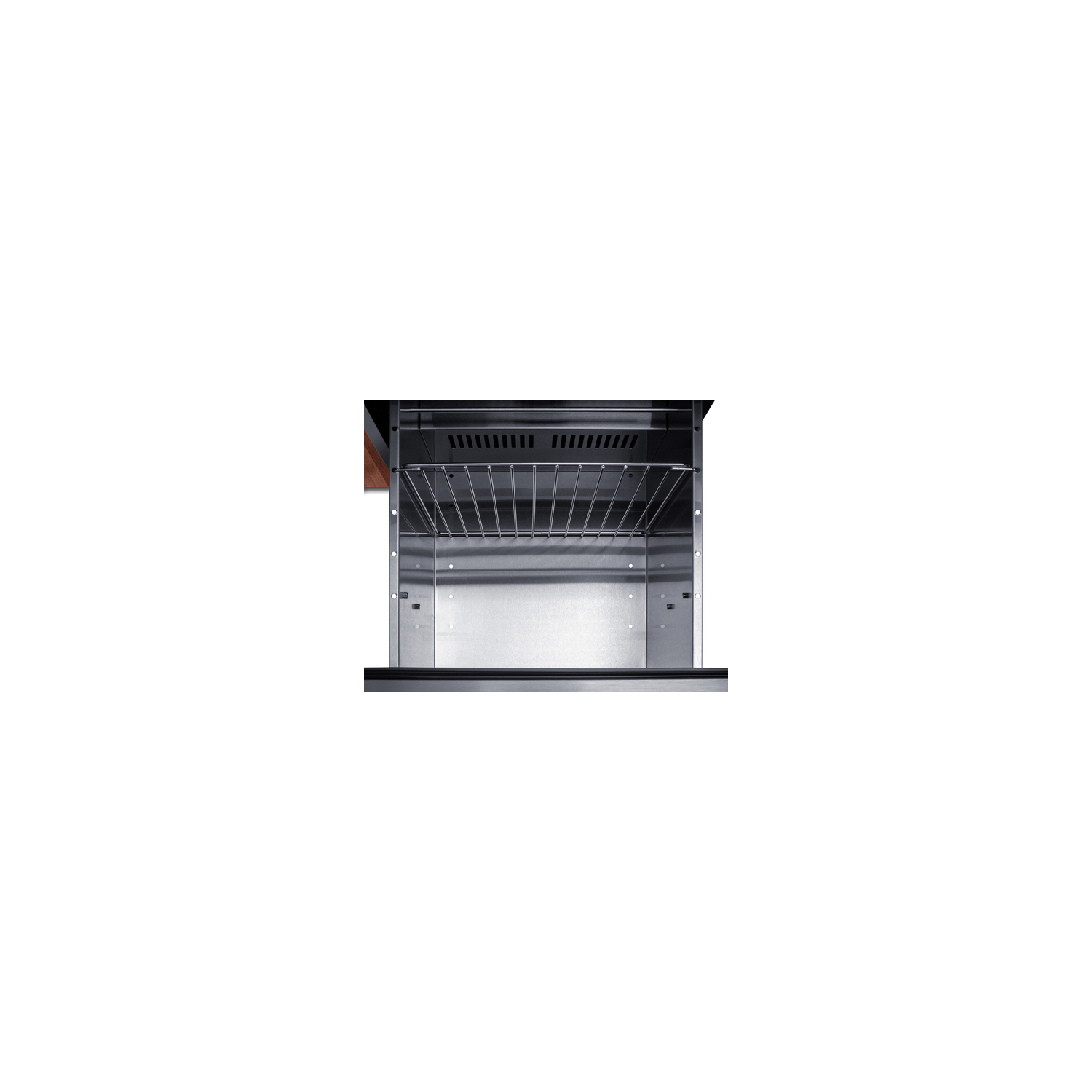

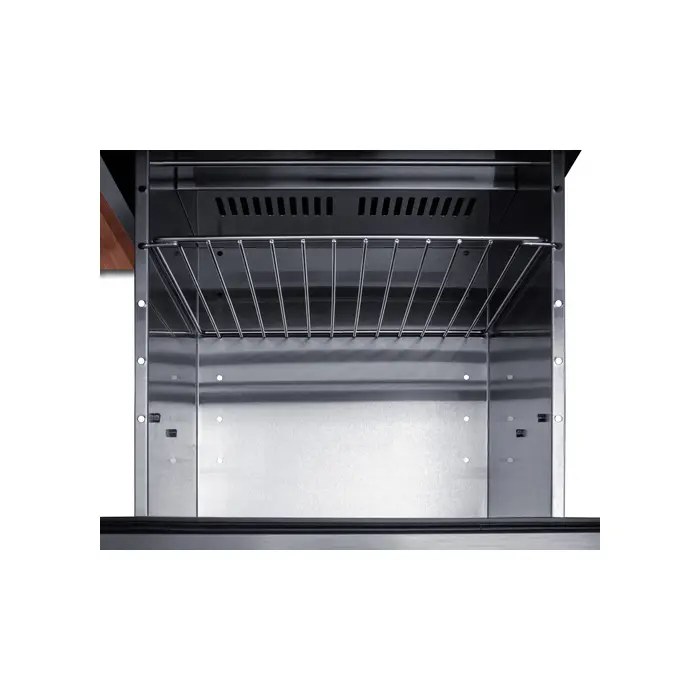

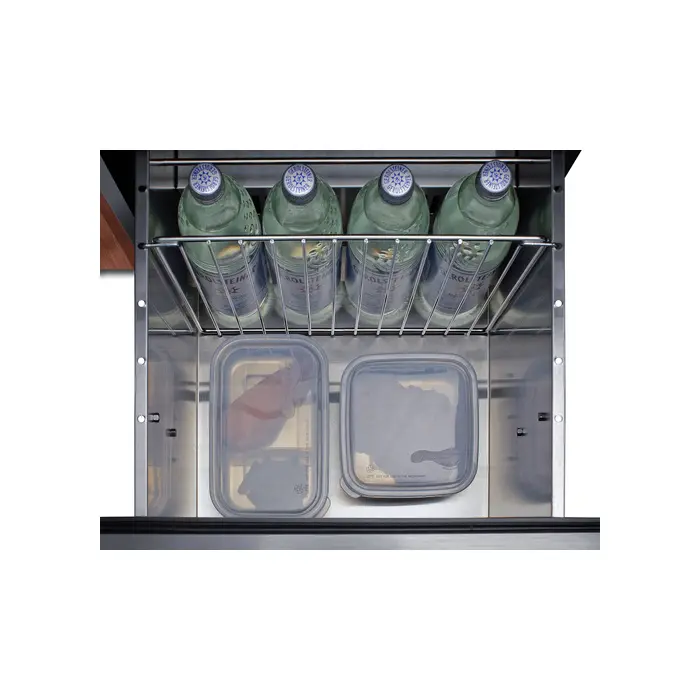

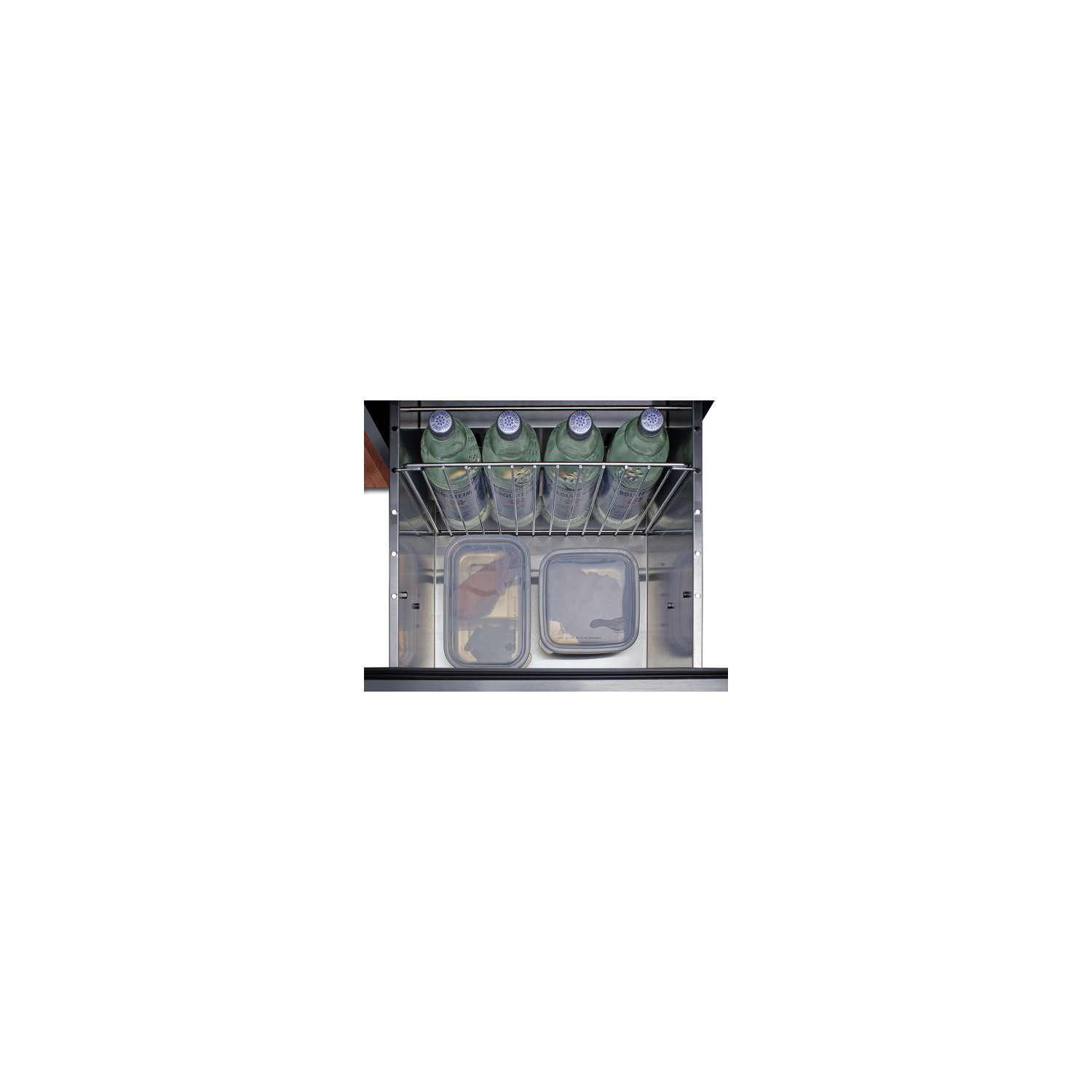

Drawer dividers Adjustable wire dividers for each drawer makes it easy to organize the interior and separate your storage

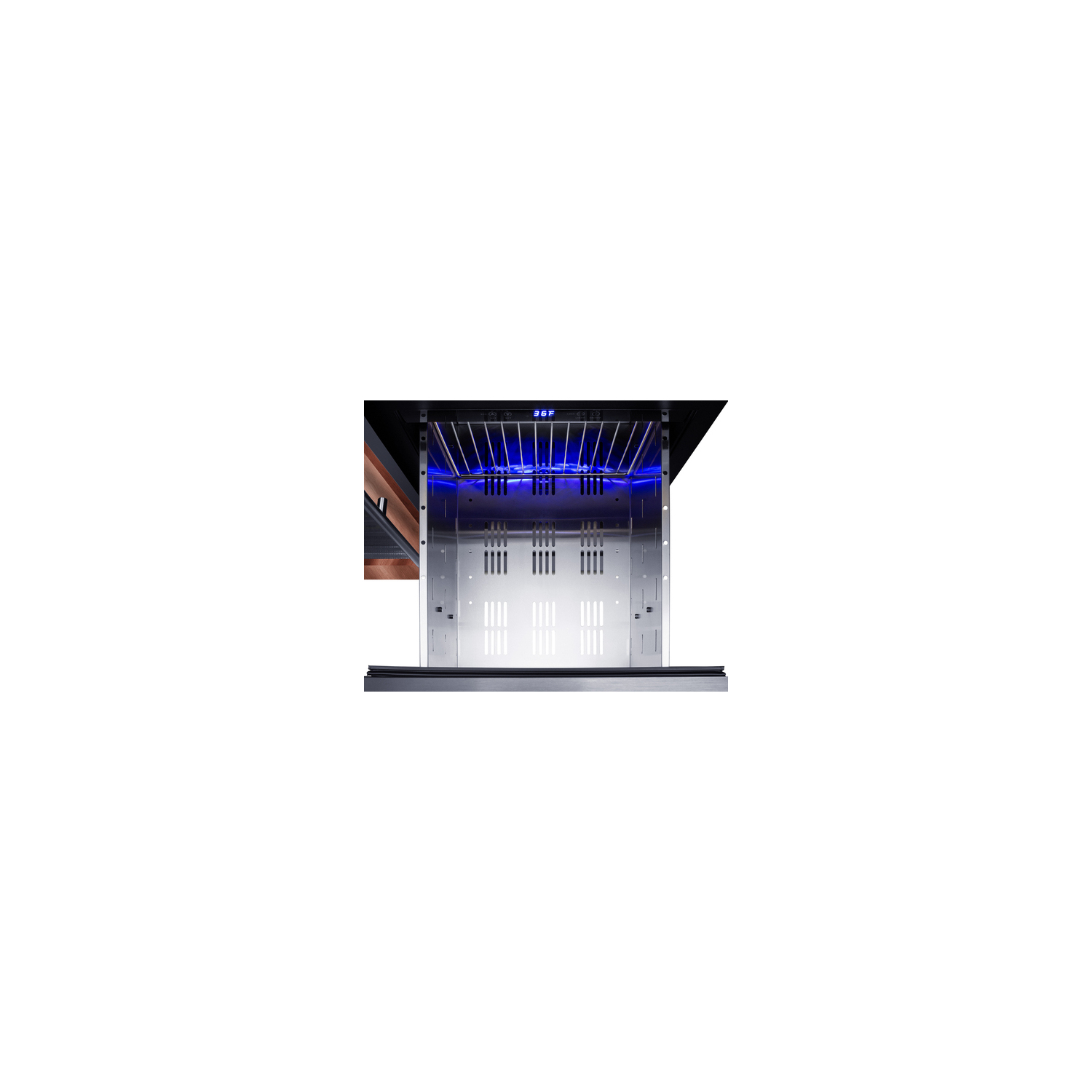

LED lighting Attractive and efficient illumination for both sections

Sabbath mode Optional setting lets you disable the lighting and alarm for up to 96 hours

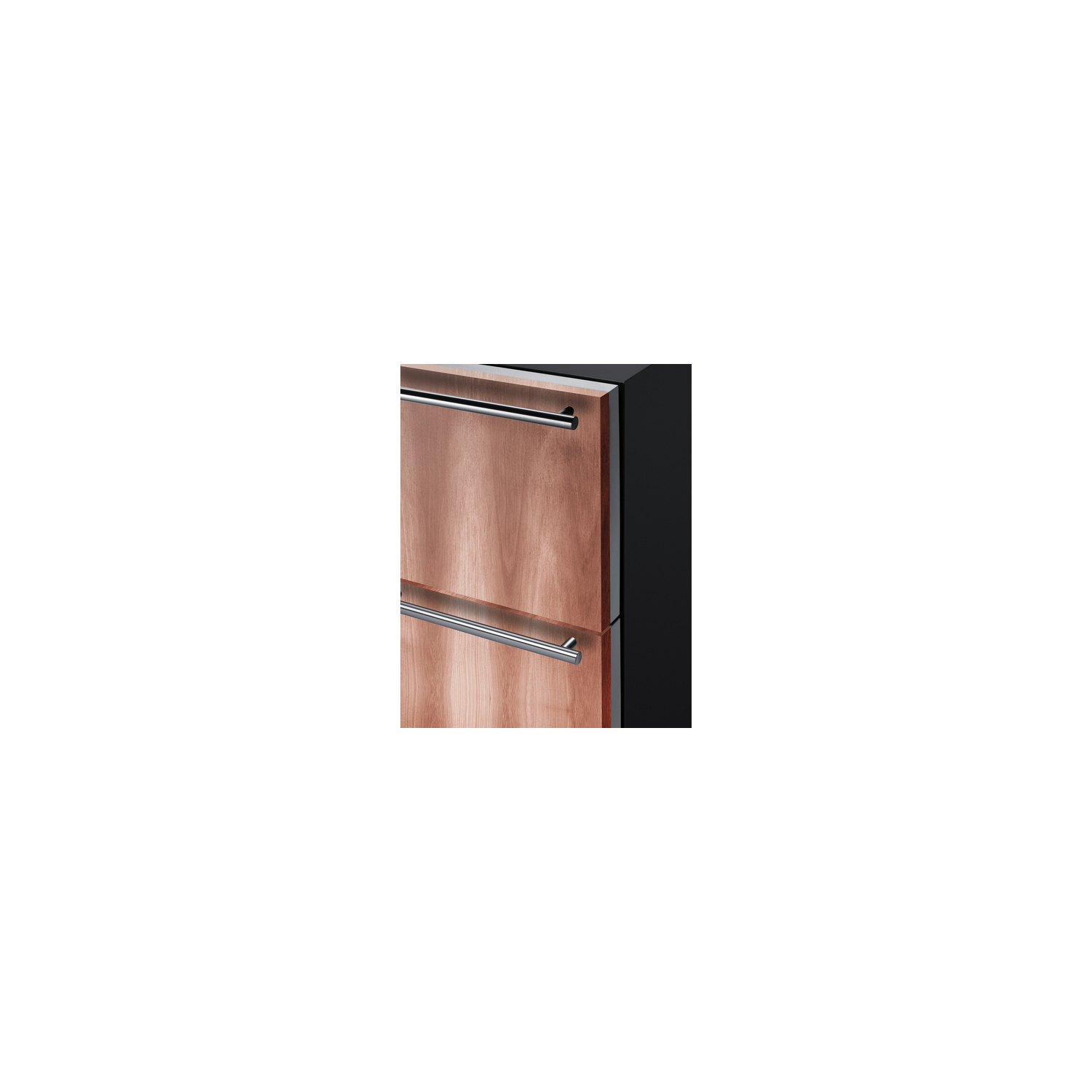

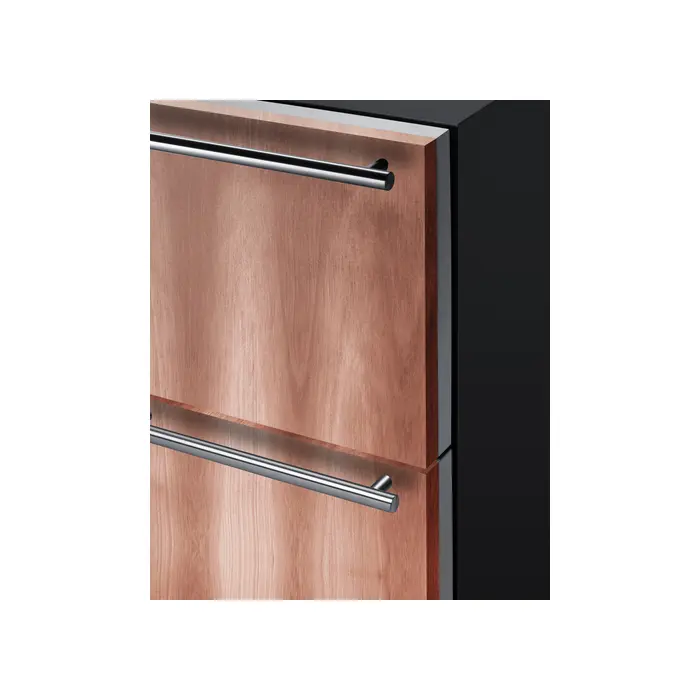

Professional handles Sleek stainless steel handles add an elegant touch to any setting

Reversible door (wine cellar) User-reversible door swing for added flexibility to best accommodate your setting

Right angle plug Design allows you to plug the unit in flush against the wall socket with no need to add extra depth

Anti-tip bracket Included bracket recommended for installation to help prevent tipping for added safety

100% CFC Free Environmentally friendly design with no ozone-damaging chemicals

CARB compliant Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
