Summit 24 inch wide outdoor ADA compliant 2-drawer all-refrigerator-freezer, 7.61101e+011, ADRF244OS

Summit manufactures an extensive selection of built-in refrigeration specially constructed for safe and reliable cooling in outdoor kitchens.

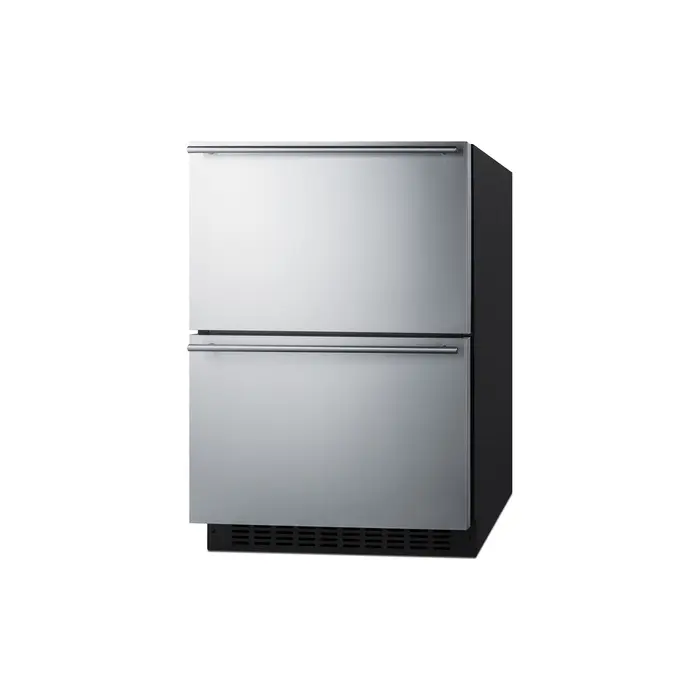

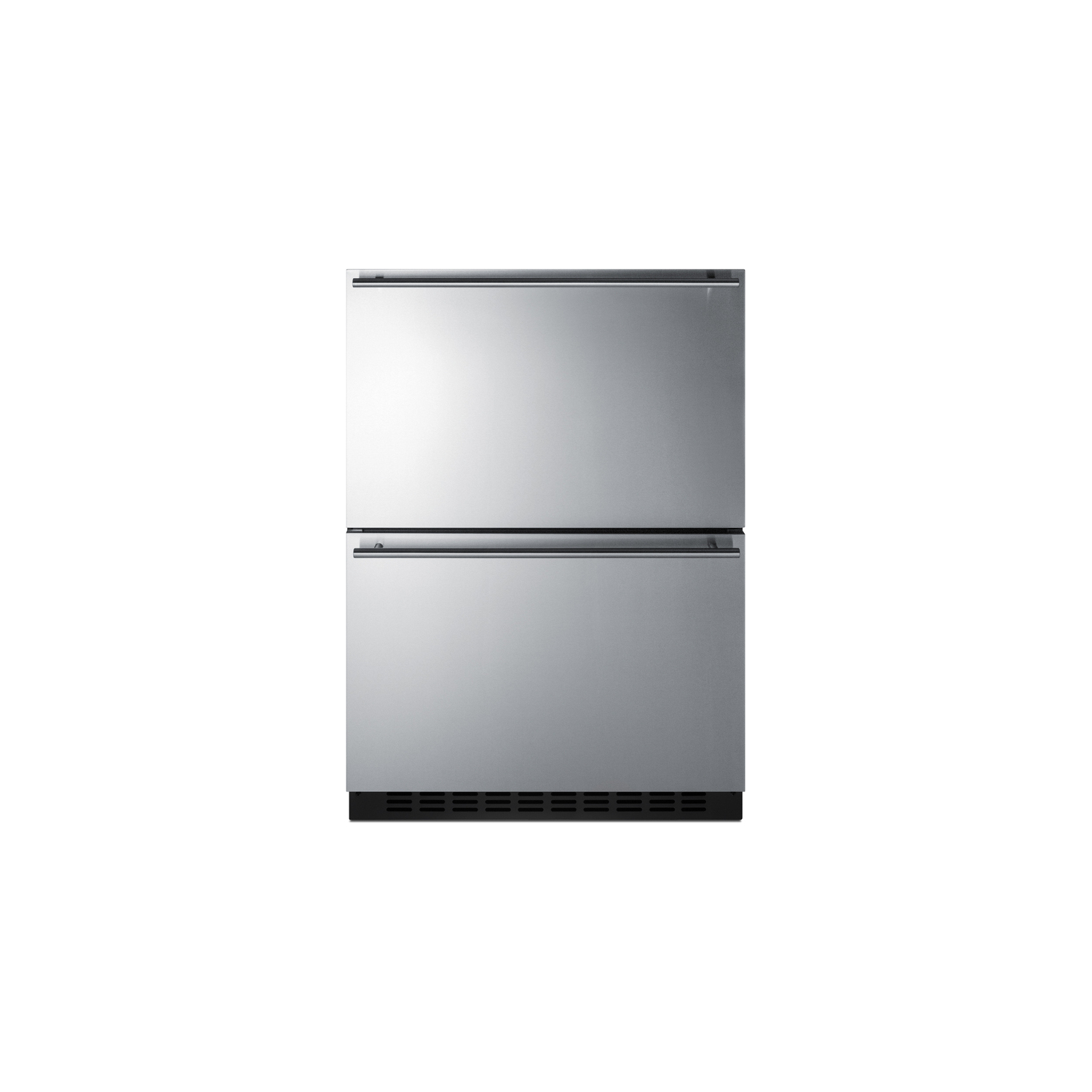

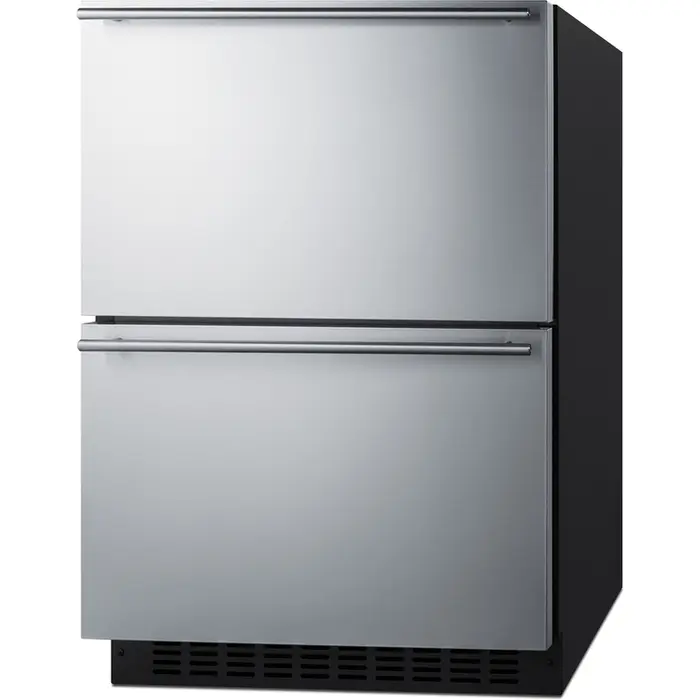

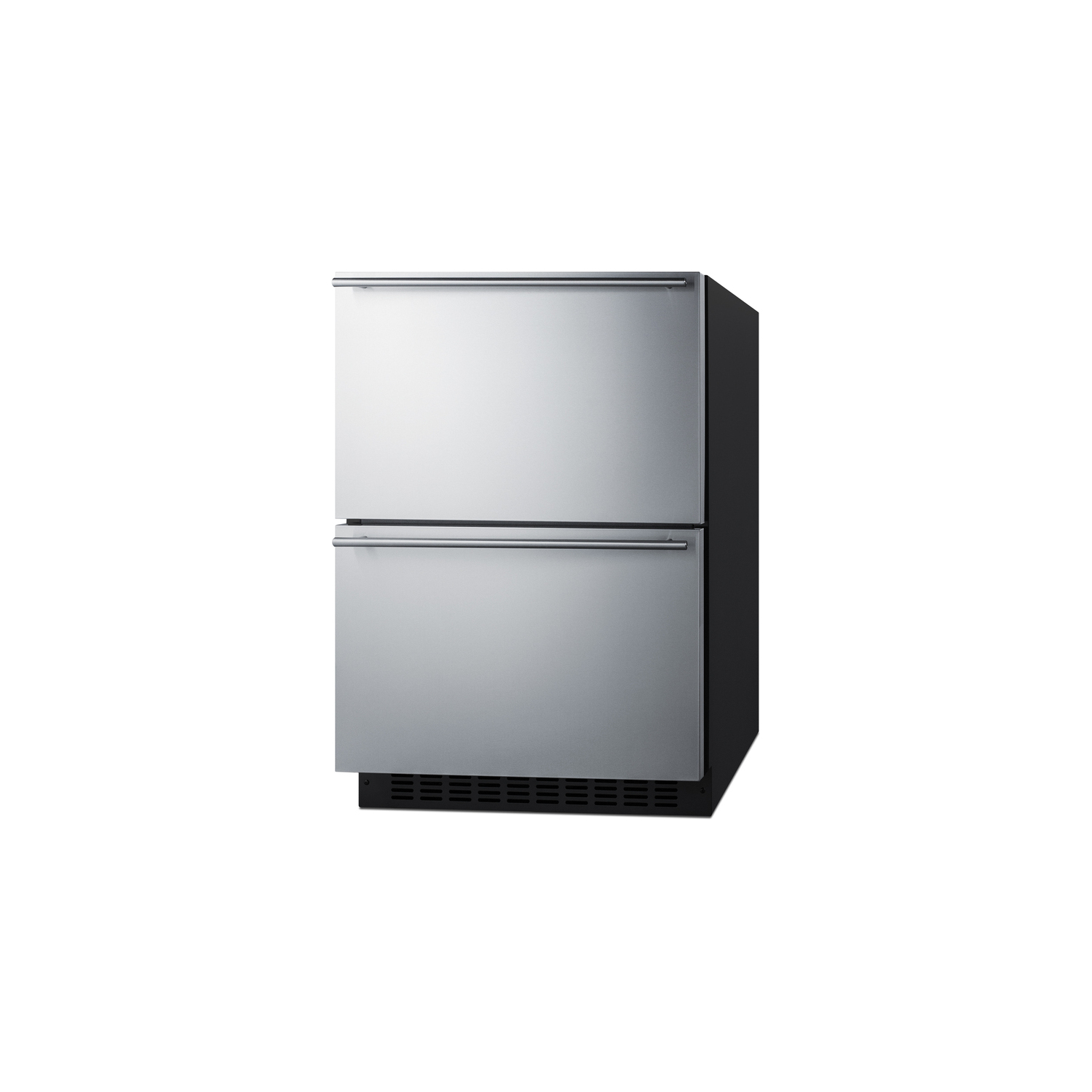

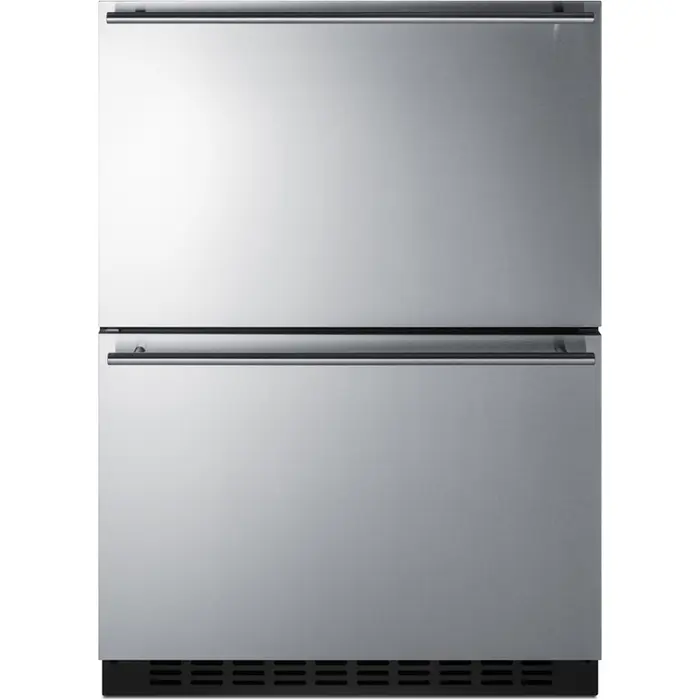

Sized at just under 24" wide and 32" high, model ADRF244OS is a 2-drawer refrigerator-freezer perfectly designed for built-in or freestanding installation in ADA compliant settings with lower counter height. The weatherproof construction allows safe use in outdoor settings, with a sealed back to ensure all components are protected from the elements. This unit comes with a jet black cabinet and stainless steel drawers. Sleek horizontally mounted handles complete the stylish look. The drawer fronts can also accept user-provided overlay panels to create a custom look that blends into existing cabinetry designs (panel dimensions: 23.43" W x 14.1" H at 3/4" thick).

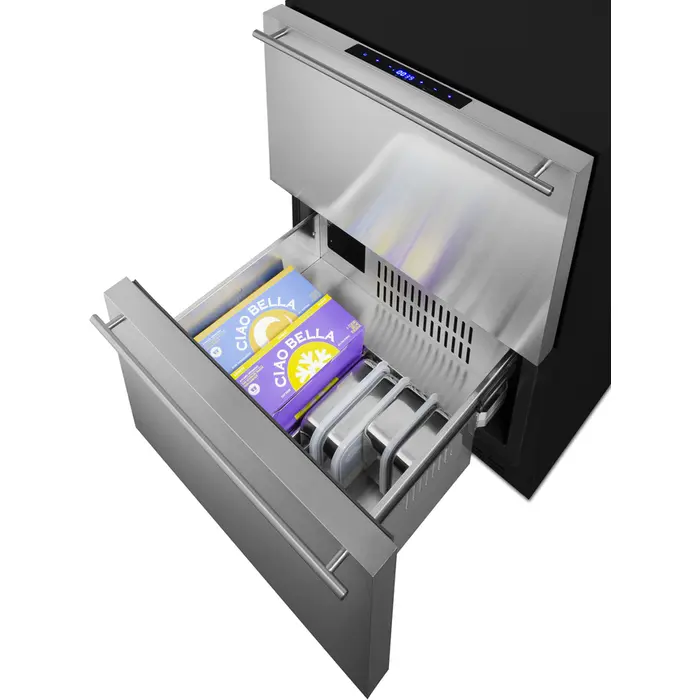

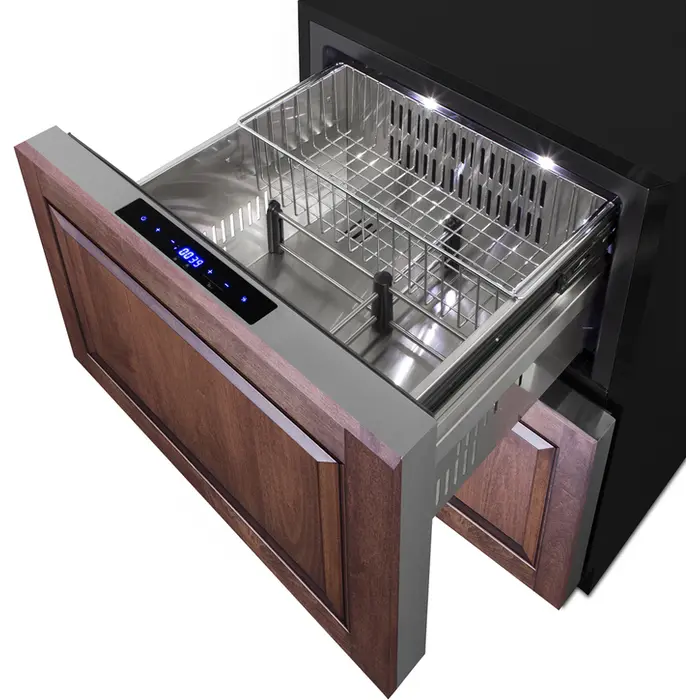

Inside, the ADRF244OS has a generous 3.3 cu.ft. capacity to accommodate your storage needs. Both the top drawer refrigerator and bottom drawer freezer utilize frost-free operation with fan-forced cooling, ensuring an even temperature distribution with minimum user maintenance. A digital thermostat, located atop the refrigerator drawer, makes it easy to manage the temperature, with an LED display that can be read in Celsius or Fahrenheit. Two adjustable, removable dividers allow you to separate the drawer compartments into two (freezer) or four (refrigerator) zones to easily accommodate a variety of sizes. A full-width sliding removable chrome basket offers added storage convenience, while white LED lighting in the refrigerator drawer makes it easy to view stored contents. A child lock will disable the digital controls after two minutes of inactivity to prevent accidental adjustments. Additional features include audible alarms for high-temperature fluctuations and open drawer alerts, a temporary memory function to recover all settings in the event of power loss, and sabbath mode to disable certain electrical features during periods of religious observance.

The ADRF244OS is ETL-S listed to NSF-7 commercial standards and approved for residential use. Additional refrigerator and freezer drawers are available, with 15" and 18" choices and standard height options. Browse the full Summit line to explore your endless outdoor refrigeration options for ADA compliant undercounter spaces.

SPECIFICATIONS

Overview

Nominal Height 32.0" (81 cm)

Height of Cabinet 31.88" (81 cm)

Nominal Width 24.0" (61 cm)

Width 23.38" (59 cm)

Nominal Depth 23.0" (58 cm)

Depth 22.5" (57 cm)

Depth with Handle 23.88" (61 cm)

Depth with door at 90° 34.25" (87 cm)

Capacity 3.32 cu.ft. (94 L)

Defrost Type Frost-Free

Door Stainless Steel/Panel-Ready

Cabinet Black

US Electrical Safety ETL

Canadian Electrical Safety ETL-C

Sanitation ETL-S

Energy Usage/Year 370.0kWh/year

Amps 1.0

Voltage/Frequency 115 V AC/60 Hz

Weight 105.0 lbs. (48 kg)

Parts & Labor Warranty 1 Year

Compressor Warranty 5 Years

UPC 761101088181

Refrigerator-Freezer

Door Swing Drawer

Interior Light Yes

Refrigerator - Interior Height 8.0" (20 cm)

Refrigerator - Interior Width 17.0" (43 cm)

Refrigerator - Interior Depth 14.5" (37 cm)

Refrigerator - Temperature Range 36°F to 43°F

Freezer - Interior Height 8.0" (20 cm)

Freezer - Interior Width 17.0" (43 cm)

Freezer - Interior Depth 14.5" (37 cm)

Thermostat Type Digital

Fan Type Interior

Refrigerant Type R600a

Refrigerant Amount 1.38 oz.

High Side PSI 270.0

Low Side PSI 105.0

Level Legs 4

Freezer - Temperature Range -11°F to 11°F

Compressor Step Height 4.0" (10 cm)

Compressor Step Width 17.0" (43 cm)

Compressor Step Depth 3.5" (9 cm)

Sabbath Mode Yes

Sound Level 34.6 dB

FEATURES

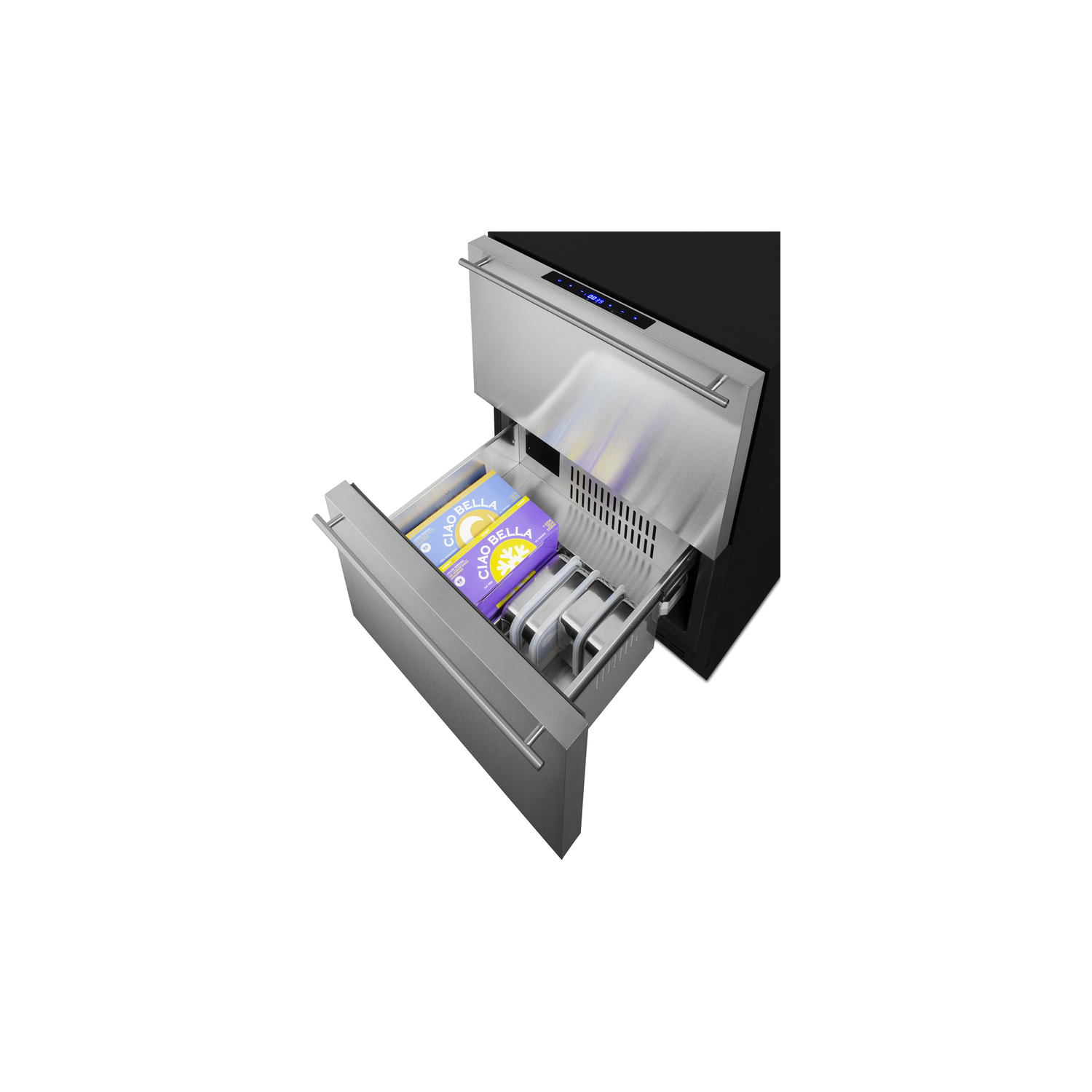

24" Wide 2-Drawer Refrigerator-Freezer Complete refrigeration storage solution with top drawer refrigerator and bottom drawer freezer

Weatherproof design for outdoor use Durable construction allows safe installation in outdoor kitchens

ADA compliant design Sized just under 32" high to allow installation under lower ADA compliant counters

Built-in capable Front-breathing design allows you to make the best use of space by installing your appliance under the counter and flush with other cabinets in 24" wide openings

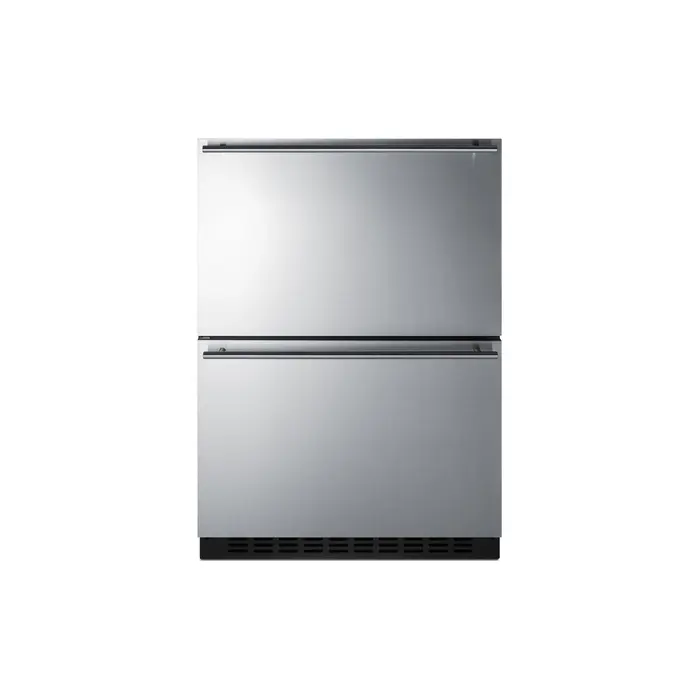

Stainless steel drawers Drawer interiors and exteriors are fully constructed from 304 grade stainless steel for weatherproof durability and elegant style

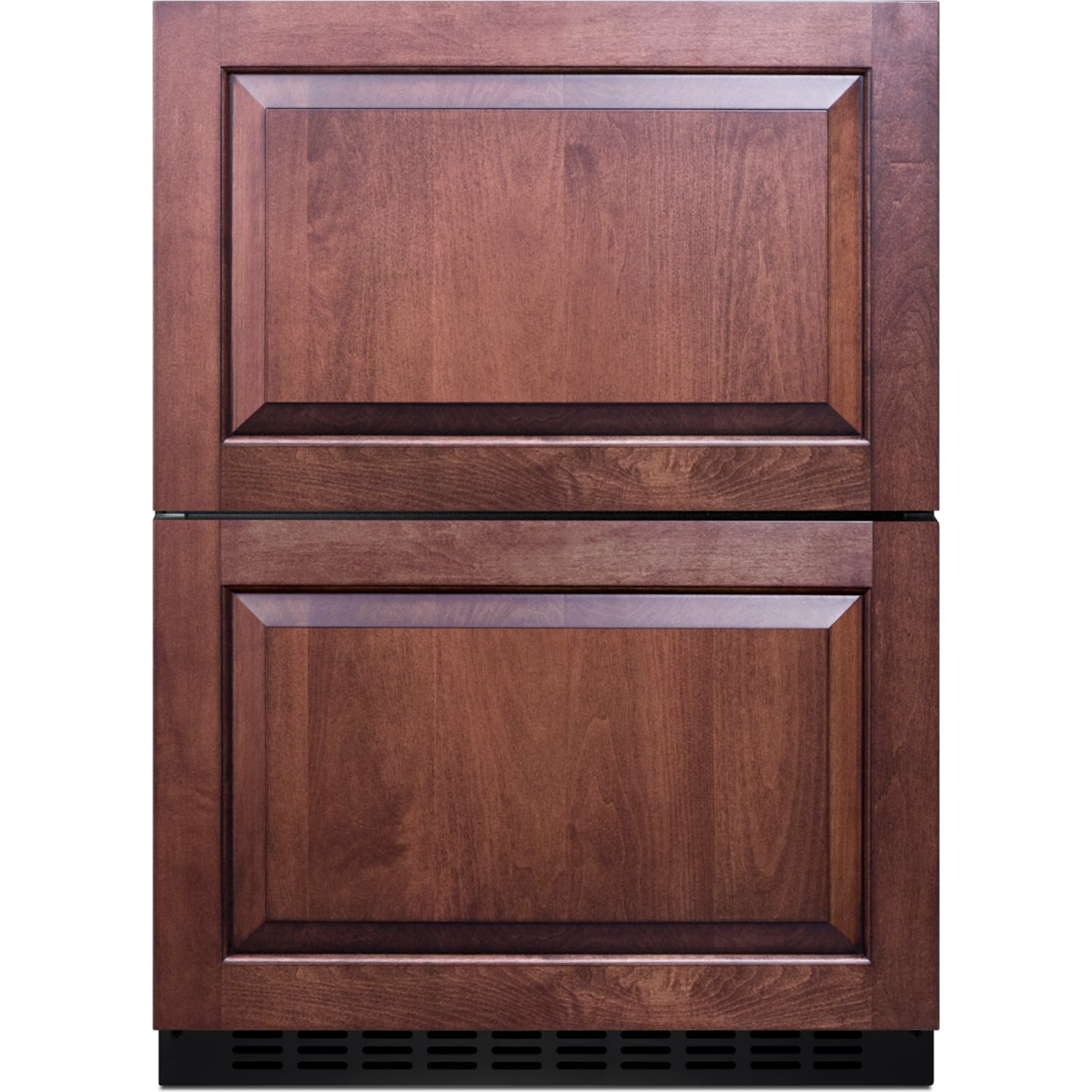

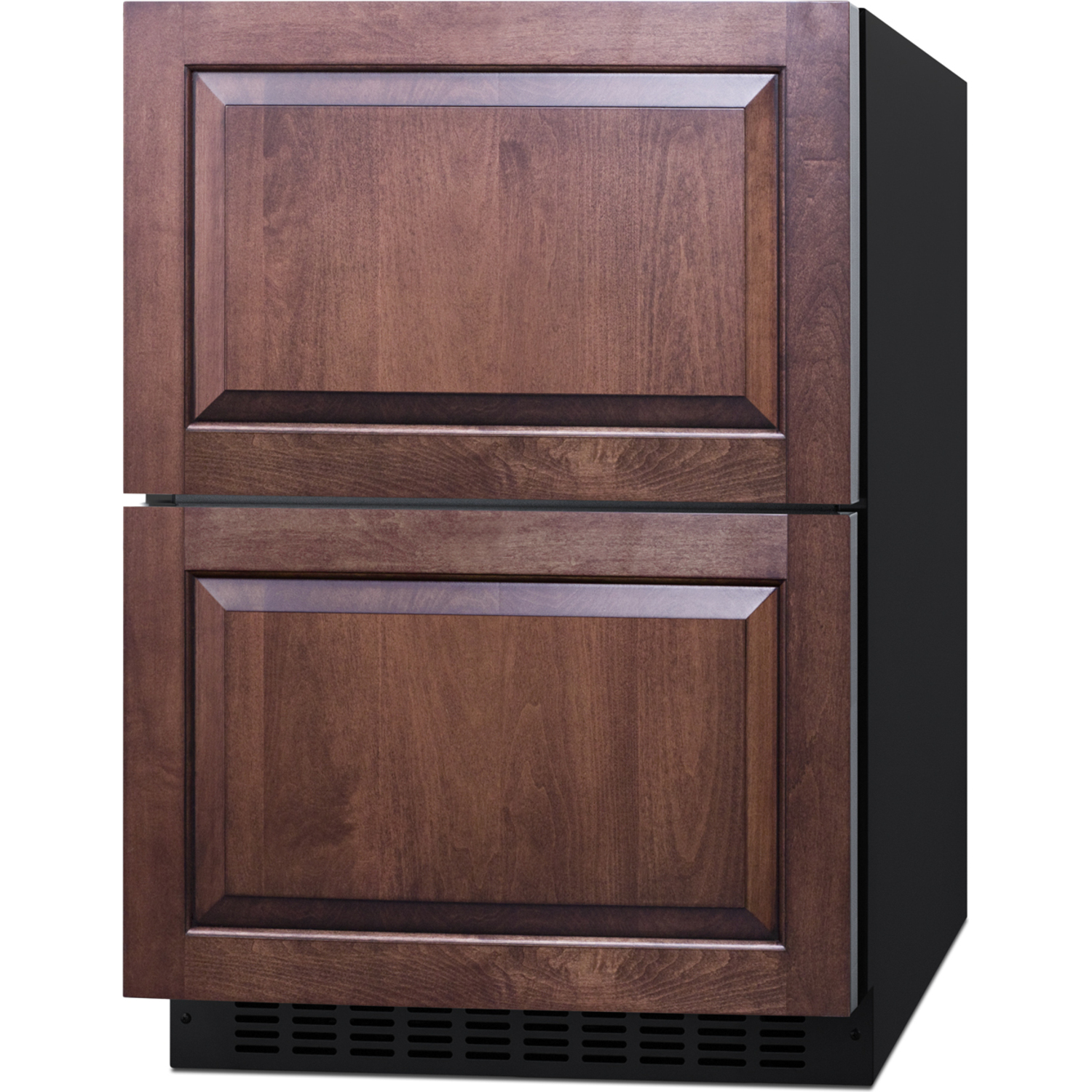

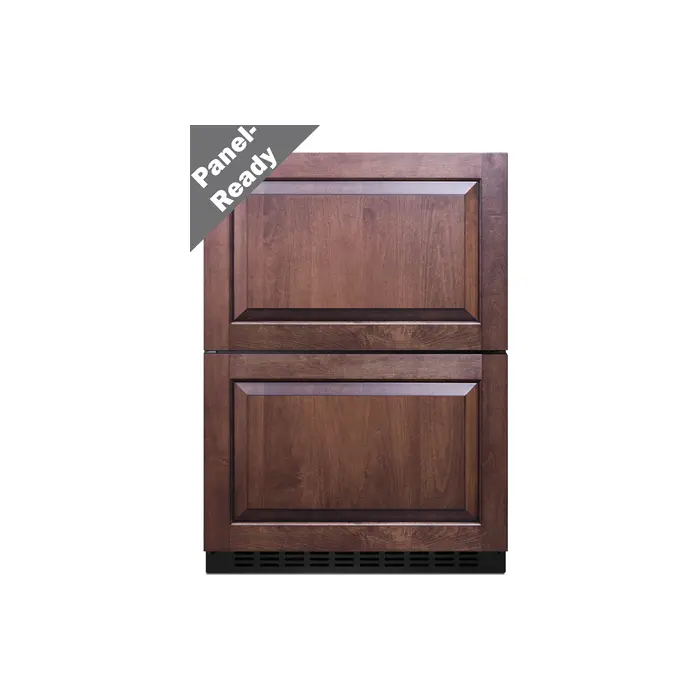

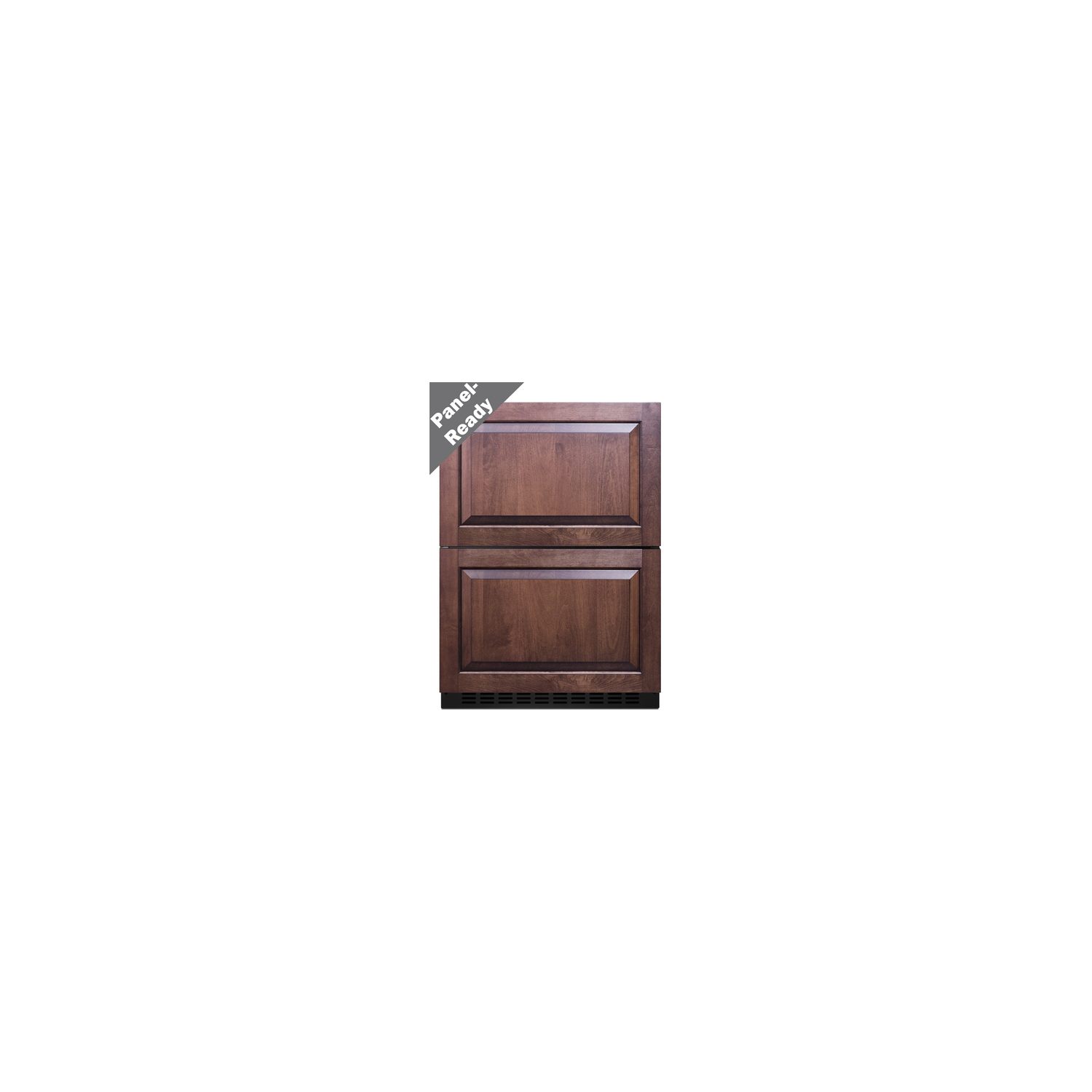

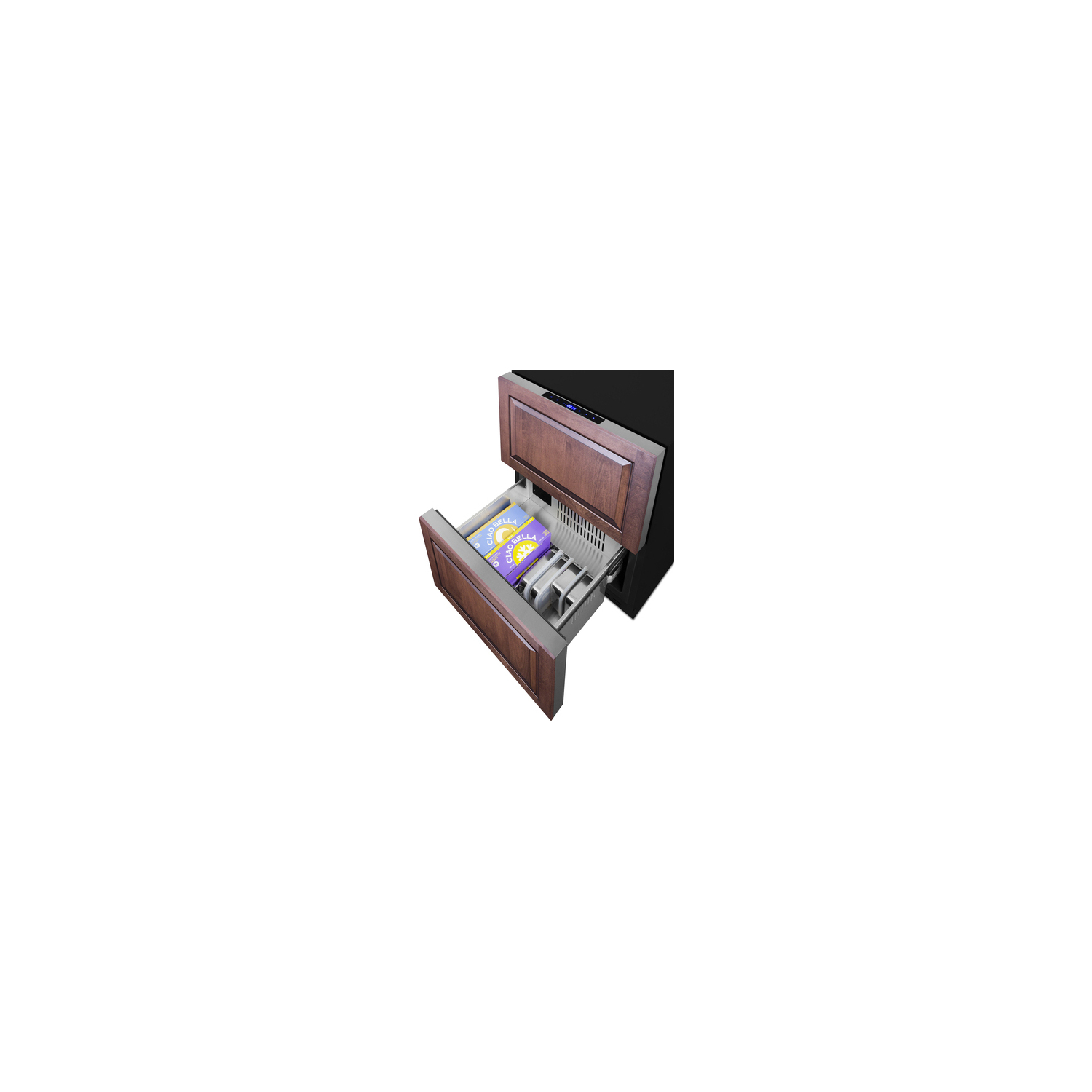

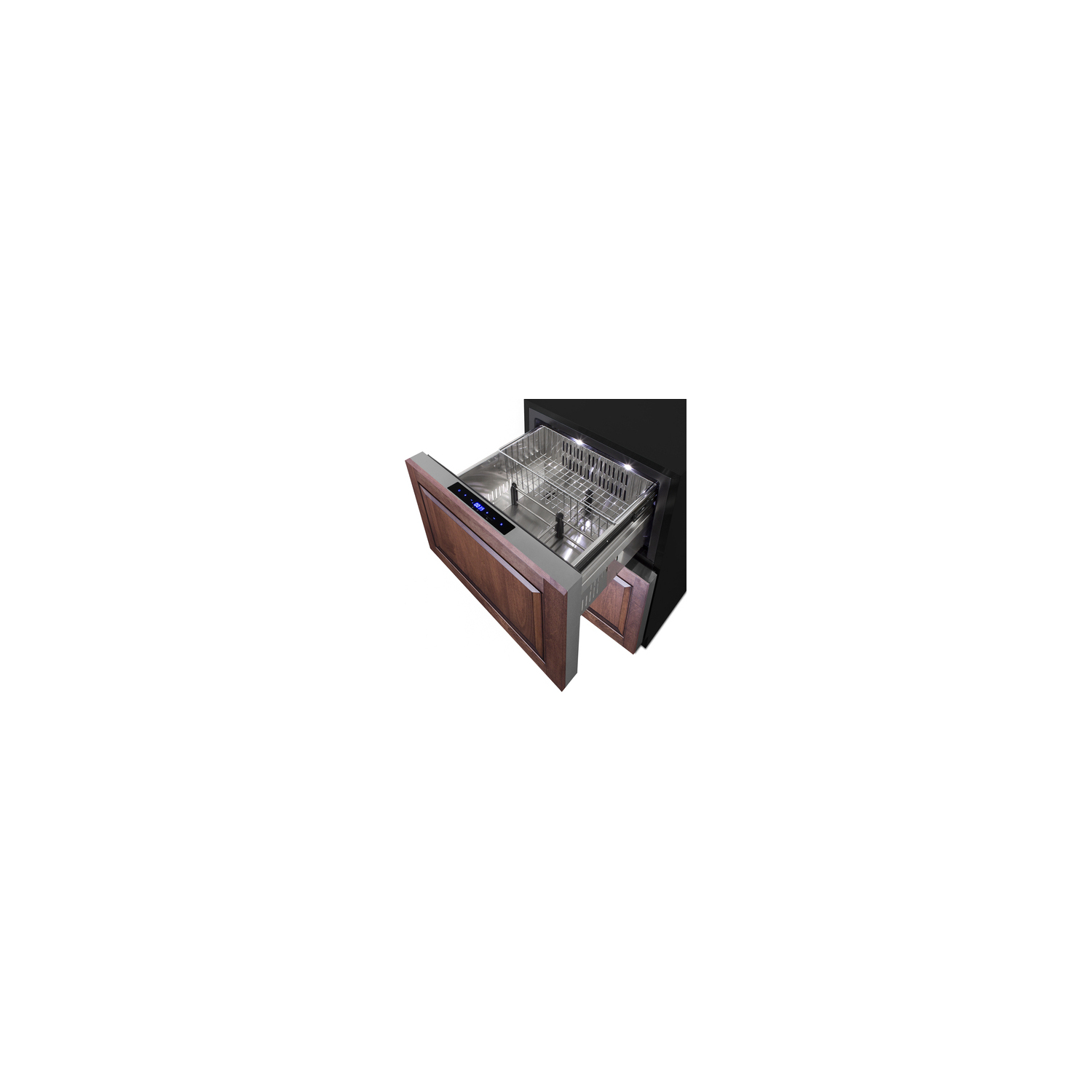

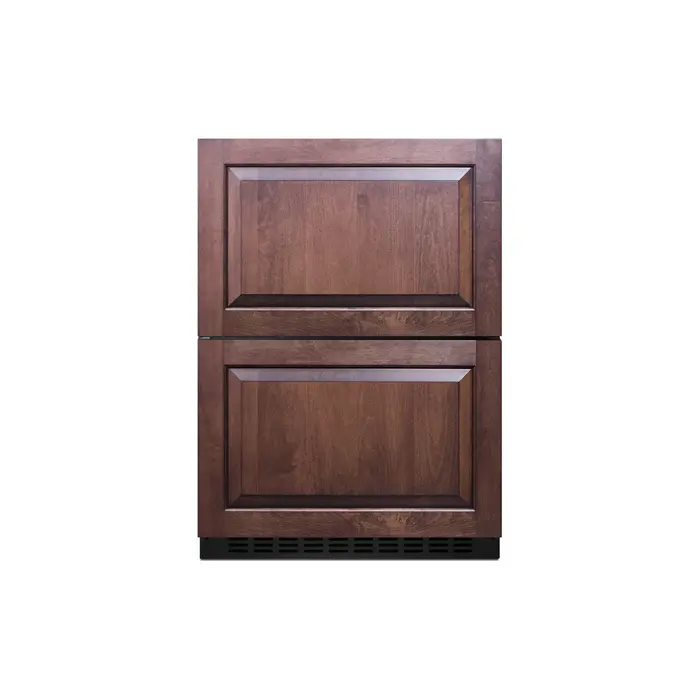

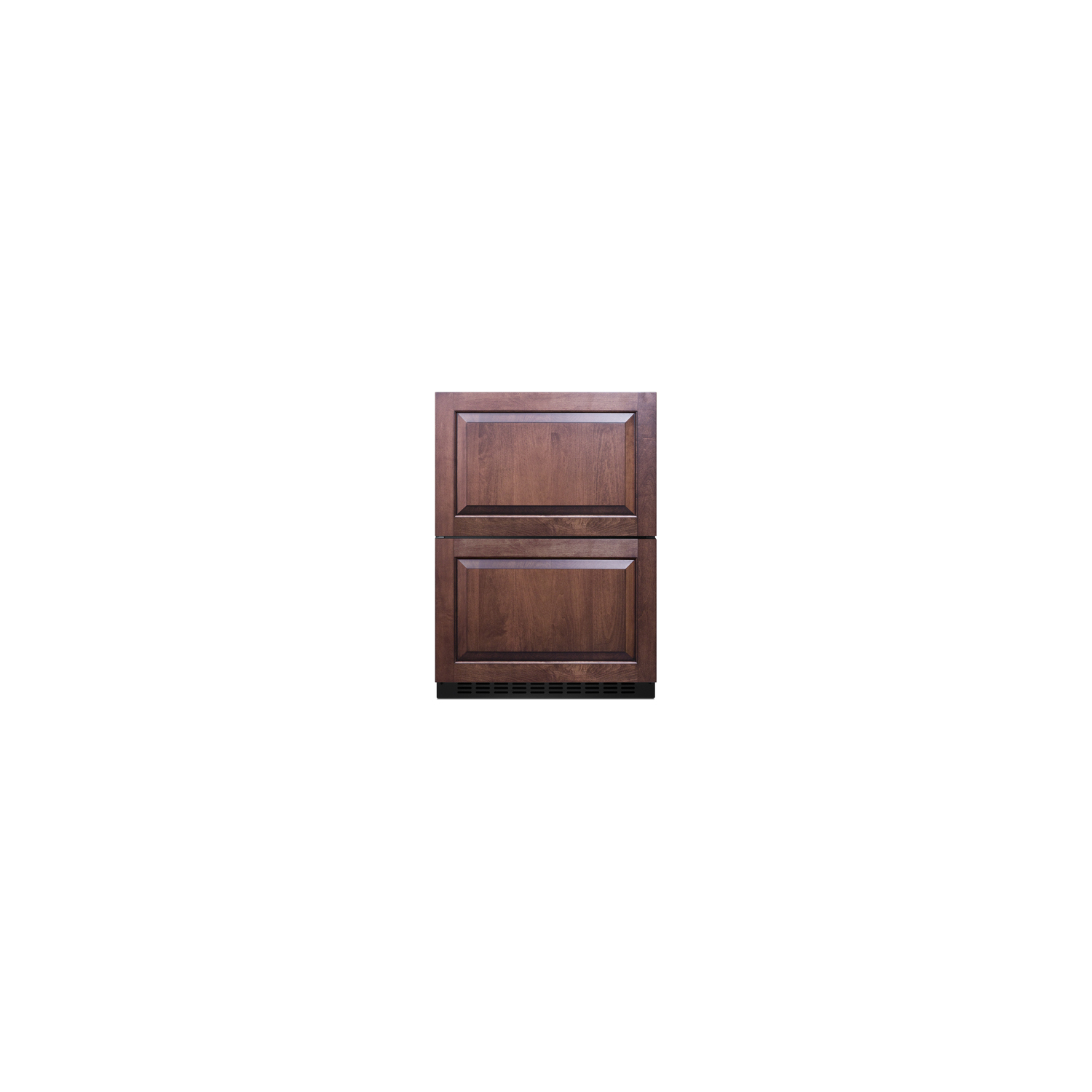

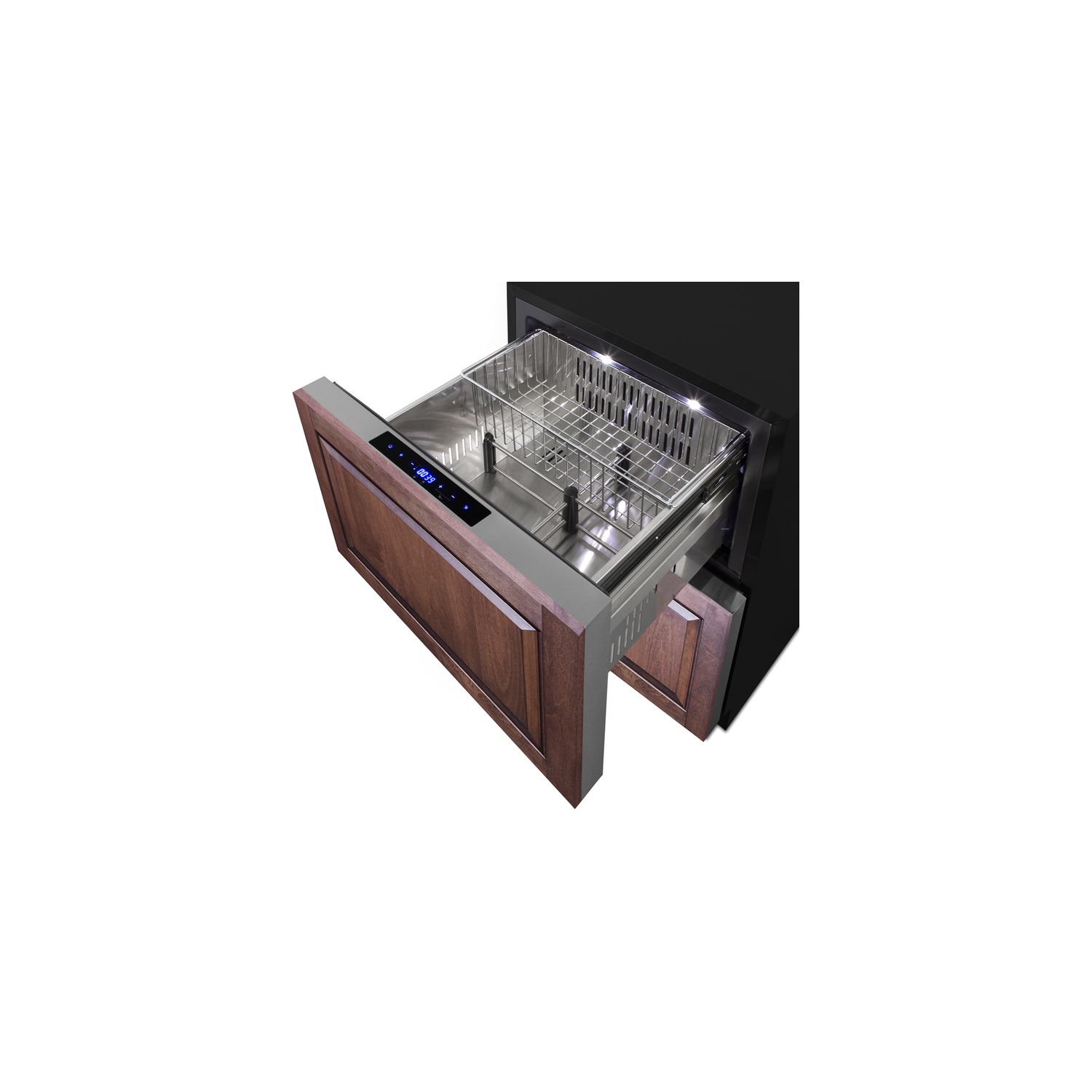

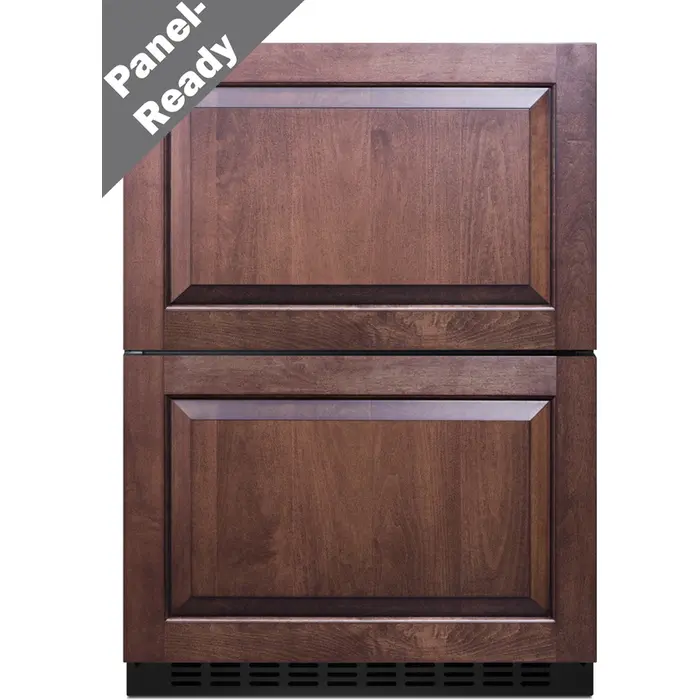

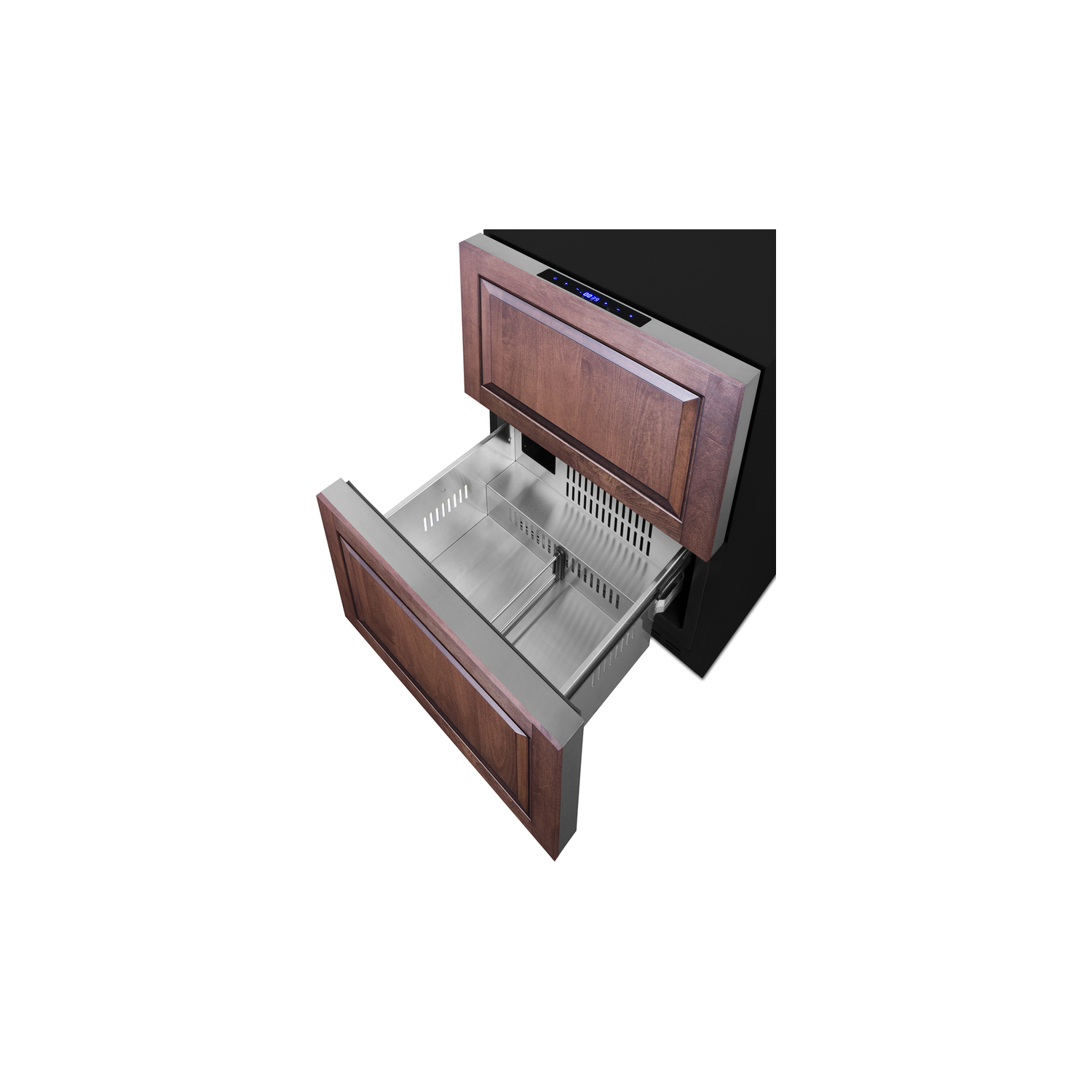

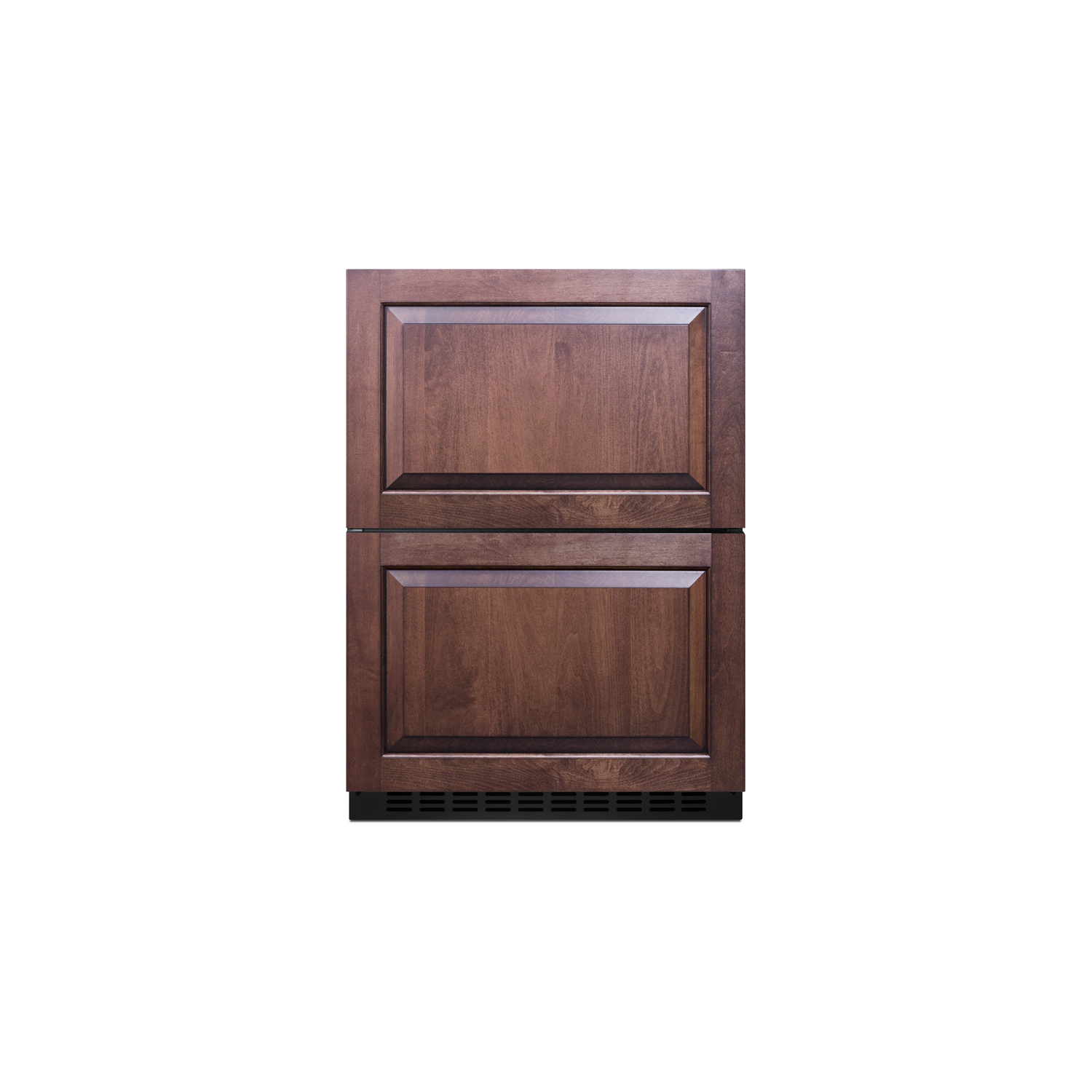

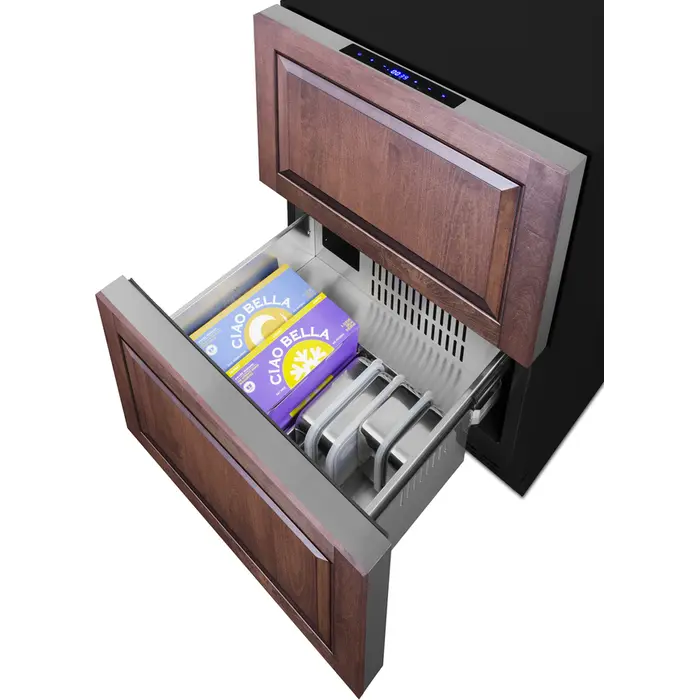

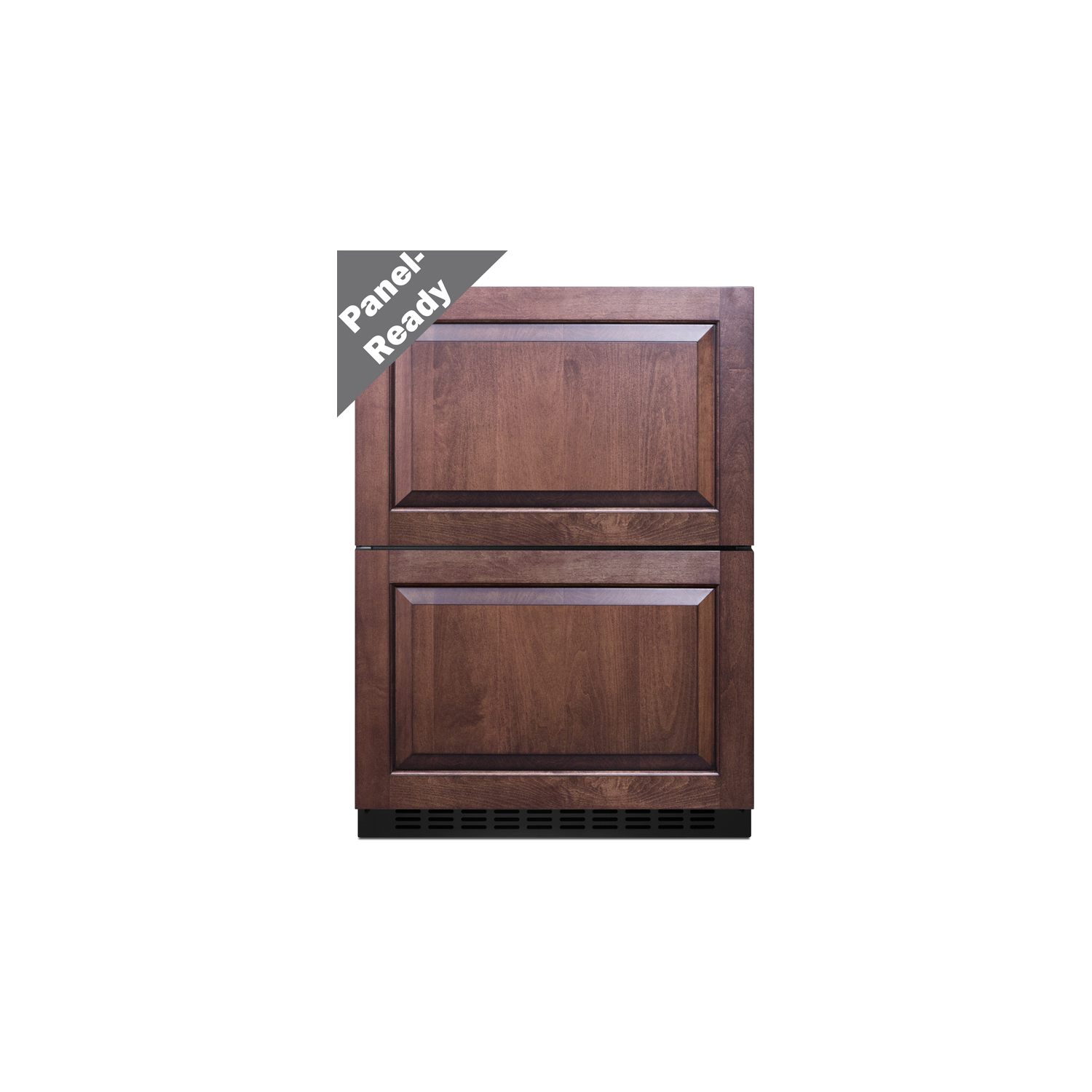

Panel-ready drawer fronts Drawers accept overlay panels (size: 23.43" x 14.1" at 3/4" thick) to let you seamlessly blend the refrigerator into cabinetry design

Professional handles Sleek stainless steel handles add an elegant touch to any setting

Frost-free operation No-frost operation for minimum user maintenance

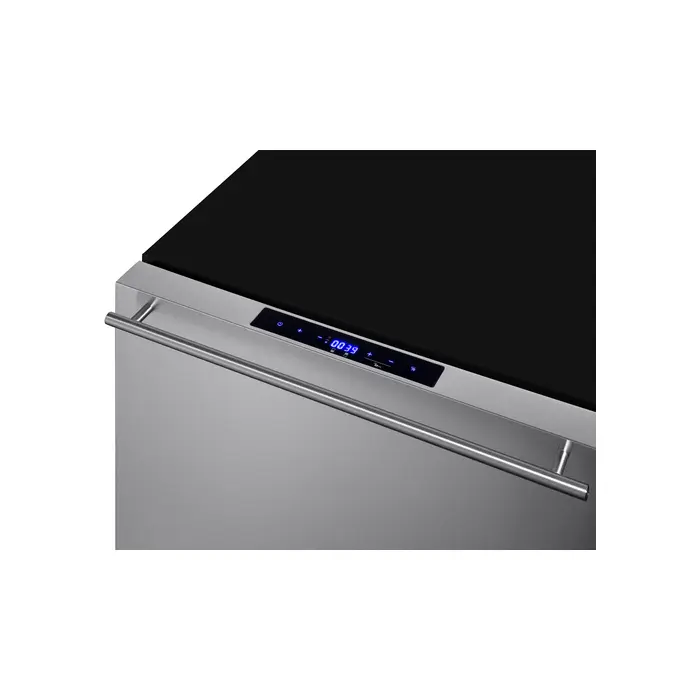

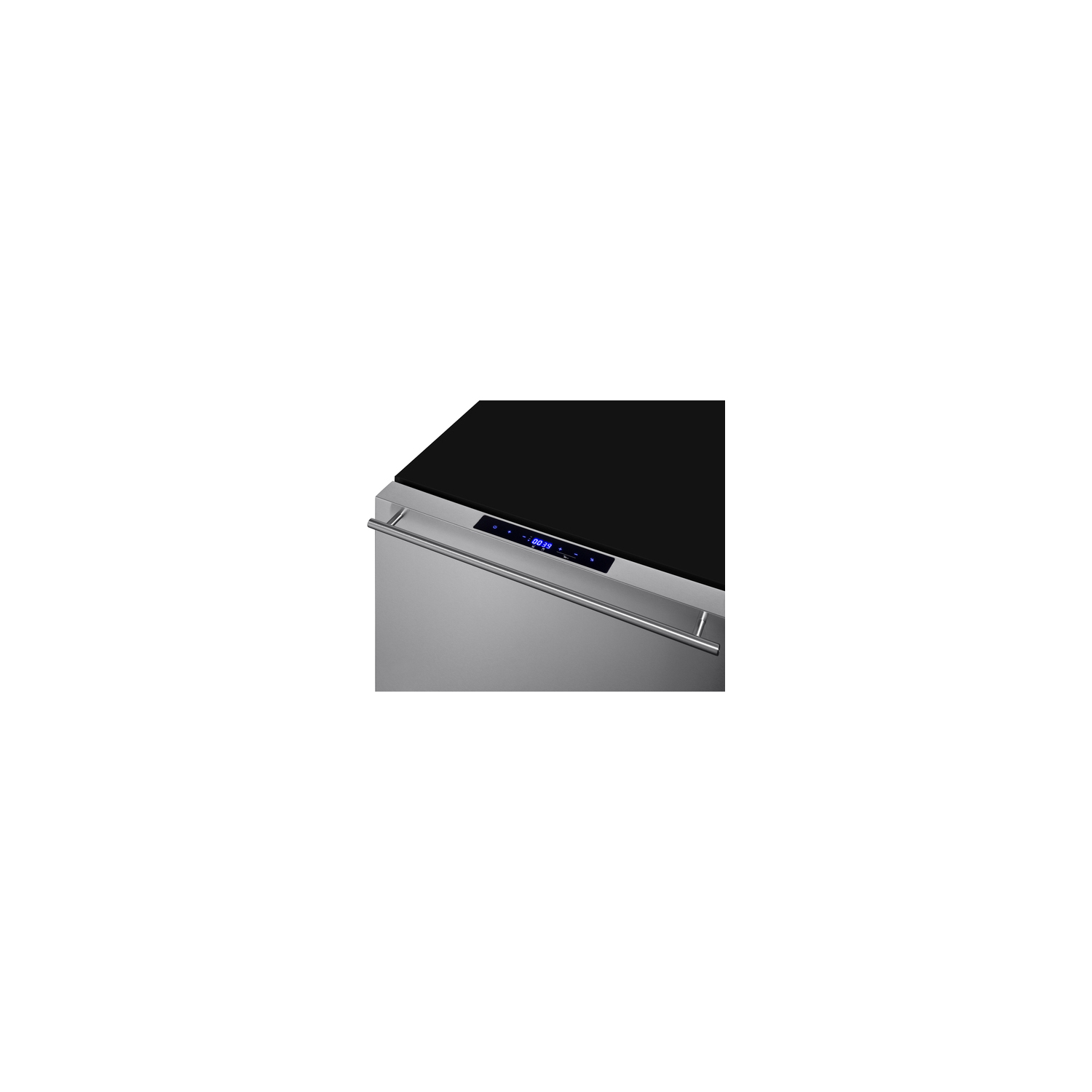

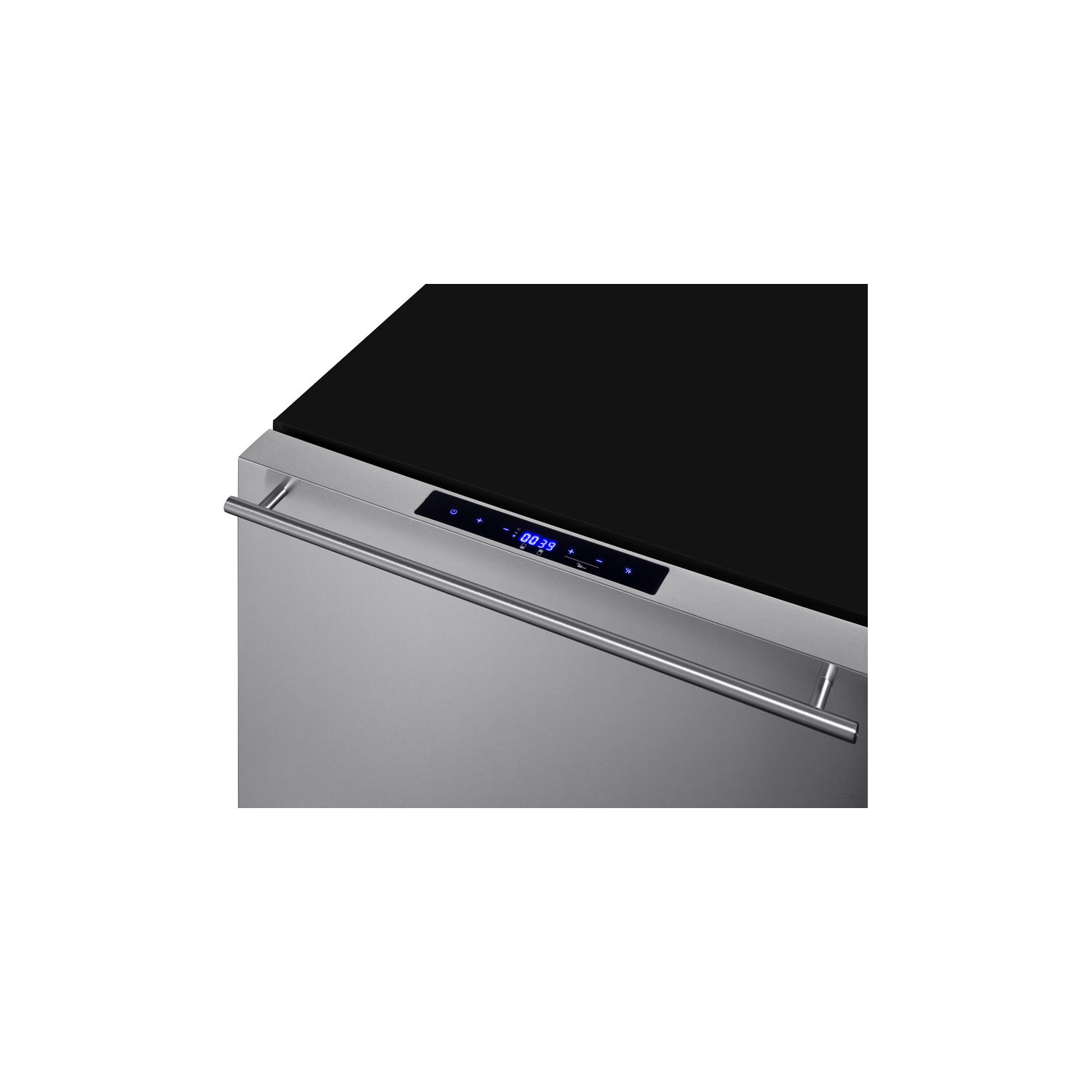

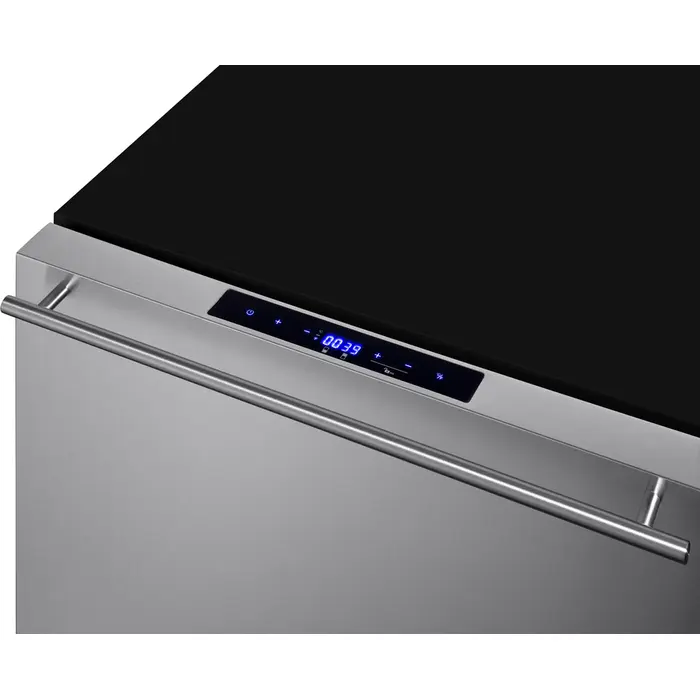

Digital thermostat Electronic controls located on the top drawer ensure intuitive temperature management, with an external readout that can switch from Celsius to Fahrenheit at the touch of a button

LED lighting Elegant LED lighting in a gentle white hue illuminates the refrigerator section for an easy view of the interior

Internal fan Fan-forced cooling ensures the unit is evenly cooled from top to bottom

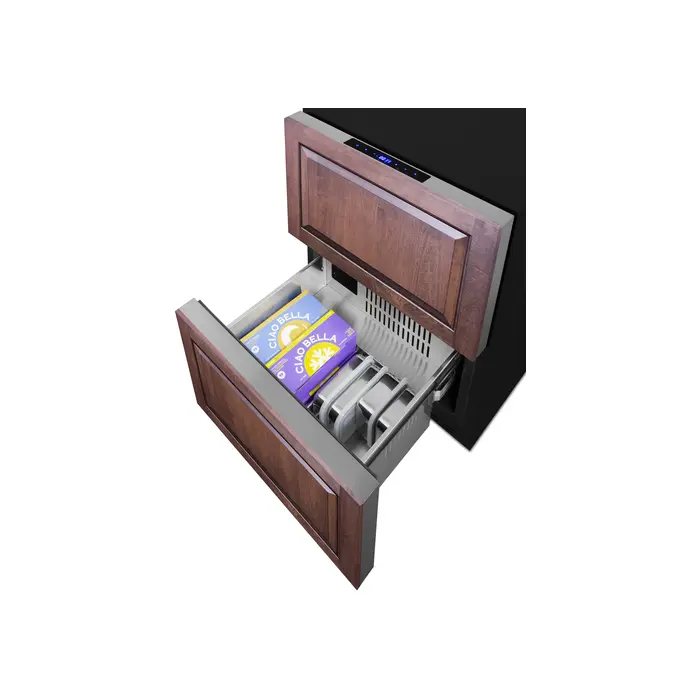

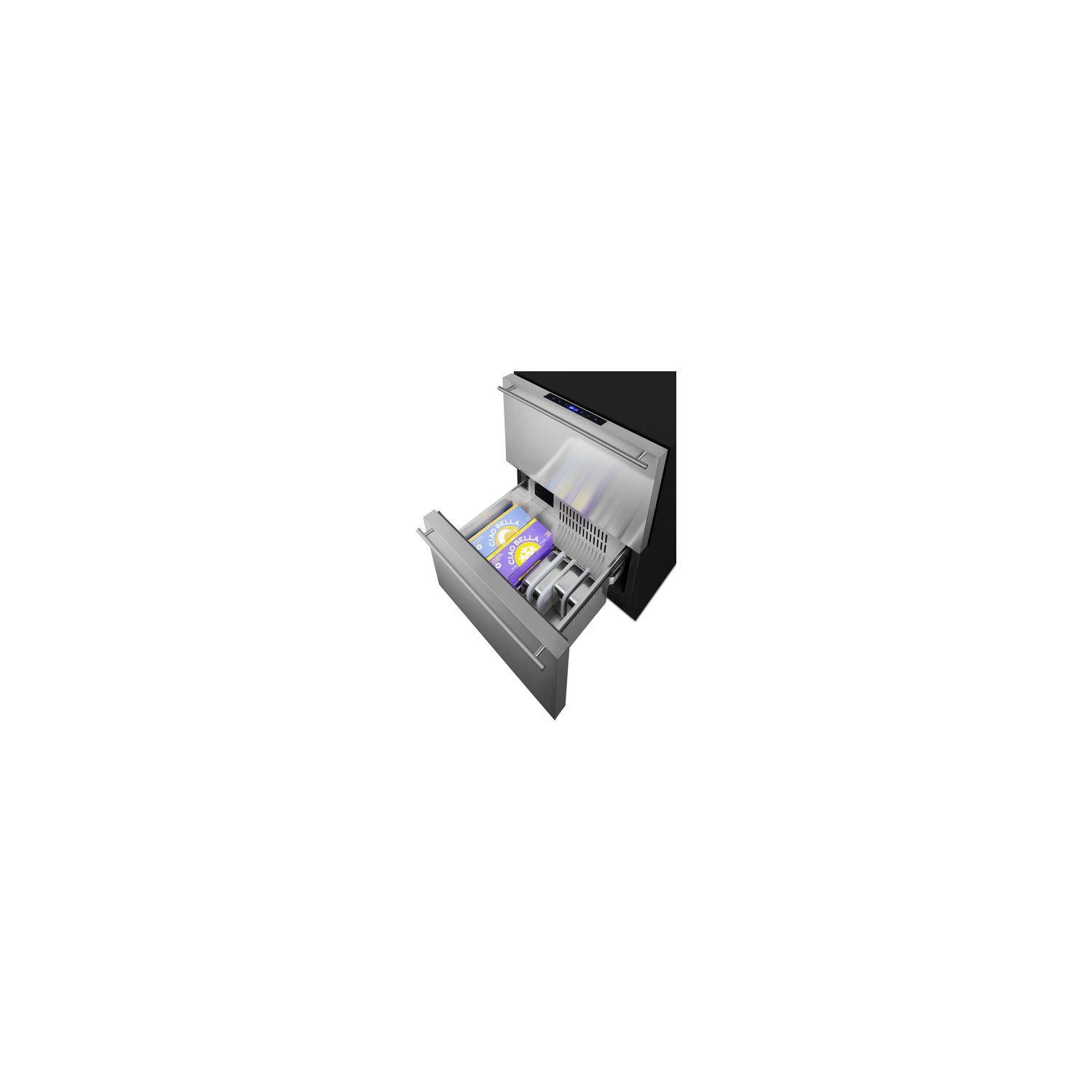

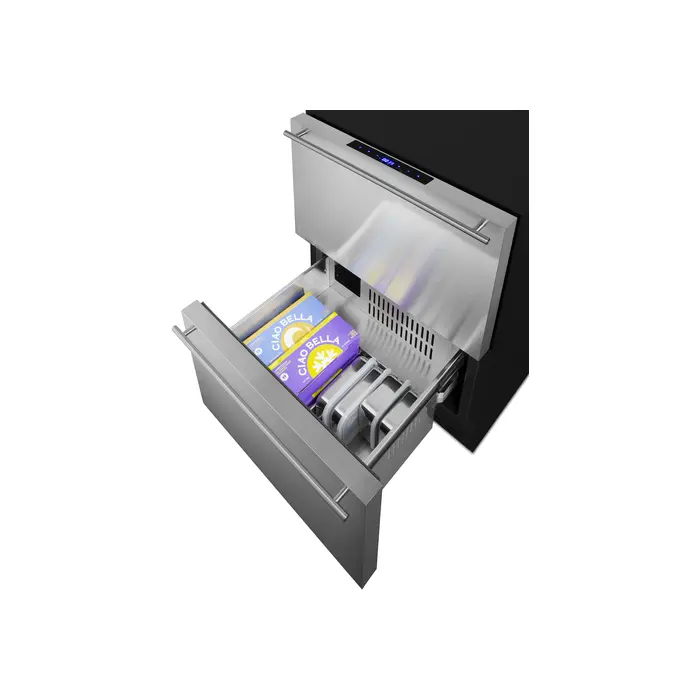

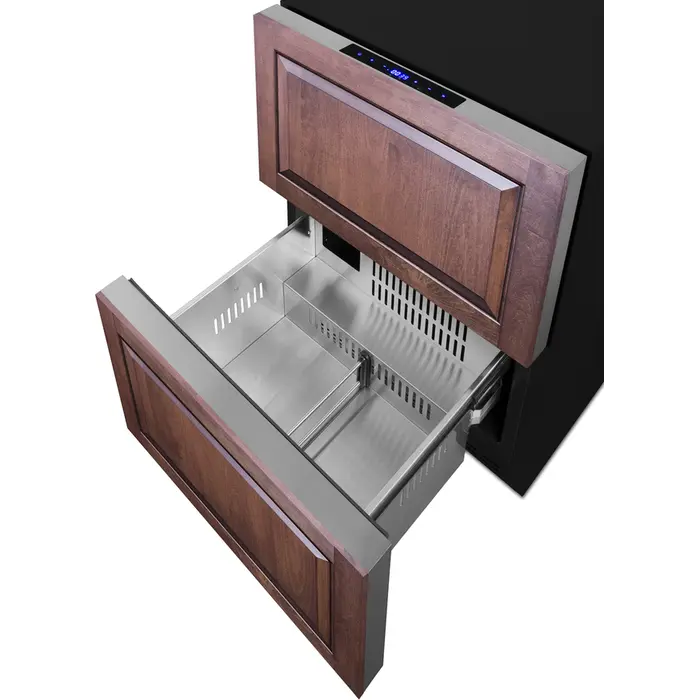

Drawer dividers Two adjustable dividers make it simple to organize the drawer interiors

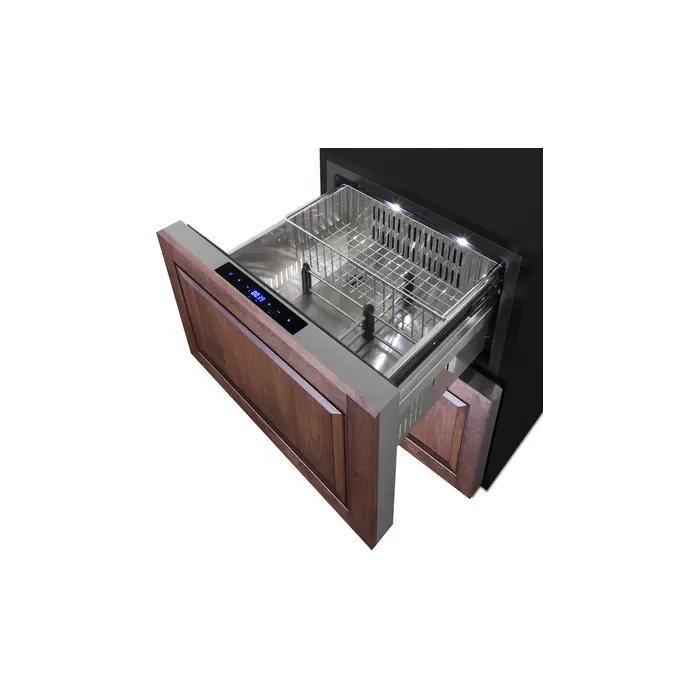

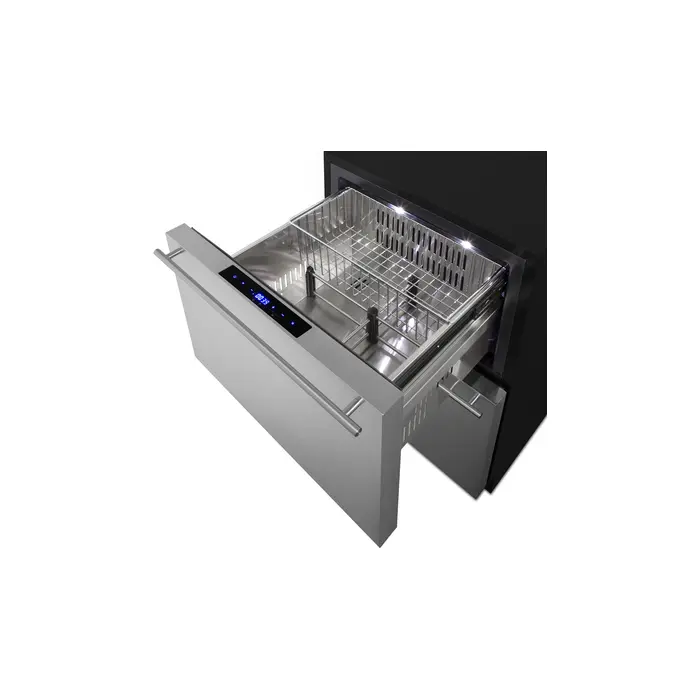

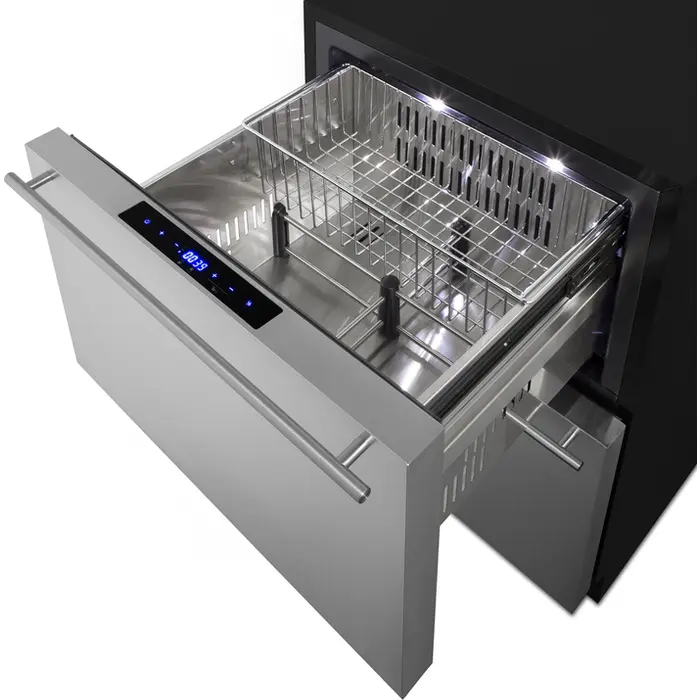

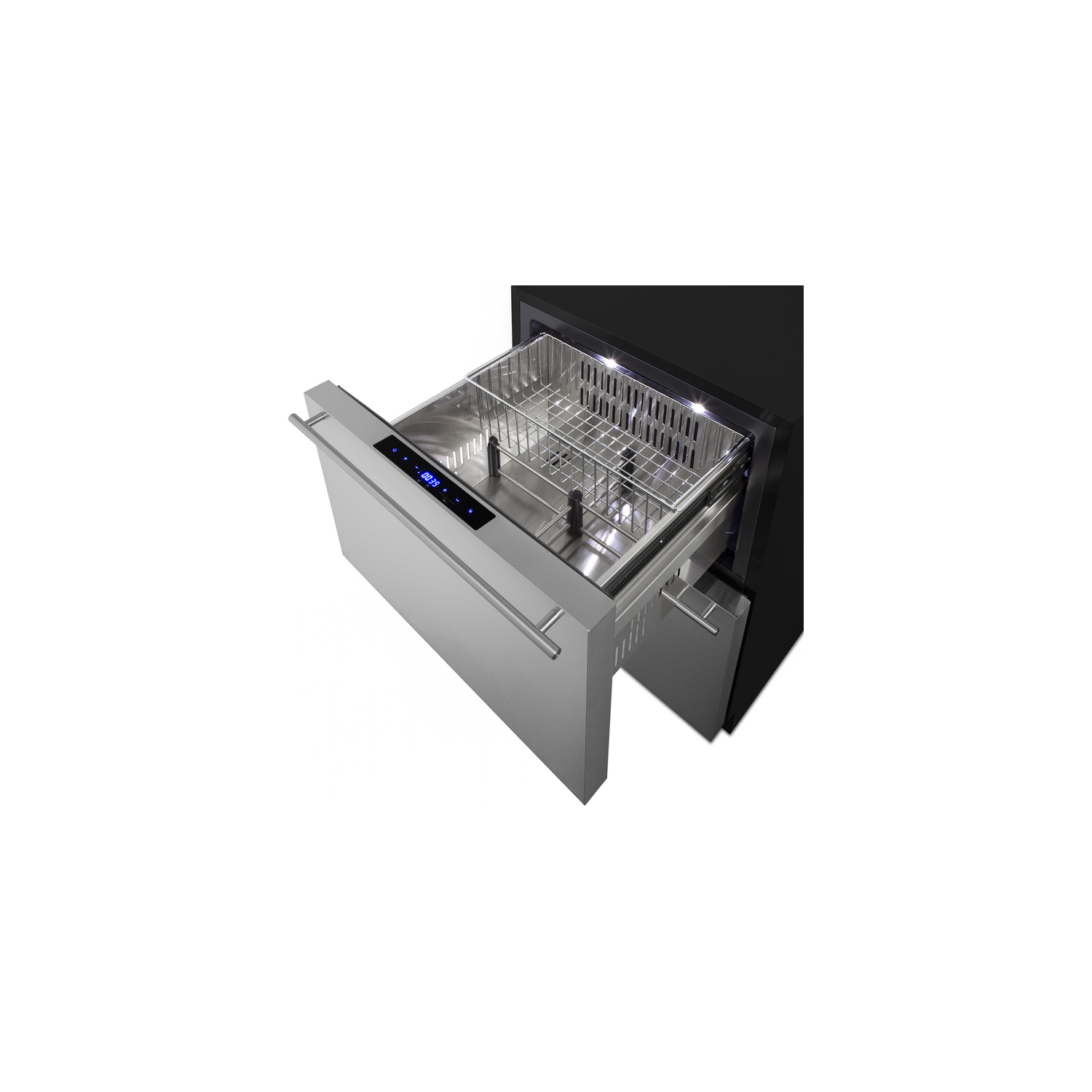

Sliding basket Removable chrome basket included for added storage convenience

Temperature alarm High temperature alarm sounds if the unit's interior goes out of the recommended range

Open drawer alarm Audible alarm will sound if either drawer is left open longer than one minute

Sabbath Mode Optional setting lets you disable the lighting and alarm for up to 48 hours during periods of observance

Child lock Disables digital controls after two minutes of activity for added safety

Temperature memory function Unit will restore the most recent temperature settings after losing power

Right angle plug Design allows you to plug the unit in flush against the wall socket with no need to add extra depth

Sealed back Space-saving design with no exposed coils for easier cleanability and added protection from the elements

Fully finished black exterior cabinet Allows the unit to be used freestanding

Anti-tip bracket Included and recommended for user-installation to reduce the risk of tipping

Commercially approved ETL-S listed to NSF-7 standards to allow use in commercial establishments

100% CFC free Environmentally friendly design without ozone-damaging chemicals

CARB Compliant Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

DOWNLOADS

BROCHURE w/ DRAWINGS (ADRF244OS.pdf)

TECHNICAL DRAWING (.dwg) (AD_RD-FD-RF_24_1-3-4__10.dwg)

ASSEMBLY DRAWING (AD_RD-FD-RF_24_1-3-4_-Assembly_10.pdf)

3D DRAWING (ADRF244NoCord_2.obj)

3D DRAWING (ADRF244_2.dwg)

3D DRAWING (ADRF244_2.3ds)

REVIT MODEL (QF_Summit_ADRF244_2_Drawer_Refrigerator_Freezer_2.rfa)

USE & CARE (ADRF244OS-User-Manual.pdf)

Energy Guide
