Summit 24 inch wide indoor/outdoor ADA compliant panel-ready drawer refrigerator in stainless steel, 7.61101e+011, ADRD24PNR

Summit manufactures an extensive selection of drawer refrigeration for versatile installation indoor or outdoor kitchen spaces, with customizable designs that allow easy integration into any cabinet style.

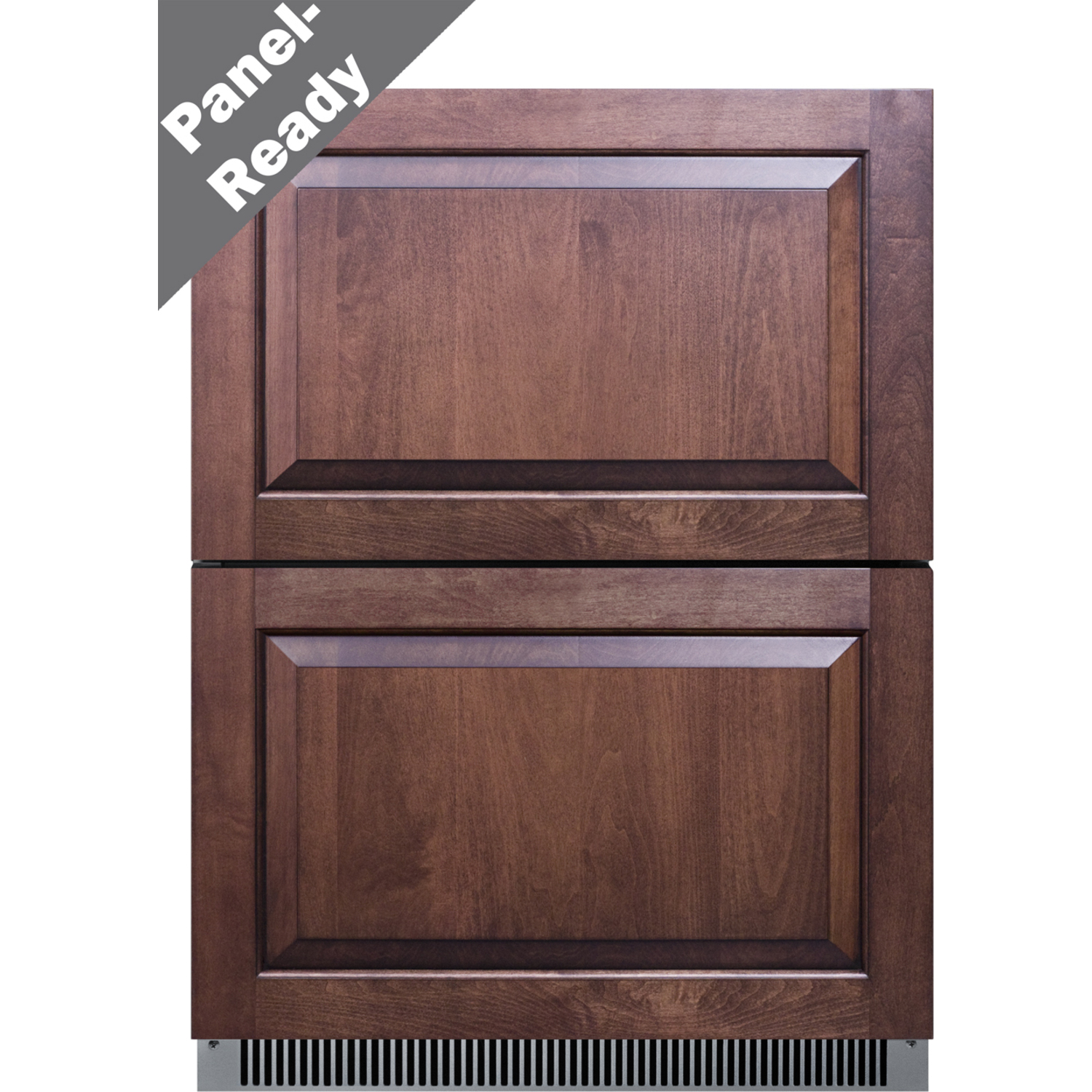

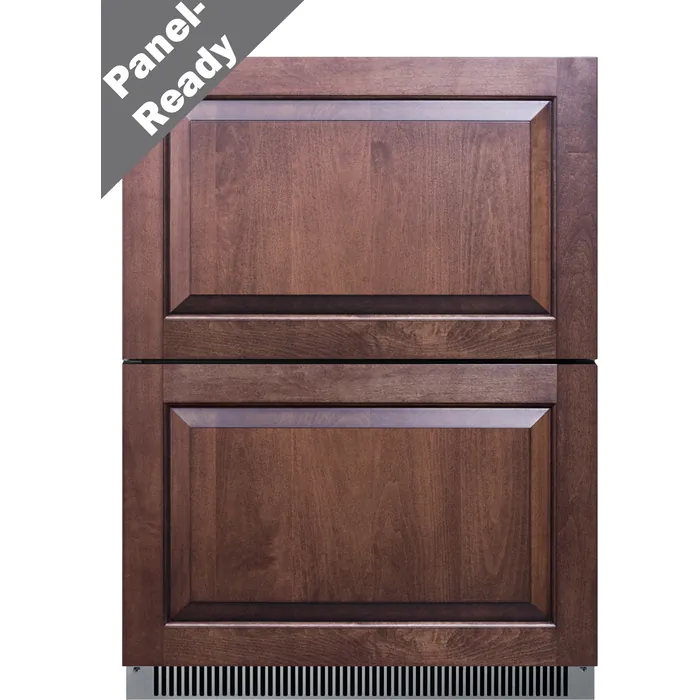

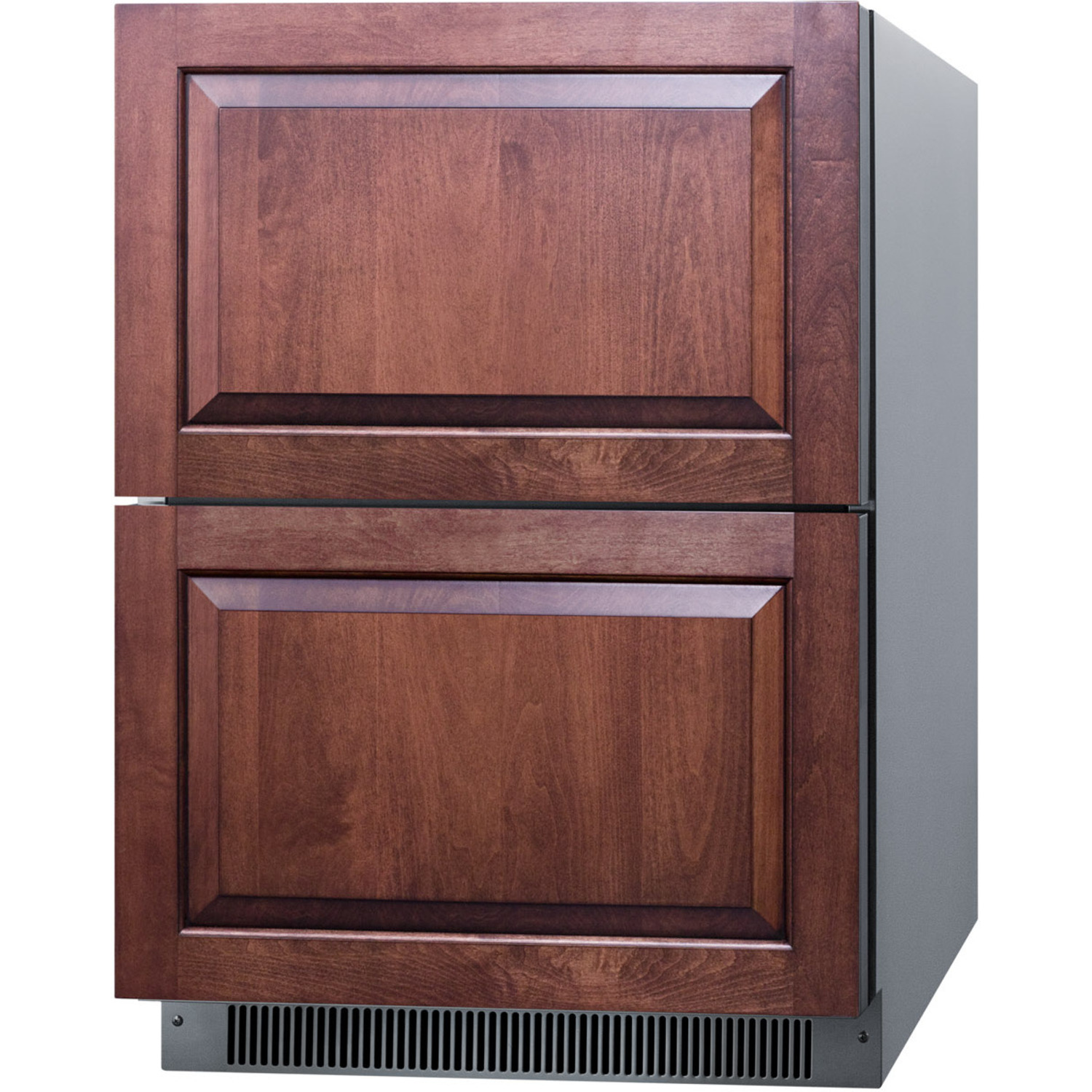

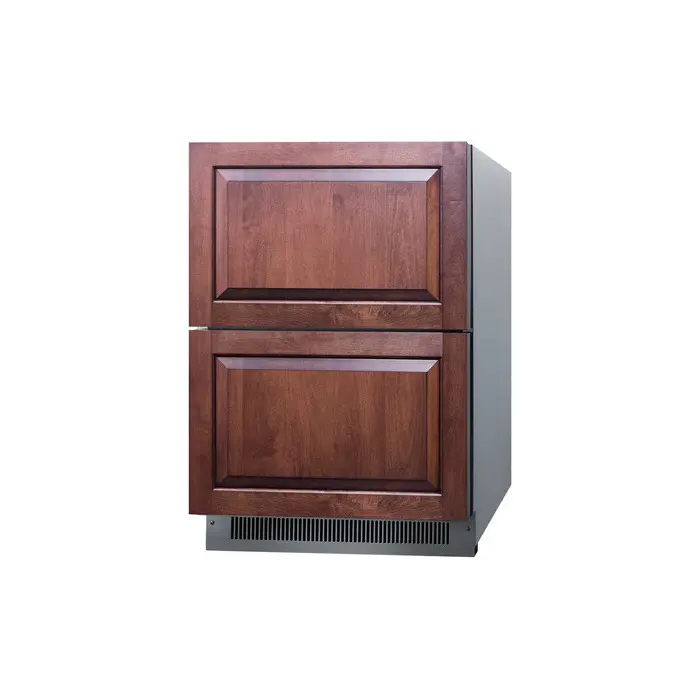

The ADRD24PNR is a two-drawer all-refrigerator sized at 32 inches high for installation under ADA compliant counters. We include an extra stainless steel kickplate and leveling legs to raise the height to 34 1/4 inches to suit more standard applications. The front-breathing design and finished cabinet allow for built-in or freestanding use. The drawer fronts are specially designed to accept user-provided overlay panels, allowing you to create a custom look that blends into existing cabinetry (panel dimensions: 23.34" W x 14.17" H at 3/4" thick). Complete 304 stainless steel construction inside and out offers durability in a professional look. Soft close glides deliver added safety by preventing the drawers from slamming. The drawers can be customized with overlay panels to match or accent existing cabinetry design, while the stainless steel kickplate and stylish handles complete the look.

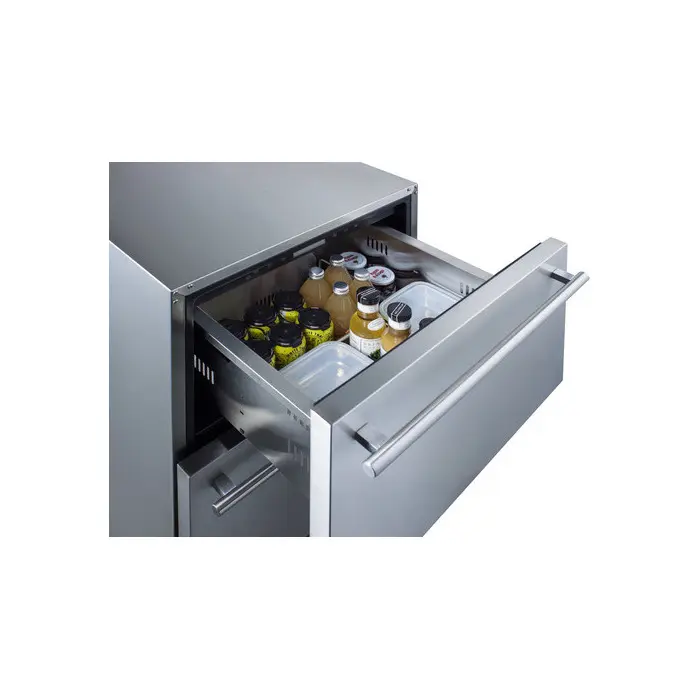

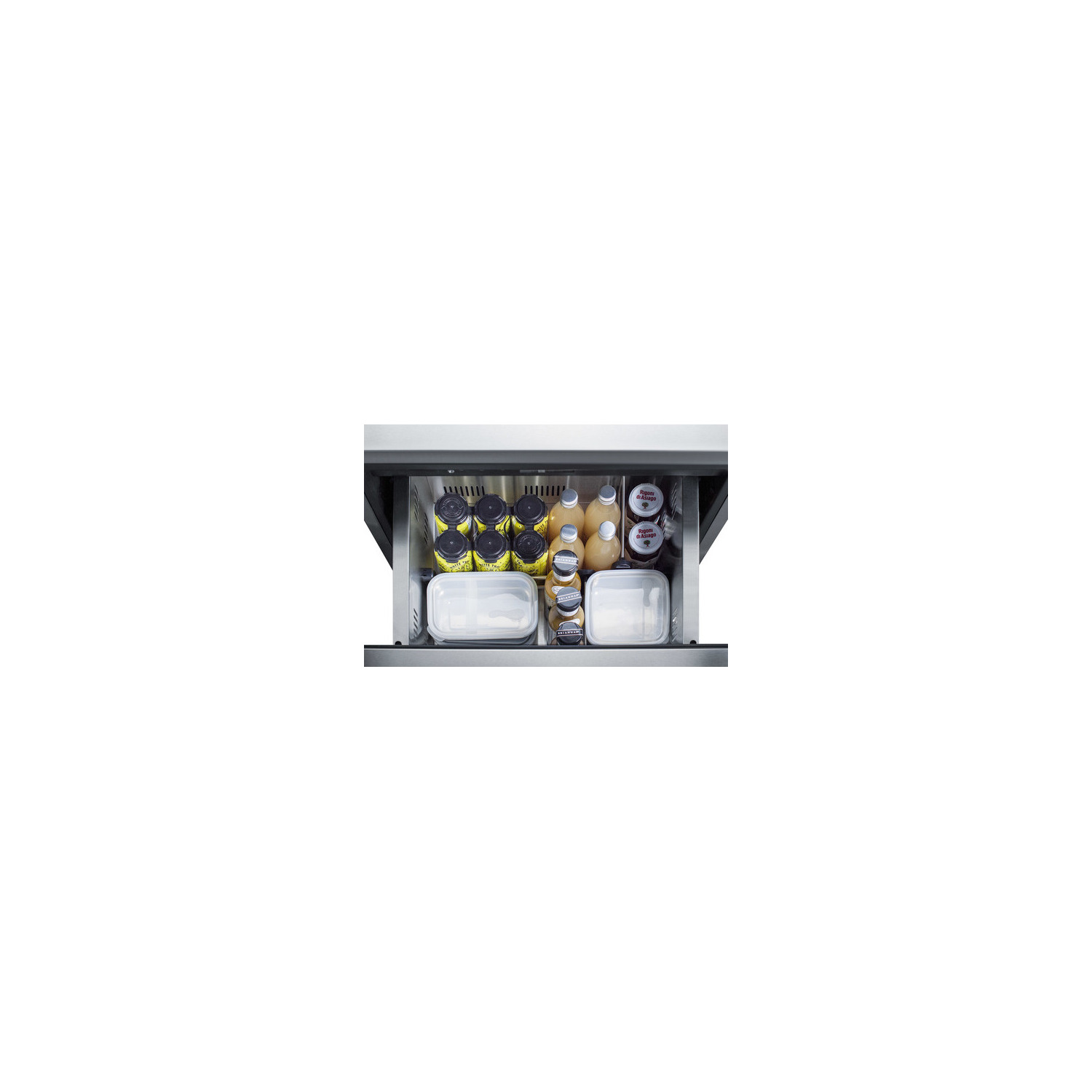

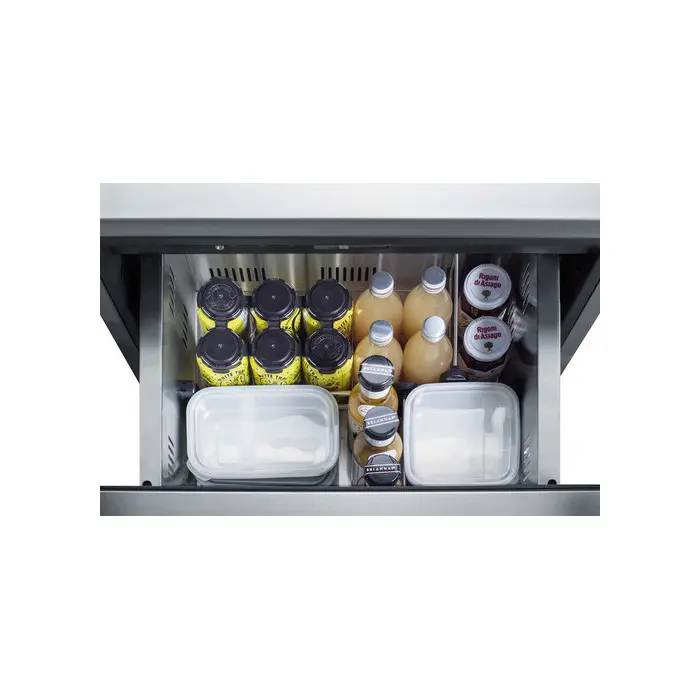

Frost-free operation ensures minimum user maintenance inside the 4.8 cu ft. interior. Two adjustable dividers allow for flexibility in storage, while the removable basket provides additional storage options. Additionally, removable drawers provide versatility and easy cleaning of the unit’s interior. The LED light makes it easy to view stored contents when loading or unloading each drawer.

Additional features ensure efficiency and ease of use. These include temperature and open drawer alarms. The digital thermostat and display make it easy to manage the temperature. A temperature memory function helps to recover temperature settings in the event of a power loss, while Sabbath Mode disables certain electrical features during periods of religious observance.

The ADRD24PNR is perfect for use in home or commercial settings. This unit is ETL-S listed to NSF-7 standards, and its ENERGY STAR certification assures efficient and environmentally friendly operation. For a matching frost-free freezer, see model ADFD2D24PNR.

SPECIFICATIONS

Overview

Nominal Height 32.0" (81 cm)

Height of Cabinet 32.0" (81 cm)

Nominal Width 24.0" (61 cm)

Width 23.38" (59 cm)

Nominal Depth 23.0" (58 cm)

Depth 22.75" (58 cm)

Depth with Handle 24.63" (63 cm)

Depth with door at 90° 37.88" (96 cm)

Capacity 4.8 cu.ft. (136 L)

Defrost Type Frost-Free

Door Stainless Steel/Panel-Ready

Cabinet Stainless Steel

US Electrical Safety ETL

Canadian Electrical Safety ETL-C

Sanitation ETL-S

Energy Usage/Year 272.0kWh/year

Amps 0.5

Voltage/Frequency 115 V AC/60 Hz

Weight 95.0 lbs. (43 kg)

Parts & Labor Warranty 1 Year

Compressor Warranty 5 Years

UPC 761101088716

Refrigerator Features

Sabbath Mode Yes

Door Swing Drawer

Height Adjustable Yes

Thermostat Type Digital

Fan Type Interior and Exterior

Refrigerant Type R600a

Refrigerant Amount 1.09oz.

High Side PSI 320.0

Low Side PSI 120.0

Level Legs Qty 4

Interior Light Yes

Interior Drawers Yes

Interior Drawers Qty 2

Temperature Range 34 to 43ºF

Sound Level 34.3 dB

Drawer Dimensions

Interior Height 1 9.63" (24 cm)

Interior Width 1 16.75" (43 cm)

Interior Depth 1 15.25" (39 cm)

Interior Height 2 10.75" (27 cm)

Interior Width 2 16.75" (43 cm)

Interior Depth 2 15.25" (39 cm)

Dimensions

Compressor Step Height 4.5" (11 cm)

Compressor Step Width 16.75" (43 cm)

Compressor Step Depth 5.5" (14 cm)

FEATURES

ENERGY STAR certified Ensures unit runs efficiently with an environmentally friendly performance

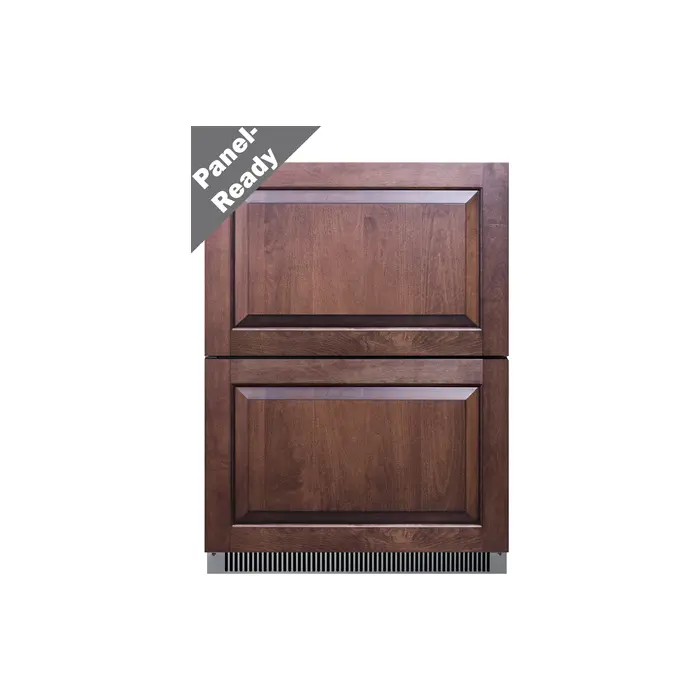

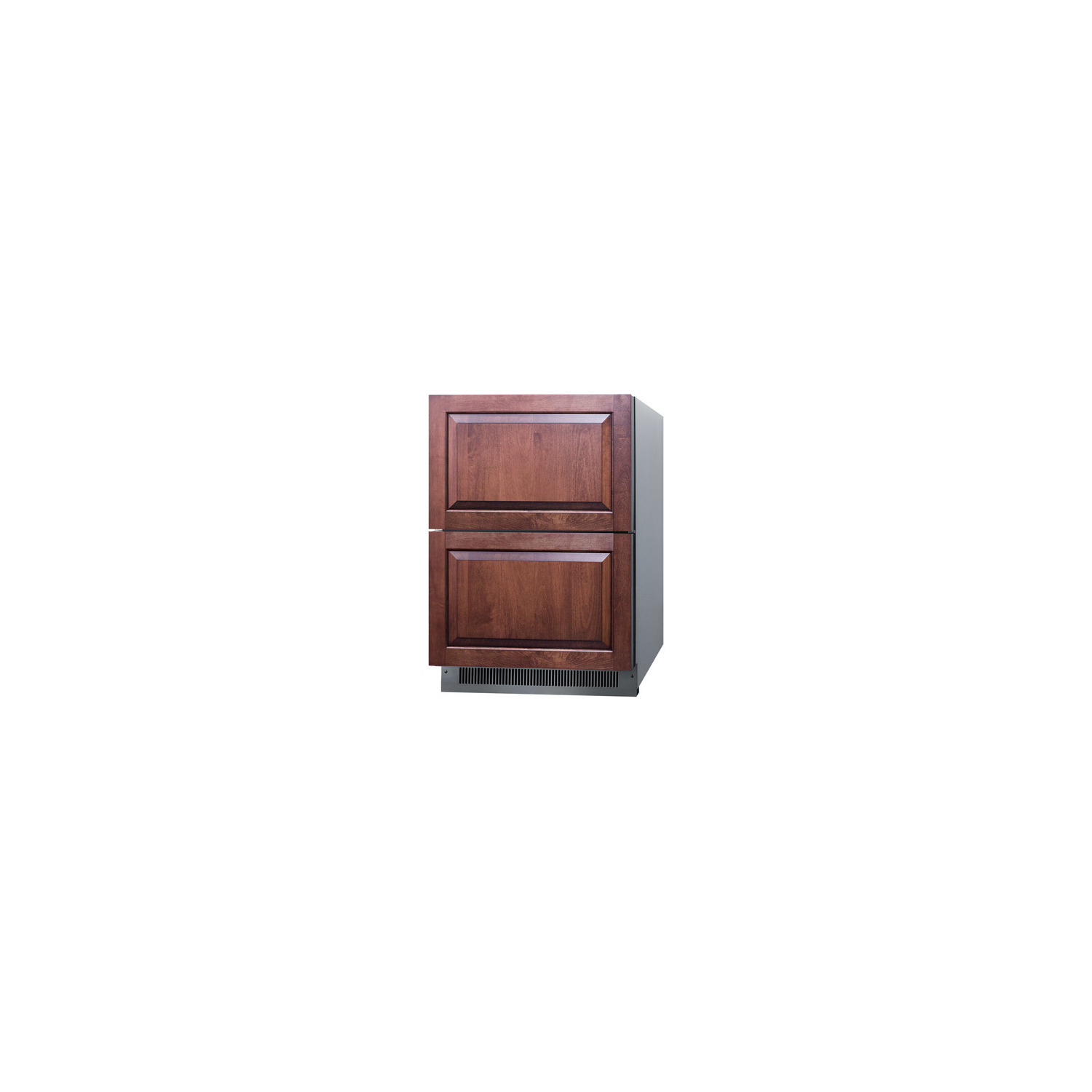

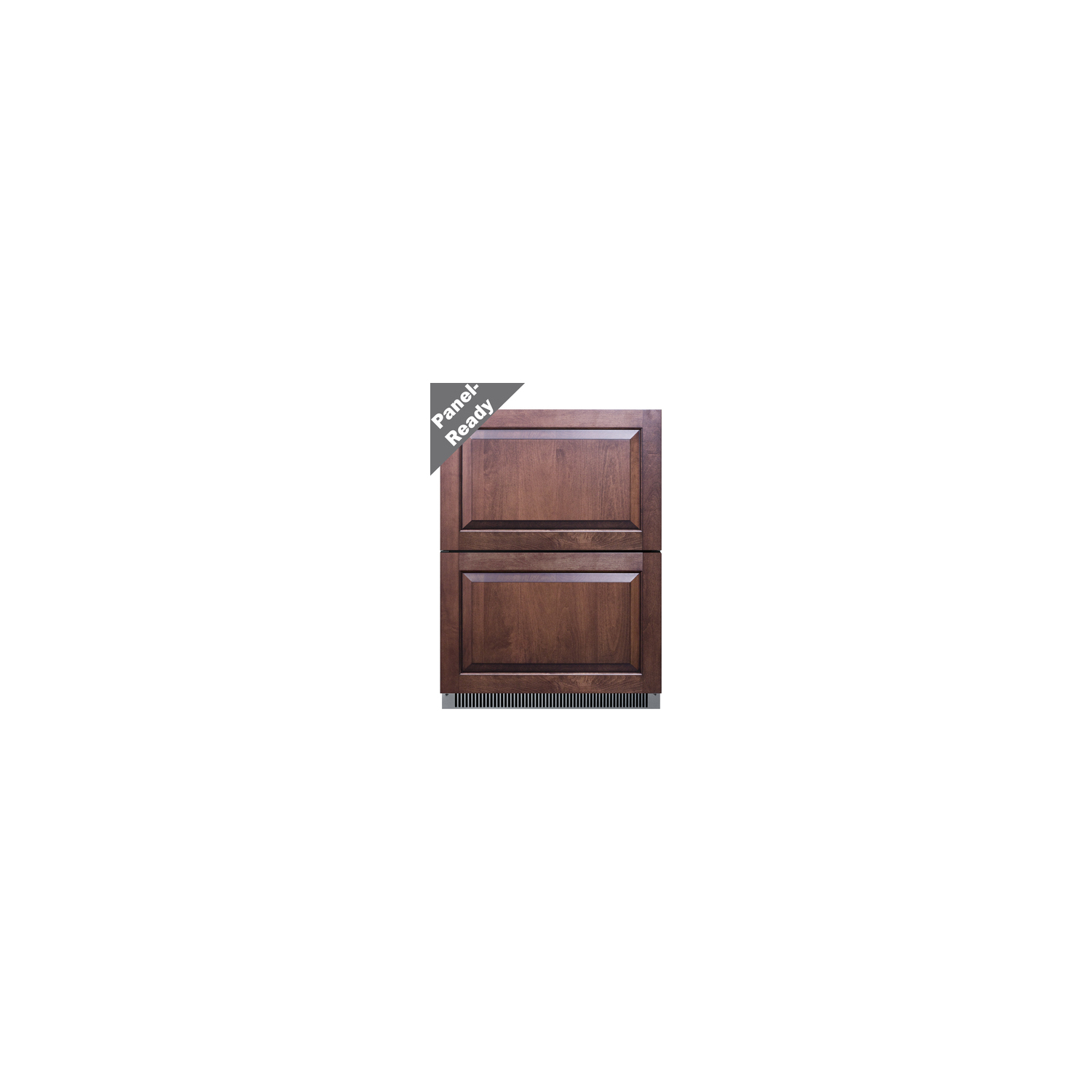

Panel-ready drawer fronts Drawers can be customized with overlay panels sized (at 23.34" x 14.17" at 3/4" thick) to match or accent existing cabinetry

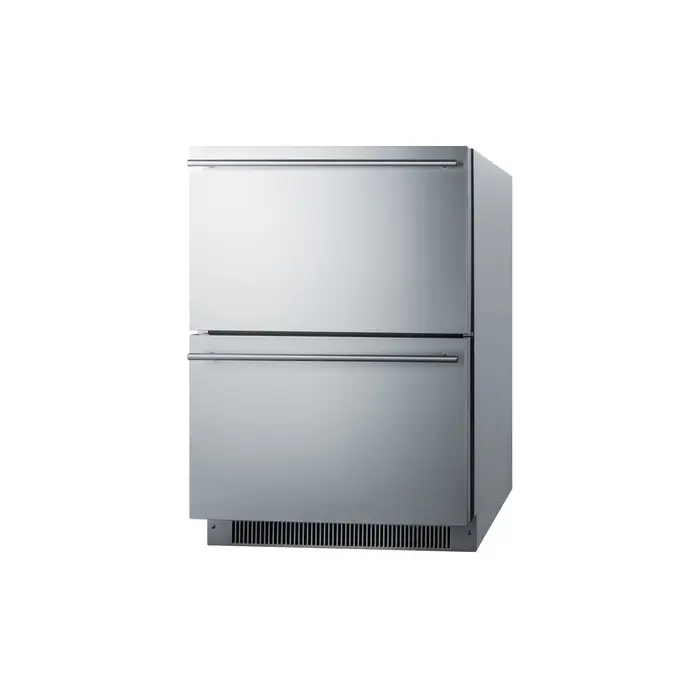

Stainless steel finish Fully finished drawer fronts also allows you to choose a traditional stainless steel front if not installing overlay panels

Commercially approved ETL-S listed to NSF-7 standards for commercial use

ADA compliant 32” height allows for installation within ADA-compliant spaces

Adjustable height Unit can be raised to 34.25", with a taller kickplate included for a seamless look

Built-in capable Front-breathing design allows the unit to be built-in under counters

Stainless steel construction Complete 304 grade stainless steel construction provides durability while maintaining an elegant look

Indoor/Outdoor compatible Durable, weatherproof construction designed to hold up to the elements

Professional handles Stainless steel handles add style to any setting

Frost-free No-frost operation for minimal user maintenance

Interior lighting Soft LED lighting makes for easy viewing of each drawer’s contents

Digital thermostat Electronic controls for seamless temperature management, with readout in either Celsius or Fahrenheit

Digital display Large display allows for easy readability and unit control

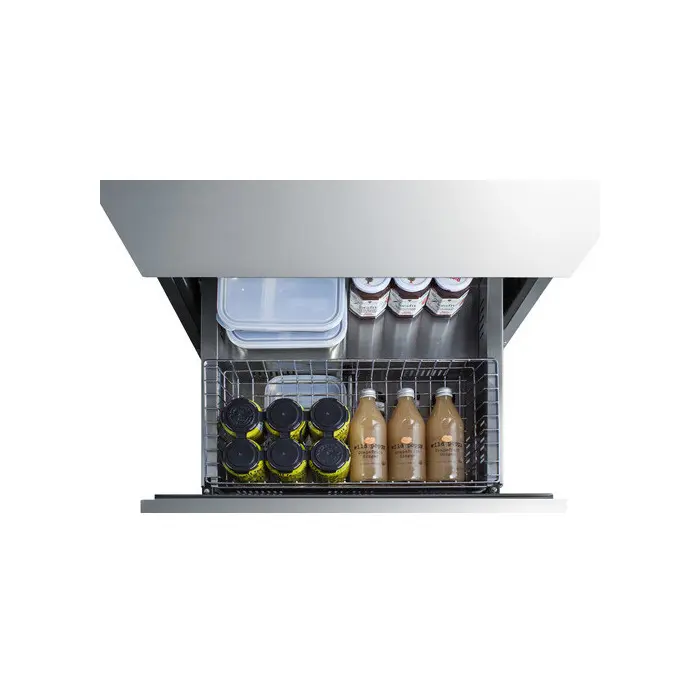

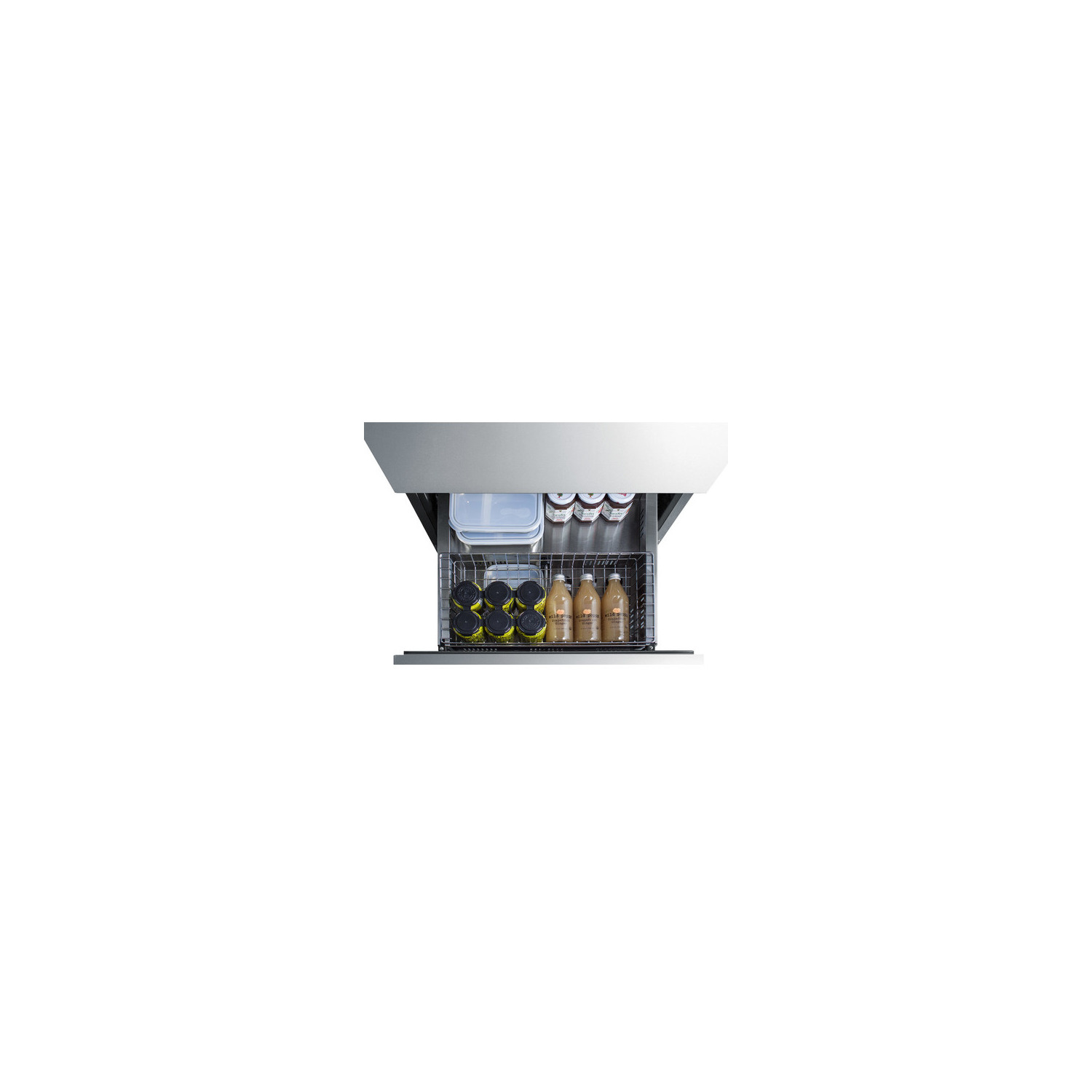

Sliding basket Removable basket included for additional storage convenience

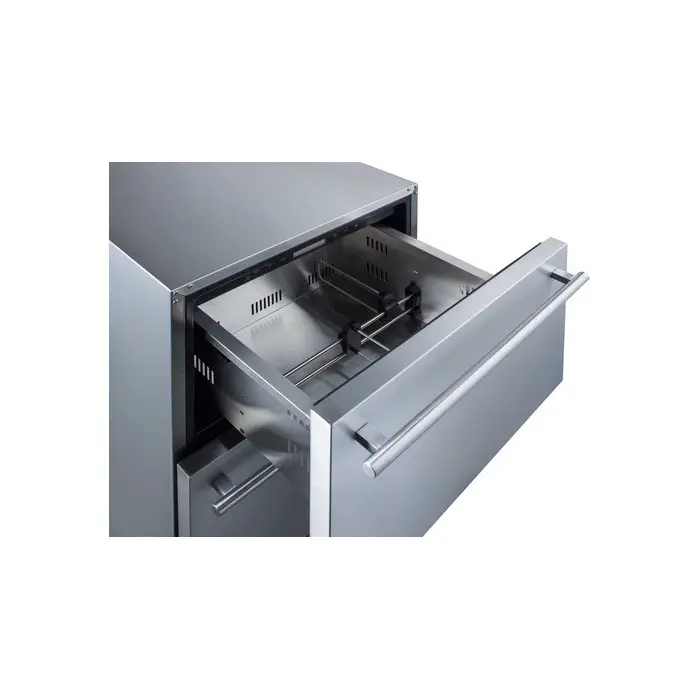

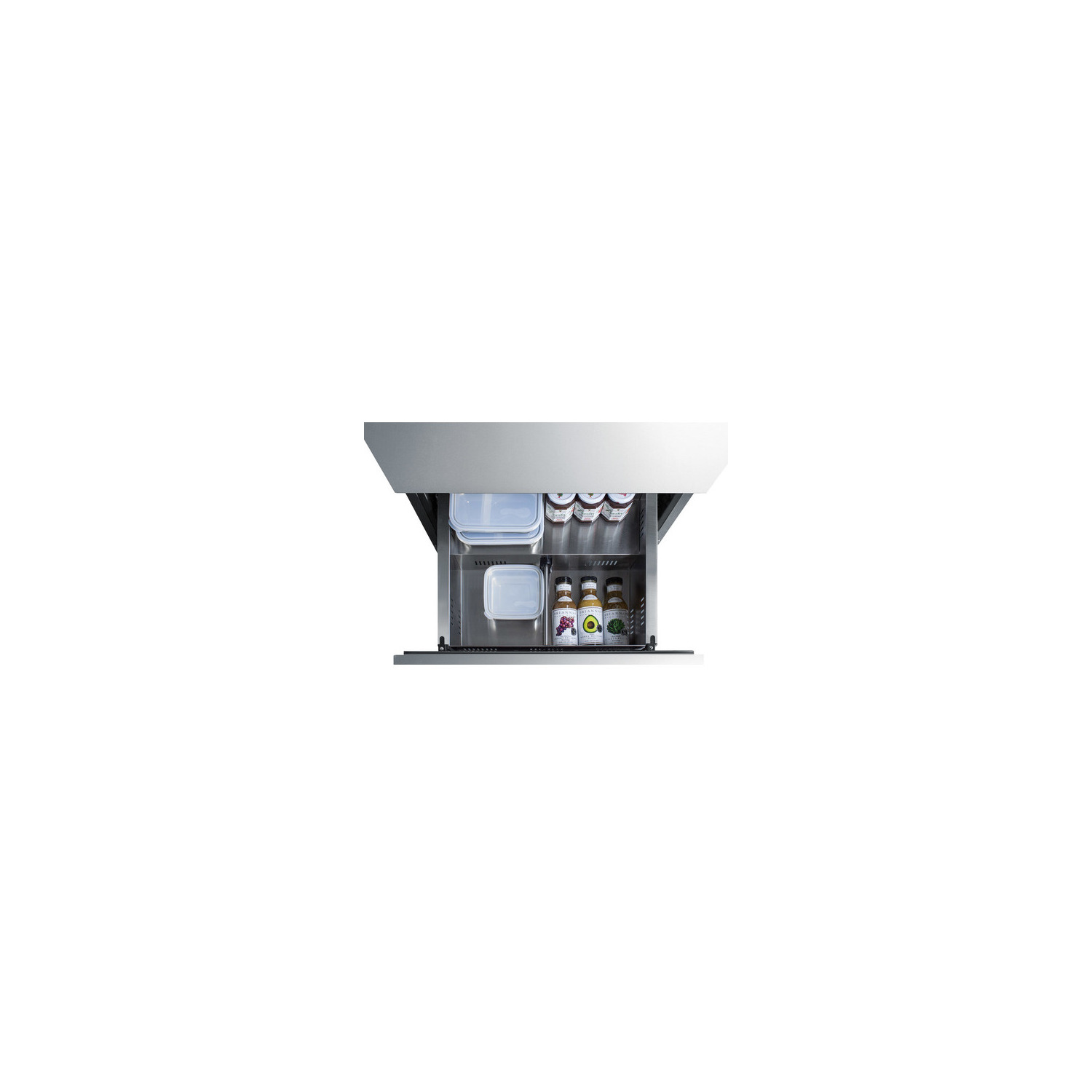

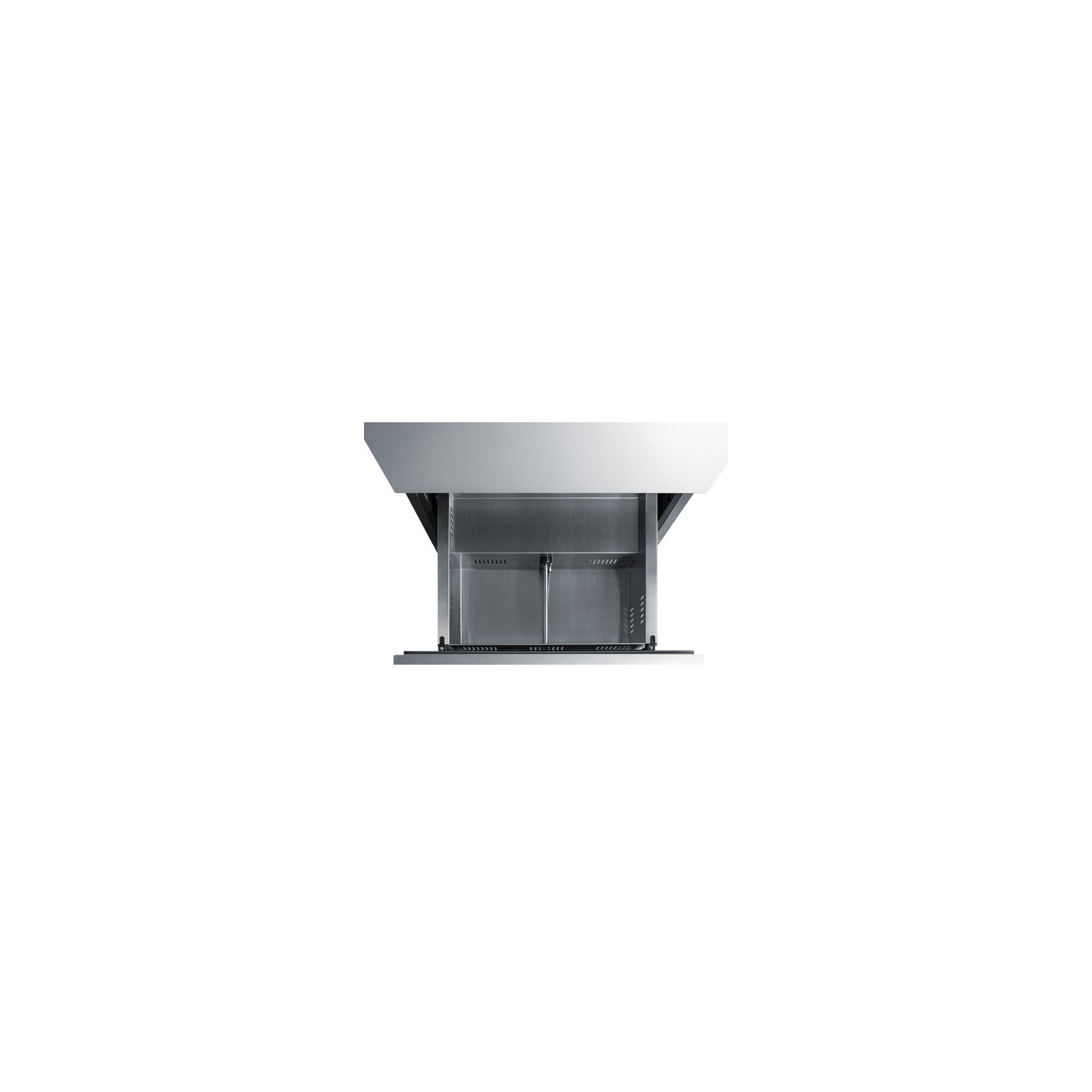

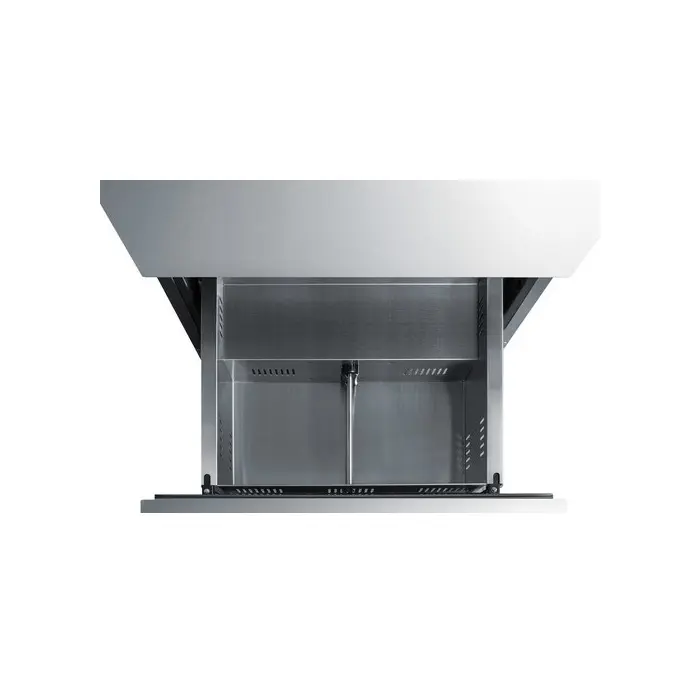

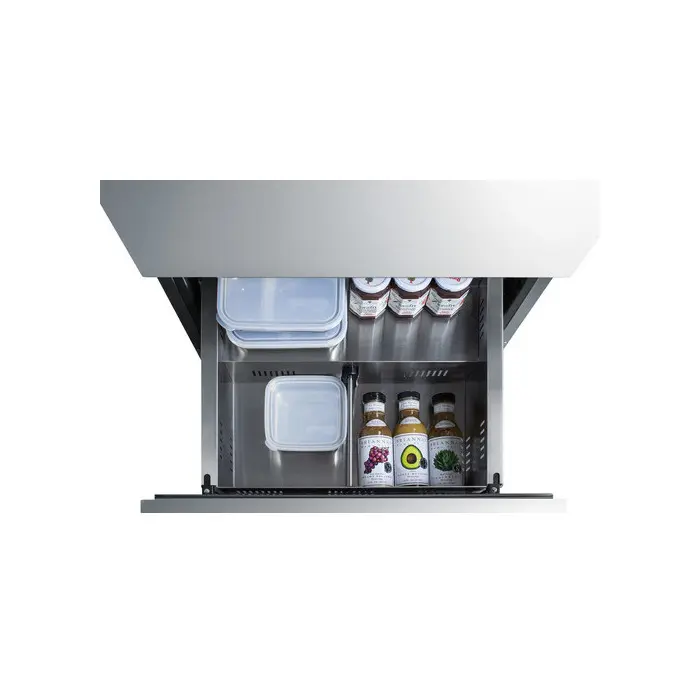

Drawer dividers Two adjustable dividers provide flexibility when organizing the 4.8 cu.ft. interior

Removable drawers Allows for easy cleaning and organization within the interior of the unit

Temperature alarm Alarm alerts you if the unit’s temperature goes beyond recommended high and low temperature ranges

Door alarm Audible alarm sounds if the drawers are left open for more than five minutes

Sabbath mode Optional feature disables alarms, interior light, and displays for up to 96 hours

Right-angle plug Space-saving plug allows unit to sit flush against the wall

Sealed back Space-saving and makes for quick cleaning of the unit’s exterior

Fan-forced cooling Provides for efficient, even cooling of the entire unit

Temperature memory Unit will retain temperature settings after losing power

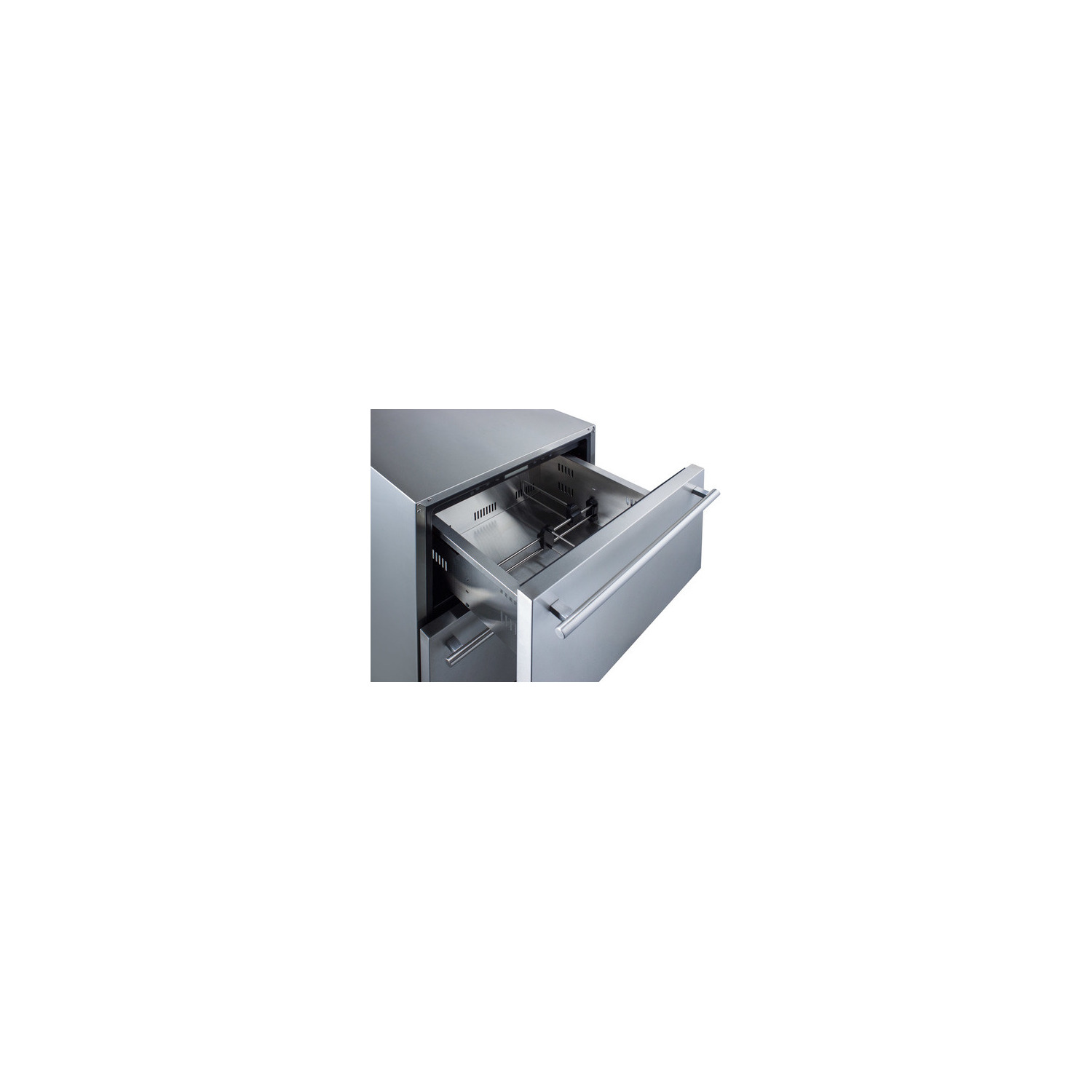

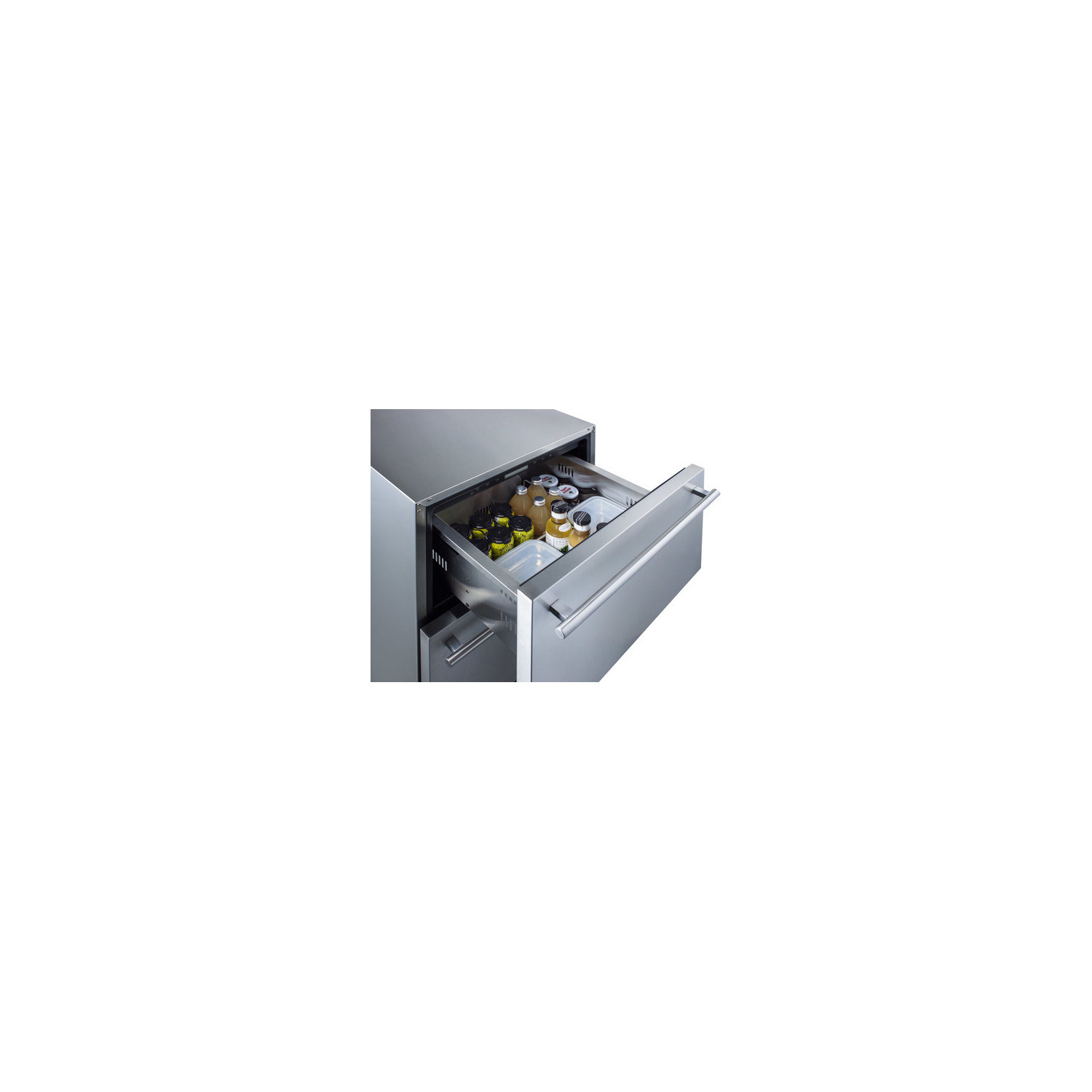

Anti-slam drawers Soft-close glides prevent drawers from slamming shut for additional durability and safety

Anti-tip bracket Bracket (included) helps prevent tipping for added safety

Fully finished cabinet Allows the unit to be used freestanding

Matching freezer available Pair with Summit's frost-free ADFD2D24PNR to create a matching side-by-side set

100% CFC free Environmentally friendly design with no ozone-damaging chemicals

CARB Compliant Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
