Summit 24 inch wide indoor/outdoor ADA compliant drawer refrigerator in stainless steel, 7.61101e+011, ADRD24
$1,914.84
Retail Price: $2,790.00
Free shipping
$ 1,914.84
Description
Summit offers unmatched versatility and elegance to meet your indoor and outdoor refrigeration needs.

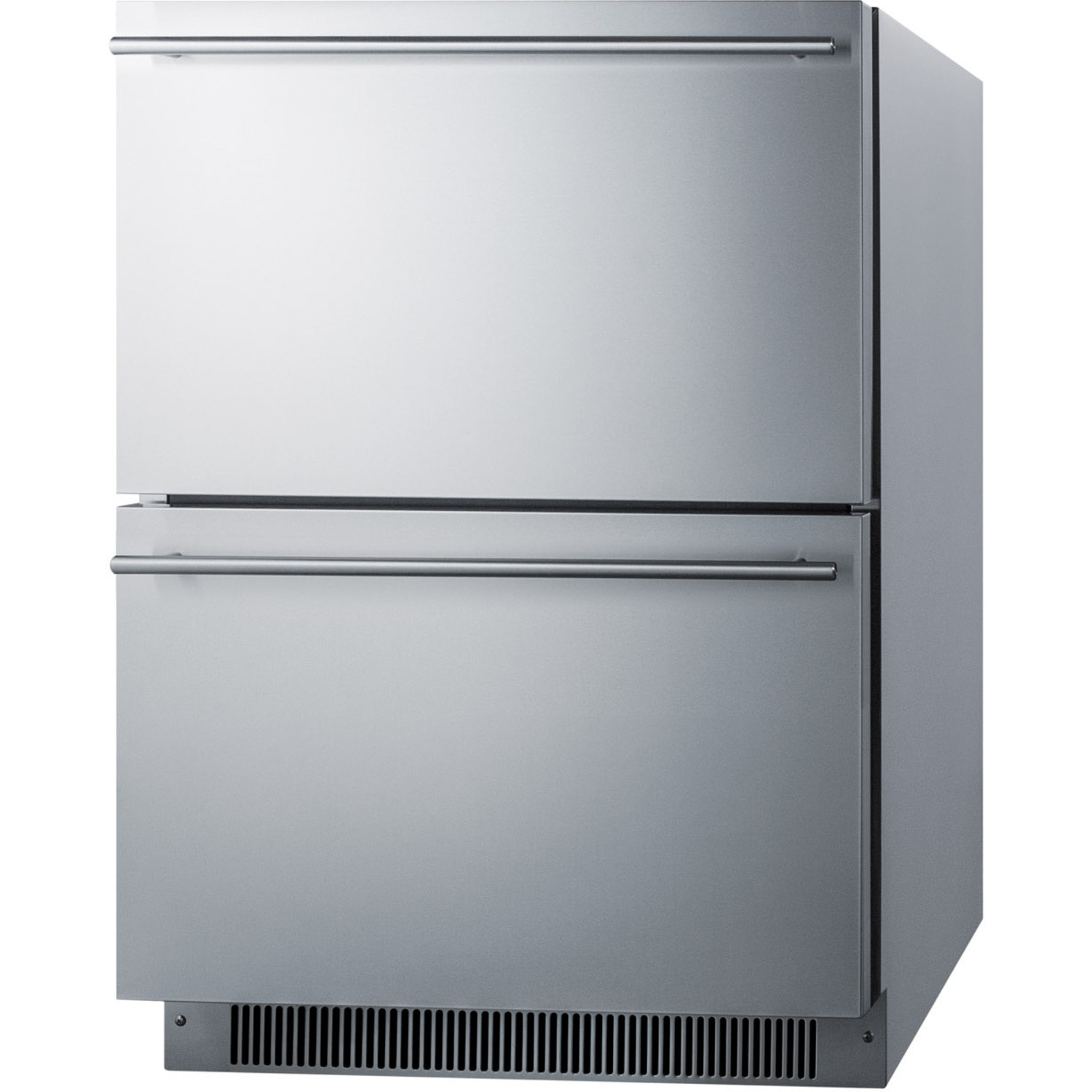

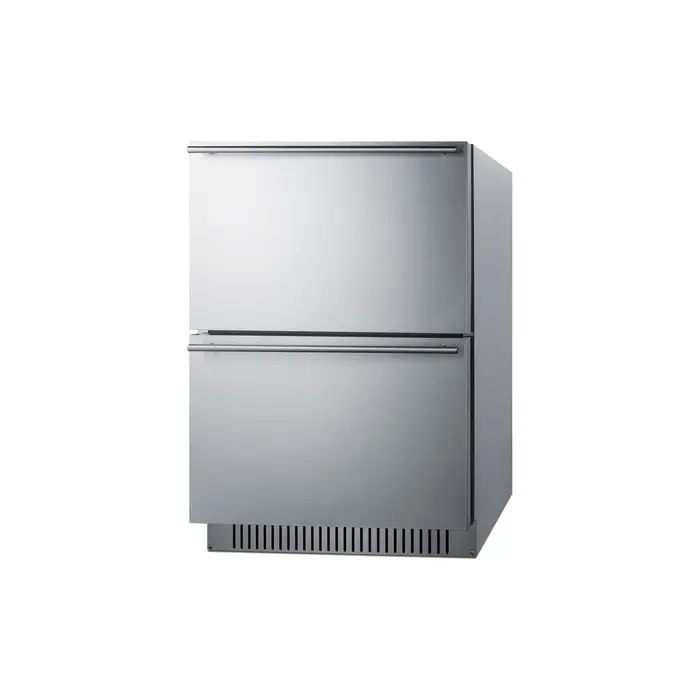

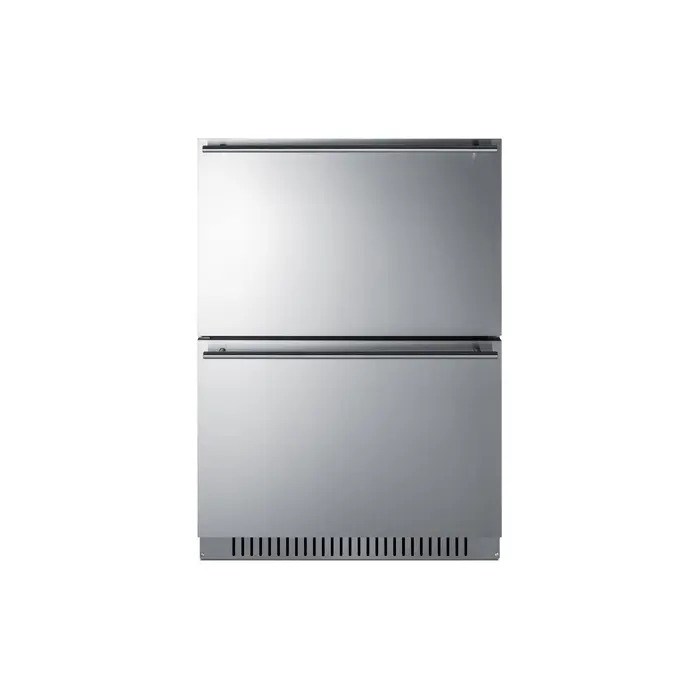

The ADRD24 is a two-drawer all-refrigerator sized at 32 inches high for installation under ADA compliant counters. We include an extra stainless steel kickplate and leveling legs to raise the height to 34 1/4 inches to suit more standard applications. The front-breathing design and finished cabinet allow for built-in or freestanding use. Complete 304 stainless steel construction inside and out offers durability in a professional look. Soft close glides deliver added safety by preventing the drawers from slamming. The drawers can be customized with overlay panels to match or accent existing cabinetry design, while the stainless steel kickplate and stylish handles complete the look.

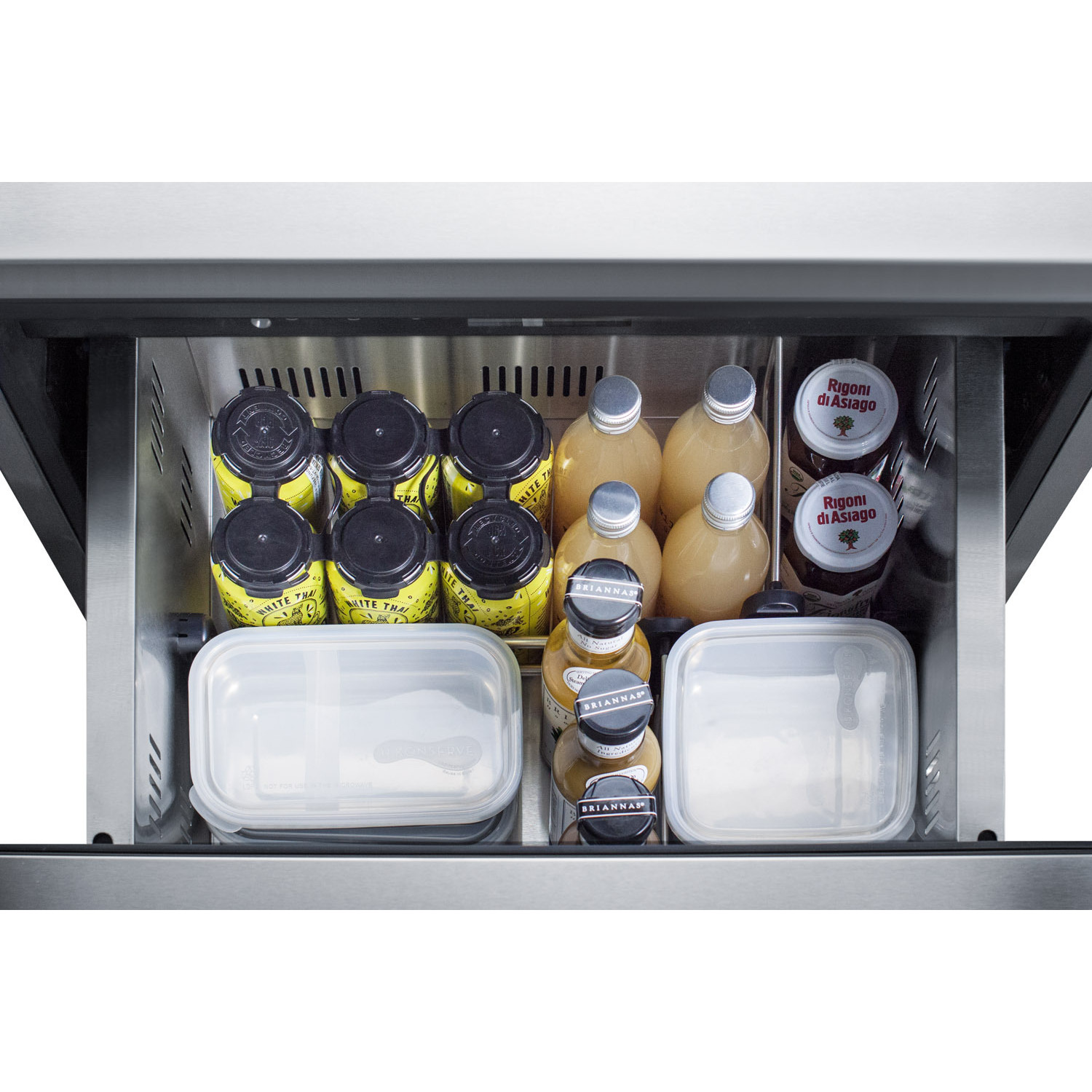

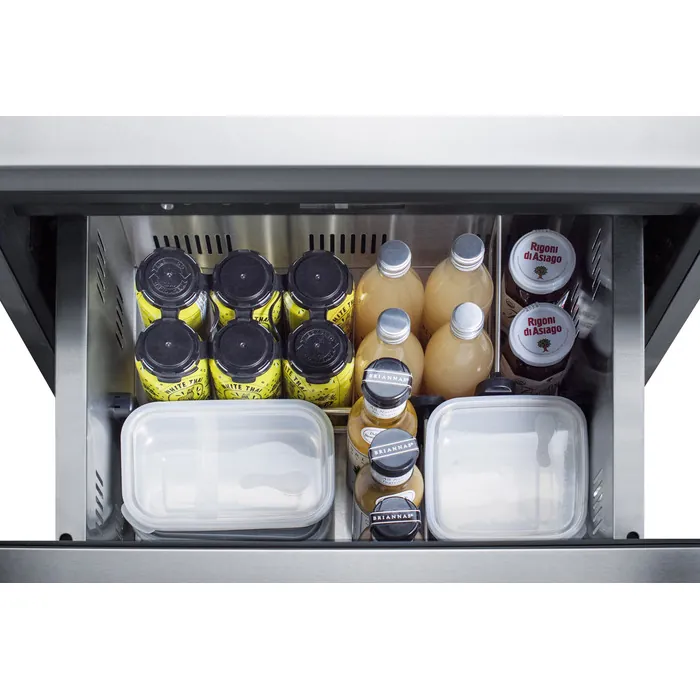

Frost-free operation ensures minimum user maintenance inside the 4.8 cu ft. interior. Two adjustable dividers allow for flexibility in storage, while the removable basket provides additional storage options. Additionally, removable drawers provide versatility and easy cleaning of the unit’s interior. The LED light makes it easy to view stored contents when loading or unloading each drawer.
Additional features ensure efficiency and ease of use. These include temperature and open drawer alarms. The digital thermostat and display make it easy to manage the temperature. A temperature memory function helps to recover temperature settings in the event of a power loss, while Sabbath Mode disables certain electrical features during periods of religious observance.
The ADRD24 is perfect for use in home or commercial settings. This unit is ETL-S listed to NSF-7 standards, and its ENERGY STAR certification assures efficient and environmentally friendly operation. For a matching frost-free freezer, see model ADFD2D24.
SPECIFICATIONS
Overview
Nominal Height 32.0" (81 cm)
Height of Cabinet 32.0" (81 cm)
Nominal Width 24.0" (61 cm)
Width 23.38" (59 cm)
Nominal Depth 23.0" (58 cm)
Depth 22.75" (58 cm)
Depth with Handle 24.63" (63 cm)
Depth with door at 90° 37.88" (96 cm)
Capacity 4.8 cu.ft. (136 L)
Defrost Type Frost-Free
Door Stainless Steel/Panel-Ready
Cabinet Stainless Steel
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Sanitation ETL-S
Energy Usage/Year 262.0kWh/year
Amps 0.5
Voltage/Frequency 115 V AC/60 Hz
Weight 95.0 lbs. (43 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
UPC 761101064949
Refrigerator Features
Sabbath Mode Yes
Door Swing Drawer
Height Adjustable Yes
Thermostat Type Digital
Fan Type Interior and Exterior
Refrigerant Type R600a
Refrigerant Amount 1.09oz.
High Side PSI 320.0
Low Side PSI 120.0
Level Legs Qty 4
Interior Light Yes
Interior Drawers Yes
Interior Drawers Qty 2
Temperature Range 34 to 43ºF
Sound Level 34.3 dB
Drawer Dimensions
Interior Height 1 9.63" (24 cm)
Interior Width 1 16.75" (43 cm)
Interior Depth 1 15.25" (39 cm)
Interior Height 2 10.75" (27 cm)
Interior Width 2 16.75" (43 cm)
Interior Depth 2 15.25" (39 cm)
Dimensions
Compressor Step Height 4.5" (11 cm)
Compressor Step Width 16.75" (43 cm)
Compressor Step Depth 5.5" (14 cm)
FEATURES
2-Drawer Outdoor Refrigerator 24" wide all-refrigerator for built-in undercounter use in indoor or outdoor kitchens
ENERGY STAR certified Ensures unit runs efficiently with an environmentally friendly performance
Commercially approved ETL-S listed to NSF-7 standards for commercial use
ADA compliant 32” height allows for installation within ADA-compliant spaces

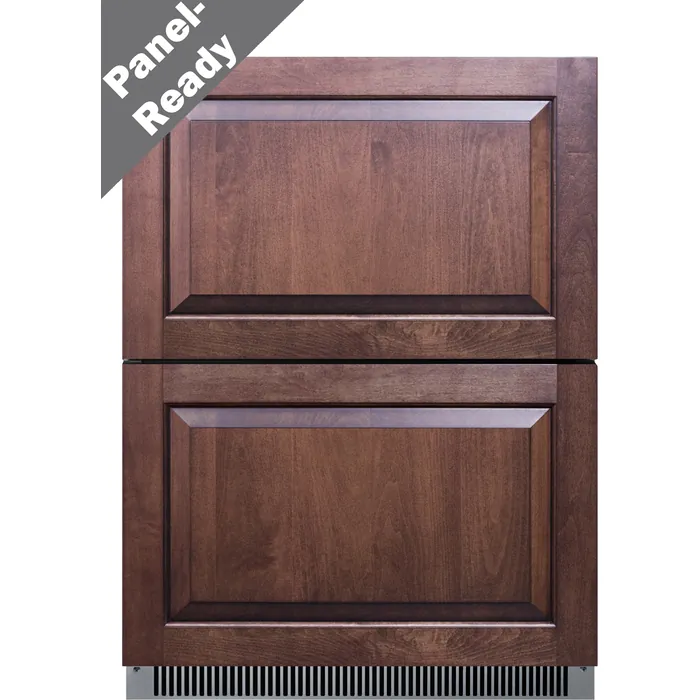

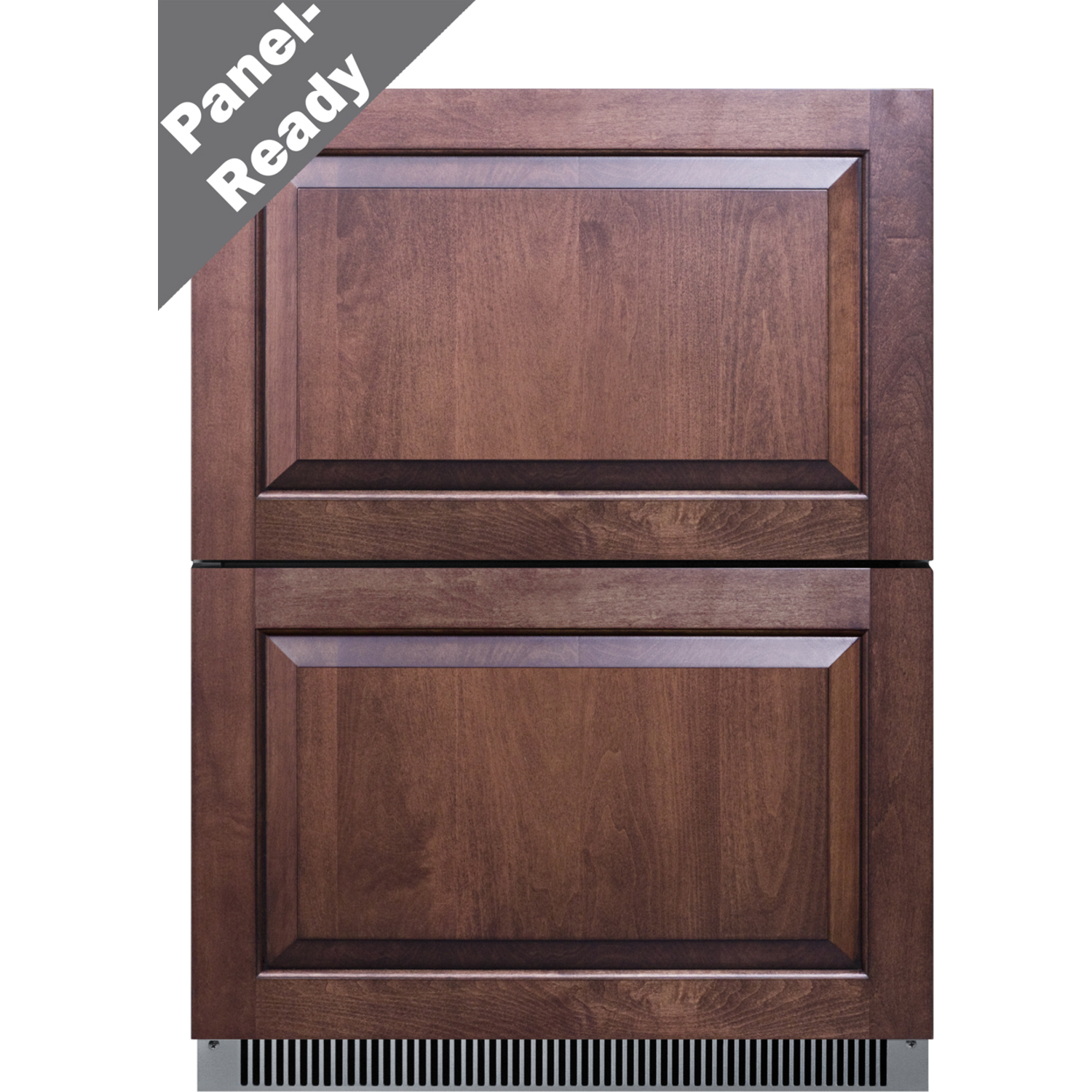

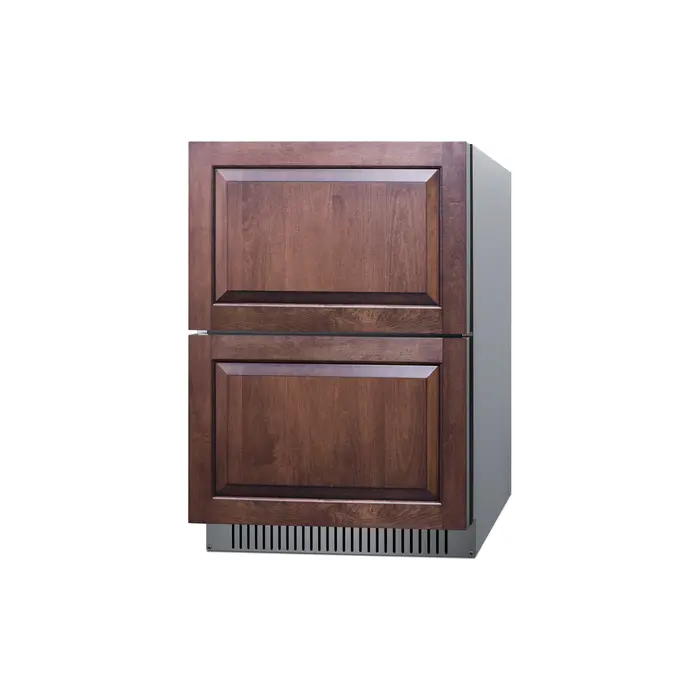

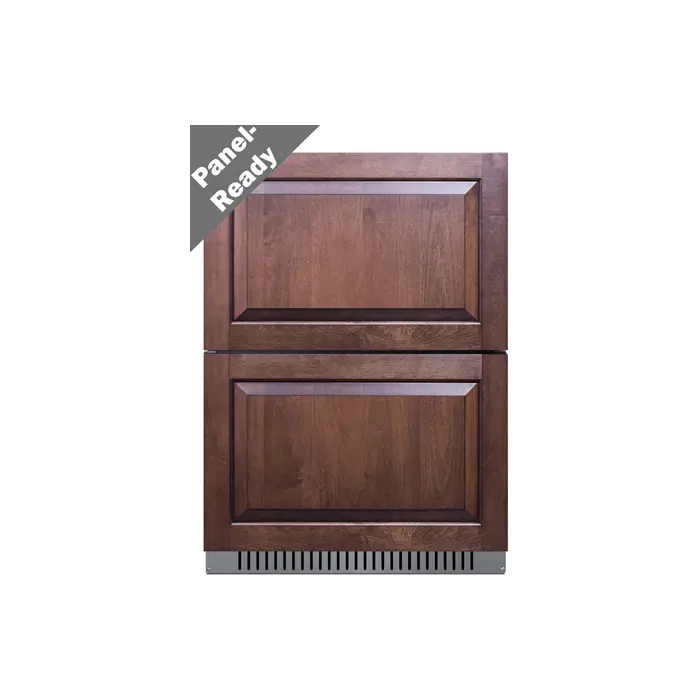

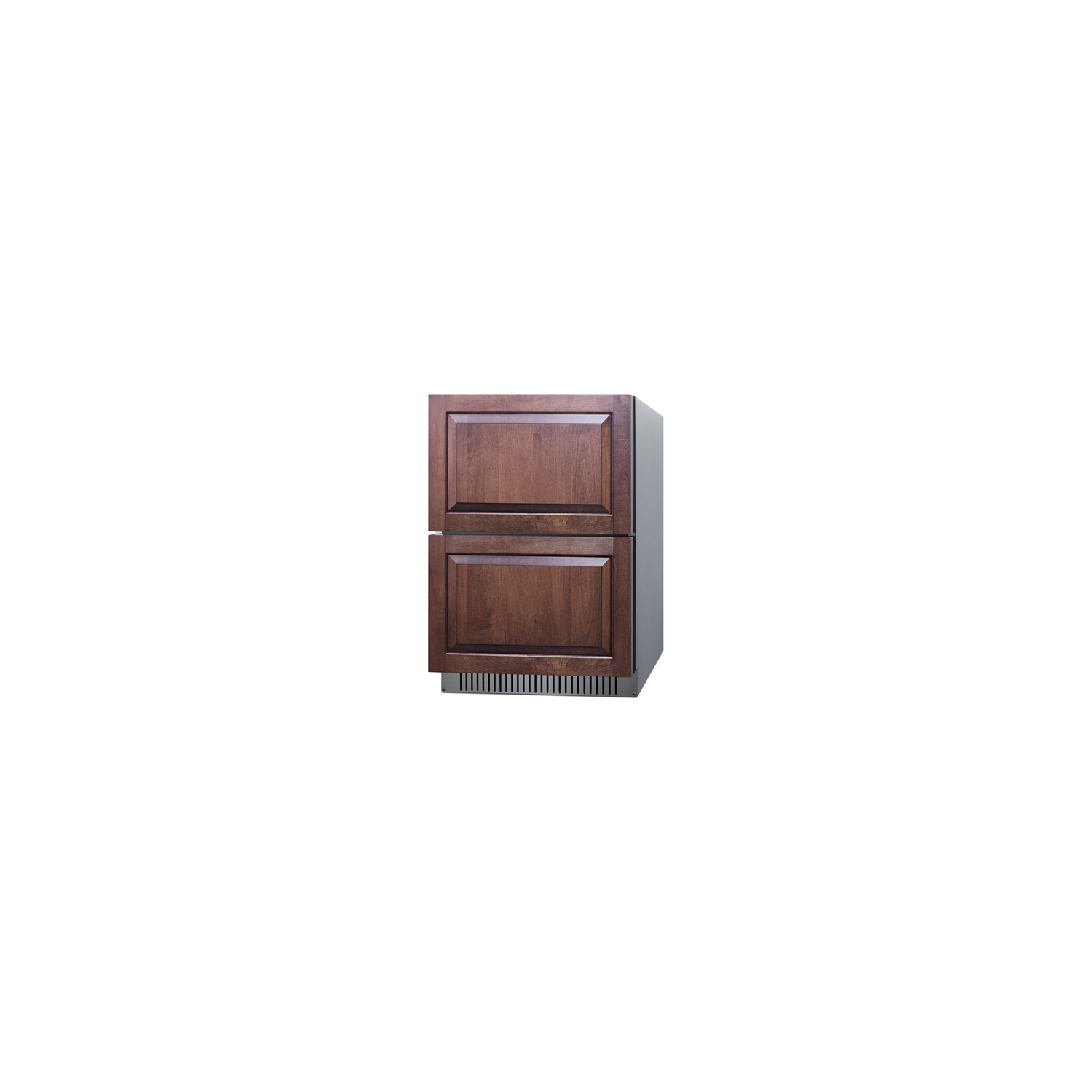

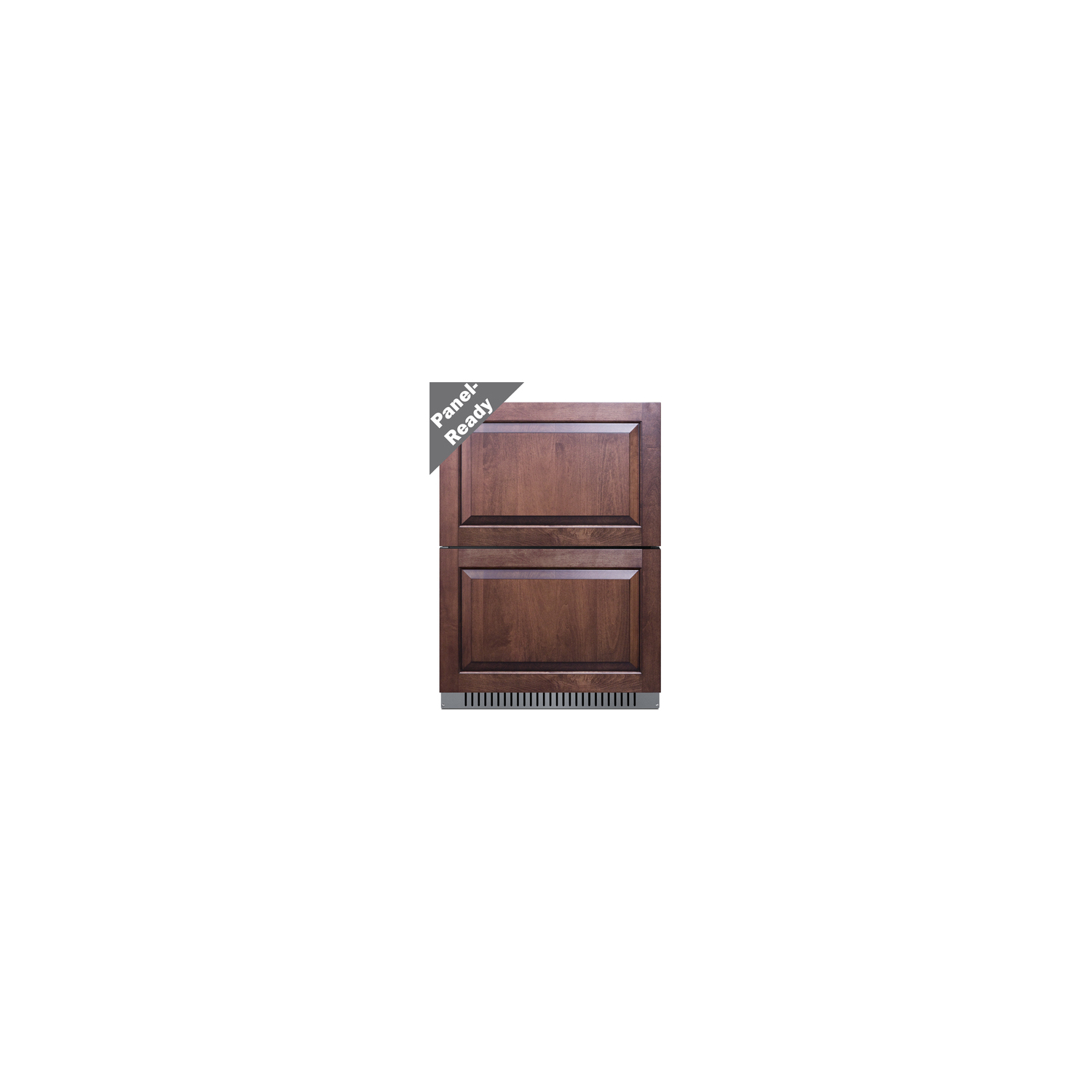

Panel-ready drawer fronts Drawers can be customized with overlay panels sized (at 23.34" x 14.17" at 3/4" thick) to match or accent existing cabinetry
Adjustable height Unit can be raised to 34.25", with a taller kickplate included for a seamless look
Built-in capable Front-breathing design allows the unit to be built-in under counters
Stainless steel construction Complete 304 grade stainless steel construction provides durability while maintaining an elegant look
Indoor/Outdoor compatible Durable, weatherproof construction designed to hold up to the elements
Professional handles Stainless steel handles add style to any setting
Frost-free No-frost operation for minimal user maintenance

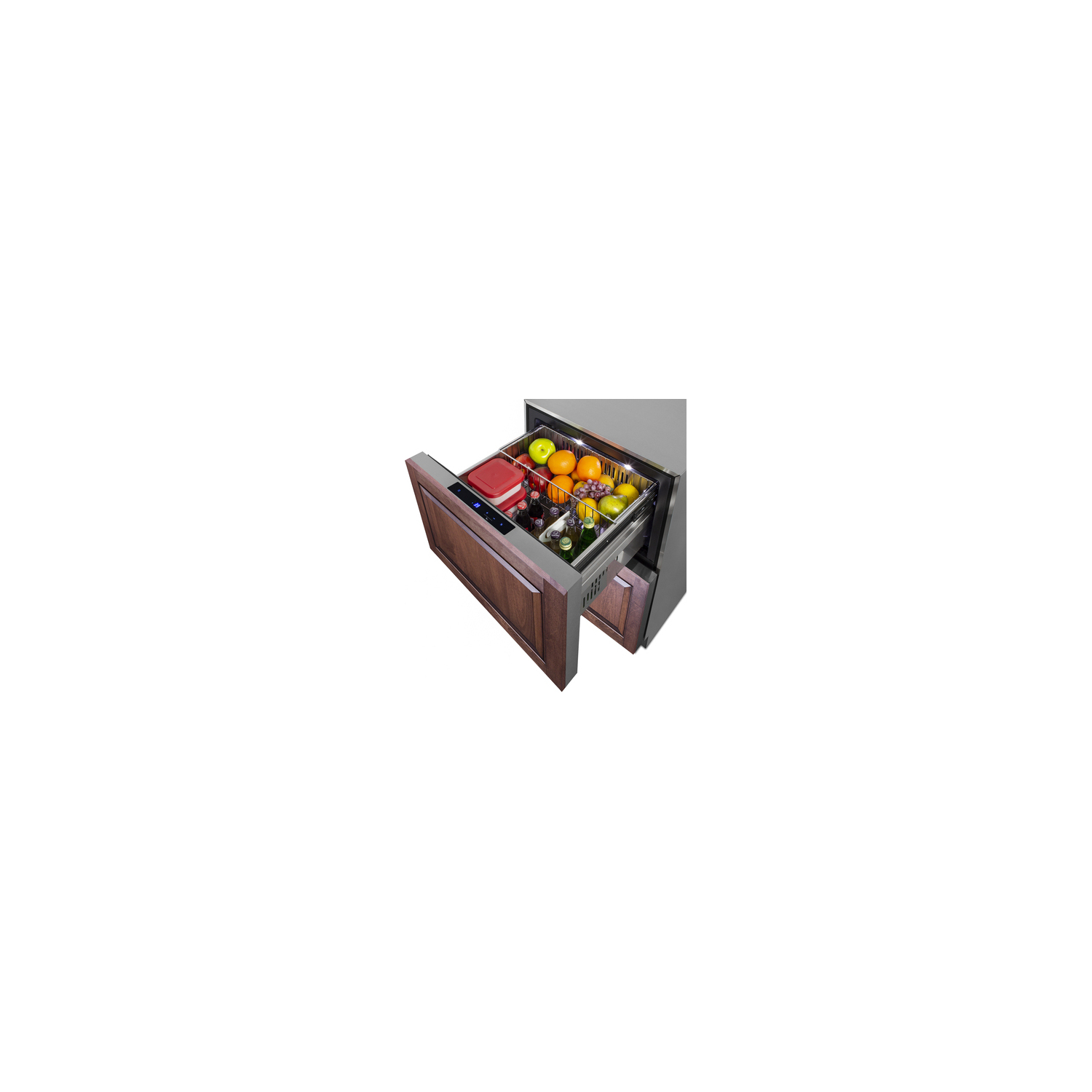

Interior lighting Soft LED lighting makes for easy viewing of each drawer’s contents

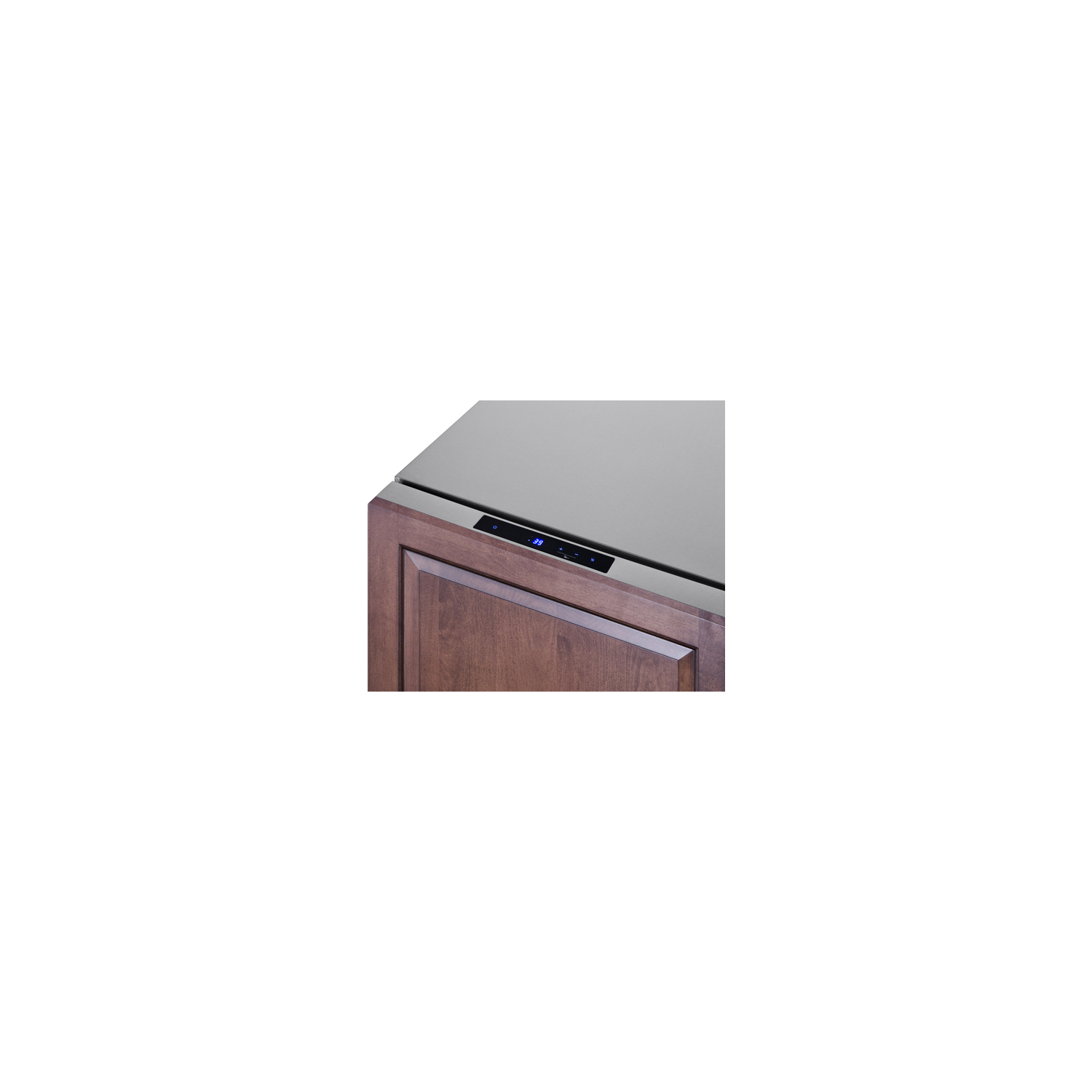

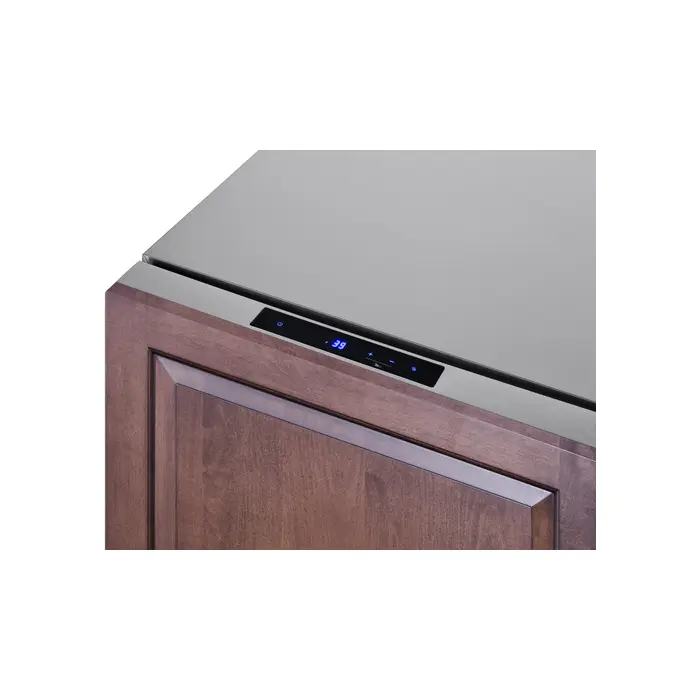

Digital thermostat Electronic controls for seamless temperature management, with readout in either Celsius or Fahrenheit

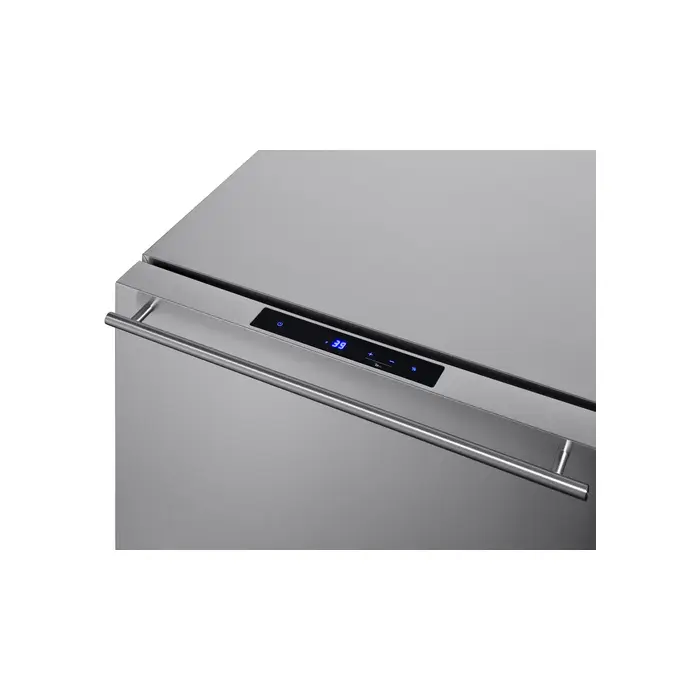

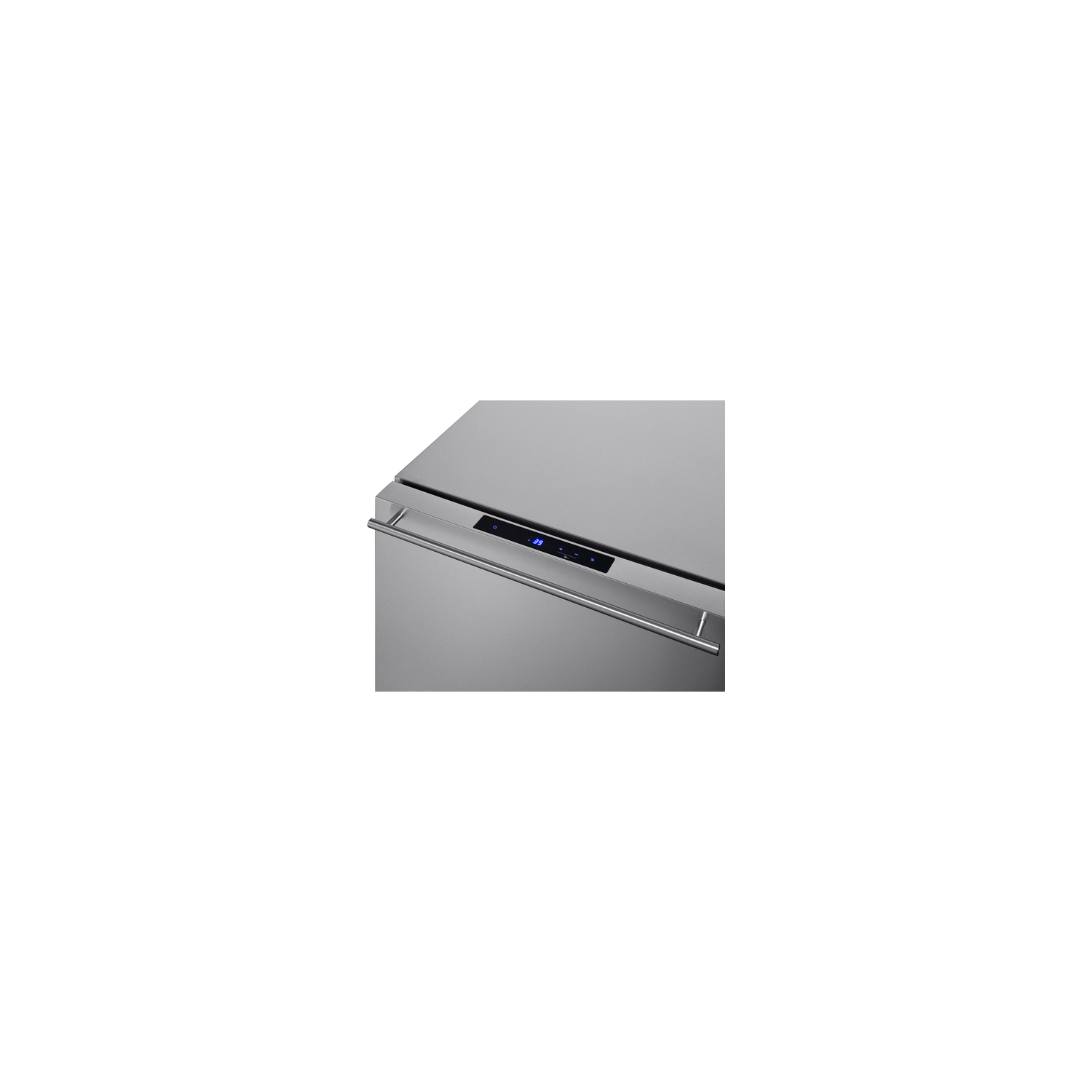

Digital display Large display allows for easy readability and unit control

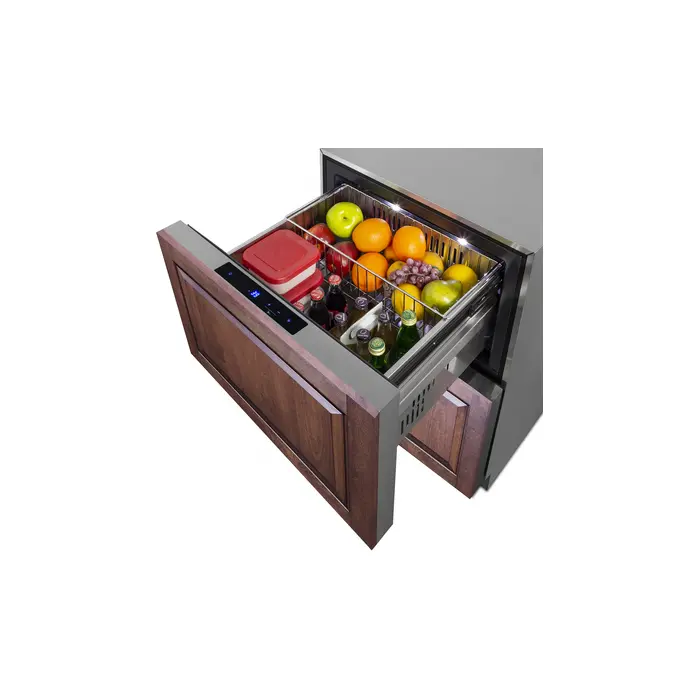

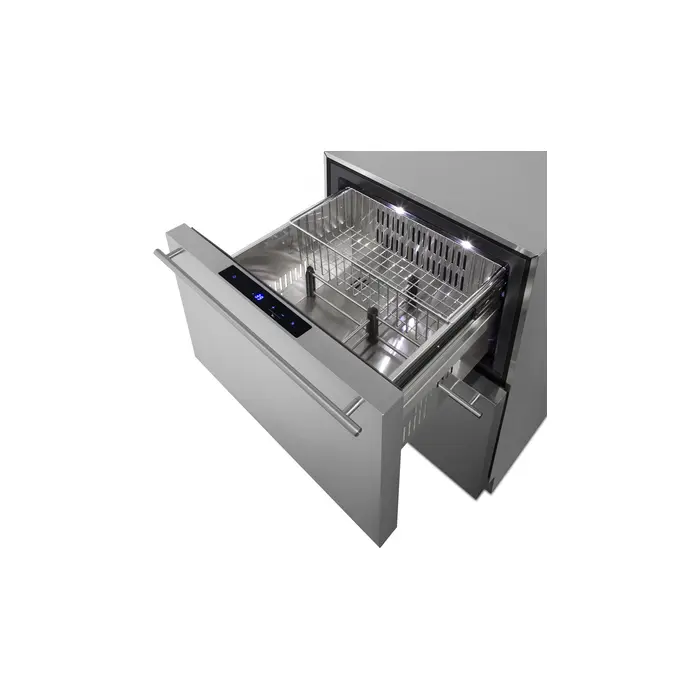

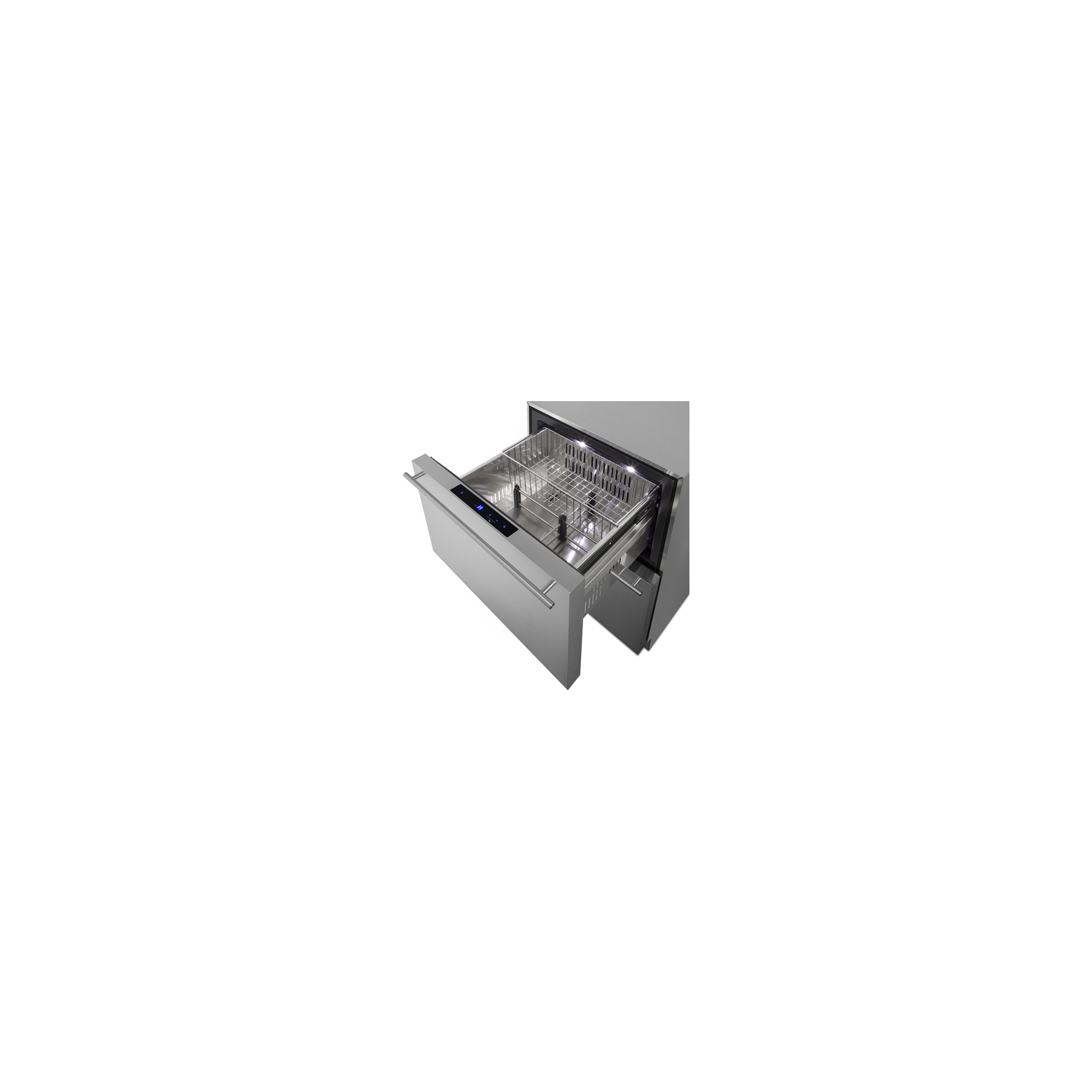

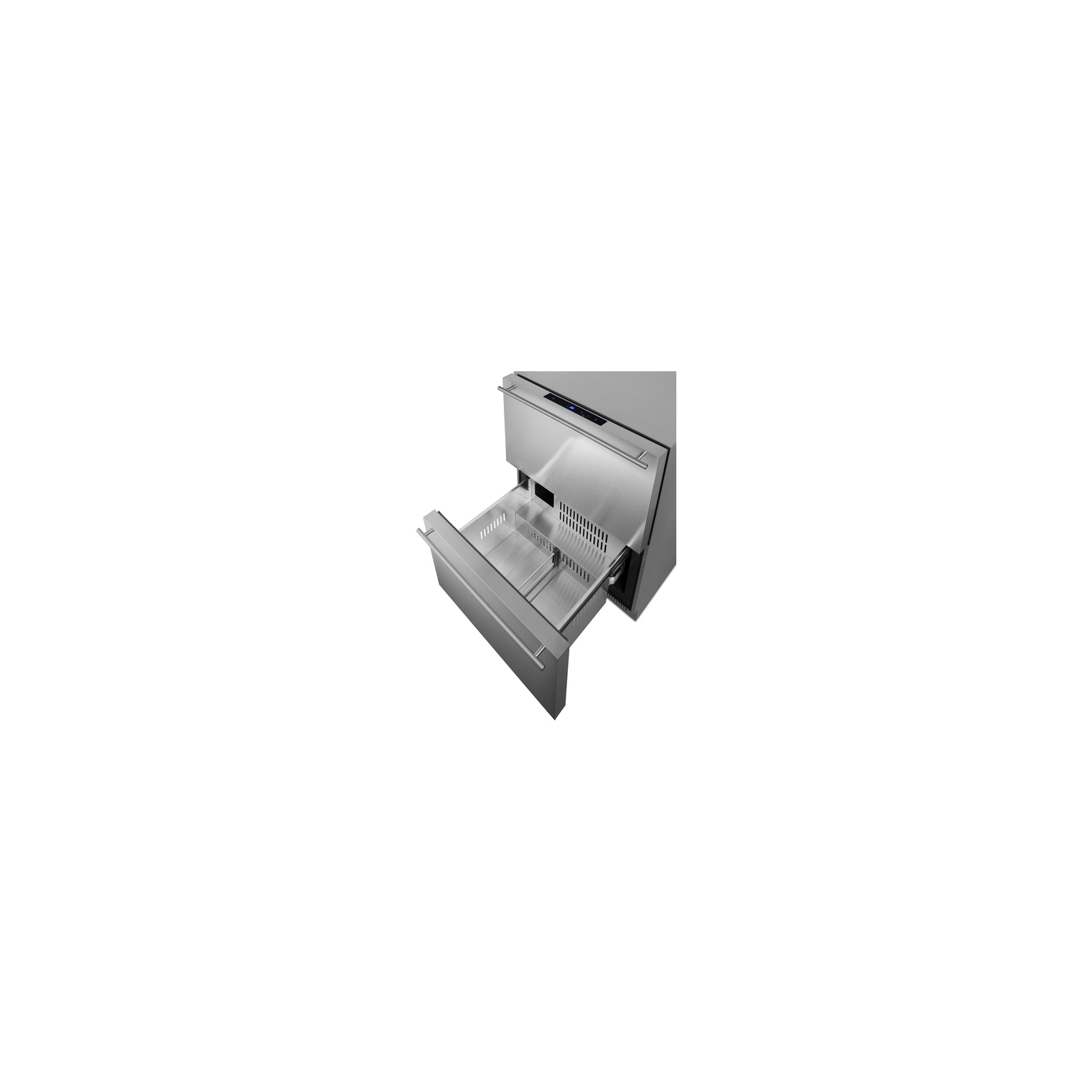

Sliding basket Removable basket included for additional storage convenience

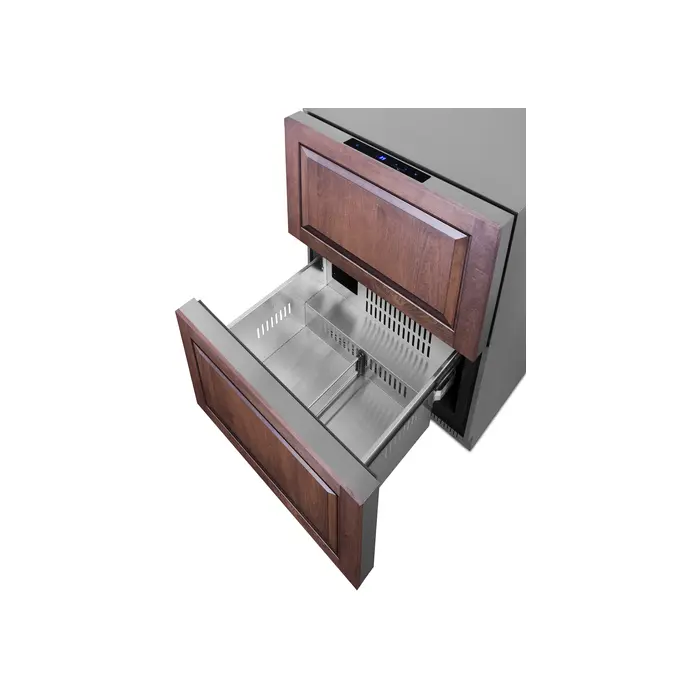

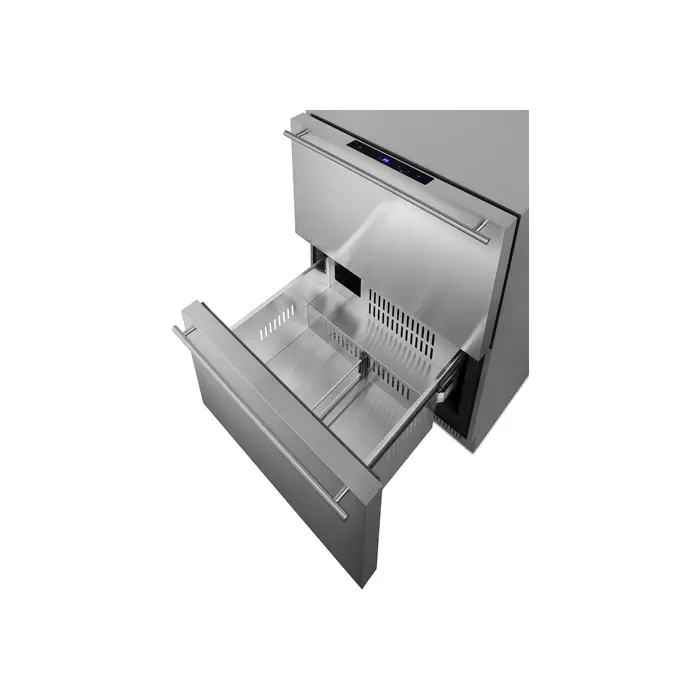

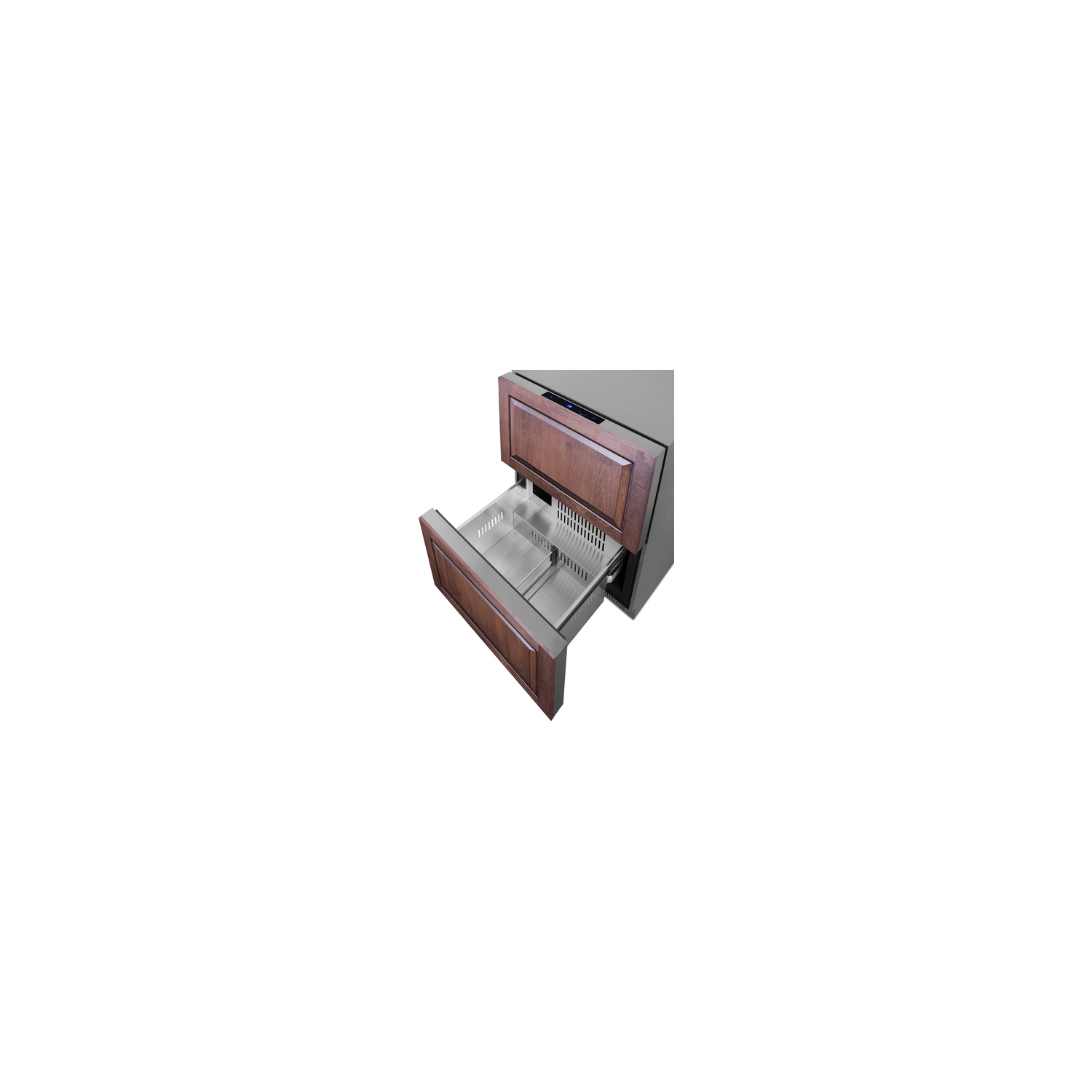

Drawer dividers Two adjustable dividers provide flexibility when organizing the 4.8 cu.ft. interior
Removable drawers Allows for easy cleaning and organization within the interior of the unit
Temperature alarm Alarm alerts you if the unit’s temperature goes beyond recommended high and low temperature ranges
Door alarm Audible alarm sounds if the drawers are left open for more than five minutes
Sabbath mode Optional feature disables alarms, interior light, and displays for up to 96 hours
Right-angle plug Space-saving plug allows unit to sit flush against the wall
Sealed back Space-saving and makes for quick cleaning of the unit’s exterior
Fan-forced cooling Provides for efficient, even cooling of the entire unit
Temperature memory Unit will retain temperature settings after losing power
Anti-slam drawers Soft-close glides prevent drawers from slamming shut for additional durability and safety
Anti-tip bracket Bracket (included) helps prevent tipping for added safety
Fully finished cabinet Allows the unit to be used freestanding
Matching freezer available Pair with Summit's frost-free ADFD2D24 to create a matching side-by-side set
100% CFC free Environmentally friendly design with no ozone-damaging chemicals
CARB Compliant Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
