Summit 24 inch wide outdoor ADA compliant 2-drawer all-refrigerator, 7.61101e+011, ADRD241OS

Summit manufactures an extensive selection of built-in refrigeration specially constructed for safe and reliable cooling in outdoor kitchens.

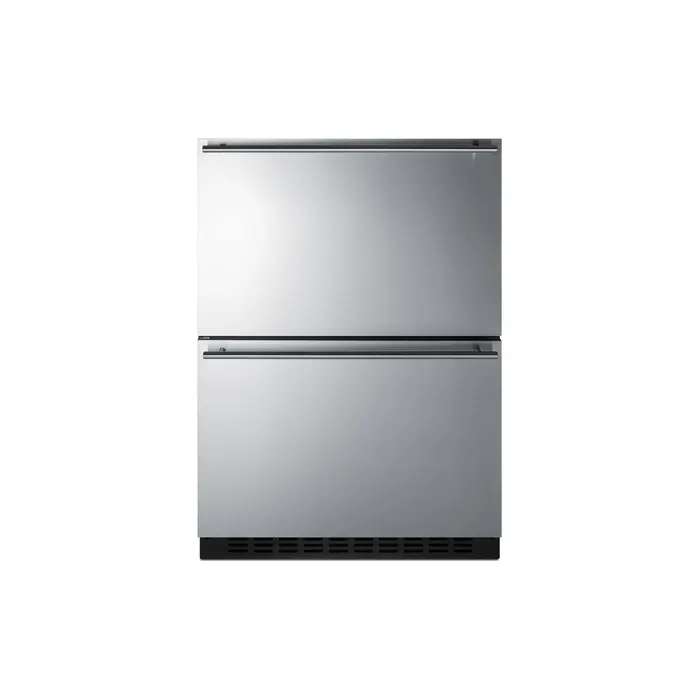

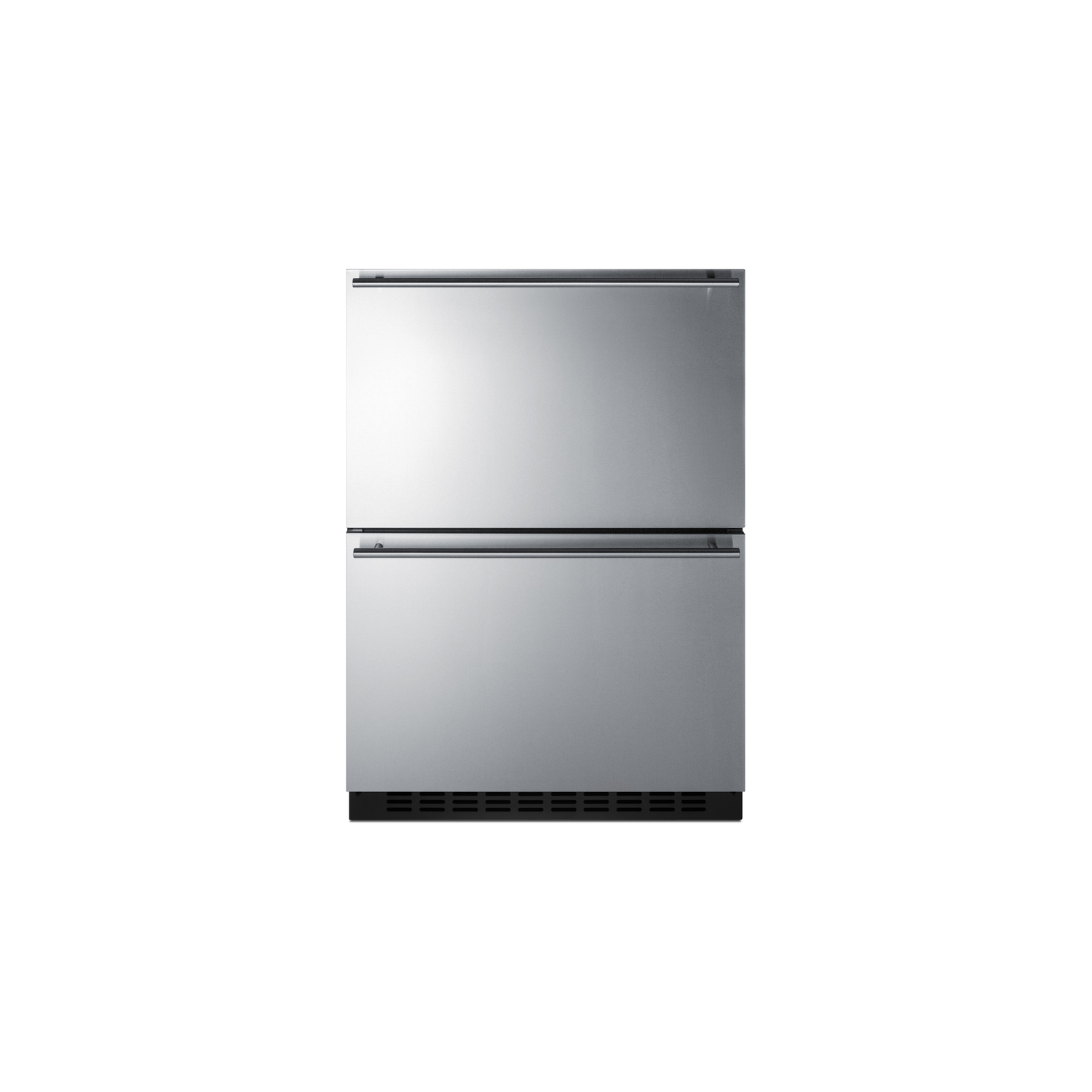

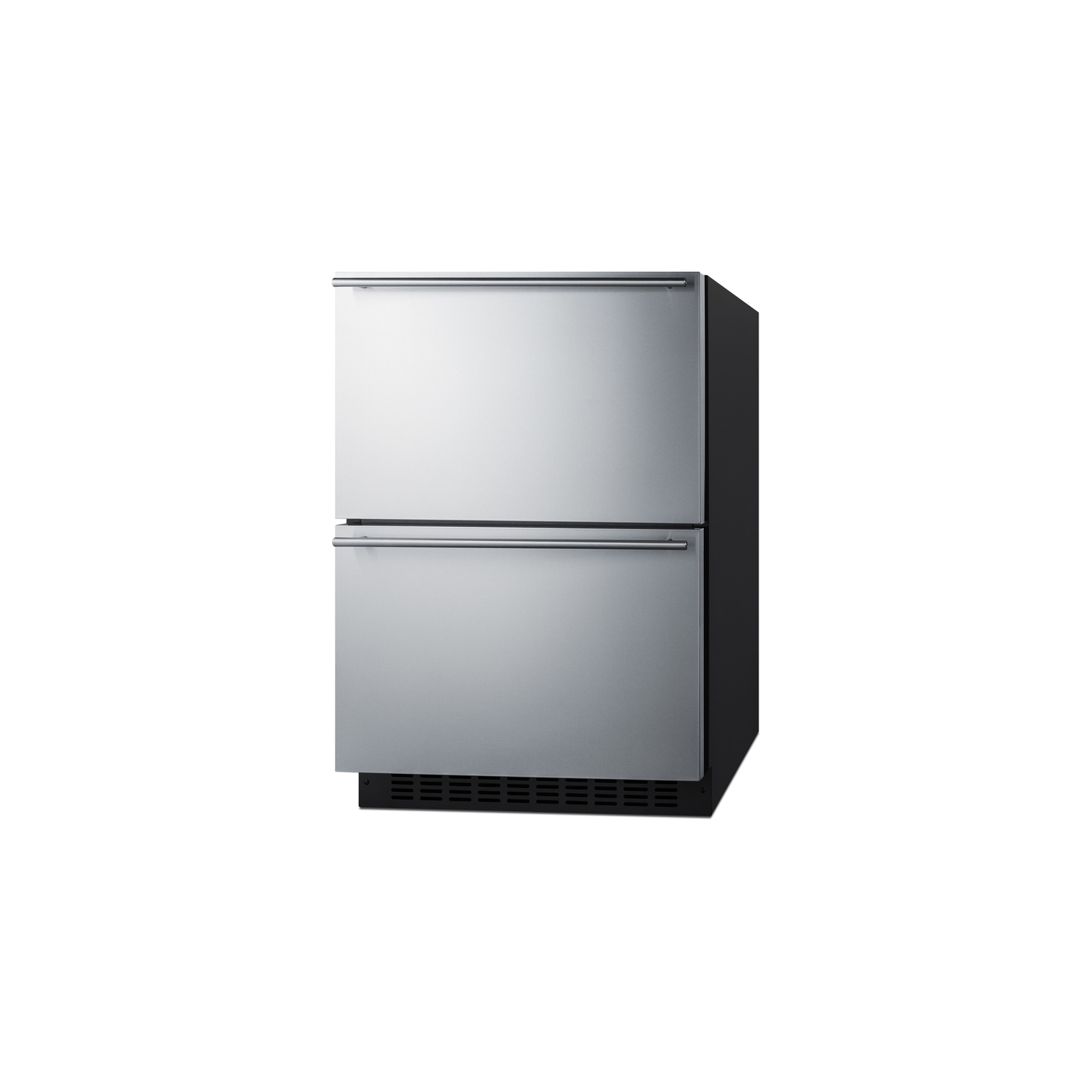

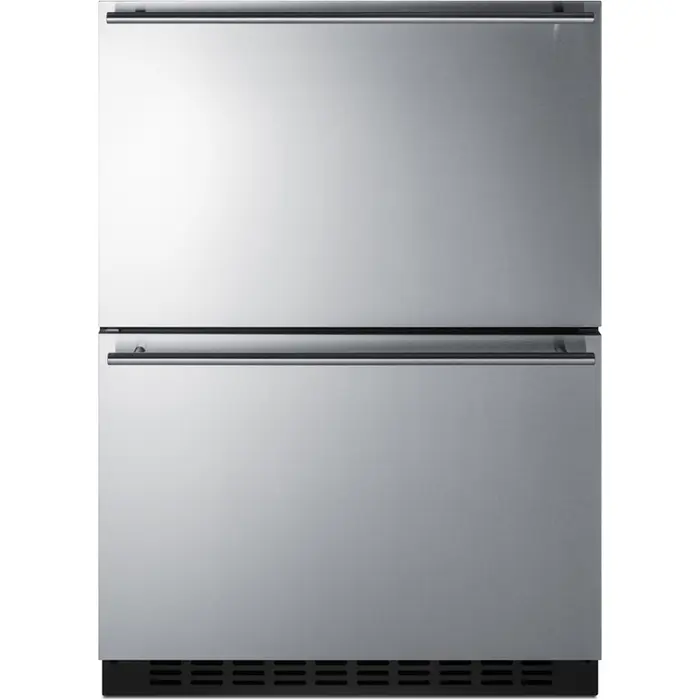

Sized at just under 24" wide and 32" high, model ADRD241OS is a 2-drawer all-refrigerator perfectly designed for built-in or freestanding installation in ADA compliant settings with lower counter height. The weatherproof construction allows safe use in outdoor settings, with a sealed back to ensure all components are protected from the elements. This unit comes with a jet black cabinet and stainless steel drawers. Sleek horizontally mounted handles complete the stylish look. The drawer fronts can also accept user-provided overlay panels to create a custom look that blends into existing cabinetry designs (panel dimensions: 23.43" W x 14.1" H at 3/4" thick).

Inside, the ADRD241OS has a generous 3.7 cu.ft. capacity to accommodate your storage needs. Frost-free operation ensures minimal user maintenance, with fan-forced cooling to evenly distribute the temperature. A digital thermostat, located atop the upper drawer, makes it easy to manage the temperature, with an LED display that can be read in Celsius or Fahrenheit. Two adjustable, removable dividers allow you to separate the drawer compartments into two or four zones to easily accommodate a variety of sizes. A full-width sliding removable chrome basket offers added storage convenience, while white LED lighting makes it easy to view stored contents. A child lock will disable the digital controls after two minutes of inactivity to prevent accidental adjustments. Additional features include audible alarms for high-temperature fluctuations and open drawer alerts, a temporary memory function to recover all settings in the event of power loss, and sabbath mode to disable certain electrical features during periods of religious observance.

The ADRD241OS is ETL-S listed to NSF-7 commercial settings and also meets all residential standards for home use. We also offer a matching frost-free outdoor freezer (model ADFD243OS) and this same unit as a 2-zone refrigerator-freezer drawer (model ADRF244OS). Browse the full Summit line to explore our extensive series of 15", 18", and 24" wide outdoor refrigerator drawers.

SPECIFICATIONS

Overview

Nominal Height 32.0" (81 cm)

Height of Cabinet 31.88" (81 cm)

Nominal Width 24.0" (61 cm)

Width 23.38" (59 cm)

Nominal Depth 23.0" (58 cm)

Depth 22.5" (57 cm)

Depth with Handle 23.88" (61 cm)

Depth with door at 90° 34.25" (87 cm)

Capacity 3.7 cu.ft. (105 L)

Defrost Type Frost-Free

Door Stainless Steel/Panel-Ready

Cabinet Black

US Electrical Safety ETL

Canadian Electrical Safety ETL-C

Sanitation ETL-S

Energy Usage/Year 185.0kWh/year

Amps 1.0

Voltage/Frequency 115 V AC/60 Hz

Weight 106.0 lbs. (48 kg)

Parts & Labor Warranty 1 Year

Compressor Warranty 5 Years

UPC 761101088167

Refrigerator Features

Sabbath Mode Yes

Door Swing Drawer

Height Adjustable Yes

Thermostat Type Digital

Fan Type Interior and Exterior

Refrigerant Type R600a

Refrigerant Amount 1.38oz.

High Side PSI 270.0

Low Side PSI 105.0

Level Legs Qty 4

Interior Light Yes

Temperature Range 36 to 43ºF

Sound Level 33 dB

Drawer Dimensions

Interior Height 1 8.0" (20 cm)

Interior Width 1 17.0" (43 cm)

Interior Depth 1 14.5" (37 cm)

Interior Height 2 8.0" (20 cm)

Interior Width 2 17.0" (43 cm)

Interior Depth 2 14.5" (37 cm)

Dimensions

Compressor Step Height 4.0" (10 cm)

Compressor Step Width 17.0" (43 cm)

Compressor Step Depth 3.5" (9 cm)

FEATURES

2-Drawer All-Refrigerator 24" wide 3.7 cu.ft. all-refrigerator with two gliding drawers

Weatherproof design for outdoor use Durable construction allows safe installation in outdoor kitchens

ADA compliant design Sized just under 32" high to allow installation under lower ADA compliant counters

Built-in capable Front-breathing design allows you to make the best use of space by installing your appliance under the counter and flush with other cabinets in 24" wide openings

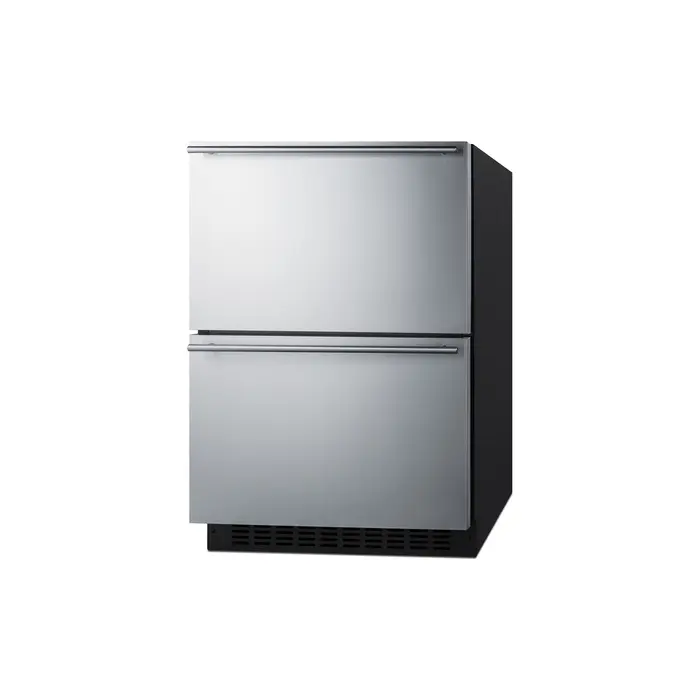

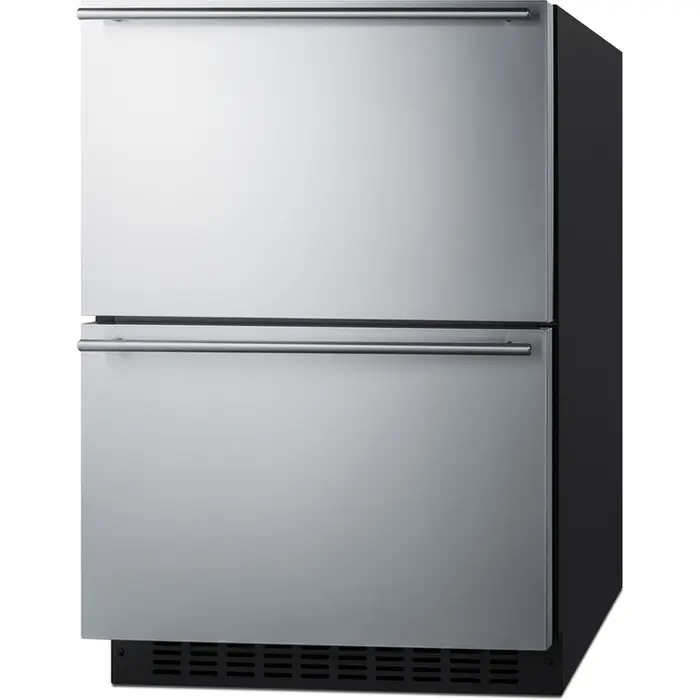

Stainless steel drawers Drawer interiors and exteriors are fully constructed from 304 grade stainless steel for weatherproof durability and elegant style

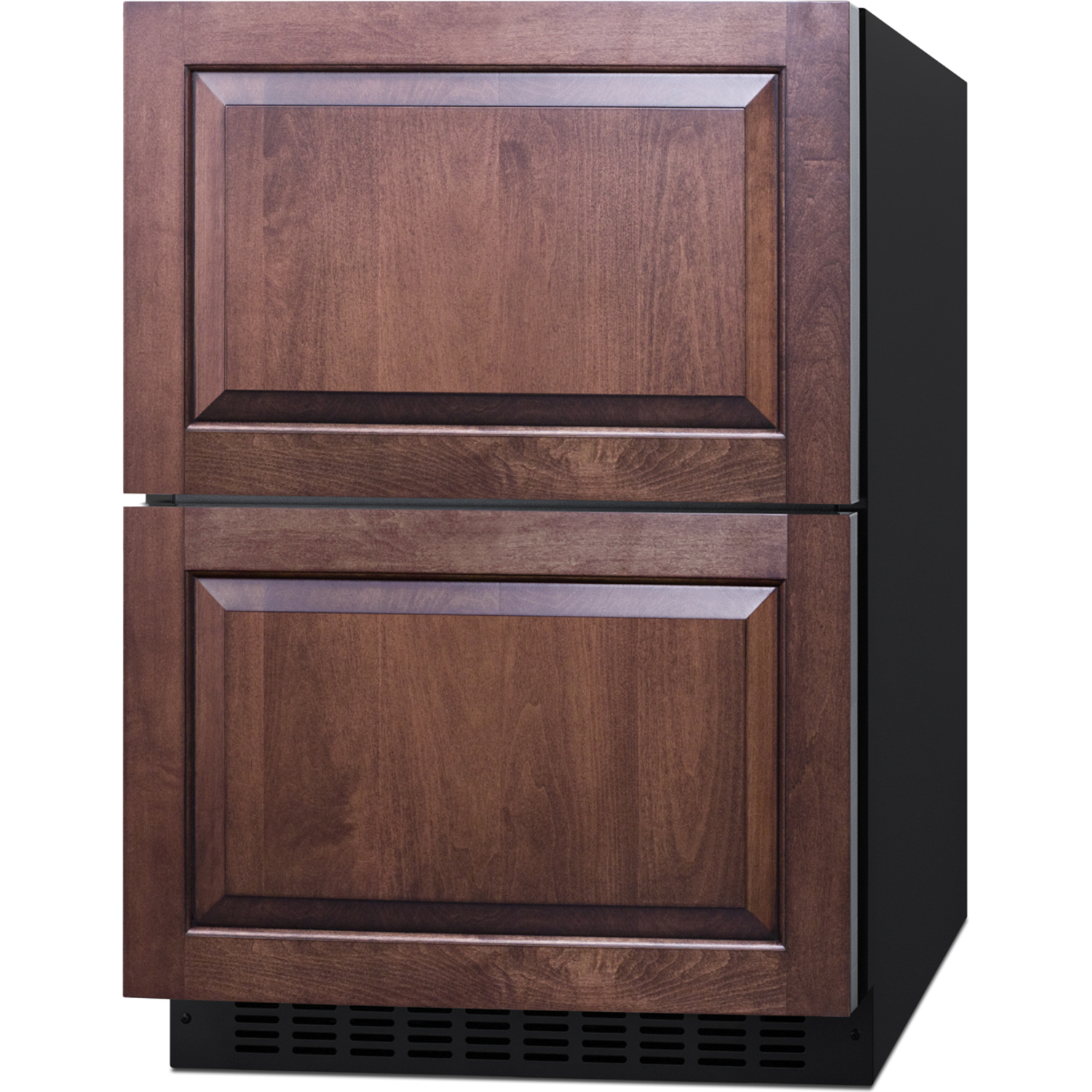

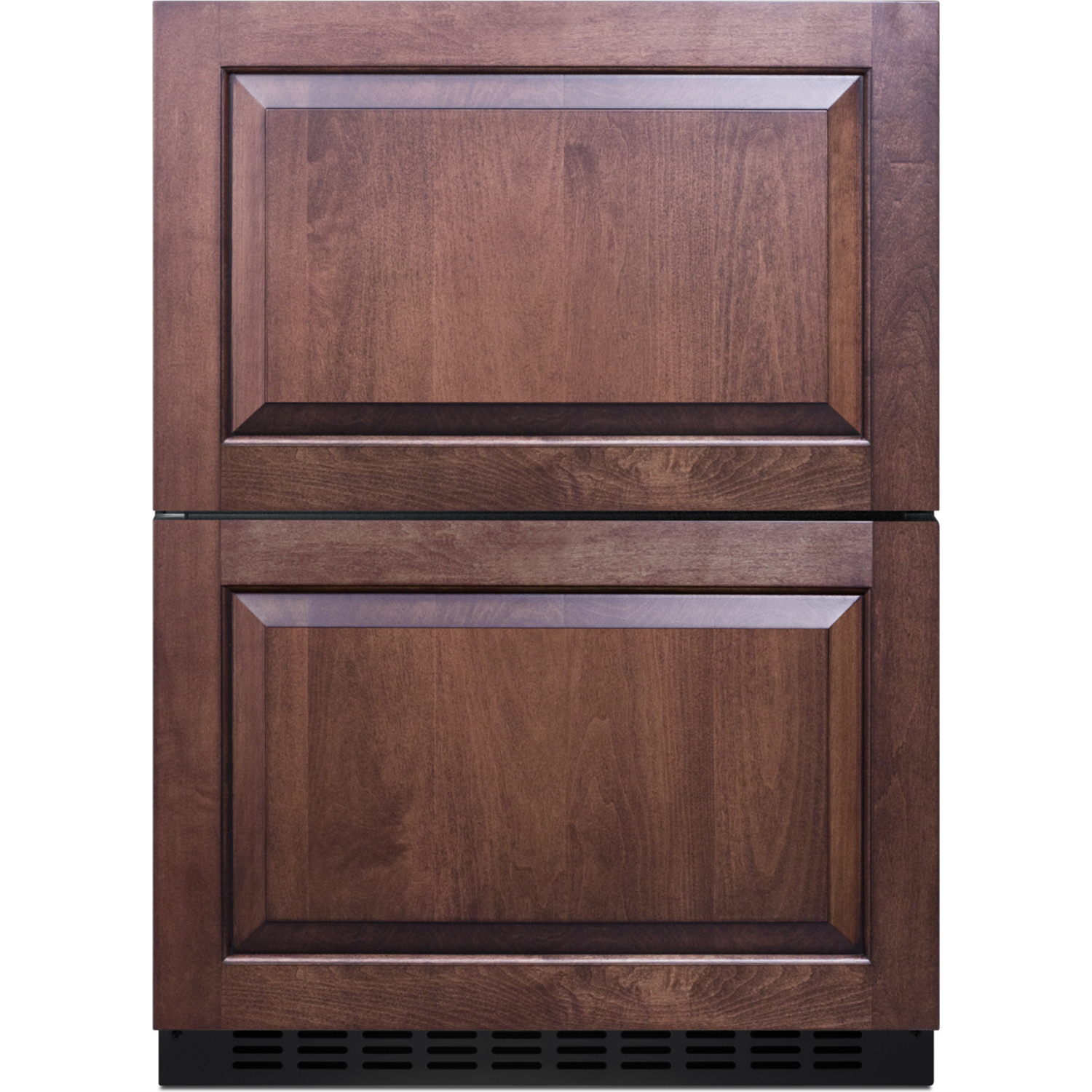

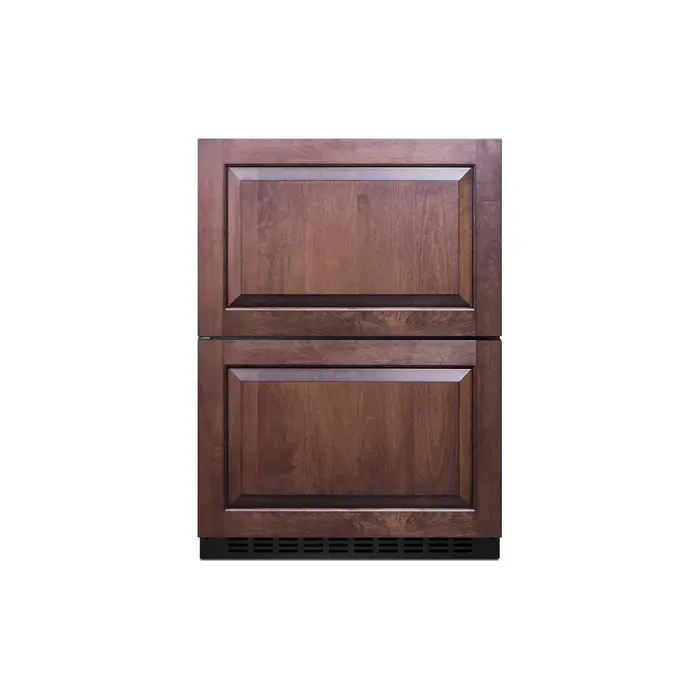

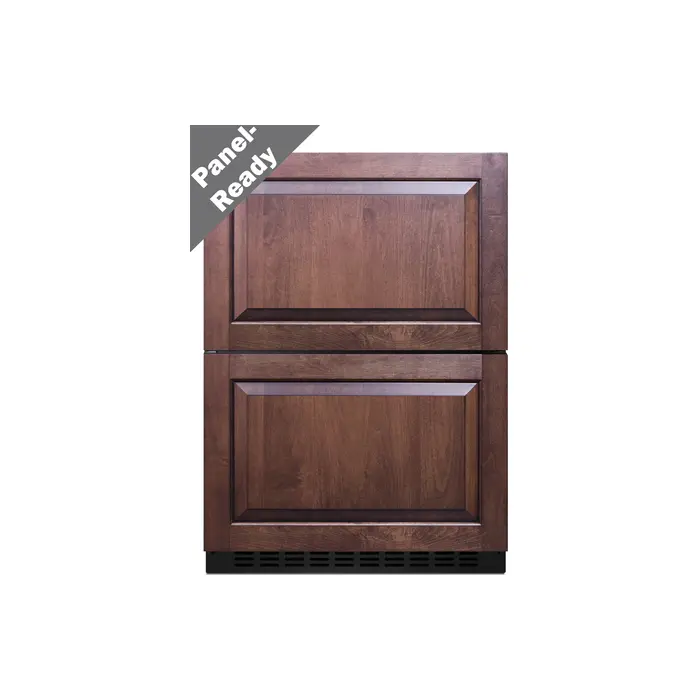

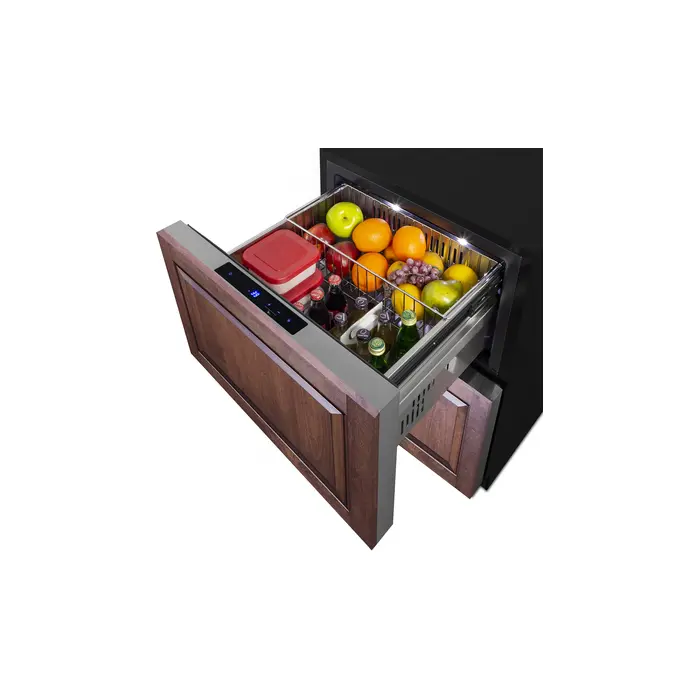

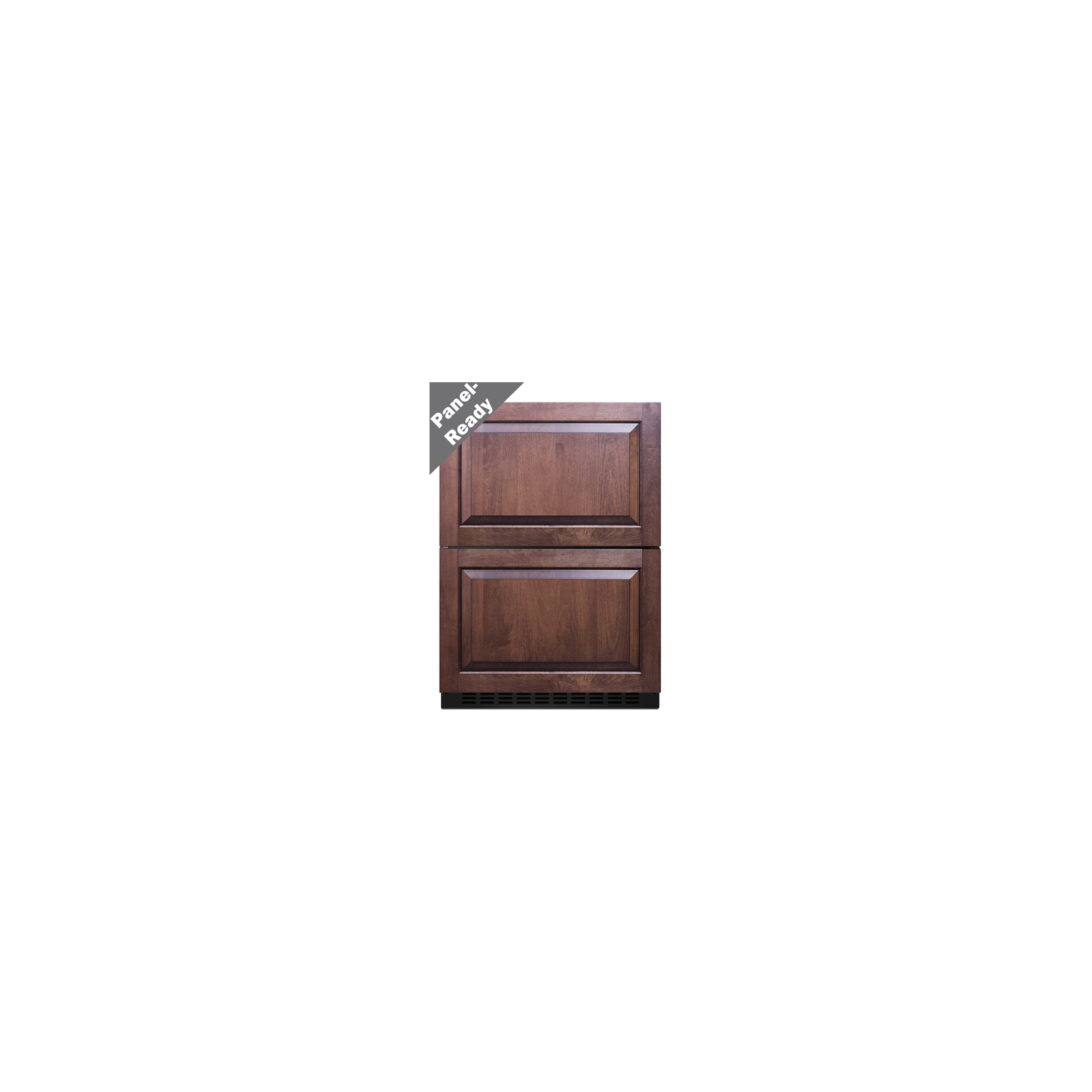

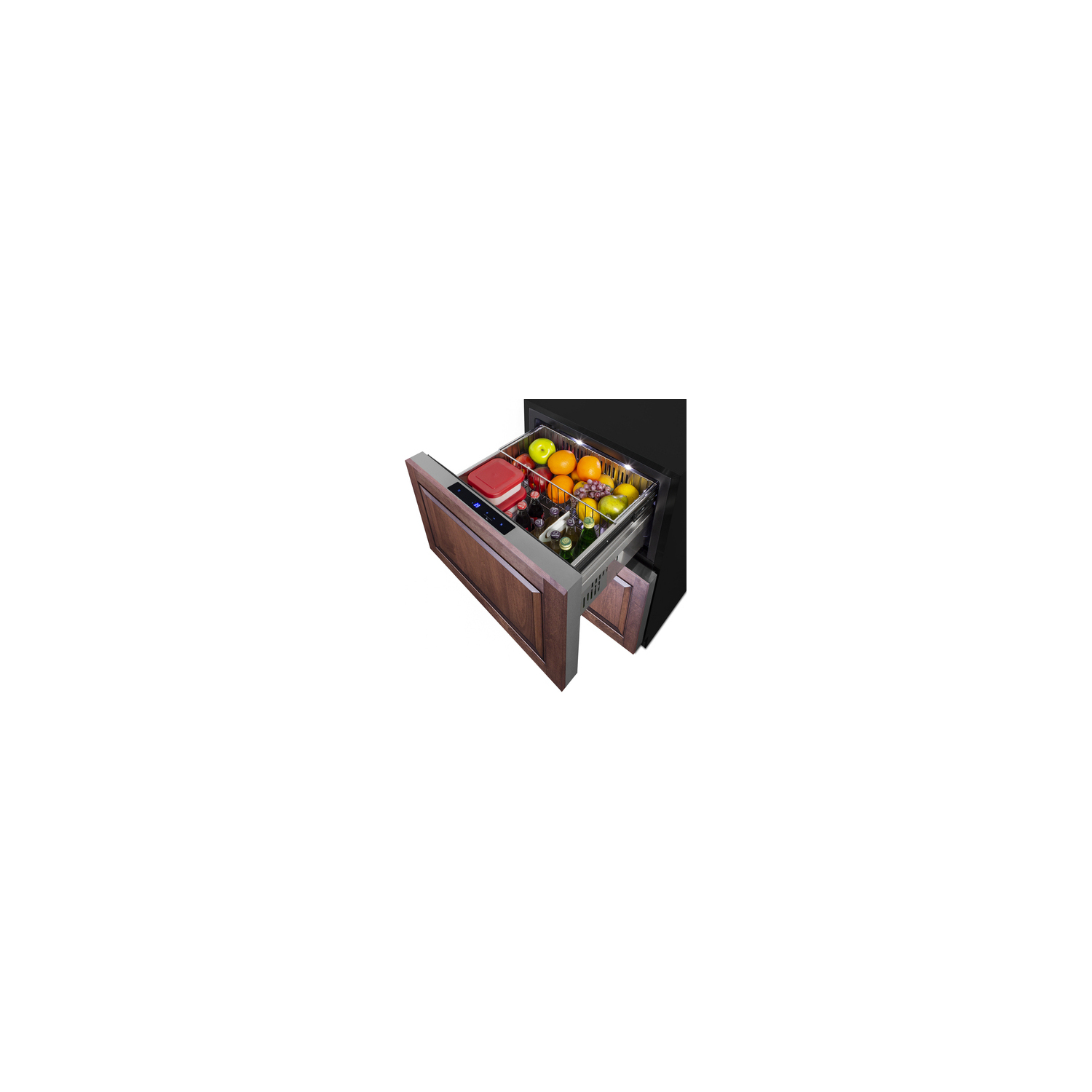

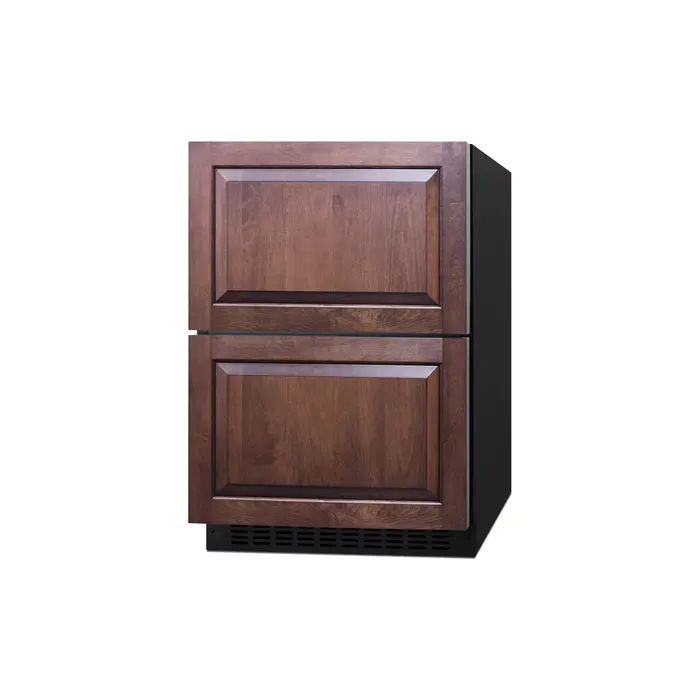

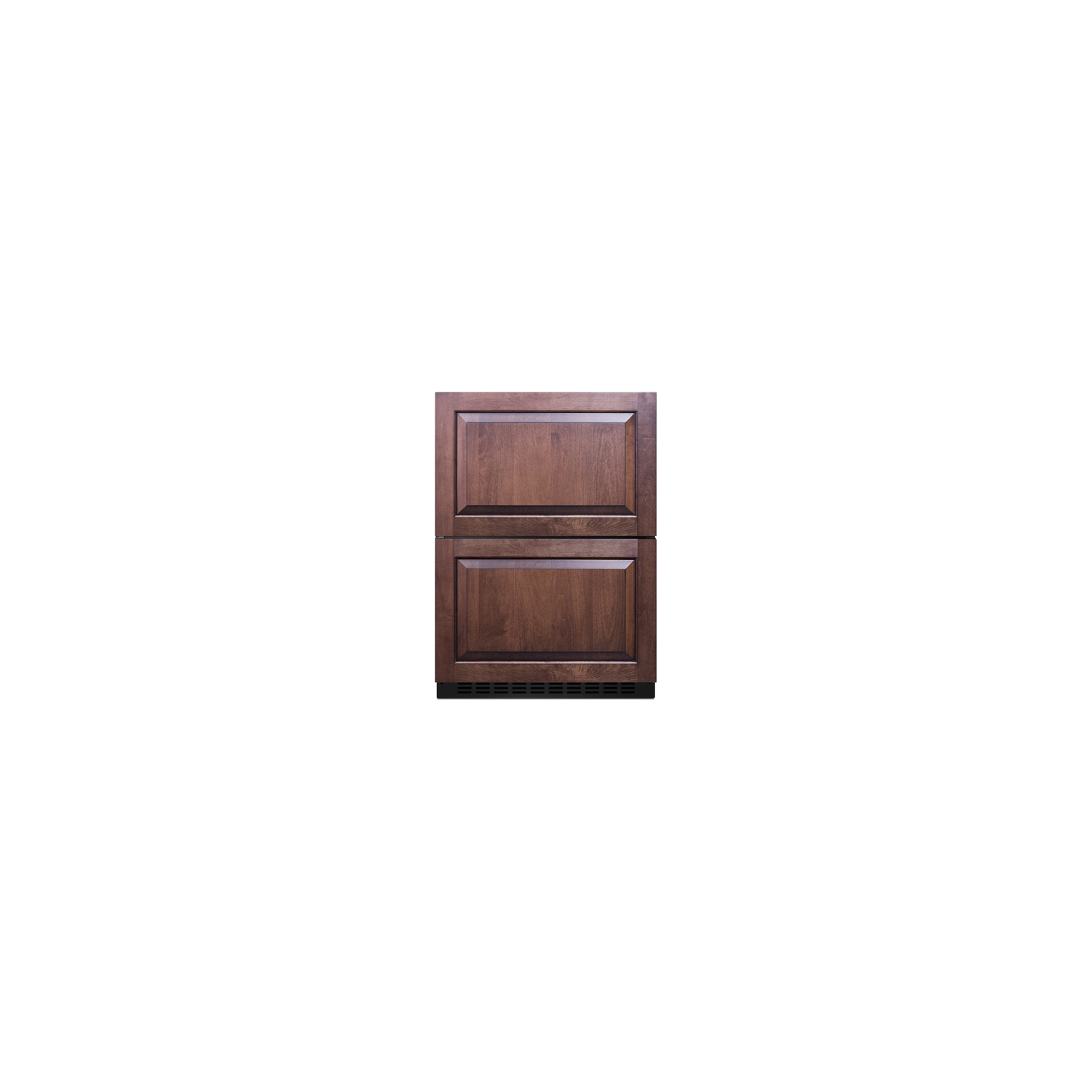

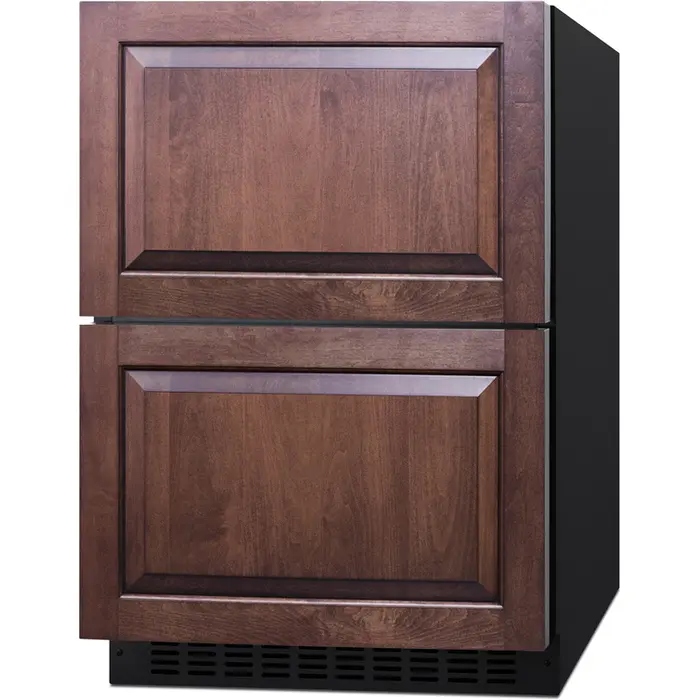

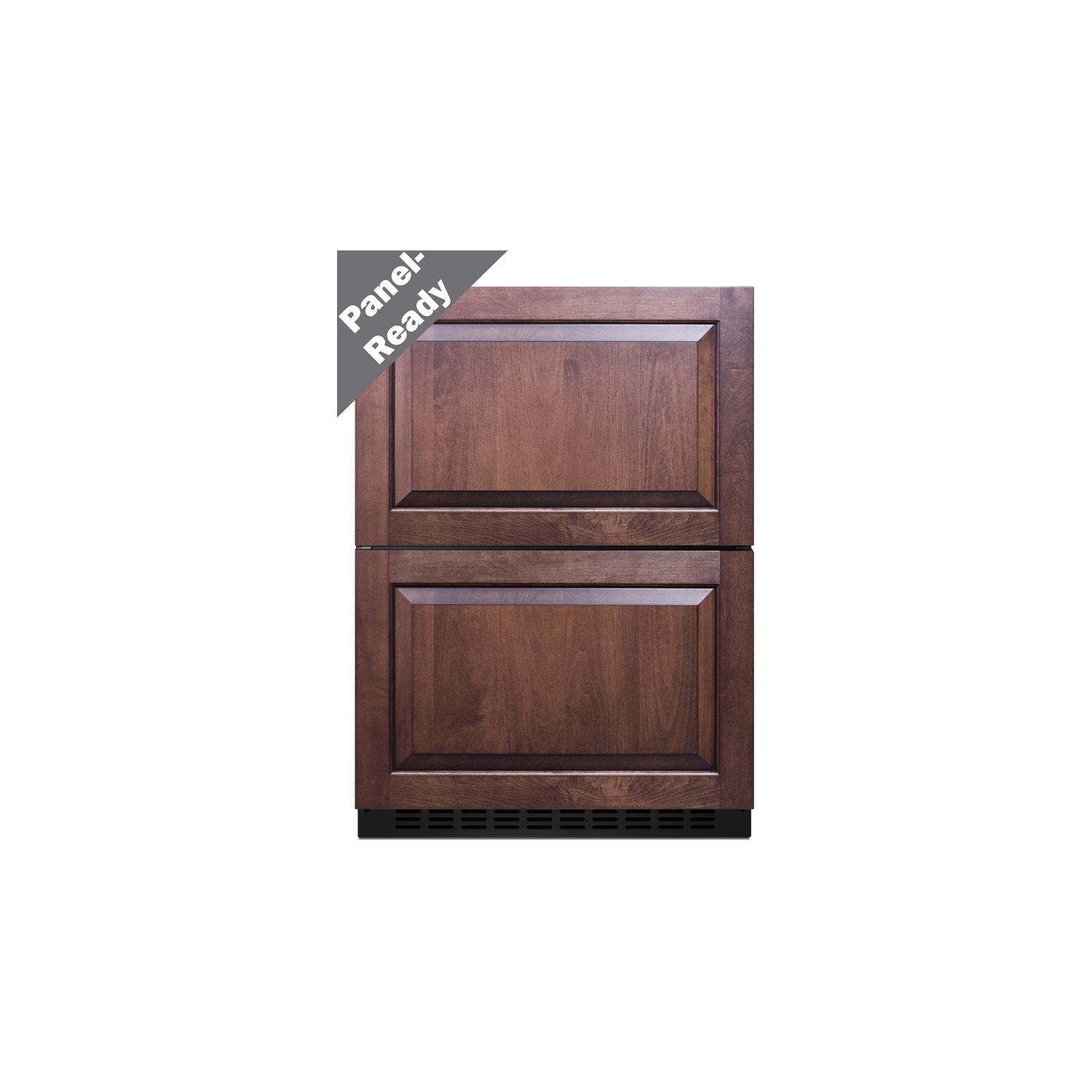

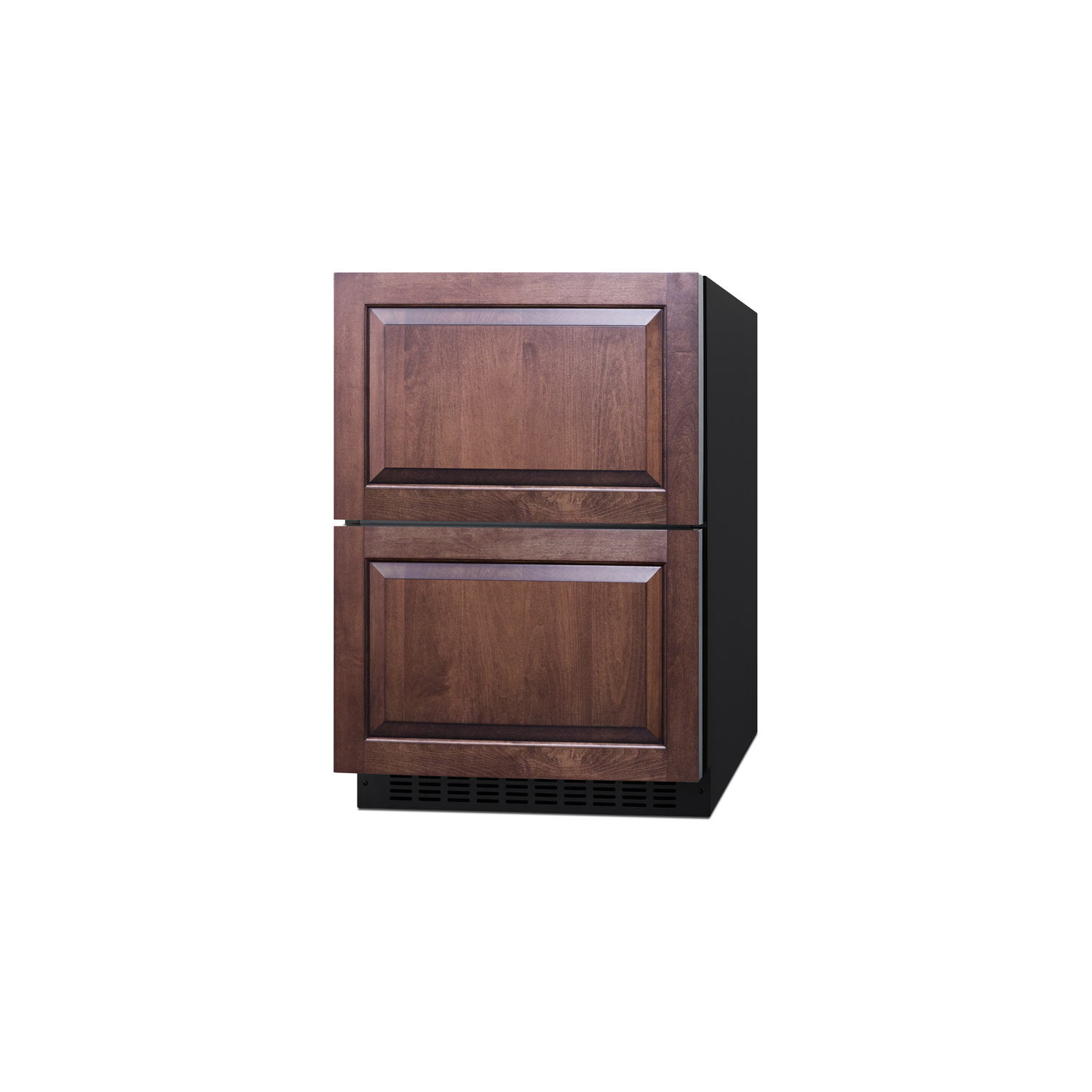

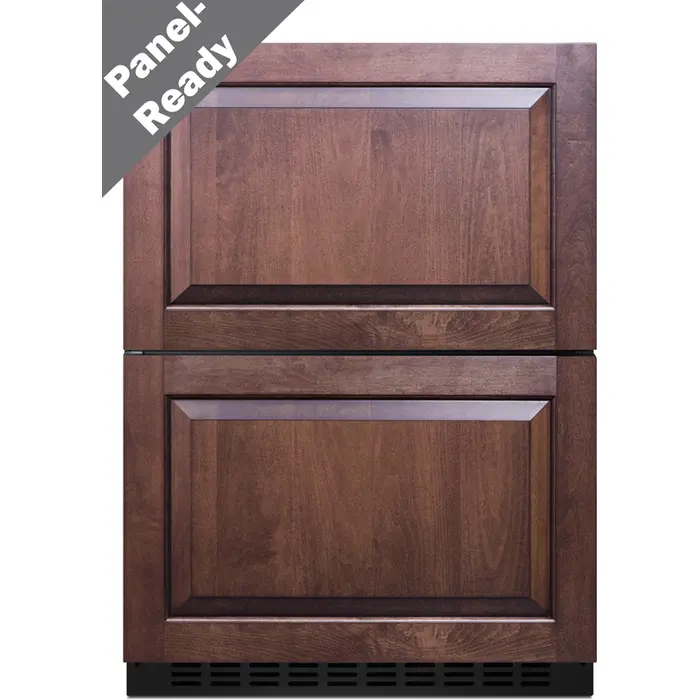

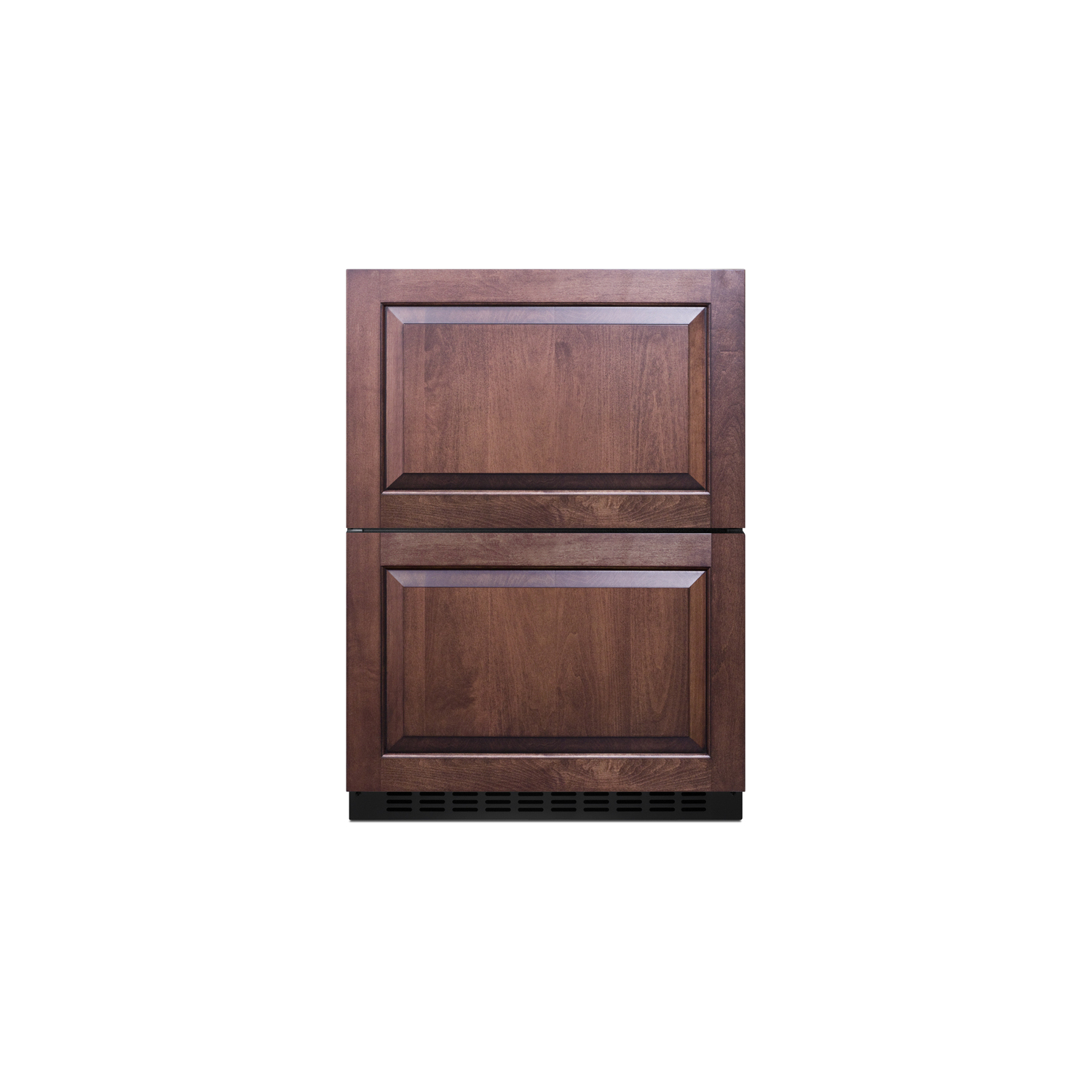

Panel-ready drawer fronts Drawers accept overlay panels (size: 23.43" x 14.1" at 3/4" thick) to let you seamlessly blend the refrigerator into cabinetry design

Professional handles Sleek stainless steel handles add an elegant touch to any setting

Frost-free No-frost operation for minimum user maintenance

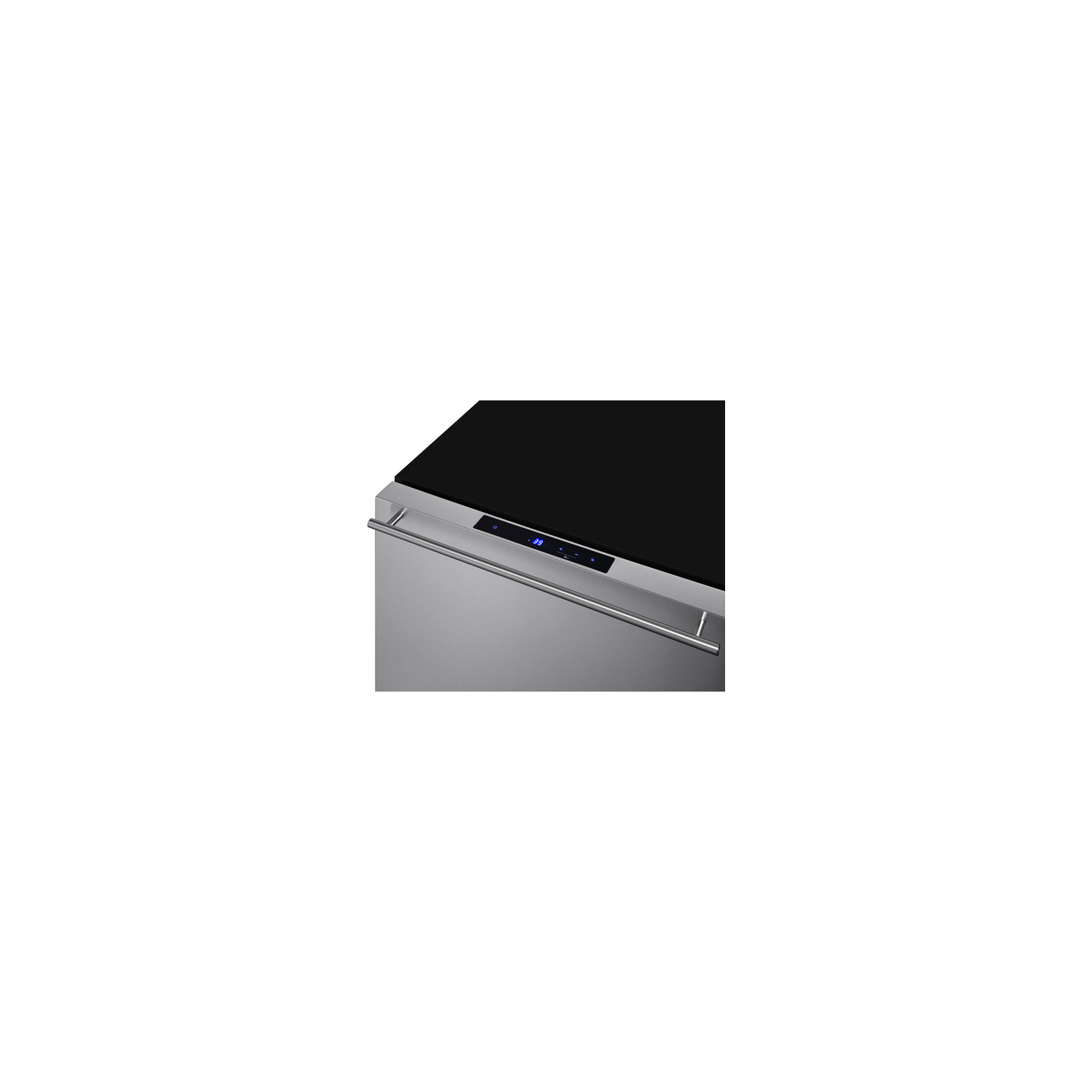

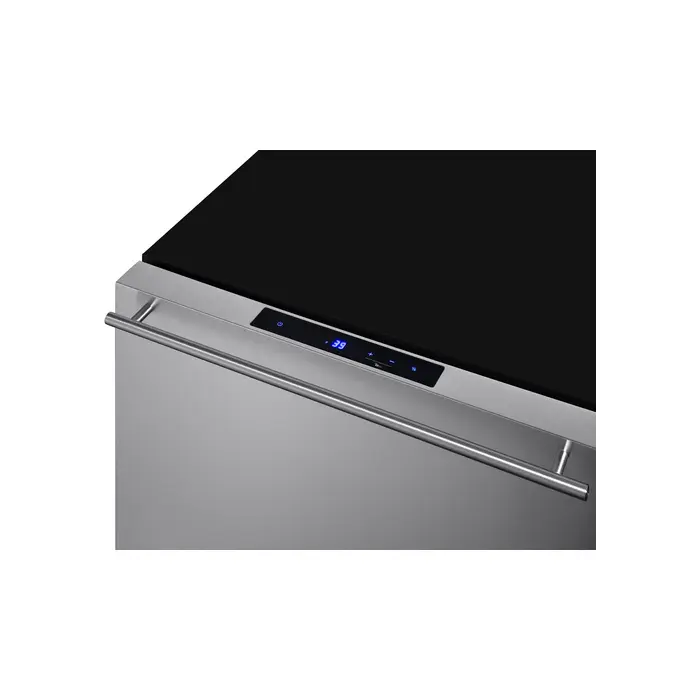

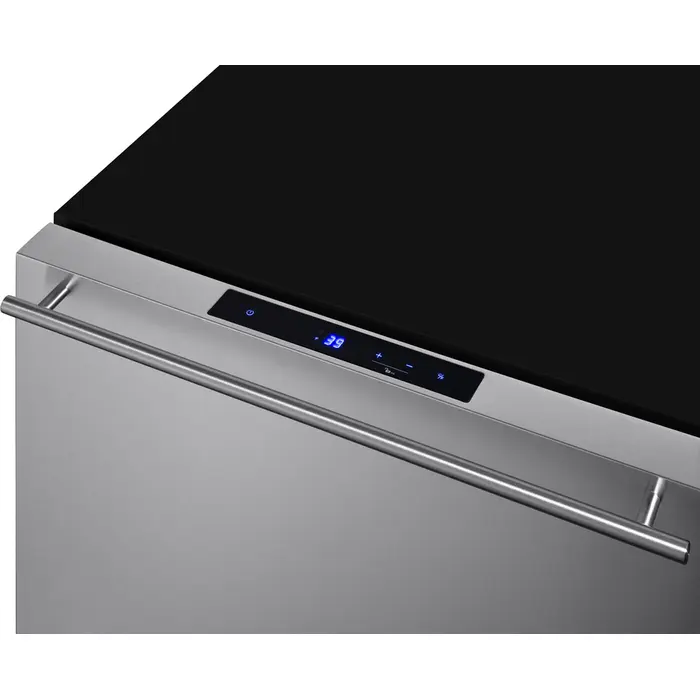

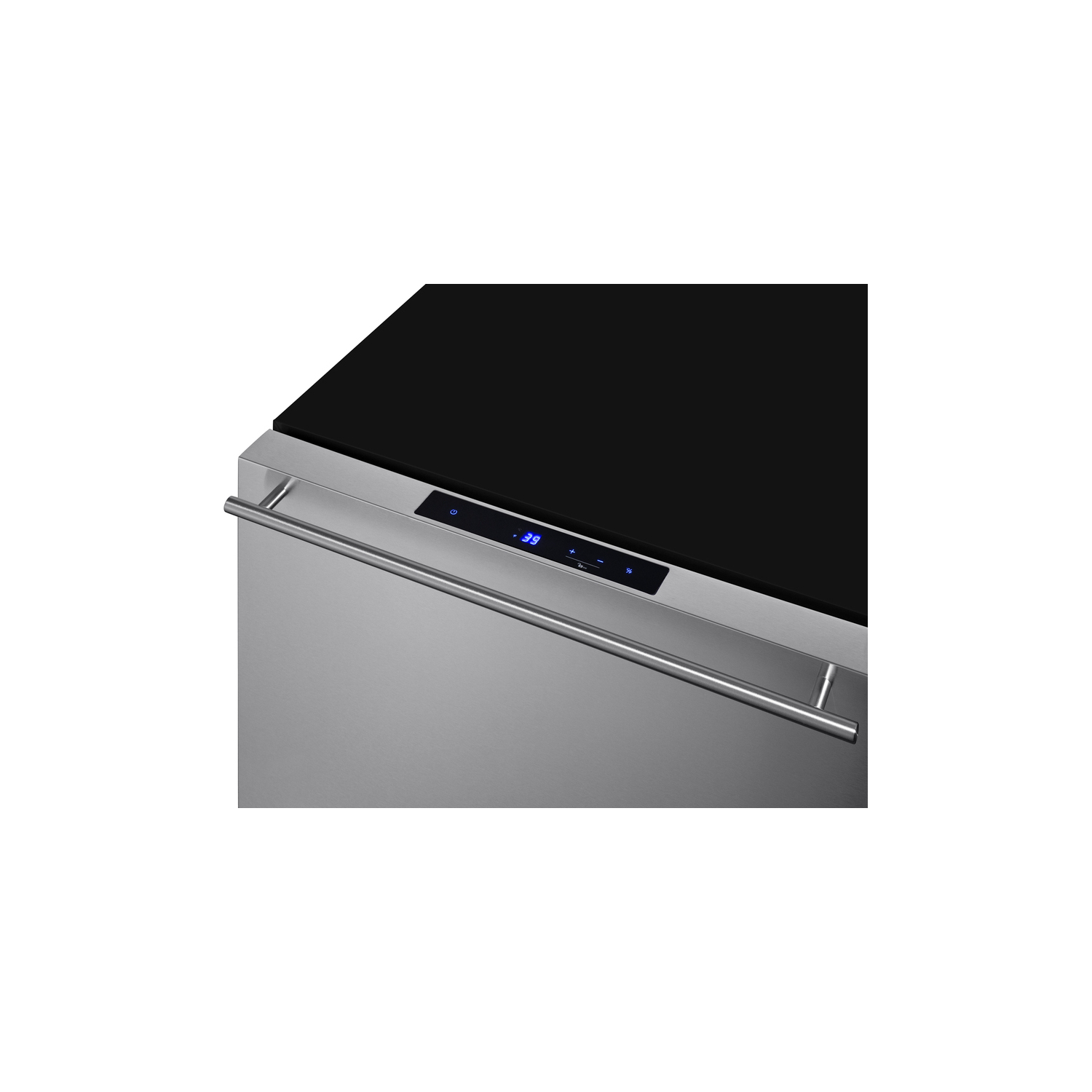

Digital thermostat Electronic controls located on the top drawer ensure intuitive temperature management, with an external readout that can switch from Celsius to Fahrenheit at the touch of a button

Interior lighting Elegant LED lighting in a gentle white hue illuminates the top drawer for an easy view of the interior

Fan-forced cooling Provides for efficient, even cooling of the entire unit

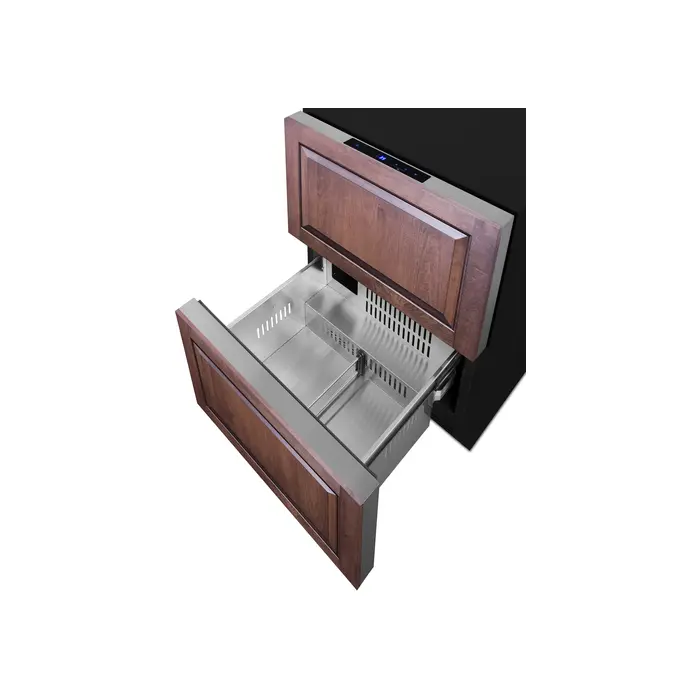

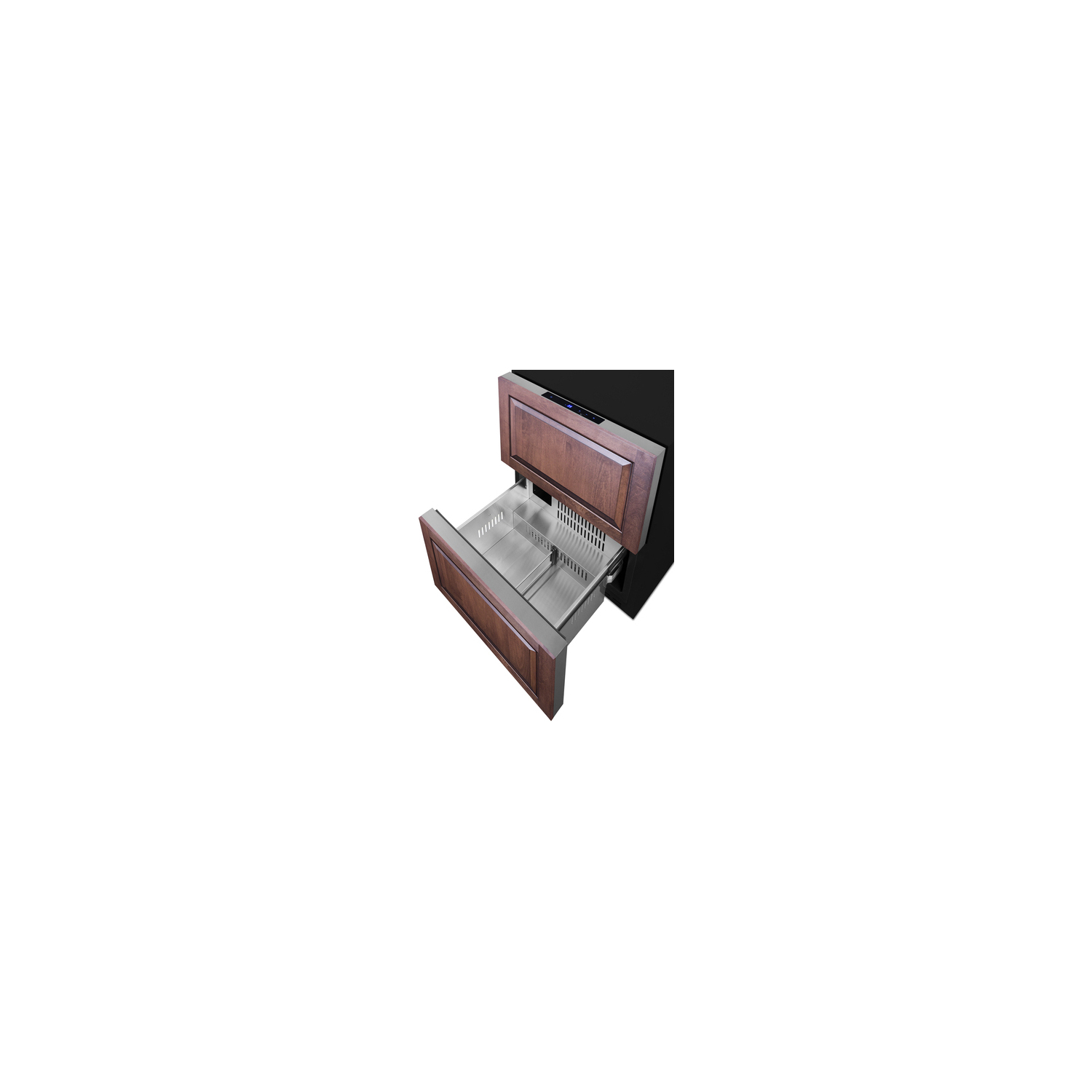

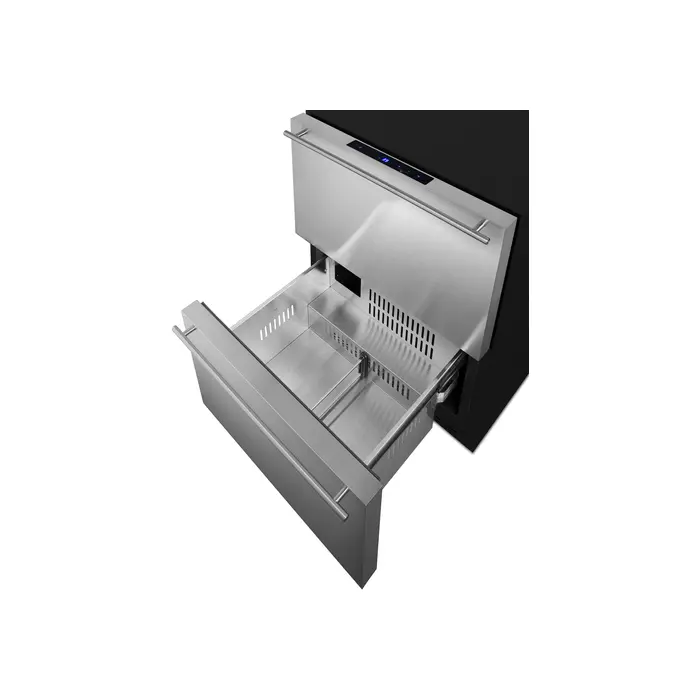

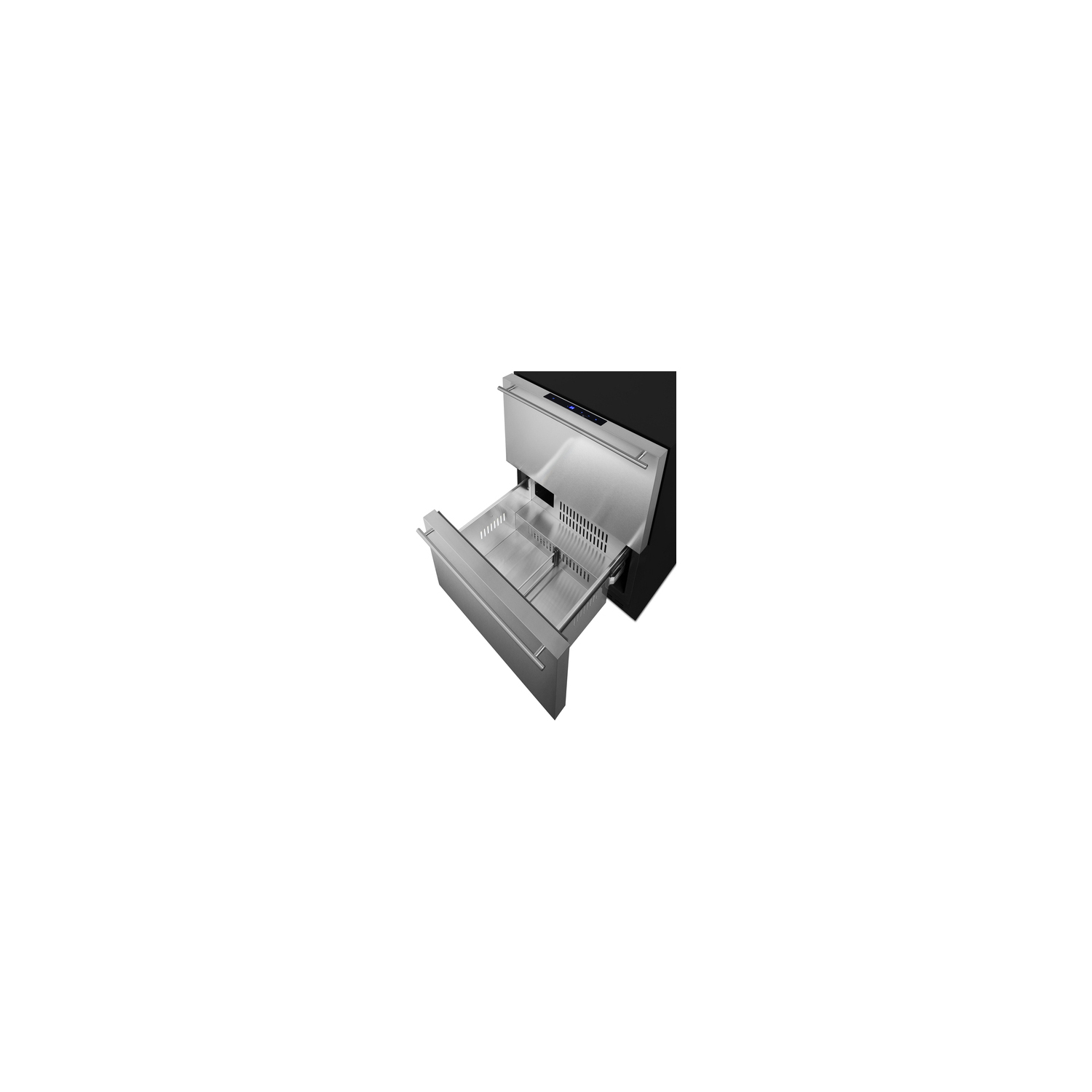

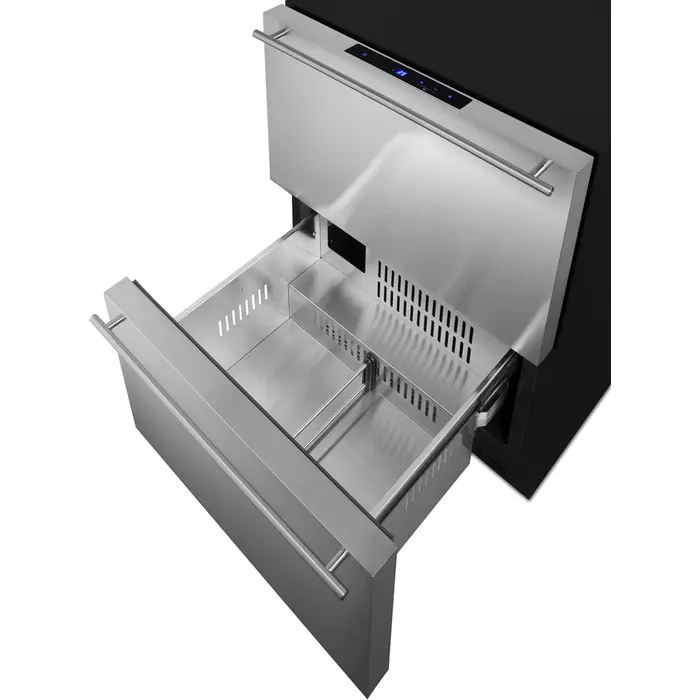

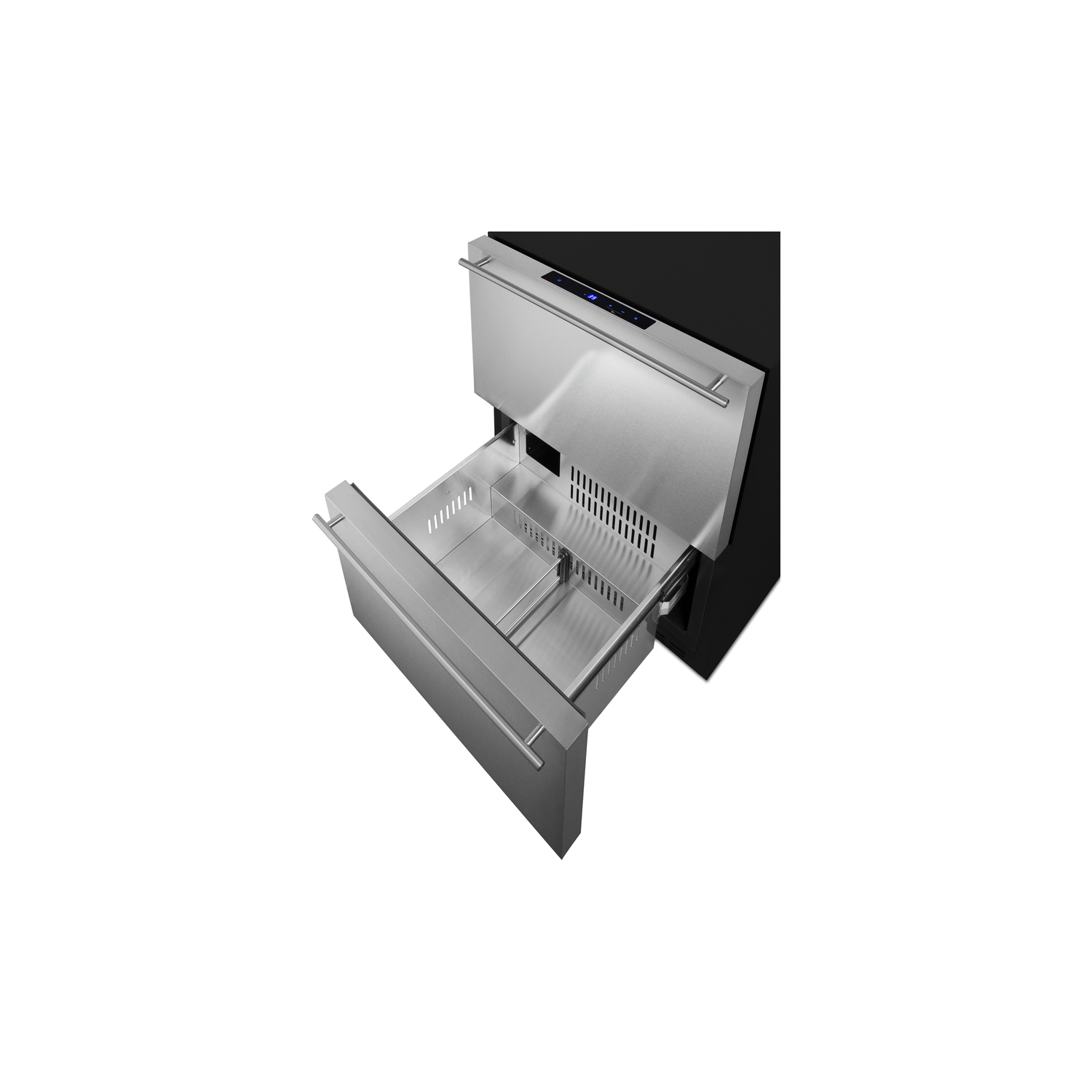

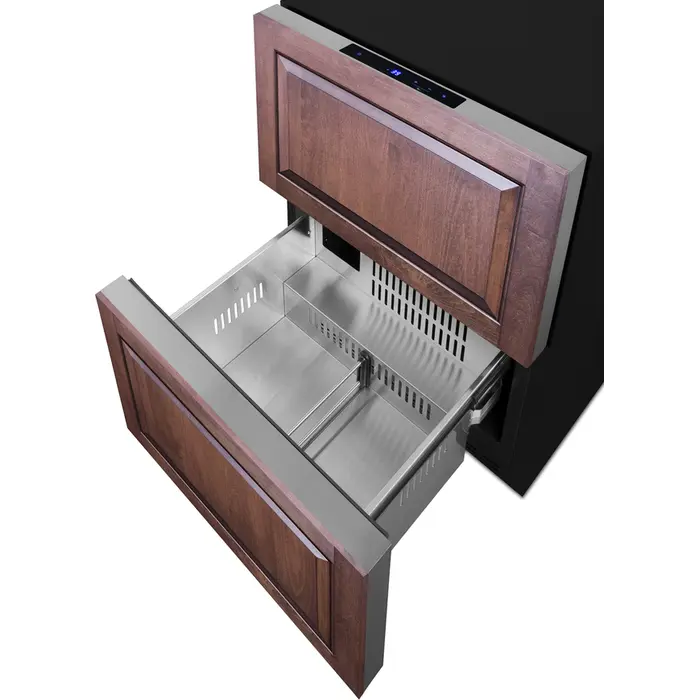

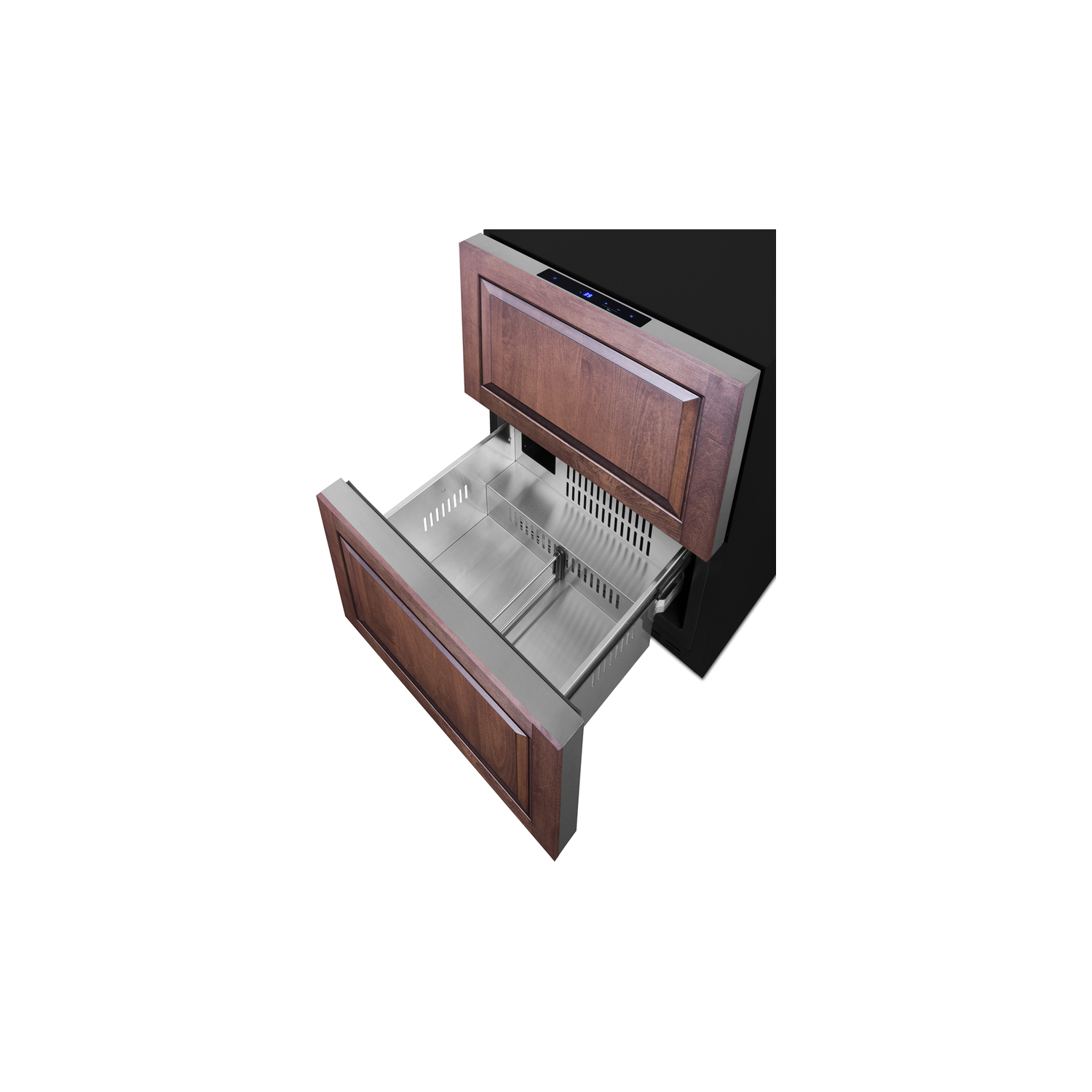

Drawer dividers Two adjustable dividers provide flexibility when organizing the interiors

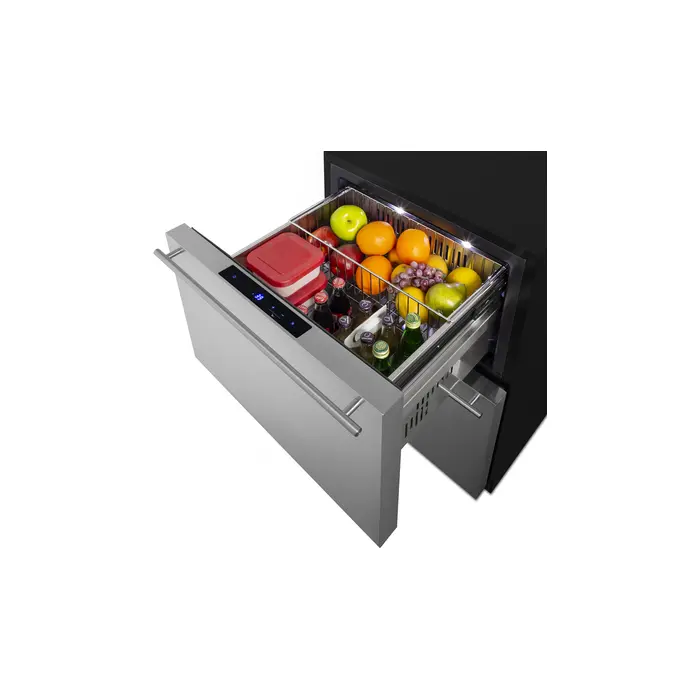

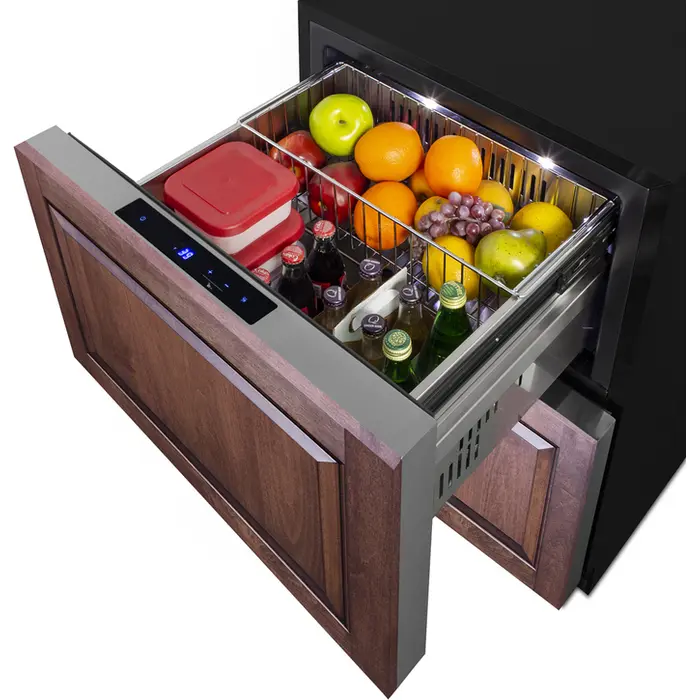

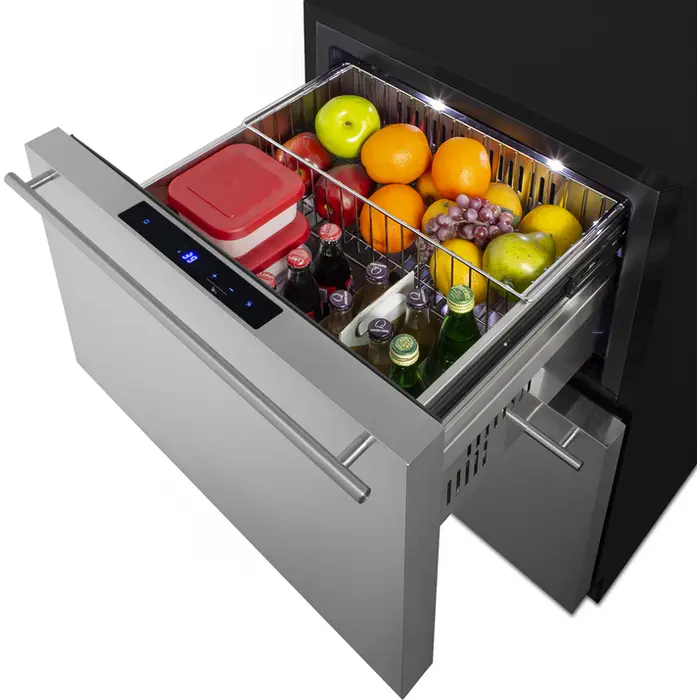

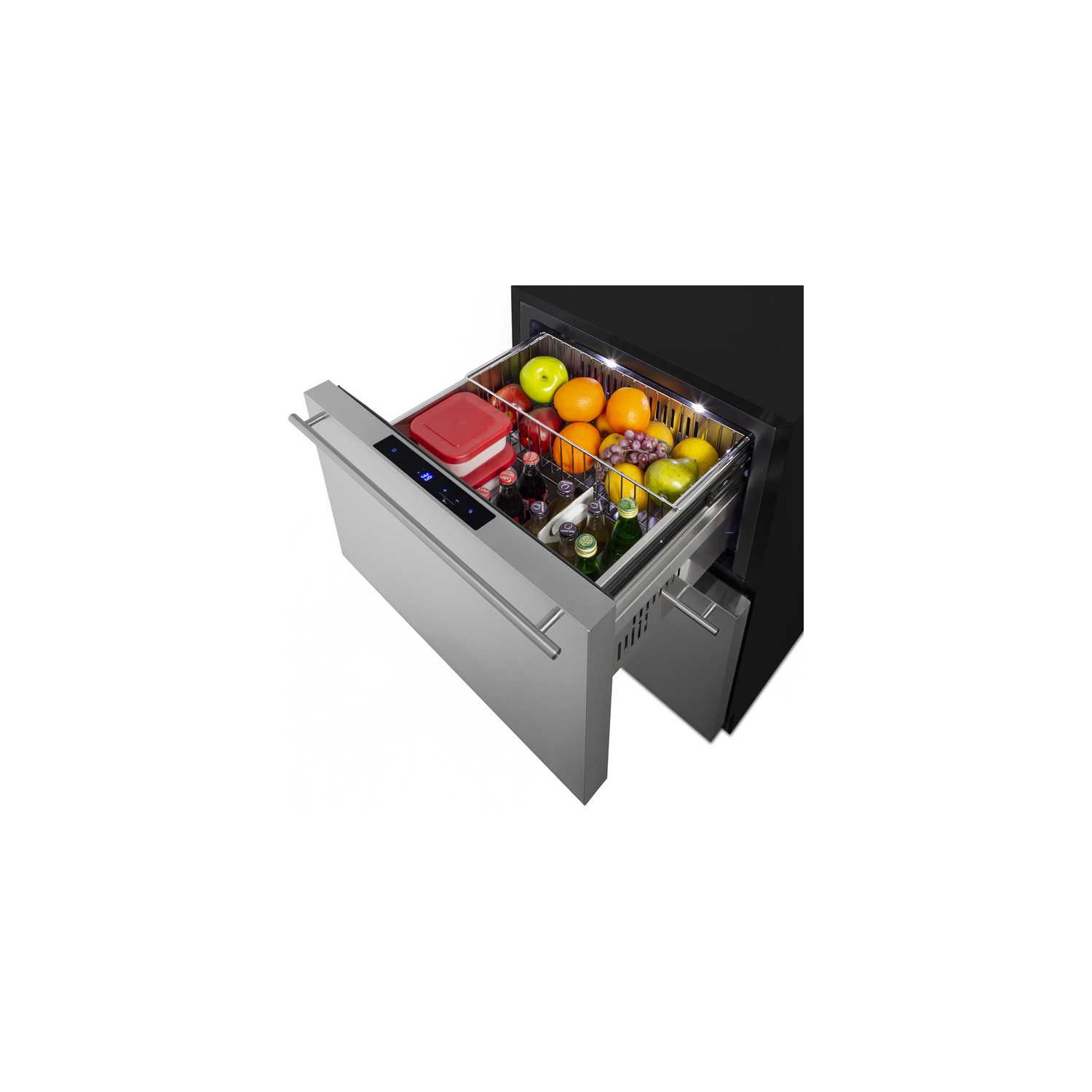

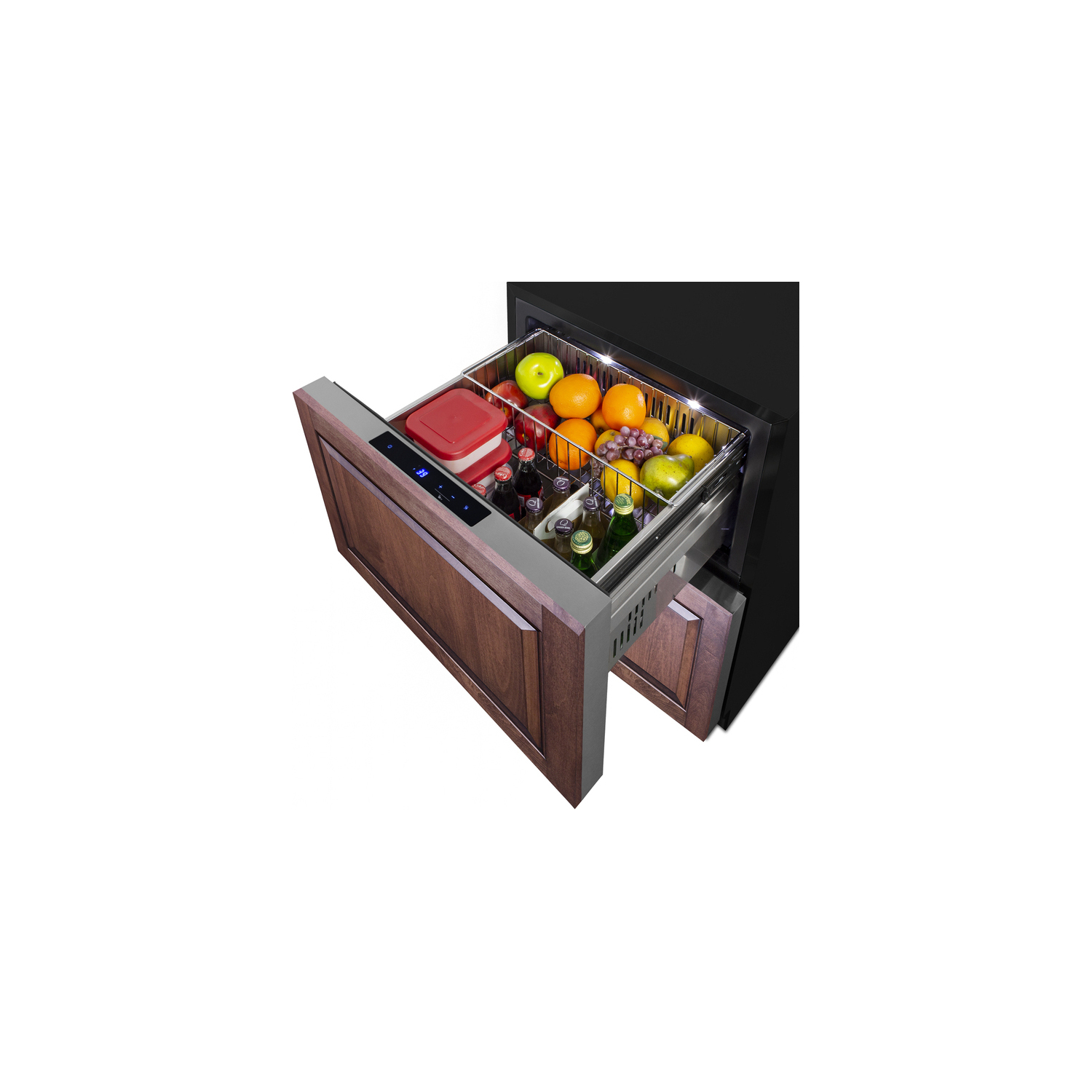

Sliding basket Removable chrome basket included for added storage convenience

Temperature alarm High temperature alarm sounds if the unit's interior goes out of the recommended range

Open drawer alarm Audible alarm will sound if either drawer is left open longer than one minute

Sabbath mode Optional setting lets you disable the lighting and alarm for up to 48 hours during periods of observance

Child lock Disables digital controls after two minutes of activity for added safety

Temperature memory function Unit will restore the most recent temperature settings after losing power

Right-angle plug Design allows you to plug the unit in flush against the wall socket with no need to add extra depth

Sealed back Space-saving design with no exposed coils for easier cleanability and added protection from the elements

Fully finished black exterior cabinet Allows the unit to be used freestanding

Anti-tip bracket Included and recommended for user-installation to reduce the risk of tipping

Commercially approved ETL-S listed to NSF-7 standards to allow use in commercial establishments

Matching freezer Pair with the ADFD243 freezer to create a complete 2-drawer undercounter set

100% CFC free Environmentally friendly design with no ozone-damaging chemicals

CARB Compliant Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

DOWNLOADS

BROCHURE w/ DRAWINGS (ADRD241OS.pdf)

TECHNICAL DRAWING (.dwg) (AD_RD-FD-RF_24_1-3-4__6.dwg)

ASSEMBLY DRAWING (AD_RD-FD-RF_24_1-3-4_-Assembly_6.pdf)

3D DRAWING (ADRD241_2.obj)

3D DRAWING (ADRD241_2.dwg)

3D DRAWING (ADRD241_2.3ds)

USE & CARE (ADRD241OS-User-Manual.pdf)

Energy Guide
