Summit 18 inch 2 drawer refrigerator in ADA height for outdoor or indoor use, 7.61101e+011, ADRD18OS

Summit manufactures one of the industry's most extensive and unique selections of outdoor refrigeration, with weatherproof choices designed to bring user convenience and lasting durability to outdoor kitchens.

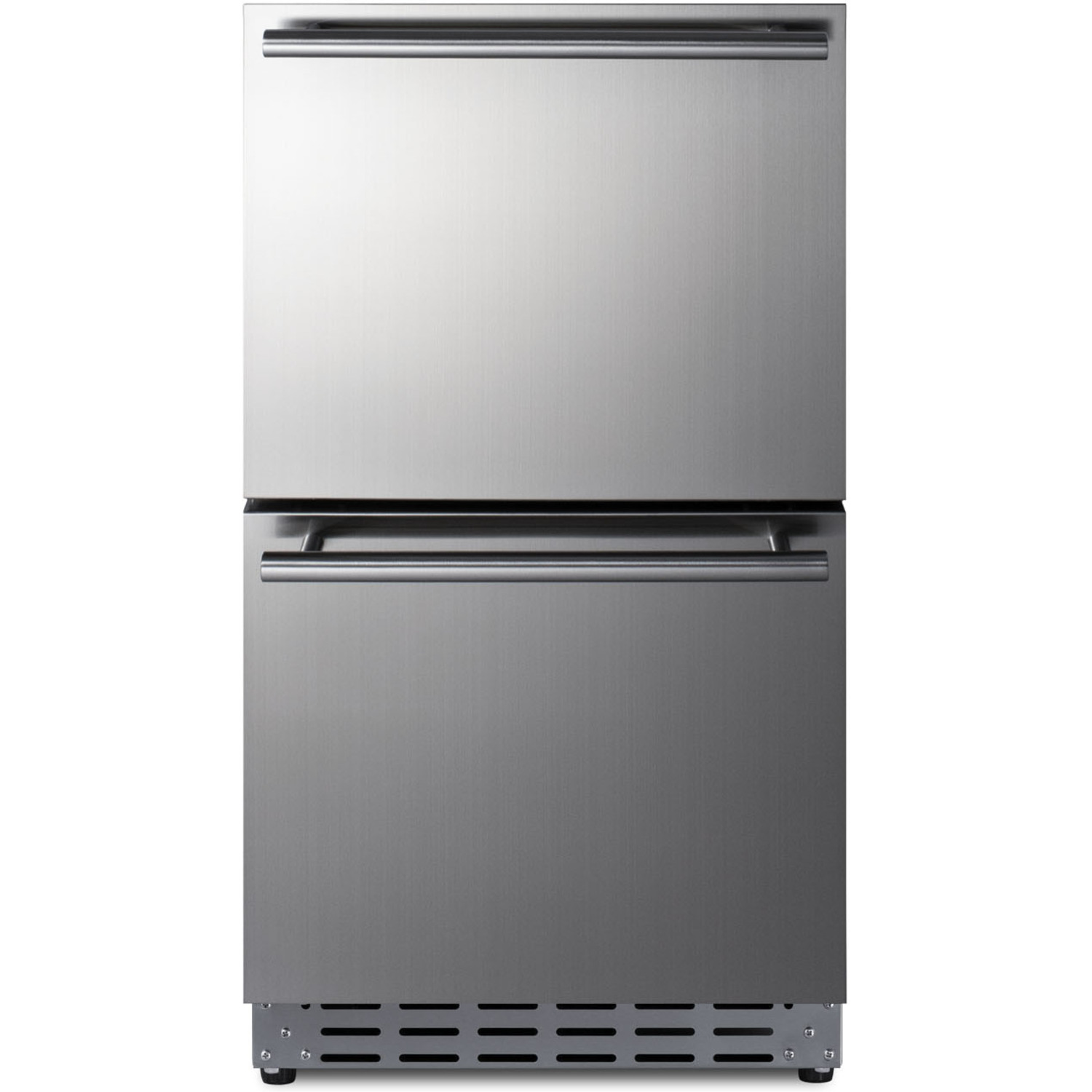

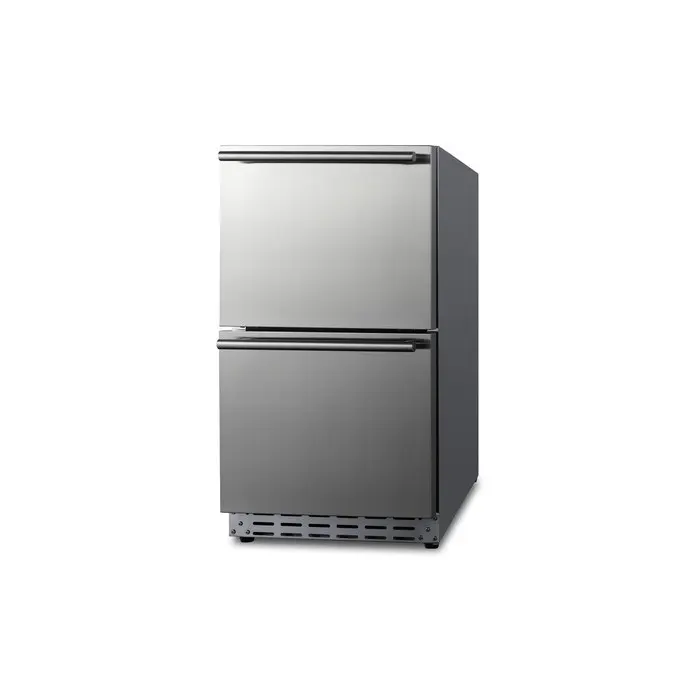

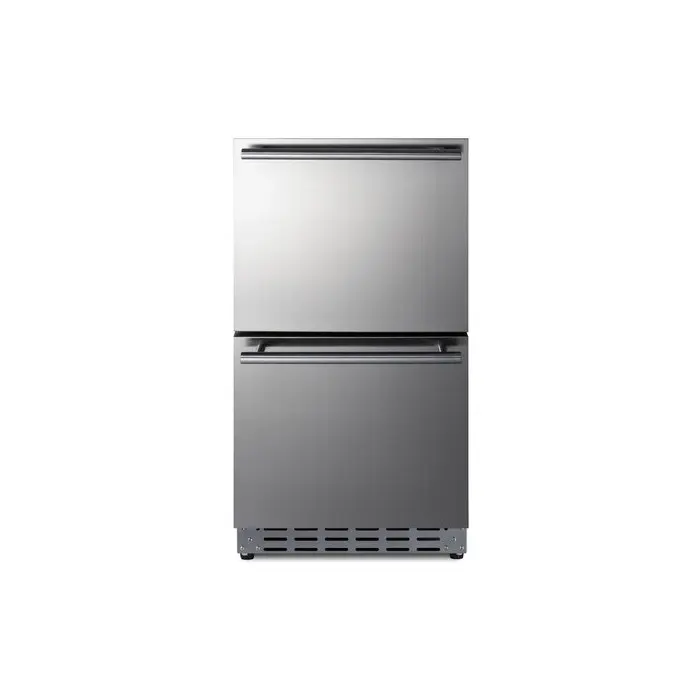

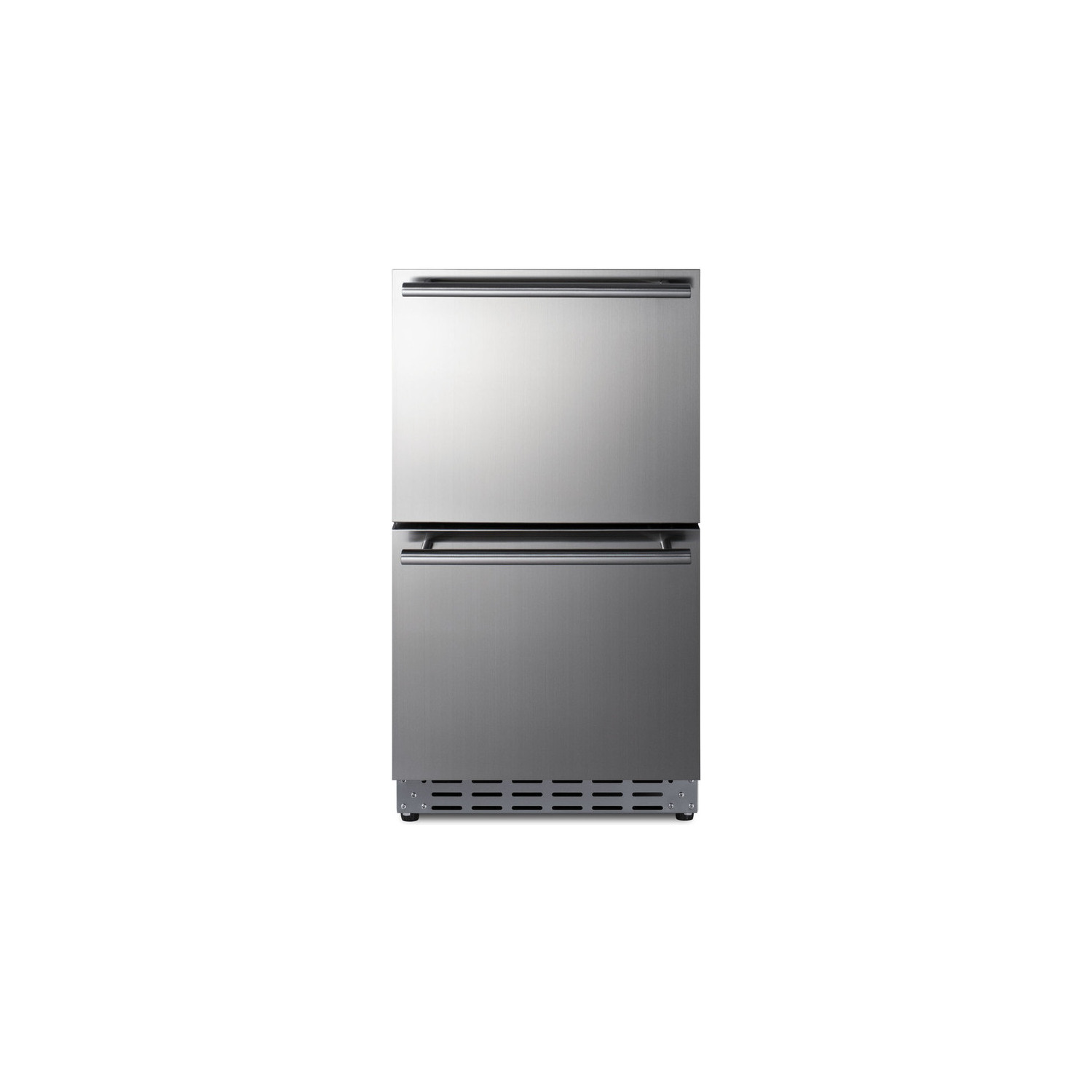

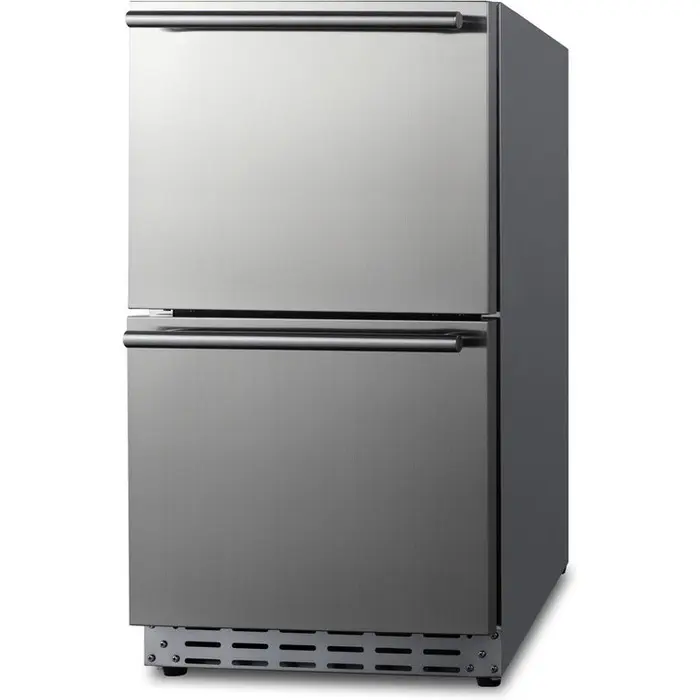

Sized at just 18" wide and 32" high, model ADRD18OS a two-drawer outdoor all-refrigerator that can be built-in under ADA compliant counters or used freestanding. Complete stainless steel construction inside and out is designed to hold up to the elements in style. Soft close glides allow you to gently close each drawer with a light touch. The drawers can also be customized with overlay panels to match or accent existing cabinetry design, while the stainless steel kickplate and stylish handles complete the look. This unit includes a right angle cord for a better fit. The sealed rear offers additional protection from outdoor elements.

Frost-free operation ensures minimum user maintenance inside the 3.4 cu ft. interior. Each drawer includes a divider to make it easier to separate and organize your storage, with attractive and efficient LED lighting to illuminate the interior. Intuitive digital controls display a temperature readout switchable from Fahrenheit to Celsius to best suit your preference. High/low temperature alarms audibly warn if the interior goes out of the recommended range. Additional features include an open drawer alarm, child lock to secure the controls, sabbath mode for optional observance, and eco-mode for energy savings.

Model ADRD18OS is ETL-S listed to NSF-7 commercial standards and also meets DOE guidelines for residential use. Additional outdoor drawer refrigerators and freezers are available, including 15" and 24" wide choices. Browse the complete Summit lineup for more options.

SPECIFICATIONS

Overview

Nominal Height 32.0" (81 cm)

Height of Cabinet 31.5" (80 cm)

Nominal Width 18.0" (46 cm)

Width 17.75" (45 cm)

Nominal Depth 24.0" (61 cm)

Depth 23.25" (59 cm)

Depth with Handle 25.0" (64 cm)

Depth with door at 90° 37.0" (94 cm)

Capacity 3.4 cu.ft. (96 L)

Defrost Type Frost-Free

Door Stainless Steel/Panel-Ready

Cabinet Stainless Steel

US Electrical Safety ETL

Canadian Electrical Safety ETL-C

Sanitation ETL-S

Energy Usage/Year 259.0kWh/year

Amps 1.25

Voltage/Frequency 115 V AC/60 Hz

Weight 100.0 lbs. (45 kg)

Parts & Labor Warranty 1 Year

Compressor Warranty 5 Years

UPC 761101087443

Refrigerator Features

Sabbath Mode Yes

Door Swing Drawer

Thermostat Type Digital

Fan Type Interior and Exterior

Refrigerant Type R600a

Refrigerant Amount 1.23oz.

High Side PSI 150.0

Low Side PSI 50.0

Level Legs Qty 4

Interior Light Yes

Interior Drawers Yes

Interior Drawers Qty 2

Temperature Range 34 to 65°F

Sound Level 34.3 dB

Drawer Dimensions

Interior Height 1 8.75" (22 cm)

Interior Width 1 12.75" (32 cm)

Interior Depth 1 17.5" (44 cm)

Interior Height 2 10.5" (27 cm)

Interior Width 2 12.75" (32 cm)

Interior Depth 2 17.5" (44 cm)

Dimensions

Compressor Step Height 5.75" (15 cm)

Compressor Step Width 12.75" (32 cm)

Compressor Step Depth 4.75" (12 cm)

FEATURES

Outdoor design Weatherproof construction designed for durable refrigeration in outdoor kitchens

18" wide drawer refrigerator Two-drawer design in a unique 18" width ideal for undercounter spaces

ADA compliant 32” height allows for installation under lower ADA compliant counters

Commercially approved ETL-S listed to NSF-7 standards for commercial use

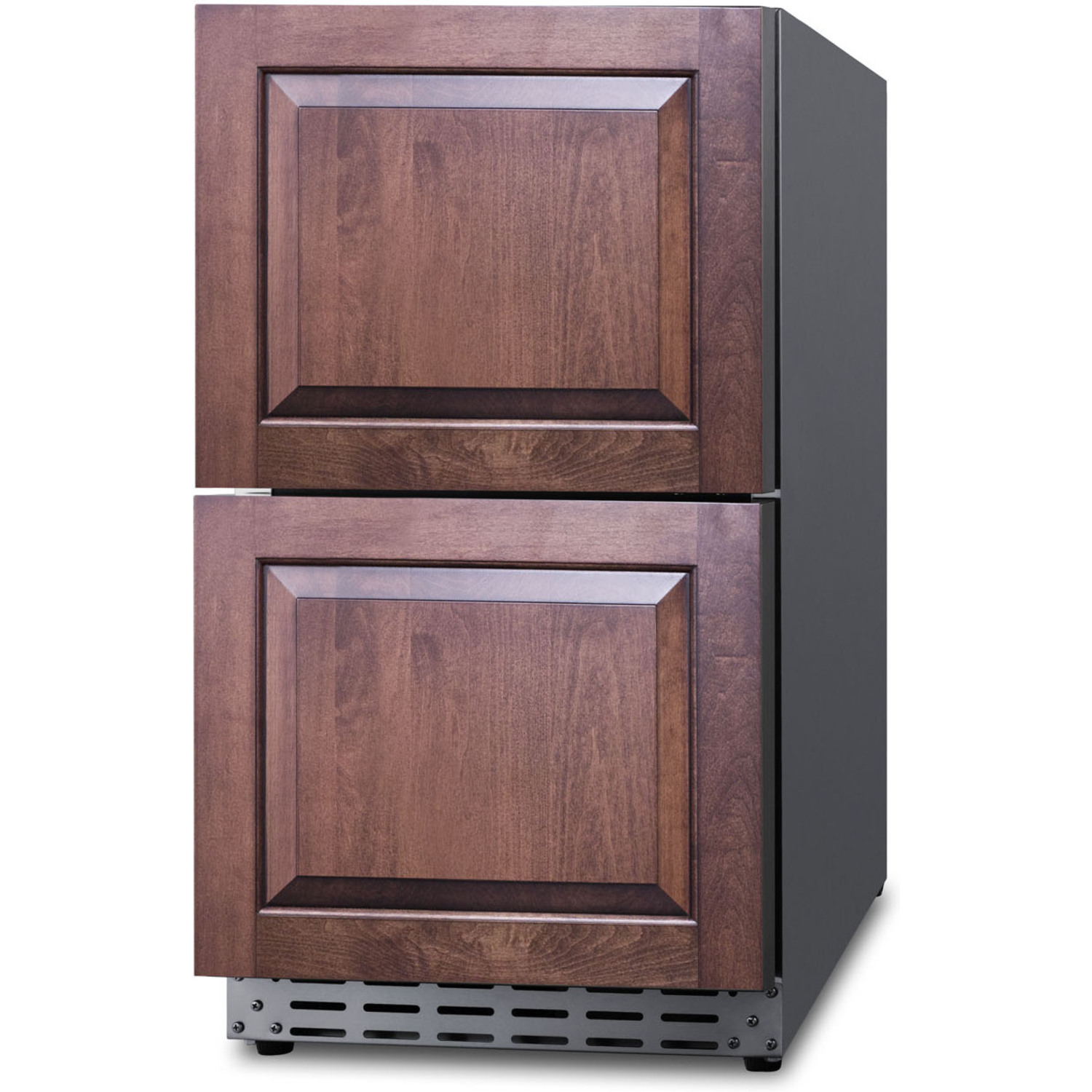

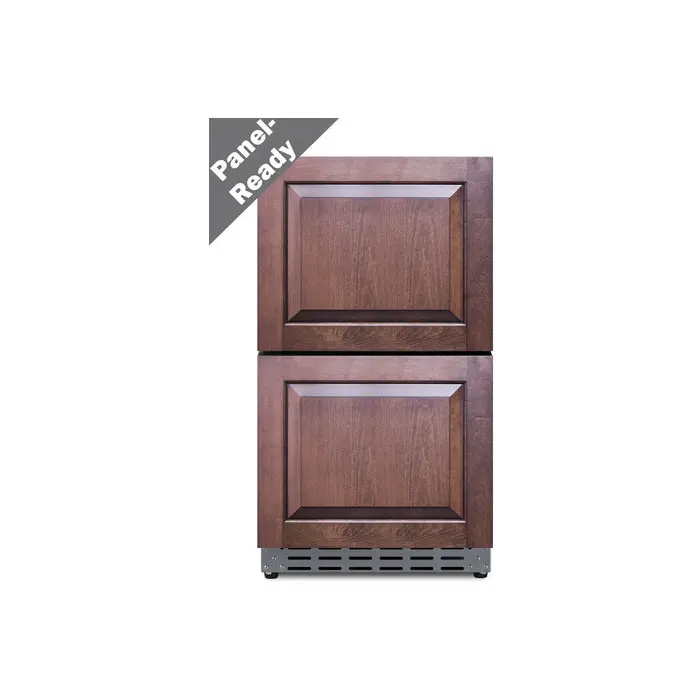

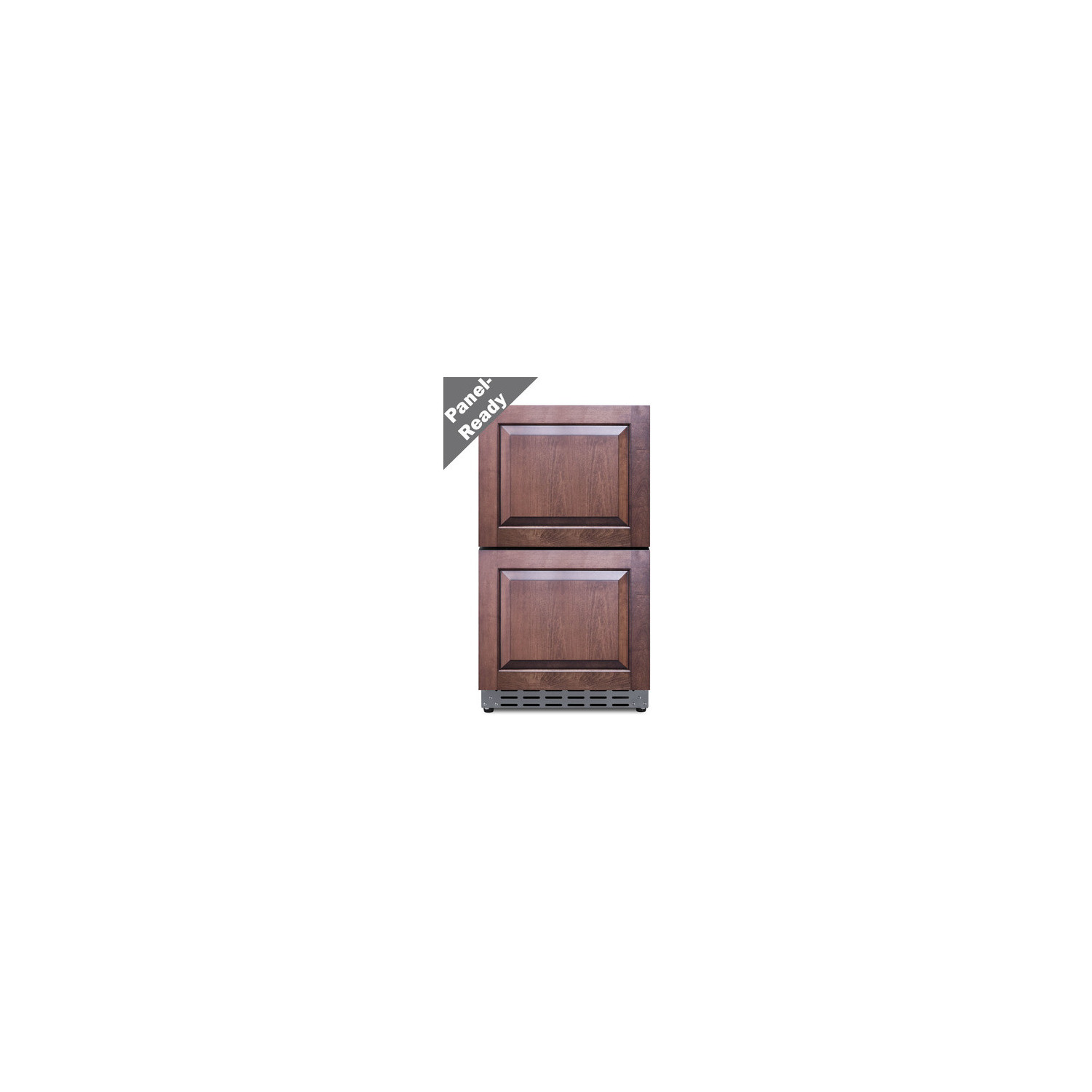

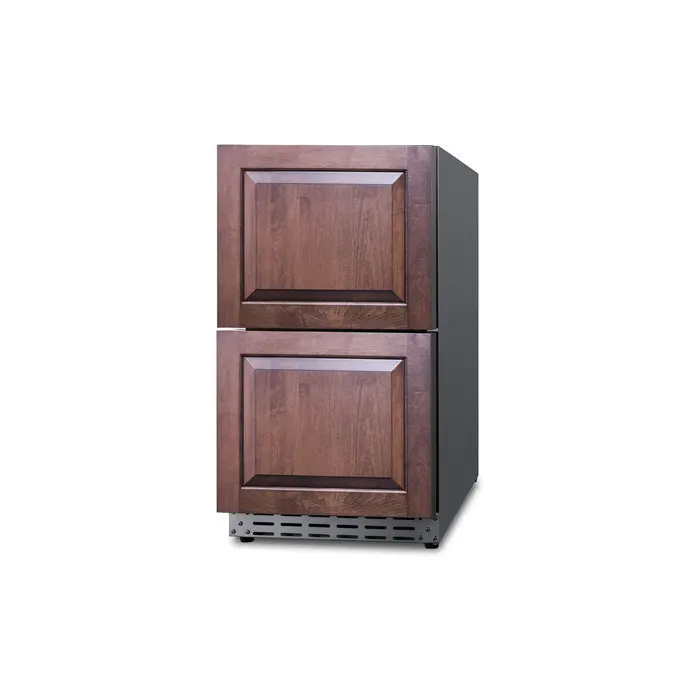

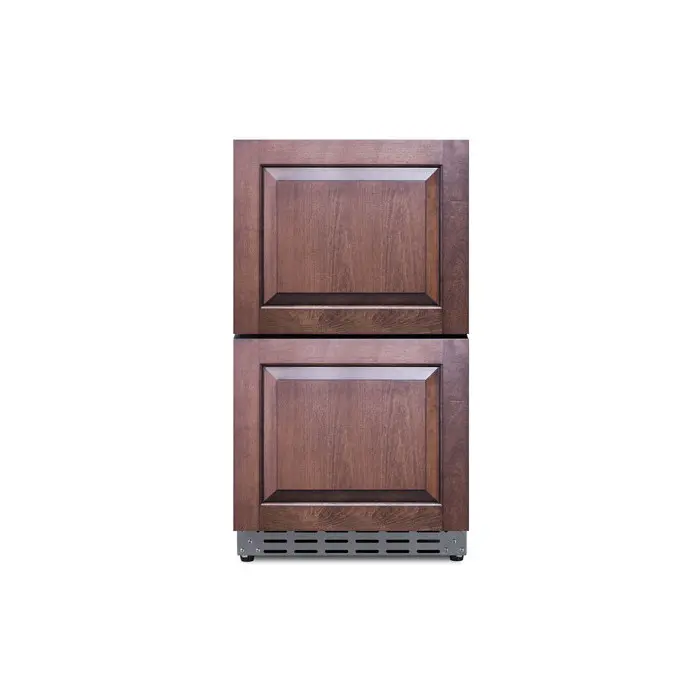

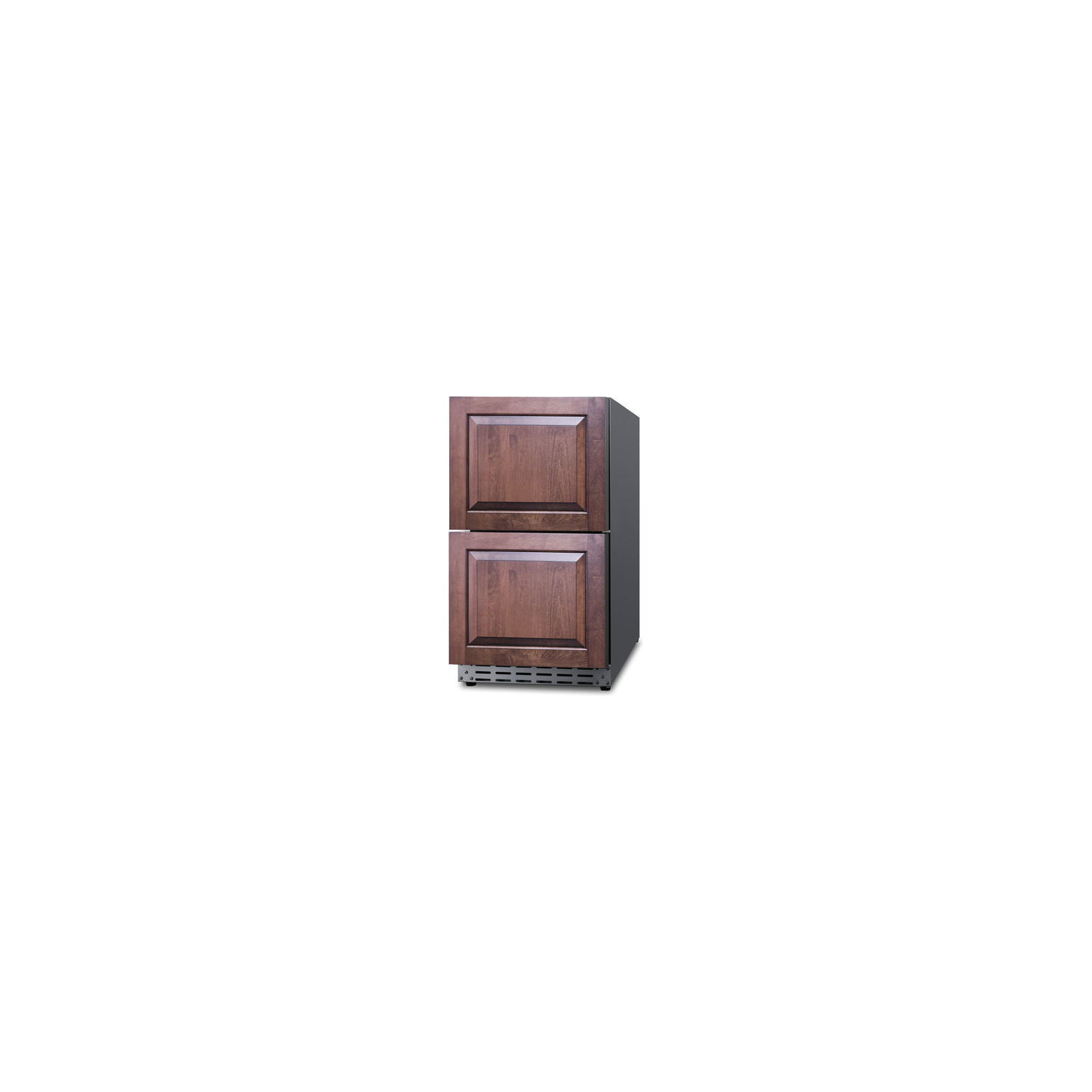

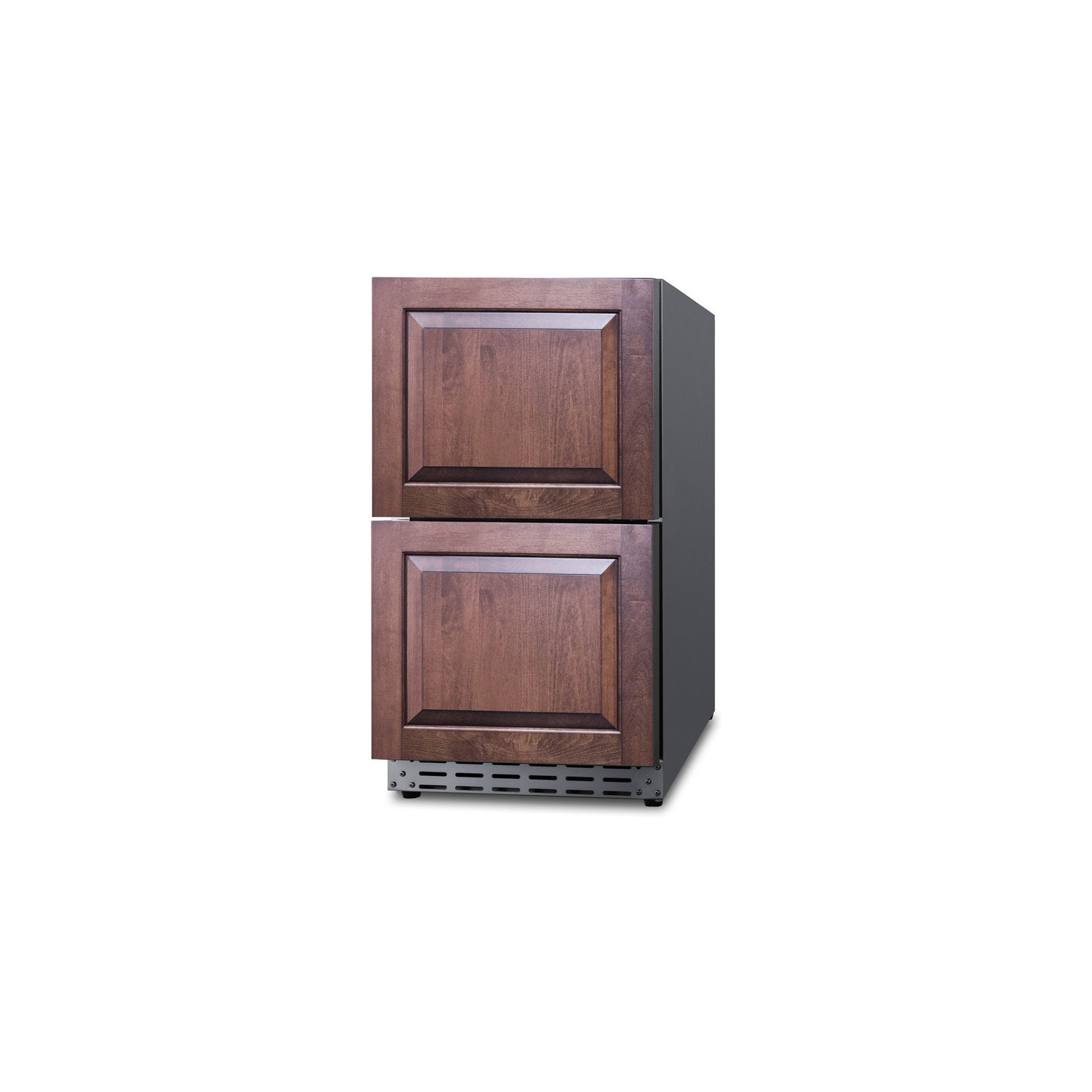

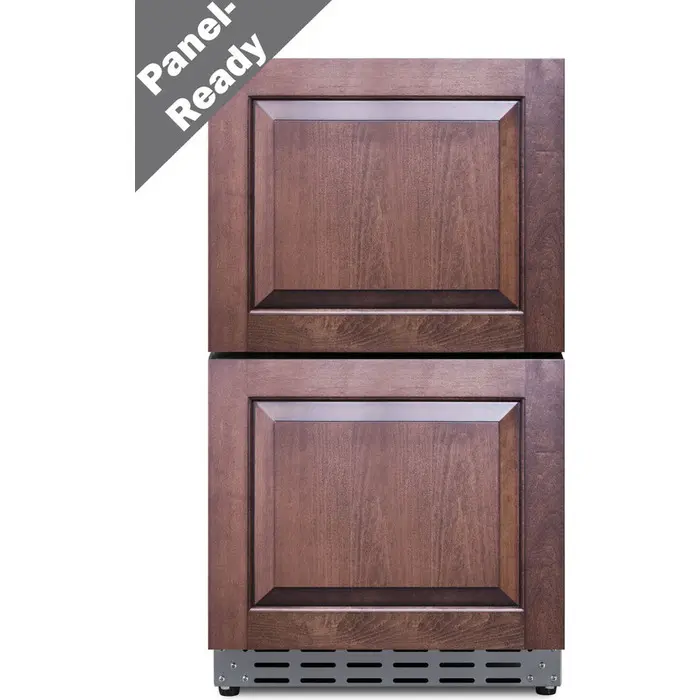

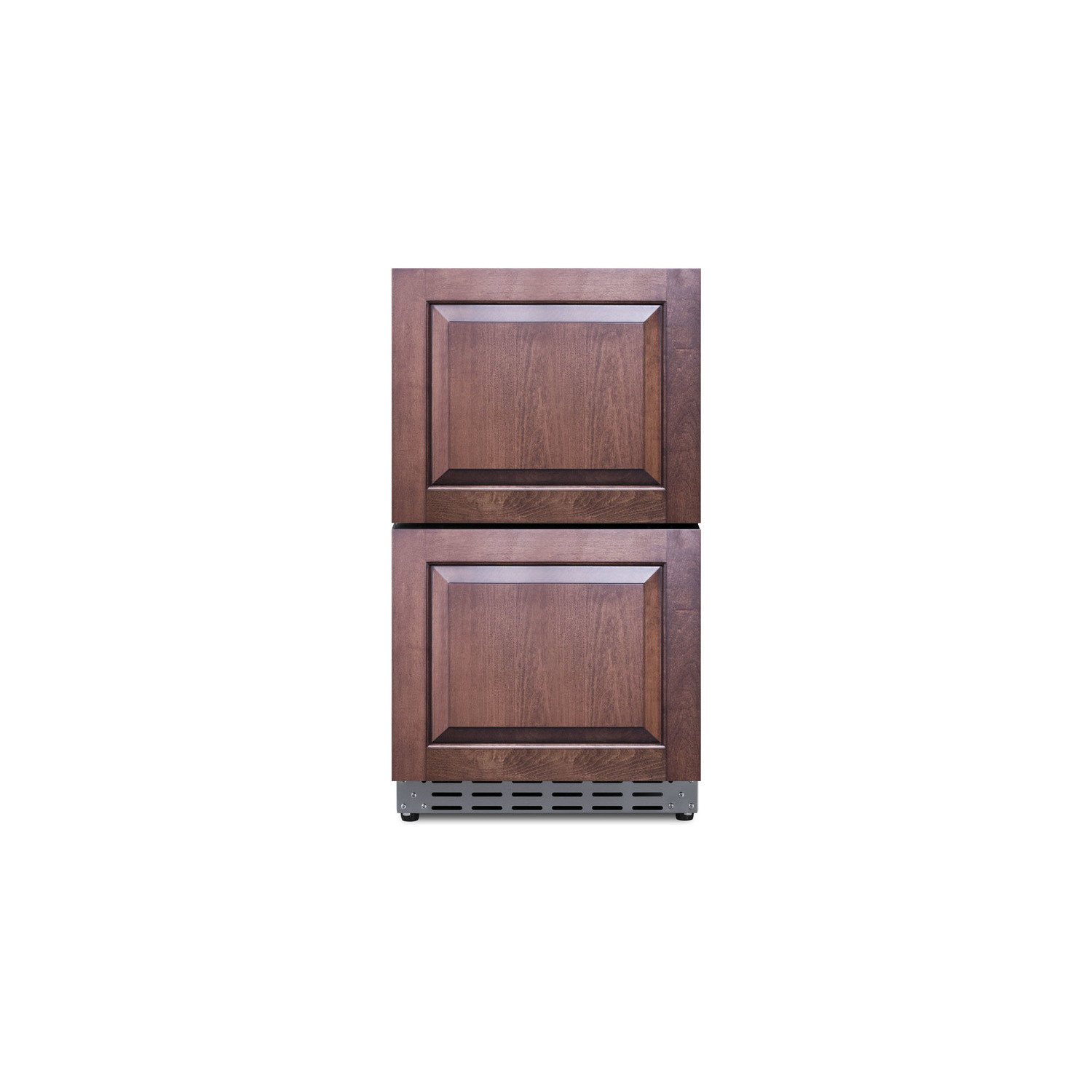

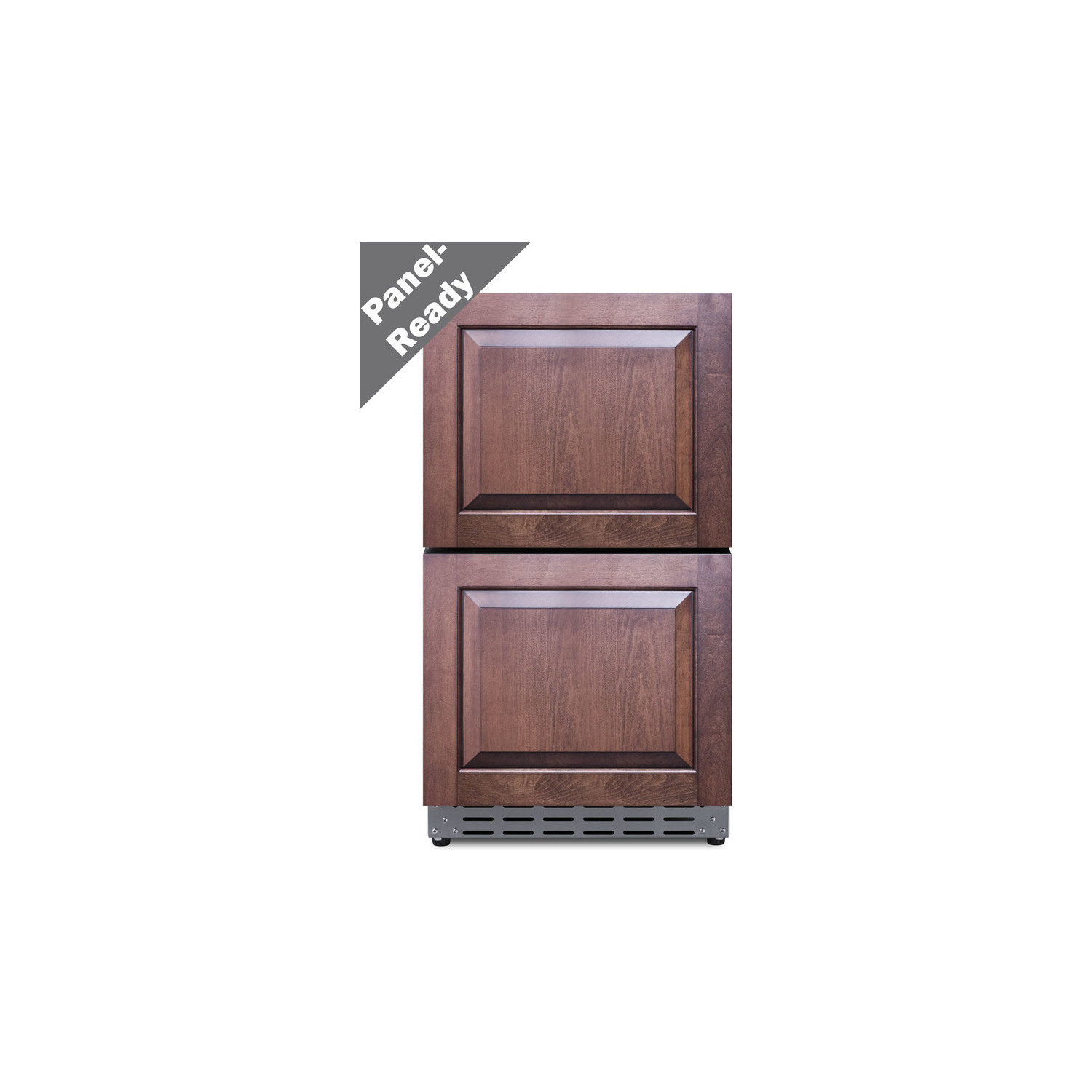

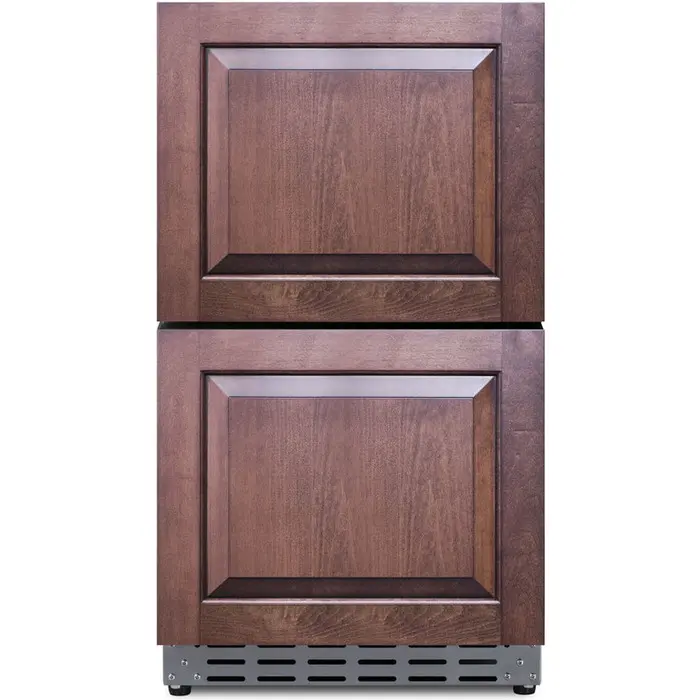

Panel-ready drawer fronts Drawers can be customized with overlay panels sized (at 14" H x 17.7" W at 3/4" thick) to match or accent existing cabinetry

Built-in capable Front-breathing design allows the unit to be built-in under counters

Stainless steel construction Complete 304 grade stainless steel inside and out to ensure lasting durability with a luxurious look

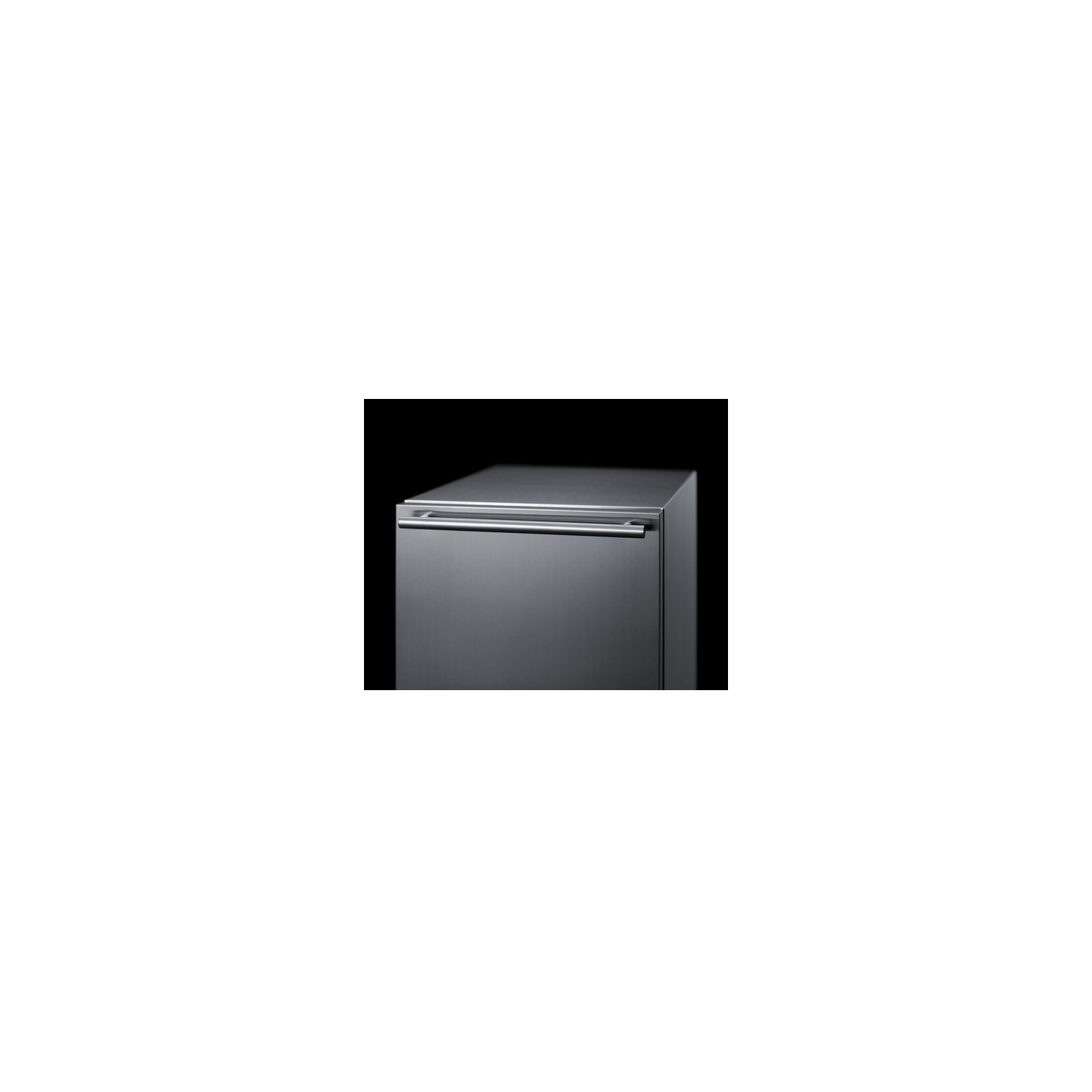

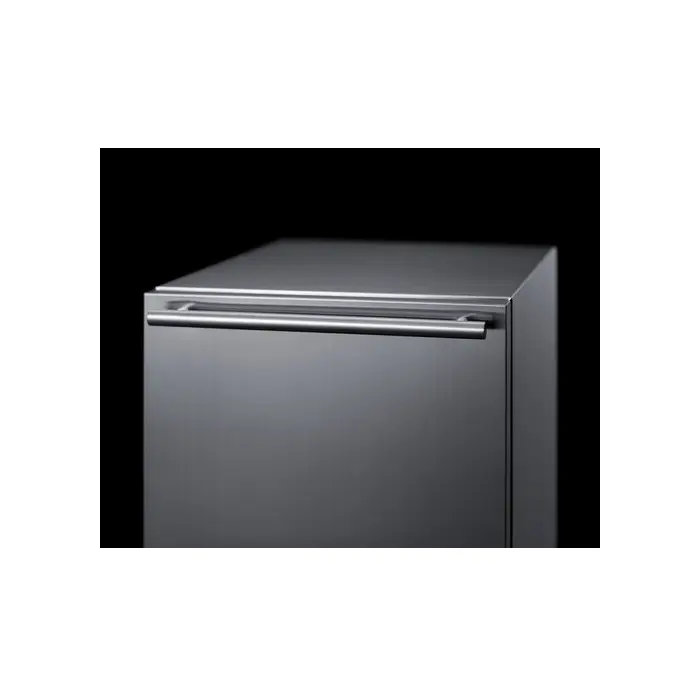

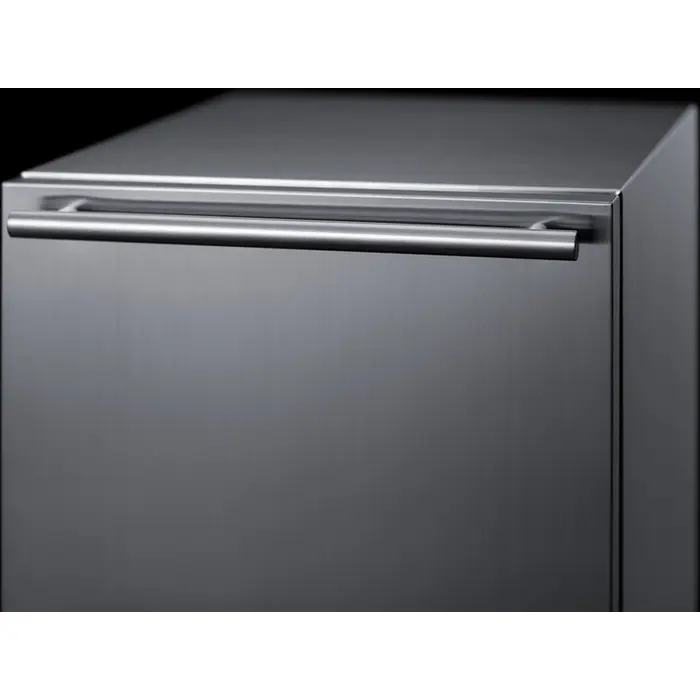

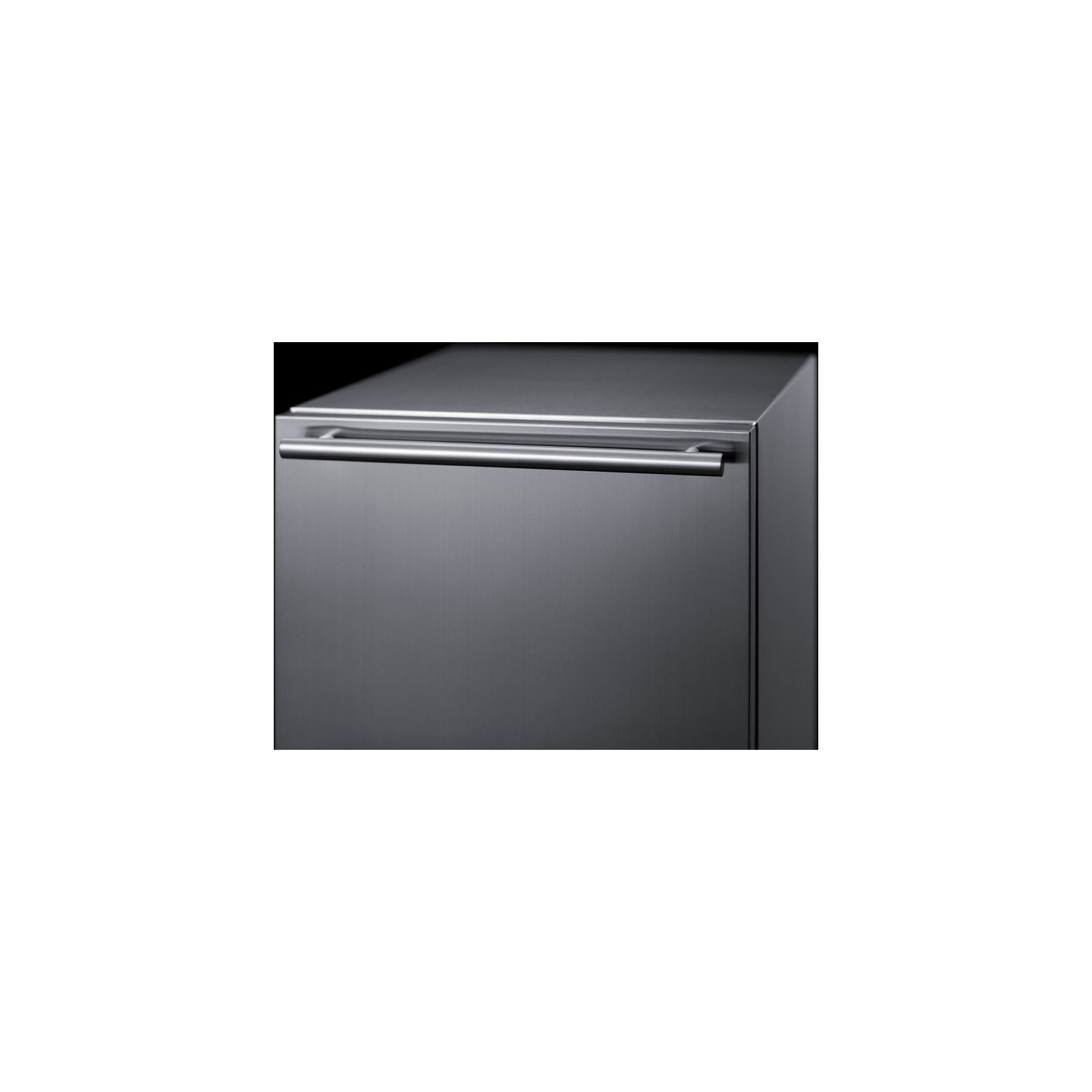

Professional handles Stainless steel handles add style to any setting

Frost-free No-frost operation for minimal user maintenance

Interior lighting Soft LED lighting makes for easy viewing of each drawer’s contents

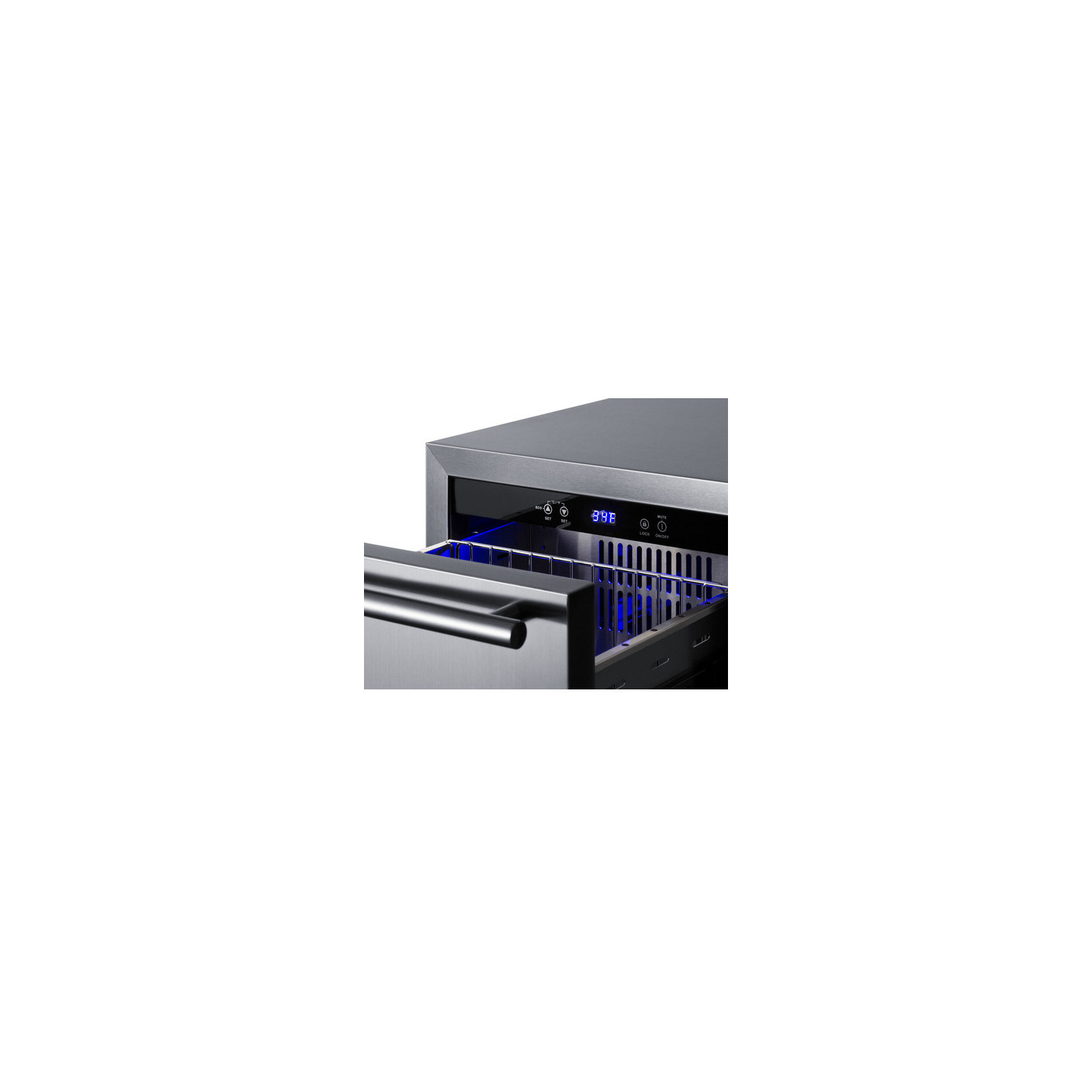

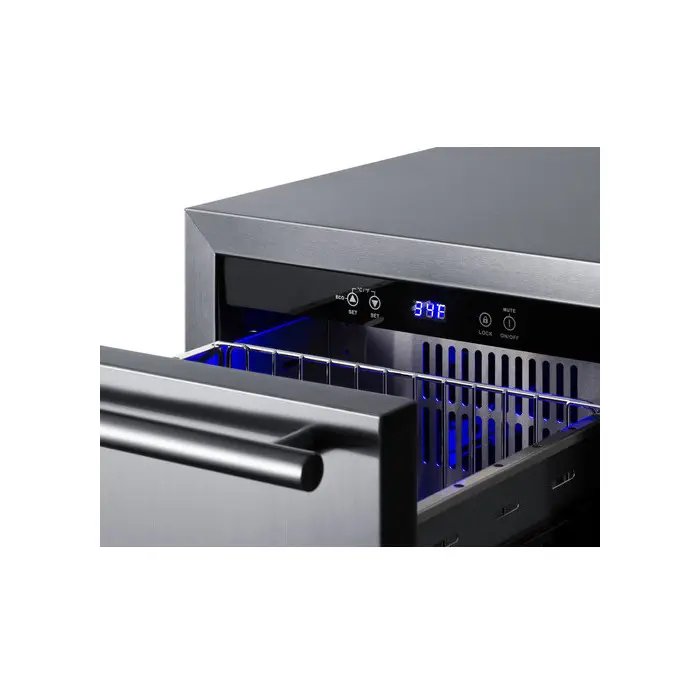

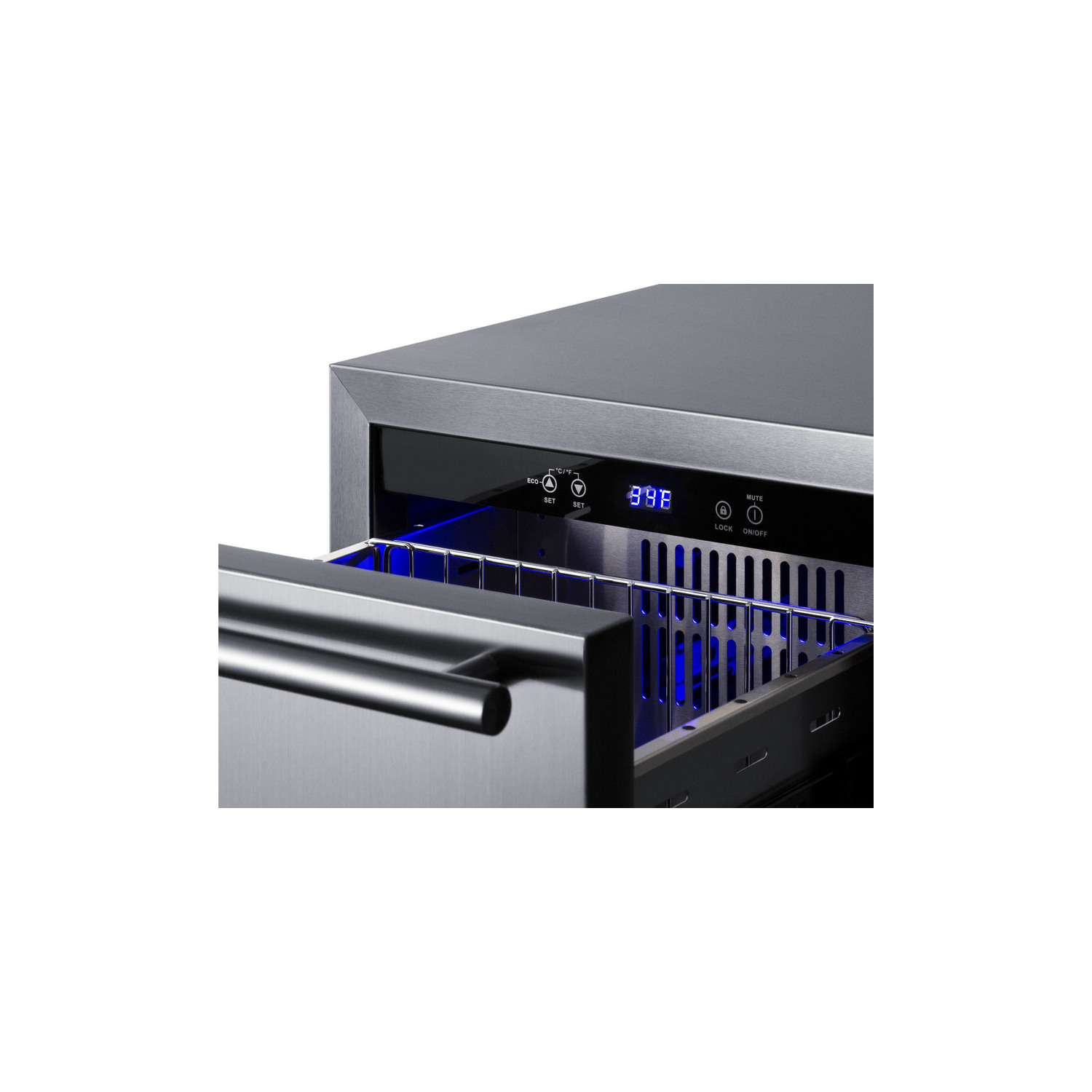

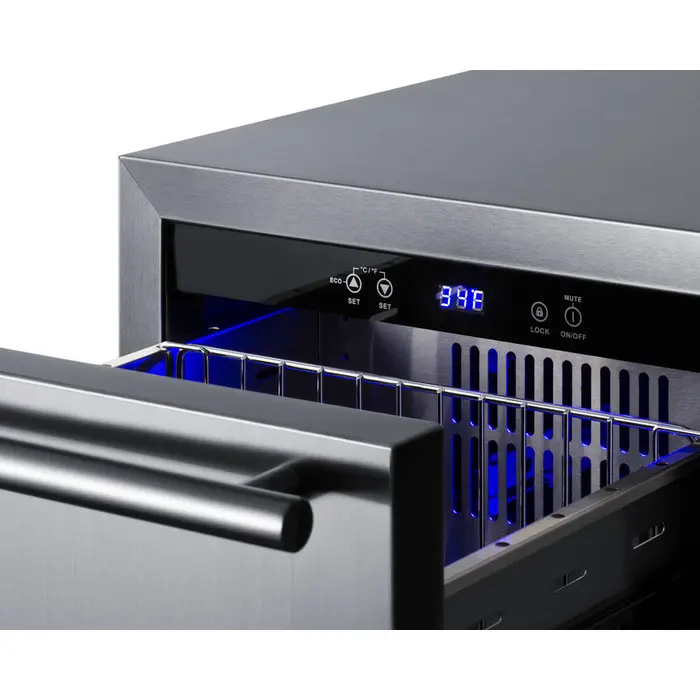

Digital thermostat Electronic controls for seamless temperature management, with readout in either Celsius or Fahrenheit

Digital display Large display allows for easy readability and unit control

Temperature alarm Alarm alerts you if the unit’s temperature goes beyond recommended high and low temperature ranges

Open drawer alarm Audible alarm sounds if the drawers are left open for more than five minutes

Sabbath mode Optional feature disables alarms, interior light, and displays for up to 96 hours

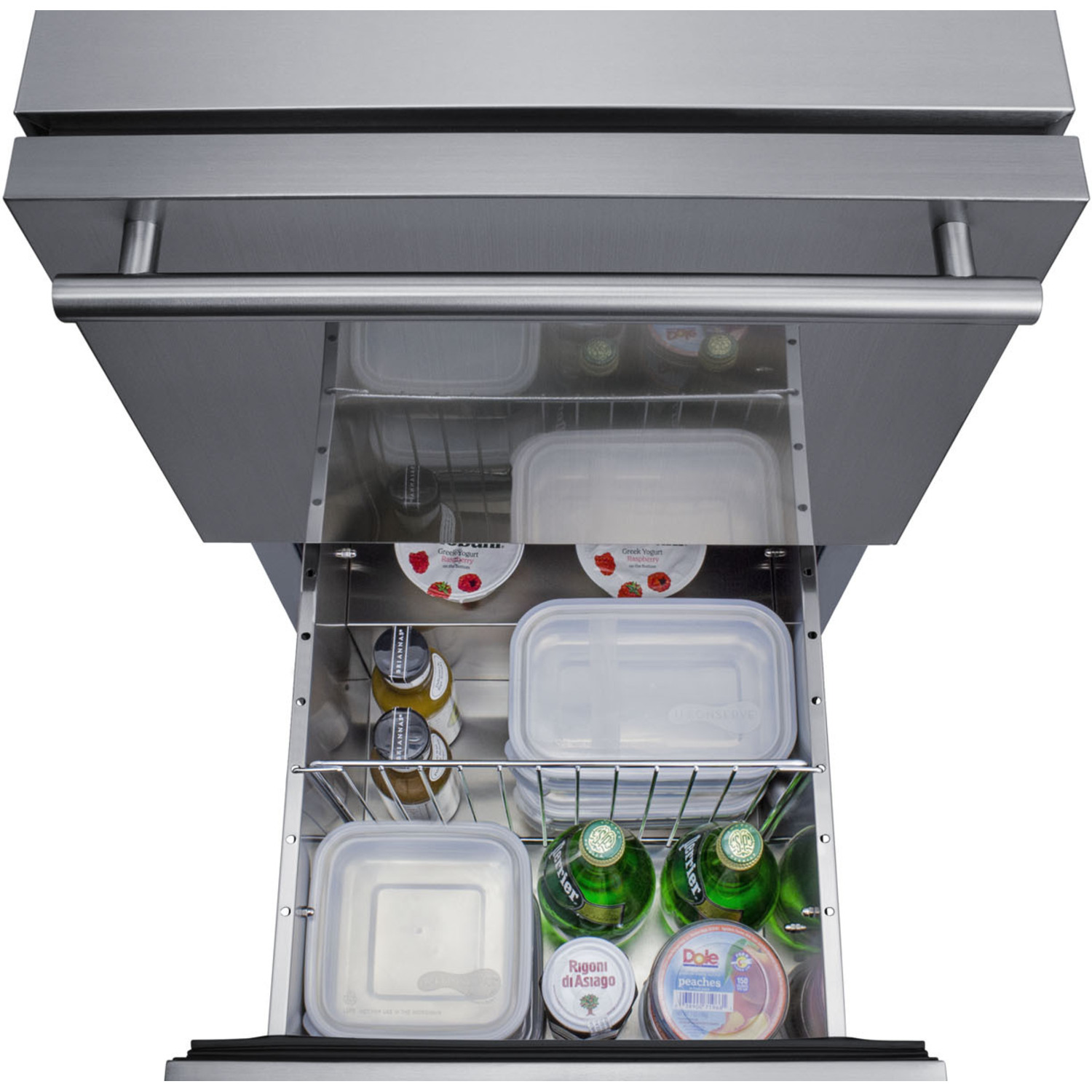

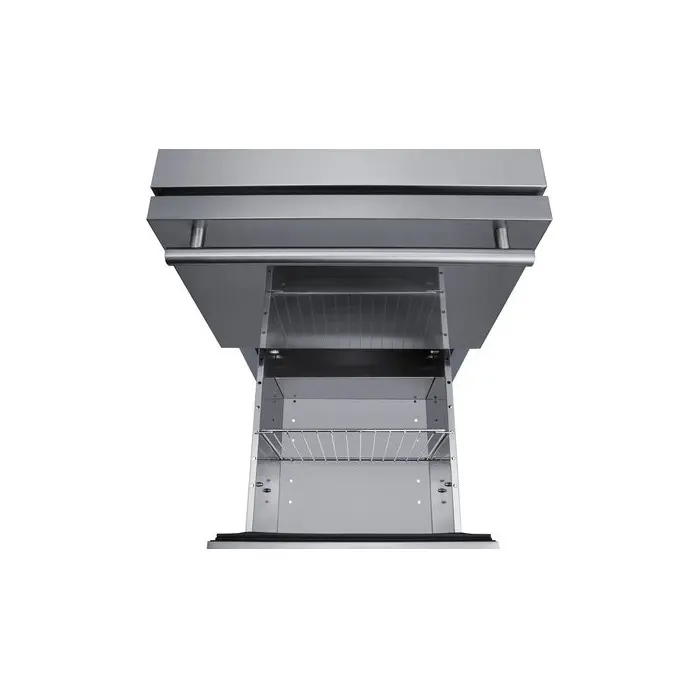

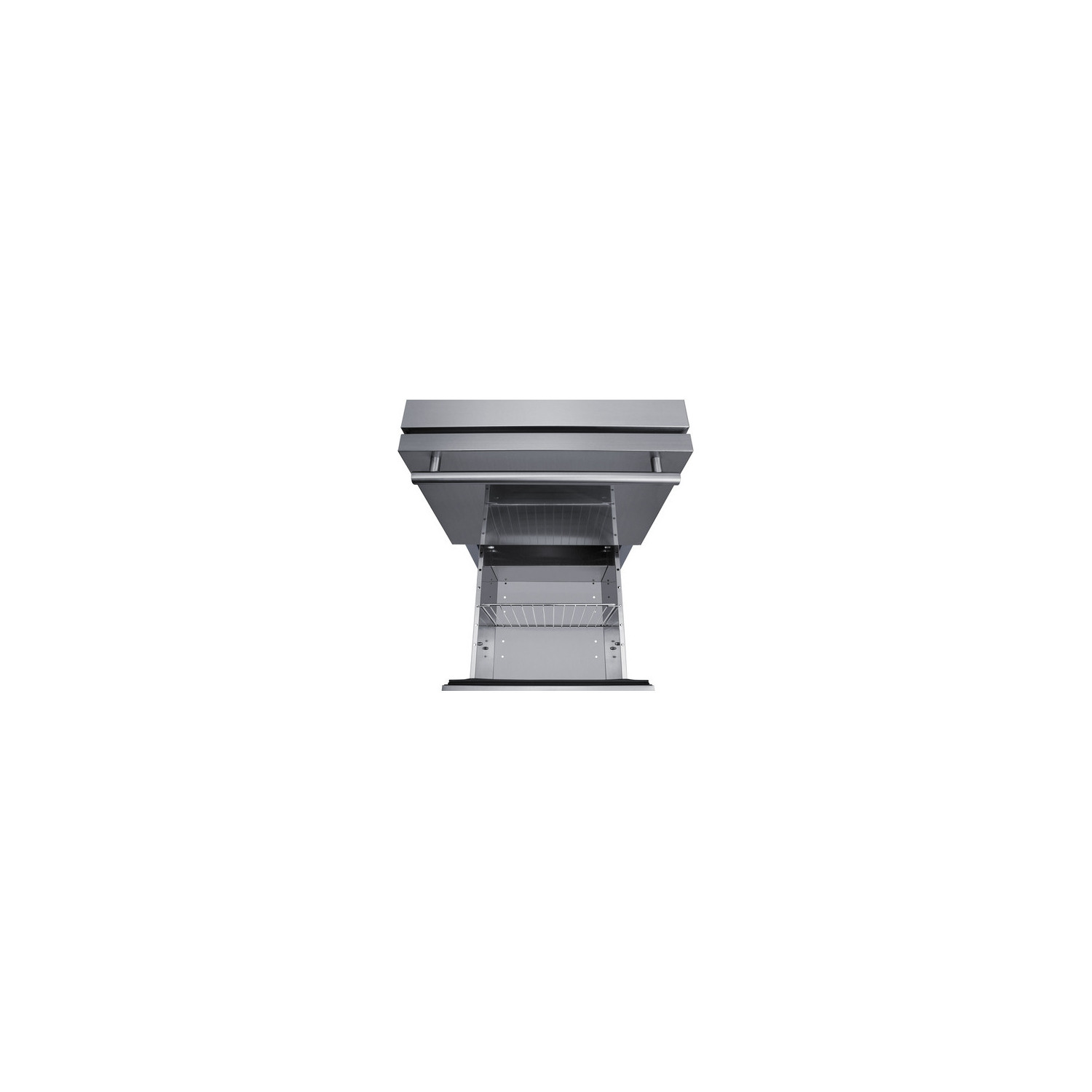

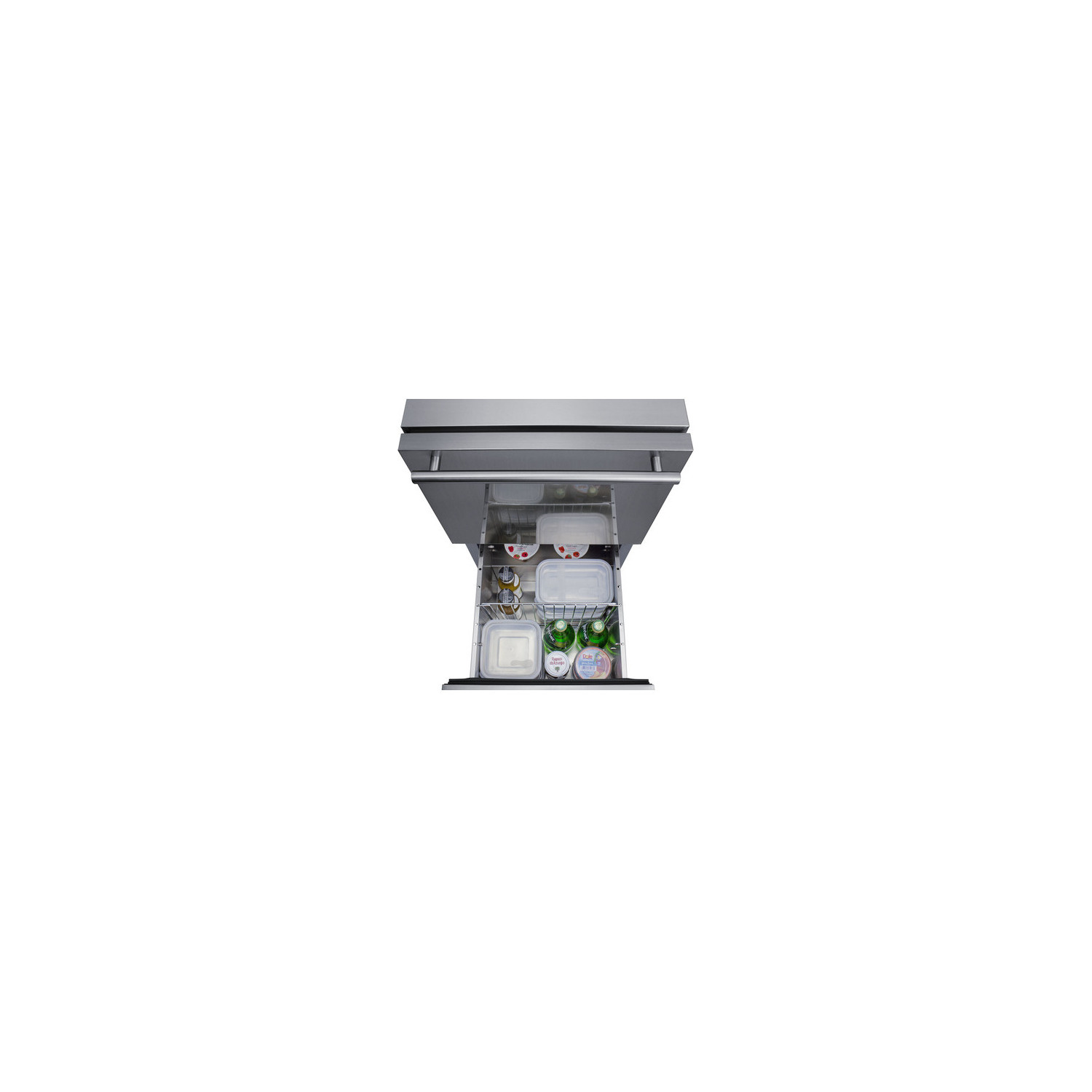

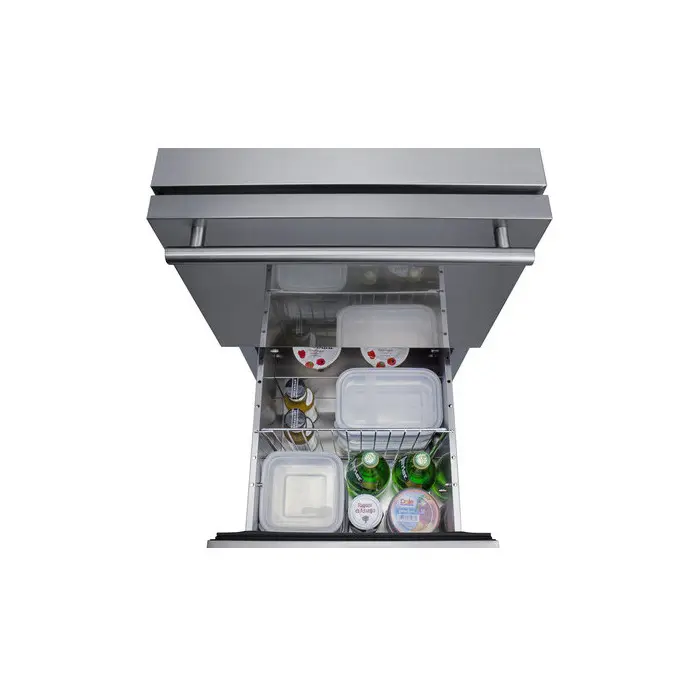

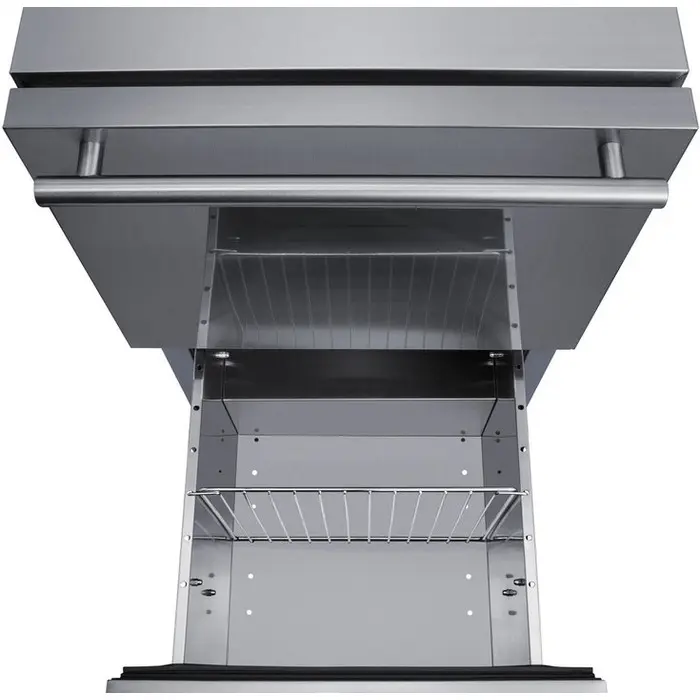

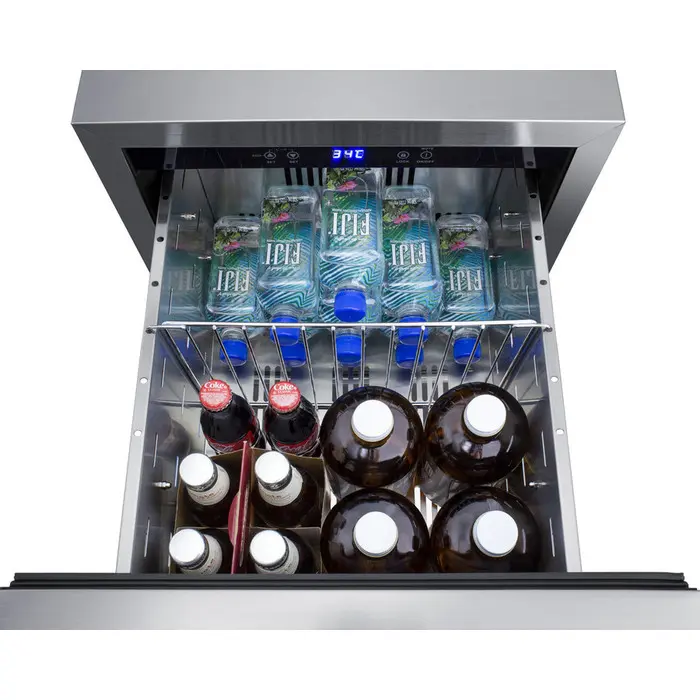

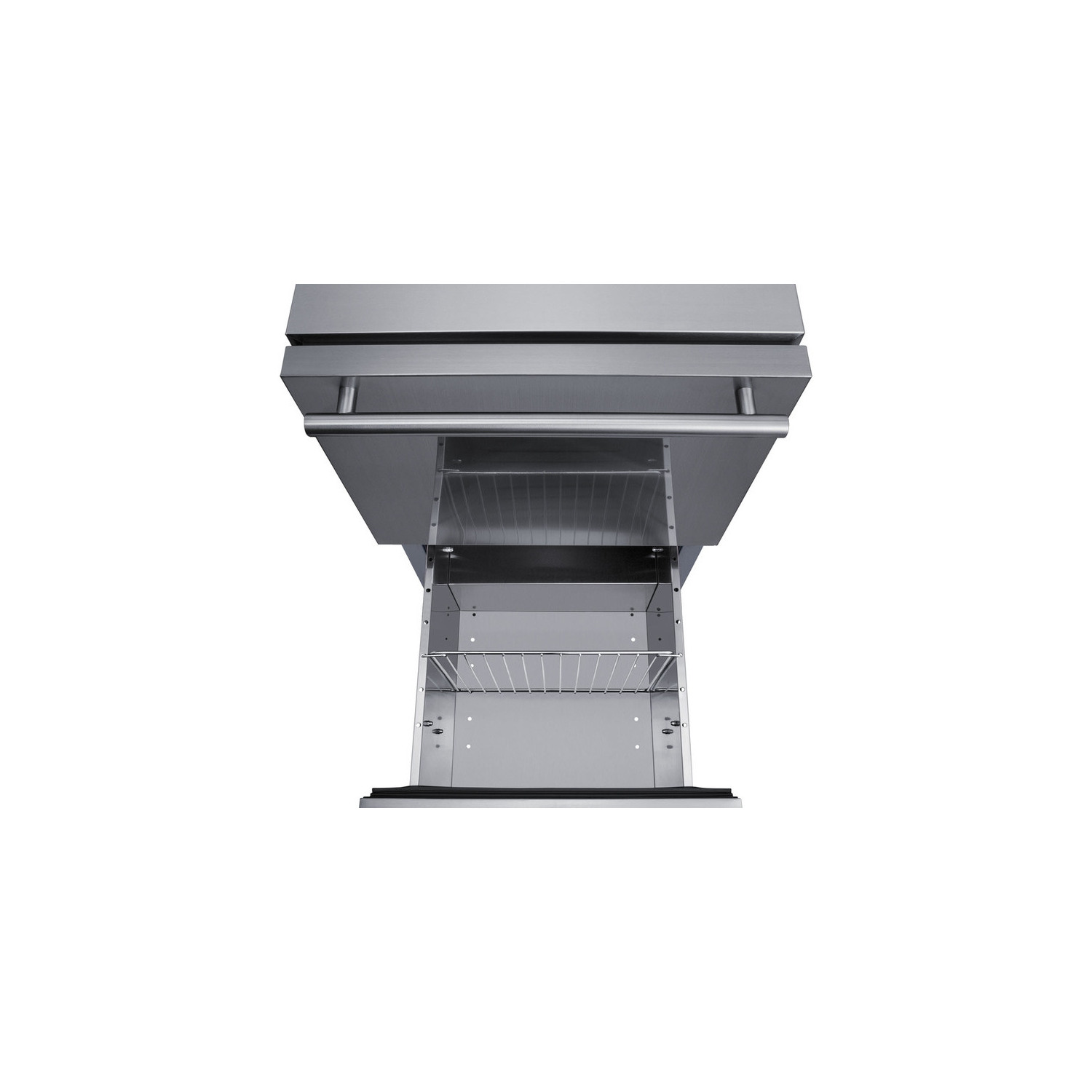

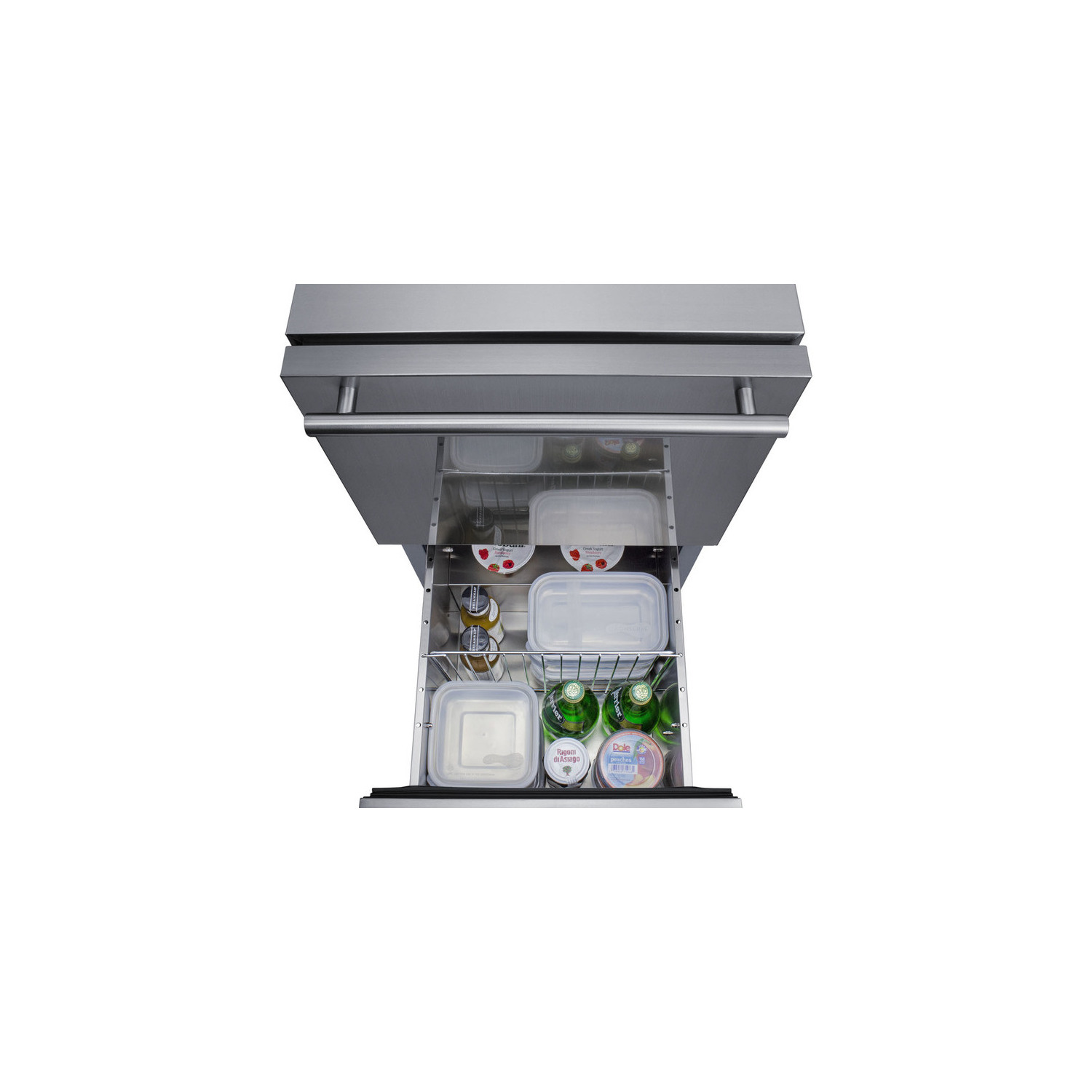

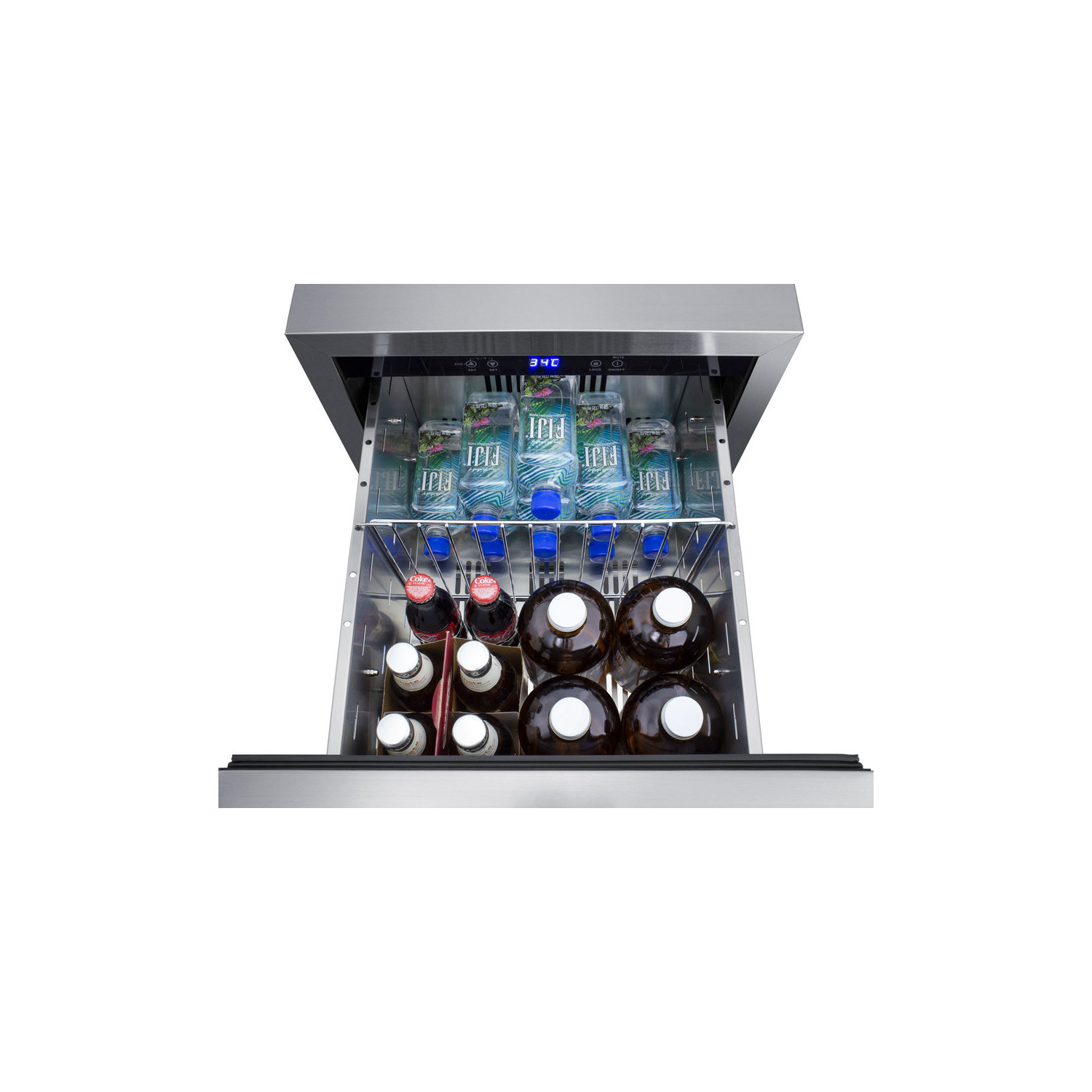

Drawer dividers Each drawer includes an adjustable divider to allow easier organization of your storage

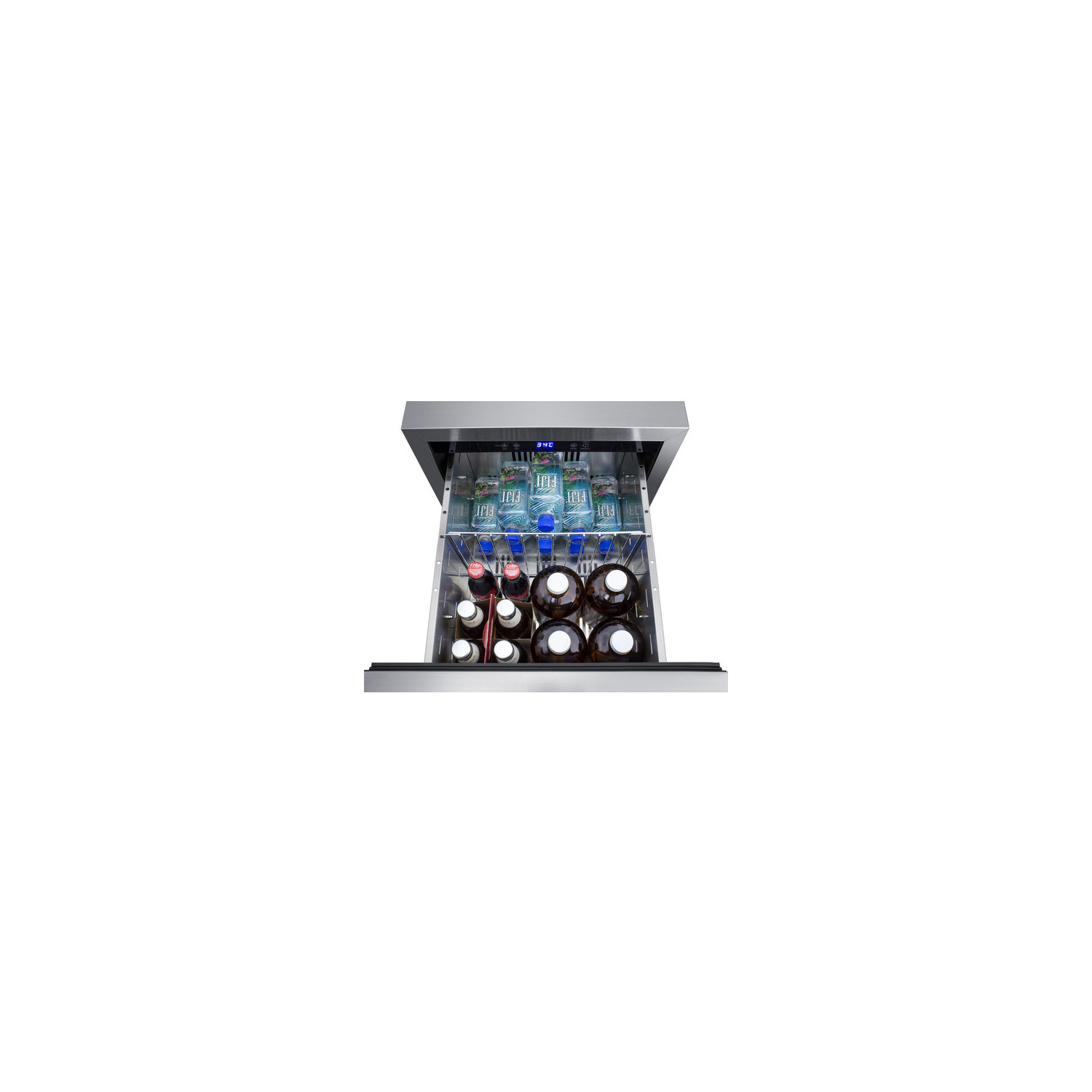

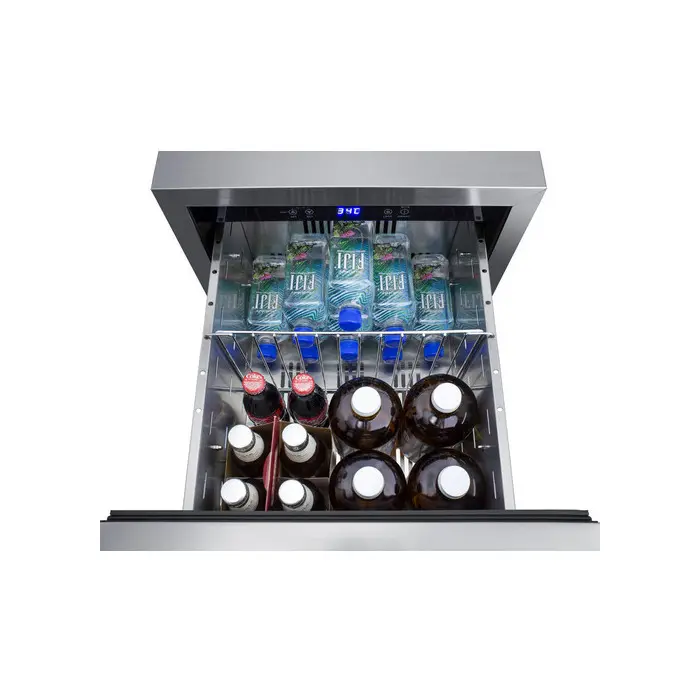

Holds tall bottles Lower drawer has a 10.5" height to accommodate taller bottles as needed

Right-angle plug Space-saving plug allows unit to sit flush against the wall

Sealed back Ensures easier cleanup and a better fit with no exposed coils in the rear

Fan-forced cooling Provides for efficient, even cooling of the entire unit

Soft-close drawers Anti-slam drawers allow you to gently push to close

Anti-tip bracket Included bracket recommended for installation to help prevent tipping for added safety

Fully finished cabinet Allows the unit to be used freestanding

100% CFC free Environmentally friendly design with no ozone-damaging chemicals

CARB Compliant Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
