Summit 15 inch wide indoor/outdoor ADA compliant panel-ready drawer refrigerator in stainless steel, 7.61101e+011, ADRD15PNR

Summit manufactures an extensive selection of drawer refrigeration for versatile installation indoor or outdoor kitchen spaces, with customizable designs that allow easy integration into any cabinet style.

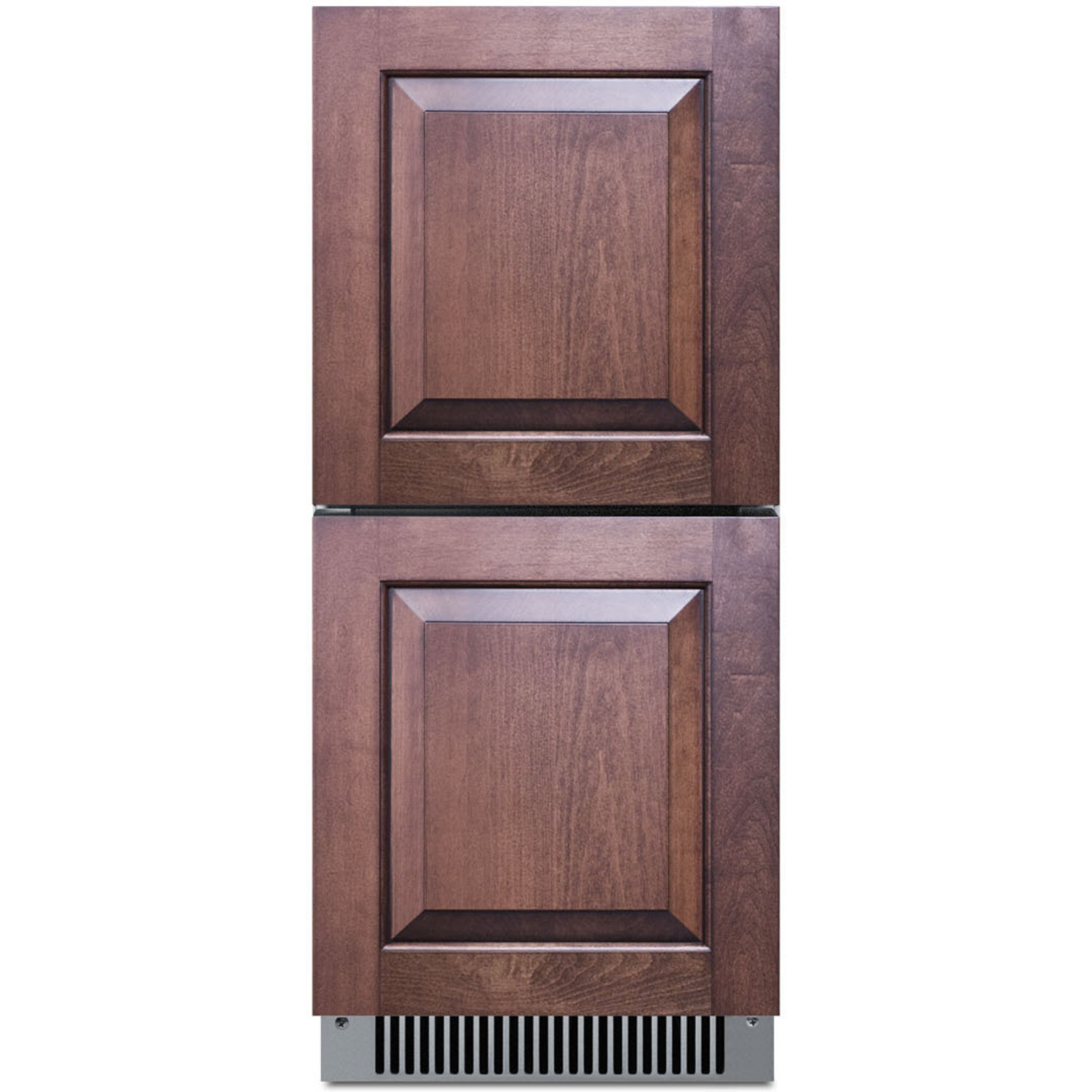

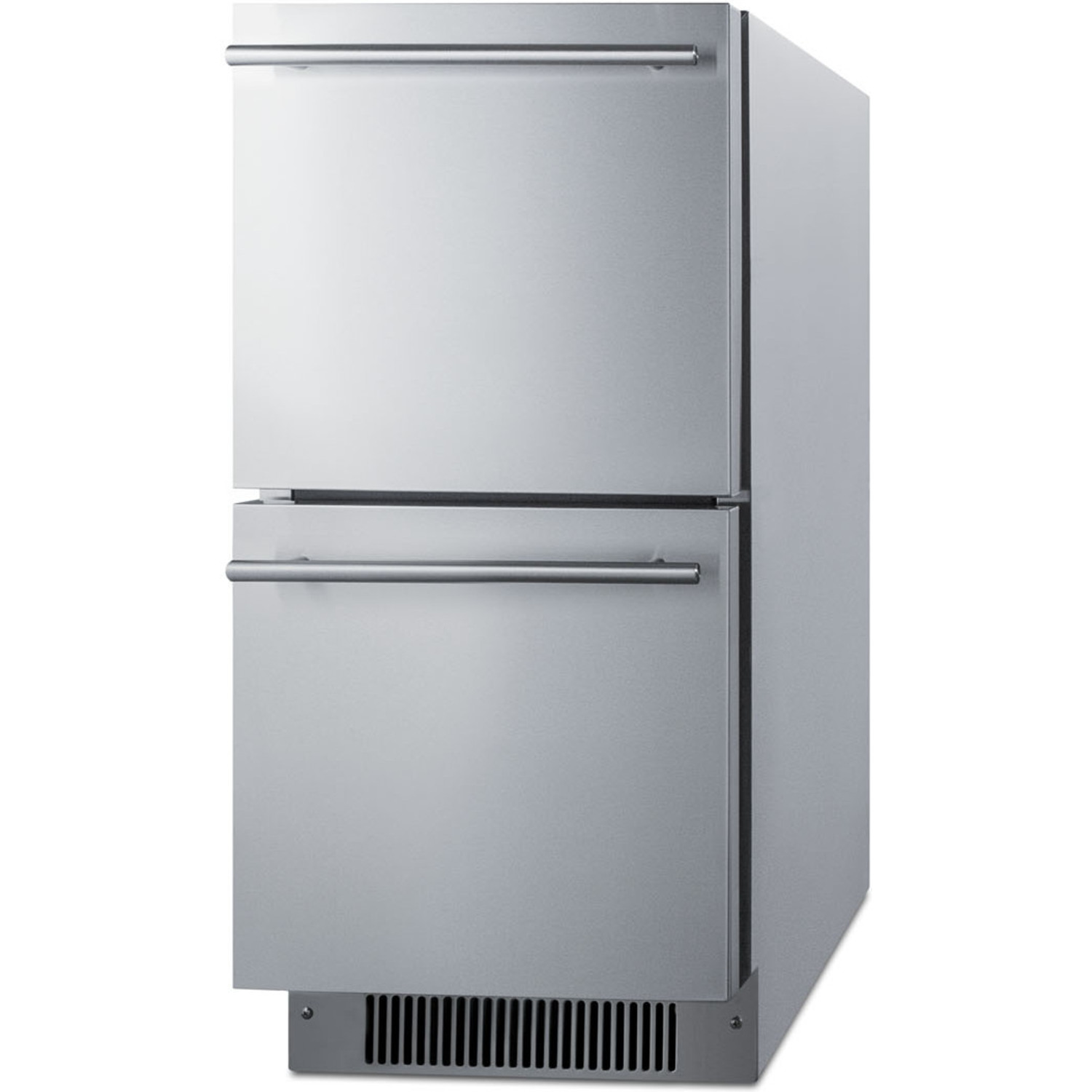

The ADRD15PNR is a two-drawer all-refrigerator sized at 32 inches high for installation under lower ADA compliant counters. We include an extra stainless steel kickplate and leveling legs to raise the height to 34 1/4 inches to suit more standard applications. The front-breathing design and finished cabinet allow for built-in or freestanding use. The drawer fronts are specially designed to accept user-provided overlay panels, allowing you to create a custom look that blends into existing cabinetry (panel dimensions: 14.17" W x 14.88" H at 3/4" thick). The drawers are fully finished in stainless steel. We include two sleek handles for optional use. Complete 304 stainless steel construction inside and out offers durability in a professional look. Soft close glides deliver added safety by preventing the drawers from slamming.

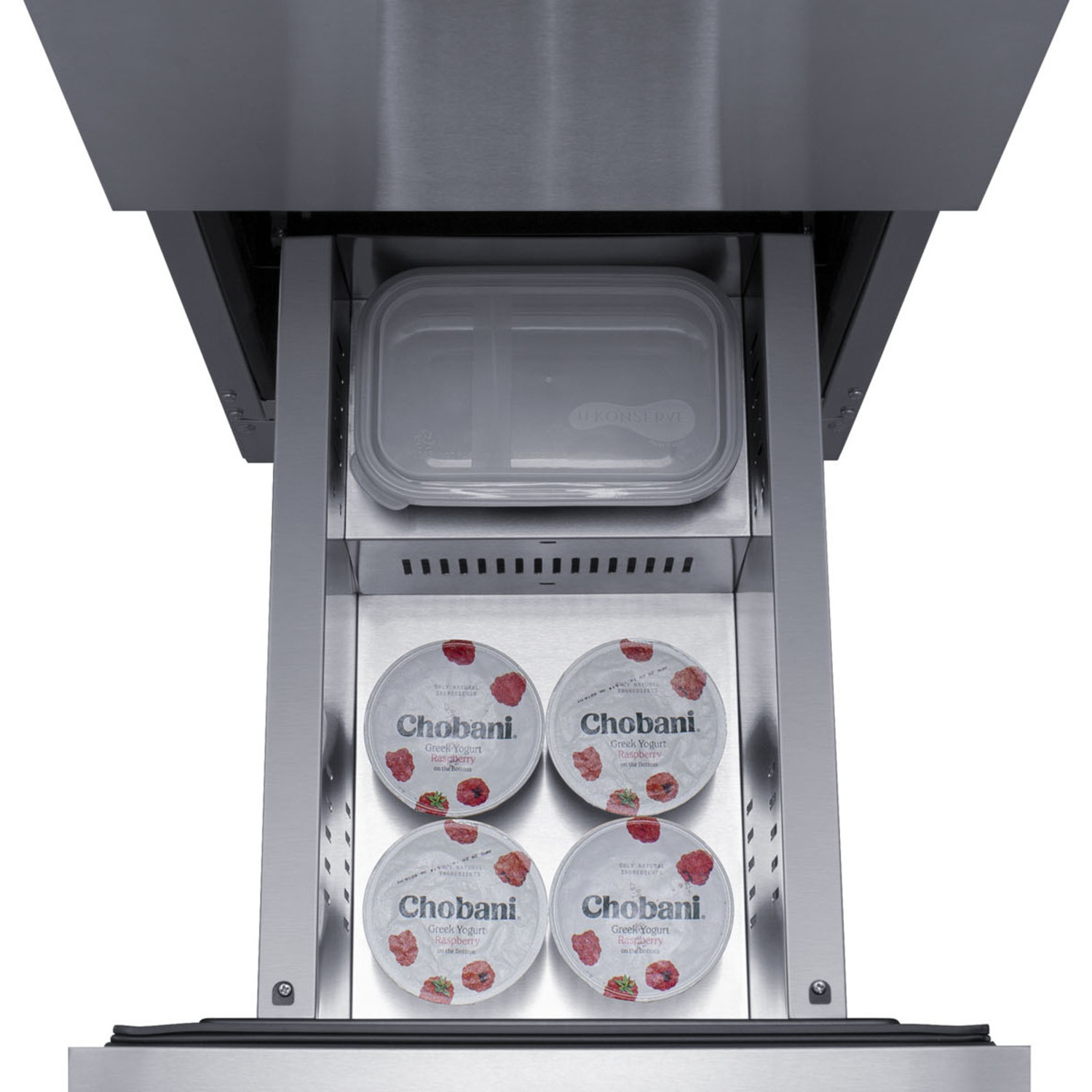

Frost-free operation ensures minimum user maintenance inside the 2.8 cu ft. interior. A removable basket provides additional storage options. Additionally, removable drawers provide versatility and easy cleaning of the unit’s interior. The LED lighting makes it easy to view stored contents when loading or unloading each drawer.

Additional features ensure efficiency and ease of use. These include temperature and open drawer alarms. The digital thermostat and display make it easy to manage the temperature for optimum storage of beverages, produce, and other items. A temperature memory function helps to recover temperature settings in the event of a power loss, while Sabbath Mode disables certain electrical features during periods of religious observance.

With is versatile design, the ADRD15PNR is perfect for use in home or commercial settings. This unit is ETL-S listed to NSF-7 standards, and its ENERGY STAR certification assures efficient and environmentally friendly operation.

SPECIFICATIONS

Overview

Nominal Height 32.0" (81 cm)

Height of Cabinet 32.0" (81 cm)

Nominal Width 15.0" (38 cm)

Width 15.0" (38 cm)

Nominal Depth 23.0" (58 cm)

Depth 22.5" (57 cm)

Depth with Handle 24.38" (62 cm)

Depth with door at 90° 37.75" (96 cm)

Capacity 2.76 cu.ft. (78 L)

Defrost Type Frost-Free

Door Stainless Steel/Panel-Ready

Cabinet Stainless Steel

US Electrical Safety ETL

Canadian Electrical Safety ETL-C

Sanitation ETL-S

Energy Usage/Year 256.0kWh/year

Amps 1.0

Voltage/Frequency 115 V AC/60 Hz

Weight 78.0 lbs. (35 kg)

Parts & Labor Warranty 1 Year

Compressor Warranty 5 Years

UPC 761101088693

Refrigerator Features

Sabbath Mode Yes

Door Swing Drawer

Height Adjustable Yes

Thermostat Type Digital

Fan Type Interior and Exterior

Refrigerant Type R600a

Refrigerant Amount 0.74oz.

High Side PSI 320.0

Low Side PSI 120.0

Level Legs Qty 4

Interior Light Yes

Interior Drawers Yes

Interior Drawers Qty 2

Temperature Range 34 to 43ºF

Sound Level 34.2 dB

Drawer Dimensions

Interior Height 1 8.13" (21 cm)

Interior Width 1 8.0" (20 cm)

Interior Depth 1 15.25" (39 cm)

Interior Height 2 7.25" (18 cm)

Interior Width 2 8.0" (20 cm)

Interior Depth 2 15.25" (39 cm)

Dimensions

Compressor Step Height 4.25" (11 cm)

Compressor Step Width 8.0" (20 cm)

Compressor Step Depth 5.25" (13 cm)

FEATURES

15" Wide Drawer Refrigerator 2-drawer all-refrigerator for indoor or outdoor installation

ENERGY STAR certified Ensures unit runs efficiently with an environmentally friendly performance

Commercially approved ETL-S listed to NSF-7 standards for commercial use

Panel-ready drawer fronts Drawers can be customized with overlay panels sized (at 14.88" H x 14.17" W at 3/4" thick) to match or accent existing cabinetry

Stainless steel finish Fully finished drawer fronts also allows you to choose a traditional stainless steel front if not installing overlay panels

ADA compliant 32” height allows for installation within ADA-compliant spaces

Adjustable height Unit can be raised to 34.25", with a taller kickplate included for a seamless look

Built-in capable Front-breathing design allows the unit to be built-in under counters

Stainless steel construction Complete 304 grade stainless steel inside and out to ensure lasting durability with a luxurious look

Indoor/Outdoor compatible Durable, weatherproof construction designed to hold up to the elements

Professional handles Stainless steel handles add style to any setting

Frost-free No-frost operation for minimal user maintenance

Interior lighting Soft LED lighting makes for easy viewing of each drawer’s contents

Digital thermostat Electronic controls for seamless temperature management, with readout in either Celsius or Fahrenheit

Digital display Large display allows for easy readability and unit control

Sliding basket Removable basket included for additional storage convenience

Removable drawers Allows for easy cleaning and organization within the interior of the unit

Temperature alarm Alarm alerts you if the unit’s temperature goes beyond recommended high and low temperature ranges

Door alarm Audible alarm sounds if the drawers are left open for more than five minutes

Sabbath mode Optional feature disables alarms, interior light, and displays for up to 96 hours

Right-angle plug Space-saving plug allows unit to sit flush against the wall

Sealed back Space-saving and makes for quick cleaning of the unit’s exterior

Fan-forced cooling Provides for efficient, even cooling of the entire unit

Temperature memory Unit will retain temperature settings after losing power

Anti-slam drawers Soft-close glides prevent drawers from slamming shut for additional durability and safety

Anti-tip bracket Bracket (included) helps prevent tipping for added safety

Fully finished cabinet Allows the unit to be used freestanding

100% CFC free Environmentally friendly design with no ozone-damaging chemicals

CARB Compliant Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

DOWNLOADS

BROCHURE w/ DRAWINGS (ADRD15PNR.pdf)

TECHNICAL DRAWING (.dwg) (ADRD15__2__DRAWER_OUTD._REF__A-C_2018_._2.dwg)

ASSEMBLY DRAWING (ADRD15_ASS_Y_2.pdf)

REVIT MODEL (QF_Summit_ADRD15_2_Drawer_All_Refrigerator_2.rfa)

USE & CARE (ADRD15PNR-User-Manual.pdf)

Energy Guide
