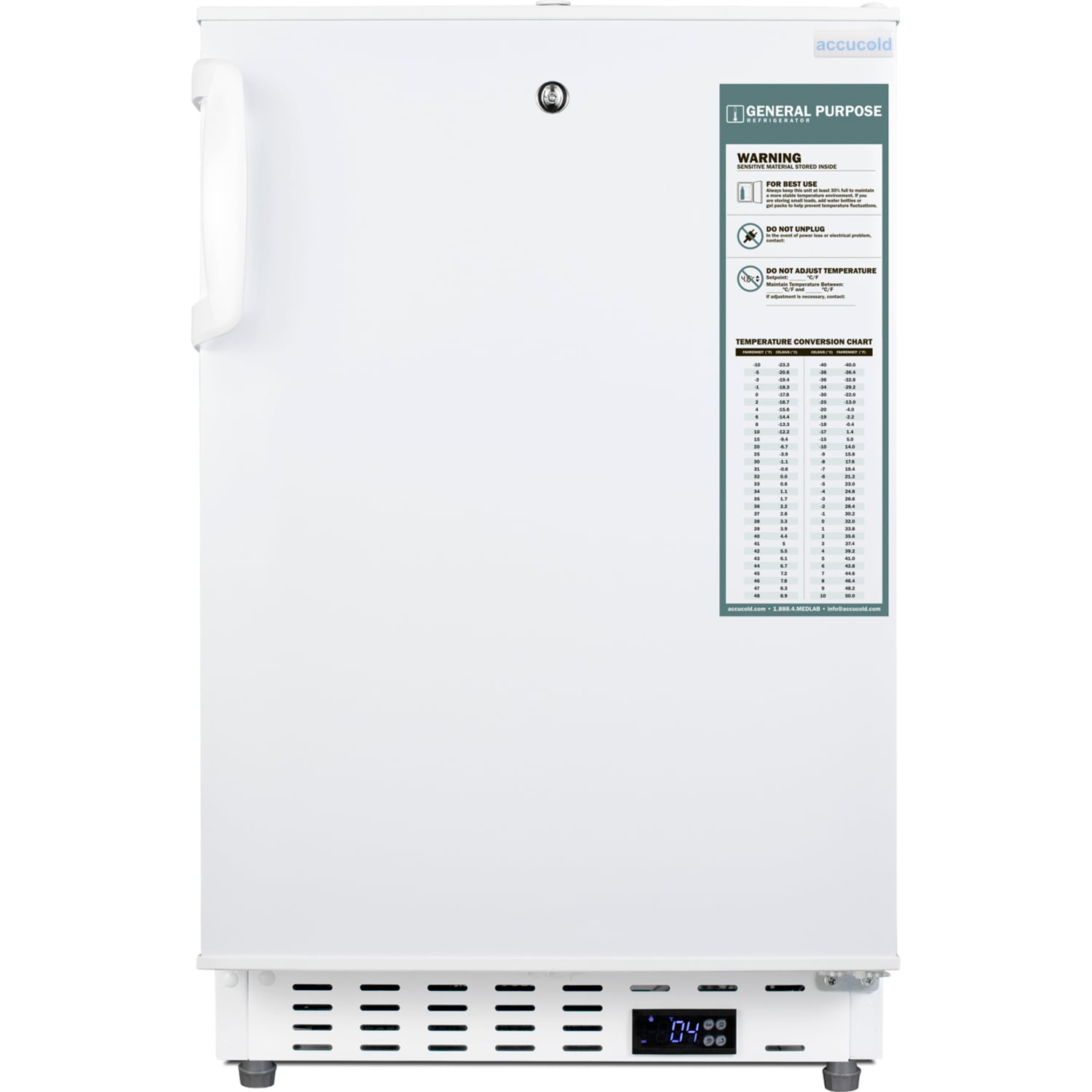

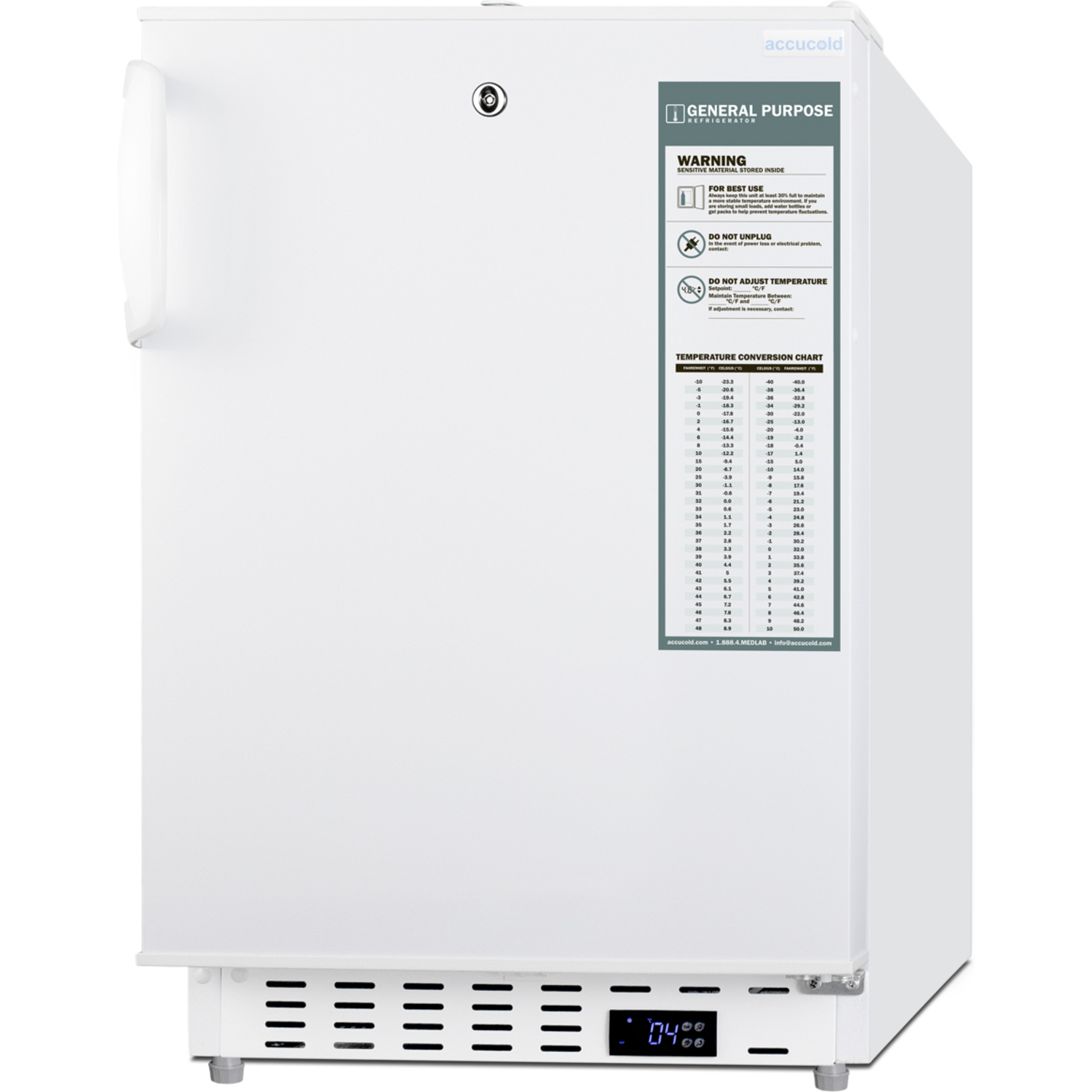

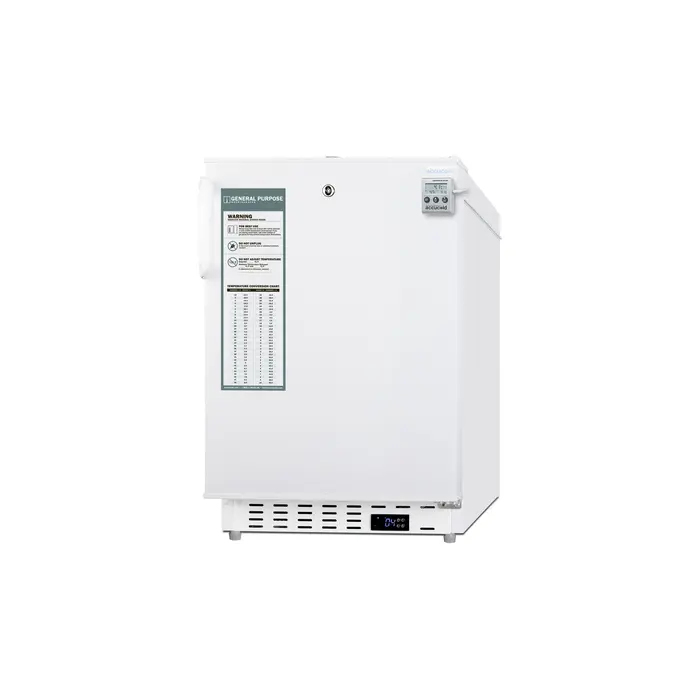

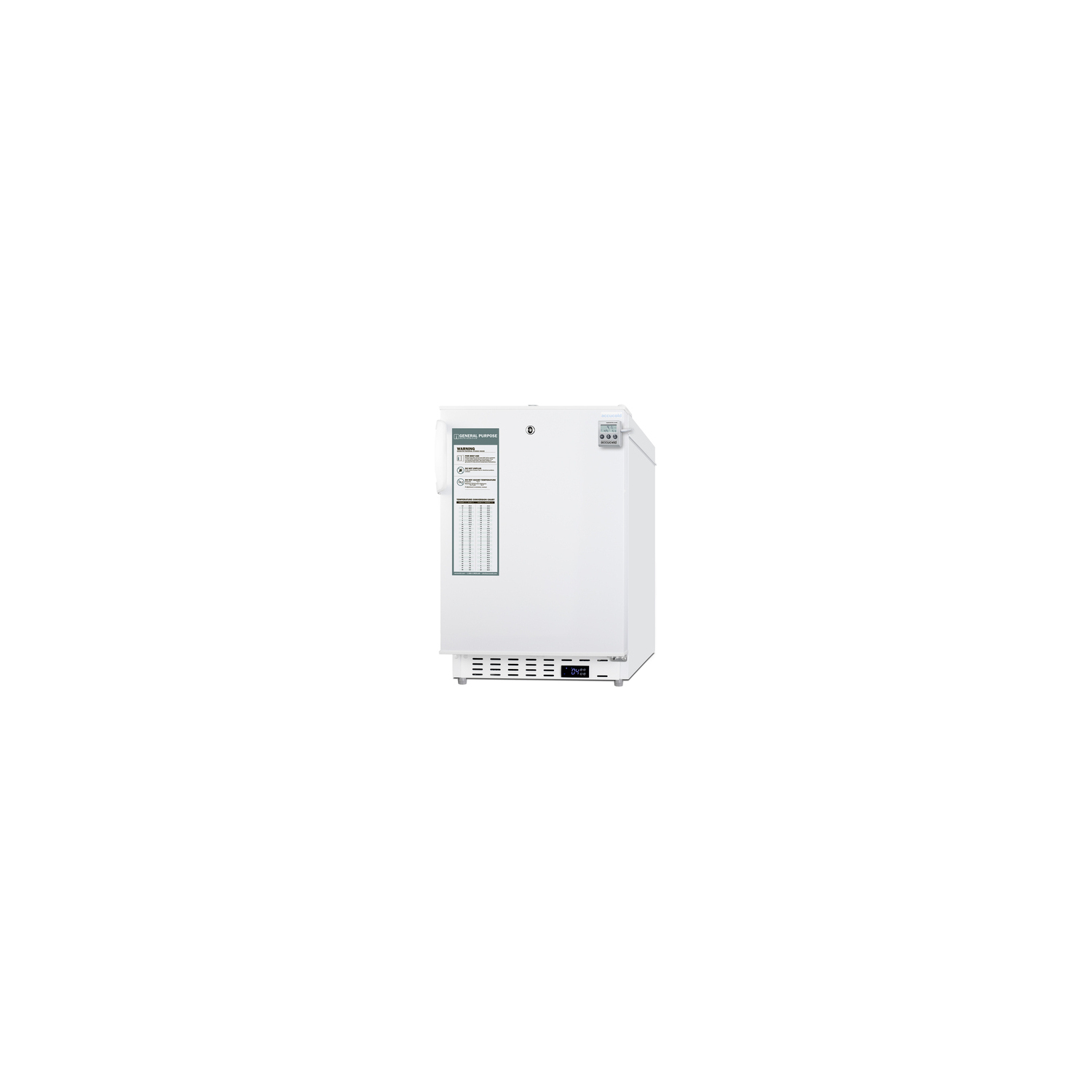

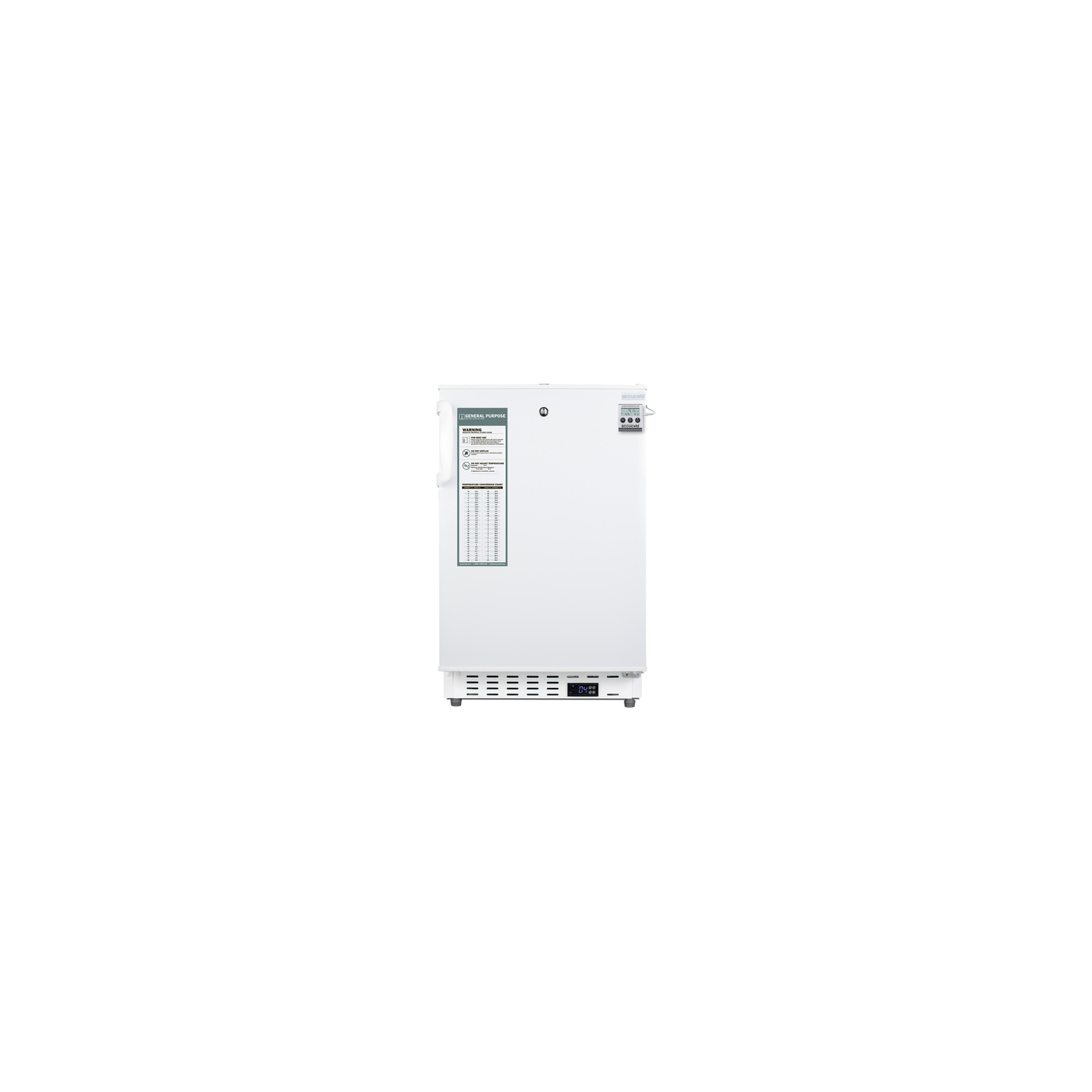

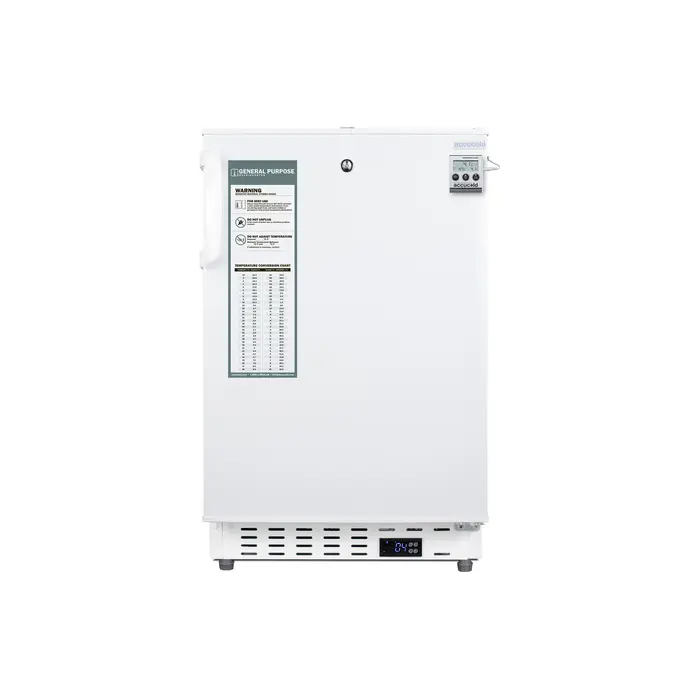

Summit Built-in ADA compliant healthcare all-refrigerator, 7.61101e+011, ADA404REF
$890.86
Retail Price: $1,365.00
Shipping: $250
$ 890.86
Description
Accucold offers a quality selection of 20" wide built-in undercounter all-refrigerators designed for installation under lower ADA compliant counters, with advanced features for user convenience.
The ADA404REF is sized at 32" high to fit under lower counters complying with ADA guidelines for accessibility. The fully finished textured white cabinet allows freestanding use, while the front-breathing system means this unit can be built-in with minimum clearance. The user-reversible door is 3" thick for efficient insulation, with a top-mounted lock for added security and convenient access. A digital thermostat, located in the kickplate, makes for easy temperature management with a readout in Fahrenheit or Celsius. This unit comes with a hospital grade cord with a green dot plug for added safety in high traffic areas. Powerful magnetic gaskets ensure a tight seal.

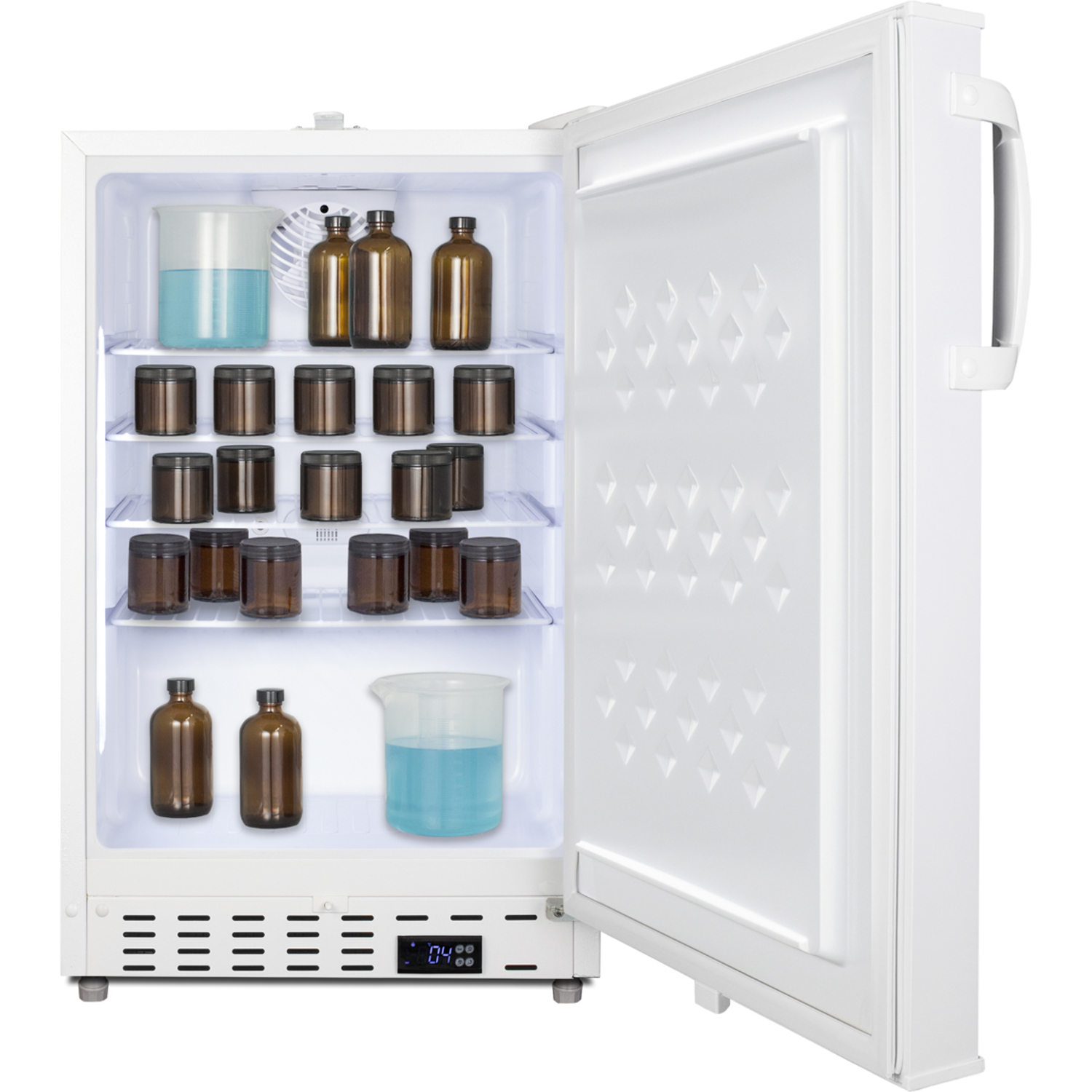

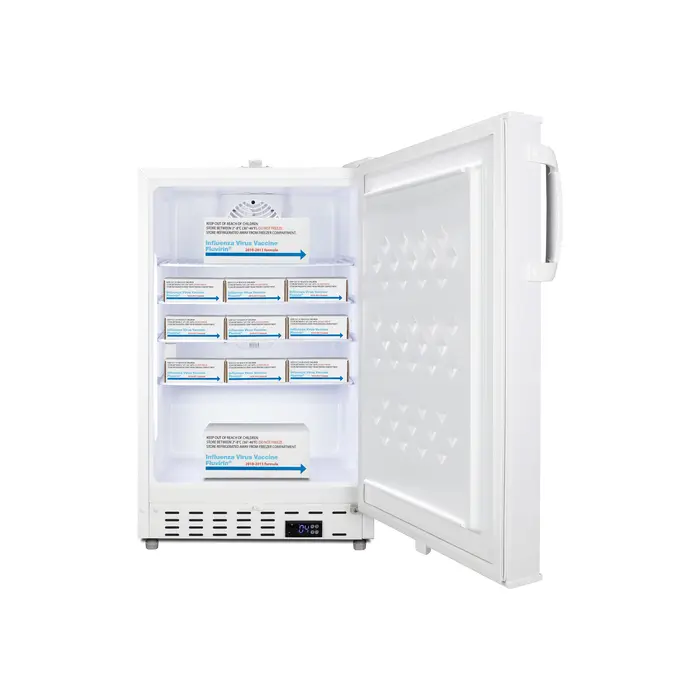

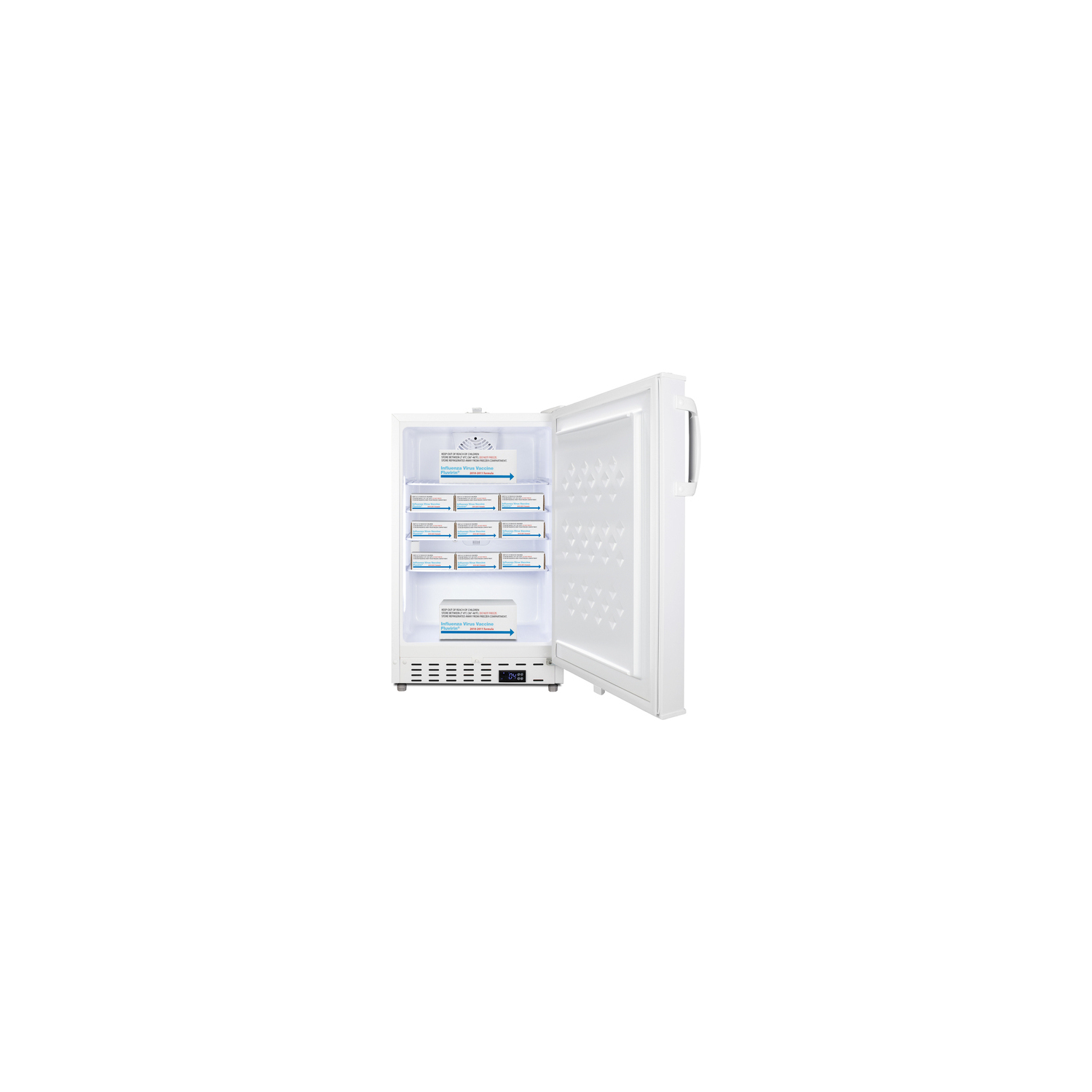

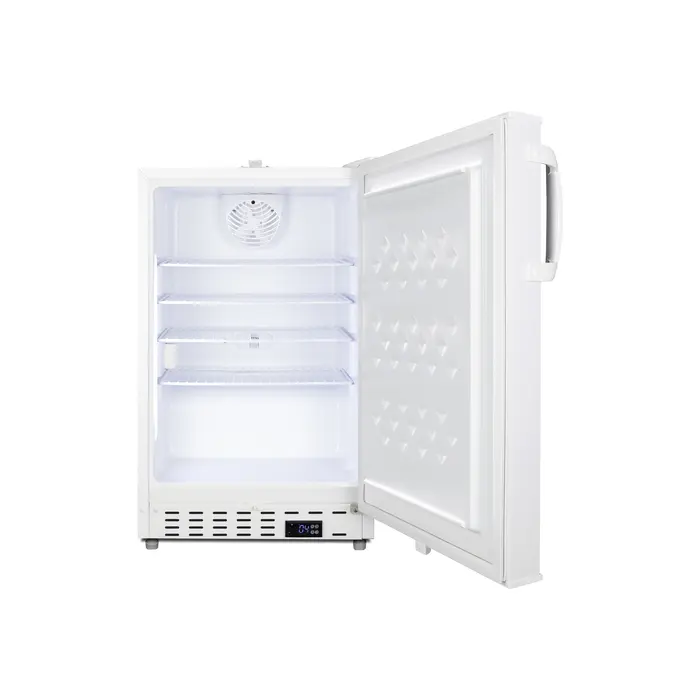

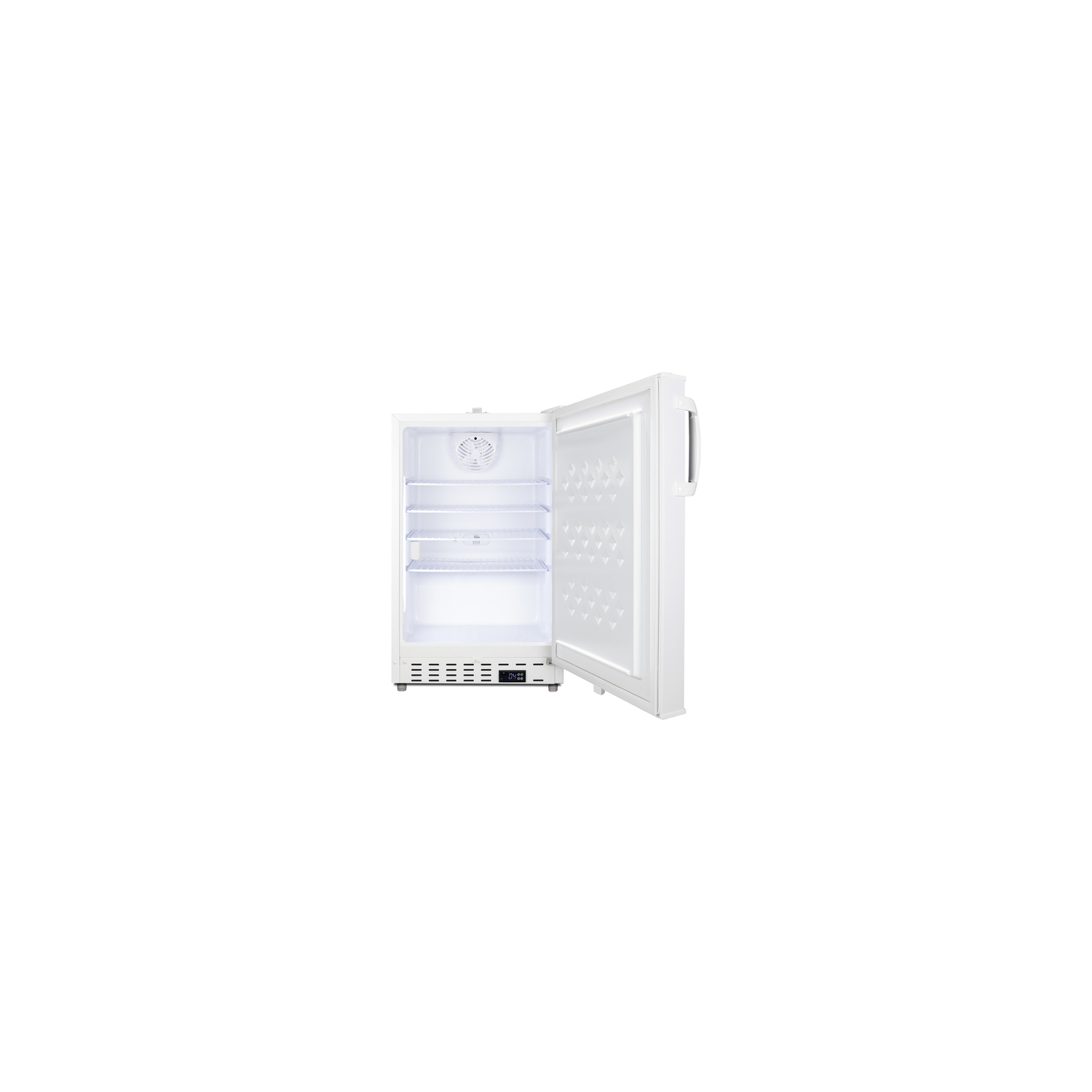

Inside, the ADA404REF is designed to operate between +2°C and +8°C as recommended for the storage of select pharmaceuticals and other medical supplies. An LED light located on the front left side of the unit attractively illuminates the interior when the door opens. Automatic defrost operation ensures minimal user maintenance, with an internal fan to help promote even cooling throughout the 3.32 cu.ft. interior. Adjustable wire shelves allow you to rearrange the interior to best suit your storage needs. As recommended by the CDC, this unit has a flat door liner to ensure users don't store sensitive contents on the door. The user-set high and low temperature alarms provide added security should the temperature go beyond the setpoint, while the open door alarm sounds if the door is ajar beyond one minute for added peace-of-mind. These alarms can be disabled depending on your needs. A preinstalled probe hole is included to allow users to connect their own monitoring equipment.
With its slim dimensions and user-friendly features, it makes an ideal choice for various facilities. For a complete set, pair this unit with the matching -20ºC ADA305AF all-freezer.
SPECIFICATIONS
Overview
Nominal Height 32.0" (81 cm)
Height of Cabinet 31.75" (81 cm)
Height to Hinge Cap 32.0" (81 cm)
Nominal Width 20.0" (51 cm)
Width 19.75" (50 cm)
Width with Door Open 20.25" (51 cm)
Nominal Depth 23.0" (58 cm)
Depth 22.5" (57 cm)
Depth with Handle 24.38" (62 cm)
Depth with door at 90° 40.25" (102 cm)
Capacity 3.32 cu.ft. (94 L)
Defrost Type Automatic
Door White
Cabinet White
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Amps 1.1
Voltage/Frequency 115 V AC/60 Hz
Weight 59.0 lbs. (27 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
UPC 761101063058
Refrigerator Features
Door Swing RHD
Reversible Yes
Shelf Type Wire
Shelf Qty 4
Thermostat Type Digital
Fan Type Interior
Refrigerant Type R600a
Refrigerant Amount 0.99oz.
High Side PSI 180.0
Low Side PSI 80.0
Level Legs Qty 2
Interior Light Yes
Temperature Range 2 to 8°C
Dimensions
Interior Height 23.5" (60 cm)
Interior Width 16.25" (41 cm)
Interior Depth 17.0" (43 cm)
Compressor Step Height 6.25" (16 cm)
Compressor Step Width 16.25" (41 cm)
Compressor Step Depth 6.0" (15 cm)
FEATURES
ADA compliant design 32" height allows easy installation under lower ADA compliant counters
Built-in capable Front-breathing design lets you make the best use of space by installing your appliance under the counter
2 to 8º operation Designed to safely store select pharmaceuticals and other materials with strict temperature requirements
Factory-installed lock Located towards the top of the door for easy access and to provide added security of unit (2 keys included)
Access port Unit comes with a factory installed probe hole for users to connect their own monitoring equipment

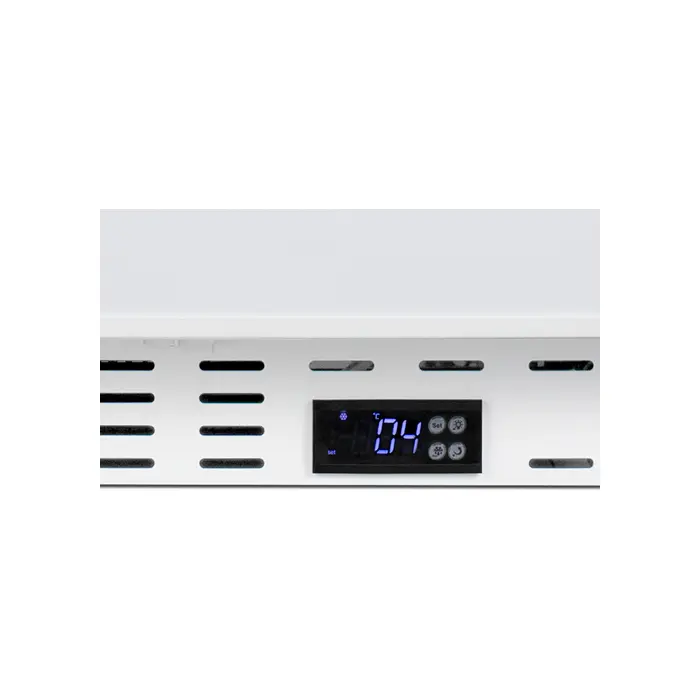

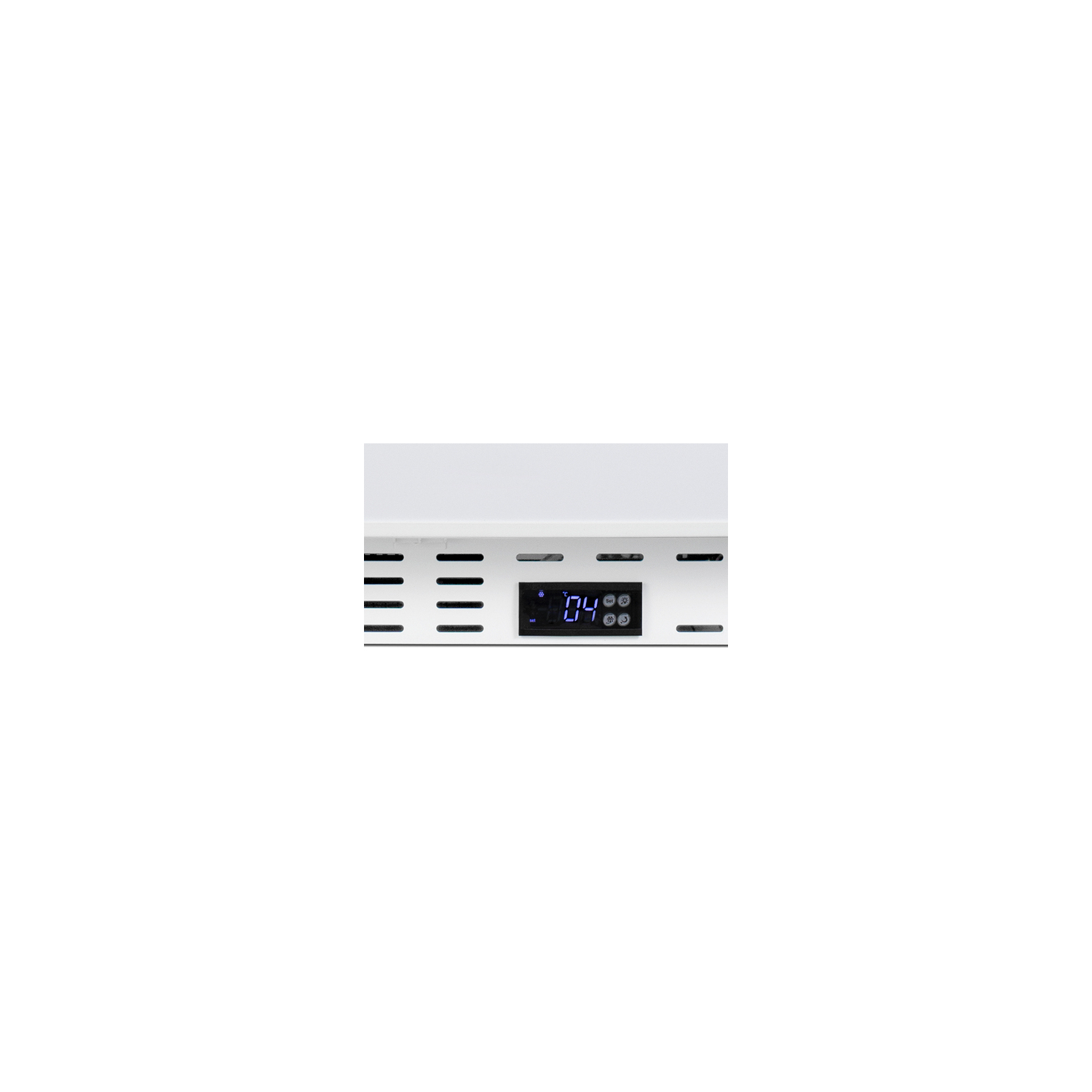

Adjustable digital thermostat Electronic controls located in the front kickplate for easy & institutive temperature management, with a readout in Fahrenheit or Celsius
Adjustable wire shelves Four wire shelves provide optimal storage and improved air circulation in the 3.32 cu. ft. interior
3" thick door Improved insulation for an efficient performance; NOTE: due to the oversized design, the door does not open in its own radius. If installing this freezer against a wall, please see our drawings to ensure adequate space
Reversible door User-reversible door swing for added flexibility to best accommodate your setting
Temperature alarms User-set high/low temperature alarms provide added security if temperature goes beyond setpoint
Open door alarm Audible alarm will sound if the door is left ajar for over a minute

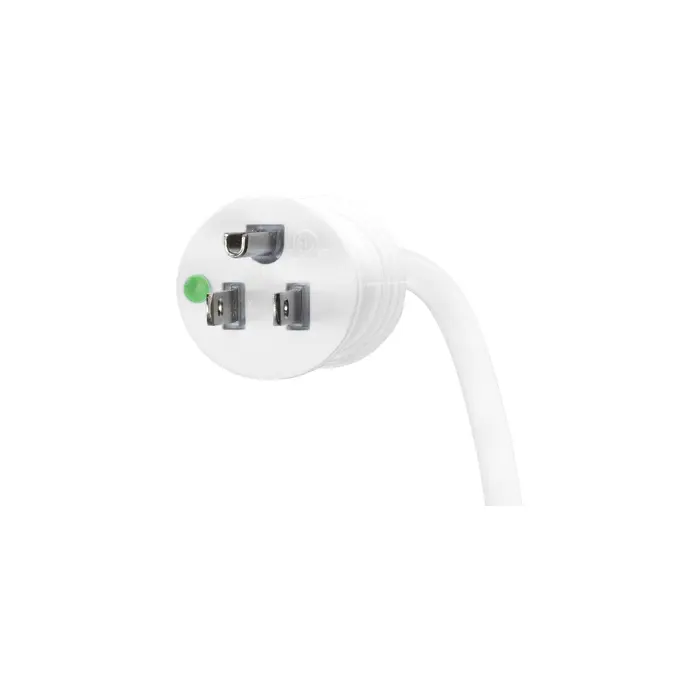

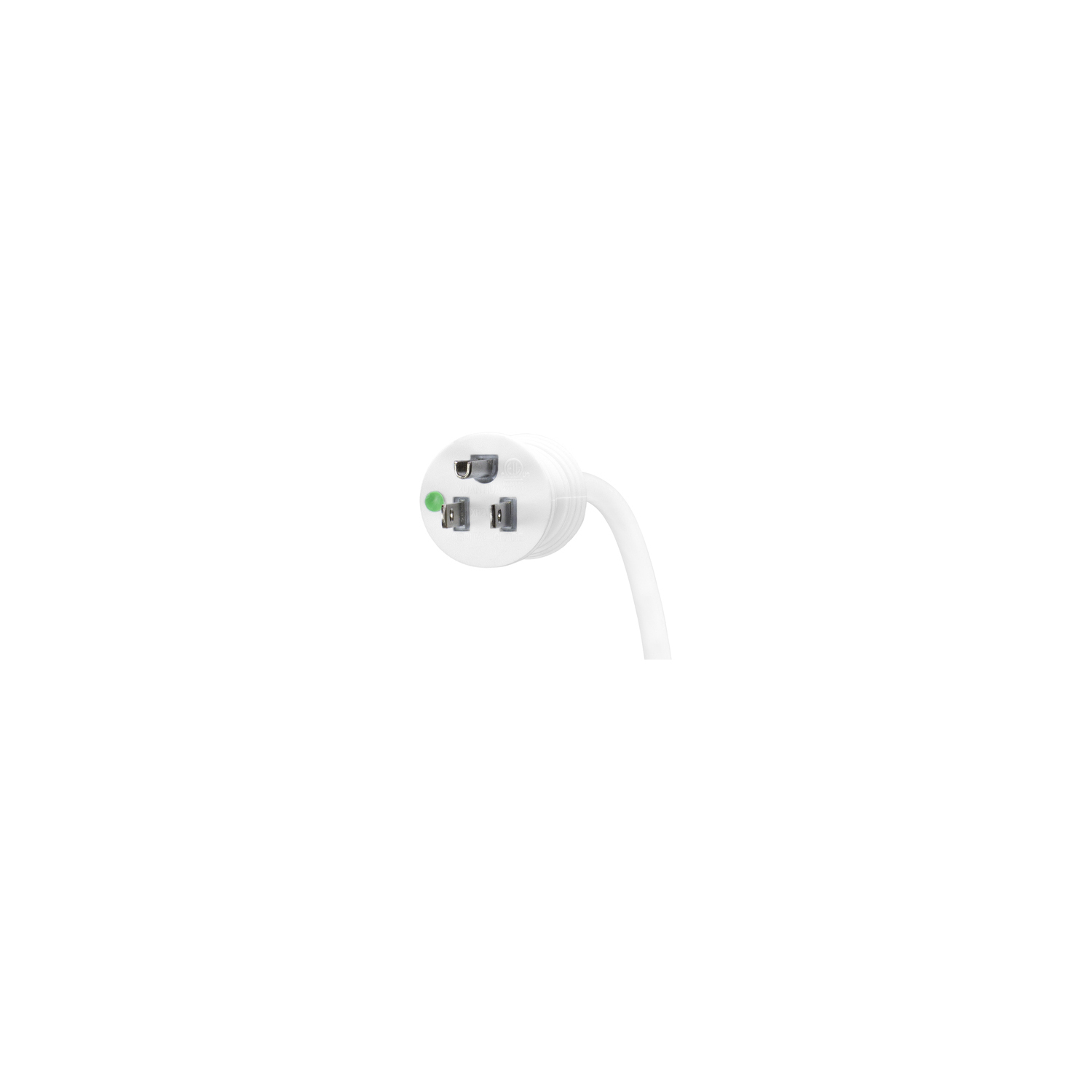

Hospital grade cord with 'green dot' plug Secure three-pronged cord for added unit safety
Automatic defrost Reduced user maintenance with an auto defrost system
Flat door liner Interior design conforms to CDC guidelines to ensure stable conditions for sensitive materials
Internal fan Fan-forced cooling ensures the unit is evenly cooled from top to bottom
Sealed back Space-saving design that offers easier cleanability
Interior light Front-located LED light ensures entire interior is lit when door opens
Magnetic door gasket Quality door gaskets ensure a tight seal for energy savings and improved performance
Matching all-freezer This unit can be paired with the ADA305AF all-freezer for a complete set
Fully finished white cabinet Allows the unit to be freestanding
100% CFC free Environmentally friendly design without ozone-damaging chemicals
CARB Compliant Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
DOWNLOADS
REVIT MODEL (QF_Summit_ADA404REF_ADA_Compliant_All_Refrigerator.rfa)
