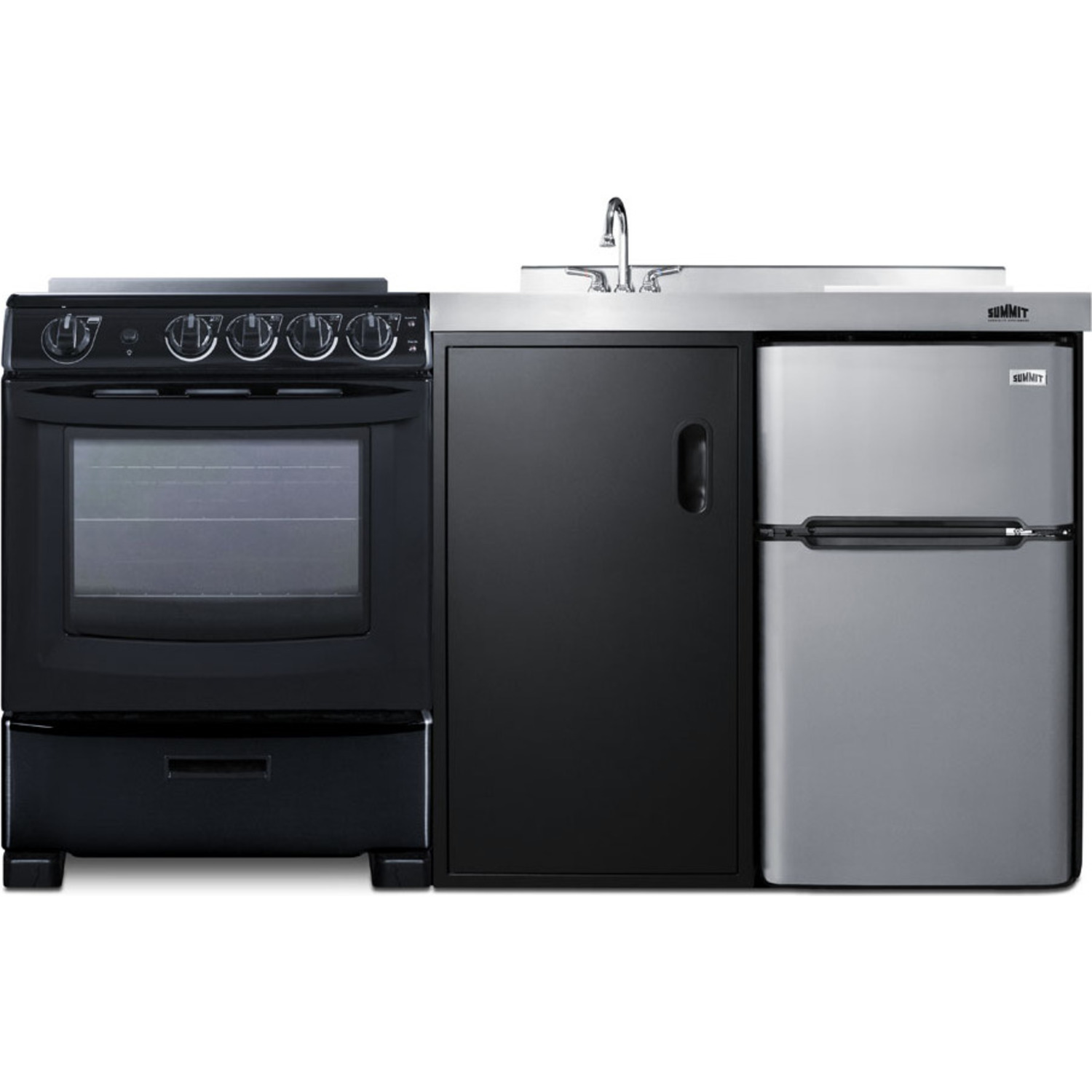

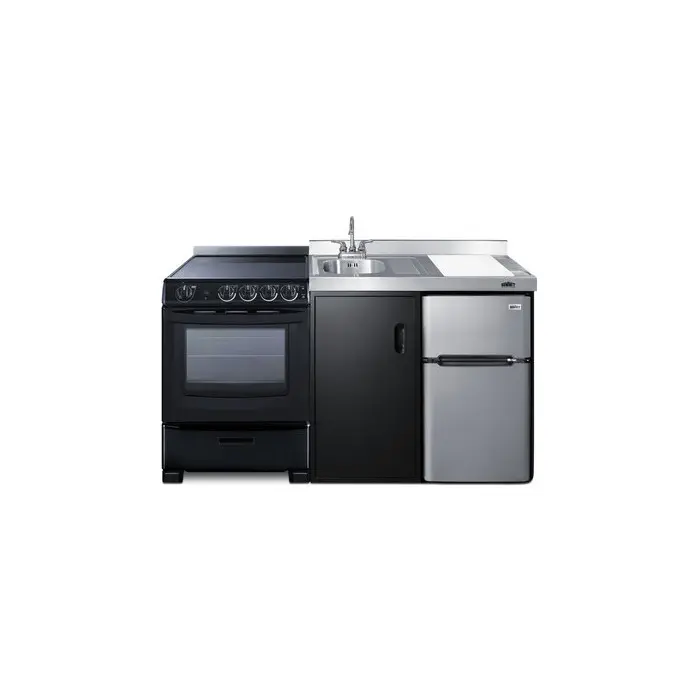

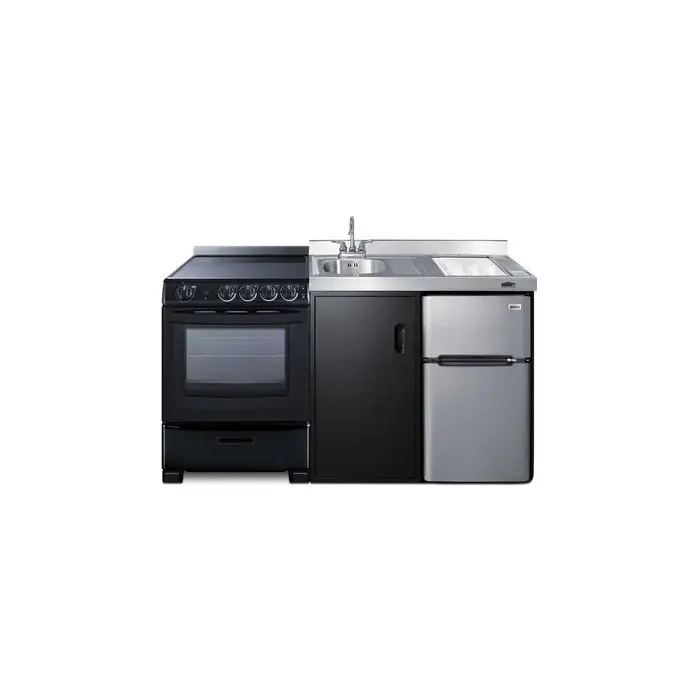

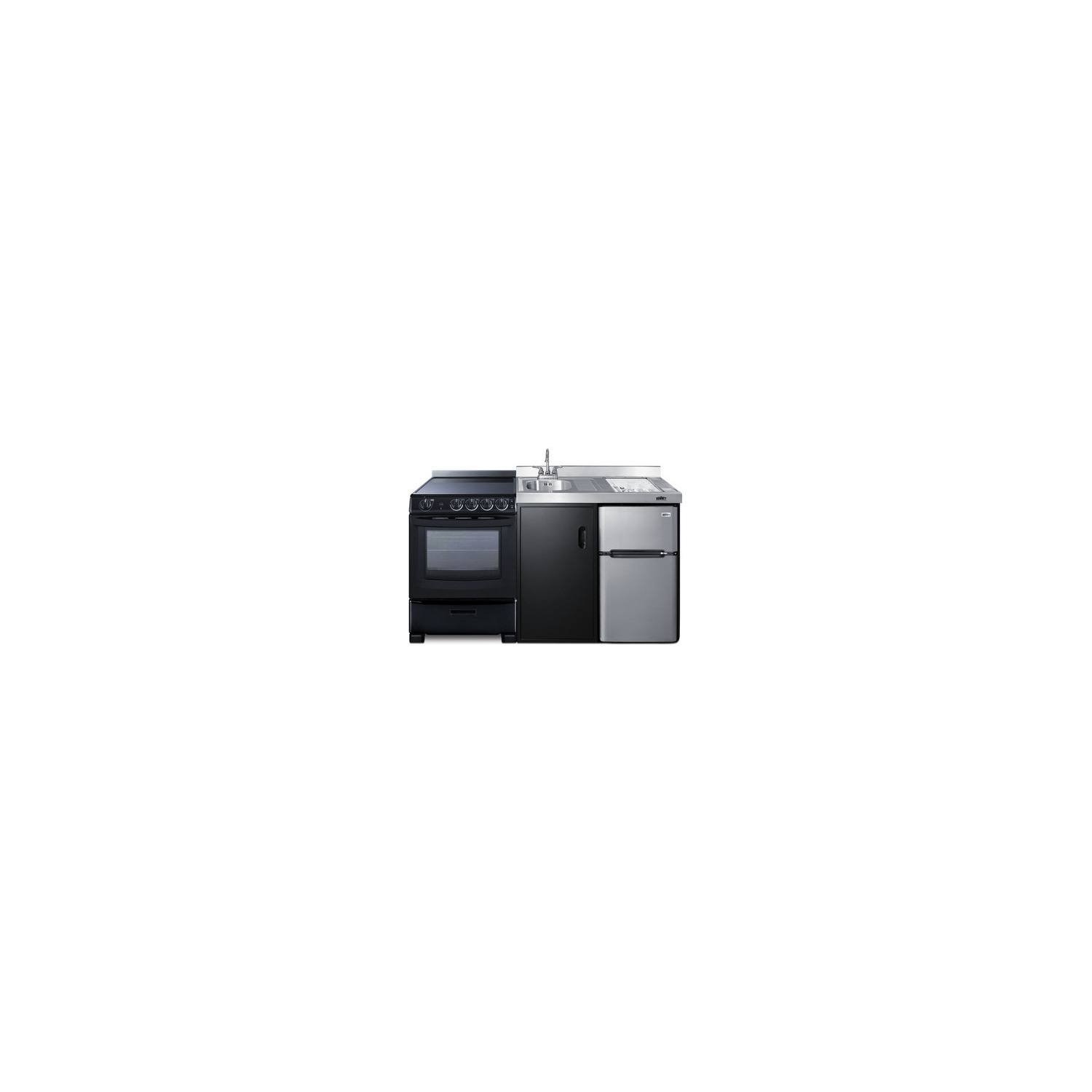

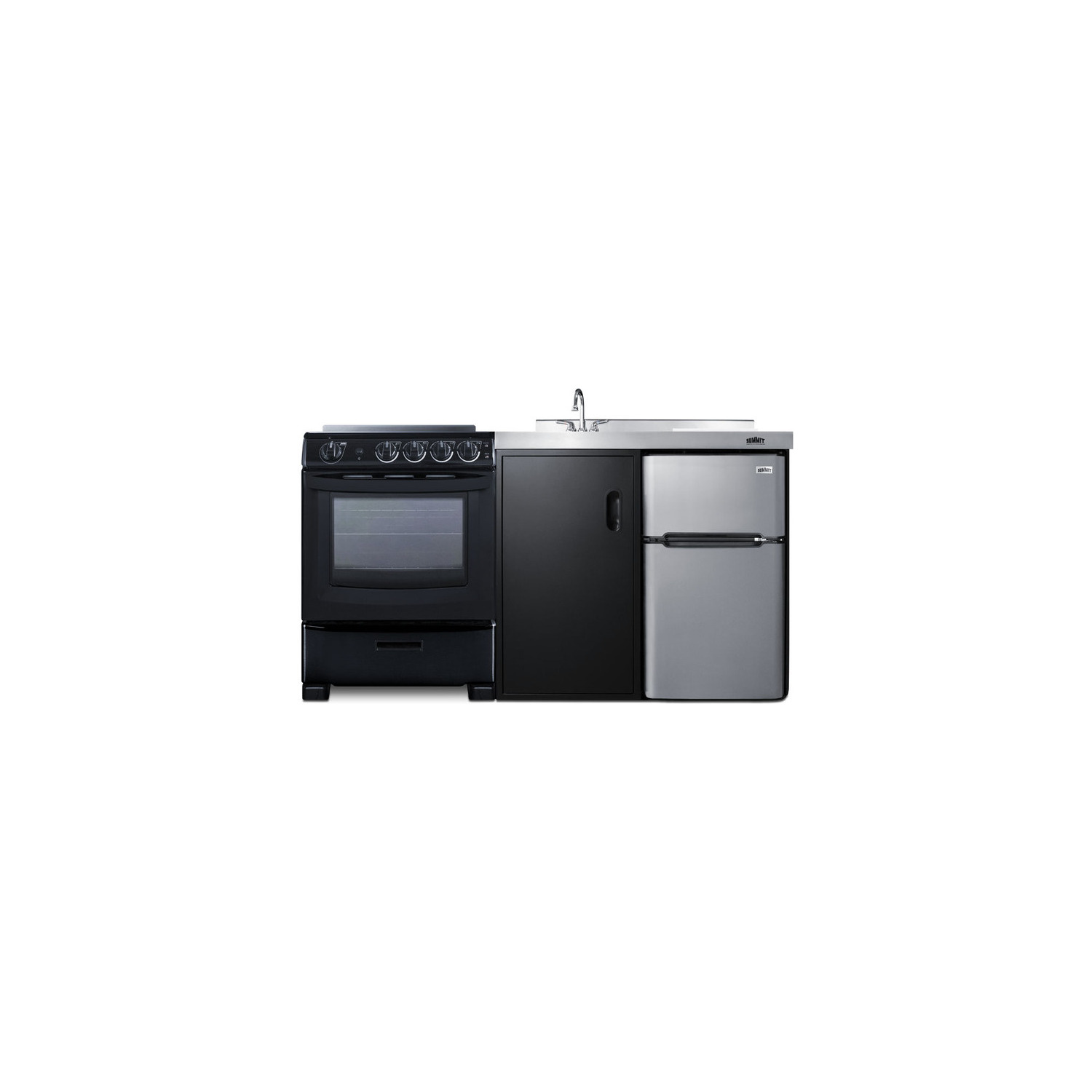

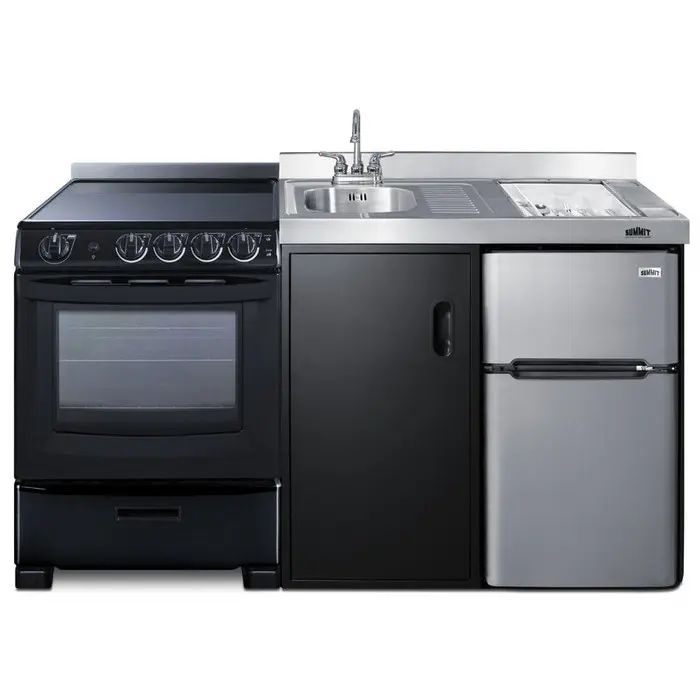

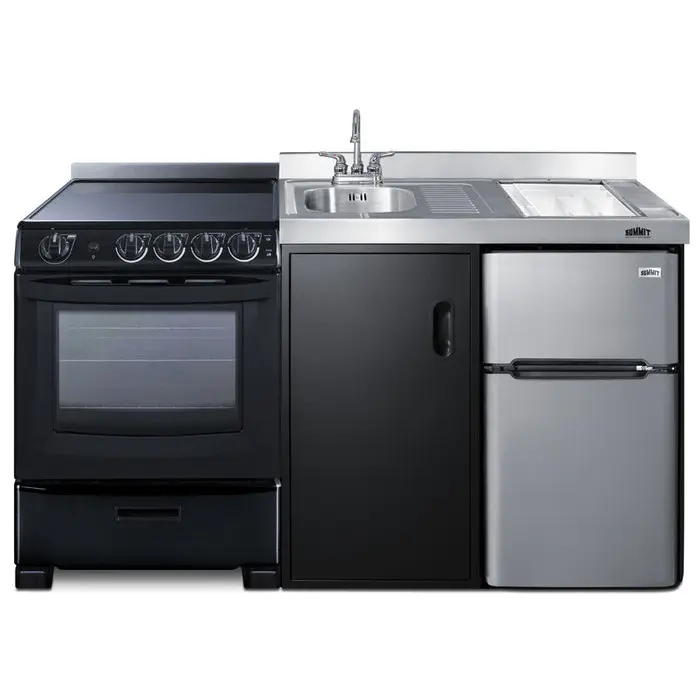

Summit All-in-one combination kitchenette in black with refrigerator-freezer, sink, storage cabinet, and smooth-top range, 7.61101e+011, ACK63ELSTB

Summit's line of all-in-one combination kitchenettes brings complete kitchen convenience in a slim-fitting design. These units come fully featured with everything you need for the home foodservice experience, including a refrigerator with a freezer compartment, 4-burner smooth top range with oven, sink with faucet, cutlery bin with a removable cutting board cover, and storage cabinet for dry goods.

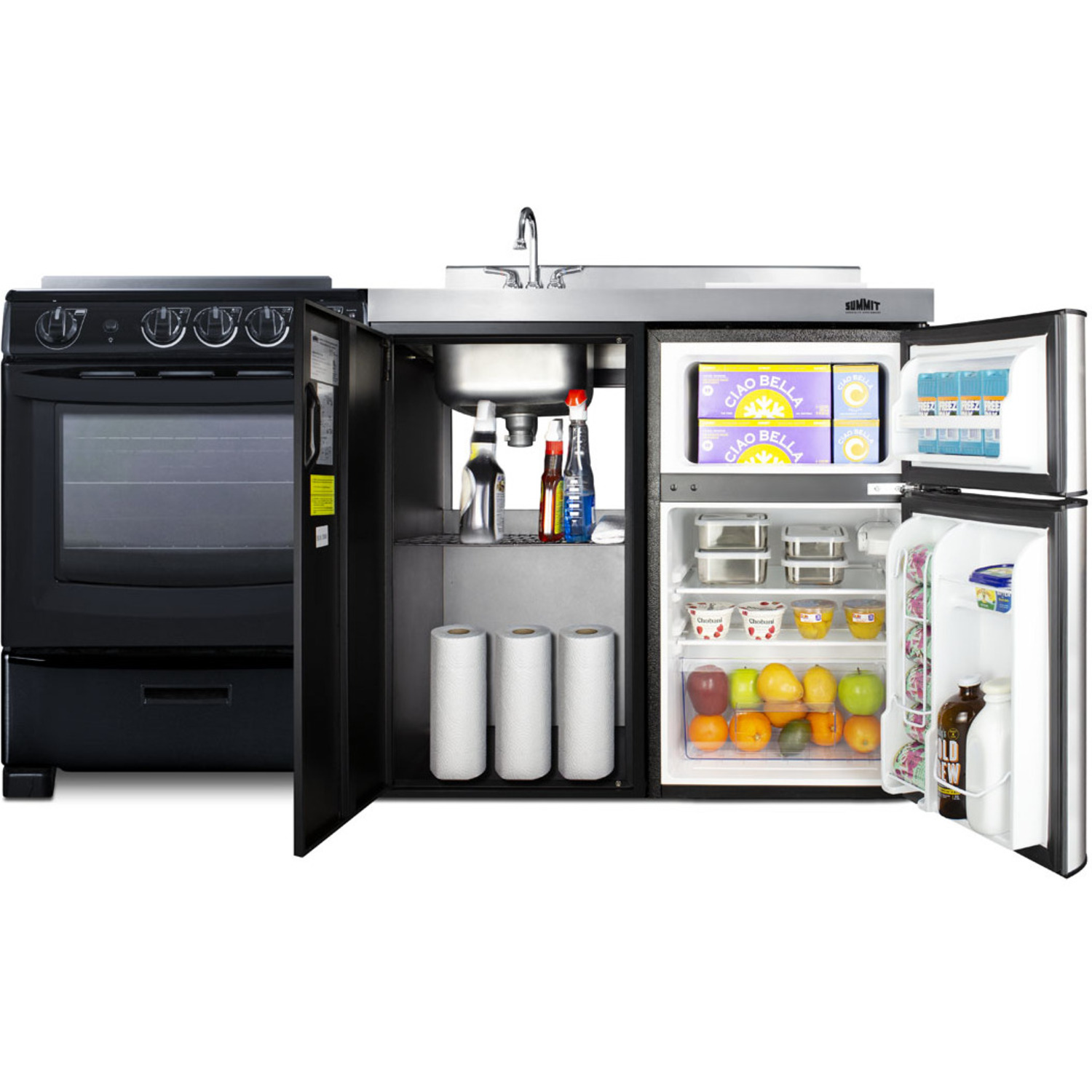

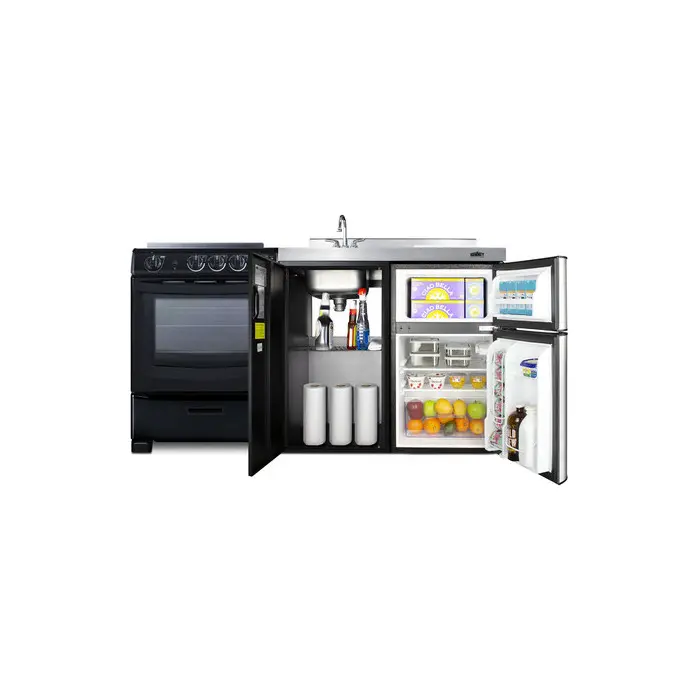

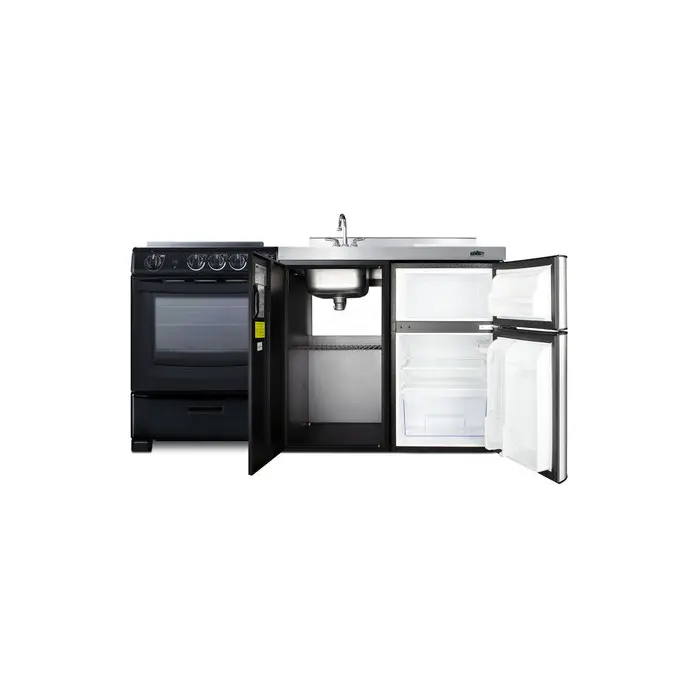

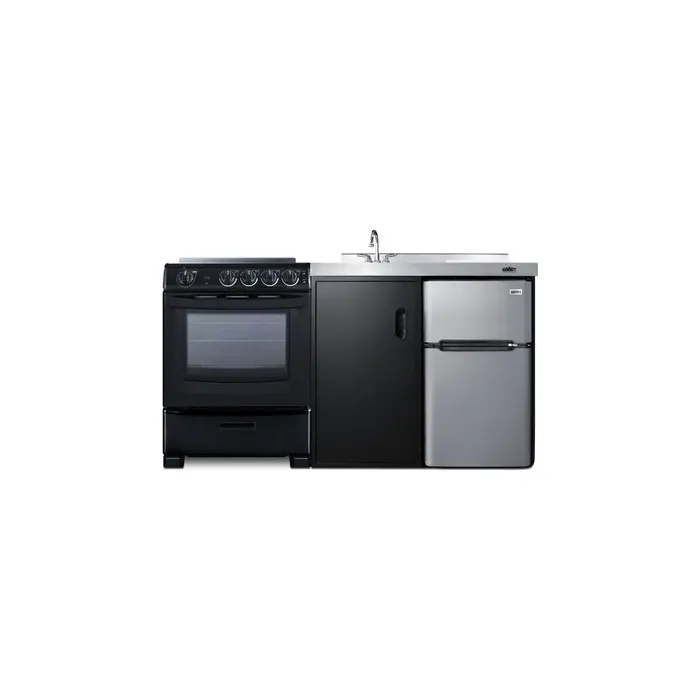

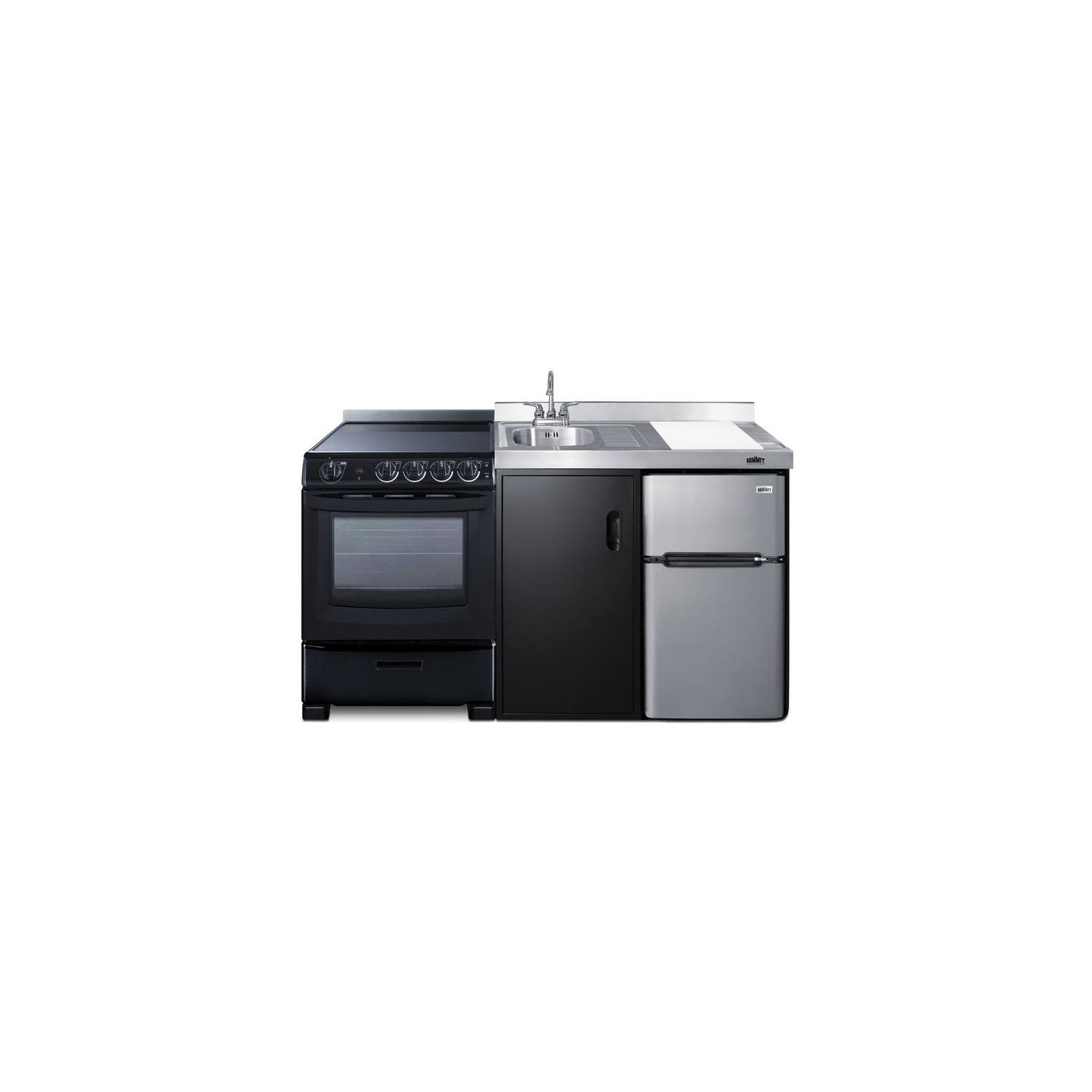

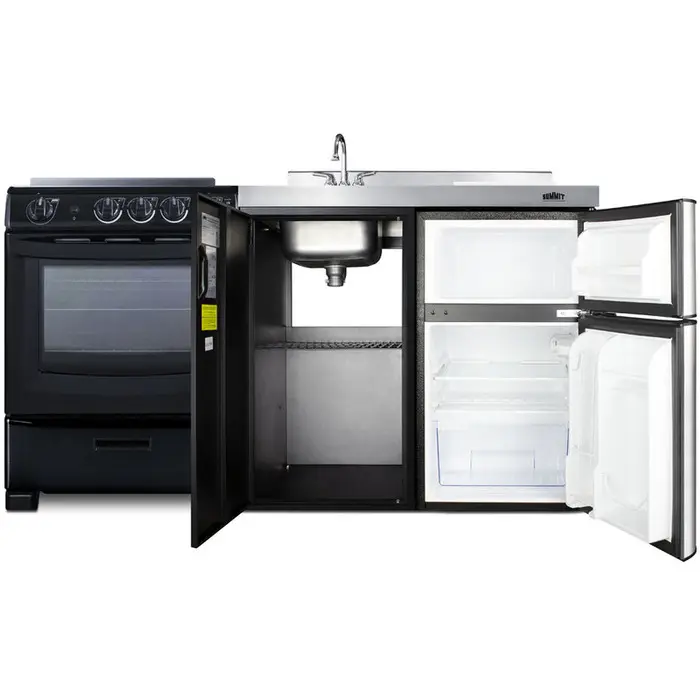

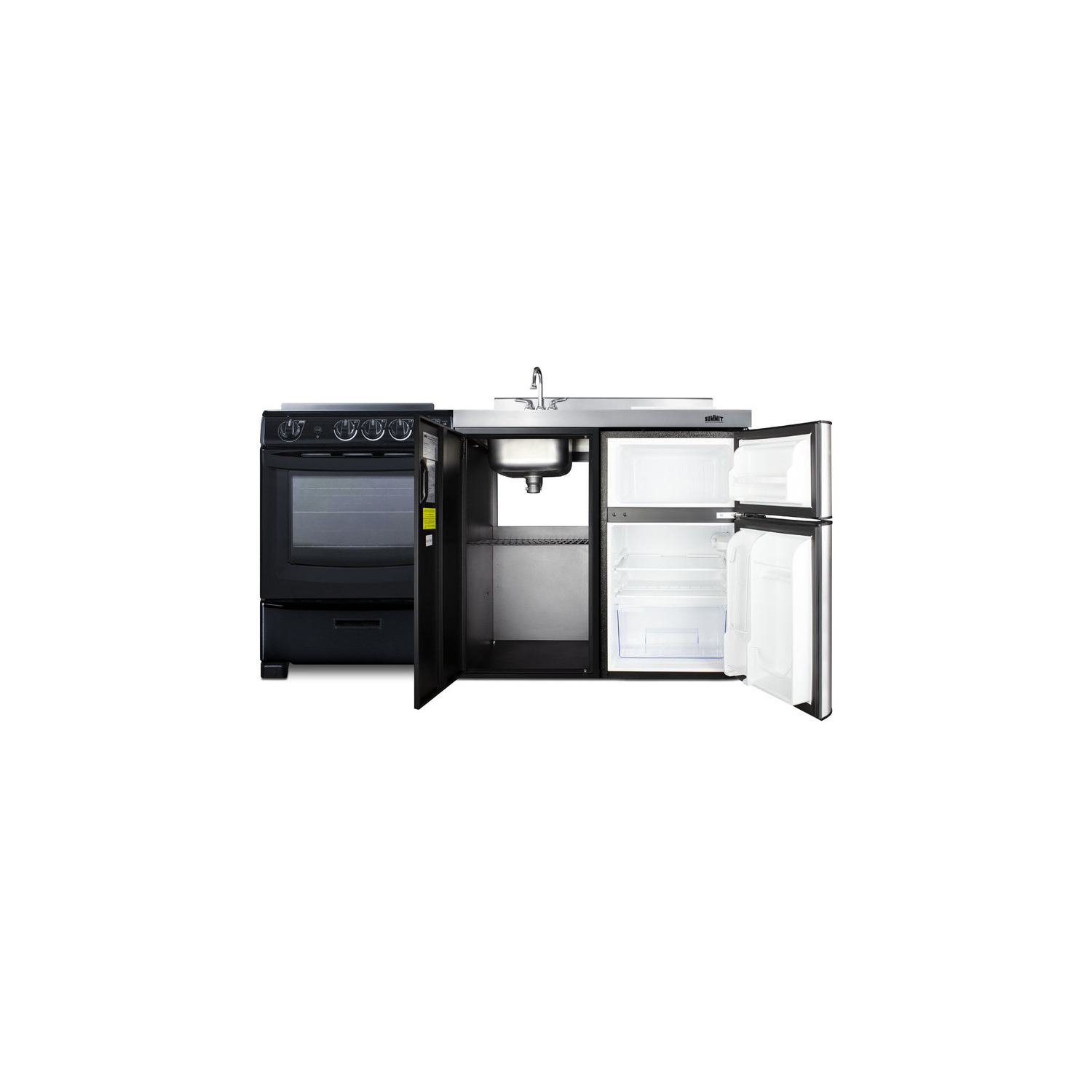

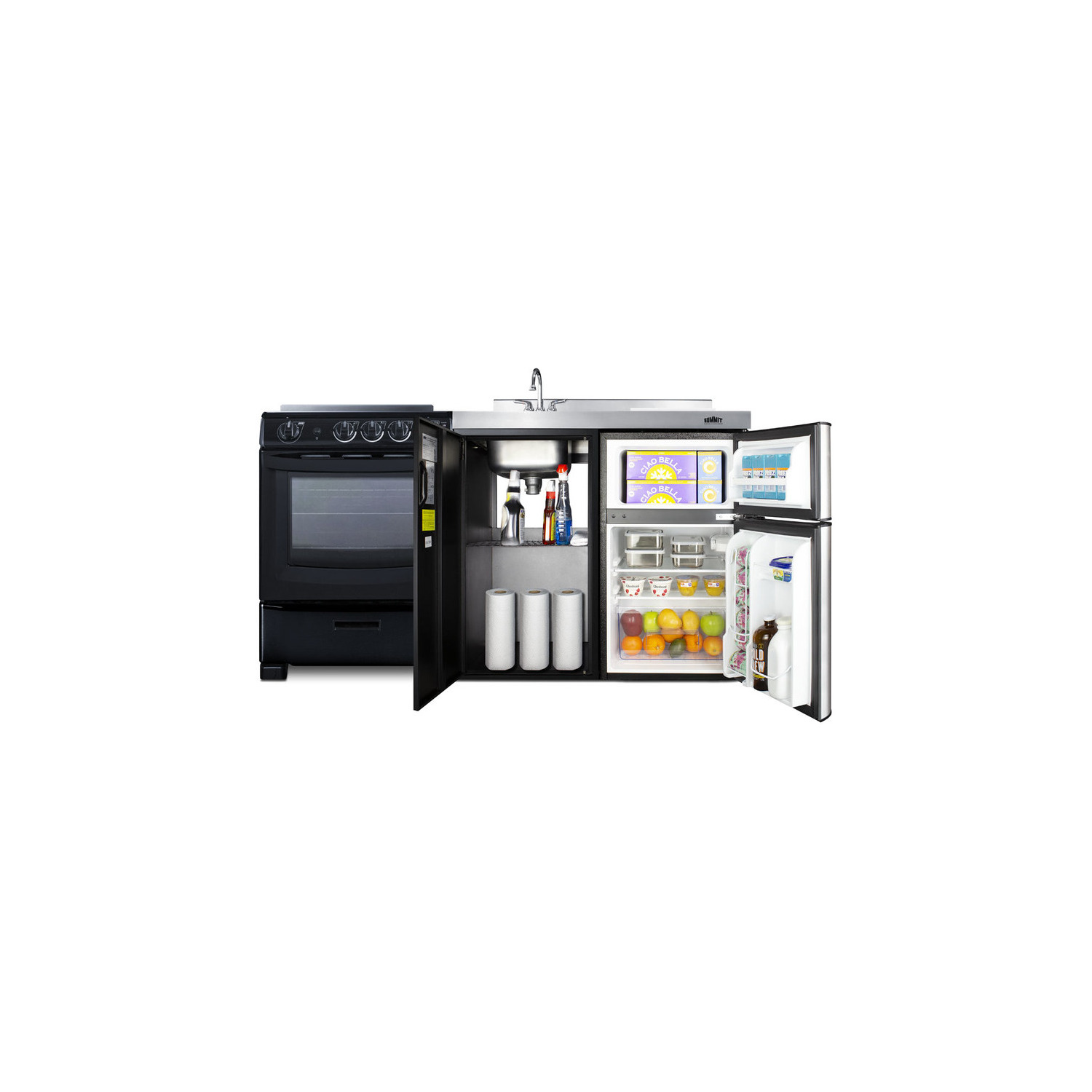

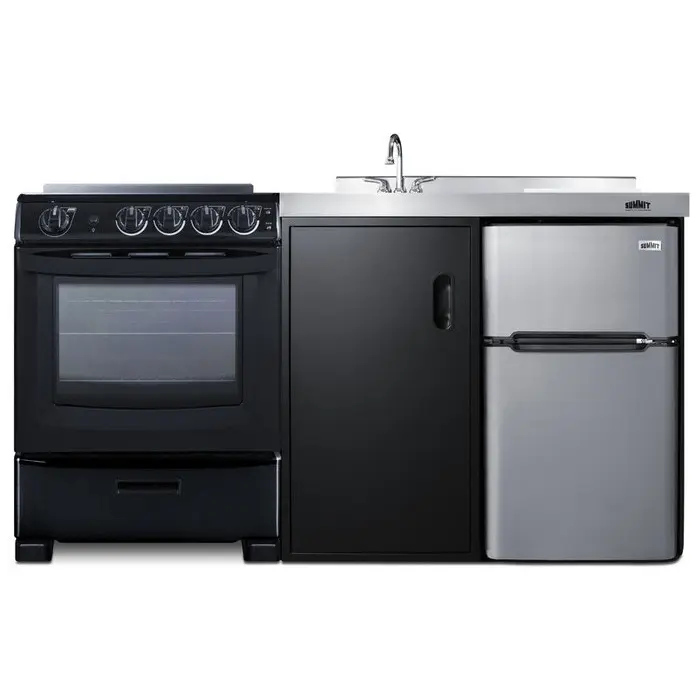

The ACK63ELSTB is a 63" wide kitchenette with an easy-fitting 24" depth and jet black finish. This unit comes with a stainless steel countertop offering durability in a professional look. The surface includes a small cutlery bin, with a removable cutting board cover to ensure easy food prep. The compact sink features a ready-to-use faucet. Underneath the sink is a large cabinet with a removable shelf for added storage convenience.

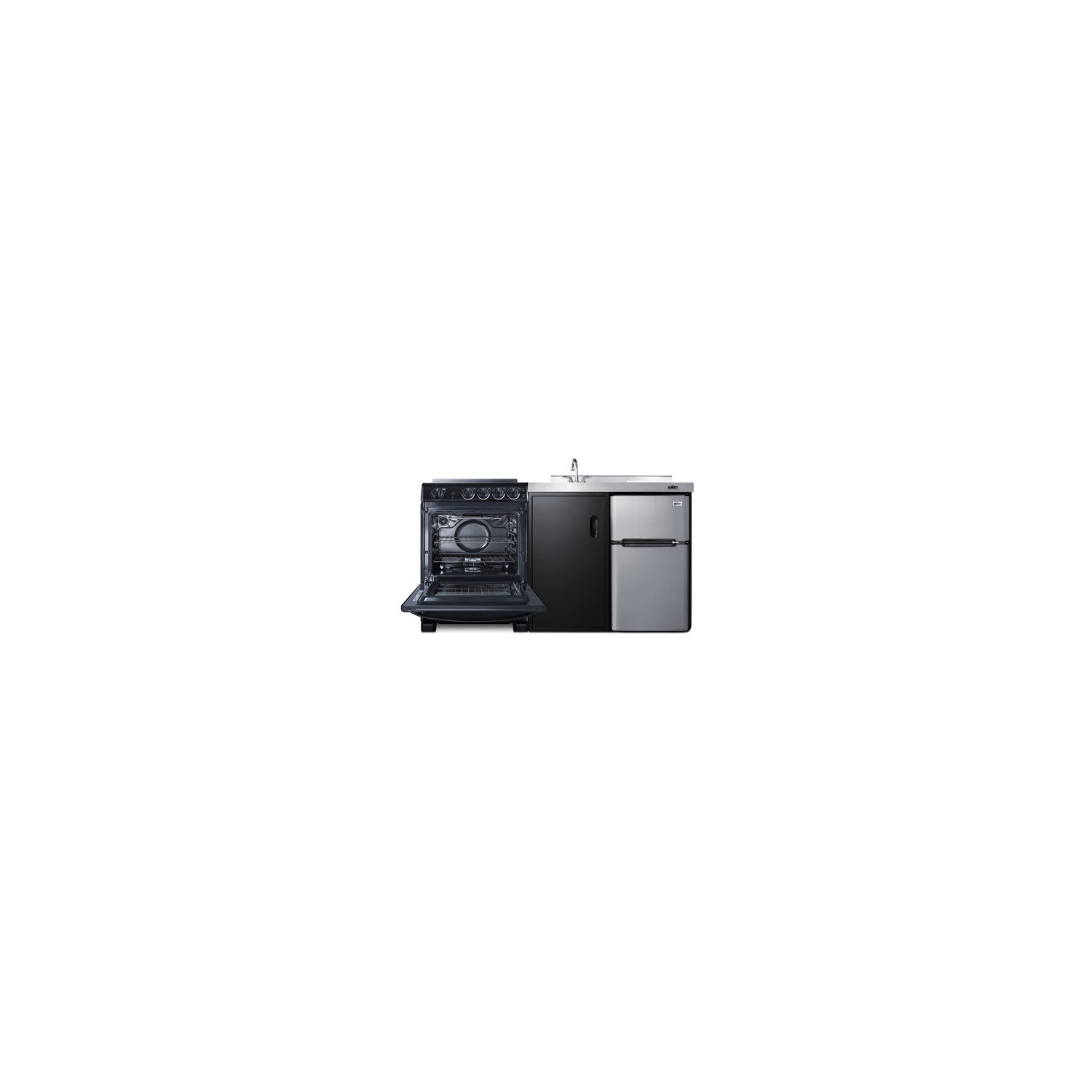

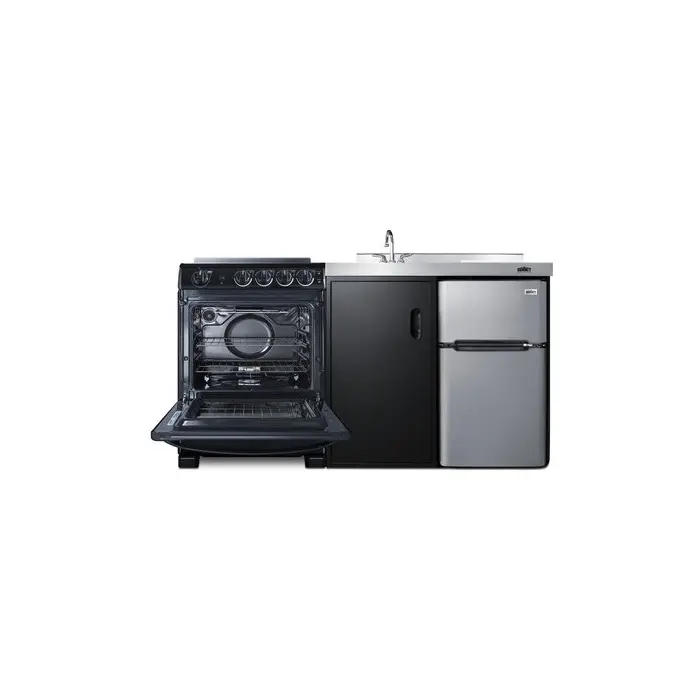

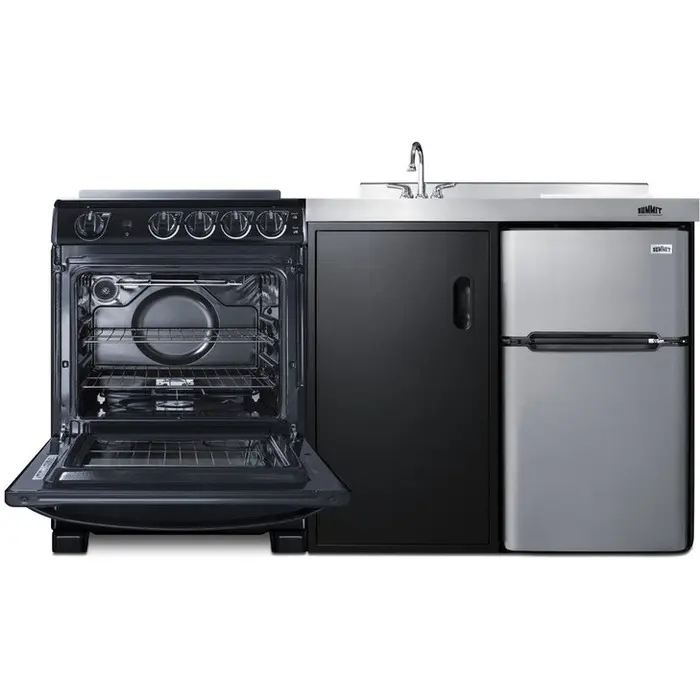

Unlike many other brands' kitchenettes, all Summit units include a refrigerator with a freezer compartment to cover all of your cold storage needs. The ACK63ELSTB includes the two-door, ENERGY STAR certified CP34BSS, with 3.2 cu.ft. of storage space. A dual evaporator system separately cools the auto defrost refrigerator section and manual defrost freezer compartment for improved overall performance. This model also includes an adjustable glass shelf, door storage, and a crisper. The ACK63ELSTB also ships with Summit REX2431BRT, a 24" wide 220V electric range complete with a smooth-top 4-element cooking surface and a full oven compartment with a bake and broil function. This range includes a large window with interior oven light, adjustable slide-out oven racks, hot surface indicator lights for added safety. The range can be installed on the left or right side of the kitchenette.

The ACK63ELSTB is shipped on one pallet, with the kitchenette and refrigerator fully assembled and the range packaged separately. Perfect for studio apartments, hotel rooms, dormitories, assisted living facilities, temporary kitchen facilities, and any other location in need of a low maintenance, fully-featured compact kitchenette.

SPECIFICATIONS

Overview

Nominal Height 40.0" (102 cm)

Height of Cabinet 40.0" (102 cm)

Nominal Width 63.0" (160 cm)

Width 63.0" (160 cm)

Nominal Depth 24.0" (61 cm)

Depth 23.5" (60 cm)

Depth with door at 90° 44.25" (112 cm)

Capacity 3.2 cu.ft. (91 L)

Defrost Type Cycle

Door Black

Cabinet Black

US Electrical Safety ETL

Canadian Electrical Safety ETL-C

Other Energy Info 40 amp range/1.1 amp refrigerator

Weight 240.0 lbs. (109 kg)

Parts & Labor Warranty 1 Year

Compressor Warranty 5 Years

UPC 761101086996

Kitchenette

Refrigerator Included CP34BSS

Refrigerator Door Swing RHD

Reversible Yes

Adjustable Shelves Yes

Shelf Type Glass

Shelf Qty 1

Crisper Qty 1

Crisper Finish Transparent

Crisper Cover Glass

Full Door Shelves 2

Can Storage Yes

Thermostat Type Dial

Interior Light Yes

Refrigerant Type R600a

Refrigerant Amount 1.16 oz.

High Side PSI 250.0

Low Side PSI 88.0

Cooking Type Smooth-Top Range

Number of Burners 4

Cooktop Controls Dial

Range Included REX2431BRT

Oven Included Yes

FEATURES

Complete one-piece kitchenette All-in-one kitchen is built with virtually everything you need for meal preparation

2-door refrigerator-freezer included CP34BSS is packaged inside the kitchenette. This 3.2 cu.ft. ENERGY STAR certified refrigerator includes adjustable glass shelves, door storage, and a freezer compartment

Sink and faucet Stainless steel sink with ready-to-use faucet included

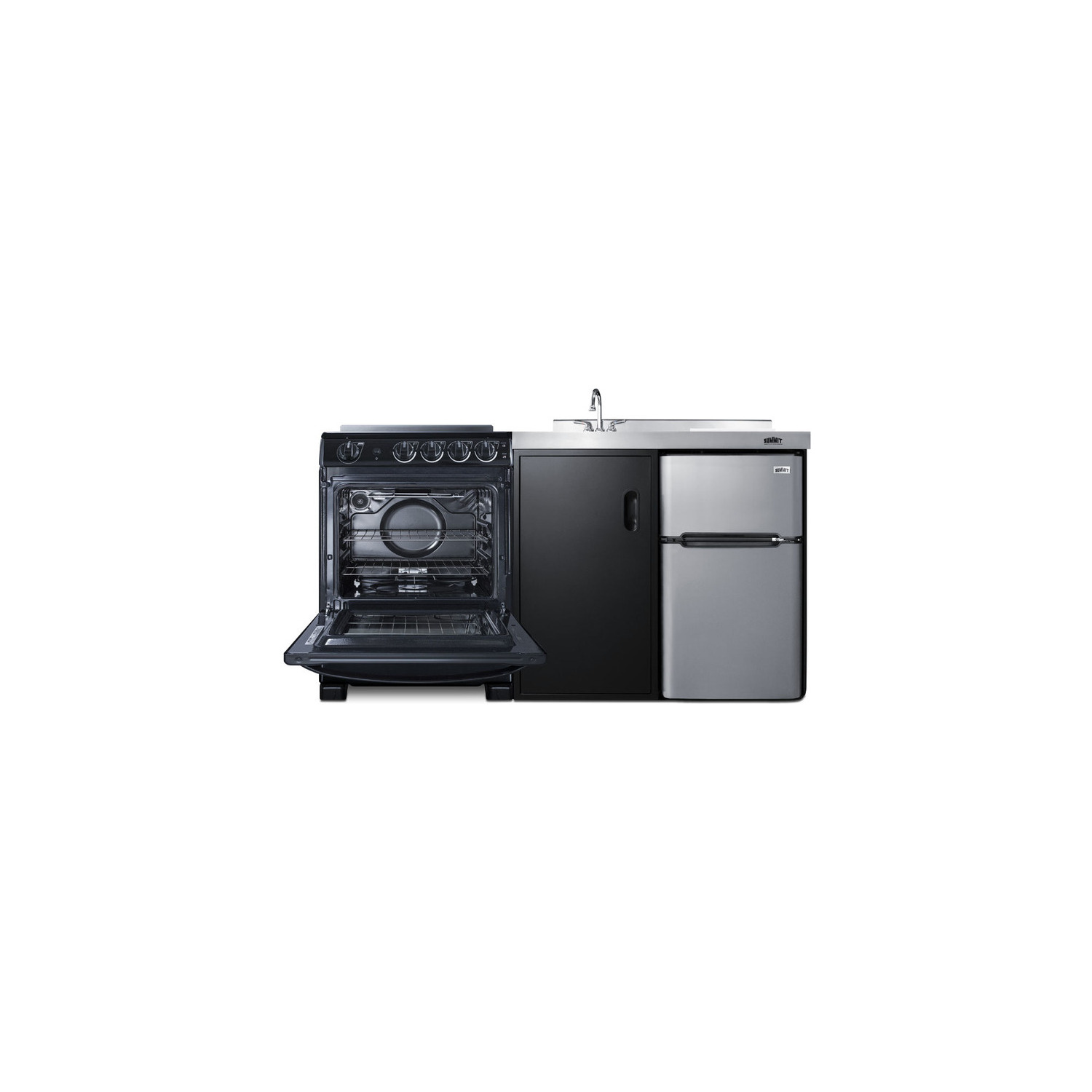

Electric range included REX2431BRT is packed with the kitchenette. This 220V electric smooth top range includes two 8" 2000W elements and two 6 1/2" 1200W elements, 2.9 cu.ft. oven with adjustable racks, oven window, lower storage compartment, and interior lighting

Push-to-turn knobs Range knobs require a small amount of force to turn the elements on, helping to prevent accidents

Indicator lights Operating indicators light up to show which burner is in use for added safety

One piece stainless steel countertop Easy-to-clean surface with a professional look

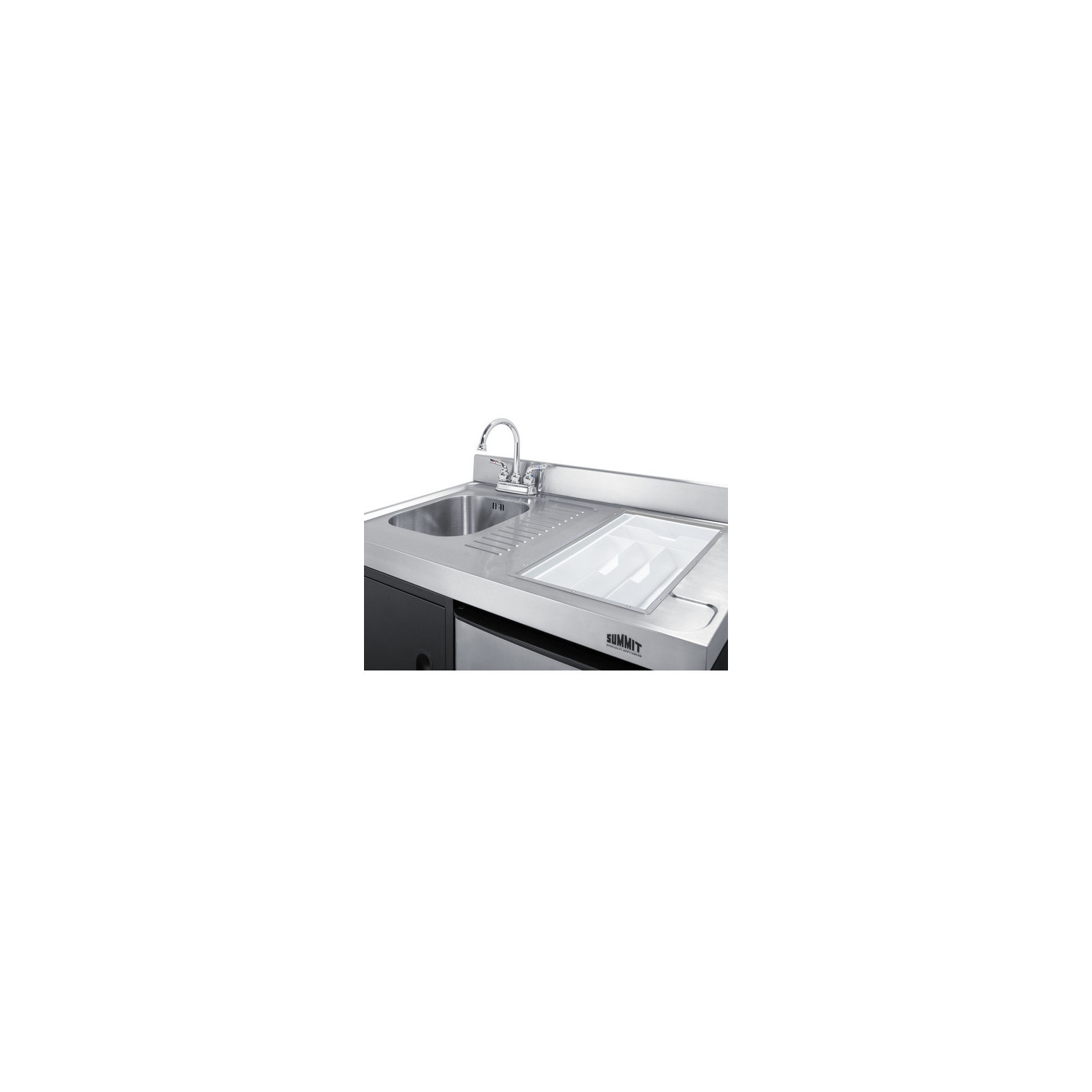

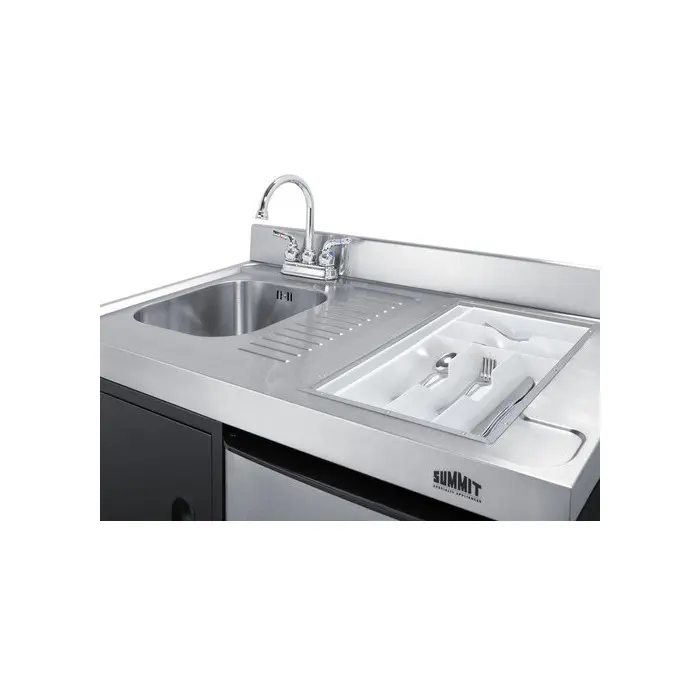

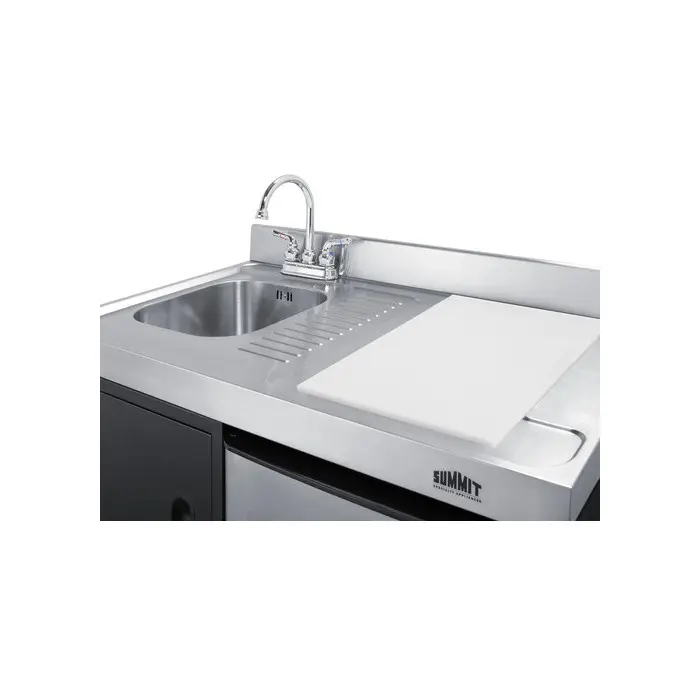

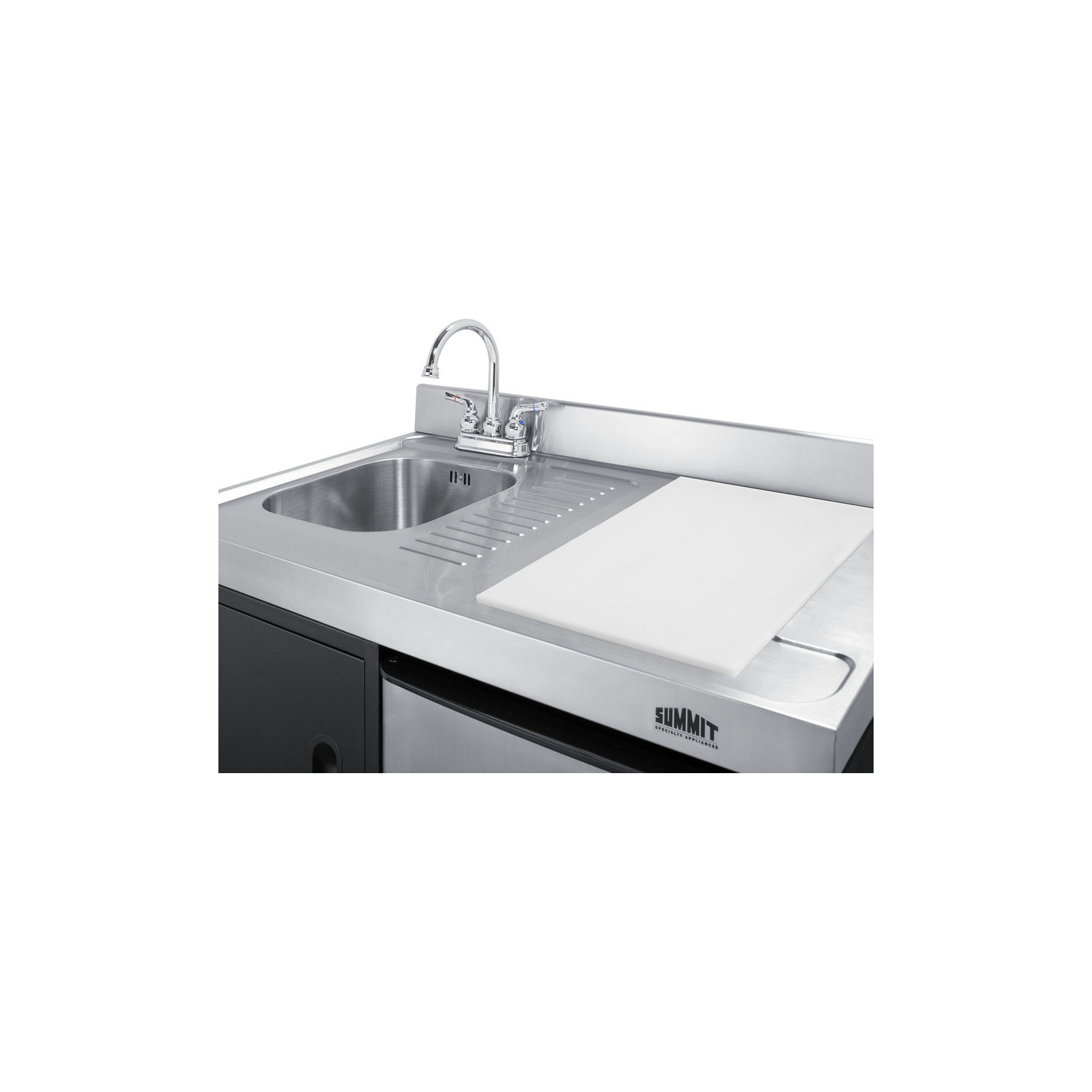

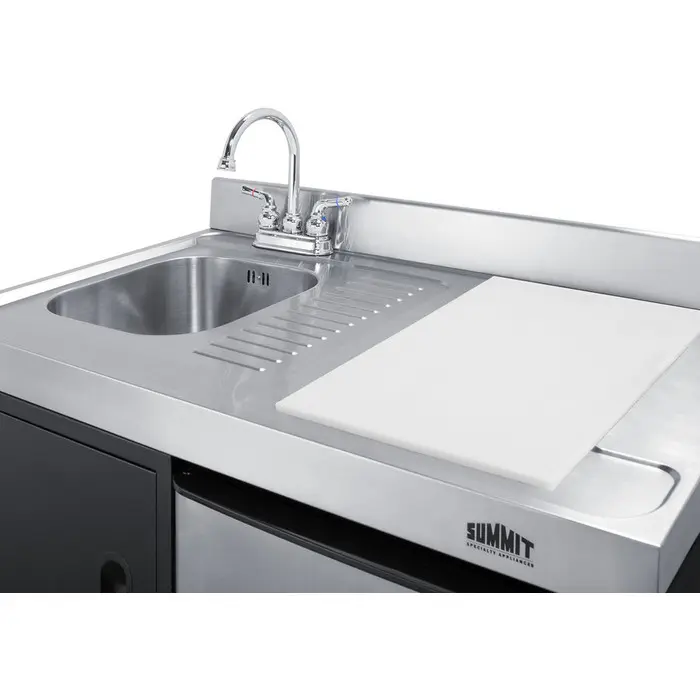

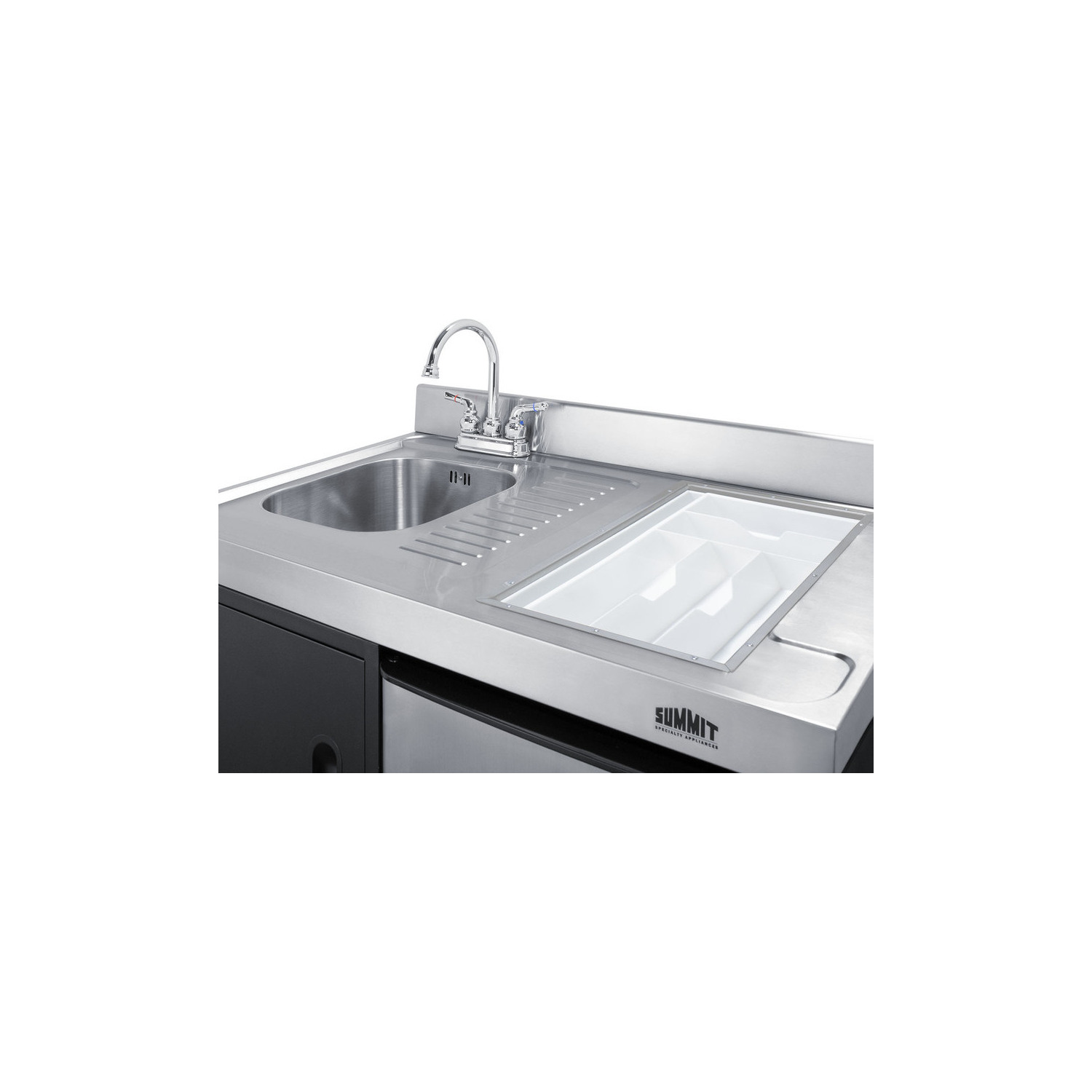

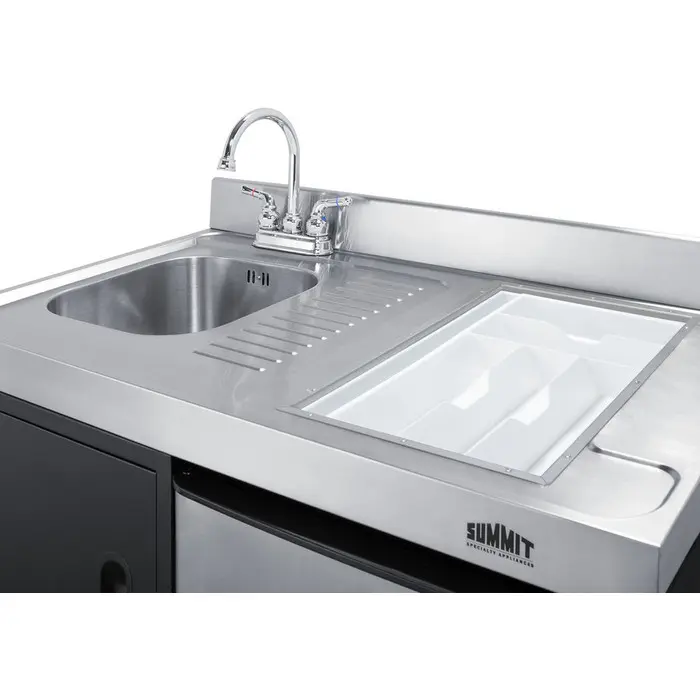

Removable cutting board surface Plastic cutting board provides a durable, easy-to-clean space for food preparation

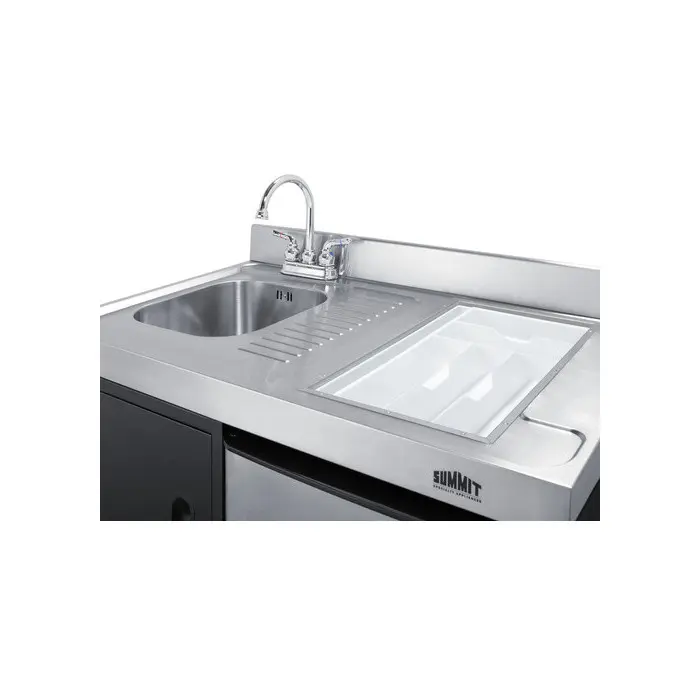

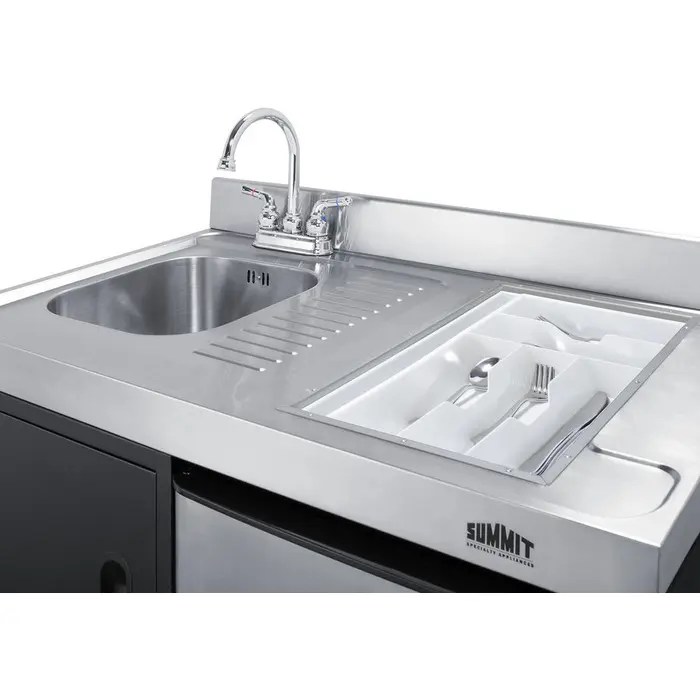

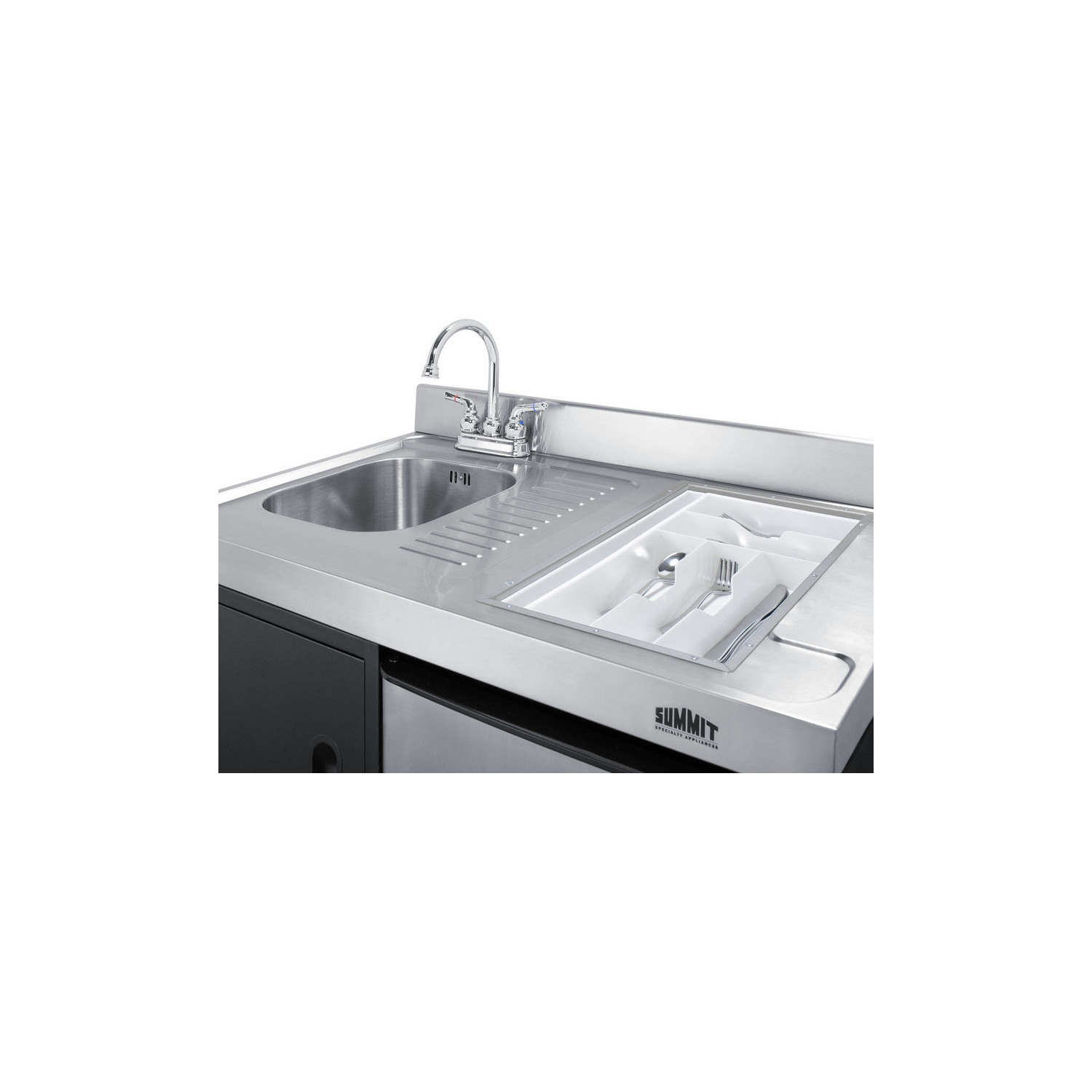

Cutlery bin Located under the cutting board, allows for easy storage of cutlery and utensils

Storage compartment Convenient lower cabinet with adjustable shelf lets you store dry goods

Stainless steel backguard Includes a 4" high backguard to complete the look and offer added protection to your walls

Reversible door User-reversible door swing on the refrigerator for added flexibility

Optional storage shelf Add more storage convenience with the APSS39 Appliance Station, a stainless steel shelving system designed for easy installation on this unit

Ships on one pallet Kitchenette and range ship together on one oversized pallet for easier shipping, with reinforced packaging for added protection

100% CFC free Environmentally friendly design without ozone-damaging chemicals
