Summit Refrigerated Incubator Performance Chamber, ABOD6

Accucold's Performance Series includes BOD refrigerated incubators designed to provide reliable cold storage in water treatment centers, environmental laboratories, and other research facilities.

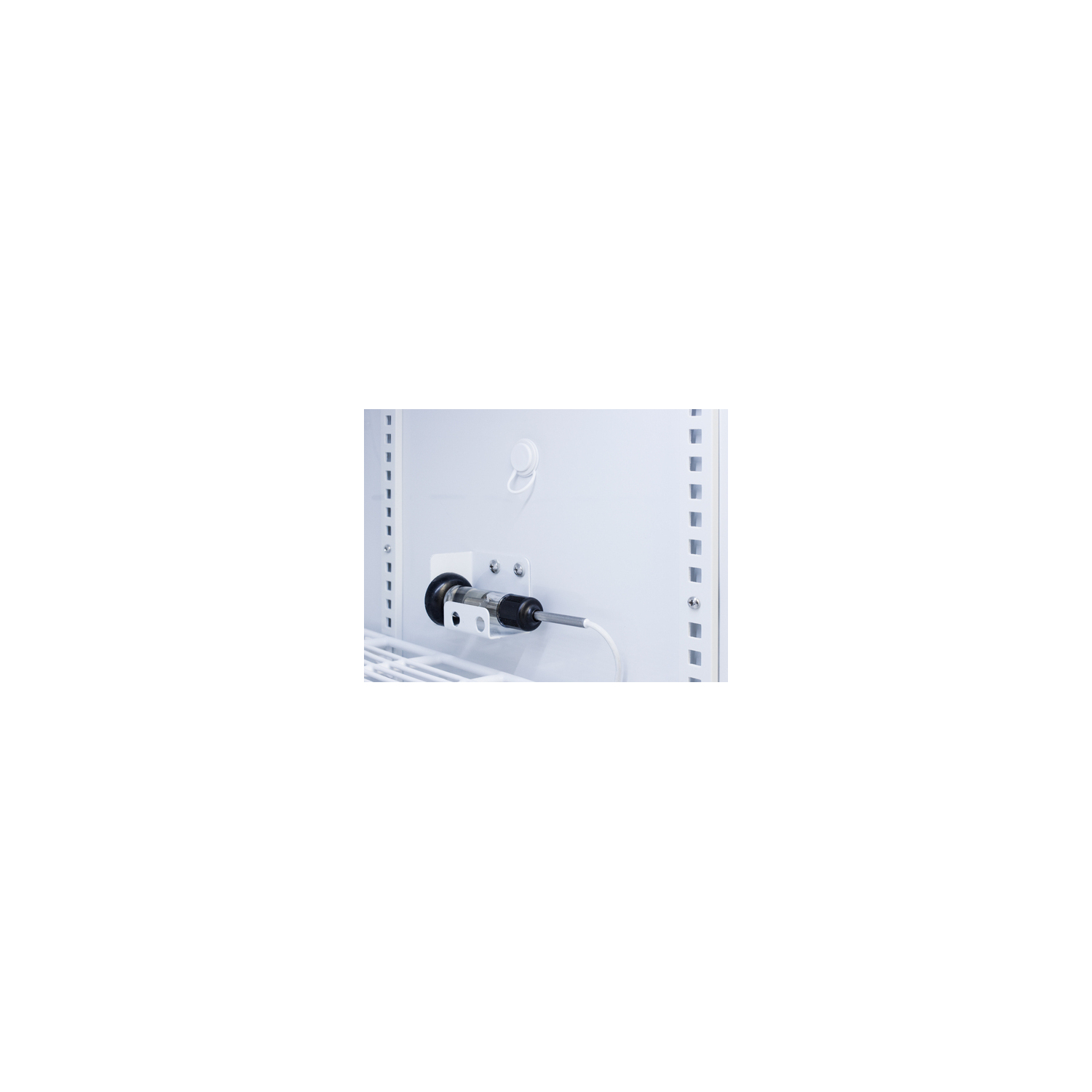

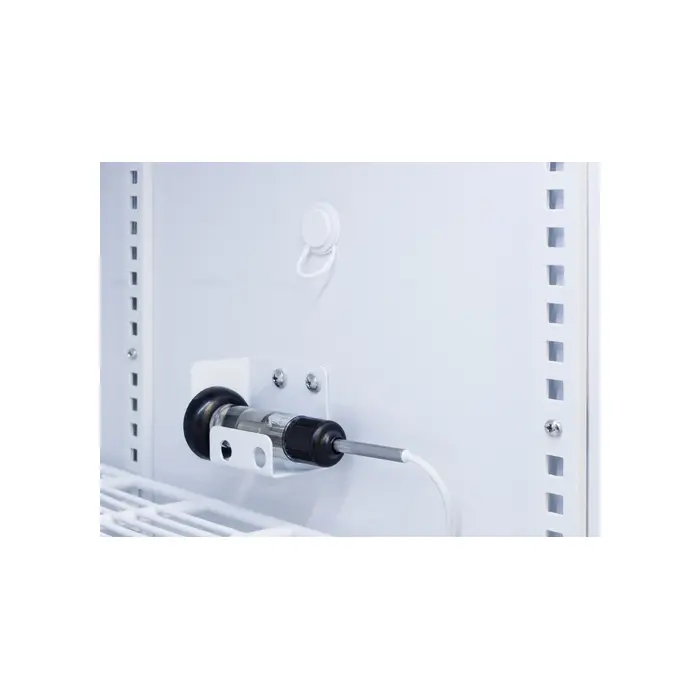

Model ABOD6 is a 6 cu.ft. refrigerated incubator. The adjustable control range allows you to manage the temperature between 4º and 60ºC (39.2 to 140ºF) and comes preset at 20ºC. The microprocessor temperature controller is externally located to minimize door openings, helping to protect stored contents from ambient temperature. The buffered temperature probe is encased in a glycol-filled bottle to better simulate temperature of the stored product, with an additional sensor that reads air temperature to ensure superior temperature control. The current and min/max temperature display is viewable in Celsius or Fahrenheit to the nearest tenth of a degree. The audible and visual temperature alarm sounds if the unit's interior goes out of range. Additional alarms include a power failure alert, door open alarm, and sensor failure alarm. This unit is equipped with remote alarm contacts in the rear and a 1/2" probe port on the right side to accept additional monitoring devices. It comes with a hospital grade cord with a green dot plug for added safety in high traffic laboratory and research areas.

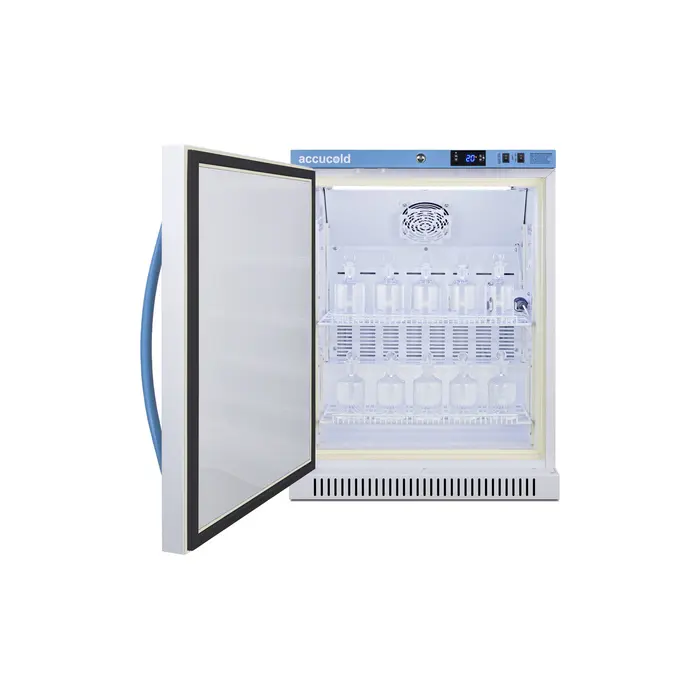

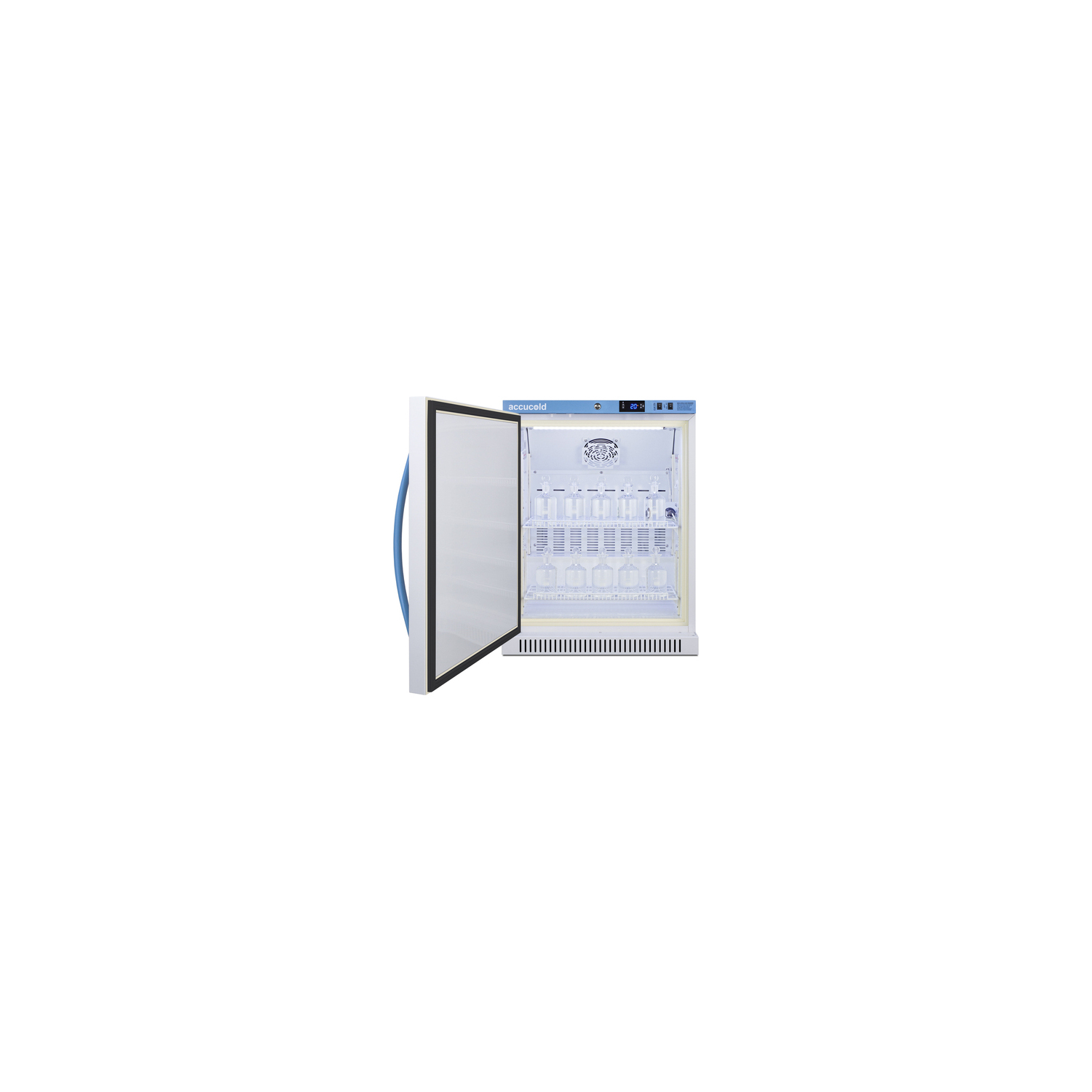

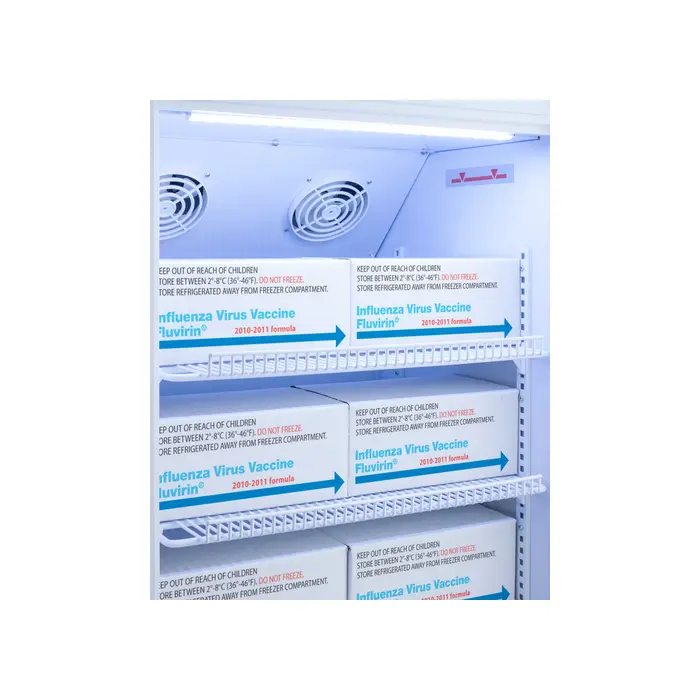

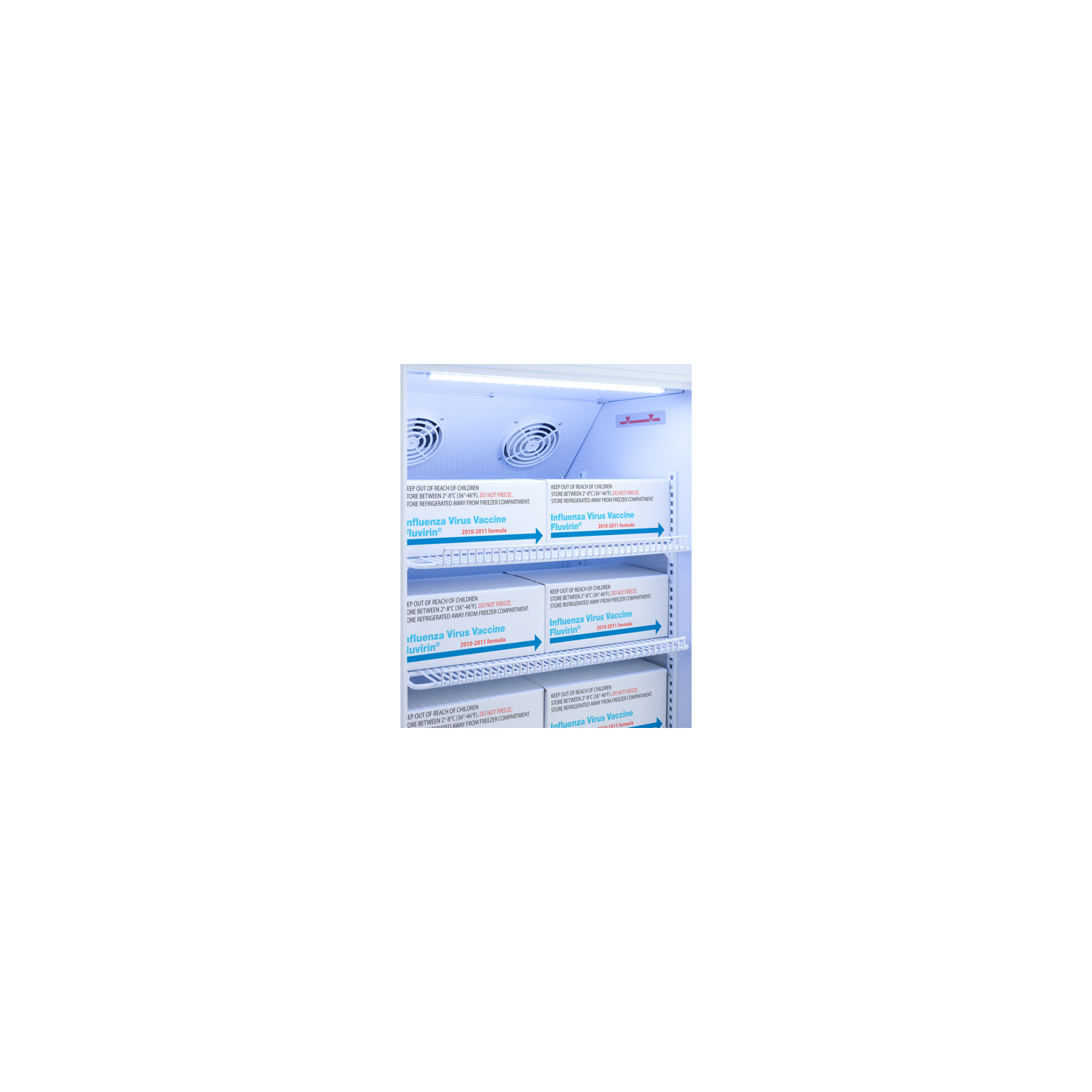

Inside, the ABOD6 utilizes adjustable cycle defrost operation to avoid temperature spikes. Optimized forced air cooling with one internal fan ensures excellent temperature stability and uniformity with rapid recovery after door openings. The adjustable plastic-coated wire shelves can be positioned at 1/2" increments to accommodate virtually any sized bottle. This unit includes LED internal lighting with an on/off rocker switch so you can ensure the interior contents are not unnecessarily exposed to light. The interior is constructed from white powder coated metal to ensure added durability and better temperature retention.

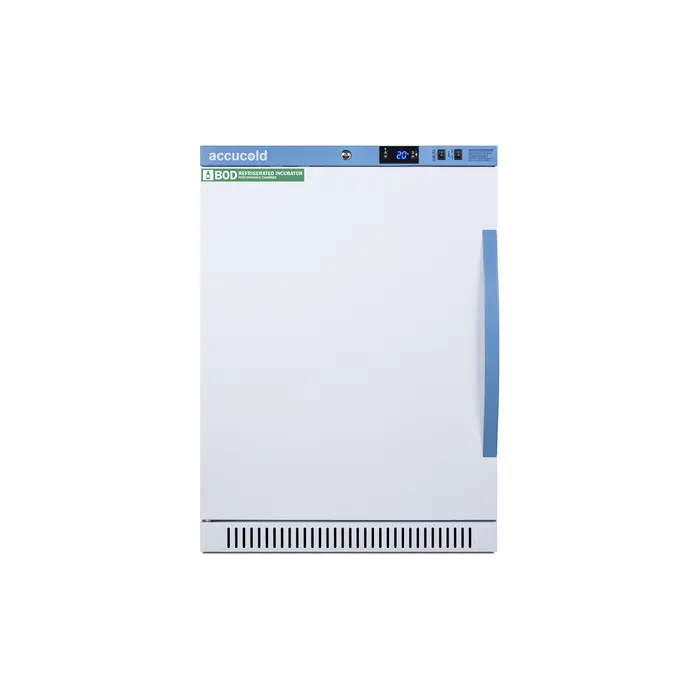

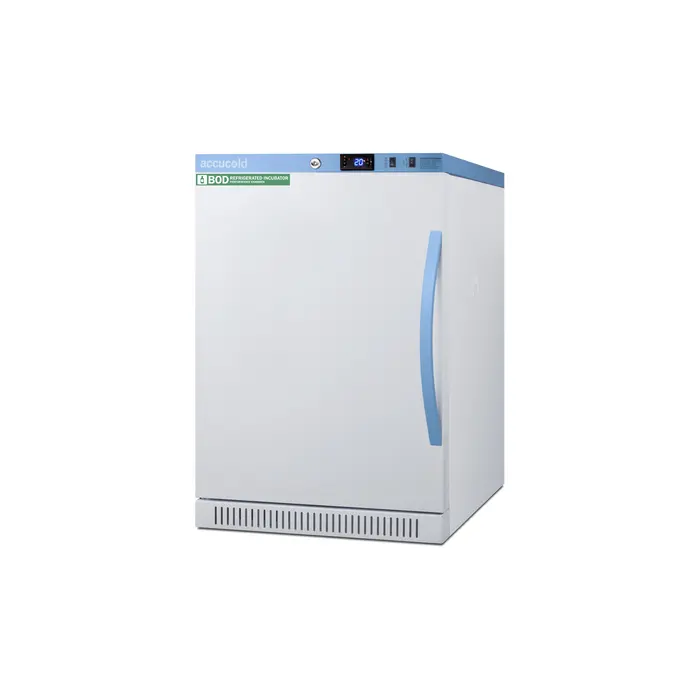

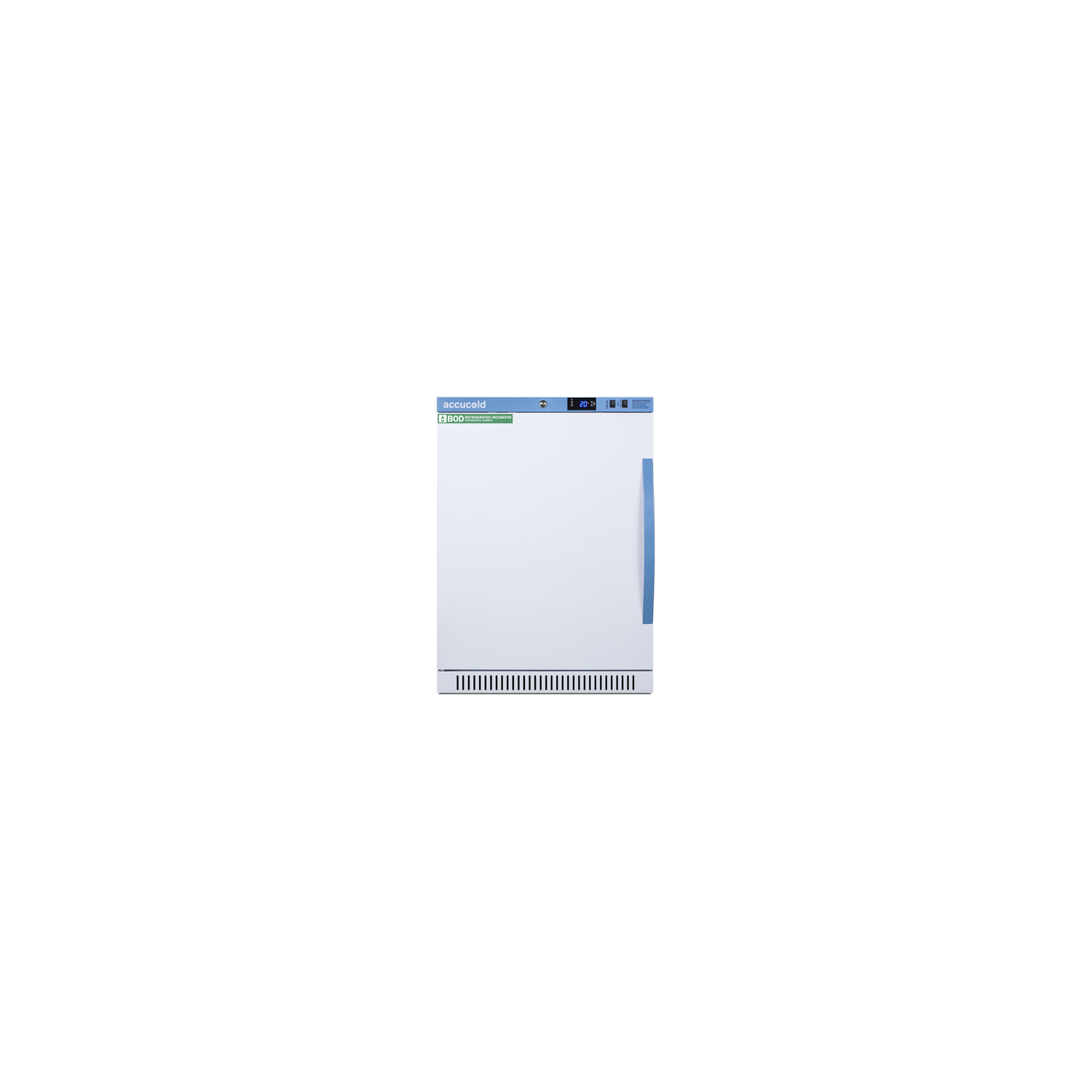

This refrigerated incubator comes in a white cabinet finish with a blue accented control panel. The factory-installed antimicrobial handle is powder-coated with naturally occurring silver ions, which help to reduce the spread of germs, allowing for a safer, cleaner user experience. The user-reversible door ships with a right hand swing and self-closing function. This model includes a factory-installed lock and ships with two keys for staff use. Powerful magnetic gaskets ensure a positive seal.

Designed with hydrocarbon refrigerant, the ABOD6 provides an energy efficient solution to water storage. Additional size are available, as well as upgrades including digital data loggers, keyless entry locks, and more. Browse the complete Accucold lineup at accucold.com.

SPECIFICATIONS

Overview

Nominal Height 33.0" (84 cm)

Height of Cabinet 32.5" (83 cm)

Nominal Width 24.0" (61 cm)

Width 23.38" (59 cm)

Width with Door Open 23.88" (61 cm)

Nominal Depth 25.0" (64 cm)

Depth 24.38" (62 cm)

Depth with Handle 26.13" (66 cm)

Depth with door at 90° 46.5" (118 cm)

Capacity 6.0 cu.ft. (170 L)

Defrost Type Automatic

Door White

Cabinet White

US Electrical Safety ETL

Canadian Electrical Safety ETL-C

Amps 0.75

Voltage/Frequency 115 V AC/60 Hz

Weight 115.0 lbs. (52 kg)

Parts & Labor Warranty 2 Years

Compressor Warranty 5 Years

UPC 761101150949

Refrigerator Features

Door Swing RHD

Reversible Yes

Shelf Type Wire

Shelf Qty 4

Adjustable Shelves Yes

Thermostat Type Digital

Fan Type Interior

Refrigerant Type R600a

Refrigerant Amount 1.66oz.

Interior Light Yes

Temperature Range 4 to 60ºC (39.2 to 140ºF)

Sound Level 40.7 dB

Dimensions

Interior Height 24.5" (62 cm)

Interior Width 20.0" (51 cm)

Interior Depth 17.0" (43 cm)

Compressor Step Height 6.5" (17 cm)

Compressor Step Width 20.0" (51 cm)

Compressor Step Depth 5.0" (13 cm)

FEATURES

BOD Refrigerated/Heated Incubator Designed to store water samples under reliable temperature conditions for optimum research results

Purpose-built design Constructed and featured for the storage of water samples

Pre-set to 20ºC Ideal temperature for bottle incubation

+/-1ºC Variation The published temperature variation is derived from the maximum deviation of an NTC sensor in a 1 oz. vial located nearest the chamber geometric center during a 24 hour test period

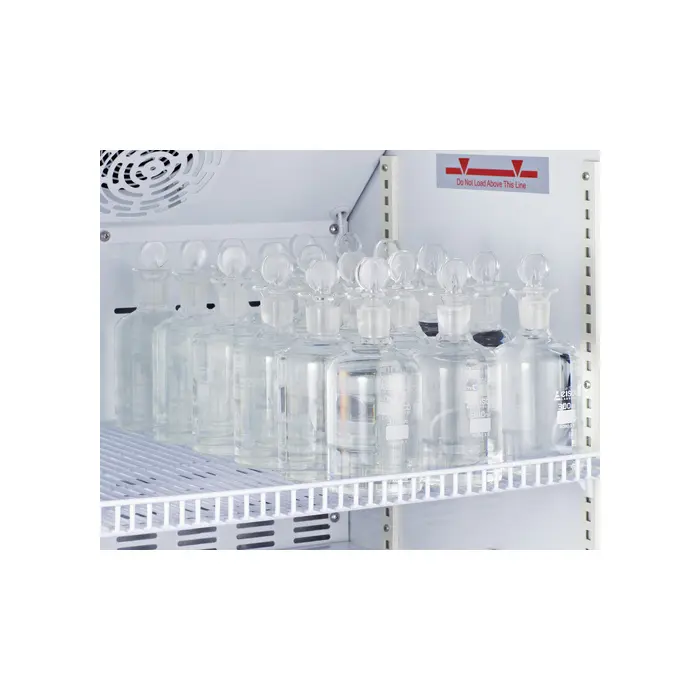

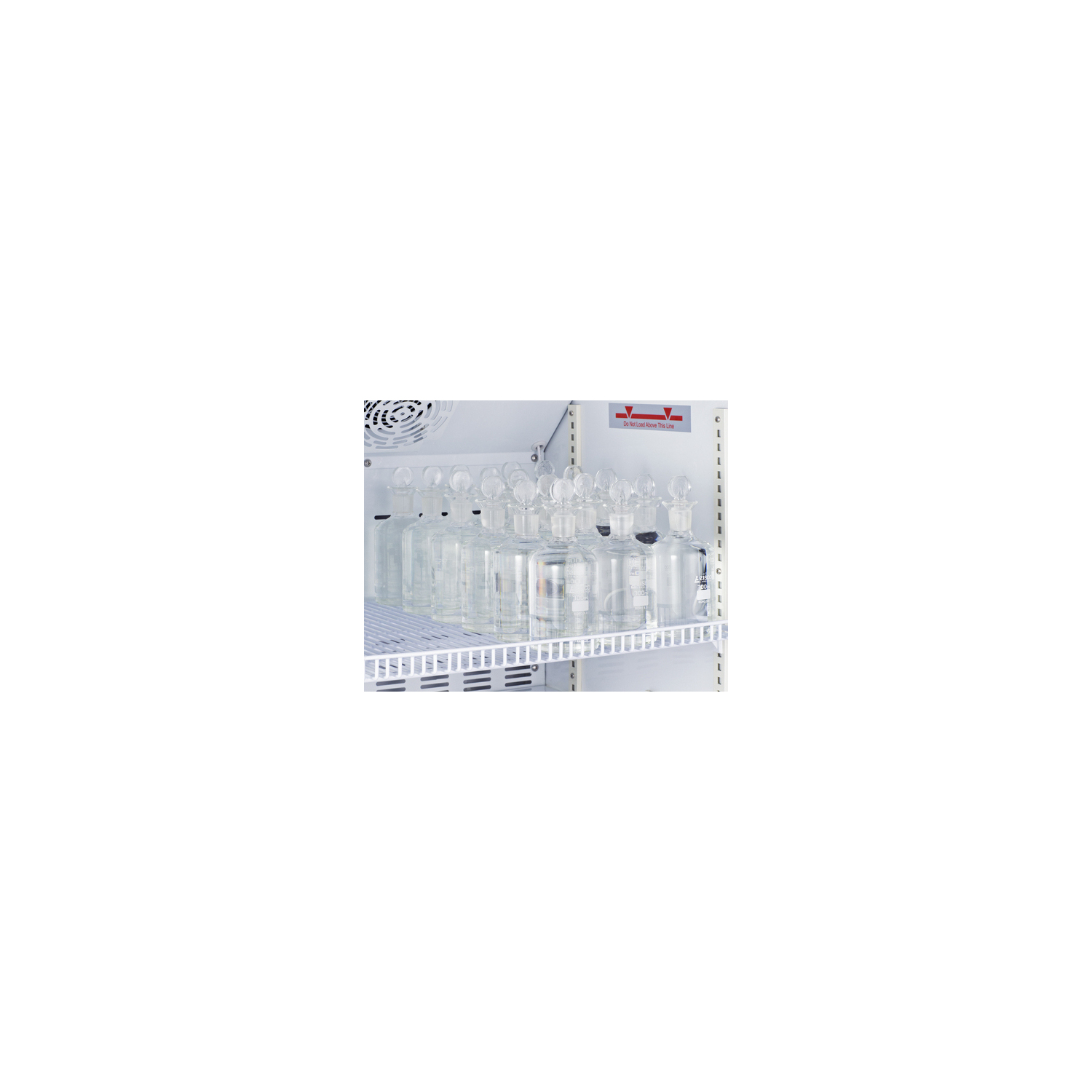

Large capacity 6 cu.ft. interior can hold up to 90 300ml incubator glass bottles (note: bottle capacity varies by exact bottle design and size)

Antimicrobial silver ion-coated handle Powder-coated handle with naturally occurring silver ions to help reduce the spread of germs

Adjustable temperature Intuitive controls let you adjust the interior temperature between +4 to +60ºC

Temperature alarm Visual and audible alarms alert if the interior temperature rises or falls out of set range

Remote alarm contacts Electronic controller is equipped with a volt-free contact for alarm forwarding to an external remote system (contacts located in the external rear of the unit)

Automatic defrost with adjustable cycle defrost Adjustable cycle defrost operation ensures the unit avoid temperature spikes and ice buildup

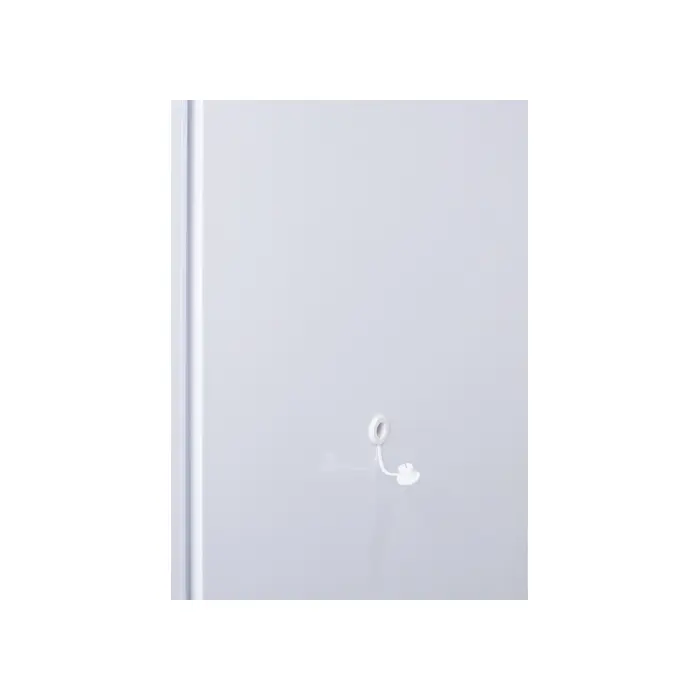

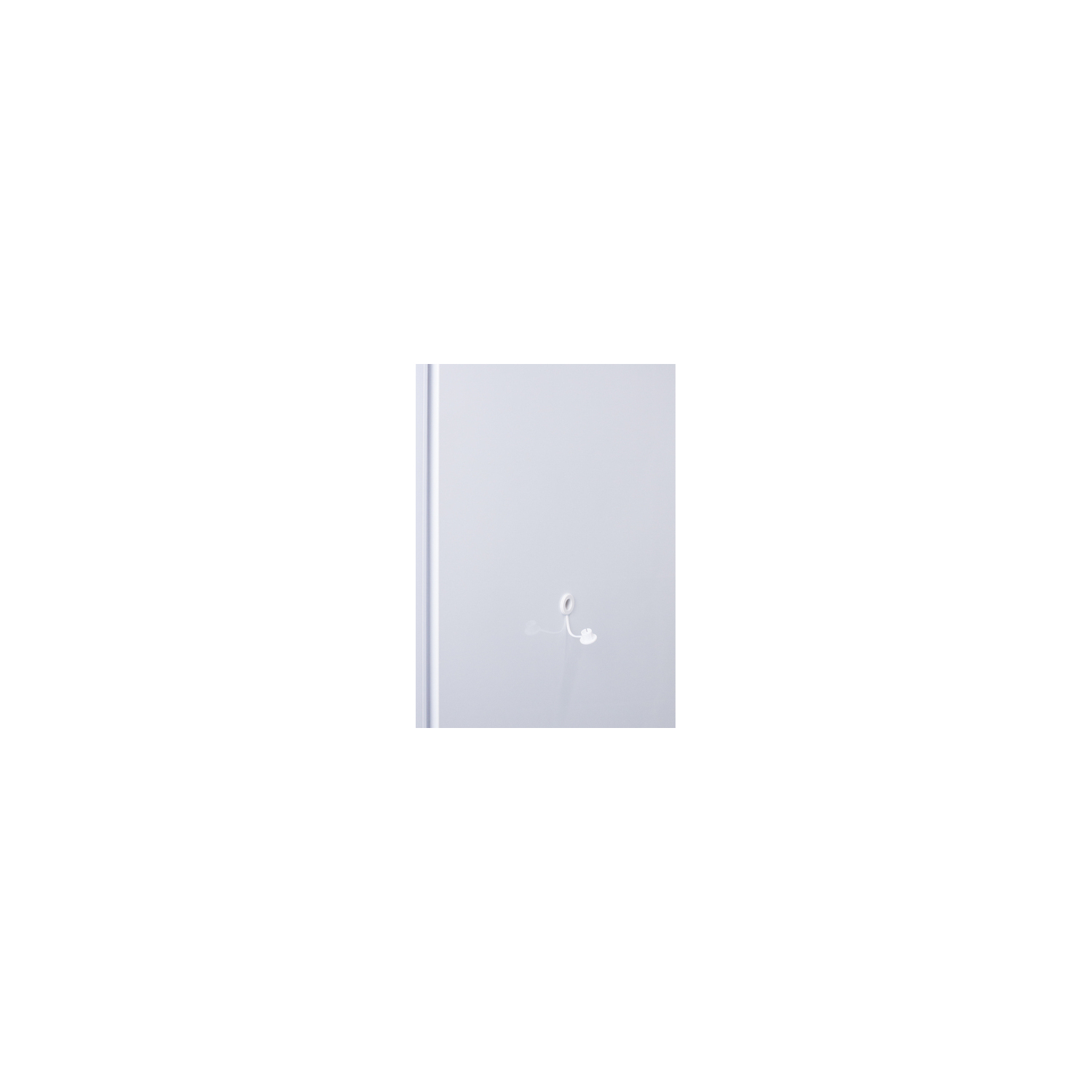

Access port Includes a pre-installed 1/2" probe hole in the right interior wall to allow easier connection to user-provided monitoring equipment

Open door alarm Alarm will sound if the door is left ajar for over 4 minutes (adjustable from 1-99 minutes)

Audible power failure alarm Battery-powered alarm sounds if the power connection is interrupted

Sensor failure alarm Audible and visual alarm warns if the sensor is disrupted

Password protection Control panel requires password entry to adjust the parameters beyond the set point

Microprocessor control panel Digital controls with a large LED readout in Celsius or Fahrenheit for intuitive temperature management

Resettable min/max display Control panel provides a readout of the low and high temperatures in 15 minute increments

Factory-installed lock Keyed lock conveniently located towards the top of the door for added security (2 keys included)

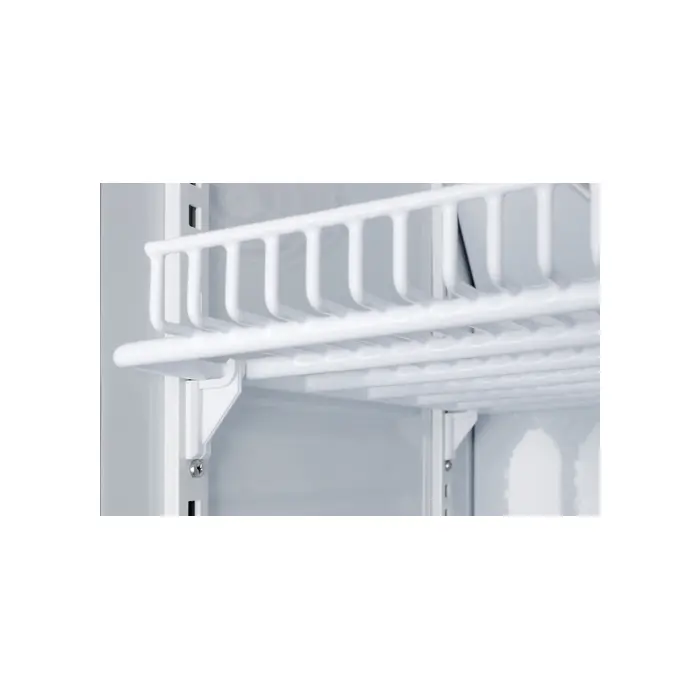

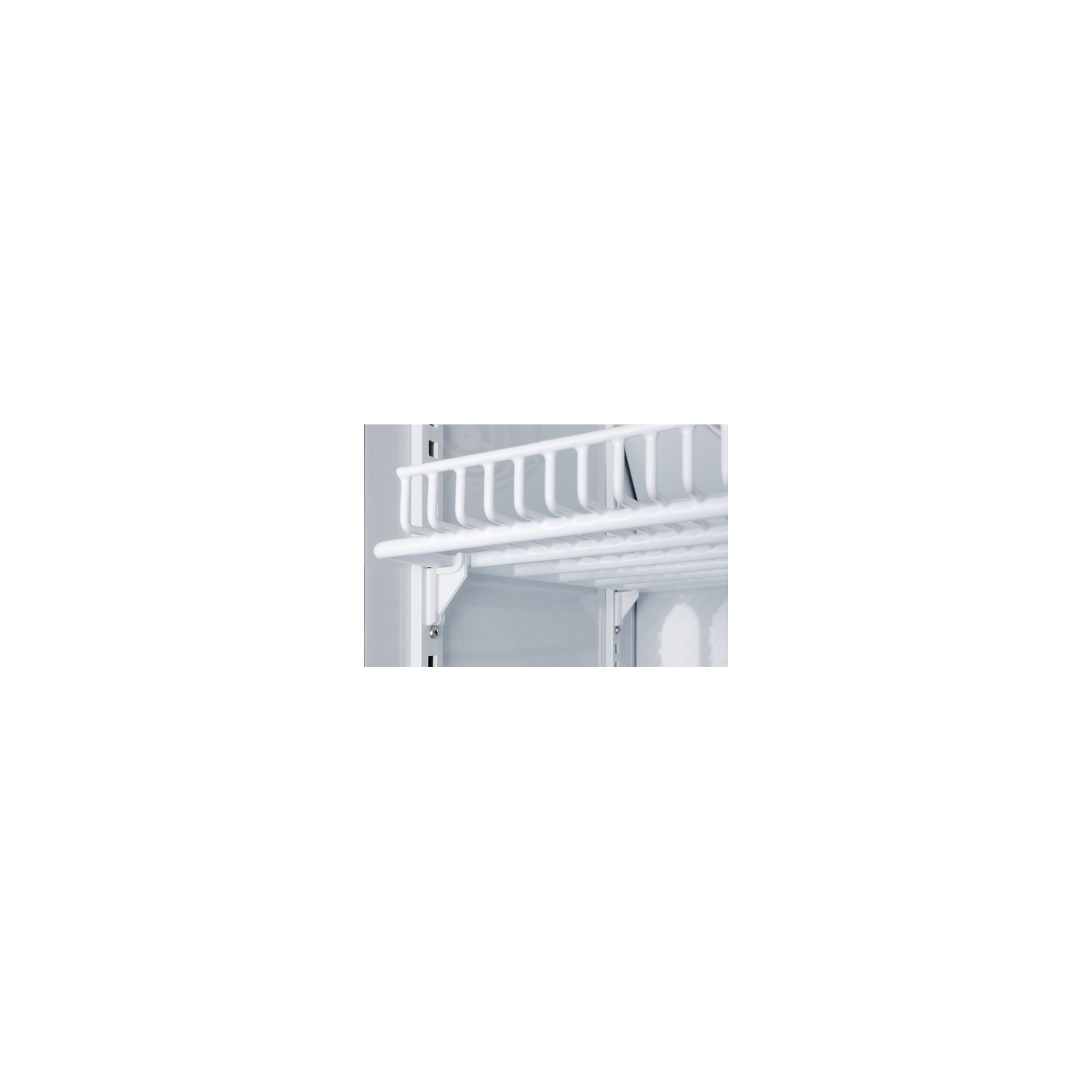

Adjustable plastic-coated wire shelves for improved circulation Shelves can be positioned with a front lip for small storage items or reversed to a flat position to better hold larger items, with multiple shelf positions spaced at 1/2" to accommodate virtually any size

Hospital grade cord with 'green dot' plug Secure three-pronged cord for added unit safety

Durable interior Walls are constructed from white powder coated metal for added strength and improved temperature retention

Interior light Energy efficient LED lighting with internal on/off switch

Self-closing door Added protection in busy settings

Reversible door User-reversible door swing for added flexibility

Magnetic door gasket Quality door gaskets ensure a tight seal for energy savings and improved performance

Extended warranty 2 years parts and labor/5 years compressor

Eco-Friendly Using environmentally friendly hydrocarbons refrigerants for a greener footprint

Usage stickers Ships with removable warning stickers for "DO NOT UNPLUG," "DO NOT ADJUST TEMPERATURE," and "DO NOT STORE PERSONAL ITEMS"

Additional choices Larger sizes available, as well as custom upgrades. Contact the Accucold product team for more information

100% CFC free Environmentally friendly design without ozone-damaging chemicals

CARB Compliant Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
