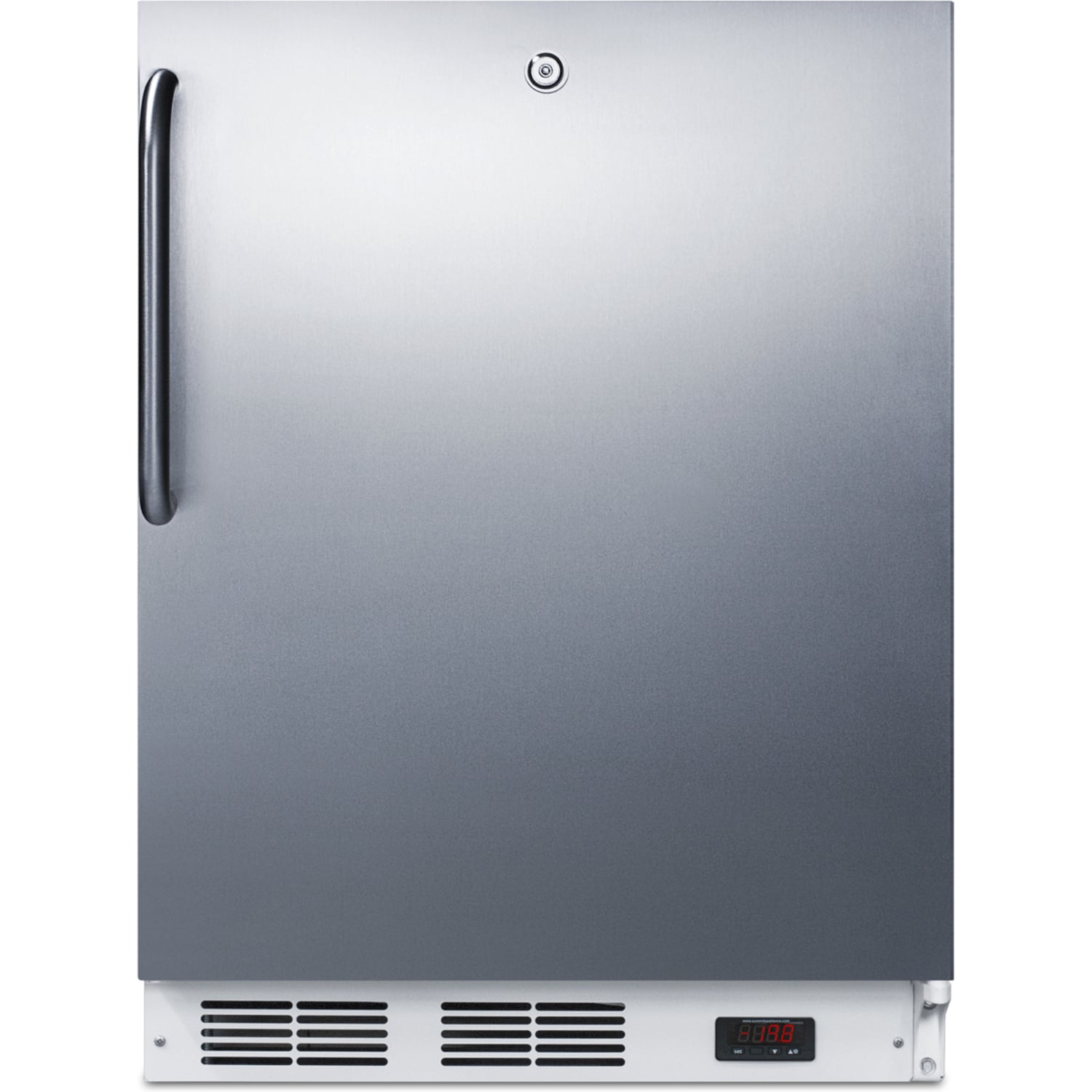

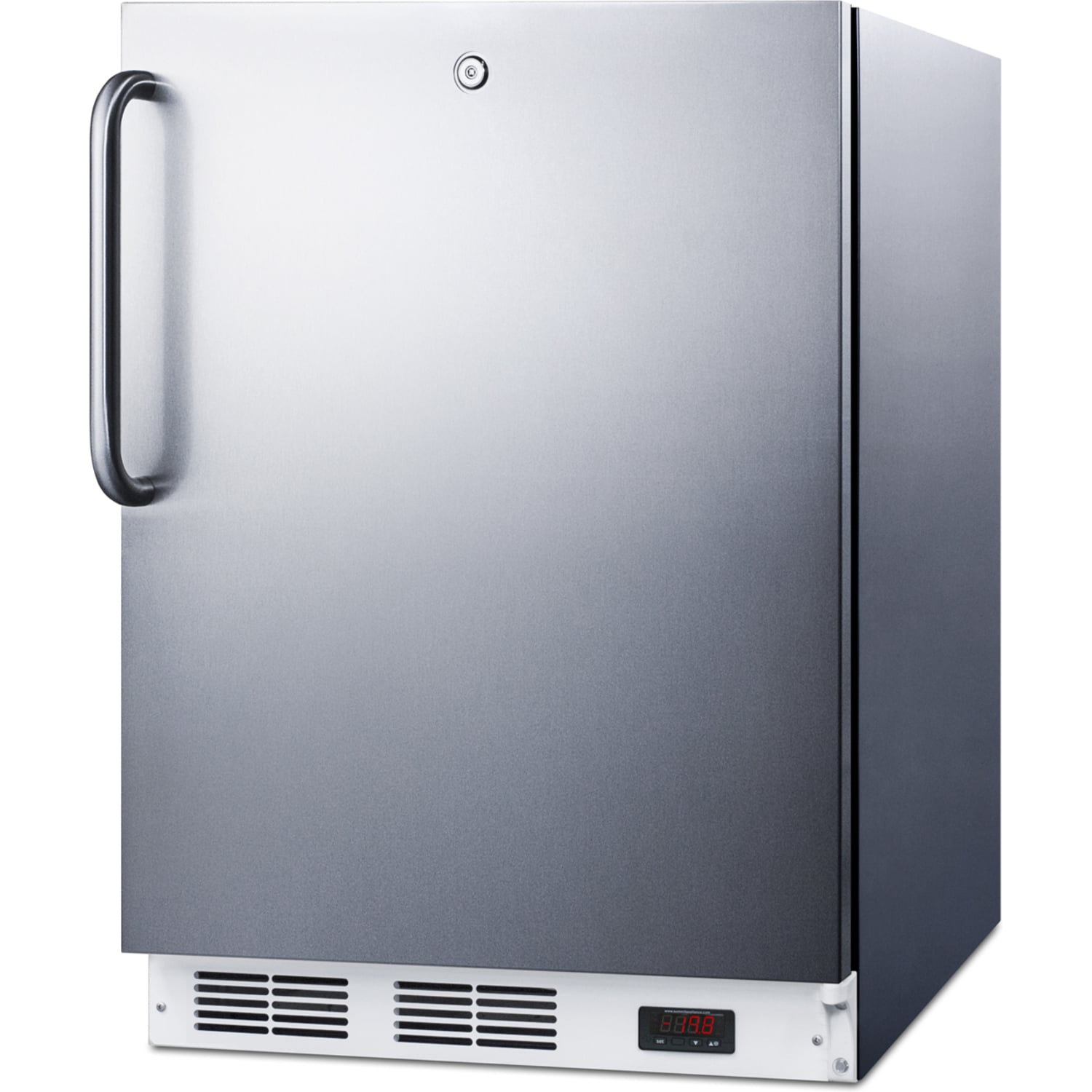

Summit ADA compliant built-in medical all-freezer capable of -25º C operation, with lock, stainless steel door, towel bar handle, and white cabinet, 7.61101e+011, VT65MLCSSADA

Accucold VT65MBIADA medical all-freezers offer low temperature storage in a perfectly sized footprint designed for built-in installation under lower ADA compliant counters.

The 32” high VT65MLCSSADA can be used built-in or freestanding in any 24” space, with low temperature manual defrost operation that can reach -25ºC. The interior includes three slide-out basket drawers for convenient storage that keep items cold when the door is opened. Additional features include an adjustable thermostat and one-piece interior liner for easier cleanup.

This medical unit has a stainless steel wrapped cabinet and door. A curved towel bar style handle in brushed stainless steel completes the look and a factory installed lock offers added security.

NOTE: ALL VT65M FREEZERS ARE DESIGNED FOR MEDICAL OR COMMERCIAL USE ONLY. THESE ARE NOT HOUSEHOLD FREEZERS.

SPECIFICATIONS

Overview

Nominal Height 32.0" (81 cm)

Height of Cabinet 32.0" (81 cm)

Height to Hinge Cap 32.25" (82 cm)

Nominal Width 24.0" (61 cm)

Width 23.63" (60 cm)

Nominal Depth 24.0" (61 cm)

Depth 23.5" (60 cm)

Depth with Handle 25.13" (64 cm)

Depth with door at 90° 46.0" (117 cm)

Capacity 3.5 cu.ft. (99 L)

Defrost Type Manual

Door Stainless Steel

Cabinet Stainless Steel

US Electrical Safety UL

Canadian Electrical Safety ULC

Amps 1.3

Voltage/Frequency 115 V AC/60 Hz

Weight 105.0 lbs. (48 kg)

Parts & Labor Warranty 1 Year

Compressor Warranty 5 Years

UPC 761101043524

Freezer

Door Swing RHD

Reversible Factory Reversible

Height Adjustable 1

Interior Height 24.25" (62 cm)

Interior Width 17.75" (45 cm)

Interior Depth 16.5" (42 cm)

Thermostat Type Digital

Fan Type Exterior

Refrigerant Type R134a

Refrigerant Amount 2.7 oz.

High Side PSI 235.0

Low Side PSI 70.0

Level Legs 4

Interior Drawers Yes

Drawers Qty 3

Compressor Step Height 6.5" (17 cm)

Compressor Step Width 17.5" (44 cm)

Compressor Step Depth 5.5" (14 cm)

Temperature Range -12ºC to -25ºC

FEATURES

Stainless steel wrapped exterior Cabinet and door are wrapped in high quality stainless steel for long-lasting durability

ADA compliant 32" height allows the unit to be installed under lower ADA compliant counters

Slim undercounter dimensions Less than 24 inches wide to fit tight spaces

Built-in capable Make the best use of space by installing your appliance under the counter and flush with other cabinets

Factory installed lock Keep contents secure with a key lock on the door

Professional towel bar handle A curved stainless steel handle provides generous room for a comfortable grip

-25º C capable Low temperature operation is ideal for vaccine, pharmaceuticals, and other temperature sensitive materials

Manual defrost No temperature fluctuations with an energy efficient manual defrost system

No internal fans Static cooling system

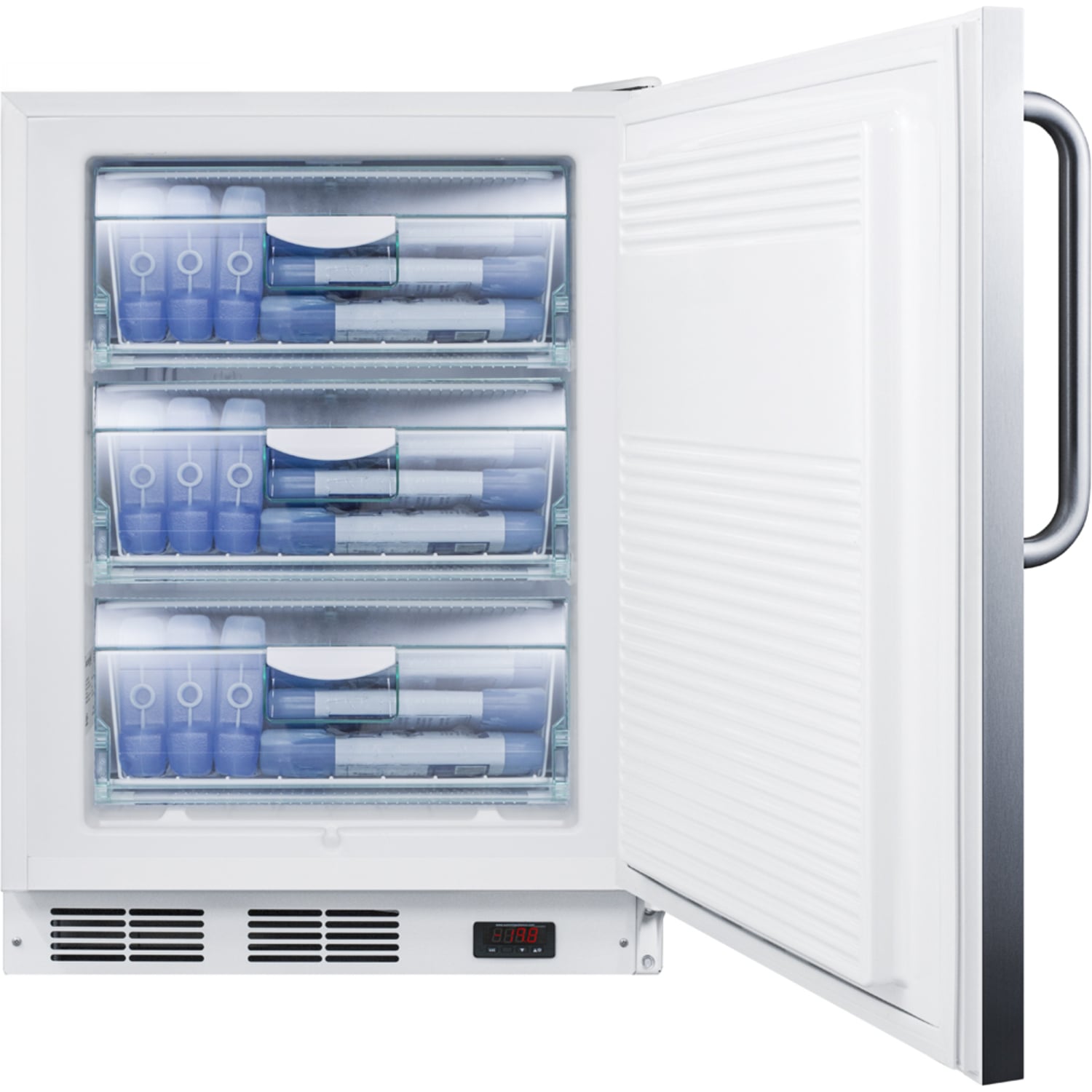

Three removable storage baskets Conveniently organize your items while keeping the temperature stable when the door is opened

Digital thermostat Electronic controls located in the front kickplate for easy and intuitive temperature management

One piece interior liner Enjoy easy clean-up with a seamless liner that won't hold a mess in hidden crevices

100% CFC free Environmentally friendly design without ozone-damaging chemicals
