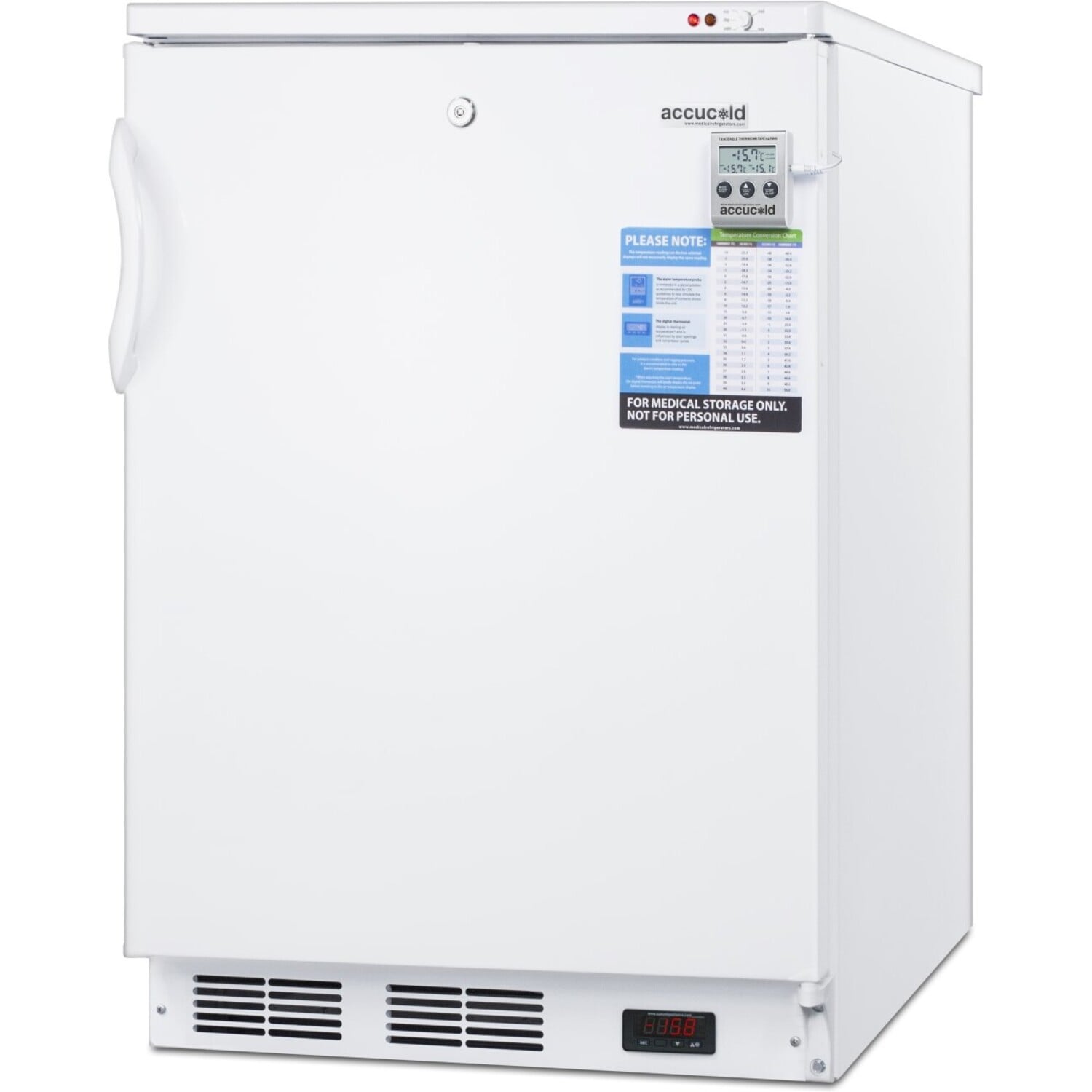

Summit Built-in undercounter vaccine storage all-freezer with digital thermostat, temperature alarm, hospital grade cord, self-closing door, and front lock, 7.61101e+011, VT65MLBIVAC

The Accucold® VAC Series freezers are specially designed to store sensitive medical and pharmaceutical materials under the proper conditions, with innovative construction for temperature stability and user-friendly features for added convenience.

Made in Europe, the VT65MLBIVAC is a front-breathing all-freezer designed for built-in installation under counters, with a fully finished cabinet that also allows freestanding use. The 3.2 cu.ft. interior offers static cooling for stable results. Four slide-out storage baskets with clear plastic fronts ensure that stored items are not exposed unnecessarily to room temperature. This unit has a flat door liner as recommended by the CDC.

For optimum temperature assurance, the VT65MLBIVAC includes a digital thermostat and a high/low temperature alarm with a NIST calibrated temperature display to the nearest tenth of a degree. A hospital grade cord includes a 'green dot' plug for added safety in high traffic settings, while the self-closing door ensures stored items aren't accidentally exposed to room temperature. This model comes in a white finish and includes a factory installed lock. A pre-installed probe hole/access port allows users to install additional monitoring equipment.

The VT65MLBIVAC can be paired with the FF7LBIVAC all-refrigerator for a matching set. For this unit in a 32" ADA compliant height, see the VT65MLBIVACADA. All models can be ordered with more advanced medical features, including a power-out alarm, temperature logger, and more.

NOTE: Accucold freezers are purpose-built to the support meeting the current CDC (Centers for Disease Control) guidelines for the storage of vaccines. As referenced in the current Vaccine Storage and Handling Toolkit, these units incorporate several key features for stable operation. For additional temperature assurance, the CDC recommends a calibrated digital data logger (DDL), which can be added with the factory-installed option DL2B or addition of the DL2BKit accessory. Select Accucold products have been tested and certified to the new NSF 456 standard, and are now available for purchase. For additional information, contact our products specialists. Nominal Height: 34
Height of Cabinet: 33.5
Height to Hinge Cap: 0
Nominal Width: 24
Width: 23.63
Width with Door Open: 0
Nominal Depth: 24
Depth: 23.63
Depth with Handle: 25.13
Depth with door at 90°: 46.13
Capacity: 3.2
Bottles: 0Defrost Type: ManualDoor: WhiteCabinet: WhiteUS Electrical Safety: ULCanadian Electrical Safety: ULCSanitation: N/AVoltage/Frequency: N/AParts & Labor Warranty: 2 YearsCompressor Warranty: 5 Years

SPECIFICATIONS

Overview

Nominal Height 34.0" (86 cm)

Height of Cabinet 33.5" (85 cm)

Nominal Width 24.0" (61 cm)

Width 23.63" (60 cm)

Nominal Depth 24.0" (61 cm)

Depth 23.63" (60 cm)

Depth with Handle 25.13" (64 cm)

Depth with door at 90° 46.13" (117 cm)

Capacity 3.2 cu.ft. (91 L)

Defrost Type Manual

Door White

Cabinet White

US Electrical Safety UL

Canadian Electrical Safety ULC

Amps 1.3

Weight 105.0 lbs. (48 kg)

Parts & Labor Warranty 2 Years

Compressor Warranty 5 Years

UPC 761101043500

Freezer

Door Swing RHD

Reversible Factory Reversible

Height Adjustable 1

Interior Height 24.25" (62 cm)

Interior Width 17.75" (45 cm)

Interior Depth 16.5" (42 cm)

Thermostat Type Digital

Fan Type Exterior

Refrigerant Type R134a

Refrigerant Amount 2.7 oz.

High Side PSI 235.0

Low Side PSI 70.0

Level Legs 4

Interior Drawers Yes

Drawers Qty 3

Compressor Step Height 6.0" (15 cm)

Compressor Step Width 17.75" (45 cm)

Compressor Step Depth 6.0" (15 cm)

Temperature Range -12ºC to -25ºC

FEATURES

Slim undercounter dimensions 24" footprint is ideal for use under the counter

Built-in capable Front-breathing design allows built-in installation under counters

-25º C/-13º F capable Low temperature operation ideal for vaccines, pharmaceuticals, and other sensitive materials

Digital thermostat Electronic controls for more precise temperature management, with temperature readout and controls externally located for added convenience

High/low temperature alarm Audible alarm sounds if the interior temperature rises or falls out of set range

NIST calibrated temperature display Alarm includes NIST calibrated display of the current interior and high/low temperature to the nearest tenth of a degree

Self-closing door Door closes automatically when opened at angles less than 90º

3/8" access port Unit comes with a factory installed probe hole for users to connect their own monitoring equipment

Hospital grade cord and plug Secure three-pronged cord for added unit safety

Factory installed lock Keyed lock offers added security

Manual defrost Static cooling system for reduced temperature fluctuations

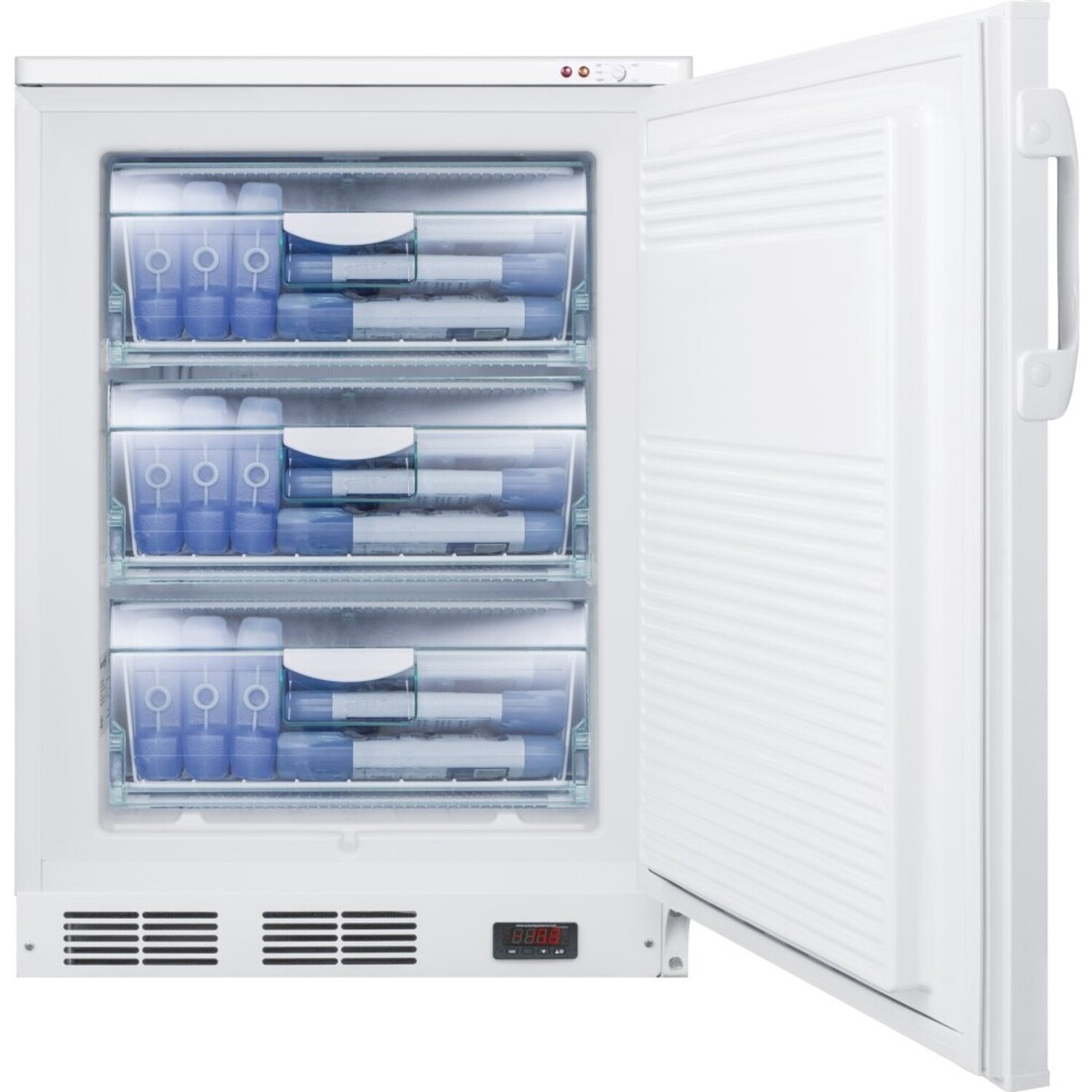

Three slide-out drawers Slide-out wire baskets with plastic fronts offer convenient storage solutions while protecting stored items when the door is open

Flat door liner Interior design conforms to CDC guidelines to ensure stable conditions for sensitive materials

Fully finished white cabinet Allows the unit to be used freestanding

Height Adjustable Adjustable legs allow the unit to be sized from 33 1/2" to 34 3/4" high

Factory reversible door Standard unit ships RHD but can be ordered LHD

100% CFC free Environmentally friendly design without ozone-damaging chemicals
