Summit Built-in undercounter ADA compliant medical/scientific -25ºC capable all-freezer with front control panel equipped with a digital thermostat and NIST calibrated thermometer/alarm, 7.61101e+011, VT65MLBIMED2ADA

Accucold's MED2 series puts the most commonly requested features into a quality line of all-refrigerators and freezers specially designed to store vaccines and other sensitive materials in medical, scientific, pharmaceutical, and laboratory institutions.

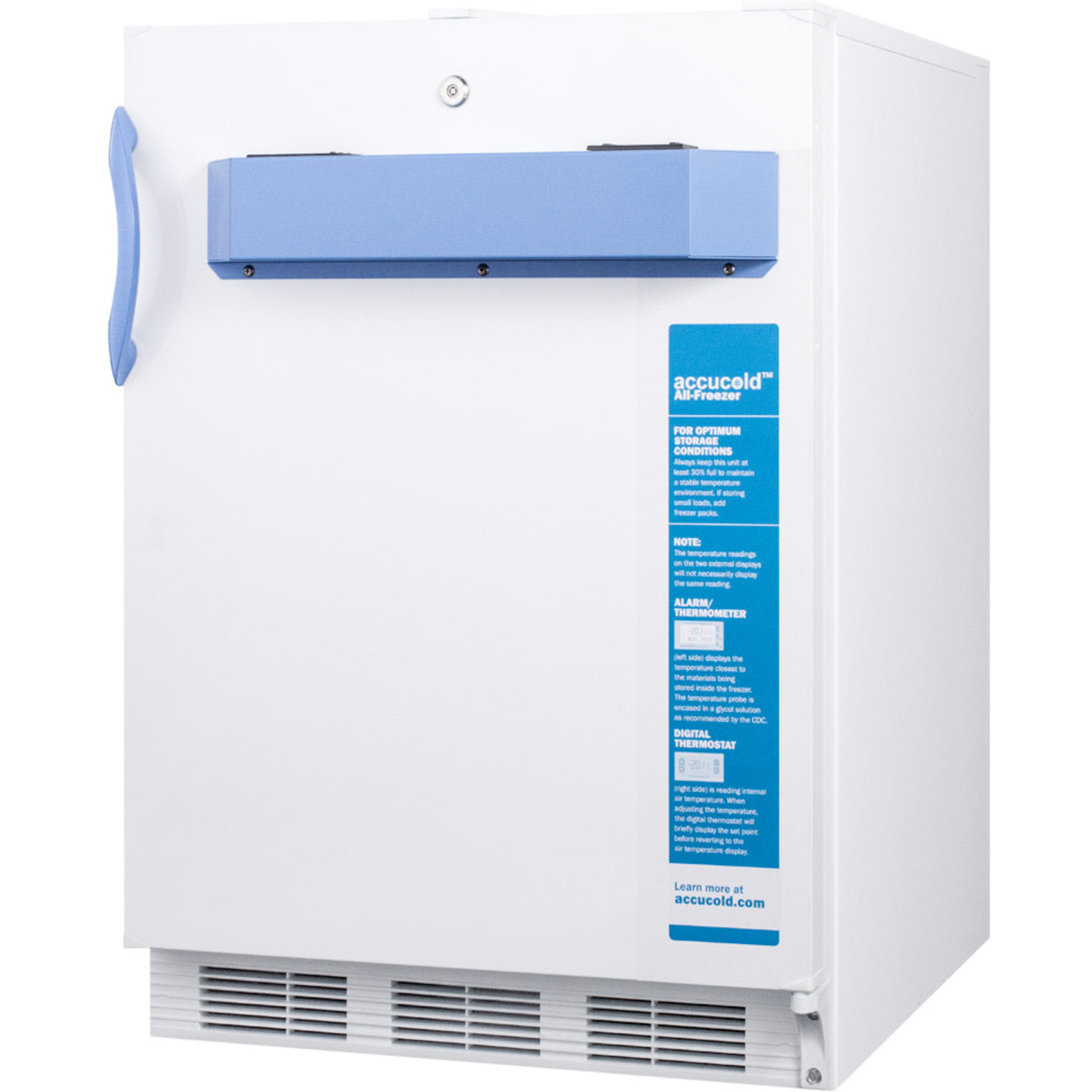

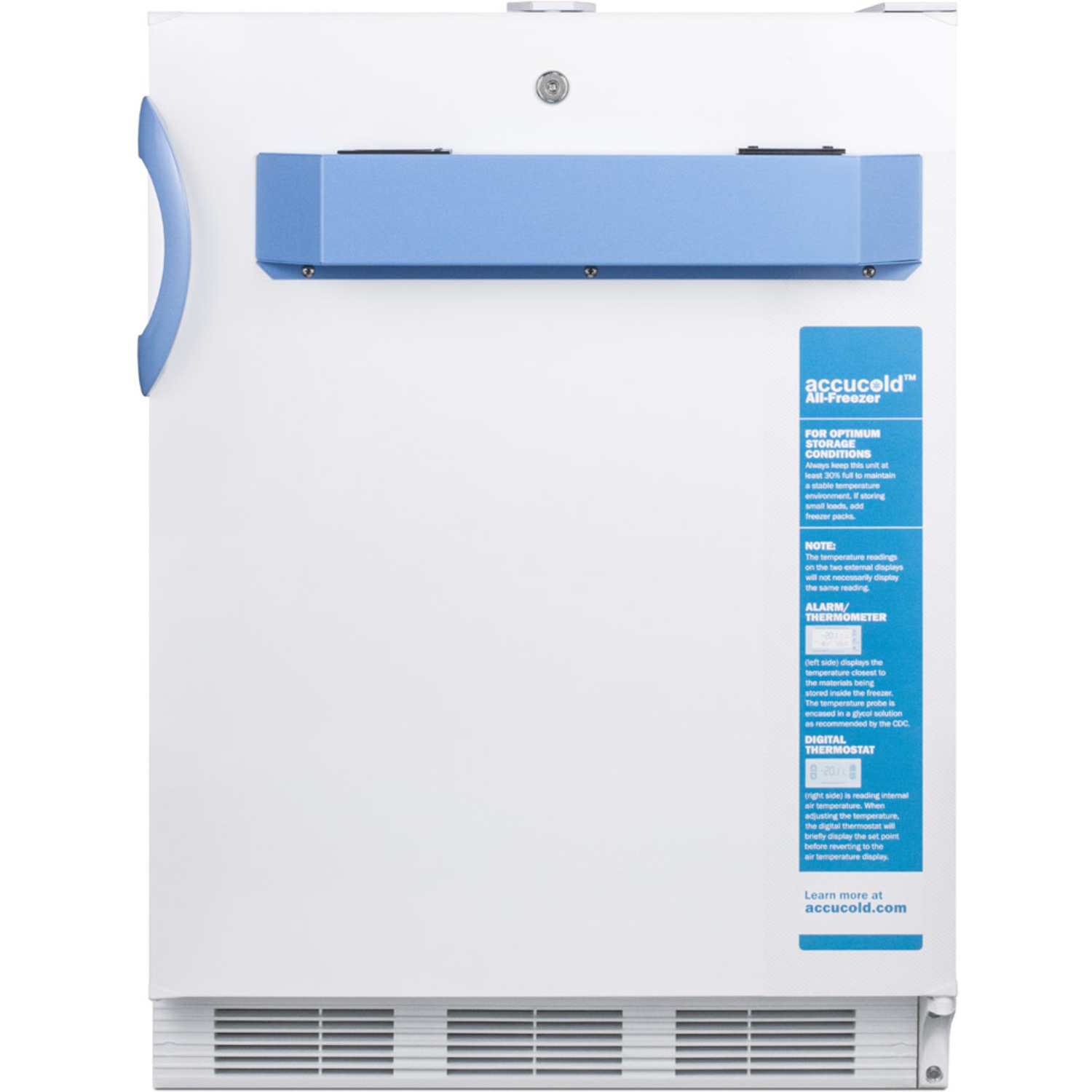

The VT65MLBIMED2ADA is an all-freezer sized in a convenient 24" footprint and 32" height. The front breathing design allows built-in installation under lower ADA compliant counters, while the fully finished cabinet in white also enables freestanding use. This unit is designed with an external front control panel that allows users to adjust and monitor the temperature without opening the door or bending down to the floor. The front keyed lock is located towards the top of the door for added convenience. A hospital grade 'green dot' cord offers added safety in high traffic environments.

As recommended by the CDC, VFC and VFA programs, the VT65MLBIMED2ADA is equipped with a NIST calibrated thermometer that displays the current, minimum, and maximum temperatures to the nearest tenth of a degree with a readout viewable in Celsius or Fahrenheit. Each VT65MLBIMED2ADA ships with a certificate of calibration for your records. The thermometer includes an audible alarm to warn users if the interior has gone out of the programmed temperature range. The buffered temperature probe is encased in a glycol-filled bottle to best simulate the temperature of other stored contents, resulting in the utmost accuracy for temperature reporting. We include a pre-installed 3/8" probe hole for users who wish to install additional monitoring equipment.

The VT65MLBIMED2ADA features a 3.2 cu.ft. interior capacity and extra thick walls for reliable insulation. Slide-out baskets with clear plastic fronts allow users to view stored contents without exposing them to room temperature every time the door is opened. This low temperature freezer is designed to operate between -12ºC to -25ºC, an ideal temperature for certain vaccines, samples, and other sensitive medical materials. It has a flat door liner as recommended by the CDC.

All MED2 series units are assembled in the USA from domestic and imported components. The VT65MLBIMED2ADA can be paired with a matching all-refrigerator (FF7LBIMED2ADA). This unit can also be customized with additional features, including a self-closing door or USB temperature logger with a digital display. Contact our product specialists to learn more. Products in the MED2 series come with a two year warranty on parts and labor and a five year warranty on the compressor.

*NOTE: This unit's thermostat is pre-set for Celsius. If you prefer Fahrenheit, add complimentary option DTMEDF or let your sales representative know upon order.

NOTE: Accucold freezers are purpose-built to the support meeting the current CDC (Centers for Disease Control) guidelines for the storage of vaccines. As referenced in the current Vaccine Storage and Handling Toolkit, these units incorporate several key features for stable operation. For additional temperature assurance, the CDC recommends a calibrated digital data logger (DDL), which can be added with the factory-installed option DL2B or addition of the DL2BKit accessory. Select Accucold products have been tested and certified to the new NSF 456 standard, and are now available for purchase. For additional information, contact our products specialists.

Nominal Height: 32
Height of Cabinet: 32
Height to Hinge Cap: 32.38
Nominal Width: 24
Width: 23.63
Width with Door Open: 0
Nominal Depth: 24
Depth: 23.63
Depth with Handle: 25
Depth with door at 90°: 45.75
Capacity: 3.2
Bottles: 0Defrost Type: ManualDoor: WhiteCabinet: WhiteUS Electrical Safety: ETLCanadian Electrical Safety: ETL-CSanitation: N/AVoltage/Frequency: 115 V AC/60 HzParts & Labor Warranty: 2 YearsCompressor Warranty: 5 Years

SPECIFICATIONS

Overview

Nominal Height 32.0" (81 cm)

Height of Cabinet 32.0" (81 cm)

Height to Hinge Cap 32.38" (82 cm)

Nominal Width 24.0" (61 cm)

Width 23.63" (60 cm)

Nominal Depth 24.0" (61 cm)

Depth 23.63" (60 cm)

Depth with Handle 25.0" (64 cm)

Depth with door at 90° 45.75" (116 cm)

Capacity 3.2 cu.ft. (91 L)

Defrost Type Manual

Door White

Cabinet White

US Electrical Safety ETL

Canadian Electrical Safety ETL-C

Amps 1.3

Voltage/Frequency 115 V AC/60 Hz

Weight 105.0 lbs. (48 kg)

Parts & Labor Warranty 2 Years

Compressor Warranty 5 Years

UPC 761101056548

Freezer

Door Swing RHD

Reversible Factory Reversible

Interior Height 24.25" (62 cm)

Interior Width 17.75" (45 cm)

Interior Depth 16.5" (42 cm)

Thermostat Type Digital

Fan Type Exterior

Refrigerant Type R134a

Refrigerant Amount 2.76 oz.

High Side PSI 235.0

Low Side PSI 88.0

Level Legs 4

Interior Drawers Yes

Drawers Qty 3

Compressor Step Height 6.0" (15 cm)

Compressor Step Width 17.75" (45 cm)

Compressor Step Depth 6.0" (15 cm)

Temperature Range -12ºC to -25ºC

FEATURES

Reliable temperature stability Designed and engineered to store vaccines and other sensitive materials under stable temperature conditions

ADA compliant design 32" height allows installation under lower ADA compliant counters

Built-in capable Front-breathing design allows built-in installation under counters

-25º C/-13º F capable Low temperature operation ideal for vaccines, pharmaceuticals, and other sensitive materials

Digital thermostat Electronic controls for more precise temperature management, with temperature readout and controls externally located for added convenience

High/low temperature alarm Audible alarm sounds if the interior temperature rises or falls out of set range

NIST calibrated temperature display Alarm includes continuous NIST calibrated display of the current interior and high/low temperature, and can be switched from Celsius to Fahrenheit at the touch of a button

Buffered temperature probe Thermometer probe is encased in a glycol-filled bottle to maintain temperature readings closest to stored contents, as recommended by the CDC, VFC and VFA's guidelines

Factory installed lock Keyed lock conveniently located towards the top of the door for added security (2 keys included)

Manual defrost Static cooling system for reduced temperature fluctuations

Hospital grade cord and plug Secure three-pronged cord for added unit safety

3/8" access port Unit comes with a factory installed probe hole for users to connect their own monitoring equipment

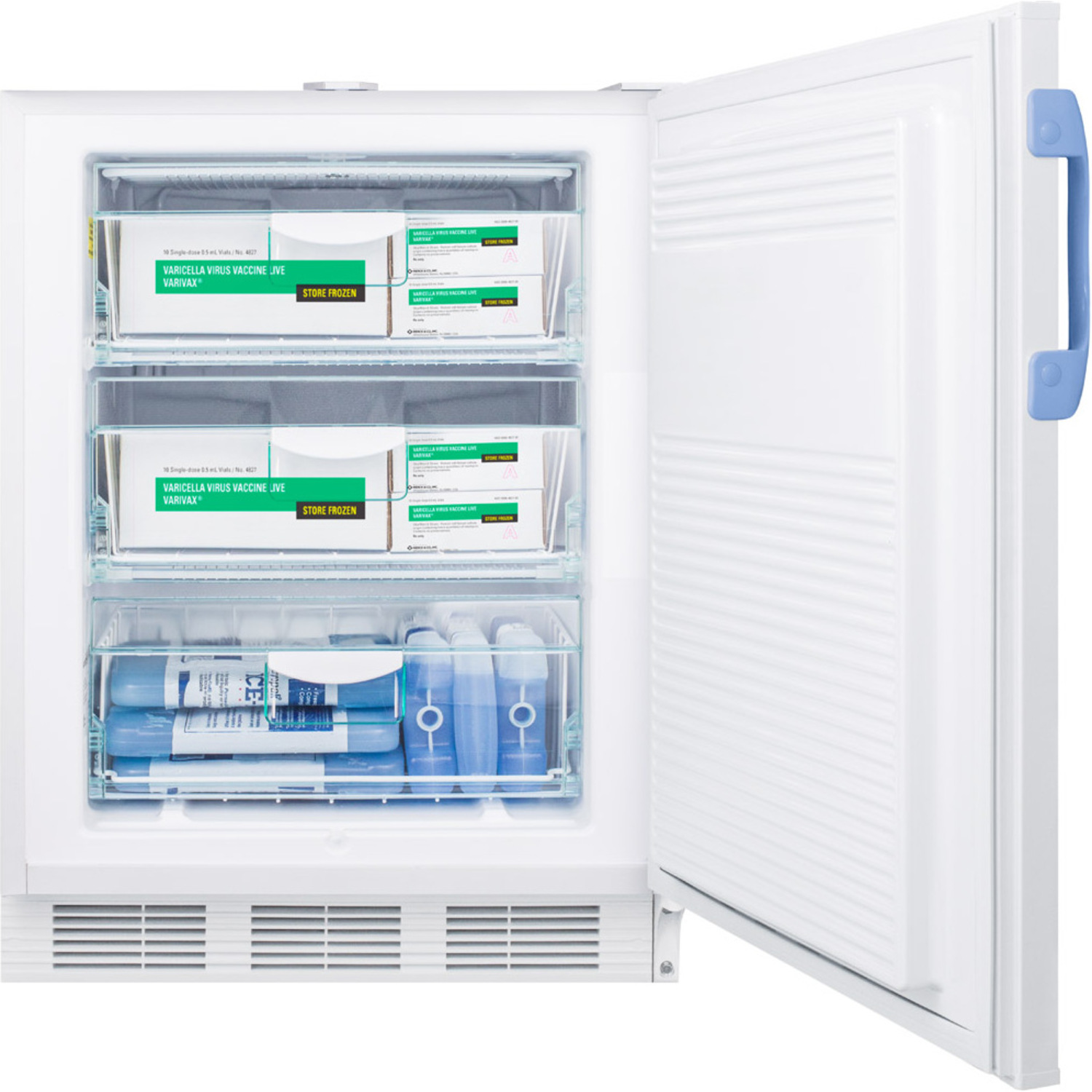

Three slide-out drawers Slide-out wire baskets with plastic fronts offer convenient storage solutions while protecting stored items when the door is open

Flat door liner Interior design conforms to CDC guidelines to ensure stable conditions for sensitive materials

Fully finished white cabinet Allows the unit to be used freestanding

Foamed-in-place cabinet Quality design ensures efficiently insulated interior

Magnetic door gasket Quality door gaskets ensure a tight seal for energy savings and improved performance

Matching refrigerator available Pair with the FF7LBIMED2 to create a complete set

Factory reversible door Standard unit ships with a right hand door swing. For a left hand door swing, add option LHD upon order (due to its construction, this door is not reversible in the field)

Extended warranty This unit comes with a two-year limited warranty on parts & labor and five-year warranty on the compressor

Approved for use in the USA and Canada ETL and ETL-C listed for North American sales

100% CFC free Environmentally friendly design without ozone-damaging chemicals
