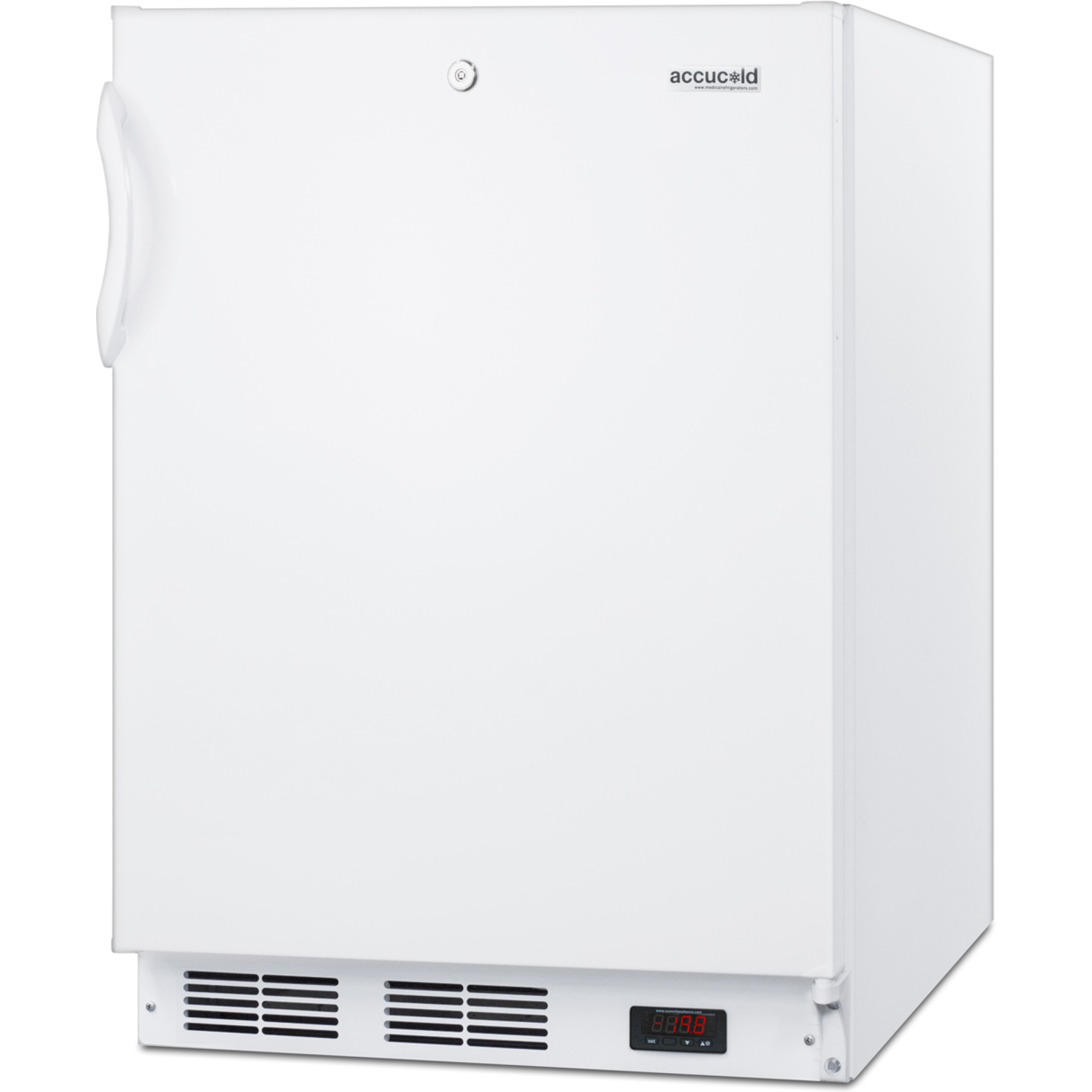

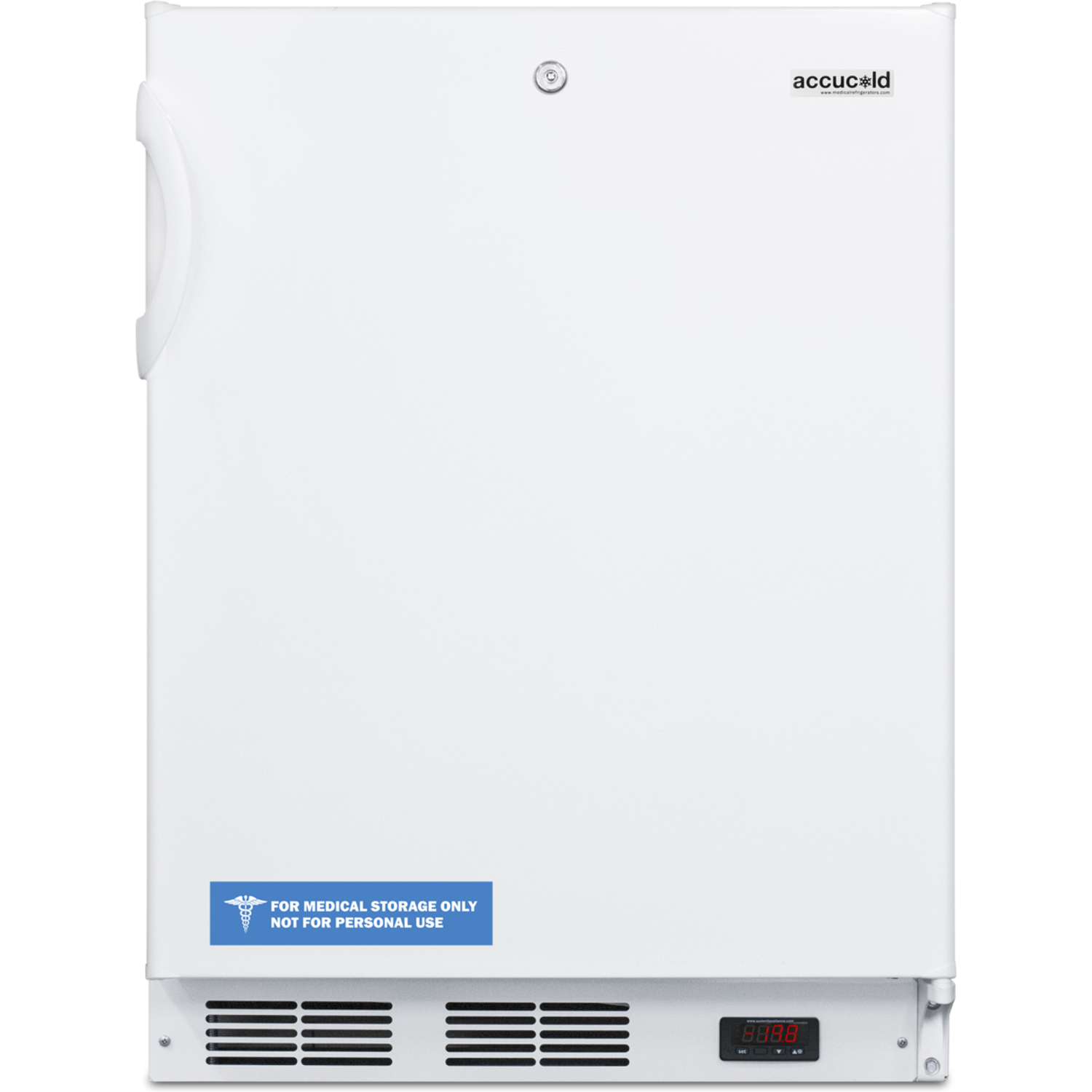

Summit ADA compliant built-in undercounter medical all-freezer capable of -25º C operation, white with front lock, 7.61101e+011, VT65MLBIADA

Accucold VT65MBIADA medical all-freezers offer low temperature storage in a perfectly sized footprint designed for built-in installation under lower ADA compliant counters.

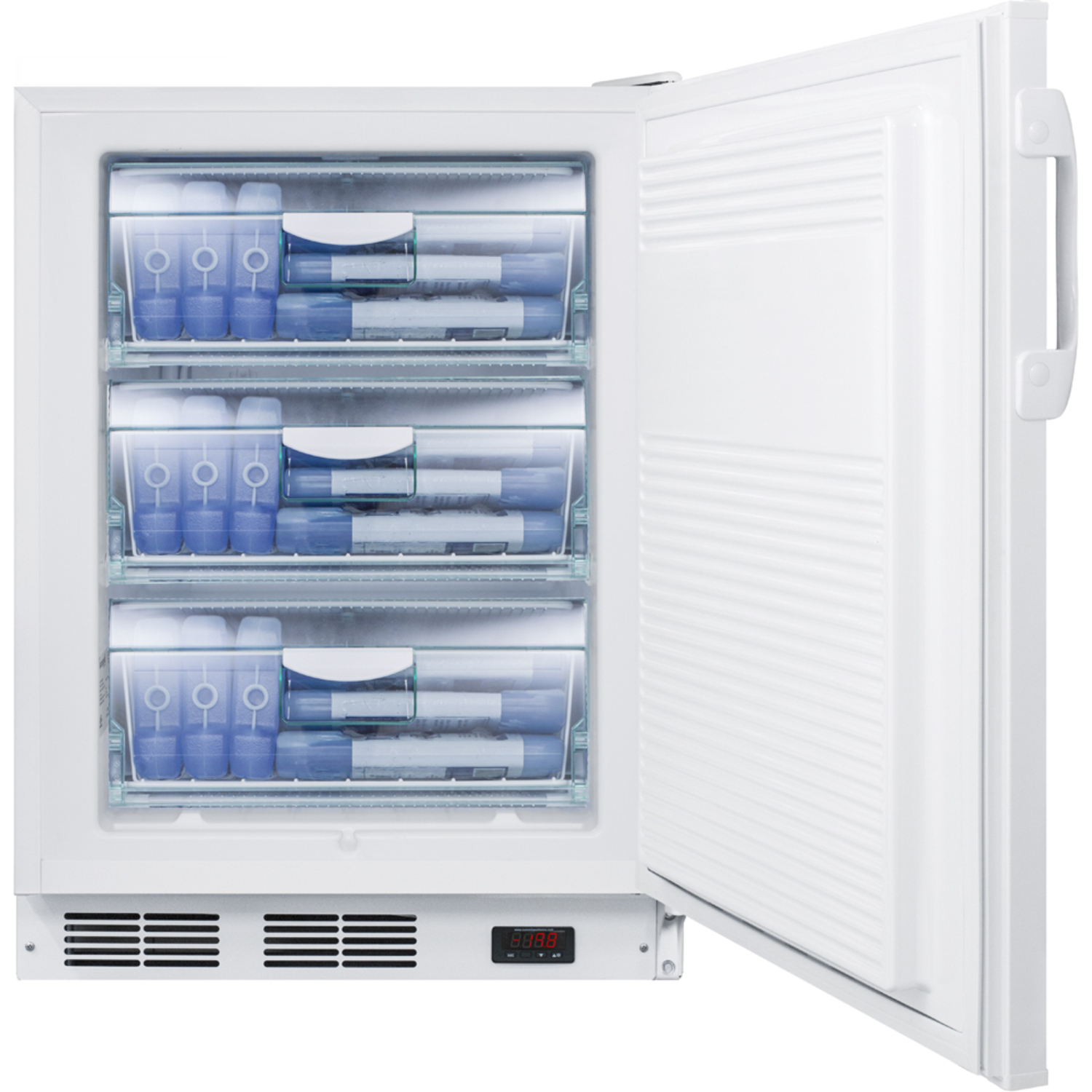

The 32” high VT65MLBIADA can be used built-in or freestanding in any 24” space, with low temperature manual defrost operation that can reach -25ºC. The interior includes three slide-out basket drawers for convenient storage that keeps items cold when the door is opened. Additional features include an adjustable thermostat and one-piece interior liner for easier cleanup.

This medical unit has a white cabinet and reversible door. A factory installed lock offers added security.

NOTE: ALL VT65M FREEZERS ARE DESIGNED FOR MEDICAL OR COMMERCIAL USE ONLY. THESE ARE NOT HOUSEHOLD FREEZERS.

Nominal Height: 32
Height of Cabinet: 32
Height to Hinge Cap: 32.25
Nominal Width: 24
Width: 23.63
Width with Door Open: 0
Nominal Depth: 24
Depth: 23.5
Depth with Handle: 24.25
Depth with door at 90°: 45.13
Capacity: 3.5
Bottles: 0Defrost Type: ManualDoor: WhiteCabinet: WhiteUS Electrical Safety: ULCanadian Electrical Safety: ULCSanitation: N/AVoltage/Frequency: 115 V AC/60 HzParts & Labor Warranty: 1 YearCompressor Warranty: 5 Years

SPECIFICATIONS

Overview

Nominal Height 32.0" (81 cm)

Height of Cabinet 32.0" (81 cm)

Height to Hinge Cap 32.25" (82 cm)

Nominal Width 24.0" (61 cm)

Width 23.63" (60 cm)

Nominal Depth 24.0" (61 cm)

Depth 23.5" (60 cm)

Depth with Handle 24.25" (62 cm)

Depth with door at 90° 45.13" (115 cm)

Capacity 3.5 cu.ft. (99 L)

Defrost Type Manual

Door White

Cabinet White

US Electrical Safety UL

Canadian Electrical Safety ULC

Amps 1.3

Voltage/Frequency 115 V AC/60 Hz

Weight 105.0 lbs. (48 kg)

Parts & Labor Warranty 1 Year

Compressor Warranty 5 Years

UPC 761101043401

Freezer

Door Swing RHD

Reversible Yes

Crisper Finish Opaque

Crisper Cover Glass

Interior Height 24.25" (62 cm)

Interior Width 17.75" (45 cm)

Interior Depth 16.5" (42 cm)

Shelf Type Glass

Thermostat Type Digital

Refrigerant Type R134a

Refrigerant Amount 2.7 oz.

High Side PSI 235.0

Low Side PSI 70.0

Interior Drawers Yes

Drawers Qty 3

Compressor Step Height 6.5" (17 cm)

Compressor Step Width 17.5" (44 cm)

Compressor Step Depth 5.5" (14 cm)

Temperature Range -12ºC to -25ºC

FEATURES

ADA Compliant 32 inch height is designed to fit under ADA compliant counters

Built-in capable Make the best use of space by installing your appliance under the counter and flush with other cabinetry

Fully finished white cabinet Allows the unit to be used freestanding

Slim undercounter dimensions Less than 24 inches wide to fit tight spaces

Reversible door Keep your options flexible with a reversible door that is easy to switch when your arrangement changes

Factory installed lock Keep contents secure with a front lock on the door

-25º capable Low temperature operation is ideal for vaccine, pharmaceuticals, and other temperature sensitive materials

Three slide-out drawers Conveniently organize your items while keeping the temperature stable when the door is opened

No internal fans Static cooling system

Manual defrost Energy efficient operation for stable interior temperature

One piece interior liner Simple cleanup with a seamless liner that won't hold a mess in hidden crevices

Digital thermostat Electronic controls located in the front kickplate for easy and intuitive temperature management

100% CFC free Environmentally friendly design without ozone-damaging chemicals
