Summit Built-in undercounter medical all-freezer capable of -25º C operation, with front lock, 7.61101e+011, VT65MLBI

Accucold VT65MBI medical all-freezers offer low temperature storage in a perfectly sized footprint designed for built-in installation under counters.

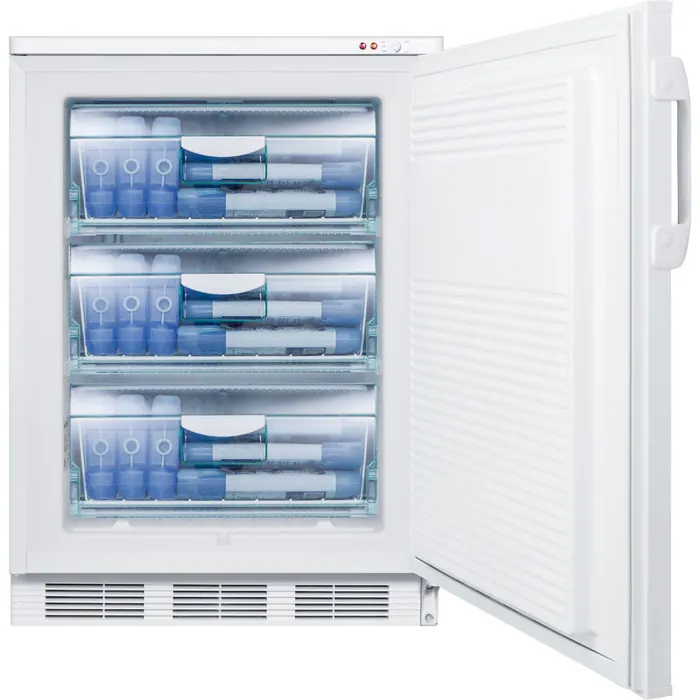

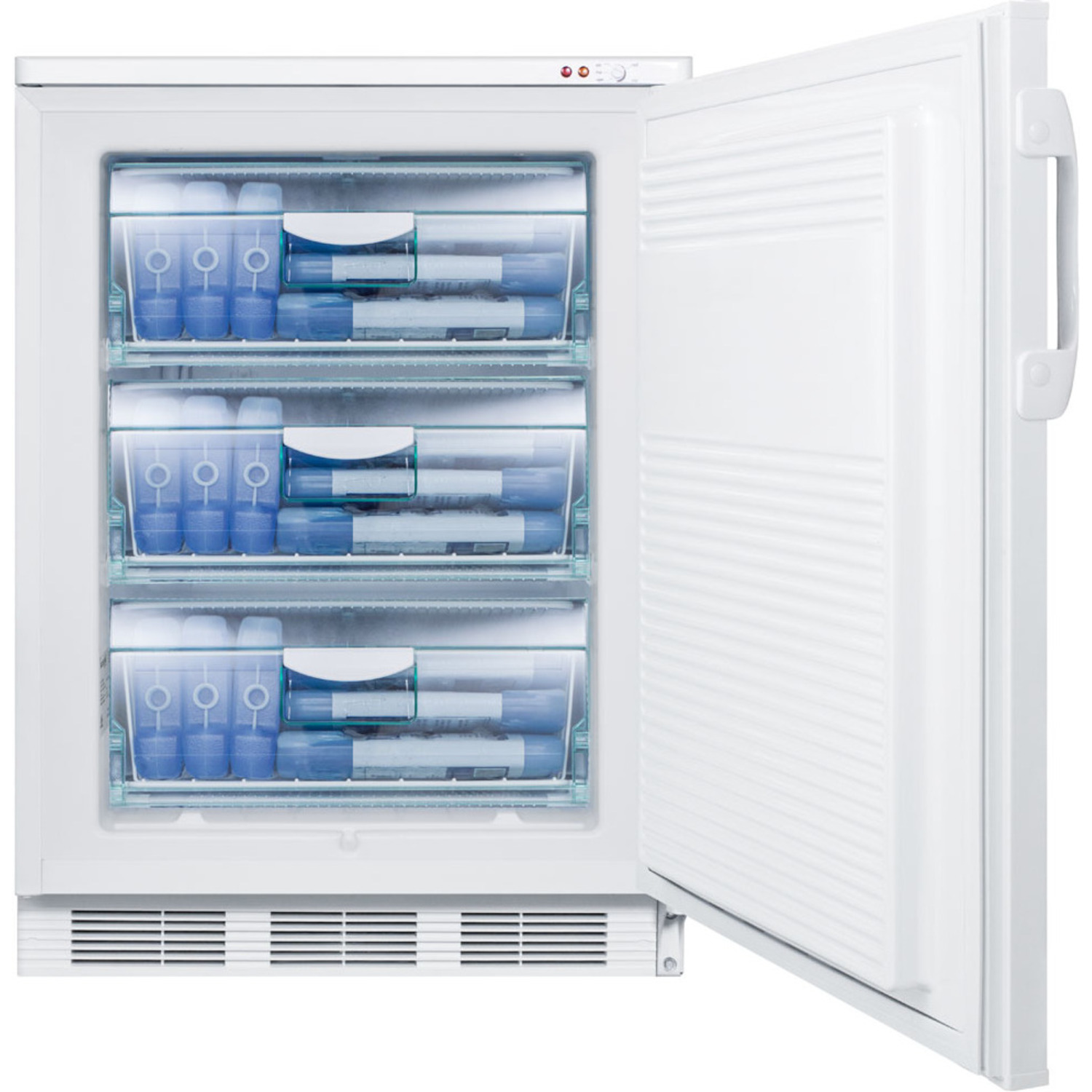

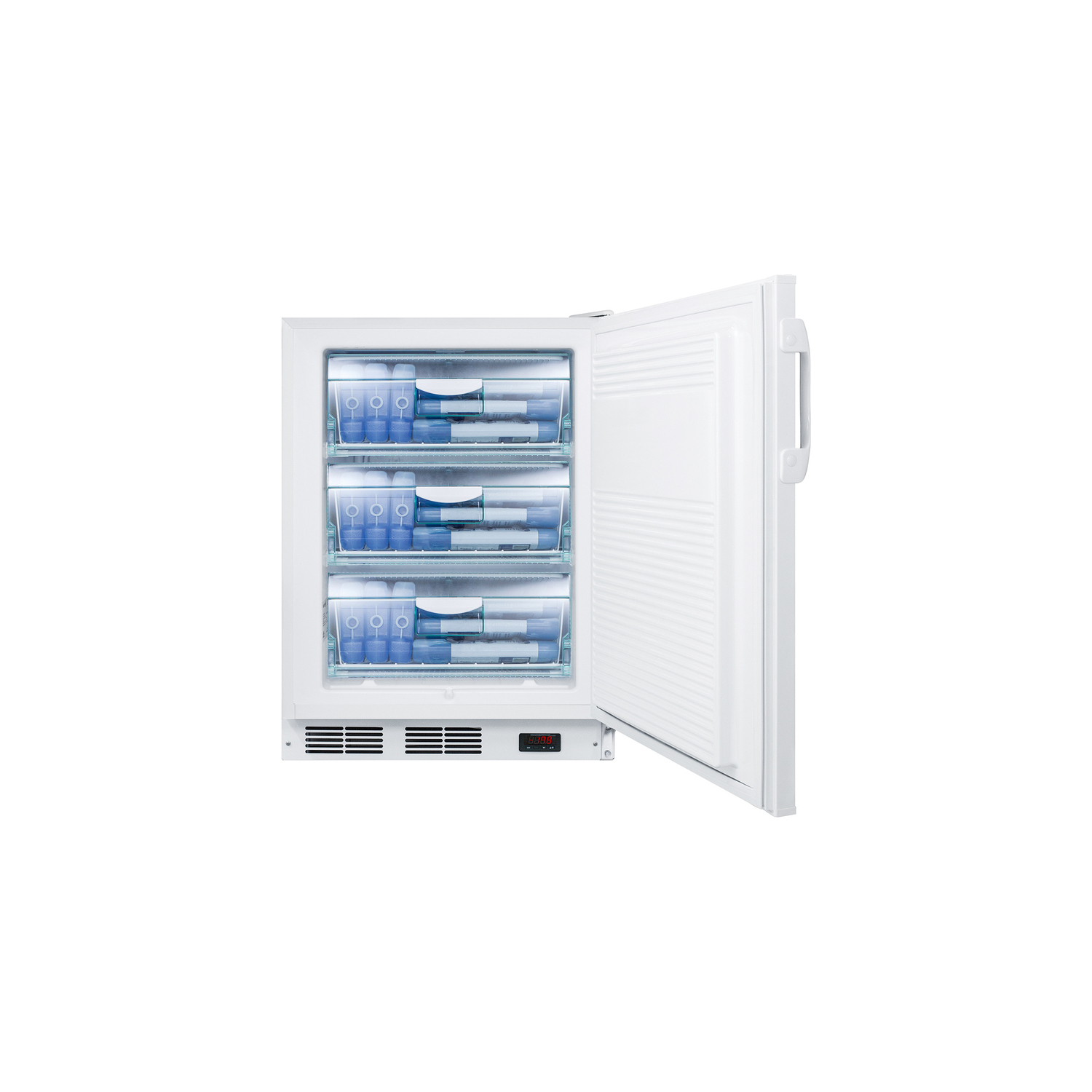

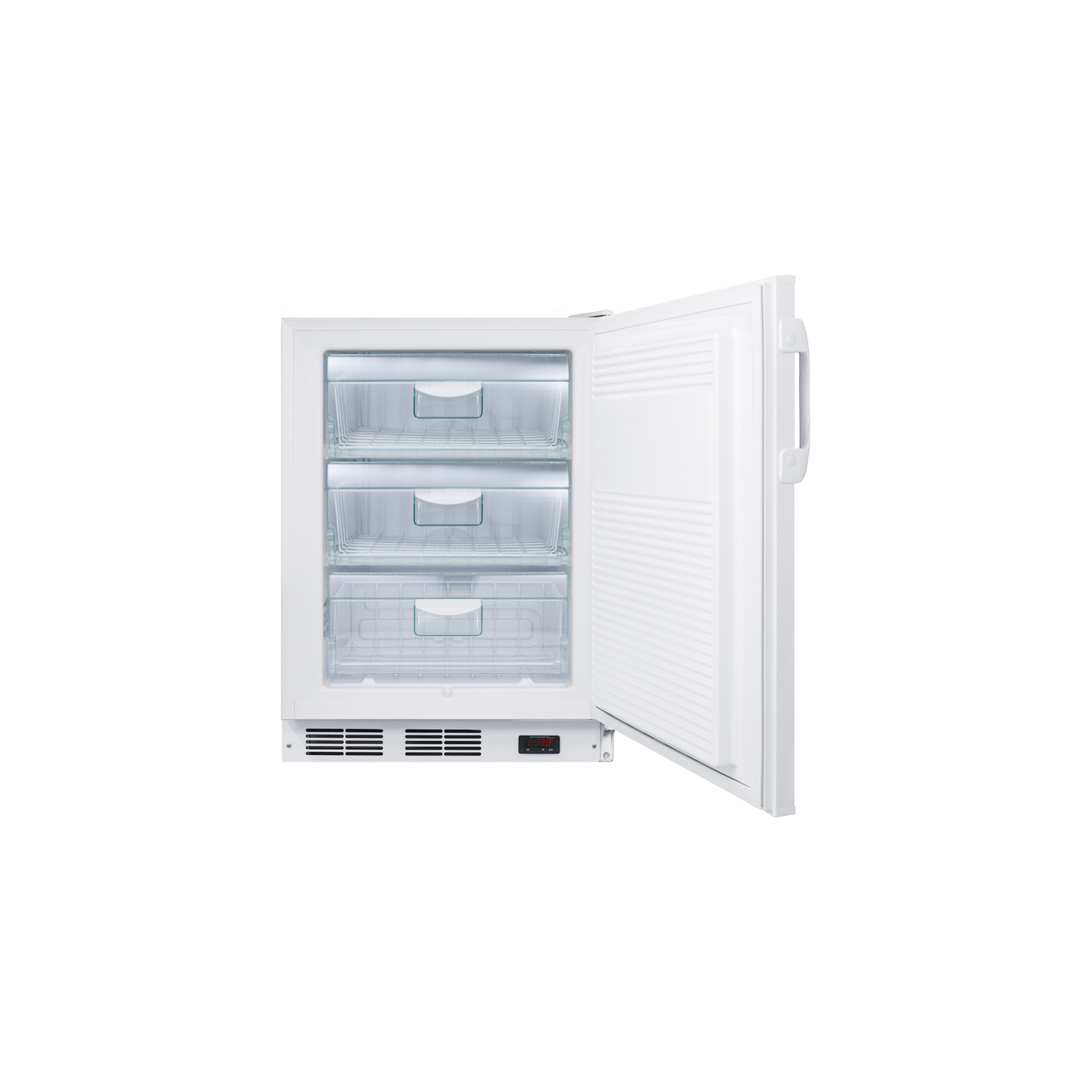

The 24” wide VT65MLBI can be used built-in or freestanding, with low temperature manual defrost operation that can reach -25ºC. The interior includes three slide-out basket drawers for convenient storage that keeps items cold when the door is opened. Additional features include an adjustable thermostat and one-piece interior liner for easier cleanup.

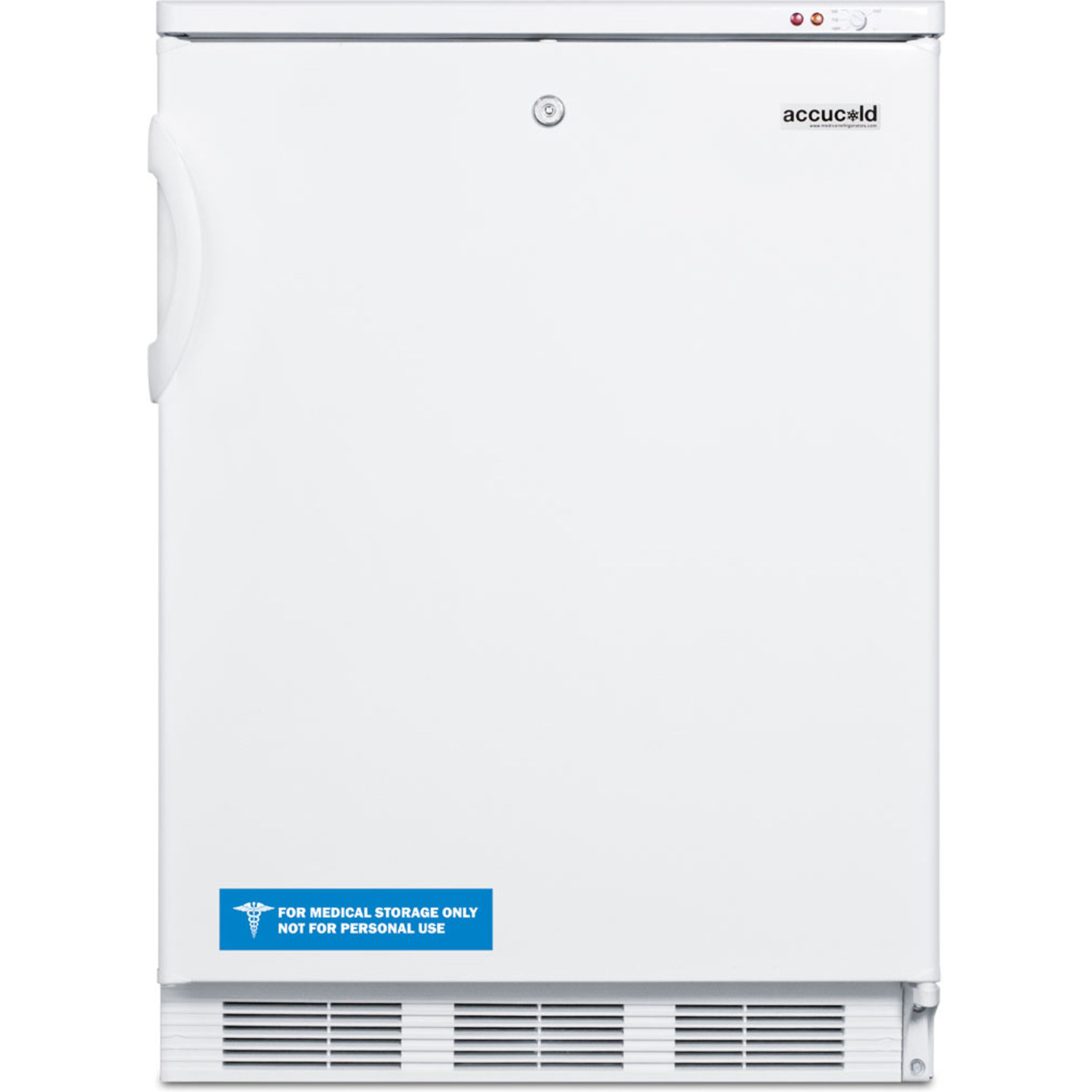

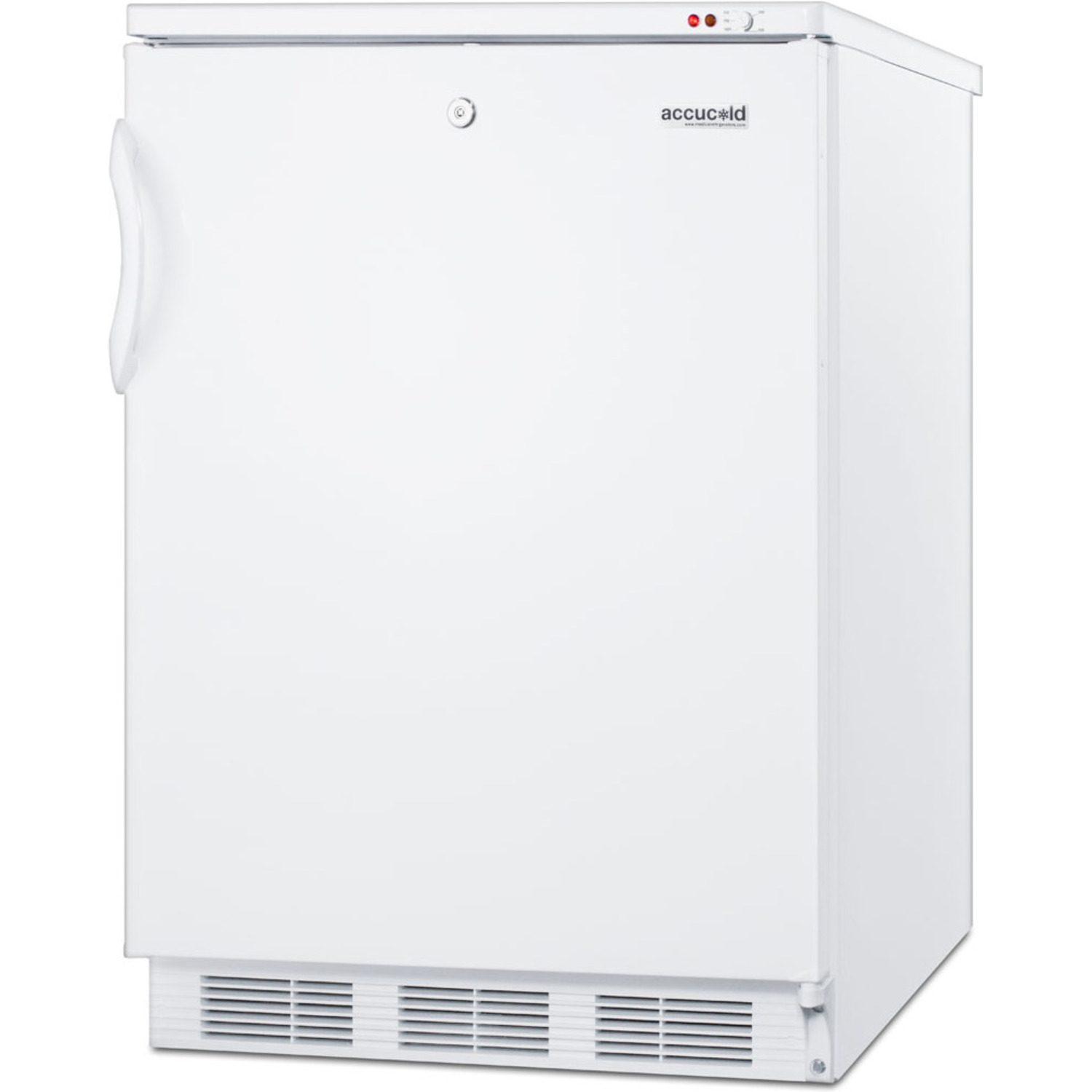

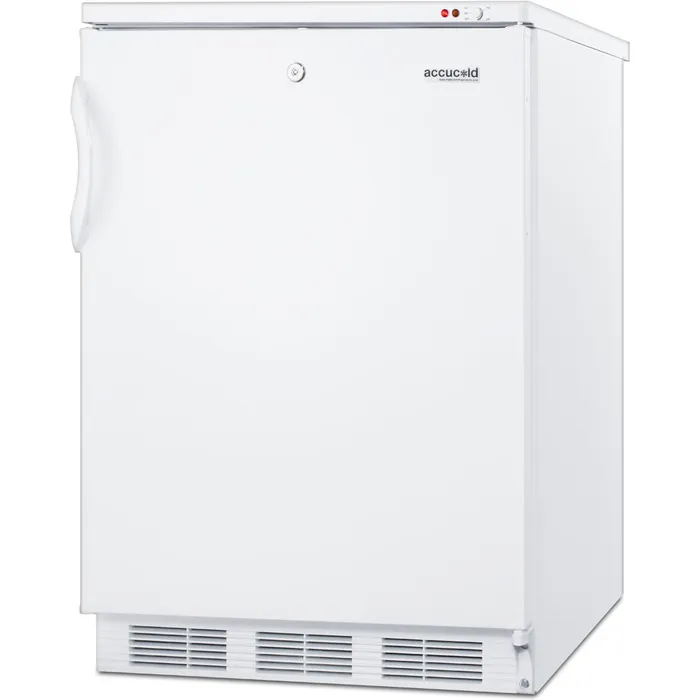

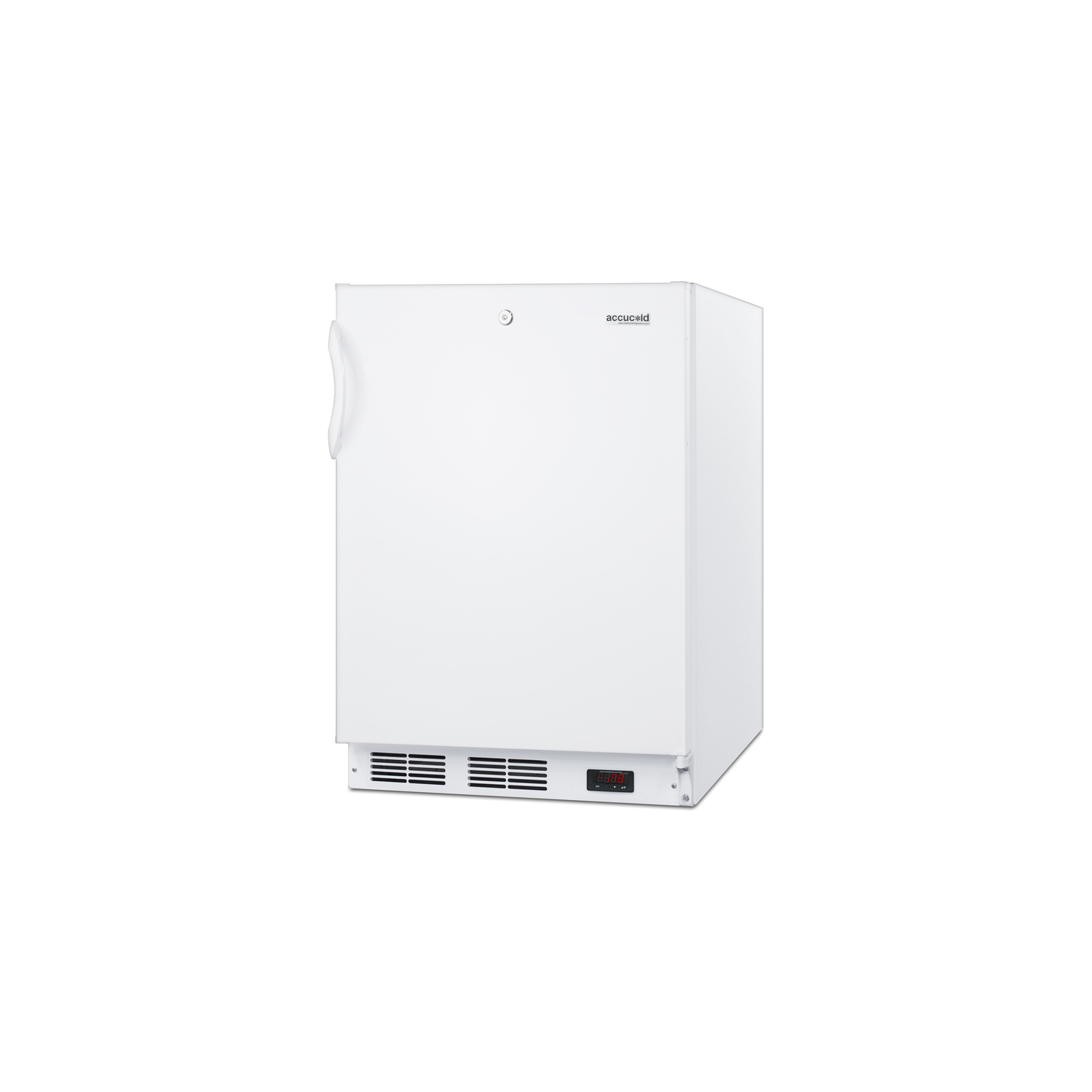

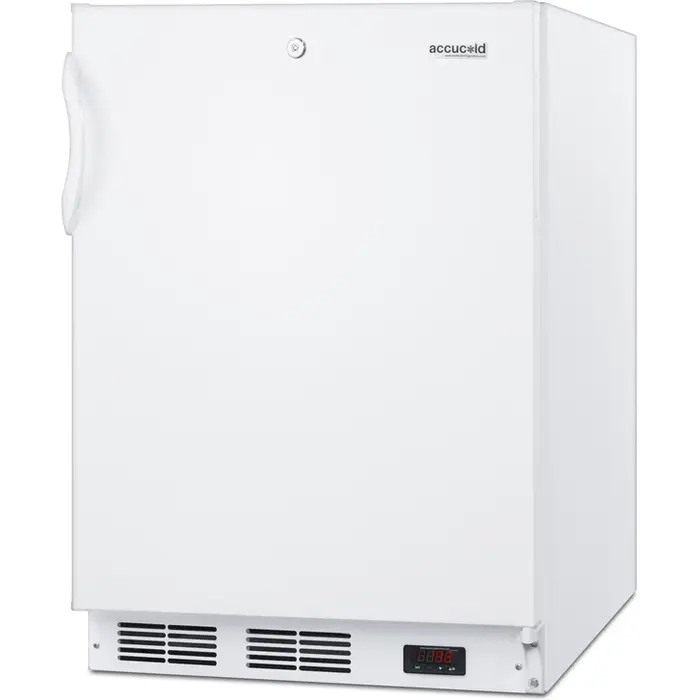

This medical unit has a white cabinet and reversible door, with a factory installed lock for added security.

NOTE: ALL VT65M FREEZERS ARE DESIGNED FOR MEDICAL OR COMMERCIAL USE ONLY. THESE ARE NOT HOUSEHOLD FREEZERS.

Nominal Height: 34
Height of Cabinet: 33.5
Height to Hinge Cap: 0
Nominal Width: 24
Width: 23.63
Width with Door Open: 0
Nominal Depth: 24
Depth: 23.5
Depth with Handle: 25.13
Depth with door at 90°: 46.13
Capacity: 3.5
Bottles: 0Defrost Type: ManualDoor: WhiteCabinet: WhiteUS Electrical Safety: ULCanadian Electrical Safety: ULCSanitation: N/AVoltage/Frequency: N/AParts & Labor Warranty: 1 YearCompressor Warranty: 5 Years

SPECIFICATIONS

Overview

Nominal Height 34.0" (86 cm)

Height of Cabinet 33.5" (85 cm)

Nominal Width 24.0" (61 cm)

Width 23.63" (60 cm)

Nominal Depth 24.0" (61 cm)

Depth 23.5" (60 cm)

Depth with Handle 25.13" (64 cm)

Depth with door at 90° 46.13" (117 cm)

Capacity 3.5 cu.ft. (99 L)

Defrost Type Manual

Door White

Cabinet White

US Electrical Safety UL

Canadian Electrical Safety ULC

Amps 1.3

Weight 105.0 lbs. (48 kg)

Parts & Labor Warranty 1 Year

Compressor Warranty 5 Years

UPC 761101027876

Freezer

Door Swing RHD

Reversible Yes

Height Adjustable 1

Interior Height 24.25" (62 cm)

Interior Width 17.75" (45 cm)

Interior Depth 16.5" (42 cm)

Thermostat Type Dial

Fan Type Exterior

Refrigerant Type R134a

Refrigerant Amount 2.7 oz.

High Side PSI 235.0

Low Side PSI 70.0

Level Legs 4

Interior Drawers Yes

Drawers Qty 3

Compressor Step Height 6.0" (15 cm)

Compressor Step Width 17.75" (45 cm)

Compressor Step Depth 6.0" (15 cm)

Temperature Range -12ºC to -25ºC

FEATURES

Slim undercounter dimensions Less than 24 inches wide to fit tight spaces

Fully finished white cabinet Allows the unit to be used freestanding

Height Adjustable Adjustable legs allow the unit to be sized from 33 1/2" to 34 3/4" high

Built-in capable Make the best use of space by installing your appliance under the counter and flush with other cabinets

Factory installed lock Keep contents secure with a key lock on the door

-25º C capable Low temperature operation is ideal for vaccine, pharmaceuticals, and other temperature sensitive materials

Manual defrost No temperature fluctuations with an energy efficient manual defrost system

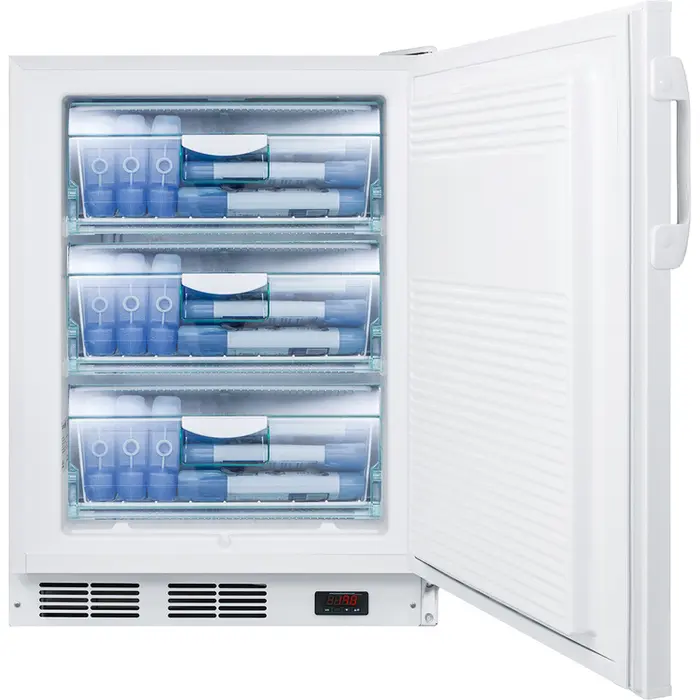

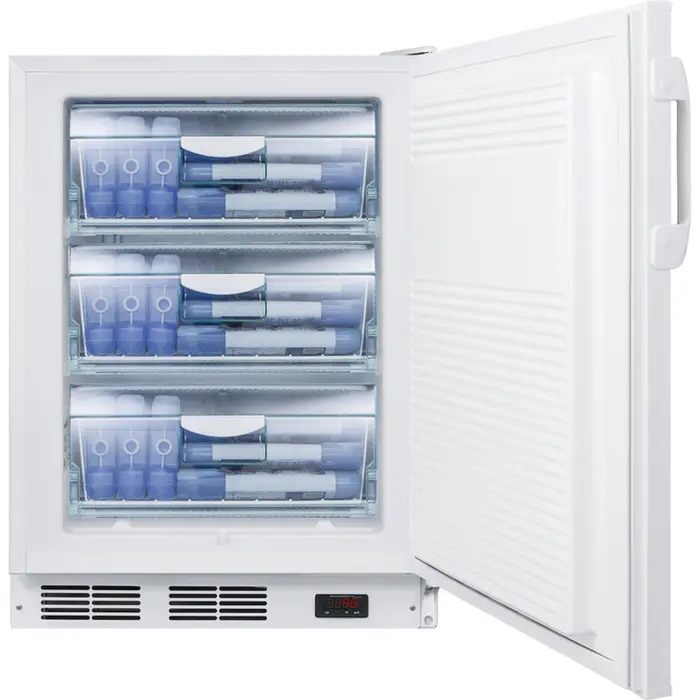

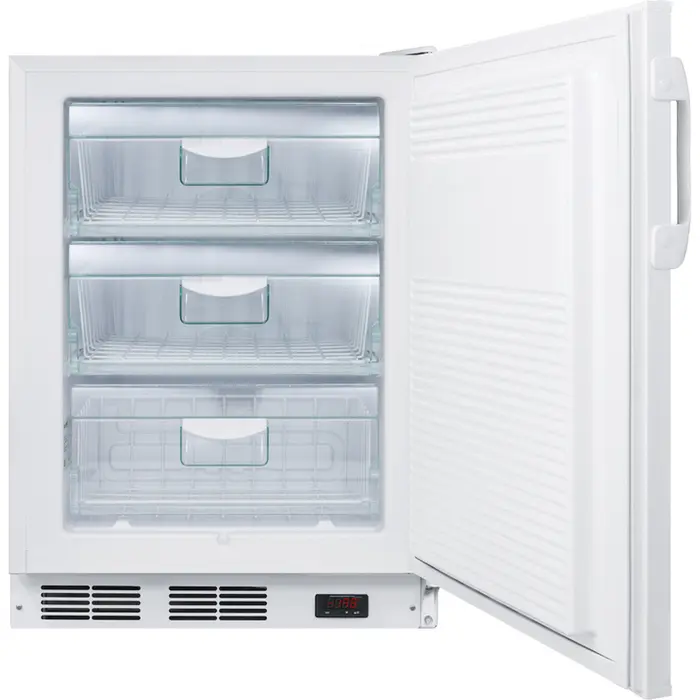

Three removable storage baskets Conveniently organize your items while keeping the temperature stable when the door is opened

No internal fans Static cooling system

Adjustable thermostat Manage the interior temperature with ease and accuracy

One piece interior liner Enjoy easy clean-up with a seamless liner that won't hold a mess in hidden crevices

Reversible door Keep your options flexible with a reversible door that is easy to switch when your arrangement changes

100% CFC free Environmentally friendly design without ozone-damaging chemicals

DOWNLOADS

BROCHURE w/ DRAWINGS (VT65MLBI.pdf)

REVIT MODEL (QF_Summit_VT65ML_Freestanding_Medical_All_Freezer_2.rfa)

USE & CARE (157.bin)

ACCUCOLD CATALOG (Accucold_Cold_Storage_Solutions_Catalog.pdf)
