Summit Built-in undercounter laboratory freezer capable of -30º C (-22º F)operation, 7.61101e+011, VT65

Accucold medical all-freezers offer low temperature storage in a perfectly sized footprint.

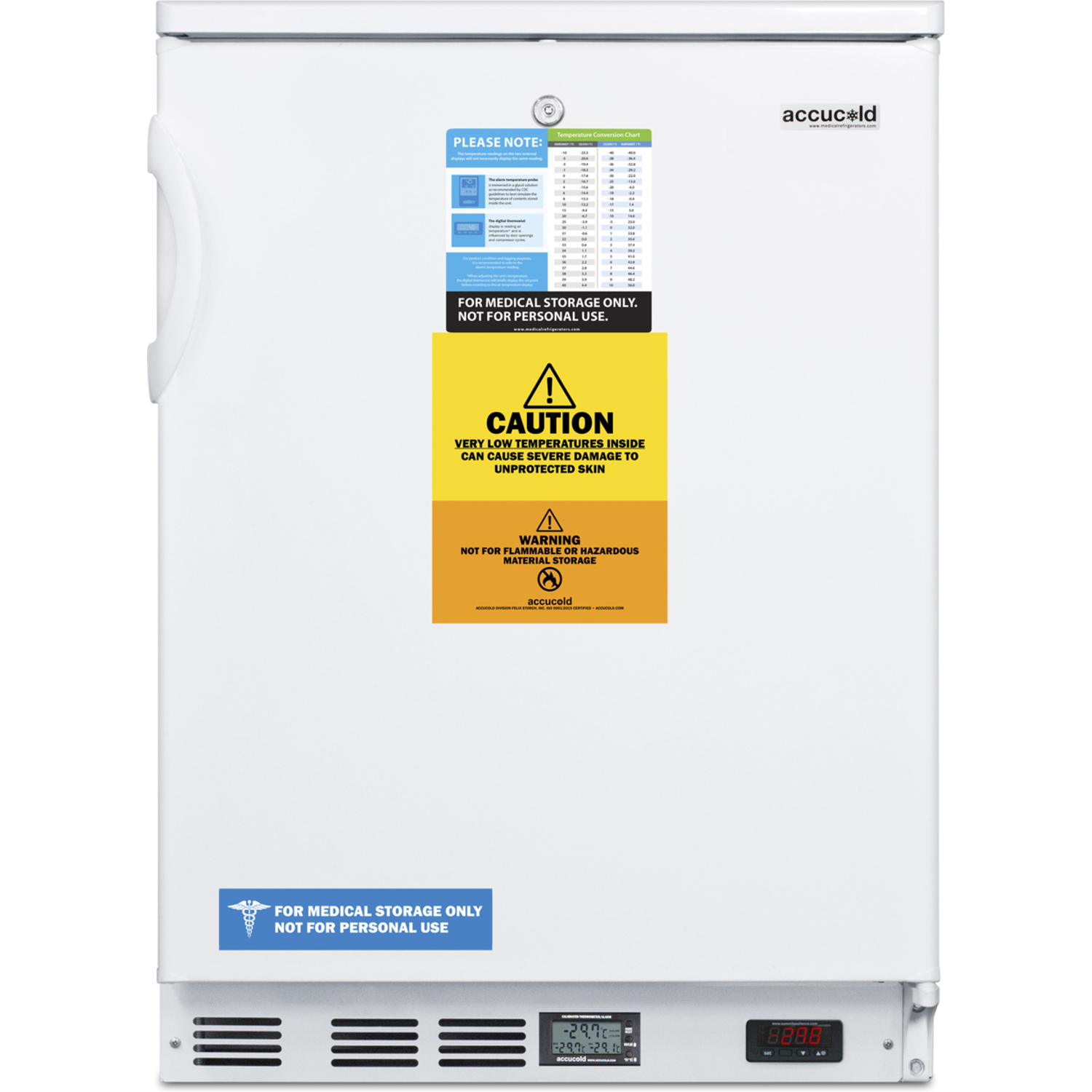

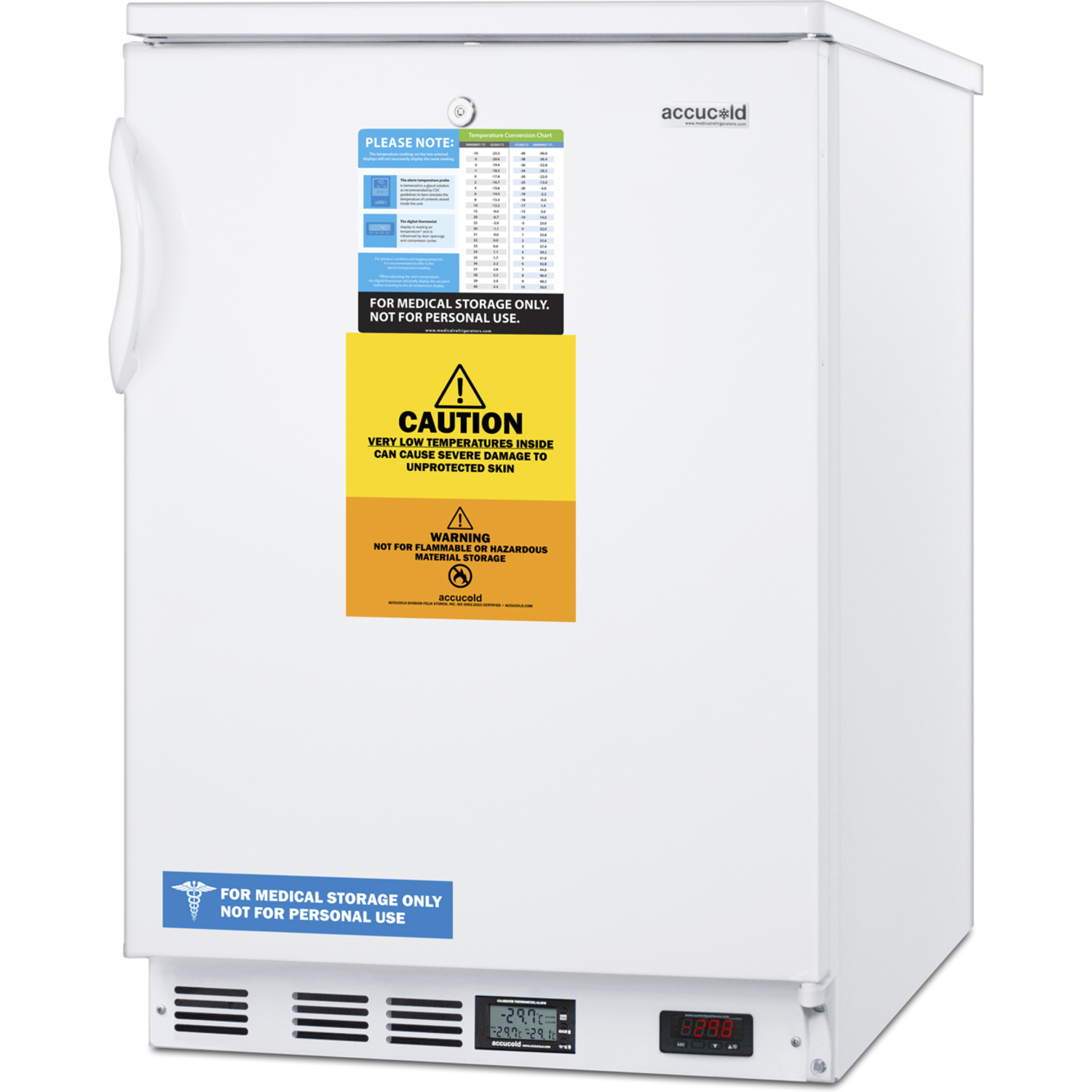

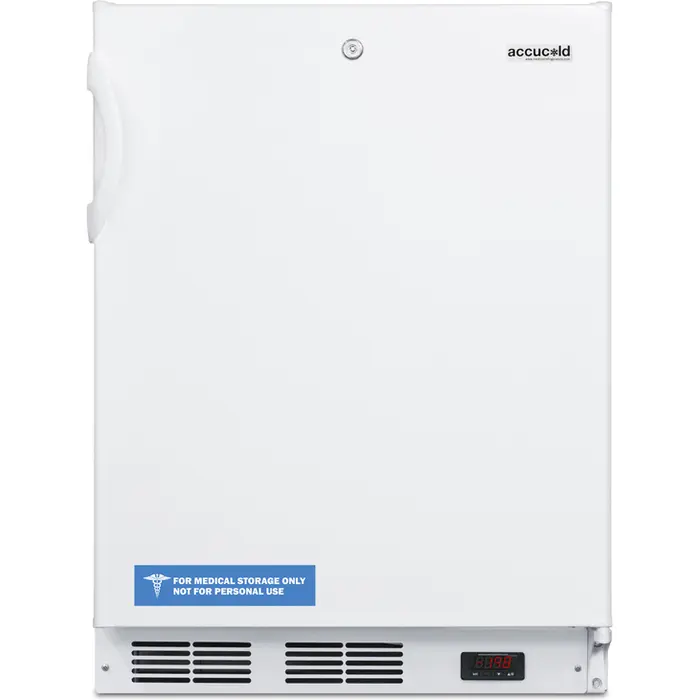

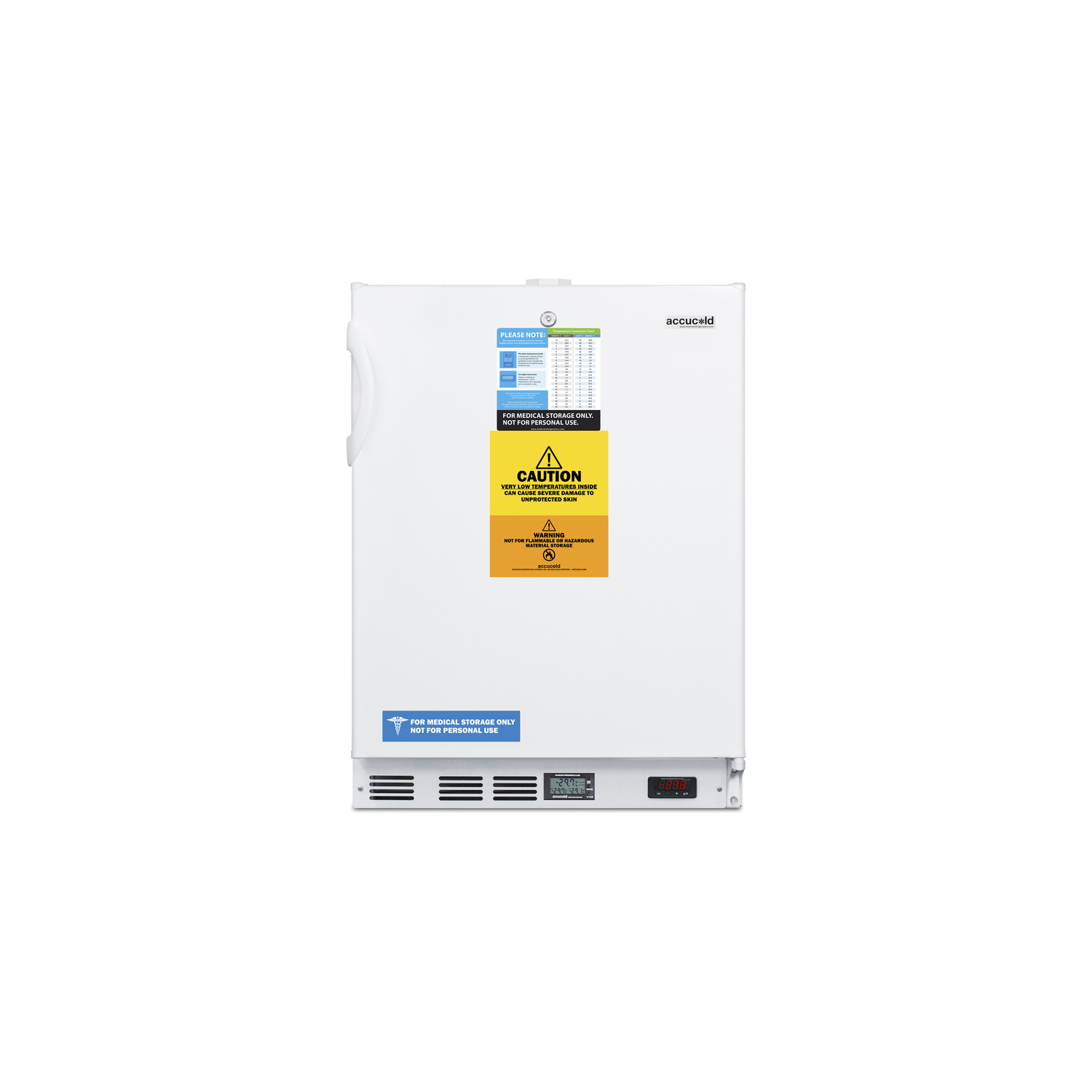

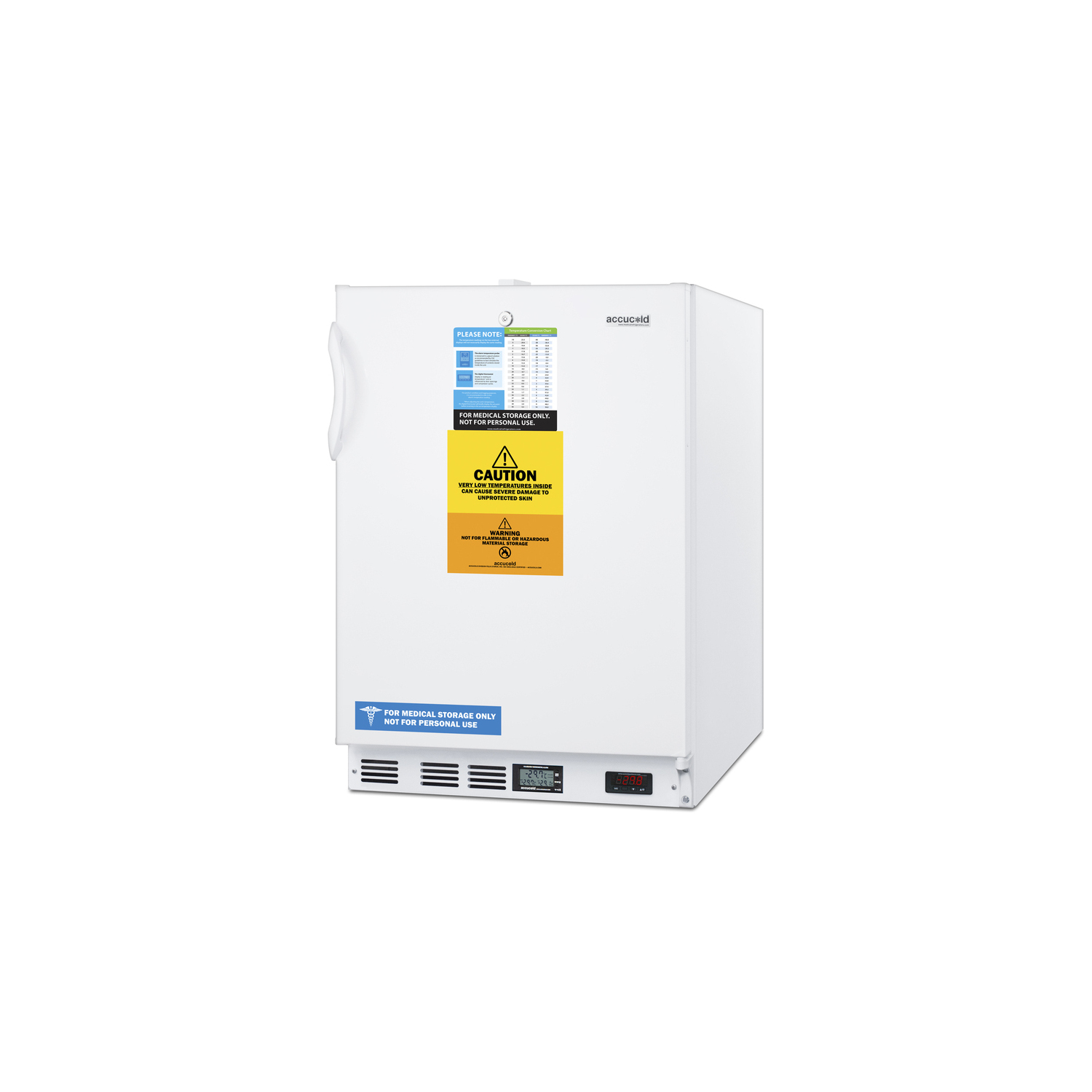

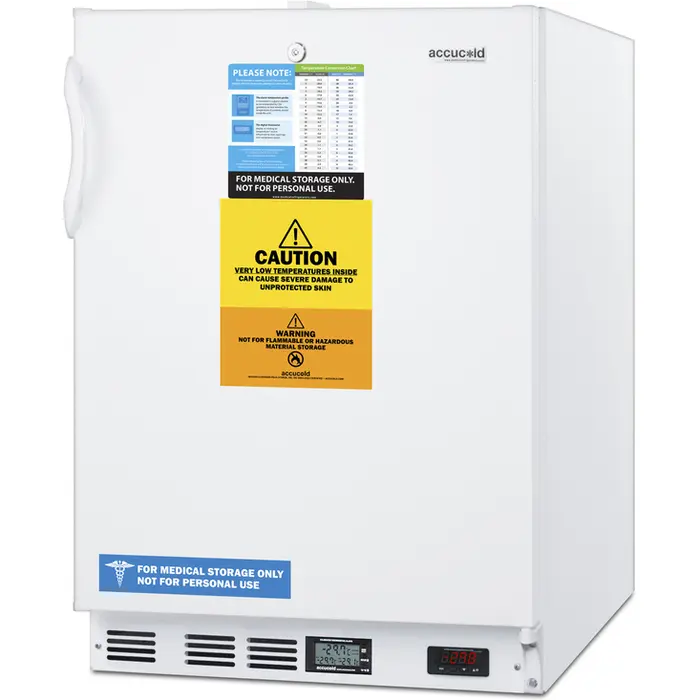

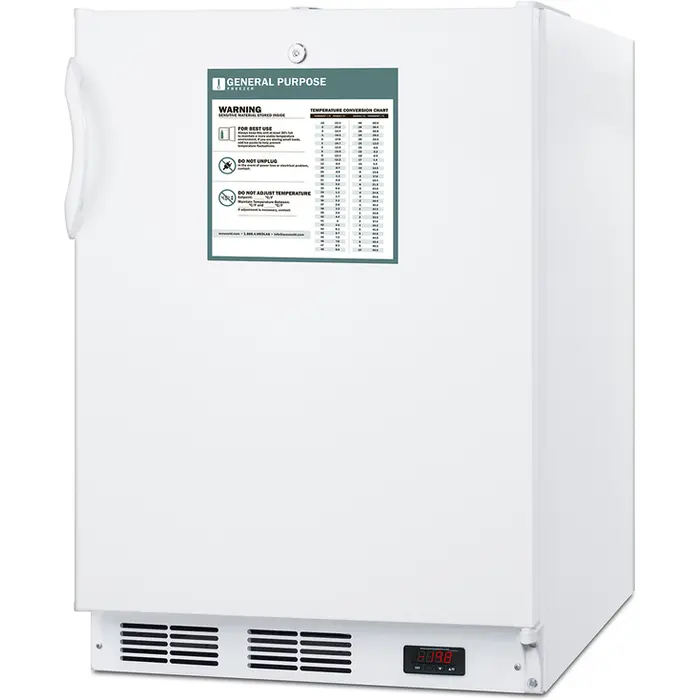

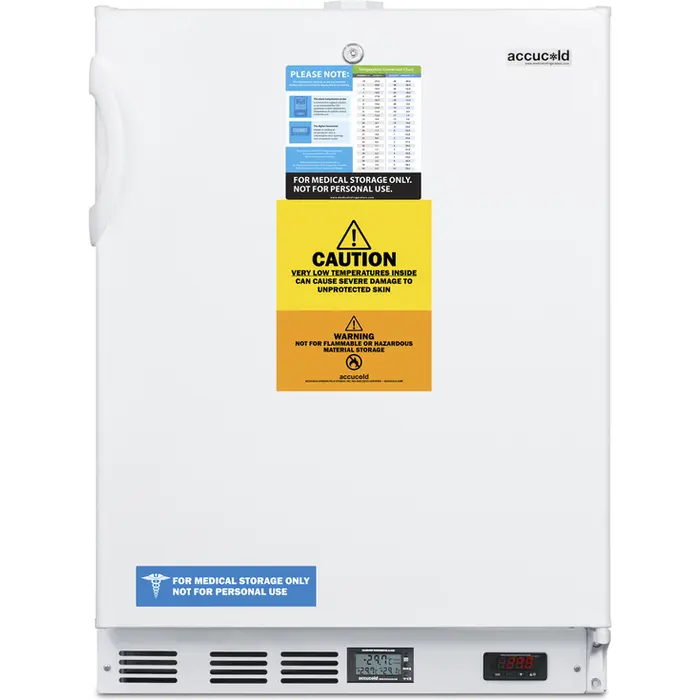

The VT65 is an upright all-freezer sized with a 24" footprint. The front-breathing design allows built-in installation, while the fully finished cabinet also allows freestanding use. A factory installed keyed lock offers added security. The digital thermostat is located in the kickplate so that users can manage the temperature without opening the door. A NIST calibrated high/low temperature alarm is also included.

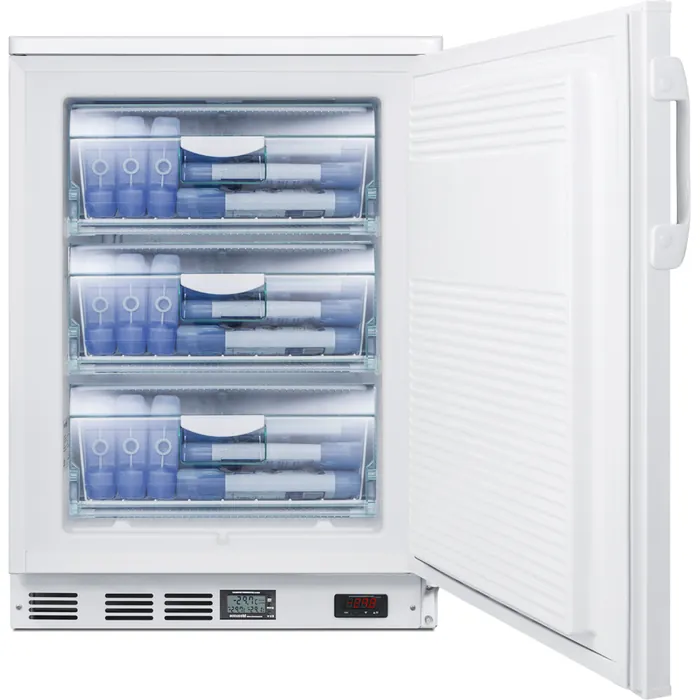

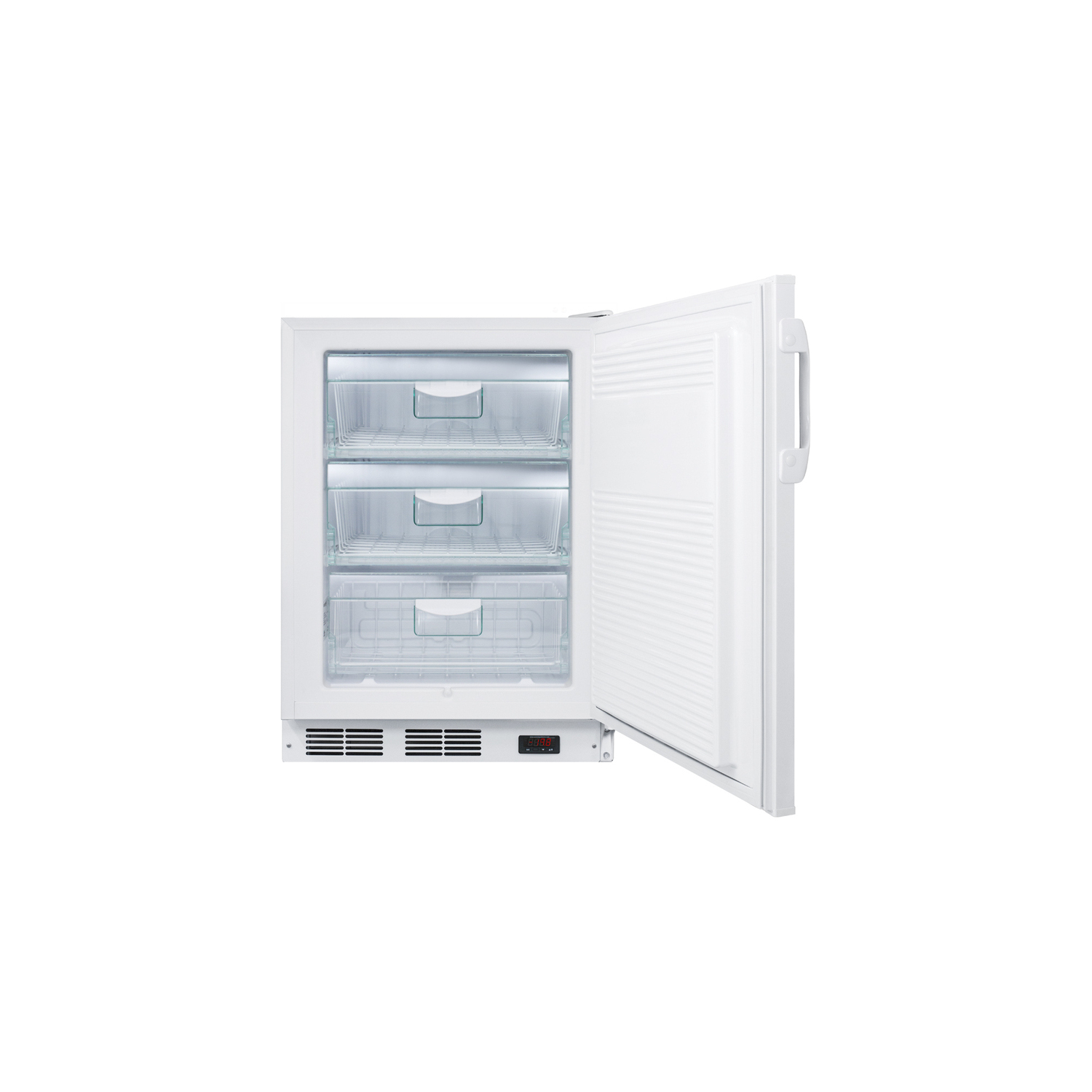

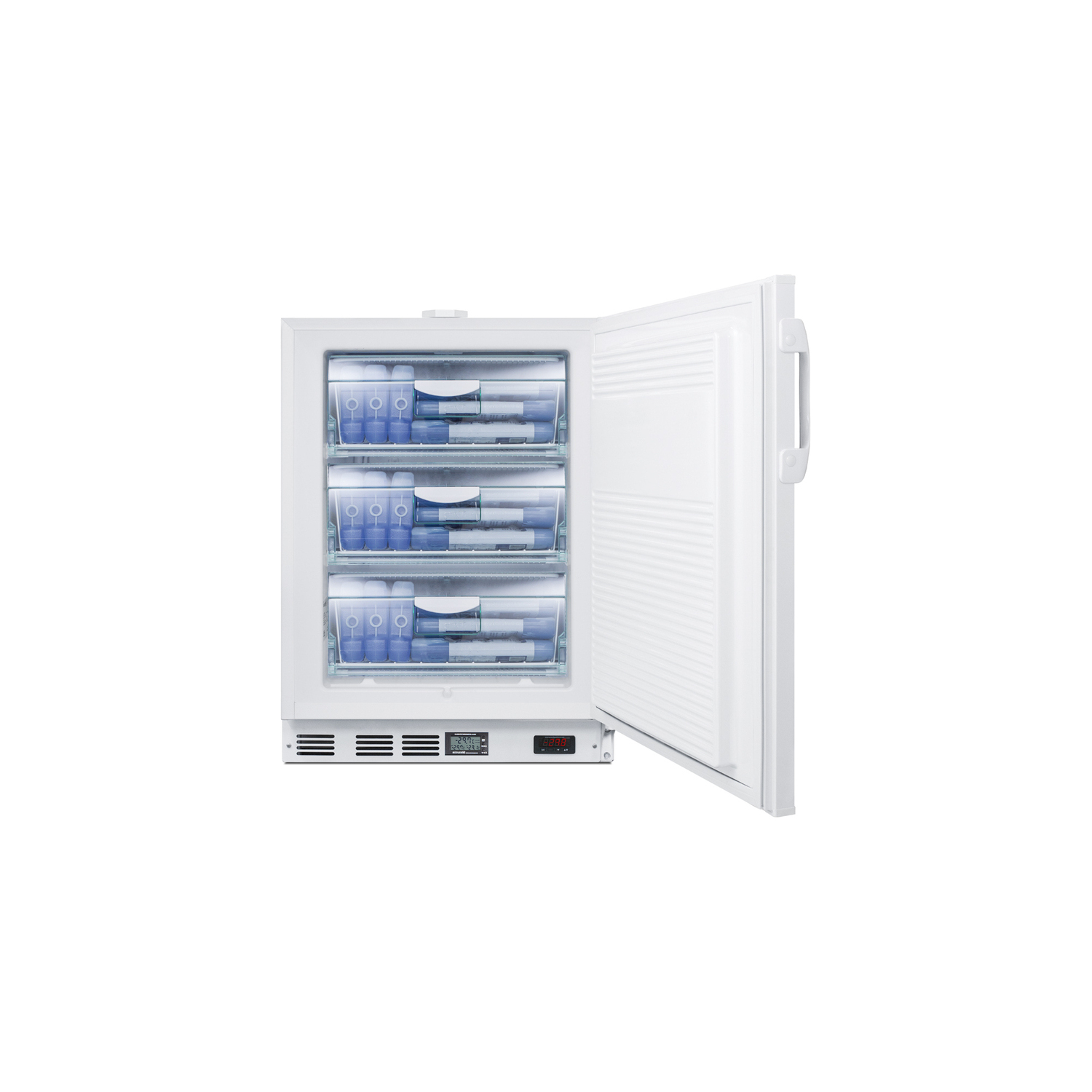

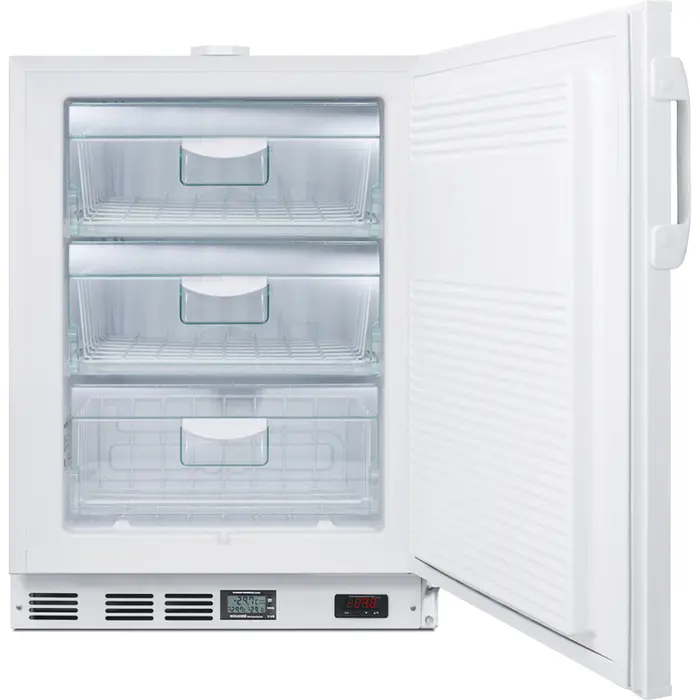

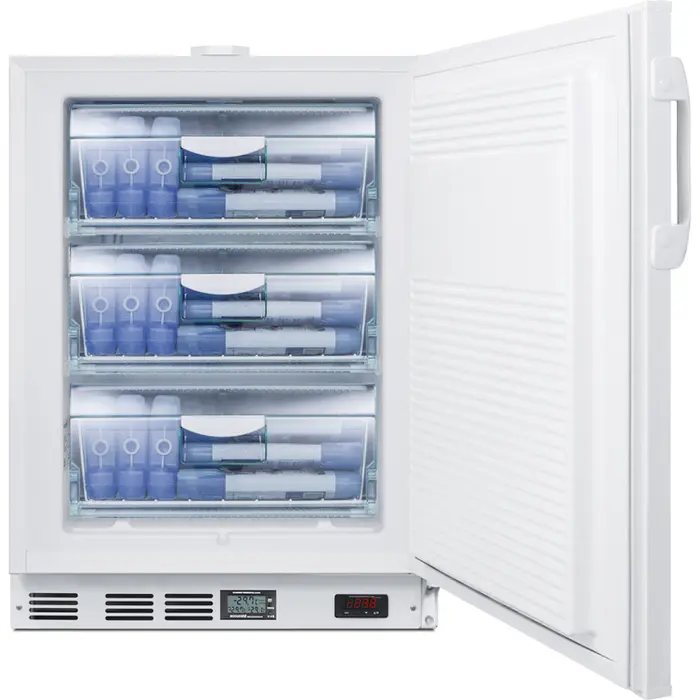

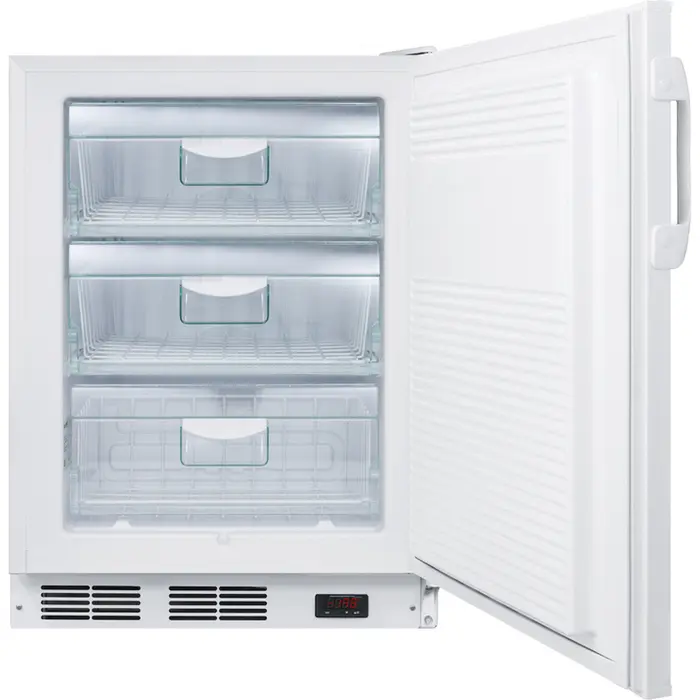

Inside, the VT65 utilizes static manual defrost operation to maintain stable temperature. This unit can reach temperatures as low as -30ºC. Three slide-out basket drawers offer convenient storage while minimizing temperature fluctuations when the door is open.

Note: This unit is ETL-S approved to NSF-7 standards under the model number "VT65MLBIMEDDT7."

NOTE: Accucold freezers are purpose-built to the support meeting the current CDC (Centers for Disease Control) guidelines for the storage of vaccines. As referenced in the current Vaccine Storage and Handling Toolkit, these units incorporate several key features for stable operation. For additional temperature assurance, the CDC recommends a calibrated digital data logger (DDL), which can be added with the factory-installed option DL2B or addition of the DL2BKit accessory. Select Accucold products have been tested and certified to the new NSF 456 standard, and are now available for purchase. For additional information, contact our products specialists. Nominal Height: 34
Height of Cabinet: 33.5
Height to Hinge Cap: 0
Nominal Width: 24
Width: 23.63
Width with Door Open: 0
Nominal Depth: 24
Depth: 23.5
Depth with Handle: 0
Depth with door at 90°: 0
Capacity: 3.5
Bottles: 0Defrost Type: ManualDoor: WhiteCabinet: WhiteUS Electrical Safety: ETLCanadian Electrical Safety: ETL-CSanitation: ETL-SVoltage/Frequency: 115 V AC/60 HzParts & Labor Warranty: 1 YearCompressor Warranty: 5 Years

SPECIFICATIONS

Overview

Nominal Height 34.0" (86 cm)

Height of Cabinet 33.5" (85 cm)

Nominal Width 24.0" (61 cm)

Width 23.63" (60 cm)

Nominal Depth 24.0" (61 cm)

Depth 23.5" (60 cm)

Capacity 3.5 cu.ft. (99 L)

Defrost Type Manual

Door White

Cabinet White

US Electrical Safety ETL

Canadian Electrical Safety ETL-C

Sanitation ETL-S

Amps 1.3

Voltage/Frequency 115 V AC/60 Hz

Weight 100.0 lbs. (45 kg)

Parts & Labor Warranty 1 Year

Compressor Warranty 5 Years

UPC 761101009223

Freezer

Door Swing RHD

Reversible Factory Reversible

Thermostat Type Digital

Refrigerant Type R134a

Refrigerant Amount 2.76 oz.

Interior Drawers Yes

Drawers Qty 3

Temperature Range -20ºC to -30ºC

FEATURES

Built-in capable Front-breathing system allows the unit to be used built-in

Commercially approved Meets NSF-7 commercial standards

Slim counter height dimensions 24" footprint fits easily in space-challenged facilities

-30º C (-22º F) capable Low temperature operation ideal for vaccines, pharmaceuticals, and long-term preservation of frozen food

Three slide-out drawers Conveniently organize your items while keeping the temperature stable when the door is opened

Factory installed lock Keyed lock offers convenient security

Digital thermostat Electronic controls for precise temperature management

Alarm with temperature display Provides external temperature readout and includes programmable alarm to warn of temperature variations

Manual defrost No temperature fluctuations with an energy efficient manual defrost system

100% CFC free Environmentally friendly design using R404a and without ozone-damaging chemicals
