Summit 24 inch wide open burner gas cooktop in bisque with spark ignition and continuous cast iron grates, SNL033I

Summit Appliance offers a wide selection of American-made household cooktops built for long-lasting durability in space-challenged kitchens.

The SNL033I is a 24" wide gas cooktop designed to fit common 22 5/8" wide x 18 5/8" deep cutouts. It features a scratch-resistant porcelain surface in a classic bisque finish, with a recessed design that helps to contain spills. Side-located push-to-turn knobs offer easy and safe use.

Four open 9000 BTU burners meet most cooking needs. We include two sets of continuous cast iron grates to protect your cooktop. This unit comes set for natural gas but can be converted to propane with the purchase of the Kit LP accessory. It utilizes electronic spark ignition and includes a pre-installed 115V cord with a standard 3-prong NEMA 5-15P plug.

The WNL033I is designed and constructed in the USA. Additional finishes are available, as well as 30" sizes for larger kitchen spaces and matching wall ovens. Browse our website to explore our complete selection.

SPECIFICATIONS

Overview

Nominal Height 3.75" (10 cm)

Height of Cabinet 3.75" (10 cm)

Nominal Width 24.0" (61 cm)

Width 24.0" (61 cm)

Nominal Depth 20.0" (51 cm)

Depth 20.0" (51 cm)

Cabinet Bisque

US Electrical Safety CSA

Plug Type NEMA 5-15P

Voltage/Frequency 115 V AC/60 Hz

Weight 27.0 lbs. (12 kg)

Parts & Labor Warranty 1 Year

UPC 761101158129

Gas Cooktop

Ignition Spark

LP Convertible With Kit LP Accessory

Number of Burners 4

Controls Dial

Surface Painted

Grate Material Cast Iron

Cutout Width 22.63" (57 cm)

Cutout Depth 18.63" (47 cm)

Burner #1 BTU 9000.0

Burner #2 BTU 9000.0

Burner #3 BTU 9000.0

Burner #4 BTU 9000.0

Power Cord Included Yes

FEATURES

24" Wide Gas Cooktop Built-in natural gas cooktop with four open burners

Made in the USA Designed and constructed domestically

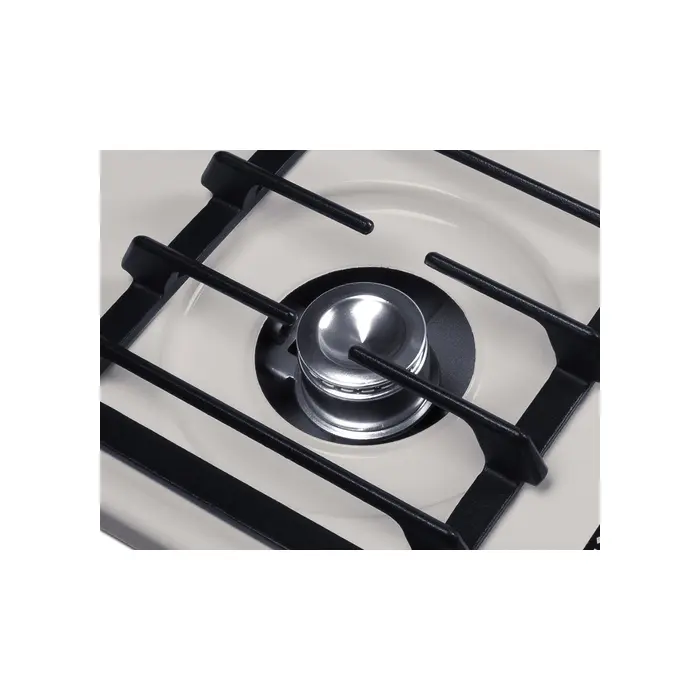

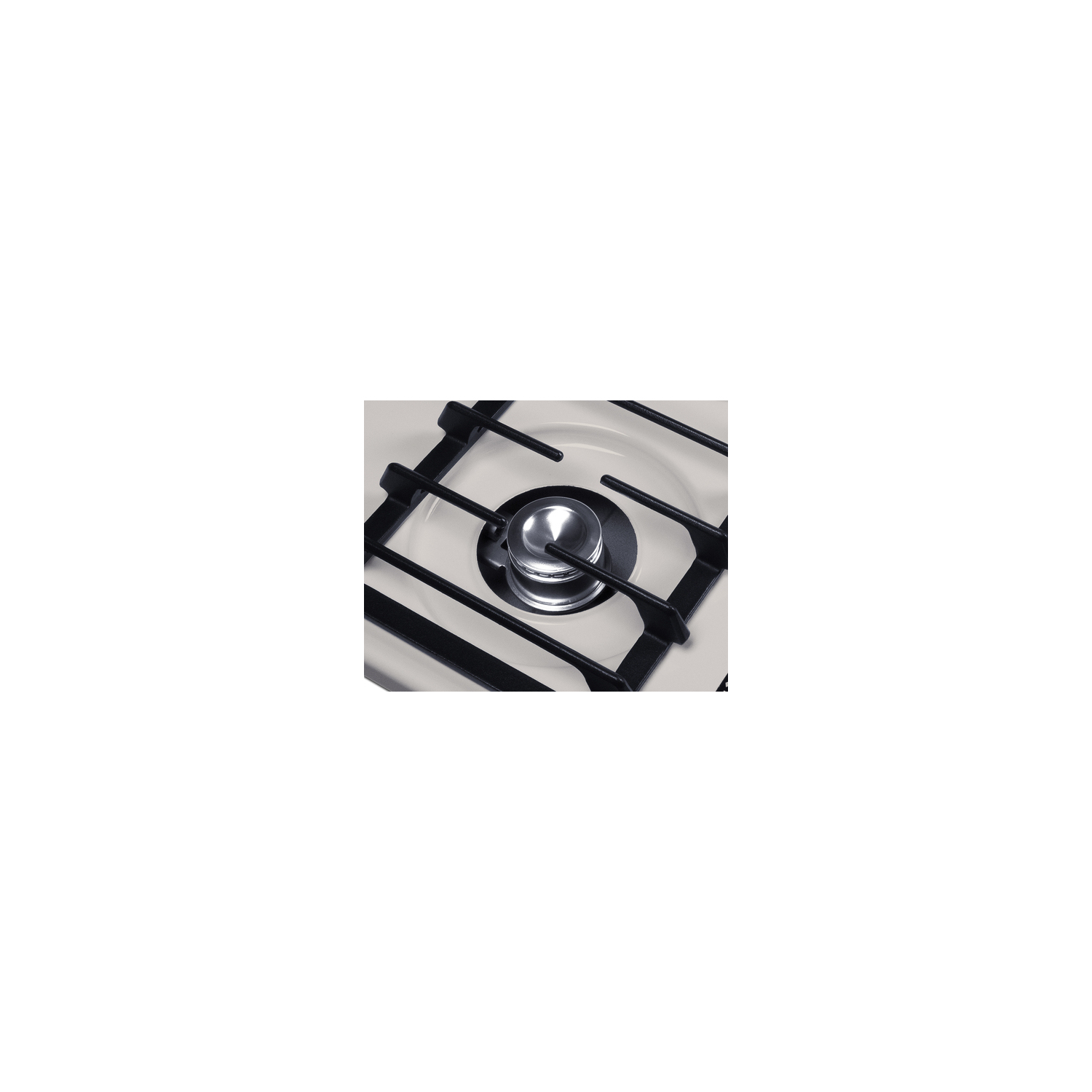

Cast iron grates Two sets of continuous grates in heavy duty cast iron hold up to large cookware

Classic 24" size Fits common 22 5/8" W x 18 5/8" D counter cutouts

Four open burners 9000 BTU burners meet most cooking needs

Bisque exterior Classic color suits almond and off-white kitchen design

Porcelain finish Scratch-resistant design for lasting durability

Recessed top Curved design helps to contain spills on the surface

Electronic/gas spark ignition Spark ignition system with a pre-installed 115V cord and standard NEMA 5-15P plug

Designed for natural gas Set for use with natural gas connection. To convert for propane use, add Kit LP

Side controls Cooktop knobs are located on the right side of the cooktop, clearing up space in the front for easier cooking

Push-to-turn knobs Knobs require a small amount of force to ensure burners are not accidentally turned on

DOWNLOADS

BROCHURE (SNL033I.pdf)

TECHNICAL DRAWING (.dwg) (WNL033I.dwg)

ASSEMBLY DRAWING (WNL033I-Assembly.pdf)

USE & CARE (SNL033I-User-Manual.pdf)
