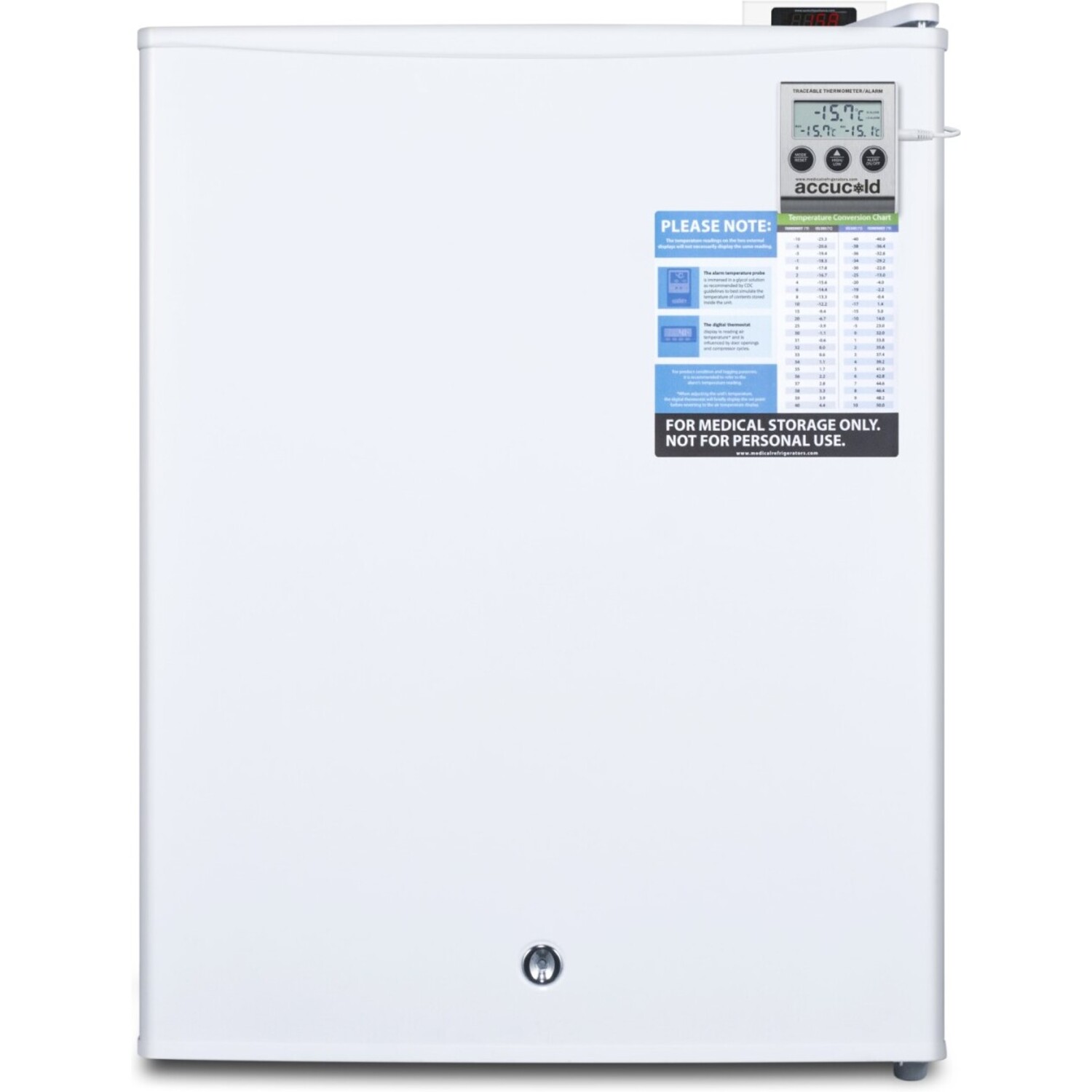

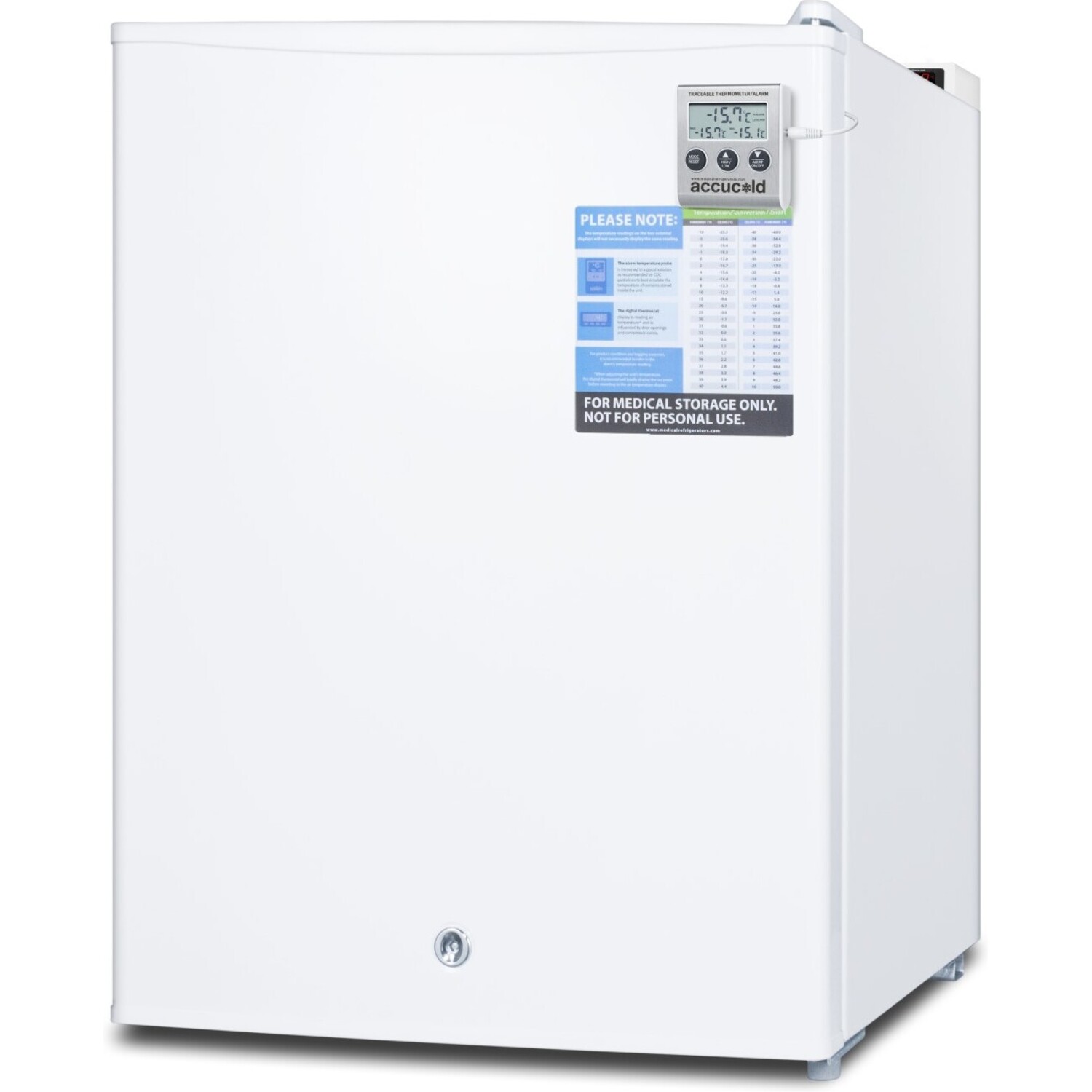

Summit Countertop vaccine storage all-freezer with digital thermostat, temperature alarm, hospital grade cord, self-closing door, and front lock, 7.61101e+011, FS30LVAC

The Accucold® VAC Series freezers are specially designed to store sensitive medical and pharmaceutical materials under the proper conditions, with innovative construction for temperature stability and user-friendly features for added convenience.

The FS30LVAC is a compact all-freezer designed to operate at -20º C, the ideal temperature for long-term storage of select sensitive materials. The 1.8 cu.ft. manual defrost interior offers static cooling for stable results. Removable wire shelving allows easy storage options, with a seamless interior liner to simplify cleanup. This unit has a flat door liner as recommended by the CDC.

For optimum temperature assurance, the FS30LVAC includes a digital thermostat and a high/low temperature alarm with a NIST calibrated temperature display to the nearest tenth of a degree. A hospital grade cord includes a 'green dot' plug for added safety in high traffic settings, while the self-closing door ensures stored items aren't accidentally exposed to room temperature. This model comes in a white finish and includes a factory installed lock. A pre-installed probe hole/access port allows users to install additional monitoring equipment.

The FS30LVAC can be paired with the FF28LWHVAC all-refrigerator for a matching set. These units can also be ordered with more advanced medical features, including a power-out alarm, temperature logger, and more.

NOTE: Accucold freezers are purpose-built to the support meeting the current CDC (Centers for Disease Control) guidelines for the storage of vaccines. As referenced in the current Vaccine Storage and Handling Toolkit, these units incorporate several key features for stable operation. For additional temperature assurance, the CDC recommends a calibrated digital data logger (DDL), which can be added with the factory-installed option DL2B or addition of the DL2BKit accessory. Select Accucold products have been tested and certified to the new NSF 456 standard, and are now available for purchase. For additional information, contact our products specialists.

SPECIFICATIONS

Overview

Nominal Height 27.0" (69 cm)

Height of Cabinet 26.25" (67 cm)

Height to Hinge Cap 24.63" (63 cm)

Nominal Width 19.0" (48 cm)

Width 18.5" (47 cm)

Nominal Depth 18.0" (46 cm)

Depth 17.75" (45 cm)

Depth with door at 90° 34.5" (88 cm)

Capacity 1.8 cu.ft. (51 L)

Defrost Type Manual

Door White

Cabinet White

US Electrical Safety ETL

Canadian Electrical Safety ETL-C

Amps 0.8

Voltage/Frequency 115 V AC/60 Hz

Weight 50.0 lbs. (23 kg)

Parts & Labor Warranty 2 Years

Compressor Warranty 5 Years

UPC 761101032917

Freezer

Door Swing RHD

Reversible Factory Reversible

Interior Height 18.63" (47 cm)

Interior Width 13.38" (34 cm)

Interior Depth 13.0" (33 cm)

Shelf Type Wire

Shelf Qty 2

Thermostat Type Digital

Refrigerant Type R600a

Refrigerant Amount 0.8 oz.

Level Legs 2

Compressor Step Height 8.0" (20 cm)

Compressor Step Width 13.38" (34 cm)

Compressor Step Depth 5.75" (15 cm)

Temperature Range -20 to -15ºC

FEATURES

Compact dimensions Sized for easy use on top of counters

Digital thermostat Electronic controls ensure easy and intuitive temperature management, with a readout in Celsius or Fahrenheit

High/low temperature alarm Audible alarm sounds if the interior temperature rises or falls out of set range

NIST calibrated temperature display Alarm includes NIST calibrated display of the current interior and high/low temperature to the nearest tenth of a degree

Self-closing door Door closes automatically when opened at angles less than 90º

3/8" access port Unit comes with a factory installed probe hole for users to connect their own monitoring equipment

Hospital grade cord with 'green dot' plug Secure three-pronged cord for added unit safety

Manual defrost Static cooling system for improved temperature stability

Factory installed lock Keyed lock for a secure interior

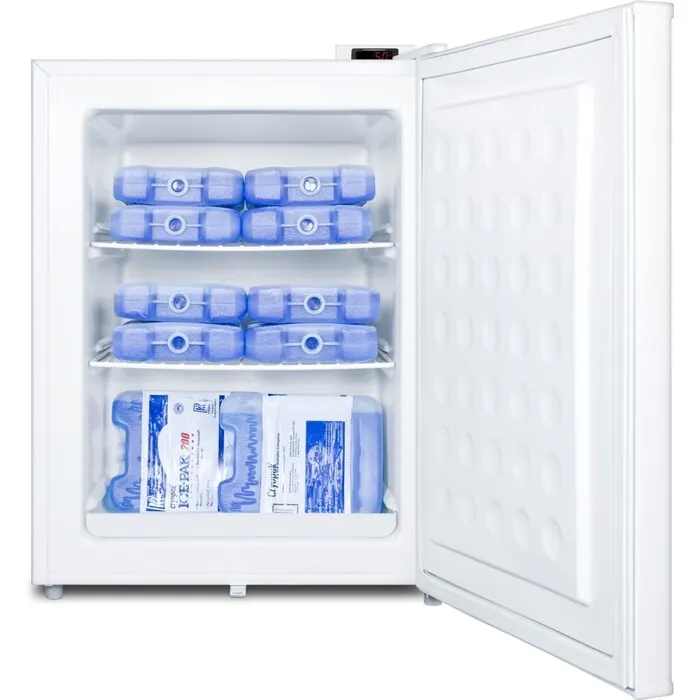

Removable shelves Wire shelves can be removed to accommodate different sizes or for easy cleanup

Flat door liner Interior design conforms to CDC guidelines to ensure stable conditions for sensitive materials

One piece interior liner Easy clean-up with a seamless liner that won't hold a mess in hidden crevices

Factory reversible door Standard unit ships RHD but can be ordered LHD

100% CFC free Environmentally friendly design without ozone-damaging chemicals

CARB Compliant Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
