Summit Compact manual defrost all-freezer for medical/general purpose use, with alarm, hospital grade cord, external thermometer and lock, 7.61101e+011, FS30LMED

Accucold by Summit Appliance offers MED series all-freezers with a stabilized temperature performance for use in medical, scientific, pharmaceutical, and laboratory institutions.

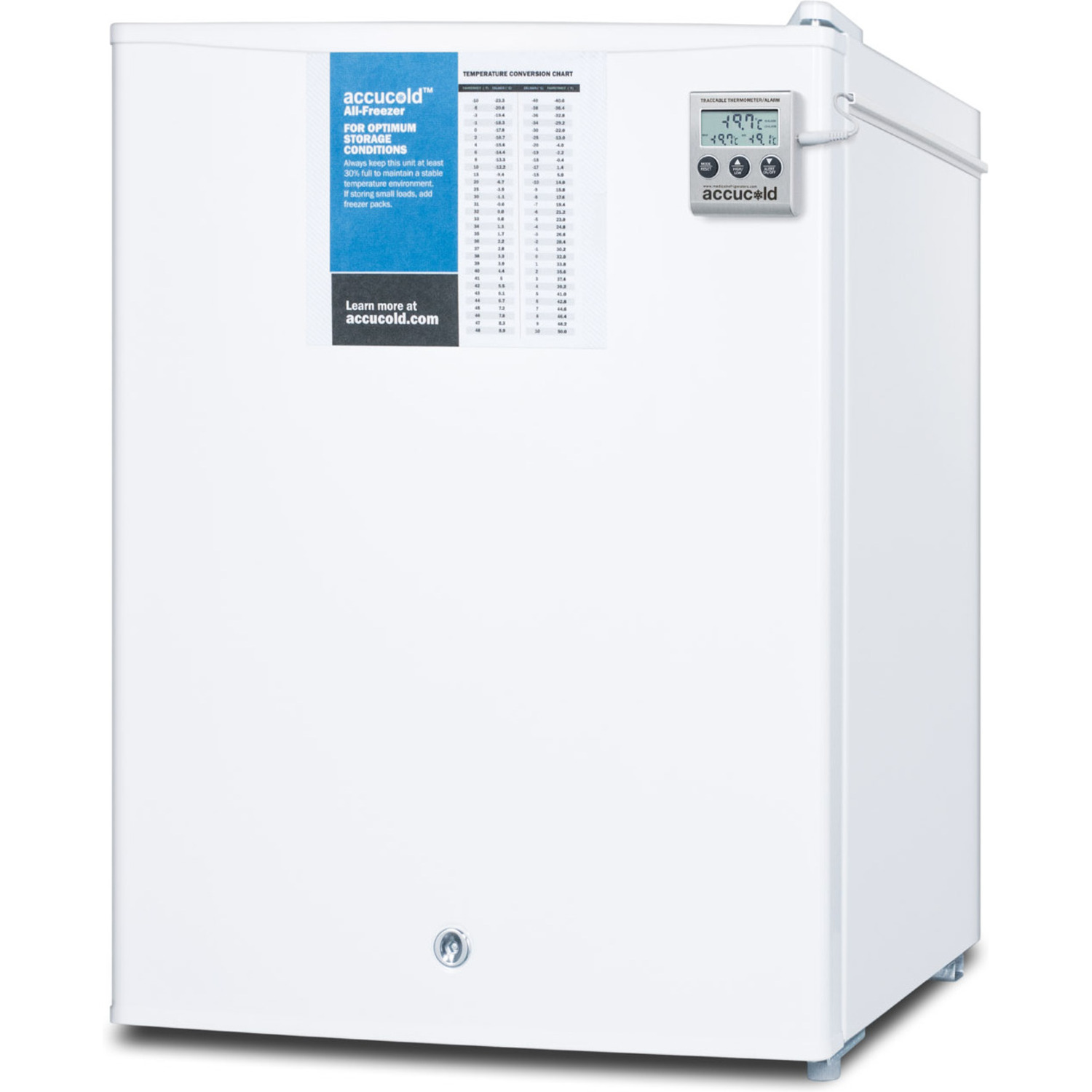

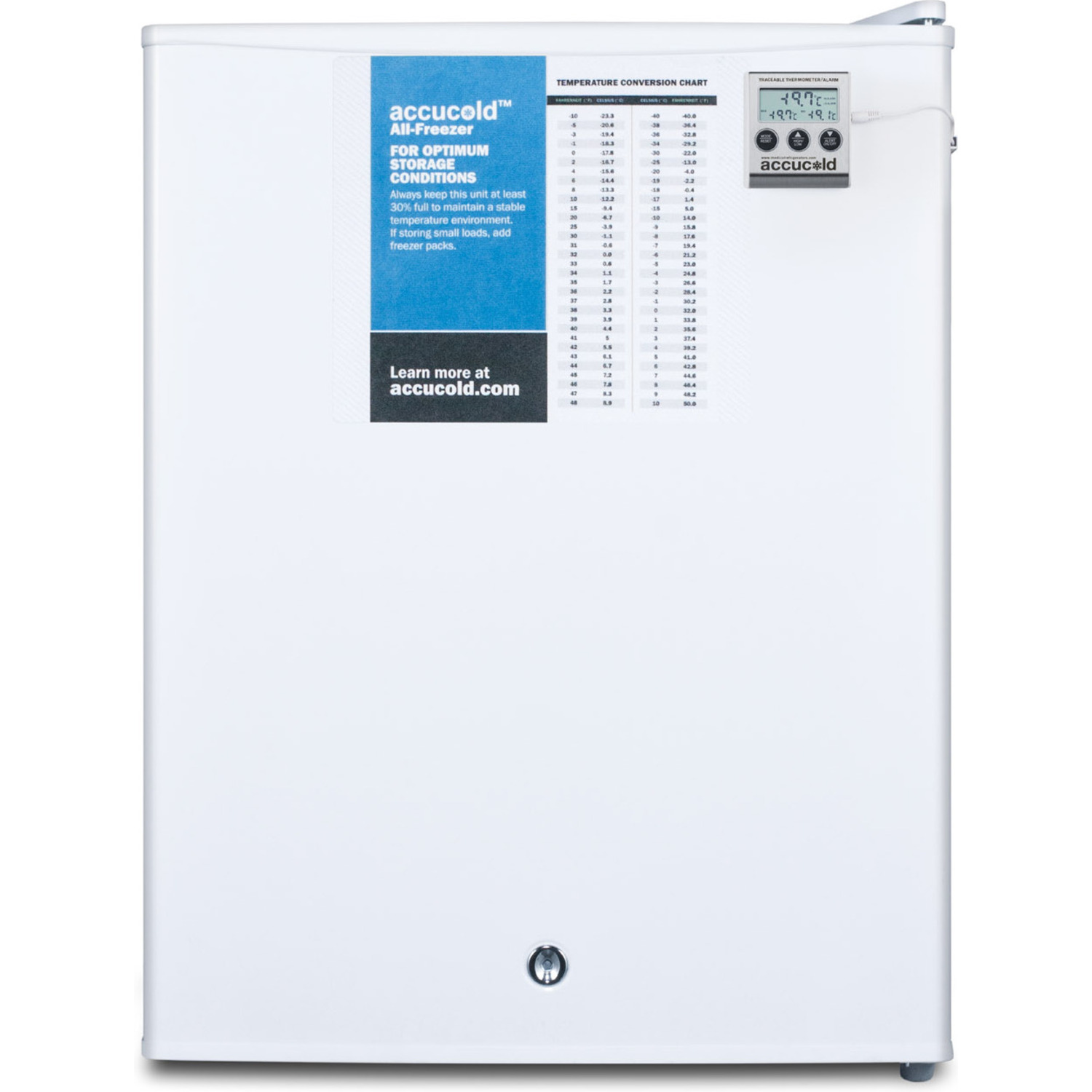

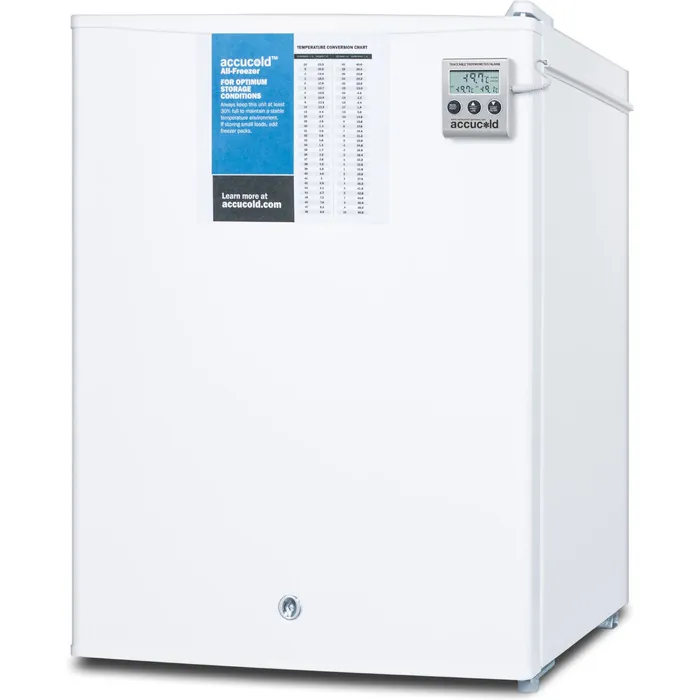

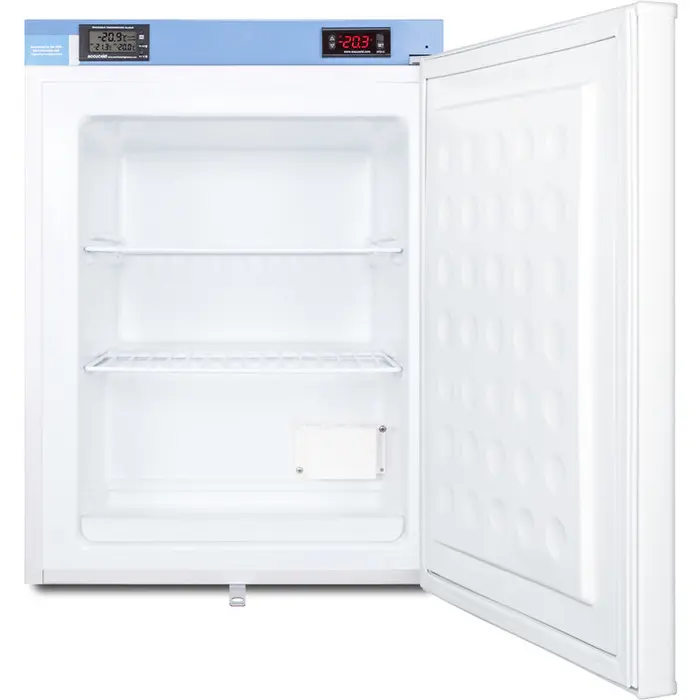

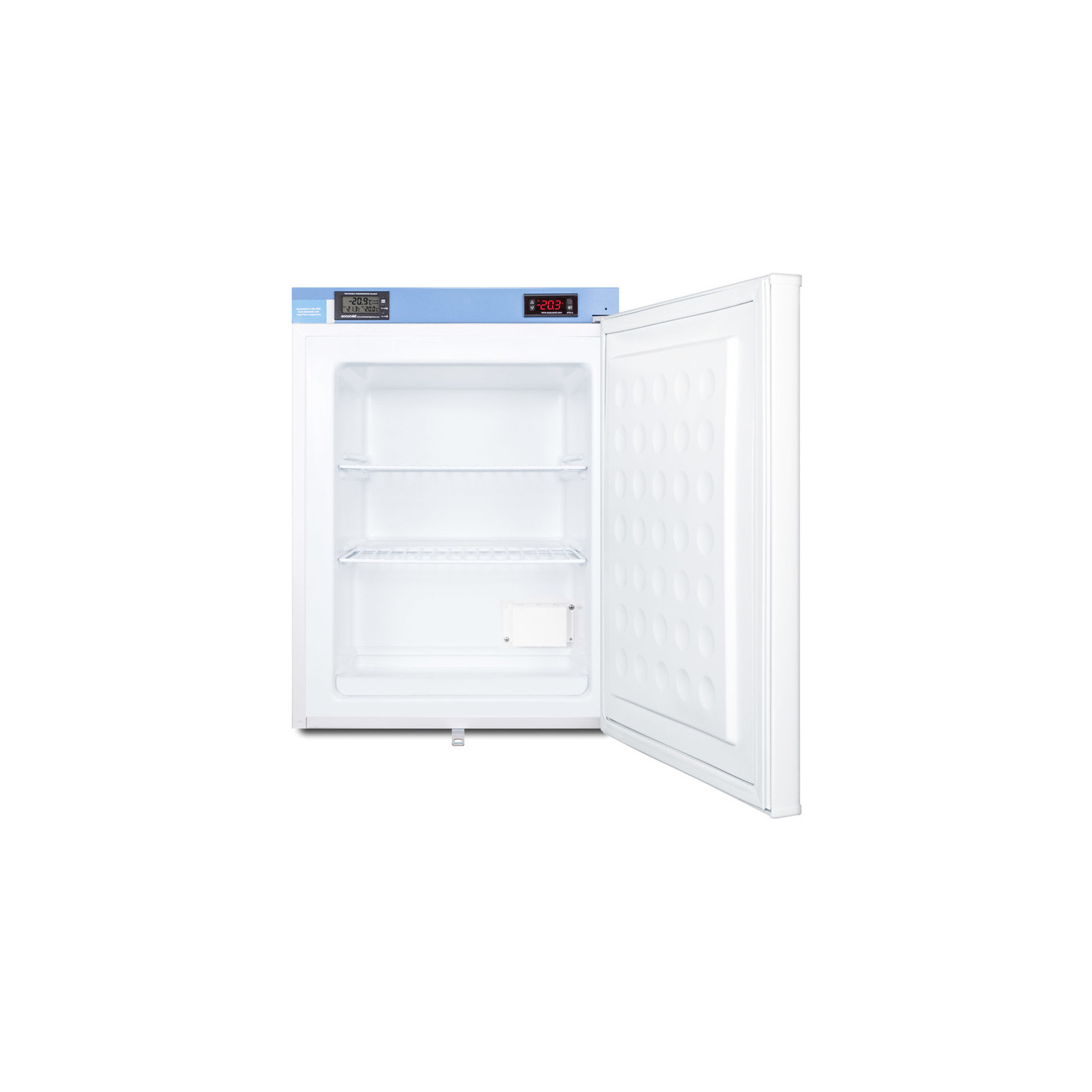

The FS30LMED is a compact 1.8 cu.ft. all-freezer designed for countertop use. The door includes a front lock and high temperature warning alarm that also displays the current and high/low temperatures. The interior includes removable wire shelves for optimum circulation and a one-piece interior liner to ensure easy cleanup. The dial thermostat is located inside the unit. This freezer is manual defrost and operates at an average temperature of -20ºC. A hospital grade 'green dot' cord is included.

With reliable construction and a convenient size, the FS30LMED is the ideal freezer for storing select items in institutional facilities.

Note: This product is intended for a wide variety of basic storage applications. Storage of high-value vaccines, life science materials, and medical/clinical biologicals require a product offering tighter temperature control and/or alarms, monitoring, and backup. For more information, browse Accucold's purpose-built line or contact our product specialists at 1-888-4-MED-LAB.

SPECIFICATIONS

Overview

Nominal Height 25.0" (64 cm)

Height of Cabinet 24.5" (62 cm)

Height to Hinge Cap 24.63" (63 cm)

Nominal Width 19.0" (48 cm)

Width 18.5" (47 cm)

Nominal Depth 18.0" (46 cm)

Depth 17.75" (45 cm)

Depth with door at 90° 34.5" (88 cm)

Capacity 1.8 cu.ft. (51 L)

Defrost Type Manual

Door White

Cabinet White

US Electrical Safety ETL

Canadian Electrical Safety ETL-C

Amps 0.8

Voltage/Frequency 115 V AC/60 Hz

Weight 50.0 lbs. (23 kg)

Parts & Labor Warranty 1 Year

Compressor Warranty 5 Years

UPC 761101041117

Freezer

Door Swing RHD

Reversible Factory Reversible

Interior Height 18.63" (47 cm)

Interior Width 13.38" (34 cm)

Interior Depth 13.0" (33 cm)

Shelf Type Wire

Shelf Qty 2

Thermostat Type Dial

Refrigerant Type R600a

Refrigerant Amount 0.8 oz.

Level Legs 2

Compressor Step Height 8.0" (20 cm)

Compressor Step Width 13.38" (34 cm)

Compressor Step Depth 5.75" (15 cm)

FEATURES

Compact dimensions Sized for easy use on top of counters

Manual defrost Static cooling system for improved temperature stability

Temperature alarm High/low temperature alarm audibly warns when interior is out of set range

NIST calibrated temperature display Alarm includes NIST calibrated display of the current interior and high/low temperature

Hospital grade cord with 'green dot' plug Secure three-pronged cord for added unit safety

-20ºC capable Low temperature capability ideal for certain sensitive items

Factory installed lock Keyed lock for a secure interior

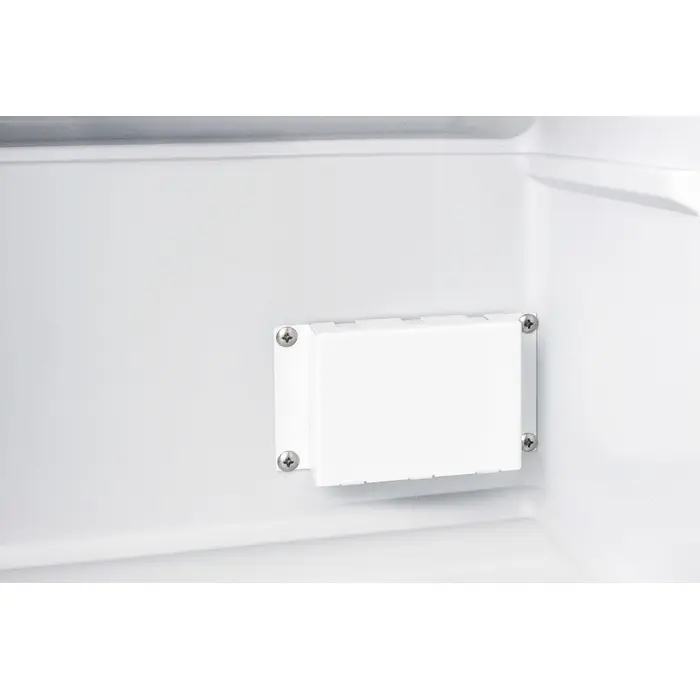

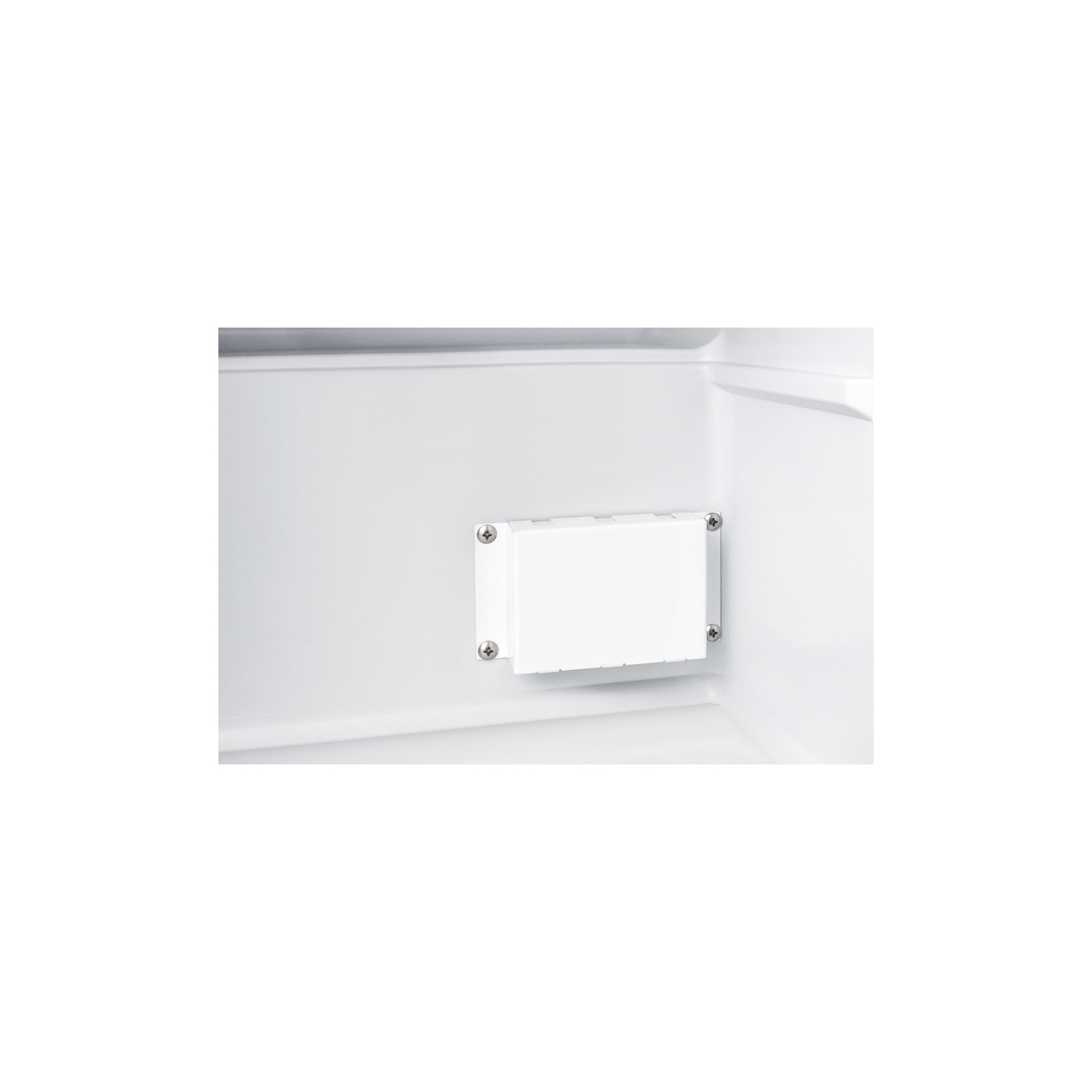

Adjustable thermostat Dial thermostat located inside the unit

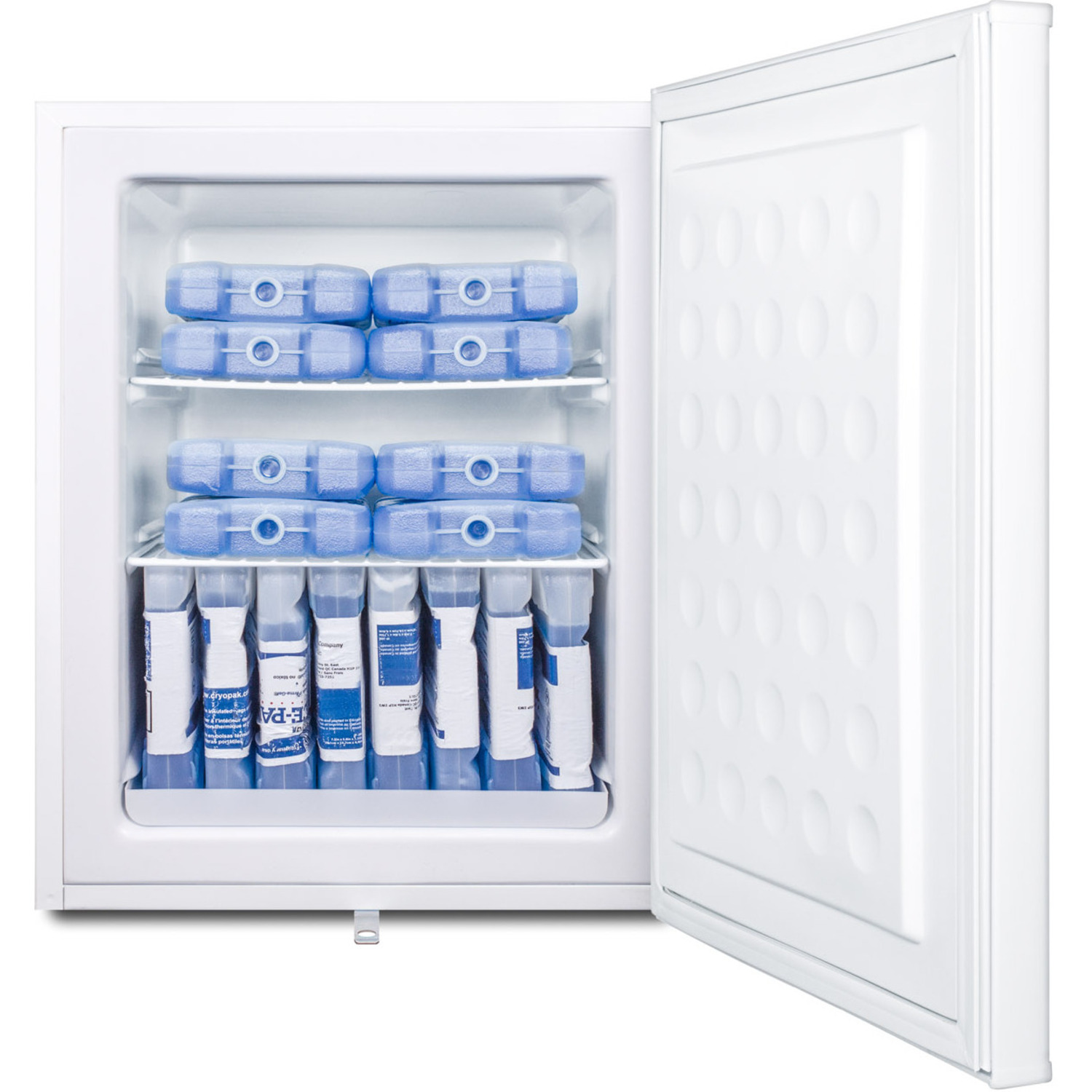

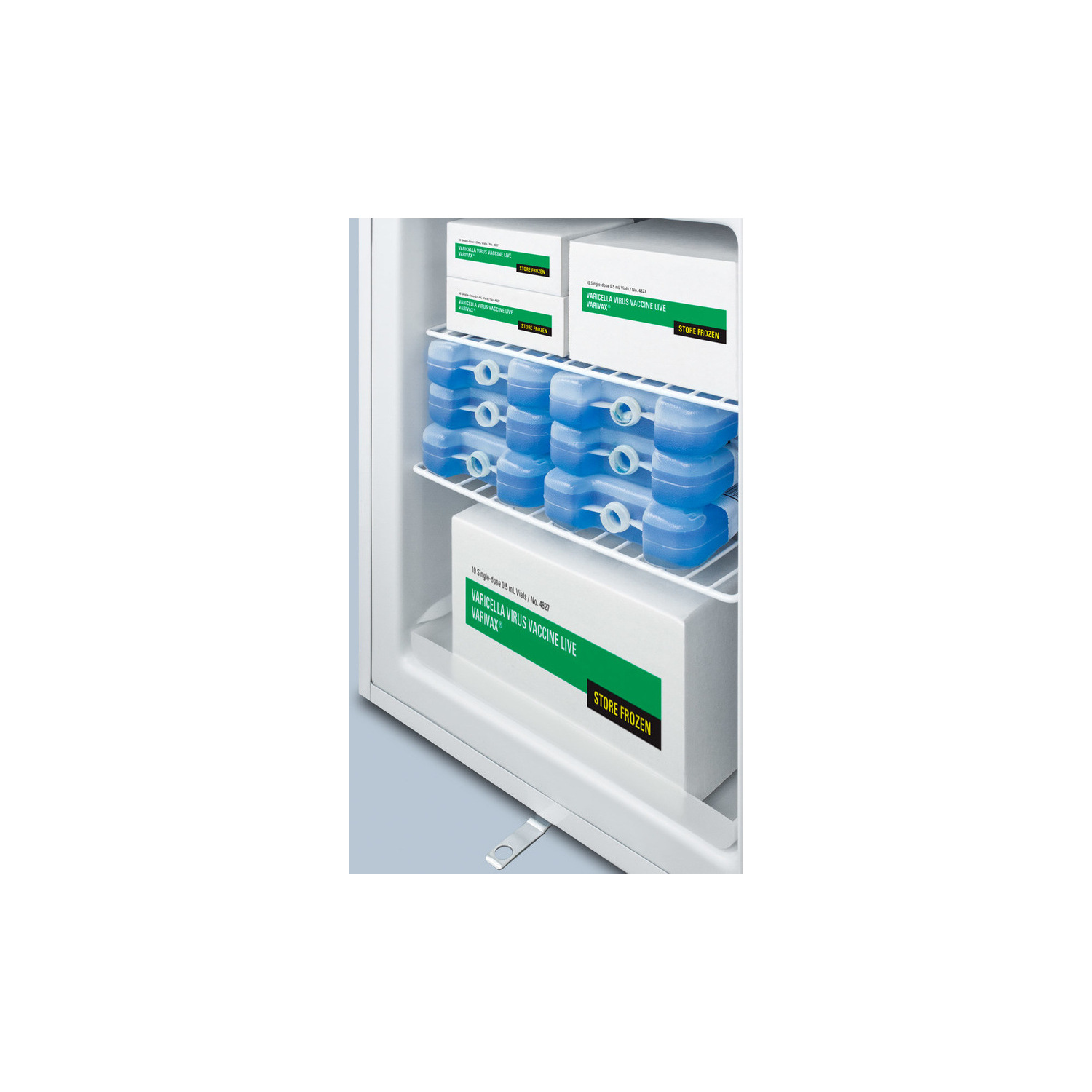

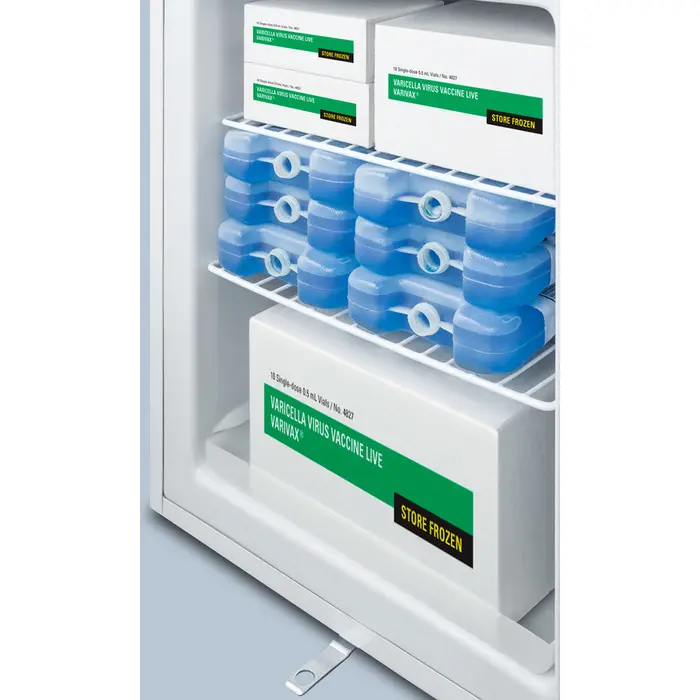

Removable shelves Wire shelves can be removed to accommodate different sizes or for easy cleanup

Flat door liner Interior design conforms to CDC guidelines to ensure stable conditions for sensitive materials

Access port Unit comes with a factory installed probe hole for users to connect their own monitoring equipment

One piece interior liner Easy clean-up with a seamless liner that won't hold a mess in hidden crevices

Fully finished cabinet Allows the unit to be used freestanding

100% CFC free Environmentally friendly design without ozone-damaging chemicals

CARB Compliant Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
