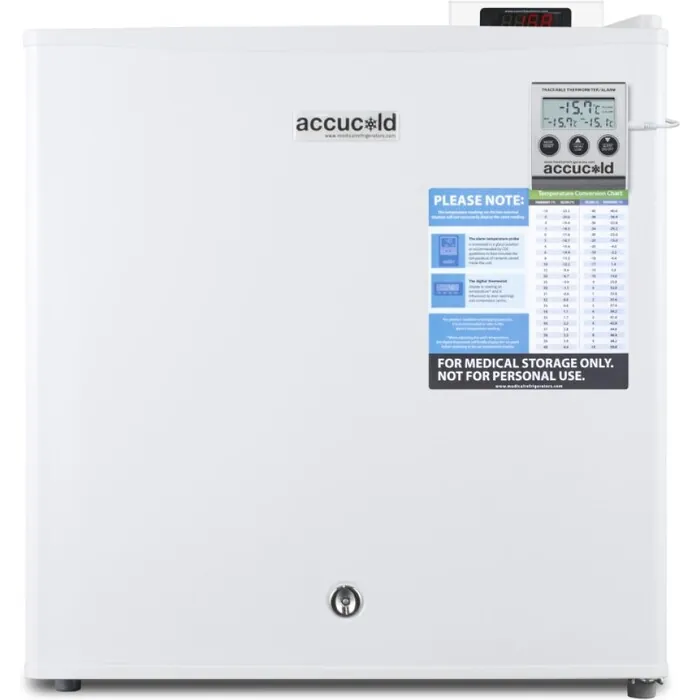

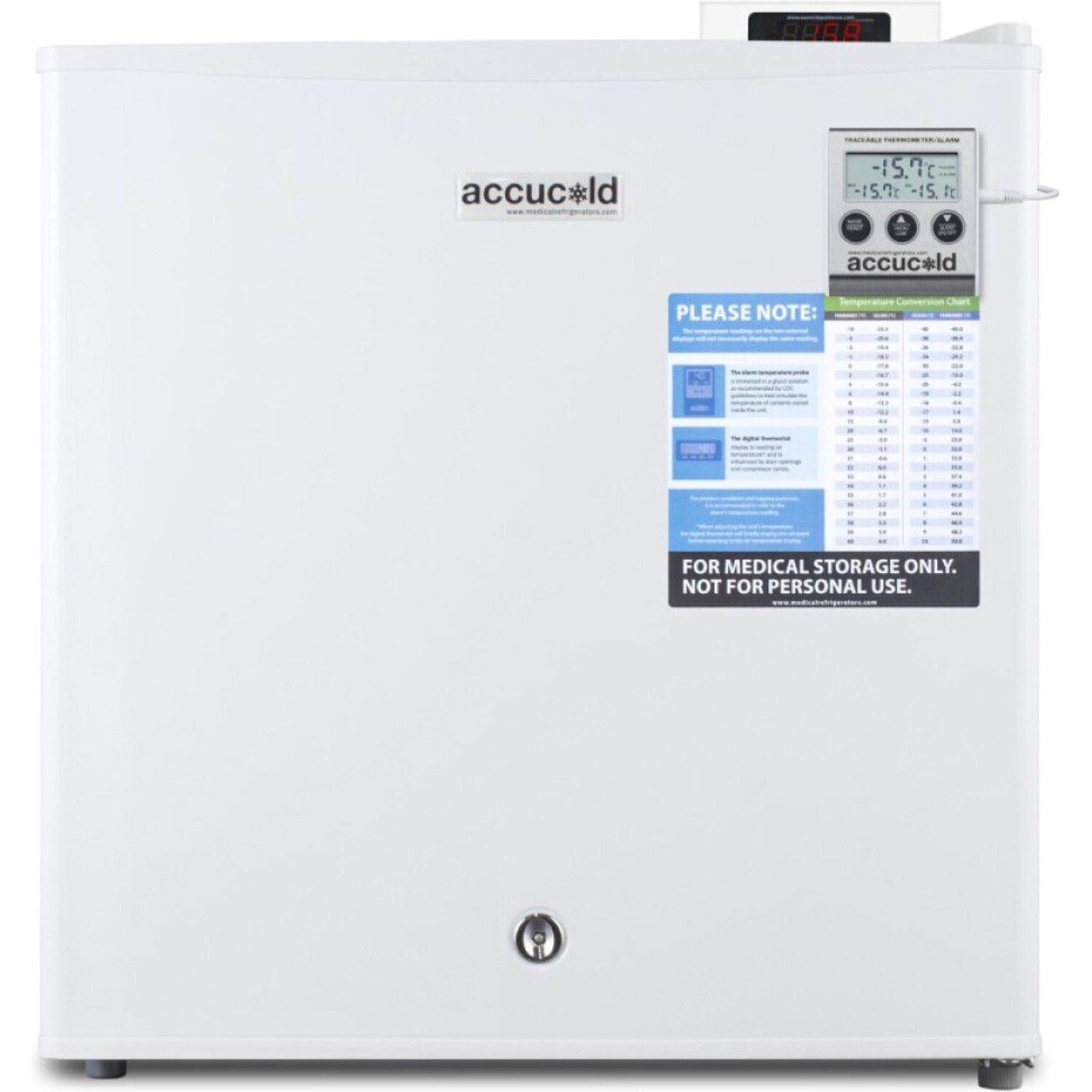

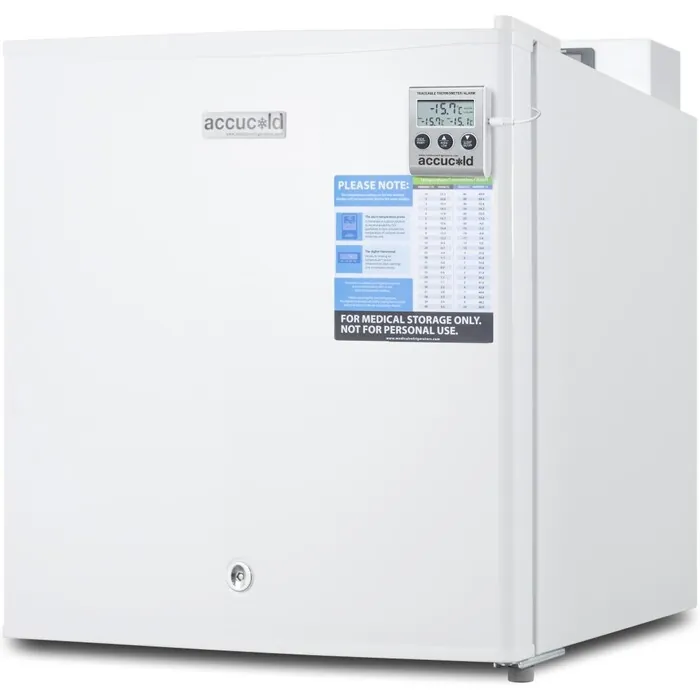

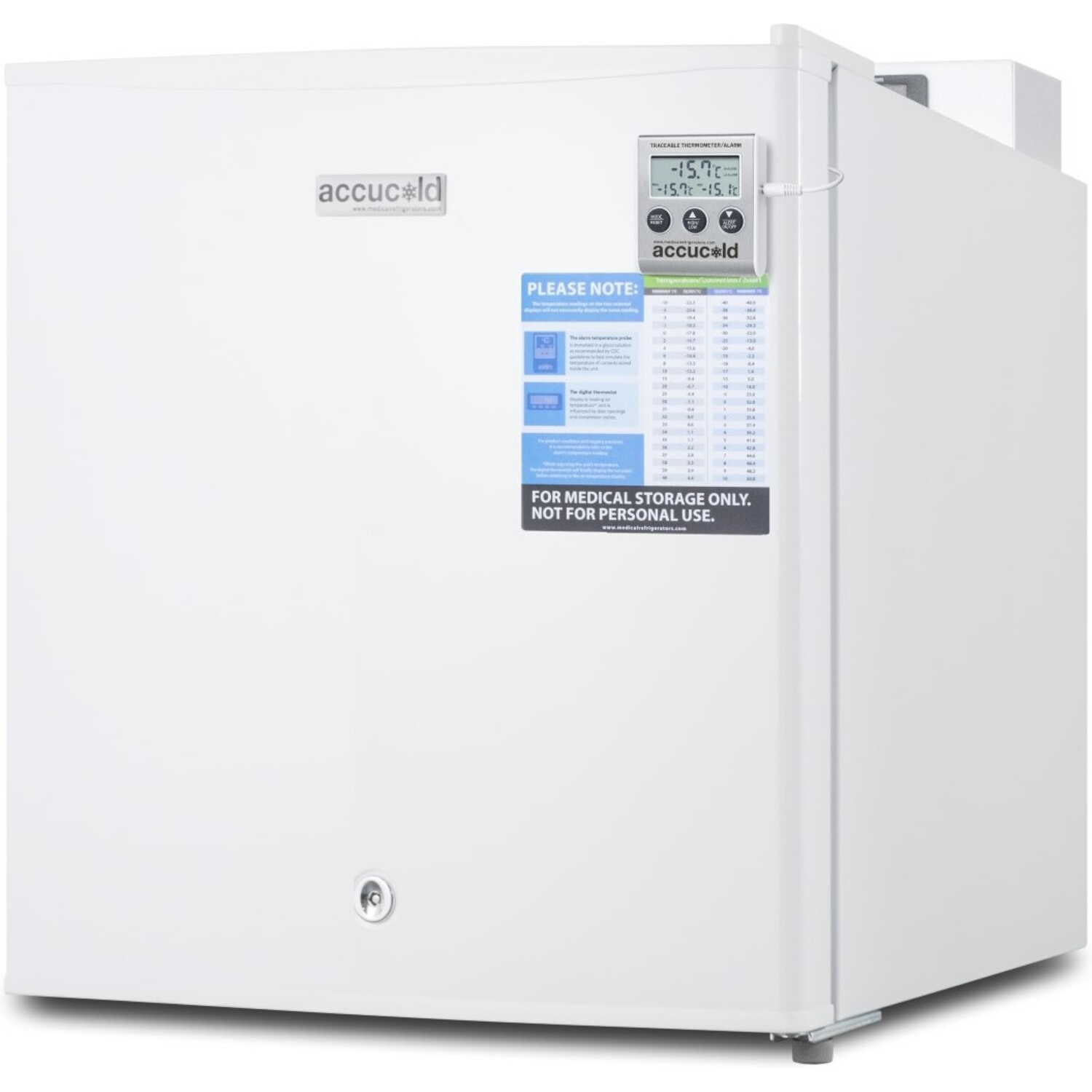

Summit Compact -20º C vaccine storage all-freezer with digital thermostat, temperature alarm, hospital grade cord, self-closing door, and front lock, 7.61101e+011, FS24LVAC

The Accucold® VAC Series freezers are specially designed to store sensitive medical and pharmaceutical materials under the proper conditions, with innovative construction for temperature stability and user-friendly features for added convenience.

The FS24LVAC is a compact all-freezer designed to reach -20º C, the ideal temperature for long-term storage of select sensitive materials. The 1.4 cu.ft. manual defrost interior offers static cooling for stable results. A removable wire shelf allows easy storage options, with a seamless interior liner to simplify cleanup. This unit has a flat door liner as recommended by the CDC.

For optimum temperature assurance, the FS24LVAC includes a digital thermostat and a high/low temperature alarm with a NIST calibrated temperature display to the nearest tenth of a degree. A hospital grade cord includes a 'green dot' plug for added safety in high traffic settings, while the self-closing door ensures stored items aren't accidentally exposed to room temperature. This model comes in a white finish and includes a factory installed lock. A pre-installed probe hole/access port allows users to install additional monitoring equipment.

NOTE: Accucold freezers are purpose-built to the support meeting the current CDC (Centers for Disease Control) guidelines for the storage of vaccines. As referenced in the current Vaccine Storage and Handling Toolkit, these units incorporate several key features for stable operation. For additional temperature assurance, the CDC recommends a calibrated digital data logger (DDL), which can be added with the factory-installed option DL2B or addition of the DL2BKit accessory. Select Accucold products have been tested and certified to the new NSF 456 standard, and are now available for purchase. For additional information, contact our products specialists.

SPECIFICATIONS

Overview

Nominal Height 22.0" (56 cm)

Height of Cabinet 21.38" (54 cm)

Nominal Width 19.0" (48 cm)

Width 18.5" (47 cm)

Nominal Depth 18.0" (46 cm)

Depth 17.63" (45 cm)

Depth with door at 90° 34.5" (88 cm)

Capacity 1.4 cu.ft. (40 L)

Defrost Type Manual

Door White

Cabinet White

US Electrical Safety ETL

Canadian Electrical Safety ETL-C

Amps 1.0

Voltage/Frequency 115 V AC/60 Hz

Weight 35.0 lbs. (16 kg)

Parts & Labor Warranty 2 Years

Compressor Warranty 5 Years

UPC 761101049236

Freezer

Door Swing RHD

Reversible Factory Reversible

Interior Height 14.38" (37 cm)

Interior Width 13.5" (34 cm)

Interior Depth 13.25" (34 cm)

Shelf Type Wire

Shelf Qty 1

Thermostat Type Digital

Refrigerant Type R600a

Refrigerant Amount 0.8 oz.

High Side PSI 110.0

Low Side PSI 70.0

Level Legs 2

Compressor Step Height 8.5" (22 cm)

Compressor Step Width 13.5" (34 cm)

Compressor Step Depth 6.0" (15 cm)

FEATURES

Compact dimensions Ideal size for use on top of counters

-20° capable Low temperature capability ideal for certain sensitive items

Digital thermostat Electronic controls for more precise temperature management

High/low temperature alarm Audible alarm sounds if the interior temperature rises or falls out of set range

NIST calibrated temperature display Alarm includes NIST calibrated display of the current interior and high/low temperature to the nearest tenth of a degree

Factory installed lock Keyed lock for secure interior

Self-closing door Door closes automatically when opened at angles less than 90º

3/8" access port Unit comes with a factory installed probe hole for users to connect their own monitoring equipment

Hospital grade cord with 'green dot' plug Secure three-pronged cord for added unit safety

Manual defrost Static cooling system for reduced temperature fluctuations

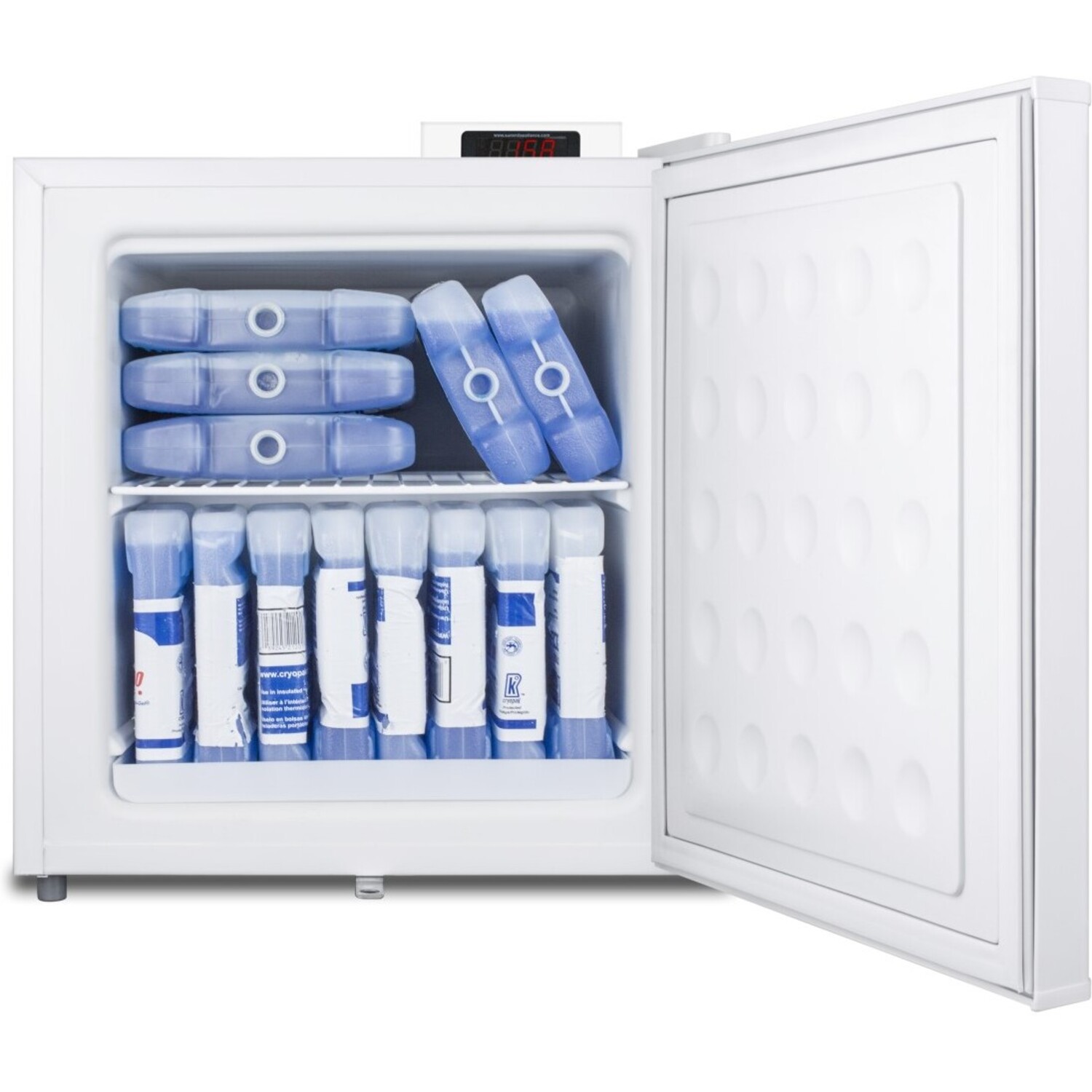

Removable shelf Includes one wire shelf for easier storage

One-piece interior liner Seamless interior for easier cleanup

Flat door liner Interior design conforms to CDC guidelines to ensure stable conditions for sensitive materials

Factory reversible door Standard unit ships RHD but can be ordered LHD

100% CFC Free Environmentally friendly design with no ozone-damaging chemicals

CARB Compliant Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
