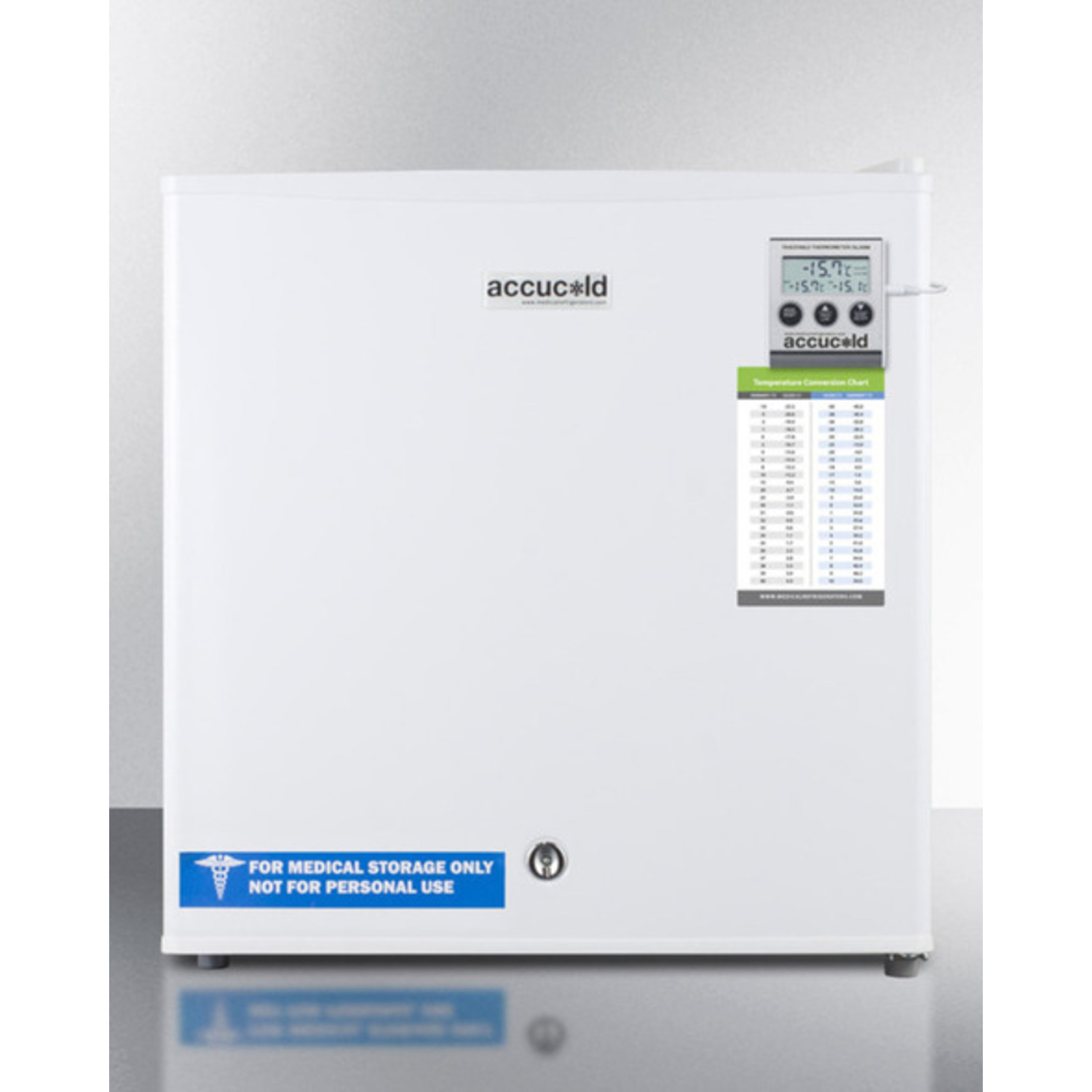

Summit Compact all-freezer capable of -20º C degree operation, with lock, alarm with temperature display, and hospital grade cord, 7.61101e+011, FS24LMED

Accucold by Summit Appliance offers MED series all-freezers for stabilized temperature performance to be used in medical, scientific, pharmaceutical, and laboratory institutions.

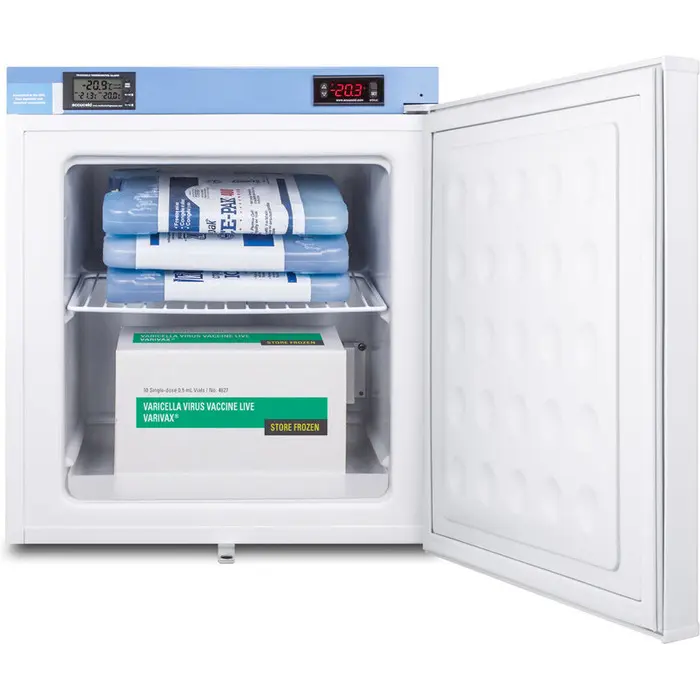

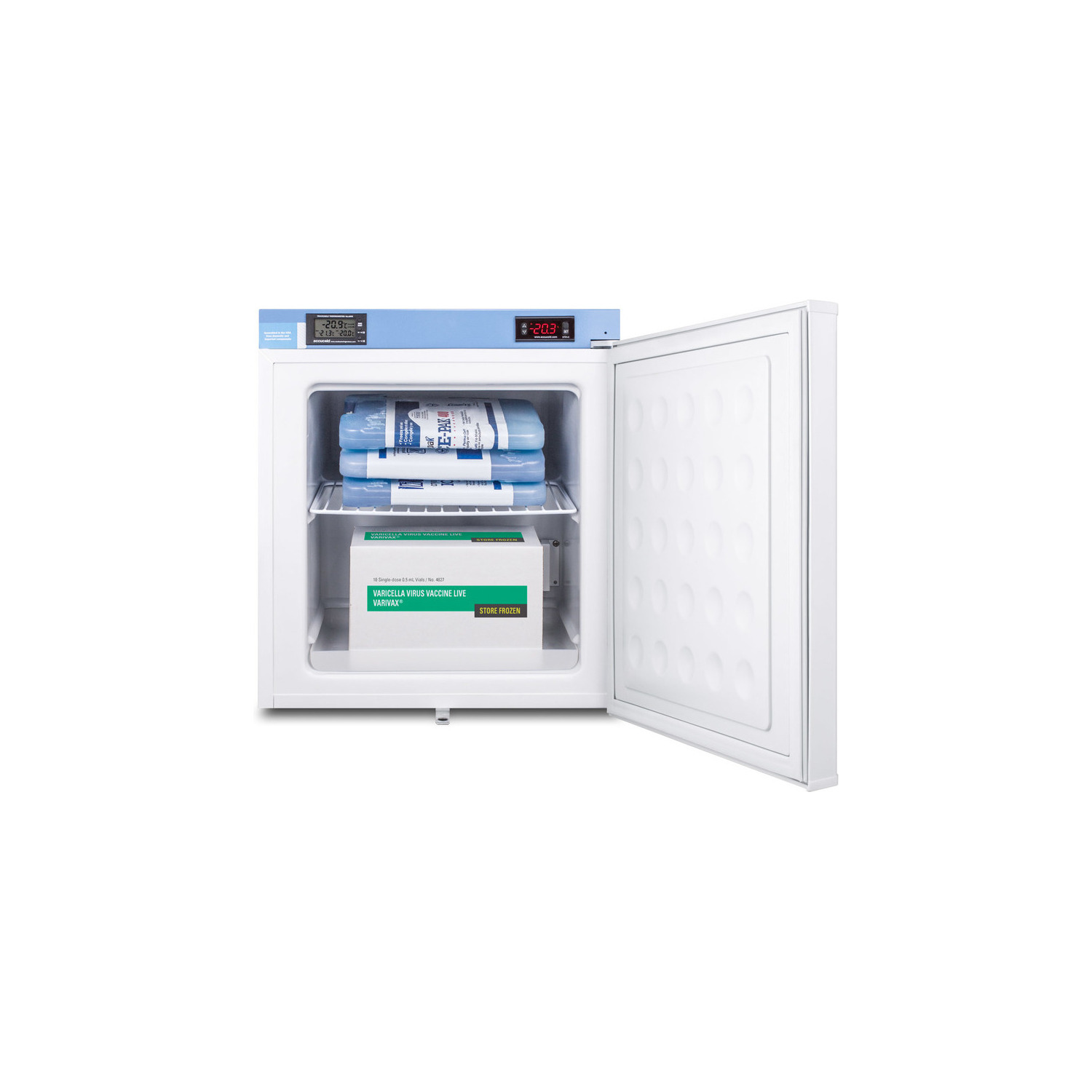

The FS24LMED is a compact all-freezer designed to reach -20º C, the ideal temperature for long-term storage of select sensitive materials. The 1.4 cu.ft. manual defrost interior offers static cooling for stable results. A removable wire shelf allows easy storage options, with a seamless interior liner to simplify cleanup. The dial thermostat is located inside. This unit has a flat door liner as recommended by the CDC.

For added temperature assurance, the FS24LMED includes a high/low temperature alarm that also includes a NIST calibrated temperature display to the nearest tenth of a degree. A hospital grade cord includes a 'green dot' plug for added safety in high traffic settings. This model comes in a white finish and includes a factory installed lock and a preinstalled probe hole for users connecting their own monitoring equipment.

In addition to the included features, the FS24LMED can be ordered with more advanced medical features, including a digital thermostat, power-out alarm, self-closing door, temperature logger, and more.

NOTE: Accucold freezers are purpose-built to the support meeting the current CDC (Centers for Disease Control) guidelines for the storage of vaccines. As referenced in the current Vaccine Storage and Handling Toolkit, these units incorporate several key features for stable operation. For additional temperature assurance, the CDC recommends a calibrated digital data logger (DDL), which can be added with the factory-installed option DL2B or addition of the DL2BKit accessory. Select Accucold products have been tested and certified to the new NSF 456 standard, and are now available for purchase. For additional information, contact our products specialists.

SPECIFICATIONS

Overview

Nominal Height 20.0" (51 cm)

Height of Cabinet 19.63" (50 cm)

Height to Hinge Cap 20.0" (51 cm)

Nominal Width 19.0" (48 cm)

Width 18.5" (47 cm)

Nominal Depth 18.0" (46 cm)

Depth 17.63" (45 cm)

Depth with door at 90° 34.5" (88 cm)

Capacity 1.4 cu.ft. (40 L)

Defrost Type Manual

Door White

Cabinet White

US Electrical Safety ETL

Canadian Electrical Safety ETL-C

Amps 1.0

Voltage/Frequency 115 V AC/60 Hz

Weight 35.0 lbs. (16 kg)

Parts & Labor Warranty 1 Year

Compressor Warranty 5 Years

UPC 761101047836

Freezer

Door Swing RHD

Reversible Factory Reversible

Interior Height 14.38" (37 cm)

Interior Width 13.5" (34 cm)

Interior Depth 13.25" (34 cm)

Shelf Type Wire

Shelf Qty 1

Thermostat Type Dial

Refrigerant Type R600a

Refrigerant Amount 0.8 oz.

High Side PSI 110.0

Low Side PSI 70.0

Level Legs 2

Compressor Step Height 8.5" (22 cm)

Compressor Step Width 13.5" (34 cm)

Compressor Step Depth 6.0" (15 cm)

FEATURES

Compact dimensions Ideal size for use on top of counters

-20° capable Low temperature capability ideal for certain sensitive items

Factory installed lock Keyed lock for secure interior

High temperature alarm Warns of temperature fluctuations and includes an external temperature readout on the door

NIST calibrated temperature display Alarm includes NIST calibrated display of the current interior and high/low temperature

Hospital grade cord with 'green dot' plug Secure three-pronged cord for added unit safety

Manual defrost Static cooling system for reduced temperature fluctuations

Removable shelf Includes one wire shelf for easier storage

One-piece interior liner Seamless interior for easier cleanup

Flat door liner Interior design conforms to CDC guidelines to ensure stable conditions for sensitive materials

Adjustable thermostat Dial thermostat located inside for easy temperature management

Access port Unit comes with a factory installed probe hole for users to connect their own monitoring equipment

100% CFC Free Environmentally friendly design with no ozone-damaging chemicals

CARB Compliant Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
