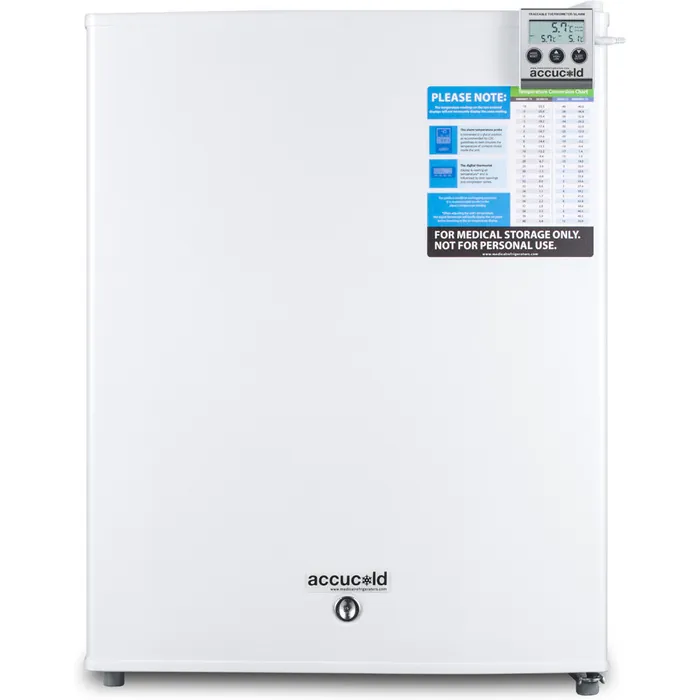

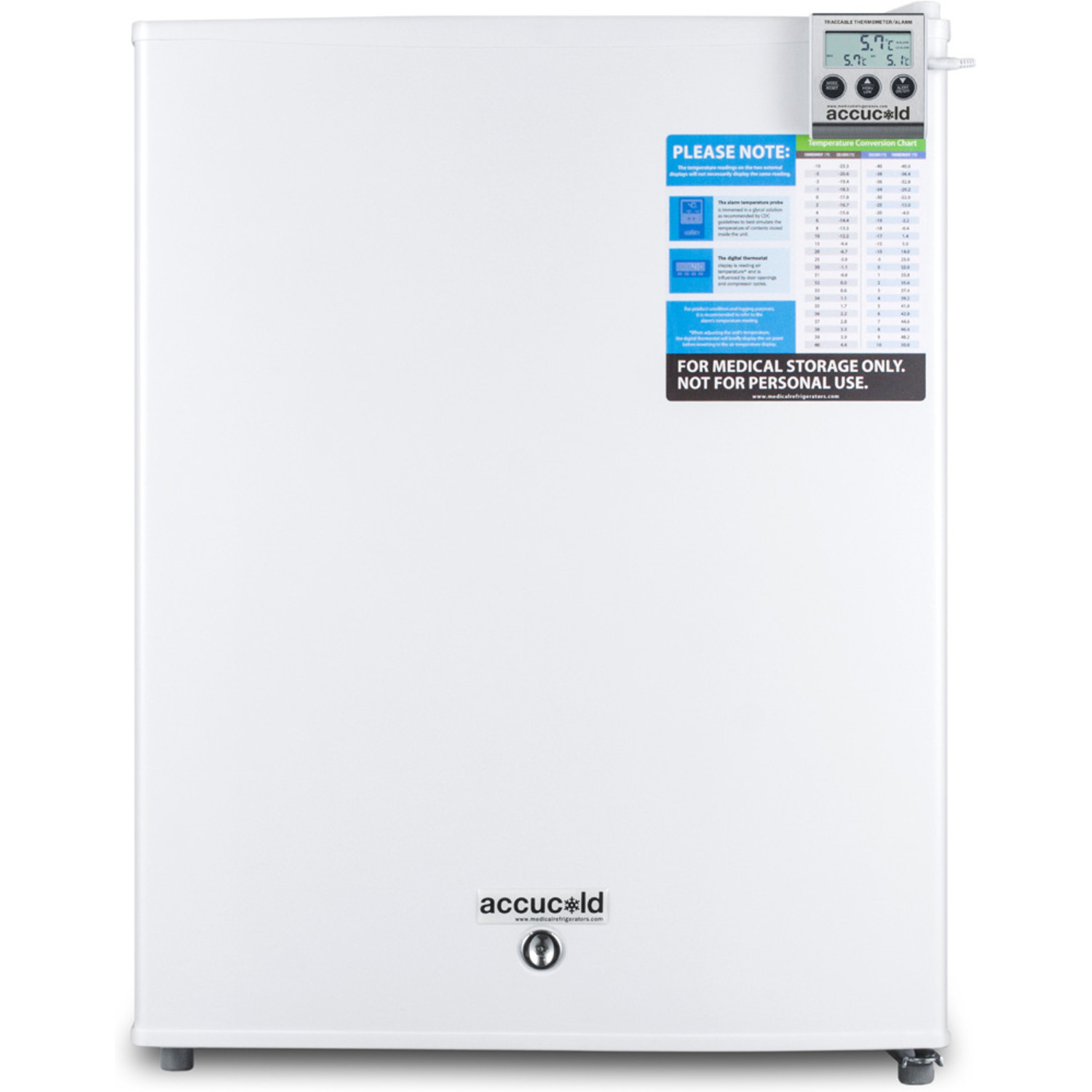

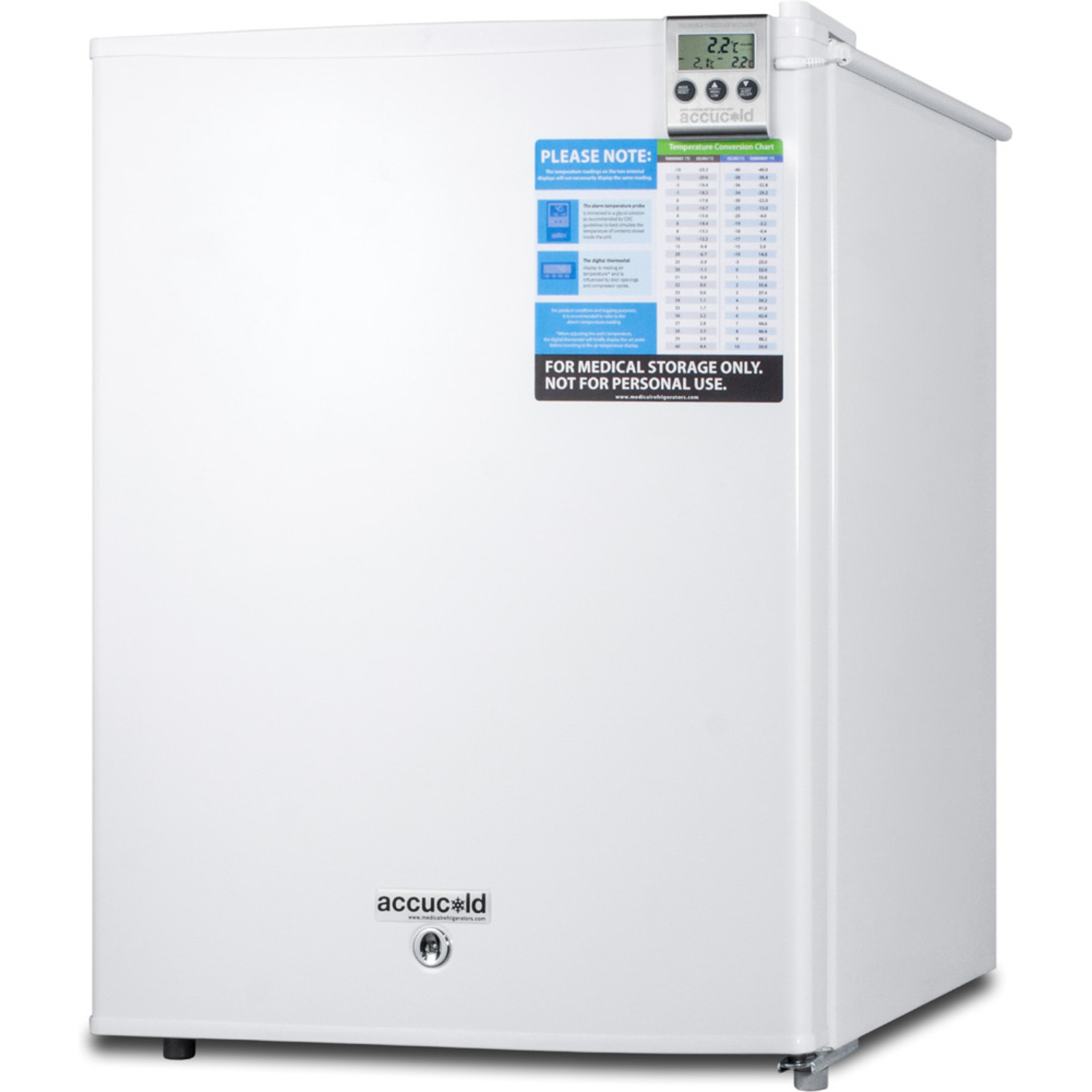

Summit Compact medical all-refrigerator for temperature stable medical storage, with digital thermostat, lock, self-closing door, temperature alarm, and internal fan, 7.61101e+011, FF28LWHVAC

The Accucold® VAC Series refrigerators are specially designed to store sensitive medical and pharmaceutical materials under the proper conditions, with innovative construction for temperature stability and user-friendly features for added convenience.

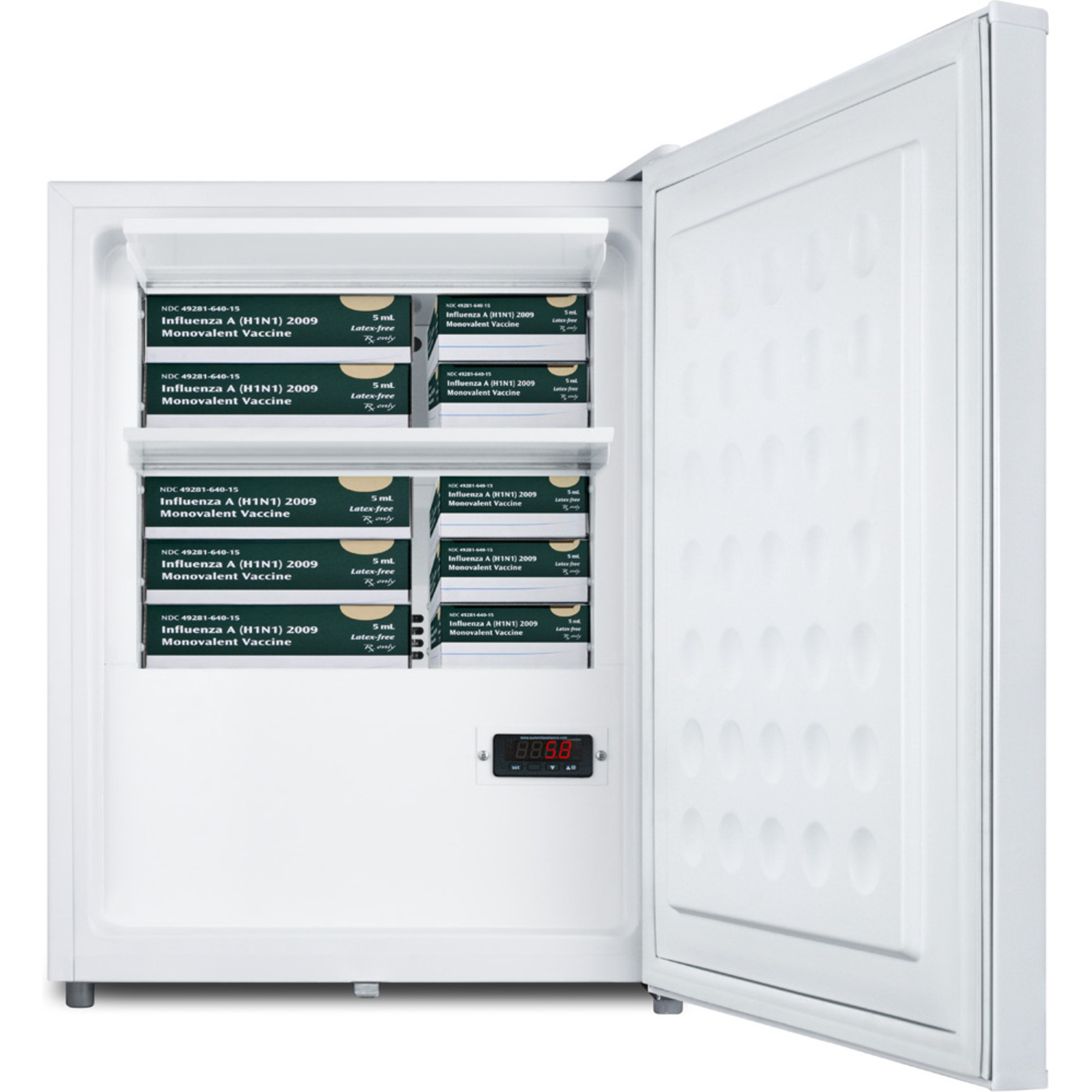

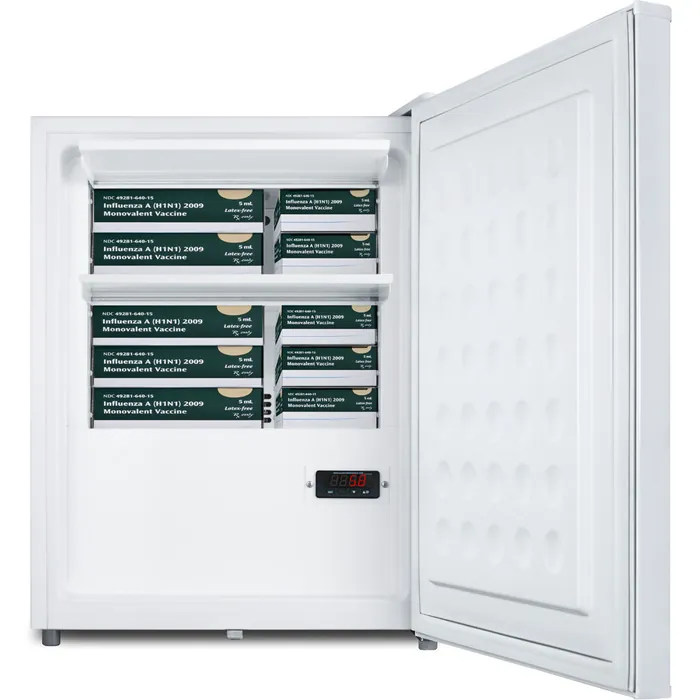

Sized for use on top of counters, the FF28LWHVAC is a compact all-refrigerator with automatic defrost operation. Fan-forced cooling helps to maintain even temperature distribution throughout the interior, ensuring the refrigerator stays within 2ºC of desired temperature and maximizing the usable storage space inside. The interior includes two drop-down covers that shield stored contents from being exposed to room temperature when the door is open. As recommended by the CDC for vaccine storage, this unit has a flat interior door liner.

The FF28LWHVAC includes a factory installed front lock for added security. The self-closing door is an ideal feature for lab or medical settings, helping to protect valuable samples and vaccines when a busy staff may not always have time to ensure a tight seal. The hospital grade 'green dot' cord offers added safety in high-traffic locations.

For temperature precision, the FF28LWHVAC includes a digital thermostat. A high/low temperature alarm sends an audible alert if the unit is out of set range, while also displaying a NIST calibrated temperature readout to the nearest tenth of a degree. A pre-installed probe hole/access port allows users to install additional monitoring equipment.

In addition to the standard features of the VAC line, the FF28LWHVAC can be further customized to your exact specifications. Additional options include temperature loggers, open door alarms, and more. For more information, call our office to discuss your complete medical refrigeration needs with our sales team.

NOTE: Accucold refrigerators are purpose-built to the support meeting the current CDC (Centers for Disease Control) guidelines for the storage of vaccines. At this time, Accucold refrigerators have not been evaluated to the new NSF 456 standard. As referenced in the current Vaccine Storage and Handling Toolkit, these units incorporate microprocessor controls and forced air circulation for stable operation between 2 and 8ºC. For additional temperature assurance, the CDC recommends a calibrated digital data logger (DDL), which can be added with the factory-installed option DL2B or addition of the DL2BKit accessory.

NOTE: Accucold refrigerators are purpose-built to the support meeting the current CDC (Centers for Disease Control) guidelines for the storage of vaccines. At this time, Accucold refrigerators have not been evaluated to the new NSF 456 standard. As referenced in the current Vaccine Storage and Handling Toolkit, these units incorporate microprocessor controls and forced air circulation for stable operation between 2 and 8ºC. For additional temperature assurance, the CDC recommends a calibrated digital data logger (DDL), which can be added with the factory-installed option DL2B or addition of the DL2BKit accessory.

SPECIFICATIONS

Overview

Nominal Height 25.0" (64 cm)

Height of Cabinet 24.5" (62 cm)

Height to Hinge Cap 24.88" (63 cm)

Nominal Width 19.0" (48 cm)

Width 18.5" (47 cm)

Nominal Depth 18.0" (46 cm)

Depth 17.75" (45 cm)

Depth with door at 90° 34.5" (88 cm)

Capacity 0.8 cu.ft. (23 L)

Defrost Type Automatic

Door White

Cabinet White

US Electrical Safety ETL

Canadian Electrical Safety ETL-C

Amps 0.7

Voltage/Frequency 115 V AC/60 Hz

Weight 60.0 lbs. (27 kg)

Parts & Labor Warranty 1 Year

Compressor Warranty 5 Years

UPC 761101007175

Refrigerator Features

Door Swing RHD

Reversible Factory Reversible

Thermostat Type Digital

Fan Type Interior

Refrigerant Type R600a

Refrigerant Amount 0.7oz.

High Side PSI 120.0

Low Side PSI 70.0

Level Legs Qty 2

Temperature Range 2 to 8ºC

Dimensions

Interior Height 11.38" (29 cm)

Interior Width 14.0" (36 cm)

Interior Depth 10.5" (27 cm)

FEATURES

Improved temperature stability Interior is designed to operate within 2ºC of set temperature performance

Interior drawer covers Two shelves are protected by metal door flaps that help to protect stored contents from being exposed to room temperature when the door is opened

Digital thermostat Electronic controls ensure precise and intuitive temperature management

High/low temperature alarm Audible alarm sounds if the interior temperature rises or falls out of set range

NIST calibrated temperature display Alarm includes NIST calibrated display of the current interior and high/low temperature

Self-closing door Door closes automatically when opened at angles less than 90º to prevent the interior from being exposed to room temperature

3/8" access port Unit comes with a factory installed probe hole for users to connect their own monitoring equipment

Hospital grade cord and plug Secure three-pronged 'green dot' cord for added unit safety in high traffic settings

Automatic defrost Reduced maintenance with auto defrost system

Internal fan Fan-cooled interior maintains a consistent temperature from top to bottom

Factory installed lock Keyed lock for a secure interior

Fully finished white cabinet Allows the unit to be used freestanding

Flat door liner Interior design conforms to CDC guidelines to ensure stable conditions for sensitive materials

Compact dimensions Perfectly sized for use on the counter

Factory reversible door Standard unit ships RHD but can be ordered LHD

CARB Compliant Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

100% CFC Free Environmentally friendly design without ozone-damaging chemicals
