Summit Built-in undercounter refrigerator-freezer for general purpose use, with dual evaporator cooling, cycle defrost, fully wrapped SS exterior, and lock, 7.61101e+011, CT66LWCSS

Accucold by Summit Appliance offers a wide range of undercounter refrigeration for general purpose storage. The CT66JBI Series includes built-in undercounter refrigerator-freezers equipped with dual evaporator cooling for optimum storage conditions.

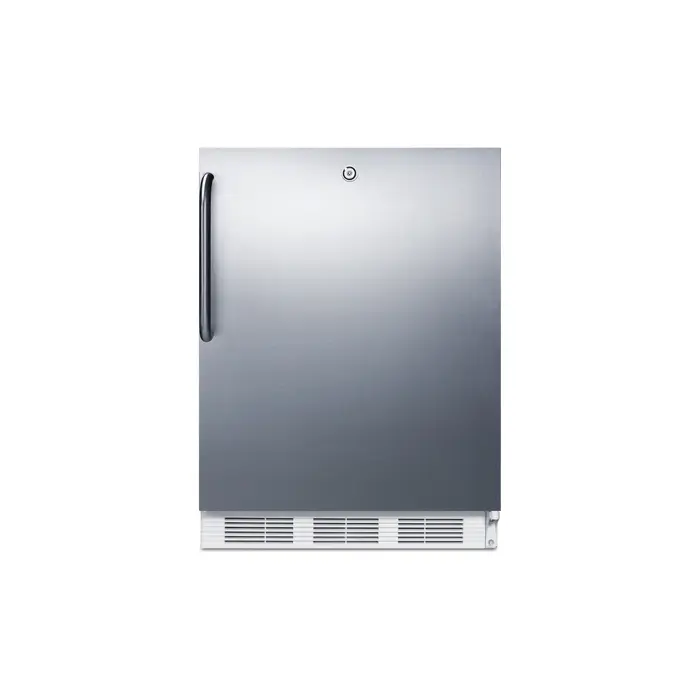

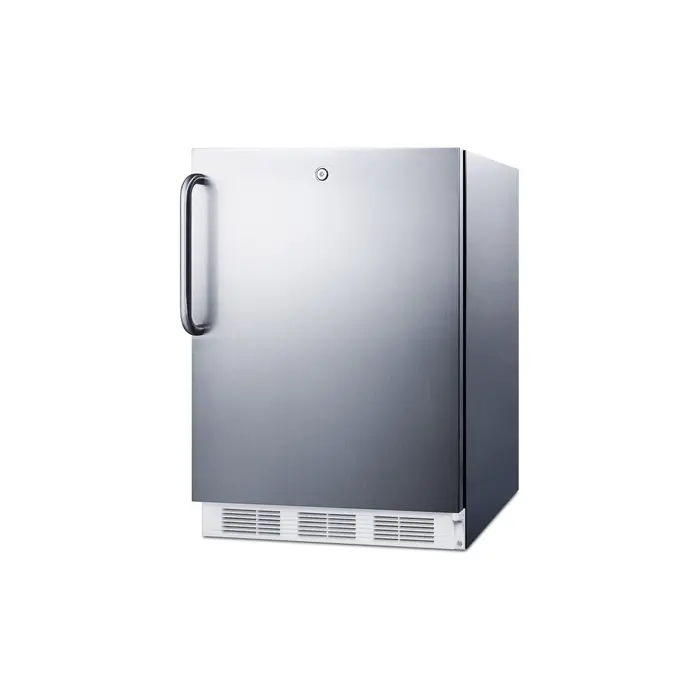

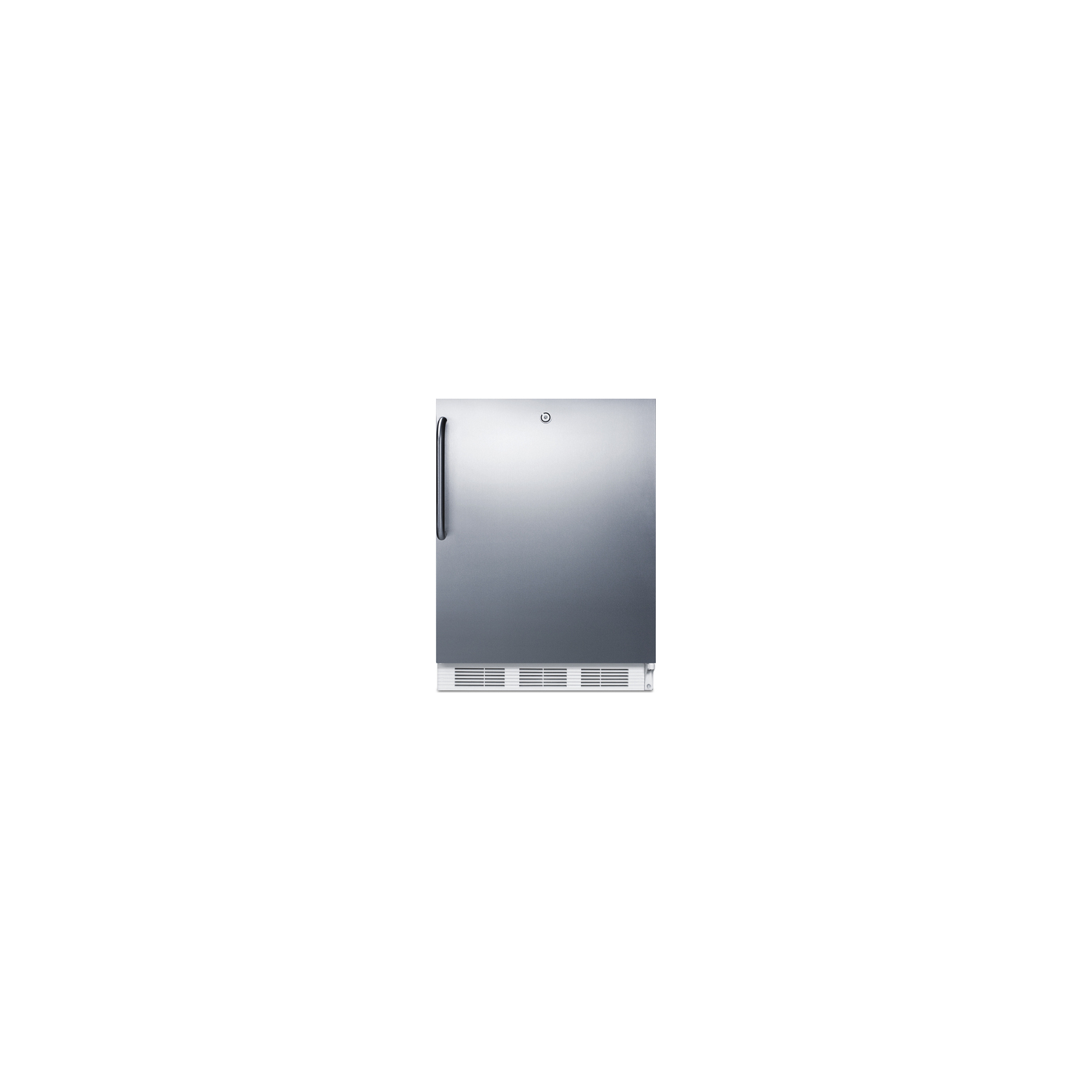

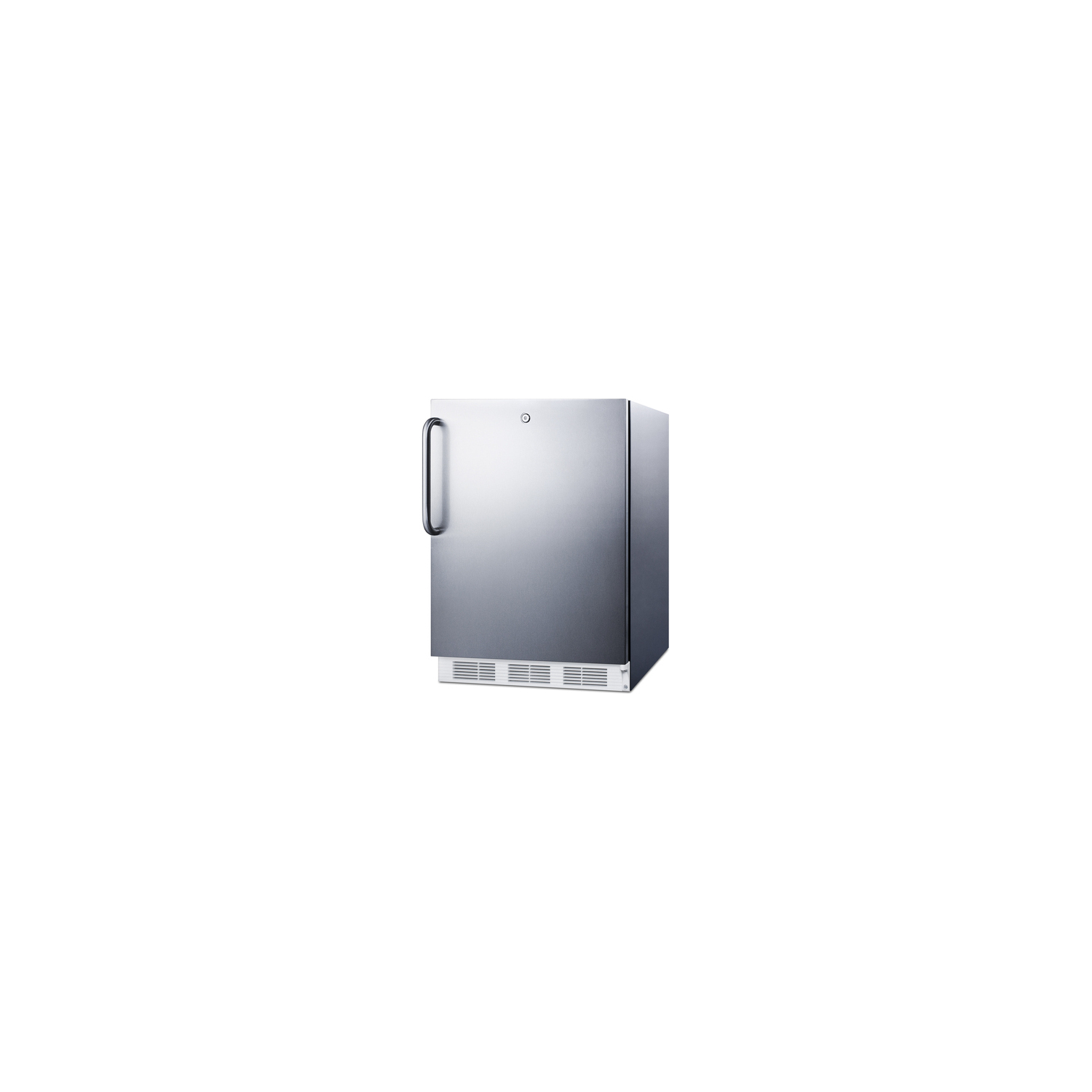

Sized with a 24" footprint, the CT66LWCSS can be used built-in under counters or freestanding. The interior offers over 5 cu.ft. of storage capacity. This model comes with a fully wrapped stainless steel cabinet and door. A curved towel bar handle completes the professional look and a factory installed front lock offers convenient security.

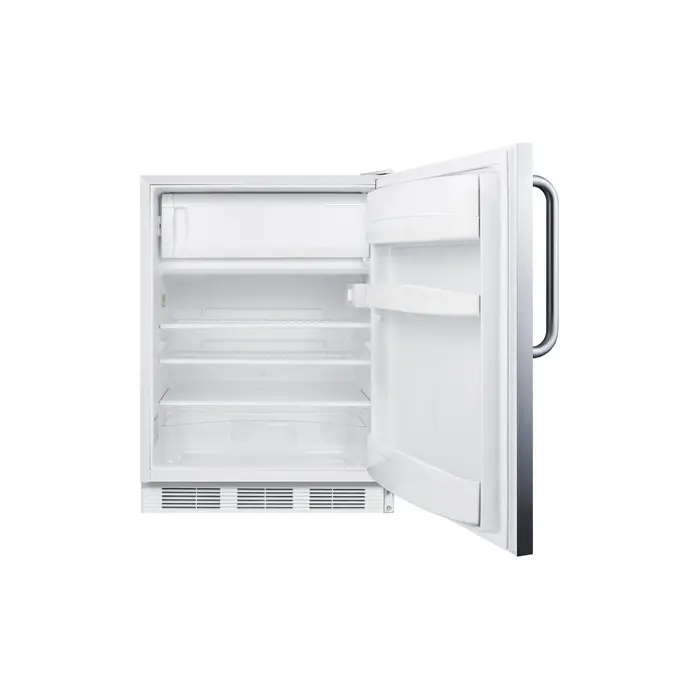

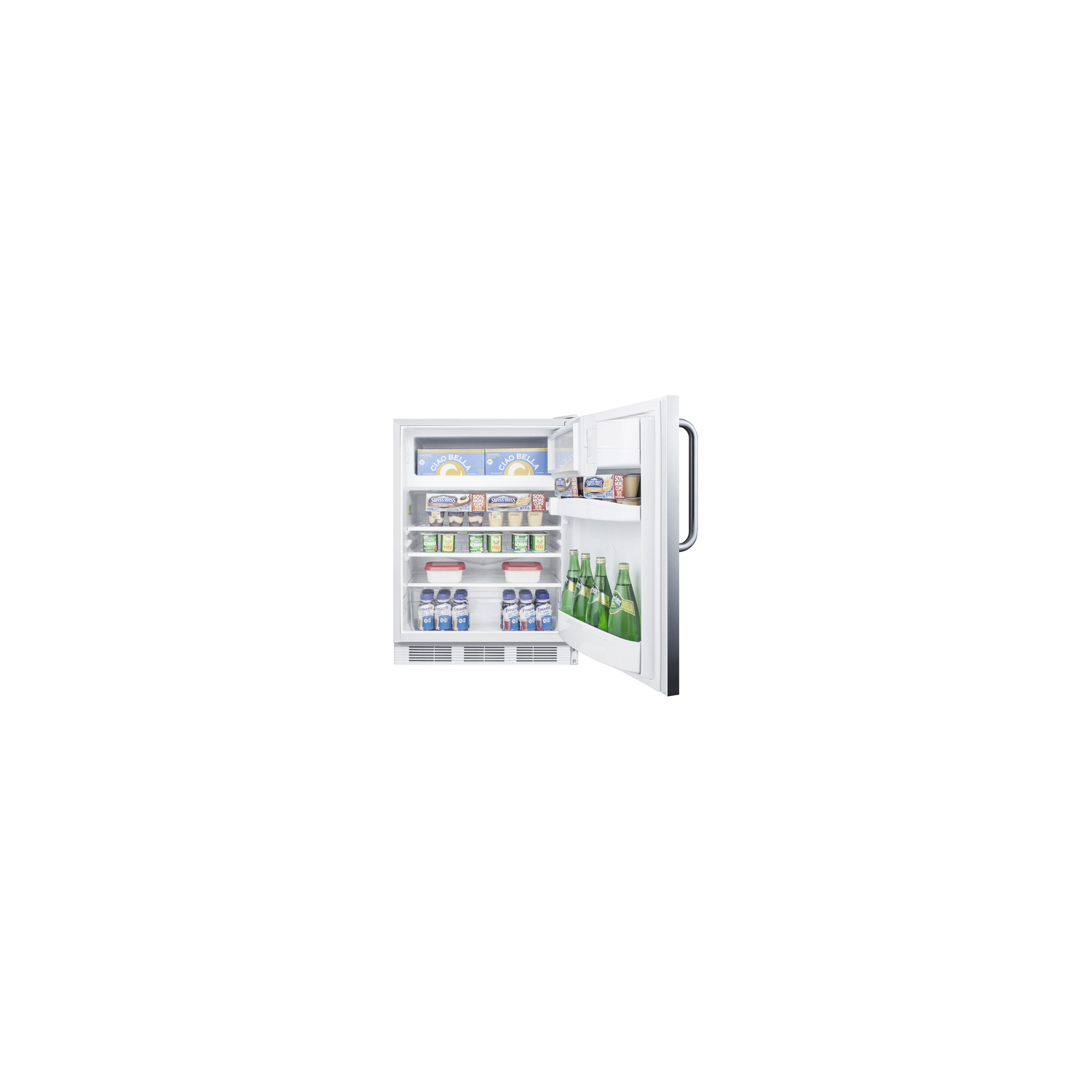

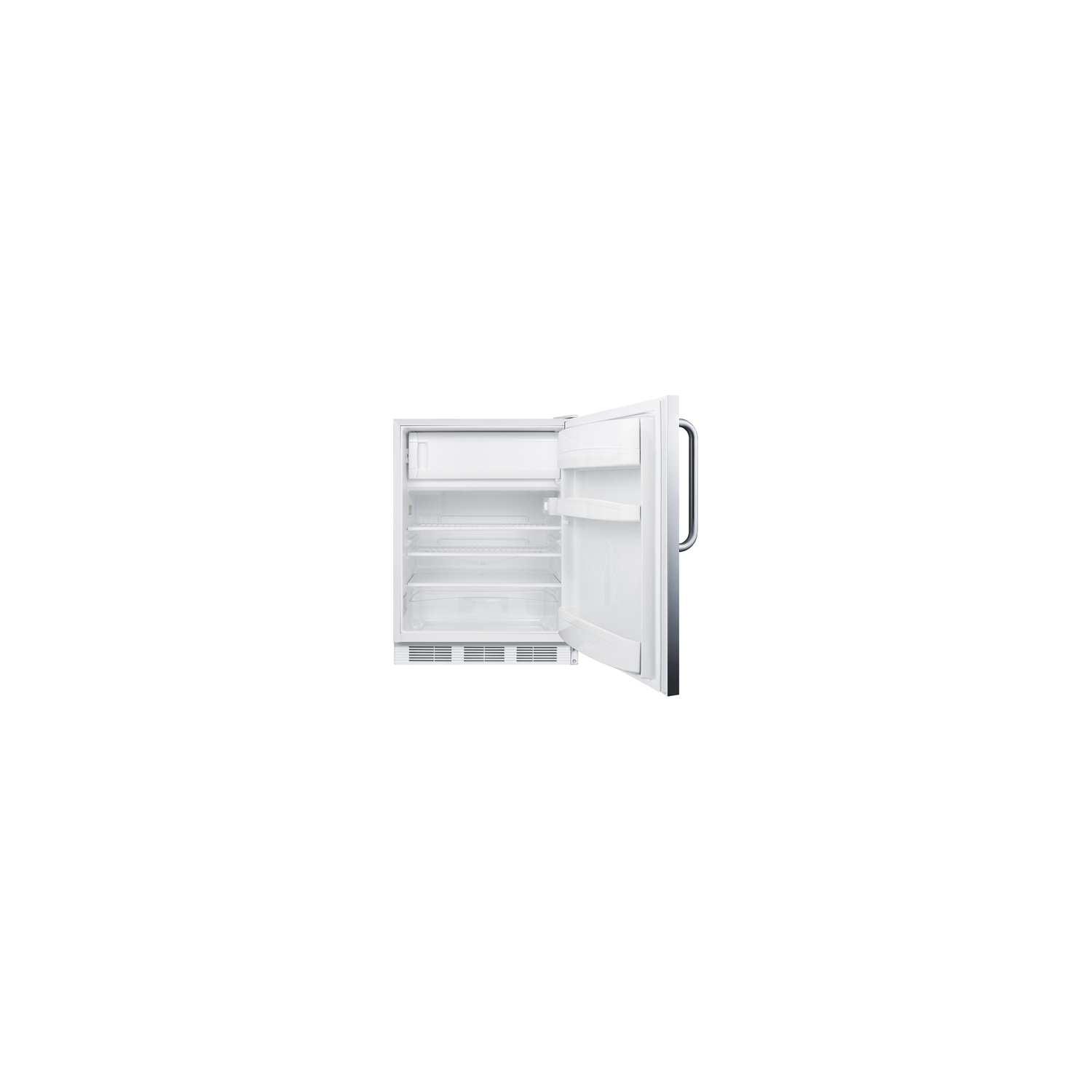

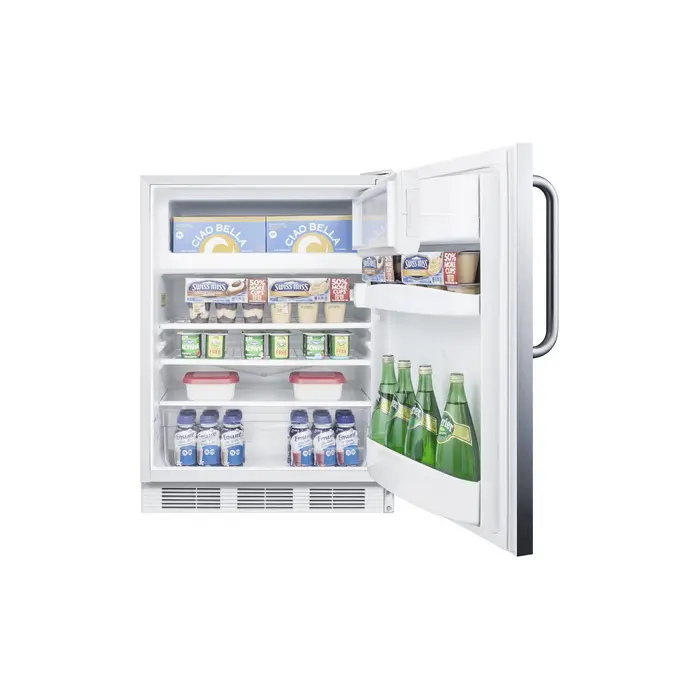

Inside, our unique dual evaporator system separately cools the refrigerator and freezer section to ensure proper storage temperature. Cycle defrost operation reduces user maintenance in the automatic defrost fresh food section, with static manual defrost operation in the freezer compartment. Door storage provides easy access for tall bottles and small condiments. Additional features include adjustable shelves, a clear crisper, and automatic interior lighting.

The CT66LWCSS has long proven itself to have one of the best temperature performance records in the industry. To see additional finish options on this unit, browse the full CT66WBI Series.

NOTE: This unit is designed for general purpose applications and does not meet DOE energy standards for residential use.

SPECIFICATIONS

Overview

Nominal Height 34.0" (86 cm)

Height of Cabinet 33.25" (84 cm)

Nominal Width 24.0" (61 cm)

Width 23.75" (60 cm)

Nominal Depth 24.0" (61 cm)

Depth 23.5" (60 cm)

Depth with Handle 25.63" (65 cm)

Depth with door at 90° 45.63" (116 cm)

Capacity 5.1 cu.ft. (144 L)

Defrost Type Cycle

Door Stainless Steel

Cabinet Stainless Steel

US Electrical Safety ETL

Canadian Electrical Safety ETL-C

Amps 1.4

Voltage/Frequency 115 V AC/60 Hz

Weight 100.0 lbs. (45 kg)

Parts & Labor Warranty 1 Year

Compressor Warranty 5 Years

UPC 761101068923

Refrigerator-Freezer

Door Swing RHD

Reversible Factory Reversible

Adjustable Shelves Yes

Crisper Qty 1

Crisper Finish Transparent

Crisper Cover Glass

Interior Light Yes

Refrigerator - Interior Height 19.5" (50 cm)

Refrigerator - Interior Width 20.5" (52 cm)

Refrigerator - Interior Depth 17.0" (43 cm)

Refrigerator - Shelf Type Wire

Refrigerator - Shelf Qty 2

Refrigerator - Full Door Shelves 3

Freezer - Interior Height 5.0" (13 cm)

Freezer - Interior Width 19.0" (48 cm)

Freezer - Interior Depth 11.5" (29 cm)

Thermostat Type Dial

Fan Type Exterior

Refrigerant Type R600a

Refrigerant Amount 0.92 oz.

High Side PSI 180.0

Low Side PSI 80.0

Level Legs 4

Compressor Step Height 7.0" (18 cm)

Compressor Step Width 20.5" (52 cm)

Compressor Step Depth 5.0" (13 cm)

FEATURES

Fully wrapped stainless steel cabinet and door Durable construction with modern style

Built-in capability Make the best use of space by installing your refrigerator under the counter and flush with other cabinets

Cycle defrost This system utilizes user-friendly automatic defrost operation in the fresh food section and efficient manual defrost operation in the freezer compartment

Front-mounted lock Keyed lock offers added security

Thin-line design Our unique 24" wide models offer full capacity in a slim fit

Professional towel bar handle Curved handle in brushed stainless steel offers a sturdy grip with professional elegance

Dual evaporator Our unique and efficient design separately cools the refrigerator while maintaining a lower temperature in the freezer compartment by utilizing two evaporators

Interior light Automatically illuminates when you open the door

Adjustable thermostat Dial thermostat located inside for easy temperature management

Fruit and vegetable crisper Get the longest life and best taste out of produce by storing it in a convenient slide drawer

Adjustable shelves Rearrange the refrigerator space to accommodate all shapes and sizes or remove shelves for a simple clean-up

Door storage Keep tall bottles and condiments right on the door for convenient access

Height Adjustable Adjustable legs allow the unit to be sized from 33 1/2" to 34 3/4" high

100% CFC free Environmentally friendly design without ozone-damaging chemicals

CARB Compliant Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

DOWNLOADS

BROCHURE w/ DRAWINGS (CT66LWCSS.pdf)

TECHNICAL DRAWING (.dwg) (CT66LCSSREFRIGERATOR-FREEZERA0C2004.dwg)

USE & CARE (CT66LWCSS-User-Manual.pdf)
