Summit ENERGY STAR certified undercounter refrigerator-freezer for residential use, 7.61101e+011, CT66BK

Accucold by Summit Appliance offers a wide range of counter height refrigeration for general purpose storage. The CT66J Series includes freestanding refrigerator-freezers equipped with dual evaporator cooling for optimum storage conditions.

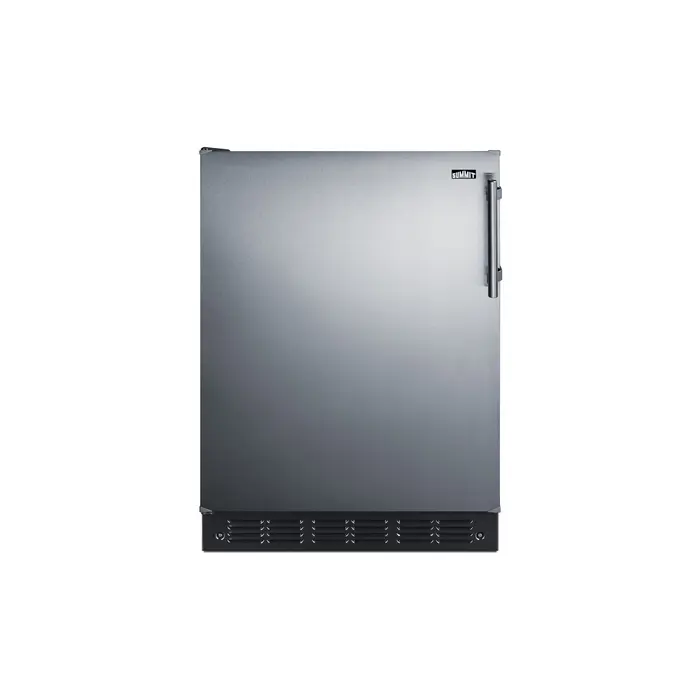

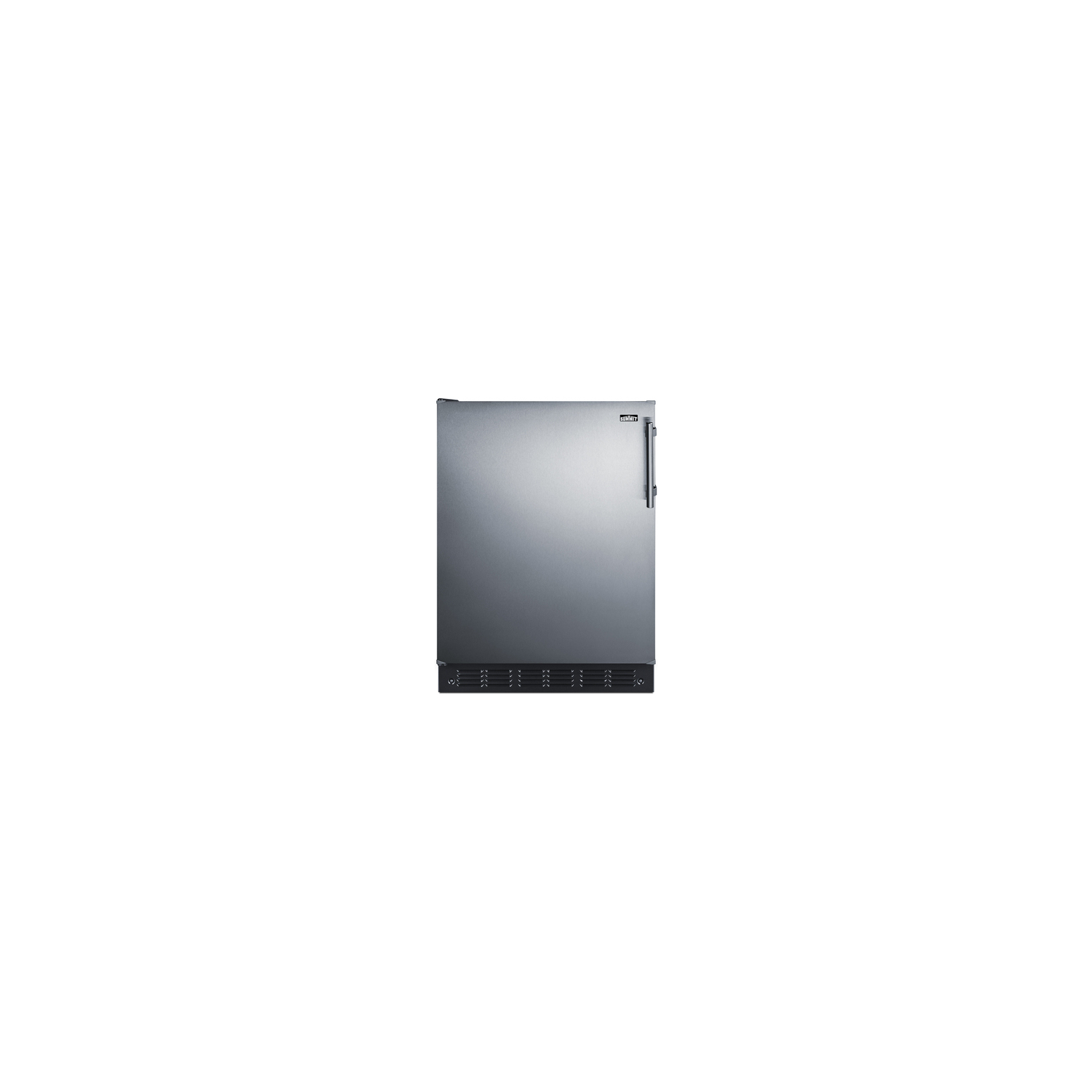

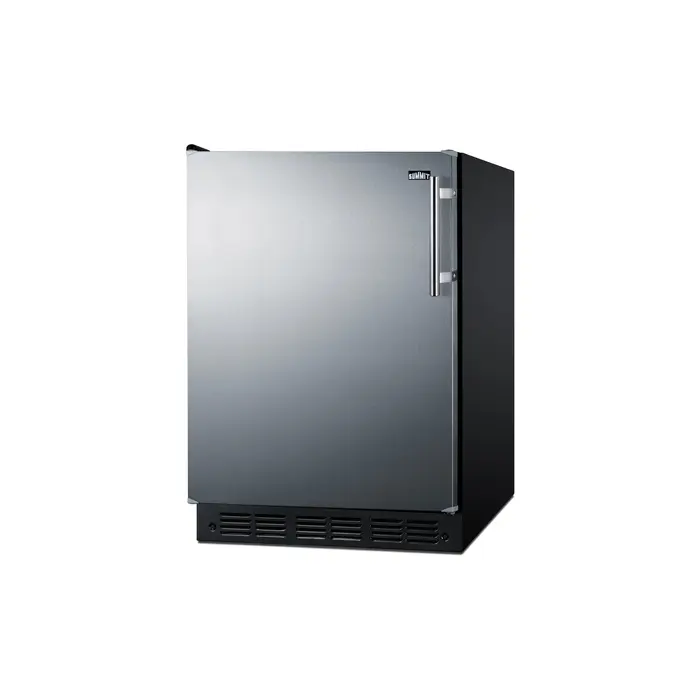

Sized with a 24" footprint, the CT66BK offers over 5 cu.ft. of storage capacity. This counter height model is designed for freestanding use. It features a black exterior finish and a user-reversible door swing.

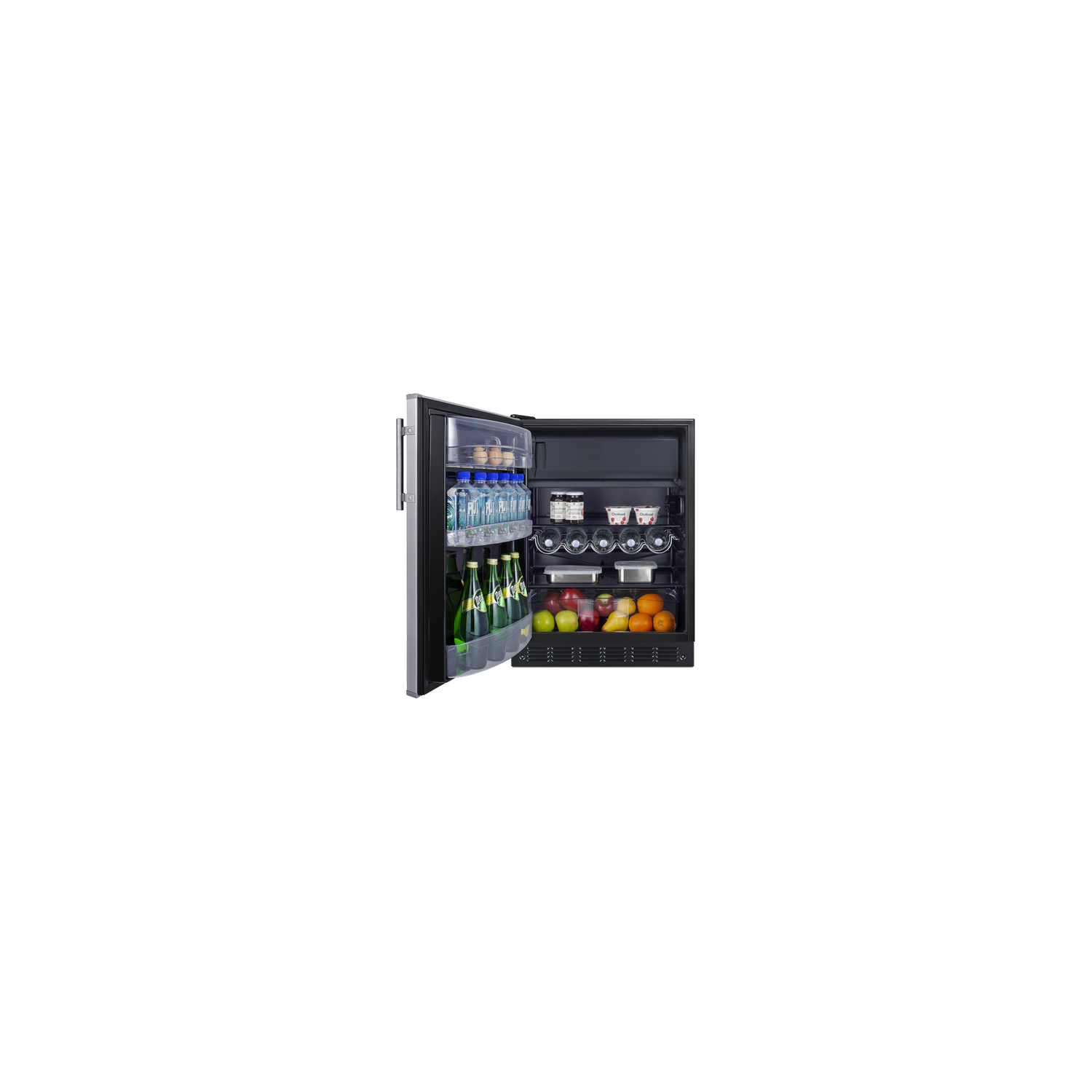

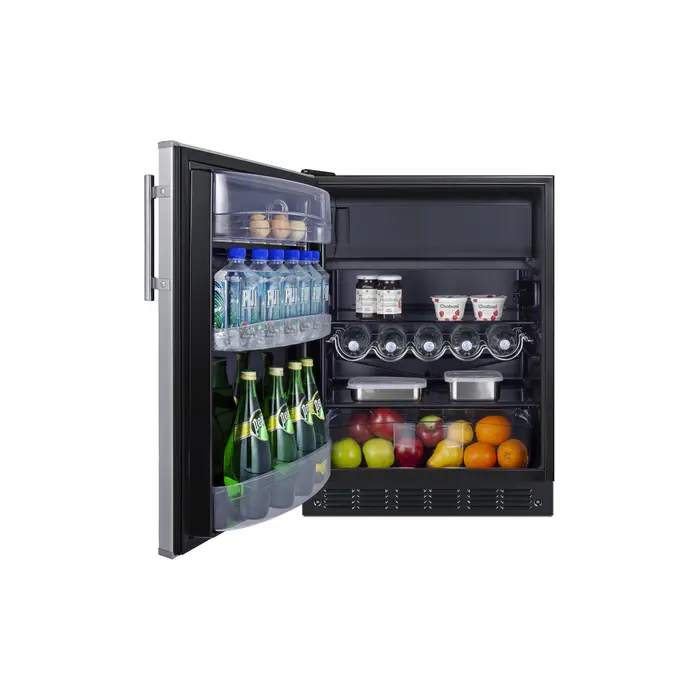

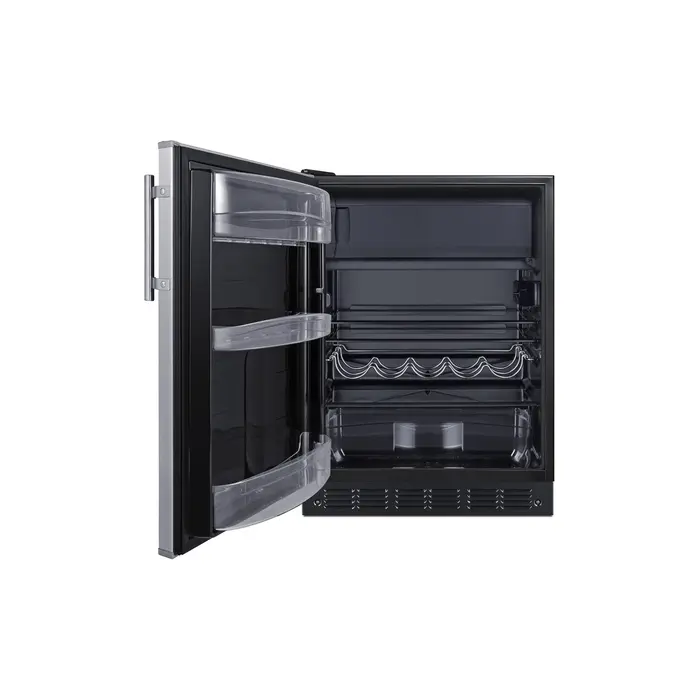

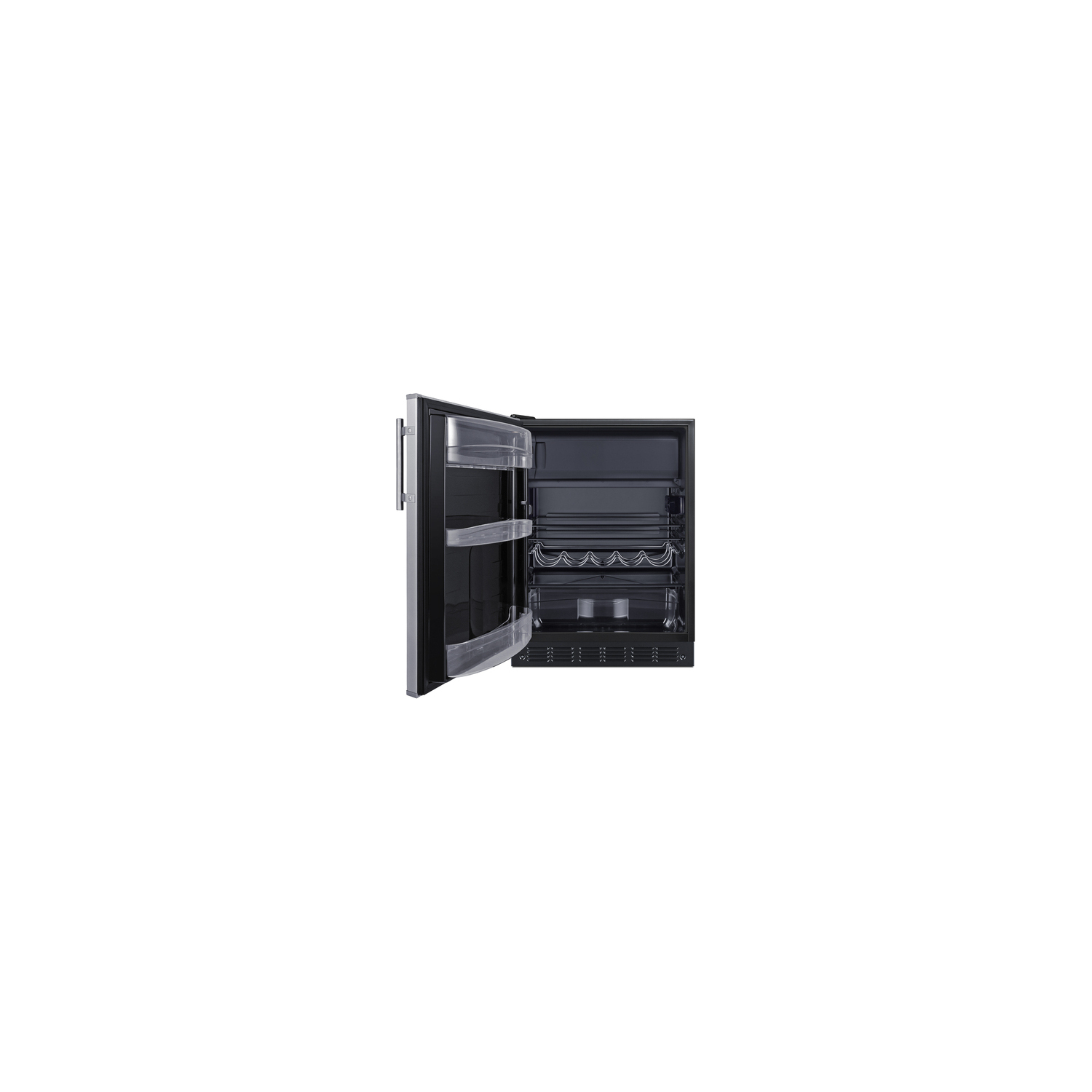

Inside, our unique dual evaporator system separately cools the refrigerator and freezer sections to ensure proper storage temperature. Cycle defrost operation reduces user maintenance in the automatic defrost fresh food section, with static manual defrost operation in the freezer compartment. Door storage provides easy access for tall bottles and small condiments. Additional features include adjustable shelves, a clear crisper, and automatic interior lighting.

The CT66BK has long proven itself to have one of the best temperature performance records in the industry. To see additional finish options on this unit, browse the full CT66 Series. For built-in undercounter applications, see the CT663BKBI.

NOTE: This unit is designed for general purpose applications and does not meet DOE energy standards for residential use.

SPECIFICATIONS

Overview

Nominal Height 34.0" (86 cm)

Height of Cabinet 33.25" (84 cm)

Nominal Width 24.0" (61 cm)

Width 23.63" (60 cm)

Nominal Depth 24.0" (61 cm)

Depth 23.5" (60 cm)

Depth with Handle 24.5" (62 cm)

Depth with door at 90° 45.25" (115 cm)

Capacity 5.1 cu.ft. (144 L)

Defrost Type Cycle

Door Black

Cabinet Black

US Electrical Safety UL

Canadian Electrical Safety ULC

Amps 1.2

Voltage/Frequency 115 V AC/60 Hz

Weight 100.0 lbs. (45 kg)

Parts & Labor Warranty 1 Year

Compressor Warranty 5 Years

UPC 761101067445

Refrigerator-Freezer

Door Swing RHD

Reversible Yes

Adjustable Shelves Yes

Crisper Qty 1

Crisper Finish Transparent

Crisper Cover Glass

Interior Light Yes

Refrigerator - Interior Height 19.5" (50 cm)

Refrigerator - Interior Width 20.5" (52 cm)

Refrigerator - Interior Depth 17.0" (43 cm)

Refrigerator - Shelf Type Glass

Refrigerator - Shelf Qty 3

Refrigerator - Full Door Shelves 3

Freezer - Interior Height 5.0" (13 cm)

Freezer - Interior Width 19.0" (48 cm)

Freezer - Interior Depth 11.5" (29 cm)

Thermostat Type Dial

Refrigerant Type R600a

Refrigerant Amount 0.92 oz.

Level Legs 2

Compressor Step Height 7.0" (18 cm)

Compressor Step Width 20.5" (52 cm)

Compressor Step Depth 5.0" (13 cm)

FEATURES

Dual evaporator Our unique and efficient design separately cools the refrigerator while maintaining a lower temperature in the freezer compartment by utilizing two evaporators

Cycle defrost This system utilizes user-friendly automatic defrost operation in the fresh food section and efficient manual defrost operation in the freezer compartment

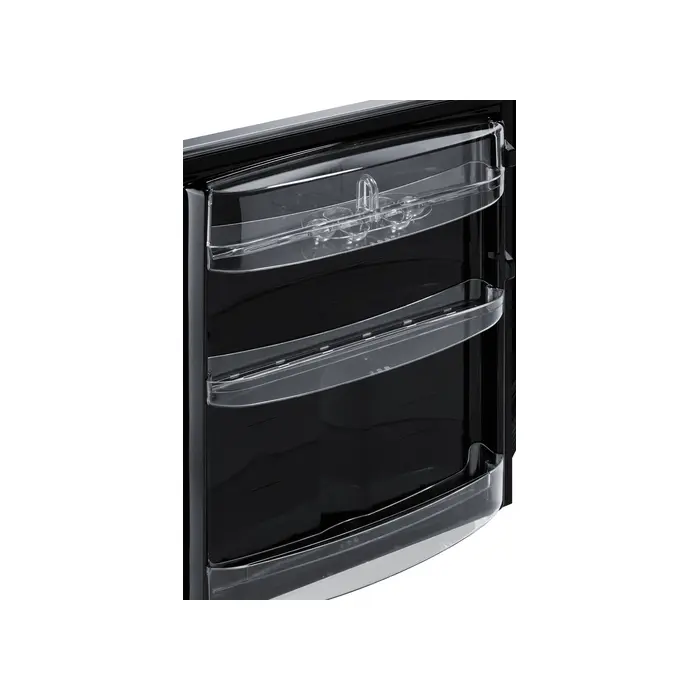

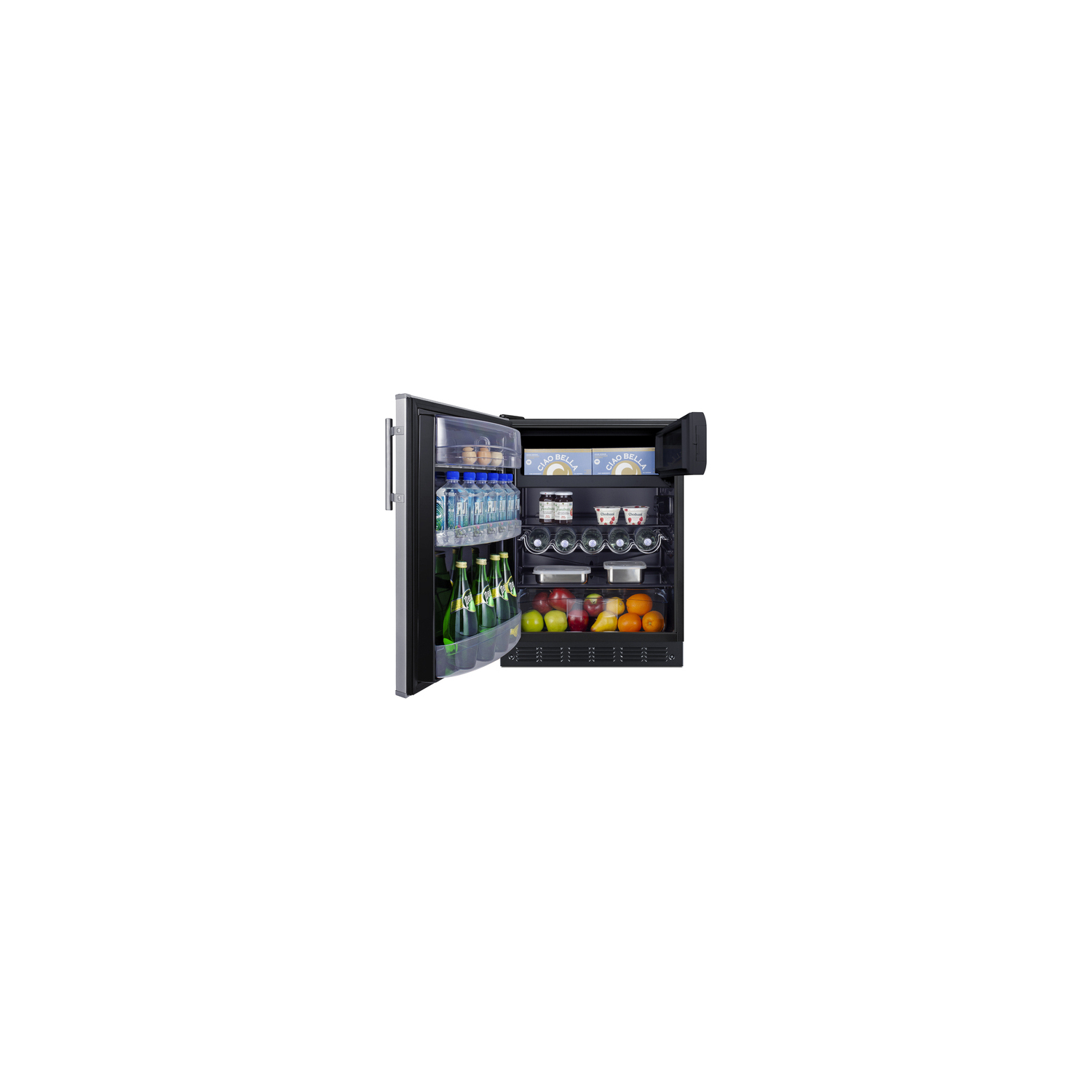

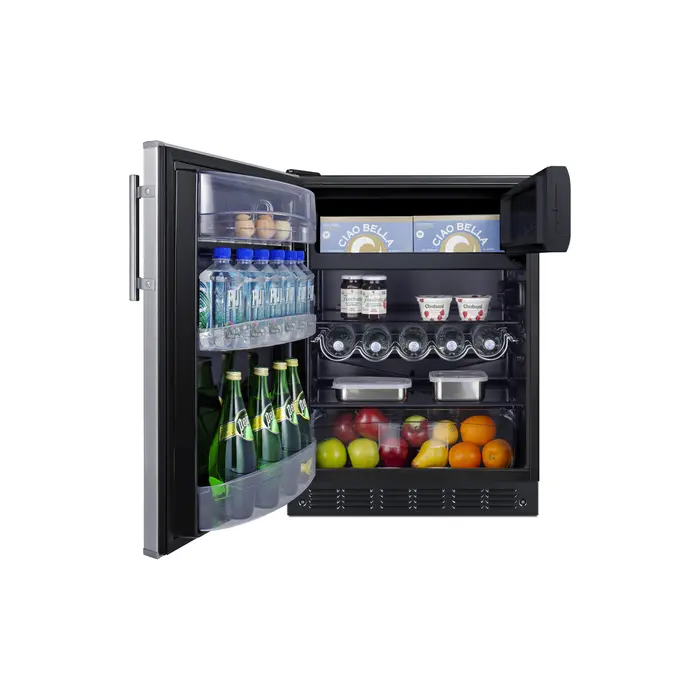

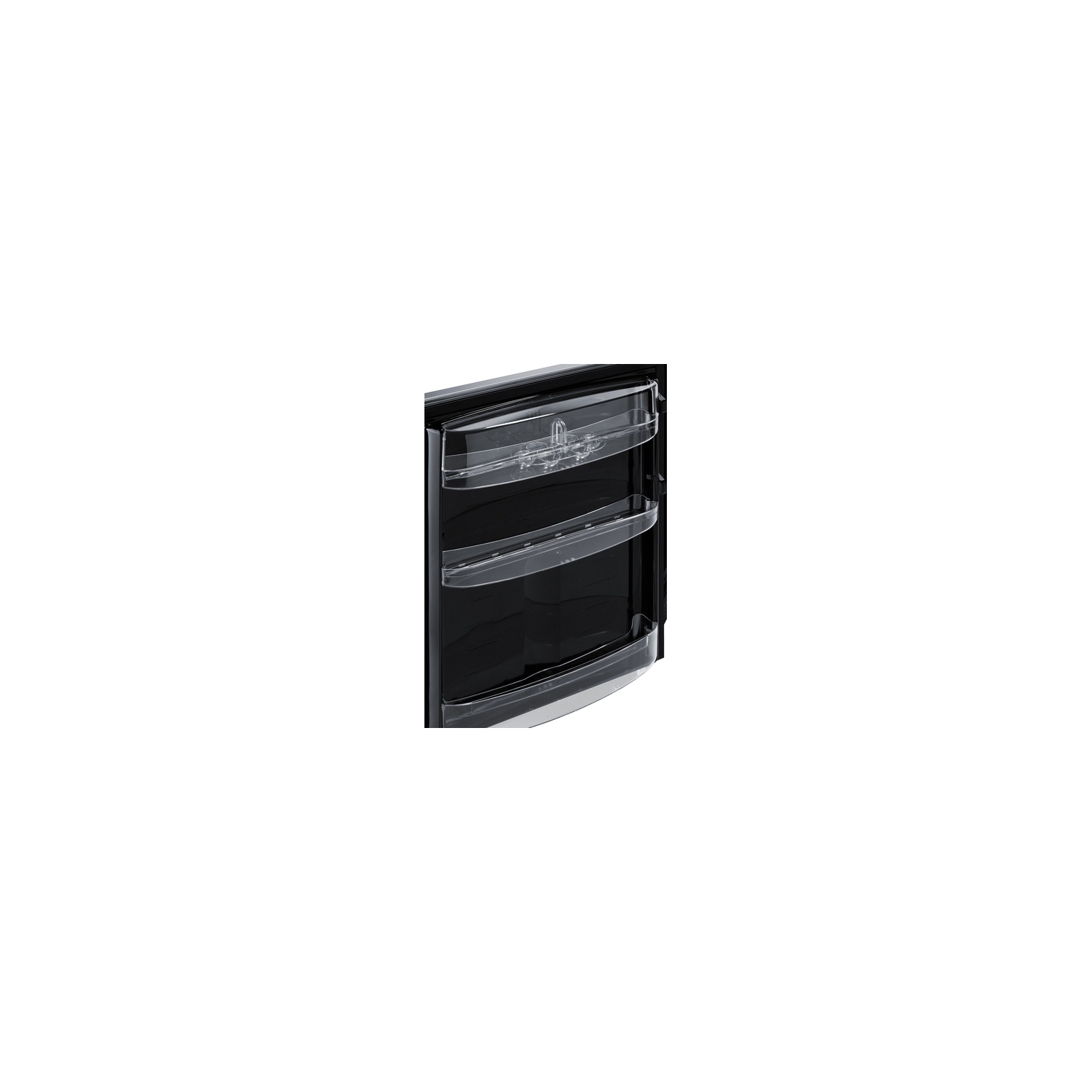

Door storage Store tall bottles and condiments right on the door for convenient access

Fruit and vegetable crisper Get the longest life and best taste out of produce by storing it in a convenient slide drawer

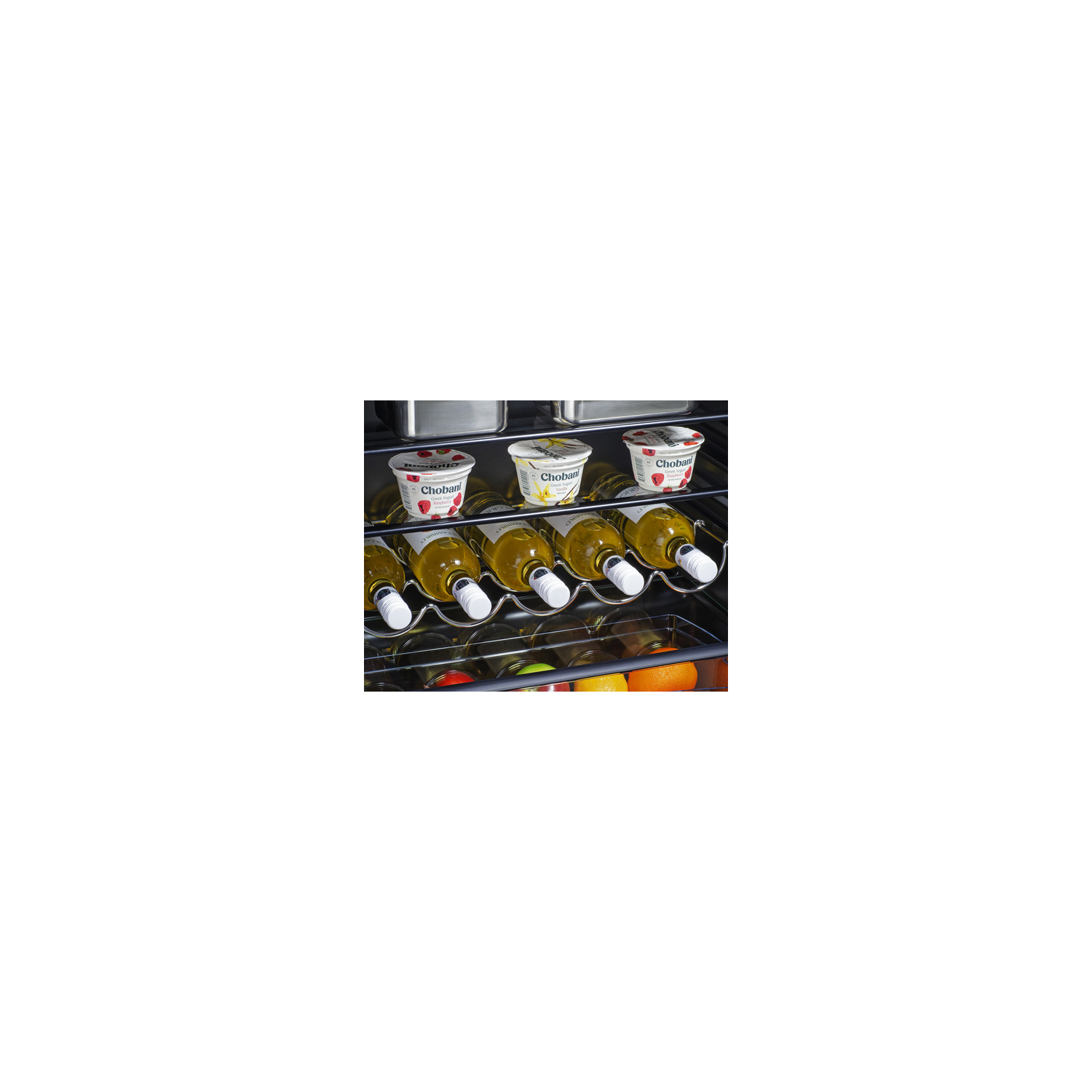

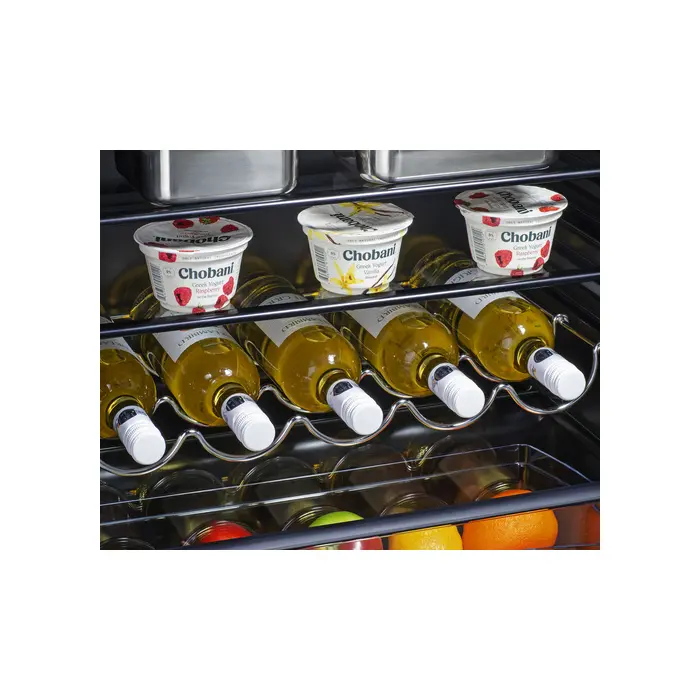

Adjustable glass shelves Rearrange your refrigerator space to accommodate all shapes and sizes or remove shelves for a simple clean-up

Interior light Automatically illuminates when you open the door

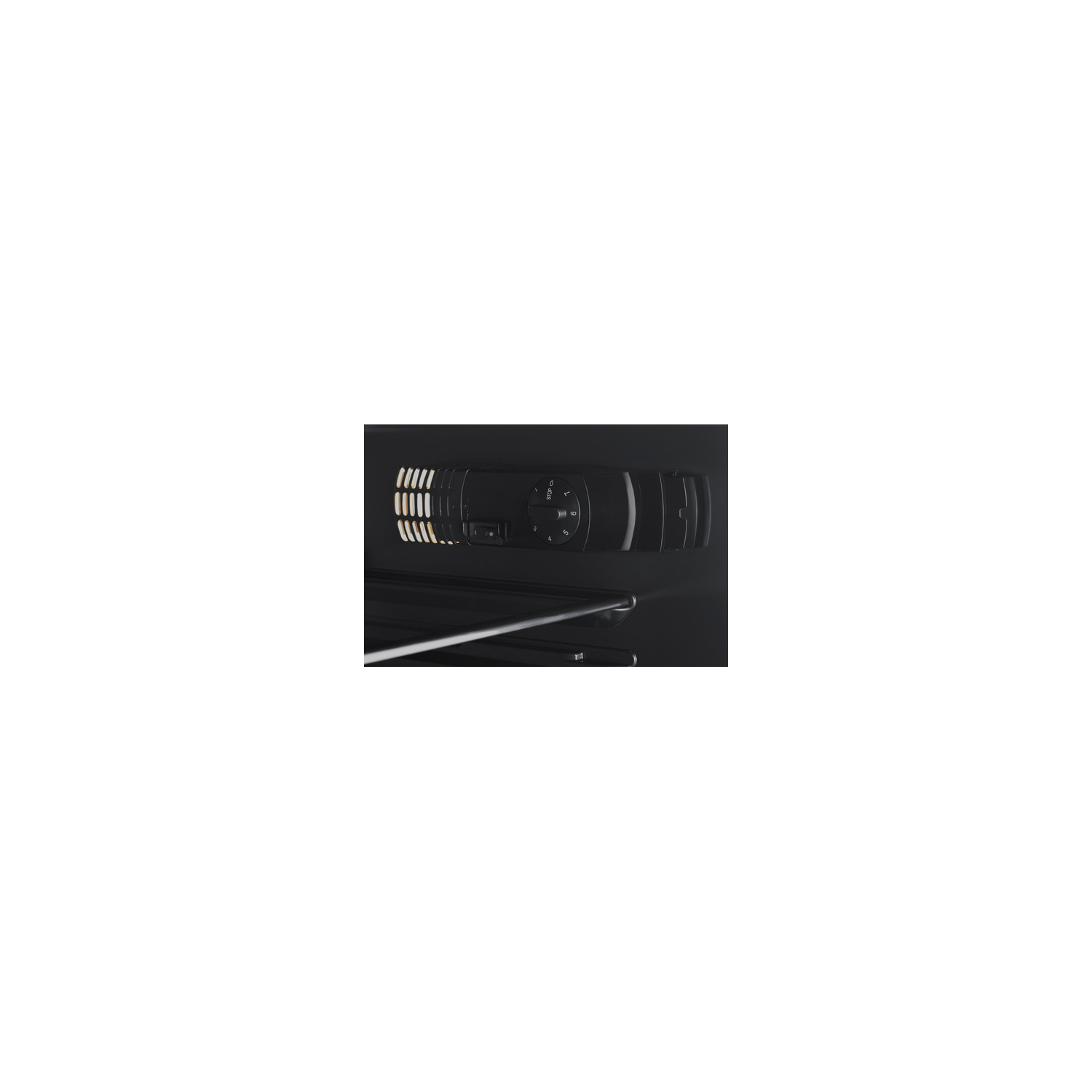

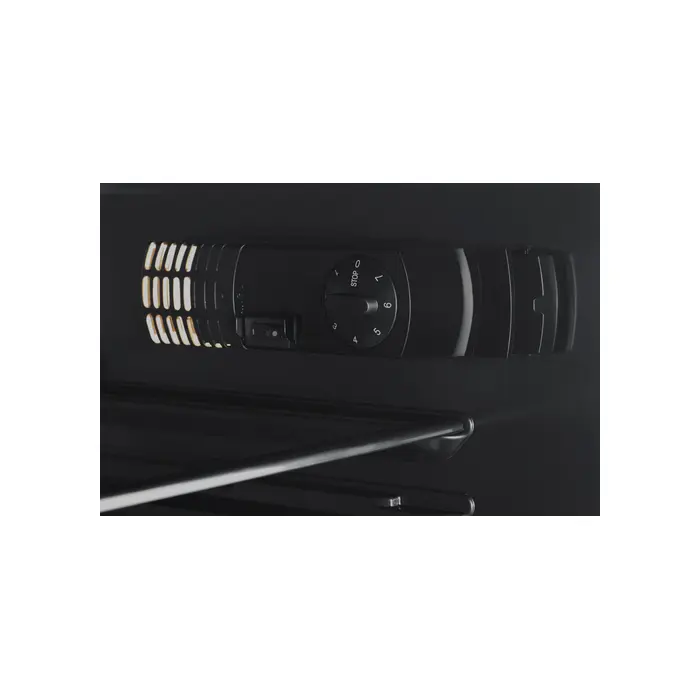

Adjustable thermostat Dial thermostat located inside for easy temperature management

Thin-line design Our unique 24" wide models offer full capacity in a slim fit

Reversible door User-reversible door swing for added flexibility

Fully finished cabinet Allows the unit to be used freestanding

100% CFC free Environmentally friendly design without ozone-damaging chemicals

CARB Compliant Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

DOWNLOADS

BROCHURE w/ DRAWINGS (CT66BK.pdf)

TECHNICAL DRAWING (.dwg) (CT66BREFRIGERATOR-FREEZERA-C2004.dwg)

USE & CARE (CT66BK-User-Manual.pdf)
