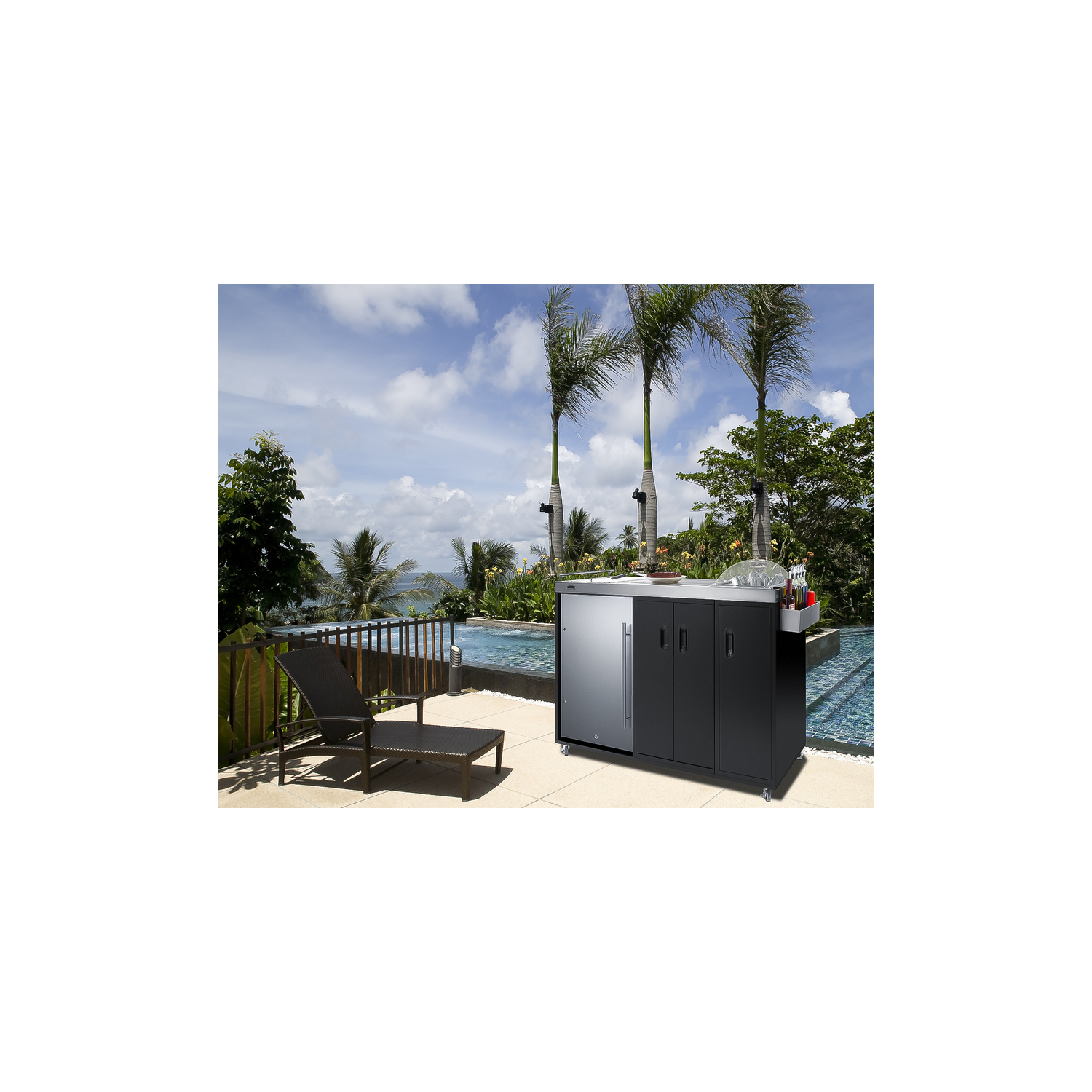

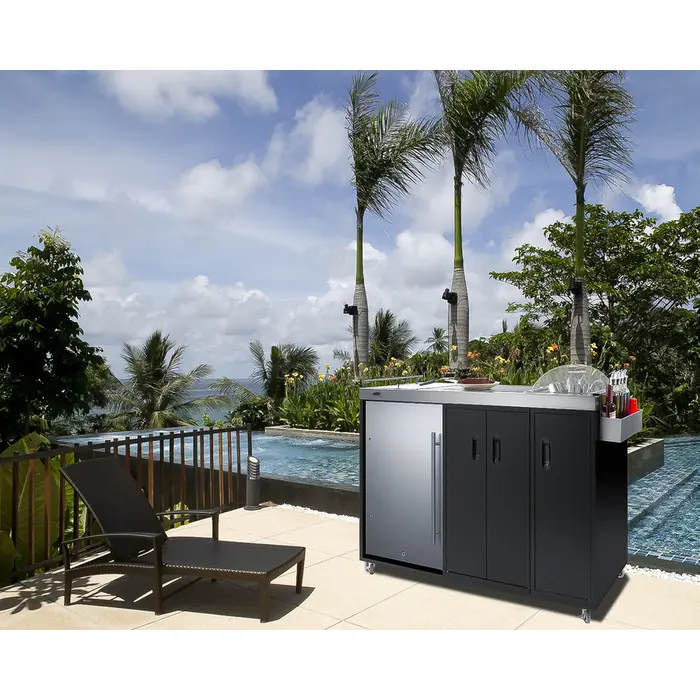

Summit Mobile outdoor kitchenette with refrigerator, sink, storage cabinet, and slide-out waste bins, CARTOS54RS

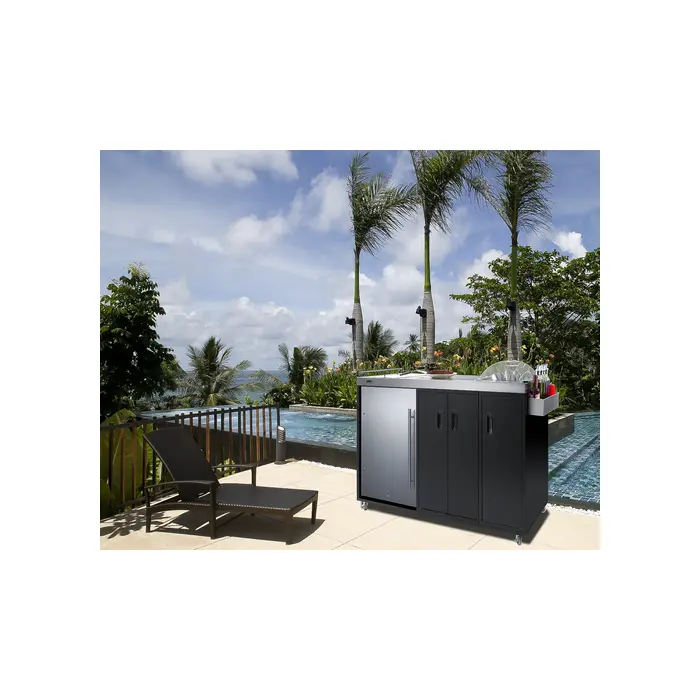

Bring new convenience to outdoor entertainment with Summit's fully featured selection of mobile outdoor kitchenettes.

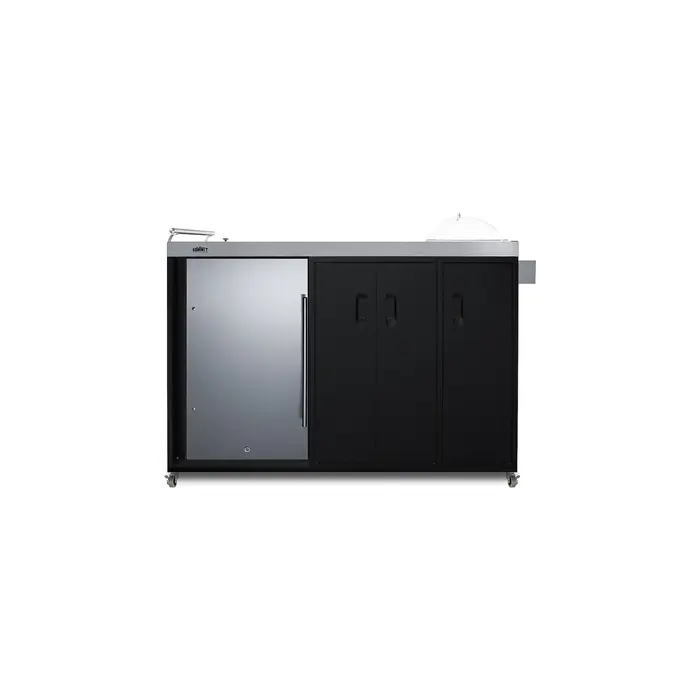

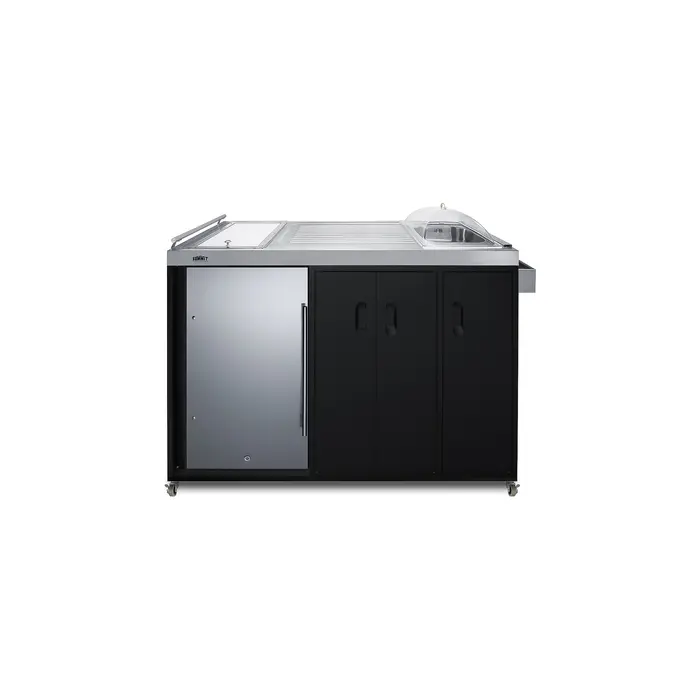

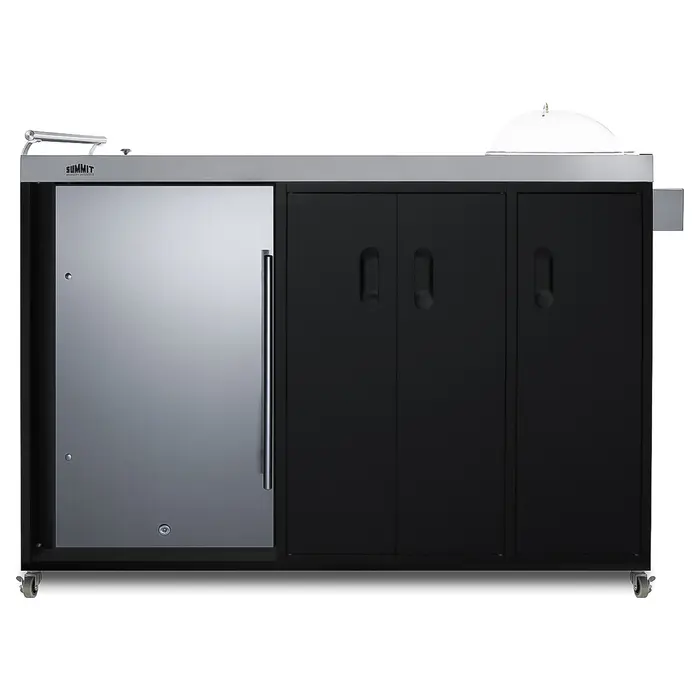

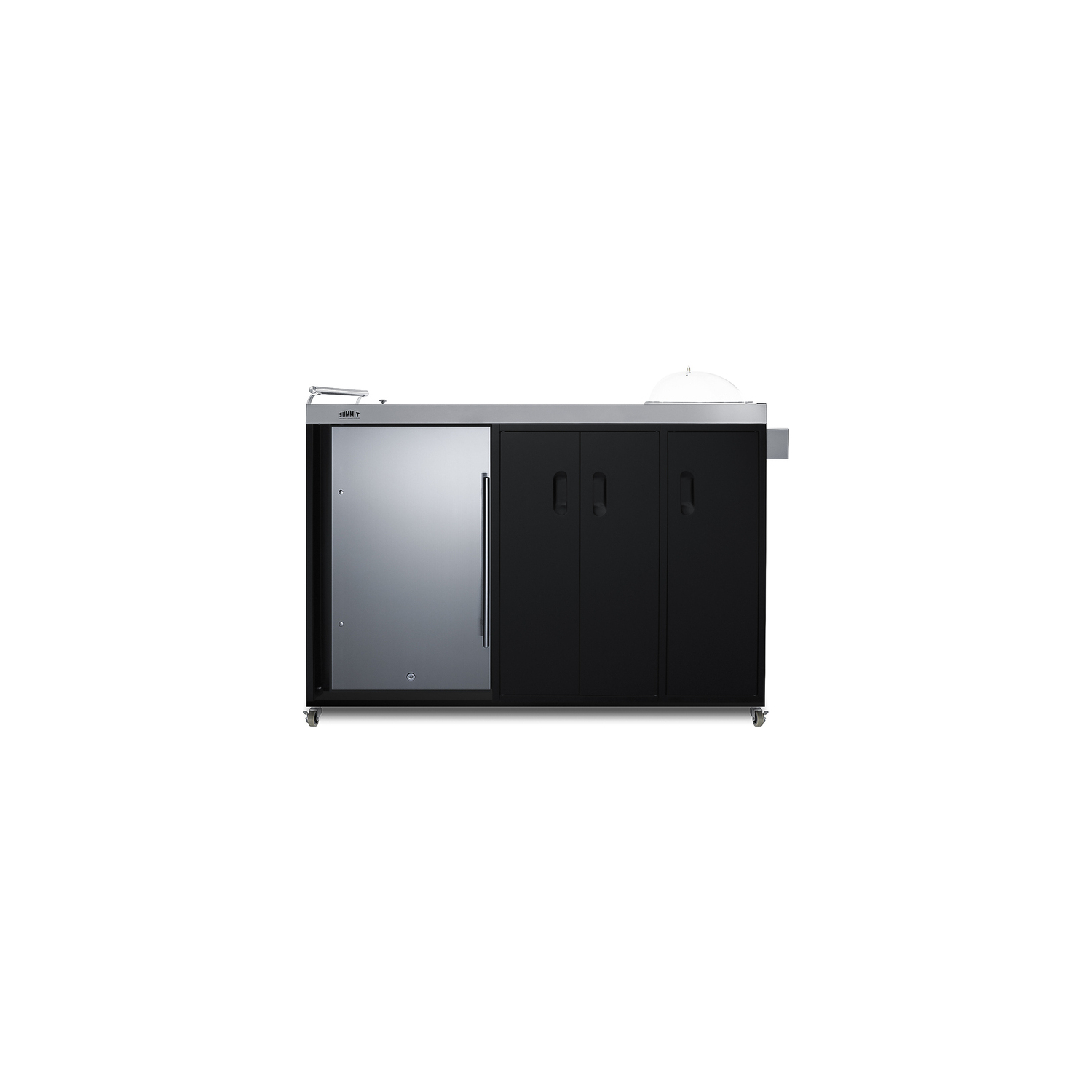

Model CARTOS54RS is a 58 inch wide mobile cart that comes fully featured for backyard entertaining. We include our popular ENERGY STAR certified all-refrigerator (model SPR196OSADALHD) for efficient, weatherproof storage of food and beverages. The refrigerator features a stainless steel door complete with a front lock, allowing you to secure items when not in use.

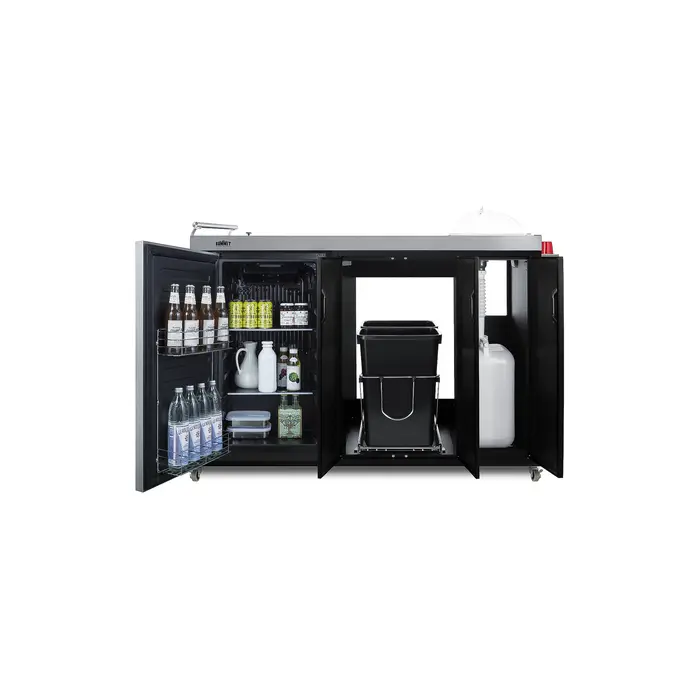

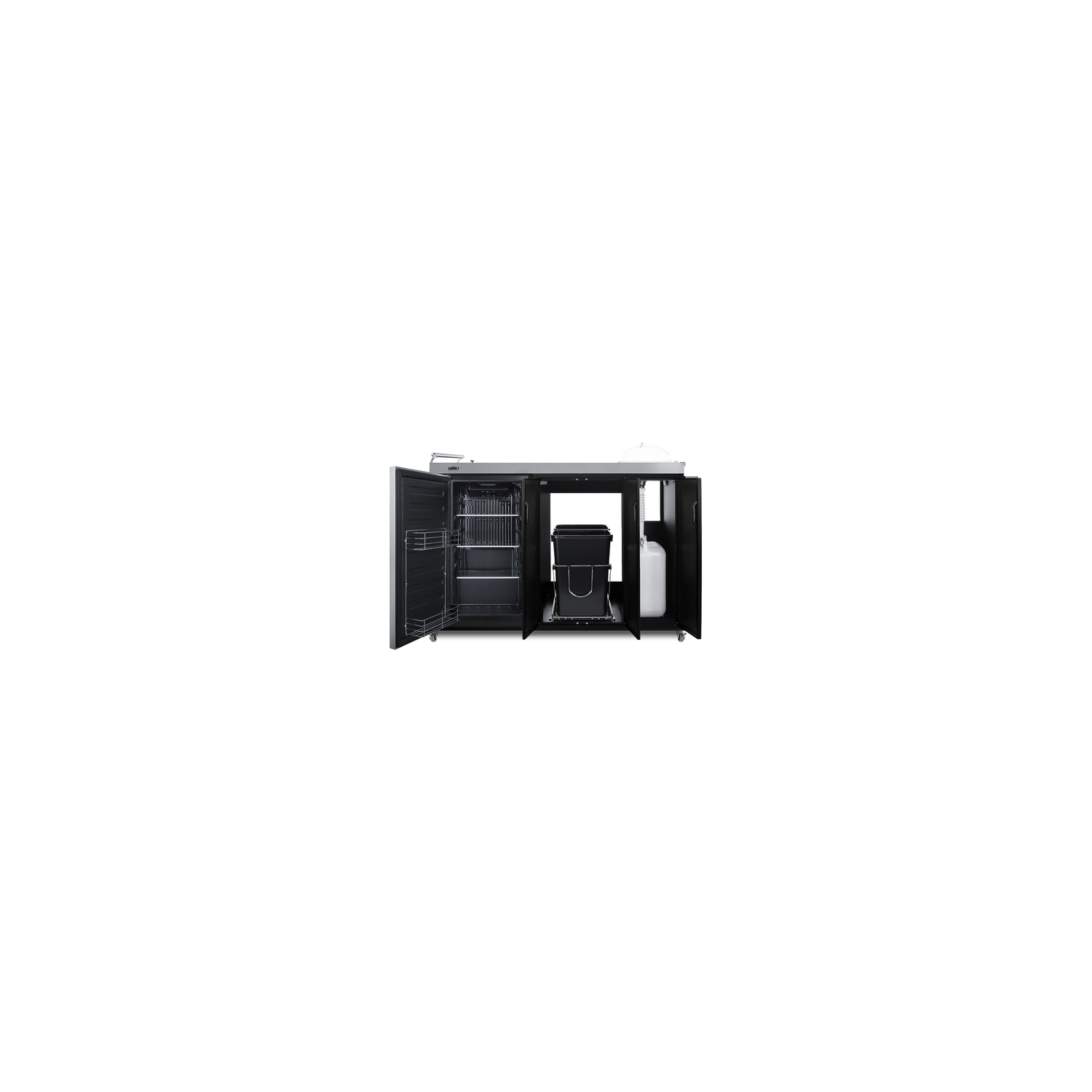

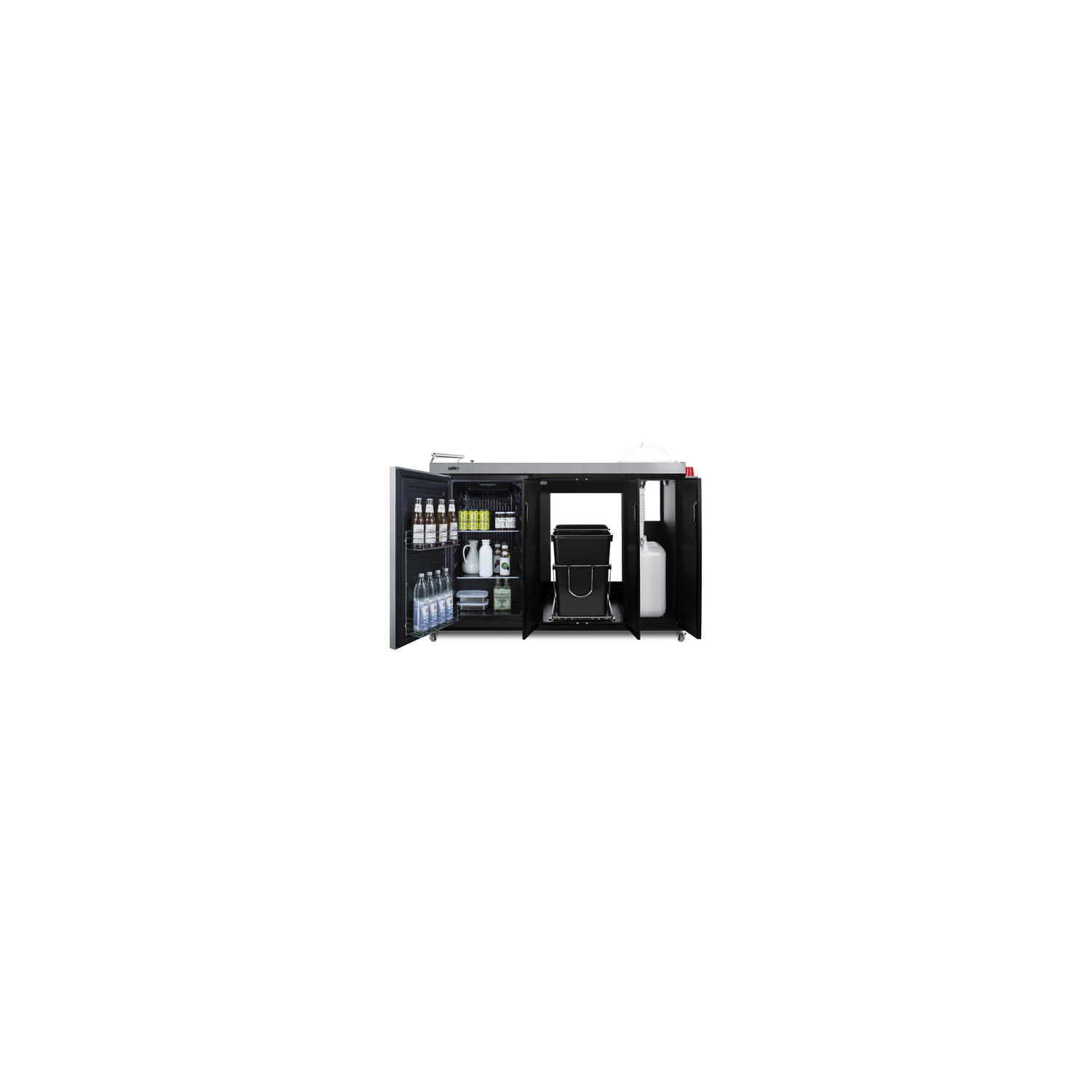

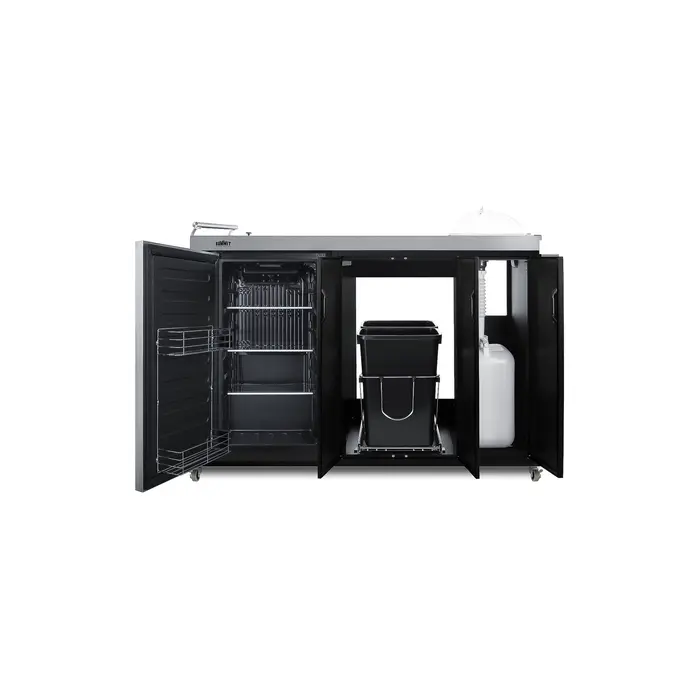

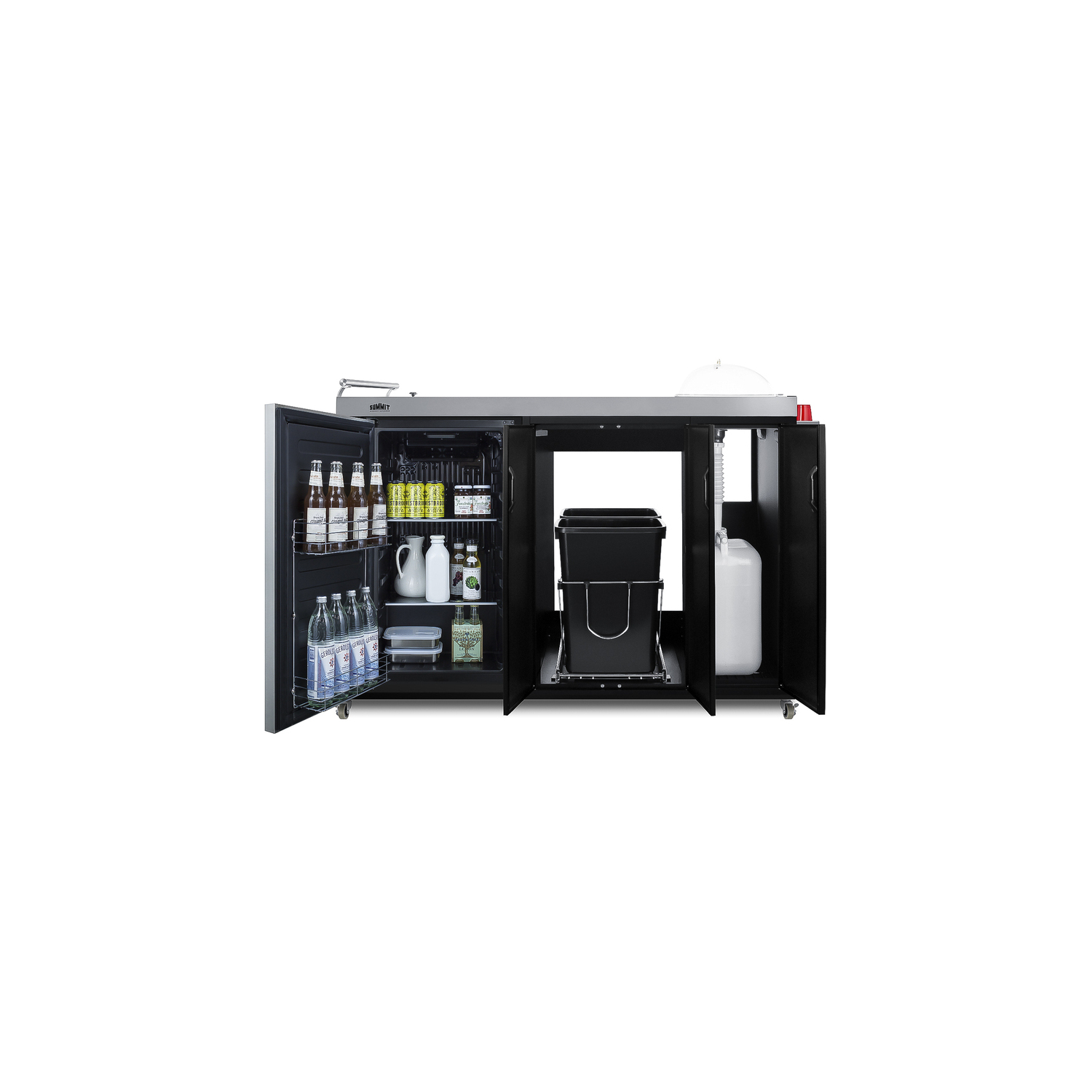

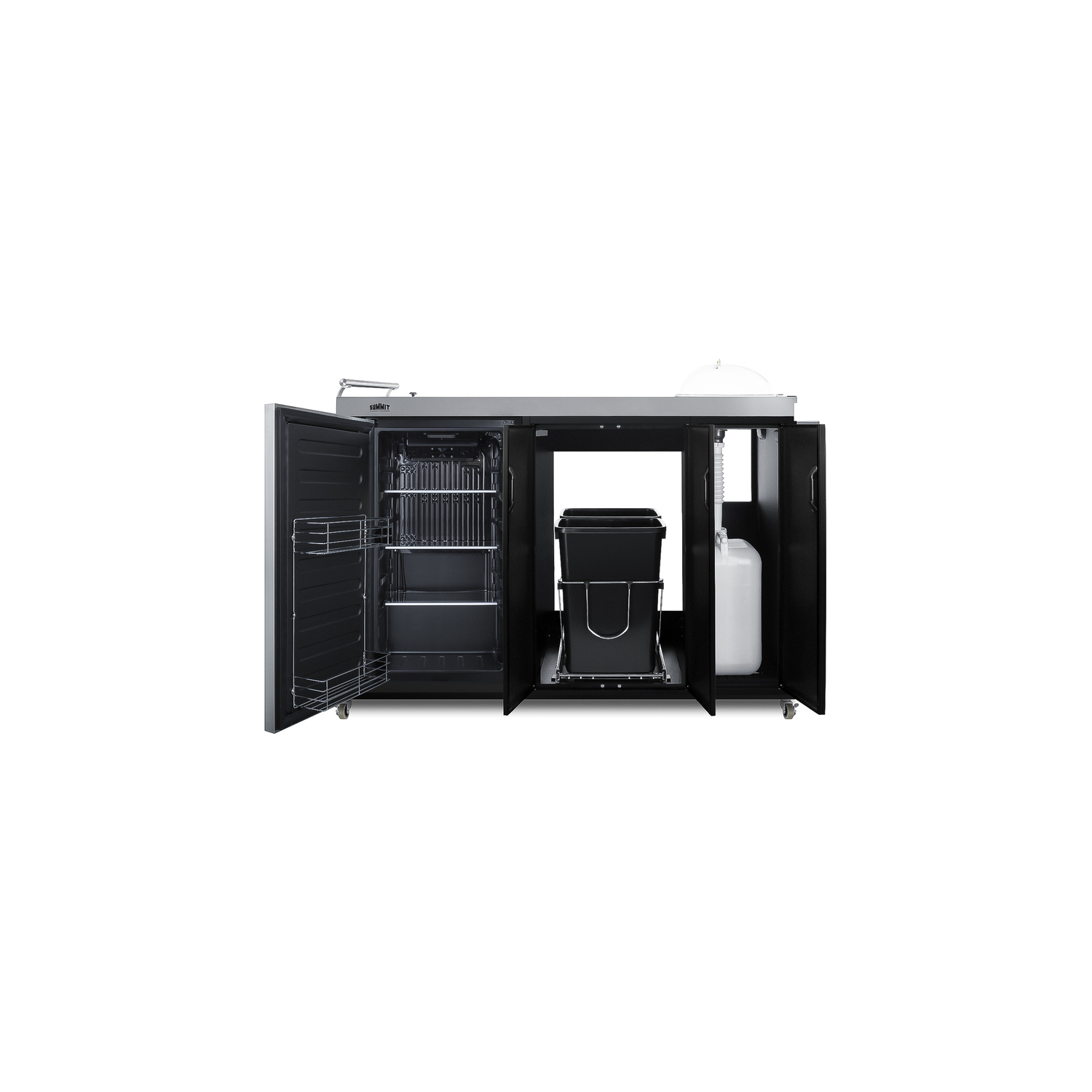

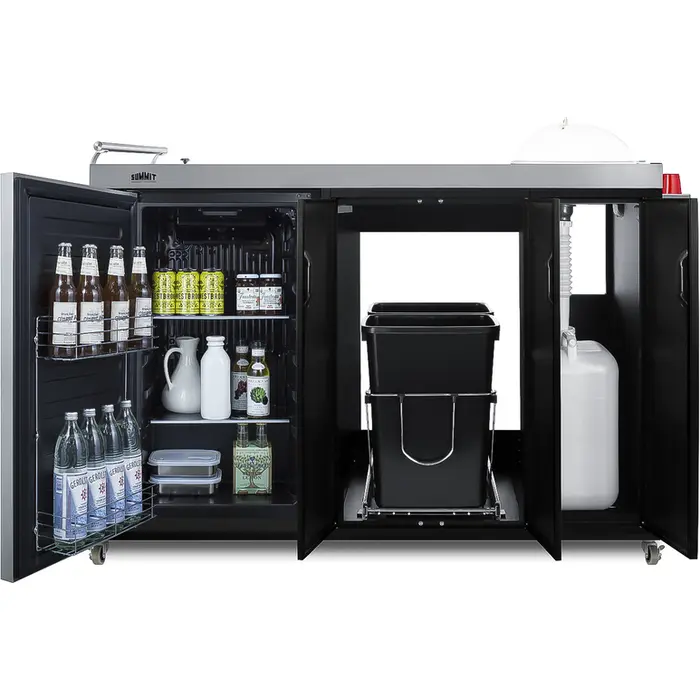

Next to the refrigerator, two jet black cabinet doors protect your full-extension slide-out waste receptacle. We include two plastic bins that fit perfectly inside.

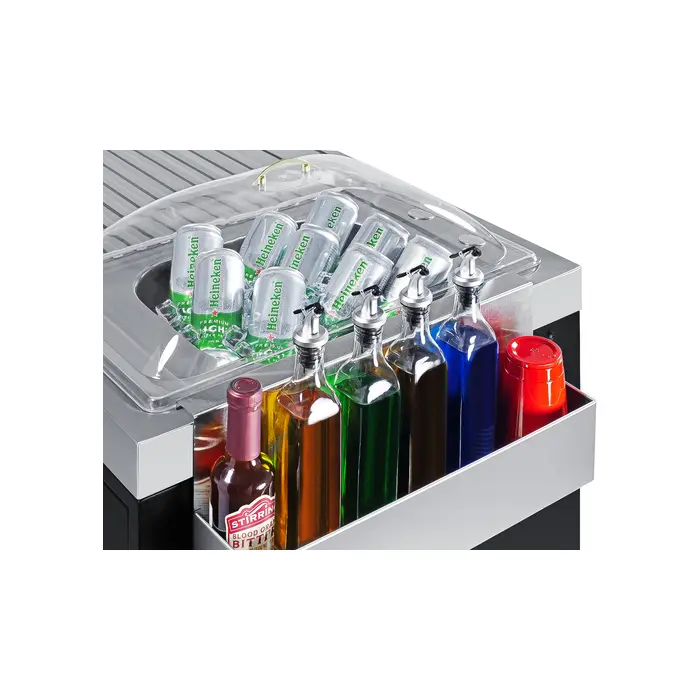

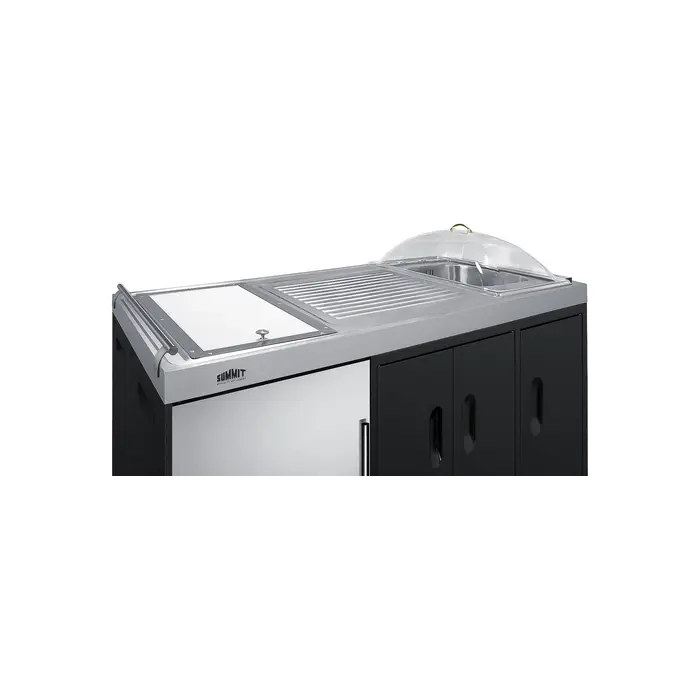

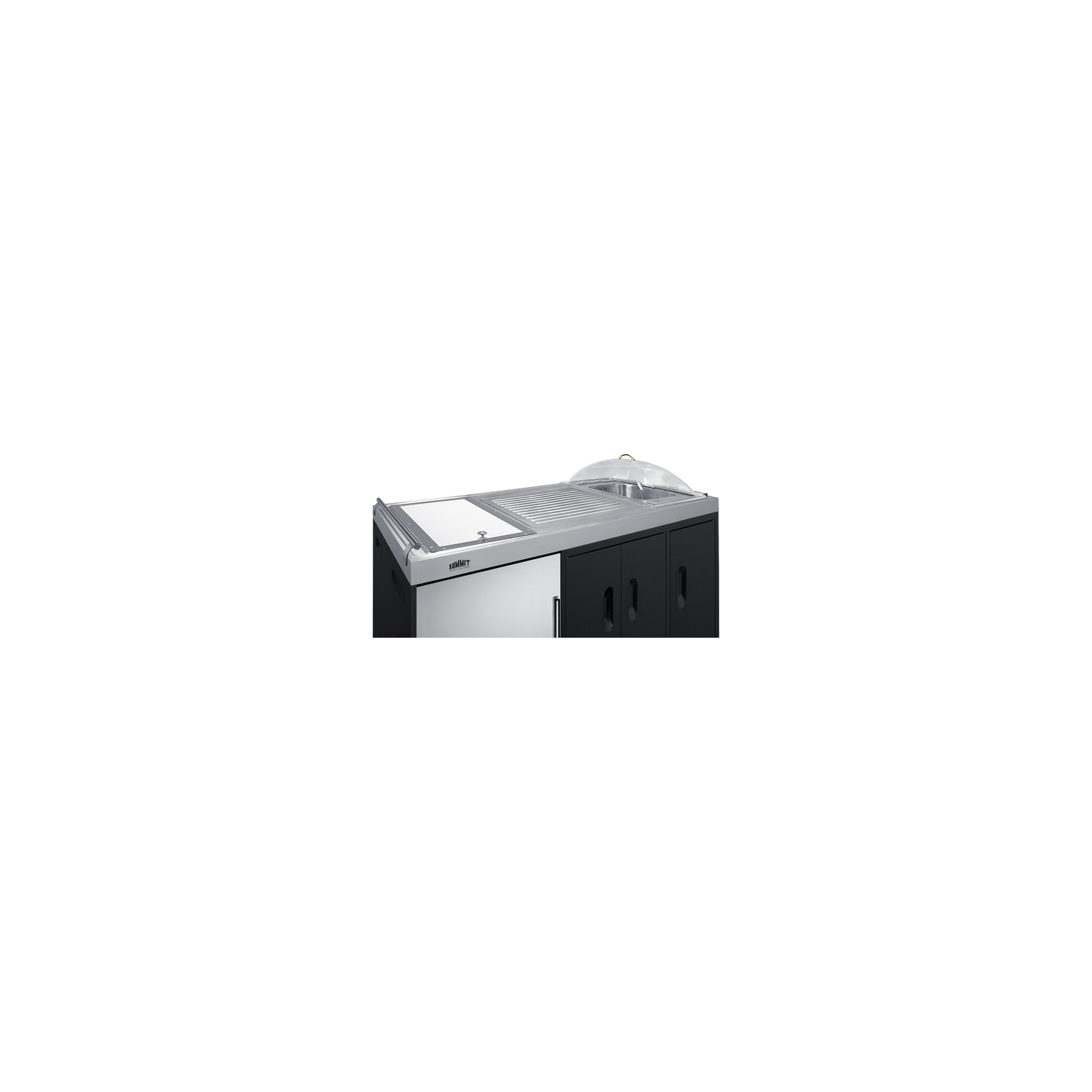

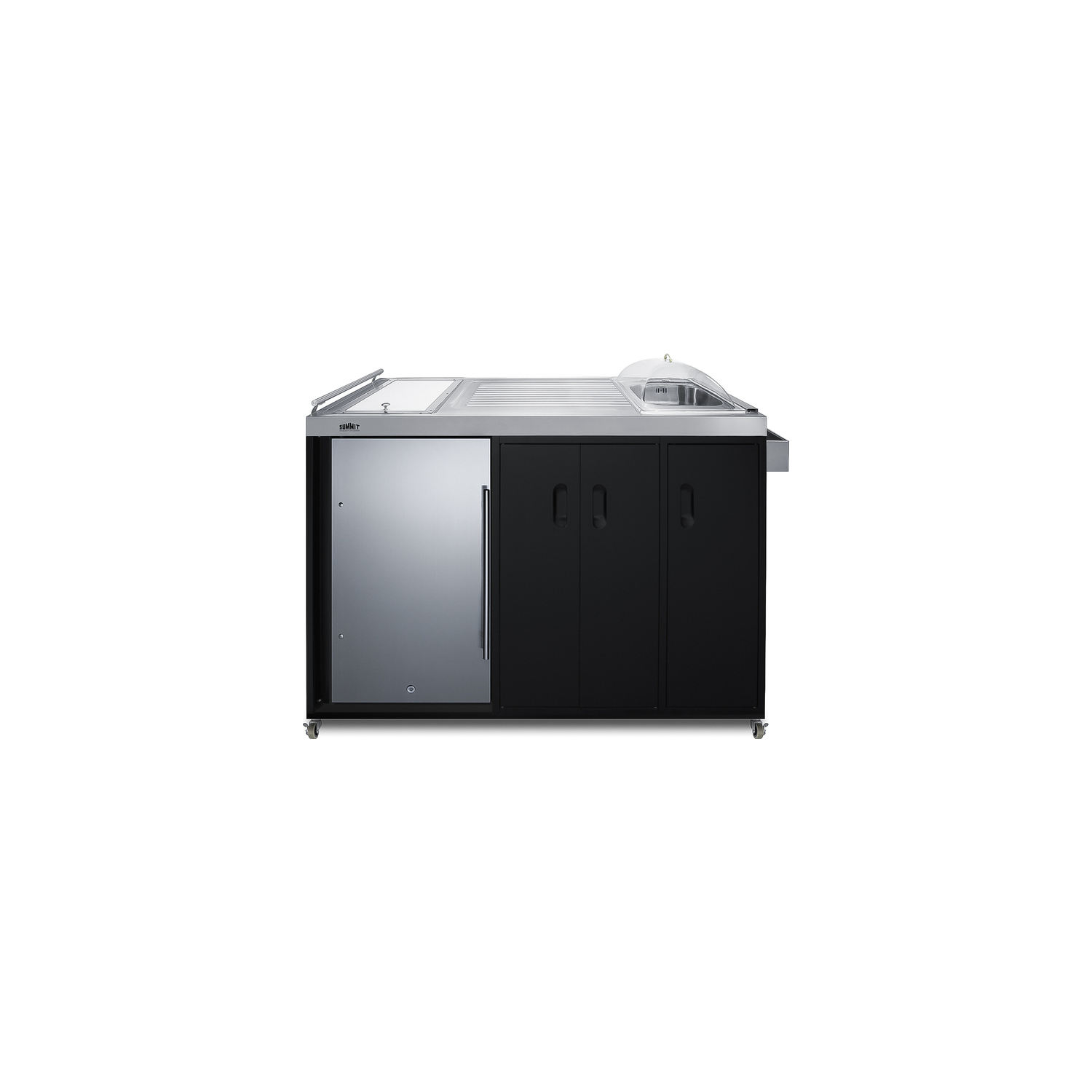

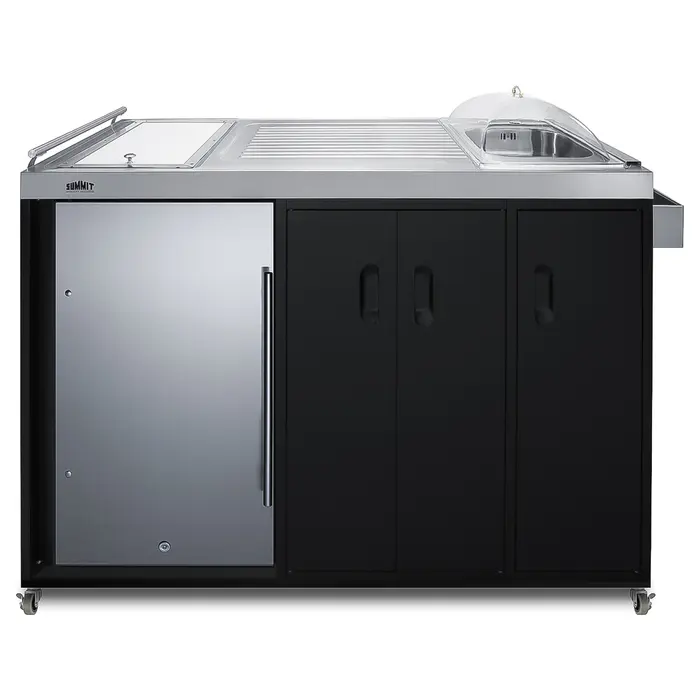

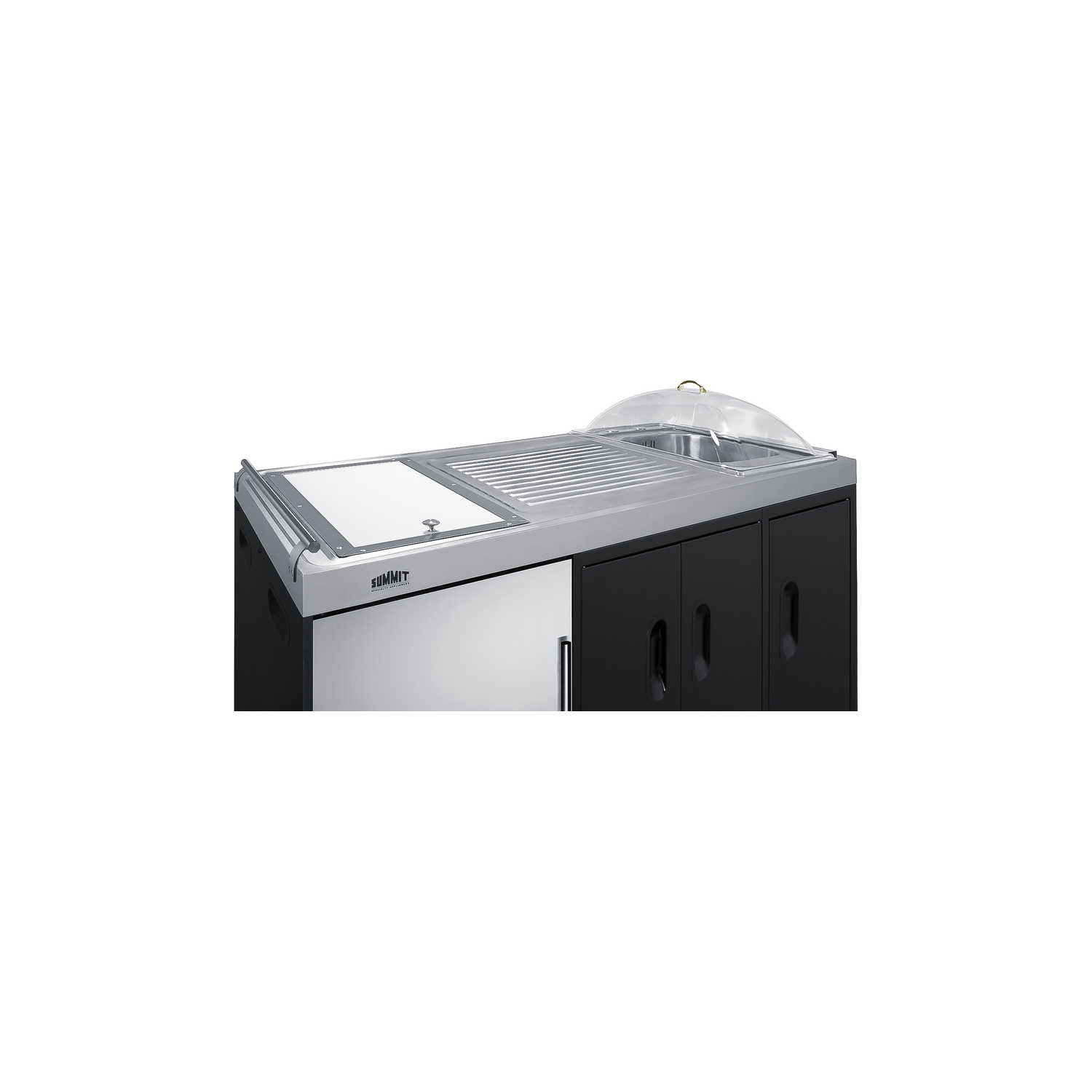

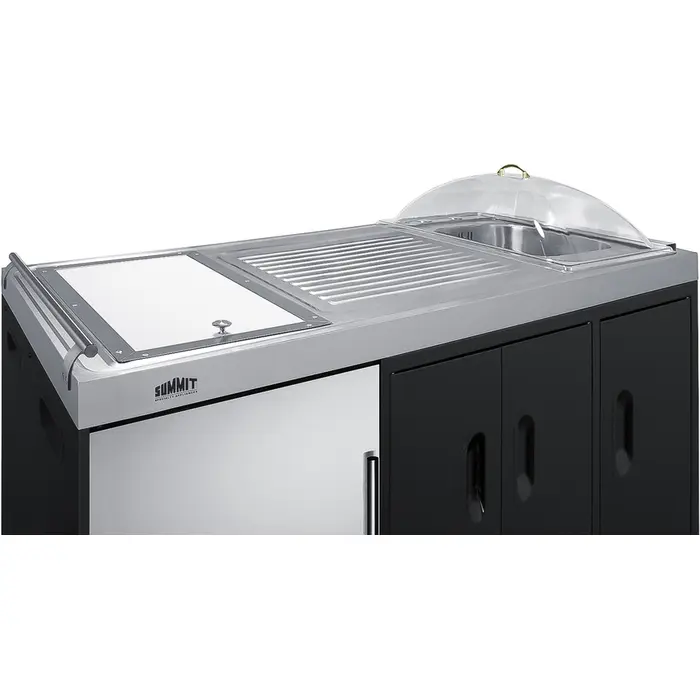

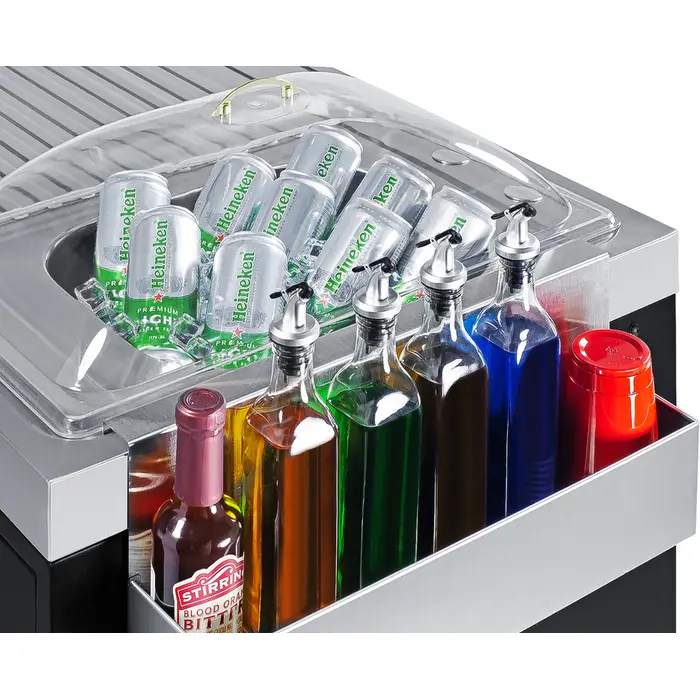

The stainless steel work surface offers plenty of room for mixing beverages or prepping your party. A recessed cutout features a removable cutlery tray that can be covered with our durable cutting board, letting you maximize useful counter space. The right side includes a sink compartment that can be connected to your garden hose to dispense cold water. We also include a removable clear dome that covers your sink, allowing you to create your own ice bucket system to keep items chilled and protected from pests. We supply a waste drain bottle that can easily be installed under the sink area and emptied as needed.

For smooth portability, the CARTOS54LS is equipped with four heavy duty caster wheels (front two are locking) and a stainless steel towel bar handle for easy steering. A stainless steel speed rail is installed on the right side for convenient dry storage. This unit is constructed from stainless steel and powder-coated metal. We include a vinyl cover to help protect the unit from the elements when not in use.

In addition to this unit, we also manufacture a cart with a glass door beverage center (model CARTOS54RG), as well as a full assortment of built-in outdoor refrigerators, freezers, kegerators, icemakers, and more. Browse the full Summit product line to discover the perfect solution for any outdoor kitchen space.

SPECIFICATIONS

Overview

Nominal Height 39.0" (99 cm)

Height of Cabinet 38.5" (98 cm)

Nominal Width 58.0" (147 cm)

Width 57.88" (147 cm)

Nominal Depth 24.0" (61 cm)

Depth 23.63" (60 cm)

Depth with door at 90° 38.63" (98 cm)

Door Stainless Steel

Cabinet Stainless Steel

Weight 180.0 lbs. (82 kg)

Parts & Labor Warranty 1 Year

UPC 761101103990

Cart

Unit Included SPR196OSADALHD

Door Swing LHD

Reversible Yes

Adjustable Shelves Yes

Shelf Type Glass

Shelf Qty 3

Thermostat Dial

Interior Light Yes

Fan Type Interior

Freon Type R600a

Freon Amount 0.88

High Side PSI 320.0

Low Side PSI 120.0

Interior Height 29.0" (74 cm)

Interior Width 16.0" (41 cm)

Interior Depth 12.75" (32 cm)

Compressor Step Height 7.0" (18 cm)

Compressor Step Width 16.0" (41 cm)

Compressor Step Depth 6.25" (16 cm)

Wheel Qty 4

Surface Stainless Steel

Temperature Range 34 to 50ºF

FEATURES

Portable outdoor kitchen bar Mobile cart with refrigerator included for safe and convenient entertainment in outdoor spaces

ENERGY STAR certified refrigerator included Includes our popular SPR196OSADALHD outdoor refrigerator complete with a stainless steel door, adjustable glass shelves, and door racks

Factory-installed lock (refrigerator) Locking door with two keys included to secure your storage as needed

Sink and faucet Working sink can be connected to your hose hookup or covered and used as an ice bath

6 gallon waste container included Empty jug can be connected to your sink drain to collect melted ice

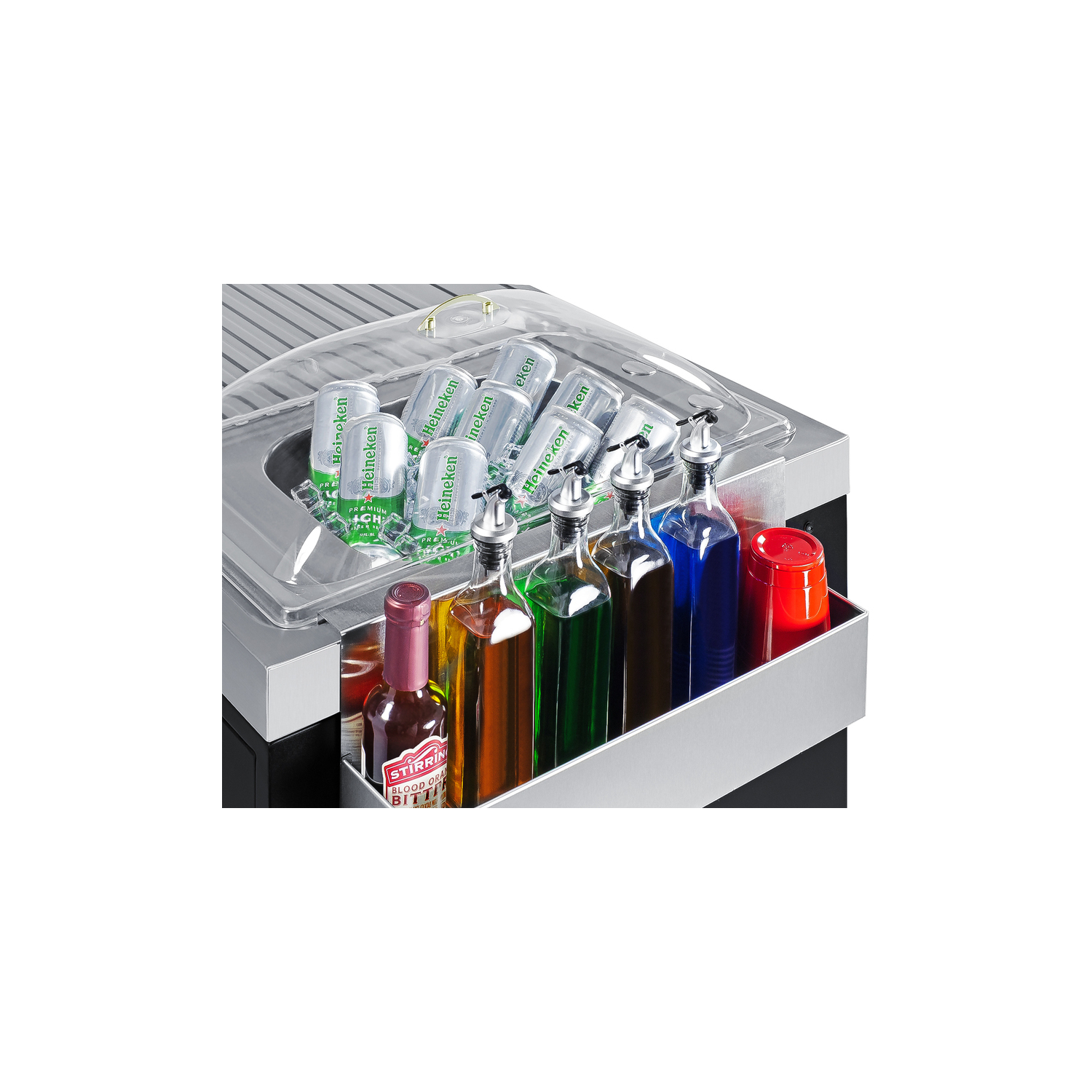

Clear sink cover included Removable domed cover allows you to protect food or beverages from pests

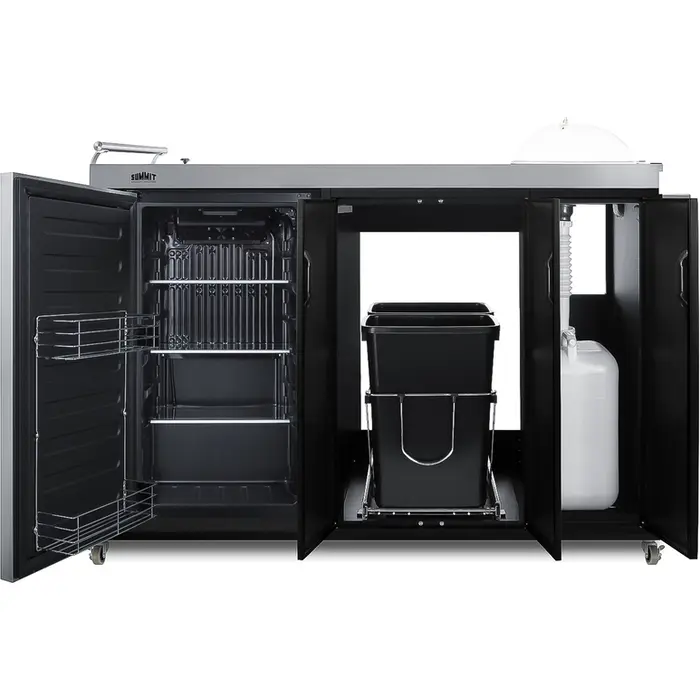

Slide-out waste bins Center cabinet features a smoothly gliding rack with two trash bins included

Removable cutting board surface Plastic cutting board provides a durable, easy-to-clean space for food preparation

Removable cutlery bin Fits in the recessed countertop space with borders to store your silverware

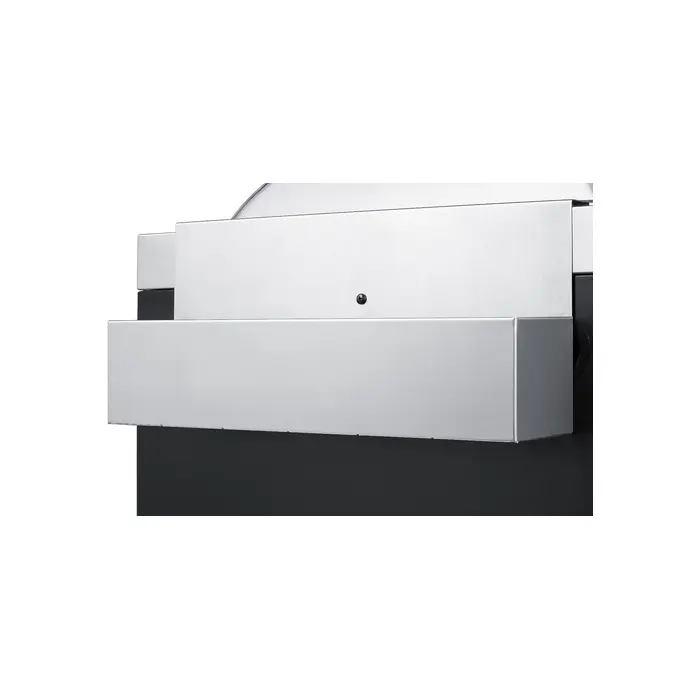

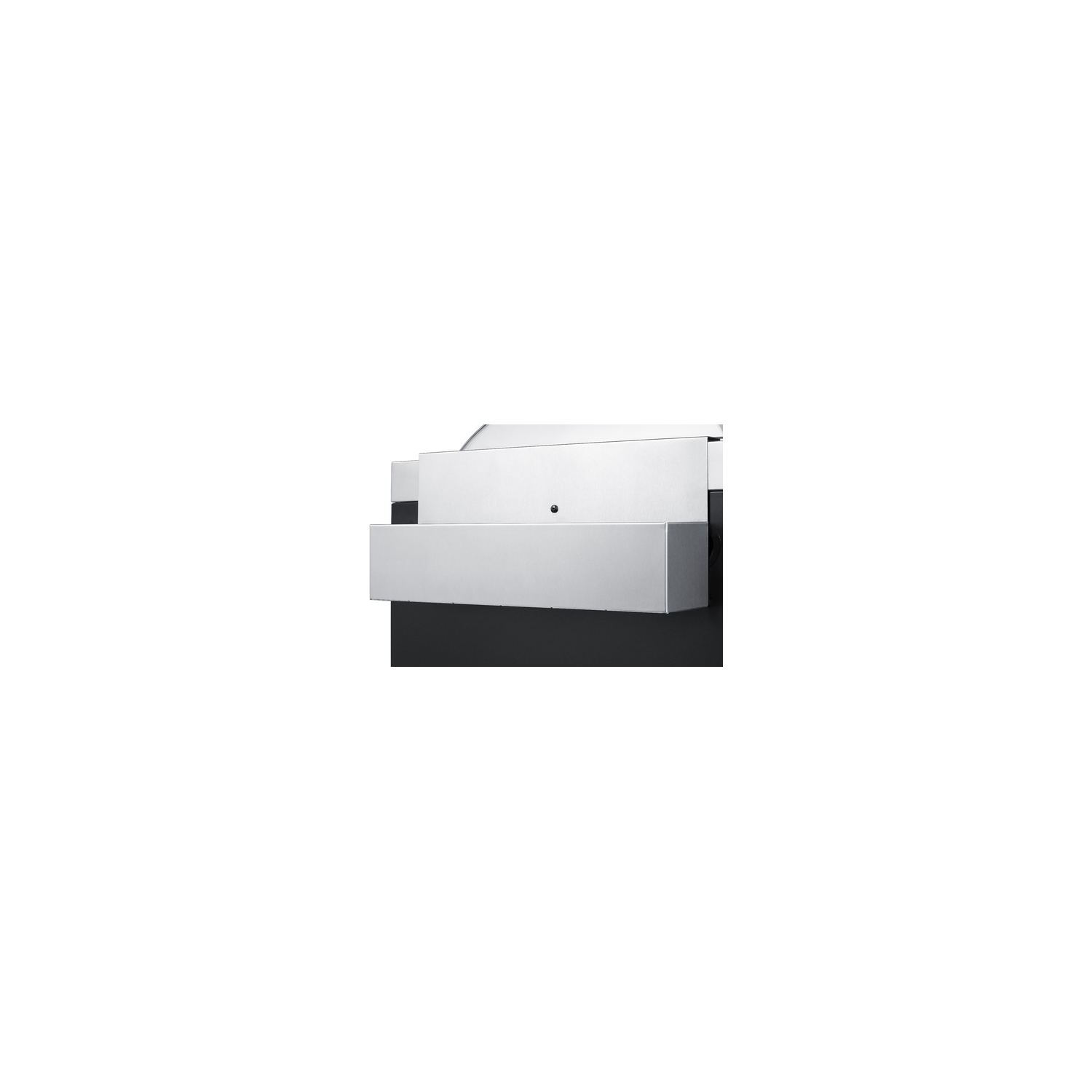

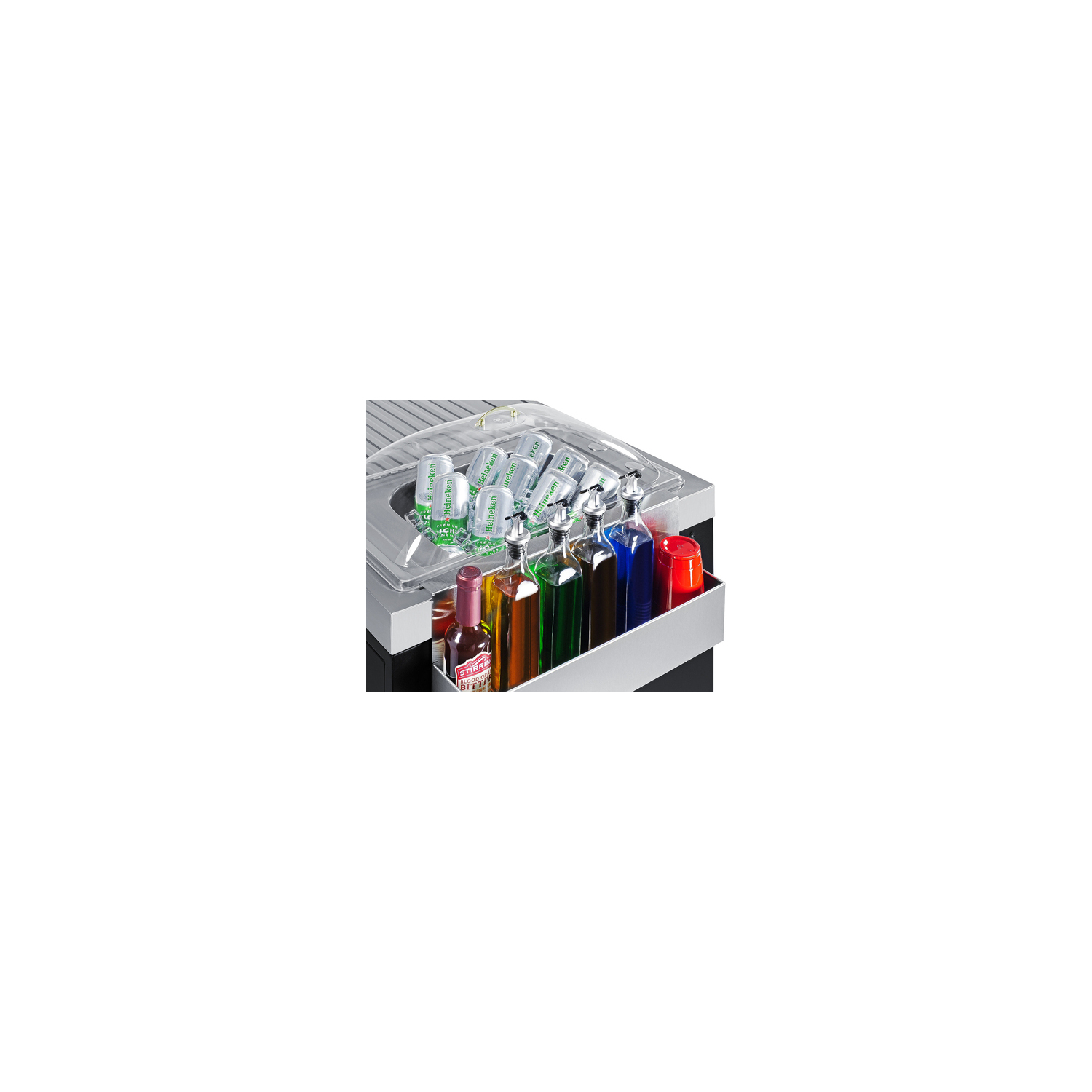

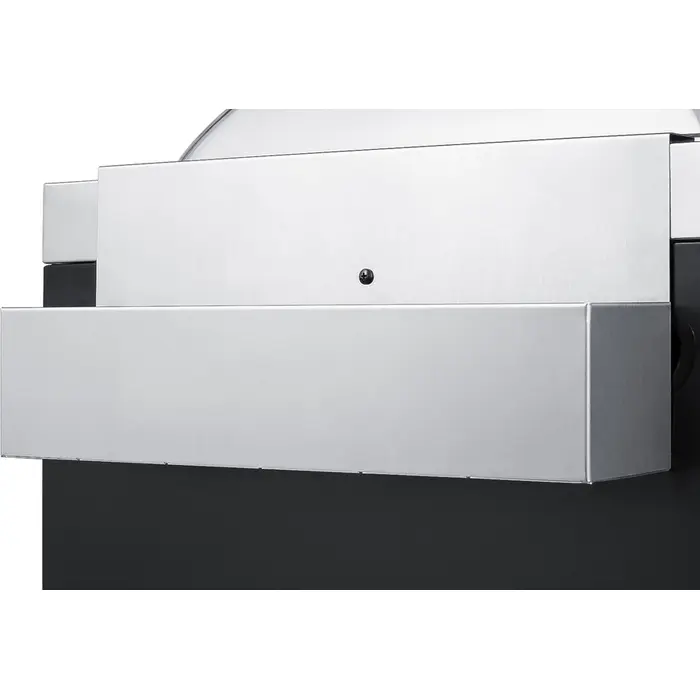

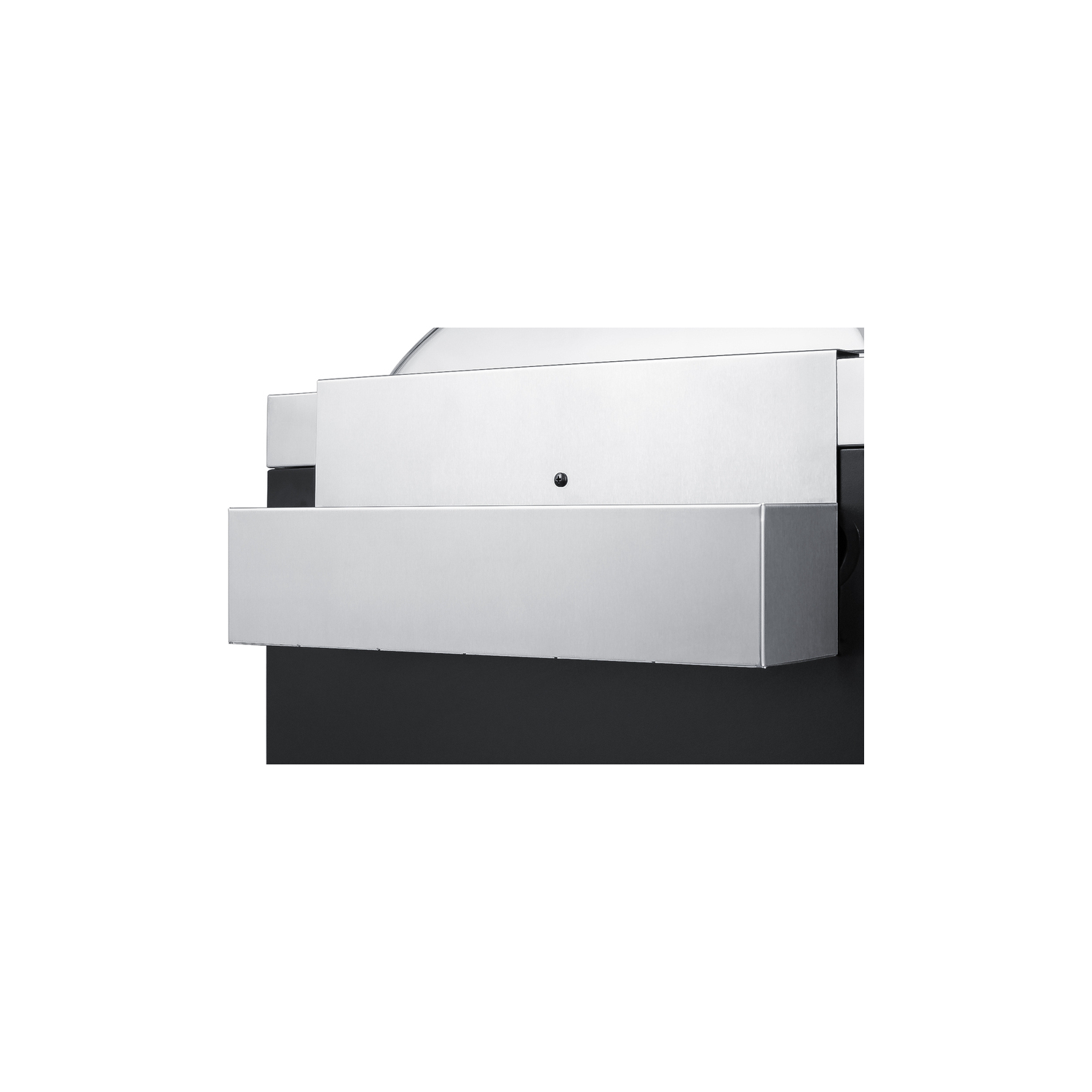

Side speed rail Pre-installed rack on the side is ideally sized for holding cups, condiments, and more

Stainless steel handle Surface includes a pre-installed towel bar handle, making it easy to steer and position

Storage compartment Convenient lower cabinet with adjustable shelf lets you store dry goods

Stainless steel and black metal finish Modern style with a powder-coated metal cabinet and stainless steel surface

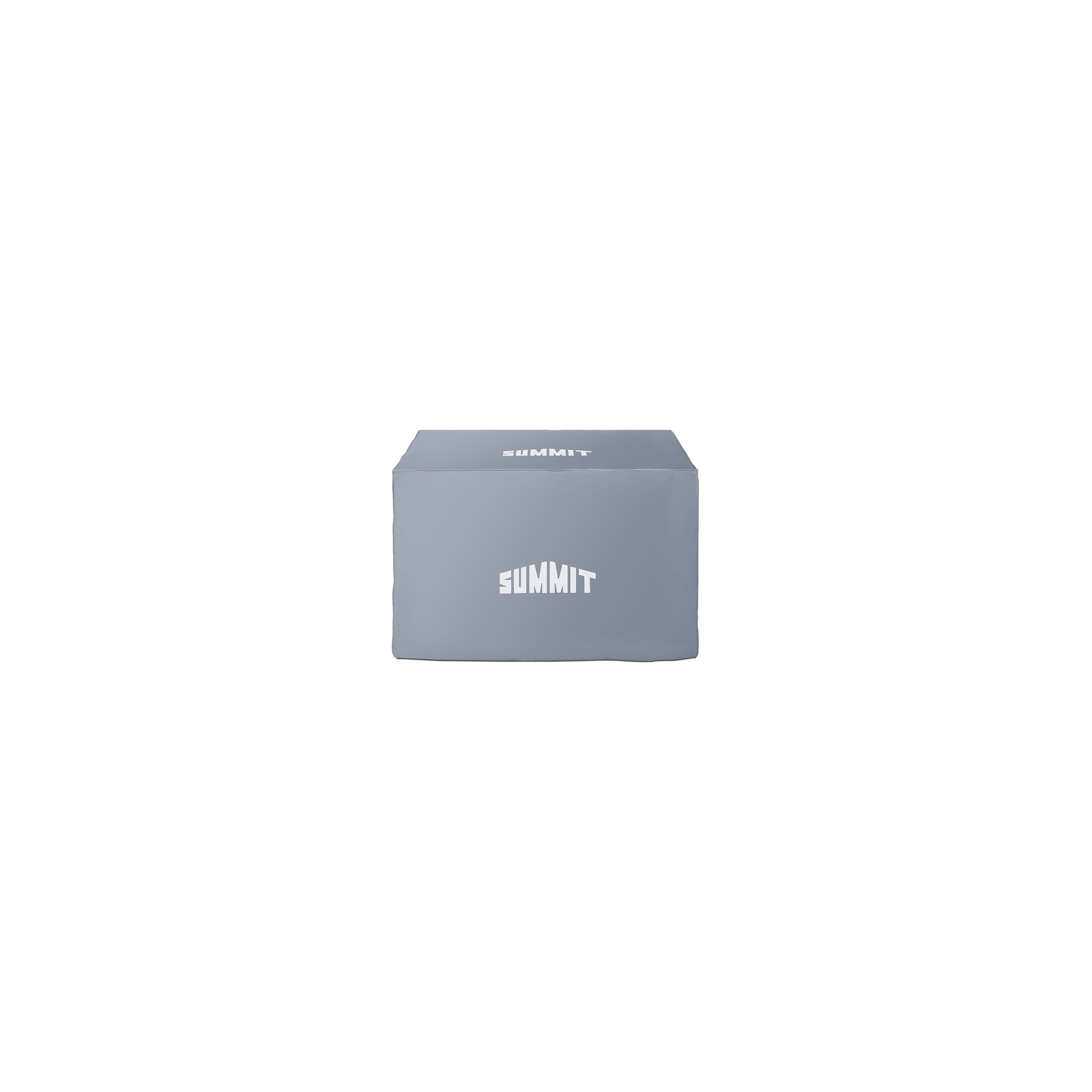

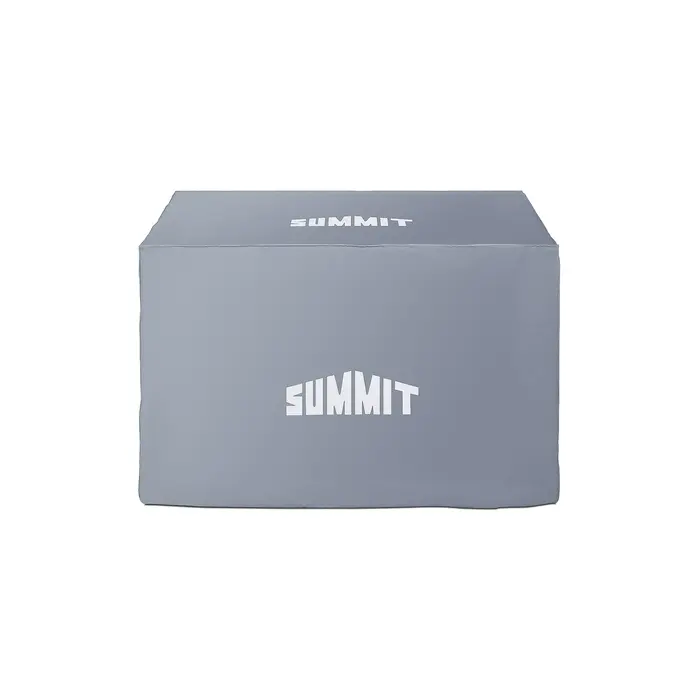

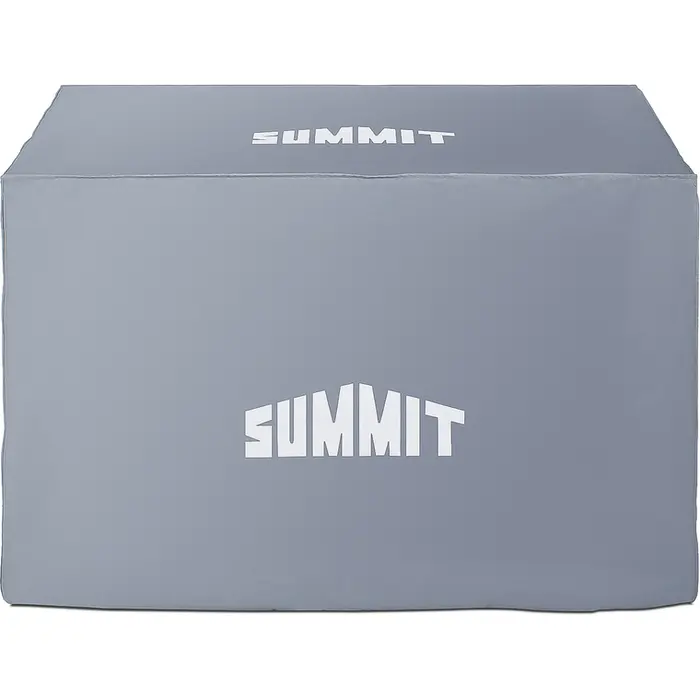

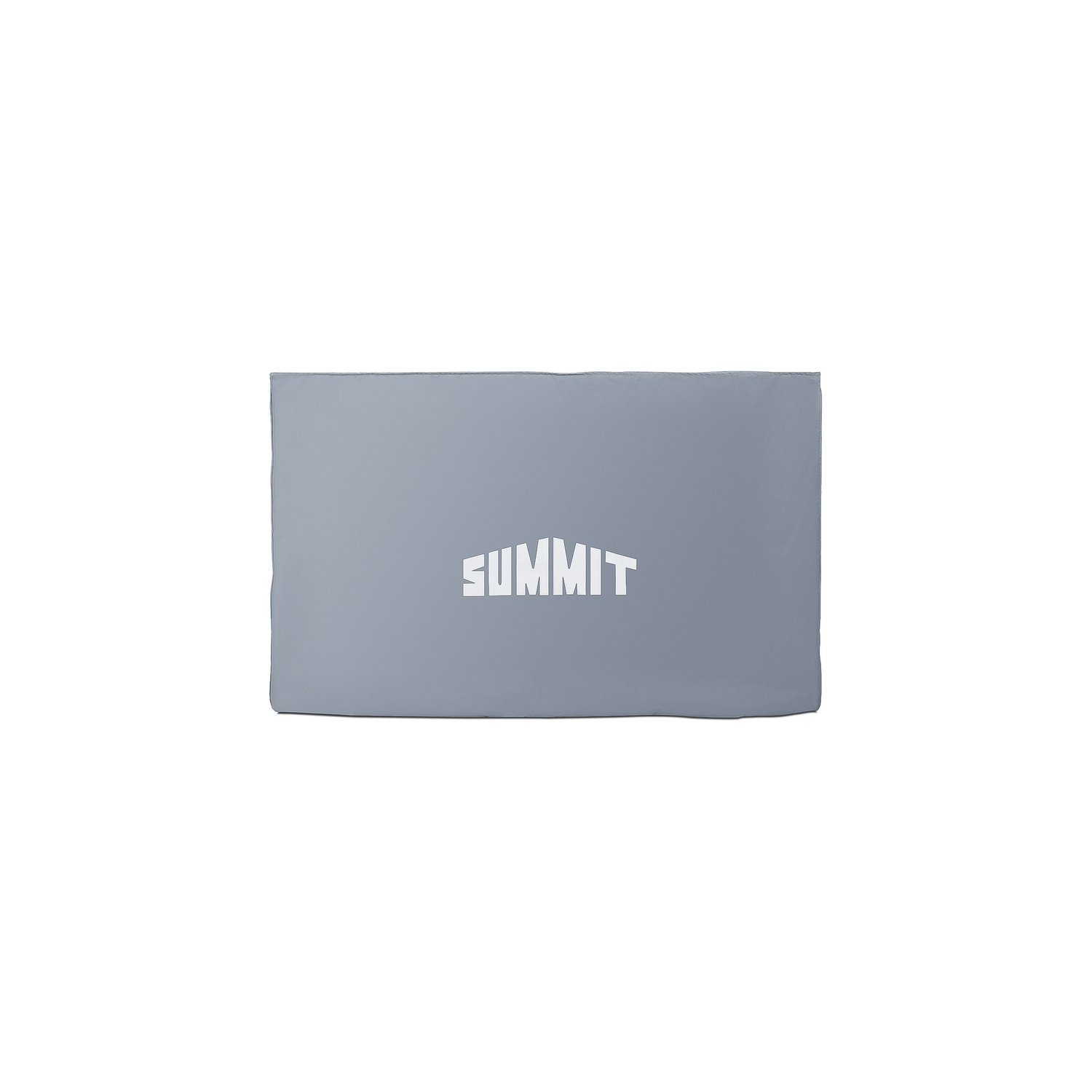

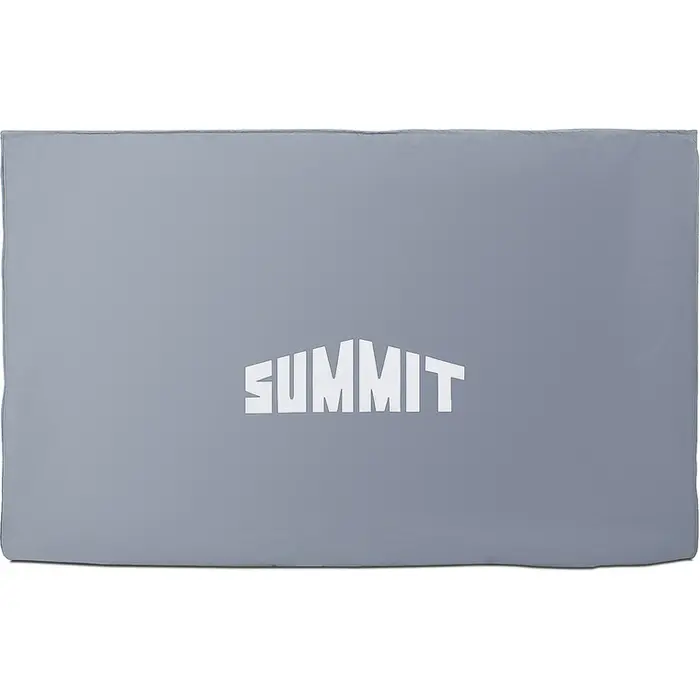

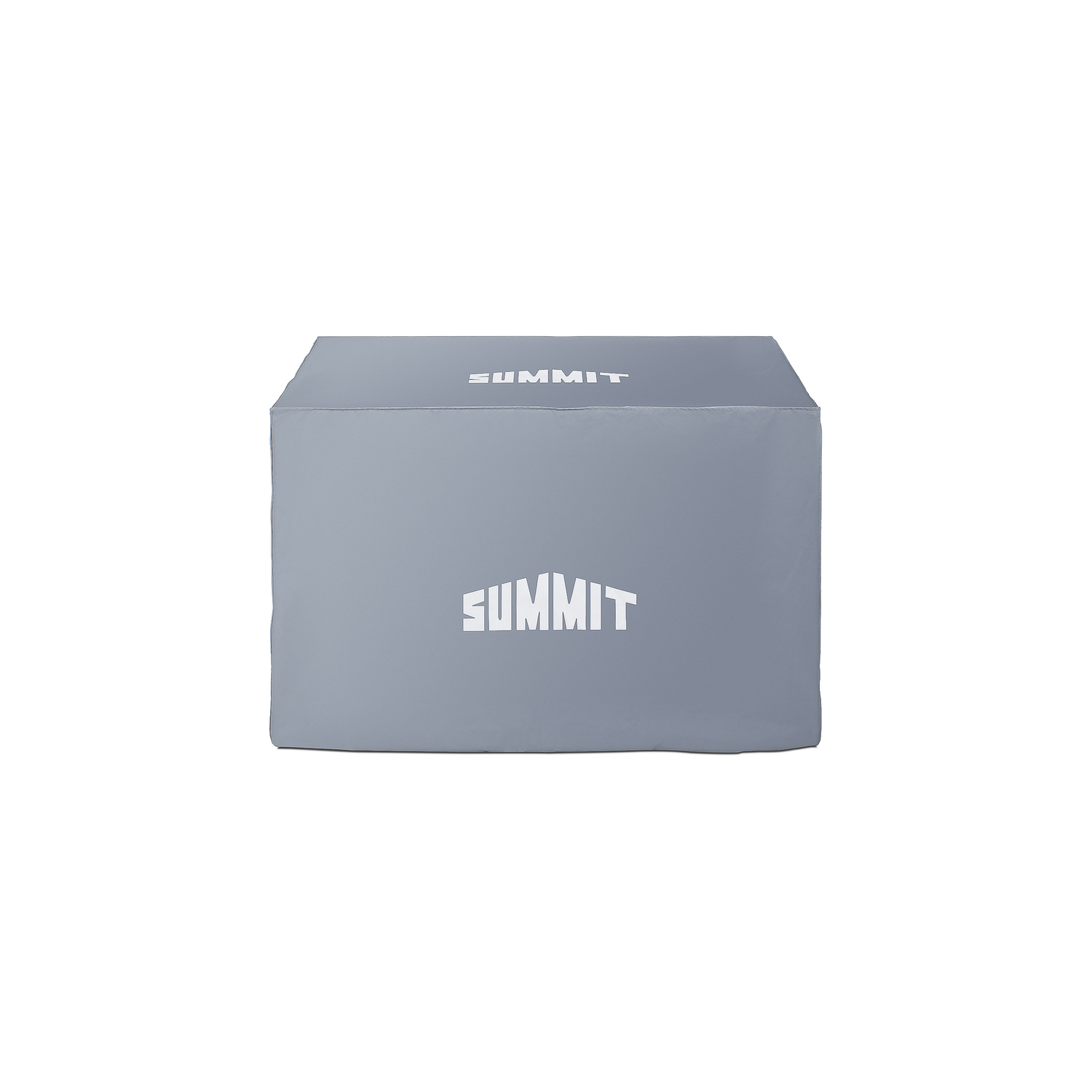

Protective cover included Vinyl cover sized for this unit for added protection from the elements when not in use

Portable design Unit is installed on a dolly with four casters (front two locking) for easy mobility

Easy setup Ships fully assembled in two boxes. Just slide the refrigerator in and start serving!

DOWNLOADS

BROCHURE w/ DRAWINGS (CARTOS54RS.pdf)

TECHNICAL DRAWING (.dwg) (CARTOS54RG_CARTOS54RS_2.dwg)

ASSEMBLY DRAWING (CARTOS54RG_CARTOS54RS-Assembly_2.pdf)

REVIT MODEL (QF_Summit_CARTOS54RS_Mobile_Outdoor_Serving_Station_with_Refrigerator.rfa)

USE & CARE (CARTOS54RS-User-Manual.pdf)

USE & CARE (CARTOS54RS-User-Manual_2.pdf)
