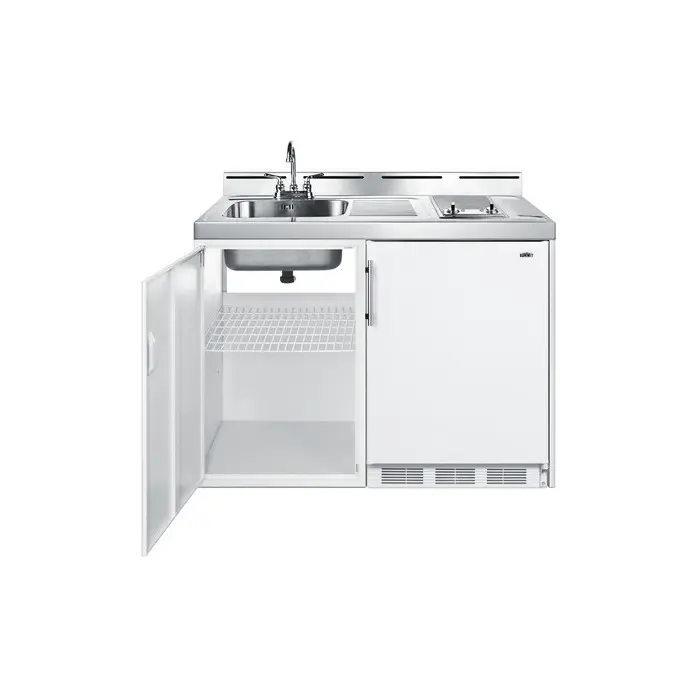

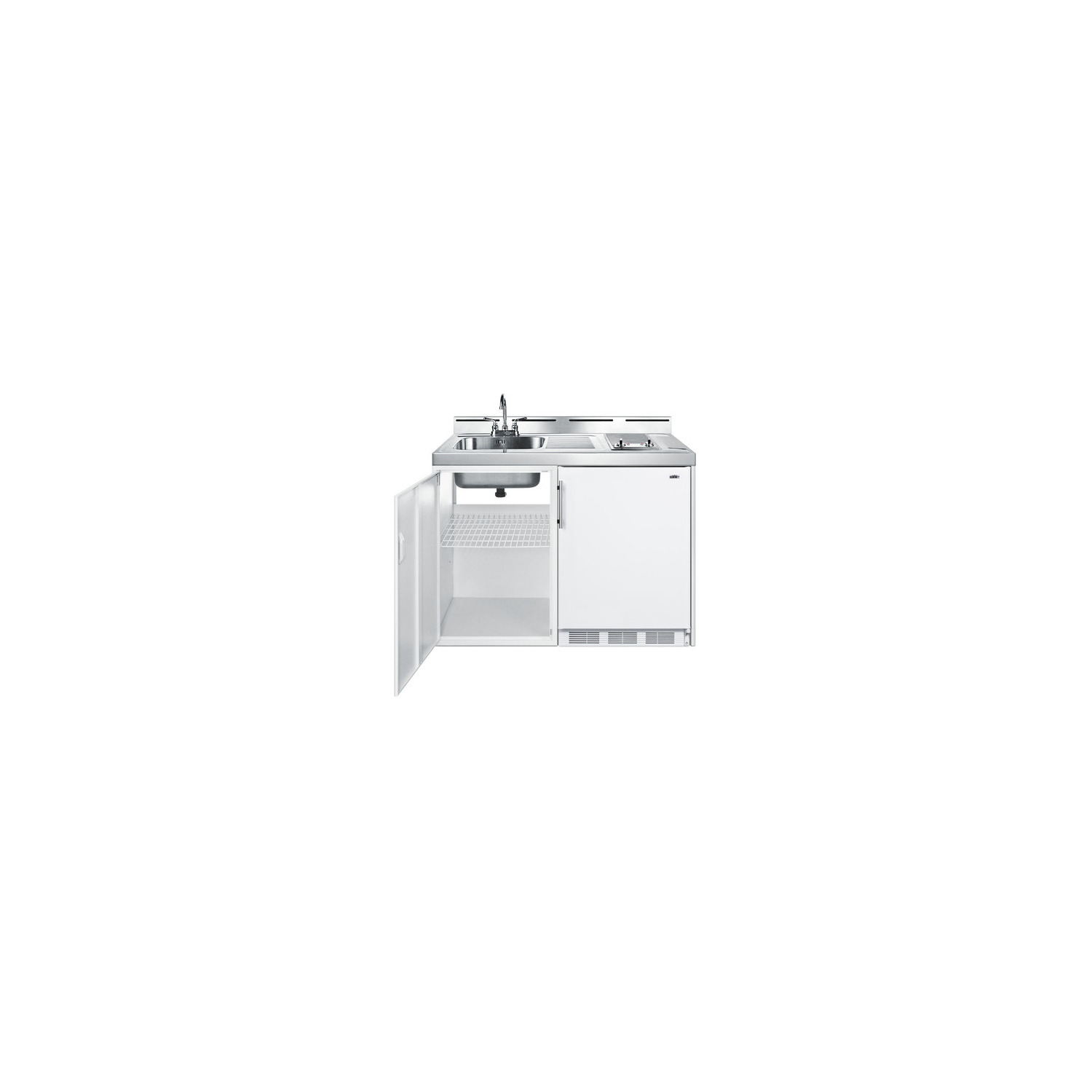

Summit 48 inch wide all-in-one kitchenette with 2-burner 115V radiant cooktop, refrigerator-freezer, and no-plumbing sink with water pump kit included for areas without direct water lines, C48ELGLASSPUMP

Summit brings innovation and convenience to non-traditional kitchen spaces with a new line of all-in-one kitchenettes designed for use in settings without standard water lines.

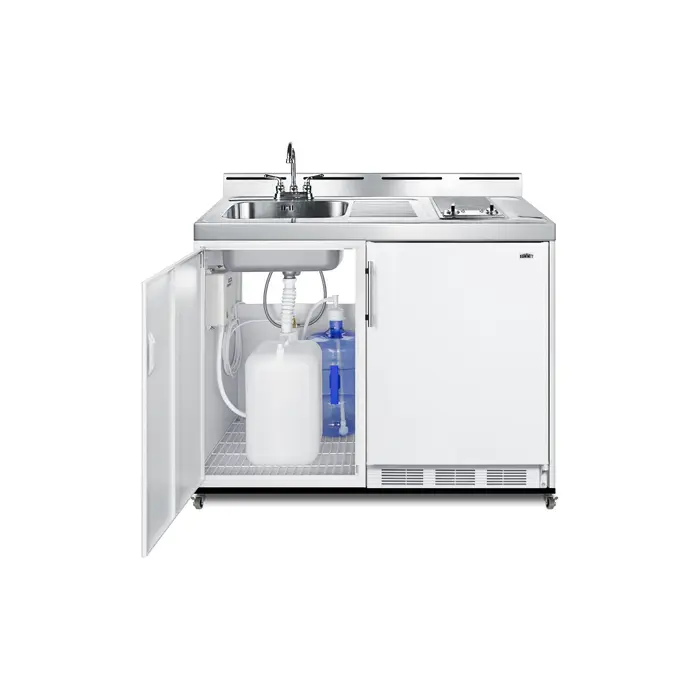

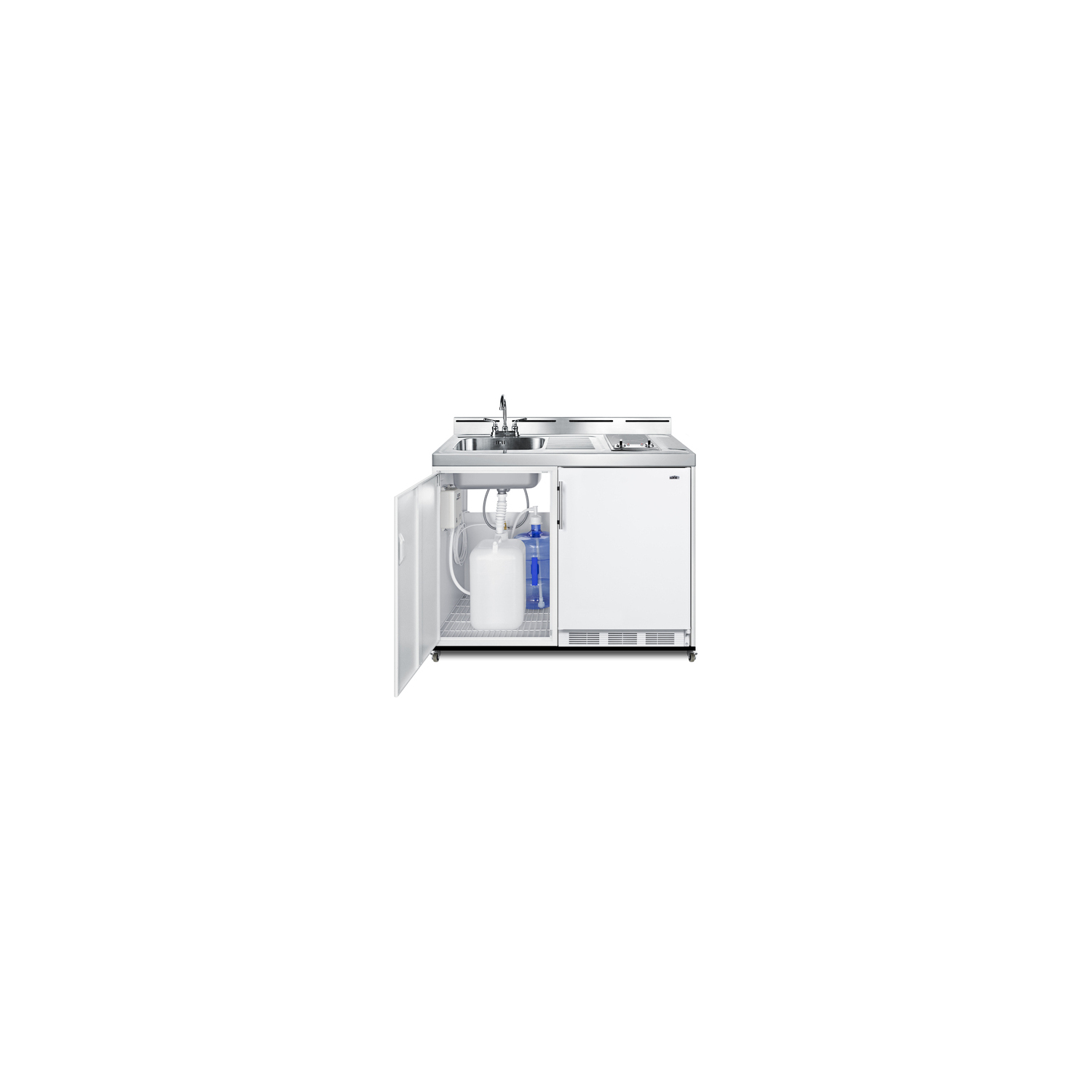

Great for efficiency housing, off-grid living, and temporary or basement kitchens, the C48ELGLASSPUMP is a 48 inch wide kitchenette composed of a refrigerator-freezer, 2-burner radiant cooktop, sink, and storage cabinet that can be used as a portable water station. We include CKPUMPKIT, a package that features everything you need to connect the sink to a removable 5 gallon water jug to pump your fresh water through the included faucet. The kit comes with a 5 gallon jug, 6 gallon waste water container, 110V water pump, and all of the hardware and tubing you need to install your own "no plumbing" sink.

The C48ELGLASSPUMP features a smooth 2-burner readiant cooktop in black glass for convenient stovetop heating. The cooktop includes its own pre-installed 3-prong cord for easy setup. It ships with our popular CT661W European refrigerator-freezer, offering 5.1 cu.ft. of storage capacity with adjustable glass shelves, door racks, a scalloped steel wine shelf, and large crisper drawer ideal for keeping produce at its best.

Sized just under 48 inches wide, the C48ELGLASSPUMP comes in a shallow 24 inch depth ideal for smaller kitchens. It features a classic white cabinet finish with a durable stainless steel work surface and backguard. For more storage options, add our APSS48 appliance station shelf or our selection of wall cabinets.

This unit ships on one pallet in three overboxed packages (kitchenette, refrigerator, and pump kit). Just slide the refrigerator in, install the pump kit, plug in the appliances, and enjoy your fully functional efficiency kitchen with no plumbing required!

SPECIFICATIONS

Overview

Nominal Height 40.0" (102 cm)

Height of Cabinet 40.0" (102 cm)

Nominal Width 48.0" (122 cm)

Width 47.25" (120 cm)

Nominal Depth 24.0" (61 cm)

Depth 24.0" (61 cm)

Depth with door at 90° 44.25" (112 cm)

Capacity 5.1 cu.ft. (144 L)

Defrost Type Cycle

Door White

Cabinet White

US Electrical Safety ETL

Canadian Electrical Safety ETL-C

Amps 25.0

Voltage/Frequency 115 V AC/60 Hz

Weight 250.0 lbs. (113 kg)

Parts & Labor Warranty 1 Year

UPC 761101086286

Kitchenette

Refrigerator Included CT661W

Refrigerator Door Swing RHD

Reversible Yes

Adjustable Shelves Yes

Shelf Type Glass

Shelf Qty 3

Crisper Qty 1

Crisper Finish Transparent

Crisper Cover Glass

Full Door Shelves 3

Thermostat Type Dial

Interior Light Yes

Refrigerant Type R600a

Refrigerant Amount 0.92 oz.

Cooking Type Smooth-Top Cooktop

Number of Burners 2

Cooktop Controls Dial

Interior Height 1 19.5" (50 cm)

Interior Width 1 20.5" (52 cm)

Interior Depth 1 17.0" (43 cm)

Interior Height 2 5.0" (13 cm)

Interior Width 2 19.0" (48 cm)

Interior Depth 2 11.5" (29 cm)

Compressor Step Height 7.0" (18 cm)

Compressor Step With 20.5" (52 cm)

Compressor Step Depth 5.0" (13 cm)

Sink Height 5.88" (15 cm)

Sink Width 16.75" (43 cm)

Sink Depth 14.88" (38 cm)

FEATURES

Fully functioning one-piece kitchen Includes a refrigerator-freezer, 2-burner cooktop, sink, and water pump kit to meet all of your basic kitchen needs

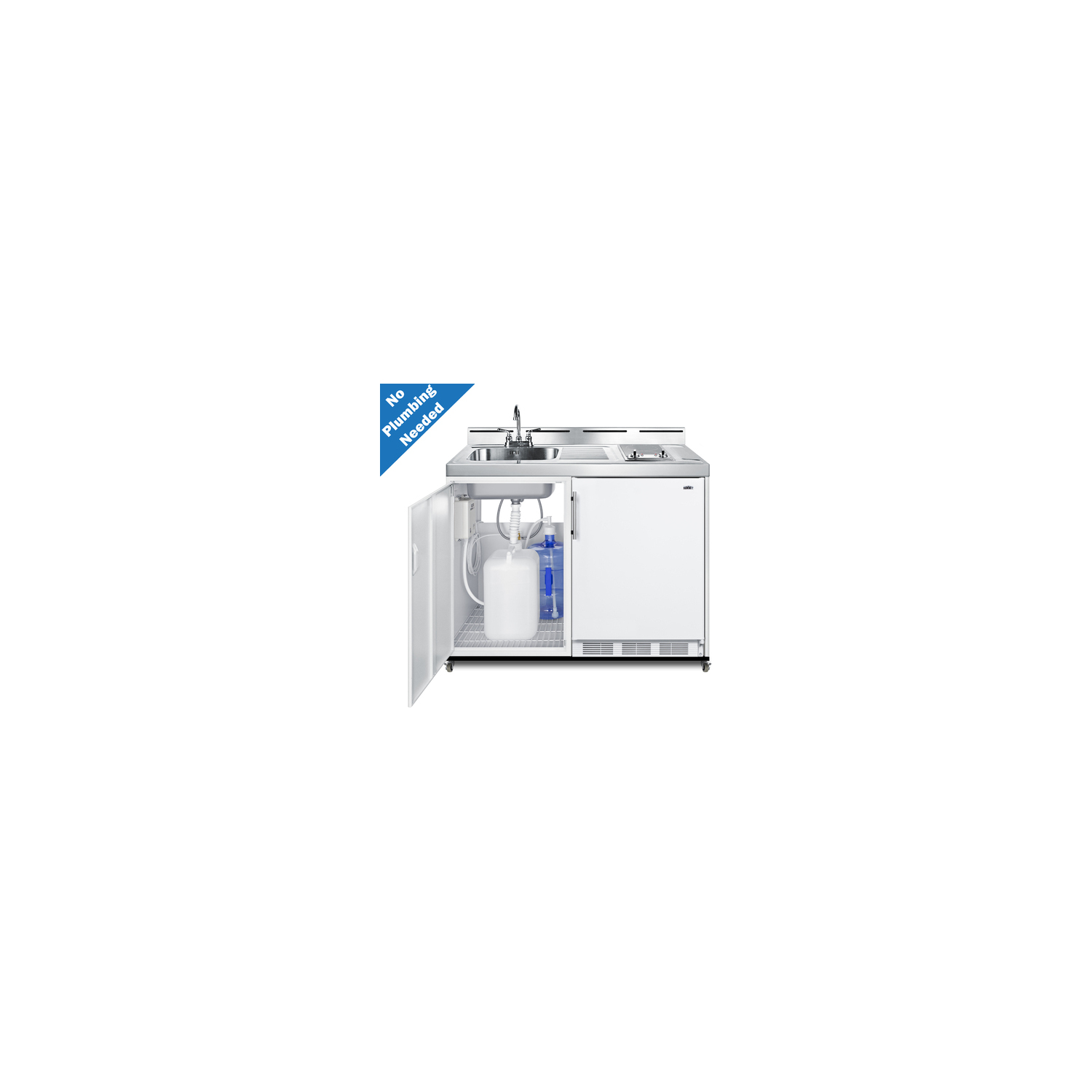

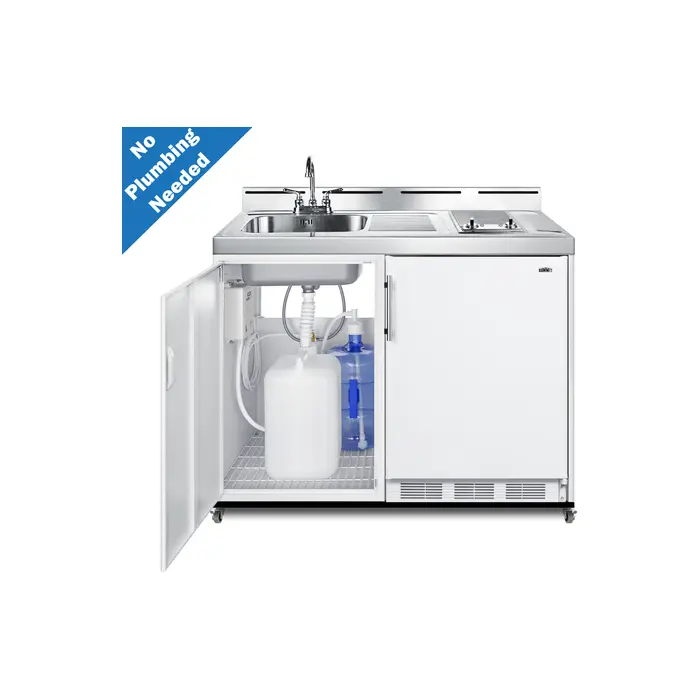

No plumbing required Allows you to create your own portable handwash station without a direct water line connection or drain

Refrigerator-freezer included Includes SUMMIT CT661W, a refrigerator-freezer with dual evaporator cooling, adjustable glass shelves, a crisper, and more

Large refrigerator capacity Over 5 cu.ft. of storage space inside, with a compact freezer compartment included

Water pump Easy to install 110V pump system to connect the included fresh water jug to your sink

Fits 2 5 gallon water jugs Large cabinet interior can fit up to two standard 5 gallon jugs (1 included with kit)

6 gallon waste container Connects to your sink drain for easy cleanup

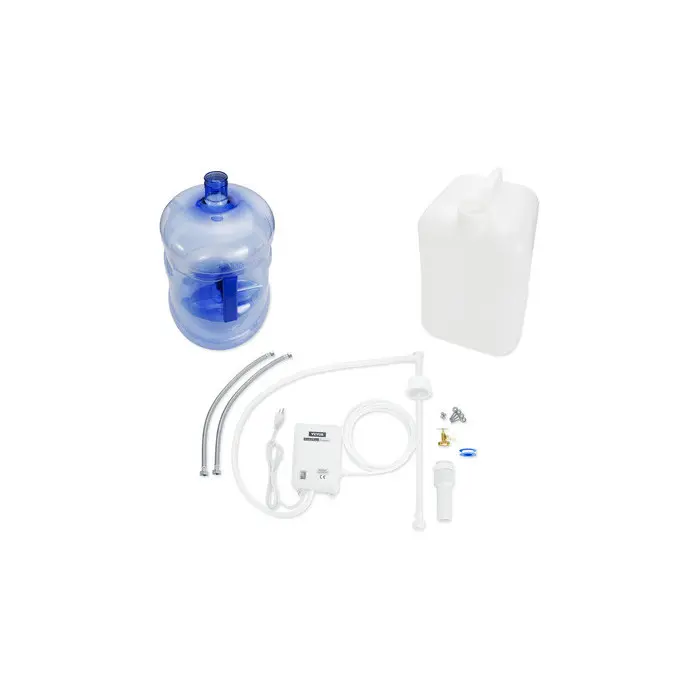

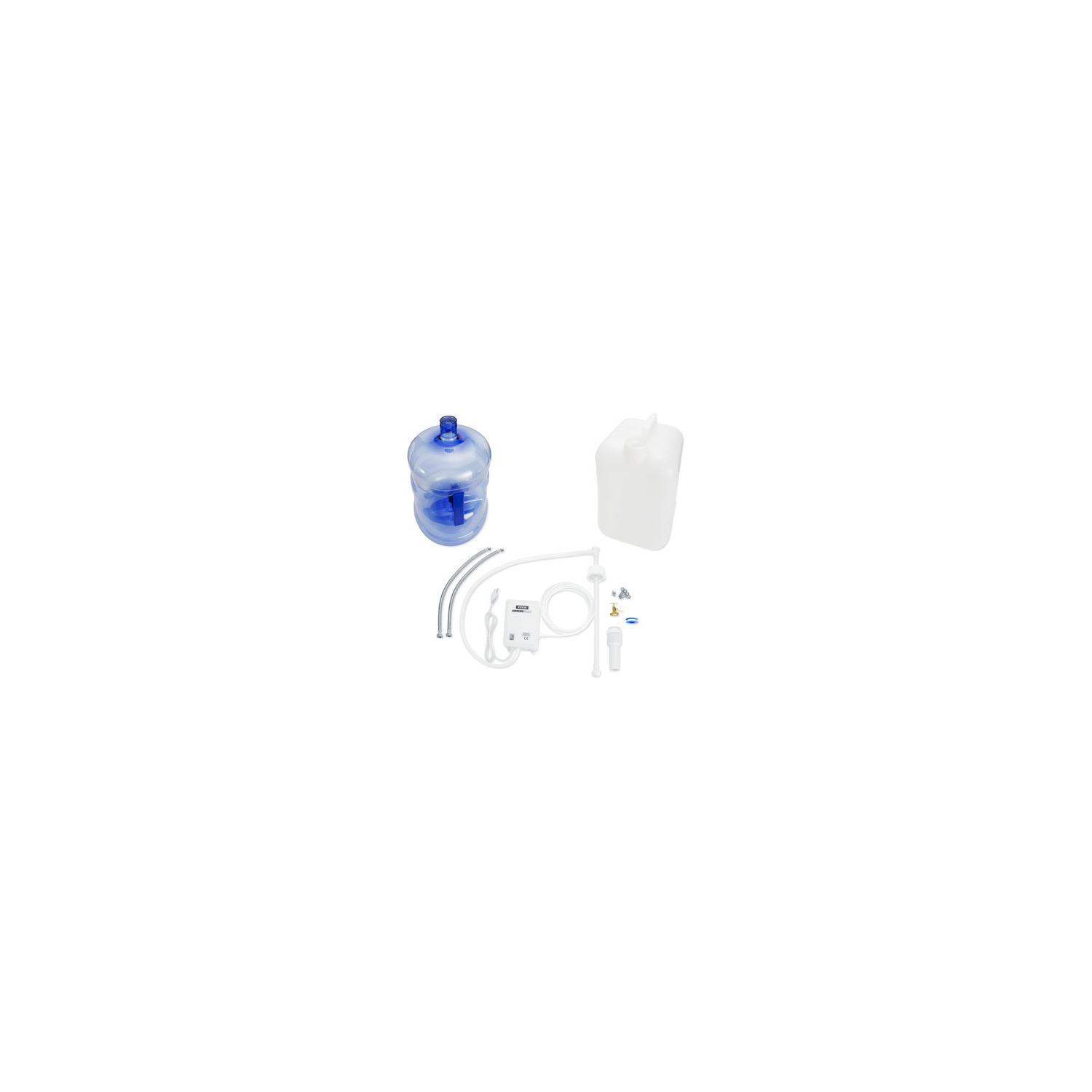

Hardware included CKPUMPKIT ships with all of the pieces you need to connect the water jug and waste container to your sink

2-burner smooth-top cooktop Includes a 5 3/4" 600W front element and 7" 900W rear element in a smooth black finish for easier cleanup and safer cooking

Indicator lights (cooktop) Operating indicators light up to show which burner is in use

Push-to-turn knobs Cooktop knobs require a small amount of force to turn the elements on, helping to prevent accidents

115V operation with pre-installed cords Both the cooktop (12 amps) and refrigerator (1.2 amps) include 3-pronged cords for easy setup

One piece stainless steel countertop Attractive surface in a durable stainless steel finish

Ships on one pallet Kitchenette, refrigerator, and pump kit are individually overboxed and ship on a single pallet for transportation convenience

Shallow depth Just 24" deep for an easy fit in efficiency kitchen spaces

Stainless steel backguard Includes a 4" high backguard to complete the look and offer added protection to your walls

CARB Compliant Refrigerator-freezer utilizes eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

Optional storage cabinets available Available in 12" or 18" wide sizes, with powder-coated metal construction in white or black finishes

Optional storage shelf Add more storage convenience with the APSS48 Appliance Station, a stainless steel shelving system designed for easy installation on this unit

100% CFC free Environmentally friendly design without ozone-damaging chemicals

DOWNLOADS

BROCHURE (C48ELGLASSPUMP.pdf)

ENERGY GUIDES (EnergyGuide-CT661W.pdf)

SUPPORT (CKPUMPKIT_Mounting_Template.pdf)

USE & CARE (C48ELGLASSPUMP-User-Manual.pdf)

USE & CARE (C48ELGLASSPUMP-User-Manual_2.pdf)

USE & CARE (C48ELGLASSPUMP-User-Manual_3.pdf)
