Summit ADA compliant all-refrigerator for freestanding general purpose use, with flat door liner, auto defrost operation and black exterior, 7.61101e+011, AL752BK
$1,046.62
Retail Price: $1,585.00
Free shipping
$ 1,046.62
Description
Accucold by Summit Appliance offers a wide range of all-refrigerators for general purpose storage. The AL750 Series features 24" wide all-refrigerators sized for freestanding use in ADA compliant settings.
The AL752BK is a 32" high all-refrigerator with a full 5.5 cu.ft. capacity inside a slim 24" footprint. Designed for freestanding use, this model has a black exterior and user-reversible door swing.

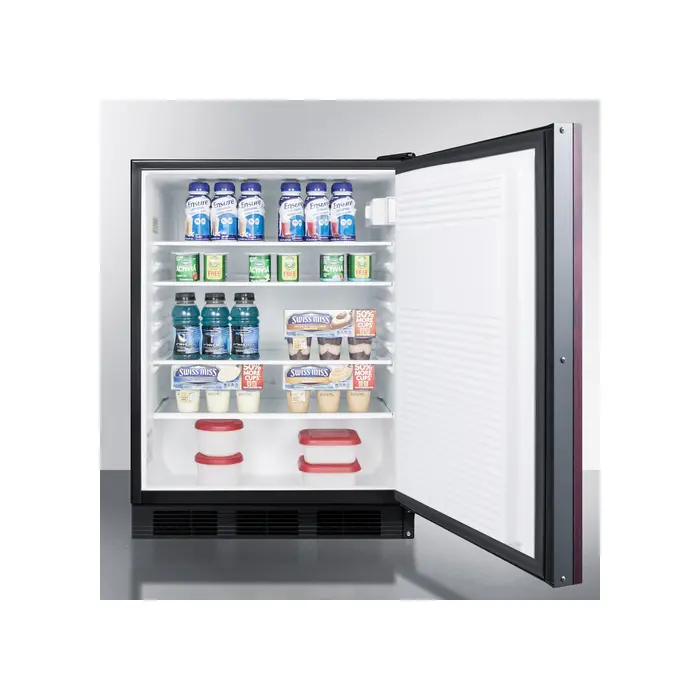

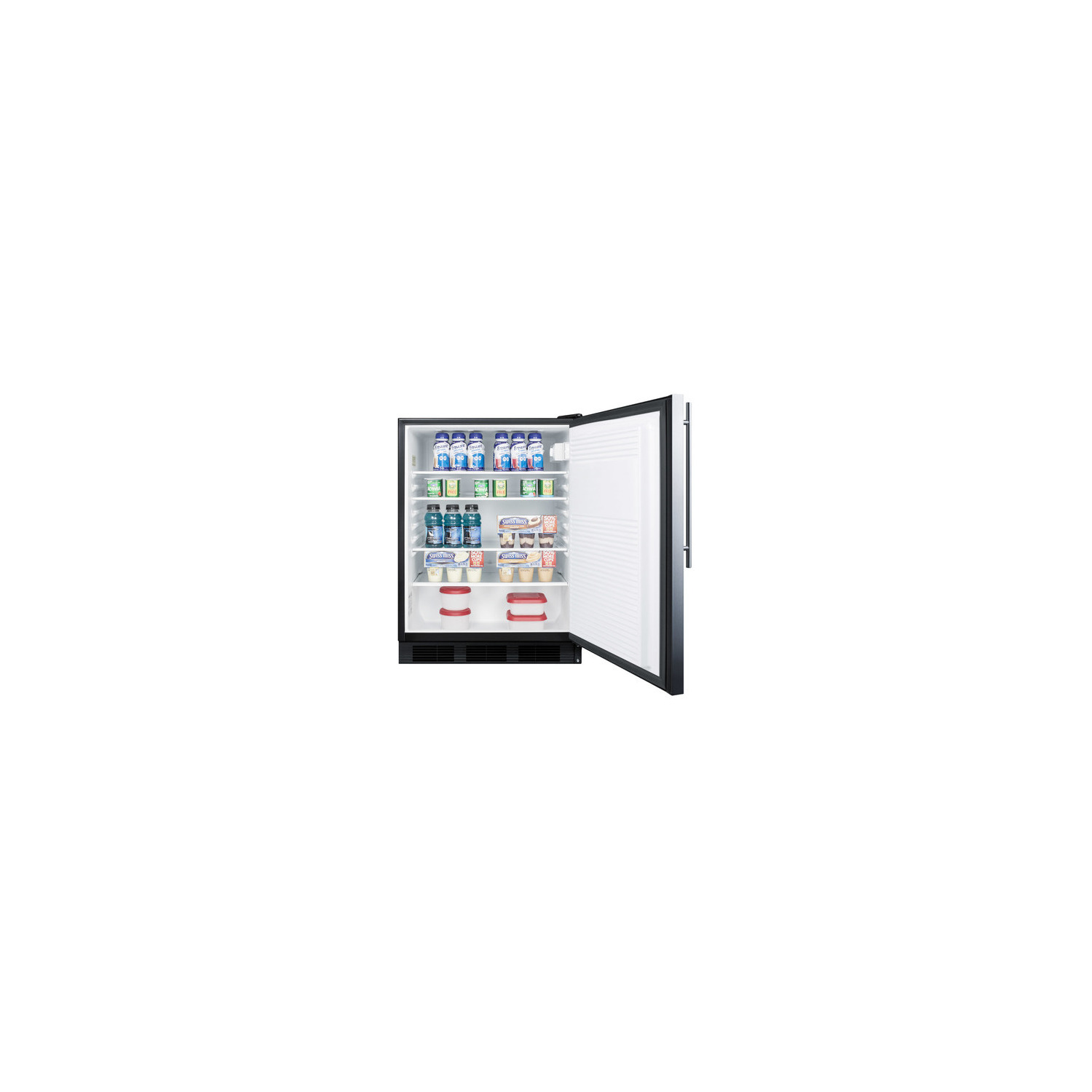

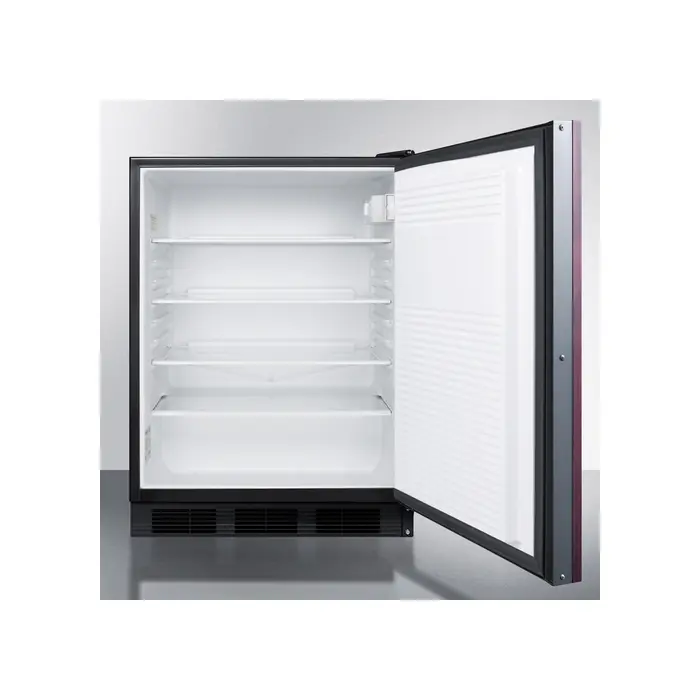

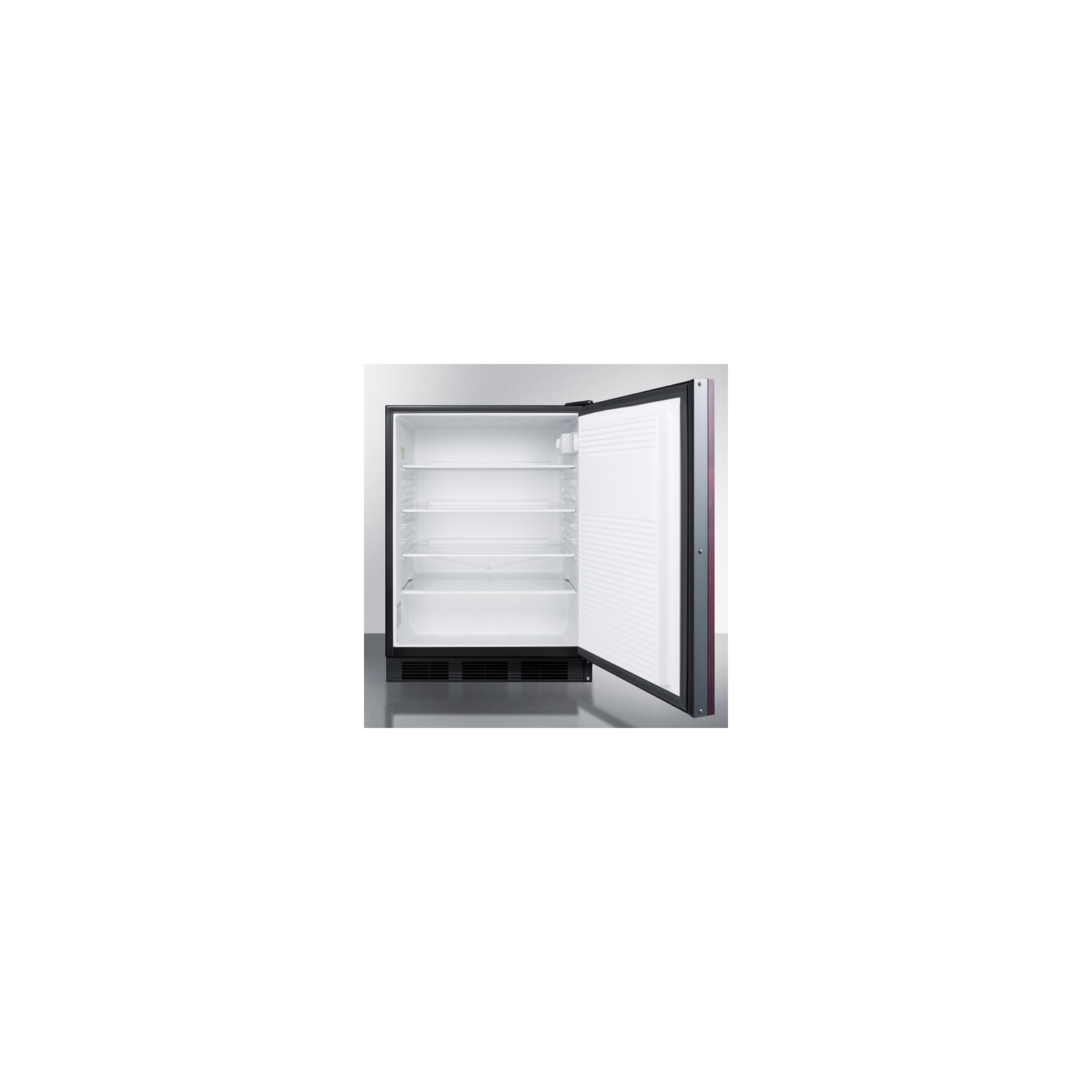

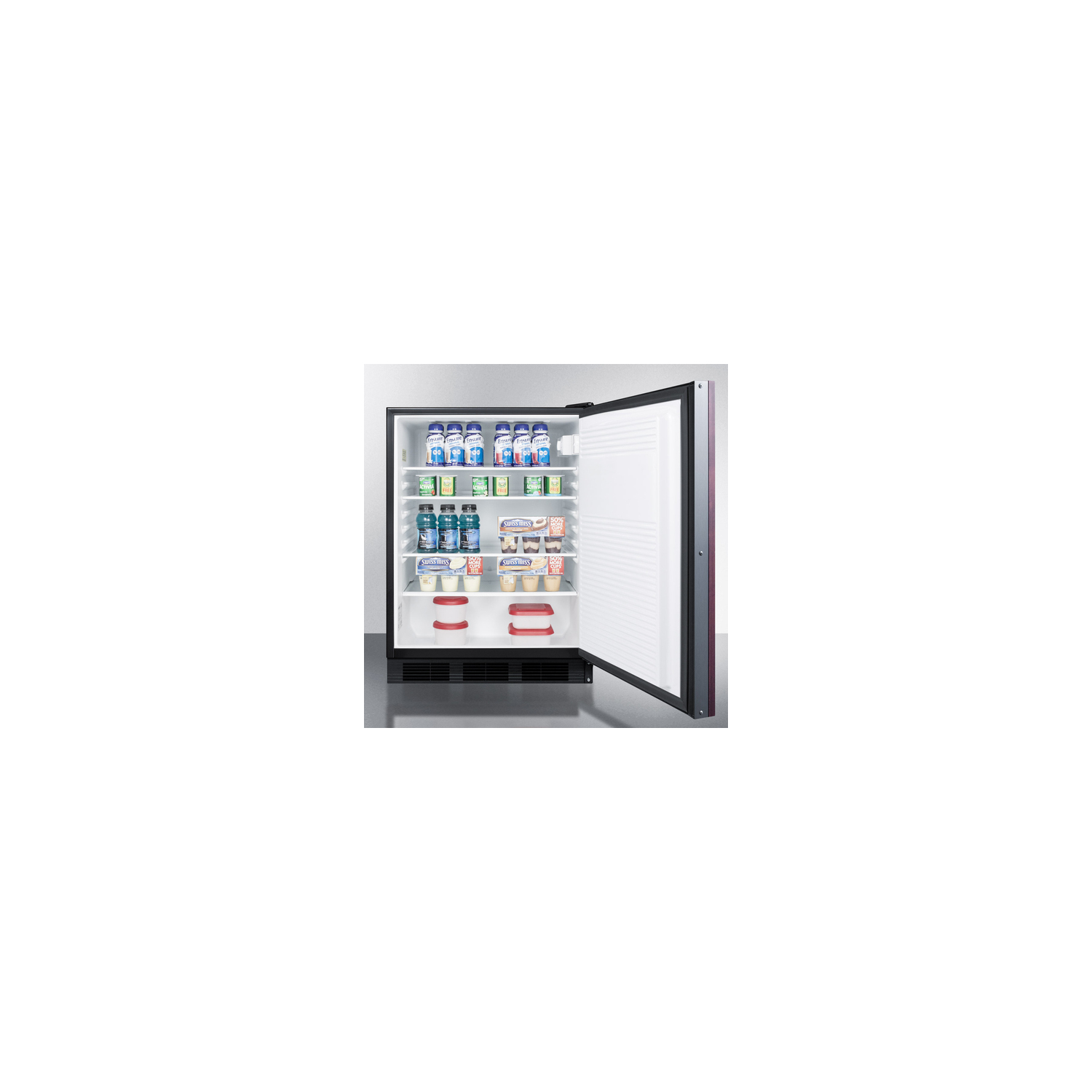

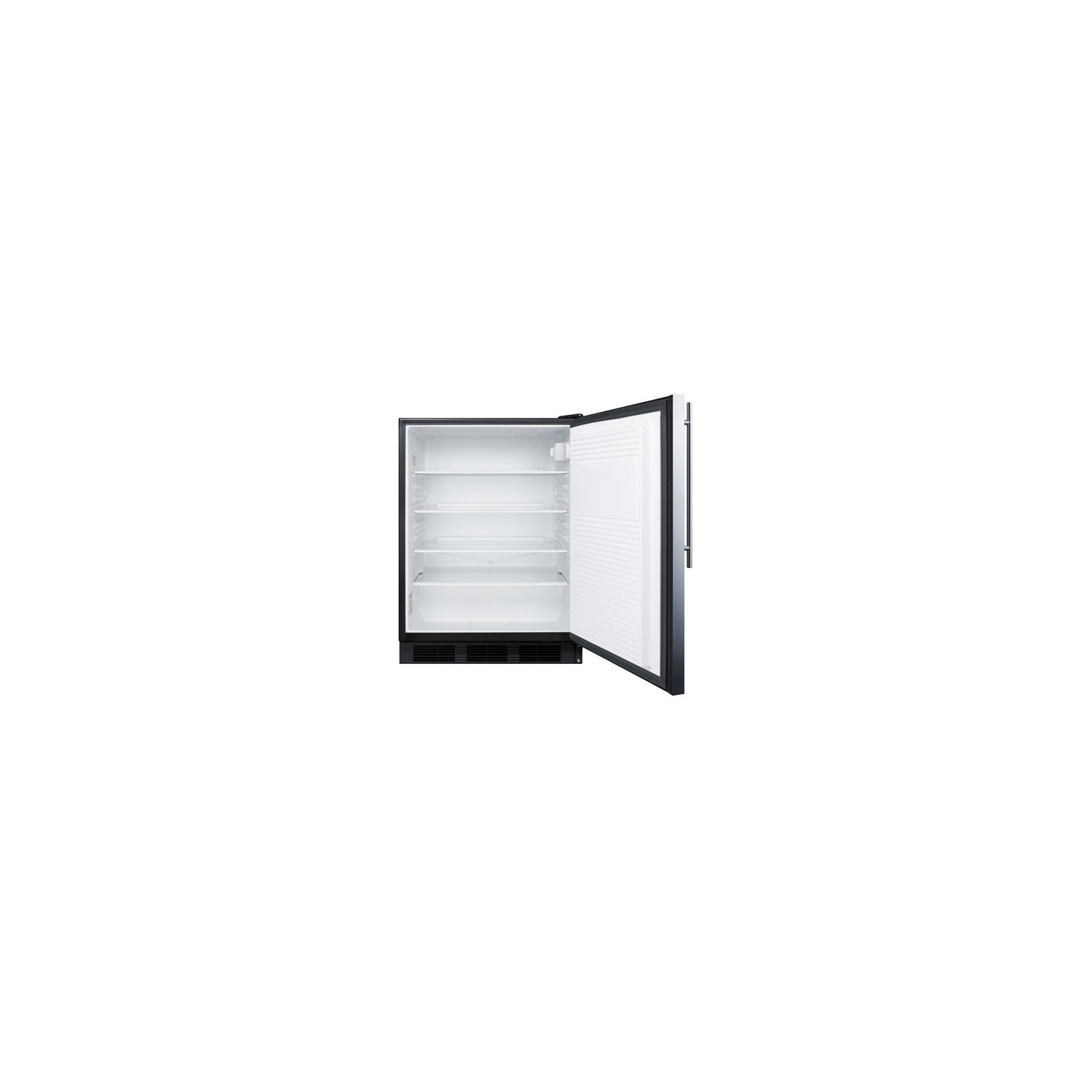

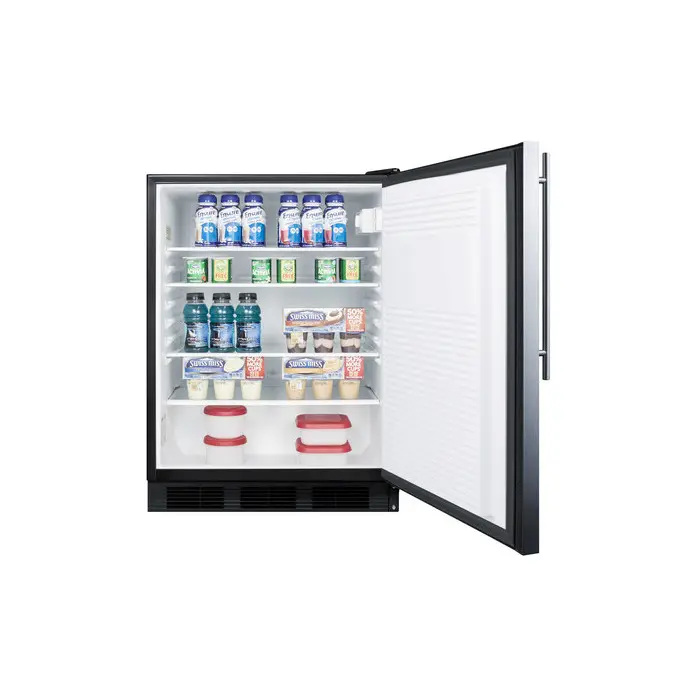

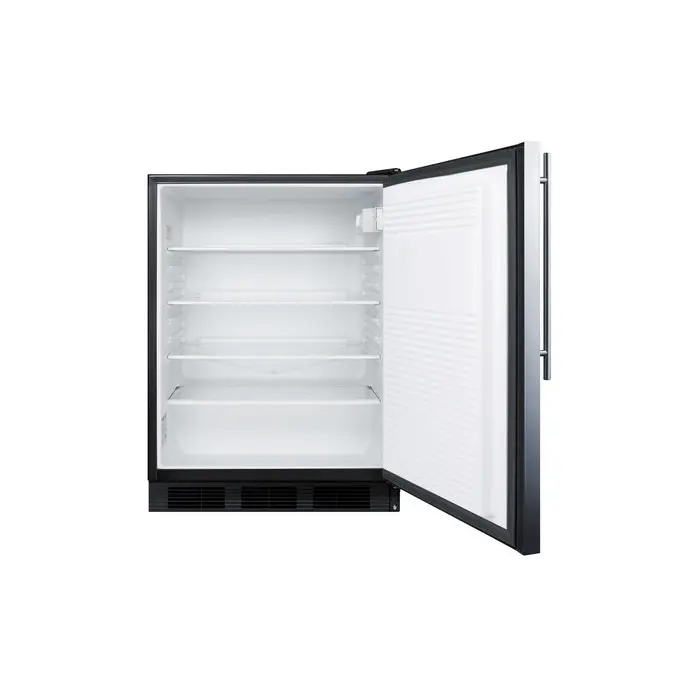

Inside, the AL752K utilizes low maintenance automatic defrost operation. Our unique "hidden" evaporator is set behind the rear wall to create a seamless, easy-to-clean interior that also maximizes shelf space. This unit has a flat door liner that allows it to accept larger trays (up to 19 1/2" x 16"). Adjustable wire shelves allow users to reconfigure the interior to accommodate a variety of sizes. The interior light is controlled by an on/off rocker switch located behind the thermostat dial.

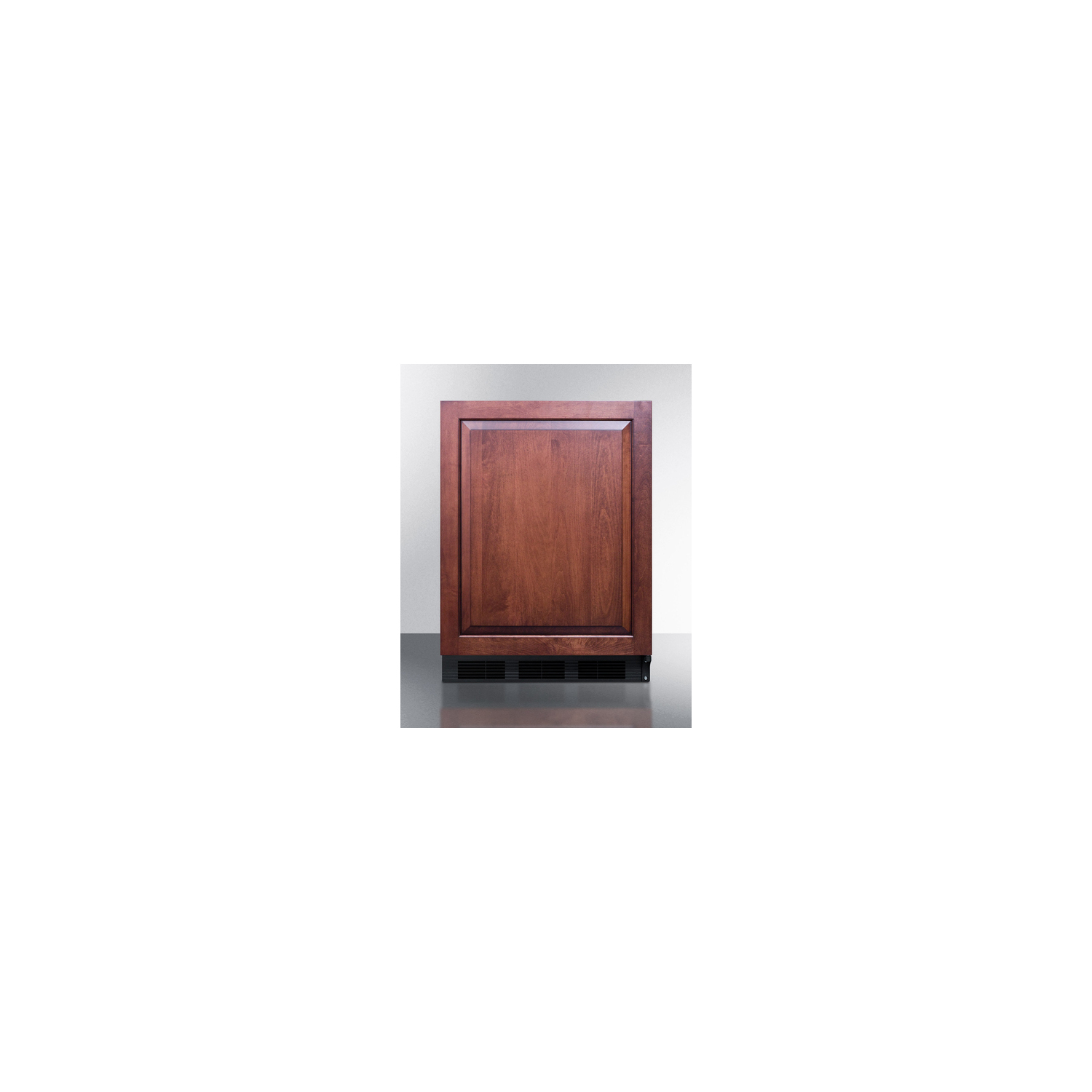

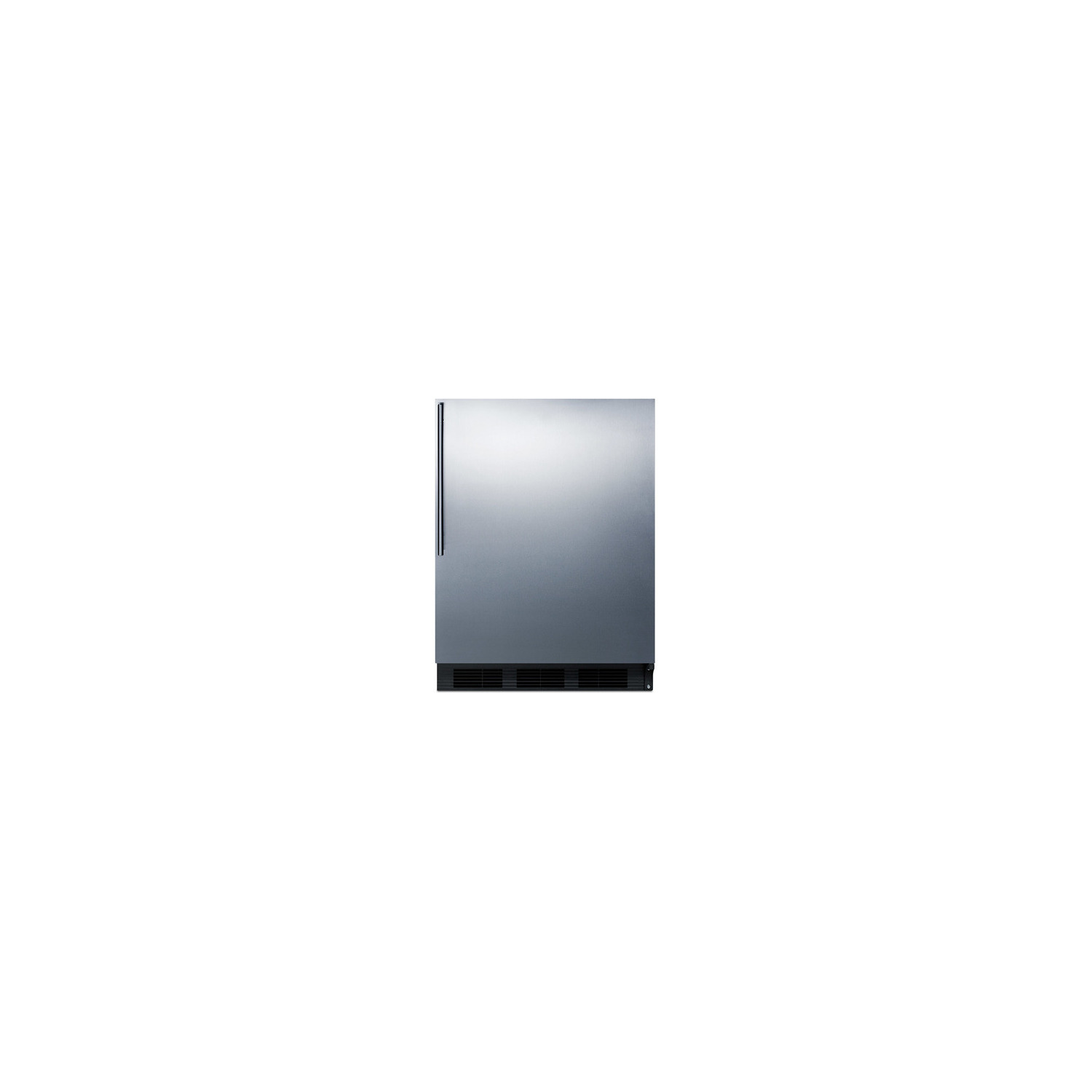

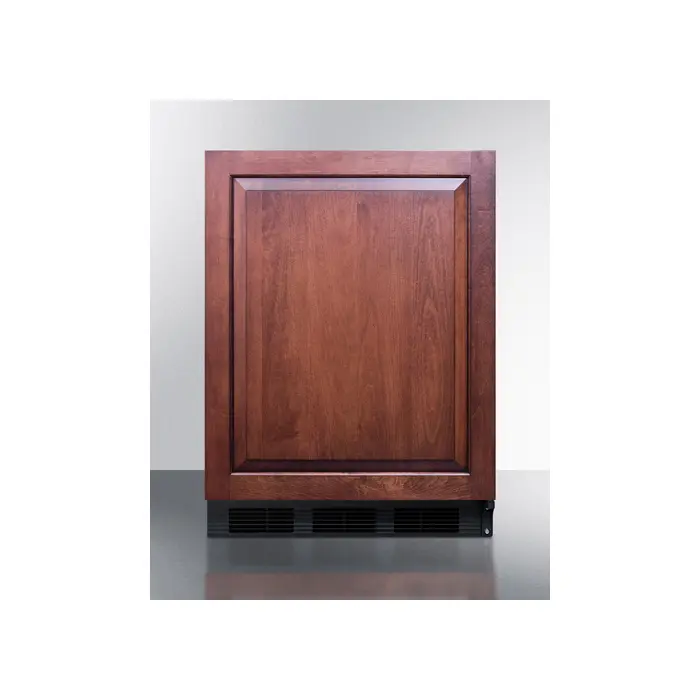

For a built-in version of this unit, see the AL752BKBI. For more finish options, browse the entire AL750 Series.
NOTE: This unit is designed for general purpose, medical, or commercial applications and does not meet DOE energy standards for residential use.
SPECIFICATIONS
Overview
Nominal Height 32.0" (81 cm)
Height of Cabinet 32.0" (81 cm)
Height to Hinge Cap 32.25" (82 cm)
Nominal Width 24.0" (61 cm)
Width 23.63" (60 cm)
Nominal Depth 24.0" (61 cm)
Depth 23.5" (60 cm)
Depth with Handle 24.0" (61 cm)
Depth with door at 90° 45.13" (115 cm)
Capacity 5.3 cu.ft. (150 L)
Defrost Type Automatic
Door Black
Cabinet Black
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Energy Usage/Year 276.0kWh/year
Amps 0.9
Voltage/Frequency 115 V AC/60 Hz
Weight 100.0 lbs. (45 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
UPC 761101071688
Refrigerator Features
Door Swing RHD
Reversible Yes
Shelf Type Glass
Shelf Qty 3
Adjustable Shelves Yes
Thermostat Type Dial
Refrigerant Type R600a
Refrigerant Amount 0.64oz.
High Side PSI 180.0
Low Side PSI 80.0
Level Legs Qty 4
Interior Light Yes
Dimensions
Interior Height 26.25" (67 cm)
Interior Width 21.0" (53 cm)
Interior Depth 17.75" (45 cm)
Compressor Step Height 5.5" (14 cm)
Compressor Step Width 21.0" (53 cm)
Compressor Step Depth 5.5" (14 cm)
FEATURES
ADA Compliant 32" height for use in settings complying with ADA guidelines for lower counter height
Slim counter height dimensions Ideal 24" footprint offers full 5.5 cu.ft. storage capacity in a slim fit
Fully finished cabinet Allows this unit to be used freestanding
Automatic defrost Reduced user maintenance with automatic defrost operation
Hidden evaporator Cold wall design with hidden evaporator and seamless interior
Adjustable thermostat Dial thermostat located inside for easy temperature management
Reversible door User-reversible door swing for added flexibility
Adjustable glass shelves Rearrange your refrigerator space to accommodate all shapes and sizes or remove shelves for a simple clean-up
Interior light on rocker switch Turn the light on when you need it and off when you're done with a convenient rocker switch located just behind the thermostat
Deep shelf space Interior accommodates large trays up to 19 1/2" x 15 1/2"
100% CFC free Environmentally friendly design without ozone-damaging chemicals
DOWNLOADS
BROCHURE w/ DRAWINGS (AL752BK.pdf)
TECHNICAL DRAWING (.dwg) (AL752BMODIFYFEFRIGERATORA-C2000.dwg)
